Product type	Upright freezer
Brand	Kenmore
Model	795.74077
Net capacity	280 liters
Height	176.5 cm
Width	70.8 cm
Depth	63.5 cm
Net weight	68 kg
Power supply	230 V / 50 Hz
Annual consumption	340 kWh
Energy class	E (old class A+)
Noise level	42 dB
Refrigerant	R600a (Isobutane)
Main functions	Electronic temperature control, quick freeze, door alarm, digital display
Defrosting	Automatic (No Frost)
Maintenance and cleaning	Clean the interior with a soft cloth and soapy water. Clean the condenser every 6 months.
Safety	Child lock, open door alarm, locking system
Spare parts and repairability	Available via Kenmore after-sales service. Repairability index: 7.5/10
Included accessories	Ice cube tray, glass shelves, door bins
Warranty	2 years (parts and labor)
General information	Suitable for temperate climates (SN-T). Free-standing or built-in installation.

Frequently Asked Questions - 795.74077 KENMORE

How do I adjust the temperature of my Kenmore 795.74077 freezer?

Use the + and - buttons on the control panel to adjust the temperature. The recommended range is -18°C to -22°C. The display shows the current temperature.

Why is my freezer making noise?

A slight humming is normal due to the compressor and fan. If the noise is loud or irregular, check that the appliance is level and the ventilation grills are not blocked.

How do I defrost the freezer?

This model is equipped with the No Frost system which prevents frost. No manual defrosting is necessary. If frost appears, check that the door closes properly.

What should I do if the door alarm sounds?

The alarm activates if the door remains open for more than 60 seconds. Close it completely. If the alarm persists, the door sensor may be defective; contact after-sales service.

How do I clean the interior of the freezer?

Unplug the appliance, remove food and shelves. Clean with a soft cloth dampened with warm water and baking soda. Rinse and dry before plugging back in.

Can I freeze hot food?

No, let it cool to room temperature before placing it in the freezer to avoid an internal temperature rise that could affect other foods.

What is the freezing capacity in 24h?

This model can freeze up to 12 kg of fresh food in 24 hours. Activate the quick freeze function 24 hours in advance for large quantities.

How do I change the interior light bulb?

Unplug the appliance. Remove the bulb cover (located at the top of the compartment). Replace with a T4 type bulb, max 15W. Screw back and plug in.

What to do in case of a prolonged power outage?

Do not open the door. Food stays frozen for about 24 hours. If the outage lasts longer, check the temperature with a thermometer. Do not refreeze thawed food.

How to install the freezer for optimal performance?

Place it in a dry, well-ventilated area, away from sunlight and heat sources. Leave 5 cm of space at the back and sides. Level it using the adjustable feet.

USER MANUAL 795.74077 KENMORE

Toronto, Ontario, Canada M5B 2C3

www.sears.ca

TABLE OF CONTENTS

Warranty....3

Protection Agreements 4

Important Safety Instructions....5-7

Electrical & Grounding Requirements......7

Parts and Features....8

Refrigerator Installation....9-16

Unpacking Your Refrigerator 9

Installation....10

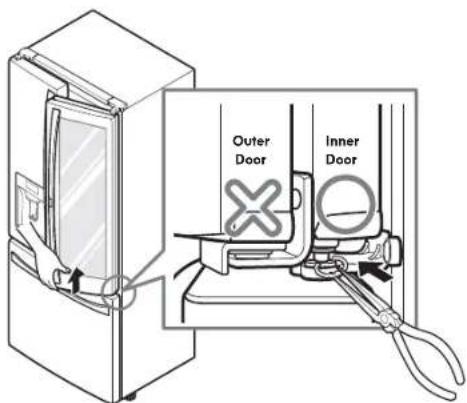

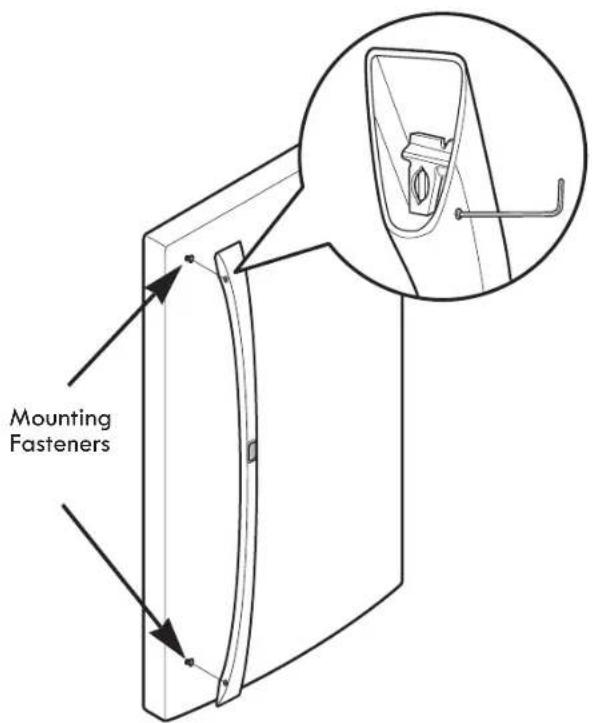

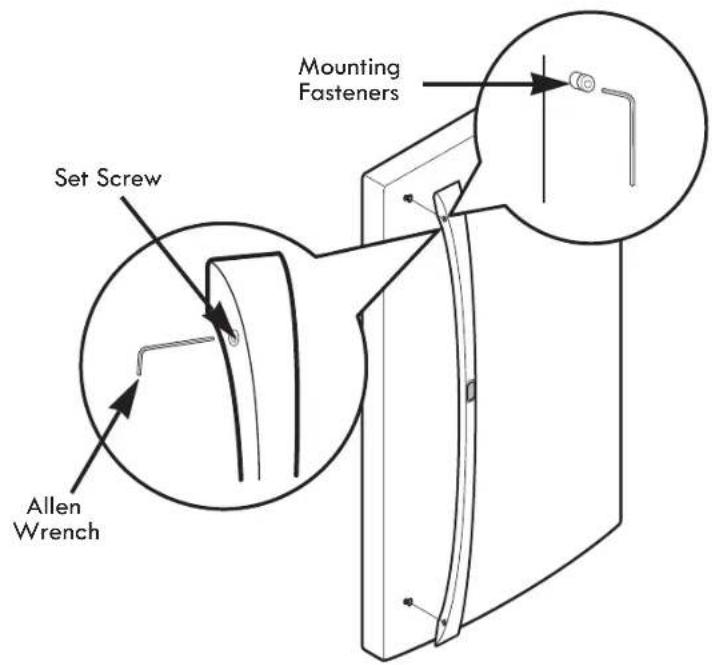

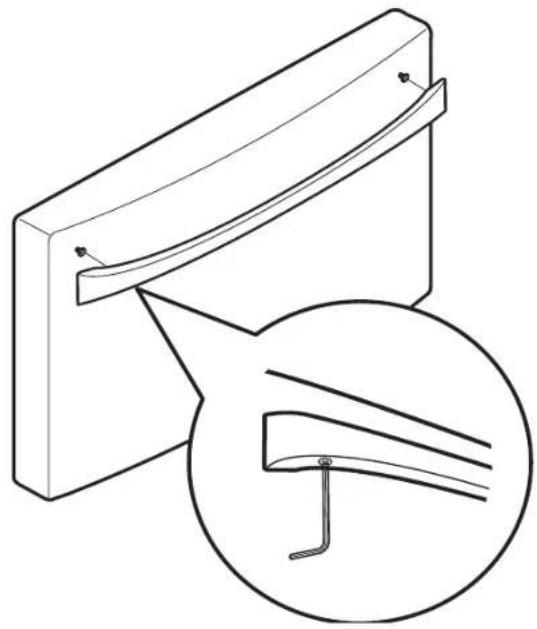

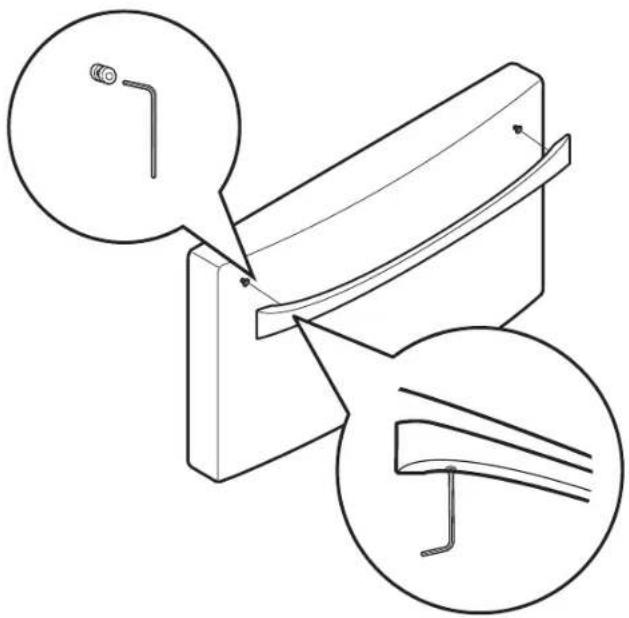

Removing/Replacing Your Refrigerator and Freezer Handles, Doors and Drawers.....11-15

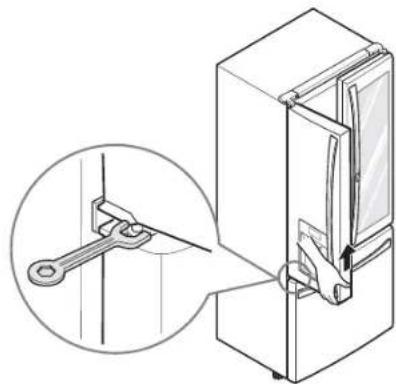

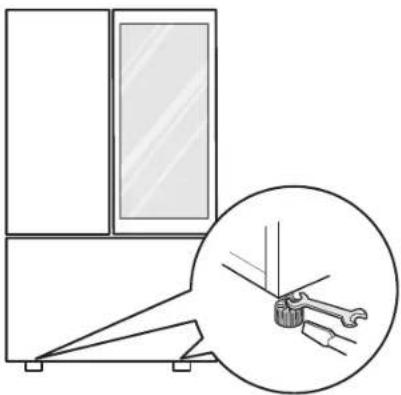

Leveling and Door Alignment .....16

Using Your Refrigerator 17-28

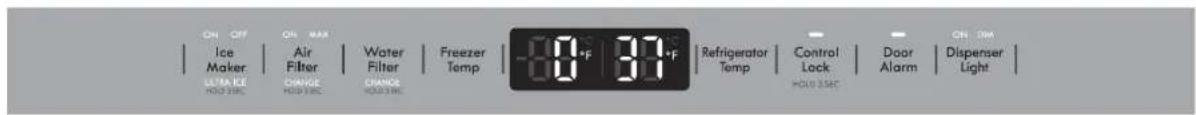

Setting the Controls ....17-19

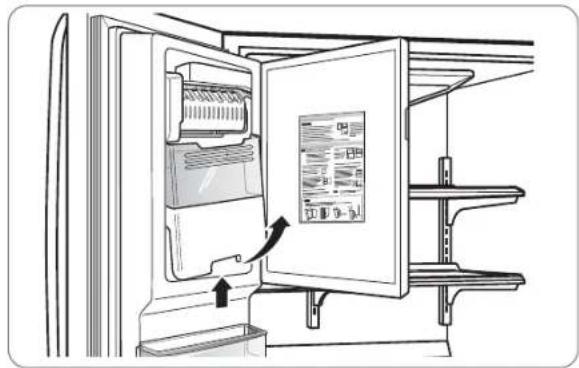

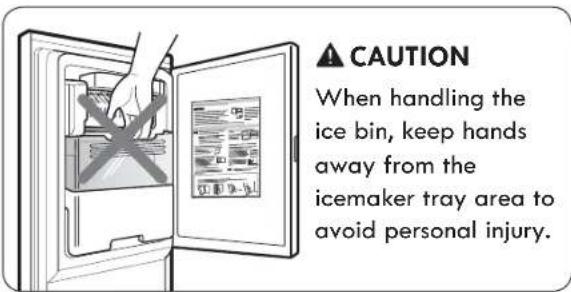

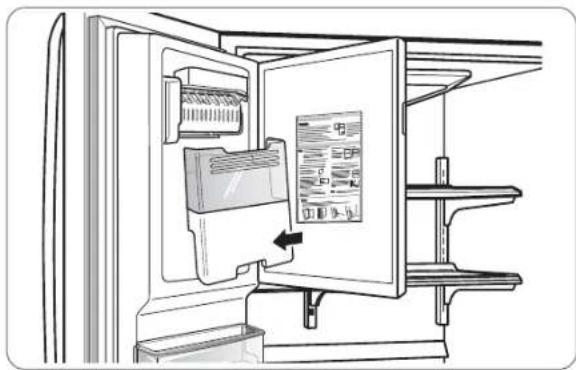

In-Door Ice Bin 20

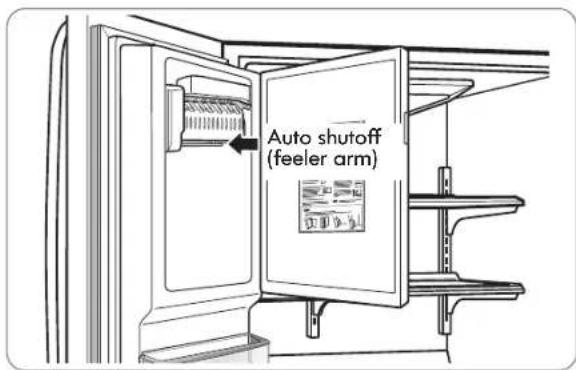

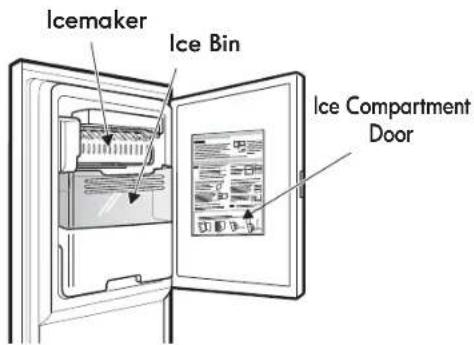

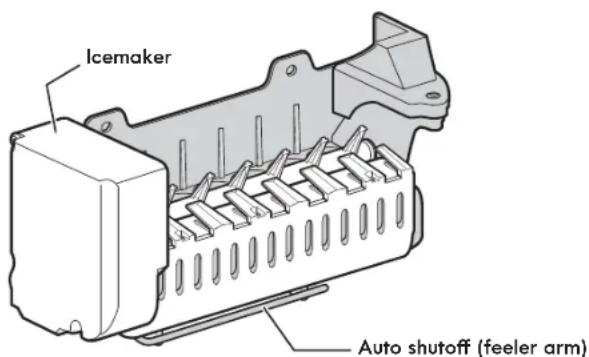

Automatic Icemaker 21-22

Food Storage Guide 23

▶ Refrigerator Section

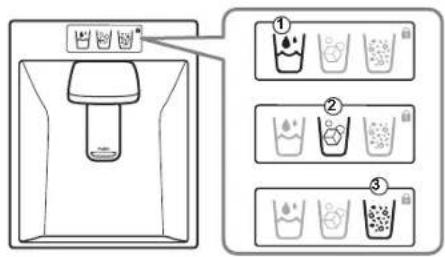

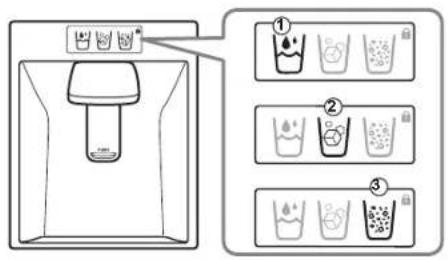

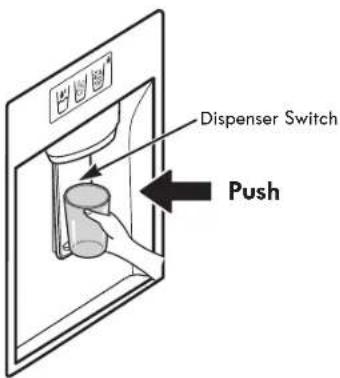

Water Dispenser 24

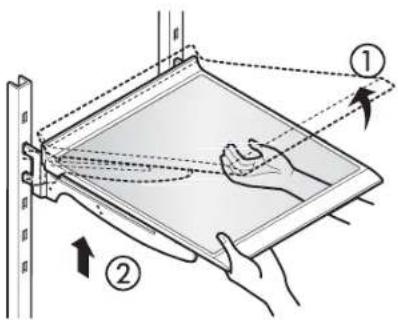

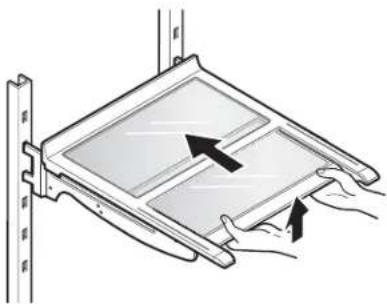

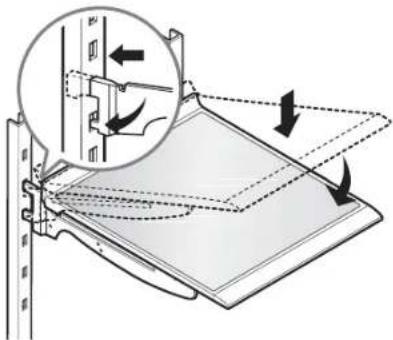

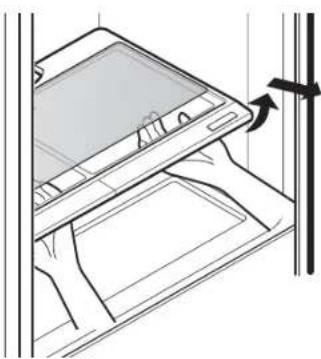

Refrigerator Shelves 25

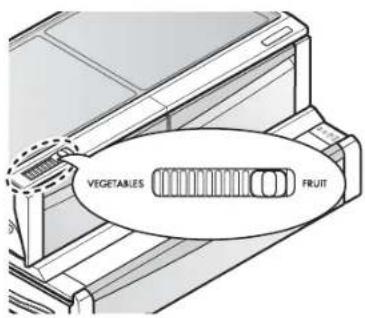

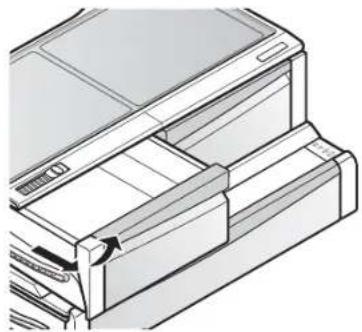

Humidity Controlled Crisper 26

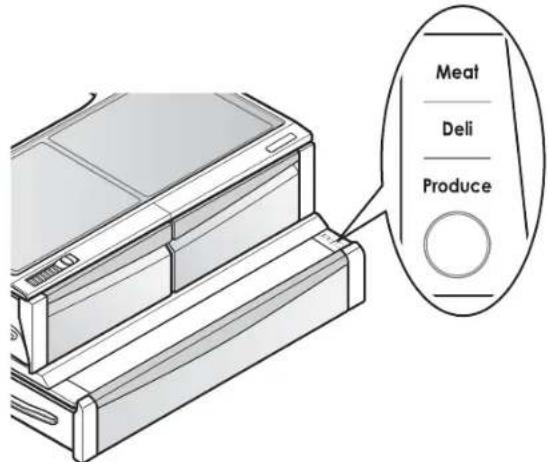

Temperature Controlled Pantry Drawer .....26

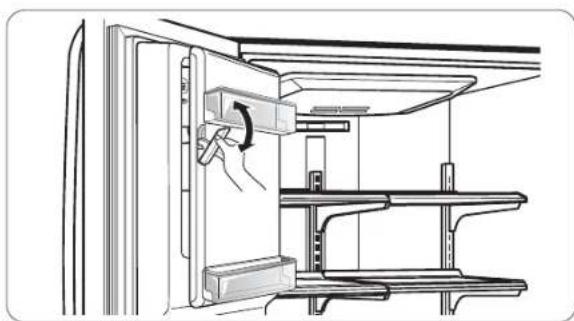

Door Bin 26

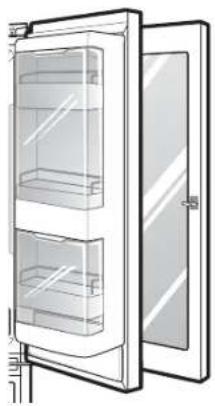

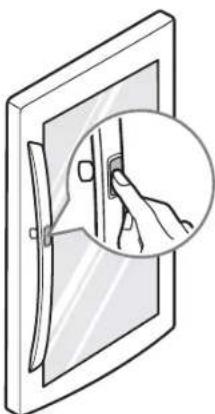

Preview Grab-N-Go 27

Grab-N-Go Case....27

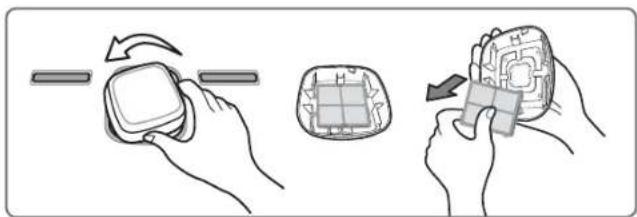

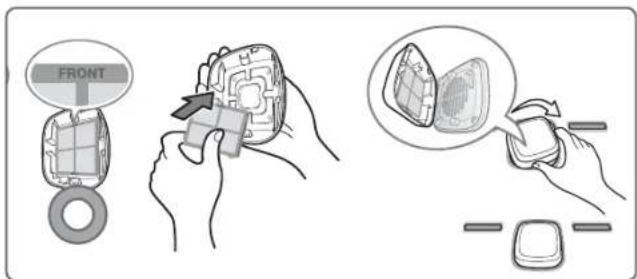

Replacing the Air Filter 28

▶ Freezer Section

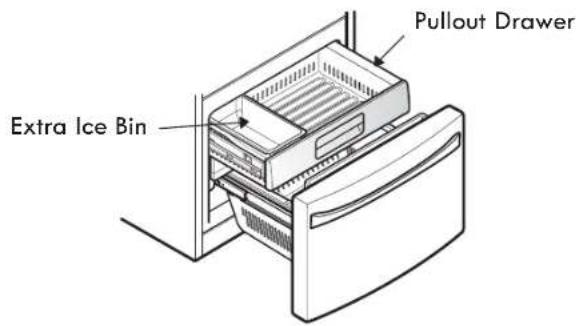

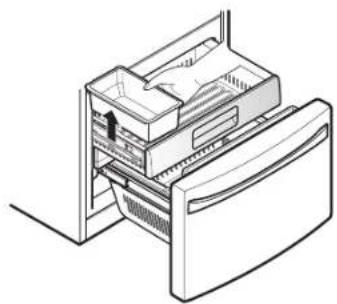

Extra Ice Bin 28

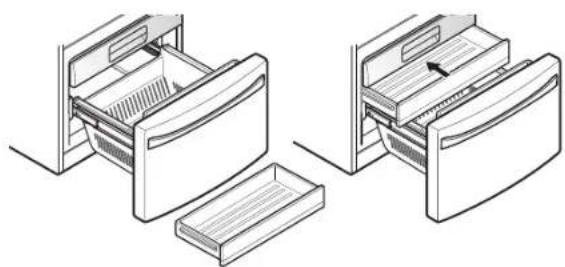

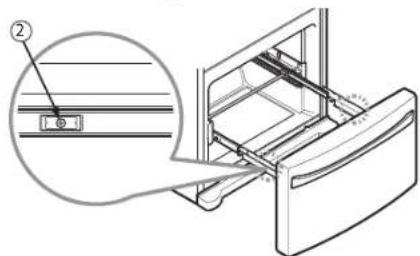

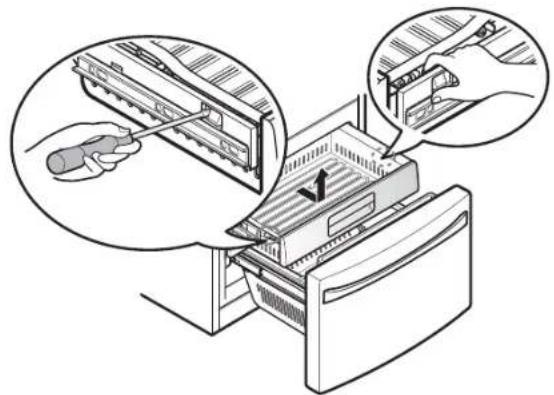

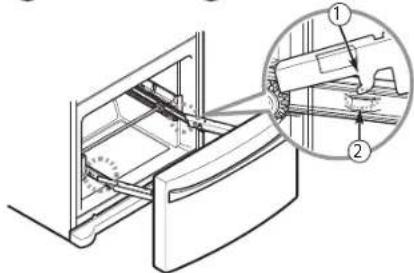

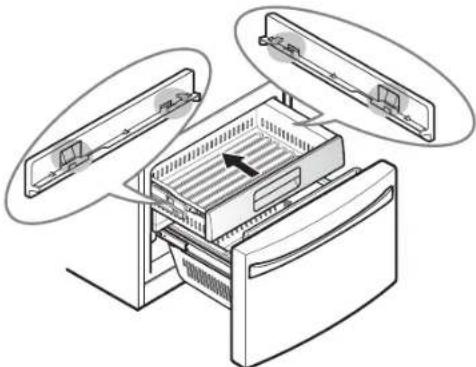

Pullout Drawer 29

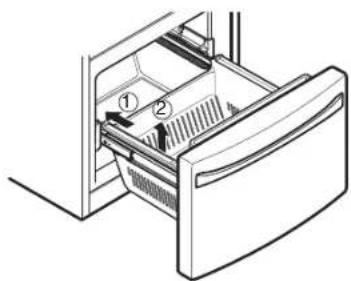

Durabase 29

Durabase Divider 29

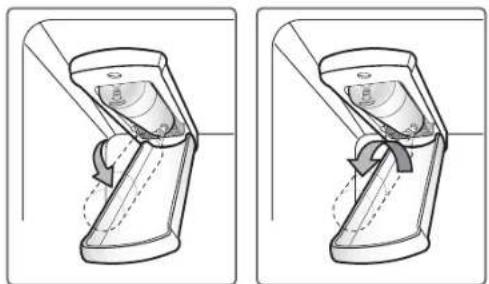

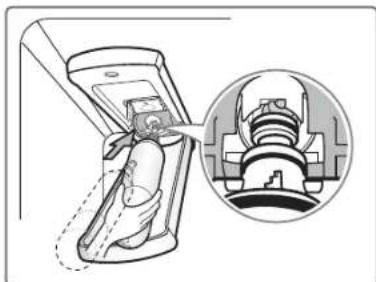

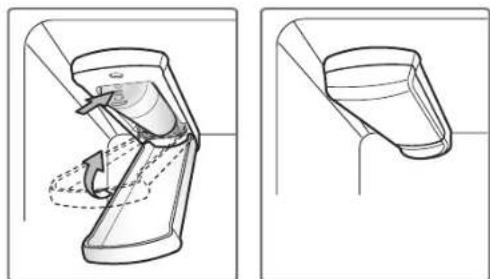

Water Filter 30-32

Care And Cleaning 33-34

General Cleaning Tips 33

Exterior 33

Inside Walls 33

Door Liner And Gaskets.... 33

Plastic Parts.... 33

Condenser Coils.... 33

Light Bulb Replacement 34

Power Interruptions 34

When You Go On Vacation.... 34

When You Move 34

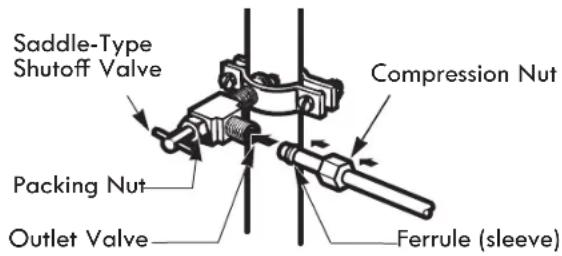

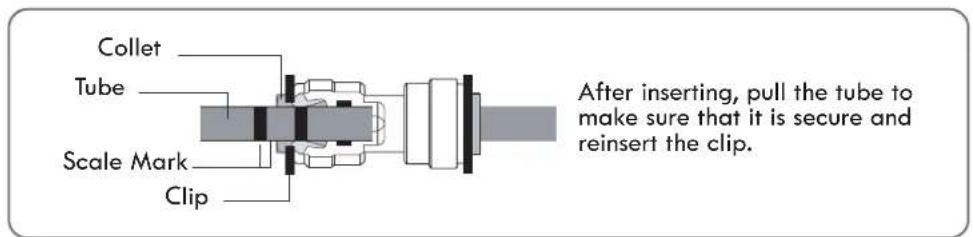

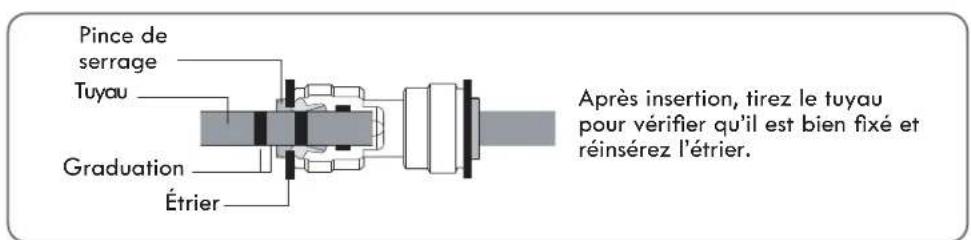

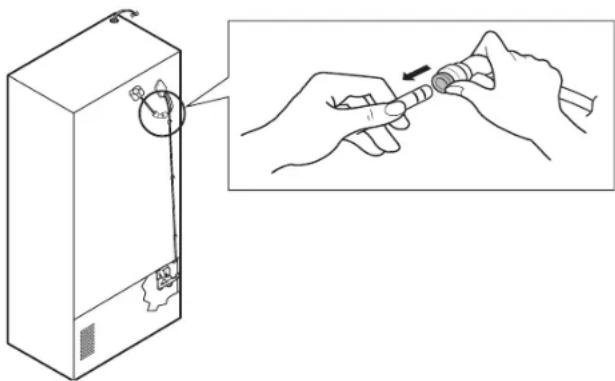

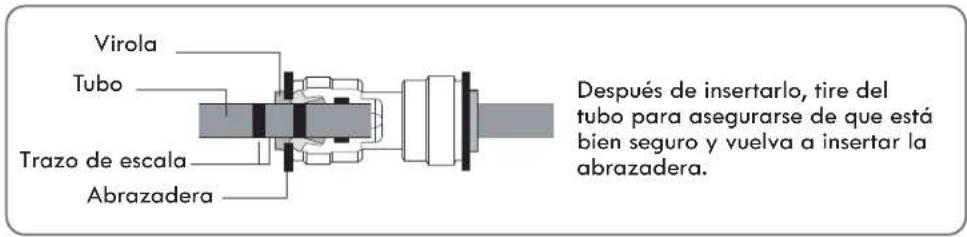

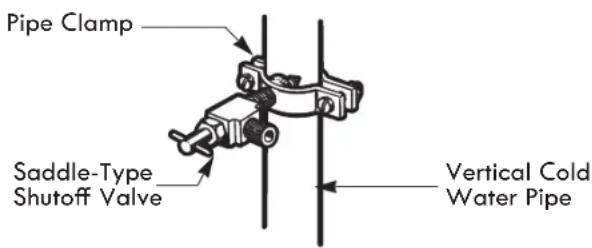

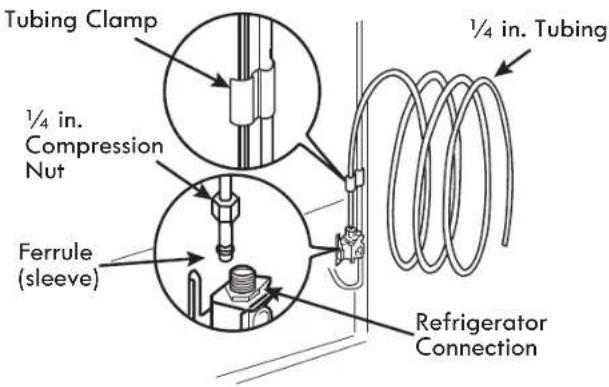

Connecting the Water Line 35-37

Troubleshooting Guide....38-45

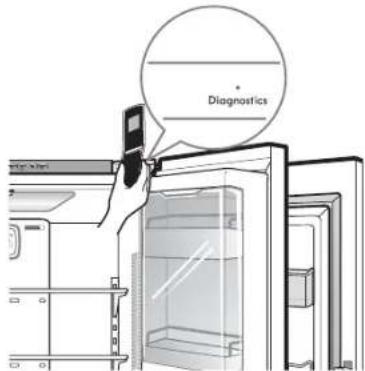

Diagnostics ^TM 46

Service......Back Cover

WARRANTY

REFRIGERATOR WARRANTY

KENMORE ELITE LIMITED WARRANTY

WITH PROOF OF SALE, the following warranty coverage applies when this appliance is correctly installed, operated and maintained according to all supplied instructions.

FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship. A defective appliance will receive free repair or replacement at option of seller. This warranty coverage applies for only 90 days from the sale date in the United States, and is void in Canada, if the appliance is ever used for other than private household purposes.

FOR FIVE YEARS from the date of sale, the sealed refrigerant system of this appliance is warranted against defects in material or workmanship. If a system part is defective within the first year, a new part will be supplied and installed at no charge. If a system part is defective after the first year, a new part will be supplied but not installed at no charge. You are responsible for the labor cost of part installation after the first year from the date of sale. This warranty coverage applies for only one year from the sale date in the United States, and is void in Canada, if the appliance is ever used for other than private household purposes.

FOR TEN YEARS from the date of sale, the linear compressor of this appliance is warranted against defects in material or workmanship. If the compressor is defective within the first year, a new one will be supplied and installed at no charge. If the compressor is defective after the first year, a new one will be supplied but not installed at no charge. You are responsible for the labor cost of part installation after the first year from the date of sale. This warranty coverage applies for only two years from the sale date in the United States, and is void in Canada, if the appliance is ever used for other than private household purposes.

For warranty coverage details to obtain free repair or replacement, visit the web page: www.kenmore.com/warranty

This warranty covers ONLY defects in material and workmanship, and will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, bags or screw-in base light bulbs.
2. A service technician to clean or maintain this appliance, or to instruct the user in correct appliance installation, operation and maintenance.
3. Service calls to correct appliance installation not performed by Sears authorized service agents, or to repair problems with house fuses, circuit breakers, house wiring, and plumbing or gas supply systems resulting from such installation.
4. Damage to or failure of this appliance resulting from installation not performed by Sears authorized service agents, including installation that was not in accord with electrical, gas or plumbing codes.
5. Damage to or failure of this appliance, including discoloration or surface rust, if it is not correctly operated and maintained according to all supplied instructions.
6. Damage to or failure of this appliance, including discoloration or surface rust, resulting from accident, alteration, abuse, misuse or use for other than its intended purpose.
7. Damage to or failure of this appliance, including discoloration or surface rust, caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.
8. Damage to or failure of parts or systems resulting from unauthorized modifications made to this appliance.
9. Service to an appliance if the model and serial plate is missing, altered, or cannot easily be determined to have the appropriate certification logo.

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair or replacement as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year on the appliance, five years on the sealed system, and ten years on the linear compressor, or the shortest period allowed by law. Seller shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States or Canada*.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

* In-home repair service is not available in all Canadian geographical areas, nor will this warranty cover user or servicer travel and transportation expenses if this product is located in a remote area (as defined by Sears Canada Inc.) where an authorized servicer is not available.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Sears Canada Inc., Toronto, Ontario, Canada M5B 2C3

PROTECTION AGREEMENTS

Master Protection Agreements

Congratulations on making a smart purchase. Your new Kenmore® product is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That's when having a Master Protection Agreement can save you money and aggravation.

The Master Protection Agreement also helps extend the life of your new product. Here's what the Agreement* includes:

Parts and labor not just for repairing defects, but to help keep products operating properly under normal use. Our coverage goes well beyond the product warranty. No deductibles, no functional failure excluded from coverage—real protection.
√ Expert service by experienced service technicians trusted in millions of homes every year.
√ Unlimited service calls and nationwide service, as often as you want us, whenever you want us.
☑ “No-lemon” guarantee – replacement of your covered product after three separate product failures occur within twelve months and a fourth repair is required. Includes free delivery and installation, if necessary, of replacement product.
☑ Product replacement if your covered product can't be fixed.
√ Annual Preventive Maintenance Check at your request – no extra charge.
√ Fast help by phone – phone support from a service agent on all products to help trouble-shoot problems. Think of us as a “talking owner’s manual.”

√ Power surge protection against electrical damage due to power fluctuations.
☑ \$300 Food Loss Protection for any food spoilage that is the result of mechanical failure of any covered refrigerator or freezer.
√ Service Promise: \$50 if first attempt repair of your covered product can't be accomplished and product is not usable while awaiting further repair service.
☑ 25% discount off the regular price of any non-covered repair service and related installed parts.

Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call anytime day or night.

The Master Protection Agreement is a risk free purchase. If you cancel for any reason during the product warranty period, we will provide a full refund. Or, a prorated refund anytime after the product warranty period expires. Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and additional information in the U.S.A. call 1-800-827-6655.

* Coverage in Canada varies on some items. For full details call Sears Canada at 1-800-361-6665.

Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the U.S.A. call 1-844-553-6667, and in Canada call 1-800-469-4663.

PRODUCT RECORD

In the space below, record the date of purchase, model and serial number of your product. You will find the model and serial number printed on an identification label located on the interior liner of the refrigerator compartment. Have these items of information available whenever you contact Sears concerning your product.

Model No.

Date of Purchase ____

Serial No.

Save these instructions and attach your sales receipt for future reference.

IMPORTANT SAFETY INSTRUCTIONS

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others, or cause damage to the product.

Messages will be preceded by the safety alert symbol and the hazard DANGER, WARNING or CAUTION. These words mean:

! DANGER

WARNING

CAUTION

You will be killed or seriously injured if you do not follow instructions.

You can be killed or seriously injured if you do not follow instructions.

Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

WARNING

To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety precautions should be followed, including the following.

Read all instructions before using this appliance.

NEVER unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull it straight out from the outlet.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.

Do not modify or extend the power cord length. It could cause electric shock or fire.

When moving your refrigerator away from the wall, be careful not to roll over or damage the power cord.

DO NOT store or use gasoline or other flammable • vapors and liquids in the vicinity of this or any other appliance.

DO NOT allow children to climb, stand, or hang on the refrigerator doors or shelves in the refrigerator. They could damage the refrigerator and seriously injure themselves.

Keep fingers out of pinch point areas; clearances • between the doors and cabinets are necessarily small. Be careful closing doors when children are in the area.

Unplug your refrigerator before cleaning or making any repairs.

NOTE: It is strongly recommended that any service be performed by a qualified technician.

SAVE THESE INSTRUCTIONS

! WARNING

Before replacing a burned-out or broken light bulb, • unplug the refrigerator or turn off power at the circuit breaker or fuse box in order to avoid contact with a live wire filament. (A burned-out light bulb may break when being replaced exposing the wire filament.)

NOTE: Some models have LED interior lighting and service should be performed by a qualified technician.

WARNING: Setting either or both controls to the OFF position does not remove power to the light circuit.

When you are finished, reconnect the refrigerator to • the electrical source and reset the controls (Thermostat, Refrigerator Control, and or Freezer Control, depending on the model) to the desired setting.

This refrigerator must be properly installed in • accordance with the Attention Installer Instructions that were taped to the front of the refrigerator.

After your refrigerator is in operation, do not touch the cold surfaces in the freezer compartment when hands are damp or wet. Skin may adhere to the extremely cold surfaces.

DO NOT touch the automatic ice making mechanism • while the refrigerator is plugged in.

DO NOT refreeze frozen foods which have thawed • completely. The United States Department of Agriculture in Home and Garden Bulletin No. 69 says:

...You may safely refreeze frozen foods that have thawed if they still contain ice crystals or if they are still cold—below 39^ F ( 4^ C).

...Thawed ground meats, poultry or fish that have any off-odor or off-color should not be refrozen and should not be eaten. Thawed ice cream should be discarded. If the odor or color of any food is poor or questionable, dispose of it. The food may be dangerous to eat.

Even partial thawing and refreezing reduces the eating quality of foods, particularly fruits, vegetables and prepared foods. The eating quality of red meats is affected less than that of many other foods. Use refrozen foods as soon as possible to save as much of their quality as you can.

DO NOT strike or apply excessive force to any glass surface. It may break.

WARNING

- This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

SAVE THESE INSTRUCTIONS

⚠️ DANGER: RISK OF CHILD ENTRAPMENT

Junked or abandoned refrigerators are dangerous, even if they are sitting for only a few days. If you are getting rid of your old refrigerator, please follow the instructions at right to help prevent accidents (child entrapment and suffocation).

Take off the doors. Leave the shelves in place so that children may not easily climb inside.

CFC/HCFC DISPOSAL

Your old refrigerator may have a cooling system that used CFCs or HCFCs (chlorofluorocarbons or hydrochlorofluorocarbons). CFCs and HCFCs are believed to harm stratospheric ozone if released to the atmosphere. Other refrigerants may also cause harm to the environment if released to the atmosphere.

If you are throwing away your old refrigerator, make sure the refrigerant is removed for proper disposal by a qualified technician. If you intentionally release refrigerant, you may be subject to fines and imprisonment under provisions of environmental legislation.

ELECTRICAL & GROUNDING REQUIREMENTS

IMPORTANT: Please read carefully. TO CONNECT ELECTRICITY

WARNING

Electrical Shock Hazard

FOR PERSONAL SAFETY, this appliance must be properly grounded. Have the wall outlet and the circuit checked by a qualified electrician to make sure the outlet is properly grounded.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain conditions, the use of an extension cord is not recommended. However, if you still elect to use an extension cord, it is absolutely necessary that it be a UL-listed (USA), 3-wire grounding type appliance extension cord having a grounding type plug and outlet, and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts.

Use of an extension cord will increase the clearance needed for the back of the refrigerator.

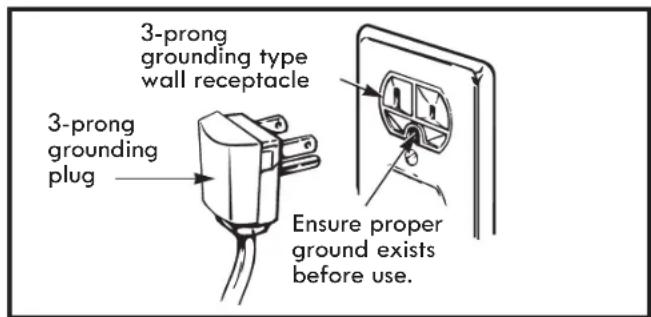

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into its own individual properly grounded electrical outlet rated for 115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires. It is recommended that a separate circuit serving only this appliance be provided.

Use a receptacle that cannot be turned off with a switch or pull chain. Do not use an extension cord.

Where a standard two-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded three-prong wall outlet.

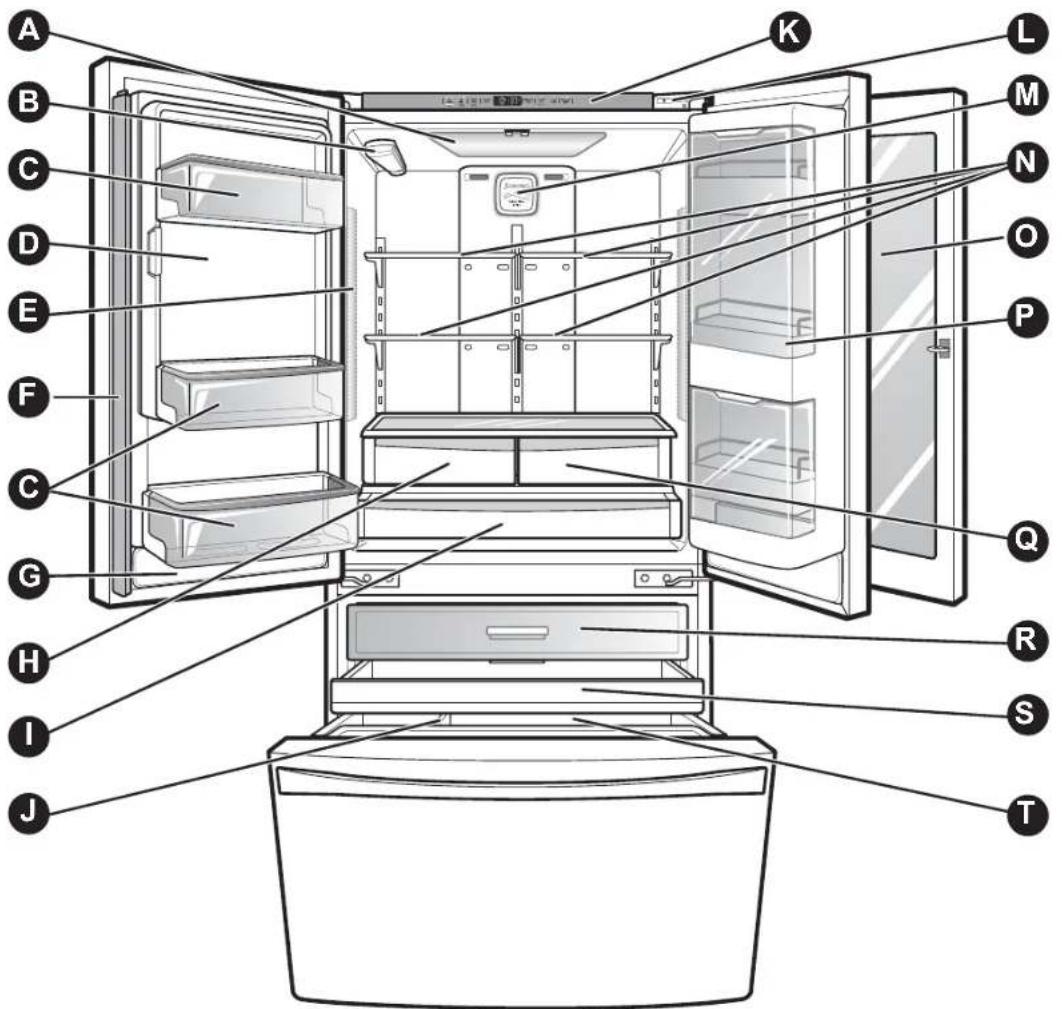

PARTS AND FEATURES

Use this page to become more familiar with the parts and features of your refrigerator.

NOTE: This guide covers several different models. The refrigerator you have purchased may have some or all of the items listed below. The locations of the features shown below may not match your model.

A Refrigerator Light
B Water Filter
© Fixed Door Bins
D Ice Compartment (Icemaker and Ice Bin)
E Refrigerator Light (side)
F Articulating Mullion
G Water Tank Cover
H Humidity Controlled Crisper
● Temperature Controlled Pantry Drawer

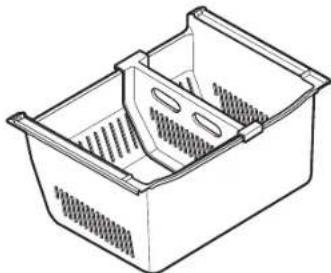

Durabase Divider

K Control Panel
Diagnostics™
M Air Filter
N Refrigerator Shelves
© PreView Grab-N-Go
P Grab-N-Go Case
Air Tight Crisper
R Top Pullout Drawer
Middle Pullout Drawer
T Durabase

REFRIGERATOR INSTALLATION

WARNING

Excessive Weight Hazard:

Use two or more people to move and install the refrigerator. Failure to do so can result in back or other injury.

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your refrigerator before using. Do not remove any warning-type labels, the model and serial number label, or the Tech Sheet that is located under the front of the refrigerator.

To remove any remaining tape or glue, rub the area briskly with your thumb. Tape or glue residue can also be easily removed by rubbing a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.

Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator.

Refrigerator shelves are installed in the shipping position. Please reinstall shelves according to your individual storage needs.

! WARNING

Excessive Weight Hazard:

Your refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to protect the floor. Always pull the refrigerator straight out when moving it. Do not wiggle or walk the refrigerator when trying to move it, as floor damage could occur.

WARNING

Explosion Hazard:

Keep flammable materials and vapors, such as gasoline, away from the refrigerator. Failure to do so can result in fire, explosion, or death.

REFRIGERATOR INSTALLATION

PRIOR TO USE

1. Clean your refrigerator thoroughly and wipe off all dust that accumulated during shipping.
2. Install accessories such as ice cube bin, drawers, shelves, etc., in their proper places. They are packed together to prevent possible damage during shipment.
3. Allow your refrigerator to run for at least two to three hours before putting food in it. Check the flow of cold air in the freezer compartment to ensure proper cooling. Your refrigerator is now ready for use.

INSTALLATION

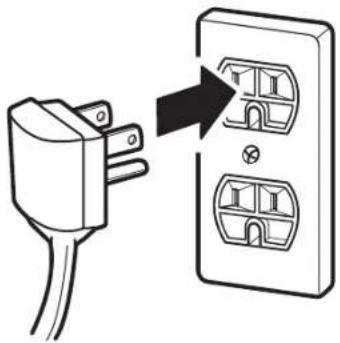

The refrigerator should always be plugged into its own individual properly grounded electrical outlet rated for 115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires. It is recommended that a separate circuit serving only this appliance be provided.

WARNING

Shock Hazard:

To reduce the risk of electric shock, do not install the refrigerator in a wet or damp area.

INSTALLATION (continued)

1. To avoid noise and vibration, the unit must be leveled and installed on a solidly constructed floor. If required, adjust the leveling legs to compensate for unevenness of the floor. The front should be slightly higher than the rear to aid in door closing. Leveling legs can be turned easily by tipping the cabinet slightly. Turn the leveling legs to the left to raise the unit or to the right to lower it. (See LEVELING AND DOOR ALIGNMENT.)

NOTE: Installing on carpeting, soft tile surfaces, a platform or weakly supported structure is not recommended.

1. Install this appliance in an area where the temperature is between 55^ F ( 13^ C) and 110^ F ( 43^ C). If the temperature around the appliance is too low or high, cooling ability may be adversely affected.
2. Select a place where a water supply can be easily connected for the automatic icemaker.

NOTE: The water pressure must be from 20-120 psi or 138-827 kPa or 1.4-8.4 kgf/cm². If the refrigerator is installed in an area with low water pressure (below 20 psi), you can install a booster pump to compensate for the low pressure.

1. Too small of a distance from adjacent items may result in lowered freezing capability and increased electricity consumption charges. Allow at least 24 inches (61 cm) in front of the refrigerator to open the doors and at least 2 inches (5.08 cm) between the back of the refrigerator and the wall.

NOTE: Removing the doors is always recommended when it is necessary to move the refrigerator through a narrow opening. If it is necessary to remove the handles, follow the directions below.

HOW TO REMOVE REFRIGERATOR DOOR HANDLE

NOTE: Handle appearance may vary from the illustrations on this page.

Removing Refrigerator Handle

Loosen the set screws with a 332 in. Allen wrench and remove the handle.

NOTE: If the handle mounting fasteners need to be tightened or removed, use a 14 in. Allen wrench.

HOW TO REPLACE REFRIGERATOR DOOR HANDLE

NOTE: Handle appearance may vary from the illustrations on this page.

Replacing Refrigerator Door Handle

Place the handle on the door by fitting the handle footprints over the mounting fasteners and tightening the set screws with a 332 in Allen wrench.

NOTE: If the handle mounting fasteners need to be tightened or removed, use a 14 in. Allen wrench.

REFRIGERATOR INSTALLATION

NOTE: Removing the doors is always recommended when it is necessary to move the refrigerator through a narrow opening. If it is necessary to remove the handles, follow the directions below.

HOW TO REMOVE FREEZER DOOR HANDLE

NOTE: Handle appearance may vary from the illustrations on this page.

Removing Freezer Drawer Handle

Loosen the set screws located on the lower side of the handle with a 18 in. Allen wrench and remove the handle.

NOTE: If the handle mounting fasteners need to be tightened or removed, use a 14 in. Allen wrench.

Technical line drawing of a mechanical component with two views showing internal features (no text or symbols)

HOW TO REPLACE FREEZER DOOR HANDLE

NOTE: Handle appearance may vary from the illustrations on this page.

Replacing Freezer Drawer Handle

Place the handle on the door by fitting the handle footprints over the mounting fasteners and tightening the set screws with a 18 in. Allen wrench.

NOTE: If the handle mounting fasteners need to be tightened or removed, use a 14 in. Allen wrench.

WARNING

When assembling or disassembling the handles:

Grasp the handle firmly to ensure it will not drop or cause injury.

Prevent the handle from swinging toward nearby • people or animals.

Insert the bracket hole of the handle into the stopper bolt of the door exactly, then assemble the set screws to fix the handle in place.

Check for any gap between the door and handle after the handle is fixed in place.

Technical line drawing of a structural component with an inset magnified detail showing a bracket detail (no text or symbols)

REMOVING AND REPLACING REFRIGERATOR DOORS

WARNING

Excessive Weight Hazard:

Use two or more people to remove and install the refrigerator doors. Failure to do so can result in back or other injury.

! WARNING

Electrical Shock Hazard

Disconnect the electrical supply to the refrigerator • before installing. Failure to do so could result in serious injury or death.

Do not put hands, feet or other objects into the air • vents or bottom of the refrigerator. You may be injured or receive an electrical shock.

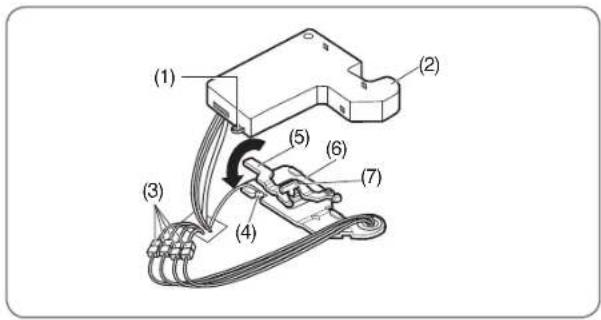

To remove the left refrigerator door:

On the back of the refrigerator, pull the water tube out of the collet fitting on the connector by pressing the fitting release ring (see picture below).

⚠️ CAUTION: Before you begin, remove food and bins from the doors.

1. Open the door. Remove the top hinge cover screw (1). Lift up the cover (2).
2. Remove the cover.
3. Pull out the tube (3).
4. Disconnect all wire harnesses (4).
5. Remove the grounding screw (5).
6. Rotate hinge lever (6) counterclockwise. Lift the top hinge (7) free of the hinge lever latch (8).

CAUTION: When lifting the hinge free of the latch, be careful that the door does not fall forward.

1. Lift the door from the middle hinge pin and remove the door.
2. Place the door, inside facing up, on a non-scratching surface.

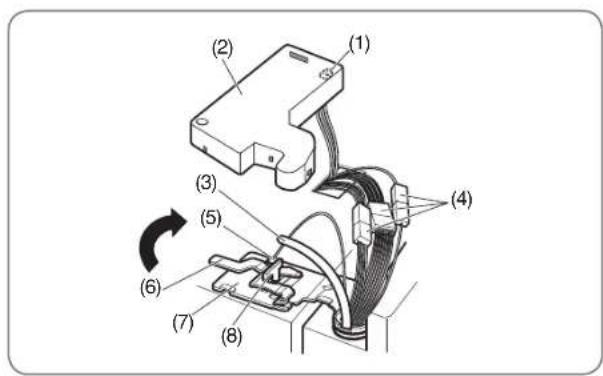

To remove the right refrigerator door:

1. Open the door. Remove the top hinge cover screw (1). Lift up the cover (2).
2. Remove the cover.
3. Remove the grounding screw(4).
4. Rotate the hinge lever (5) clockwise. Lift the top hinge(6) free of the hinge lever latch (7).

CAUTION: When lifting the hinge free of the latch, be careful that the door does not fall forward.

1. Lift the door from the middle hinge pin and remove the door.
2. Place the door, inside facing up, on a non-scratching surface.

REFRIGERATOR INSTALLATION

Reinstalling the Refrigerator Door

▶ Left Door

1. Lower the door onto the middle hinge pin (10).
2. Fit the top hinge (7) over the hinge lever latch (8) and into place. Rotate the lever (6) clockwise to secure the hinge.
3. Install the grounding screw (5) and connect the two wire harnesses (4).
4. Push the water tube (3) located at the top of the left door into the hole beside the left hinge on the top of the cabinet until it exits through the back.
5. Insert the water supply tube (3) into the connector until you see only one scale mark. Fully insert the tube over 58 in. (15 mm).
6. Hook the tabs on the left side of the hinge cover (1) under the edge of the top hinge (7) and position the cover in place. Insert and tighten the cover screw (1).

Right Door

1. Lower the door onto the middle hinge pin (9).
2. Fit the top hinge (6) over the hinge lever latch (7) and into place. Rotate the lever (5) counterclockwise to secure the hinge.
3. Install the grounding screw (4) and connect the wire harnesses (3).
4. Hook the tabs on the right side of hinge cover (2) under the edge of the top hinge (6) and position the cover in place. Insert and tighten the cover screw (1).

CAUTION

HOW TO REMOVE THE FREEZER DRAWER

⚠ WARNING: Use two or more people to remove and install the freezer drawer. Failure to do so can result in back or other injury.

CAUTION: Do not hold the handle when removing or replacing the drawer. The handle may come off and it could cause personal injury.

NOTE: In the following figures, the Pullout Drawer located above the freezer drawer is not shown for clarity.

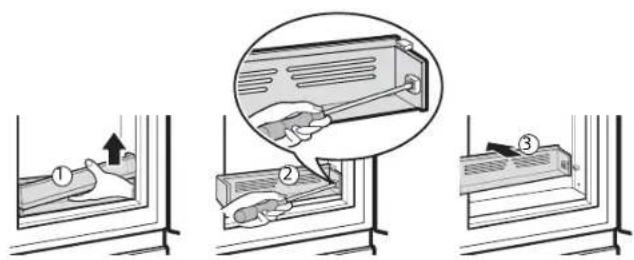

Pull the drawer open to full extension. Remove the lower basket ① by lifting the basket from the rail system.

Diagram of a refrigerator interior showing the drawer and front panel (no text or symbols)

Remove the screws ② from the rail on both sides.

Grasp the drawer on each side and pull it up to separate it from the rails.

Line drawing of a refrigerator drawer with handle and drawer slot (no text or symbols)

With both hands, slide each bar in simultaneously.

Diagram of hands using a tool to interact with a device inside a container (no text or symbols present)

HOW TO INSTALL THE FREEZER DRAWER

Pull out each rail to full extension.

Line drawing of hands using a tool to lift a rectangular object (no text or symbols)

Grasp the drawer on each side and hook drawer supports ① into rail tabs ② located on both sides.

Lower the door into its final position and tighten the screws ③ located on both sides.

With the drawer pulled out to full extension, insert the lower basket ④ in the rail assembly.

Diagram of an refrigerator interior showing internal compartments and a labeled component (no text or symbols present)

WARNING: If the Durabase divider is removed, there is enough open space for children or pets to crawl inside. To prevent accidental child and pet entrapment or suffocation risk, DO NOT allow them to touch or go near the freezer drawer.

⚠ WARNING: DO NOT step or sit down on the freezer drawer.

REFRIGERATOR INSTALLATION

LEVELING AND DOOR ALIGNMENT

Leveling

After installing, plug the refrigerator's power cord into a 3-prong grounded outlet and push the refrigerator into the final position.

Your refrigerator has two front leveling legs—one on the right and one on the left. Adjust the legs to alter the tilt from front-to-back or side-to-side. If your refrigerator seems unsteady, or you want the doors to close more easily, adjust the refrigerator's tilt using the instructions below:

NOTE: Tools Required: 11/16" wrench or flat blade screwdriver.

1. Turn the leveling leg to the left to raise that side of the refrigerator or to the right to lower it. It may take several turns of the leveling leg to adjust the tilt of the refrigerator.

Diagram showing a cabinet with a mirror and a magnified view of a mechanical tool (no text or symbols present)

NOTE: Having someone push backward against the top of the refrigerator takes some weight off of the leveling legs. This makes it easier to adjust the legs.

1. Open both doors again and check to make sure that they close easily. If the doors do not close easily, tilt the refrigerator slightly more to the rear by turning both leveling legs to the left. It may take several more turns, and you should turn both leveling legs the same amount.

NOTE: Your refrigerator is uniquely designed with two fresh food doors. Either door can be opened or closed independently of the other. You may have to exert slight pressure on the doors to get them to close completely.

Door Alignment

The left refrigerator door has an adjustable nut, located on the bottom hinge, to raise and lower the door for proper alignment.

If the space between your doors is uneven, follow the instructions below to align the doors evenly:

Use the wrench (included with the Use & Care Guide) to turn the nut in the door hinge to adjust the height. To the right to raise or to the left to lower the height.

Technical line drawing of a refrigerator with an inset showing a wrench inserted into the door (no text or symbols present)

The right refrigerator door does not have an adjustable nut.

If the space between your doors is uneven, follow the instructions below to align the right door:

1. With one hand, lift up both the inner and outer door sections of the right door to raise them at the middle hinge. (Opening the door may make lifting it easier)

2. With the other hand, use pliers to insert the snap ring on the middle hinge of the inner door section as shown. Do not insert the ring on the hinge of the outer door section.

3. Insert additional snap rings until the right door is aligned. (Two snap rings are provided with the unit.)

USING YOUR REFRIGERATOR

SETTING THE CONTROLS

Temperature

The Refrigerator Temp Control ranges from 33°F to 46°F (1°C to 8°C). Press the Refrigerator Temp button to cycle through the available temperature settings one increment at a time.

The Freezer Temp Control range is from -6^ to 8^ · (-21^ to -13^) . Press the Freezer Temp button to cycle through the available temperature settings one increment at a time.

NOTE: When changing control settings, wait 24 hours before making additional adjustments. The controls are set correctly when milk or juice is as cold as you would like and when ice cream is firm. If the temperature in either compartment is too cold or too warm, change the setting one increment at a time. Wait 24 hours for the change to stabilize before adjusting again.

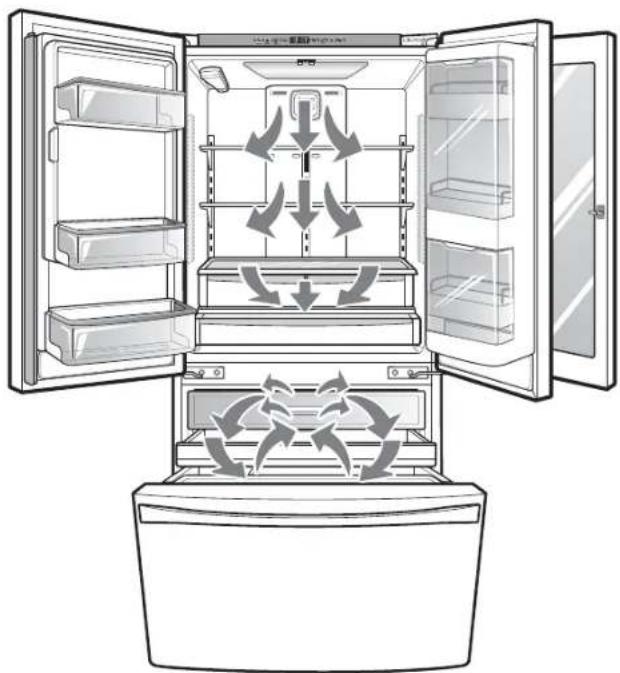

Airflow

Be sure not to block vents while packing your refrigerator. Doing so will restrict airflow and may cause the refrigerator temperature to become too warm or cause interior moisture buildup. (See air flow diagram below.)

Line drawing of an open refrigerator with arrows indicating airflow or circulation (no text or symbols)

Dispenser

The dispenser will dispense water, cubed ice or crushed ice. Press the appropriate icon of your choice: (①) water (②) cubed ice (③) crushed ice. When pressed the icon will illuminate.

NOTE: The dispenser will not work if any door is left open or if the control lock is engaged.

NOTE: If the Control Lock icon is illuminated, the Dispenser will not work. Disable the Control Lock to use the Dispenser again.

CAUTION: The control display is operated by touch. Excessive moisture on the display may cause a malfunction. Please keep the display clean and dry.

USING YOUR REFRIGERATOR

Air Filter

The Air Filter helps remove odors from the refrigerator. The Air Filter has two settings, Auto and MAX. In Auto mode, the Air Filter will cycle on and off in increments of ten minutes on and one hundred and ten minutes off. If set to the MAX mode, the Air Filter will stay on continuously for four hours, cycling on and off in increments of ten minutes on and five minutes off. After four hours, the Air Filter will switch to Auto mode.

Auto mode is the default mode.

Press the • Air Filter button once for MAX mode.

Air Filter Reset

When the CHANGE icon turns on, the air filter needs to be replaced. After replacing the air filter, press and hold the Air Filter button for three seconds to turn the icon light off. It is recommended to change the air filter approximately every 6 months.

Ice Maker ON/OFF

To switch the icemaker ON or OFF, press the Ice Maker button.

Ultra Ice

When you press and hold the • Ice Maker button for three seconds, the graphic will illuminate in the display and will continue for 24 hours.

The function will automatically shut off after 24 hours.

NOTE: While you are selecting the Ultra Ice function, the Ice Maker icon will briefly switch to OFF, then return to ON. This is normal.

You can stop this function manually by pressing and holding the button one more time.

This function increases both ice making and freezing capabilities.

Water Filter Reset

When the CHANGE icon turns on, you need to change the water filter. After changing the water filter, press and hold the Water Filter button for three seconds to turn the indicator light off. You need to change the water filter approximately every six months.

Dispenser Light

This light has three settings: On, Off and Dim. Select the Dim option at night. The light will automatically turn on at full brightness when the dispenser pad is pushed.

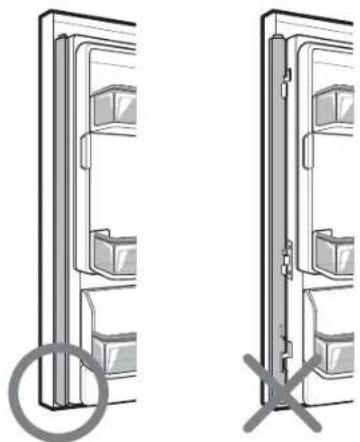

Articulating Mullion

This feature is a metal strip attached to the left door that articulates (rotates) 90 degrees as the door is closed, forming a mullion (base) for the left and right door gaskets to seal against.

CAUTION

To reduce the risk of scratching the door or breaking the door mullion, make sure that the refrigerator door mullion is always folded in.

Diagram showing two views of a refrigerator with labeled compartments and a cross symbol indicating a specific part (no text or symbols present)

Door Alarm

When power is connected to the refrigerator, the door alarm is initially set to ON. When you press the Door Alarm button, the display will change to OFF and the Door Alarm function will deactivate.

When either the refrigerator or the freezer door is left open for more than 60 seconds, the alarm tone will sound to let you know that the door is open.

When you close the door, the door alarm will stop.*

Demo Mode (For Store Use Only)

The Demo Mode disables all cooling in the refrigerator and freezer sections to conserve energy while on display in a retail store. When activated, OFF will display on the control panel.

Control Lock

When power is initially connected to the refrigerator, the Lock function is off.

If you want to activate the Lock function to lock other buttons, press and hold the Control Lock button for three seconds or more. The Control Lock button will illuminate and the Lock function is now enabled.

When the • Lock function is activated, no other buttons will work. The dispenser pad is also deactivated.

To disable the • Lock function, press and hold the Control Lock button for approximately three seconds.

To deactivate:

With either refrigerator door opened, press and hold the Refrigerator Temp and Ice Maker buttons at the same time for five seconds. The control panel will beep and the temperature settings will display to confirm that Demo Mode is deactivated. Use the same procedure to activate the Demo Mode.

Temperature Mode Switch Function (°F <->°C)

If you want to convert °F to °C or vice versa, press and hold the Freezer Temp and Refrigerator Temp buttons at the same time for approximately five seconds.

USING YOUR REFRIGERATOR

IN-DOOR ICE BIN

CAUTION

Keep hands and tools out of the ice compartment door and dispenser chute. Failure to do so may result in damage or personal injury.

The icemaker will stop producing ice when the in-door ice bin is full. If you need more ice, empty the ice bin into the extra ice bin in the freezer compartment. During use, the ice can become uneven causing the icemaker to misread the amount of ice cubes and stop producing ice. Shaking the ice bin to level the ice within it can reduce this problem.

NOTE: Storing cans or other items in the ice bin will damage the icemaker.

Keep the ice compartment door closed tightly. If the ice compartment door is not closed tightly, the cold air in the ice bin will freeze food in the refrigerator compartment. This could also cause the icemaker to stop producing ice.

NOTE: Emptying the ice bin is recommended if the icemaker ON/OFF button on the control panel is set to OFF for an extended period of time.

1. Pull or push the door handle to open or close the ice compartment.

Line drawing of a refrigerator interior showing hand positioning and shelf arrangement (no text or symbols)

1. To remove the in-door ice bin, grip the front handle, slightly lift the lower part, and slowly pull out the bin as shown.

Line drawing of an open refrigerator with a door open, showing internal shelves and a paper feed cover (no text or symbols)

1. To reinstall the in-door ice bin, slightly slant the bin during replacement to avoid contact with the icemaker.

Line drawing of an open refrigerator with a door open, showing internal compartments and a paper feed (no text or symbols)

1. Avoid touching the auto shutoff (feeler arm) when replacing the ice bin. See the label on the ice compartment door for details.

AUTOMATIC ICEMAKER

Ice is made in the automatic icemaker and sent to the dispenser. The icemaker will produce 70-182 cubes in a 24-hour period, depending on freezer compartment temperature, room temperature, number of door openings and other operating conditions.

It takes about 12 to 24 hours for a newly installed • refrigerator to begin making ice. Wait 72 hours for full ice production to occur.

Ice making stops when the in-door ice bin is full. • When full, the in-door ice bin holds approximately 6 to 8 (12-16 oz or 340-455 cc) glasses of ice.

Foreign substances or frost on the auto shutoff (feeler • arm) can interrupt ice production. Make sure the feeler arm is clean at all times for proper operation.

To increase ice production, use the Ultra Ice function. This function increases both ice making and freezing capabilities.

WARNING

Personal Injury Hazard

DO NOT place fingers or hands on the automatic ice making mechanism while the refrigerator is plugged in.

AUTOMATIC ICEMAKER (continued)

CAUTION

The first ice and water dispensed may include particles • or odor from the water supply line or the water tank.

Throw away the first few batches of ice. This is also necessary if the refrigerator has not been used for a long time.

Never store beverage cans or other items in the ice bin for the purpose of rapid cooling. Doing so may damage the icemaker or the containers may burst.

If discolored ice is dispensed, check the water filter • and water supply. If the problem continues, contact a Sears or other qualified service center. Do not use the ice or water until the problem is corrected.

Keep children away from the dispenser. Children may play with or damage the controls.

The ice passage may become blocked with frost if only • crushed ice is used. Remove the frost that accumulates by removing the ice bin and clearing the passage with a rubber spatula. Dispensing cubed ice can also help prevent frost buildup.

Never use thin crystal glass or crockery to collect ice. Such containers may chip or break resulting in glass fragments in the ice.

Dispense ice into a glass before filling it with water • or other beverages. Splashing may occur if ice is dispensed into a glass that already contains liquid.

Never use a glass that is exceptionally narrow or • deep. Ice may jam in the ice passage and refrigerator performance may be affected.

Keep the glass at a proper distance from the ice outlet. A glass held too close to the outlet may prevent ice from dispensing.

To avoid personal injury, keep hands out of the ice • door and passage.

Never remove the dispenser cover.*

- If ice or water dispenses unexpectedly, turn off the water supply and contact Sears Home Service in the U.S.A. at 1-844-553-6667, and in Canada at 1-800-469-4663.

WHEN TO SET ICEMAKER TO OFF

• When the water supply will be shut off for several hours.
• When the ice bin is removed for more than one or two minutes.
• When the refrigerator will not be used for several days.

NOTE: The ice bin should be emptied when the icemaker ON/OFF button is turned to the OFF mode.

NORMAL SOUNDS YOU MAY HEAR

If the icemaker ON/OFF button is set to ON, the valve will buzz even if the icemaker has not yet been hooked up to water. To stop the buzzing, switch the button to OFF.

NOTE: Keeping the icemaker ON/OFF button set to ON before the water is connected can damage the icemaker.

- You will hear the sound of cubes dropping into the bin and water running in the pipes as the icemaker refills.

PREPARING FOR VACATION

Set the icemaker ON/OFF button to OFF and shut off the water supply to the refrigerator.

NOTE: The ice bin should be emptied any time the icemaker ON/OFF button is turned OFF.

If the ambient temperature will drop below freezing, have a qualified technician drain the water supply system to prevent serious property damage due to flooding caused by ruptured water lines or connections.

FOOD STORAGE GUIDE

Wrap or store food in the refrigerator in airtight and moisture-proof material unless otherwise noted. This prevents food odor and taste transfer throughout the refrigerator. For dated products, check date code to ensure freshness.

Items	How to
Butter or margarine	▶Keep opened butter in a covered dish or closed compartment. When storing an extra supply, wrap in freezer packaging and freeze.
Cheese	▶Store in the original wrapping until you are ready to use it. Once opened, rewrap tightly in plastic wrap or aluminum foil.
Milk	▶Wipe milk cartons. For best storage, place milk on interior shelf, not on door shelf.
Eggs	▶Store in original carton on interior shelf, not on door shelf.
Fruit	▶Do not wash or hull the fruit until it is ready to be used. Sort and keep fruit in its original container, in a crisper, or store in a completely closed paper bag on a refrigerator shelf.
Leafy vegetables	▶Remove store wrapping and trim or tear off bruised and discolored areas. Wash in cold water and drain. Place in plastic bag or plastic container and store in crisper.
Vegetables with skins (carrots, peppers)	▶Place in plastic bags or plastic container and store in crisper.
Fish	▶Store fresh fish and shellfish in the freezer section if they are not being consumed the same day of purchase. It is recommended to consume fresh fish and shellfish the same day purchased.
Leftovers	▶Cover leftovers with plastic wrap or aluminum foil, or store in plastic containers with tight lids.

STORING FROZEN FOOD

NOTE: Check a freezer guide or a reliable cookbook for further information about preparing food for freezing or food storage times.

Freezing

Your freezer will not quick-freeze a large quantity of food. Do not put more unfrozen food into the freezer than will freeze within 24 hours (no more than 2 to 3 lbs. of food per cubic foot of freezer space). Leave enough space in the freezer for air to circulate around packages. Be careful to leave enough room at the front so the door can close tightly.

Storage times will vary according to the quality and type of food, the type of packaging or wrap used (how airtight and moisture-proof) and the storage temperature. Ice crystals inside a sealed package are normal. This simply means that moisture in the food and air inside the package have condensed, creating ice crystals.

NOTE: Allow hot foods to cool at room temperature for 30 minutes, then package and freeze. Cooling hot foods before freezing saves energy.

Packaging

Successful freezing depends on correct packaging. When you close and seal the package, it must not allow air or moisture in or out. If it does, you could have food odor and taste transfer throughout the refrigerator and could also dry out frozen food.

Packaging recommendations:

Rigid plastic containers with tight-fitting lids*

Straight-sided canning/freezing jars*

Heavy-duty aluminum foil•

Plastic-coated paper*

Non-permeable plastic wraps*

Specified freezer-grade self-sealing plastic bags*

Follow package or container instructions for proper freezing methods.

Do not use

Bread wrappers*

Non-polyethylene plastic containers*

Containers without tight lids*

Wax paper or wax-coated freezer wrap*

Thin, semi-permeable wrap*

CAUTION: Do not keep beverage cans or plastic food containers in the freezer compartment. They may break or burst if they freeze.

USING YOUR REFRIGERATOR

REFRIGERATOR SECTION

WATER DISPENSER

To dispense cold water, push on the dispenser switch with a glass.

NOTE: The dispenser is equipped with a light that turns on when the dispenser pad is engaged.

Some dripping may occur after dispensing. Hold your cup beneath the dispenser for a few seconds after dispensing to catch all of the drops.

⚠ WARNING: Do not put your fingers up the ice chute opening. Doing so can result in severe injury.

CAUTION: Do not dispense ice into fine china or crystal glasses. China or crystal can break.

Diagram of a toilet with a cross symbol crossed out, no text or labels present

REFRIGERATOR SHELVES

The shelves in your refrigerator are adjustable to meet your individual storage needs. Your model may have glass or wire shelves.

Adjusting the shelves to fit different heights of items will make finding the exact item you want easier. Doing so will also reduce the amount of time the refrigerator door is open which will save energy.

IMPORTANT: Do not clean glass shelves with warm water while they are cold. Shelves may break if exposed to sudden temperature changes or impact.

CAUTION: Glass shelves are heavy. Use special care when removing them.

Adjusting Shelves (Cantilever)

Remove shelves from the shipping position and replace shelves in the position you want.

To remove a shelf—Tilt up the front of the shelf in the direction of ① and lift it in the direction of ②. Pull the shelf out.

To reinstall a shelf—Tilt the front of the shelf up and guide the shelf hooks into the slots at a desired height. Then, lower the front of the shelf so that the hooks drop into the slots.

Technical diagram of a mechanical assembly with arrows indicating motion or force direction (no text or symbols present)

⚠️ CAUTION: Make sure that shelves are level from one side to the other. Failure to do so may result in the shelf falling or spilling food.

Folding Shelf (on some models)

You can store taller items, such as a gallon container or bottles, by simply pushing the front half of the shelf underneath the back half of the shelf. Pull the front of the shelf toward you to return to a full shelf.

Diagram of hands holding a rectangular device with a screen and vertical supports (no text or symbols)

The crispers provide fresher tasting fruit and vegetables by letting you easily control humidity inside the drawer.

You can control the amount of humidity in the moisture-sealed crispers by adjusting the control to any setting between VEGETABLES and FRUIT.

VEGETABLES•

keeps moist air in the crisper for best storage of fresh, leafy vegetables.

FRUIT• lets moist air out of the crisper for best storage of fruit.

REMOVING THE HUMIDITY CONTROLLED CRISPER

1. To remove, pull the drawer out to full extension.

2. Lift the front of the crisper up, then pull it straight out.

Technical line drawing of a mechanical device with internal compartments and mounting brackets (no text or symbols)

1. To install, slightly tilt up the front, insert the drawer into the frame and push it back into place.

To remove the glass

1. Lift up the glass under the crisper cover.
2. Pull the glass up and out.

NOTE: Pantry drawer not shown for clarity.

Diagram of a device interior showing a tray and door mechanism with an arrow indicating rotation (no text or symbols present)

TEMPERATURE CONTROLLED PANTRY DRAWER

The Temperature Controlled Pantry Drawer provides storage space with a variable temperature control that can keep the compartment at a slightly different temperature than the refrigerator section. This drawer can be used for large party trays, deli items and beverages. (This drawer should not be used for vegetables that require high humidity.)

Press the button to choose between Meat (Coldest), Deli (Colder) and Produce (Cold).

⚠ CAUTION: Do not store glass bottles in the pantry. If they are frozen, they can break and cause personal injury.

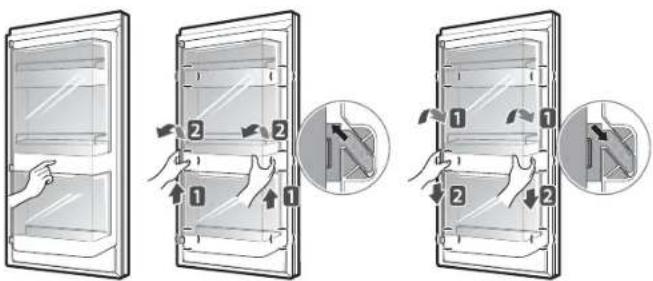

DOOR BIN

The door bins are removable for easy cleaning and adjustment.

1. To remove the bin, simply lift the bin up and pull straight out.
2. To replace the bin, slide it in above the desired support and push down until it snaps into place.
   NOTE: Some bins may vary in appearance and will only fit in one location.

⚠ CAUTION: Do not overfill or pack items too tightly into door bins. Doing so may cause damage to the bin or personal injury if items are removed with excessive force.

Illustration of hands placing a plastic tray into a storage bin with an upward arrow (no text or symbols)

PREVIEW GRAB-N-GO

The PreView Grab-N-Go compartment allows for easy access to commonly used food items.

Line drawing of an open refrigerator with two doors open, showing internal shelves (no text or symbols)

PREVIEW GRAB-N-GO COMPARTMENT

To access the PreView Grab-N-Go compartment, lightly press the button on the right refrigerator door handle to open the door.

Illustration of a hand inserting a cable into a wall, showing the cable being inserted (no text or symbols present)

PREVIEW FUNCTION

The PreView function on the Grab-N-Go lets you see if you're running low on frequently used items like beverages and snacks, without opening the refrigerator door.

1. Knock twice on the glass to turn the LED light inside the Grab-N-Go on or off.
2. The LED light turns off automatically after ten seconds.

The PreView Grab-N-Go function • is disabled when the right refrigerator door is open, for two seconds after closing the door, and when the ice dispenser is in use.

Illustration of a hand touching a screen with a magnifying glass (no text or symbols)

Knock near the center of the glass. Knocking near the edges of the glass may not activate the PreView Grab-N-Go function properly.

Knock hard enough that the knocking sound is audible.

The PreView Grab-N-Go function may activate if a • loud noise occurs near the refrigerator.

GRAB-N-GO CASE

To open the Grab-N-Go case, slightly push the marked area to pop it open. The Grab-N-Go Case is removable for easy cleaning and adjustment.

1. To remove the Grab-N-Go case, lift up and pull out.
2. To replace the Grab-N-Go case, line the tabs on the Grab-N-Go case with the slots on the door and push down until the case snaps into place.

GRAB-N-GO LOWER SHELF

The Grab-N-Go lower shelf is removable for easy cleaning.

1. To remove the lower shelf, lift the shelf retainer up and out.
2. Remove the two screws from the shelf and pull it straight out.
3. Reverse procedure to replace.

REPLACING THE AIR FILTER

It is recommended that you replace the air filter:

Approximately every six months. When the • CHANGE AIR FILTER light turns on.

1. Remove the Old Filter

Turn the filter cover to the left to detach it from the refrigerator wall. The filter is located on the inside of the filter cover. Remove the filter from the cover and replace it with a new filter.

Illustration showing three-step process: hand holding a square button, then folding into a grid and finally adjusting a rectangular object (no text or symbols)

2. Install a New Air Filter.

Place the new filter inside of the cover with the side that says "Front" facing outward. Turn the filter cover to the right to attach it to the refrigerator wall.

After changing the filter, push and hold the Air Filter button for three seconds to reset the filter sensor.

NOTE: : To purchase a replacement filter, visit your local Sears store, or in the U.S.A. call 1-844-553-6667, and in Canada 1-800-469-4663. You may also purchase online at www.sears.com

FREEZER SECTION

EXTRA ICE BIN

1. Pull the Freezer Drawer and the top Pullout Drawer out as far as possible to remove the Extra Ice Bin.
2. Gently lift and pull out the ice bin.
3. To replace, pull both drawers out as far as possible, and set the bin in its correct position in the Pullout Drawer. Close the Pullout Drawer and then the Freezer Drawer.

Line drawing of a refrigerator drawer with internal compartments (no text or symbols)

CAUTION: Pinch hazard! Keep hands and feet clear of the bottom of the freezer drawer when opening and closing.

PULLOUT DRAWERS

Top Drawer

1. To remove, pull the drawer out to full extension. On the left rail, use a flat blade screwdriver to push in on the tab to release the drawer from the rail, as shown below. Once the left side is loose, push the tab on the right side with your finger to release the drawer. Lift the front of the drawer up, then pull it straight out.

Illustration of a refrigerator interior with hand inserting a cable into the drawer (no text or symbols)

1. To replace, slightly tilt up the front of the drawer, insert the drawer into the frame, and push the drawer back into place until you hear a click.

Diagram of a refrigerator interior with open doors and a rack, showing internal compartments and ventilation slots (no text or labels)

Middle Drawer

1. To remove, pull the drawer out to full extension. Lift the front of the drawer up, then pull it straight out.

Line drawing of a refrigerator with drawer and drawer, showing internal compartments and a checkmark indicating a location (no text or symbols present)

1. To replace, slightly tilt up the front of the drawer, insert the drawer into the frame, and push it back into place.

Line drawing of two views of a refrigerator with drawer and drawer compartments (no text or symbols)

DURABASE

1. To remove the Durabase, push it to the back as much as possible. Tilt up the front of the Durabase and pull straight out.
2. To replace, insert the Durabase in the rail assembly.

Diagram of a refrigerator interior showing internal components and airflow direction (no text or symbols)

DURABASE DIVIDER

The Durabase divider allows you to organize the Durabase area into sections. It can be adjusted from side to side to accommodate items of different sizes.

Line drawing of a rectangular plastic container with internal compartments and side grout (no text or symbols)

WARNING: If the Durabase divider is removed, there is enough open space for children or pets to crawl inside. To prevent accidental child and pet entrapment or suffocation risk, DO NOT allow children or pets to touch or go near the drawer.

WATER FILTER

WATER FILTER

It is recommended that you replace the water filter:

Approximately every six months. When the water filter indicator turns on. When the water dispenser output decreases. When the ice cubes are smaller than normal.

Line drawing of a mechanical component or bracket (no text or symbols)

Before Replacing the Water Filter:

If the top shelf, located below the water filter, is in the highest position, it will need to be removed prior to replacing the water filter.

To remove any shelf-Tilt up the front of the shelf ① and lift it ②. Pull the shelf out.

1. Remove the old water filter.

Lower or remove the top left shelf to allow the water filter to rotate all the way down.

Pinch the sides to open the • water filter cover.

Illustration of a hand holding a cup with an arrow pointing to it (no text or symbols)

NOTE: Replacing the water filter causes a small amount of water (around 1 oz. or 25 cc) to drain. Place a cup under the front end of the water filter cover to collect any leaking water. Hold the water filter upright, once it is removed, to prevent any remaining water from spilling out of the water filter.

Make sure to rotate the filter down completely before pulling it out of the manifold hole.

Pull the water filter downward and turn it counter-clockwise.

Two identical line drawings of a shoe being held, showing the blade and base with a curved arrow indicating rotation (no text or symbols)

2. Replace with a new water filter.

Take the new • water filter out of its packing and remove the protective cover from the o-rings.

Technical illustration of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

With the water filter tabs in the horizontal position, push the new water filter into the manifold hole and turn it clockwise.

Diagram of a hand holding a device with a bag inside, showing internal components and motion lines (no text or symbols)

Rotate the water filter up into position and close the • cover. The cover will click when closed correctly.

Technical line drawing showing two views of a device handle assembly (no text or symbols)

1. After the water filter is replaced, dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminants from the system. Do not dispense the entire 2.5 gallon amount continuously. Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.

NOTE: To purchase a replacement filter, visit your local Sears store, or in the U.S.A. call 1-844-553-6667, and in Canada 1-800-469-4663. You may also purchase online at www.sears.com

Performance Data Sheet

Use Replacement Cartridge: MDJ64844602(9980)

The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system as specified in NSF/ANSI Standard 42 and Standard 53 and Standard 401.

System tested and certified by NSF International against NSF/ANSI Standard 42, Standard 53 and Standard 401. For the reduction of substances listed below.

Contaminant Reduction	Average Influent Challenge	NSF specified Challenge Concentration	Avg % Reduction	Average Product Water Concentration	Max Permissible Product Water Concentration	NSF Reduction Requirement
Chlorine Taste and Odor 2.0 μg/L	2.0 μg/L± 10% >97.5%	0.050 μg/L N/A ≥ 50.00%
Nominal Particulate Class I, ≥ 0.5 to < 1.0 μm	12,000,000 pts/mL At least 10,000 particles/mL 99.80%		24,000 pts/ml N/A ≥ 85.00%
Asbestos 180 MFL		10^7 to 10^8 MFL; fibers greater than 10 μg/Lin length	>99.00% < 1	MFL N/A ≥ 99.00%
Atrazine	8.5 μg/L	9.0 μg/L ± 10%	>94.10%	0.500 μg/L	3.0 μg/L	NA
Benzene	15.0 μg/L	15.0 μg/L± 10%	>96.60%	0.510 μg/L	5.0 μg/L	NA
Carbofuran	74.0 μg/L	80.0 μg/L± 10%	98.30%	1.258 μg/L	40 μg/L	NA
Lindane	1.9 μg/L	2.0 μg/L± 10%	>99.00%	0.019 μg/L	0.2 μg/L	NA
P-Dichlorobenzene	230.0 μg/L	225.0 μg/L± 10%	>99.80%	0.460 μg/L	75.0 μg/L	NA
2,4-D	210.0 μg/L	210.0 μg/L± 10%	>99.90%	0.210 μg/L	70.0 μg/L	NA
Lead @ pH 6.5	140.0 μg/L	150.0 μg/L± 10%	99.60%	0.560 μg/L	10.0 μg/L	NA
Lead @ pH 8.5	150.0 μg/L	150.0 μg/L± 10%	>90%	<0.500 μg/L	10.0 μg/L	NA
Mercury @ pH 6.5	5.9 μg/L	6.0 μg/L± 10%	91.00%	0.531 μg/L	2.0 μg/L	NA
Mercury @ pH 8.5	5.6 μg/L	6.0 μg/L± 10%	92.50%	<0.420 μg/L	2.0 μg/L	NA
Cyst*	100,000 cysts/L	Minimum 50,000 cysts/L	>99.99%	10	N/A	≥ 99.95%
Atenolol	240 ng/L	200 ± 40% ng/L	>95.50%	10.80 ng/L	30 ng/L	NA
Carbamazepine	1600 ng/L	1400 ± 40% ng/L	98.40%	25.60 ng/L	200 ng/L	NA
DEET	1600 ng/L	1400 ± 40% ng/L	97.10%	46.40 ng/L	200 ng/L	NA
Trimethoprim	170 ng/L	140 ± 40% ng/L	>96.80%	5.44 ng/L	20 ng/L	NA
Linuron	160 ng/L	140 ± 40% ng/L	>96.60%	5.44 ng/L	20 ng/L	NA
Phenytoin	200 ng/L	200 ± 40% ng/L	>94.80%	10.40 ng/L	30 ng/L	NA
Ibuprofen	400 ng/L	400 ± 40% ng/L	>94.50%	22.00 ng/L	60 ng/L	NA
Naproxen	140 ng/L	140 ± 40% ng/L	>96.10%	5.46 ng/L	20 ng/L	NA
Estrone	120 ng/L	140 ± 40% ng/L	>96.10%	4.68 ng/L	20 ng/L	NA
Bisphenol A	2000 ng/L	2000 ± 40% ng/L	>98.90%	22.00 ng/L	300 ng/L	NA
Nonyl Phenol	1600 ng/L	1400 ± 40% ng/L	>97.10%	46.40 ng/L	200 ng/L	NA

* Based on the use of Cryptosporidium parvum oocysts.

WATER FILTER

Application Guidelines/Water Supply Parameters
Service Flow 0.5 gpm (1.9 lpm)
Water Supply	Potable Water
Water Pressure	20-120 psi (138 - 827 kPa)
Water Temperature	33°F - 100°F (0.6°C - 38°C)

It is essential that the manufacturer's recommended installation, maintenance and water filter replacement requirements be carried out for the product to perform as advertised.

NOTE: While the testing was performed under standard laboratory conditions, actual performance may vary.

NOTE: To purchase a replacement filter, visit your local Sears store, or in the U.S.A. call 1-844-553-6667, and in Canada 1-800-469-4663. You may also purchase online at www.sears.com

Product distributed in the United States by Sears Brands Management Corporation, Hoffman Estates, IL 60179.

NSF is a trademark of NSF International.

WARNING

To reduce the risk associated with ingestion of contaminants: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before and after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts. EPA Establishment Number 10350-MN-005

!CAUTION

To reduce the risk associated with property damage due to water leakage:

Read and follow • the Water Filter instructions before installation and use of this system.

Installation and use • MUST comply with all state and local plumbing codes.

Do not install if water pressure exceeds 120 psi (827 kPa). Contact a plumbing professional if you are uncertain of how to check your water pressure.

Do not install where water hammer conditions may occur. If water hammer conditions exist, you must install a water hammer arrester. Contact a plumbing professional if you are uncertain of how to check for this condition.

Do not ^® install on hot water supply lines.

The maximum operating water temperature of this water filter system is 100^ F ( 38^ C).

Protect water filter from freezing. • Do not operate refrigerator in ambient conditions below 55^ F ( 12.7^ C). Drain water filter when storing unit in temperatures below 40^ F ( 4.4^ C).

The disposable water filter must be replaced every six months, at the rated capacity, or if a noticeable reduction in flow rate occurs.

CARE AND CLEANING

! WARNING

Explosion Hazard

Use non-flammable cleaner. Failure to do so can result in fire, explosion, or death.

Both the refrigerator and freezer sections defrost automatically; however, clean both sections about once a month to prevent odors. Wipe up spills immediately.

GENERAL CLEANING TIPS

Unplug refrigerator or disconnect power.*

Remove all removable parts, such as shelves, crispers, etc. Refer to sections in Using Your Refrigerator for removal instructions.

Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners. Hand wash, rinse and dry all surfaces thoroughly.*

Plug in refrigerator or reconnect power.*

EXTERIOR

Waxing external painted metal surfaces helps provide rust protection. Do not wax plastic parts. Wax painted metal surfaces at least twice a year using appliance wax (or auto paste wax). Apply wax with a clean, soft cloth.

For products with a stainless steel exterior, use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners. Dry thoroughly with a soft cloth.

INSIDE WALLS (allow freezer to warm up so the cloth will not stick)

To help remove odors, you can wash the inside of the refrigerator with a mixture of baking soda and warm water. Mix 2 tablespoons of baking soda to 1 quart of water (26 g soda to 1 liter water.) Be sure the baking soda is completely dissolved so it does not scratch the surfaces of the refrigerator.

⚠CAUTION: While cleaning the inside, do not spray water.

Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use cleaning waxes, concentrated detergents, bleaches, or cleaners containing petroleum on plastic refrigerator parts.

PLASTIC PARTS (Covers and Panels)

Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use window sprays, abrasive cleansers, or flammable fluids. These can scratch or damage the material.

CONDENSER COILS

Use a vacuum cleaner with an attachment to clean the condenser cover and vents. Do not remove the panel covering the condenser coil area.

Hand inserting a cable into a device panel (no text or symbols visible)

LIGHT BULB REPLACEMENT

! WARNING

Electrical Shock Hazard

Before replacing a Compartment Lamp, either unplug the refrigerator or turn off power at the circuit breaker or fuse box.

NOTE: The refrigerator and freezer compartment lights have LED interior lighting, and service should be performed by a qualified technician.

POWER INTERRUPTIONS

1. If the power will be out for 24 hours or less, keep all refrigerator doors closed to help foods stay cold and frozen.
2. If the power will be out for more than 24 hours, remove all frozen food and store it in a frozen food locker.

WHEN YOU GO ON VACATION

If you choose to leave the refrigerator on while you are away, follow these steps to prepare your refrigerator before you leave.

1. Use up any perishables and freeze other items.
2. Turn off the icemaker and empty the ice bin.

If you choose to turn the refrigerator off before you leave, follow these steps.

1. Remove all food from the refrigerator.
2. Depending on your model, set the thermostat control (refrigerator control) to OFF. See the Setting the Controls section.
3. Clean the refrigerator, wipe it and dry well.
4. Tape rubber or wood blocks to the tops of both doors to prop them open far enough for air to get in. This stops odor and mold from building up.

WHEN YOU MOVE

When you are moving your refrigerator to a new home, follow these steps to prepare it for the move.

1. Remove all food from the refrigerator and pack all frozen food in dry ice.
2. Unplug the refrigerator.
3. Clean, wipe and dry thoroughly.
4. Take out all removable parts, wrap them well and tape them together so they do not shift and rattle during the move. Refer to the Using your Refrigerator section for removable instructions.
5. Depending on the model, raise the front of the refrigerator so it rolls easier OR screw in the leveling legs all the way so they do not scrape the floor. See the Door Closing section.
6. Tape the doors shut and tape the power cord to the refrigerator cabinet.

When you get to your new home, put everything back and refer to the Refrigerator Installation section for preparation instructions.

CONNECTING THE WATER LINE

BEFORE YOU BEGIN

This water line installation is not covered by the refrigerator warranty. Follow these instructions carefully to minimize the risk of expensive water damage.

Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and can lead to water leakage or flooding. Call a qualified plumber to correct water hammer before installing the water supply line to the refrigerator.

⚠️ CAUTION: To prevent burns and product damage, only connect the refrigerator water line to a cold water supply.

If you use your refrigerator before connecting the water line, make sure the icemaker is turned OFF at the control panel.

⚠️ CAUTION: Do not install the icemaker tubing in areas where temperatures fall below freezing.

WATER PRESSURE

A cold water supply. The water pressure must be between 20 and 120 psi. If the refrigerator is installed in an area with low water pressure (below 20 psi), you can install a booster pump to compensate for the low pressure.

If a reverse osmosis water filtration system is connected to your cold water supply, this water line installation is not covered by the refrigerator warranty. Follow the following instructions carefully to minimize the risk of expensive water damage.

If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276-414 kPa or 2.8-4.2 kgf/cm², less than 2.0-3.0 sec. to fill a cup of 7 oz or 198 cc capacity).

If the water pressure from the reverse osmosis system is less than 20 psi or 138 kPa or 1.4 kgf/cm ^2 (takes more than 4.0 sec to fill a cup of 7 oz or 198 cc capacity):

Check to see if the sediment filter in the reverse osmosis • system is blocked. Replace the filter if necessary.

Allow the storage tank on the reverse osmosis system to • refill after heavy usage.

If the issue concerning water pressure from reverse osmosis remains, call a licensed, qualified plumber.

All installations must be in accordance with local plumbing code requirements.

⚠️ CAUTION: Wear eye protection during installation to prevent injury.

WHAT YOU WILL NEED

Copper Tubing, ^1/4 in. outer diameter, to connect the refrigerator to the water supply. Be sure both ends of the tubing are cut square.

To determine how much tubing you need: measure the distance from the water valve on the back of the refrigerator to the water supply pipe. Then, add 8 feet (2.4 m). Be sure there is sufficient extra tubing (about 8 feet [2.4 m] coiled into 3 turns of about 10 in. [25 cm] diameter) to allow the refrigerator to move out from the wall after installation.

Power drill.

12 in. or adjustable wrench.

Flat blade and Phillips head screwdrivers.*

Two 14 in. outer diameter • compression nuts and 2 ferrules (sleeves) to connect the copper tubing to the shutoff valve and the refrigerator water valve.

- If your existing copper water line has a flared fitting at the end, you will need an adapter (available at plumbing supply stores) to connect the water line to the refrigerator OR you can cut off the flared fitting with a tube cutter and then use a compression fitting.

- Shutoff valve to connect to the cold water line. The

shutoff valve should have a water inlet with a minimum inside diameter of 532 in. at the point of connection to the COLD WATER LINE.

Saddle-type shutoff valves are included in many water supply kits. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes.

NOTE: A Self Piercing Saddle Type Water Valve should not be used.

! WARNING

Electrical Shock Hazard

When using any electrical device (such as a power drill) during installation, be sure the device is battery powered, double insulated or grounded in a manner that will prevent the hazard of electric shock.

INSTALLATION INSTRUCTIONS

Install the shutoff valve on the nearest frequently used drinking water line.

1. SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet to relieve the pressure on the line.

2. CHOOSE THE VALVE LOCATION

Choose a location for the valve that is easily accessible. It is best to connect into the side of a vertical water pipe. When it is necessary to connect into a horizontal water pipe, make the connection to the top or side, rather than at the bottom, to avoid drawing off any sediment from the water pipe.

3. DRILL THE HOLE FOR THE VALVE

Drill a 14 in. hole in the water pipe using a sharp bit. Remove any burrs resulting from drilling the hole in the pipe. Be careful not to allow water to drain into the drill. Failure to drill a 14 in. hole may result in reduced ice production or smaller cubes.

NOTE: The hookup line cannot be white, plastic tubing. Licensed plumbers must use only copper tubing (NDA tubing #49595 or #49599) or Cross Link Polyethylene (PEX) tubing.

4. FASTEN THE SHUTOFF VALVE

Fasten the shutoff valve to the cold water pipe with the pipe clamp.

NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

5. TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer begins to swell.

NOTE: Do not overtighten clamp or you may crush the tubing.

6. ROUTE THE TUBING

Route the tubing between the cold water line and the refrigerator.

Route the tubing through a hole drilled in the wall or floor (behind the refrigerator or adjacent base cabinet) as close to the wall as possible.

NOTE: Be sure there is sufficient extra tubing (about 8 feet coiled into 3 turns of about 10 in. diameter) to allow the refrigerator to move out from the wall after installation.

7. CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve) for copper tubing onto the end of the tubing and connect it to the shutoff valve. Make sure the tubing is fully inserted into the valve. Tighten the compression nut securely.

NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and their use is not permitted in Massachusetts. Consult with your licensed plumber.

CONNECTING THE WATER LINE

8. FLUSH OUT THE TUBING

Turn the main water supply on and flush out the tubing until the water is clear.

Shut the water off at the water valve after about one quart of water has been flushed through the tubing.

Simple line drawing of a flower with a curved arrow, no text or symbols present

9. CONNECT THE TUBING TO THE REFRIGERATOR

! WARNING

Before making the connection to the refrigerator, be sure that the refrigerator power cord is not plugged into the wall outlet.

1. Remove the plastic flexible cap from the water valve.
2. Place the compression nut and ferrule (sleeve) onto the end of the tubing as shown.
3. Insert the end of the copper tubing into the connection as far as possible. While holding the tubing, tighten the fitting.

10. TURN THE WATER ON AT THE SHUTOFF VALVE

Tighten any connections that leak.

Mechanical clamp mechanism diagram showing rotational motion with no text or symbols

CAUTION: Check to see if leaks occur at the water line connections.

11. PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so that it does not vibrate against the back of the refrigerator or against the wall. Push the refrigerator back to the wall.

Diagram showing a power plug connected to an electrical outlet with two socket compartments (no text or symbols)

12. START THE ICEMAKER

Turn the icemaker ON at the control panel.

The icemaker will not begin to operate until it reaches its operating temperature of 15^ F ( -9^ C) or below. It will then begin operation automatically if the icemaker button has been turned ON.

TROUBLESHOOTING GUIDE

Before conducting troubleshooting, make sure that the following basic requirements are met:

Service Flow 0.5 gpm (1.9 lpm)
Water Supply Potable Water
Water Pressure 20-120 psi (138 - 827 kPa)
Operating Ambient Temperature Limits	55°F - 110°F
Electrical Ratings	115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.

COOLING

Problem Possible Causes Solutions
Refrigerator and Freezer section are not cooling.	The refrigerator control is set to OFF (some models).	Turn the control ON. Refer to the Setting the Controls section for proper temperature settings.
	Refrigerator is set to demo mode. Demo Mode allows the lights and control display to work normally while disabling cooling to save energy while on the showroom floor. Refer to the Setting the Controls section for instructions on how to disable Demo Mode.
	Refrigerator is in the defrost cycle. During the defrost cycle, the temperature of each compartment may raise slightly. Wait 30 minutes and confirm the proper temperature has been restored once the defrost cycle has completed.
	Refrigerator was recently installed. It may take up to 24 hours for each compartment to reach the desired temperature.
	Refrigerator was recently relocated. If the refrigerator was stored for a long period of time or moved on its side, it is necessary for the refrigerator to stand upright for 24 hours before connecting it to power.
Cooling System runs too much.	Refrigerator is replacing an older model.	Modern refrigerators require more operating time but use less energy due to more efficient technology.
	Refrigerator was recently plugged in or power restored.	The refrigerator will take up to 24 hours to cool completely.
	Door opened often or a large amount of food / hot food was added.	Adding food and opening the door warms the refrigerator, requiring the compressor to run longer in order to cool the refrigerator back down. In order to conserve energy, try to get everything you need out of the refrigerator at once, keep food organized so it is easy to find, and close the door as soon as the food is removed. (Refer to the Food Storage Guide.)
	Doors are not closed completely. Firmly push the doors shut. If they will not shut all the way, see the Doors will not close completely or pop open section in Parts & Features Troubleshooting.
	Refrigerator is installed in a hot location.	The compressor will run longer under warm conditions. At normal room temperatures (70°F) expect your compressor to run about 40% to 80% of the time. Under warmer conditions, expect it to run even more often. The refrigerator should not be operated above 110°F.
	Condenser / back cover is clogged. Use a vacuum cleaner with an attachment to clean the condenser cover and vents. Do not remove the panel covering the condenser coil area.

COOLING

Problem Possible Causes Solutions
Refrigerator or Freezer section is too warm.	Refrigerator was recently installed. It may take up to 24 hours for each compartment to reach the desired temperature.
	Air vents are blocked. Rearrange items to allow air to flow throughout the compartment. Refer to the Airflow diagram in the Using Your Refrigerator section.
	Doors are opened often or for long periods of time.	When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. To lessen the effect, reduce the frequency and duration of door openings.
	Unit is installed in a hot location. The refrigerator should not be operated in temperatures above 110F.
	A large amount of food or hot food was added to either compartment.	Adding food warms the compartment requiring the cooling system to run. Allowing hot food to cool to room temperature before putting it in the refrigerator will reduce this effect.
	Doors not closed correctly. See the Doors will not close correctly or pop open section in Parts & Features Troubleshooting.
	Temperature control is not set correctly.	If the temperature is too warm, adjust the control one increment at a time and wait for the temperature to stabilize. Refer to the Setting the Controls section for more information.
	Defrost cycle has recently completed.	During the defrost cycle, the temperature of each compartment may raise slightly and condensation may form on the back wall. Wait 30 minutes and confirm the proper temperature has been restored once the defrost cycle has completed.
Interior moisture buildup.	Doors are opened often or for long periods of time.	When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. To lessen the effect, reduce the frequency and duration of door openings.
	Doors not closed correctly. See the Doors will not close correctly section in the Troubleshooting section.
	Weather is humid. Humid weather allows additional moisture to enter the compartments when the doors are opened leading to condensation or frost. Maintaining a reasonable level of humidity in the home will help to control the amount of moisture that can enter the compartments.
	Defrost cycle recently completed. During the defrost cycle, the temperature of each compartment may raise slightly and condensation may form on the back wall. Wait 30 minutes and confirm that the proper temperature has been restored once the defrost cycle has completed.
	Food is not packaged correctly. Food stored uncovered or unwrapped, and damp containers can lead to moisture accumulation within each compartment. Wipe all containers dry and store food in sealed packaging to prevent condensation and frost.

COOLING/ICE & WATER

Problem Possible Causes Solutions
Food is freezing in the refrigerator compartment.	Food with high water content was placed near an air vent.	Rearrange items with high water content away from air vents.
	Refrigerator temperature control is set incorrectly.	If the temperature is too cold, adjust the control one increment at a time and wait for the temperature to stabilize. Refer to the Setting the Controls section for more information.
	Refrigerator is installed in a cold location.	When the refrigerator is operated in temperature below 41°F (5°C), food can freeze in the refrigerator compartment. The refrigerator should not be operated in temperature below 55°F (13°C).
Frost or ice crystals form on frozen food (outside of package).	Door is opened frequently or for long periods of time.	When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. Increased moisture will lead to frost and condensation. To lessen the effect, reduce the frequency and duration of door openings.
	Door is not closing properly.	Refer to the Doors will not close correctly or pop open section in the Troubleshooting section.
Refrigerator or Freezer section is too cold.	Incorrect temperature control settings. If the temperature is too cold, adjust the control one increment at a time and wait for the temperature to stabilize. Refer to the Setting the Controls section for more information.
Frost or ice crystals on frozen food (inside of sealed package).	Condensation from food with a high water content has frozen inside of the food package.	This is normal for food items with a high water content.
	Food has been left in the freezer for a long period of time.	Do not store food items with high water content in the freezer for a long period of time.
Icemaker is not making enough ice.	Demand exceeds ice storage capacity. The icemaker will produce approximately 70-182 cubes in a 24 hour period.
	House water supply is not connected, valve is not turned on fully, or valve is clogged.	Connect the refrigerator to a cold water supply with adequate pressure and turn the water shutoff valve fully open.If the problem persists, it may be necessary to contact a plumber.
	Water filter has been exhausted. It is recommended that you replace the water filter: Approximately every six months.·When the water filter indicator turns on.·When the water dispenser output decreases. ·When the ice cubes are smaller than normal.·
	Low house water supply pressure. The water pressure must be between 20 and 120 psi on models without a water filter and between 40 and 120 psi on models with a water filter.If the problem persists, it may be necessary to contact a plumber or install a booster pump to compensate for the low pressure.
	Reverse Osmosis filtration system is used.	Reverse osmosis filtration systems can reduce the water pressure below the minimum amount and result in icemaker issues. (Refer to Water Pressure section.)
	Tubing connecting refrigerator to house supply valve is kinked.	The tubing can kink when the refrigerator is moved during installation or cleaning resulting in reduced water flow. Straighten or repair the water supply line and arrange it to prevent future kinks.

ICE & WATER

Problem Possible	Causes Solutions
Icemaker is not making enough ice (continued).	Doors are opened often or for long periods of time.	If the doors of the unit are opened often, ambient air will warm the refrigerator which will prevent the unit from maintaining the set temperature. Lowering the refrigerator temperature can help, as well as not opening the doors as frequently.
	Doors are not closed completely. If the	doors are not properly closed, ice production will be affected. See the Doors will not close completely or pop open section in Troubleshooting for more information.
	The temperature setting for the freezer is too warm.	The recommended temperature for the freezer compartment for normal ice production is 0°F. If the freezer temperature is warmer, ice production will be affected.
Dispensing water slowly.	Water filter has been exhausted. It is re	commended that you replace the water filter: Approximately every six months. When the water filter indicator turns on. When the water dispenser output decreases. When the ice cubes are smaller than normal.
	Reverse osmosis filtration system is used.	Reverse osmosis filtration systems can reduce the water pressure below the minimum amount and result in icemaker issues. If the problem persists, it may be necessary to contact a plumber or install a booster pump to compensate for the low pressure.
	Low house water supply pressure. The w	water pressure must be between 20 and 120 psi on models without a water filter and between 40 and 120 psi on models with a water filter. If the problem persists, it may be necessary to contact a plumber or install a booster pump to compensate for the low pressure.
Not dispensing ice. Doors are not closed completely. Ice will not dispense if any of the refrigerator doors are left open.
			Infrequent use of the dispenser. Infrequent use of the ice dispenser will cause the cubes to stick together over time, which will prevent them from properly dispensing. Check the ice bin for ice cubes clumping/sticking together. If they are, break up the ice cubes to allow for proper operation.
			The delivery chute is clogged with frost or ice fragments.	Eliminate the frost or ice fragments by removing the ice bin and clearing the chute with a plastic utensil. Dispensing cubed ice can also help prevent frost or ice fragment buildup.
			The dispenser display is locked. Press and hold the Lock button for three seconds to unlock the control panel and dispenser.
			Ice bin is empty. It may take up to 24 hours for each compartment to reach the desired temperature and for the icemaker to begin making ice. Make sure that the shutoff (arm/sensor) is not obstructed.Once the ice supply in the bin has been completely exhausted, it my take up to 90 minutes before additional ice is available, and approximately 24 hours to completely refill the bin.

ICE & WATER

Problem Possible Causes Solutions
Icemaker is not making ice.	Refrigerator was recently installed or icemaker recently connected.	It may take up to 24 hours for each compartment to reach the desired temperature and for the icemaker to begin making ice.
	Icemaker not turned on. Locate the icemaker ON/OFF button and confirm that it is turned ON.
	The refrigerator is not connected to a water supply or the supply shutoff valve is not turned on.	Connect refrigerator to the water supply and turn the water shutoff valve fully open.
	Icemaker shutoff (feeler arm) obstructed.	If your icemaker is equipped with an ice shutoff arm, make sure that the arm moves freely.
	Reverse osmosis water filtration system is connected to your cold water supply.	Reverse osmosis filtration systems can reduce the water pressure below the minimum amount and result in icemaker issues. (Refer to the Water Pressure section.)
Not dispensing water.	New installation or water line recently connected.	Dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminates from the system. Do not dispense the entire 2.5 gallon amount continuously. Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.
	The dispenser panel is locked. Press and hold the Lock button for three seconds to unlock the control panel and dispenser.
	The dispenser is not set for water dispensing.	The dispenser can be set for ice or water. Make certain that the control panel is set for the proper operation. Press the Water button on the control panel to dispense water.
	Refrigerator or freezer doors are not closed properly.	Water will not dispense if any of the refrigerator doors are left open.
	Water filter has been recently removed or replaced.	After the water filter is replaced, dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminates from the system. Do not dispense the entire 2.5 gallon amount continuously. Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.
	Tubing connecting refrigerator to house supply valve is kinked.	The tubing can kink when the refrigerator is moved during installation or cleaning resulting in reduced water flow. Straighten or repair the water supply line and arrange it to prevent future kinks.
	The house water supply is not connected, the valve is not turned on fully, or the valve is clogged.	Connect refrigerator to the water supply and turn the water shutoff valve fully open. If the problem persists, it may be necessary to contact a plumber.

ICE & WATER

Problem Possible	Causes Solutions
Ice has bad taste or odor.	Water supply contains minerals such as sulfur.	A water filter may need to be installed to eliminate taste and odor problems.NOTE: In some cases, a filter may not help. It may not be possible to remove all minerals / odor / taste in all water supplies.
	Icemaker was recently installed. Discard	the first few batches of ice to avoid discolored or bad tasting ice.
	Ice has been stored for too long. Ice that	has been stored for too long will shrink, become cloudy, and may develop a stale taste. Throw away old ice and make a new supply.
	The food has not been stored properly in either compartment.	Rewrap the food. Odors may migrate to the ice if food is not wrapped properly.
	The interior of the refrigerator needs to be cleaned.	See the Care and Cleaning section for more information.
	The ice storage bin needs to be cleaned.	Empty and wash the bin (discard old cubes). Make sure that the bin is completely dry before reinstalling it.
Dispensing warm water.	Refrigerator was recently installed. Allow 24 hours after installation for the water storage tank to cool completely.
	The water dispenser has been used recently and the storage tank was exhausted.	Depending on your specific model, the water storage capacity will range from approximately 20 to 30 oz.
	Dispenser has not been used for several hours.	If the dispenser has not been used for several hours, the first glass dispensed may be warm. Discard the first 10 oz.
	Refrigerator is connected to the hot water supply.	Make sure that the refrigerator is connected to a cold water pipe.⚠WARNING: Connecting the refrigerator to a hot water line may damage the icemaker.
Water has bad taste or odor.	Water supply contains minerals such as sulfur.	A water filter may need to be installed to eliminate taste and odor problems.
	Water filter has been exhausted. It is recommended that you replace the water filter: Approximately every 6 months. When the water filter indicator turns on. When the water dispenser output decreases. When the ice cubes are smaller than normal.
	Refrigerator was recently installed. Dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminates from the system. Do not dispense the entire 2.5 gallon amount continuously. Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.
Icemaker is making too much ice.	Icemaker shutoff (feeler arm) is obstructed.	Empty the ice bin. If your icemaker is equipped with an ice shutoff arm, make sure that the arm moves freely. Reinstall the ice bin and wait 24 hours to confirm proper operation.

NOISE

Problem Possible	Causes Solutions
Clicking The defrost con	control will click when the automatic defrost cycle begins and ends. The thermostat control (or refrigerator control on some models) will also click when cycling on and off.	Normal Operation
Rattling Rattling noises	may come from the flow of refrigerant, the water line on the back of the unit, or items stored on top of or around the refrigerator.	Normal Operation
	Refrigerator is not resting solidly on the floor.	Floor is weak or uneven or leveling legs need to be adjusted. See the Door Alignment section.
	Refrigerator with linear compressor was jarred while running.	Normal Operation
Whooshing Evaporator	fan motor is circulating air through the refrigerator and freezer compartments.	Normal Operation
	Air is being forced over the condenser by the condenser fan.	Normal Operation
Gurgling Refrigerant flowing through the cooling system.		Normal Operation
Popping Contraction and expansion of the inside walls due to changes in temperature.		Normal Operation
Sizzling Water dripping on the defrost heater during a defrost cycle.		Normal Operation
Vibrating If the side or back of the refrigerator is touching a cabinet or wall, some of the normal vibrations may make an audible sound.		To eliminate the noise, make sure that the sides and back cannot vibrate against any wall or cabinet.
Dripping Water running into the drain pan during the defrost cycle.		Normal Operation
Pulsating or High-Pitched Sound	Your refrigerator is designed to run more efficiently to keep your food items at the desired temperature. The high efficiency compressor may cause your new refrigerator to run longer than your old one, but it is still more energy efficient than previous models. While the refrigerator is running, it is normal to hear a pulsating or high-pitched sound.	Normal Operation

PARTS & FEATURES

Problem Possible	Causes Solutions
Doors will not close correctly or pop open.	Food packages are blocking the door open.	Rearrange food containers to clear the door and door shelves.
	Ice bin, crisper cover, pans, shelves, door bins, or baskets are out of position.	Push bins all the way in and put crisper cover, pans, shelves and baskets into their correct positions. See the Using Your Refrigerator section for more information.
	The doors were removed during product installation and not properly replaced.	Remove and replace the doors according to the Removing and Replacing Refrigerator Handles and Doors section.
	Refrigerator is not leveled properly.	See Door Alignment in the Refrigeration Installation section to level refrigerator.
Doors are difficult to open.	The gaskets are dirty or sticky. Clean the	the gaskets and the surfaces that they touch. Rub a thin coat of appliance polish or kitchen wax on the gaskets after cleaning.
	Door was recently closed. When you o	open the door, warmer air enters the refrigerator. As the warm air cools, it can create a vacuum. If the door is hard to open, wait one minute to allow the air pressure to equalize, then see if it opens more easily.
Refrigerator wobbles or seems unstable.	Leveling legs are not adjusted properly.	Refer to the Leveling and Door Alignment section.
	Floor is not level. It may be necessary to add shims under the leveling legs or rollers to complete installation.
Lights do not work. LED	interior lighting failure. The refrigerator	or compartment lamp is LED interior lighting, and service should be performed by a qualified technician. Refer to the Light Bulb Replacement section.
Refrigerator has an unusual odor.	The Air Filter may need to be set to the MAX setting or replaced.	Set the Air Filter to the MAX setting. If the odor does not go away within 24 hours, the filter may need to be replaced. See the Replacing the Air Filter section for replacement instructions.
The interior of the refrigerator is covered with dust or soot.	The refrigerator is located near a fire source, such as a fireplace, chimney or candle.	Make sure that the refrigerator is not located near a fire source, such as a fireplace, chimney or candle.

Diagnostics™ System

Diagnostics™ (On some models)

Should you experience any problems with your refrigerator, it has the capability of transmitting data via your telephone to the Diagnostics™ Team. This gives you the capability of speaking directly to our trained specialists. The specialist records the data transmitted from your machine and uses it to analyze the issue, providing a fast ective diagnosis.

If you experience problems with your refrigerator, in the U.S.A. call 1-844-553-6667, and in Canada call 1-800-469-4663. Only use the Diagnostics™ feature when instructed to do so by the Diagnostics™ Team agent. The transmission sounds that you will hear are normal and sound similar to a fax machine.

Diagnostics™ cannot be activated unless your refrigerator is connected to power. If your refrigerator is unable to turn on, then troubleshooting must be done without using Diagnostics™.

Using Diagnostics™

First, call 1-844-553-6667 (U.S.A.) or 1-800-469-4663 (Canada). If the number of the phone you are using is on file and is associated with your refrigerator, you will be quickly relayed to a Diagnostics™ team agent. Only use the Diagnostics™ feature when instructed to do so by the Diagnostics™ Team agent.

1. Lock the display. To lock the display, press and hold the Control Lock button for three seconds. (If the display has been locked for over five minutes, you must deactivate the lock and then reactivate it.)

1. Open the right refrigerator door.

2. Hold the mouthpiece of your phone in front of the speaker that is located on the right hinge of the refrigerator door, when instructed to do so by the call center.

1. Press and hold the Freezer Temp button for three seconds while continuing to hold your phone to the speaker.

1. After you hear three beeps, release the Freezer Temp button.

2. Keep the phone in place until the tone transmission has finished. The display will count down the time. Once the countdown is over and the tones have stopped, resume your conversation with the specialist, who will then be able to assist you in using the information transmitted for analysis.

NOTE:

- For best results, do not move the phone while the tones are being transmitted.

- If the call center agent is not able to get an accurate recording of the data, you may be asked to try again.

ÍNDICE

Garantía......48

Divisor Durabase....74

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Sears Canada Inc., Toronto, Ontario, Canadá M5B 2C3

NOTA: La presión del agua debe ser 20-120 psi o 138-827 kPa o 1,4-8,4 kgf/cm². If the refrigerator is installed in an area with low water pressure (below 20 psi), you can install a booster pump to compensate for the low pressure.

Technical line drawing of a mechanical bracket with an inset close-up showing a pin detail (no text or symbols)

PRECAUCIÓN

Diagram of a refrigerator with an open drawer and handle, showing internal compartments and a numbered label (①), no text or symbols present.

Technical line drawing of a refrigerator drawer with an inset showing a close-up detail (no text or symbols)

Line drawing of a refrigerator drawer with handle and drawer frame (no text or symbols)

Diagram of hands using a tool to lift a rectangular object, showing alignment and movement (no text or symbols)

Diagram showing hands using a tool to lift a rectangular object into a storage cabinet (no text or symbols present)

Technical line drawing of a refrigerator with an inset close-up showing a component detail (no text or symbols)

Diagram of a refrigerator interior showing internal compartments and a handle (no text or labels)

Diagram showing a cabinet with a mirror and a magnified inset of wrenching tools (no text or symbols)

USO DEL REFRIGERADOR

Line drawing of an open refrigerator with arrows indicating airflow or circulation (no text or symbols)

Diagram showing two views of a refrigerator with labeled compartments and a cross symbol (no text or labels present)

Alarma de la puerta

Illustration of a hand placing a diagonally crossed-out box into an open refrigerator (no text or symbols visible)

PRECAUCIÓN

Line drawing of a refrigerator interior showing hand inserting a component into the door (no text or symbols)

Line drawing of an open refrigerator with a door open, showing internal shelves and a digital display (no text or symbols)

Line drawing of an open refrigerator with a door open, showing internal compartments and a paper feed cover (no text or symbols)

Diagram of a device with arrows indicating movement or force, mounted on a frame (no text or symbols present)

Technical line drawing of a mechanical device with internal compartments and mounting brackets (no text or symbols)

Diagram of a device interior showing a screen and tray with an arrow indicating rotation (no text or symbols)

Illustration of hands placing a rectangular object into a window frame (no text or symbols)

PREVIEW GRAB-N-Go

Line drawing of an open refrigerator with two doors open, showing internal shelves (no text or symbols)

PREVIEW GRAB-N-Go COMPARTIMIENTO

Illustration of a hand inserting a cable into a wall-mounted cable (no text or symbols)

LA FUNCIÓN PREVIEW

REEMPLAZO DEL FILTRO DE AIRE

Illustration of a computer with hands inserting into a rack, showing internal components and a tool (no text or symbols)

Diagram of a refrigerator with open doors and internal compartments, no text or symbols present

Cajón medio

Line drawing of a refrigerator interior showing drawer, door, and shelf (no text or symbols)

Diagram showing two steps of a refrigerator interior, one opening the drawer and the other closing the drawer (no text or labels present)

DURABASE

Diagram of a refrigerator interior showing internal compartments and ventilation slots (no text or labels)

DIVISOR DURABASE

Line drawing of a rectangular plastic container with internal compartments and side grout (no text or symbols)

Simple line drawing of a mechanical component or bracket (no text or symbols)

Illustration of a hand holding a cup with arrows indicating force direction (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a device with a curved arrow indicating rotation or movement, no text or symbols present

Technical illustration of a mechanical device with an inset close-up showing internal components (no text or symbols)

Diagram of a hand holding a device with a circular component inserted, showing internal components and no text or symbols.

Line drawing of a hand holding a device with a handle and lever mechanism (no text or symbols)

Simple line drawing of a mechanical component or bracket (no text or symbols)

Hand inserting a cable into a device panel (no text or symbols visible)

Simple line drawing of a flower with a curved arrow, no text or symbols present

9. CONECTE LA TUBERÍA AL REFRIGERADOR

ADVERTENCIA

Mechanical clamp mechanism diagram showing rotational motion with no text or symbols

Diagram showing a power outlet connected to an open electrical socket (no text or symbols present)

12. ENCIENDA LA MÁQUINA DE HIELO

Before conducting troubleshooting, make sure that the following basic requirements are met:

▶ Section congélateur

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Sears Canada Inc., Toronto, Ontario, Canada M5B 2C3

CONTRATS DE PROTECTION

Technical line drawing of a mechanical bracket assembly with two circular insets showing close-up views of the component (no text or symbols present)

Technical line drawing of a mechanical bracket with an inset close-up showing a detail (no text or symbols)

RETRAIT ET REMISE EN PLACE DES PORTES DU RÉFRIGÉRATEUR

! AVERTISSEMENT

ATTENTION

Diagram of a refrigerator with an arrow indicating a component, no text or symbols present

Line drawing of a refrigerator drawer with handle and drawer frame (no text or symbols)

Diagram of two hands using a tool to lift a rectangular object, no text or symbols present

COMMENT INSTALLER LE TIROIR DU CONGÉLATEUR

Diagram of hands using a tool to interact with a device inside a storage cabinet (no text or symbols present)

Technical line drawing of a refrigerator drawer with an inset showing a close-up detail (no text or symbols)

Diagram of a refrigerator interior showing internal compartments and casing (no text or labels)

Illustration of a cabinet with a magnified inset showing a wrench tool (no text or symbols present)

Technical illustration of a refrigerator with a close-up inset showing the handle mechanism (no text or symbols)

Line drawing of an open refrigerator with airflow arrows indicating cooling or ventilation (no text or symbols)

Distributeur

Diagram showing two views of a refrigerator with labeled compartments and a cross symbol (no text or labels present)

Alarme de porte

Line drawing of a refrigerator interior showing hand positioning and shelf arrangement (no text or symbols)

Line drawing of an open refrigerator with a door open, showing internal shelves and a paper strip (no text or symbols)

Line drawing of an open refrigerator with a door open, showing internal compartments and a paper feed (no text or symbols)

Illustration of a hand washing a refrigerator with a crossed-out hand symbol (no text or labels)

Diagram of a device with arrows indicating movement or force, no text or symbols present

BAC À LÉGUMES À HUMIDITÉ CONTRÔLÉE

Technical line drawing of a mechanical device with internal compartments and a directional arrow (no text or symbols)

Diagram of a device interior showing a tray with a handle and an arrow indicating rotation (no text or symbols present)

TIROIR GARDE-MANGER À TEMPÉRATURE CONTRÔLÉE

Illustration of hands placing a rectangular object into a cabinet (no text or symbols visible)

PREVIEW GRAB-N-GO

Line drawing of a refrigerator with two doors open, showing internal shelves (no text or symbols)

COMPARTIMENT PREVIEW GRAB-N-GO

Illustration of a hand holding a tool near a vertical line inside a rectangular frame (no text or symbols)

LA FONCTION PREVIEW

Illustration of a hand touching a screen with a magnifying glass (no text or symbols)

ASSEMBLAGE DE LA BOÎTE GRAB-N-GO

UTILISATION DU RÉFRIGÉRATEUR

REMPLACEMENT DU FILTRE D'AIR

Line drawing of a refrigerator internal compartments (no text or symbols)

Diagram showing hand inserting a device into a rack, with magnified views of the component (no text or symbols present)

Diagram of a microwave oven with open doors and internal grating, showing internal structure and mounting brackets (no text or symbols)

Caisson de milieu

Isometric line drawing of a refrigerator with an arrow indicating the handle (no text or symbols)

Illustration of two refrigerator compartments with one opening the drawer and another showing internal compartments (no text or symbols)

DURABASE

Diagram of a refrigerator interior showing internal components and a drawer (no text or symbols)

DIVISEUR DU DURABASE

Line drawing of a rectangular plastic container with internal compartments and side grout (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Illustration of a hand holding a cup with arrows pointing to the cup (no text or symbols)

Two identical line drawings of a shoe with a curved handle and arrow, showing no text or symbols.

Technical illustration of a mechanical device with an inset close-up showing internal components (no text or symbols)

Diagram of a hand holding a device with a paper airplane, showing internal components and no text or symbols.

Technical line drawing showing two views of a mechanical device with internal components and motion indicators (no text or symbols)

Illustration of a hand inserting a device into a device panel (no text or symbols visible)

REMPLACEMENT D'UNE AMPOULE D'ÉCLAIRAGE

AVERTISSEMENT

Simple line drawing of a flower with a curved arrow, no text or symbols present

9. RACCORDEZ LE TUYAU AU RÉFRIGÉRATEUR

AVERTISSEMENT

Mechanical clamp mechanism diagram showing rotational motion with no text or symbols

Illustration of an electric plug connected to a wall-mounted electrical outlet (no text or symbols)

12. DÉMARREZ LA MACHINE À GLAÇONS

For Sears Home Services in-home repair of all Kenmore major appliances.

For the replacement parts, accessories and Use & Care Guides that you need to do-it-yourself.

For professional installation of major home appliances and items like air conditioners and water heaters.

1-844-55355667667

www.kenmore.com

In Canadalh-8008069469634663

www.sears.ca

Call anytime for the location of your nearest Sears Parts & Repair Service Center

1-80084884222 (U.S.A.)

1-800846946634663da)

To purchase a protection agreement on a serviceable product:

1-80080278655 (U.S.A.)

1-800-361-6665 (Canada)
