417.81942 - Tumble dryer KENMORE - Free user manual and instructions

Product Type	Compact Condenser Dryer
Brand	Kenmore
Model	417.81942
Power Supply	208-240 V, 30 A, single phase, 3 or 4 wires (cord not included)
Drying Type	Condensation (no external venting)
Programs	Normal, Heavy, Delicate, All-in-one, Mixed Load, Touch Up, Towels, Jeans, Quick Dry, Wool, Timed Dry
Options	Wrinkle Release, Delay Start, Chime, Control Lock
Sensors	Moisture sensors for automatic drying
Lint Filter	Washable after each use
Water Tank	Empty after each cycle (fill indicator)
Condenser	Cleanable when indicator lights up
Door	Reversible (left or right)
Drying Rack	Optional (part no. 916093163)
Dimensions (approx.)	Height 84 cm, Width 61 cm, Depth 61 cm
Weight (approx.)	45 kg
Warranty	Limited 1 year (parts and labor), 90 days for non-residential use (USA)
Maintenance	Clean lint filter and empty water tank after each use; clean condenser periodically
Safety	Do not dry items soaked with flammable substances; do not operate without filter; stop if abnormal noise
Repairability	Repair by qualified technician recommended; authorized original parts

Frequently Asked Questions - 417.81942 KENMORE

Why won't my Kenmore 417.81942 dryer start?

Check that the power cord is firmly plugged in and that the fuse or circuit breaker has not tripped. Make sure the door is closed securely, as the dryer will not operate with the door open. If the problem persists, consult a qualified technician.

The dryer runs but does not heat. What should I do?

The dryer circuit has two fuses. If one is blown, the drum may turn without heating. Check and replace the defective fuse. Ensure the dryer is plugged into a 240 V circuit (drying time is 20% longer on 208 V).

Drying time is too long or the dryer overheats.

Clean the lint filter before each cycle. Check that the condenser is not clogged and that the water tank is empty. High ambient humidity can also extend drying time. Avoid overloading the machine.

The 'Water Tank Full' indicator lights up and the dryer stops.

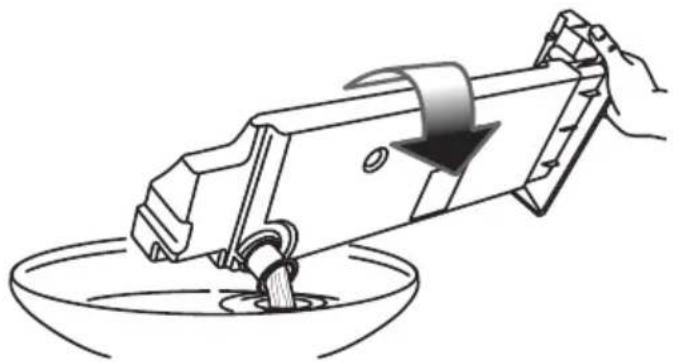

Empty the water tank located at the bottom of the appliance. Support it while removing, hold it level to avoid spills, then empty it into a sink. Replace it properly and restart the cycle. Never drink this water.

How do I clean the lint filter?

Remove the filter by pulling straight up. Open the grid lock, remove lint by hand. If a waxy deposit has formed (often from fabric softener sheets), wash it with warm soapy water, dry thoroughly, then replace.

When and how should I clean the condenser?

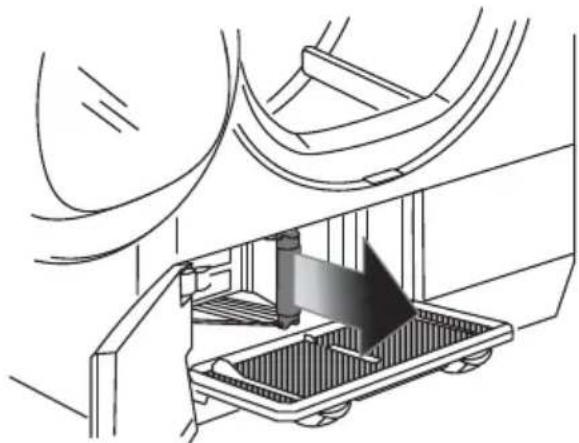

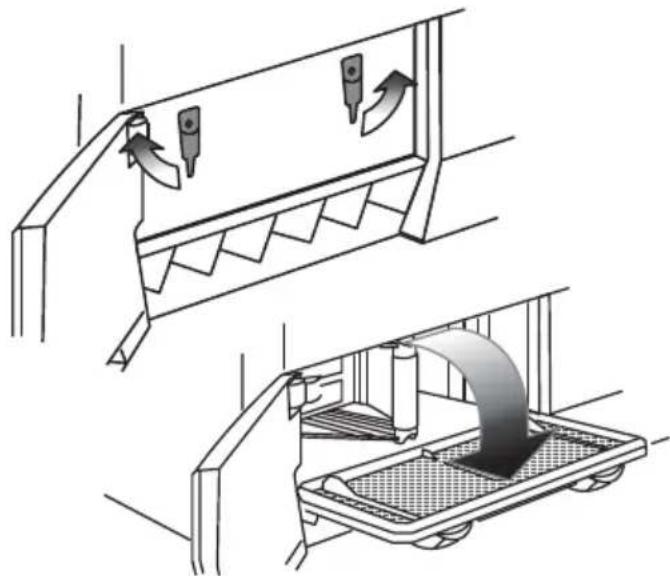

The 'Clean Condenser' indicator lights up periodically. Open the condenser access door (at the bottom, behind a hatch), turn the locks, pull out the condenser by the handle, rinse with soapy water (not in dishwasher), then replace by pushing and locking.

The dryer makes an abnormal noise (squeaking, rubbing).

Immediately stop the dryer and contact a qualified technician. This may indicate a mechanical problem that could cause a fire or injury. Do not use the appliance until it has been inspected.

Can I dry all types of fabrics in this dryer?

No. Do not dry items containing rubber, plastic, down, non-washable wool, or items soaked in oils or solvents. Use the appropriate cycle (e.g., Delicate for delicate fabrics, Wool for washable wool with optional rack). Always follow care labels.

How do I use the Delay Start option?

Press 'Delay Start' to select the desired end time. The delay duration shows and the countdown begins after pressing 'START'. This allows scheduling drying during off-peak hours or at a convenient time.

Can I add a garment during a cycle?

Yes. Press 'PAUSE' or open the door (the dryer stops). Wait for the door to unlock, add the item, close the door and press 'START' to resume the cycle. Do not force the door if locked.

USER MANUAL 417.81942 KENMORE

Toronto, Ontario, Canada M5B 2C3

www.sears.ca

IMPORTANT SAFETY INSTRUCTIONS

WARNING

Please read all instructions before using this appliance.

Recognize safety symbols, words and labels

Safety items throughout this manual are labeled with a WARNING or CAUTION based on the risk type as described below:

Definitions

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

IMPORTANT

IMPORTANT indicates installation, operation or maintenance information which is important but not hazard-related.

Record Model/Serial Numbers

The model and serial numbers of your dryer are found on the serial plate located inside the door opening. Record and retain these numbers.

Model Number

Serial Number

Purchase Date

Read all instructions before using this appliance. This book contains valuable information about:

• Operation
• Care
• Service

Keep it in a safe place.

This Use & Care Guide provides general operating instructions for your dryer. It also contains information about features for several other models. Your washer may not have every feature included.

Use the washer only as instructed in this Use & Care Guide.

NOTE

The instructions appearing in this Use & Care Guide are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating and maintaining any appliance.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Table of Contents

Important Safety Instructions 2-4

Warranty / Protection Agreement 5

Features......6

Operating Instructions 7-13

Care and Cleaning 14-15

Solutions to Common Problems 16-17

Español....18

Français....34

208-240 v Electric Dryer

10-30R 3-wire

UL-approved service cord must be installed on electric dryers (not provided with unit except those manufactured for sale in Canada).

14-30R 4-wire

(fused 30 amp)

Avoid fire hazard or electrical shock. Do not use an adaptor plug or extension cord or remove grounding prong from electrical power cord. Failure to follow this warning can cause serious injury, fire or death.

WARNING - RISK OF FIRE

To reduce the risk of fire, electrical shock, or injury to persons when using this dryer, comply with the basic warnings listed below. Failure to comply with these warnings could result in serious personal injuries. You can be killed or seriously injured if you don't follow these Important Safety Instructions:

PREVENT FIRE

• Do not dry items that have been previously cleaned in, soaked in, or spotted with gasoline, cleaning solvents, kerosene, waxes, etc. Do not store these items on or near the dryer. These substances give off vapors that could ignite or explode.
• Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.
• Do not dry articles containing rubber, plastic or similar materials such as bras, galoshes, bath mats, rugs, bibs, baby pants, plastic bags and pillows that may melt or burn. Some rubber materials, when heated, can under certain circumstances produce fire by spontaneous combustion.

• Do not use heat to dry items containing feathers or down, foam rubber, plastics similarly textured, rubber-like materials.

• Clean the lint screen before or after each load. The interior of the dryer, and lint screen housing should be cleaned approximately every 18 months by qualified service personnel. An excessive amount of lint build-up in these areas could result in inefficient drying and possible fire. See Care and Cleaning.

• Do not operate the dryer if the lint screen is blocked, damaged or missing. Fire hazard, overheating and damage to fabrics can occur.
• Do not obstruct the flow of ventilating air. Do not stack or place laundry or throw rugs against the front or back of the dryer.
• Do not spray any type of aerosol into, on or near dryer at any time.
• Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.
• Do not continue to use the dryer is you hear squeaking, grinding, rubbing or other unusual noises. This could be a sign of mechanical breakdown and lead to fire or serious injury. Contact a qualified technician immediately.
• Failure to comply with these warnings could result in fire, explosion, serious bodily injury and/or damage to the rubber or plastic parts of the dryer.

IMPORTANT SAFETY INSTRUCTIONS

PROTECT CHILDREN

• Do not allow children to play on or in the dryer. Close supervision of children is necessary when the dryer is used near children. As children grow, teach them the proper, safe use of all appliances.
• Destroy the carton, plastic bag and other packing materials after the dryer is unpacked. Children might use them for play. Cartons covered with rugs, bedspreads or plastic sheets can become airtight chambers.
• Keep laundry products out of children's reach. To prevent personal injury, observe all warnings on product labels.
• Before the dryer is removed from service or discarded, remove the dryer door to prevent accidental entrapment.
• Failure to comply with these warnings could result in serious personal injuries.

PREVENT INJURY

- To prevent shock hazard and assure stability during operation, the dryer must be installed and electrically grounded by a qualified service person in accordance with local codes. Installation instructions are packed in the dryer for the installer's reference. Refer to INSTALLATION INSTRUCTIONS for detailed grounding procedures. If the dryer is moved to a new location, have it checked and reinstalled by a qualified service person.

• ALWAYS disconnect the dryer from the electrical supply before attempting any service or cleaning. Failure to do so can result in electrical shock or injury.
• Do not use any type spray cleanser when cleaning dryer interior. Hazardous fumes or electrical shock could occur.
• To prevent injury, do not reach into the dryer if the drum is moving. Wait until the dryer has stopped completely before reaching into the drum.

PREVENT INJURY AND DAMAGE TO THE DRYER

• All repairs and servicing must be performed by an authorized servicer unless specifically recommended in this Owner's Guide. Use only authorized factory parts.
• Do not tamper with controls.
• Do not sit on, step on or stand on the dryer. Do not rest heavy loads on top. The dryer is not meant to support weight.
• Do not install or store the dryer where it will be exposed to the weather.
• Failure to comply with these warnings could result in serious personal injuries.

CAUTION

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customer of potential exposure to such substances. Included in this list are soot and carbon monoxide, both of which may be produced by the use of this product.

Master Protection Agreements

Congratulations on making a smart purchase. Your new Kenmore® product is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That's when having a Master Protection Agreement can save you money and aggravation.

The Master Protection Agreement also helps extend the life of your new product. Here's what the Agreement\* includes:

• Parts and labor not just for repairing defects, but to help keep products operating properly under normal use. Our coverage goes well beyond the product warranty. No deductibles, no functional failure excluded from coverage—real protection.
• Expert service by a force of more than 10,000 authorized Sears service technicians, which means someone you can trust will be working on your product.
• Unlimited service calls and nationwide service, as often as you want us, whenever you want us.
• "No-lemon" guarantee – replacement of your covered product if four or more product failures occur within twelve months.
• Product replacement if your covered product can't be fixed.
• Annual Preventive Maintenance Check at your request – no extra charge.
• Fast help by phone – we call it Rapid Resolution – phone support from a Sears representative on all products. Think of us as a “talking owner’s manual.”
• Power surge protection against electrical damage due to power fluctuations.
• \$250 Food Loss Protection annually for any food spoilage that is the result of mechanical failure of any covered refrigerator or freezer.
• Rental reimbursement if repair of your covered product takes longer than promised.
• 25% discount off the regular price of any non-covered repair service and related installed parts.

Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call anytime day or night, or schedule a service appointment online.

The Master Protection Agreement is a risk free purchase. If you cancel for any reason during the product warranty period, we will provide a full refund. Or, a prorated refund anytime after the product warranty period expires. Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and additional information in the U.S.A. call 1-800-827-6655.

* Coverage in Canada varies on some items. For full details call Sears Canada at 1-800-361-6665.

Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the U.S.A. or Canada call 1-800-4-MY-HOME ^® .

KENMORE LIMITED WARRANTY

FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship when it is correctly installed, operated and maintained according to all supplied instructions.

WITH PROOF OF SALE, a defective appliance will receive free repair or replacement at option of seller.

For warranty coverage details to obtain free repair or replacement, visit the web page: www.kenmore.com/warranty

This warranty applies for only 90 DAYS from the sale date in the United States, and is void in Canada, if this appliance is ever used for other than private household purposes.

This warranty covers ONLY defects in material and workmanship, and will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, bags or screw-in base light bulbs.
2. A service technician to clean or maintain this appliance, or to instruct the user in correct appliance installation, operation and maintenance.
3. Service calls to correct appliance installation not performed by Sears authorized service agents, or to repair problems with house fuses, circuit breakers, house wiring, and plumbing or gas supply systems resulting from such installation.
4. Damage to or failure of this appliance resulting from installation not performed by Sears authorized service agents, including installation that was not in accord with electrical, gas or plumbing codes.
5. Damage to or failure of this appliance, including discoloration or surface rust, if it is not correctly operated and maintained according to all supplied instructions.
6. Damage to or failure of this appliance, including discoloration or surface rust, resulting from accident, alteration, abuse, misuse or use for other than its intended purpose.
7. Damage to or failure of this appliance, including discoloration or surface rust, caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.
8. Damage to or failure of parts or systems resulting from unauthorized modifications made to this appliance.
9. Service to an appliance if the model and serial plate is missing, altered, or cannot easily be determined to have the appropriate certification logo.

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair or replacement as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Seller shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States or Canada\*.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

* In-home repair service is not available in all Canadian geographical areas, nor will this warranty cover user or servicer travel and transportation expenses if this product is located in a remote area (as defined by Sears Canada Inc.) where an authorized servicer is not available.

Sears Brands Management Corporation, Hoff man Estates, IL 60179

Sears Canada Inc., Toronto, Ontario, Canada M5B 2C3

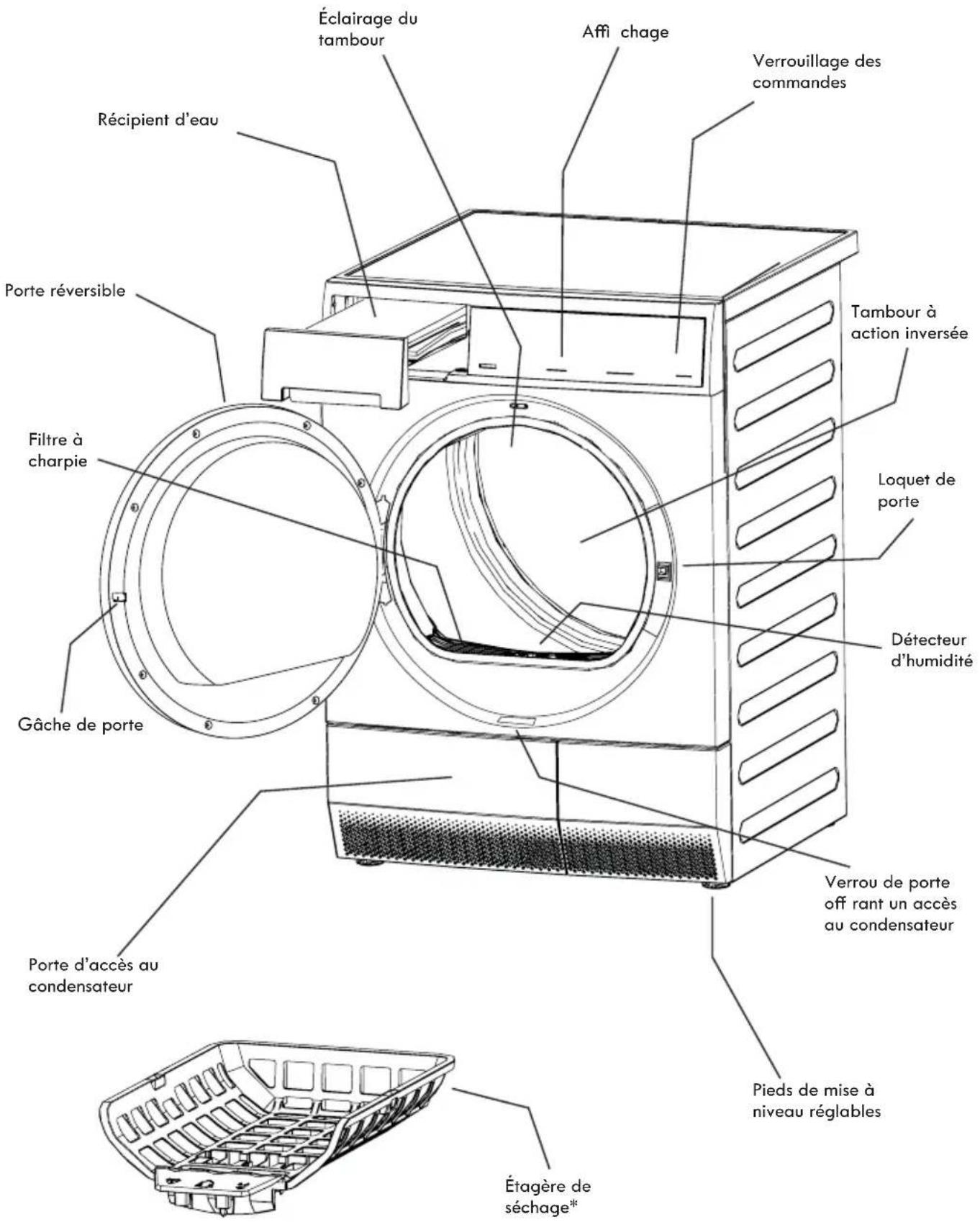

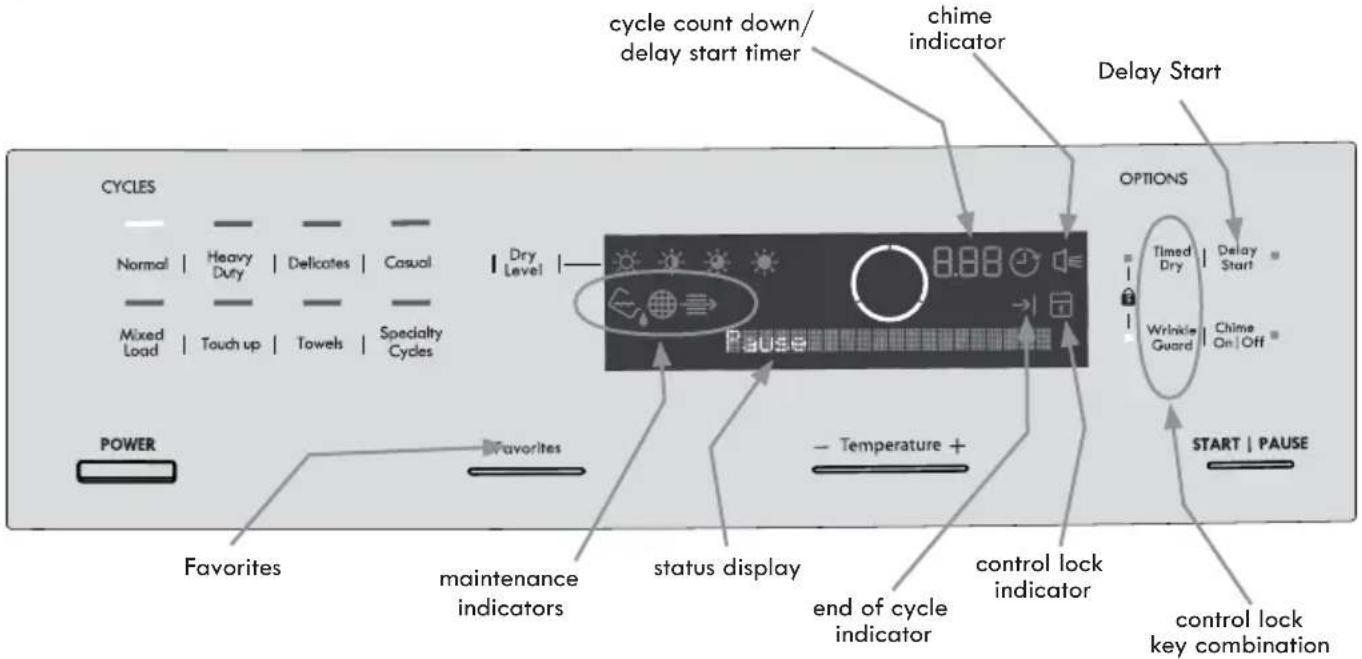

Features

*Not all models come with drying rack and stacking kit from the factory. They may be purchased as accessories.

This manual covers many models and not all cycles, options, or features listed are available on every model. Console shown above for reference only. Your model may differ.

Cycle Selection

Press the POWER button to turn on the unit. Press the icon for the cycle desired and the indicator for that cycle will be illuminated.

To change the cycle once the cycle has begun, press the POWER button to cancel the current cycle, press the POWER button to turn on unit again, select a new cycle, and press START again. Just pressing another cycle icon will not change the cycle.

For best results

Follow the fabric care label instructions on items to be dried.

Auto Dry Cycles

Auto Dry cycles take the guesswork out of selecting the correct drying time for each load. Moisture sensing bars in the front of the dryer drum sense the moisture level of the load as it tumbles through the heated air. With Auto Dry cycles, the load will automatically be dried at the selected temperature to the desired dryness level. Auto Dry cycles save time and energy and protect fabrics.

When the load has reached the selected dryness level, it will continue to tumble during a cool down period. This helps reduce wrinkling and makes items easier to handle during unloading.

Drying time varies depending on size and dampness of load and fabric type. If the load is too small or almost dry, the moisture sensing bars may not detect enough moisture to continue the cycle and the cycle may end after a few minutes. If this occurs, select a Timed Dry cycle.

Room temperature, and electrical voltage can also affect drying time.

Normal

Select this Auto Dry cycle for cotton items.

Heavy Duty

Select this Auto Dry cycle to dry durable fabrics such as jeans and overalls.

Delicates

Select this Auto Dry cycle for knits and delicate items.

Casual

Select this Auto Dry cycle for cottons and blends with a no-iron fi nish.

Mixed Load

Select this Auto Dry cycle to dry loads containing a mix of fabrics.

Touch Up

Select Touch Up to help remove wrinkles from clean and dry items that were not taken from the dryer at the end of the cycle, have been stored in crowded closets or drawers, or unpacked from luggage following a trip. It provides approximately 10 minutes of low heat tumbling followed by a 25-minute cool down period.

Towels

Select this cycle to dry heavy loads such as towels and non-rubber-backed bath mats.

Operating Instructions

Specialty Cycle Selection

To scroll through the specialty cycles, continue to press the Specialty Cycles icon. The selected cycle will be shown on the text display.

Jeans

Select this Auto Dry cycle for drying an entire load of denim jeans.

Fast Dry

Quickly dry a small load.

Wool

Use the wool cycle with washable woolens - check your fabric care label to ensure proper garment care. To help your wool items keep their shape, use of optional drying rack is recommended.

Time Dry

To manually select the drying time for this specialty cycle, press the Timed Dry icon. Actual drying time (20 minutes to 120 minutes) will be displayed.

Because this is not an Auto Dry cycle, you will not be able to select a dryness level. Moisture sensing bars are not active and dryer will continue to heat throughout the cycle until the final cool down period.

Cycle Settings

Appropriate temperature, dryness level and options will be displayed for each cycle. The settings can be changed before the cycle is started. If changes are attempted after the cycle starts a signal will beep and "Not possible" will be displayed.

NOTE

To change settings after the cycle starts, press PAUSE, adjust the setting and press START to resume the cycle.

Drying Temperature

To change the preset temperature, press the Temperature button to scroll to the desired setting.

To protect your fabrics, not all temperatures are available with every cycle. The indicator will not light if the setting is not available with that cycle.

Max ○

Recommended for durable fabrics and towels.

Medium

Recommended for most cotton fabrics.

Low

Recommended for delicate fabrics.

Dryness Level (Auto Dry)

To change the preset level, press the Dry Level icon to scroll to the degree of dryness desired.

To protect your fabrics, not all dryness levels are available with every cycle. If a dryness level is not appropriate for the cycle, it cannot be selected.

Select the Normal ✿ dry level for most Auto Dry cycles.

Occasionally a load may seem too damp or over-dried at the end of the cycle. To increase drying time for similar loads in the future, select Max 。 For loads requiring less drying time, select Less 。

Select Damp ✪ for items you wish to partially dry before hanging or ironing.

Cycle Options

To add options, press the corresponding option's icon to illuminate the selection desired. To cancel options, press the option's icon again and the indicator light will turn off. If an option is not appropriate for the cycle, the indicator will not light. To protect your fabrics, not all options are available with every cycle. Not all options are available on every model.

NOTE

To change the options once the cycle has begun, press the PAUSE button, make the new selection and press START again.

Wrinkle Guard

Select Wrinkle Guard if the dried load might not be removed promptly at the end of the cycle. The dry load will continue tumbling without heat to help reduce wrinkling.

When Chime is selected, a beep will be heard periodically. The load may be removed any time during Wrinkle Guard.

Chime

A signal will sound at the end of the cycle (and periodically during Wrinkle Guard) if this option is selected.

Drying System Maintenance Procedures

Water Container Full (if direct drain kit not installed)

A condensing dryer does not expel moisture-fi lled air to the outside like a conventional dryer. Moisture is extracted from the air by a condenser within the dryer. The moisture is then collected in a built-in water container, which should be emptied after every dried load of clothes. The container MUST be emptied when the Water Container Full indicator light illuminates on the dryer control panel.

If the water container becomes full during a drying cycle, the indicator will illuminate and the dryer will stop. Empty and replace the water container and restart the dryer.

To empty the container:

1. Support the container as you pull it out.

Line drawing of hands inserting a card into a box with a downward arrow (no text or symbols)

1. Hold container level to prevent water from spilling.
2. Dump water container in sink or drain.

Illustration of a hand pouring liquid into a bowl with a handle (no text or symbols)

CAUTION

Do not drink or prepare food with the condensed water from your dryer water. It can cause health problems to people and pets.

1. Return container fully before continuing operation of dryer.

Line drawing of hands inserting a card into a box, with an arrow indicating the card's direction (no text or symbols present)

Lint Filter Plugged

When the "Lint Filter Plugged" indicator comes on, follow these steps to clean the filter:

1. Remove the fi Iter by pulling straight up.
2. Release the latch on the filter grille to open the filter.

Diagram of a car air duct system with airflow and structural components (no text or labels)

1. Remove trapped lint and larger particles by hand.
2. If necessary, clean fi lter screen with hot water.

Illustration showing two different cleaning methods: one using a grid device and the other cleaning a tray with water, both without any text or symbols.

1. Return fi iter before continuing use of the dryer.

CAUTION

Do not operate dryer without lint fi lter in place.

Clean Condenser

When the "Clean Condenser" indicator comes on, follow the Condenser Cleaning instructions in the Care and Cleaning section of this manual.

Operating Instructions

Other Features

Favorites

After a time period of initial usage, the dryer will automatically remember the 3 most used cycles with their settings and options. To cycle through this list continue to press the My Favorites button. Press START after your desired cycle appears.

Delay Start

Press Delay Start to select a dry time convenient to your schedule or during off peak energy hours. The delay time selected will be displayed and begin counting down when you select START.

Control Lock

To avoid having someone accidentally start or stop the dryer, press Timed Dry and Wrinkle Guard at the same time and hold until the indicator is lit. To unlock the controls, press Timed Dry and Wrinkle Guard at the same time and hold until the indicator is no longer lit.

Status Display/Status Lights

The estimated total cycle time will be displayed when the cycle is selected. The estimated remaining cycle time is displayed during the cycle.

Drum Light

The drum light will come on whenever the door is opened to illuminate the drum during loading and unloading. Closing the door turns off the light.

Reversible Door

Your dryer is equipped with a reversible door. The door can be hinged on the right or left side.

NOTE

For step-by-step instructions on DOOR REVERSAL, refer to the Installation Instructions supplied with this dryer.

Drying Rack (on select models)

Use the drying rack for items which should not be tumble dried. Insert the rack into the dryer drum and lower the front two "legs" into the openings on the lint filter grille.

Place items to be dried on top of the rack, leaving space between items and not allowing them to hang over the sides or through the holes. Select the low heat setting for items containing plastic, foam rubber, rubber-like materials, feathers or down.

When items are dry, remove the rack and store it in a convenient location.

NOTE

If your model did not come with a drying rack, you may order one at www.searspartsdirect.com or 1-800-252-1698 - part number 916093163.

Operating Instructions

Dryer Settings Table

These Temperatures, Dryness Levels, and Options are available with the following cycles:

Normal	Heavy Duty	Delicates	Casual	Mixed Load	Touch Up	Towels	Specialty Cycles
							Jeans	Fast Dry	Wool	Timed Dry

Temperature

Max	√	√		√	√		√	√	√		√
Medium	√	√		√	√		√	√		√
Low	√	√	√	√	√	√	√	√		√	√

Dry Level

Max	√	√		√		√
Normal	√	√	√	√	√		√	√	√	√
Less	√			√	√		√
Damp	√			√	√

Options

Wrinkle Guard	√	√	√	√	√	√	√	√	√		√
Timed Dry
Delay Start	√	√	√	√	√	√	√	√	√	√	√
Chime	√	√	√	√	√	√	√	√	√	√	√

√ = Available selections. □ = Cycle defaults. ■ = Non-modifiable presets.

Operating Instructions

Operating Your Dryer

WARNING

To reduce the risk of fi re, electric shock or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS in this Use and Care Guide before operating your dryer.

1 Prepare load for drying.

• Dry items of similar fabric, weight and construction in the same load.
• Separate dark items from light-colored items. Separate items that shed lint from those that attract lint.
• Check for stains which may not have been removed in washing. Repeat stain removal process and wash again before drying. Drying may permanently set some stains.
• Place delicate or small items in a mesh bag.

Simple line drawing of a rectangular object with a grid pattern and a handle (no text or symbols)

(Mesh bag not included.)

- Be sure buckles, but- tons and trim

are heatproof and won't damage the drum fi nish. Close zippers; fasten hooks and Velcro®-like fasteners. Tie strings and sashes to prevent snagging and tangling.

2 Check that the lint filter is clean and in place and water container is empty. See also Care and Cleaning section.

Line drawing of a washing machine with a door opening and a small house inside (no text or symbols)

Line drawing of a hand inserting a device into a container (no text or symbols)

Illustration of a hand pouring liquid into a bowl using a tool (no text or symbols)

CAUTION

Do not operate dryer without lint fi lter in place.

3 Load the dryer and close the door.

• Load items loosely. The average wet load will fill the drum 1/3 to 1/2 full. Items need room to tumble freely for even drying and less wrinkling.
• Fabric softener sheets are not recommended with this condensing dryer.
  • To save energy and time and avoid uneven drying and wrinkling, do not overload the dryer.
• When drying large items, dry only two or three items at a time. Fill out the load with small and medium sized items.
• For delicate or very small loads, add two or three similar items to improve tumbling action.

4 Select the appropriate cycle and settings for each load.

NOTE

Over-drying can cause wrinkles, shrinkage, lint, harshness and a build up of static electricity.

• Press the POWER button to turn on the unit.
• Select a desired cycle by pressing its icon.
• The estimated cycle time, drying temperature, dryness level and options will be indicated for the cycle selected. See the "Dryer Settings Chart" for more details. Estimated (and actual) cycle times may differ depending on load size and moisture content.

• To change the settings, press the Temperature or Dry Level icons to scroll to the desired settings.

- To select or delete an option, press the icon for that option. The indicator will be illuminated when the option has been selected. The indicator will no longer be lighted when the option has been deleted.

NOTE

To provide the best care for your laundry, not every setting or option is available with every cycle. If a setting or option is not available for the cycle selected, the indicator will not light.

5 Start the dryer.

• Close the door and press START. The dryer will not operate with the door open. "Check the door" will be displayed as a reminder to close the door.
• Select Delay Start to delay the beginning of the cycle, if desired.
• To add a forgotten item to the dryer drum, press PAUSE and open the door. "PAUSE" will be displayed alternately with the estimated remaining cycle time. Opening the door with a cycle running will also pause the cycle. Add the item, close the door and press START to resume the cycle.
• If changes to the settings or options are attempted after the cycle starts, you will hear several beeps when the buttons are pressed. To change the settings or options, press PAUSE, make the new selections and press START again.
  • To change the cycle once the cycle has begun, press the POWER button to cancel the current cycle, press the POWER button to turn on unit again, select a new cycle, and press START again. Just pressing another cycle icon will not change the cycle.
  • To stop the cycle, press the POWER button.
  • A signal will sound at the end of the cycle if the Chime option has been selected.

NOTE

If drying a single large or bulky item remove the item part way through the cycle and turn it "inside out" to maximize drying eff ectiveness. Place item back in dryer and re-start cycle.

6 When the cycle ends, remove items immediately and hang or fold.

IMPORTANT

Clean the lint filter and empty the water container after every load.

Normal Operating Sounds

You may or may not hear the following sounds from your new dryer:

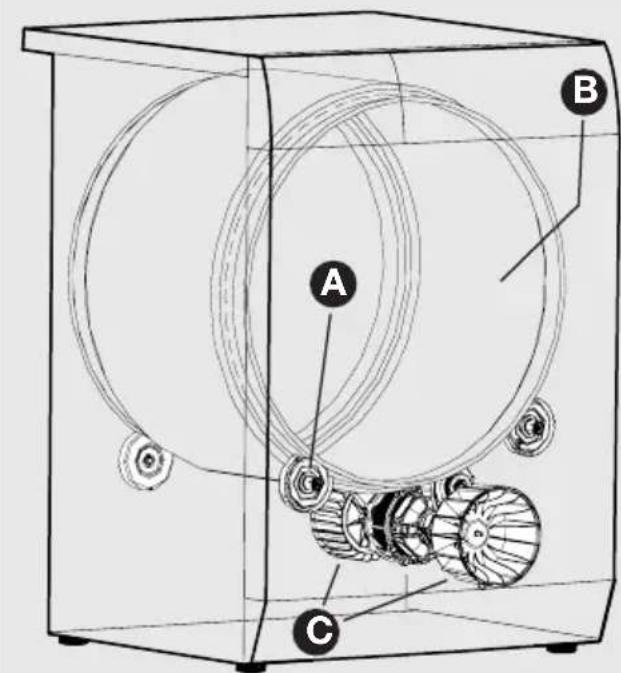

A. SUSPENSION ROLLERS The dryer drum is supported by a set of suspension rollers. At times there may be a thumping or rolling sound when the dryer starts. This may happen if the dryer has not been in use for a period of time, or after a heavy load has remained in the dryer drum for an extended period, creating a temporary fl at spot on the edge of the roller. The noise should dissipate as the dryer operates and the fl at spots smooth out.
B. REVERSING-ACTION TUMBLE SYSTEM You will hear the intermittent sound of the dryer stopping, momentarily pausing, then restarting in the opposite direction.
C. AIR FLOW SYSTEM Your dryer is equipped with a high volume air handling system. In some installations there may be some sounds associated with air movement throughout the dryer. This is normal and can vary with load size and type.

CAUTION

Do not continue to use the dryer if you hear squeaking, grinding, rubbing or other unusual noises. This could be a sign of mechanical breakdown and lead to fire or serious injury. Contact a qualified technician immediately.

IMPORTANT

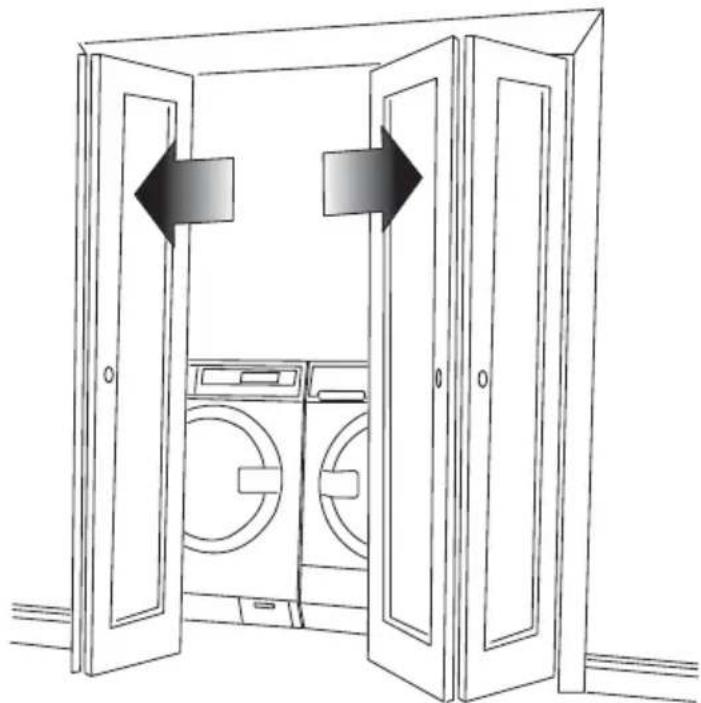

If installed in a closet the dryer will not function correctly with the closet door in the closed position. This condensation process requires access to cool air from the room. The unit must only be operated with the door in the open position to allow correct air circulation.

Line drawing of a refrigerator with two washing machines, one open and one closed, showing the door handle (no text or symbols)

Line drawing of a double door with open doors and laundry units inside, showing two arrows pointing inward (no text or symbols)

Care and Cleaning

Line drawing of a washing machine with a lid and internal components, showing hand positioning and cleaning process (no text or symbols)

IMPORTANT

Clean the lint fi Iter and dump water container after every load.

Line drawing of a washing machine with a prohibition symbol overlay (no text or symbols present)

IMPORTANT

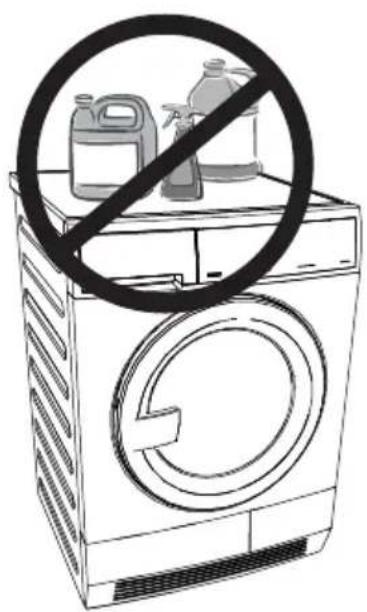

Do not store or place laundry products on top of dryer at any time. They can damage the fi nish or controls.

WARNING

To reduce risk of fire or serious injury to persons or property, comply with the basic warnings listed in the Important Safety Instructions and those listed below.

• Before cleaning the dryer interior, unplug the electrical power cord to avoid electrical shock hazards.
• Do not use any type of spray cleanser when cleaning the dryer interior. Hazardous fumes or electrical shock could occur.

INSIDE

- Clean the lint fi liter after every load. Lint build-up on the filter restricts air flow, which causes longer drying times. The fi liter is located at the bottom of the door opening. Remove by pulling straight up. Remove the lint and replace the fi liter.

- Occasionally a waxy build-up may form on the lint fi liter and/or moisture sensing bars from using dryer-added fabric softener sheets. To remove this build-up, wash them with warm, soapy water. Dry the fi liter thoroughly and replace. Do not operate the dryer without the lint fi liter in place.

- If the dryer drum becomes stained from noncolorfast fabrics, clean the drum with a damp cloth and a mild liquid household cleanser. Remove cleanser residue before drying the next load.

• See next page for more information regarding cleaning of the condenser assembly.

OUTSIDE

• Clean the cabinet with mild soap and water. Never use harsh, gritty or abrasive cleansers.
• Remove debris and lint from the front of the condenser door with a vacuum cleaner.
• Remove glue residue from tape or labels with a mixture of warm water and mild detergent. Or, touch residue with the sticky side of the tape or label.
• Before moving the dryer, place a strip of cardboard or thin fi berboard under the front leveling legs to prevent damage to the floor.

Cleaning Condenser

Clean Condenser

When the "Clean Condenser" indicator comes on, follow these steps to remove and clean the condenser assembly:

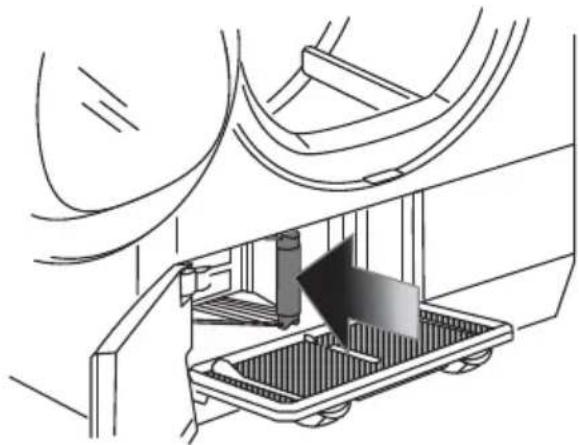

1. Open the dryer door and locate the condenser access door latch release.

Diagram of a boat hull with curved lines and a small rectangular object at the bottom (no text or symbols)

1. While pressing release, open the condenser access door.

Diagram of a mechanical assembly with a curved component and directional arrow (no text or symbols)

1. Rotate the two latches to lower the condenser screen.

Technical illustration showing two mechanical components: a saw blade assembly and a cart with a curved arrow indicating motion (no text or symbols present)

1. Grab the condenser handle and pull straight out.

Technical line drawing of a mechanical component with a downward arrow indicating motion or force (no text or symbols)

1. Rinse condenser in sink. Clean with mild soap and water if necessary.

Line drawing of a hand using a tool to lift a water-filled container with a plug, no text or symbols present

IMPORTANT

Do not place condenser in dishwasher for cleaning.

1. Push condenser back in place, close retention panel, rotate latches and close condenser access door until it latches.

Technical line drawing of a mechanical assembly with a component inside a cart (no text or symbols)

Solutions to Common Problems

Common Drying Problems

Many drying problems involve poor soil and stain removal, residues of lint and scum, and fabric damage. For satisfactory washing results, follow these suggestions provided by The Soap and Detergent Association.

PROBLEM POSSIBLE CAUSES SOLUTIONS PREVENTIVE MEASURES
Greasy, oily stains	Fabric softener sheet.Rub fabric softener stains with bar soap. Rinse and rewash.		Add a few bath towels to small loads for proper tumbling.Some “silk-like” fabrics should be air dried.Use proper drying temperature.Place fabric softener sheet on top of load before starting the dryer.
LintOverloading.Overdrying causes static electricity.Lint screen not clean when cycle began.Lint is attached to “pills.”		Reduce load size and rewash using liquid fabric softener in the fi nal rinse.Or, add a fabric softener sheet and tumble without heat.Use lint brush or roller to remove lint.	Do not overload dryer.Use fabric softener in washer or dryer to reduce static electricity.Remove items when they are slightly damp to avoid overdrying.Check that lint fi liter is clean and in place.
Pilling (Fibers break off, ball up and cling to fabric.)	Overdrying.Use a lint brush or shaver to remove pills.		Use fabric softener to lubricate fi bers.When ironing, use spray starch or fabric finish on collars and cuffs.Turn items inside out to reduce abrasion.
ShrinkingTemperature too high.Overdrying.		Irreversible condition.Follow fabric care label directions.If shrinking is a concern, check load often.Remove items while slightly damp and hang or lay fi at to complete drying.Block knits into shape.
WrinklingOverloading.Leaving items in dryer after cycle ends.		Reduce load size and tumble at medium or low heat for 5-10 minutes.Remove items immediately. Hang or fold.	Do not overload dryer.Remove items as soon as cycle ends.

Avoid Service Checklist

Before calling for service, review this list. It may save both time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this dryer.

OCCURRENCE POSSIBLE CAUSE SOLUTION

Dryer does not start.	Electrical power cord is not securely plugged in or plug may be loose.	Make sure the plug fi ts tightly in wall outlet.
	House fuse blown or circuit breaker tripped. Reset circuit breaker or replace fuse.
Dryer runs but won't heat.	There are 2 house fuses in the dryer circuit. If 1 of the 2 fuses is blown, the drum may turn but the heater will not operate.	Replace fuse.
Drying cycle takes too long, outside of the dryer feels too hot or smells hot.	Lint filter is clogged with lint.	Make sure all lint has been removed from the dryer lint fi lter before starting each cycle.
	Electric dryer is connected to a 208 volt circuit.	Drying time will be 20% longer than drying on a 240 volt circuit.
	Drying procedures have not been followed. See “Operating Instructions.”
	High humidity. Use a dehumidifi er near the dryer.
Dryer stops during a cycle and symbol is lit on control panel.	Water container was not emptied between cycles and is full.	Empty and replace water container and restart dryer.
Excessive wrinkling.	Dryer is overloaded. Do not overload. See “Operating Instructions.”
	Items left in dryer too long. Remove items as soon as cycle ends.
	Insuffi cient sorting of items. See “Operating Instructions.”
	Drying temperature too high. Follow fabric care label instructions.
Scratching or chipping of the drum fi nish.	Foreign objects such as coins, pins, clips or buttons are inside the dryer.*	Always remove foreign objects from pockets before laundering. Remove objects from drum and restart dryer.
	Permanently attached items such as belt buckles, zippers and fasteners may be hitting the inside of the drum.*	It may be necessary to sew a scrap of material securely around ornaments before drying to prevent scratching and damage to the dryer.

*Drum damage caused by foreign objects or permanently attached items is not covered by the warranty.

Sears Canada Inc., Toronto, Ontario, Canada M5B 2C3

Características

Line drawing of hands installing or adjusting a mechanical component with a downward arrow (no text or symbols)

Illustration of a hand pouring liquid into a bowl with a handle, no text or symbols present

PRECAUCIÓN

Illustration of hands inserting a rectangular object into a container with an arrow indicating direction (no text or symbols)

Filtro de Hilachas Atascado

Diagram of a mechanical device with a moving cart and directional arrows, no text or symbols present

Illustration of two different hand-painted views: top shows a tray with contents, bottom shows a water tap (no text or symbols)

Limpiar Condensador

(Mesh bag not included.)

Line drawing of a washing machine with a door and circular vent, showing internal components (no text or symbols)

Line drawing of a door handle with a black arrow indicating direction (no text or symbols)

Simple line drawing of a hand pouring liquid into a bowl (no text or symbols)

PRECAUCIÓN

Line drawing of a refrigerator with two washing machines, one open and one closed, showing the door handle (no text or symbols)

Line drawing of a double door with open doors and laundry units inside, showing two arrows pointing inward (no text or symbols)

Cuidado y Limpieza

Line drawing of a washing machine with a lid and internal components, showing hand positioning and cleaning process (no text or symbols)

IMPORTANTE

Line drawing of a washing machine with a prohibition symbol overlay (no text or symbols present)

IMPORTANTE

Diagram of a curved cable or wire with a rectangular object inserted into it, no text or symbols present

Diagram of a mechanical assembly with a curved component and directional arrow (no text or symbols)

Technical illustration showing two mechanical assembly steps: top view with tool and motion arrows, bottom view with curved arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a clamping device inside a container (no text or symbols)

Line drawing of a hand using a tool to lift a water-filled container with a plug, no text or symbols present

IMPORTANTE

Technical line drawing of a mechanical assembly with a component inside a frame (no text or symbols)

Sears Canada Inc., Toronto, Ontario, Canada M5B 2C3

Caractéristiques

Mixed Load (Charge Mixte)

Line drawing of hands installing or adjusting a component on a cabinet (no text or symbols)

Illustration of a hand pouring liquid into a bowl with a downward arrow indicating flow (no text or symbols)

ATTENTION

Line drawing of hands installing or adjusting a mechanical component with an arrow symbol (no text or labels)

Simple diagram with a globe, wave, and arrow symbols (no text or labels)

Diagram of a mechanical device with motion lines and a curved structure, no visible text or symbols

Illustration of two different cleaning tools: a hand placing a grid into a tray and a water tap with a drain (no text or symbols present)

Illustration of a washing machine with a lid, showing its internal components and a close-up of its use in a bowl (no text or symbols present)

ATTENTION

Line drawing of a refrigerator with two washing machines and an open door, showing a curved arrow indicating rotation (no text or symbols)

Line drawing of a double door with open doors and laundry units inside, showing two arrows pointing inward (no text or symbols)

Line drawing of a washing machine with a lid and internal components, showing hand positioning and cleaning process (no text or symbols)

IMPORTANT

Line drawing of a washing machine with a prohibition symbol overlay (no text or symbols present)

IMPORTANT

Diagram of a curved mechanical component with a highlighted section and arrow (no text or symbols)

Diagram of a mechanical assembly with a curved component and directional arrow (no text or symbols)

Technical illustration showing two mechanical components: a saw blade assembly and a cart with a curved arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical component with a downward arrow indicating motion or force (no text or symbols)

Line drawing of a hand using a tool to lift a container with liquid, no text or symbols present

IMPORTANT

Technical line drawing of a mechanical assembly with a component inside a frame (no text or symbols)

PROBLÈME CAUSE POSSIBLE SOLUTION

For Sears Home Services in-home repair of all Kenmore major appliances.

For the replacement parts, accessories and Use & Care Guides that you need to do-it-yourself.

For professional installation of major home appliances and items like air conditioners and water heaters.

1-844-5535667667

www.kenmore.com

In Canadah-800869-46634663

www.sears.ca

Call anytime for the location of your nearest Sears Pants & Repair Service Center

1-8008488-4222 (U.S.A.)

1-800846946634663

To purchase a protection agreement on a serviceable product:

1-80080278655 (U.S.A.)

1-800-361-6665 (Canada)
