HMWC44DZ - Wine cellar Magic Chef - Free user manual and instructions

Product Type	Wine and Beverage Center
Model	HMWC44DZ
Unit Dimensions (W x H x D)	23.4" x 34.4" x 24.4"
Net Weight	100.5 lbs
Electrical Requirements	115V AC / 60Hz, 3-prong grounded outlet
Temperature Range	41°F to 61°F (5°C to 16°C)
Number of Zones	2 (Upper and Lower)
Upper Zone Capacity	Up to 16 wine bottles or 63 cans
Lower Zone Capacity	Up to 28 wine bottles or 77 cans
Total Bottle Capacity	Up to 44 wine bottles
Shelving	Wire shelves and glass shelves (for beverages)
Interior Light	LED, each zone independently controlled
Defrost	Automatic defrost
Installation Type	Freestanding or built-in
Cutout Dimensions (Built-in)	24" min width, 34-1/2" to 35" height, 24" depth
Refrigerant	R600a (flammable)
Warranty - Parts & Labor	1 year (in-home service)
Warranty - Compressor (Parts Only)	5 years
Standby Mode	Yes
Control Lock	Yes
Temperature Display	°F or °C selectable
Dual Zone Control	Independent temperature control per zone
Cleaning Recommendation	Mild detergent and warm water; baking soda solution for interior
Safety Features	Child entrapment prevention, grounded plug, flammable refrigerant warning

Frequently Asked Questions - HMWC44DZ Magic Chef

How do I set the temperature for each zone?

Unlock the control panel by pressing the lock pad for 3 seconds. Then use the Warmer (▲) and Colder (▼) pads for the corresponding zone to adjust the temperature between 41°F and 61°F. The display will flash to confirm.

Can I install this wine cellar as a built-in unit?

Yes, the HMWC44DZ is designed for both freestanding and built-in installation. For built-in, ensure the cutout dimensions are at least 24" wide, 34-1/2" to 35" high, and 24" deep. Allow 6" max for the outlet location and 1" protrusion of the door beyond surrounding cabinets.

What should I do if the unit does not cool?

Check that the unit is plugged in and the circuit breaker has not tripped. Ensure the temperature control is set correctly. If the error code E1 or E2 appears, there may be a sensor issue; contact customer service.

How do I clean the wine cellar?

Unplug the unit and remove all contents. Wash the interior with a solution of 2 tablespoons of baking soda per quart of warm water. Use mild detergent and warm water for the exterior. Dry with a soft cloth. Keep the door gasket clean.

How does the automatic defrost work?

During the compressor off cycle, ice on the inner back wall melts automatically. Defrost water drains to a pan above the compressor and evaporates. The indicator lights turn off and fans run during defrost.

Why is the lock indicator flashing and I cannot change settings?

The control panel is locked. Press and hold the lock pad for about 3 seconds until you hear a beep and the lock indicator turns off. The panel will auto-lock after 1 minute of inactivity.

What do the error codes E1, E2, E3, and E4 mean?

E1 = upper zone temperature sensor error; E2 = lower zone temperature sensor error; E3 = upper zone DC fan error; E4 = lower zone DC fan error. Contact customer service for assistance.

How many wine bottles can this unit hold?

Total capacity is up to 44 standard wine bottles. The upper zone holds up to 16 bottles, and the lower zone holds up to 28 bottles. Alternatively, the upper zone can hold 63 cans and the lower zone 77 cans.

Can I use an extension cord?

No, extension cords are not recommended as they can affect performance and pose a safety hazard. Plug the unit into a dedicated, grounded outlet. If the cord is too short, have an electrician install a nearby outlet.

Is the warranty transferable?

No, the warranty is non-transferable and applies only to the original purchaser. Proof of purchase (sales receipt) is required for warranty service.

USER MANUAL HMWC44DZ Magic Chef

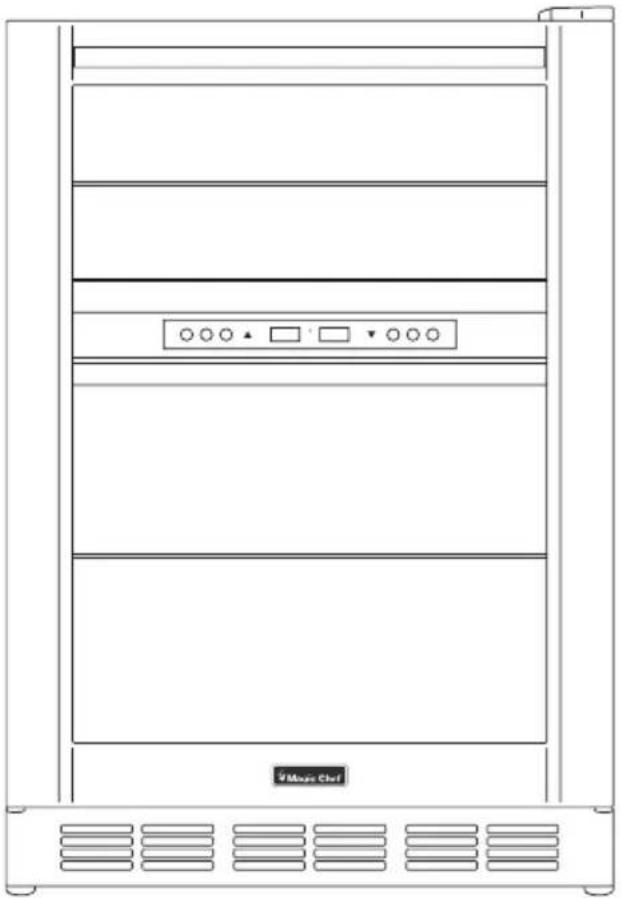

Front view line drawing of a server rack unit with ventilation grilles and control buttons (no text or symbols)

Model HMWC44DZ

PLEASE READ THIS MANUAL CAREFULLY BEFORE USING YOUR WINE AND BEVERAGE CENTER AND KEEP IT FOR FUTURE REFERENCE.

PRODUCT REGISTRATION

Thank you for purchasing a Magic Chef® product. The first step to protect your new product is to complete the product registration on our website:

www.mcappliance.com/register. The benefits of registering your product include the following:

1. Registering your product will allow us to contact you regarding a safety notification or product update.
2. Registering your product will allow for more efficient warranty service processing when warranty service is required.
3. Registering your product could act as your proof of purchase in the event of insurance loss.

Once again, thank you for purchasing a Magic Chef ^® product.

TABLE OF CONTENTS

PARTS 4

SPECIFICATIONS 4

IMPORTANT SAFETY INSTRUCTIONS 5

INSTALLATION INSTRUCTIONS

BEFORE USING YOUR APPLIANCE 6

FREESTANDING INSTALLATION 7

BUILT-IN INSTALLATION 7

ELECTRICAL CONNECTION 8

APPLIANCE FEATURES

DUAL TEMPERATURE ZONES 9

INTERIOR LIGHT 9

ENGAGED WINE SHELVES 9

TO REMOVE A SHELF 9

TO REPLACE A SHELF 9

UPPER ZONE 10

LOWER ZONE 10

OPERATING YOUR APPLIANCE

TEMPERATURE CONTROL AND DISPLAY 11

INDICATOR LIGHTS 11

STANDBY 11

LOCK AND UNLOCK 12

TEMPERATURE SETTING 12

INTERIOR LIGHT 12

AUTOMATIC DEFROST 13

CARE AND MAINTENANCE

CLEANING YOUR APPLIANCE 13

VACATION TIME 13

MOVING YOUR APPLIANCE 13

ENERGY SAVING TIPS 13

TROUBLESHOOTING GUIDE 14

WARRANTY 16

ENG - 3

Magic Chef®

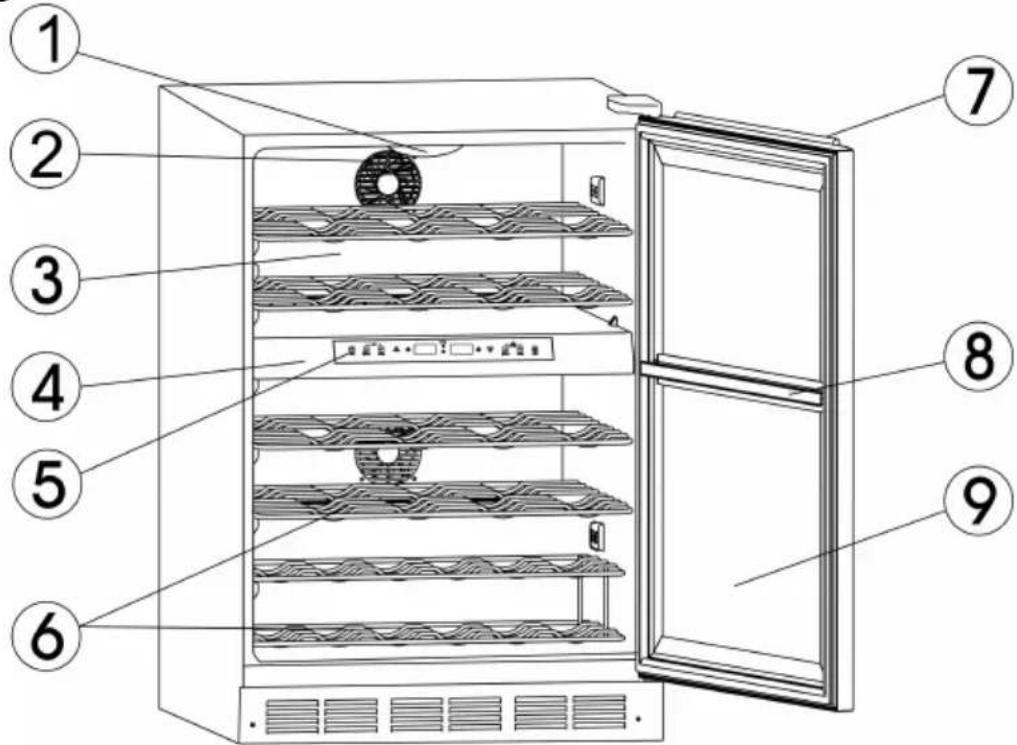

PARTS

1) Interior Light 7) Door Handle
2) Direct Current (DC) Electric Fan 8) Partition Gasket
3) Inner Rear 9) Tempered Glass Door
4) Zone Partition
5) Temperature Control & Display
6) Wire Shelf / Glass Shelf* *Shelves are available for either wine,

beverage, or combination storage use

SPECIFICATIONS

Product Description Wine and Beverage Center
Unit Dimensions (inches)	Width Height	Depth
	23.4” 34.4”	24.4”
Net Weight (lbs)	100.5 lbs

Note: Height includes door cap; Depth includes door handle.

ENG - 4

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury follow these basic precautions when using your refrigerator.

1) WARNING----Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction.
2) WARNING----Do not touch the interior of the chiller compartment with wet hands. This could result in frost bite.
3) WARNING----Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
4) WARNING----Do not damage the refrigerant circuit when handling, moving, or using the refrigerator.
5) WARNING----Do not use electrical appliances inside the food storage compartment of the refrigerator, unless they are of the type recommended by the manufacturer.
6) WARNING--DANGER--Never allow children to play with, operate, or crawl inside the refrigerator.
Risk of child entrapment. Before you throw away your old refrigerator:
1. Take off the doors;
2. Leave the shelves in place so that children may not easily climb inside.
7) Unplug the refrigerator before carrying out user maintenance on it.
8) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
9) If a component part is damaged, it must be replaced by the manufacturer, its service agent, or similar qualified persons in order to avoid a hazard.
10) Please dispose of the refrigerator according to local regulations as the refrigerator contains flammable gas and refrigerant.
11) Follow local regulations regarding disposal of the refrigerator due to flammable refrigerant and gas. All refrigeration products contain refrigerants, which under the guidelines of federal law must be removed before disposal. It is the consumer's responsibility to comply with federal and local regulations when disposing of this product.
12) This refrigerator is intended to be used in household and similar environments.
13) Do not store or use gasoline or any flammable liquids inside or in the vicinity of this refrigerator.
14) Do not use extension cords or ungrounded (two prong) adapters with this refrigerator. If the power cord is too short, have a qualified electrician install an outlet near the refrigerator. Use of an extension cord can negatively affect the refrigerator's performance.
15) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
16) Do not store explosive substances, such as aerosol cans with a flammable propellant, in this appliance.
17) This appliance is intended to be used in household and similar applications such as:
- Staff kitchen areas in shops, offices, and other working environments;
- Farm houses and by clients in hotels, motels, and other residential type environments;
• Bed and breakfast type environments;
• Catering and similar non-retail applications.
18) Lamp replacement by professionals.

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electric shock and/or injury when using your appliance, follow these basic precautions:

Read all instructions before using the wine and beverage center.DANGER or WARNING: Risk of child entrapment.To avoid the possibility of child entrapment, please take the following precautions before throwing out the appliance:-Remove all doors from the unit.-Leave the shelves in place so that children may not easily climb inside.Never allow children to operate, play with, or crawl inside the appliance.Refrigerants: All refrigeration products contain refrigerants. Under the guidelines of federal law, refrigerants must be removed before the disposal of the product. It is the consumer's responsibility to comply with federal and local regulations when disposing of this product.Never clean the appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.SAVE THESE INSTRUCTIONS

INSTALLATION INSTRUCTIONS

Before Using Your Appliance

• Remove the exterior and interior packing.
• Before connecting the appliance to the power source, let it stand upright for approximately 4 hours. This will reduce the possibility of a malfunction in the cooling system resulting from improper handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth (see Care and Maintenance instructions on page 13).

Freestanding Installation

• This appliance is designed to be built-in or freestanding.
• Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Ambient temperature below 68°F (20°C) or above 90°F (32°C) will hinder the performance of this appliance. This unit is not designed for use in a garage or any other outside installation.
• Avoid locating the appliance in moist areas.
• Plug the appliance into a dedicated, properly installed grounded wall outlet. This appliance should be operated on a separate electrical circuit from other operating appliances. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized service center. This unit is not designed to be installed in an RV or used with an inverter.
• After plugging the appliance into a wall outlet, allow the unit to cool down for approximately 3-4 hours before placing wine bottles or beverage cans in the appliance.

Built-In Installation

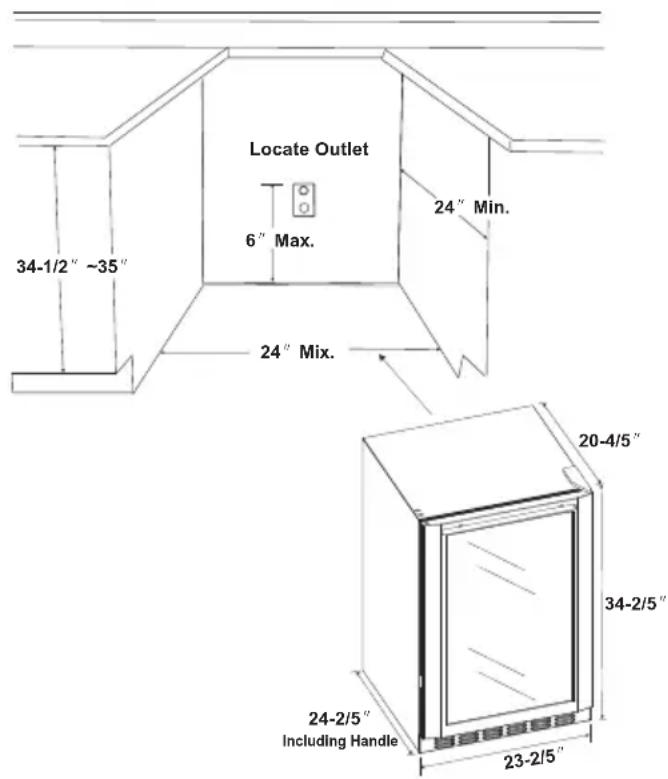

The cutout dimensions illustrated in Figure A allows the door to swing open and also allows access to the pull-out shelves when installed as a built-in unit. If you are installing the unit between frameless cabinets, a 12 " wide filler strip or side panel may be needed on the hinge side. The filler strip will act as a spacer between the appliance case and the adjacent cabinet door swing. The width of the opening must include the filler panels.

Note: The door should protrude at least 1" beyond the surrounding cabinets.

Figure A – The cutout depth must be 24"

Electrical Connection

WARNING

Improper use of the grounded plug can result in the risk of electric shock. If the power cord is damaged, please contact an authorized service center.

• This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three-prong wall outlets to minimize the possibility of electric shock.
• Do not, under any circumstances, cut or remove the third ground prong from the power cord supplied.
• This appliance requires a standard 115V AC / 60Hz electrical outlet with a three-prong ground.
• This appliance is not designed to be used with an inverter.
• To prevent accidental injury, the power cord should be secured behind the appliance and not left exposed or hanging.
• Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle.
• Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance. The use of an extension cord can negatively affect the performance of the unit.

If any problems with the appliance persist, please contact the Customer Service Department at 888 775-0202 to consult with a representative. Or, visit our website at www.mcappliance.com to request warranty service.

APPLIANCE FEATURES

Dual Temperature Zones

• There are two zones in this appliance. They are divided by a partition.
  • Each zone has its independent temperature control and display.
  • Each of the two zones can be used to store wine bottles or beverages.
• The upper zone can hold up to 16 bottles or 63 cans.
• The lower zone can hold up to 28 bottles or 77 cans.

Note: Besides the wine shelves made of steel wire, two glass shelves are supplied for your convenience to store beverages. Please keep the shelves that are temporarily not in use in good condition for future use.

Interior Light

- Each zone has its own interior light, which can be switched on or off by pressing the light pad on the control panel. Energy-efficient LEDs are installed for long-term durability.

Engaged Wine Shelves

• All of the shelves have tabs to engage the cabinet on both sides.
• Any of the shelves can be removed to accommodate larger bottles.

To Remove a Shelf

• Remove all bottles (cans) from the shelves.
• Lift the shelf upward and then gently pull out the shelf.

To Replace a Shelf

- Place the sides of the shelf back onto the supporting guides of the cabinet and push back until the shelf tabs slide into place.

Note: Ensure that the tabs are firmly engaged in place before storing any bottles.

Upper Zone

• There are two wine shelves of full depth in the upper zone. Each shelf can hold up to 8 bottles with the necks of the bottles alternating front to back.

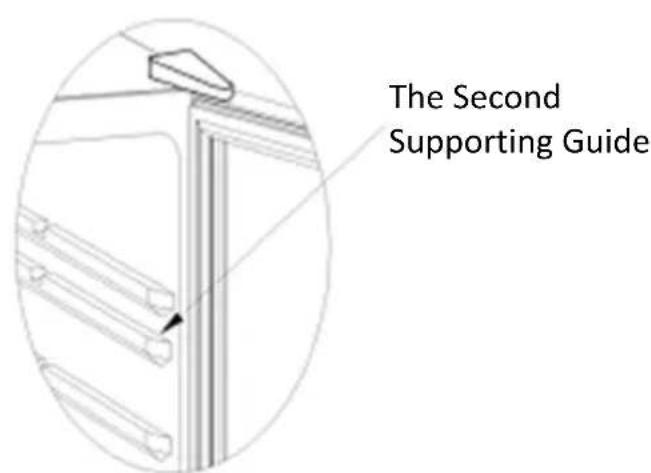

• The second supporting guide in the upper zone (counting from the top, see Figure B below) is not designed for wine storage; the shelves are for beverage use only.

Lower Zone

• There are two wine shelves of full depth in the lower zone. Each shelf can hold up to 8 bottles with the necks of the bottles alternating front to back.
• There are two wine racks in the lower zone. Each wire rack holds up to 6 bottles with the bottle necks facing the front (see Figure C below).

Figure B – For beverage use only

Line drawing of a multi-tiered rack with rolled cylindrical components (no text or symbols)

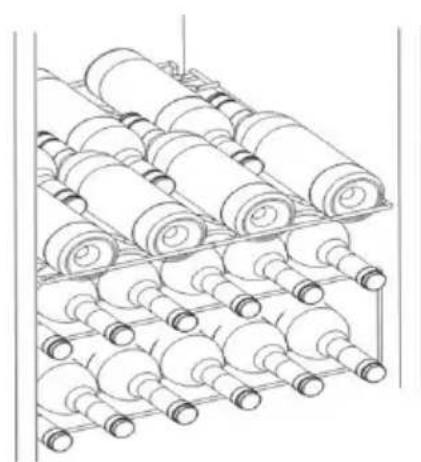

Figure C – Each wire rack holds up to 6 bottles

OPERATING YOUR APPLIANCE

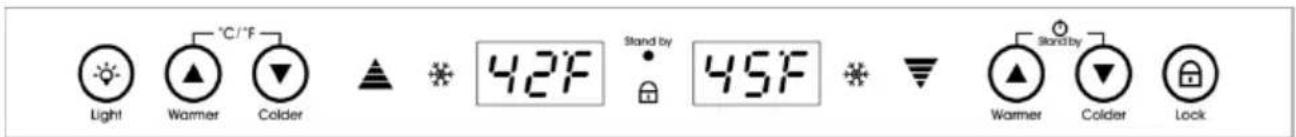

Temperature Control and Display

• The temperature in the upper zone and lower zone can be independently controlled and displayed.
• The temperature in either zone can be controlled between 41 °F to 61°F (5°C to 16°C) (The zone temperature may have a tolerance of +/-5°F (+/-3°C) from the setting depending on different loading and ambient conditions).
• The temperature control and display, the ⚙ indicator, the warmer ⬆ and ⬇ colder control pads near the symbol ⬠ (left side) are for the upper zone of the wine cooler.
• The temperature control and display, the ⚙ indicator, the warmer ⬆ and ⬇ colder control pads near the symbol ▼ (right side) are for the lower zone of the wine cooler.
• The indicator lights for standby and lock, as well as the control pads to lock and for lighting are for both zones.

Indicator Light

• When lit, the standby indicator light shows that the unit is in "Standby" mode.
• When lit, the lock indicator light indicates that all of the control pads are locked and no adjustment can be made to that zone.
• When lit, indicates that the corresponding zone is in the refrigeration cycle (compressor is running). The indicator light will turn off once the desired temperature is reached.

Standby

• When the unit is plugged in, the display and pads will illuminate for 3 seconds and an audible beep will be heard. Then the unit will automatically resume its previous setting from when it was switched off. If the unit was previously in “Standby” mode when switched off, it will resume in “Standby” mode and the standby indicator will remain lit.
• You can manually set your unit to "Standby" mode by pressing and holding both the warmer ▲ and ▼ colder buttons of the lower zone control pads for approximately 3 seconds, provided that the control pads are unlocked and no other setting is in operation (the display does not flash). The Standby standby indicator light will turn on to confirm "Standby" mode. Repeating this action once more will restart the unit.

Lock and Unlock

• The lock feature is designed to prevent the settings of your wine and beverage center from being adjusted accidentally. In order to adjust any of the settings you must unlock the control panel by pressing the lock pad for approximately 3 seconds. Once the unit is unlocked, an audible beep will be heard and the lock indicator light will turn off.
• If no selection is made to adjust the unit in approximately one minute, the control panel will automatically return to the lock mode.
• To lock the unit manually, press the lock pad.
• Under locked mode, the control pad function is disabled, and the lock indicator light will flash for 5 seconds to remind you that the control panel is locked.

Temperature Setting

• Unlock the control panel by pressing the lock pad for approximately 3 seconds. Once the control panel is unlocked, an audible beep will be heard and the lock indicator light will turn off.
• Under normal conditions, the temperature display indicates the current temperature of the corresponding zone. When adjusting the temperature, the temperature display will flash to indicate that the temperature is being adjusted.
• The temperature in the upper & lower zones can be set independently by pressing the ▲ warmer or ▼ colder touch pads corresponding to the desired zone. The temperature range of both zones can be set between 41°F to 61°F (5°C to 16°C).
• When the ▲ warmer or ▼ colder pad is pressed, the temperature displayed will increase or decrease in increments of one degree. If the warmer or colder pad is pressed and held for 2 seconds, the temperature displayed will increase or decrease at a speed of one degree per half second.
• Once you have adjusted the upper and/or lower zone to the desired temperature, release the temperature pad. At this time the temperature displayed will flash for approximately 3 seconds to confirm the selected temperature. Once the display stops flashing the temperature display will indicate the current temperature of that zone.

Note: The temperature display can be changed between Celsius and Fahrenheit by simultaneously pressing and holding both warmer and colder pads for about 3 seconds. This unit cannot be in lock mode to perform this operation.

Interior Light

- To turn on / off the interior light, press the ⚙light pad. The unit cannot be in 🔒lock mode to perform this operation.

Note: The light will turn OFF after the touch pad is released.

AUTOMATIC DEFROST

• The ice build-up on the inner back wall during compressor operation will be automatically defrosted in a compressor off cycle.
• When defrosting is in process, the indicators for both zones will turn off, and the circulation fans for both zones will run.
• Defrost water will drain out passing through the drain outlet in the inner back wall into a drain pan located above the compressor, from where it evaporates.

CARE AND MAINTENANCE

Cleaning Your Appliance

• Upon installation of your new appliance, it is recommended that it be cleaned thoroughly. Unplug the unit from the wall outlet and remove all contents.
• Wash the inside with a damp warm cloth soaked in lukewarm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water. Be sure to keep the door gasket (seal) clean to keep the unit running efficiently. The outside of the appliance should be cleaned with mild detergent and warm water. Dry the interior and exterior with a soft cloth. Dust or anything else blocking the vent may hinder the cooling efficiency of the appliance. Vacuum the vent if necessary.

Vacation Time

• Short vacations: Leave the appliance operating during vacations less than 3 weeks.
• Long vacations: If the appliance will not be used for 3 weeks or more, remove all content and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly.

Moving Your Appliance

- Unplug the unit from the wall outlet, and then remove all contents. Securely tape down all loose items inside your appliance. Lastly, tape the doors shut.

Energy Saving Tips

- The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of direct sunlight. Ensure that the door is closed when the appliance is plugged in.

TROUBLESHOOTING GUIDE

You can solve many common appliance problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling for service.

PROBLEM POSSIBLE CAUSE
The appliance does not operate.	The appliance is not plugged in.The circuit breaker tripped or a fuse blew.
The temperature inside the appliance is too warm.	The temperature control is set too warm. Turn the control to a cooler setting and allow several hours for the temperature to stabilize.The door is kept open too long or is opened too frequently. Warm air enters the appliance every time the door is opened. Open the door less often.The door is not closed completely.The door gasket does not seal properly.The appliance has recently been disconnected for a period of time. It takes 4 hours for the appliance to cool down completely.
The temperature inside the appliance is too cold.	The temperature control is set too cold. Turn the control to a warmer setting and allow several hours for the temperature to stabilize.
The unit vibrates. Check to	assure that the appliance is on a level surface.The appliance is touching the wall. Re-level the appliance and move it away from the wall. If continued vibrations occurs, turn off the appliance and unplug the power cord. Contact the Customer Service Department for further assistance.
Moisture forms on the interior appliance walls.	The door is slightly open.The door is kept open too long, or is opened too frequently. Open the door less often.The door is not sealed properly.
Moisture forms on the outside of the appliance.	The door is slightly open, causing cold air from inside the appliance to meet warm moist air from outside.
The door will not close properly.	The appliance is not on a level surface.The gasket is dirty.
Error display on control panel	E1: Temperature sensor error for the upper zone.E2: Temperature sensor error for the lower zone.E3: DC electric fan error for the upper zone.E4: DC electric fan error for the lower zone.If any of the above error codes occur, please contact the Customer Service Department for further assistance. Do not attempt to repair the unit yourself.

WARRANTY

LIMITED WARRANTY

MC Appliance Corporation warrants each new “Wine & Beverage Center” to be free from defects in material and workmanship and agrees to remedy any such defect or to furnish a new part(s) (at the company’s option) for any part(s) of the unit that has failed during the warranty period. Parts and labor expenses are covered on this unit for a period of one year after the date of purchase. A copy of the dated sales receipt/invoice is required to receive warranty service, replacement or refund.

In addition, MC Appliance Corporation warrants the compressor (parts only) to be free from defects in material and workmanship for a period of five years. The consumer is responsible for all labor and transportation expenses related to the diagnosis and replacement of the compressor after the initial one-year warranty expires. In the event that the unit requires replacement or refund under the terms of this warranty, the consumer is responsible for all transportation expenses to return the unit to our factory prior to receiving a replacement unit or refund. A refund or replacement will be issued at the discretion of MC Appliance Corporation.

This warranty covers appliances in use within the contiguous United States, Alaska, Hawaii, and Puerto Rico. The warranty does not cover the following:

• Damages due to shipping damage or improper installation
  • Damages due to misuse or abuse
• Punctures to the evaporator system due to improper defrosting of the unit
• Content losses due to failure of the unit
  • Repairs performed by unauthorized service agents
• Service calls that do not involve defects in material and workmanship, such as instruction on proper use of the product or improper installation
• Replacement or resetting of house fuses or circuit breakers
• Failure of this product if used for purposes other than its intended purpose
• Disposal costs of failed units not returned to our factory
• Any delivery or installation costs incurred as the result of a unit that fails to perform as specified
• Expenses for travel and transportation for product service if your appliance is located in a remote area where service by an authorized service technician is not available
• The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions
  • Refunds for non-repairable products are limited to the price paid for the unit per the sales receipt
• This warranty is non-transferable. This warranty applies only to the original purchaser and does not extend to any subsequent owner(s)

LIMITATIONS OF REMEDIES AND EXCLUSIONS

Product repair in accordance with the terms herein, is your sole and exclusive remedy under this limited warranty. Any and all implied warranties including merchantability and fitness for a particular purpose are hereby limited to one year or the shortest period allowed by law. MC Appliance Corporation is not liable for incidental or consequential damages and no representative or person is authorized to assume for us any other liability in connection with the sale of this product. Under no circumstances is the consumer permitted to return this unit to the factory without the prior written consent of MC Appliance Corporation.

Some states prohibit the exclusion or limitation of incidental or consequential damages, or limitations on implied warranties. This warranty gives you specific rights, and you may also have other rights which vary from state to state.

Model Parts & Labor Compressor (Parts Only) Type of Service

HMWC44DZ

One Year Five Years In-Home

For Service or Assistance, please call 888-775-0202. Or visit us on the web at www.mcappliance.com to request warranty service or order parts.

CNA International, Inc. d/b/a MC Appliance Corporation. All rights reserved. Magic Chef® is a registered trademark of CNA International, Inc.

www.mcappliance.com Printed in China

Enfriador De Vino

Manual del usuario

Front view line drawing of a server rack unit with ventilation grilles and control buttons (no text or symbols)

Modelo HMWC44DZ

LEA ESTE MANUAL ANTES DE UTILIZAR SU CENTRO DE BEBIDAS Y VINOS Y GUÁRDELO PARA FUTURA REFERENCIA.

Pure technical line drawing of a mechanical bracket or panel assembly without any text, numbers, or symbols

Diagram of a multi-tiered storage rack with rolled cylindrical components (no text or labels)

OPERATING YOUR APPLIANCE
