Product Type	Refrigerator
Brand	Magic Chef
Model	MCBR445BEF
Capacity	4.3 Cu. Ft.
Dimensions (W x H x D)	18.9" x 32.91" x 21.1"
Weight	55 lbs
Power Supply	115/120 V AC, 60 Hz
Temperature Control	Dial settings 1 (warmest) to 7 (coldest), recommended setting 4
Defrost Type	Manual (defrost when ice/frost is approximately 1/4" thick)
Interior Light	Replaceable bulb with screw base
Door Reversible	Yes, instructions provided for left or right opening
Ice Making	Ice cube tray, recommended setting 7 for ice production
Chiller Compartment	Designed for ice making and short-term frozen food storage
Cleaning	Use baking soda solution (2 tbsp per quart water) for interior; mild detergent for exterior
Safety Features	Child entrapment warning, grounded plug, instructions to remove doors before disposal
Installation Clearances	5 inches from back and sides for ventilation
Warranty	1 year parts and labor, 5 years compressor (parts only)
Service Contact	888-775-0202 or www.mcappliance.com
Energy Saving Tips	Place in cool area, allow hot food to cool, limit door openings, organize contents
Refrigerant	Requires professional removal before disposal (type not specified)

Frequently Asked Questions - MCBR445BEF Magic Chef

What should I do if my refrigerator does not operate?

Ensure the refrigerator is plugged in and the circuit breaker or fuse is not tripped/blown. Wait 3-5 minutes after a power interruption before restarting.

Why is the temperature inside my refrigerator too warm?

The temperature control may be set too warm. Turn the control to a cooler setting (higher number). Also check if the door is closed properly, the door gasket seals, and if warm food was recently added. Allow several hours for stabilization.

Why is the temperature inside my refrigerator too cold?

The temperature control may be set too cold. Turn the control to a warmer setting (lower number) and allow several hours for the temperature to adjust.

What causes moisture to form on the inside walls of the refrigerator?

Moisture inside can be normal during hot, humid weather. It may also occur if the door is left open too long or not sealed properly. Limit door openings and ensure the gasket is clean.

Why does the compressor turn on and off frequently?

Frequent cycling can be due to a hot room temperature, adding a large amount of food, frequent door openings, or improper clearances. Ensure the refrigerator has 5 inches of space on all sides and is level.

How do I defrost the freezer compartment?

When ice/frost is about 1/4" thick, set the thermostat dial to "0". Remove all contents and leave the door open to allow ice to melt. Do not use hot water or electric heating devices. After defrosting, wipe dry and restart per instructions.

How do I reverse the door opening direction?

Follow the step-by-step instructions in the manual using a 7/16" socket. Remove the top hinge and plug buttons, move the bottom hinge to the opposite side, and reassemble. Have someone assist to avoid injury.

How do I clean my refrigerator?

Turn the temperature control to "0" and unplug. Remove all food. Wash the interior with a solution of 2 tablespoons of baking soda per quart of warm water. Clean the exterior with mild detergent and warm water. Dry with a soft cloth.

Why is the exterior of the refrigerator warm?

The exterior walls can be up to 30°F warmer than room temperature. This is normal as the compressor transfers heat from inside the cabinet. It is not a defect.

What should I do during a long vacation?

Turn the temperature control to "0" and unplug. Remove all food, clean and dry the interior. Leave the door open slightly to prevent mold and odor. For short vacations (less than 3 weeks), you can leave the refrigerator running.

USER MANUAL MCBR445BEF Magic Chef

Model No.: HMBR445WE

HMBR445BE

HMBR445SE

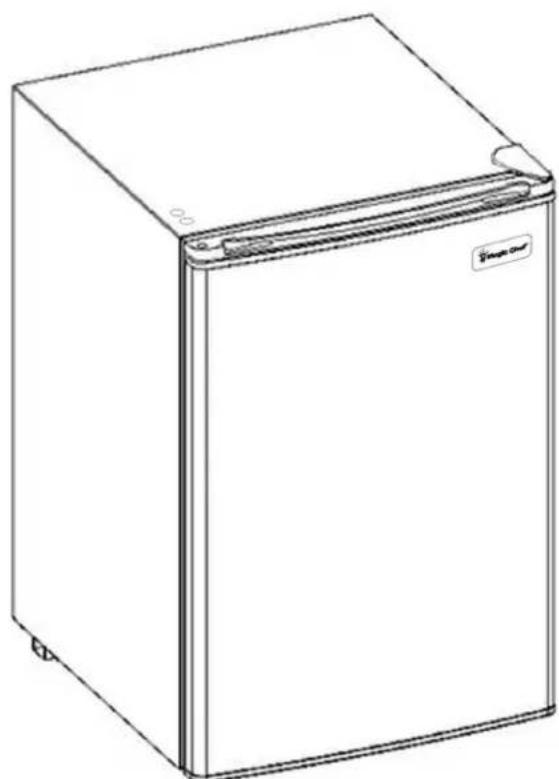

Line drawing of a simple refrigerator with lid and front panel (no text or symbols)

To ensure proper use of this appliance and your safety, please read the following instructions completely before operating this appliance.

Product Registration Copy

Thank you for purchasing a Magic Chef product. The first step in protecting your new product is to complete the product registration form on our website at www.mcappliance.com/register .The benefits of registering your product include the following.

1. Registering your product will allow us to contact you regarding a safety notification or product update.
2. In the event that warranty service is required, registering your product will allow for more efficient warranty service processing.
3. In the event of an insurance loss registering your product could act as your proof of purchase.

Once again thank you for purchasing a Magic Chef product.

TABLE OF CONTENTS

NAMES OF THE PARTS.... 3

SPECIFICATIONS.... 3

IMPORTANT SAFETY INSTRUCTIONS.... 4

INSTALLATION INSTRUCTION

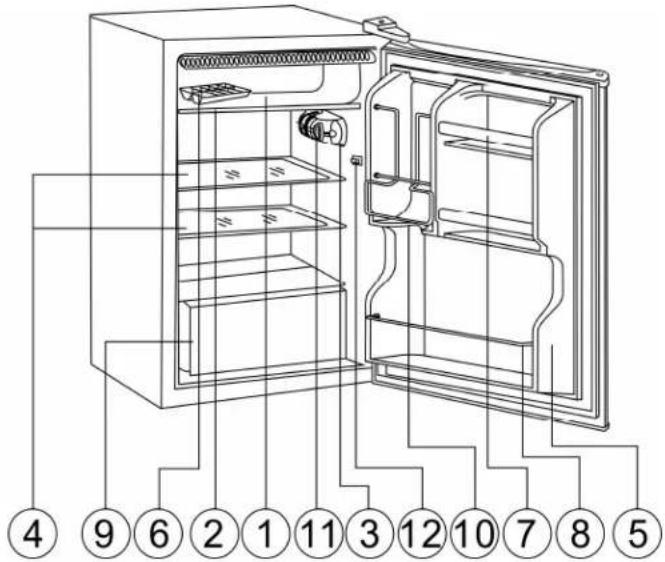

MODEL NO. HMBR445WE/HMBR445BE/HMBR445SE

(1) Evaporator
(2) Drain Pan
(3) Temperature Control Box
(4) Shelves
(5) Door Liner
(6) Ice Cube Tray
(7) Rack
(8) Bottle Rack
(9) Crisper
(10) Can Dispenser
(11) Temperature Control Dial
(12) Interior Light Switch

WARNING: Never touch the interior of the Freezer Chamber or frozen foods in the compartment with wet hands as this could result in frost bite.

SPECIFICATIONS

Model #

HMBR445WE/HMBR445BE/HMBR445SE

Product Description	Magic Chef Refrigerator
Model No.	HMBR445WE/HMBR445BE/HMBR445WE
Capacity	4.3 Cu. Ft.
Unit Dimensions (inches)	Width	Height	Depth
	18.9"	32.91"	21.1"
Net Weight (lbs)	55 (lbs)

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your refrigerator, follow these basic precautions:

Read all instructions before using the refrigerator.DANGER or WARNING:Risk of child entrapment.To avoid the possibility of child entrapment, please take the following precautions before throwing out the refrigerator.- Remove all doors from the unit.- Leave the shelves in place so that children may not easily climb inside.Never allow children to operate, play with, or crawl inside the refrigerator.Refrigerants:All refrigeration products contain refrigerants, which under the guidelines of federal law must be removed before disposal of product. It is the consumer's responsibility to comply with federal and local regulations when disposing of this product.Never clean refrigerator parts with flammable fluids. The fumes can create a fire hazard or explosion.Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other refrigerator. The fumes can create a fire hazard or an explosion.-Save these instructions-

INSTALLATION INSTRUCTIONS

Before Using Your Refrigerator

• Remove the exterior and interior packing.
• Before connecting the refrigerator to the power source, let it stand upright for approximately 4 hours. This will reduce the possibility of a malfunction in the cooling system from improper handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth. (Cleaning instruction on page 9)

Installing Your Refrigerator

• This appliance is designed to be free standing only, and should not be recessed or built-in.
• Place your refrigerator on a floor that is strong enough to support the refrigerator when it is fully loaded.
• Allow 5 inches of space between the back and sides of the refrigerator, which allows the proper air ventilation. Adjust the feet to keep the refrigerator level.
• Locate the refrigerator away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Ambient temperature below 50^ F ( 10^ C) or above 85^ F ( 29.4^ C) will hinder the performance of this appliance. This unit is not designed for use in a garage or any other outside installation.

- Avoid locating the refrigerator in moist areas.

- Plug the refrigerator into dedicated, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized service center. This unit is not designed to be installed in an RV or used with an inverter.

- After plugging the appliance into a wall outlet, turn the unit on and allow the unit to cool down for 2\~3 hours under before placing food in the refrigerator or freezer compartment.

Electrical Connection

WARNING

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized service center.

This refrigerator should be properly grounded for your safety. The power cord of this refrigerator is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.

Do not, under any circumstances, cut or remove the third ground prong from the power cord supplied.

This refrigerator requires a standard 115/120 Volt A.C. \~/60Hz electrical outlet with three-prong ground.

This refrigerator is not designed to be used with an inverter.

The cord should be secured behind the refrigerator and not left exposed or dangling to prevent accidental injury.

Never unplug the refrigerator by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle.

Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance. Use of an extension cord can negatively affect the performance of the unit.

If any problems with the appliance persist, please contact our Customer Service Dept. to consult with a representative at 888 775-0202 or visit our website to request warranty service at www.mcappliance.com.

- Your refrigerator has one control for regulating the temperature. The temperature control is located on the upper right hand corner of the interior compartment.

- The first time you turn the unit on, adjust the temperature control knob to "7" and run for at least 2 hours before putting foods inside. This will ensure the cabinet is thoroughly chilled before food is put in.

- The range of the refrigerator temperature control is from position "1" to "7". Adjust the temperature control to the setting that best suits your needs. The setting of "4" should be appropriate for home or office refrigerator use.

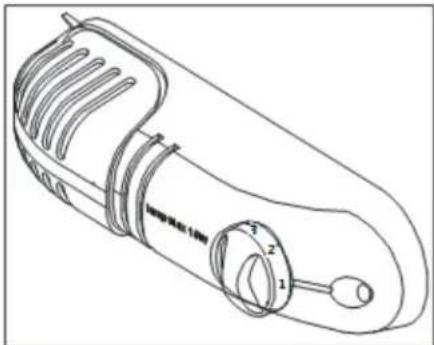

Line drawing of a handheld device with a handle and control knob (no text or symbols)

NOTE;

- If the unit is unplugged, loses power; you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the refrigerator will not start.

• Large amounts of food will lower the cooling efficiency of the appliance.

- Do not place the foods on the air outlet, and leave spaces for airflow.

- If you choose to change the thermostat setting, adjust thermostat control by one increment at a time. Allow several hours for temperature to stabilize between adjustments.

Ice Tray

- Recommended temperature control setting for ice making is "7".

- Fill the ice cube tray (2/3 capacity) with cold water and place the tray on the bottom of the chiller compartment to freeze properly.

- To eject the ice cubes from the tray, place over the ice bucket and twist slightly.

- Re-set the temperature control to setting "4".

The Chiller Compartment

- This compartment is designed for the ice making and short-term storage of some commercially frozen foods.

- The temperature of the chiller compartment may not reach temperature low enough to store frozen foods and works well when the food is already frozen prior to storage.

- Place frozen food into the freezer as quickly as possible after purchase. If there are instructions on the packet, carefully follow these instructions regarding storage times.

How To Defrost

Defrost the freezer compartment when the ice / frost is approximately 14 " thick. Set the thermostat dial to "0" to defrost. Remove all contents from the freezer compartment. Leave the freezer door open to allow accumulated ice / frost to melt. Remove large pieces of ice as needed. Do not use hot water or other electric heating devices to melt the accumulated ice. After defrosting, remove accumulated ice / water and wipe the freezer compartment dry with a soft cloth. Restart the unit per starting instructions.

How To Change the interior light

NOTE: All parts removed must be saved to do the reinstallation of the light bulb. Before removing the light bulb, unplug the appliance from the power supply. Failure to do so could result in electrical shock or personal injury.

1. Hold the lamp cover and push toward inside of the cabinet
2. Remove the lamp cover.
3. Unscrew the old bulb and install the new bulb.
4. Re-install the lamp cover.

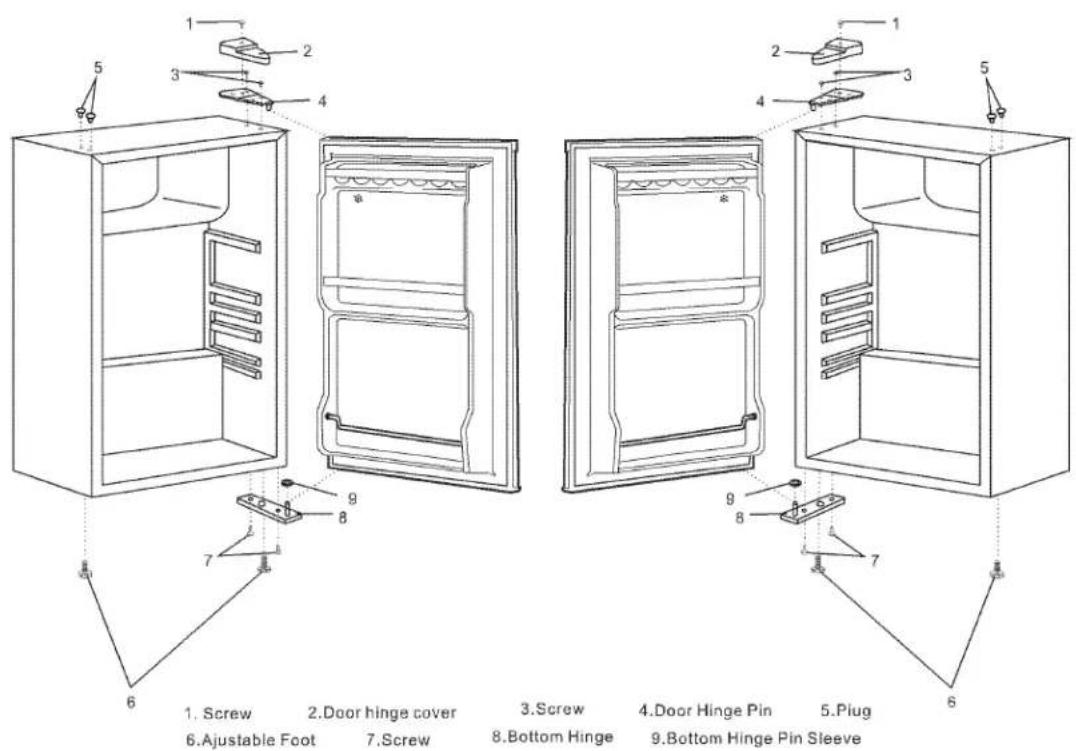

CHANGING THE REVERSIBLE DOOR

CAUTION: To avoid personal injury to yourself and/or property, we recommend someone assist you during the door reversal process.

Your refrigerator is built with a reversible door. You have the choice of either opening it from the left or the right side. In order to reserve the opening direction of your door, please follow these simple instructions:

1. Remove the hinge cover on the right top of the cabinet.2. Remove the two screws (using a ratchet tool with a 7/16" socket) that hold the top hinge to the cabinet. Keep these screws for later use.3. Lift the top hinge straight up to free the pin from the socket on the top of the door.4. Lift the door and place it on a padded surface to prevent scratching it.
5. Remove the plug buttons from the upper left holes as illustrated and transfer them to the uncovered holes at the right side. Be sure to press the plug buttons firmly into the holes.

6. Lay the cabinet on its side down on the floor.Remove the three screws that hold the bottom hinge to the cabinet using a 7/16" socket. Keep these screws and washer for later use.
7. Insert the bottom hinge at the left side using the two screws previously removed in step 6.NOTE: Do not tighten screws.8. Stand the cabinet.9. Replace the door making sure the bottom socket enters the bottom hinge pin. Be sure washer is in place.
10. While holding the door in the closed position, secure the top hinge at the left side using the two screws previously removed at the beginning in step 2. Do not tighten the screws until the top of the door is leveled with the top cabinet.11. Replace the hinge cover.
12. Replace plugs.
13. Tools Required:- 7/16" socket-ratchet.- Putty knife or thin-blade screwdriver.

CARE AND MAINTENANCE

Cleaning Your Refrigerator

• Upon installation of your new appliance, it is recommended that it be cleaned thoroughly.
• Turn the temperature control knob to "0" and then unplug the unit from the wall outlet.
• Remove all food content.
• Wash the inside with a damp warm cloth soaked in lukewarm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
• Be sure to keep the door gasket (seal) clean to keep the unit running efficiently.
• The outside of the refrigerator should be cleaned with mild detergent and warm water.
• Dry the interior and exterior with a soft cloth.

Vacation Time

• Turn the temperature control knob to "0" and then unplug the unit from the wall outlet.
• Remove all the food.
• Clean the refrigerator.
• Leave the door open slightly to avoid possible formation of condensation, mold, or odor.
• Use extreme caution in the case of children. The unit should not be accessible to child's play.
• Short vacations: Leave the refrigerator operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all food and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary or have the door removed.

Moving Your Refrigerator

• Turn the temperature control knob to "0" and then unplug the unit from the wall outlet.
• Remove all the food.
• Securely tape down all loose items inside your refrigerator.
• Tape the doors shut.
• Be sure the refrigerator stays in the upright position during transportation.

Energy Saving Tips

• The refrigerator should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the refrigerator. Overloading the refrigerator forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the refrigerator. This cuts down on frost build-up inside the refrigerator.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

TROUBLESHOOTING GUIDE

You can solve many common refrigerator problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling for service.

PROBLEM	POSSIBLE CAUSE
Refrigerator does not operate.	Not plugged in.The circuit breaker tripped or a blown fuse.
Compressor turns on and off frequently. The room	temperature is hotter than normal.A large amount of food has been added to the refrigerator.The door is opened too often.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.The refrigerator does not have the correct clearances.The refrigerator has recently been disconnected for a period of time. 4 hours are required for the refrigerator to cool down completely.
Temperature inside the refrigerator is too warm.	Temperature control is set too warm. Turn the control to a cooler setting and allow several hours for the temperature to stabilize.Door is kept open too long or is opened too frequently. Warm air enters the refrigerator every time the door is opened. Open the door less often.The door is not closed completely.The door gasket does not seal properly.A large amount of warm or hot food might have been stored recently. Wait until the refrigerator has had a chance to reach its selected temperature.The refrigerator has recently been disconnected for a period of time. 4 hours are required for the refrigerator to cool down completely.
Temperature inside the refrigerator is too cold.	Temperature control is set too cold. Turn the control to a warmer setting and allow several hours for the temperature to stabilize.
Temperature of external refrigerator surface is warm.	The exterior refrigerator walls can be as much as 30^ warmer than room temperature. This is normal while the compressor works to transfer heat from inside the refrigerator cabinet.
Popping or cracking sound when compressor comes on.	Metal parts undergo expansion and contraction, as in hot water pipes. This is normal. Sound will level off or disappear as refrigerator continues to run.
Bubbling or gurgling sound, like water boiling.	Refrigerant (used to cool refrigerator) is circulating throughout the system. This is normal.
Vibrations.	Check to assure that the refrigerator is on a level surface.Floor is uneven or weak. Refrigerator rocks on the floor when it is moved slightly. Be sure floor can adequately support refrigerator. Level the refrigerator by putting wood or metal shims underpart of the refrigerator.The refrigerator is touching the wall. Re-level the refrigerator and move it from the wall.See “Installation Instructions”.
Moisture forms on inside refrigerator walls. Weather	is hot and humid, which increases internal rate of frost build-up. This is normal.Door is slightly open.Door is kept open too long, or is opened too frequently. Open the door less often.The door is not sealed properly.
Moisture forms on outside of refrigerator. Door is slightly open, causing cold air from inside the refrigerator to meet warm moist air from outside.
The door will not close properly. The refrigerator is	not on a level surface.The gasket is dirty.

Magic Chef™

SO RIGHT AT HOME.™

Refrigerator Warranty

Unless otherwise prohibited, MC Appliance Corporation warrants each new refrigerator to be free from defects in material and workmanship and agrees to remedy any such defect or to furnish a new part(s) (at the company's option) for any part(s) of the unit that has failed during the warranty period. Parts and labor expenses are covered on this unit for a period of one year after the date of purchase. In addition, MC Appliance Corporation warrants the compressor (parts only) to be free from defects in material and workmanship for a period of 5 years. The consumer is responsible for all labor and transportation expenses related to the diagnosis and replacement of the compressor after the initial one-year warranty expires. A copy of the dated sales receipt / invoice is required to receive warranty service or a refund.

This warranty covers appliances in use within the continental United States, Puerto Rico, and Hawaii. The warranty does not cover the following:

- Damages due to shipping damage or improper installation.

■ Damages due to misuse or abuse.

■ Content losses due to failure of the unit.

- Inside components such as door panels, door shelves, racks, light bulbs, etc.

- Punctures to the evaporator system due to improper defrosting of the unit.

■ Repairs performed by unauthorized service agents.

■ Service calls that do not involve defects in material and workmanship such as instruction on proper use of the product, door reversal or improper installation.

- Replacement or resetting of house fuses or circuit breakers.

- Failure of this product if used for other than for its intended purpose.

- Disposal costs for any failed unit not returned to our factory.

- Any delivery costs incurred as the result of a unit that fails to perform as specified.

- Expenses for travel and transportation for product service if your appliance is located in a remote area where service by an authorized service technician is not available.

- The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.

- Liability under this warranty is limited to repair, replacement or refund. If a replacement unit is not available or the unit cannot be repaired, liability is limited to the actual purchase price paid by the consumer.

■ This warranty is non-transferable.

- This warranty applies only to the original purchaser and does not extend to any subsequent owner(s).

This warranty is in lieu of all warranties expressed or implied and no representative or person is authorized to assume for us any other liability in connection with the sale of this product. Under no circumstances is the consumer permitted to return this unit to the factory without prior written consent from MC Appliance Corporation.

Model Parts Labor Compressor Type of Service

(Part Only)

HMBR445WE One-Year One-Year Five Years Carry-In

HMBR445BE One-Year One-Year Five Years Carry-In

HMBR445SE One-Year One-Year Five Years Carry-In

For Service or Assistance please call 888 775-0202. Or visit us on the web at

www.mcappliance.com to request warranty service.

Magic Chef™

SORIGHTATHOME.™

REFRIGERADOR De 4.3 PIES CÚBICOS

Line drawing of a simple refrigerator with lid and side panel (no text or symbols)

MODEL NO. HMBR445WE/HMBR445BE/HMBR445SE

HMBR445WE/HMBR445BE/HMBR445SE

Line drawing of a handheld device with control knobs and a handle (no text or symbols)

- NOTA;
