Product Type	Manual Tile Cutter
Brand	POWERFIX
Model	Tile Cutter (IAN 88641)
Dimensions (approx.)	645 x 210 x 130 mm
Weight (approx.)	4 kg
Max. Cutting Length	400 mm
Max. Tile Thickness	12 mm
Cutting Wheel	Carbide, 22 mm diameter
Cutting Angle	Up to 45° diagonal and angled cuts
Mechanism	Scoring and breaking head on guide rails
Power Supply	Manual operation (no power required)
Intended Use	Accurate cutting and breaking of ceramic tiles
Safety Equipment	Wear protective gloves, safety goggles, dust mask, non-slip shoes
Maintenance	Clean with damp cloth; wipe guide rails with oily cloth
Storage	Dry place, out of reach of children
Disposal	Defective units: dispose according to local regulations

Frequently Asked Questions - Tile Cutter POWERFIX

How do I set the cutting width and angle?

Use the angle stop on the measuring table to adjust the desired cutting width and angle (up to 45°). Place the tile against the stop before cutting.

Can I use this tile cutter for porcelain tiles?

The cutter is designed for ceramic tiles. For porcelain tiles, the carbide wheel may still score but results may vary. Test on a scrap piece first.

How do I replace the cutting wheel?

Worn cutting wheels can be replaced. The wheel diameter is 22 mm. Refer to the manual for step-by-step replacement instructions.

What safety precautions should I take?

Always wear protective gloves, safety goggles, a dust mask, and non-slip shoes. Place the cutter on a stable surface and ensure all screws are tight.

How do I break the tile after scoring?

Lower the breaking head onto the scored line and push down on the lever to snap the tile. Ensure the cutting wheel is not touching the tile during breaking.

What is the maximum tile thickness?

The tile cutter can handle tiles up to approximately 12 mm thick.

What is the maximum cutting length?

The maximum cutting length is 400 mm.

How do I maintain the tile cutter?

After use, clean the cutter with a damp cloth. Wipe the guide rails with an oily cloth to keep them smooth. Store in a dry place.

Can I cut tiles at an angle?

Yes, the cutter supports diagonal and angled cuts up to 45°. Adjust the angle stop accordingly.

What should I do if the cutter becomes defective?

Dispose of the defective unit in accordance with local regulations. Do not throw it in household waste.

USER MANUAL Tile Cutter POWERFIX

Operating instructions

PL

MASZYNKA DO CIECIA PŁYTEK CERAMICZNYCH

Instrukcja obsługi

HU

CSEMPEVÁGÓ

Használati utmutató

SI

REZALNIK PLOŠČIC

Navodila za uporabo

CZ

ŘEZAČKA OBKLADŮ A DLAŽBY

Návod k použití

SK

REZAČKA OBKLADOV A DLAŽBY

Návod na použitie

DE ATCH

FLIESENSCHNEIDER

Gebrauchsanleitung

IAN 88641

PL SI CZ SK

GB TILE CUTTER

WARNING! In order to reduce the risk of injury, please read these instructions carefully prior to using for the first time and store with the tool afterwards! When passing the tool onto another user, ensure that these instructions are also passed on.

●Use in accordance with the intended purpose

The tile cutter number 4417154 is suitable for accurate cutting and breaking of ceramic tiles as well as for diagonal and angled cuts up to 45^ .

●Technical data

Dimensions:

Approximately 645 x 210 x 130mm

Plate thickness: Up to approximately 12mm

Cutting length: Up to approximately 400mm

Carbide cutting wheel: ∅ 22 x 6 x 2mm

Weight: Approximately 4kg

We reserve the right to make technical changes.

ADW is a registered trademark of Abraham Diederichs GmbH, D-42349 Wuppertal

Please keep the contact address.

●Safety, care and disposal notes

■Place the tile cutter on an even, stable surface to use.

■Ensure that the screw connections are firmly tightened.

■Pay attention to ensure good motion of the cutting and breaking mechanism (3) on the guide rails (4).

Wear protective gloves!

Wear non-slip shoes!

Wear safety goggles!

Wear a dust protection mask!

■After use, remove dirt and dust from the tile cutter with a damp cloth. Wipe down the guide rails with an oily cloth.

■Store the tile cutter in a dry place away from children.

■Defective tile cutters that can no longer be used must be disposed of in accordance with the local regulations.

●Notes regarding use

Preparation:

If you have never used a tile cutter before, practise a few times on some old tiles before using the tile cutter on new tiles.

Please, keep the tool away from children!

●Instructions for use

Mechanical device with metal rods and a circular component, no visible text or symbols

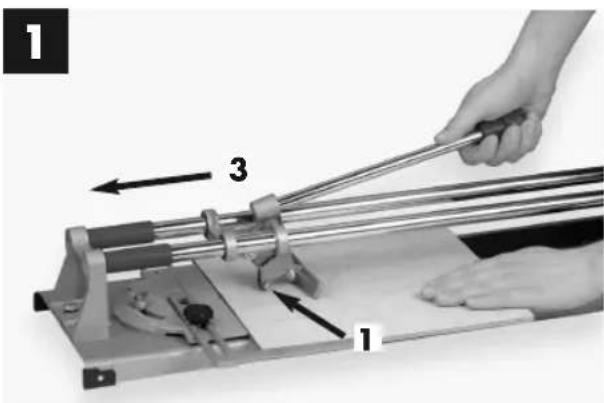

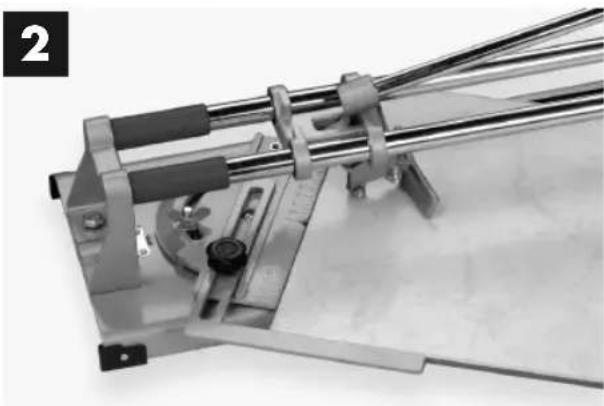

At the angle stop, set the cutting width and cutting angle. Place the required tile section up against the measuring table. PUSH the cutting wheel (1) across the glazed surface of the tile with even pressure on the lever (3).

Person using a metal cutting machine with a hand operating it, labeled with parts 2 and 3 (no text or symbols on the machine itself)

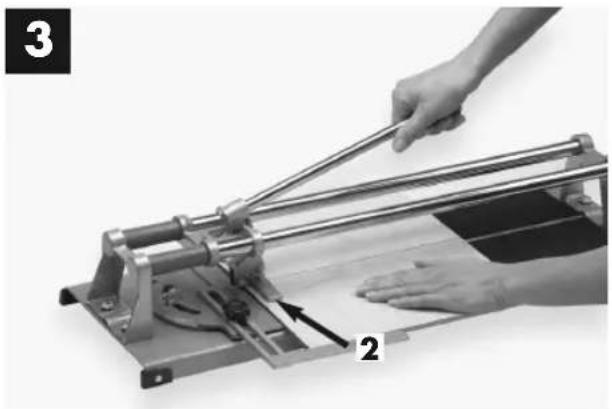

After cutting through the glaze of the tile, use the breaking head (2) and push down on the lever to break the tile at the cutting line. Caution: The cutting wheel should not touch the tile whilst you are breaking it (see the figure)!

Person using a metal cutting machine to press or write on paper (no visible text or symbols)

Remove the tile pieces by pulling out to the sides. Worn cutting wheels may be replaced easily. Remember the cutting wheel has a diameter of 22mm!

●Service

Diagram of a 3D grid pattern with black and white hexagonal cells, no text or symbols present

max. 400 mm

Diagram of a 3D grid pattern with black and white hexagonal cells, no text or symbols present

max. 12 mm

Mechanical device with metal rods and a central rotating component (no visible text or symbols)

Person using a mechanical device with metal rods and a hand resting on it, labeled with numbers 2 and 3 (no text or symbols on the device itself)

Mechanical device with metal rods and a cylindrical component, no visible text or symbols

Person using a mechanical device with metal rods and a hand resting on it (no visible text or symbols)

Mere: pribl. 645 x 210 x 130 mm Debelina plošče: do pribl. 12 mm Dolžina reza: do pribl. 400 mm Rezalno kolo iz trde kovine: ∅ 22 x 6 x 2 mm Teža: pribl. 4 kg

Tehnične spremembe pridržane.

ADW je registrirana blagovna znamka podjetja Abraham Diederichs GmbH, D-42349 Wuppertal

Prosimo, shranite kontaktni naslov.

Mechanical device with metal rods and a central rotating component (no visible text or symbols)

Person using a mechanical tool to lift or lift a wooden block, no visible text or symbols

Person using a mechanical tool to press or install a sheet of paper (no visible text or symbols)

Mechanical device with metal rods and a central rotating component (no visible text or symbols)

Person using a mechanical tool on a cutting board, with labeled parts 2 and 3 (no text or symbols on the device itself)

Person using a metal cutting machine to press or spread materials (no visible text or symbols)

Rozmery: cca 645 x 210 x 130 mm Hrúbka dosky: cca do 12 mm

Dížka rezu: cca do 400 mm

Mechanical device with metal rods and a circular component, no visible text or symbols

Person using a mechanical device with metal rods and a hand resting on it, labeled with numbers 2 and 3 (no text or symbols on the device itself)

Person using a metal cutting machine tool, no visible text or symbols

Úlomky obkladačky (dlaždice) vyberte zboku. Opotrebované rezné kolieska možno bez problémov vymenit. Dodržiavajte priemer rezného kolieska 22 mm!

●Servis

Mechanical device with metal rods and a central rotating component (no visible text or symbols)

Person using a mechanical tool on a wooden cutting board, no visible text or symbols

Person operating a metal cutting machine with a tool, no visible text or symbols
