LTL09 - Lighting Valore - Free user manual and instructions

Product Type	LED Table Lamp
Brand	Valore
Model	LTL09
Dimensions (L x W x H)	90 x 90 x 400 mm
Weight	453 g
Power Input	DC 5V/2A (max)
Battery Type	2200mAh Lithium-ion
Light Source	2835 LED chip
Color Temperature	5000K – 6500K (Daylight)
Illumination	≥ 85 lumens
Material	ABS
Controls	Main On/Off switch + Touch switch (on/off and brightness adjustment)
Charging Indicator	Red (charging), Green (fully charged)
Package Contents	LED table lamp, USB charging cable
Warranty & Support	Email: [e-mail], Warranty registration: www.valore.sg
Safety Precautions	Keep dry, avoid high temperature, do not disassemble, use only provided cable

Frequently Asked Questions - LTL09 Valore

How do I charge the lamp?

Connect the provided USB charging cable into the DC port on the rear of the lamp. The charging indicator will turn red while charging and green when fully charged.

How do I turn the lamp on?

First, push the Main On/Off switch to the 'ON' position. Then, briefly touch the On/Off touch switch to turn the lamp on.

How do I adjust the brightness?

Long press the On/Off touch switch to adjust the brightness. The brightness will decrease; press again to increase.

How long does the battery last?

The lamp has a 2200mAh Lithium-ion battery. The exact runtime depends on brightness level, but it typically provides several hours of use.

What does the charging indicator mean?

When charging, the indicator is red. When fully charged, it turns green.

Can I use the lamp while it is charging?

Yes, you can operate the lamp while it is connected to a power source. However, the manual does not specify any restrictions.

What should I do if the lamp does not turn on?

Check that the Main On/Off switch is set to 'ON'. Ensure the battery is charged. If it still does not work, contact support at [e-mail].

Is the lamp waterproof?

No, the lamp is not waterproof. Do not expose it to moisture or submerge it in liquid. Keep it dry at all times.

Can I replace the battery?

The battery is not user-replaceable. Do not disassemble the lamp. If the battery fails, contact support.

How do I contact technical support?

For technical support, email [e-mail]. For warranty registration, visit www.valore.sg.

USER MANUAL LTL09 Valore

Thank you for purchasing the Valore LED Table Lamp (LTL09).

Add a talking point to your contemporary bedside or work desk with a distinctively-designed LED table lamp.

Important: Please read the user manual thoroughly before using your table lamp.

Specifications:

Package Contents:

• Power input: DC5V/2A (max)
• Light type: 2835 LED chip
- Battery type: 2200mAh Lithium-ion battery
- Colour temperature: 5000K – 6500K (Day light)
- Illumination: ≥ 85lm
- Material: ABS
- Dimensions (L x W x H): 90 x 90 x 400mm
- Weight: 453g

• LED table lamp
• USB charging cable

UNDERSTANDING THE PRODUCT

① On/Off touch switch
② Main On/Off switch
③ Charging indicator
④ DC charging port
⑤ LED light

START USING THE LED TABLE LAMP

Connect the USB charging cable into the DC port on the rear of the lamp to power. When fully charged, charging indicator will turn green from red.

Warning

The included USB charging cable for this product-specific and can not be used for other appliances

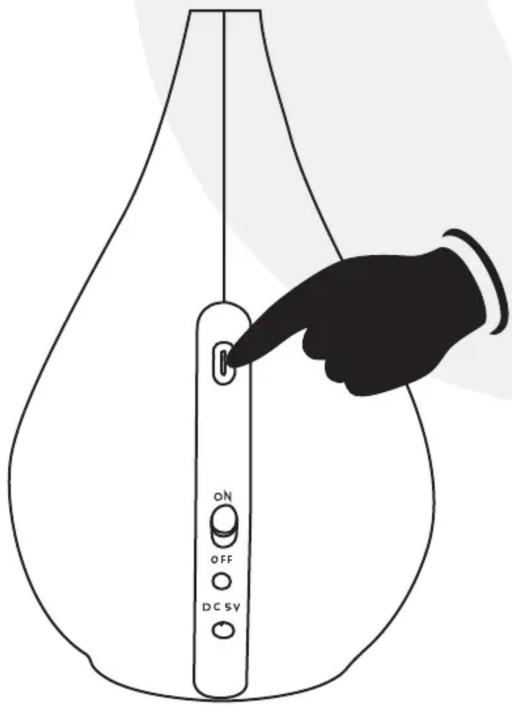

Push the Main On/Off switch to 'ON', then short touch the On/Off touch switch to switch the table lamp on.

Long touch the On/Off touch switch to adjust the LED light brightness. The brightness will descend, long touch again to ascend.

TECHNICAL SUPPORT & WARRANTY

• For Technical Support, email us at [e-mail].
• For Warranty Registration, visit www.valore.sg.

Cautions:

Read all the instructions and warnings carefully prior to using this product.

• Do not store the table lamp in a high temperature environment.
• Do not place the table lamp near a fire or other excessively hot environments.
• Do not expose its table lamp to moisture or submerge it in liquid. Keep table lamp dry at all times.
• Do not attempt to charge the table lamp using any other method or connection other than the table lamp's provided charging cable.
• Do not disassemble this table lamp or attempt to repair or modify it in any manner.
• Be cautious of excessive drops, bumps, abrasions or other impacts to this table lamp. If there is any damage to the table lamp such as dents, punctures, tears, deformities or corrosion, stop using the table lamp and contact us immediately via email at [e-mail], or return this product to the store where you have purchased it from.
• If the product produces an abnormal smell, high temperature (low temperature during normal use), discolours or changes shape abnormally, stop using the product and contact us immediately via email at [e-mail].
