Product Type	6.5-inch Component Speaker
RMS Power Handling	55 Watts
Peak Power Handling	110 Watts
Impedance	4 Ohms
Frequency Response	50 Hz – 22 kHz
Sensitivity	88 dB
Mounting Depth	2.05 in (52 mm)
Cut-out Diameter	5.12 in (130 mm)
Grille Included	Yes
Warranty	3 years parts and labor
Recommended Amplifier Power	25-110 Watts RMS per channel
Speaker Connection	Positive (+) and negative (-) terminals
Installation	Flush or surface mount using screws (included)
Safety Feature	Rubber grommets recommended for wire protection
Compliance	Designed for 12V DC negative ground systems
Country of Origin	Not specified (assembled in China likely)

Frequently Asked Questions - P-65CB Sound Ordnance

What is the power handling of the Sound Ordnance P-65CB?

The P-65CB has an RMS power handling of 55 watts and a peak power handling of 110 watts.

What is the impedance of the P-65CB speaker?

The impedance is 4 ohms, which is standard for most car audio systems.

What size cut-out is needed for the P-65CB?

The required cut-out diameter is 5.12 inches (130 mm). Ensure the mounting depth is at least 2.05 inches (52 mm).

Does the P-65CB come with grilles?

Yes, grilles are included with the P-65CB speakers.

How do I properly wire the P-65CB?

Connect the positive terminal (marked with '+') to the amplifier's positive output, and the negative terminal to the negative output. Ensure correct polarity for proper sound phase.

What is the warranty on the Sound Ordnance P-65CB?

The speaker comes with a 3-year warranty on parts and labor. For warranty service, contact Virtual Gateways LLC at 1-800-955-9094.

Can I use the P-65CB as a full-range speaker?

Yes, the P-65CB is a component speaker but can be used as a full-range driver in a 2-way system. It covers a frequency range of 50 Hz to 22 kHz.

What should I do before installing the speakers?

Disconnect the negative battery terminal to avoid short circuits. Also, run speaker wires away from sharp edges and high-current cables.

How do I clean the P-65CB speakers?

Wipe the grille and cone gently with a dry lint-free cloth. Avoid liquids or abrasive cleaners.

Is the P-65CB compatible with any amplifier?

Yes, it works with any amplifier rated between 25 and 110 watts RMS per channel at 4 ohms. Exceeding peak power may cause damage.

USER MANUAL P-65CB Sound Ordnance

Thank you for purchasing Sound Ordnance

You're now ready to win the battle for great sound.

To ensure safe operation, always follow the instructions and guidelines in this manual.

Keep this manual handy for reference.

www.soundordnace.com

All rights reserved.

TABLE OF CONTENTS

Safety Instructions 3

Dimensions 3

Installation 4

Full-range and Woofer Mounting 6

Wiring 6

Specifications 7

SAFETY INSTRUCTIONS

The product's warranty is rendered void in cases of damage resulting from failure to comply with safety and operating instructions. We do not accept any liability for consequential damages. We do not accept any liability for personal injury or damage to property caused by incorrect handling of the device or failure to observe the safety and operating instructions. In such cases the warranty is rendered void.

High volume levels can cause hearing damage or loss. Use care when setting the volume of your subwoofer. Obey any local noise laws or ordinances.

To prevent injury or damage to the speakers, please read and follow the instructions in the manual.

If you have questions about installing your speakers, call us at 1-800-955-9094.

Disconnect the cable to your car battery's negative terminal before starting the installation. For some newer cars this may require a reset of some functions. Consult with your dealer or mechanic.

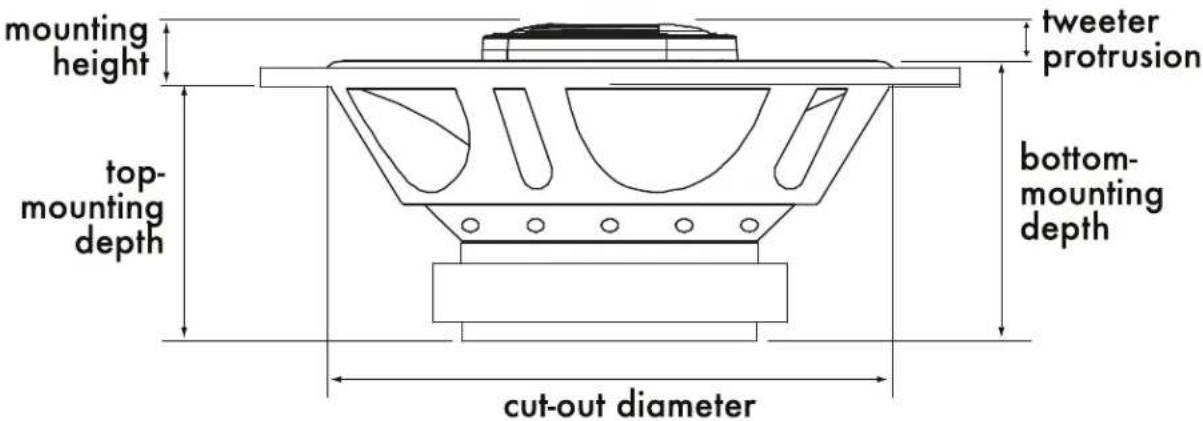

DIMENSIONS

INSTALLATION

These installation instructions do not cover all possible installation issues. If you're not confident about installing your speakers, have a qualified audio technician install them.

1. Read and understand the instructions before attempting to install these speakers.
2. Disconnect the negative terminal from the battery prior to starting the installation.
3. For easier installation run any extra speaker wire before starting the speaker installation.
4. For the best possible sound, use high-quality connectors and wiring.

5. Exercise caution before doing any drilling or cutting in your car. Be careful of fuel lines, electrical wiring, vacuum lines, or fuel tanks in your vehicle.

6. Never run speaker wires underneath your vehicle. Protect the wires by keeping them inside the vehicle.

7. Avoid running speaker wires over, near, or through sharp-edged surfaces. Use rubber grommets to protect wires running through openings in metal.
8. If running speaker wires from an amplifier, avoid placing them near sources of high current like wiring harnesses or battery cables.

FULL-RANGE AND WOOFER MOUNTING

1. Pick a location for mounting your speakers. Make sure the area is large enough and deep enough for the speaker to fit into.
2. Refer to the specifications chart to determine the proper diameter hole to cut for your speaker model.

3. If you'll be using the grille, use it as a template to mark the locations for the mounting screws. Drill the holes with a 3/32" drill bit.

4. Be sure to observe proper polarity when connecting the speaker wires to the speaker. The speaker's positive terminal is indicated with a "+" symbol.

5. Place the speaker into the cut-out and mount it in place with the supplied screws. If the speaker grille is to be used, insert screws into the grille ring holes and then mount the speaker.

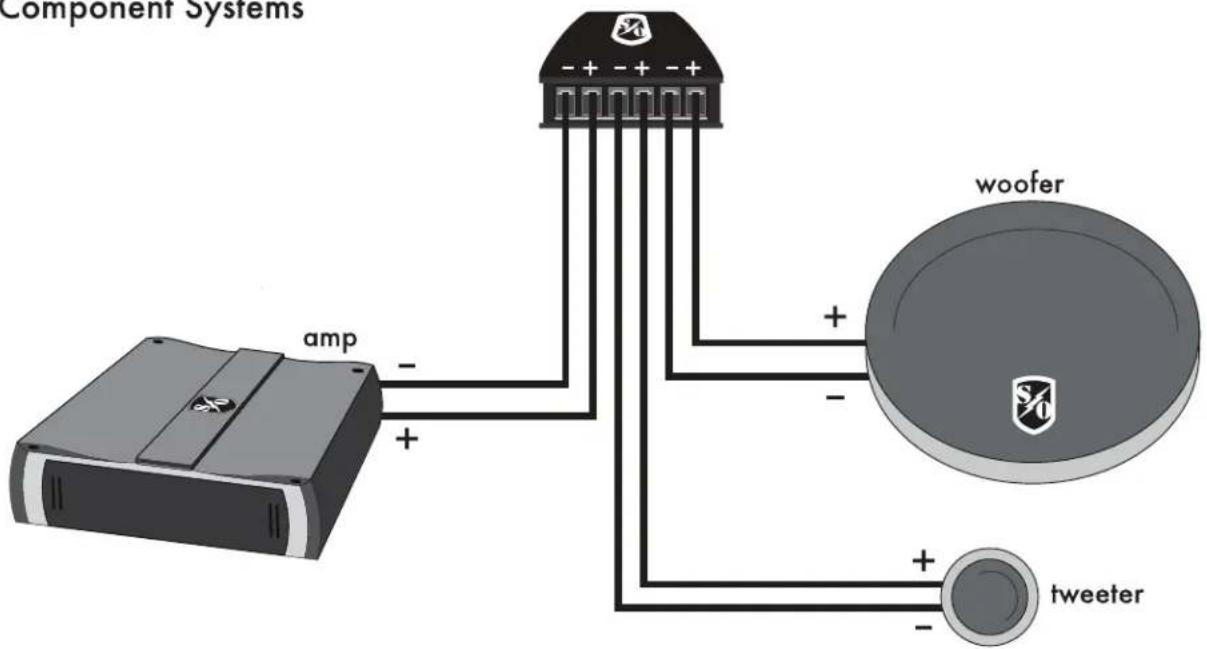

WIRING

Full-range Speakers

Component Systems

	P-35B	P-40B	P-46B	P-52B	P-57B	P-65B	P-67B	P-69B	P-52CB	P-65CB	P-67CB
RMS power handling (watts)	25	30	35	40	40	50	50	55	50	55	55
Peak power handling (watts)	50	60	70	80	80	100	100	110	100	110	110
Impedance (ohms)	4	4	4	4	4	4	4	4	4	4	4
Frequency Response (Hz)	90-20K	90-20K	80-20K	70-21K	60-21K	60-21K	60-21K	40-21K	60-22K	50-22K	50-22K
Sensitivity (dB)	84	84	86	88	88	88	88	90	86	88	88
Installation depth (in.)	1.46	1.57	1.85	1.90	2.16	2.05	2.16	2.91	1.90	2.05	2.16
Cut-out diameter (in.)	3.21	3.66	5.82 x 3.52	4.74	7.12 x 5.04	5.12	5.71	8.62 x 5.86	4.74	5.12	5.71
Grilles included?	No	No	No	Yes	No	Yes	Yes	Yes	Yes	Yes	Yes

To ensure safe operation, always follow the instructions and guidelines in this manual.

Keep this manual handy for reference.

www.soundordnace.com

All rights reserved.
