USER MANUAL VX700/5i JL Audio

700W 5-Channel Class D System Amplifier with Integrated DSP

CONNECTION GUIDE

Thank you for purchasing a J. Audio amplifier for your sound system.

Your amplifier has been designed and manufactured to exacting standards in order to ensure years of musical enjoyment. For maximum performance, we highly recommend that you have your new amplifier installed by an authorized JL Audio dealer. Your authorized dealer has the training, expertise and installation equipment to ensure optimum performance from this product. Should you decide to install the amplifier yourself, please take the time to read the manual thoroughly to familiarize yourself with its installation requirements and setup procedures.

If you have any questions regarding the instructions in this manual or any aspect of your amplifier's operation, please contact your authorized JL Audio dealer for assistance. If you need further assistance, please contact the JL Audio Technical Support Department at [e-mail] or call [phone] during business hours.

Installation Applications

This amplifier is designed for operation with 12 vol., negative-ground electrical systems. Using this product in systems with positive ground and/or voltages other than 12V may result in damage to the product and will void the warranty. This product is not certified or approved for use in aircraft.

Product Description

This is a five-channel, Class D system amplifier equipped with the second generation of JL Audio's Next™ high-speed switching technology. It is engineered to deliver reference-grade audio amplification with outstanding efficiency and unprecedented, built-in processing power. Instead of traditional analog processing controlled by knoos and switches, VSG amplifiers feature an integrated DSP (Digital Signal Processor). The amplifier and its integrated DSP are configured using an external device (IPC, Tablet or Phone), with the appropriate JL Audio TUN™ application installed. (See What Is TUN™ section for more intra.)

Planning Your Installation

It is important that you take the time to read this manual thoroughly and that you plan your installation carefully. It is very easy to damage expensive vehicle systems in modern automobiles. Never assume that you have found appropriate wires without consulting a reliable wiring diagram or without analyzing with proper test equipment. If you are uncomfortable or unfamiliar with reading diagrams or testing methods, please enlist the services of your authorized IT. Audio dealer to perform the installation. Your authorized dealer has the training expertise and installation equipment to ensure optimum performance from this product. The following are some considerations that you must take into account when planning your installation.

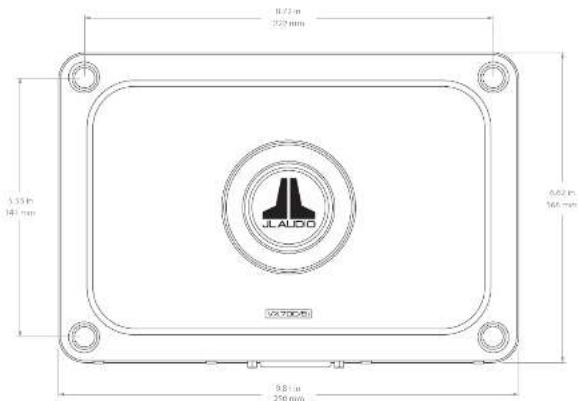

8/23 m 220 mm 3.15 ft 141 mm JLAUDO 6.62 ft 164 mm VATOCB 9.81 m 250 mm

2.2h 54mm 1 2 3 4 5 6 7 8 9 10

Safety Considerations

• Install your amplifier in a dry, well-ventilated location that

does not interfere with your vehicle's safety equipment.

- Do not mount the amplifier in the engine.

compartment or in any areas of extreme heat

- Securely mount the amplifier so that it does not come

loose in the event of a collision/sudden jolt or a

- Check before drilling to make sure that you will not be drilling into

a fuel tank, gas/brake line, wiring harness, or other vital system.

- Do not run system wiring outside or underneath the

vehiclevessel. This is an extremely dangerous practice,

Which LatrResult in Severe damage/Injury. Take the necessary precautions when ma

connections to the vehicle's battery

- Protect all system wires from sharp edges by carefully routing them.

lying them down and using grommets and loom where appropriate.

- Secure all wiring as needed, using cable ties or wire camps to protect them from moving away from a line.

1. Price, Volume, trading volume, and price target

Cooling Efficiency Considerations

The outer shell of your JL audio amplifier is designed to remove heat from the amplifier circuitry. For optimum cooling performance, this outer shell should be exposed to as large a volume of air as possible, enclosing the amplifier in a small, poorly ventilated chamber can lead to excessive heat build-up and degraded performance. If an installation calls for an enclosure around the amplifier, we recommend that this enclosure be ventilated with the aid of a tan. In normal applications, fan cooling is not necessary. If mounting the amplifier under a seat, make sure there is at least 1 inch (2.5 cm) of space above the amplifier's outer shell to permit proper cooling.

What is Included

(1) Amplifier (1) Power Connection

(1) Anakin Input Hartrate [1] Spindle Output Hartrate

(1) USB A/B Case (6 P/1.9 ml) 41 Compc/Cans

(3) Black Hies Can Machine Screws (D) Enter Exp. Tmal

(2) Silver Transverse (1) 75 mm Hex W/serb

(1) Connection Guide 11 3 mm Hex Wrench

JL Audio Badge

To complement the amplifier's mounting orientation, the logo badge includes a recessed key feature allowing it to be affixed at 90 degree increments on the amplifier's top. To install, remove the adhesive backing and press the badge at the desired orientation.

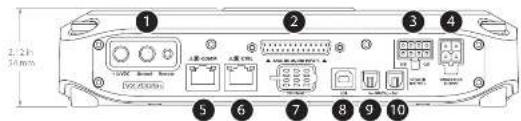

1 Power Connector

Run 4 AWG power wire from the positive (+12V) battery post to the amplifier mounting location. If additional amplifiers are being installed, run the appropriate gauge power wire for the combined maximum current draw, and install a fused distribution block near the amplifiers.

B. An appropriate fuse (solid separately) at the main power wire(s) is vital for vehicle safety. This fuse must be installed within 18 inches (45 cm) of the battery post connection. If this is the only device connected to this main wire, use a 60 A fuse. Do not install the fuse until the power wire has been securely connected to the amplifier.

C. The ground connection should be made to a clean, solid metal grounding point using 1 AWC wire, and kept as short as possible. The metal surface at the grounding point should be sanded to create a clean, metal to metal connection. For optimal grounding, we recommend using a JL Audio ECS master ground lug (XB MGLU). All ground connections (source unit and amplifiers) should be made at the same location.

1). The remote connection should be made to the source unit's positive (+12V) remote turn on output. If your source unit does not have a dedicated remote turn-on output, consider one of the alternative turn-on options. (See Turn-On Mode section for more info.)

2 Analog Input Harness

The Analog Input Harness accepts the following connections:

Line-Level Analog Inputs: Six female RCA jacks feed a differential-balanced input section, providing a high degree of input flexibility, and retaining superior noise rejection. This type of input architecture also allows the VX700/Si to cleanly accept any analog audio signals up to 16 VRMS, without using a line-output converter.

Preamp Outputs: Two female, RCA jacks deliver line-level, analog audio outputs (Max 4V RMS); that are compatible with most types of aftermarket equipment. These are configured with the TuN® Software Interface.

Remote: This connection provides a positive (+12V) turn-on voltage (475 mA limit) to activate other aftermarket equipment (similar to an aftermarket head unit's remote turn-on leads).

Valet: When connected to negative ground, this input activates the Valet. Mode Preset and will remain active until the ground connection is removed. This preset is configured using the TUN® Software Interface and will override any DRC controlled preset.

Corner Cap Installation and Removal

The corner caps are designed to conceal the amplifier's mounting holes and hardware. To install, simply press a corner cap into each mounting hole. To avoid scratching the amplifier's chassis during removal, use the included, plastic corner cap tool and lift below each cap.

Making Connections

VXI amplifiers utilize removable plugs and harnesses to make the

following connections:

•PowerConnector

To connect the power, ground and remote turn-on wires to the amplifier, back out the set screws on the connector using the supplied hex wrenches. Strip back 3/8 inch (10 mm) of insulation from the end of each wire and insert the bare wire into the receptacle on the power connector plug, testing it firmly so that no bare wire is exposed. While holding each wire in place, tighten each set screw firmly, taking care not to strip the head of the screw. Install the power connector by plugging it into the amplifier's power connector receptacle, pushing firmly.

- Analog Input Harness

This harness includes connections for Signal Input (RCA plugs), Preamp Outputs (RCA plugs), Remote Turn-On Output (wire lead) and Valei Input (wire lead). Select either the included black hex cap machine screws or the silver thumscrews to secure the Analog Input Harness connector to the amplifier.

• Speaker and Subwoofer Output Harnesses

These harnesses have output wire leads to connect with speaker cables.

Turn-On Mode

VXI amplifiers can be switched on and off using one of three methods, configured by the "Turn On Mode" setting in the TaN™ Software Interface. Refer to the table below for detailed info and decide which option is best suited for your specific system.

Starting material consumption
Balance	Conventional Professional	Tum content contained by your works and	Content your use is required to 120% of total farm in the first. Power Generation's, Production Time Or Input consumption
EC Offset	DC Offset Steering (Lack)	Automatically time used by delivering more pressure on total DC service in DMK units (e.g.	The total volume is the following input: Only. We need the unit of a work that changed for high speed/squad power demand signals that reduce low power demand levels. Use the current DC service is required to maintain moderate demand levels.
Signal	Signal Steering (Lack)	Automated utility for the use of the 120% DC service, which is not available for the current maintenance needs, describing or using small units (e.g.	The current use of the operating system has been done by the work that changed for high speed/squad power demand signals that reduce low power demand levels. Use the current DC service is required to maintain moderate demand levels.

3 Speaker Output Harness

Connect the speaker output leads to the corresponding speaker wires.

4 Subwoofer Output Harness

Connect the subwoofer output leads to the corresponding speaker wires. Note: Two pairs of wire leads are included to facilitate multiple subwoofer wiring. Both positive and both negative wire leads are connected in parallel inside the harness.

5 JLId-COMM

Connect optional accessories (VX-BTC, VX-HUB, etc.) to this port.

6 JLid-CTRL

Connect optional DRC (Digital Remote Controller) wired controllers to this port.

7 SD + Reset

Lift the dust cover to access the following utility functions:

Reset Buttons: Use a small pin to perform the following:

Reboot Amp - Press and release the right button. Factory Reset (wipe memory, reboot amp) - Press and hold the left button for 7 seconds.

DFU (Device Firmware Update) Mode: Press and release both

buttons simultaneously.

8 USB

This USB A/B port permits connection to a computer for configuration and tuning, using the TGN™ Software.

9 DIGITAL-In

Tosink port accepts 2-channel digital audio signal from any optical (S/PDF) digital output, with a sample rate up to 192 kHz.

10 DIGITAL-Out

Provides a digital audio output (24 bit/96 MHz) that is not susceptible to RF interference or noise-generating electrical conditions. By default, this is a pass-through audio output, with no signal processing applied, and intended for use with other equipment that have an optical (Testlink) digital audio input (SPDIF) port. Using the Tilk Software Interface, you may configure this output's routing, equalization, output level and DRC control functionality.

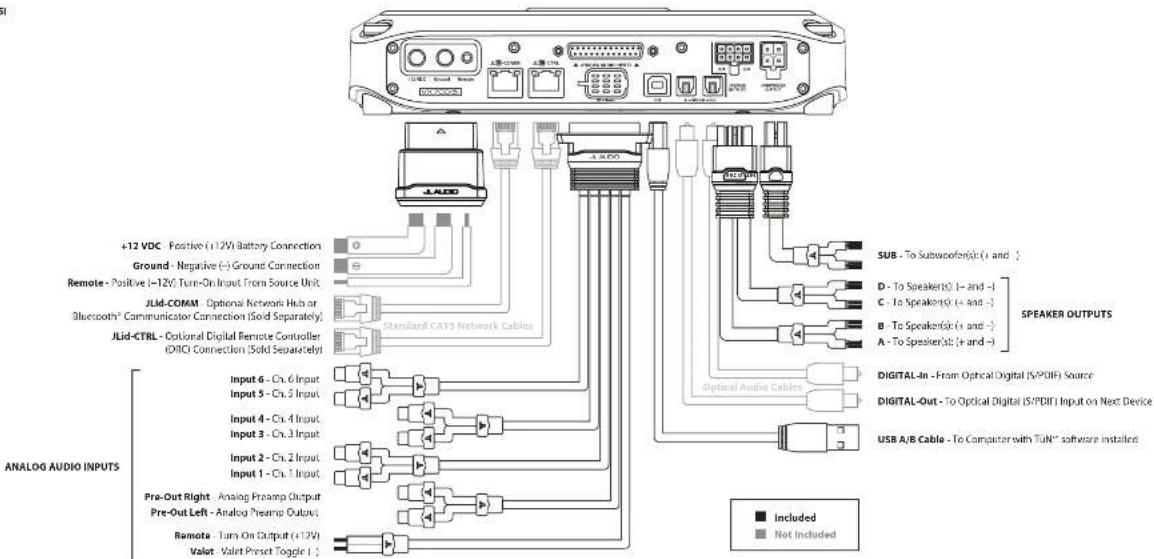

Wiring Diagram - VX700/51

+12 VDC - Positive (+12V) Battery Connection Ground - Negative (-) Ground Connection Remote - Positive (-12V), Turn-On Input From Source Unit JLid-COMM - Optional Network Hub or Bluetooth® Communicator Connection (Sold Separately) JLid-CTRL - Optional Digital Remote Controller (OTC) Connection (Sold Separately) ANALOG AUDIO INPUTS Input 6 - Cx. 6 Input Input 5 - Cx. 5 Input Input 4 - Cx. 4 Input Input 3 - Cx. 3 Input Input 2 - Cx. 2 Input Input 1 - Cx. 1 Input Pre-Out Right - Analog Preamp Output Pre-Out Left - Analog Preamp Output Ramota - Turn On Output (+12V) Valot - Valet Preset Toggle (-) SUB - To Subwoofer(s): (+ and -) D - To Speakers(s): (+ and -) C - To Speakers(s) (+ and -) B - To Speakers(s) (+ and -) A - To Speaker(s): (+ and -) Optical Audio Cables DIGITAL-In - From Optical Digital (VP/DIF) Source DIGITAL-Out - To Optical Digital (SP/DIF) Input on Next Device USB A/B Cable - To Computer with TuN™ software installed ■ Included ■ Not Included

Connections

Power Connector
Connection Mode Capacity Connection
12.0V DC 12.0V DC-Plus-2		12.0V DC Power Connection to Energy
Connected 1.4G NC-NG-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-SC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NS-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NA-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC- NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC- NCA-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-NC-<

Specifications

Amperifier Specifications
Ampere Topology		Max. Semi-20% High Speed Class 3
Plasma Type		Unamplified MC501 Switching type
Illuminated Dens/CAPE Wave		4 MHz
Transmitted Race		40 A
Voltage Current Draw		7.5 m/s
Input Voltage Range		200 mV - 10 V RMS
Rated RMS Approx. 16.0V, <1.5% TA Rate		Max. 0.20 1000 V±1	Max. 0.20 1000 V±1
		Max. 0.10 1000 V±1	Max. 0.20 2000 V±1
Rated RMS Approx. 12.5V, <1.5% TA Rate		Max. 0.20 600 V±2	Max. 0.20 600 V±2
		Max. 0.10 1000 V±1	Max. 0.20 2000 V±1
Frequency Response		Max. 1.5Hz, 24 kHz, 10 Hz Sub. 12 Hz, 18 Hz, 10 Hz
Analog Input	Sub. Ratio 2-changenna, 75 Hz in current waveform	Max. 0.10 (dB) filtered to maximum power, 10 dB filtered to 1.9V Sub. 12 dB filtered to current power, 72 dB filtered to 1.9V
Digital Input	Sub. Ratio 2-changenna, 75 Hz in current waveform	Max. 10 dB (dB) filtered to maximum- 10 dB (dB) filtered to 1.9V Sub. 12 dB (dB) filtered to current power, 10 dB filtered to 1.9V
Damping Factor		Max. 1000 ± 50Hz, 4.4Ω, 55.2Ω, 50Hz, 2.0 Sub. 1000 ± 50 Hz, 4.4Ω, 55.2Hz, 50Hz, 2.0
User Specification
Processor		AMP-AC/DC processing at 450x70Hz
Current Input	Type	Low speed, Different Balanced
	Number of Channels	Low speed, Different Power RF, 1Hz
Onset Input	Type	SPOAF Crystal can be measured from total point
Onset Output	Bit Depth/Range Data	Up to 24bit/10Hz
Onset Output	Type	2 line long wavelengths measured from 80GHz
	One Depth/Rate	1kHz
Onset Output	Type	SPOAF Crystal can be measured from totalpoint
	Bit Depth/Range Data	24bit/70Hz
Dimensions
Lo Work		4.4V ± 2.0V ± 1.2V (diameter of 1mm x 5mm)

What is TüN?

TUN™ is software that you use to configure, tune and control your VXI amplifier, and other JL Audio DSP products. TUN™ automatically recognizes what it is connected to, and allows you to make adjustments with a clear interface specifically set up for that product. TUN™ is available for download for free in a variety of applications, for computers and most handheld devices. For more information, visit jlaudio.com/tun

For Windows® PC or Mac® computers, TiiN™ connects via USB and offers complete control and command of the entire VXI feature set from the comfort of your desk or driver's seat software also runs in demo mode, without connected amplifiers, for offline setup or demo purposes. Test drive it for free!

For iPad or Android tablets. Enjoy the full featured Tilk® software experience on your tablet, with the freedom of a wireless connection via Bluetooth®. Requires VXI-BTC Bluetooth® Communicator.

Wireless connection and streamlined options, for fast and simple amplifier setup. Download ToN™ Express for iPhone, iPad and Android phones & tablets. Requires VXI-BTC Bluetooth® Communicator.
