USER MANUAL ICF-CD821 SONY

FM/AM CD Clock Radio

Operating Instructions

DREAM MACHINE

Dream Machine is a trademark of Sony Corporation.

ICF-CD821

Sony Corporation © 2000 Printed in Thailand

http://www.world.sony.com/

LIMITED WARRANTY (Portable Audio) FOB 30\$ 以上

Owner's Record

The model number and the serial number are located on the bottom.

Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No. ICP-CD821 Serial No.

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to accomplish a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the experience.

* The graphical symbols are on the bottom of the enclosure.

INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC blocks. These limits are designed to provide reasonable product against harmful interference in a general electrical equipment. If such equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communicating. However, there is no guarantee that interference is caused by the use of the electrical equipment. If this equipment does cause harmful interference to radios or television reception, which can be determined by turning the equipment off and an, the user is encouraged to try to correct the interference by one or more of the following requirements: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the equipment can be carried. — Consult the reader or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

CAUTION

The use of optical instruments with this product will increase eye hazard.

Before You Begin

Thank you for choosing the Sery CD clock radio! The CD clock radio will give you many hours of reliable service and listening pleasure. Before operating the CD clock radio, please read these instructions thoroughly and retain them for future reference.

Features

• You can wake up to CD, radio and buzzer with the answer function.
• You can wake up to any track on CI3.
• Dual alarm
• Three-inch disce can be played without an adaptor.
• Self power back-up: Even if the power supply is interrupted, the time setting and the memory will be backed up for approx. 1 minute.

Precautions

• Operate the unit on the power source specified in the "Specifications".
  • The nameplate indicating operating voltage,
  • To disconnect the power cord (mains lead),
  pull it out by the plug, not the cord • Do not leave the unit in a location near a heat source such as a radisher or air duct, or in a place subject to direct sunlight, excessive dust, mechanical vibration, or shock.
• Allow adequate air circulation to prevent internal heat build-up. Do not place the unit on a surface in rug, a blanket, etc. or near materials (a curtain) which might block the ventilation holes.
• Should any solid object re-liquid fall into the unit, unplug the unit and have it checked by a qualified personnel before upscaling it any further.
  • To clean the casing, use a soft cloth dampened with a mild detergent solution.

If you have any questions or problems concerning your unit, please consult your nearest Sony dealer.

Troubleshooting

Should any problem occur with the unit, make the following checks to determine whether or not servicing is required. If the problem persists, consult the nearest Sony dealer.

The clock does not show the correct time. • There was an electrical power interruption lasting far more than 1 minute.

The CD player does not operate. • Did you place a disc correctly? The disc should be placed with the labelled surface up. • Did you close the compartment did completely? • Dually or defective disc—Clean the disc with an optional cleaning cloth. Wipe the disc from the center out.

Skipping of sound in CD operation • Dusty or defective disc—Clean the disc. • Dirty lens—Clean the lens with a commercially available blower.

- Strong vibration. The CD, radio or buzzer alarm does not activate at the preset time. - Did you set the current time correctly? - Did you set the alarm time correctly? - Did you place a diet? - Did you close the CD compartment is completely? - Did you adjust the volume? if the volume is turned down completely, the CD or radio alarm is not heard.

Specifications

CD player section
System: Compact disc digital audio system Laser diode properties: Material: Ca-AlAs Wavelength: 750 nm
Emission duration: Continuous
Laser output: Less than 41.6 μW* This output is the value measured at a
distance of about 200 mm from the
objective lens surface on the optical pick-up block with 7 mm aperture.
Frequency response: 20 - 20,000 Hz ^-1 dB Wow and flutter: Before measurable limit

Radio section

Frequency range: FM: 87.5 - 108.0 MHz AM: 530 - 1905 kHz

General Speaker: Pullrange: 7.7 cm (3 - 7 inches) ohms Power outputs: 1.2 W + 1.2 W (al 10% harmonic distortion)

Power requirements: 120 V AC, 60 Hz Dimensions: Approx. 293 - 102 - 205 mm (w/h/d) (Aprox. 11°/s - 4°/s - 8°/s inches) incl. projecting parts and controls Mass: Approx. 1.7 kg (3 lb 12 oz)

Design and specifications are subject to change without notice.

IMPORTANT SAFEGUARDS

For your protection, please read these safety instructions completely before operating the appliance, and keep this manual for future reference. Carefully observe all warnings, precautions and instructions on the appliance and described in the operating instructions supplied with the appliance by Sony,

INSTALLATION

Water and Moisture

Do not install the appliance near water: for example, near a bathtub, washbowl, kitchen sink, laundry lab, in a well basement, or near a swimming pool.

Heat

Do not install the appliance near sources of heat such as radiators, heat registers, stoves, or other appliances that produce heat.

Ventilation

Slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation. To ensure reliable and safe operation of the appliance, and to protect it from overheating, these slots and openings must never be blocked or removed. Do not place the appliance on a bed, sofa, rug or other similar surface which may block the slots and openings.

Dor not install the appliance in a confined space, such as a bunkrose or built-in cabinet, unless proper ventilation is provided.

Carts and Stands

Do not install the appliance on an unstable table, shelf, cart or stand. Use only a cart or stand recommended by sorry. An appliance and cart combination should be moved with cars. Quick steps, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn

Wall or Ceiling Mounting

If your appliance can be mounted to a wall or ceiling, mount it only as recommended by Sony.

USE

Power Source

Connect the appliance to a power supply only of the type described in the operating instructions or as marked on the appliance.

Grounding or Polarization

Do not defeat the grounding or polarization feature of the AC power cord. If your AC receptacle will not accept the power cord plug, contact your electrician to install a proper AC receptacle.

AC Receptacle

Check to make sure that the AC circuit holds the power cord plug, firmly and securely. If the power cord plug is loose, contact your electrician to replace the defective and unsafe AC circuit.

Power-Cord Protection

Route the power card so that it is not likely to be realised on or pinched by having objects placed on it, paying particular attention to the plugs, receptacles, and the point where the cord exits from the appliance.

When not in use

Linplug the power card of the appliance from the outlet when left unused for a long period of time.

To disconnect the cord, pull it out by grasping the plug. Never pull the plug out by the cord.

Foreign Objects

He careful that foreign objects and liquids do not enter the enclosure through openings.

cleaning

Clean the appliance only as recommended by Sony.

ANTENNAS

Outdoor Antenna Grounding

If an outdoor antenna or cable system is installed, follow the precautions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits. WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM, EXTREME CARE SHOULD BE TAKEN TO KEEP FROM CONTACTING SUCH POWER LINES OR CIRCUITS AS CONTACT WITH THEM IS ALMOST INVARIABLY FATAL.

He sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electrical Code provides information with respect to proper grounding of the mass and supporting structure, grounding of the lead in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Antenna Grounding According to the National Electrical Code

—NEC National Electrical Code—
Power Service Grounding, Electrode System (NBC® Art 250 Part H)

SERVICE

Linplug the appliance from the wall outlet and consult qualified service personnel when:
-a solid object or liquid has fallen into the cabine
the appliance has been exposed to rain or moisture
The appliance does not appear to operate normally or exhibits a marked change in performance. The appliance has been dropped, or the enclosure damaged.

Do not attempt to service the appliance beyond that described in the operating instructions. For all other servicing refer to qualified service personnel only.

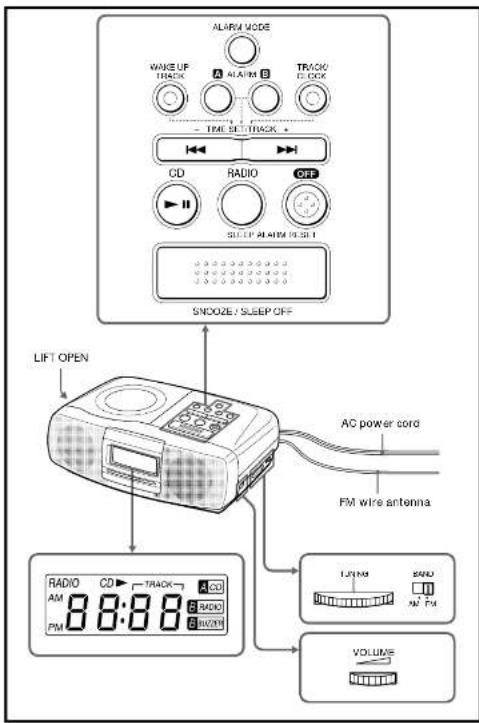

Setting the Clock

5el the time when the CD or radio is turned off. 1. Play in the unit.

The display will flash "AM 12:00".

2 While holding down TRACK/CLOCK, press either TIME SET/TRACK + or - until the correct time appears in the display.

When you release TRACK/CLOCK, the clock begins to operate and "." flashes.

- To set the current time rapidly, keep pressing the + cc - button while holding down TRACK CLOCK.

- To set the current time from zero seconds, at step 2, release TRACK/CLOCK with the time signal.

Playing a CD

An 3 inch (9 cm) CD can be played without an

1 Lift LIFT OPEN to open the CD compartment lid and place a disc.

Lif.
Label surface up.
Close the lid.

2 Press CD▶ and the display lights "01". The current number (01 to 99) appears in the display window. After 10 seconds, the indication becomes the current time, but the "CD▶"

3 Adjust VOLUME

Locating a Particular Portion

Locating a particular selection (AMS ^-1 ) To locate the beginning of the current selection, press ◀◀.

To locate the next selection, press ▶▶ Location a particular point in a select

(SEARCH)

To go back at high speed, keep I pressed. To go ahead at high speed, keep I pressed

* AMS is the abbreviation of Automatic Music Sensor.

- If you press repeatedly, the player locates the previous selections. If you press repeatedly, the player locates the next selection and share at the last selection.

• To stop play, press OFF/ALARM RESET

• To pause, press CD ▶II and the 'CD ▶' indication flashes. To resume play, press CD ▶II again.

• To change the clock mode to track mode, press TRACK/CLOCK.

Press TRACK/CLOCK again, and the current time appears.

• To eject a disc lift LIFT OPEN.

- Плапан Тел. 2008

Handle the disc by its edge.

Do not touch the
surface.

Do not stick paper or tape nor write anything on the surface.

Notes

- Do not open the CD compartment list while playing, otherwise, the disc will be damaged. Be sure to stop the disc first.

- When you press CD ▶II, if there is no disc in the CD compartment, the '00' indication flushes for 36 seconds and the unit will be

- If the CD is activated while listening to the CD, the back changes to that preset by pressing WAKE UP TRACK.

Playing the Radio

1 Press RADIO'SLEEP to turn on the radio.

The "RADIO" indication will appear and the "On" indication will appear in the display. After 10 seconds, the indication becomes the current time but the "RADIO" indication remains.

2 Adjust VOLUME

3 Select the BAND

4 Tune in a station using the TUNING dial.

- To turn off the radio, press OFF/ALARM RESET.

• To improve radio reception

FM: Fetal the FM wire soleurs to improve FM reception.

AM: Rotate the unit horizontally for optimum reception. A ferrite but ardenes is built into the unit.

Do not operate the unit over a steel desk or metal surface, as this may lead to interference of reception.

Setting the Alarm

You can set the UO, radio and buzzer alarms at the preset time. Before setting the alarm, be sure to set the clock. (See "Selling the Clock")

To set the Alarm Time

To set the alarm

1 While holding down ALARM A. press either TIME SET/TRACK + or - until the desired time appears in the display window.

“ Andation flashes and lights.

2 Release ALARM A. The alarm time is set and the indication becomes the

3 While holding down WAKE UP TRACK, set the desired track by pressing ◄◀ or ▶▶

4 Release WAKE UP TRACK. The track is preset and the indication becomes the current time.

Note

When the CD player is preset to start with track 5, it will always start with track 5 even though you change the CD, unless you change WAKE UP TRACK.

To set the

1 While holding down ALARM B, press either TIME SET/TRACK + or - until the desired time appears in the display

window. The "B RADIO"

B. BAWERON flash and

2 Release ALARM B. The alarm time is set and the indication becomes the current time.

To set the Alarm Mode

Before setting the alarm mode, be sure to set the alarm time. (See "Setting the Alarm Time".)

Press ALARM MODE until the alarm you want appear in the display window.

Each time you press ALARM MODE, the alarm indication changes as follows.

No alarm

ALARM ON—

When the alarm comes on at the preset time,

A CD "S RADICFA-1: - B BUZZER

in the disc

Notes

• The alarm does not function, unless you sell the clock and A CD / B RADIO / E BUZZER alarm

- If you sell the CD alarm and radio or buzzer

alarm at the same time, the CD alarm sounds. - When you set the CD alarm, if there is no disc in the CD player, the buzzer will sound at the time you set.

- When the CD alarm comes on, the "A CD" indication flashes.

If you want to stop flashing, press CD ▶II. The CD player will stop playing at the last back.

- When the radio alarm is activated, the

" B RADIO " indication on flashes. If you want to keep on listening to radio and stop flashing, press RADIO'SLEEP. The " B RADIO "

indication remains.

• The buzzer sound level is fixed, and independent of VOLUME

To Doze for a Few More Minutes

Free SNOOZE'SLEEP OFF. The CD, radio or buzzer will shut off but will be activated automatically after about 8 minutes. You can repeat this process as many times as necessary.

- While SNOOZE/SLEEP OFF function is operating, the alarm indication flashes.

ALARM OFF—

The alarm is turned off automatically after 60 minutes.

To Stop the Alarm

Press OFF/ALARM RESET to turn off the alarm. The alarm will come on again at the same time (the next day

To Cancel the Alarm

• To cancel the alarm, while holding down ALARM MODE, over OFF ALARM RESET

• To check the alarm time you set, press ALARM A or ALARM B.

Setting the Sleep Timer

You can enjoy falling asleep to the radio using the built-in sleep timer that turns all the radio automatically after a preset duration.

Press RADIO/SLEEP repeatedly

The radio turns on and the "Oy" indication will appear initially in the display. The radio will turn off automatically after the selected preset duration has elapsed.

Each time you press RADIO'SLEEP, the duration changes as follows.

Radio on → 90 min 60 min 30 min (Sleep time off)

Radio off 15 min

• To turn off the radio before the present duration has elapsed, press SNOOZE'SLEEP OFF.

To Use Both Sleep Timer and Alarm

You can fall asleep to the radio and you will be awakened by the CD, radio or buzzer alarm at the next time.

1 Set the alarm. (See "Setting the Alarm")

2 Set the sleep timer. (See "Setting the Sleep Timer".)
