USER MANUAL GR-W77UDZ-C TOSHIBA

Simple line drawing of a rectangular frame with two horizontal panels and small corner supports (no text or symbols)

• Thank you very much for purchasing this Toshiba refrigerator.
• Read this Owner's Manual and become completely familiar with the refrigerator before use in order to use this product safely and correctly.
• Keep this Owner's Manual in a handy place for future reference.
• Make sure that you received your warranty.

SAFETY INSTRUCTIONS

All instructions described should be carefully read and followed.

- These instructions are precautions to prevent the risks of serious injury or death of the user, and any damages to property.

MARKINGS

WARNING

WARNING indicates high possibility of serious injury (*1) or death of the user.

CAUTION

CAUTION indicates a high possibility of injury ( ^2 ) or property loss ( ^3 ).

(1) Serious injury- injury which requires hospitalization, lengthy treatment, or blindness, hot and cold skin burn, electric shock, broken bones or poisoning.
(*2) Injury – injury, skin burn or electric shock which does not require hospitalization or lengthy treatment.
(*3) Property loss – extended loss of houses, furniture, domestic animals or pets.

SYMBOLS

PROHIBITED! Indicates prohibited actions.

Detailed instructions would be indicated on the inside of the circle or around the symbol in figures or in writing.

IMPORTANT Indicates mandatory actions.

Detailed instructions would be indicated on the inside of the circle or around the symbol in figures or in writing.

△CAUTION Recommends to take precautions.

Detailed instructions would be indicated on the inside of the triangle or around the symbol in figures or in writing.

WARNING

Do not store the inflammable substances. Ether, benzene, alcohol, thinner, adhesive, spray, LP gas or any chemicals may explode and cause an accident.

Keep ventilation openings, in the appliance enclose or in the built-in structure, cleare of obstruction.

Do not disassemble or attempt to service.

It may cause fire, electric shock, injury or skin burn. All services not described in operating instruction should be referred to qualified service personnel.

Specification: Only connect to main voltage 220-240V. Except 230V. 60Hz for GR-WG77ATEZ, GR-WG69ATEZ, GR-W77ATEZ, GR-W69ATEZ Directly connect to the AC outlet, and don't use multiple outlets. This may cause fi re and electric shock.

Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

The power supply cord or plug should not be routed so and object is pressed or pinched against them in order to prevent any damaging and fraying. Binding, bending, pressing with heavy objects or applying pressure with the back panel of the refrigerator on the cord and plug may cause fire or electric shock.

تعليمات السلام

Do not store medicines, chemicals or chemical reagents.

This refrigerator is not suitable for storage of substances that are temperature sensitive.

Disconnect cord from plug

Disconnect power supply by pulling the power plug. Unplugging by pulling the supply cords may damage the wire insulation, which may cause fire and electric shock.

Disconnect the power plug while cleaning.

May cause injury and electric shock. Dry your hands thoroughly before handling the power plug.

Clean and remove dust on power plug periodically.

Insufficient circuit connection may cause fire.

Disconnect power supply by unplugging the power plug in case of malfunction or breakdown.

Continued use of appliance may cause fire, electric shock, injury or skin burn. Contact the distributor for service.

Do not use if the supply cord is damaged or frayed, or if the power plug has loose connection.

This may cause fire or electric shock.

Ensure grounding or connection to the circuit breaker if used in a place with water or excessive moisture.

If you fail to comply, leakage or electricity may lead to fire or electric shock.

Do not Install In a place where there's water or excess moisture.

This may cause fire or electric shock.

Do not use mechanical devices or other means to accelerate the defrostling process, other than those recommended by the manufacturer.

Do not damage the refrigerant circuit.

Do not place any heavy objects or liquid containers on the refrigerator.

Spillage may affect the electric insulation, and cause fire or electric shock. Falling objects may also cause injury.

Do not eat
spoil food

Do not eat any food which has changed color or glves out strange odor.

These food may cause food poisoning or illnesses.

Do not sprinkle
water

Do not sprinkle water to the body or the inside of the refrigerator.

This may weaken the electric insulation, which may lead to fire and electric shock.

If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by manufacturer, In order to avoid a hazard.

Do not hang or stand on the door.

It may overturn, The door may come off the

hinges, or you may catch your fingers, in the

door which may cause injury.

- Do not leave in places where children play.

- To protect a little children from dangerous confinement inside the refrigerator, remove the door packing so that the door can be closed Air-tightly.

- Should be follow the disposal law of your country.

Warning
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Warning

Children should be supervised to ensure that they do not play with the appliance.

Warning

To prevent Children being entrapped, keep the Key out of reach of children and not in the Vicinity of the Appliance.

To assure the disabling the mechanical lock before discarding the machines to avoid any accident involving the children.

CAUTION

Hold designated
positions

Lift from the bottom of the refrigerator when moving.

If you do not hold this designated position, your hands may and slip which may lead to injury.

Install on level
surface

Install on a strong and even floor.

The refrigerator may overturn if set on uneven or unstable surface, which may lead to injury.

Do not store

Do not store bottles in the freezing unit.

Bottles may break when the contents are frozen, and may cause injury.

Do not touch

Do not stick your hands or feet under the refrigerator.

Steel plates and the kinds may cause injury.

Do not touch with
wet hands

Do not touch the freezing unit nor ice tray with wet hands.

It may cause frostbites on your fingers.

Use the handle

Use the handle when closing the refrigerator door.

You may accidentally slam the door on your fingers.

وقوع إصدابه.

■ When you open the door of the refrigerator, there may be a smell of plastics. This signifies nothing unusual.

■ Select a dry place. Avoid any humid or wet place, for example, the neighborhood of a kitchen sink. Such a place could cause corrosion or electric leakage in the refrigerator. If installed directly on the ground, your refrigerator will be liable to damage. Place a board under the machine in such a case.

■ Installation Install your Toshiba Refrigerator on a strong and level floor. Turn the adjust leg and stabilize the refrigerator horizontally.

■ Leave space around the refrigerator. Select a well-ventilated place. Provide at least 10 cm (4 inches) at top and 4 cm (1.6 inches) on both sides and rear side, for proper air circulation. at least 4 cm at least 10 cm at least 4 cm

■ Ensuring the clearance between rear side and wall. Please fix drain evaporator pan stopper that provide together with this user manual into its position follow the picture.

■ Use in a cool place.

- Keep the refrigerator away from the sunlight, a gas range or heater. Placed in the sunlight or near a heat emitting object, the refrigerator will have its cooling effect reduced and a failure might be occurred.

• Heat Generation by the Compressor The refrigerator compressor will generate heat during normal operation. Note that this is not a malfunction.
• Heat on Refrigerator Walls The condenser is built on the outer shell and radiates heat into the room air. The temperature of the outer shell may reach high temperature during normal refrigerator operation. This is not a malfunction.
• Refrigerator Operation When the power is first turned on or when the power comes on again after an extended power outage, the refrigerator may run continuously for 9 to 14 hours in order to cool the entire cabinet to the normal operating temperature. When the inside temperature has stabilized, the refrigerator will enter the automatic control mode. Should the refrigerator run continuously under the above conditions, remember that this is not a malfunction.

After disconnecting the plug from the outlet, wait at least 7 minutes before reconnecting it.

- If the plug is quickly reconnected, the compressor may not run properly and produce a rattling noise.

When moving and transporting

• Firstly, remove the food.
• When carrying, hold the positions shown in the diagram. (Never hold by the door or the handle.)

When transporting while relocating

- Do not lay the refrigerator on its side. Doing so may cause malfunction. For refrigerator model GR-W77UDZ/UDZ-X/UDZ-E GR-W69UDZ/UDZ-X/UDZ-E

GR-W77ATEZ GR-W69ATEZ

When operate key lock system

• To lock After insert key into key hole, then push and turn the key clockwise.
• To unlock After insert key into key hole, then push and turn the key counterclockwise.

GR-W77UDZ/UDZ-X/UDZ-E

GR-W69UDZ/UDZ-X/UDZ-E

GR-W77ATEZ GR-W69ATEZ

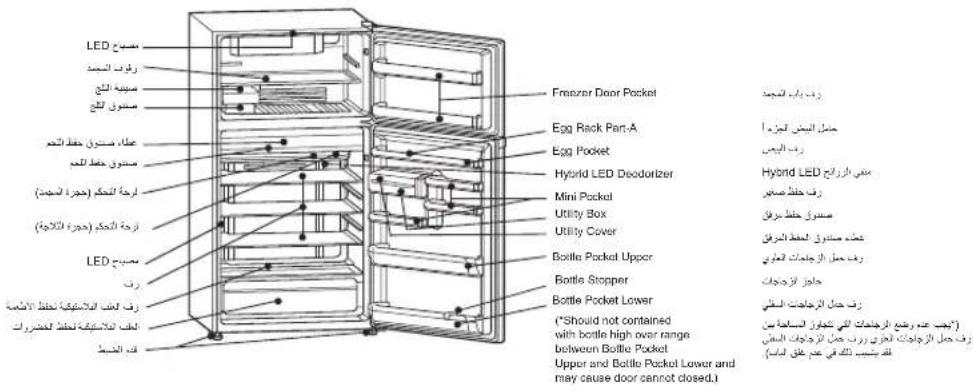

(Freezing Compartment)

Control Panel

(Refrigerator Compartment)

LED Light

Shalf

Crisper Shell

Vegetable Crisper

Adjust Leg

Temperature Controls

- For both the Freezer and Refrigerator Compartments

Normally, set the temperature control dial to the "MID" position.

- Food may freeze in the refrigerator compartment

Food may freeze when the surrounding temperature falls below 5°C, as in winter.

In such case, turning the temperature control dial toward "WARM" will make the food less likely to freeze.

Food that has a high moisture content (e.g., tofu, vegetables) may freeze when it is placed at the back of the refrigerator compartment.

- When storing ice cream, the temperature should be set below "MID" If the refrigerator does not seem cold enough, turn the dials toward "COOL", if it seems too cold, turn the dial toward "WARM".

- Changing the refrigerator compartment temperature control also varies the temperature in the vegetable compartment.

- Do not obstruct the outlet and inlet of the cool air circulation with food or containers, otherwise the food will be frozen or will not be cooled consistently throughout refrigerator.

- Generally, the ice maker produces ice within 2 hours each time. (32 ice cubes) (With the outside temperature of 30^ and the door closed). The capacity to make ice will vary with the use of freezer and the outside temperature.

- The following situations can lengthen the time of making ice.

- When the door is frequently opened and closed or when a large amount of food is stored in the freezer.

- When the outside temperature is higher. (When the ventilation around the freezer is poor)

When the refrigerator operates for the first time or the freezing compartment is not cold enough, it takes about 5 to 6 hours to make ice. (It sometimes takes more than 24 hours if the outside temperature is rather high.)

Fill the ice tray with water up to the water level line. If the water exceeds the water level line, it will freeze over and becomes hard to remove.

To remove ice, twist the ice tray as shown in the figure.

• This refrigerator is self-defrosting, eliminating the troublesome chore of manual defrosting.
• Any frost which forms on the evaporator (externally invisible) is automatically removed by the time-controlled heater.

LED Hybrid Deodorizer Unit

- LED Hybrid Deodorizer Unit is installed behind meat case. This new device consists as follows: The first one is a photocatalyst effective for bacteria elimination and deodorization, the second one is a photocatalyst for bacteria elimination and disintegration of ethylene gas, and the third one is a LED built-in unit. Receiving rays of LED lamp, these photocatalysts generate hydroxyl radicals from moisture in the cold air. Hydroxyl radicals inactivate bacteria, disintegrate ethylene gas which promotes vegetables aging, and deodorize odors.

Store strong smell food in tightly sealed containers.

معلومة

UV LED Bacterial Eliminating Device

- The UV LED device is fixed on the top of refrigerator compartment to eliminate the bacteria in meat that store in the meat case. This device will continuous operate after plugging with no maintenance requirements.

LED Light Replacement

- When the LED light is blown, please contact the service agent approved by TOSHIBA for replacement. The LED light should only be removed by qualified service personnel.

HOW TO REMOVE ACCESSORY PARTS

The accessory parts can be easily removed as explained below for easier cleaning. Only the removal steps are explained here. Replace each part in reverse order.

Lightly lift up the shelf then pull it out downwards.

Slide the meat case cover to the right and push the center to bend toward you then pull it out.

Egg Pocket and Mini Pocket Bottle Pocket

Pull out the shelf until it stops then lift it up and pull out.

• User should remove crisper as the direction in the figure.
• Open door over 90 degree before removal.

Shelf and Crisper Shelf

Pull out the shelf until it stops while lifting it slightly. Then pull it out downwards. In case of the crisper shelf, remove the vegetable crisper first.

To ensure the maximum life of your Toshiba Refrigerator, periodically clean its parts. (For proper instructions, read the following directions carefully.)

When cleaning them, be sure to pull out the refrigerator's plug from the socket and be careful not to pull the cord or get it caught under the machine.

Do not pour water directly on the refrigerator.

Outside Surfaces

الأسطح الخارجية

Polish them with a soft rag. A heavy stain should be wiped off with a rag soaked in a cleanser solution.

The door handle should be wiped with a dry cloth.

The packing on the doors will be short-lived if stains are not removed.

Occasionally, inspect the packing on the doors, and remove any stain with a cleanser solution.

Interior Plastic Units

If they are stained or have any odor, the interior plastic units should be cleaned with a cleanser solution.

When smeared with salad oil or other cooking oil, the interior plastic unit may crack. Wipe such smears off.

Refrigerator's Touch Control Panel

Touch the buttons with your hand when using each function.

Display for Operation icons

Use this operation when you want to switch the operation of this refrigerator to an energy saving mode.

To start this operation

توفير الطاقة

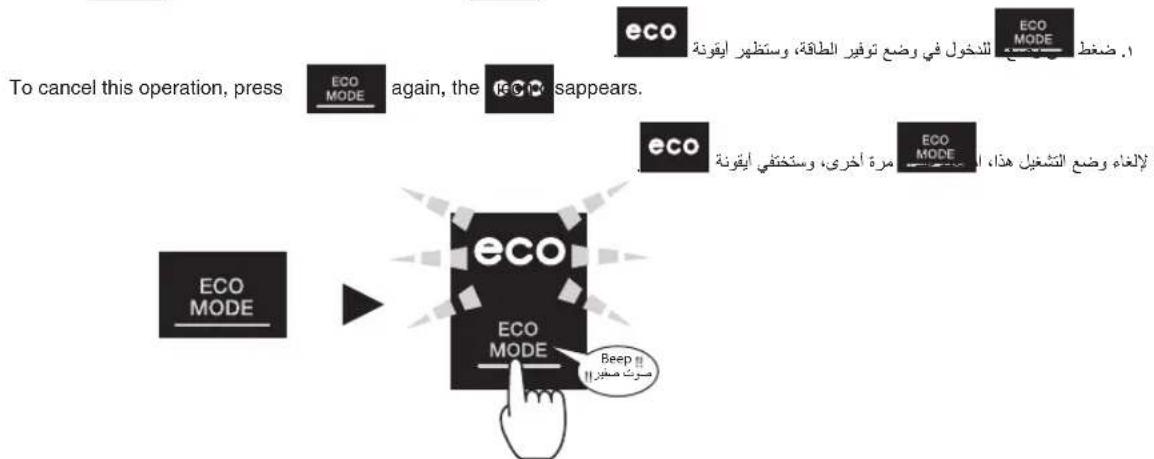

1. Press ECO MODE to enter energy saving mode, the ICG appears.

Note

■ While entering the energy saving mode, the temperature inside the freezer compartment will raised over the preset temperature for approximately 1\~2 degree.
■ The performance of energy saving depends on the application conditions. (temperature control, outside temperature, the frequency of opening/closing the door, food amount)
■ This function should be disable if you feel that the beverage is not cool enough or ice making takes too long time.

ملاحظة

Use this operation when you want the beverage or other cold quickly.

To start this operation

1. Press QUICK FREEZING to enter quick freezing mode, the × appears.

To disable the operation, press

■ While entering the quick freezing mode, the freezing compartment will operate at low temperature for 150 minutes continually then enters into normal operation of the refrigerator.
■ The performance of quick refrigeration depends on the application conditions. (outside temperature, the frequency of opening/closing the door, food amount)
■ You can deactivate this mode immediately after the temperature inside the freezer compartment reach the application requirement.

ملاحظة

Temperature Controls (Freezer compartment)

The temperature inside the freezer compartment is set automatically however if you want to set the temperature, please follow the steps below;

1. Press < (decrease the freezing) > Increase the freezing)

① MIN. MAX.

2 MIN. MAX.

MIN. MAX.

4 MIN. MAX.

5 MIN. MAX.

6 MIN. MAX.

7 MIN. MAX.

8 MIN. MAX.

9 MIN. MAX.
