Product Type	DVD/VCR Combo Deck
Model Number	PV-D4744 / PV-D4744S
Brand	Panasonic
Dimensions	430 x 95 x 273 mm (16-15/16 x 3-3/4 x 10-3/4 inches)
Weight	3.85 kg (8.5 lbs)
Power Source	120 V AC, 60 Hz
Power Consumption (On)	Approx. 28 W
Power Consumption (Off)	Approx. 0.85 W
Video Signal	NTSC color (EIA Standard)
Video Recording System	4 rotary heads helical scanning
Audio Track	1 track (Normal), 2 channel (Hi-Fi Audio)
Tuner Channels	VHF 2-13, UHF 14-69, Cable (Mid, Super, Hyper, Low, Ultraband)
Input/Output Terminals	Audio/Video Line Input/Output (Front & Rear), RF Input/Output, S-Video Output (DVD only), Component Video Output (DVD only), Optical Digital Audio Output (DVD only)
Disc Playback Formats	DVD-Video, DVD-RAM, DVD-R (finalized), CD, CD-R/CD-RW (MP3/JPEG)
DVD Region Code	1 (or ALL)
Key Features	Multi-Format Playback, Progressive Scan, Virtual Surround Sound (V.S.S.), Timer Recording, MTS Stereo/SAP, VHS Hi-Fi, Index Search, Commercial Skip
Remote Control	Multi-brand TV control (codes provided)
Head Cleaning	Video Head Clog Sensor; use dry cleaning cassette (Part No. NV-TCL30PT recommended)
Cabinet Cleaning	Soft cloth; avoid alcohol, solvents, oil-based polishes
Safety Precautions	Polarized plug, grounding, ventilation, avoid moisture, laser radiation Class I, FCC compliance
Spare Parts and Repairability	Contact Panasonic Servicenter; use manufacturer-specified parts; do not self-service
Operating Temperature	41 °F to 104 °F (5 °C to 40 °C)
Warranty	1 year parts, 90 days labor (U.S. and Puerto Rico only)

Frequently Asked Questions - PV-D4744 PANASONIC

How do I set the clock on the Panasonic PV-D4744?

Press ACTION on the remote to display the MENU. Use ▲▼ to select SET UP VCR, then SET CLOCK. Choose MANUAL or AUTO CLOCK SET. If manual, set month, date, year, time, and DST using ▲▼ and SET. Press ACTION to start the clock.

How do I program a timer recording?

Ensure the clock is set and a tape with record tab is inserted. Press PROG to display the Program screen. Use ▲▼ to select a program number, then press ▶ to set date (1-31, DAILY, or WEEKLY), start/stop times, channel, and speed (SP or SLP). Press SET for each item, then PROG to exit. The TIMER indicator lights up.

Can I control my TV with this remote?

Yes, the remote has a Multi-Brand Control feature. Find your TV brand code in the manual (e.g., Panasonic 01, 02). Press and hold TV button, enter the code using number keys. Then press POWER to test. Available functions include volume, channel, and input selection.

How do I clean the video heads?

If you see the message VIDEO HEADS MAY NEED CLEANING, insert a dry head cleaning cassette (Panasonic NV-TCL30PT recommended) and follow its instructions. Do not overuse cleaning tapes as they can shorten head life. If problems persist, contact a servicenter.

What disc formats can this player play?

The Panasonic PV-D4744 plays DVD-Video (Region 1 or ALL), DVD-RAM (Video Recording format), DVD-R (finalized), CD, and CD-R/CD-RW with CD-DA, MP3, or JPEG files. It does not play DVD-ROM, DVD-Audio, Video CD, or PAL discs.

How do I enable progressive scan output?

In DVD mode, press ACTION to open DVD MAIN MENU. Select PROGRESSIVE OUT using ▲▼, then press SET repeatedly to set to ON. Connect the component video outputs (Y, PB, PR) to a progressive-compatible TV. If picture issues occur, set to OFF.

Why does my recorded tape have poor picture quality?

Check Tracking adjustment: use CH ▲▼ to reduce noise. Enable Digital Auto Picture and Digital Auto Tracking (automatic). Clean video heads if necessary. Ensure tape quality is good and recorded speed (SP/SLP) matches playback.

How do I copy a tape (dubbing)?

Connect the playing VCR's audio/video outputs to the LINE 2 inputs on the front of the deck (or LINE 1 on the rear). Press INPUT repeatedly until L1 or L2 appears. On the playing VCR, press PLAY and PAUSE. On the deck, press REC and PAUSE simultaneously, then press PLAY on the source and PAUSE on the deck to start dubbing.

How do I use the Commercial Skip feature?

During playback, press CM/ZERO repeatedly to set skip time: 1 min, 2 min, or 3 min. The deck will fast-forward that amount. Press again to change. No on-screen indication appears.

What should I do if a disc gets stuck in the tray?

Unplug the deck. Straighten a paper clip and insert it firmly into the small hole at the base of the disc tray. The tray will eject slightly. Pull the tray out fully and remove the disc. If this fails, contact a servicenter.

USER MANUAL PV-D4744 PANASONIC

DOUBLEFEATURE™ Omnivision VHS

Panasonic®

DVD/VCR DECK Operating Instructions

Model No. PV-D4744 / PV-D4744S

Connections and Initial Setup Procedures are on pages 12 to 17.

MULTI FORMAT PLAYBACK

*Ability to play back may depend on recording conditions.

As an ENERGY STAR® Partner, Matsushita Electric Corporation of America has determined that this product or product model meets the ENERGY STAR® guidelines for energy efficiency.

Please read these instructions carefully before attempting to connect, operate or adjust this product. Please save this manual. Spanish Quick Use Guide is included. (Guía para rápida consulta en español está incluida.)

For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

Initial Setup (Connection)

Basic Operation

VCR Operation

Operation DVD

For Your Information

LSQT0795 A

Important Safeguards and Precautions

WARNING

TO REDUCE THE RISK OF ELECTRIC SHOCK, FIRE, INJURY TO PERSONS OR DAMAGE TO THIS PRODUCT, READ AND RETAIN ALL SAFETY AND OPERATING INSTRUCTIONS. HEED ALL WARNINGS IN THE MANUAL AND ON THE PRODUCT.

INSTALLATION

1 POWER SOURCE CAUTION

Operate only from a power source indicated on the unit or in this manual. If necessary, have your Electric Utility Service Company or Video Products Dealer verify the power source in your home.

2 POLARIZED OR GROUNDING PLUG

As a safety feature, this product comes with either a polarized power cord plug (one blade is wider than the other), or a three-wire grounding type plug.

POLARIZED PLUG CAUTION:

This plug will only fit into an outlet one way. If you cannot fully insert the plug, try reversing it. If it still will not fit, have an electrician install the proper wall outlet. Do not defeat the safety feature by tampering with the plug.

GROUNDING PLUG CAUTION:

This plug will only fit into a three-hole grounding outlet. If necessary, have an electrician install the proper outlet. Do not defeat the safety feature by tampering with the plug.

3 POWER CORD

Make sure power cords are routed so that they are not likely to have anything rest on them, roll over them, or be in the way of walking traffic. If an extension cord is used, make sure it also has either a polarized or grounded plug and that the cords can be securely connected. Frayed cords, damaged plugs, and damaged or cracked wire insulation are hazardous and should be replaced by a qualified service technician. Overloaded outlets and extension cords are fire hazards and should be avoided.

4 DO NOT BLOCK VENTILATION HOLES

Ventilation openings in the cabinet release heat generated during operation. If they are blocked, heat build-up inside the unit can cause failures that may result in a fire hazard or heat damage to cassettes or discs.

For protection, follow these rules:

a. Never cover ventilation slots or the unit while in use, or operate the unit when placed on a bed, sofa, rug, or other soft surface.

b. Avoid built-in installation, such as a book case or rack, unless proper ventilation is provided.

5 PLACEMENT: AVOID EXTREMELY HOT LOCATIONS OR SUDDEN TEMPERATURE CHANGES

Do not place the unit over or near heater or radiator, in direct sunlight, inside closed vehicles, in high temperature [over 104°F (40°C)], or in over 75% humidity. If the unit is suddenly moved from a cold place to a warm one, moisture may condense in the unit and on the tape causing damage. Never subject the unit to vibration, impact, or place it so that the surface is tilted as internal parts may be seriously damaged.

6 TO AVOID PERSONAL INJURY

• Do not place unsecured equipment on a sloping surface.
• Do not place this unit on any support that is not firm, level, and adequately strong. The unit could fall causing serious injury to a child or adult and damage to the unit.
• An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
• Carefully follow all operating instructions and use the manufacturer's recommended accessories when operating this unit or connecting it to any other equipment.

OUTDOOR ANTENNA INSTALLATION

1 SAFE ANTENNA AND CABLE CONNECTION

If an outside antenna or cable system is connected to the equipment, be sure the antenna or cable system is grounded so as to provide some protection against built up static charges and voltage surges.

Section 810 of the National

Electrical Code, ANSI/NFPA 70

(in Canada, part 1 of the Canadian Electrical

Code) provides information with respect to proper grounding of the mast and supporting

structure, grounding of the lead-in wire to an

antenna discharge unit, size of grounding conductors,

location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

2 KEEP ANTENNA CLEAR OF HIGH VOLTAGE POWER LINES OR CIRCUITS

An outside antenna system should be located well away from power lines, electric light or power circuits and where it will never come into contact with these power sources if it should happen to fall. When installing an outside antenna, extreme care should be taken to avoid touching power lines, circuits or other power sources as this could be fatal. Because of the hazards involved, antenna installation should be left to a professional.

USING THE UNIT

If the unit has been in storage or moved to a new location, refer first to the INSTALLATION section of these safeguards.

1 KEEP THE UNIT AWAY FROM WATER OR MOISTURE OF ANY KIND.

2 IF EQUIPMENT IS EXPOSED TO RAIN, MOISTURE, OR STRONG

IMPACT, unplug the unit and have it inspected by a qualified service technician before use.

3 DURING AN ELECTRICAL STORM

During a lightning storm, whether indoors or outdoors, or before leaving the unit unused for extended periods of time, disconnect all equipment from the power source as well as the antenna and cable system.

4 WHEN THE UNIT IS PLUGGED IN

• Never expose the unit to rain or water. DO NOT OPERATE if liquid has been spilled into the unit. Immediately unplug the unit, and have it inspected by a service technician. Fire and shock hazards can result from electrical shorts caused by liquid contact inside.
• Never drop or push any object through openings in the unit. Some internal parts carry hazardous voltages and contact can cause electric shock or fire hazard. Do not put any foreign object on the disc tray.
• Avoid placing the unit directly above or below your TV set as this may cause electrical interference. Keep all magnets away from electronic equipment.

5 USING ACCESSORIES

Use only accessories recommended by the manufacturer to avoid risk of fire, shock, or other hazards.

6 CLEANING THE UNIT

Unplug the unit. Then, use a clean, dry, chemically untreated cloth to gently remove dust or debris. DO NOT USE cleaning fluids, aerosols, or forced air that could over-spray, or seep into the unit and cause electrical shock. Any substance such as wax, adhesive tape, etc. may mar the cabinet surface. Exposure to greasy, humid, or dusty areas may adversely affect internal parts.

SERVICE

1 DO NOT SERVICE THIS PRODUCT YOURSELF

If, after carefully following the detailed operating instructions, this product does not operate properly, do not attempt to open or remove covers, or make any adjustments not described in the manual. Unplug the unit and contact a qualified service technician.

2 IF REPLACEMENT PARTS ARE REQUIRED

Make sure the service technician uses only parts specified by the manufacturer, or those having the same safety characteristics as the original parts. The use of unauthorized substitutes may result in fire, electric shock, or other hazards.

3 HAVE THE SERVICE TECHNICIAN PERFORM A SAFETY CHECK

After any service or repairs to the unit, request the service technician to conduct a thorough safety check as described in the manufacturer's service literature to ensure that the unit is in safe operating condition.

To prevent fire or shock hazard, do not expose this equipment to rain or moisture.

CAUTION

To prevent electric shock, match wide blade of plug to wide slot, fully insert.

WARNING:

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any inside part of this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

CAUTION:

UNIT IS A CLASS I LASER PRODUCT.

HOWEVER THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE UNIT CORRECTLY AS INSTRUCTED.

WHEN THIS UNIT IS PLUGGED TO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENING OF THE DISC TRAY AND OTHER OPENINGS TO LOOK INTO THE INSIDE OF THIS UNIT.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT ATTEMPT TO REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CAUTION:

LASER RADIATION WHEN OPEN DO NOT STARE INTO BEAM.

ATTENTION:

LASER RADIATION IF OPEN. DO NOT STARE INTO THE BEAM.

(Inside of product)

FCC NOTE:

This equipment has been tested and found to comply with part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when operated in a residential environment. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, use the equipment in another location and/or utilize an electrical outlet different from that used by the receiver. If necessary, consult the dealer or an experienced radio/TV technician for help. The user may find the booklet, "Something About Interference" available from FCC local regional offices helpful.

FCC Caution:

To assure continued compliance, (example- use only shielded interface cables when connecting to other devices.) Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Region Management Information:

This DECK is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DECK, this DECK cannot play this disc.

●The Region number for this DECK is "1". ● The Player will play DVD-Video marked with labels containing "1" or "ALL".

Example:

Before Using

Congratulations

on your purchase of one of the most sophisticated and reliable products on the market today. Used properly, it will bring you years of enjoyment. Please fill in the information below. The serial number is on the tag located on the back of your DECK.

• Date of Purchase
• Dealer Purchased From
• Dealer Address
• Dealer Phone No.
• Model No
• Serial No.

Accessories

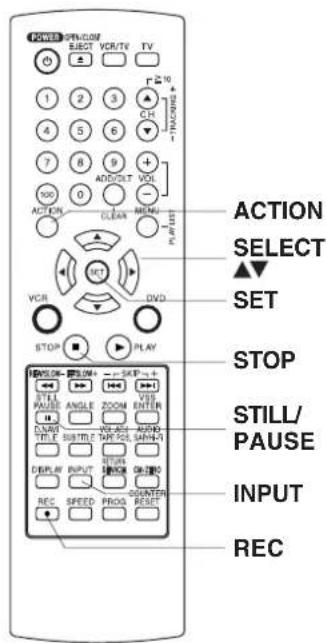

□ Remote Control EUR7724KA0

□ Batteries 2 "AA"

☐ RF Coaxial Cable LSJA0418

To order accessories, call toll free 1-800-332-5368.

Loading the Batteries

1) Open cover. 2) Insert batteries as marked. 3) Close cover.

□ Battery replacement caution

• Do not mix old and new batteries.
• Do not mix alkaline with manganese batteries.

Record/Playback Time

Only use tapes with the VHS mark in this deck.

Tape Speed Setting	Type of Video Cassette
			T180T1
SP(Standard Play)	2 Hours	2 Hours40 Minutes	3 Hours
SLP(Super Long Play)	6 Hours	8 Hours	9 Hours

Head Cleaning

Playing older or damaged tapes may eventually cause video heads to become clogged.

Video Head Clog Sensor

During playback, this screen appears if clogging is detected. To remove the screen, press PLAY on the remote or the deck.

VIDEO HEADS MAY NEED CLEANING. PLEASE INSERT HEAD CLEANING CASSETTE OR REFER TO MANUAL. END: PLAY

END: PLAY

• Use "dry" type head cleaning cassette only. (Part No. NV-TCL30PT is recommended.)
• Follow cleaning tape instructions carefully. Excessive use of tape can shorten head life.
• If head clog symptoms persist, contact your nearest service center by visiting our Web Site (see p. 61).

Cleaning the Deck

Use a soft cloth or dusting attachment of a vacuum cleaner to remove dust from the ventilation holes on the back sides and bottom of the cabinet.

Plastic surfaces are easily scratched and can be marred by alcohol and various solvents.

Avoid excessive use of oil-based furniture polishes since the materials used in the cabinet will accumulate more dust. We recommend using a non-abrasive, antistatic cleaner and polisher.

Features for a Quality Picture (VCR)

Digital Auto Picture

Automatically controls the video output signal for less noise depending on the tape condition.

Digital Auto Tracking

Continuously analyzes the signal and adjusts for optimum picture quality.

Manual Tracking Control

(to reduce picture noise)

Use during Playback and Slow Motion mode to reduce picture noise.

Press CH (TRACKING) ▲▼ on the remote control or on DECK until the picture clears up. To return to Auto Tracking, press POWER off, then on again a few seconds later.

V-Lock Control (to reduce picture jitter)

In Still mode, CH (TRACKING) ▲/▼ operate as a V-Lock control.

4

For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

Table of Contents

Initial Setup (Connection)

DVD / VCR

Important Safeguards and Precautions 2,3

Before Using 4

DECK & Cassette Information 6,7

Location of Controls 8-10

Displays (On Screen Displays and Multi Function Display) 11

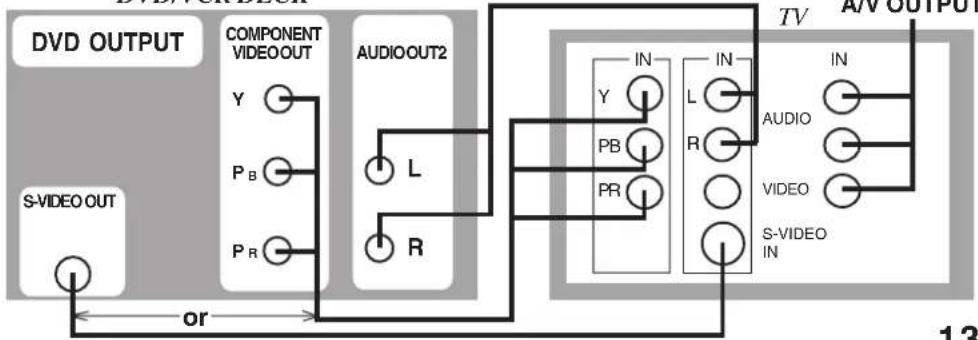

Connections 12-15

Initial Setup for Basic Connections (Ready to Play) 16, 17

Basic Operation

VCR

Reset Language, Channels, Clock, VCR's Output Channel 18, 19

Playback/Record on a Tape 20, 21

DVD

Basic DVD Operation 22, 23

VCR Operation

Timer Recording 24, 25

MTS Broadcast/ VHS Hi-Fi Stereo System 26, 27

Multi-Brand Control Feature 28, 29

Tape Operation (Search System) 30, 31

Special VCR Features 32-34

Copying Your Tapes (Dubbing) 35

DVD Operation

Disc Operation 36-41

DVD-RAM Operation (DVD-RAM only) 42, 43

DVD Operation using On-Screen Displays 44-48

MP3/JPEG Playback Operation 49-51

Settings for DVD Operation 52-55

Language Code List 56

For Your Information

Warning and Instruction Displays.... 57

Before Requesting Service.... 58, 59

Limited Warranty 60, 61

Customer Services Directory 61

Spanish (Español) Quick Use Guide.... 62 \~ 69

Index 70,71

DECK & Cassette Information

Prevent Accidental Tape Erasure

Break off the tab to prevent recording.

Record Tab Screw driver

To record again

Cover the hole with cellophane tape.

Disc formats supported by this DECK

DECK can play back discs bearing any of the following marks:

Logo Disc type
	DVD-RAM (Version 1.1 of the Video Recording Format a unified video recording standard)
	DVD (DVD-Video)
	DVD-R (DVD-Video formatted discs [finalized])
	CD (CD-DA)
	CD-R/CD-RW• CD-DA format• MP3/JPEG file and finalized.*

[Discs Played 8cm (3") or 12cm (5")]

*A process that allows play on compatible equipment.

Discs which cannot be played

• DVD with Region No. other than "1" or "ALL"
• PAL discs, DVD-ROM, DVD-Audio, DVD-RW, DVD+R, DVD+RW, CD-ROM, CDV, CD-G, CVD, SVCD, SACD, CD-TEXT, Divx Video Disc, Photo-CD and Video CD

Notes

• Do not use irregularly shaped discs (e.g. heart-shaped), as these can damage the unit.
• It may not be possible to play CD-R, CD-RW, DVD-R and DVD-RAM in all cases due to the type of disc or condition of the recording.
• Do not use irregularly shaped discs (e.g. heart-shaped), as these can damage the unit.
• It may not be possible to play CD-R, CD-RW, DVD-R and DVD-RAM in all cases due to the type of disc or condition of the recording.

DVD-RAM discs

DVD-RAM discs must meet the following conditions for this unit to be able to play them.

Type	• Non-cartridge discs• Discs that can be removed from their cartridges (TYPE 2 and 4)
Capacity	• 12 cm (5") 9.4 GB (double-sided) and 4.7 GB (single-sided)• 8 cm (3") 2.8 GB (double-sided)

- Remove TYPE 2 and 4 discs from their cartridges before use, then return them when you are finished. Read the instructions for the disc carefully.

- Some parts of the disc, for example where one program ends and another begins, may not play smoothly.

Disc Handling

Handling precautions

• Sticking a label on the disc may impair DVD-R playback.
• Do not attach sticker to discs. (Do not use discs with exposed adhesive from tape or left over peeled-off stickers.)
• Only hold disc by edges as shown below. Fingerprints, dirt and scratches can cause skipping and distortion.
• Do not write on label side of disc.
• Never use record cleaning sprays, benzine, thinner, static electricity prevention liquids, or any other solvent. Disc tray Disc

- Do not try to close disc tray when disc is not properly placed.

To clean disc surface

With a soft, damp (water only) cloth, gently wipe from the center hole to the outer edge as shown below. (Wiping in a circular pattern will scratch the surface.)

- DVD-RAM, DVD-R : Clean only with the DVD-RAM disc cleaner available. Never use cloths or cleaners for CDs etc.

If disc is brought from a cold to a warm

environment, moisture may form on the disc Wipe away moisture with a soft, dry, lint-free cloth before using disc. (See above.)

Improper disc storage

Discs could be damaged if stored or left in areas: • exposed to direct sunlight. • that are humid or dusty. - near heat (i.e. heater, radiator, etc.).

6

For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

Specifications

Power Source: 120 V AC, 60 Hz

Power Consumption: Power On: Approx. 28 watts, Power Off: Approx. 0.85 watts

Video Signal: EIA Standard NTSC color

Video Recording System: 4 rotary heads helical scanning system

Audio Track: 1 track (Normal), 2 channel (Hi-Fi Audio Sound)

Tuner

Broadcast Channels: VHF 2 ~ 13, UHF 14 ~ 69

CABLE Channels: Midband A through I (14 ~ 22), Superband J through W (23 ~ 36) Hyperband AA ~ EEE (37 ~ 64), Lowband A-5 ~ A-1 (95 ~ 99) Special CABLE channel 5A (01), Ultraband 65 ~ 94, 100 ~ 125

Input/Output Terminal: Audio/Video Line Input/Output, RF Input/Output

Input Terminal: Audio/Video Line Input (Front)

Output Terminal: S-Video Output (DVD only), Component Video Output (DVD only)

Audio Output 2 (L), (R)

Operating Temperature: 5 °C ~ 40 °C (41 °F ~ 104 °F)

Operating Humidity: 10 % ~ 75 %

Weight: 3.85 kg (8.5 lbs).

Dimensions: 430 (W) x 95 (H) x 273 (D) mm

16-15/16" (W) x 3-3/4" (H) x 10-3/4" (D) inch

Discs Played

(1) DVD-Video Disc 5" (12 cm) single-sided single-layer 5" (12 cm) single-sided double-layer 5" (12 cm) double-sided double-layer (one layer per side) 3" (8 cm) single-sided single-layer 3" (8 cm) single-sided double-layer 3" (8 cm) double-sided double-layer (one layer per side) 5" (12 cm) 9.4 GB (double-sided) and 4.7 GB (single-sided) 3" (8 cm) 2.8 GB (double-sided) 5" (12 cm) disc 3" (8 cm) disc (CD-R/CD-RW, MP3, JPEG) Digital Audio Output: Digital Optical Connector Pickup: Wavelength: 655 nm (DVD), 790 nm (CD) Laser power: CLASS II

DVD-RAM Disc

(2) Compact Disc

Note: • Designs and specifications are subject to change without notice.

Definition of Terms (DVD)

Angle: Some DVD discs feature scenes simultaneously shot from different angles. The ANGLE button can be used to view the scene from different angles. (ANGLE Indicator lights on DECK when a scene recorded at different angles is detected.)

Chapter Number: Titles are subdivided into numbered sections. You can quickly search for a favorite scene using these numbers.

DVD: A high-density optical disc on which high-quality pictures and sound have been digitally recorded. DVD incorporates video compression technology (MPEG II) and high-density recording technology which allow entire movies to be recorded with incredible playback quality.

Subtitles: Written dialogue which appears at the bottom of the screen.

Time Number: The elapsed play time from the start of a disc or title. Use to quickly find scenes. (May not work with some discs.)

Title Number: For DVD discs with two or more titles, the title is numbered as title 1, title 2, etc.

Track Number: Numbers assigned to tracks on CDs to allow specific tracks to be quickly located.

Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098 and 4,907,093, licensed for limited viewing uses only.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Location of Controls

Remote Control Bold: VCR Function / Bold Italic: VCR and DVD Functions Italic: DVD Function / Normal: Others

8

For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

Front View of DECK

Bold: VCR Function

Italic: DVD Function

Bold Italic: VCR and DVD Functions

Normal: Others

If the disc cannot be removed...

First, unplug DECK. Then, prepare a rigid wire (e.g. an extended paper clip) and, applying moderate force, insert it straight into the hole at the base of the tray. The tray will eject a little. Now, pull the tray all the way out and remove the disc.

Returns to factory setting. Use if relocating DECK, or if Initial Setup needs to be redone.

- Make sure a tape is not inserted in the DECK.

1 Turn DECK Power on.

2 Press and hold both VCR PLAY and CHANNEL ▲ on the DECK for more than 5 seconds.

- The power shuts off.

3 Perform "Initial Setup (Ready to Play)" on page 16.

Location of Controls (continued)

Rear View of DECK

Bold: VCR Function

Italic: DVD Function

Bold Italic: VCR and DVD Functions

AC Power Plug

- While plugged into an AC outlet, this DECK consumes 0.85 W of electrical power in off mode.

VHF/UHF Antenna Output Terminal p.12

VHF/UHF Antenna Input Terminal p. 12

The following table shows the status of the output jacks when in VCR or DVD mode.

	Video OutputAudio Out 1Audio Out 2	ComponentVideo Output	S-VIDEO OUT
VCR	YES	N/A	N/A
DVD	YES	YES

Note

PROG functions on the remote are not available when using Component Video Output and S-VIDEO OUT. Please set TV to either RF INPUT or VIDEO INPUT, and then press PROG.

To enjoy PROGRESSIVE SCAN video

(1). Connect Component Video Output to the component video input terminals of a television. (See p. 13.) (2). When PROGRESSIVE OUT is set to "ON" in the DVD Main Menu (p. 55), a Progressive Scan signal is output from the Component Video Output Connector. - The screen may shift off-center when using progressive output. Please adjust the screen position if this occurs. (Refer to your TV manual.) - If the television is not progressive compatible, a progressive scan picture is not available. Connect the Video Output or S-Video Output connector (see p. 12, 13) and set PROGRESSIVE OUT to "OFF" in the DVD Main Menu. (See p. 55.)

Notes

10

For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

Displays (On Screen & Multi Function)

On Screen Displays (VCR)

Function & Channel Displays

CH 08

When a function button is pressed, e.g. PLAY, or you change channels, a 5-second display appears.

Blank Tape/ No Video Signal Indications

Whenever a blank section of a tape comes up in Play mode, or when the selected channel has no broadcast signal with Weak Signal Display Feature (p. 33) set to OFF, the TV screen will turn solid blue.

Initial Setup (Connection)

VCR Status & Clock Displays

To display or remove the screen shown at right,

press DISPLAY.

Multi Function Display

VCR mode Indicator

Lights up when the DECK is in VCR mode.

Tape Indicator

Lights up when a tape is inserted.

Hi-Fi Indicator

Lights up when Hi-Fi audio is present in Play mode.

ANGLE Indicator

Lights up when a scene recorded at different angles is detected. (See p. 37.) (DVD only)

Clock/Status/Channel/Speed Display

Displays current time. Briefly displays DECK status when you press a function button, channel number, or "L1" or "L2" when you select channel or line input, and recording speed when you press SPEED.

AM/PM Indicator

DVD mode Indicator

Lights up when DECK is in DVD mode.

DISC Indicator

Lights up when a disc is inserted.

VCR REC Indicator

Lights up during recording.

Timer Indicator

Lights up when DECK is set for Timer Recording, or when One Touch Recording (OTR) is used. Flashes when Timer Recording is set, but a tape has not been inserted into DECK and when a power interruption occurs during Timer Programming.

Connections

Basic Connections

• If your TV has AUDIO and VIDEO IN terminals, connect them to DECK for higher quality picture and sound.
• You can enjoy stereo sound even if your TV is not stereo by connecting a stereo amplifier to DECK.
• Connect DECK and TV with an RF Coaxial Cable ⓐ (supplied) or an AV Cable ⓑ (not supplied) as shown in the figure below.

When using "Nut type" RF coaxial cables, tighten with fingers only. Overtightening may damage terminals.

Note to CABLE system installer

This reminder is provided to call the CABLE system installer's attention to Article 820-40 of the NEC in USA (and to the Canadian Electrical Code in Canada) that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

For assistance, please call: 1-800-211-PANA(7262) or contact us via the web at: http://www.panasonic.com/contactinfo

Other Connections

■ With a Cable Box (DECK→Cable Box→TV)

You Cannot

• view any (including scrambled) channel.

- use Remote Control to select channels without using Multi-brand control feature.

• record scrambled channels.

You Can (Connection) Initial Setup

■ Connect With Two Cable Boxes

You Cannot

- record and view both scrambled and unscrambled channels if additional equipment is added. This connection requires: two converter boxes, an A/B switch, and a 2-way splitter.

• view a channel other than the one selected for any type of recording.

- set a Timer recording of a channel unless you select it on the Cable Box.

Connections For DVD Only (enjoying higher picture quality)

①Connect AUDIO OUT2 (L, R) to the AUDIO IN (L, R) of the TV. (audio input for COMPONENT or S-VIDEO mode). ②If your TV has COMPONENT VIDEO INPUT, connect to COMPONENT VIDEO OUT. If your TV does not have COMPONENT VIDEO INPUT but has S-VIDEO INPUT, connect to S-VIDEO OUT. ③ When in DVD mode, set your TV to either COMPONENT VIDEO IN or S-VIDEO IN.

Notes

• You can watch DVDs through the S-VIDEO or COMPONENT VIDEO, VHF/UHF OUT TO TV, and VIDEO OUT connections to your TV. The VCR and TUNER pictures are available only from the VIDEO OUT and VHF/UHF OUT TO TV connections to your TV.
• PROG functions on the remote are not available when using S-VIDEO OUT and COMPONENT Video Output. Please set TV to either RF INPUT or VIDEO INPUT, and then press PROG.
• TV must have capability to accept and display a progressive scan signal to use PROGRESSIVE mode. Consult your TV operating instructions.

DVD/VCR DECK

From DECK's A/V OUTPUT

Connections (continued)

Audio Connections

Ready Checklist

☐ Turn down the volume, then turn DECK, as well as other equipment to be connected, off before proceeding with connection. ☐ Do not block ventilation holes of any of the equipment and arrange them so that air can circulate freely. ☐ Read through the instructions before connecting other equipment. ☐ Ensure that you observe the color coding when connecting audio and video cables.

■ Connecting Amplifier (2ch stereo system)

Enjoying digital audio output from the digital audio output connector Notes on audio output from the optical digital audio output connector

Disc	Sound recording format	Optical digital audio output from connector
DVD-Video	Dolby Digital	Dolby Digital bitstream (1 - 5.1 ch)or PCM (48 kHz sampling/16 bit only)* 1
	Linear PCM(48/96 kHz 16/20/24 bit)	Linear PCM (2 ch)(48 kHz sampling/16 bit only)* 2
	DTS	Bitstream or PCM (48 kHz sampling/16 bit only)* 1
DVD-RAM	Dolby Digital	Dolby Digital bitstream (1 - 5.1 ch)or PCM (48 kHz sampling/16 bit only)
	Linear PCM(48 kHz/16 bit)	Linear PCM (2 ch)
CD	Linear PCM	Linear PCM (44.1 kHz sampling)
MP3	MP3	Linear PCM (It depends on the MP3 file)

*1 The type of audio output from the connector can be selected by the Settings for DVD Operation. (See p. 53.)

*2 When "LPCM(DVD)" is set to OFF in the DVD Main Menu, only 48 kHz sampling/16 bit is output. When set to ON, sampling of sound quality greater than 48 kHz/16 bit is reduced to 48 kHz/16 bit. (See page 53.)

For your reference:

• Dolby Digital is a digital sound compression technique developed by the Dolby Laboratories Licensing Corporation. Supporting 5.1-channel surround sound, as well as stereo (2-channel) sound, this technique enables a large quantity of sound data to be efficiently recorded on a disc.
• Linear PCM is a signal recording format used in CDs. While CDs are recorded in 44.1 kHz/16 bit, DVDs are recorded in 48 kHz/16 bit up to 96 kHz/24 bit.
• If you have a Dolby Pro Logic Surround decoder, you will obtain the full benefit of Pro Logic from the same DVD movies that provide full 5.1 channel Dolby Digital soundtracks, as well as from titles with the Dolby Surround mark. For information on Panasonic or Technics Dolby Pro Logic Surround Sound Decoders please contact your local dealer.

Manufactured under license from Digital Theater Systems, Inc. US Pat. No's. 5,451,942, 5,956,674, 5,974,380, 5,978,762, 6,487,535 and other US. and world-wide patents issued and pending. "DTS" and "DTS 2.0 + Digital Out" are trademarks of Digital Theater Systems, Inc. Copyright 1996, 2003 Digital Theater Systems, Inc. All Rights Reserved.

Manufactured under license from Dolby Laboratories.

"Dolby," "Pro Logic," and the double-D symbol are trademarks of Dolby Laboratories.

14

For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

■Connecting Amplifier (5.1 ch Surround system) [Digital connection] DECK→Dolby Digital Decoder→Amplifier→Speaker

or

DECK→DTS (Digital Theater Systems) Decoder→Amplifier→Speaker

When DVDs recorded in Dolby Digital or DTS are played, Dolby Digital bitstream or DTS bitstream is output from the DECK OPTICAL digital audio output connector. When DECK is connected to a Dolby Digital decoder or DTS decoder, you can enjoy theater-quality audio in your home. [An optical digital audio cable (optional) is required when an optional Dolby Digital decoder or DTS decoder is used.]

Caution for optical digital audio output connector:

- When connecting an amplifier (with an Optical Digital Input Connector) which does not contain the Dolby Digital or DTS decoder, be sure to select “PCM” at “Dolby Digital” and “PCM” at “dts” of the Settings for DVD Operation “Audio Output” (see p. 53). Otherwise, any attempt to play DVDs may cause such a high level of noise that it may be harmful to your ears and damage your speakers.

- When a Dolby Digital/DTS decoder is connected, please select "Bitstream" at "dts" or "Dolby Digital" of the Settings for DVD Operation "Audio Output". If "PCM" is selected, there will be stereo sound. (See p. 53.)

• CDs can be played as usual.

Note:

- Some DTS decoders which do not support DVD-DTS interface may not work properly with DECK.

Initial Setup for Basic Connections (Ready to Play)

Before doing Initial Setup

1 Turn TV on. 2 See connections ⓐ RF Coaxial Cable Connection and ⓑ AV Cable Connection on page 12.

Set TV to channel 3.

Set TV to VIDEO.

3 [DECK → TV]

• Go to "Initial Setup (Ready to Play)." (See below.) [Cable Box → DECK → TV], [DSS → DECK → TV]
• Turn on Cable Box and set it to your Public Broadcasting Station (PBS) channel in your time zone.
• If you use a DSS Receiver, it must be turned off.

Initial Setup (Ready to Play)

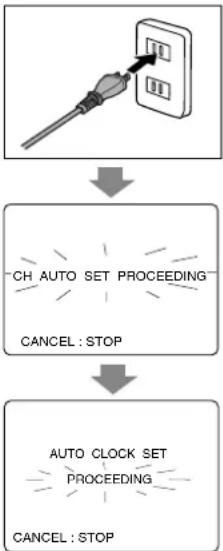

1 Press VCR on remote for VCR mode. 2 Plug DECK Power Cord into AC wall outlet. DECK comes on and auto channel and clock set starts.

• If screen below does not appear, check DECK - TV connection and, if TV is tuned to channel 3, try switching it to channel 4.
• To change VCR's output channel, please see "VCR's Output Channel" on page 19.

Plug VCR Power plug into an AC wall outlet.

Notes

• Function buttons are void during Initial Setup.
• To eject a tape during Auto Set, press EJECT on remote or STOP/EJECT twice on DECK. Then make settings manually. (See p. 18.)
• If Auto Clock Set takes more than 30 minutes, press STOP and perform settings manually. (See p. 18.)

Continued on next page...

16

For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

3 Settings are made automatically. When complete, this screen appears.

If "AUTO CLOCK SET IS INCOMPLETE" appears, manually set clock (below).

Initial Setup (Connection)

Manual Clock Set

If Auto Clock Set was incomplete.

1 Press ACTION* on remote to display CLOCK screen.

2 Press ▲▼ to select the month and SET to set. In the same manner, select and set the date, year, time, and DST (Daylight Saving Time).

3 Press ACTION to start clock and exit.

Reset Language, Channels, Clock,

VCR's

1

Press ACTION* to display MENU.

- PROGRAM functions are not available when using COMPONENT Video Output and S-VIDEO OUT. Please set TV to either RF INPUT or VIDEO INPUT, and then press PROGRAM.

2

Language

1) Press ▲ select language item.

2) Press SET repeatedly to change language item as shown below.

3) Press ACTION to exit.

Channels

1) Press ▲▼ select "SET UP CHANNEL," and press SET.

2) Press ▲▼ to select "ANTENNA," then press SET to set your antenna system ("TV" or "CABLE").

3) Press ▲ to select "AUTO SET," then press SET.

- If you use a Cable Box, set it to the PBS channel in your time zone.

• After Channel Auto Set is finished, Auto Clock Set will be performed.

Clock

1) Press ▲ to select "SET CLOCK," and press SET.

2) Press ▲▼ to select "MANUAL," and press SET. (For Auto Clock Set, select "AUTO CLOCK SET.")

("TIME ZONE ADJUST" appears only when auto clock is set.)

3) Press ▲ and ▼ to select, then set the date, time, and DST (Daylight Saving Time).

4) Press ACTION to start Clock and exit this mode.

For assistance, please call: 1-800-211-PANA(7262) or contact us via the web at: http://www.panasonic.com/contactinfo

VCR's Output Channel

*Important: If a remote control button does not work when pressed, press the VCR button on the remote and try the button again.

Time Zone Adjust

(Only when Auto Clock is set.)

1) Press ▲ to select "SET CLOCK," and press SET.

VCR's Output Channel

1) Press ▲ to select "VCR'S OUTPUT CH.," and press SET.

2) Press ▲ to select "TIME ZONE ADJUST,"

and press SET to subtract or add hour(s) as necessary.

2) Press SET.

3) Press ACTION.

↓ After 3 seconds

• To Make Corrections, repeat steps 1) ~ 3).

Basic Operation

Add or Delete a Channel

To add channel: Select channel with NUMBER keys and press ADD/DLT.

CHANNEL 08 ADDED

To delete channel: Select channel with CH ▲▼ NUMBER keys and press ADD/DLT.

CHANNEL 08 DELETED

DST (Daylight Saving Time)

DECK auto adjusts clock for DST. (p. 17.)

Spring (First Sunday in April) DST:ON → Sets clock ahead one hour.

Autumn (Last Sunday in October) DST:ON → Turns clock back one hour.

• If your area does not observe Daylight Saving Time, select DST:OFF.
• Keep these time changes in mind when programming DECK for timer recordings.

Playback/Record on a Tape

Ready Checklist

☐ All connections are made. (pp. 12 ~ 15) TV and DECK are plugged in. TV is on and tuned to CH 3, 4, or VIDEO. ☐ Remote is in VCR mode. (Press VCR.)

Playback a Tape

1 Insert a tape.

- DECK power comes on. If Auto VCR/TV (see p. 32) is set to "OFF," press VCR/TV on the remote for VCR mode.

2 Press PLAY* to play a tape.

- If tape has no rec. tab (p. 6), auto play begins.

Special Features During Play

■ Forward/Reverse Scene Search

→ Press FF/SLOW+ or REW/SLOW-. → Press PLAY to release.

After search has begun, each additional press of FF or REW changes speed.

Notes

• Picture interruption may occur with some TVs. - FF and REW search speed may vary depending on current tape position. • After 10 minutes in search mode, VCR returns to Play mode to protect the tape and the video heads.

■ Still (Freeze) Picture

→Press PAUSE/STILL. →Press PLAY to release.

Frame by Frame Picture

→Press PAUSE/STILL in Still mode. →Press PLAY to release.

Slow Motion Picture

→Press FF/SLOW+ (increase speed) or REW/SLOW- (decrease speed) in Still mode.

→Press PLAY to release.

Press STOP to stop a tape.

Rapid Rewind/FF

■ Press REW/SLOW- or FF/SLOW+ in Stop mode to rewind or fast forward a tape. - Rewinds a T-120 tape in approx. 1 minute.

■ Press EJECT on remote, or STOP/EJECT on DECK to eject a tape.

Notes

• These features work best in SP or SLP mode. • The sound will be muted. - To reduce picture noise, see "Manual Tracking Control" on page 4. • After 3 minutes in Still or Slow mode, VCR stops to protect the tape and the video heads.

Playback using DECK buttons

■ Press STOP/EJECT to stop and/ or eject a tape.

20

For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

Record on a Tape

1 Insert a tape with a record tab (p. 6).

- DECK power comes on. If Auto VCR/TV (see p. 32) is set to "OFF," press VCR/TV on the remote for VCR mode.

Press CH ▲r NUMBER keys

to select the channel.

• If channel number is over 100, first press 100 key then the other 2 digits.
• For "LINE" input, see p. 35.

Press SPEED

to select the record speed (p. 4).

SP = Standard Play

SLP = Super Long Play

• Speed appears on-screen and on Multi Function Display.

Press REC

to start recording.

(The VCR REC indicator lights up on Multi Function Display),

• To edit out unwanted scenes, press PAUSE/STILL to pause, and again to resume recording. - You cannot view another channel during recording.

5 Press STOP

to stop recording.

■ One Touch Recording (recording in progress),

→press REC repeatedly to set the recording length (30 min. \~ 4 hours) (see right).

- DECK shuts off after the preset record length.

Record one station, watch another,

Press VCR/TV on the remote (change to TV mode), then select channels at TV (recording continues).

Select Channels at DECK (In Stop or Rec. Pause mode)

Press VCR/TV on the remote (change to TV mode).

Select channels at DECK.

Play a disc while recording a tape.

Insert a disc during recording.

Press DVD, and then press PLAY.

Notes

• It is not possible to record from DVD/CD to VHS tape using DECK.

Watching one channel and recording another is not possible when using Cable Box or DSS Receiver.

After 5 minutes in Pause mode, DECK stops to protect a tape and video heads.

This video recorder, equipped with HQ (High Quality) system, is compatible with existing VHS equipment.

Only use tapes with the VHS mark. Only tapes tested and inspected for use in 2, 4, 6, and 8 hour machines are recommended.

Note

Remove loose or peeling labels from tapes to prevent tape jam.

Record using DECK buttons

■ Press STOP/EJECT to stop.

Basic Operation

Basic DVD Operation

Ready Checklist

☐ All connections are made. (pp. 12–15) □ DECK is plugged in. ☐ If DECK is connected to an audio amplifier, turn the stereo system's power on.

Operation using DECK buttons

*1 Interactive DVD... May include multiple camera angles, stories, etc.

Press POWER* on the remote or DECK.

Press DVD to select DVD mode.

- If a disc is already inserted, go to step 4. (Depending on the disc, playback may start automatically.)

Press OPEN/CLOSE,

and then place a disc into the disc tray.

- Hold disc by its edges only (p. 6) with printed side up and use guides to place into tray. - Use ① 3" (8 cm) or ② 5" (12 cm) disc. DVD-RAM → see p. 42

Press PLAY to start playing.

Disc tray closes automatically.

- You may also close the tray by pressing OPEN/CLOSE. - Data reading time varies with each disc.

If an interactive DVD*1 is used and the TITLE MENU appears, go to step 5.

Press ▲▼▶ or NUMBER keys (see below) to select a title, then press SET or PLAY to start playback.

- Pressing SET or PLAY is not necessary when using NUMBER keys.

Using NUMBER keys starts playback automatically. The number of available titles varies with each disc.

2-digit number 12 ••• ≥ 10 → 1 → 2

Press SKIP+▶ or SKIP- | to go to the next or previous menu screen.

- SKIP function is not available with all discs. Please refer to the disc jacket for operation information.

To return to the menu (playback stops): Press TITLE, MENU, or RETURN.

Press STOP to stop playback.

Press OPEN/CLOSE to eject the disc.

22

For assistance, please call: 1-800-211-PANA(7262) or contact us via the web at: http://www.panasonic.com/contactinfo

■ Forward/Reverse Scene Search

Press FF/SLOW+ or REW/SLOW- during play. Press PLAY to release.

- Search speed, slow at first, increases with each additional press of the button up to 5 levels.

■Forward/Reverse Chapter/Track Skip

Press SKIP+▶▶| or SKIP-|◀◀ during play. Each press skips a chapter (DVD), track (CD) or Program/Play List/Marker (DVD-RAM).

DVD and CD

- Pressing SKIP- | once midway through a chapter/track returns to the start of that chapter/track. Each additional press skips back one chapter/track.

Current playback position

DVD-RAM

- Pressing SKIP- | once midway through a program/play list returns to the start of that program/play list. Each additional press skips back one program/play list.

Current playback position Marker

■ Still Picture or Pause

Press PAUSE/STILL during play.

Press PLAY to release

• DVD : DECK will enter still picture mode. - CD : DECK will enter pause mode.

■Frame by Frame Picture (DVD)

Press PAUSE/STILL in still mode.

Press PLAY to release.

• Each press advances picture one frame. - Hold button down for consecutive frame advance. - Whether pictures are advanced by "FRAME" or "FIELD" is selected automatically. (See p. 54.)

■Slow Motion Picture (DVD)

Press FF/SLOW+ or REW/SLOW- in still mode. Press PLAY to release.

- Slow motion speed, slow at first, is increased with each additional press of the button up to 5 levels.

Auto-Power Off Function

Power turns off after DECK has been in Stop mode (DVD) for about 5 minutes.

- When ☑ appears on the screen while a button is being operated, it means that the corresponding operation is prohibited by DECK or the disc.

V.S.S. (Virtual Surround Sound)

Enjoy a surround-like effect if you are using two front speakers only. The effect is broadened and sound seems to come from virtual speakers on either side if the disc has surround signals recorded on it.

Press VSS in DVD mode.

- The Surround sound effect can be changed by pressing VSS repeatedly as shown by the figure below.

Note

• Surround sound effect is available in DVD mode only.
• Turn off the surround effects on the other equipment. • V.S.S. will not work, or will have less effect, with some discs.
• Turn V.S.S. off if it causes distortion.
• Sound will only come from the two front speakers if V.S.S. is on.

Resume Function

DECK memorizes the point where STOP is pressed (STOP ▶ is displayed on screen).

Press PLAY to resume play from this point.

Pressing STOP again or opening the tray cancels RESUME, however, RESUME is not canceled when power is turned off and on.

• RESUME works only with discs for which elapsed play time is displayed during play.
• When a DVD-RAM still picture is played back, the counter will not be displayed, however RESUME will function.

Notes

• Please read the disc jacket for operation information.
• If a single sided disc is placed in upside down, "THIS TYPE OF DISC CANNOT BE PLAYED. PLEASE INSERT A DIFFERENT DISC" is displayed.
• Remove disc and press DECK POWER off when not in use.
• Disc continues to rotate with menu displayed even after play is done. Press STOP to clear menu display when finished with menu.

Timer Recording

Ready Checklist

☐ All connections are made. (pp. 12 ~ 15) □ TV and DECK are plugged in. □ Clock set correctly. (p. 18) □ Tape has record tab intact. (p. 6) ☐ Remote is in VCR mode. (Press VCR.) □ Sufficient tape remaining for recording time.

1

Press PROG*

to display Program.

Example Today

1) Press ▶

2) Set record DATE, press ▲▼ to select: 1~31= one time, or DAILY=Monday~Friday, or WEEKLY= same time each week. • See selection order left.

3) Set remaining items, press SET

to set START/ STOP times, CH (channel) or LINE input (p. 35), and tape speed (SP, SLP).

Then press ▲▼ to select.

Press PROG

to end programming.

To Enter More Programs, press ▲▼

to select and press SET

to set an unused program number, and then repeat step 2.

Or

Press PROG

to exit.

VCR REC Indicator

• The "Timer" Indicator lights up on DECK.
• You can set Timer Recording with the power on or off.
• "TIMER REC WILL START SOON" appears on-screen for 2 minutes before Timer Recording starts. If DECK is in DVD mode, no message appears, but the VCR REC Indicator, the VCR mode indicator and "REC" will flash on Multi function Display.

24

For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

Review, Replace or Clear Program Contents:

(Recording is not in progress)

1 Press PROG to display Program List.

To cancel a Timer Recording in progress...

Hold down STOP in VCR mode for a few seconds to cancel the Timer Recording.

(The "TIMER" indicator goes out on the Multi Function Display.)

- Any future daily or weekly recording will be performed as programmed.

3 To replace a program...

Repeat Step 2 (p. 24) to set new programs.

or To clear a program...

Press ADD/DLT.

4 Press PROG to end the programming.

Notes

• If you are using a Cable Box, the VCR's channel for Timer Recording must be set to the Cable Box input channel, and the Cable Box must be manually set to the desired channel. The Cable Box power must be left on.
• 2 minutes before Timer Recording is performed, "PLEASE PREPARE FOR TIMER REC" appears and the Timer Indicator flashes. Be sure a cassette with the record tab is loaded and the DECK is in Stop mode.
• If a power interruption occurs while programming the timer, the timer program(s) may be canceled. If "TIMER PROGRAMS WERE LOST DUE TO POWER INTERRUPTION" appears on-screen, please re-enter the timer programs.
• If the start time for Timer Recording comes up during recording and playback, Timer Recording will not be performed.

Important notes when using a DSS Receiver

• When recording programs via a DSS Receiver, the DSS Receiver must be left on.
• When recording programs via an antenna or cable, the DSS Receiver must be turned off.

MTS Broadcast/ VHS Hi-Fi Stereo System

Connection

Make the Audio/Video Connection as shown on pp. 12 ~ 15.

- You can use TV connected to a Stereo amplifier and speakers instead of Stereo TV.

Receivable Broadcast Types

The following are possible audio broadcast types and on-screen displays.

The signal being received is indicated with a "R" mark while the selected audio mode is indicated with an arrow.

To display the broadcast signal being received,

→ press DISPLAY*.

MTS Stereo and SAP broadcast

Multi-channel Television Sound Stereo (main language) and Secondary Audio Program (sub language) broadcasts are being received simultaneously. Select STEREO or SAP audio mode.

MTS Stereo broadcast

Multi-channel Television Sound Stereo broadcast. Select STEREO audio mode.

- If stereo broadcast is weak and display flickers, select MONO audio mode for possible better results.

SAP broadcast

Secondary Audio Program (sub language) broadcast. Select SAP audio mode for the sub language.

MONO broadcast

Normal monaural sound broadcast.

Equipped with dbx®-TV Noise Reduction for true MTS reproduction.

dbx®-TV Noise Reduction is required for good stereo separation and audio fidelity. dbx® is a registered trademark, and is licensed by dbx® Technology Licensing.

26

For assistance, please call: 1-800-211-PANA(7262) or contact us via the web at: http://www.panasonic.com/contactinfo

Audio Mode for Recording

1 Press AUDIO (SAP/Hi-Fi)

to display audio mode.

(Display disappears after 5 seconds.)

2 @STEREO Press AUDIO (SAP/Hi-Fi) repeatedly to select desired mode.

• Refer to "Receivable Broadcast Types" on p. 26.
• Arrow indicates selection.

3 Make a recording.

See p. 21.

Audio Mode for Playback

1 Start playback. See p. 20.

Press AUDIO (SAP/Hi-Fi)

to display audio mode.

3 Press AUDIO (SAP/Hi-Fi) repeatedly to select desired mode.

HIFI: R NORMAL - Select "HIFI (L/R)" or "HIFI (L)" or "HIFI (R)" to listen to stereo recordings in stereo sound. Select "NORMAL" for monaural sound.

- Arrow indicates selection.

- Display disappears after 5 seconds.

Notes

• Only tapes recorded in Hi-Fi stereo will playback with true stereo sound. Standard stereo tapes will playback in monaural sound.
• To listen to Hi-Fi stereo playback, the DECK AUDIO (L/R) jacks must be connected to a stereo TV or an external stereo amplifier and speakers. (See pp. 12, 14.)
• If tracking is adjusted during playback, Hi-Fi audio may revert to normal audio.
• Hi-Fi and normal audio playback volume level may differ.

Multi-Brand Control Feature

Multi-Brand Control Setup

The Remote Control can be set to control some TVs.

1 Find your TV Brand Code Number on the following page.

2 ■ Set up for TV control, →hold down TV button, →enter code with NUMBER keys.

3 Confirm code entry, →press POWER to turn selected unit on or off. • See table below for controllable functions in each mode.

Notes

• Repeat setup after remote battery replacement.
• Remote will not control every TV made by the manufacturer listed. If you get no response, your particular unit cannot be controlled. There are NO additional codes for the products listed. If your product is not listed, then the remote is not compatible with that product.

Using Multi-Brand Control

After remote is set up, you can select VCR, DVD, or TV for the desired function.

Press VCR, DVD, or TV on the remote. (Table below shows available remote buttons for each mode.)

Mode\Unit	DVD/VCR TV
DVD VCR	All	VOL +/-
TV	EJECT/OPEN/CLOSE*, DISPLAY, PLAY, STOP, FF/SLOW+, REW/SLOW-, VCR/TV, PAUSE/STILL, SKIP, AUDIO, CM/ZERO, SPEED, REC, TAPE POSITION, PAGE, COUNTER RESET	POWER, INPUT, NUMBER keys, ENTER, CH ▲, ▼VOL +/-

* Bold: VCR Function Italic: DVD Function

Bold Italic: VCR and DVD Functions Normal: TV

Notes

• Not all functions listed may be controllable.
• In TV mode, it may be necessary to press ENTER after pressing NUMBER keys for channel selection.

28

For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

TV Brand Code Numbers

Panasonic 01, 02 Toshiba 09 Quasar....01, 02 Sanyo....10 RCA 03 Fisher 10 GE 03 JVC 11 Zenith 04 Hitachi 12 Magnavox 05 Mitsubishi 07,13 Sylvania 05 Samsung 14 Sharp 06, 07 Gold Star 15, 16, 17 Sony 08

Important Notes

• Some manufacturers use several codes for one brand. If the first code entered fails, try the next one listed.
• Some TVs require you to turn on the power manually.

Tape Operation

Search System

For each recording, an invisible index mark is placed on the tape. A program index and information are also included for timer recordings. These marks are used to access or scan recordings.

Index Search

1

INDEX SEARCH ENTER INDEX NUMBER :1 USING 1-9 KEYS FORWARD SEARCH :FF REVERSE SEARCH :REW EXIT :SEARCH

Press SEARCH* to display SEARCH in Stop or Play mode, and then press NUMBER keys to select recording number. • To calculate number, see below. Press FF/SLOW+ or REW/SLOW- on the remote to start search.

2

INDEX SEARCH FORWARD SEARCH : FF REVERSE SEARCH : REW

Play begins at search end. To search forward or back 1 index, press FF/SLOW+ or REW/SLOW- on the remote while screen left is displayed (10 sec.). • To cancel, press PLAY or STOP.

To Calculate Index Number

Example 1:

To go to rec. 2 from rec. 4, enter 3 and press REW.

Example 2:

To go to rec. 6 from rec. 2, enter 4 and press FF.

NOTE: ↓ indicates start points of each recording.

Note

- If Index Search is started very close to an index mark, that index mark may not be counted in the search.

Zero Search

To quickly return to a specified tape location.

1 Press DISPLAY during play to display Counter.

2

Press COUNTER RESET on remote at desired position to reset to "0:00:00".

3 Continue to record, playback etc.

4 Press STOP.

5 Press CM/ZERO in Stop mode to start Zero Search. STOP 1:2:31AM CH 02 0:30:30 SP • DECK will go into FF or REW mode and stop at the last point the Counter was set to 0:00:00.

Commercial Skip

DECK fast forwards (skips) over 1, 2, or 3 minutes of recorded tape as desired.

1 Press CM/ZERO in Play mode.

- The skip time can be changed by pressing CM/ZERO repeatedly as shown by the figure below.

- No indication appears on-screen.

30

For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

Tape Select

Select your tape length so the tape position and amount of tape remaining are properly displayed.

(See "Tape Position Display" section right.)

1 Press ACTION to display MENU.

Press ▲▼ to select "SET UP VCR," and press SET.

Press ▲▼ to select "TAPE SELECT," and press SET to set "T-120," "T-160" or "T-180."

- Select "T-120" for tapes 120 minutes or less, "T-160" if 140 or 160 minutes, and "T-180" if 180 minutes.

4 Press ACTION to return to normal screen.

Repeat Play

Set to playback a recording over and over.

1 Press ACTION to display MENU.

Press ▲▼ to select "SET UP VCR," and press SET.

Press ▲▼ to select "REPEAT PLAY," and press SET to set "ON" or "OFF."

- Play repeats at tape end or if unrecorded portion over 30 sec. is detected.

4 Press ACTION to return to normal screen.

Note

- For repeat play in DVD mode, see page 47.

Tape Position Display

To find out the present tape position and amount of tape remaining.

Tape position is displayed incorrectly in the following cases:

• If VHS-C type cassettes, tapes under 30 minutes, tapes over 180 minutes, or incompatible tapes are used.
• If the correct tape length is not selected. (See "Tape Select" section left.)

1 Press TAPE POSITION to detect current tape position.

• "DETECTING TAPE POSITION" only appears the first time a cassette is inserted and it takes several seconds for correct indication to appear.
• The present tape position indication and amount of tape remaining (according to tape speed) are displayed. Tape remaining time display may not be precise.

2 Press TAPE POSITION (or wait 5 seconds) to return to normal screen.

Auto Operation Functions

■ Auto Play

Insert a tape → Power comes on,

→ Play starts if there is no record tab (see p. 6).

■ Auto Rewind

Play Fast Forward]→ Tape end → Rewind → Stop

■ Play Auto Eject

(Repeat Play must be off) Play → Tape end → Rewind → Stop → Tape ejects if some programs are set.

Special VCR Features

VCR/TV Select

The VCR/TV selection can be set to auto or manual.

1 Press ACTION* to display MENU.

Press ▲▼ to select "SET UP VCR," and press SET.

Press ▲▼ to select "AUTO VCR/TV," and press SET to set "ON" or "OFF."

• OFF (Manual): You select "VCR" or "TV" mode using the VCR/TV button on the remote.
• ON (Auto): "VCR" mode is automatically set when VCR is turned on, or in Play mode.

4 Press ACTION to return to normal screen.

Note

- For more on VCR/TV selection, see "Record one station, watch another" and "Select channels at DECK" sections (see p. 21).

VCR Lock Feature

When set to ON, all operations except for timer record and tape eject are prohibited. Useful for households with small children.

To turn on, hold down REC on DECK in Stop mode with no tape inserted for 7 seconds. (Please ignore "NO CASSETTE" warning.)

To turn off, repeat above.

• VCR Lock cancels in 24 hours.

Note

• DVD functions will work even when VCR Lock is set to ON.

32

For assistance, please call: 1-800-211-PANA(7262) or contact us via the web at: http://www.panasonic.com/contactinfo

Weak Signal Display Feature

When "ON," picture is displayed regardless of signal strength.

1 Press ACTION to display MENU.

Press ▲▼ to select "SET UP CHANNEL," and press SET.

Press ▲▼ to select "WEAK SIGNAL DISPLAY," and press SET to set "ON" or "OFF."

• ON: Picture is displayed regardless of signal condition, and may not always be clearly visible.

OFF: Screen turns solid blue when signal is weak or non-existent.

- Selecting ON has no effect on connected equipment with blue back feature.

4 Press ACTION to return to normal screen.

Auto Shut-Off Feature

The power shuts off at a preset time.

1 Press ACTION to display MENU.

Press ▲▼ to select "SET UP VCR," and press SET.

Press ▲▼ to select "AUTO SHUT-OFF." Press SET repeatedly to change shut-off time as shown below.

4 Press ACTION to return to normal screen.

Note

- The shut-off countdown will not function during Play or Record.

VCR Operation

Special VCR Features (continued)

Remote Warning Feature

If Multi-brand feature is used (p. 28), and this feature is set to on, a warning appears whenever an invalid key is pressed in TV mode.

1 Press ACTION* to display MENU.

Press ▲▼ to select "SET UP VCR," and press SET.

Press ▲▼ to select "REMOTE WARNING," and press SET to set "ON" or "OFF."

- If "OFF," remote warning will not appear when invalid key is pressed.

4 Press ACTION to return to normal screen.

Multi Function Display (Front Display) ON/OFF Feature

Multi Function Display (Front Display) can be set to ON/OFF.

1 Press ACTION to display MENU.

Press ▲▼ to select "SET UP VCR," and press SET.

Press ▲▼ to select "FRONT DISPLAY," and press SET to set "ON" or "OFF."

- ON: When set to "ON," Multi Function Display is displayed. OFF: When set to "OFF," Multi Function Display is not displayed. If a Timer Program is set, Multi Function Display is displayed.

4 Press ACTION to return to normal screen.

*Important: If a remote control button does not work when pressed, press the VCR button on the remote and try the button again.

34

For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

Copying Your Tapes (Dubbing)

Connection

VCR/ Camcorder (Hi-Fi)

DVD/VCR DECK

TV

Front of DECK

(Audio/Video In Terminals on the front of DECK are available)

① Connect the VIDEO OUT terminal on the Playing VCR to the VIDEO IN terminal on the DECK. To monitor the dubbing, also connect the TV as shown. ② Connect the "L" and "R" AUDIO OUT terminals on the Playing VCR to the "L" and "R" AUDIO IN terminals on the DECK. In place of the Playing VCR, you can use other equipment, such as a Camcorder. Simply connect the unit's Audio/Video outputs to the DECK.

Playing (Source) VCR

1

Insert a pre-recorded tape.

Recording (Editing) DECK

Insert a blank tape with record tab.

2

Press INPUT to set DECK Input mode to LINE for Video Input. (See "Selecting the Input Mode" below.)

3

Press PLAY, then PAUSE immediately to enter PLAY/PAUSE mode.

Press REC, then STILL/PAUSE immediately to enter REC/PAUSE mode.

The operation of steps 4 and 5 must be done on the playing and recording VCRs at the same time.

Press PLAY to start dubbing. Playing VCR starts playback.

Press STILL/PAUSE to start dubbing. DECK starts recording.

Press STOP to stop dubbing.

Press STOP to stop dubbing.

■ To Monitor Dubbing on TV

1. Turn TV on and tune to the Recording VCR channel (CH 3 or CH 4). 2. If Auto VCR/TV (see p. 32) is set to "OFF," press VCR/TV on the remote for VCR mode.

Note

- Dubbing tapes protected with Copy Guard will result in poor quality recordings.

■ Selecting the Input Mode

Method 1: Press INPUT repeatedly. Channel Number ↔ LINE1 ↔ LINE2. Method 2: Press CH ▲/▼. Display will change as below.

• "L1" or "L2" lights up on Multi Function Display (about 4 seconds) when LINE1 or LINE2 is selected. • LINE1: For rear audio/video connection. LINE2: For front audio/video connection.

Caution: • Unauthorized exchanging and/or copying of copyrighted recordings may be copyright infringement.

• Please note that some tapes cannot be dubbed on DECK. Also, it is not possible to dub DVD/CD to VHS tapes using DECK.
• When appears on the screen while a button is being operated, it means that the corresponding operation is prohibited by DECK or the disc.

Operation

VCR

Disc Operation

Subtitle Language (DVD only)

You can select a different subtitle language (if offered) than the one set at the Settings for DVD Operation. (See p. 52.)

1

Press SUB TITLE*

in Play mode to display the subtitle selection on-screen.

• Display disappears after 5 seconds. - When no subtitles are offered, “-” will be displayed instead of the language number.

2

Press SUB TITLE, ▲▼r

NUMBER keys to select a desired language.

Subtitle language being played back (see chart, right).

Notes

• If after several presses of the button the language does not change, language selection is not offered on the disc.
• When disc is removed, subtitles revert to initial setting language. If the initial language is not recorded on the disc, the disc's priority language will appear.
• With DVD-RAM, the subtitle can only be set to ON/OFF. The subtitle language cannot be selected.
• Subtitles may not change to the selected language immediately.

Audio Soundtrack Language (DVD only)

You can change the audio soundtrack language, selected at the Settings for DVD Operation, to a different language if available. (See p. 52.) (This operation works only with discs on which multiple audio soundtrack languages are recorded.)

1

Press AUDIO

in Play mode to display the audio selection on-screen. • Display disappears after 5 seconds. Information of the audio stream currently being played back is displayed. (See page 53.)

2

Press AUDIO, ▲▼r

NUMBER keys to select desired language.

Audio soundtrack language being played back (see chart, above right).

Ready Checklist

☐ Please read "Basic DVD Operation" on page 22.

[Subtitle language]

[Audio sound track language]

ENG	English
FRA	French
DEU	German
ITA	Italian
ESP	Spanish
NLD	Dutch
SVE	Swedish
NOR	Norwegian
DAN	Danish
POR	Portuguese
RUS	Russian
JPN	Japanese
CHI	Chinese
KOR	Korean
MAL	Malay
VIE	Vietnamese
THA	Thai
※	Other

- Change the No. by pressing ▲▼, and press SET.

[Audio attribute 1 type, sampling frequency, bit No. of the disc (see p. 53).]

LPCM	96 kHz or 48 kHz	16 bit	Linear PCM disc
		20 bit
		24 bit
Dolby Digital	1c h - 5.1 ch		Dolby Digital disc
DTS	1 ch - 5.1 ch		DTS disc

Notes

• If, after several presses of the AUDIO button the language does not change, language selection is not offered on the disc.
• When disc is removed, language reverts to initial setting. If this language is not recorded on the disc, the language recorded will be heard.
• With DVD-RAM, Audio Soundtrack Language cannot be set. Audio stream and Audio mode (LR/L/R) setting can be made. Audio stream operation method is the same as Audio Soundtrack Language. Press ▶ to move the cursor to Audio mode, then press AUDIO or ▲▼ to select LR/ L/ R.

36

For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

When 📊 appears on the screen while a button is being operated, it means that the corresponding operation is prohibited by DECK or the disc.

Notes

• The ANGLE Indicator lights up on DECK when a scene recorded at different angles is detected. - The angle number can be set beforehand so that the angle is switched whenever the ANGLE Indicator lights up.

Notes

• The subtitle cannot be enlarged or moved. - During picture zoom, "ZOOM1" or "ZOOM2" appears on-screen for 5 seconds. - Zooming, on some discs, may result in poor picture quality, or may not operate at all.

Multiple Angle Viewing (DVD only)

DVDs may contain scenes shot from multiple camera angles allowing the same scene to be viewed at different angles. You can view these angles, if available, using the ANGLE button.

1

Press ANGLE

in Play mode to display the angle selection on-screen.

• Display disappears after 5 seconds.

2

Press ANGLE repeatedly or ▲ select the desired angle.

Number of angle being played back.

Note

This function not available with DVD-RAM.

Vocal Selection for Karaoke Discs (DVD only)

1

Press AUDIO in Play mode to display the audio screen.

2

Press ◀ to select VOCAL and press AUDIO or ▲ to select as shown below.

- DVD Karaoke (1 vocal) VOCAL ON → VOCAL OFF - DVD Karaoke (2 vocals) VOCAL V1 → VOCAL V2 → VOCAL V1 + V2 → VOCAL OFF

Picture Zoom (DVD only)

You can enlarge specific portions of a picture and select the zoom ratio using the ZOOM button during DVD playback.

Press ZOOM repeatedly to change display as follows.

- You can enlarge the center portion of the image to one of 2 magnifications.

■ Use the ▲, ▼, ◀ and ▶ buttons to move the position up, down, left and right.

Operation DVD

Disc Operation (continued)

Title Menu (DVD only)

Some DVDs have more than one title, e.g. movies. If the disc offers a title menu, you can select the desired title number. (Operation may vary according to the disc.)

1

TITLE MENU

Dogs

Castles

Lovers

Birds

Press TITLE*

in Play mode to display the title screen.

2

TITLE MENU

Dogs

Castles

Lovers

Birds

Birds

of the world

Press ▲▼▶

NUMBER keys to select a title, and press SET or PLAY to start playing.

- "Pressing SET or PLAY" is not necessary when using NUMBER keys.

DVD Menu (DVD only)

DVDs may offer a special menu. This menu may include guides to unique contents, audio/subtitle languages, etc. Although contents and operation may vary, the following steps show basic procedure for using the menu.

1

DVD MENU

1. SUBTITLE
2. AUDIO
3. ANGLE

Press MENU in Play mode to display DVD MENU.

2

DVD MENU

SUBTITLE

1. SUBTITLE
2. AUDIO
3. ANGLE

Press ▲▼▶

NUMBER keys

to select an item, and

press SET or PLAY

to perform.

- Pressing SET or PLAY is not necessary when using NUMBER keys.

Repeat step 2 if there is more than one menu.

38

For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

Program Play (CD only)

You can program specific tracks and order of play.

1 Press ACTION to display DVD MAIN MENU.

Press ▲▼ to select "PLAY MODE," and press SET to display.

Press ▲▼ to select "PROGRAM PLAY," and press SET to display.

Press ▲▼◀▶ to select a track number (Track numbers on disc are displayed.), and press SET.

- Repeat step 4 to select another track. - The selected track is added on the right side.

Press ▲▼◀▶ to select "START," and press SET to start play of programs in the sequence selected.

• To cancel, press STOP during play, then press CLEAR.

Notes

• Up to 15 tracks can be programmed.
• "◀" or "▶" (depending on disc) indicates additional PROGRAM PLAY screen. Press ▲▼◀▶ for next or previous screen.
• To clear the last program one by one: Press ▲▼◀▶ to move to "CLEAR LAST" and press SET. (Pressing CLEAR on remote control also clears last program.)
• To clear all programs: Press ▲▼◀▶ to move to "CLEAR ALL" and press SET. (Programs are also cleared when the power is turned off or the disc is removed.)

Ready Checklist

□ DECK is in DVD mode, press DVD. □ CD is inserted.

Program Repeat Play (CD only)

1. Do steps 1 through 5 on the left of this page. 2. Press DISPLAY to show the Disc Information screen. (Disc Information Screen)

3. Press DISPLAY to show the DECK Information screen. 4. Press SET to enter Select mode. The cursor moves to "OFF." (DECK Information Screen)

5. Press ▲▼ to select "DISC." (DECK Information Screen)

6. Press SET to set the mode. The cursor moves to "REPEAT." To cancel, select "REPEAT: OFF" in step 5, then press SET.

Operation DVD

Disc Operation (continued)

Random Play (CD only)

Tracks are played in a random order.

1. Press ACTION* to display the DVD MAIN MENU.

Press ▲▼ to select "PLAY MODE," and press SET to display.

Press ▲▼ to select "RANDOM PLAY," and press SET to begin random play.

• To cancel, press STOP during play, then press CLEAR.

Ready Checklist: □ DECK is in DVD mode, press DVD.

40

For assistance, please call: 1-800-211-PANA (7262) or contact us via the web at: http://www.panasonic.com/contactinfo

Setting the VOLUME ADJUST (DVD only)

Some DVDs are recorded at lower than average volume levels.

For these DVDs, this DECK can be set so that the average volume is increased automatically.

Press VOL.ADJ repeatedly to change "OFF" ↔ "ON."

- "OFF" or "ON" lights up on Multi Function Display (about 3 seconds) when VOL.ADJ is pressed.

	VOLUME ADJUST “OFF”	VOLUME ADJUST “ON”
Some DVD[Low volume level]	Volume is at the original level.	Volume level is increased when played back.

• "ON" is set ..... When a DVD is played back, the average volume is increased.
• "OFF" is set .... The volume level recorded on the disc is played back just as it is.

Notes

• While settings can be made with all discs, they may have no effect with some discs. Please set as you prefer.
• When audio equipment is connected, setting the Sound Output level to "OFF" is recommended.
• If the sound becomes abnormal while playing a disc, set the Sound Output level to "OFF."

Operation DVD

DVD-RAM Operation (DVD-RAM only)

You can enjoy playing your personally recorded/edited DVD-RAM discs on this DECK.

Note

- This DECK was designed for playback only. DVD-RAM recording is not possible.

Play a DVD-RAM

1 Do steps 1 \~ 3 on page 22.

- Play begins from the first program title recorded on the DVD-RAM.

2 Press D.NAVI*or PLAY LIST to display Direct Navigator or Play List menu for easy title or scene selection.

- See below for "Direct Navigator" or next page for "Play List information".

3 Press STOP to stop playing.

4 Press OPEN/CLOSE to eject the disc.

Direct Navigator

If the DVD-RAM features Direct Navigator, a list of recorded titles is displayed. Simply select a title number and start playback. (Operation can vary with disc used.)

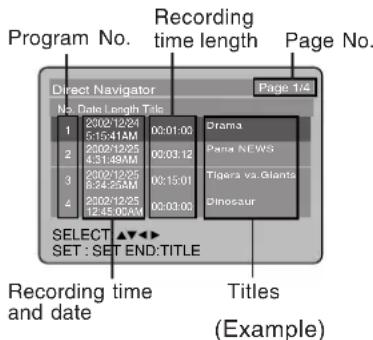

1 Press D.NAVI in Play/Stop mode to display the Direct Navigator menu.

2 Press ◀▶ to select a page and press ▲▼ to select a title (Program No.).

Then, press SET or PLAY to start playing.

- "Pressing SET or PLAY" is not necessary when using NUMBER keys.

Using NUMBER keys starts playing automatically.

The number of available titles varies with each disc. <Input 1 digit number 1 ⋯ 1

Example> 2 digit number 12 ⋯≥10→1→2

3 Press D.NAVI to clear Direct navigator menu.

42

For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

Play List

If the DVD-RAM features a Play List, your preselected list of favorite scenes is displayed for easy access. (Operation can vary according to how you edited the DVD-RAM.)

1 Press PLAY LIST

in Play/Stop mode to display the Play List menu.

2 Press ◀▶ to select a page and press ▲▼ to select a title (Play List No.).

Then, press SET or PLAY to start playing.

- "Pressing SET or PLAY" is not necessary when using NUMBER keys.

Using NUMBER keys starts playing automatically. The number of available titles varies with each disc.

2 digit number 12 ••• ≧ 10 → 1 → 2

3 Press PLAY LIST to clear the Play List menu.

DVD Operation

Notes

• Titles of Direct Navigator and Play List cannot be changed using this DECK.
• With Direct Navigator, up to 99 programs can be displayed. With Play List, up to 99 titles (999 scenes) can be displayed.
• While the DVD MAIN MENU is displayed, Direct Navigator and Play List displays will not appear even if TITLE or MENU is pressed.
• When appears on the screen while a button is being operated, it means that the corresponding operation is prohibited by the DECK or the disc.

DVD Operation using On-Screen Displays

When DISPLAY is pressed, On-Screen Displays show disc information (title/chapter/track number, elapsed playing time) and DECK information (repeat play, play mode).

1 Press DISPLAY* in Play or Stop mode to display "On-Screen Displays."

• Each press of DISPLAY changes the on-screen display as follows. (Refer to pp. 44 \~ 48.)

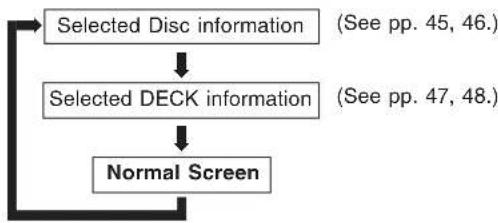

Note

- The DISPLAY button does not function while the main menu of DVD, title menu of DVD, Direct Navigator, or Play List is displayed.

2 Press ▲(▼r ) ◀▶ to select an item, and press SET.

3 Press ▲ NUMBER keys to select the setting, and press SET.

• When numbers are displayed (e.g. title number), NUMBER keys are also available.
• If the number entered is not on the disc, the entry will have no effect. Re-enter the correct number.
• For more details, refer to the disc operation information.

To return to normal screen, press DISPLAY repeatedly.

Note

- When ⊙ appears on the screen while a button is being operated, it means that the corresponding operation is prohibited by DECK or the disc.

44

For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

Ready Checklist

☐ DECK is in DVD mode, press DVD.

Detailed Descriptions of each On-Screen Display

■Disc information screen (for DVD-Video)

1. TITLE No.

Go directly to a preset title number.

- Select "TITLE", and press SET.

- Change the No. by pressing ▲▼ or NUMBER keys, and press SET.

2. CHAPTER No.

Go directly to a preset chapter number. - Select "CHAPTER", and press SET. - Change the No. by pressing ▲▼ or NUMBER keys, and press SET. - This function does not work with some discs.

3. Disc currently being played

The type of disc currently inserted is displayed.

4. Elapsed playing time

The screen may be changed by selecting the elapsed time.

• Select the elapsed playing time ("xx:xx:xx"), and press SET.
• Change the elapsed time by pressing NUMBER keys.

Enter time starting with seconds.

If the time entered is not on the disc, the entry will have no effect. Re-enter the correct time.

e.g., press 0 → 1 → 2 → 3 → 4 → 5 → SET for "01 : 23 : 45".

press 3 → 0 → SET for "00 : 00 : 30".

- This function does not work with some discs.

■ Disc information screen (for CD)

A. TRACK No.

Go directly to a preset track number.

• Select "TRACK", and press SET.
• Change the No. by pressing ▲▼ or NUMBER keys, and press SET.

B. Disc currently being played

The type of disc currently inserted is displayed.

C. Elapsed playing time

Operation DVD

DVD Operation using On-Screen Displays (continued)

■Disc information screen (for DVD-RAM)

1. Direct Navigation (PROGRAM) or PLAY LIST No.

Go directly to a preset title number.

• Select "PROGRAM" or "PLAY LIST", and press SET*.
• Change the No. by pressing ▲▼ or NUMBER keys, and press SET.

2. Disc currently being played

The type of disc currently inserted is displayed.

3. Elapsed playing time

The screen may be changed by selecting the elapsed time.

• Select the elapsed playing time ("xx:xx:xx"), and press SET.
• Change the elapsed time by pressing NUMBER keys.

Enter time starting with seconds.

If the time entered is not on the disc, the entry will have no effect.

Re-enter the correct time.

e.g., press 0 → 1 → 2 → 3 → 4 → 5 → SET for "01 : 23 : 45".

press 3 → 0 → SET for "00 : 00 : 30".

• This function does not work with some discs.

PLAY LIST

Note

- When appears on the screen while a button is being operated, it means that the corresponding operation is prohibited by DECK or the disc.

For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

■ DECK information screen (for DECK)

1. Operating mode

The current operation is displayed.

2. Repeat Play mode (see p. 48)

Repeat play mode can be selected.

• Select "REPEAT", and press SET.
• Change the desired mode during play by pressing ▲▼, and press SET.

		Repeat Play mode
DVD-Video CHAPTER		TITLE OFF (NORMAL)
DVD-RAM	(PROGRAM)	PROGRAM	DISC	OFF (NORMAL)
	(PLAYLIST)	PLAY LIST ALL	PLAY LIST OFF	(NORMAL)
CD TRACK DISC OFF		(NORMAL)

3. Play mode [CD only] (See p. 39, 40.)

When Play mode is set (p. 39, 40), the mode name is displayed.

PROGRAM PLAY	program play
RANDOM PLAY	random play
----	normal play

Note • For repeat play in VCR mode, see p. 31.

Operation DVD

DVD Operation using On-Screen Displays (continued)

For your reference

Repeat Play mode example (see p. 47)

• CHAPTER/TITLE REPEAT PLAY (DVD-Video)

- TRACK/DISC REPEAT PLAY (CD)

- PROGRAM/DISC REPEAT PLAY (DVD-RAM [PROGRAM])

- PLAY LIST/ALL PLAY LIST REPEAT PLAY (DVD-RAM [PLAY LIST])

Note: For repeat play in VCR mode, see p. 31.

Important: If a remote control button does not work when pressed, press the DVD button on the remote and try the button again.

48

For assistance, please call: 1-800-211-PANA(7262) or contact us via the web at: http://www.panasonic.com/contactinfo

MP3/JPEG Playback Operation

This unit can play MP3/JPEG format CD-R or CD-RW recorded for personal use on a PC, etc. Some discs may not play due to the condition of the recording.

1 Press POWER* on the remote or DECK.

2 Press OPEN/CLOSE, then place an MP3/JPEG disc into the disc tray.

Press OPEN/CLOSE to close.

3 • MP3/JPEG MENU is displayed. • Playback starts automatically (except JPEG files). • CD directory is displayed.

MP3 file

:Folder

JPEG file

Parent folder

(Diagram left shows CD directory structure as displayed in example OSD above.)

Notes

• Only File (not Folder) area operation is possible.
• Files are displayed in the following order: (!...0,1....9,A,B.....Z).

• Select file (During STOP mode)

1) Press ▲ to select an MP3 file ( → MP3 Playback (see right)

2) Press ▲▼ to select a JPEG file (☐). → JPEG Playback (see p. 50)

3) Press SKIP+▶(next) or SKIP- |◀◀ (previous) to skip a file/folder page (7 files) in the File area.

• Select folder (During STOP mode) 1) Press ▲ to select a folder (). 2) Press SET to display files/folders contained in the folder.
• Select parent folder (During STOP mode) 1) Press ▲ to select a folder (). 2) Press SET to make changes to the previous directory display.

5 Press ACTION to return the DVD MAIN MENU. (→ Press ACTION again to return to the MP3/JPEG MENU.)

MP3 Playback

Do steps 1\~3 at left.

a Press ▲ to select an MP3 file ( ∫). (During STOP mode)

b Press SET or PLAY to start playback.

■ Forward/Reverse Search Press FF/SLOW+ or REW/SLOW- during play. Press PLAY to release. • Search speed, slow at first, increases with each additional press of the button up to 5 levels.

■ Forward/Reverse Track Skip Press SKIP+▶ or SKIP-1 during play. Each press skips a track.

- If pressed within first 3 seconds of playback, skips to the previous track. If over 3 seconds, returns to top of track. (SKIP-1 only.)

- Put DECK in Stop mode before performing folder/file selection (see step 4.)

■ Pause Press PAUSE during play. Press PLAY to release.

c Press STOP to stop play.

d Press OPEN/CLOSE to eject the disc. The MP3/JPEG MENU is closed automatically.

Note

• Copyright protected files and files containing errors cannot be played back. The DECK skips to the next file.

■ Select PLAY MODE [MP3 Playback] (During STOP mode) Press ◀ to select the desired PLAY MODE (see below).

[PLAY MODE]

NORMAL:All MP3 files are selected and played back one time only.

SINGLE REPEAT:The selected MP3 file is played back repeatedly.

FOLDER REPEAT:The MP3 files contained in the selected folder are played back repeatedly.However, folders below the selected folder are not played back.

DISC REPEAT:All MP3 files are played back repeatedly.

Operation DVD

49

MP3/JPEG Playback Operation (continued)

JPEG Playback

You can play back JPEG images.

Displayable Image Size: 32x32\~7680x7680 pixels

Note

- Some JPEG formats may not be played back.

Do steps 1\~3 on page 49.

1

Press ▲▼ to select a JPEG file (☐).

2

Press SET or PLAY.

The selected JPEG file is displayed. [JPEG Playback Screen]

■Return to the MP3/JPEG MENU → Press STOP. (See p. 49)

■Next/Previous Search

→ Press SKIP+▶ or SKIP- | ■ Start Slide-show → Press FF/SLOW+ or REW/SLOW-. (below) ■ Enlarging an image → Press ZOOM. (P. 51) ■ Rotating an image → Press ANGLE. (P. 51)

3

Press STOP to return to the MP3/JPEG MENU.

JPEG Slide-show

(During JPEG Playback.)

JPEG files are displayed automatically (about every 3 seconds) as a slide-show.

1

Press FF/SLOW+ or REW/SLOW-.

Image changes every 3 seconds.

■Cancel slide show

→Press STOP to return the MP3/JPEG MENU. (See p. 49)

■Still picture

→Press STILL (only SLIDE). →Press PLAY to release.

■Forward/Reverse File Skip

→Press SKIP+▶Dr SKIP- |◀◀ Each press skips a file.

2

Press ACTION to return to the DVD MAIN MENU.

50

■Select PLAY MODE [JPEG Slide-show] (During STOP mode)

Press ◀ to select the desired PLAY MODE (See below).

[PLAY MODE]

NORMAL:

All JPEG files are selected and played back one time only.

SINGLE REPEAT:

The selected JPEG file is played back repeatedly.

FOLDER REPEAT:

The JPEG files contained in the selected folder are played back repeatedly. However, folders below the selected folder are not played back.

DISC REPEAT:

All JPEG files are played back repeatedly.

Operation can be done when files are in order, such as in the diagram below.

For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

JPEG Zoom

(During JPEG Playback.)

You can enlarge specific portions of a JPEG picture and select the zoom ratio using the ZOOM button on the remote during JPEG Playback screen.

Set Zoom size.

Press ZOOM repeatedly to change display as follows.

→ Press STOP to return the MP3/JPEG MENU. - You can enlarge the center portion of the image to one of 2 magnifications. • Operation can be done during Rotation (below).

X 1.0 (ORIGINAL) X 1.5 (ZOOM 1) X 2.0 (ZOOM 2)

■ Use the ▲, ▼, ◀ and ▶ buttons to move the position up, down, left and right. (Position cannot be changed on X1.0 ORIGINAL images.)

JPEG Rotation

(During JPEG Playback.)

You can rotate a JPEG picture using the ANGLE button on the remote during JPEG Playback screen. (The JPEG picture will be rotated 90 ° clockwise.)

Set rotation.

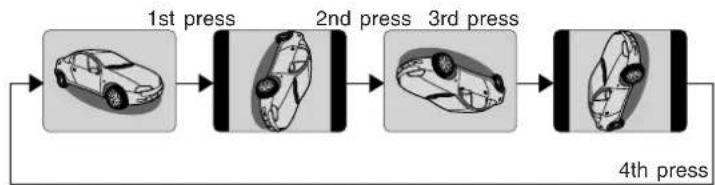

Press ANGLE repeatedly to change display as below.

→ Press STOP to return the MP3/JPEG MENU. • Operation can be done during Zoom (above). - The vertical/horizontal ratio of rotated JPEG images may vary when they are displayed.

MPEG Layer-3 audio decoding technology licensed from Fraunhofer IIS and Thomson multimedia.

Settings for DVD Operation

1 Press ACTION* to display the DVD MAIN MENU.

Press ▲▼ to select an item, and press SET.

DISC LANGUAGES (See below)

All languages offered on the disc can be set. If a language not offered is set, the original disc language will be selected.

AUDIO OUTPUT (See p. 53.)

You can set the audio output that comes from the digital audio output terminal.

STILL MODE (See p. 54.)

To select "FIELD" (Field still) or "FRAME" (Frame still) to prevent jitter or make small text or fine patterns clearly visible in a still picture. When "AUTO" is set, "FIELD" or "FRAME" is selected automatically.

TV MODE (See p. 54.)

To select whether the video material for a wide-screen will be played back in the Pan & Scan style, Letterbox style or 16 : 9 style.

Disc Languages (DVD only)

To select and set the language of the audio soundtrack, subtitles, or title/DVD menus for all discs to be played.

Press ▲▼ to select "DISC LANGUAGES," and press SET to display screen.

Press ▲▼ to select an item, and press SET repeatedly for desired language. (Please refer right.)

5 Press ACTION to redisplay DVD MAIN MENU and go to step 2 to setup another item. Or, press ACTION twice to exit.

Once initial settings are done, they remain in memory (even after power is turned off) until changed. This means DECK will operate under the same conditions (especially DVDs) each time.

Ready Checklist □ DECK is in DVD mode, press DVD.

"AUDIO" selections

(Factory preset: English) To select the audio soundtrack language. English/Spanish/French/Japanese Original: Original disc language OTHER 0000: Other language selection*1

"SUBTITLE" selections

(Factory preset: AUTO) To select the subtitle language. AUTO: Same language selected for "AUDIO"

- If language set for "AUDIO" is used in playback, subtitles will not appear. - If another language is used during playback, the subtitles will appear in the language selected at "AUDIO" setup.

English/Spanish/French/Japanese OTHER 0000: Other language selection ¹

"MENUS" selections

(factory preset: English) To select the language used in title menus or DVD menus. English/Spanish/French/Japanese OTHER 0000: Other language selection ^*1

To enter OTHER **** code number, Press NUMBER keys (Please refer to language codes on p. 56). To make corrections, press repeatedly to delete language code number, and correct.

*1 If the selected language is not offered, the original disc language is selected.

52

For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

Audio Output (DVD only)

Select the digital output to be output from the optical digital audio output connector of DECK.

1 Press ACTION to display DVD MAIN MENU.

Press ▲▼ to select "AUDIO OUTPUT," and press SET to display screen.

Press ▲▼ to select an item, and press SET repeatedly for output. (See below.)

■ "LPCM (DVD)" selections

OFF: Linear PCM of less than 48 kHz/16 bit is output. When playing DVDs recorded in linear PCM of over 48 kHz/20 bit, no digital audio is output. (Factory preset)

PCM: When playing DVDs recorded in linear PCM of 48 kHz/20 bit/24 bit or more, digital audio converted to 48 kHz/16 bit is output. (Digital output of PCM audio is restricted to 48 kHz/16 bit or below for copyright protection.)

■ "Dolby Digital" selections

Bitstream: Dolby Digital bitstream (1 ch - 5.1 ch) is output. (Factory preset)

PCM: When you have connected an amplifier that doesn't have a built-in Dolby Digital decoder.

■ "dts" selections

Bitstream: DTS bitstream is output. (Factory preset)

PCM: When you have connected an amplifier that doesn't have a built-in DTS decoder.

■ "DRC (Dynamic Range Compression)" selections

OFF: Normal audio range is selected. (Factory preset)

ON: For dynamic sound even at low volume, this is useful for late-night listening. [Dolby Digital DVDs only].

4 Press ACTION to redisplay DVD MAIN MENU and go to step 2 to setup another item. Or, press ACTION twice to exit.

Ready Checklist

☐ DECK is in DVD mode, press DVD.

Type of amplifier to be connected	Recommended setting
	LPCM (DVD)	Dolby Digital	DTS
No amplifier is connected	—	—	—
AV amplifier (with digital audio input connector) without Dolby Digital/DTS decoder	PCM	PCM*1	PCM*1
AV amplifier including Dolby Digital decoder	PCM	Bitstream	PCM
AV amplifier including Dolby Digital/DTS decoder	PCM	Bitstream	Bitstream*2

• Make settings according to amplifier connected to optical audio output as shown in above table. *1 When connecting an amplifier (with an optical digital input connector) which does not contain the Dolby Digital or DTS decoder, be sure to select "PCM". If "Bitstream" is selected, starting DVD play may cause such a high level of noise as to be harmful to your ears and damage the speakers. *2 When a dts decoder is connected, please select "Bitstream" in "dts." If "PCM" is selected, there will be stereo sound. When a Dolby Digital decoder is connected, please select "Bitstream" in "Dolby Digital." If "PCM" is selected, there will be stereo sound.

Settings for DVD Operation (continued)

Still Mode (DVD only)

Set to reduce jitter in a displayed still picture or a motion picture.

1 Press ACTION* to display DVD MAIN MENU.

Press ▲▼ to select "STILL MODE," and press SET repeatedly for mode. (See below.)

AUTO: "FIELD" (Field still) or "FRAME" (Frame still) is automatically selected during the still mode. (Factory preset)

FIELD: "FIELD" (Field still) is always selected. This setting will reduce jitter when compared with "AUTO" on some discs.

FRAME: "FRAME" (Frame still) is always selected. Some texts and fine patterns will be seen clearly when compared with "AUTO" on some discs.

3 Press ACTION to exit this mode.

TV Mode (DVD only)

Set the screen display style for wide-screen video material playback.

1 Press ACTION to display DVD MAIN MENU.

Press ▲▼ to select "TV MODE," and press SET repeatedly for mode. (See below.)

4:3 Pan & Scan (Factory preset): Wide-screen video data is played in Pan & Scan style (left and right of screen is trimmed.) • Video data not formatted in Pan & Scan will play in letterbox style.

4:3 Letterbox: Wide-screen video data is played in Letterbox style (top and bottom of screen has black margin).

16:9 : Set "16:9" when using Wide-screen TV.

3 Press ACTION to exit this mode.

Example

- Pan & Scan (Factory preset)

- Letterbox

54

For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

PROGRESSIVE OUT

Sets the Component Video Output Connector (p. 10, 13) to output the Progressive scan signal.

1 Press ACTION to display DVD MAIN MENU.

Press ▲▼ to select "PROGRESSIVE OUT," and press SET repeatedly for mode. (See below.)

OFF: Progressive scan signal is not output.

ON: Progressive scan signal is output from the Component Video Output Connector.

3 Press ACTION to exit this mode.

Notes

• If the television is not progressive compatible, a progressive scan picture is not available. Connect the Video Output or S-Video Output connector (see p. 12, 13) and set PROGRESSIVE OUT to "OFF".
• CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED TO SET PROGRESSIVE OUT TO "OFF". IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p DVD/VCR DECK, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.

Language Code List

Enter the appropriate code number for the initial settings "AUDIO", "SUBTITLE" and/or "MENUS" (see p. 52).

Code	Language	Code	Language	Code	Language	Code	Language
6565	Afar	7079	Faroese	7678	Lingala	8375	Slovak
6566	Abkhazian	7082	French	7679	Laothian	8376	Slovenian
6570	Afrikaans	7089	Frisian	7684	Lithuanian	8377	Samoan
6577	Ameharic	7165	Irish	7686	Latvian, Lettish	8378	Shona
6582	Arabic	7168	Scots Gaelic	7771	Malagasy	8379	Somali
6583	Assamese	7176	Galician	7773	Maori	8381	Albanian
6588	Aymara	7178	Guarani	7775	Macedonian	8382	Serbian
6590	Azerbaijani	7185	Gujarati	7776	Malayalam	8385	Sundanese
6665	Bashkir	7265	Hausa	7778	Mongolian	8386	Swedish
6669	Byelorussian	7273	Hindi	7779	Moldavian	8387	Swahili
6671	Bulgarian	7282	Croatian	7782	Marathi	8465	Tamil
6672	Bihari	7285	Hungarian	7783	Malay	8469	Telugu
6678	Bengali; Bangla	7289	Armenian	7784	Maltese	8471	Tajik
6679	Tibetan	7365	Interlingua	7789	Burmese	8472	Thai
6682	Breton	7378	Indonesian	7865	Nauru	8473	Tigrinya
6765	Catalan	7383	Icelandic	7869	Nepali	8475	Turkmen
6779	Corsican	7384	Italian	7876	Dutch	8476	Tagalog
6783	Czech	7387	Hebrew	7879	Norwegian	8479	Tonga
6789	Welsh	7465	Japanese	7982	Oriya	8482	Turkish
6865	Danish	7473	Yiddish	8065	Panjabi	8484	Tatar
6869	German	7487	Javanese	8076	Polish	8487	Twi
6890	Bhutani	7565	Georgian	8083	Pashto, Pushto	8575	Ukrainian
6976	Greek	7575	Kazakh	8084	Portuguese	8582	Urdu
6978	English	7576	Greenlandic	8185	Quechua	8590	Uzbek
6979	Esperanto	7577	Cambodian	8277	Rhaeto-Romance	8673	Vietnamese
6983	Spanish	7578	Kannada	8279	Romanian	8679	Volapük
6984	Estonian	7579	Korean	8285	Russian	8779	Wolof
6985	Basque	7583	Kashmiri	8365	Sanskrit	8872	Xhosa
7065	Persian	7585	Kurdish	8368	Sindhi	8979	Yoruba
7073	Finnish	7589	Kirghiz	8372	Serbo-Croatian	9072	Chinese
7074	Fiji	7665	Latin	8373	Singhalese	9085	Zulu

Warning and Instruction Displays

These displays will alert you to a missed operation or provide further instructions.

CautionOSD		Page
PLEASE SET CLOCK BY PRESSING ACTION KEY	If you attempt to set or review a Timer Recording and the Clock is not set...	24
PLEASE PREPARE FOR TIMER REC	If the DECK is not in Stop mode, or cassette is not inserted, or cassette has no record tab, or tape is at its end 2 minutes before a Timer Recording is about to begin...	2425
CHECK CASSETTE RECORD TAB	If you press REC on the remote control or DECK, and a cassette is inserted with no record tab...	6
NO CASSETTE	If you press PLAY, FF, REW, or REC on the remote control or DECK without a cassette inserted...	2021
TO CANCEL TIMER REC HOLD DOWN STOP KEY FOR APPROX 3 SEC	If you press STOP or POWER during a Timer Recording...(visible in VCR mode only)	25
VIDEO HEADS MAY NEED CLEANING PLEASE INSERTHEAD CLEANING CASSETTE OR REFER TO MANUAL END : PLAY	If head cleaning becomes necessary while playing back a tape...	4
VCR LOCK ACTIVATED	If you press a function button other than STOP/EJECT or POWER while DECK is in VCR Lock mode...	32
REMOTE CONTROL IS SET TO TV MODE USE VCR : VCR KEY USE DVD : DVD KEY	If you press an invalid key on the remote while in TV mode...	282934
PLEASE CHECK THE DISC, AND FOR STAINS OR SCRATCHES ON DISC	If you press PLAY, and DECK reads data from a stained or scratched disc in DVD mode.	6
THIS DISC MAY NOT BE PLAYED IN YOUR REGION	Playback of a disc with different region number was attempted. Only discs marked region “1”, “ALL”, or those that include “1” are playable on this DECK.	3
THIS TYPE OF DISC CANNOT BE PLAYED. PLEASE INSERT A DIFFERENT DISC	An unusable disc is inserted in the unit, or the disc is not installed with label side up.	6
CANNOT PLAY THIS FILE	This file format cannot be played.(Appears during MP3/JPEG file playback)	49

For Your Information

Before Requesting Service

Check the following points if you are having trouble with your DECK.

Power	Solution
No power...	Completely insert Power Plug into an AC outlet.Press POWER button on.Make sure power source is active.
Power turns itself off...	Auto power-off (shutoff) occurs after about 5 min.in DVD mode with no operation, or if there is nobroadcast signal in TV or Playback mode.Turn the power back on. (pp. 23, 33)
Recording & Playback	Solution
TV program cannot be recorded...	Check connections between DECK, external antenna, and TV.Check channel selections.Make sure your antenna system (CABLE or TV) is correctly set. (Channels [p. 18])Make sure cassette record tab is intact. (p. 6)
Timer recording cannot be performed...	Confirm that clock is set to current time and date.Make sure Cable/DSS box (if used) is left on and tuned to channel to be recorded.Set recording start/stop times correctly. (p. 24)Timer recording may not be performed or continued if a power interruption occurs before or during a Timer Recording, even after power is restored.
There is no playback picture, or the playback picture is noisy or contains streaks...	Select channel 3 or 4 on TV to match VCR output channel (3 or 4) (p. 16) or select LINE.Set VCR/TV selector to "VCR."Adjust TRACKING control in either direction. (p. 4)Try Head Cleaning. (p. 4)
During special effects playback picture may contain some vertical jitter when using a TV with an Automatic Vertical Hold Control...	Set TV's Vertical Hold Control to MANUAL, then adjust.
DECK cannot be controlled...	Make sure DECK power is on.Check Remote batteries.Make sure VCR LOCK is set to off. (p. 32)Make sure Remote is in proper mode. (p. 28)Make sure Timer Recording is not in progress.
Remote Control	Solution
DECK cannot be remote controlled...	Make sure DECK power is on.Make sure Remote is in VCR mode.Aim Remote Control directly at remote sensor on DECK. (p.9)Avoid any object blocking signal path.Check Remote batteries. (p. 4)Exposing DECK remote sensor to direct fluorescent or outdoor light may cause signal interference.
PROG buttons do not respond...	PROG functions are not available in COMPONENT Video Output and S-VIDEO OUT. Set TV to either RF IN or VIDEO IN. (p. 10)Check Remote batteries. (p. 4)Press VCR or DVD button for DVD/VCR mode. (p. 28)

For assistance, please call: 1-800-211-PANA (7262) or contact us via the web at: http://www.panasonic.com/contactinfo

DVD/CD	Solution
Play fails to start even when PLAY is pressed...	This DECK cannot play discs other than DVDs and CDs.The disc may be dirty and require cleaning.
Picture is distorted during rapid advance or rapid reverse...	The picture will be somewhat distorted at times: this is normal.
No Forward/Reverse Scene Search play...	Some discs may have sections which prohibit Forward/Reverse Scene Search. (p. 23)
Audio soundtrack and/or subtitle language is not the one selected at the initial settings...	If the audio soundtrack and/or subtitle language selected at DVD initial settings does not exist on the disc, it will not be accessible.
No subtitles...	Subtitles appear only when available on disc.“OFF” is selected at the changing subtitle language.Select “ON” at the “Subtitle Languages” section (p. 36) to display the subtitles.
Alternative audio soundtrack (or subtitle) language cannot be selected...	Alternative language cannot be selected with discs which do not contain more than one language.For some discs, alternative language cannot be selected with the AUDIO or SUB TITLE button.Try selecting it from the DVD MAIN MENU if available.
Angle cannot be changed...	This function is dependent on software availability.Even if disc has multiple angles, they may be recorded for specific scenes only (ANGLE indicator on DECK lights up). (p. 37)
Miscellaneous	Solution
Programs cannot be viewed on TV...	Make sure TV is tuned to VCR's output channel (3 or 4).Check connections between DECK, external antenna, and TV.Set VCR/TV selector to “TV.” (p. 21)Make sure proper signal source is selected.If the television is not progressive compatible, a progressive scan picture is not available.Connect the Video Output or S-Video Output connector (pp. 12, 13) and set PROGRESSIVE OUT to “OFF” in the DVD Main Menu. (p. 55)
Video cassette cannot be inserted...	Insert the cassette with window side up; record tab facing you.
Video cassette ejects when a recording is started or the power is turned off for timer recording...	Make sure cassette record tab is intact. (p. 6)
In Stop mode, the motor (CYLINDER) continues to rotate...	To enable Quick play mechanism, the cylinder will rotate for about 3 minutes. This reduces response time from Stop to Play mode.
The disc cannot be removed..	First, unplug DECK. Then, prepare a rigid wire (e.g. an extended paper clip) and, applying moderate force, insert it straight into the hole at the base of the tray. The tray will eject a little. Now, pull the tray all the way out and remove the disc. (p. 9)

If you cannot resolve the problem, please call the Customer Call Center for product assistance at 1-800-211-PANA (7262).

To locate an authorized servicenter, please call toll free 1-800-211-PANA (7262) or contact us via the web at: http://www.panasonic.com/contactinfo

Limited Warranty

PANASONIC CONSUMER ELECTRONICS COMPANY,

San Gabriel Industrial Park

Carolina, Puerto Rico 00985

Panasonic DVD/VCR Deck Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively referred to as "the warrantor") will, for the length of the period indicated on the chart below, which starts with the date of original purchase ("Limited Warranty period"), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor.

Product or Part Name	Parts	Labor
DVD/VCR Deck	One (1) Year	Ninety (90) Days
Rechargeable Batteries(in exchange for defective item)	Ten (10) Days	Not Applicable

During the "Labor" Limited Warranty period there will be no charge for labor. During the "Parts" warranty period, there will be no charge for parts. You must mail-in your product during the warranty period. If non-rechargeable batteries are included, they are not warranted. This Limited Warranty only applies to products purchased and serviced in the United States or Puerto Rico. This Limited Warranty is extended only to the original purchaser and only covers product purchased as new. A purchase receipt or other proof of original purchase date is required for Limited Warranty service.

Mail-In Service

For assistance in the continental U.S.A. in obtaining repairs please ship the product to:

Panasonic Services Company

Customer Servicenter

Suite B

4900 George McVay Drive

McAllen, TX 78503

For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax [phone].

When shipping the unit, carefully pack and send it prepaid, adequately insured, and preferably in the original carton. Include a letter detailing the complaint and provide a daytime phone number where you can be reached.

IF REPAIR IS NEEDED DURING THE LIMITED WARRANTY PERIOD, THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID, AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

Limited Warranty Limits And Exclusions

This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, setup adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or commercial use (such as hotel, office, restaurant, or other business), rental use of the product, or service by anyone other than a Factory Servicenter or other Authorized Servicer, or damage that is attributable to acts of God.

60

For assistance, please call: 1-800-211-PANA(7262) or contact us via the web at: http://www.panasonic.com/contactinfo

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY COVERAGE". THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH

OF THIS WARRANTY. (As examples, this excludes damages for lost time, cost of having someone remove or re-install an installed unit if applicable, travel to and from the servicer, loss of or damage to media or images, data or other recorded content. The items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied Limited Warranty lasts, so the exclusions may not apply to you.

This Limited Warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the Limited Warranty period, you may contact your dealer or Servicenter. If the problem is not handled to your satisfaction, then write to the warrantor's Consumer Affairs Department at the addresses listed for the warrantor.

PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.

Customer Services Directory

Obtain Product Information and Operating Assistance; locate your nearest Dealer or Servicenter; purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web Site at:

http://www.panasonic.com/support

or, contact us via the web at:

http://www.panasonic.com/contactinfo

You may also contact us directly at:

1-800-211-PANA (7262),

Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.

For hearing or speech impaired TTY users, TTY : 1-877-833-8855

Accessory Purchases

Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at:

http://www.pasc.panasonic.com

or, send your request by E-mail to:

[e-mail]

You may also contact us directly at:

1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday - Friday 9 am to 8 pm, EST.)

Panasonic Services Company

20421 84th Avenue South.

Kent, WA 98032

(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)

For hearing or speech impaired TTY users, TTY: 1-866-605-1277

Service in Puerto Rico

Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company Factory Servicenter:

FCC Warning: Any unauthorized changes or modifications to this equipment would void the user's authority to operate.

Spanish Quick Use Guide / Guía para rápida consulta

CONNECTIONS/INITIAL SETUP (READY TO PLAY)
