04049 - Irrigation Control Hydro-Rain - Free user manual and instructions
Find the device manual for free 04049 Hydro-Rain in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Irrigation Controller |
| Brand | Hydro-Rain |
| Model | 04049 |
| Dimensions (W x H x D) | 6 x 4 x 2 inches |
| Weight | 1 lb (0.45 kg) |
| Power Supply | 24V AC transformer (included) |
| Number of Zones | 4 |
| Watering Programs | 3 independent programs (A, B, C) |
| Start Times per Program | 4 |
| Maximum Watering Duration | 99 minutes per zone |
| Rain Delay Function | Yes, adjustable 1-7 days |
| Manual Operation | Yes, run single zone or all zones |
| Seasonal Adjustment | Yes, 0-200% |
| Backup Battery | 9V DC (not included) |
| Compatible with Rain Sensor | Yes |
| Indoor/Outdoor Use | Indoor only (mount on wall) |
| Display Type | LCD with backlight |
| Wiring | Common wire and zone wires (24V AC) |
| Warranty | 1 year limited |
| Maintenance | Clean with soft dry cloth; avoid moisture |
| Safety | For indoor use only; keep away from water sources |
| Repairability | Replaceable fuse; contact support for other repairs |
Frequently Asked Questions - 04049 Hydro-Rain
How do I install the Hydro-Rain 04049 irrigation controller?
Mount the controller indoors on a wall near an electrical outlet. Connect the 24V AC transformer to the controller and plug it in. Run wires from the controller to each zone valve; connect the common wire to all valves and the zone wire to the respective terminal. For detailed steps, refer to the installation section of the manual.
How many zones does the 04049 support?
The Hydro-Rain 04049 supports up to 4 zones. Each zone can be independently programmed with its own watering schedule.
What type of transformer is required?
The controller uses a 24V AC transformer (included). Do not use a transformer with a different voltage, as it may damage the unit.

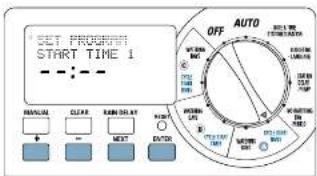

How do I set a watering schedule?
Press the 'Program' button to select program A, B, or C. Then set the start time, duration, and days of the week. Use the arrow keys to adjust values. Confirm by pressing 'Enter'. Up to 4 start times per program can be set.
Can I use a rain sensor with this controller?
Yes, the 04049 is compatible with a rain sensor. Connect the sensor wires to the sensor terminals on the controller. The controller will automatically suspend watering when rain is detected.
How do I manually run a zone?
Press the 'Manual' button. Use the arrow keys to select a zone or choose 'All'. Set the run time and press 'Start'. The controller will water the selected zone(s) immediately.
What happens if the power goes out?
The controller requires a 9V backup battery (not included) to retain programming during a power outage. Without the battery, the clock and schedules will reset, and you will need to re-enter the date, time, and watering programs.
How do I adjust the watering duration for seasonal changes?
Use the Seasonal Adjustment function. Press the 'Seasonal' button, then adjust the percentage (0-200%) using the arrow keys. This will scale all zone run times by that percentage.
Why is the display not showing anything?
Check that the transformer is properly connected and the outlet is working. If using a backup battery, ensure it is fresh and installed correctly. If the display remains blank, the controller may have a blown internal fuse. Contact customer support for replacement.
How do I clean and maintain the controller?
Use a soft, dry cloth to wipe the exterior. Do not use water, solvents, or abrasive cleaners. Keep the controller away from excessive moisture and direct sunlight. Periodically check wiring connections for corrosion or damage.
