USER MANUAL SWS-10D4 ALPINE

15 Inch Dual Voice Coil Subwoofer (4Ω)+(4Ω)

Note: Specifications subject to change without notice

APPLICATION

DIAGRAMS

2 + 2

SWS-10D4/SWS-12D4/SWS-15D4 SWS-10D2/SWS-12D2/SWS-15D2

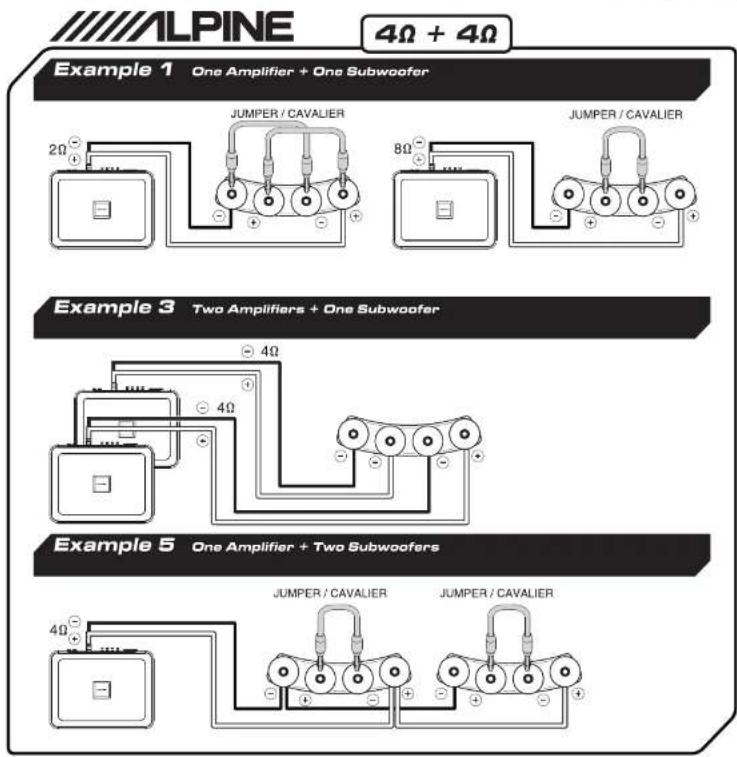

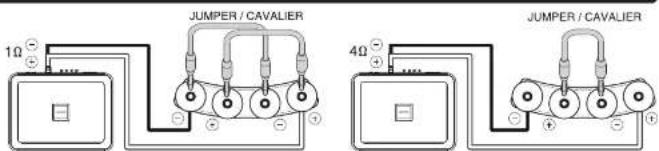

Example 2 One Amplifier + One Subwoofer

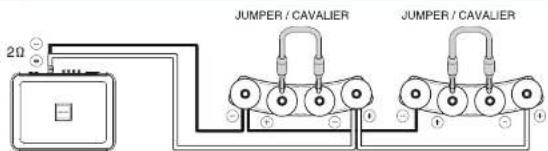

Example 6 One Amplifier and Two Subwoofers

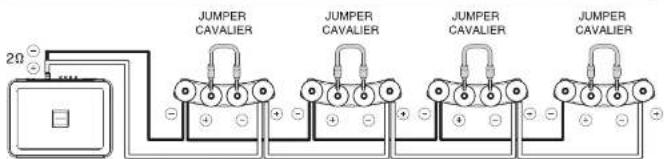

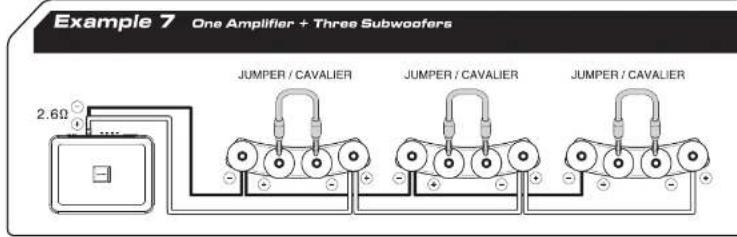

Example 8 One Amplifier + Four Subwoofers

TYPE-S WIRING WORKSHEET CÂBLAGE POUR TYPE-S

		SWS-10D2/D4	SWS-12D2/D4	SWS-15D2/D4
Sealed Box Range	Net Internal Volume	0.5-0.85 ft^3	0.65-1.0 ft^3	1.25-2.0 ft^3
Recommended Sealed Box	External Box Dimensions	12^×12^×10^	14^×14^×11.5^	16^×16^×12.5^
	Gross Internal Volume	0.54 ft^3	0.90 ft^3	1.34 ft^3
	Net internal Volume	0.50 ft^3	0.85 ft^3	1.27 ft^3
	F3, Qtc	D2: 54 Hz, 0.78D4: 54 Hz, 0.73	D2: 47 Hz, 0.96D4: 49 Hz, 0.91	D2: 46 Hz, 0.91D4: 48 Hz, 0.83
Vented Box Range	Net internal Volume	0.75-1.3 ft^3	1.0-1.5 ft^3	2.0-3.0 ft^3
	Tuning	35-39Hz	32-37Hz	28-32Hz
Recommended Vented Box	External Box Dimensions	21.5^×12^×11.5^	22.5^×12.5^×14^	25^×15.5^×17.5^
	Gross Internal Volume	1.22 ft^3	1.67 ft^3	3.05 ft^3
	Vent Area (dimensions)	10in^2 (10^× 1^)	12.5in^2 (12.5^× 1^)	20in^2 (16^× 1.25^)
	Vent length	18^	18^	21^
	Vent Displacement	0.18 ft^3	0.22 ft^3	0.38 ft^3
	Net internal Volume (Vb)	1.0 ft^3	1.4 ft^3	2.6 ft^3
	F3, ripple, Fb	D2: 32Hz, 3.1dB, 38HzD4: 32Hz, 2.5dB, 38Hz	D2: 32Hz, 4.4dB, 36HzD4: 31Hz, 4.1dB, 36Hz	D2: 29Hz, 3.1dB, 31HzD4: 29Hz, 2.6dB, 31Hz

Notes: 1) Recommended enclosure net internal volume is based upon 3/4" (19mm) MDF enclosure construction. 2) Consult the table below for alternative enclosure net internal volume calculation.

Front Mount Displacement* (magnet in)	-0.04 ft3	-0.06 ft3	-0.07 ft3
Reverse Mount Added Volume* (magnet out)	+0.06 ft3	+0.08 ft2	+0.15 ft3

"Based upon 3/4" (19mm) baffle thickness, with opening cut approximately to gasket inner diameter

		SWS-10D2/D4	SWS-12D2/D4	SWS-15D2/D4
Gamme Box Sealed	Net volume interne	0.5-0.85 pi^3	0.65-1.0 pi^3	1.25-2.0 pi^3
recommendedBolte Scellé	Dimensions extérieures	12 po x12 po x10 po	14 po x14 po x11.5 po	16 po x16 po x12.5 po
	Volume intérieur brut	0.54 pi^3	0.90 pi^3	1.34 pi^3
	Volume intérieur Net ***	0.50 pi^3	0.85 pi^3	1.27 pi^3
	F3 Qtc	D2: 54 Hz, 0.78 D4: 54 Hz, 0.73	D2: 47 Hz, 0.96 D4: 49 Hz, 0.91	D2: 46 Hz, 0.91 D4: 48 Hz, 0.83
Gamme chargebass-reflex	Volume net interne	0.75-1.3 pi^3	1.0-1.5 pi^3	2.0-3.0 pi^3
	mise au point	35-39Hz	32-37Hz	28-32Hz
recommendedcharge bass-reflex	Dimensions extérieures	21.5 po x12 po x11.5 po	22.5 po x12.5 po x14 po	25 po x15.5 po x17.5 po
	Volume intérieur brut	1.22 pi^3	1.67 pi^3	3.05 pi^3
	Aire de l'évent (dimensions)	10in^2 (10 po x 1 po)	12.5in^2 (12.5 po x 1 po)	20in^2 (16 po x 1.25 po)
	Longueur de l'évent	18^	18^	21^
	déplacement de l'évent	0.18 pi^3	0.22 pi^3	0.38 pi^3
	Volume intérieur Net (Vb)***	1.0 pi^3	1.4 pi^3	2.6 pi^3
	F3, crête, Fb	D2: 32Hz, 3.1dB, 38Hz D4: 32Hz, 2.5dB, 38Hz	D2: 32Hz, 4.4dB, 36Hz D4: 31Hz, 4.1dB, 36Hz	D2: 29Hz, 3.1dB, 31Hz D4: 29Hz, 2.6dB, 31Hz
