Smart - Chime Zmodo - Free user manual and instructions

Product Type	Smart Chime
Brand	Zmodo
Model	Smart
Color	White
Dimensions (W x H x D)	3.5 x 3.5 x 1.5 inches
Weight	4.2 oz (119 g)
Material	Plastic
Power Source	2 AA batteries (not included)
Battery Life	Up to 6 months (typical usage)
Wireless Range	Up to 300 ft (90 m) open air
Wireless Frequency	2.4 GHz
Compatibility	Zmodo doorbell cameras (e.g., Smart Doorbell)
Number of Ringtones	8 pre-installed
Volume Levels	5 (including silent mode)
LED Indicators	Power status, notification
Operating Temperature	32°F to 104°F (0°C to 40°C)
Main Functions	Doorbell notification, customizable chimes, volume control, low battery alert
Care and Cleaning	Wipe with a soft, dry cloth; avoid liquids
Safety	Low voltage device; no user-serviceable parts inside
Spare Parts	Batteries are standard; contact Zmodo for any replacement
Repairability	Not user-repairable; contact support for issues
Certifications	FCC, CE
Package Contents	Chime unit, user manual, mounting screws, double-sided tape

Frequently Asked Questions - Smart Zmodo

How do I pair the Zmodo Smart Chime with my doorbell?

Press the pairing button on the chime (located on the back) for 3 seconds until the LED blinks blue. Then, press the doorbell button. The chime will emit a confirmation sound. Refer to the Zmodo Smart Doorbell manual for detailed steps.

Why is my chime not ringing?

Check that the batteries are inserted correctly and have sufficient charge. Ensure the chime and doorbell are within range (up to 300 ft). Also verify that the chime is not set to silent mode. If the LED is off, replace the batteries.

How do I change the ringtone?

Press the 'Music' or 'Tune' button on the chime to cycle through the 8 pre-installed ringtones. The chime will play each tone as you scroll. Release to select the desired tone.

How do I adjust the volume?

Press the '+' or '-' buttons on the chime to adjust volume among 5 levels. The chime will beep to indicate the current level. A single beep is lowest, five beeps is highest.

How do I reset the chime to factory settings?

Remove the batteries, press and hold the pairing button for 10 seconds, then reinsert the batteries. The chime will power on with default settings. You will need to re-pair it with your doorbell.

Does the chime work with all Zmodo doorbells?

The Zmodo Smart Chime is compatible with most Zmodo Smart Doorbell models. Check the product specifications for compatibility. It may not work with older or third-party doorbells.

Can I connect multiple chimes to one doorbell?

Yes, you can pair up to 2 chimes with one Zmodo doorbell. Follow the pairing process for each additional chime. Both will ring simultaneously when the doorbell is pressed.

How do I know when the batteries are low?

When batteries are low, the chime will emit a double beep every time the doorbell is pressed, and the LED will flash red. Replace the batteries promptly with new AA alkaline batteries.

What is the wireless range of the chime?

The wireless range is up to 300 ft (90 m) in open air. Walls and obstacles may reduce the range. For best performance, place the chime within 100 ft of the doorbell.

Can I mount the chime on the wall?

Yes, the chime can be mounted using the included screws and wall anchors, or simply placed on a flat surface using the attached stand. Ensure it is within range of the doorbell.

USER MANUAL Smart Zmodo

Simple line drawing of a speaker with concentric circles and two circular holes (no text or symbols)

Congratulations! We are excited to welcome you to the next generation of smart technology. We believe that our products can bring you the best in convenience and security.

Follow the steps below to install and set up the doorbell:

1 Before you begin

You will need a strong WiFi connection near your doorbell.

Make sure that your package includes the smart doorbell, 6 screws and 6 anchors.

Make sure that your wiring is connected to a mechanical doorbell chime and a transformer with a low-voltage of 10VAC-36VAC.

DO NOT directly attach the doorbell to primary power (110/120 VAC and 220/230/240 VAC).

If you do not use a doorbell chime, you MUST use a 20 ohm/10 watt resistor between the smart doorbell and one wire from the power source. Resistor not included in packaging. Failing to do so will cause damage to the smart doorbell and void the warranty.

2

Mounting your doorbell

1 Remove your existing doorbell button. Once you've removed your old doorbell, make sure that the two wires used to connect your doorbell button remain exposed.

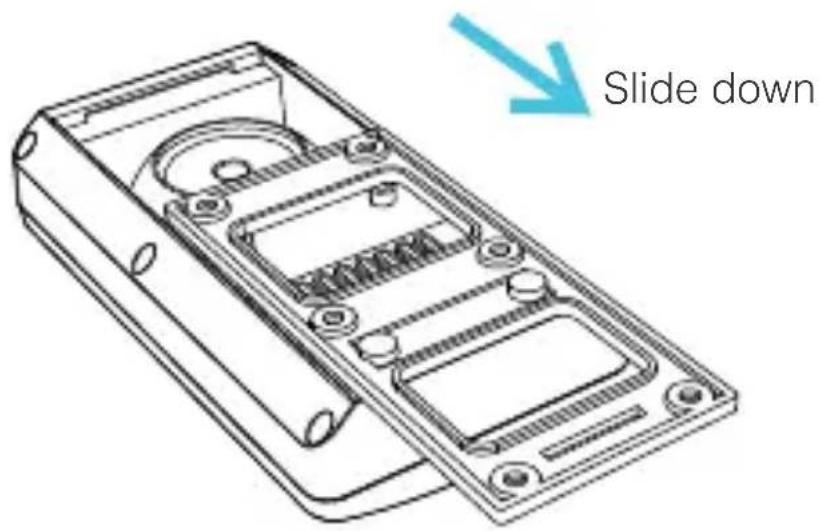

2 Remove the mounting bracket from your Smart Doorbell. Loosen the two screws on the bottom of the doorbell and slide down to remove the mounting bracket.

Line drawing of a mechanical device with two labeled points (X) and a central circular feature, no text or symbols present.

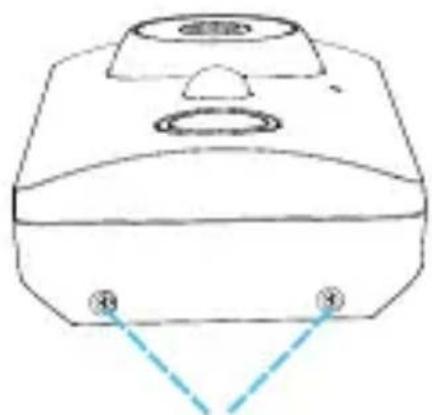

Loosen these two screws

3

Mark and drill the appropriate holes in the wall for the mounting bracket. Line the bracket against the wall where you would like to install the doorbell. Using the bracket as a guide, mark the wall with the six corresponding holes for the screws.

Remove the mounting bracket, and drill six holes slightly smaller than the wall anchors.

Hint: Try using a level to make sure that the mounting bracket is properly aligned.

4

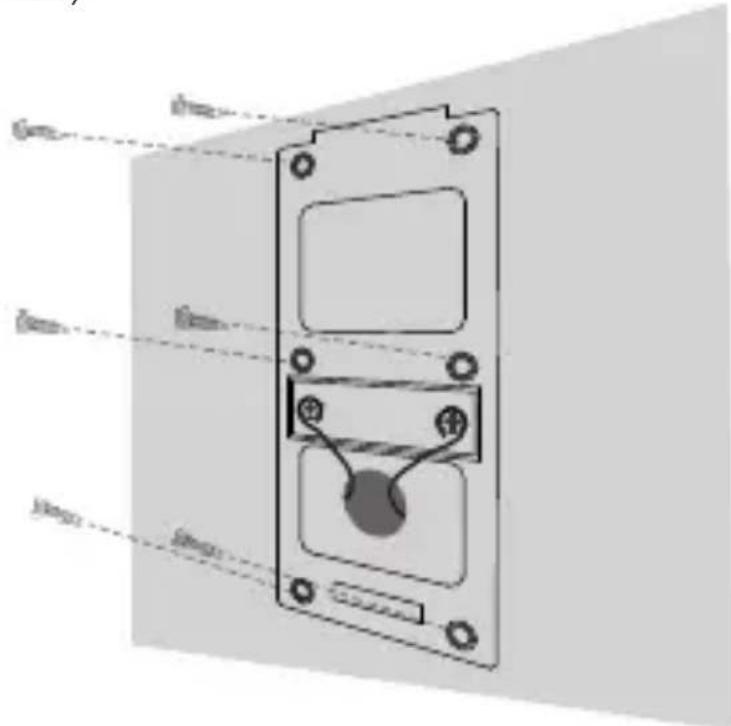

Fasten the mounting bracket onto the wall, and connect the wires to the wire terminals.

Feed the two wires from Step 1 through either one of the large openings in the mounting bracket.

Using the appropriate wall anchors and screws, fasten the mounting bracket onto the wall. Then, fasten the two wires to the terminals on the bracket by tightening the screws (you can fasten the wires to either terminal).

Note: When mounting on brick, concrete or stucco, use the provided screws with anchors. When mounting on wood or vinyl, drill the surface.

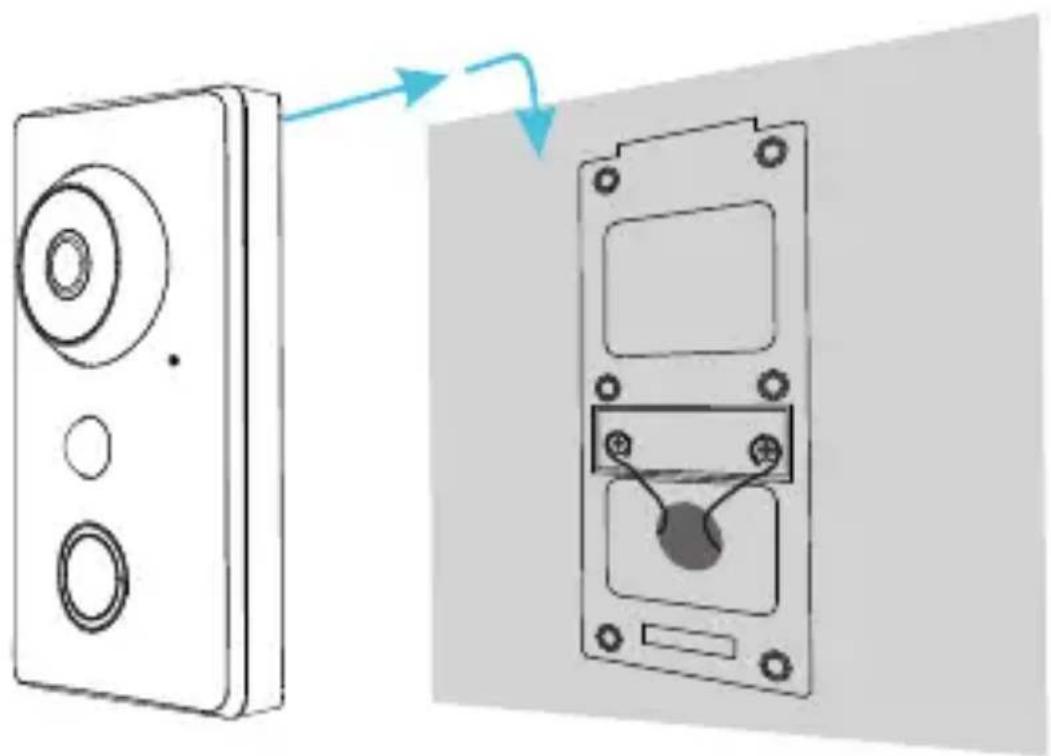

5 Attach the doorbell to the mounting bracket and adjust the camera as needed.

Slide the doorbell onto the mounting bracket, and tighten the two screws on the bottom of the doorbell until secure. Adjust the camera until you have a clear view of your front porch.

Diagram showing a speaker connected to a device panel with a circular button, illustrating the process (no text or symbols present)

3

Configuring your doorbell

Follow the steps below to connect your doorbell to the Internet and set up an account.

System Requirements: iPhone, iPad, iPod touch (v.7.0 or newer) or Android (v.4.0 or newer), password-protected 2.4GHz WiFi network.

1 Download and install the 'MeShare' app from Google Play or the App Store. Launch the app and sign up for a free MeShare account.

2 Log in and press the +Add Device option located on the bottom of the screen. Follow the on-screen instructions to complete your setup!

MeShare Web App

In addition to the mobile app, you can also view live video and recordings from your computer. Just log in to the free web app at user.meshare.com with your MeShare username and password.

MeShare Cloud Service (MCS)

The MeShare Cloud is an optional service that lets you make the most of your smart devices. Some things you can do:

Record continuously and store the footage on our secure cloud servers.
- Create and save video clips from your recordings.
- Access your playback footage and clips from any location with Internet connection.
Share recorded footage and clips with family and friends.

Visit for more www.meshare.com/cloud information on plans and features.

Solid green

The doorbell is powering on.

Blinking green

The doorbell is ready for Smartlink setup.

Solid blue

The doorbell has successfully connected to the WiFi network.

Blinking blue

The doorbell is connecting to the WiFi network. Please do NOT turn off or unplug the device.

Solid red

The doorbell can't connect to the WiFi. Why?

You may have entered the password incorrectly. Try re-entering your WiFi password.

OR

You may not have a working internet connection. Check to see if your router is connected to the Internet. Try resetting your doorbell by pressing the reset pinhole on the bottom of the device, and begin the setup procedure again.

? Having difficulty?

For more instructions, troubleshooting support information, our knowledge base, the community forum, and other resources, please visit: http://www.zmodo.com/supports

Like us on Facebook.com/Zmodo OR Scan the QR-code below

Follow us on Twitter @Zmodo OR Scan the QR-code below
