Renaissance RDW24I - Dishwasher Dacor - Free user manual and instructions
Find the device manual for free Renaissance RDW24I Dacor in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Brand | Dacor |
| Model | Renaissance RDW24I |
| Product Type | Built-in Dishwasher |
| Width | 24 inches (61 cm) |
| Height | 34 - 36 inches (86.4 - 91.4 cm) adjustable |
| Depth | 24 inches (61 cm) |
| Weight | Approximately 95 lbs (43 kg) |
| Electrical Requirements | 120 V, 60 Hz, 15 A |
| Water Supply | Hot water, 120°F (49°C) recommended |
| Place Settings | 14 place settings |
| Noise Level | 44 dBA |
| Wash Cycles | 6 cycles: Heavy, Normal, Light, Rinse, Sanitize, Quick |
| Options | Delay start, Heated dry, Extra rinse, Sanitize |
| Interior Material | Stainless steel |
| Third Rack | Yes, cutlery rack |
| Energy Star Certified | Yes |
| Controls | Electronic touchpad with LCD display |
| Safety Features | Child lock, Flood protection |
| Maintenance | Clean filter monthly, descale as needed |
| Spare Parts Availability | Racks, filters, spray arms, detergent dispenser |
| Warranty | 2 years parts and labor |
Frequently Asked Questions - Renaissance RDW24I Dacor
How do I install the Dacor Renaissance RDW24I dishwasher?
Installation must follow the user manual. Ensure the unit is level, connected to hot water supply, and electrical outlet is grounded. For detailed steps, refer to the installation guide.
What should I do if the dishwasher doesn't start?
Check if the door is closed properly, the child lock is off, the power cord is plugged in, and the circuit breaker is not tripped. Also verify that the water supply is turned on.

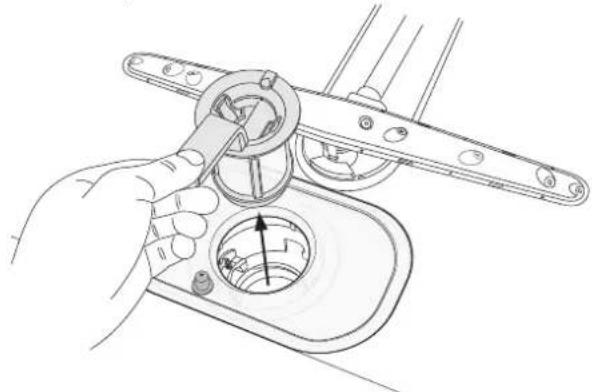

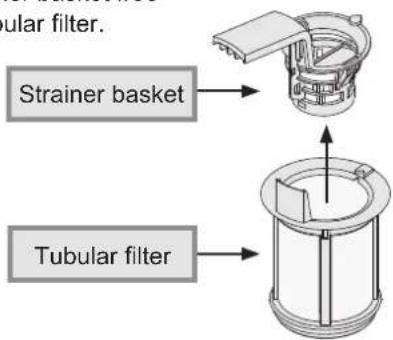

How do I clean the filter?
Remove the lower rack, twist the filter assembly counterclockwise, lift it out, rinse under running water, and replace. Clean the filter monthly for optimal performance.
What does the 'Sanitize' cycle do?
The Sanitize cycle uses high-temperature rinse (155°F/68°C) to kill 99.999% of bacteria. It is USDA-certified for home use.
Can I use regular dish soap?
No, use only automatic dishwasher detergent (powder, gel, or pods). Regular dish soap can cause excessive suds and damage the unit.
Why is there standing water at the bottom?
Check if the filter is clogged, the drain hose is kinked, or the garbage disposal (if connected) is blocked. A small amount of water is normal after a cycle.

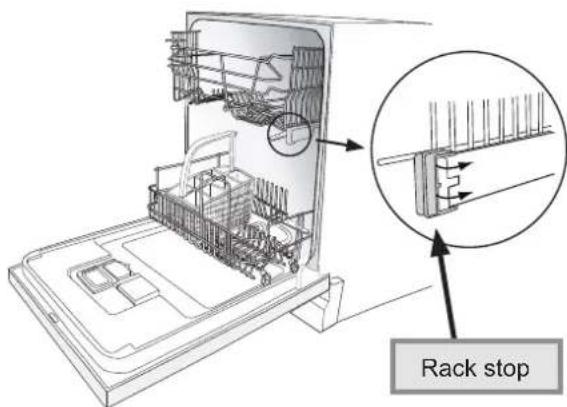

How do I adjust the upper rack height?
Pull the upper rack out fully, press the tabs on the rails, and lift or lower the rack to the desired height. Ensure both sides are at the same level.
What is the noise level?
The Dacor Renaissance RDW24I operates at a 44 dBA level, which is very quiet. You can run it even during sleep hours without disturbance.
How do I enable the child lock?
Press and hold the 'Heated Dry' and 'Delay' buttons simultaneously for 3 seconds until 'CL' appears on the display. Repeat to disable.
Where can I find replacement parts?
Contact Dacor customer service at 1-800-793-0093 or visit dacor.com for authorized parts. Common parts include filters, spray arms, racks, and detergent dispensers.
