Product Type	Stationary Exercise Bike
Model	500BH
Brand	Athletic
Max Width	665 mm
Max Length	1135 mm
Max Height	1450 mm
Package Width	380 mm
Package Height	650 mm
Package Length	900 mm
Net Weight	32.5 kg
Gross Weight	36.6 kg
Power Supply	2 AAA batteries
Display Functions	Time, Speed, Distance, Calories, Total Distance, Pulse Rate
Scan Mode	Auto-rotates functions every 4 seconds
Pulse Measurement	Hand grip sensors, range 40-240 BPM
Auto Shut-off	After 4 minutes of inactivity
Resistance Type	Manual tension control
Intended Use	Residential only
Warranty Period	6 months on structure, painting, motor, monitor, etc.
Cleaning Instructions	Wipe with damp cloth, avoid abrasives and solvents
Safety Precautions	Consult doctor, keep children away, use on flat surface
Spare Parts Availability	Through authorized technical assistance network

Frequently Asked Questions - 500BH Athletic

How do I assemble the Athletic 500BH exercise bike?

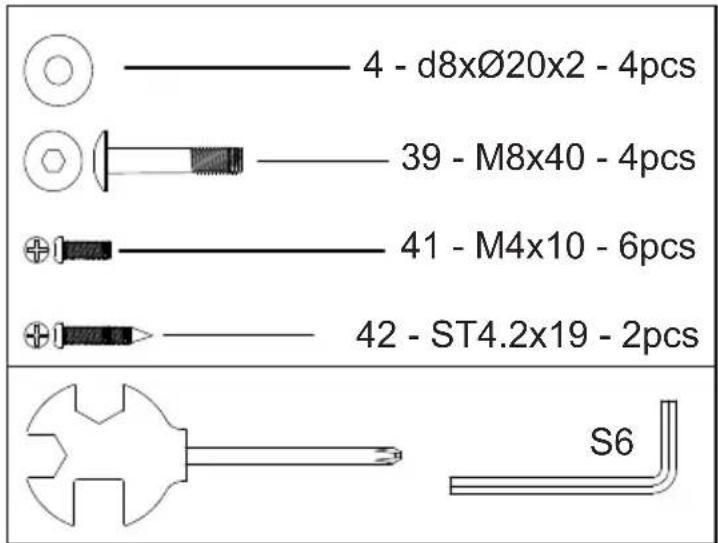

Follow the 7-step assembly instructions in the manual. Use the provided tools (S6, S13, S15) and parts (bolts, washers). Ensure the bike is unpacked on a level surface and assemble near the final location.

What type of batteries does the monitor use?

The monitor requires 2 AAA batteries. Insert them before first use. The total distance resets when batteries are replaced.

How do I clean and maintain the bike?

Use a damp cloth to clean the frame and parts. Never use abrasive cleaners or solvents. Avoid exposure to sunlight, rain, dust, and salt spray. Keep the bike in a dry, ventilated area.

How do I measure my heart rate with the hand grip sensors?

Press the MODE button until the heart symbol appears. Place both palms on the contact pads for 3-4 seconds. The display will show your pulse in BPM. Note that the reading is not medically valid.

What should I do before starting exercise?

Consult your doctor, especially if you have health conditions. Ensure the bike is on a flat surface at least 30 cm away from walls. Wear proper athletic shoes and avoid loose clothing.

How do I adjust the resistance?

Use the tension control knob located on the tower (item 4 in the diagram). Turn clockwise to increase resistance, counterclockwise to decrease.

What is the maximum user weight capacity?

The manual does not specify a maximum weight, but the bike is designed for residential use. Ensure stable operation; if in doubt, contact technical support.

Does the bike have a warranty?

Yes, the warranty covers the structure, painting, motor, monitor, and other parts for 6 months for residential use. The belt and wear items have a 90-day warranty. Warranty is void if used in gyms or commercial settings.

What do I do if the monitor does not turn on?

Check that batteries are installed correctly and have charge. If no signal for 4 minutes, the monitor auto-shuts off. Press any button or move the pedals to wake it. Replace batteries if needed.

Can I use the bike in a commercial gym?

No, the bike is intended for residential use only. Using it in gyms, clubs, clinics, or condominiums voids the warranty and is not recommended.

USER MANUAL 500BH Athletic

Exterior view of a black stationary exercise bike with adjustable arm and seat (no text or symbols visible)

It is with great pleasure that we offer you the opportunity, guidance and encouragement to practice aerobic and muscular exercises, getting like this, the physical preparation needed to feel good.

We guarantee a reliable and modern product, produced with high technology for people who care about their well-being.

This manual covers the main information, the basic structure and the main operation and preventive maintenance. It will help you familiarize yourself with all the equipment functions, for you enjoy it for a long time.

Carefully read the safety and usage guidelines contained herein. Follow the guidelines for correct assembly of the product.

Caution: Do not push any objects into the openings of the product. Stay clear of moving parts.

Safety and security: it is the owner's responsibility to ensure that all users are properly informed about safety precautions, use, maintenance and care of the product.

Please read this manual before using the product and retain it for future reference to avoid the risk of heating, fire, electric shock, or injury.

It is the owner's responsibility to ensure that all users of the equipment are adequately informed of the safety precautions.

If the equipment is not in perfect condition, call a technical assistant.

General Considerations

- Place the bicycle on a flat surface at least 30cm away from any wall, keeping the lower part free from any obstacles.

- Never allow more than one person to use the elliptical at the same time.

- Consult your doctor before starting and during any exercise program. Special attention should be given to children, pregnant women, the elderly, people with heart problems and people with disabilities.

- The values indicated on the monitor are reference points, they cannot be considered with sufficient precision for clinical evaluation.

- Keep away from equipment, children and pets, especially during use and do not insert objects into the holes in the equipment.

- Use suitable sportswear. Do not wear loose clothing that can get caught in the equipment. To exercise, always wear shoes, do not walk barefoot or with sandals.

- This device is not intended to be used by people whose physical or mental capacities are reduced or inexperienced, unless they are supervised by a responsible person.

- Children must be supervised to ensure that they do not play with the appliance.

Observations

A. Manufacturer / Distributor is not responsible for accidents and their consequences arising from the violation of the original characteristics or assembly outside the factory settings of their products.

B. Reseller or Authorized Technical Assistance is authorized to change these Terms or make commitments on behalf of the Manufacturer / Distributor.

C. Customer is responsible for unfounded technical call costs.

NOTE: Figures and photos in this manual are for illustrative purposes only. The Manufacturer / Distributor reserves the right to make changes to the product without prior notice. This manual may illustrate options that are not part of the purchased equipment.

COMPONENTS AND TECHNICAL SPECIFICATIONS

Product Packaged
Net weight (approximate)	32,50 kg	Gross weight	36,60 kg
Maximum width	665 mm	Width (carton box)	380 mm
Maximum length	1135 mm	Height (carton box)	650 mm
Maximum height	1450 mm	Lenght (carton box)	900 mm

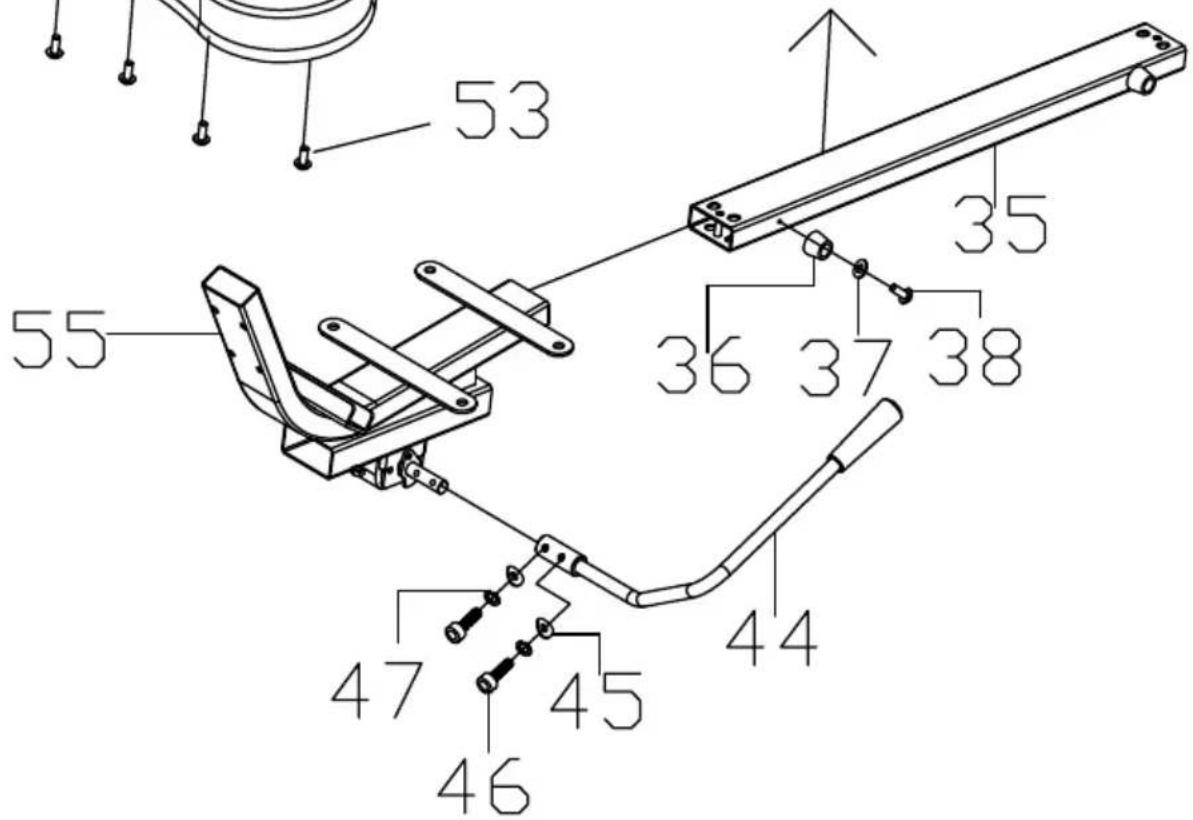

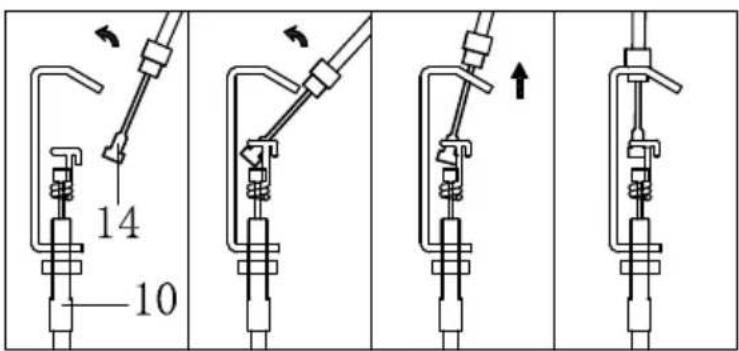

ASSEMBLY

NOTE: Place the packaging with the equipment on a level surface. It is recommended that you place a protective cover for your floor. Exercise caution when you are loading and transporting equipment. Unpack and assemble the equipment where it will be used. If necessary, ask the help of someone else.

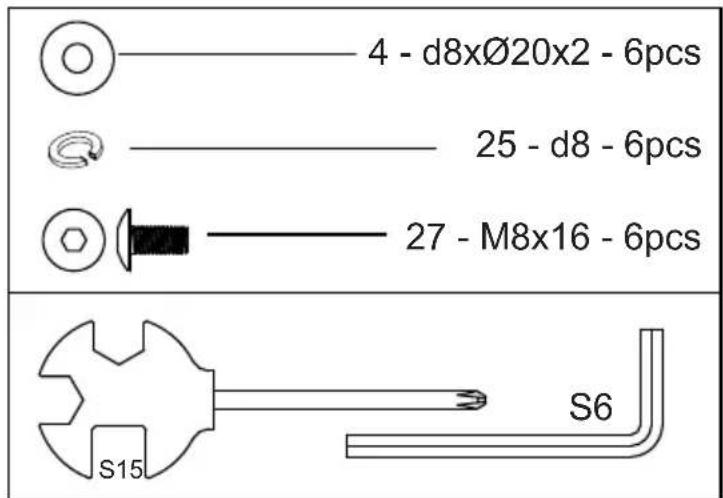

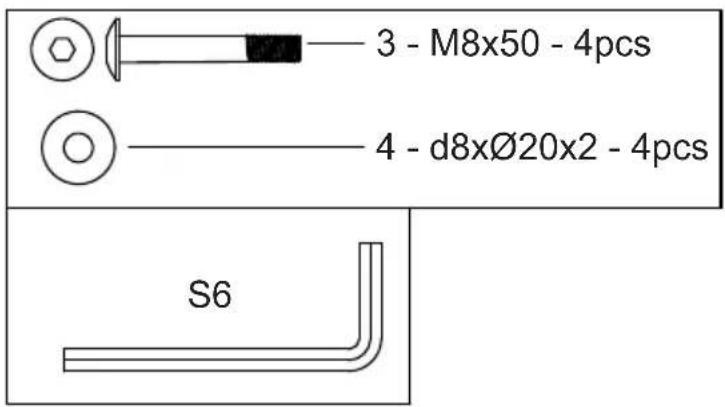

STEP 1

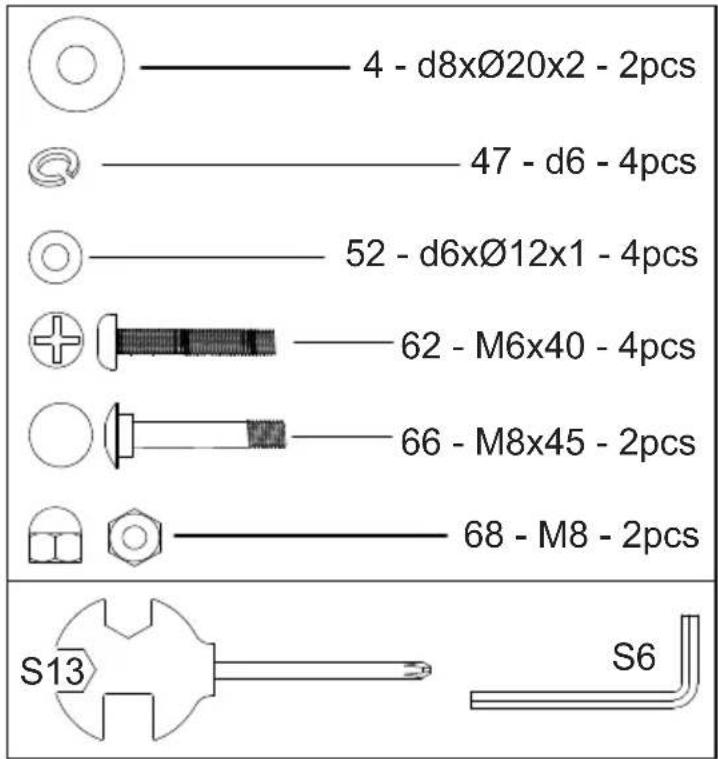

STEP 2

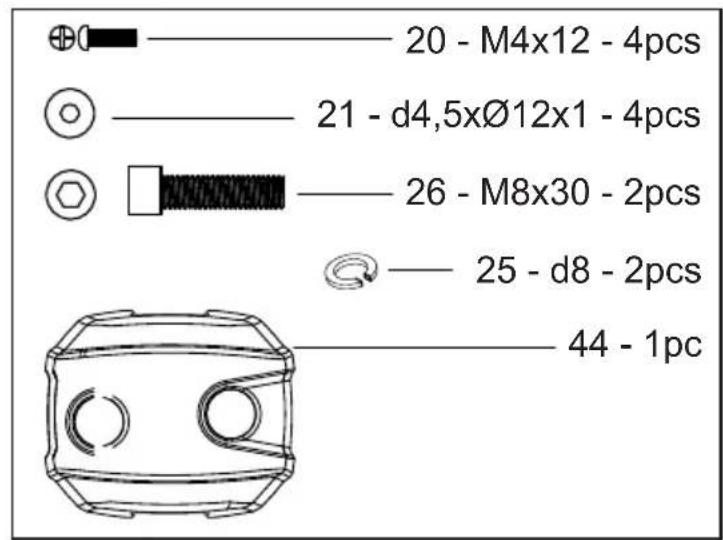

STEP 3

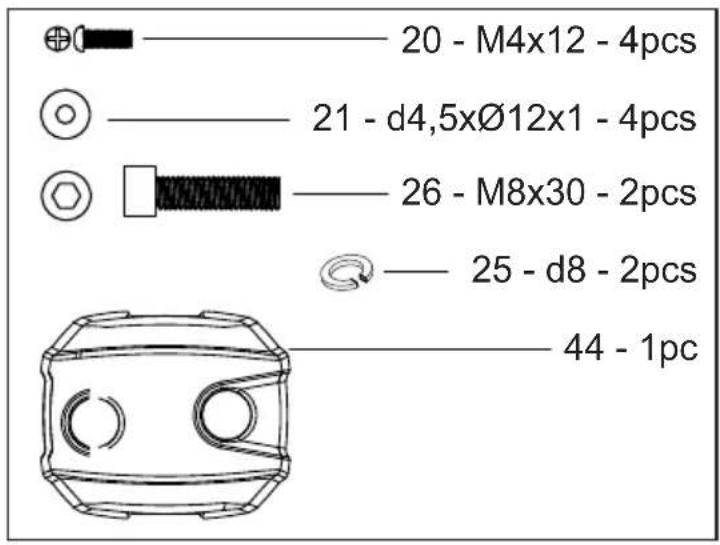

STEP 4

Pure technical line drawing of a tool with a bracket and base, no text or symbols present

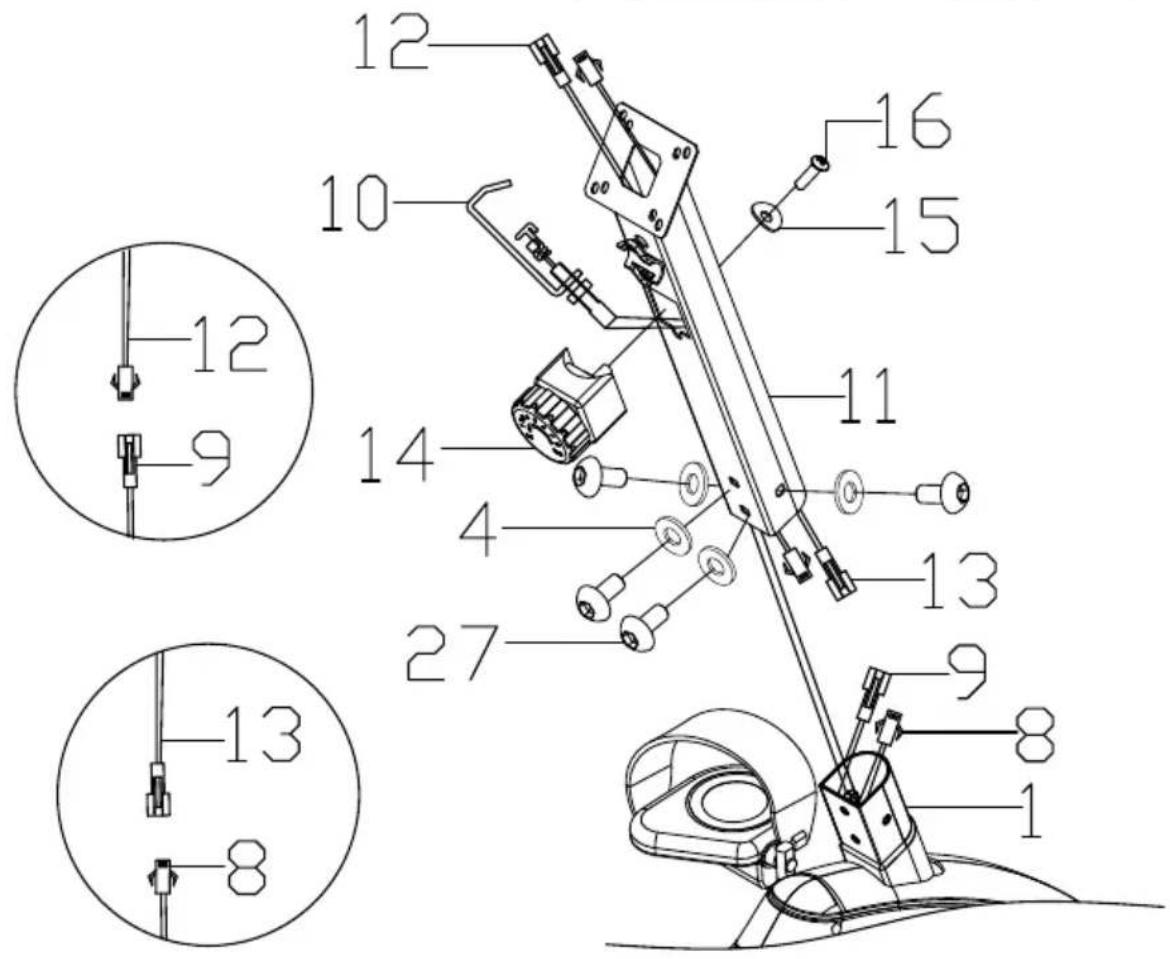

STEP 5

Technical line drawing of a mechanical device with no visible text or symbols

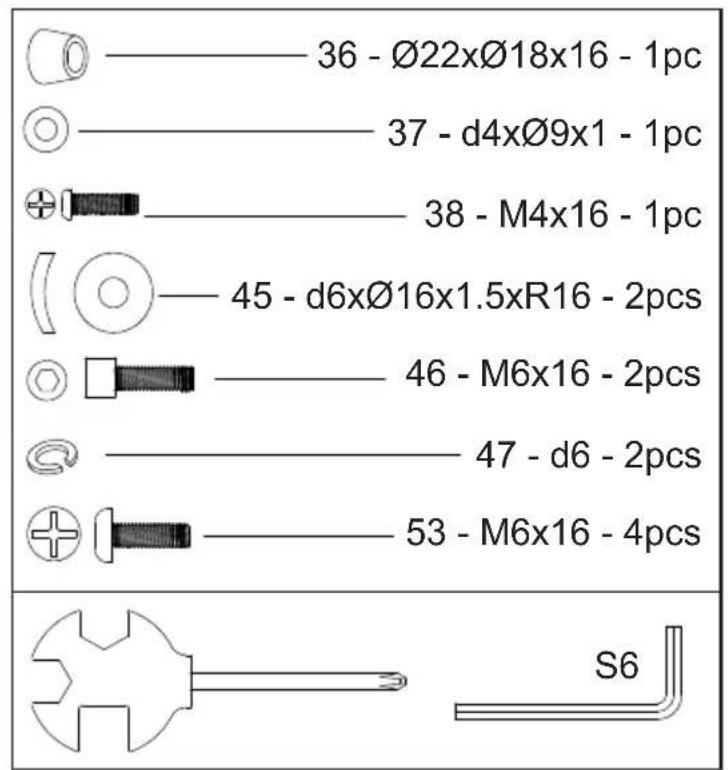

STEP 6

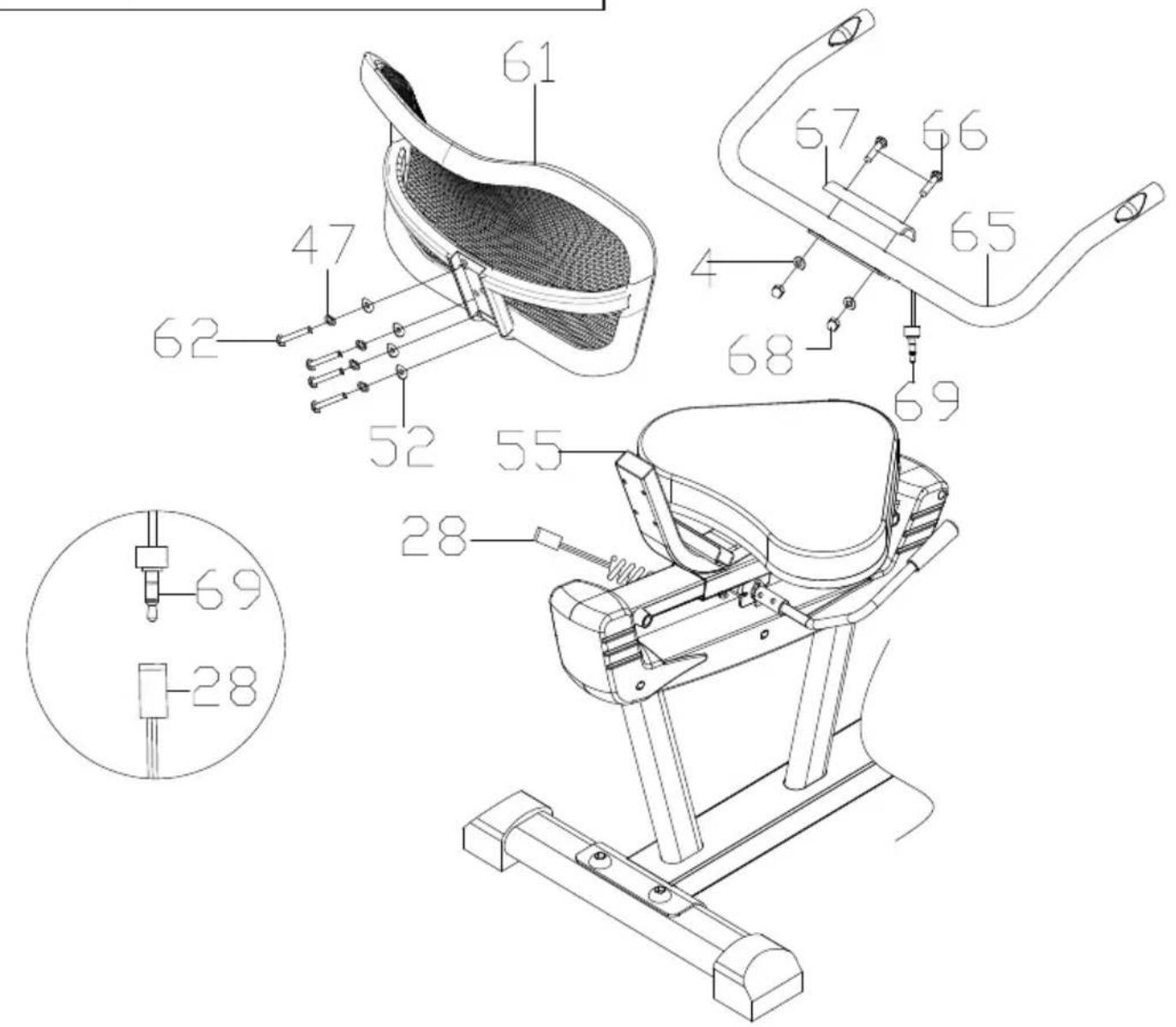

STEP 7

FUNCTIONAL BUTTON:

MODE: Press MODE to select functions.

SET: To set value of time, distance and calories when not in scan mode.

RESET: Press to reset time, distance and calories.

Hold it for 3 seconds to reset time, distance and calories.

FUNCTION AND OPERATIONS:

1. SCAN: Press MODE button until "SCAN" appears, monitor will rotate through the following functions: time, calories, speed, distance and total distance. Each display will be hold 4 seconds.
2. TIME (TMR): Count the total time from exercise.
3. SPEED (SPD): Display current speed.
4. DISTANCE (DST): Count the distance from exercise.
5. CALORIES (CAL): Count the total calories from exercise.
6. TOTAL DISTANCE (ODO): Count the total distance. This value is reset to zero, after installing the batteries.
7. PULSE RATE: Press MODE button until "♥" appears. Before measuring your pulse rate, please place both your palms on the contact pads and the monitor will show your current heart beat rate in beats per minute(BPM) on the LCD after 3\~4 seconds.

Remark: During the process of pulse measurement, because of the contact jamming, the measurement value may be higher than the virtual pulse rate during the first 2\~3 seconds, then it will return to normal level. The measurement value is not valid as a medical information.

1. AUTO ON/OFF & AUTO START/STOP: Without any signal for 4 minutes, the power will turn off automatically.

When return the movement of the product or pressing the button, the monitor turn on again.

1. ALARM: The monitor will sound an alarm for 5 seconds if any value be above than value selected. Press MODE to select the funtions and SET to adjust the value.

SPECIFICATIONS:

FUNCTION	AUTO SCAN	Every 4 seconds
	TIME (TMR)	0:00 ~ 99:59 (minutes:seconds)
	CURRENT SPEED (SPD)	The maximum pick-up signal is 999.9 km/h
	TRIP DISTANCE (DST)	0 ~ 999.99 km
	CALORIES (CAL)	0 ~ 9999 kcal
	TOTAL DISTANCE (ODO)	0 ~ 999.9 km
	PULSE RATE (♥)	40 ~ 240 BPM (beat per minute)
BATTERY TYPE		2pcs AAA
OPERATING TEMPERATURE		0°V ~ +40°C
STORAGE TEMPERATURE		-10°C ~ +60°C

Before you use your equipment make sure it is in good condition. Check the general condition of the equipment, as described in "Safety Information". If the equipment is not in perfect condition, contact an Authorized Technical Assistant.

CLEANING:

• Never use abrasive or solvents for cleaning.
• Do not leave the equipment exposed to natural agents such as sunlight, rain, dew, dust, salt spray etc.
• Do not put the treadmill in dusty environments, wet, saunas or anywhere unventilated.
• Always use original spare parts. Improper maintenance can cause damage to the product and loss of warranty.
• If you prefer, this cleaning can be done by a Technical Assistant (see values).

WARNING: This equipment is designed for residential use. We assume no responsibility when it is used by gyms, clubs, clinics or condos.

A. The warranty procedures will be carried out only upon presentation of the note / original coupon tax of Sale and limitations laid down by these Terms. The guarantee shall be provided by the Authorized Technical Assistance Network.
B. The conditions set out in this Agreement are guaranteed to the first user purchaser of this product for a period of 6 (six) months (including the legal guarantee period - first 90 (ninety) days, counted from the date of issuance of the note / tax Coupon sale, in the event of exclusively residential use.
C. Warranty and coverage terms start to count from the date of issue of the sales invoice / coupon, including the legal term of 90 (ninety) days.

PARTS AND COMPONENTS

Structure	6 months
Painting (oxidation)	6 months
Motor	6 months
Auxiliary plate	6 months
Monitor	6 months
Tilt motor	6 months
Belt	90 days
Platform	6 months
Motor Cover	6 months
Plastic parts and rubber	6 months
Power Cable	6 months
Manpower	6 months

D. Parts repaired or replaced under this warranty does not stop nor extend the warranty period originally stipulated.
E. To be used by this warranty, the equipment must have been installed by authorized technical assistant, except for residential products.
F. Warranty does not cover the installation and preventive maintenance services such as cleaning, lubrication and adjustment of the product.
G. No dealer is authorized to receive client product to refer you local dealer or this take it to return to it and to provide information on behalf of the Manufacturer / Supplier of the progress of the service. The manufacturer / supplier or consumer support are not responsible for any damage or delay due to this non-compliance.
H. The Manufacturer / Supplier keep available spare parts until they cease the manufacture or import the equipment. If it ceased the production or import of equipment Manufacturer / Supplier keep the spare supply its line of equipment for a reasonable period of time, according to the law.
I. Within the period of thirty (30) days if the equipment presents

some malfunction, the customer may choose to take the product to an authorized posts or requesting service in your home without travel expenses in those counties covered by the Network Authorized Service. After the period of thirty (30) days or in municipalities not covered by the Technical Assistance Network Authorized expenses resulting from any transport of the equipment to a freight service, removal or technical visit by technical assistant, occur by the customer, whether or not this equipment covered by this warranty.

J. Lubricants, silicones for treadmills, vaseline to the guide weights and micro oil to the joints of weight stations, should be exclusively recommended by the manufacturer, available at Authorized Technical Assistance Network.
K. Components that wear out with regular use of equipment such as motor brushes, belts, pads, brake bands, felt, steel chains and cables, when this equipment will have warranty for a period of 90 days from the invoice or manufacturing defect found by the Authorized Technical Assistance Network.

Extinction Assurance

This warranty will be considered void when:

A. Expiry of the warranty term.
B. Equipment repaired by a person not authorized by the Manufacturer / Supplier, if signs of violation of its original characteristics or non-factory assembly are found.
C. Damage suffered by the equipment due to improper use, use of inappropriate cleaning products, oxidation from external agents, wear, neglect, modification, use of accessories not recommended, inadequate design for the intended application, falls, perforations, use and opposite installation to the operating instructions, inadequate wiring in the electrical network, lack of grounding in badly sized grids and / or excessive fluctuations and overloads.
D. For residential line is prohibited any type of user equipment maintenance or a third party other than the technical assistance network.
E. The product is used in gyms, condominiums, clinics, clubs, sauna, submerged in water or use so that it resembles other than for residential purpose or the application of the purpose intended.

Comments:

A. cables, carabiners, pedals when existing in the product should be replaced once a year.
B. The Manufacturer / Supplier is not responsible for any accidents and their consequences, arising from breach of the original features or assembly out of their equipment factory default.
C. Customer's responsibility are those resulting from unfounded judged answering calls.

Note: Manufacturer / Supplier reserves the right to make changes without notice this.

PASO 2

PASO 3

PASO 4

Pure technical line drawing of a tool with a bracket and base, no text or symbols present

Technical line drawing of a mechanical device with no visible text or symbols

PASO 6

PASO 7

TECLADOS

PASSO 2

PASSO 3

PASSO 4

Pure technical line drawing of a tool with a bracket and base, no text or symbols present

PASSO 5

Technical line drawing of a mechanical device with no visible text or symbols

PASSO 6

PASSO 7

TECLADO:

www.athleticvisionfitness.com

Health tips, new products and more!

Technical Assistance Network and Customer Service: see website.
