MI-765 - Flat Screen Mount Mount-It! - Free user manual and instructions

Product Type	Counterbalance Monitor Wall Mount
Brand	Mount-It!
Model	MI-765
VESA Compatible Sizes	75x75mm, 100x100mm
Maximum Screen Size	32 inches
Weight Capacity	2-9 kg (4.4-18.8 lbs)
Minimum Weight	2 kg (4.4 lbs)
Maximum Weight	9 kg (18.8 lbs)
Construction	Steel spring arm with decorative covers
Tilt Range	-45° to +90°
Swivel Range	360° rotation, left/right swivel
Wall Mounting	Wood stud or concrete/brick – hardware included
Gas Spring Adjustment	Yes, for weight balancing
Cable Management	Removable covers with internal routing
Included Hardware	Spring arm, decorative covers, hex wrench, M4×12, M5×12, D5 washers, lag screws (ST6.3x55), concrete anchors (∅10×45)
Safety Notes	Use with products heavier than rated may cause instability; install per instructions; professionals recommended; indoor use only; small parts choking hazard
Usage Environment	Indoor only
Warranty & Support	US-based customer service, phone Mon-Fri 8am-4pm PST, email [e-mail], phone [phone]

Frequently Asked Questions - MI-765 Mount-It!

What is the maximum TV size and weight this mount supports?

The Mount-It! MI-765 supports TVs up to 32 inches and a weight range of 2 to 9 kg (4.4 to 18.8 lbs).

What VESA patterns are compatible?

This mount is compatible with VESA patterns 75x75mm and 100x100mm.

Can I install this mount on a concrete or brick wall?

Yes. For concrete/brick walls, use a 3/8" drill bit, insert the provided concrete anchors, and secure with lag screws. Follow Step 1b in the manual.

How do I adjust the gas spring tension for my TV weight?

Push the arm down, then use the hex wrench to turn the adjustment nut: counterclockwise toward + for heavier TVs, clockwise toward - for lighter TVs. Adjust until the arm stays horizontal when released.

What tools are needed for installation?

You will need a stud finder, bubble level, pencil, drill with 3/16" bit (wood stud) or 3/8" bit (concrete), and the included hex wrench. Safety gear like goggles is recommended.

How do I route cables through the arm?

Remove the cable management covers with the hex wrench, run the cables under the covers entering/exiting through the indentations, then reattach the covers.

What is the tilt and swivel range?

The mount offers -45° to +90° tilt, 360° rotation, and left/right swivel at each joint. Adjust and tighten the screws with the hex wrench.

Can I use this mount outdoors?

No. This product is intended for indoor use only. Using it outdoors may cause product failure or personal injury.

What do I do if parts are missing?

Call customer service at [phone] (Monday-Friday, 8am-4pm PST) and they will ship replacement parts free of charge.

How do I register the product or get warranty information?

Visit www.mount-it.com for product registration and warranty details. You can also chat live with an agent on the website or email [e-mail].

USER MANUAL MI-765 Mount-It!

Technical line drawing of a mechanical linkage assembly with a QR code on the right (no text or symbols on the diagram itself)

Please scan this QR code to visit the product page.

COUNTERBALANCE MONITOR WALL MOUNT

HAVE QUESTIONS?

Monday - Friday from 8:00am - 4:00pm PST

[e-mail]

[phone]

www.mount-it.com

Thank you for choosing Mount-It!

EN Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact K'ou: If for assistance

CAUTION: Use with products heavier than the rated weights indicated may result in instability causing possible injury. - Mouts must be attached as specified in assembly instructions. In proper installation may result in margins or serious personal injury
- Safety gear and proper tools must be used. This product should only be installed by professionals.
- Make sure that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.
- Use the mounting screws provided and DO NOT OVER THURCH mounting screens - This product contains small items that could be a rhoking hazard of playground. Keep
- This product contains small items that could be a smoking hazard if tobacco, long smoke or meat allergy from children. - This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury
IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, telephone

R'out: [1] for a replacement.

HETURINATE: Anguense in the eye, interdural incision and vision, visual motion of ventricular or contrastive perineal movement, of the aperture of no perineal, x-ray diffusals, contrastive on the surface.

www.tertiy.com, we expect our 2016 year's growth and the 2017 year's growth in the U.S. market (U.S. market data).

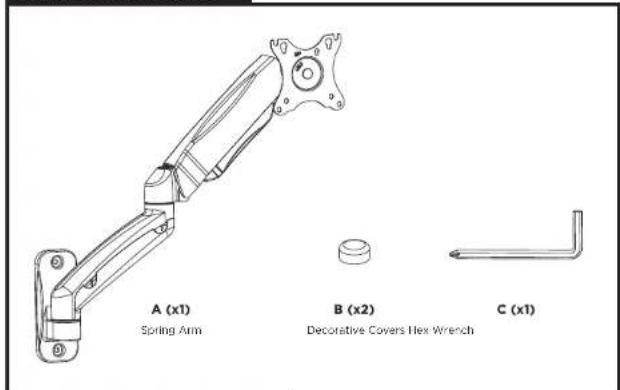

PACKAGE CONTENTS

MONITOR MOUNTING HARDWARE

M-A (x4) M4×12

M-B (x4) M5×12

M-C (x4) D5

WALL MOUNTING HARDWARE

W-A (x2) ST6.3x55 Lag Screw Concrete Anchor

W-B (x2) ∅10×45

Missing Parts? Call us at [phone] and we will ship replacement parts free of charge.

Step 1a

Wood Stud Mounting Option

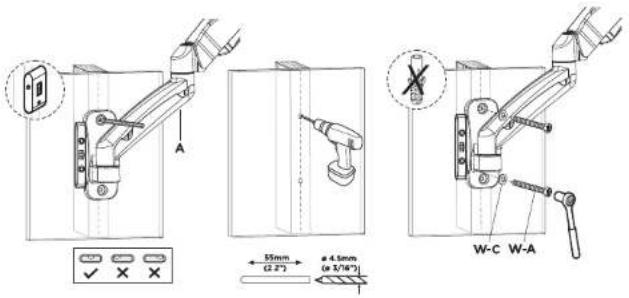

- With a stud finder locate the stud and center the mount on the stud at the desired height. Using a bubble level to ensure straightness mark the center of the mounting holes with a pencil. - Use a 3/16" drill bit and drill on the marked locations to a depth of 2.2". Secure the Spring Arm (#A) to the wall using Lag Screw(#W-A) and Washer (#W-C). Tighten the screws until secure.

Step 1b

Concrete/Brick Mounting Option

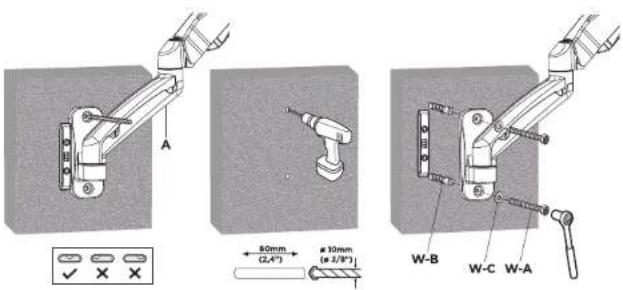

- Using a bubble level to ensure straightness hold the Spring Arm (#A) to the desired location on the wall and mark the center of the mounting holes with a pencil. - Use a 3/8" drill bit and drill on the marked locations to a depth of 2.4". Clear any dust and debris from the holes and insert the Concrete Anchors (#W-B). Secure the Spring Arm (#A) to the wall using Lag Bolt (#W-A) and Washer (#W-C). Tighten the screws until secure.

Step 2

Insert Decorative Covers

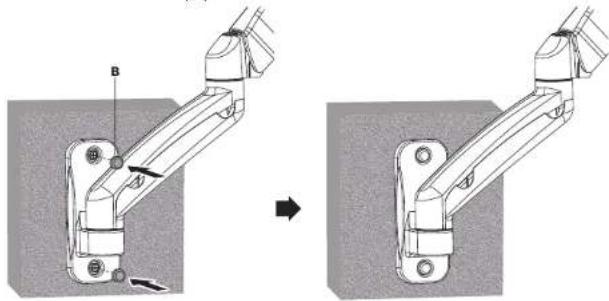

- Insert the Decorative Covers (#B) into each of the bolt holes.

Mechanical assembly diagram showing a lever mechanism before and after assembly, with no visible text or symbols

Step 3

Attaching the Monitor

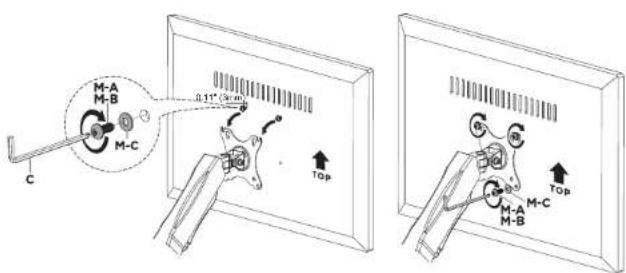

- Select the appropriate size mounting bolt (#M-A, M-B) for your display's mounting holes and verify the length of the VESA bolt is not too long. If you are unsure of the correct bolt size for your display refer to your TV user manual or contact the TV manufacturer for sizing information. - After selecting the appropriate bolt install the top two bolts and washers (#M-C) to the monitor leaving a gap of approximately 0.11" (3mm). Hang the monitor onto the top of the VESA plate as shown. - Install the lower two bolts and washers (#M-C) through the lower holes. Tighten all 4 bolts until secure, do not overtighten.

Step 4

Weight Balancing the Gas Spring Arm

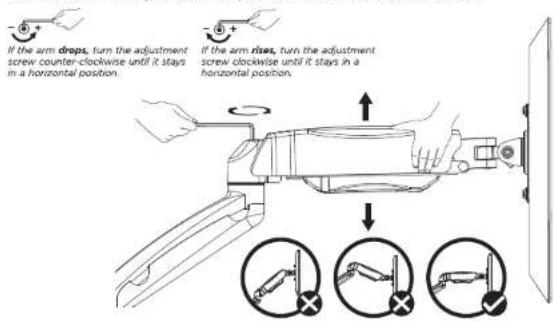

- Gas Spring tension may need to be adjusted to suit the weight of the monitors. To weight balance the gas spring arm, begin by pushing the arm down to the lowered position. Then use Hex Wrench C to adjust the nut as pictured above, turning counterclockwise toward the + (plus) sign for heavier monitors, increasing the tension and clockwise toward the - (minus) sign for lighter monitors, lowering the tension. Adjust until the arm does not raise back to the highest position or likewise sink to the lowest position when released. This might require multiple rotations to reach the desired tension.

Step 5

Removing Cable Management Covers

• To remove the lower cable management cover, remove the bolt using Hex Wrench (#C) and pull the cover away from the arm.
• To remove the upper cable management cover, remove the bolt using Hex Wrench (#C) and pinch the cover in the location shown and pull the cover away from the arm.

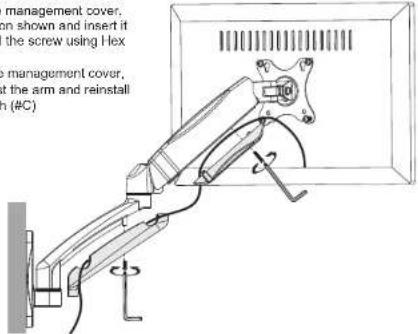

• Once the cable management covers are removed, run the monitor cable beneath the covers, entering and exiting through the indentations shown here.
  • To replace the lower cable management cover, pinch the cover in the location shown and insert it back onto the arm. Reinstall the screw using Hex Wrench (#C).
  • To replace the upper cable management cover, press the cover back against the arm and reinstall the screw using Hex Wrench (#C)

Step 6

Final Adjustments

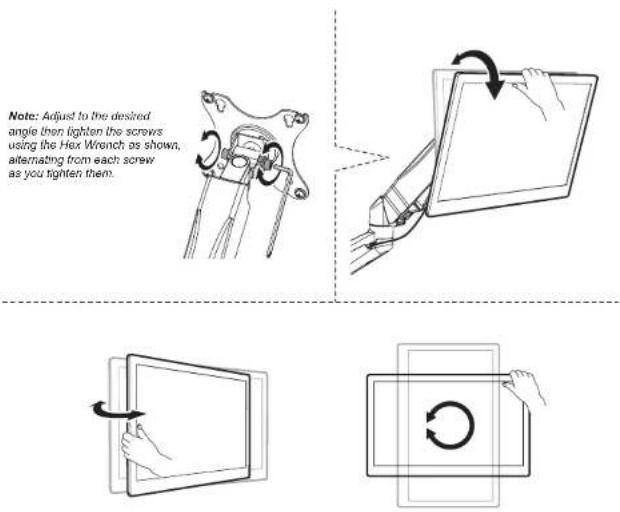

- The viewing angle can be adjusted in the range of -45° to +90°, and the screen can be rotated 360°. Each joint can swivel left or right for alternate viewing angles.

Visit us at www.mount-it.com for product registration and warranty information.

Our US based customer service team is standing by to answer any questions you have about your Mount-It! product.

Available by phone Monday - Friday from 8:00am to 4:00pm PST.

Chat live with an agent on our website!

[e-mail]

[phone]

www.mount-it.com
