Product Type	2-in-1 Convertible Tablet/Laptop
Model	Dell Inspiron 13 7368
Display Size	13.3 inches
Display Resolution	1920 x 1080 (Full HD)
Touchscreen	Yes, with multi-touch support
Processor	Intel Core i5-6200U (6th Gen) or i7-6500U
RAM	8 GB DDR4 (soldered)
Storage	256 GB SSD (M.2 SATA)
Operating System	Windows 10 Home
Dimensions (W x D x H)	324 x 224 x 18 mm
Weight	1.6 kg
Battery	3-cell, 42 Wh
Battery Life	Up to 8 hours
Power Adapter	45 W AC adapter
Ports	USB 3.0 (x2), HDMI, USB-C, SD card reader, Headphone/mic combo
Camera	720p HD webcam with dual digital microphones
Stylus Support	Active pen supported (sold separately)
Connectivity	Wi-Fi 802.11ac, Bluetooth 4.2
Speakers	Stereo speakers with Waves MaxxAudio Pro
Cleaning	Wipe with a soft, dry cloth; avoid liquids
Safety	Use only Dell-approved chargers; avoid extreme temperatures
Spare Parts Availability	Battery, keyboard, touchpad, screen replacement via Dell service
Reparability	Moderate; RAM is soldered, SSD is replaceable
General Information	Released 2016, silver color, magnesium alloy chassis

Frequently Asked Questions - Inspiron 13 7368 DELL

How do I factory reset my Dell Inspiron 13 7368?

To factory reset, go to Settings > Update & Security > Recovery and choose 'Reset this PC'. You can keep or remove your files.

Does the Inspiron 13 7368 support a stylus?

Yes, it supports an active stylus (sold separately) like the Dell Active Pen. It works on the touchscreen.

How can I replace the battery?

The battery is not user-replaceable. Contact Dell support or an authorized technician for replacement. It is located inside the chassis.

What are the dimensions and weight?

The device measures 324 x 224 x 18 mm and weighs approximately 1.6 kg.

Can I upgrade the RAM?

No, the RAM is soldered onto the motherboard and cannot be upgraded. It comes with 8 GB DDR4.

How to clean the screen?

Turn off the device. Use a soft, lint-free cloth slightly dampened with water (or a screen cleaner). Do not spray directly.

What ports does the Inspiron 13 7368 have?

It has two USB 3.0, one HDMI, one USB-C, an SD card reader, and a headphone/mic combo jack.

Why is my touchscreen not working?

Try restarting the device. If the issue persists, check for driver updates in Device Manager under 'Human Interface Devices'. Reinstall the touch driver if needed.

How to enter BIOS?

Press F2 repeatedly during boot. For boot menu, press F12. You can adjust settings like boot order, security, and power management.

Does it support Windows 11?

Officially, the Inspiron 13 7368 is not supported for Windows 11 due to processor generation. However, you can manually install it with potential driver issues.

USER MANUAL Inspiron 13 7368 DELL

Setup and Specifications

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

© 2016 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies.

2016-05

Rev. A01

Contents

Set up your computer.... 5

Views......8

Front....8

Left....8

Right....9

Base....10

Display....11

Modes....12

Notebook....12

Tablet....12

Stand....12

Tent....13

Specifications.... 14

Dimensions and weight....14

System information....14

Memory....14

Ports and connectors....15

Communications....15

Video....15

Audio....16

Storage....16

Media-card reader....16

Keyboard....16

Camera....17

Touch pad....17

Power adapter....17

Battery....18

Display....18

Computer environment....19

Keyboard shortcuts....20

Getting help and contacting Dell....22

Self-help resources....22

Contacting Dell....22

Set up your computer

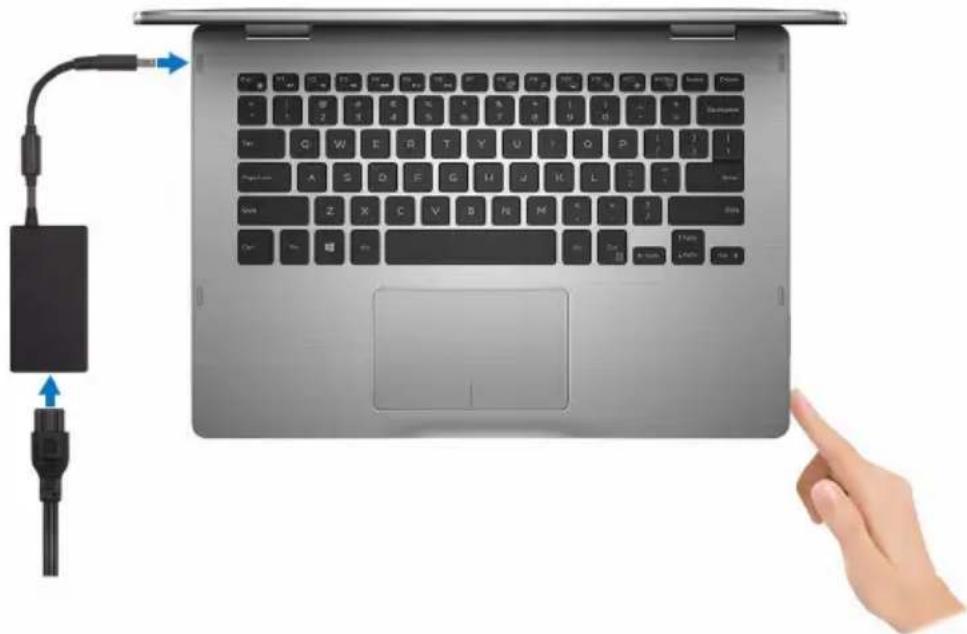

1 Connect the power adapter and press the power button.

Laptop keyboard with attached cable and connector, showing a hand pointing at the right (no text or symbols visible)

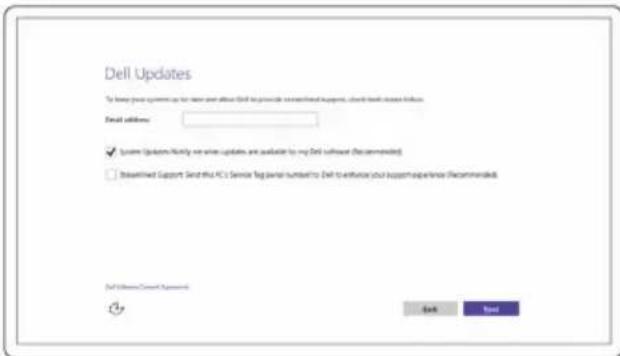

2 Follow the instructions on the screen to finish Windows setup:

a) Enable security and Dell updates.

b) Connect to a wireless network.

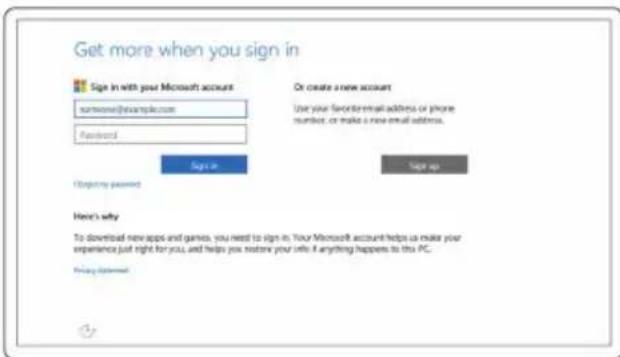

c) Sign-in to your Microsoft account or create a new account.

3 Explore Dell resources on your desktop.

Register your computer

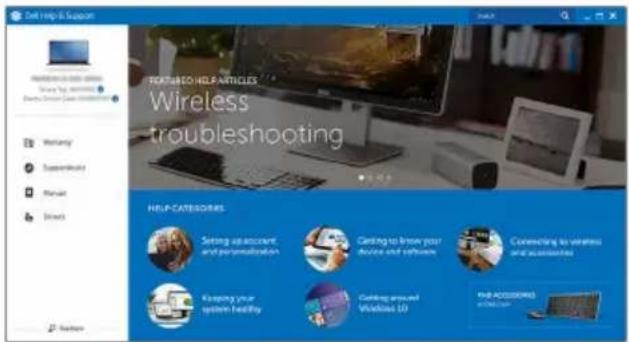

Dell Help & Support

SupportAssist — Check and update your computer

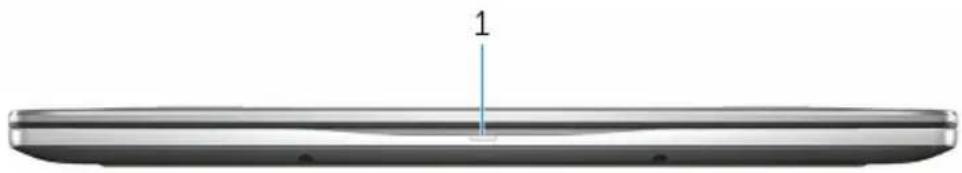

Front

Illustration of a flat electronic device with a vertical line labeled '1' indicating a dimension (no text or symbols on the device itself)

1 Power and battery-status light/hard-drive activity light

Indicates the battery-charge status or the hard-drive activity.

NOTE: Press Fn+H to toggle this light between power and battery-status light and hard-drive activity light.

Hard-drive activity light

Turns on when the computer reads from or writes to the hard drive.

Power and battery-status light

Indicates the power and battery-charge status.

Solid white — Power adapter is connected and the battery has more than 5% charge.

Amber — Computer is running on battery and the battery has less than 5% charge.

Off

- Power adapter is connected and the battery is fully charged.

- Computer is running on battery and the battery has more than 5% charge.

- Computer is in sleep state, hibernation, or turned off

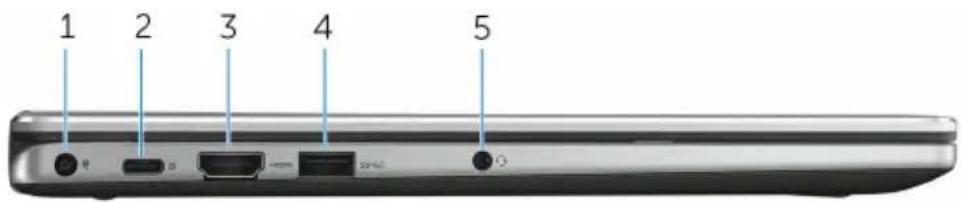

Left

1 Power-adapter port

Connect a power adapter to provide power to your computer and charge the battery.

2 USB Type-C port

Connect peripherals such as external storage devices, printers, external displays, and so on. Provides data transfer speeds up to 5 Gbps.

Supports Power Delivery that allows two-way power supply between devices. Provides up to 15 W power output that enables faster charging.

NOTE: Adapters (sold separately) are required to connect standard USB and DisplayPort devices.

3 HDMI port

Connect a TV or another HDMI-in enabled device. Provides video and audio output.

4 USB 3.0 port with PowerShare

Connect peripherals such as storage devices, printers, and so on.

Provides data transfer speeds up to 5 Gbps.

PowerShare allows you to charge your USB devices even when your computer is turned off.

NOTE: If your computer is powered off or in hibernate state, you must connect the power adapter to charge your devices using the PowerShare port. You must enable this feature in the BIOS setup program.

NOTE: Certain USB devices may not charge when the computer is powered off or in sleep state. In such cases, turn on the computer to charge the device.

5 Headset port

Connect a headphone, a microphone, or a headset (headphone and microphone combo).

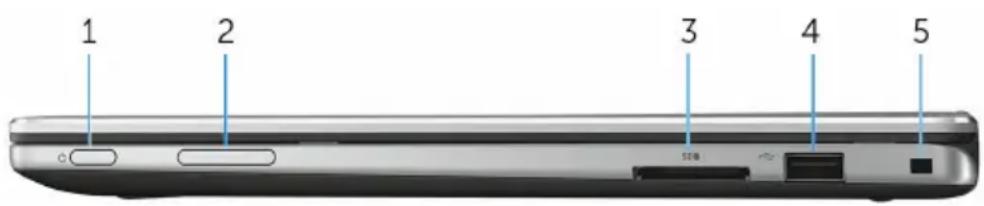

Right

1 Power button

Press to turn on the computer if it is turned off or in sleep state.

Press to put the computer in sleep state if it is turned on.

Press and hold for 4 seconds to force shut-down the computer.

NOTE: You can customize the power-button behavior in Power Options. For more information, see Me and My Dell at www.dell.com/support/manuals.

2 Volume-control buttons

Press to increase or decrease the volume.

3 Media-card reader

Reads from and writes to media cards.

4 USB 2.0 port

Connect peripherals such as storage devices, printers, and so on. Provides data transfer speeds up to 480 Mbps.

5 Security-cable slot

Connect a security cable to prevent unauthorized movement of your computer.

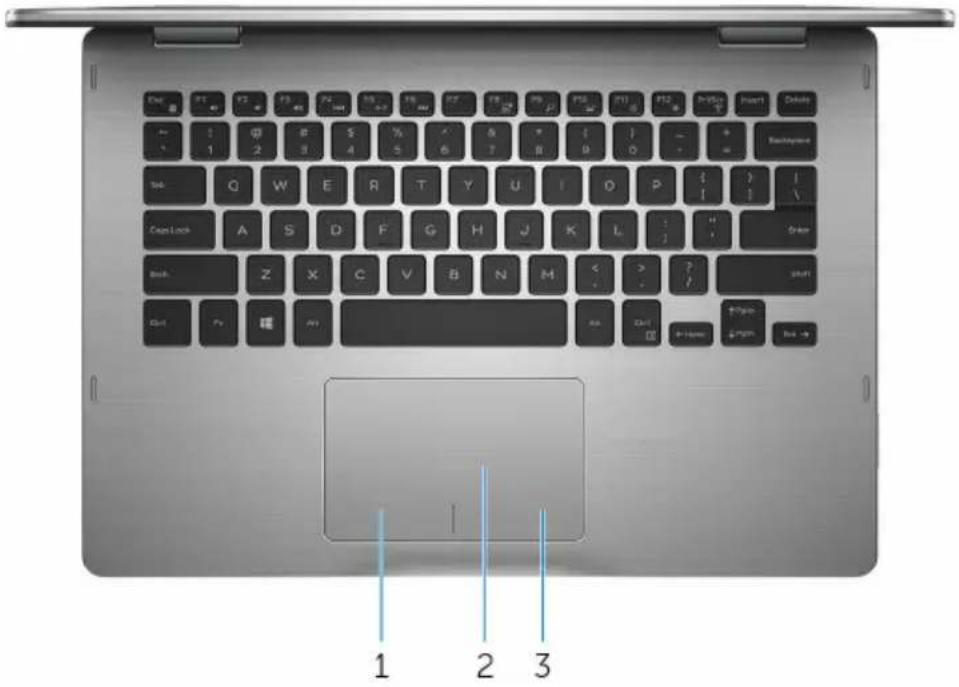

Base

1 Left-click area

Press to left-click.

2 Touch pad

Move your finger on the touch pad to move the mouse pointer. Tap to left-click and two finger tap to right-click.

3 Right-click area

Press to right-click.

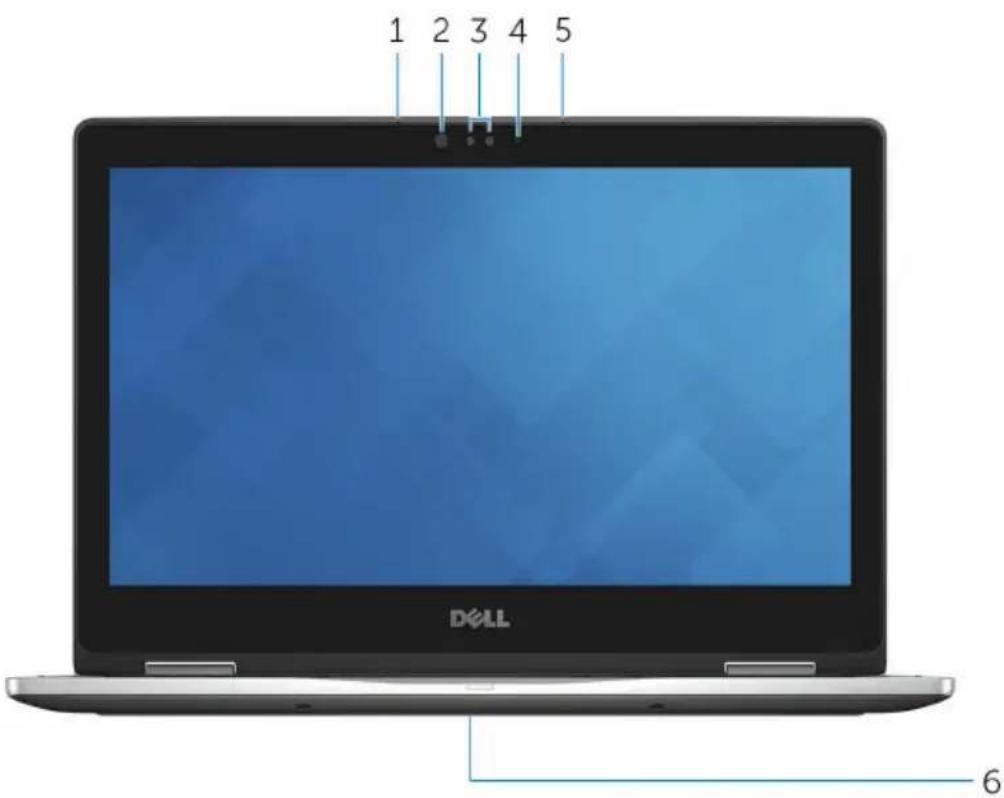

Display

1 Left microphone

Provides digital sound input for audio recording, voice calls, and so on.

2 Infrared emitter

Emits infrared light, which allows the infrared camera to sense depth and track motion.

3 Infrared camera

Allows you to video chat, capture photos, and record videos. Depth-sensing feature of the camera enhances security when paired with Windows Hello.

4 Camera-status light

Turns on when the camera is in use.

5 Right microphone

Provides digital sound input for audio recording, voice calls, and so on.

6 Service tag location

The service tag is a unique alphanumeric identifier that allows Dell service technicians to identify the hardware components in your computer and access warranty information.

Modes

Notebook

Black laptop with a blue screen and 'DALL' branding on the front (no additional text or symbols visible)

Tablet

Exterior view of a modern laptop with a blue screen and silver bezel (no visible text or symbols)

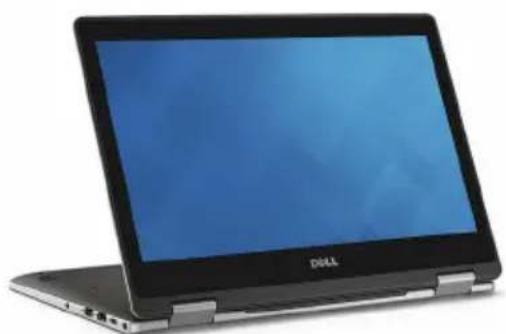

Stand

Laptop with a blank blue screen and 'DILL' branding on the front panel (no additional text or symbols visible)

Tent

Exterior view of a black and white electronic device with a blue screen (no visible text or symbols)

Dimensions and weight

Height 18.70 mm (0.74 in)

Width 322.40 mm (12.69 in)

Depth 224 mm (8.82 in)

Weight (maximum) 1.65 kg (3.64 lb)

NOTE: The weight of your computer varies depending on the configuration ordered and the manufacturing variability.

System information

Computer model

Processor

Inspiron 13-7368

• 6th Generation Intel Core i3/i5/i7
  • Intel Celeron Dual Core
  • Intel Pentium Dual Core

Chipset Integrated in the processor

Memory

Slots

Two SODIMM slots

Type Dual-channel DDR4

Speed 2133 MHz

Configurations supported 4 GB, 8 GB, 12 GB, and 16 GB

Ports and connectors

External:

USB	One USB Type-C portOne USB 2.0 portOne USB 3.0 port with PowerShare
Audio/Video	One HDMI portOne headset (headphone and microphone combo) port

Internal:
M.2 Card One M.2 slot for SSD card

Communications

Wireless

• Wi-Fi 802.11 ac

• Bluetooth 4.0

• Bluetooth 4.1 (optional)

• Miracast

• Wi-Fi Display Support (Wi-Fi Alliance)

Video

Controller

• Intel HD Graphics 510 - Intel Celeron and Pentium

• Intel HD Graphics 520 - Intel Core i3/i5/i7

• Intel Iris Graphics 540 - Intel Core i7

Memory Shared system memory

Audio

Controller Realtek ALC3253 with Waves

MaxxAudio Pro

Speakers Two

Speaker Output

- Average - 2 W

- Peak - 2.5 W

Microphone Digital-array microphones in camera assembly

Volume controls Media-control shortcut keys and volume-control buttons

Storage

Interface

SATA 6 Gbps

Solid-state drive One M.2 drive

Media-card reader

Type

One SD card slot

Cards supported SD card

Keyboard

Type

Backlit keyboard

Shortcut keys Some keys on your keyboard have

two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key.

NOTE: You can define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program.

Keyboard shortcuts

Camera

Resolution

- Still image: 0.92 megapixel

• Video: 1280 x 720 (HD) at 30 fps (maximum)

Diagonal viewing angle 74 degrees

Touch pad

Resolution

• Horizontal: 1260

- Vertical: 960

Dimensions

• Height: 65 mm (2.56 in)

- Width: 105 mm (4.13 in)

Power adapter

Type

45 W

Input voltage 100 VAC-240 VAC

Input frequency 50 Hz–60 Hz

Input current (maximum) 1.30 A

Output current (continuous) 2.31 A

Rated output voltage 19.50 VDC

Temperature range: Operating 0°C to 40°C (32°F to 104°F)

Temperature range: Storage -40^ to 70^ ( -40^ to 158^ )

Battery

Type 3-cell "smart" lithium-ion (43/56 WHr)

Weight (maximum) 0.2 kg (0.44 lb)

Voltage 11.40 VDC

Operating time Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.

Life span (approximate) 300 discharge/charge cycles

Temperature range: 0°C to 35°C (32°F to 95°F)

Operating

Temperature range: -40^ to 65^ ( -40^ to 149^ )

Storage

Coin-cell battery CR-2032

Height 5.90 mm (0.23 in)

Width 97.15 mm (3.82 in)

Depth 184.15 mm (7.25 in)

Display

Type

13.3-inch HD WLED touch

13.3-inch Full HD WLED touch screen

Resolution (maximum) 1366 x 768 1920 x 1080

Viewing angle 120 degrees 160 degrees

Pixel pitch 0.2148 mm 0.1529 mm

Height 164.97 mm (6.49 in) 165.10 mm (6.50 in)

Width 293.42 mm (11.55 in) 293.60 mm (11.56 in)

Diagonal 337.82 mm (13.30 in) 337.82 mm (13.30 in)

Refresh rate 60 Hz

Operating angle 0 degree (closed) to 360 degrees

Controls Brightness can be controlled using shortcut keys

Computer environment

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Operating Storage
Temperature range 0°C to 35°C (32°F to 95°F)		-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	10% to 90% (non-condensing)	0% to 95% (non-condensing)
Vibration (maximum)*	0.66 GRMS 1.30 GRMS
Shock (maximum) 110 G	†	160 G‡
Altitude (maximum) -15.2 m to 3048 m (-50 ft to 10,000 ft)		-15.2 m to 10,668 m (-50 ft to 35,000 ft)

* Measured using a random vibration spectrum that simulates user environment.
† Measured using a 2 ms half-sine pulse when the hard drive is in use.
‡ Measured using a 2 ms half-sine pulse when the hard-drive head is in parked position.

Keyboard shortcuts

Keys Description

	Mute audio
	Decrease volume
	Increase volume
	Play previous track/chapter
	Play/Pause
	Play next track/chapter
	Switch to external display
	Search
	Toggle keyboard backlight
	Decrease brightness
	Increase brightness
	Turn off/on wireless
	Pause/Break
	Sleep
	Toggle scroll lock
	Toggle between power and battery-status light/hard-drive activity light

Keys Description

Fn + R	System request
Fn + Ctrl	Open application menu
Fn + Esc	Toggle Fn-key lock
Fn + End →	End
Fn + ←Home	Home
Fn + ↓PgDn	Page down
Fn + ↑PgUp	Page up

Getting help and contacting Dell

Self-help resources

You can get information and help on Dell products and services using these self-help resources:

Information about Dell products and services

www.dell.com

Dell Help & Support app

Get started app

Accessing help in Windows 10 In Windows search, type Help and Support, and press Enter.

Online help for operating system

www.dell.com/support/windows www.dell.com/support/linux

Troubleshooting information, user manuals, setup instructions, product specifications, technical help blogs, drivers, software updates, and so on

www.dell.com/support

Learn about your operating system, setting up and using your computer, data backup, diagnostics, and so on.

See Me and My Dell at www.dell.com/support/manuals.

Contacting Dell

To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.

NOTE: Availability varies by country and product, and some services may not be available in your country.

NOTE: If you do not have an active internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.
