TD-H80SEM - Tumble dryer TOSHIBA - Free user manual and instructions

Product Type	Tumble Dryer
Brand	Toshiba
Model	TD-H80SEM
Drying Capacity	8 kg
Dryer Type	Condenser
Energy Efficiency Class	A++
Dimensions (H x W x D)	85 cm x 60 cm x 60 cm
Weight	44 kg
Power Consumption	2500 W
Voltage / Frequency	220-240 V / 50 Hz
Number of Drying Programs	15
Key Functions	Reverse tumble, anti-crease, delay start, sensor drying, cool down
Lint Filter	Yes, clean after each cycle
Condenser Cleaning	Required periodically
Water Tank Capacity	4.5 L
Child Lock	Yes
Overheat Protection	Yes
Spare Parts Available	Drum belt, heating element, thermostat, door seal, drain pump, control board
Repairability Index	7.0 / 10

Frequently Asked Questions - TD-H80SEM TOSHIBA

How do I clean the lint filter on my Toshiba TD-H80SEM dryer?

Open the door and pull out the lint filter located at the bottom of the door opening. Remove lint by hand or with a soft brush, then rinse under water and dry thoroughly before reinserting.

How often should I clean the condenser?

Clean the condenser every 30 drying cycles or when the 'Clean Condenser' indicator lights up. Remove the condenser unit (usually behind a lower panel), rinse with water, and let it dry completely.

Why is my dryer taking too long to dry clothes?

Possible causes: clogged lint filter or condenser, overloaded drum, incorrect program selection, or high room humidity. Clean both filters and reduce load size.

What does the 'Water Tank Full' indicator mean?

The water tank needs to be emptied. Pull out the tank, pour out the condensed water, and reinsert it. The dryer will resume after you empty it.

Can I dry all types of fabrics in this dryer?

Check the care labels. Delicate fabrics like silk, wool, or items with 'do not tumble dry' symbols should be air-dried. Use the 'Delicates' program for sensitive items.

How do I reset the dryer after a power outage?

Simply turn the program dial to 'Off' then select your desired program again. The dryer should restart normally.

What is the maximum load size for the 'Eco' program?

For best efficiency, do not exceed 4 kg for the Eco program. Overloading will increase drying time and energy consumption.

Why does my dryer stop mid-cycle?

Check for a full water tank, blocked lint filter, or overheating. The safety thermostat may have tripped. Allow the dryer to cool down and resolve the issue before restarting.

How do I activate the child lock?

Press and hold the 'Delay' and 'Start/Pause' buttons simultaneously for 3 seconds until a lock icon appears. Repeat to disable.

Where can I find replacement parts for my Toshiba TD-H80SEM?

Contact Toshiba customer service or authorized dealers. Common parts like drum belts, heating elements, and thermostats are available online through spare parts retailers.

USER MANUAL TD-H80SEM TOSHIBA

Use all instructions and explanations of the installation before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the application is sold or passed on then ensure that the new owner always receives those operation instructions.

SAFETY INSTRUCTIONS

■ Safety Instructions 2

INSTALLATION

■ Product Description 7

■ Installation 7

OPERATIONS

■ Quick Start 9

■ Before Each Drying 10

■ Control Panel 11

■ Drying Programmes Table 13

MAINTENANCE

■ Cleaning And Care 14

■ Trouble Shooting 15

■ Technical Specifications .... 16

SAFETY INSTRUCTIONS

■ Safety Instructions

- The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

- If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- In EN standard countries, this appliance can be used by children from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance, cleaning and user maintenance shall not be made by children without supervision.

- The tumble dryer is not to be used if industrial chemicals have been used for cleaning.

• The lint trap has to be cleaned frequently.

- Lint must not to be allowed to accumulate around the tumble dryer.

- Do not dry unwashed items in the tumble dryer.

- Items that have been soiled with substance such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with a extra amount of detergent before being dried in the tumble dryer.

• Items such as foam rubber (latex form), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

⚠ Warning!

Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

• The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliance burning gas or other fuels.
• The appliance must not be install behind a lockable door a sliding door or a door with a hinge on the opposite side, to that of the tumble dryer. In such a way that a full opening of the tumble dryer door is restricted.
• Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil.Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard.
• The appliance should not be overturned during normal use or maintenance.

• Remove all objects from pockets such as lighters and matches.

• For appliances with ventilation openings in the base, that a carpet must not obstruct the openings.
  • Children of less than 3 years should be kept away unless continuously supervised.

• Plug must be accessible after installation.
• Warning: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.
• Remove all packages before using the appliance. Otherwise, serious damage may result.

Correct Disposal of this product:

Symbol of a trash bin with no text or numbers present

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Model	Rated capacity
TD-H80SEM	7.0kg

Power supply and grounding

The dryer employs alternative current with the rated voltage and frequency. When the voltage fluctuates between 6% of rated voltage, the dryer can work normally.

A special power socket with a capacity≥10A for the dryer had better be set beside the

dryer for convenience and safety. The method of connection of the

socket is as the figure below.

To be safe, please make improvements as soon as possible according to the rules and suggestions mentioned above.

Warning!

The socket and the grounding wire must be installed by an electrician to prevent incorrect installation or use of the socket and to guarantee the safety of use of electricity. No connection of the grounding wire and the neutral wire, otherwise the cabinet will be charged, which is likely to cause the danger of electric shock.

- Precautions

Install or store where it will not be exposed to temperatures below freezing or exposed to water or weather, which could cause permanent damage and invalidate the

warranty.

Cartoon illustration of a person holding an umbrella with raindrops, no text or symbols present

Thoroughly spin the laundry in washing machine. High spin speed can reduce the drying time and save energy consumption.

Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust and dirt. An obstructed port might reduce the airflow.

Cartoon illustration of a sad, anthropomorphic device with arms and legs open (no text or symbols)

Make sure combustible sprayer will not be close to dryer when it is working, and once the gas leaks, do not touch plug or

start/pause on it.

Line drawing of a vintage washing machine with a handle and ventilation grille (no text or symbols)

Do not wash or dry articles that have been cleaned in, washed in, soaked in or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.).

Illustration of a jacket and two containers with a bag, no text or symbols present

Do not allow children on or in the appliance. Close supervision of children is necessary when the appliance is used near children.

Cartoon illustration of a child standing next to a washing machine with a smiling face (no text or symbols)

Do not store plastic, paper or clothing that may burn or melt on top of the dryer during operation.

Cartoon illustration of a distressed refrigerator with arms and legs, showing a sad face (no text or symbols)

Do not dry articles containing rubber, plastic or similar materials such as padded bras, tennis shoes, galoshes, bath mats, rugs, bibs, baby pants, raincoat plastic bags or pillows that may melt or burn. Some rubber materials, when heated, can under certain circumstances produce fire by spontaneous combustion.

Simple line drawing of a stylized human figure in motion (no text or symbols)

Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.

Cartoon illustration of a person standing next to a washing machine with a sad face emoji (no text or symbols)

Please do not use the machine when your foot or hand with water.

The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliance burning gas or other fuels.

Simple line drawing of a washing machine with a coiled spring attached to its side (no text or symbols)

The door can be opened only after the programme of the drying machine is completed. Do not open the door before the programme finished to avoid the human skin from being scalded by hot steam or over heated drying machine.

Line drawing of a rectangular box with a circular vent and lid (no text or symbols)

■ Product Description

Note: Please see the products you purchased in kind prevail.

Installation

• Installation Position Selection

Dryer should be placed in a ventilated area with not less than 10cm distance from the wall. It is suggested there are no obstacles within 1.5m in front of dryer and keep ventilated.

- Level Adjusting

Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. If it is not, adjust the feet with a tool.

Diagram of a washing machine with a tool inserted, showing a circular vent and base mount (no text or symbols)

Note!

if dryer could not be placed horizontally (the lean angle is no more than 2^ , the dryer will work unbalanced or stop working sometimes.

Notice when installing:

• Do not install the dryer in the open air or place easily damaged by rain;
• Do not place the back of dryer near curtain or something in the wind;
• Do not place the dryer near gas or flammable area.

Diagram showing a mechanical or electrical component with layered blocks and a rotating element (no text or symbols)

• Flex tube fixing:
• Connect one end of flex tube with whorl to the back vent, then fix it deasilly till tight.
• The other end of flex tube will be extended to outdoor, please refer the right assemble way to the below pictures.

Technical line drawing showing two mechanical assembly configurations with curved internal patterns and hatched walls (no text or symbols)

Quick Start

Note!

Before using, please make sure it's installed properly.

Hand holding a screwdriver touching a wall socket with an arrow indicating direction (no text or symbols)

plug in

Diagram showing a hand holding a flame inside a circular frame, with an arrow indicating rotation (no text or symbols)

load

Diagram of a coiled cable or coil with directional arrows indicating motion (no text or symbols)

close door

Drying

on

start
select function or default

After Drying

Buzzer beep or "0:00" on display.

Hand holding a circular object with an arrow indicating rotation (no text or symbols)

unload clean filter

Cross-sectional diagram of a mechanical device with internal components and a circular housing (no text or symbols)

Simple line drawing of a wall socket with a cable, no text or symbols present

unplug

■ Before Each Drying

1. Before drying, thoroughly spin the laundry in washing machine. High spin speed can reduce drying time and save energy consumption.

2. For uniform drying result, sort the laundry according to fabric type and drying programme.

3. Before drying, please close zips, hooks and eyelets, button up, tie fabric belts, etc.

4.Do not over dry the clothes, because over dried clothes can easily get creases.

5.Do not dry the articles containing rubber or similar elastic materials.

1. The door can be opened only after the programme of the drying machine is human skin from being scalded by hot steam or over heated drying machine.

2. Clean the lint filter and empty container after each use to avoid extension of drying time and energy consumption.

8.Do not dry these clothes after dry-clean process.

The reference weight of dry clothes (each)

	Mixed-fabric clothes (about 800g)		Jacket (about 800g cotton)		Jeans (about 800g)		Towel quilt (about 900g cotton)
	Single bedsheet (about 600g cotton)		Work clothes (about 1120g)		Sleepwear (about 200g)		Long sleeve shirt (about 300g cotton)
	Short sleeve shirt (about 180g cotton)		Short pants (about 70g cotton)		Socks (about 50g mixed-weave)

Note!

• Never overload.
• Not for textile with dropping water. The dryer could be damaged, even fire.
  • Not suitable for silk or woolen textiles.

Please pay attention to use the drying machine if the materials of your clothes can not be dried by it or contain the symbols as follows:

	Dry	Normal	Not tumble dry normal	Do not dry
	Line dry / hang to dry	Drip dry	Dry flat	In the shade
	Dry clean	Do not dry clean	Dry clean normal cycle with any solvent	Dry clean normal cycle petroleum solvent only

Control Panel

1 On/Off

Product is switched on or off.

2 Start/Pause

Press the button to start or pause the drying cycle.

3 Option

These buttons are used for setting additional functions.

4 Display

This display shows the setting, estimated remaining time and status messages of your dryer.

5 Programmes

Different Dryer cycle can be selected according to the user's needs to make the clothes have more effective drying results.

OPERATIONS

Option

INTENSVIE

Press the button to select adjust the dryness level of the laundry. The level has three grades . The drying time increases 3 minutes in every grade.

1. The intensity function can be activated only before the programme start.

2. Press the 【INTENSVIE】 button repeatedly to select the drying time.

DELAY

Press the button to select delay clothes drying within 24 hours. You can press this key continuously; it can be selected within 1-24 hours.

ANTI-CREASE

Press the button to select the function, at the end of the drying cycle, the anti-crease operation time is 30 minutes (default) or 120 minutes (selected). The 【ANTI-CREASE】 light shall illuminate when the anti-crease function is selected. This function prevents the laundry from creases.

CHILD LOCK

pressing the 【ANTI-CREASE】 and 【DELAY】 buttons simultaneously for over 3 seconds to start child lock function.

Note!

• Clean the filter, cabinet and inner tube.
• Clean the filter when the "Filter" light is flashing, after the dryer stop.

■ Drying Programmes Table

Programme		Weight (max)	Application/Properties	Anti-Crease	Delay	Intensive
		7.0kg
COTTON	AUTO	3.0kg	To dry unknown material clothes automatically.	Y	Y	Y
	EXTRA	7.0kg	To dry cotton pieces of clothing. Drying level: extra dry.	Y	Y	Y
	STANDARD	7.0kg	To dry cotton pieces of clothing. Drying level: cupboard dry.	Y	Y	Y
TIME	20' AIRING	—	To air clothes without blowing hot air.	Y	Y	N
	20' QUICK	0.6kg	Rapid warm for the long-laid clothes.	Y	Y	N
	40MIN	—	Time 40 min.	Y	Y	N
	50MIN	—	Time 50 min.	Y	Y	N
	60MIN	—	Time 60 min.	Y	Y	N
SYNTHETICS	EXTRA	3.0kg	To dry thick or multi-layered synthetic fabrics. Drying level: extra dry.	Y	Y	Y
	STANDARD	3.0kg	To dry thin synthetic fabrics which are not ironed, such as easy care shirts. table linen, baby clothes, socks.	Y	Y	Y
SPECIAL	MIX	3.0kg	To dry mix pieces of clothing. Drying level: extra dry. If you can not determine what the clothing's material is, please choose Mix.	Y	Y	Y
	BABY CARE	1.0kg	To dry baby cotton pieces of clothing. Drying level: standard dry.	Y	Y	Y
	SHIRT	1.0kg	For easy care clothes such shirts and blouses with anti-crease mechanism for minimum ironing effort. Place clothes loosely in the dryer. Once dried. hang it on a clothes hange.	Y	Y	Y
	DELICATE	—	To dry delicate laundry that is suitable for drying or laundry which is advised to be hand-washed at a lower temperature.	Y	Y	N
	REFRESH	—	To refresh the clothes that have been kept at closed environments for a long time from minimum 20 min. to maximum 150 min.(in 10 min. steps).	Y	Y	N
	WOOL REFRESH	1.0kg	For a fluffy and fresh wool clothing(Can not be used for drying of wool clothing).	Y	Y	N

Note!

- The programmes above are only recommended for using, users can choose the appropriate programme according to the personal habits. Thick and multi-layered fabrics e.g. bedlinen, jeans, jackets etc, are not easy to dry, you'd better choose Jeans programme and maximum drying intensity level.

■ Cleaning And Care

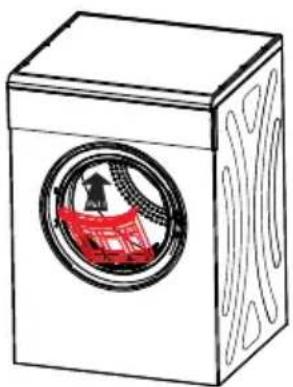

Filter clean

• Clean the lint filter after each use. Remove by pulling straight up.
• Cleaning filter Use wiping cloth or your fingers.
  • Install filter If the filter is cleaned by damp cloth or water, please install after the sun dry.

Illustration of a white rectangular box with a circular window containing a red and black object, no text or symbols present.

Cleaning cabinet and inner tube

- Use soft damp cloth wipe when cleaning cabinet and inner tube.

• Not to rinse by water direct.

• Not to use neutral scour wipe.

• Not to use gasolene and alcohol wipe.

• Make sure open the front door for aeration after cleaning the inner tube.

Line drawing of a washing machine with a handle and circular vent (no text or symbols)

Safety reset

1. These dryers have a safety cut out switch which is activated by temperature.
2. If the dryer does not work or is not drying efficiently, firstly check whether the filter is clean.

If the filter is clean and the problem persists, please contact your service center.

1. The most common reason for the dryer if overheat is a blocked filter.
2. Clean the line filter after each load to prevent overheating of the dryer

The cut out switch may operate for the following reasons:

1. Lint filter is blocked.
2. Exhaust outlets blocked at the back of the dryer.
3. Poor ventilation in the laundry or room-open a window or door
4. Lightweight garment eg. handkerchief, sucked over the filter.

■ Trouble Shooting

Trouble	Cause	Solution
Will not start	Power cut.The power plug is not plugged tight.Dry clothes exceed.The temperature fuse is cut.	Wait for switching on electricity.Check the power socket,make sure plug tight.The clothes in drier must be after spinning, and drying clothes can not exceed 7kg.Please career man restore the temperature fuse.
External hot or can smell hot	The lint filter is dirty.The uptake or exhaust duct is dirty.	Make sure clean the lint filter in time.Clean out the stem.
Clothes too dry	The clothes in machine are too full.Not to take out the clothes in time when finish.The clothes don't assort properly.The temperature is enacted too high.	Make sure the clothes are not too full.Take out the clothes immediately when finish.Observe the maintenance label on clothes.
Clothes shrink	Too dry.	Observe the maintenance label on clothes. if easy to shrink,should examine the clothes when dry.Take out the clothes when tiny damp for too dry.Then hang the clothes until full dry.
Hairball on clothes	It is right for synthetic fibre and permanent press fibre causing hairballs.This is because the right rub causing.	Use fabric softener lubricate fibre,please spray settled gule on cuff and neckline when iron clothes.Turn the sarcenet out for reducing rub.

• The sound of dryer when runs can cause

Due to heavy wet clothes' turning and bumping, and this will cause noise accordingly.

- Air bumping: When drying, machine will generate steam which will come out from pipe and this will cost bumping with the bottom of inner tub.

Other functions description

Error code	description	Criteria	Action after fault debounced
E33	Temperature Sensor error	Temperature Sensor is open or short	Stop the program and go to fault state

■ Technical Specifications

ModelParameter	TD-H80SEM
Dimension(*D*H)W	595*555*840(mm)
Rated input power	2000W
Rated voltage	220-240V~
Rated frequency	50Hz
Weight of product	33kg
Rated capacity	7.0kg(Dry clothes)
Ambient temperature	+5°C~+35°C

Note!

The rated capacity is the maximum capacity, make sure that the dry clothes which are loaded to the appliance do not exceed the rated capacity each time.

TOSHIBA
