Brand	Toshiba
Model	TD-BK100GHMSK
Product Type	Tumble Dryer (Condenser)
Rated Capacity	9.0 kg
Dimensions (W x D x H)	595 x 640 x 845 mm
Net Weight	54 kg
Power Supply	220-240 V ~ 50 Hz
Rated Input Power	1050 W
Refrigerant	R134a (350 g)
Programmes	Cotton, Synthetics, Mix, Wool, Jeans, Bed Linen, Sports, Shirts, Memory, Warm, Cool, Refresh
Additional Functions	Delay, Time +/-, Intensity, Hygiene, Anti-Crease, Signal, Lamp, Child Lock, Memory, WiFi, Remote Control
Display	LED with remaining time, error messages, and status icons
Connectivity	WiFi 2.4 GHz, TSmartLife app compatible
Drying Support	Removable drying support for hats, shoes, etc.
Filter Cleaning	Door filter after each cycle; base filter every 5 cycles
Heat Exchanger Cleaning	Every 6 months with vacuum cleaner
Water Container	Removable, empty after each use
Safety Features	Child lock, overheating protection, grounding
Woolmark Approved	Yes (wool cycle approved by The Woolmark Company)
Noise Level (Compressor)	Normal operating noise (no specific dB given)

Frequently Asked Questions - TD-BK100GHMSK TOSHIBA

How do I clean the filters?

Clean the door lint filter after each cycle. Open the door, remove the filter, rinse under water, dry thoroughly, and reinsert. Clean the base filter (in front of the heat exchanger) every 5 cycles by unlocking the levers, removing, rinsing, drying, and reinserting.

What does error code E32 mean?

E32 indicates a humidity sensor error. If it persists after turning the dryer off and on, contact customer service.

How can I delay the start of a drying programme?

Select your programme and options, then press the Delay button repeatedly to set the delay time (up to 24 hours). Press Start/Pause to begin the countdown.

Can I dry wool items in this dryer?

Yes, use the Wool programme. It is approved by The Woolmark Company for machine-dryable wool. Follow garment care labels.

How do I connect the dryer to WiFi?

Download the TSmartLife app, create an account, and follow the in-app instructions. Ensure your phone is on 2.4 GHz WiFi and Bluetooth is on. Press the Intensity button for 3 seconds to enter network configuration mode.

What is the child lock and how do I activate it?

Child lock prevents accidental button presses. While the dryer is running, press Lamp and Hygiene simultaneously for 3 seconds. Repeat to deactivate.

Why is my dryer not starting?

Check that the dryer is plugged in and turned on, the door is closed securely, and you have pressed Start/Pause. Also ensure the water container is not full and filters are clean.

How do I empty the water container?

Pull out the water container from the base, tilt it, and pour the condensed water into a basin. Reinstall it. The dryer will pause if the container is full; empty and restart.

Can I use an extension cord?

No. Do not use extension cords, multi-plug adapters, or double adapters. Plug the dryer directly into a properly grounded socket.

What is the Anti-Crease function?

After the drying cycle ends, the drum rotates intermittently for 30 minutes (or 120 minutes if selected) to prevent wrinkles. You can remove laundry during this phase.

USER MANUAL TD-BK100GHMSK TOSHIBA

Read and follow the instructions carefully.

Keep the operation instructions handy for future use.

Please contact the customer service if you are in need of a new user manual.

SAFETY INSTRUCTIONS

■ Safety Instructions 2

INSTALLATION

■ Product Description 8

■ Installation 8

OPERATION

■ Quick Start 11

■ Before Each Drying 12

■ Control Panel 13

■ Option.... 15

■ Display.... 18

■ Programmes.... 19

■ Instructions to Connection with the TSmartLife App.... 20

■ Drying Programmes Table 23

MAINTENANCE

■ Cleaning and Care 24

■ Trouble Shooting 27

■ Technical Specifications 29

■ Safety Instructions

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life.

Explanation of the symbols:

Warning!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it's avoided.

Caution!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries or damage to property and the environment.

Note!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries.

Intended use

• This dryer is intended for household use only. It is not for commercial use or shared use (e.g., in an apartment). This dryer is for indoor use only.

Safety Instructions

• This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.
• This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• Improper connection of the appliance when using a non-grounded outlet or when the GND terminal of the outlet is not compatible with the GND terminal of the power plug can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the appliance is properly grounded.

Warning!

Risk of Electric Shock

• Do not use any outlet with a rated current less than that of the appliance.
• Do not pull the power cord forcefully. Hold the power plug instead.
• Do not touch the plug with wet hands.
• Do not bend, clamp, or damage the power cord and the power plug.
• If the power cable is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.
• Do not use multiple outlet sockets, an extension power cable or double adapter with this appliance.
• Plug must be accessible after installation.

Risk of Injury

• Do not attempt to repair, disassemble, or modify the appliance yourself.
• Do not lean on the opened door of the dryer.
• Do not drink condensed water.

Risk of Product Damage

• Do not put more load than rated in this user manual. See the related chapter in the user manual.
• Do not operate the dryer without Doorfilter and Base filter.
• Do not dry the clothes without spin-dry.
• Do not expose the dryer directly under the sun.
• Do not install the dryer in humid and wet environment.
• Before maintenance, unplug the appliance.
• Do not spray water on the appliance.
• Do not overturn the appliance.

Warning!

Risk of Explosion & Fire

• Please do not dry the clothes with any flammable substances such as kerosene or alcohol.
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
• Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard.
• Remove all objects from pockets such as lighters and matches.
• If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care products are placed in a tumble dryer they should first be washed in hot water with extra detergent. This will reduce, but not eliminate, the hazard.
• Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
• Openings must not be obstructed.
• Door filter and base filter should be cleaned frequently.
• Lint must not be allowed to accumulate around the tumble dryer (heat exchanger, inside drum, around door, etc.).

Safety with children

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision. Animals and children may climb into the machine. Check the machine before every operation.
• Glass door may be very hot during operation. Keep children and pets far away from the machine during operation.

For use in EU countries:

- The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children of less than 3 years should be kept away unless continuously supervised.

ENVIRONMENT

Disposal of old appliances

For use in EU countries

This appliance is labelled in accordance with the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). The directive provides the framework for the EU-wide take-back and recycling of waste equipment.

The devices marked with this symbol must not be disposed of in household waste!

For use in other countries

This appliance doesn't have the symbol above. If you want to dispose of your appliance, please contact your local authority or retailer for further information on collection and disposal.

Model	Rated capacity
TD-BK100GH Series	9.0kg
TD-BK110GH Series	10.0kg

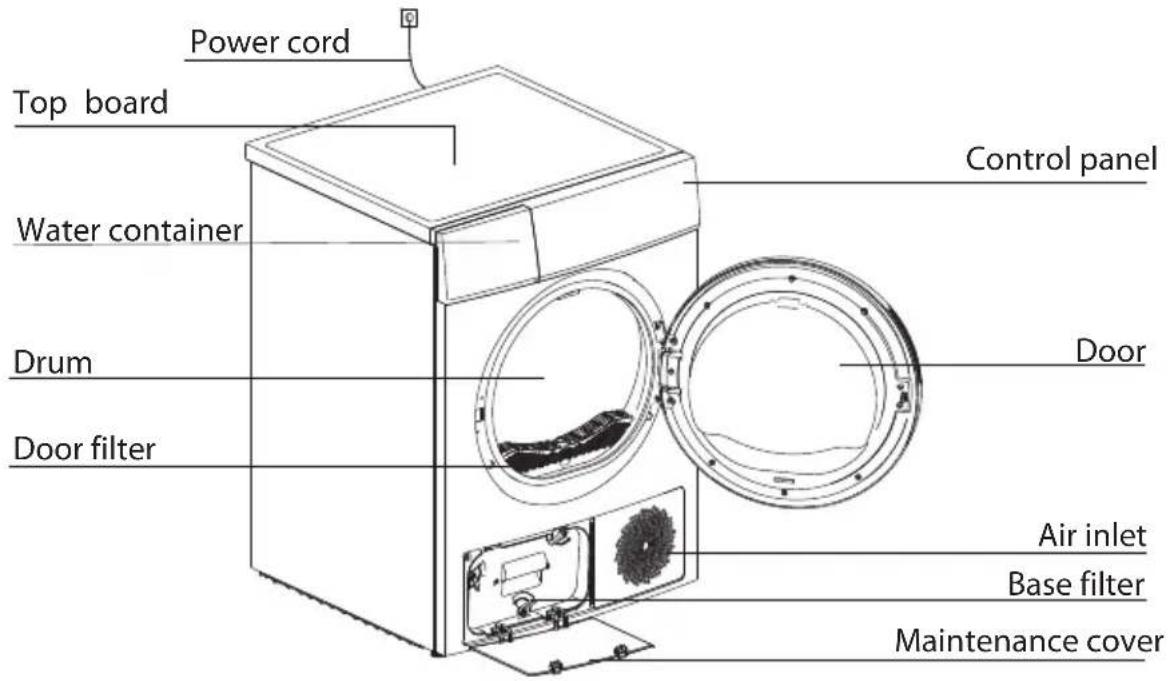

■ Product Description

Note: The actual model you purchased might differ. Please see the product you purchased in kind prevail.

Accessories

The following parts are optional for specific models.

If your dryer has the following parts, please wear gloves to install them as per the instructions below.

Hose holder

Condensing drain hose

Connector

■ Installation

Remove the drain hose from the housing drawer. Insert the drain hose and the external drainage hose into the connector. Put the hose holder in the washing basin or any other sink.

If you want to install the drying support, first clamp the support on the door filter, then hook it in the front support slot (as shown below).

Note!

Drying support is mainly used for items that are not suitable for tumble drying, such as hats, shoes, plush toys, etc. A warm program is recommended for this function. If items are not completely dried after one cycle, you can restart the program to achieve complete dryness. All items dried with the support must meet the warning requirements on page 5. Leather products also cannot be dried.

Transport

Move cautiously. Do not grasp any protruding parts of the machine. The machine door cannot be used as a handle for transport. If the dryer cannot be transported upright, it can be tilted to the right at an angle of less than 30 degrees.

Risk of injury and damage!

Improper handling of the appliance may result in injury.

• This appliance should only be transported by two or more people holding it securely.
• Remove all obstacles on the transport route and from the installation location, e.g., open doors and clear away objects lying on the floor.
• Do not use the open door as a handhold.
• Remove all packaging material before using the appliance.
• Before setting up the tumble dryer, check it for any externally visible damage. Do not install or use a damaged tumble dryer.
• Do not install the tumble dryer in a room where there is a risk of frost. At temperatures around freezing point, the tumble dryer may not operate properly. There is a risk of damage if the condensed water is allowed to freeze in the pump and hoses.

Installation Place

Warning!

• Do not allow children to play with packaging materials.
• The appliance must not be installed behind a lockable door, a sliding door, or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that full opening of the tumble dryer door is restricted.
• Do not restrict the floor clearance through deep pile carpets, strips of wood or similar. This might cause heat built-up which would interfere with the operation of the appliance.
• It is recommended that, for your convenience, the machine is positioned close to your washing machine.
• The tumble dryer must be installed in a clean place, where dirt does not accumulate. Air must be able to circulate freely around the appliance. Do not obstruct the front air inlet or the air intake grilles at the back of the machine.
• To keep vibration and noise within minimum level when the dryer is in use, it must be placed on a firm and level surface.
• The feet must never be removed.

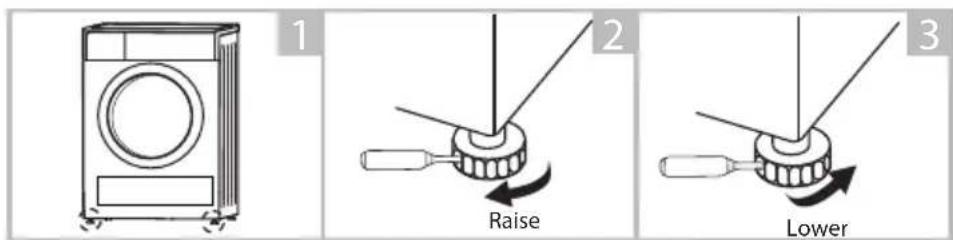

Level Adjusting

Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. If it is not, adjust the feet by hand or using a tool.

Power Supply Connection

1. Make sure that the voltage of the power supply is more than the electric specification.
2. Do not connect the dryer with the power connection board, a universal plug or socket, do not use multi-plug adapters and extension cables.

Quick Start

Note!

Before using, make sure the tumble dryer is installed correctly.

Before Drying

plug in

load

close the door

Drying

on

select program

select function or default

start

After Drying

Buzzer beep and "End" on display.

open the door and take out laundry

pull out the container

clean the filter power off

Note!

- If the socket with a switch is used, please press the switch to turn off the power directly.

■ Before Each Drying

Note!

- Leave it to stand for 2 hours after transporting. Before first use, please use the soft fabric to clean the inside drum.

1. Put some clean rags into the drum.

1. Select the 【Refresh】Programme, press 【▶II】 button
2. After finishing this programme, please follow the "cleaning and care" to clean the filter door.

- During drying, the compressor and the water will generate some noise which is entirely normal.

1. Before drying, thoroughly spin the laundry in washing machine. High spin speed shortens the drying time and saves energy.
2. For even drying result, sort the laundry according to fabric type and select the appropriate drying programme.
3. Before drying, please close zips, hooks and eyelets, button, tie fabric belts, etc.
4. Remove all objects from pockets such as lighters and matches.
5. Remove underwiring from bras.
6. Close duvet covers and pillow cases to prevent small items from being rolled up inside them. 7. Leave jackets open and undo any long zips so that textiles dry evenly.
7. Do not over dry the clothes, because over dried clothes can easily get creases.
8. Do not dry the articles containing rubber or similar elastic materials.
9. Keep the area around the tumble dryer clean. Coal dust or flour may cause an explosion.
10. The door can be opened only after the programme of the tumble dryer is finished to avoid being scalded by hot steam or hot drum.
11. Clean the filter and base of container after each use to avoid extension of drying time and increase of energy consumption.
12. Do not dry clothes after dry-clean process.

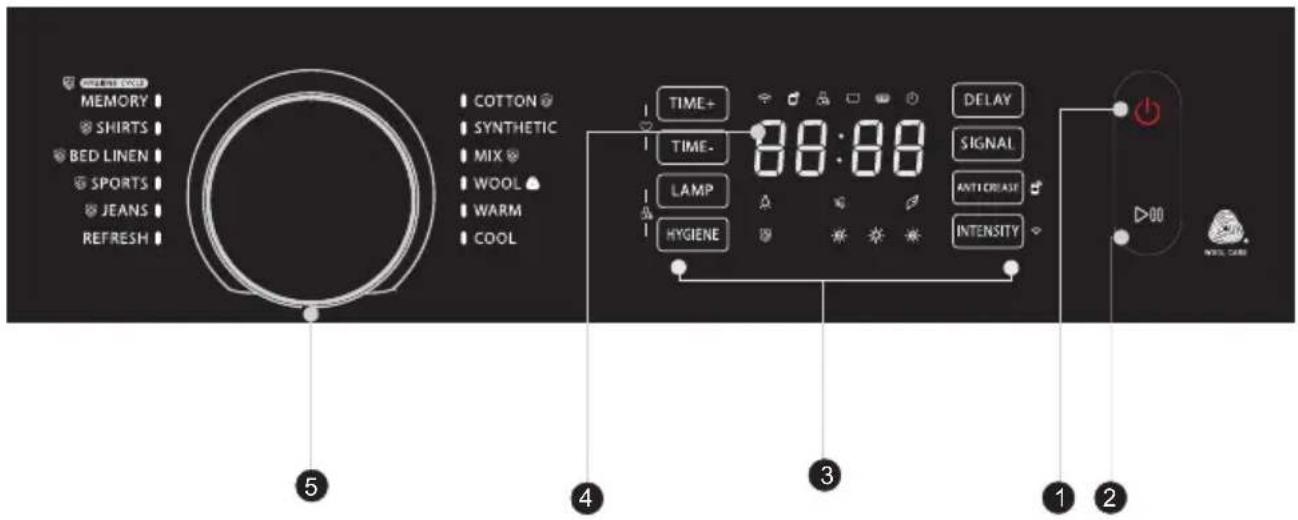

Control Panel

1 On/Off

Product is switched on or off.

2 Start/Pause

Press the button to start or pause the drying cycle.

3 Option

These buttons are used for setting additional functions.

4 Display

The display shows the setting, estimated program time remaining and status messages of your dryer.

5 Programmes

Different drying cycles can be selected according to the users need and the type of laundry to be dried.

The reference weight of dry clothes (weight per item)

	Sweater(mixed 800g)		Jacket(800g)cotton		Jeans(800g)		Bath Towel(900g)cotton
	Single bedsheet(600g)cotton		Work clothes(1120g)		Pyjamas(200g)		Shirt(300g)cotton
	T-Shirt(180g)cotton	[2x24]	Underwear(70g)cotton	[2xkw]	Socks(50g)mixed-weave

Note!

• Do not put more load than rated.
• Do not dry dripping wet laundry. The dryer might get damaged

Only dry laundry suitable for tumble drying. Regard the laundry care labels:

Suitable for tumble drying

Normal drying process : Dry under medium temperature.

Mild drying process: Dry under lower temperture.

Do not tumble dry: Articles unsuitable for drying in the tumbler.

Option

Delay

Delay

This function is used for delaying the start of the drying programme up to 24 hours. When the delayed programme starts, the time starts to countdown on the display and the delay icon blinks.

1. Load your laundry and make sure the machine door is closed.
2. Press the 【💡】button, then use the programme selector knob to select the desired programme.
3. You can additionally select the 【Anti-Crease】 or 【Signal】 functions according to your need.
4. Press the【Delay】button.
5. Repeatedly press the 【Delay】button to select the desired delay time.
6. After the 【▶II】 button is pressed, the Dryer is at the running condition. The drying procedure will be automatically performed when the delay time is over.
7. If you press the 【▶II】 button again, the delay function will be paused.
8. If you want to cancel the "Delay" function, please press the 【 ⏻ 】 button.

Time

Time+ / Time-

When the 【Warm】 or 【Cool】 or 【Refresh】 programme is selected, the 【Time】 button can be used to adjust the drying time in 10 min. steps.

Intensity

Intensity

You can adjust the dryness level of the laundry by pressing the 【Intensity】 button. There are four grades.

1. The intensity function can be activated only before the programme starts.
2. Press the【Intensity】button repeatedly to increase the drying grade.
3. Except the 【Wool】, 【Warm】, 【Cool】, 【Refresh】 programme, all the other programmes can be adjusted with the 【Intensity】 function.

Hygiene

Hygiene

After selecting the program, you can choose the "Hygiene" function according to your needs. Press 【Hygiene】 to select this function. Press it again to cancel. After selecting the "Hygiene" function, the clothes are sterilized during the drying process, making the clothes cleaner and safer. Use this function with caution for light, thin or delicate laundry.

Lamp

Lamp

The drum light will be on for 1 minute when the button is pressed or 1 minute when the door is open.

Signal

Signal

Set the buzzer on or off. In default condition, the buzzer is on. When the buzzer is on:

1. The dryer will affirm pressed function button by a sound.
2. If the programme knob is rotated during the dryer is running, the buzzer will remind the user that this is an invalid operation.
3. When the drying programme is done, the buzzer will beep.

Anti-Crease

Anti-Crease

At the end of the drying cycle, the anti-crease time is 30 minutes (default) or 120 minutes (selected). This function prevents the laundry from creases. The laundry can be removed during the anti-crease phase. Except

【Warm】, 【Cool】, 【Wool】 and 【Refresh】, all the other programmes have this function.

Memory

MEMORY

Used to define and save your favourite programme, which is used frequently.

1. Select the desired programme and other drying functions.
2. Press 【Time +】 and 【Time -】 for 3 seconds until the beep sounds and the desired programme has been saved.
3. Turn the programme selector to the 【MEMORY】 position, then you can start your favourite programme. If you want to change the 【MEMORY】 settings, repeat the steps (1) and (2).

Child Lock

Child Lock

1. This machine incorporates a special child safety lock, which can prevent children from carelessly pressing buttons or making faulty operations.
2. When the drying cycle is running, press the 【LAMP】 and 【HYGIENE】 buttons at the same time for 3 seconds to start the child lock function.
3. When the child lock function is set, the display will show the Child lock icon and all buttons are deactivated, except the 【💡】 button.
4. To deactivate the child lock function, the 【LAMP】 and 【HYGIENE】 buttons shall be pressed at the same time for 3 seconds.

WiFi

Press [INTENSITY] for 3 seconds to configure the network or reset the network.

Remote Control

This is the switch for remote control. If you want to use your smartphone to control the machine remotely, you need to hold [ANTI CREASE] for 3 seconds.

Considering the safe operation of the machine, the smartphone remote control should meet the following conditions:

1. The appliance should connect to the internet;
2. The door of the drum should be closed. Remark: - If the door is open at any time, the remote control function will fail. - The remote control function is turned off at the end of each cycle automatically. If you want to use the remote control function again, you need to turn it on again.

■ Display

	Delay
	Child lock
88:88	Remaining Time indicator/Error message
	Anti crease
	Clean filters (warning)
	Empty water container (warning)
***	Dryness level
	Lamp
	Signal
	Hygiene
	Memory
	Wi-Fi
	Remote control

WOOL CARE

The wool drying cycle of this machine has been approved by The Woolmark Company for the drying of machine dryable wool products, provided that the products are dried according to the instructions on the garment label and those issued by the manufacturer of this tumble dryer. M1716

Programmes

Programme selector

1. When the LED display screen brightens up, rotate the programme knob to select the desired programme.
2. Select the 【Delay】, 【Time】, 【Intensity】, 【Anti-Crease】 or 【Signal】 functions for additional options.
3. Press the 【▶II】 button.
4. Press the 【 ⏻】 button after the programme has completed.

Programme start

The drum will rotate after the programme starts, and the remaining programme time will be displayed.

Programme end

1. The drum will stop rotating after the programme ends. The display will show "End". The dryer will start the 【Anti-Crease】 function if the user doesn't take out the load. Please press the 【💡】 button after unloading the tumble dryer to cut off power and pull out the plug.

Instructions for Connecting with the TSmartLife App

Before you start, make sure that:

1. Your smartphone is connected to your home WiFi network, and you know the network password.
2. Make sure you are near the home appliance.
3. The 2.4GHz band wireless signal is enabled on your wireless router.

Follow the steps below to enter the remote control state.

Download the TSmartLife App.

On an app market (Google Play Store, Apple App Store), search for "TSmartLife" and find the TSmartLife app. Download and install it on your phone. You can also download the app by scanning the QR code below.

Register and log in.

Open the TSmartLife app, and create a new account to start (you can also register through a third-party account). If you already have an existing account, use that account to log in.

Connect your devices to TSmartLife.

1: Make sure your mobile phone is connected to WiFi. If not, go to Settings and turn on the wireless connection, select and connect to a WiFi. Also, turn on the Bluetooth on your phone. If not, go to Settings and turn it on.

2: Power on your devices. 3: Open the TSmartLife app on your phone.

4: If a message of "Smart devices discovered nearby" appears, click to add.

5: If no message appears, select "+" on the page and select your device in the list of nearby devices available. If your device is not listed, add your device manually by device category and device model.

6: Connect your device to WiFi according to the instructions on the app. If the connection fails, please follow the instructions provided by the app to continue with the operation.

WiFi Status Light

	Slowly flashing	Waiting for connection
	Quickly flashing	Connecting
	Quickly flashing solid	Connected to your wireless router

Notes

• Make sure your devices are powered on. - Keep your mobile phone close enough to your device when you are connecting the network to your device. - Connect your mobile phone to the wireless network at home, and make sure you know the password of the WiFi. - Check if your router supports the 2.4 GHz WiFi band and turn it on. If you are not sure whether the router supports the 2.4 GHz band, please contact the router manufacturer. - The device cannot connect to WiFi that requires authentication, which usually appears in public areas such as hotels, restaurants, etc. Please connect to a WiFi that does not require authentication. - It is recommended to use a WiFi name that only contains letters and numbers. If your WiFi name contains special characters, please modify it in the router. - Turn off the WLAN+ (Android) or WLAN Assistant (iOS) function of your mobile phone when connecting the network to your devices. - In case your device connected to WiFi before but needs to reconnect, please click "+" on the app Home page, and add your device again by the device category and model according to the instructions on the app.

Wi-Fi INFORMATION

Working Frequency	2.4G
Extreme Temperature Range	-20°C~85°C
Max RF Power Output	WiFi: E.I.R.P 18dBm BT: 8dBm

■ Drying Programmes Table

Programme	Max Load	Max Load	Application/Properties
Cotton	9.0kg	10.0kg	For single or multi-layer cotton laundry .
Synthetics	3.5kg	3.5kg	To dry thin synthetic textiles, which are not ironed, such as easy care shirts, baby cloths or socks.
Mix	3.5kg	3.5kg	For mixed fabrics from cotton and synthetics.
Wool	1.0kg	1.0kg	For machine washable wool items .
J eans	4.0kg	4.0kg	To dry jeans or leisure clothes .
Bed Linen	4.0kg	4.0kg	To dry bed linen, bed sheets or other large items.
Sports	3.0kg	3.0kg	To dry sportswear and thin fabrics from polyester,which are not ironed.
Shirts	1.0kg	1.0kg	Foreasy care laundry, such as shirts and blouses equipped with anti-crease function to minimize the ironing effort .Place clothes loosely in the dryer. Once dried, remove quickly and hang it on a clothes hanger.
Memory	—	—	Define and save your favourite programme.
Warm	—	—	For completing dryness of clothes when you feel uneven dry and partially humid in the clothes.
Cool	—	—	For cooling down hot clothes which have been just dried.
Refresh	1.0kg	1.0kg	To refresh clothes kept at closet for a long time or to remove odors. Min. 20 min to max. 150 min. (in 10 min. steps)

Programme	Lamp	Hygiene	Siganl	Anti Crease	Intensity	Delay	Time
Cotton	Y	Y	Y	Y	Y	Y	N
Synthetics	Y	N	Y	Y	Y	Y	N
Mix	Y	Y	Y	Y	Y	Y	N
Wool	Y	N	Y	N	N	Y	N
J eans	Y	Y	Y	Y	Y	Y	N
Bed Linen	Y	Y	Y	Y	Y	Y	N
Sports	Y	Y	Y	Y	Y	Y	N
Shirts	Y	Y	Y	Y	Y	Y	N
Memory	Y	—	Y	—	—	Y	—
Warm	Y	N	Y	N	N	Y	Y
Cool	Y	N	Y	N	N	Y	Y
Refresh	Y	N	Y	N	N	Y	Y

■ Cleaning and Care

Empty the water container

1. Pull out and hold the water container with two hands.
2. Tilt the water container, pour out the condensate water into the basin.
3. Install the water container.

Warning!

- Empty the water container after each use. Once the water container is filled completely, the programme will be paused and the "icon will light. After the container is emptied, the dryer can be restarted by pressing

【Start/Pause】button.

• Do not drink the condensate water.
• Do not use the dryer without the water container.

Clean the filters

This dryer has a primary door lint filter and a base filter in front of the heat exchanger for additional protection. Make sure you clean the door filter after each cycle.

The base filter needs to be cleaned every 5 operations.

Clean the filter door

1. Open the door.
2. Take out the fiber.
3. Open the filter and remove the lint on the filter. You can clean it in water.
4. Dry the filter thoroughly before installing it back.

Note!

• Take notice of the correct orientation before inserting the door filter.

Clean the base filter

1. Open the cover.
2. Unlock three locking levers and grasp the filter handle.
3. Remove the base filter and clean it.

If there is too much lint on the filter, clean it in water. Dry the filter thoroughly before installing it back.

1. Clean the rubber sealing, both at the filter and handle.
2. Re-insert the filter.
3. Lock three locking levers and make sure that the levers are in correct lock position.
4. Close the cover until there is a click sound.

Note!

• The lint accumulated on the filter will block the air circulation. Not cleaning the filter regularly will increase drying time and energy consumption.
• Disconnect the power cord before cleaning!
• Do not operate the dryer without the filter!
• Clean the base filter every 5 evaporations accumulation inside the dryer.

Clean the heat exchanger

Warning!

- Do not touch the heat exchanger with your hand, which may cause an injury.

• As necessary, approx. once every 6 months, remove the lint from the heat exchanger using a vacuum cleaner with a dusting brush attached.
• Clean the heat exchanger without applying any pressure. Otherwise the heat

exchanger could be damaged. The dryer will not dry if the cooling fins are damaged or bent.

Clean Tumble dryer

Warning!

• Disconnect the power cord before cleaning!
• Clean the dryer with a wet cloth which is only damped by clean water.
• Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaners. These could damage plastic surfaces and other parts.

• Prepare a wet cloth damped by clean water. - Clean the door, especially the inside window. - Clean the sealing around the door opening. - Clean the humidity sensor inside the drum. • Take out all the filters, clean the sealing and air flow openings. • Before starting the dryer, dry all parts with a soft cloth.

■ Trouble Shooting

If you encounter an issue with the dryer, first check the table below and try to solve the issue before calling the service.

Problem	Solution
• Display is not on	• Check if the power supply works.• Check if power plug is inserted in wall socket correctly.• Check if dryer is turned on.
• “☐”is lighting	• Check Water Container. If it is full of water, empty it.
• “☐”is inglight	• Clean the .Door filter and Base fileter
• Dryer does not start	• Check if the power supply works.• Check if power plug is inserted in wall socket correctly.• Check if dryer is turned on.• Check if door is closed correctly.• Check if [Start/Pause] is pressed.
• Cloths are not dried or drying time is too long	• Clean Door filter and Base filter.• Clean heat excanger.• Empty Water container.• Clean air inlet.• Check if installation place is proper
• There are humming noises	• The compressor is operating. These noises are quite normal and do not indicate a fault.
• The dryer switches off at the end of the programme	• The dryer switches off automatically after the end of operation. This is not an error but a normal function.

Warning!

If the issue continues after trying the solutions, turn off dryer and disconnect power plug, then call the service.

Display	Reason	Solutions
“”E32	Humidity sensor error	Please contact your local service center if the problem occurs.
“”E33	Temperature sensor error
“”E64	BLDC motor communication error
“”E82	PCB communication error

Warning!

- Only authorised technicians can carry out repairs.

■ Technical Specifications

ModelParameter	TD-BK100GH Series	TD-BK110GH Series
Dimension(W*D*H)	595*640*845(mm)	595*640*845(mm)
Ambient temperature	+ 5°C ~ +35°C	+ 5°C ~ +35°C
Rated input power	1050W	1050W
Rated voltage	220-240V~	220-240V~
Rated frequency	50Hz	50Hz
Refrigerant	R134a	R134a
Weight of product	54kg	54kg
Rated capacity	9.0kg	10.0kg
GWP	1430	1430
Tonne(s) of CO 2 Equivalent	0.5t	0.5t
Quantity of refrigerant	350g	350g

Contains fluorinated greenhouse gases covered by the Kyoto Protocol. Hermetically sealed.

Note!

• The rated capacity is the maximum capacity to be dried at one time. Make sure that the dry clothes which are loaded into the appliance do not exceed the rated capacity.
• Do not install the tumble dryer in a room when there is a risk of frost occurring. At temperatures around freezing point the tumble dryer may not be able to operate properly.
• There is a risk of damage if the allowed water is the pump, hoses and / or water container.
