V1P Flex X4 - Dash cam Rexing - Free user manual and instructions

Product Type	Dash Cam
Brand	Rexing
Model	V1P Flex X4
Video Resolution	2K + 1080P (Front and Rear)
Cameras	Front (built-in), Rear (included), Optional Left/Right (sold separately)
Display	Yes (screen icons for status)
Memory Card Support	MicroSD, Class 10/UHS-1 or higher, up to 512GB
Wi-Fi	Yes (via Rexing Connect app)
GPS Logger	Optional (separate charger with GPS or Type-C GPS hardwire kit)
Parking Monitor	Vibration Detection (requires Smart Hardwire Kit) and Motion Detection (requires Intelligent Hardwire Kit, sold separately)
G-Sensor	Yes (gravity sensing, adjustable sensitivity)
Loop Recording	Yes (1, 3, 5 minute intervals)
Power Input	12V DC car cigarette lighter (car charger included) or Smart Hardwire Kit
Power Source	Supercapacitor (no internal battery)
Mount Type	Adhesive mount (3M) with electrostatic sticker
Included Accessories	Car charger, mount plate, 3M adhesive, smart hardwire kit, rear camera, cable management tool, cable clips, electrostatic sticker, warning sticker, user manual
Warranty	Limited 12 months (extendable to 18 months with registration)
Support Contact	Email: [e-mail], Phone: [phone]
App	Rexing Connect (iOS and Android)
Video Playback	On device or computer (SD card adapter or USB-C connection)

Frequently Asked Questions - V1P Flex X4 Rexing

How do I format the memory card for the first time?

Insert the memory card, power on the camera, press UP to stop recording, press MENU twice to enter System Setup, navigate to Format, and press OK to confirm.

How do I enable parking monitor?

You must connect a Smart Hardwire Kit (included) for vibration detection. For motion detection, use a separately sold Rexing Intelligent Hardwire Kit. Ensure the parking mode setting is enabled in the camera menu.

How do I connect to Wi-Fi and use the app?

Press and hold the OK button on the camera to enable Wi-Fi. Go to your phone's Wi-Fi settings, connect to the camera's SSID (e.g., B50D_bb92), enter password (default 12345678), then open the Rexing Connect app and hit Connect.

What memory card should I use?

Use a Class 10/UHS-1 or higher MicroSD card up to 512GB. Always format the card in the camera before first use.

How do I playback videos on my computer?

Remove the MicroSD card and use an SD card adapter, or connect the camera directly via USB-C cable. Then open the video files on your computer.

How do I install the dash cam?

Clean the windshield, apply the electrostatic sticker, attach the mount with 3M adhesive, mount the camera, route the cable, connect to power (cigarette lighter or hardwire kit), and insert the memory card. See manual for details.

How do I reset the camera?

Use a paperclip to press the Reset Button located on the camera housing. This will restart the device to factory settings.

How do I use the GPS logger?

Purchase a separate Rexing Charger with GPS Logger or Type-C GPS Smart Hardwire Kit. Connect it to the camera, and the GPS icon will turn green when a signal is found. Speed and location are recorded.

Why is the camera not recording?

Check that a memory card is inserted and formatted. Ensure the camera is powered on and recording indicator is flashing purple. If the card is full of locked files, format it or change G-Sensor sensitivity to Low.

How do I extend the warranty?

Register your product at https://www.rexingusa.com/support/registration/ within 30 days of purchase to extend the limited warranty from 12 to 18 months.

USER MANUAL V1P Flex X4 Rexing

The information in this manual is subject to change without notice.

www.rexingusa.com

REV012024

Overview

Thank you for choosing REXING!

We hope you love your new products as much as we do. If you need assistance, or have any suggestions to improve it, please contact us.

[e-mail]

[phone]

Our support team will respond to you as soon as possible.

Always a surprise with Rexing

Check us out here.

• https://www.facebook.com/rexingusa/
• https://www.instagram.com/rexingdashcam/
• https://www.rexingusa.com/support/registration/

Facebook Instagram Site Product Support

Activate Your

18-Month Warranty

& Choose Your

Free Gift!

Activate within 30 days of purchase to claim your free gift and extended limited 12-month warranty to 18 months.

Scan the QR to Activate & Select Your Free Gift

https://www.rexingusa.com/productreg/

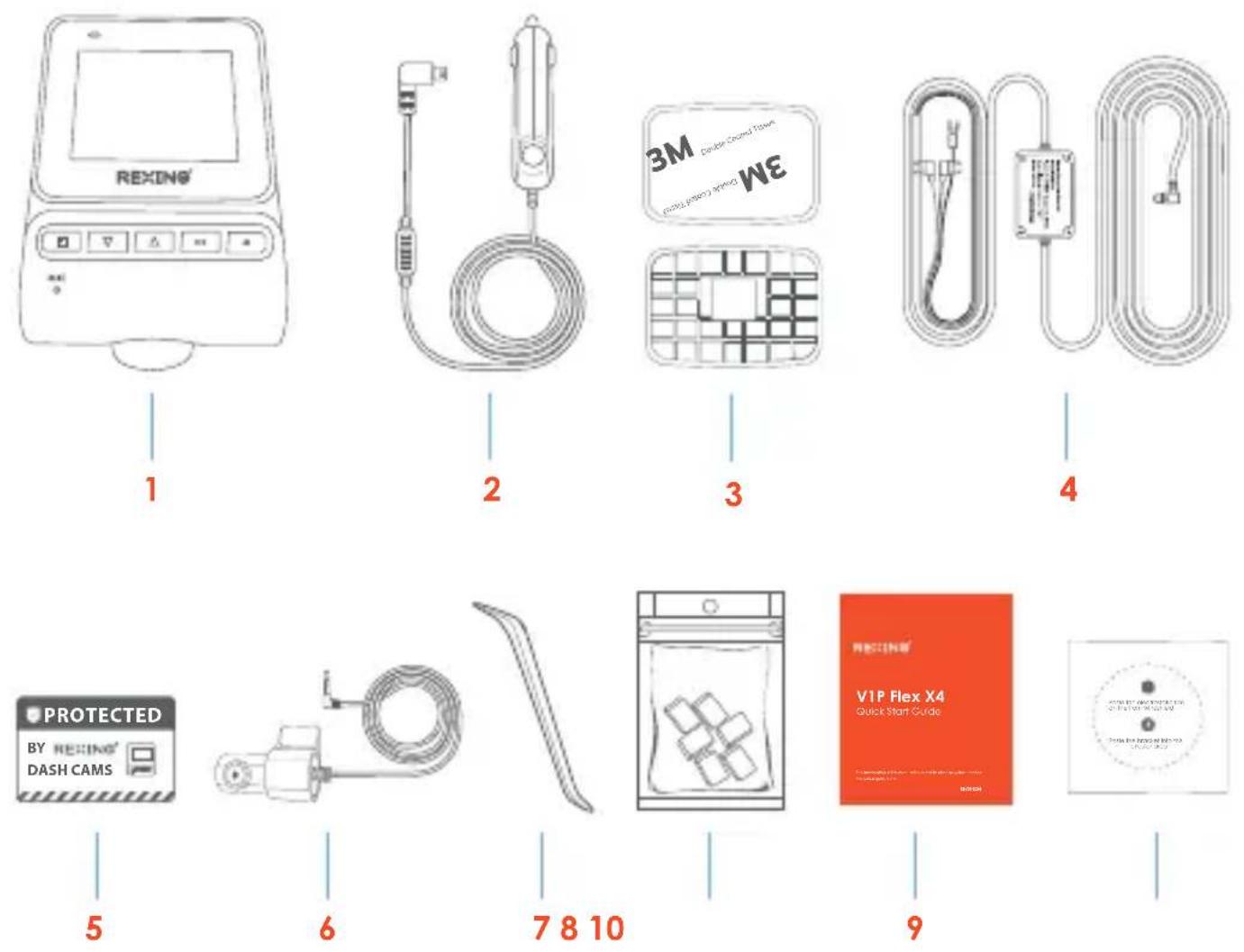

What's in the Box

1. Rexing V1P Flex 4X Dash Cam
2. Car Charger
3. Mount Plate & 3M Adhesive
4. Smart Hardwire Kit

5. Warning Sticker

6. Rear Camera

7. Cable Management Tool
8. Cable Clips
9. User Manual
10. Electrostatic Sticker

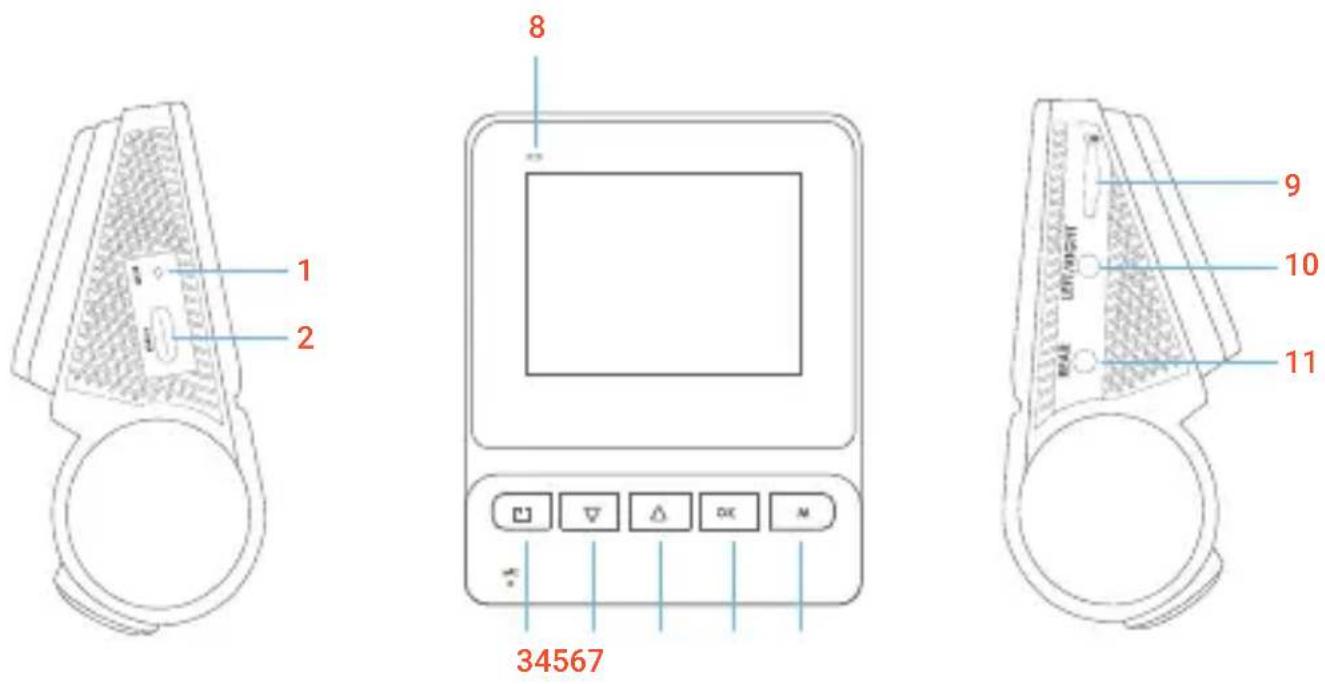

Camera Overview

1. Reset Button
2. USB-C Port
3. Power Button
4. Down Button
5. Up Button

6. OK Button

7. Menu Button

8. Indicator
9. Micro SD card slot
10. Left/Right Camera Port
11. Rear Camera Port

* The camera is recording when the indicator is flashing purple.
** The device is charging or powered on when the indicator is solid red.

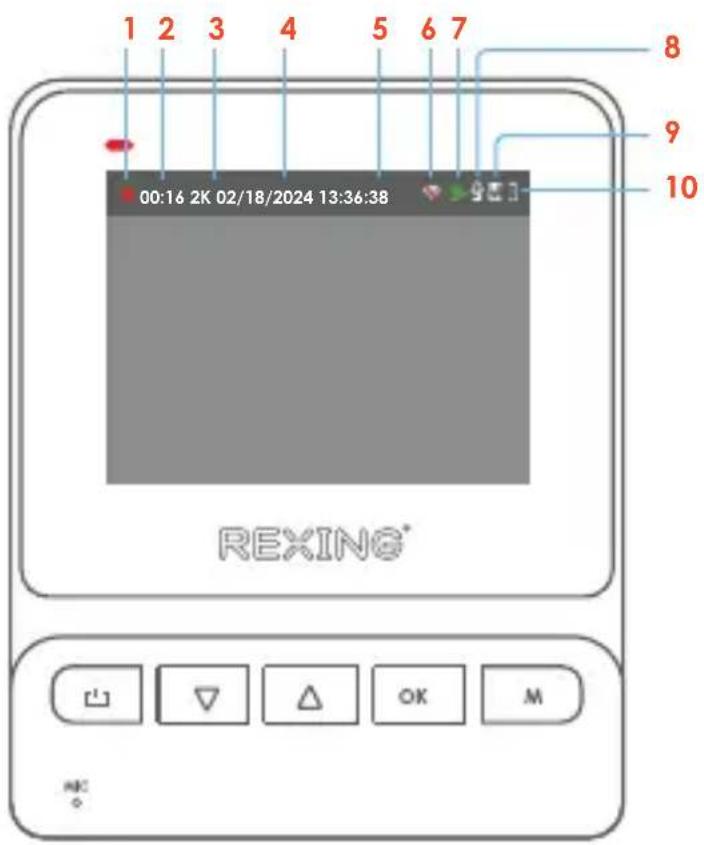

Screen Icons

1. Recording (On)
2. Recording Time (Current Clip)
3. Video Resolution
4. Current Date (DD/MM/YYYY)

5. Time (24H)

6. Wi-Fi (Off)

7. GPS (Connected)
8. Mic (On)
9. Memory Card (Inserted)
10. Power Connected

Instalation

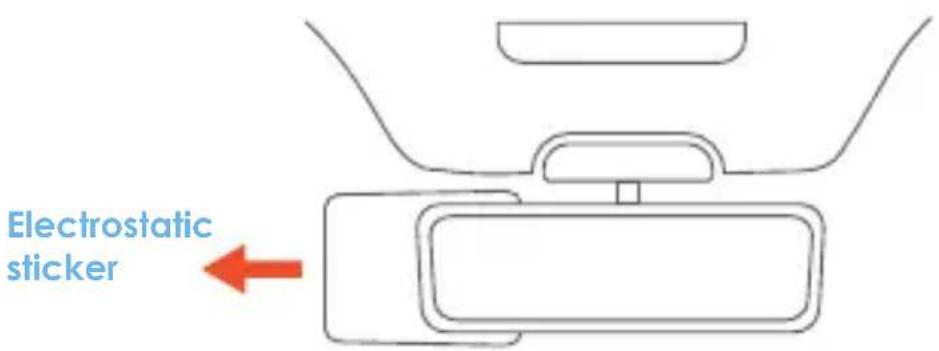

Step 1: Installing the Electrostatic Stickers

1.1 Prepare Your Windshield

Thoroughly cleanse your windshield with either water or alcohol. Follow this by wiping it dry using a clean, dry cloth to ensure a spotless surface.

1.2 Position the Sticker

Next, carefully peel off the protective film from the electrostatic sticker. Attach the sticker to the windshield, ideally behind the rear-view mirror. This position is recommended to avoid obstructing your view while you're on the road.

Step 2: Install the Dash Cam

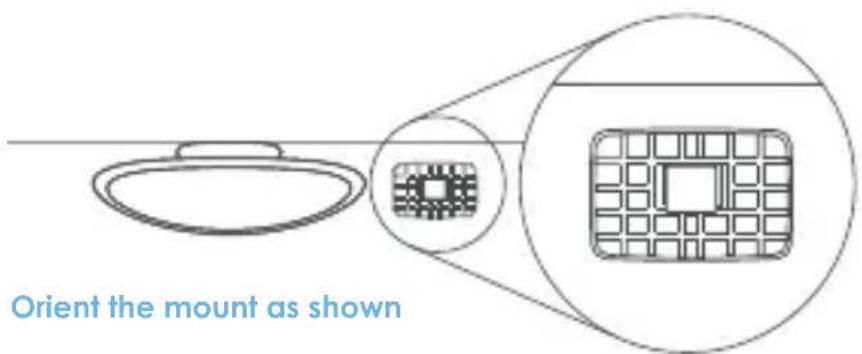

Place the 3M adhesive on the mount plate and properly orient the mount piece to the roof and hood line of the vehicle.

Note:

Ensure the T- interlock on the mount is oriented in the correct direction. Firmly press the mount onto the windshield.

Step 3: Insert the Memory Card

The Rexing VIP Flex X4 accepts [Class 10/ UHS-1 or higher] Micro SD memory cards up to 512GB. You will need to insert a memory card before you can begin recording. Before inserting or removing a memory card, first ensure you've powered down the device.

Gently push the memory card in until you hear a click, and allow the spring release to push the card out.

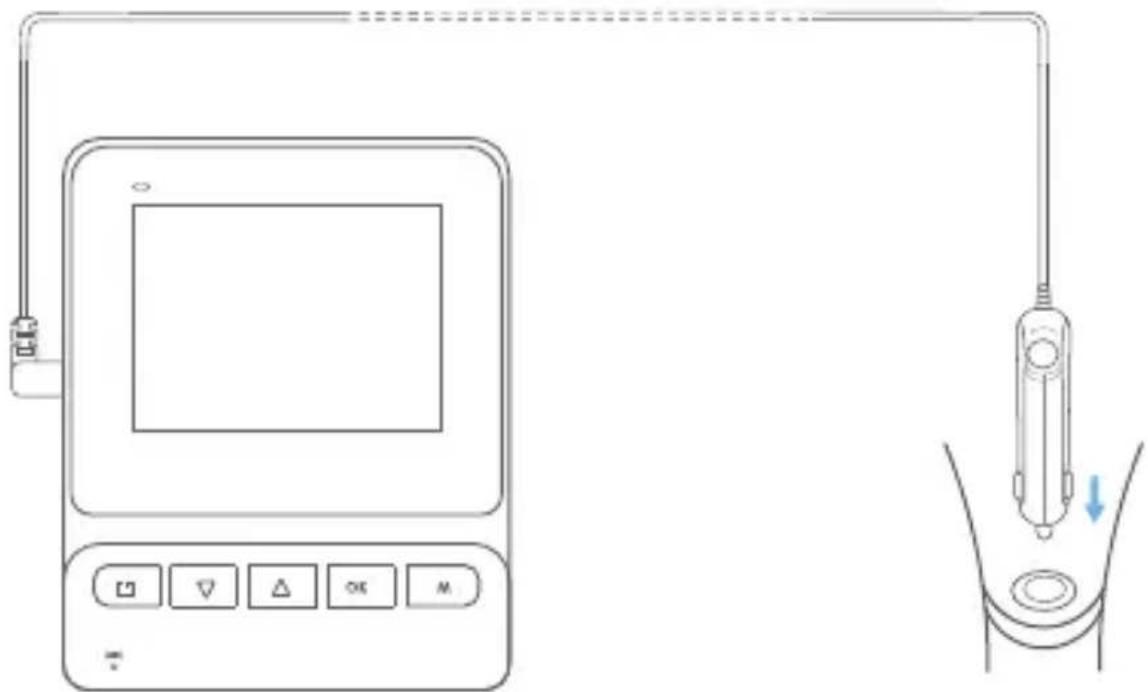

Step 4: Power the Camera and Format the Memory Card

Power the camera by connecting the charger to the car cigarette lighter and the camera

To ensure the V1P Flex X4 records to your memory card properly and without error. Before you start using a new memory card, you must format the card within the camera using the format function. Always backup important data stored on the memory card before formatting.

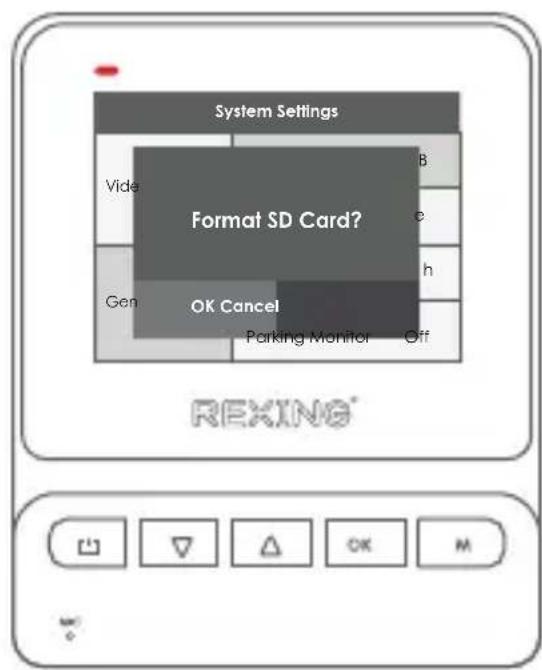

To format the memory card, make sure you have inserted your memory card, then turn on the device by connecting to a power source. Press UP button to stop recording. Then press the MENU button twice to enter the system Setup Menu. Use the UP and DOWN buttons and go to the Format settings. Press the OK Button to confirm the selection.

Line drawing of a medical device connected to a catheter, showing control buttons and a device with a blue arrow (no text or symbols present)

You may now disconnect from power. The camera will shut down after 3 seconds. The camera should begin recording automatically the next time it is powered on.

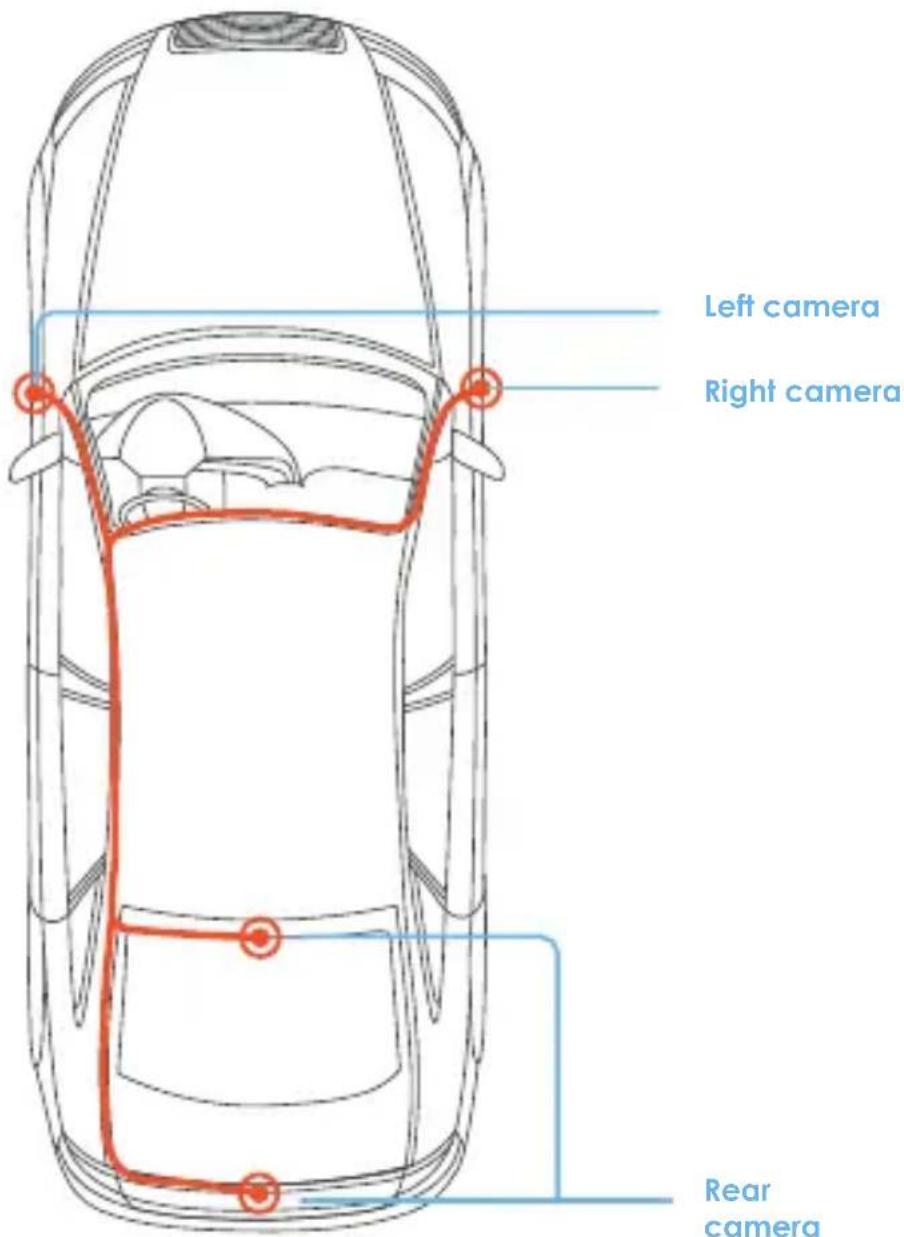

Step 5: Mount the Extra Cameras, Left/Right camera are optional.

Mount the extra cameras as shown below. Use the provided camera cable to connect the extra cameras to the front camera. Left and Right camera are sold separately.

Step 6: Installing the Camera onto the Windshield

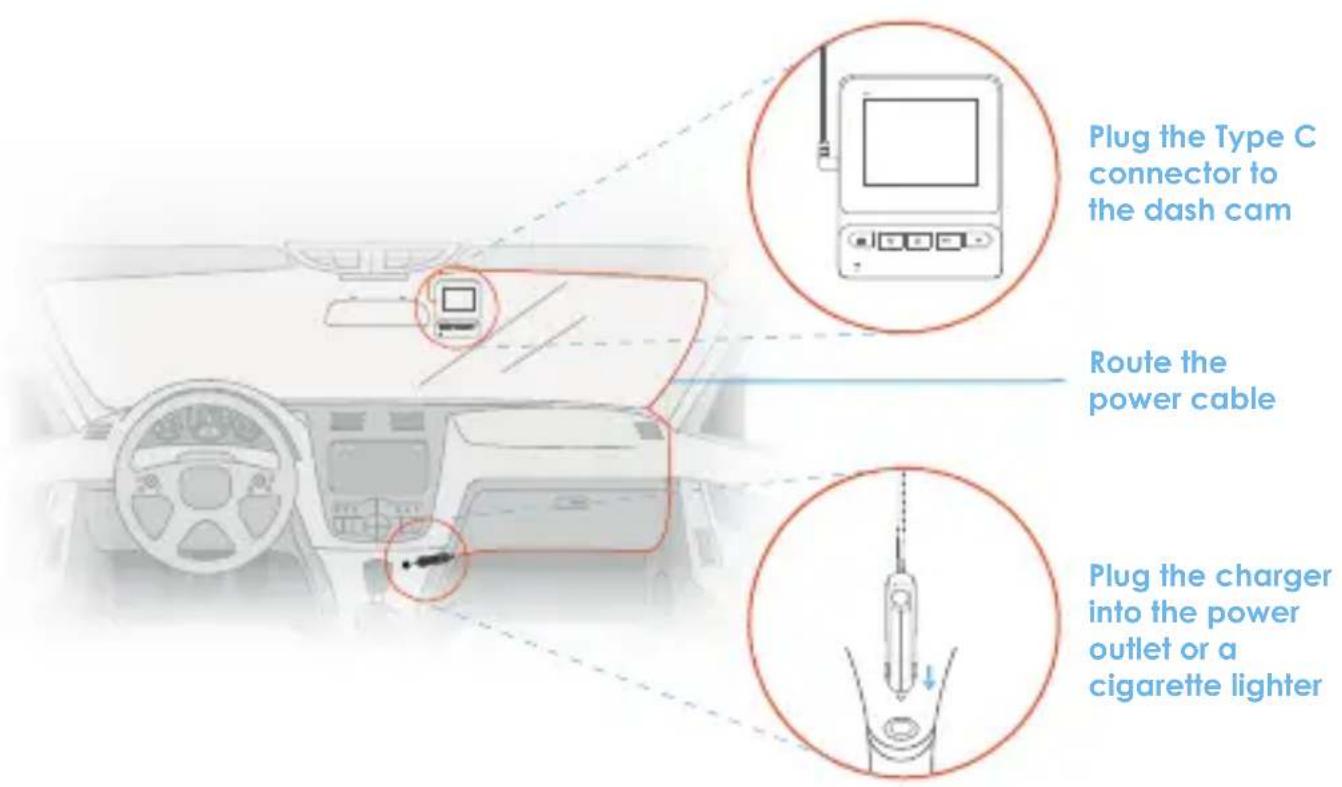

Place the camera on the mount and carefully route the power cable around the windscreen and tuck in under the trim.

Plug the Car Charger Cable into a 12V DC power outlet or the car cigarette lighter.

Connect car charger to the camera. The camera will auto-start recording once powered on.

Basic Operation

Device Power

The device is automatically powered on when plugged into a 12V accessory socket or cigarette lighter and receives a charge (i.e.: the vehicle is started).

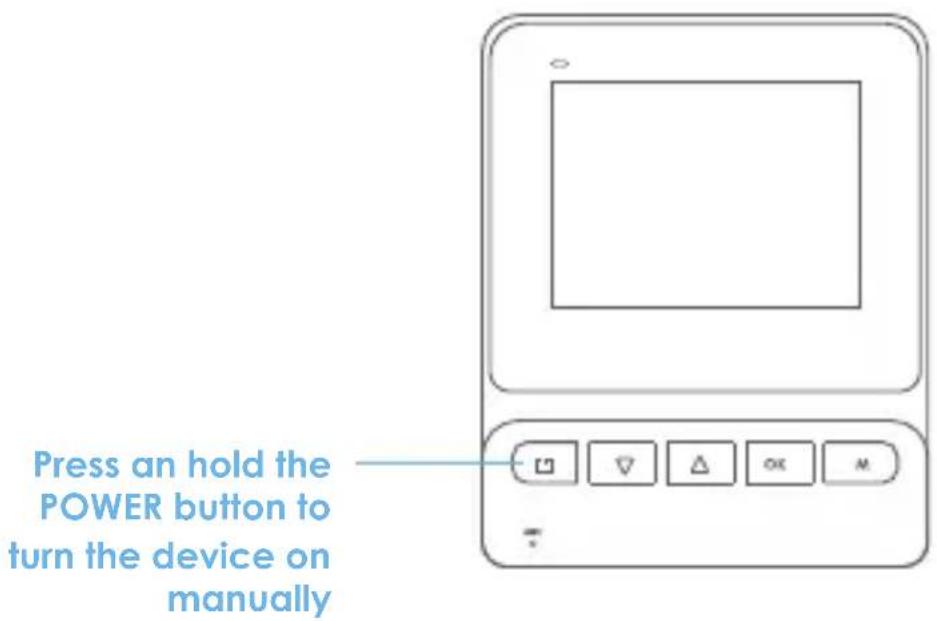

To turn the device on manually, press and hold the POWER button until the welcome screen appears.

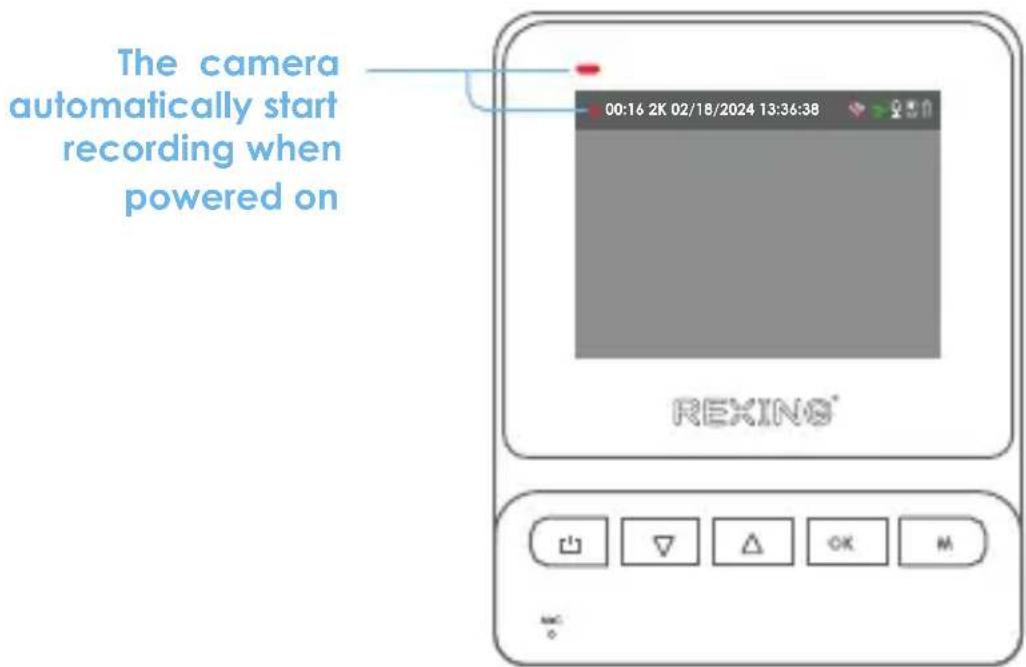

The camera will automatically start recording when powered on.

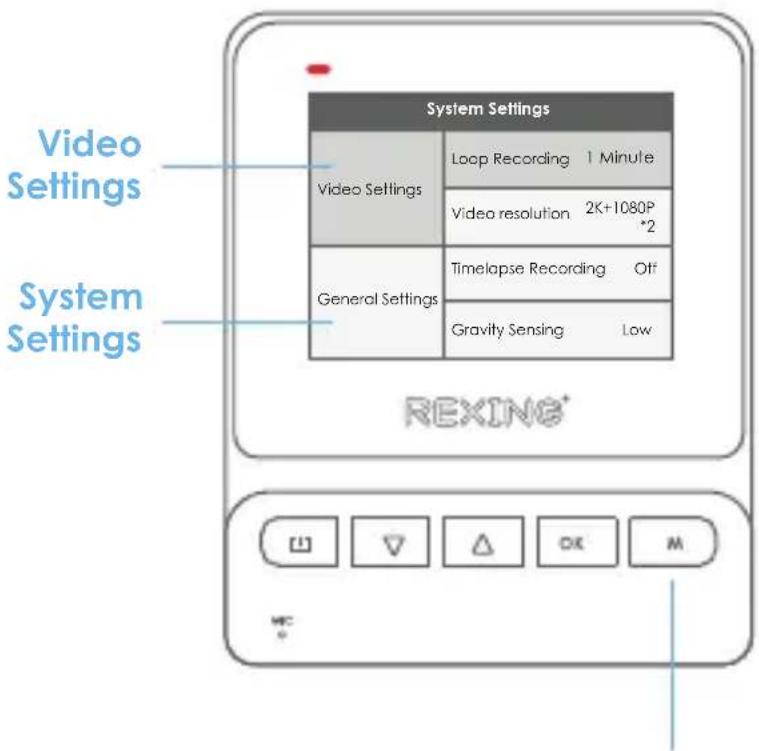

Menu Settings

Power the camera on. If the camera is recording, press the UP button to stop recording.

Press the MENU button once to enter the settings menu for a Mode. Press the MENU button twice to enter the System Settings.

Press the Menu button to select the desired setting

Video Recording

The camera will automatically start recording when the device receives a charge. The Indicator and the red dot will blink when the device is recording. Press the UP button to stop recording.

Video Playback

Playback of videos can be done on the device or a computer.

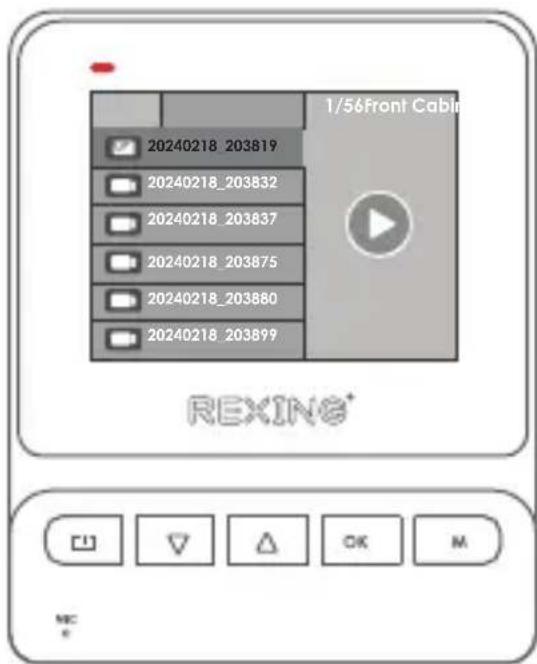

To playback a video on the device, toggle to the Playback mode by Hold MENU Button. Use the UP and DOWN buttons to toggle to the desired video. Press the OK button to play.

Video Playback

Playback of videos can be done on the device or a computer.

To playback a video on the device, toggle to the Playback mode by Hold MENU Button. Use the UP and DOWN buttons to toggle to the desired video. Press the OK button to play.

During playback use the OK (pause), DOWN (fast forward), and UP (rewind) buttons to control the video playback.

To playback a video on the computer, either use an SD card adapter or connect he device to the computer directly using the USB to Type C cable.

Diagram showing two electronic components with red arrows indicating direction, no text or symbols present

To playback a video using an SD card adapter, remove the memory card and insert it into an SD card adapter. Place the adapter in the computer.

Parking Monitor (Parking Surveillance Mode)

Parking monitor provides surveillance on your parked vehicle. When the engine is off, the hardwire kit is used to provide continuous power and protect your car battery from being discharged.

Option 1: Vibration Detection

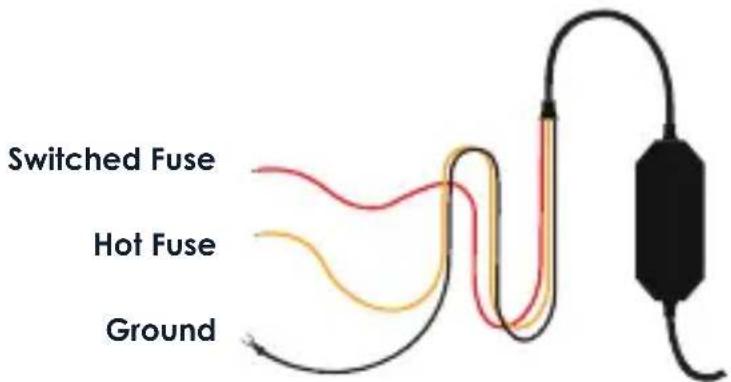

To enable the Parking Monitor, you'll need to connect it with a Smart Hardwire Kit.

This feature will allow the dash cam to switch to parking mode automatically if the vehicle's engine turns off and switch back to the normal recording after the vehicle's engine turns on.

Gravity Sensing Record:

The Gravity Sensing detects significant or sudden movement (such as an impact or collision), it will trigger an event recording. We suggest setting the "Gravity Sensing" to High sensitivity for Parking Mode Recording.

Note:

If you do not use the parking mode function, please change the Gravity Sensing sensitivity to low. Otherwise, the video will easily be locked and the video cannot be deleted by the loop recording function. This will cause the memory card to be full of locked videos and cause the recorder to fail to work normally.

Please DO NOT ENABLE the Parking Monitor function in the settings of the dash cam WITHOUT connecting a smart hardwire kit. They may cause a malfunction.

Option 2: Motion Detection

To use this feature, you need to connect it with a Rexing Intelligent Hardwire Kit (sold separately). Make sure that the Parking Mode is turned off on your dash cam, otherwise it may cause a malfunction.

Once the sensor has detected MOTIONS. The intelligent hardwire kit will power up the dash cam automatically and start recording until the MOTION is cleared.

Please go to https://www.rexingusa.com/hwk-install/ to watch a video tutorial about the installation or scan the QR code below.

Wi-Fi Connect

Step 1

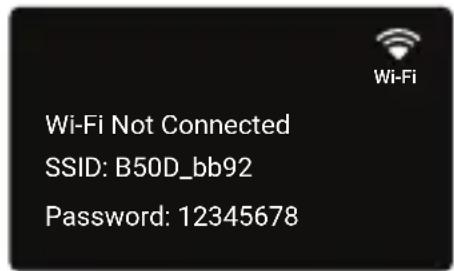

With your dash cam powered on, hold the OK button to enable the Wi-Fi function. The Wi-Fi name (aka the SSID) and password for the dash cam should be displayed on-screen.

Step 2

On your mobile device, navigate to your Wi-Fi settings. Connect to your dash cam's Wi-Fi by tapping its name when it appears. Enter your dash cam's Wi-Fi password if you are prompted to do so.

Note: On same mobile devices, you may have to try to connect more than once. To ensure you've successfully connected, your mobile device's screen should resemble the examples shown.

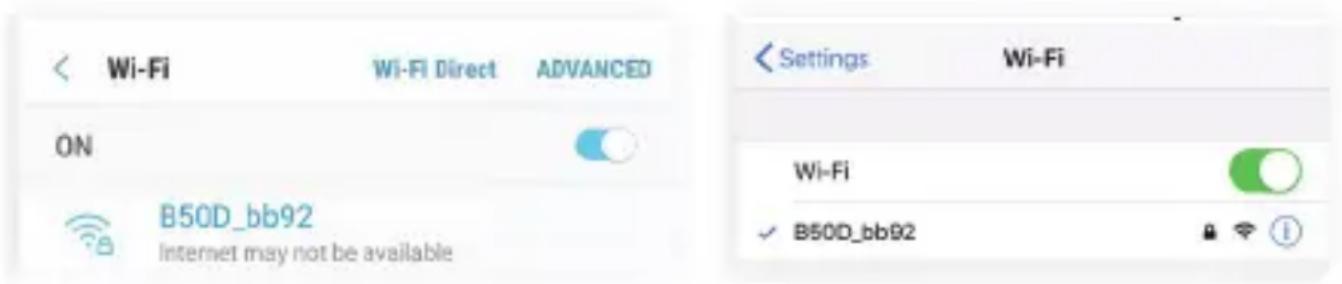

Samsung / Android Example iPhone / iOS Example

Step 3

Once you're connected to the dash cam, open the Rexing Connect app on your mobile device.

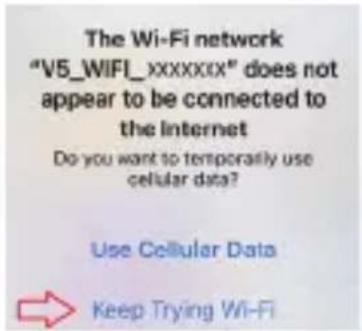

Please select "Keep Trying Wi-Fi" if you see the notification on the right.

Step 4

In the app, hit the "Connect" button to connect to your dash cam, allowing you to access live view and view/download your recordings.

Note: Press to the OK button to disconnect the Wi-Fi.

Rexing Connect App

Easily download the app by scanning the QR code below or search via the App Store or Google Play.

Wi-Fi Connect Troubleshooting

If you bring up the Rexing connect app and cannot connect your phone to the dash cam please go to https://www.rexingusa.com/wifi-connect/OR scan the QR code below.

GPS Logger (Optional)

When Rexing Charger with GPS Logger (Sold separately, UPC: 810046606872) connect and activated, it will record the speed and location of your vehicle as you drive.

You may also connect to a Type-C GPS Smart Hardwire Kit (UPC: 810046606865) to activate the GPS functionality.

The dash cam will automatically search for the GPS signal once it's connected to the power source.

You can then access this information while playing back your recordings using the GPS Video player. For Windows and Mac, available at http://www.rexingusa.com/support/ rexing-apps/.

Press the MENU button twice and enter the System Settings.

Toggle to the GPS Speed Unit setting and select your preferred speed unit.

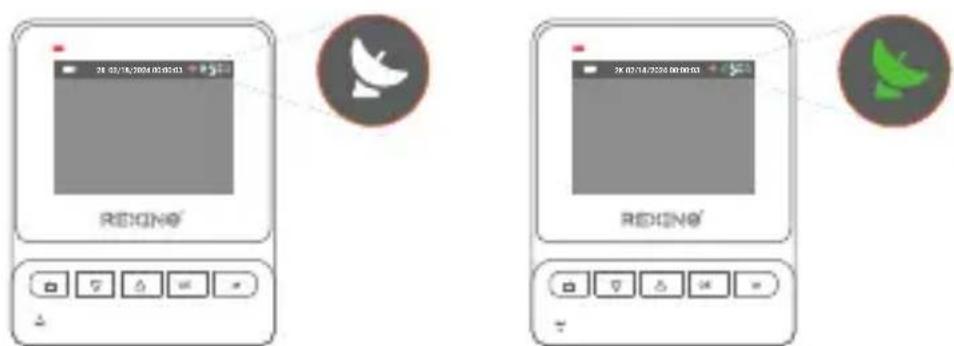

After a GPS signal is found, the screen icon will turn from blue to green.

Please visit gpsa.rexingusa.com to watch a video tutorial.

GPS Date-Time Troubleshooting

If your dash cam GPS date and time are incorrect please go to

https://www.rexingusa.com/gps-date-time/ OR scan the QR code below.

Warranty & Support

Warranty

The Rexing V1P Flex X4 Dash Cam comes with a limited 12-month warranty. If you register your product on our official site

(https://www.rexingusa.com/support/registration), you can extend the limited warranty to 18 months.

Support

If you have any questions regarding your product, please do not hesitate to contact us at [e-mail], or call us at [phone]. Queries are typically answered within 12-24 hours.

Your opinion matters

Rexing is firmly committed to always improving our products, services, and user experience. If you have any thoughts on how we can do even better, we welcome your constructive feedback and suggestions.

Connect with us today at [e-mail]

Thank you for choosing Rexing!

FCCID: 2AW5W-RH2

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
