Latteccino IZ-6203 - Milk frother Izzy - Free user manual and instructions

Product Type	Milk Frother
Model	IZ-6203
Brand	Izzy
Power Supply	AC 220-240V, 50/60Hz
Power Consumption	500W
Functions	Cold frothing, Airy hot frothing, Dense hot frothing, Heating
Capacity (Cold Froth)	75 ml (min) - 130 ml (max)
Capacity (Hot Froth)	75 ml (min) - 130 ml (max)
Capacity (Heating)	75 ml (min) - 300 ml (max)
Jug Material	Stainless steel with non-stick interior
Lid Material	Transparent plastic with silicone ring
Whisk	Detachable stainless steel whisk
Dimensions (approx.)	Height 25 cm, Diameter 10 cm
Weight (approx.)	0.5 kg
Cord Length	Approx. 70 cm
Safety Features	Auto shut-off, overheat protection, non-slip base
Cleaning	Hand wash only; jug and base wiped with damp cloth; do not immerse
Dishwasher Safe	No (lid and whisk not dishwasher safe)
Warranty	2 years
Accessories Included	Jug, lid, whisk, power base

Frequently Asked Questions - Latteccino IZ-6203 Izzy

What types of milk can I use?

For best results, use cold low-fat milk (1.5% fat) that is high pasteurized or long-lasting. Whole milk can also be used but may produce less foam.

How do I select the desired function?

Press the power/mode button repeatedly to cycle through the modes: cold froth (blue light), airy hot froth (red), dense hot froth (red), and heating (red). The indicator will flash 3 times then stay on when the cycle starts.

What is the maximum capacity for each mode?

For cold and hot frothing, the maximum capacity is 130 ml. For heating only, the maximum is 300 ml. Do not exceed the MAX mark inside the jug.

Can I put the jug or parts in the dishwasher?

No. The jug, lid, and whisk should be hand washed with warm soapy water and a non-abrasive cloth. Do not immerse the jug or power base in water.

What should I do if the milk frother stops working mid-cycle?

Unplug the device and let it cool down for a few minutes. Check that the milk level did not exceed the MAX mark and that the whisk is correctly placed. Then restart.

How do I clean the whisk?

Remove the whisk after each use and wash it in warm soapy water. Rinse and dry thoroughly. Do not use abrasive cleaners or metal scouring pads.

Is the milk frother safe to use with children?

This appliance is not intended for use by children. Keep it out of reach of children and ensure close supervision if used near them.

Can I heat milk without frothing?

Yes. Select the heating mode (red light) and the device will heat the milk without frothing. The maximum capacity for heating is 300 ml.

How long does a cycle last?

The cycle duration varies by mode but typically lasts between 1 to 3 minutes. The device automatically stops when the cycle is complete.

What is the warranty period?

The Izzy Latteccino IZ-6203 comes with a 2-year warranty against manufacturing defects. Keep your purchase receipt for warranty claims.

USER MANUAL Latteccino IZ-6203 Izzy

Black and silver portable device with a power button and 'IZZY' branding (no readable text beyond branding)

ΜΠΕΝΡΟΥΜΠΗ

Thank you for having chosen an appliance from the IZZY range.

Safety interlocks

Please read these instructions carefully before using the appliance and save them for future reference. Please keep the sales receipt for guarantee purposes (pls see below “Guarantee and Customer Service”) Any us which does not conform to the instructions will absolve IZZY from an liability.

• Make sure your electricity supply is the same as the one shown on the underside of the appliance.
• Never leave the appliance unattended when it is operating.
• Close supervision is necessary when your appliance is being used near children or infirm people. Ensure that they do not play with the appliance.
• This appliance is not intended for use by people with reduced physical, sensory or mental capabilities, children or those with lack of experience and knowledge, unless they have been given supervision or instructic concerning use of the appliance by a person responsible for their safety.

- Switch off and unplug:

– Before fitting or removing parts.
- After each use.
- Before cleaning.

• Never use the appliance for any other use than indicated.
• The device is intended for indoor use. Do not use the device outdoors.
• The device is intended only for domestic use. Any other use will cancel the warranty.
  • Always use the milk frother on a secure, dry, clean and heat resistant surface.
• Do not place the appliance of a polished wood surface to avoid surface damages.
• Do not operate or place the device or parts in places of high humidity or where it may get wet.

- Never let the power unit, cord or plug get wet. If the appliance does get wet, immediately remove the power cord from the wall outlet and do not put your hands in the water. Never run the wet appliance and contact one of the authorized BENRUBI service centers.

- Misuse of your milk frother can result in injury.

- Do not let the power cord of the appliance hang over the edge of a table or bench top or touch any hot surface.

- Never leave the power cable wrapped during use. Unwind it completely.

- Never use highly corrosive or abstractive cleaning agents. Never use metal scouring pads for cleaning.

- To avoid burns, do not touch the metal parts, the base or the housing when in operation.

- To avoid injury, do not touch moving parts when in operation.

- Do not exceed the MAX capacity indicated inside the jug to avoid overflow.

- Only use the powerbase supplied and keep it clean and dry.

- Remove the jug from the base before filling or pouring

- Never put the milk frother near or on hot plates or gas burners.

- Do not operate without milk in the jug.

- Never use the appliance without the lid.

- Do not use sharp metal objects in the jug.

- Do not move the appliance when in operation.

- Do not touch the appliance with wet or damp hands.

- Do not use an extension power cord.

- Check the power cord periodically for possible damages. If the power cord or the plug of the appliance has been damaged, do not use the appliance and contact an authorized BENRUBI Service Center.

- In case of a possible damage, do not attempt to repair the appliance by yourself. Please contact one of the authorized BENRUBI service centers.

- Any repair made by an unauthorized BENRUBI Service Center CANCELS THE GUARANTEE.

- Any misuse of the device cancels the warranty.

- Use only original spare parts.

• The appliance conforms to EU directive 2014/30/EU on Electromagnetic Compatibility, the 2014/35/EU Low Voltage Directive, the 2011/65/EU RoHS Directive, the directive 2009/125/EC for eco-design and the EC regulation no. 1935/2004 on materials intended to contact with food.

SAVE THESE INSTRUCTIONS

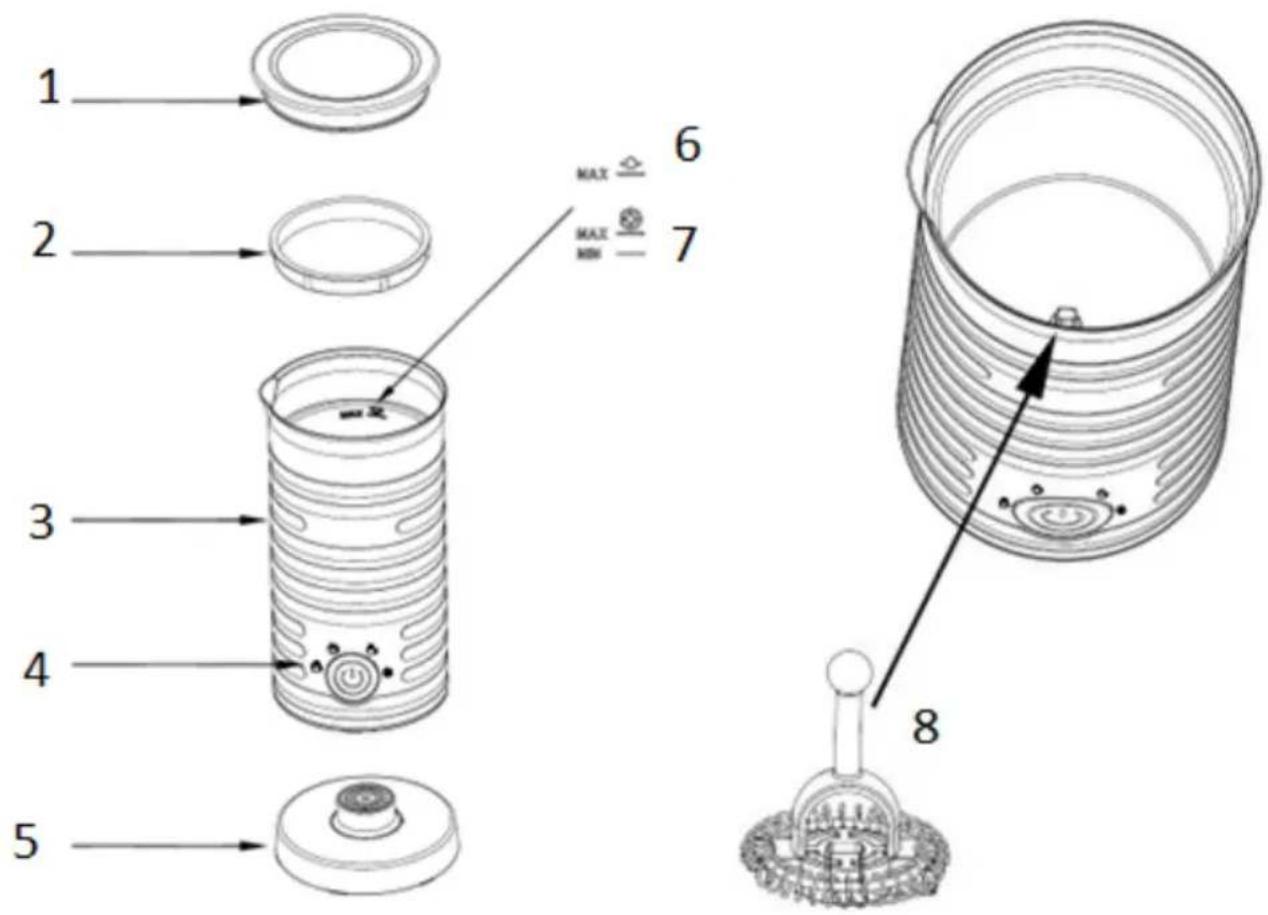

Parts of the Appliance

1. Transparent lid
2. Silicon ring
3. Jug
4. Power/mode button with indication lights
5. Power base with cord
6. Max quantity indication for heating
7. Max/Min quantity indications for frothing
8. Whisk

Functions

Whisk	Functions	Mode icon	Indication light	Min capacity	Max capacity
	Frothing cold milk		Blue	75 ml	130 ml
	Airy frothing hot milk		Red	75 ml	130 ml
	Dense frothing hot milk		Red	75 ml	130 ml
	Heating		Red	75 ml	300 ml

Before the First Use

- Wash the appliance and the accessories. See “care and cleaning” section.

Using Your Milk Frother

1. Place the whisk (8) on the bottom of the jug (3).
2. Pour the milk into the jug (3). Make sure it does not exceed the MAX mark corresponding to the mode of your choice (see "modes" table).
3. Place the jug (3) on the power base (5).
   4 Plug in.
   5 Press the power/mode button (4) successively to select the desired function.
4. After selecting the mode of your choice, the indicator light will flash 3 times, then stay on and the device will start working.
5. When the cycle is completed, the device will automatically stop and the indicator light will turn off.
6. Remove the jug (3) from the power base (5) and pour the frothed milk into your coffee.
7. Unplug after each use.

Hints and Tips

• For best results, use cold low-fat milk (1.5%) high pasteurized or long-lasting.
  • Always use cold milk.
• Keep the whisks in a safe place as they are too small and can easily be lost.
  • We recommend letting the appliance cool down for 1-2 minutes before using it again.
• The result may be affected if you do not place the agitators correctly, if the amount of milk exceed the MAX mark, or if the milk you use is not cold and it is not low-fat milk (1.5%) high pasteurized or long-lasting.
  • To make the perfect frothy drink, it is recommended to separate the froth from the heated milk when pouring it into the cup. We recommend using a spoon or spatula to hold the foam in the jug

while you slowly pour in the milk. Once all the milk has been poured, skim the foam off the jug and add it to the top of your drink.

Care and Cleaning

CAUTION: Never immerse the jug or the power base in water.

- Before cleaning, unplug your milk frother and let it cool down.

The outside of the jug and power base:

• Wipe with a damp cloth, then dry.
• Never use highly corrosive or abstractive cleaning agents.
• Never use metal scouring pads for cleaning.

The inside of the jug:

• Clean immediately after each use.
• Use warm soapy water and a non-abrasive cloth.
• Never use metal scouring pads for cleaning.
• Never use highly corrosive or abstractive cleaning agents.
• Dry thoroughly with a soft cloth.
  CAUTION: Do not submerge the jug in water.

Lid & whisk:

• Clean immediately after each use.
• Use warm soapy water and a non-abrasive cloth.
• Never use metal scouring pads for cleaning.
• Never use highly corrosive or abstractive cleaning agents.
• Dry thoroughly with a soft cloth and store in a safe place.
  CAUTION: Never wash the lid and the whisk in the dishwasher.

Technical Characteristics

Model: Milk Frother IZ-6203 IZZY

Voltage: AC 220-240V

Frequency: 50/60Hz

Rated input: 500W

Important Information for Correct Disposal of the Product in Accordance with EC Directive 2002/96/EC

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

Guarantee & Customer Service

- BENRUBI Company guarantees its products for any manufacturing defect or defective materials for a period of two (2) years from the date of purchase or delivery by presenting purchase receipt. If your product malfunctions or you find any defects, please revert to the retail location you have purchased it from or contact an authorized BENRUBI Service Centre. To find the nearest authorized BENRUBI Service Centre, visit our website www.benrubi.gr. It is in the discretion of BENRU Company to replace or repair the defective product.

- The warranty does not cover damages resulting from normal wear, breakage, scaling, improper installation or maintenance of the product, mishandling, abnormal working conditions, failure implement the instructions, conversion or repair of the product by an unauthorized technician who does not belong to the BENRUBI Service Centers.

Also, the warranty does not cover the following indicative factors:

• Stains, discoloration or scratches.
- Burns due to exposure to heat or flame.
- Damage from thermal shock (sudden temperature change or change of voltage).

FOR MORE INFORMATION PLEASE CONTACT:

(NEW) H. BENRUBI & FILS SA

27 Aghiou Thoma str, GR15124, Maroussi – Athens,

Tel./Customer Support: [phone]

e-mail: [e-mail]
