USER MANUAL WT15M-FI AOPEN

Blue icon showing a hand cursor clicking a computer screen with a circular button labeled 'M' (no text or symbols beyond the icon)

eTILE

WT15M-FI

Commercial All In One PC

Technical Manual

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Disposal Instruction (US)

For better protection of our earth, please don't throw this electronic device into municipal trash bin when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle the product. For more information about the collection and recycling of Waste Electrical and Electronic Equipment (WEEE), you are invited to visit our homepage at www.aopen.com under “Green Products”

廃棄上の指示

Instruction de Disposition (French)

Copyright of this publication belongs to AOpen Inc. AOpen reserves the right to change the content of this publication without obligation to notify any party of such changes or revisions. No part of this publication may be reproduced, transcribed, transmitted, translated into any language, stored in a retrieval system in any form or by any means electronically, mechanically, optically without the prior written permission of this company.

Disclaimer

AOpen makes no warranties or representations, either expressed or implied, with respect to the content herein and specifically disclaims any warranties, merchantability of fitness for any particular purpose.

AOpen and AOpen logos used herein are registered trademarks of AOpen Inc.

All other brand names and trademarks are owned by their respective owners.

Copyright © 2011 by AOpen Inc.

All rights reserved.

AOpen Inc.

http://www.aopen.com.tw

Safety Instructions

1. Please read these safety instructions carefully.
2. Please keep this User's Manual for later reference.
3. Please disconnect this equipment from connector before cleaning. Don't use liquid or prayed detergent for cleaning. Use moisture sheet or cloth for cleaning.
4. Make sure the equipment is connected to the power source with the correct voltage, frequency, and ampere.
5. All cautions and warnings on the equipment should be noted.
6. Never pour any liquid into opening; this could cause fire or electrical shock.
7. Never open the equipment. For safety reason, the equipment should only be opened by qualified service personnel.
8. If one of the following situations arises, get the equipment checked by a service personnel :
   a. Liquid has penetrated into the equipment.
   b. The equipment has been exposed to moisture.
   c. The equipment has not work well or you can not get it work according to user's manual.
   d. The equipment has dropped and damaged.
   e. If the equipment has obvious sign of breakage.
9. Ambient operation temperature: less than 40 degrees C.
10. Caution on use of battery: Use the battery recommended by the manufacturer or the same type of battery installed by the manufacturer. If incorrect battery is used, it may cause explosion or fire hazard. Recycle or discard used batteries according to the manufacturer's instruction or your local authority.
11. Wall Mounting Holder need to use UL 1678 approved product.

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the device and receiver.

Connect the device into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this computer.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003

Table of Contents

1. Packing List....11

1-1. Standard Accessories ...... 11
1-2. Optional Accessories....12

2. System View....13

2-1. Front View....13
2-2. Rear View....13
2-3. I/O ports....14
2-4. Dimension 14

3. System Assembly ...... 15

3-1. HDD Replacement....15
3-2. RAM Replacement....17
3-3. CPU Replacement....18
3-4. Power Adapter Replacement....19

4. Peripheral Installation....20

4-1. Wall Mount Kit Assembly....20
4-2. Other VESA-bracket support....21

4-3. Wireless LAN Installation....21

1. Specification....22
2. RS232 Setting 25

Appendix A: Drivers Installation....27

Appendix B: Trouble Shotting 28

The logos of Adobe and Acrobat are the registered trademarks of Adobe Systems Incorporated.

The logos of AMD, Athlon, and Duron are the registered trademarks of Advanced Micro Devices, Inc.

The logos of Intel, Intel Celeron and Pentium II&III are the registered trademarks of Intel Corporation.

The logos of nVidia are the registered trademarks of nVidia Corporation.

The logos of Microsoft, Windows are the registered trademarks of Microsoft Corporation in America and other countries.

All the titles of the products and the trademarks mentioned in this manual are for the purpose of illustrative conveniences and are possessed by their respective firms.

We regret not informing about any changes in usage standards and other related information. AOpen Company reserves the right of altering or modifying the content of this manual. In case of any mistakes or incorrect descriptions, which include those on the products, AOpen makes no guarantee or commitments.

This document is based on the copyright laws in order to protect our company and reserve all rights.

Under no circumstances are any types of duplicating and loading this brochure in any databases and media permitted except the permission signed on formal document by AOpen Company.

1996-2008 Copyrights, AOpen Ltd. All rights reserved.

http://www.aopen.com

1. Packing List

1-1. Standard Accessories

a.

Blank tablet device with gray frame and white display area (no text or symbols)

d.

b.

C.

Line drawing of a mechanical component with threaded end and rectangular body (no text or symbols)

a. System
b. Utility and Driver
c. Power adapter (120W)
d. Power cord
e. Ultra Slim Wall Mount (Option)

Notice:

The pictures may look slightly different from the product you purchased, due to our constant product improvement effort.

1-2. Optional Accessories

Desktop Stand

P/N:90.WT134.0110

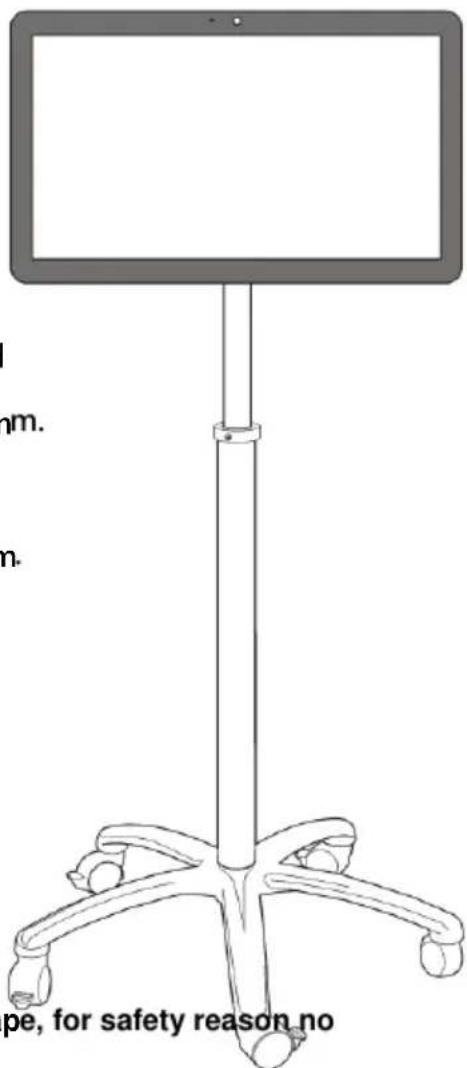

Floor Stand

P/N:90.WT134.0010

Desktop LCD Monitor / Stand configuration

* This model is built w/ wheels, which can be easily moved
* LCD Monitor height adjustment: from 1100mm to 1700mm.
* Dimension: 1700(H) x 600(W) x 600(D) mm.
* VESA Mount: support 75mm x 75mm & 100mm x 100mm.
* Max. loading: 10kgs.
* Material : Aluminum.

Black handheld device with a curved cable and mounting base (no visible text or symbols)

Notice:

Please set up monitor as landscape, for safety reason no allow turn it to portrait.

2. System View

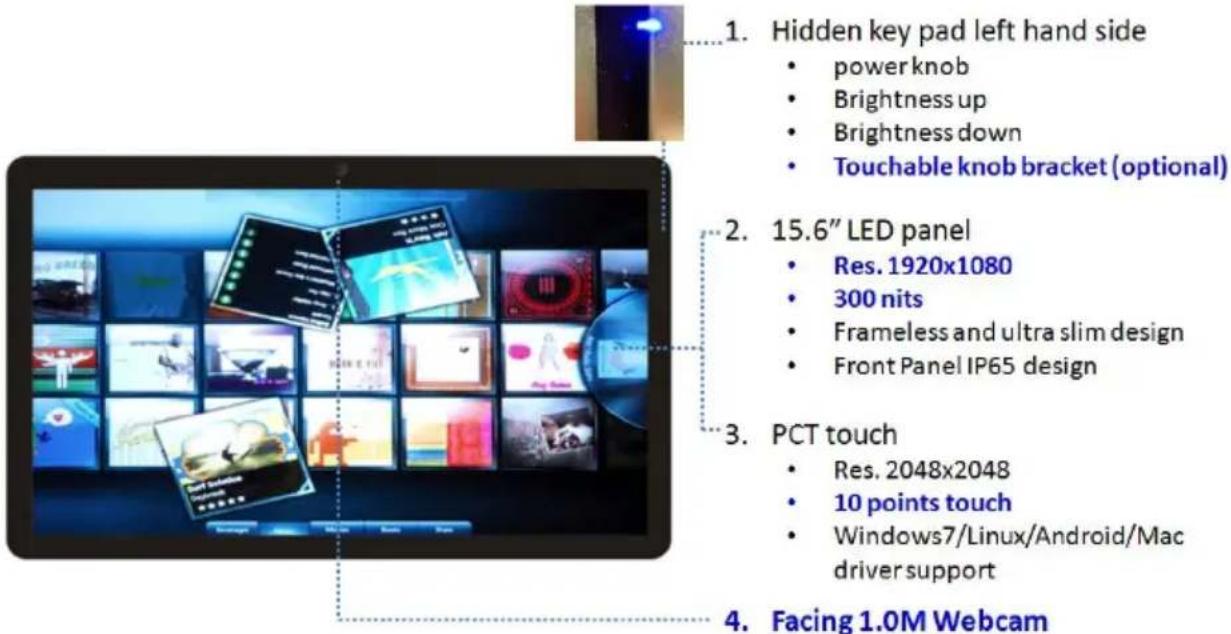

2-1. Front View

Black rectangular device with a diagonal light beam on the left side, no visible text or symbols.

2-2. Rear View

Top-down view of a black rectangular electronic device panel with mounting holes and ventilation slots (no text or symbols visible)

2-3. I/O ports

Caution: When you install devices or cables, please removed DC jack at first to prevent inadvertently switched to cause system boot/ damage to system/electric shock. The HDMI connector is output port, not input.

Back view of a computer monitor showing port labels and ventilation slots (no readable text or symbols)

2-4. Dimension

3. System Assembly

Please remove all screws of rear cover

Diagram of a tablet device with blue curved arrows indicating orientation or movement, no text or symbols present

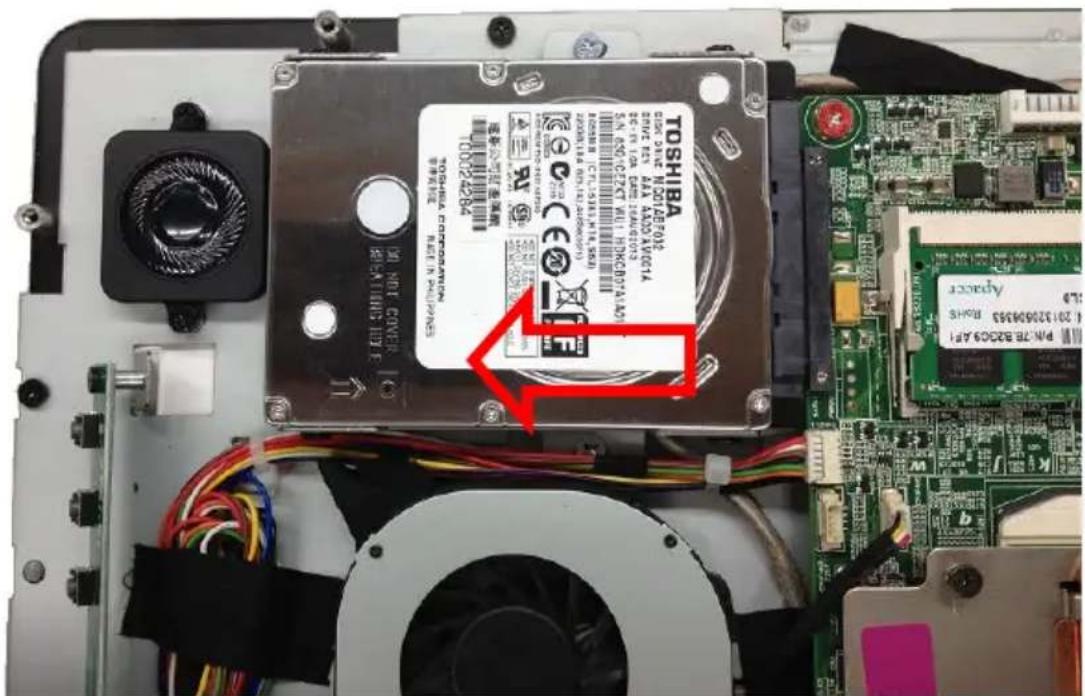

3-1. HDD Replacement

1. Rear view after taking off rear cover HDD Cage Memory Slot Mini Card for Wi-Fi


1. Unscrew the screws, and disconnect the SATA connector when swap HDD


Close-up of a computer hard drive with visible circuit board and cable, no readable text or symbols present.

1. Install HDD or SSD


3-2. RAM Replacement

Opening the Rear Cover

Please open the rear cover first then remove and replace the RAM module.

You can refer to the motherboard layout to find the memory compartment.

Swapping a RAM Module

1. Use both fingers to pull the ejector clips out of the sides of the module.
2. Slide the memory module out of the memory slot.

3D diagram of a rectangular electronic component with internal slots and directional arrows indicating flow or movement (no text or symbols)

Installing a RAM Module

1. Slide the memory module into the memory slot and press down until the ejector clips click in place.

3D diagram of a computer RAM module with internal components and an arrow indicating assembly (no text or symbols)

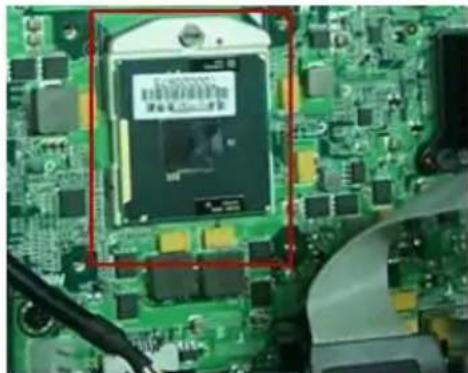

3-3. CPU Replacement

1. Unscrew the screw of Fan module, Please following the process as 5 4 3 2 1 to remove the screws

1. Remove the Fan module
2. Unlock the CPU socket (please follow the mark on CPU socket, should be counter-clock direction)
3. Put on the CPU, and please make sure the triangle mark on CPU and socket should be align.
4. Lock the CPU socket (please follow the mark on CPU socket, should be clock

direction)

1. Assembly Fan module
2. Screw Fan module screws as the process

1→2→3→4→5

Close-up of a green printed circuit board with a central chip and visible traces (no readable text or symbols)

3-4. Power Adapter Replacement

1. Please turn off the system
2. Disconnect the power cable from the I/O panel (DC IN), then can swap the adapter

Back view of a black electronic device showing ports and connectors (no visible text or symbols)

4. Peripheral Installation

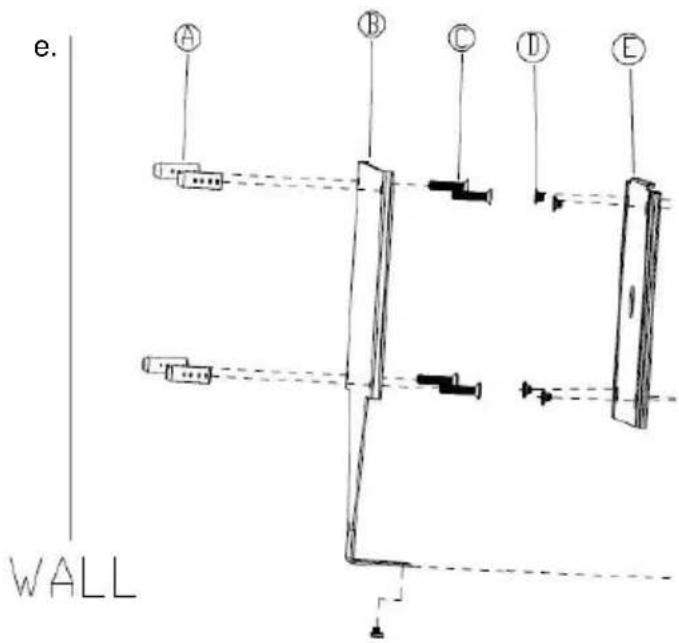

4-1. Wall Mount Kit Assembly

1. Drilling the wall, and put into the plastic seat as A
2. Screw wall-mount bracket and plastic seat as C.
3. Screw VESA bracket on system by special VESA screws ( ≤ 3.5mm) as D
4. Lift the system to align the VESA bracket into the wall-mount bracket, and make sure they are well assembled
5. Screw bottom screw to fix system on wall-mount bracket

4-2. Other VESA-bracket support

The system support standard 100x100mm VESA mount, so other VESA mount bracket followed this standard spec can be assembled. Please use the system attached VESA screw - M4 length 3.5mm, otherwise will be broken system's VESA screw hole.

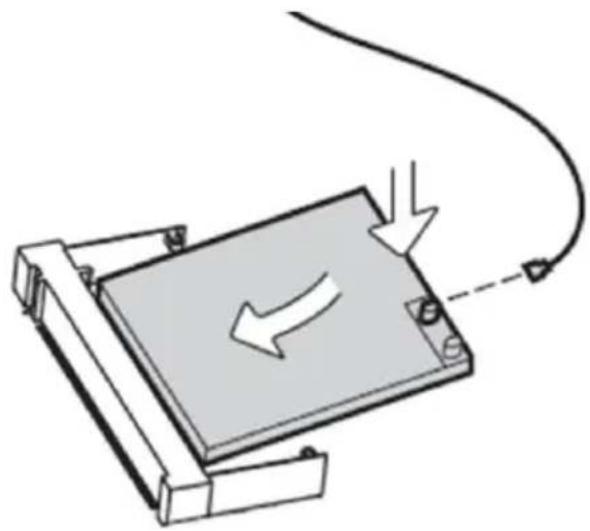

4-3. Wireless LAN Installation

To external antenna

Diagram of a mechanical device with a curved arrow indicating motion, connected to a cable (no text or symbols present)

5. Specification

CPU

Intel Ivy or Sandy Bridge CPU socket 988

CHIPSET

Intel QM77

MEMORY

Support : SO-DIMM DDR3 x 2 (MAX 8G)

GRAPHICS

Integrated Intel® CPU (GMA HD Graphics series)

LAN

Intel Lan W82579LM

Audio

Realtek ALC886

Mini-Card slot (Option)

x2 (Wi-Fi, Digital TV Tuner card for optional)

Storage

Default 320G 2.5" SATA HDD

Optional 2.5" SATA SSD

SYSTEM BIOS

AMI 16MB (128Mb) SPI Flash ROM BIOS

Touch Panel

Win 7 Premium above support 10 Fingers (PCT Multi Touch)

Surface Pencil Hardness >=7H per ASTM D 3363.

Durability Characteristics

Pen Hitting: more than 100,000,000 times.(Loading 180g)

Another SPEC

Standard VESA Screw Hole (100x100mm), Screw L=3mm

Build-in 2W Stereo Speaker

Build-in internal Mono MIC

Build-in 1.0M Camera

Watchdog Timer: (1sec \~255sec)

Panel 15.6"(1920x1080 300cd/m²) ELED Back Light

System Build-in Embedded Antenna

No support Monitor OSD function

Optional Wireless KIT

Side I/O – with cover

RS232 Port x1 (Option Power 12V/5V/1A, Default Disable)

USB 2.0 x2 (private support 5V/2A/Port)

USB 3.0 x2 (private support 5V/2A/Port)

GbE LAN RJ45 *1

Line out x1

MIC in x1

DC 19.5V (AC Adaptor 120W)

HDMI output connector x1 (for Dual Display)

On Board Pin Head / Connector on board

Fan power x 1

USB 4Pin x 1

Dimension / Weight

380.5x230x35mm (WxHxD) 3.7Kg

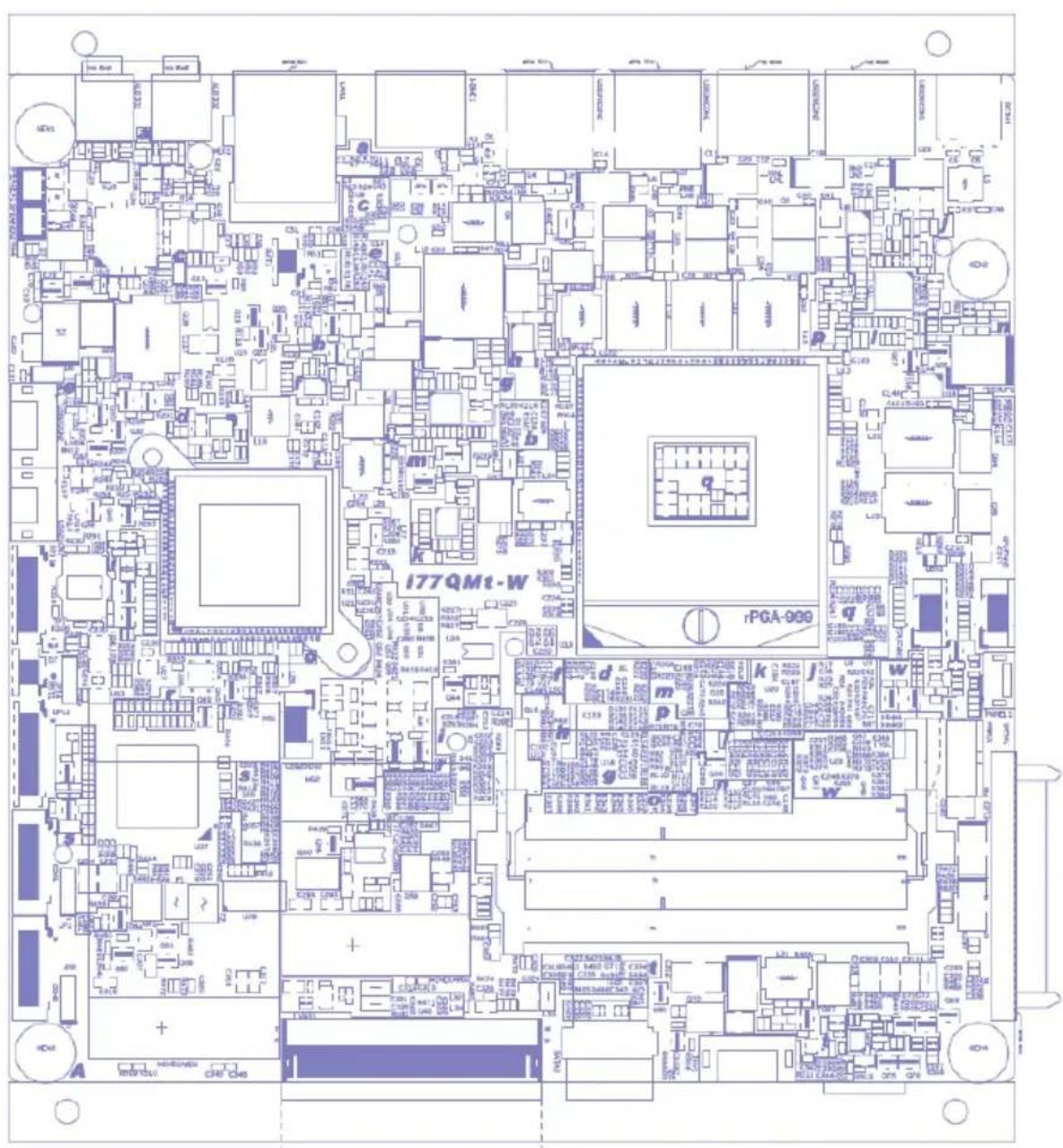

8. Slim ITX QM77 MB

• Support Ivy Bridge CPU
• 2.5" HDD Bag x 1
• SO-DIMM DDR3×2 (MAX 8G)

6. Integrated Speaker and Microphone

7. Rear I/O support

• 19V DC in x 1
• USB 2.0 x 2, USB2.0 x 1 (optional left side by project)
- USB 3.0 x 2
- HDMI Out x 1
• 10/100/1000 M LAN (RJ-45) x 1
- Microphone In x 1
- SpeakerOut x 1
- RS232×1

8. Standard VESA

• 100×100 mm
  • Wall Mount brackets (Sell as an accessory)

3D model of a black rectangular electronic device casing with mounting holes and ventilation slots (no text or symbols visible)

6. RS232 Setting

Motherboard Placement

RS232 pin-definition

Pin	Signal	Pin	Signal
1	Data Carrier Detect	6	Data Set Ready
2	Received Data	7	Request to Send
3	Transmitted Data	8	Clear to Send
4	Data Terminal Ready	9	Disable/5V/12V form BIOS setting
5	Signal Ground

Appendix A: Drivers Installation

The shipping package includes a Driver CD in which you can find every individual driver and utility that enables you to install the drivers on the system.

Please insert the Driver CD into the drive and double click on the "index.htm" to select the models. You can refer to the drivers installation guide for each driver in the "Driver/Manual List".

Appendix B: Trouble Shotting

No screen

1. Check system power line is connected
2. Please press power knob again to turn on system (please check the power led at right rear side is turned on)

Motherboard

Can't boot on

1. Check the power led at right rear side is turned on, but still no booting screen after 3 minutes.
2. Remove power line, after 1 min, connecting power line and power on system again. If still no booting after 10\~30 sec, please contact with Service guys.

Only the blinking cursor at the upper left of the screen

If blinking cursor is kept after 3 minutes, it might be Motherboard issue. Please contact with Service guys.

Hardware Issue

Please clean out the visual dirty of appearance

DRAM issue

1. Connection is loose, please reinsert DRAM again
2. COMS setting is wrong, please reset as default value
3. DRAM performance is getting worse by time. Please swap a new one.

HDD issue

Please reboot from other booting device. If system is booting without any problem, it shows the hard drive may be crashed. Please swap a new one.

System crash issue

1. The additional peripheral may be over loading for adapter, and this will cause system to turn on or turn off sometime. Please check by removing additional peripheral.

2. If thermal air hole is blocked, it will cause the system can't drop out heated air flow, and then system will be crashed. Please keep clean area over 25.4mm(1 inch) around system air hole.
