Type	Storage Water Heater (Household Use)
Model	RG30AHM1
Power Supply	230 V a.c., 50 Hz
Power Consumption	2500 W
Capacity	30 L
Rated Pressure	0.75 MPa / 7.5 bar / 108.78 psi
Dimensions (H × W × D)	323 mm × 704 mm × 310 mm
Weight (Empty / Full)	10 kg / 40 kg
Water Proof Rating	IPX4
Heating Element	2500 W, heats water to approx. 75°C
Heating Time (to 75°C)	Approx. 60 minutes
Safety Devices	Built-in ELB (Earth Leakage Breaker), Safety Valve, Thermal Cut-out
Installation	Wall-mounted horizontal, indoor use only
Included Accessories	Wall Plugs (A:2, B:1), Screws (A:1, B:1), M Screws (2 pcs), Safety Hook (1 pc), Safety Valve (1 pc)
Maintenance	Monthly inspection of ELB and Safety Valve; drain water monthly; professional inspection every 2 years
Warranty	Void if used with non-potable water or improper installation
Compliance	Must use water complying with local quality standards

Frequently Asked Questions - RG30AHM1 KDK

How long does it take for the RG30AHM1 to heat water to 75°C?

The heating time is approximately 60 minutes from cold start, as indicated in the manual.

What should I do if the ELB Reset Knob cannot be reset?

If the ELB Reset Knob cannot be reset or slides down during operation, do not use the appliance. Contact an authorized dealer immediately. Never fix the knob forcibly with tape.

How often should I inspect the built-in ELB?

The built-in ELB should be inspected once a month by pressing the Test Button. If it does not trip, the appliance may be unsafe.

Can I use an extension cord with this water heater?

No, do not use extension cords or joint cords. Use only a dedicated power supply with proper grounding to avoid electric shock or fire.

What is the purpose of the Safety Valve?

The Safety Valve protects against excessive pressure. It should be operated monthly to prevent lime scale buildup. The Drain Valve End must never be blocked.

How do I drain the water from the storage tank?

First switch off electrical supply, then turn on hot water faucet to release hot water until cool. Close main water valve, lift the Safety Valve lever to drain. Beware of hot water.

Can the RG30AHM1 be installed outdoors?

No, this appliance must be installed indoor only, in a frost-free location. It is not weatherproof for outdoor use.

What type of water can be used in the water heater?

The water must comply with local water quality standards. Using contaminated or non-potable water may cause corrosion and void the warranty.

How do I clean the exterior of the water heater?

Switch off the Miniature Circuit Breaker (MCB) first. Clean with a moist cloth. Never use benzene, thinner, detergent, or bleach.

What should I do if water leaks from the appliance?

Stop using the appliance and contact an authorized dealer immediately. Water leakage can cause damage to property and electric shock hazards.

USER MANUAL RG30AHM1 KDK

Operating and Installation Instructions

安装和操作说明书

Storage Water Heater (Household Use)

储水式热水器 (家居用途)

Model No.

型號

RG30AHM1

RG20AHM1

Illustration of a cylindrical industrial tank with side ports and piping (no text or symbols)

Thank you for purchasing this KDK product.

• Please read these instructions carefully in order to use this product correctly and safely.
• Before using this product, please give your special attention to the SAFETY PRECAUTIONS.
• Please keep this Operating and Installation Instructions for future use.

感谢您购买 KDK 储水式热水器。

Make sure to follow these instructions

In order to prevent accidents or injuries to the user, other people, and damage to property, please follow the instructions below.

■ The following indications indicate the degree of damage caused by incorrect operation.

WARNING

Indicates serious injury or death.

CAUTION

Indicates risk of injury or property damage.

■ The symbols are classified and explained as follows.

This symbol indicates prohibition.

This symbol indicates requirement that must be followed.

WARNING

• Do not damage the Power Cord. It may cause electric shock, or fire caused by short circuit.
• Do not use the appliance if the Power Cord is damaged. It may cause electric shock, or fire caused by short circuit.

- If the Power Cord is damaged, it must be replaced by the manufacturer, its Service Centre or similarly qualified persons in order to avoid a hazard.

• If the ELB Reset Knob cannot be reset even if you push it up or if it soon slides down during operation, do not use the appliance and contact the authorized dealer immediately to avoid a hazard to users such as damage to property, serious injury or death. Never fix the ELB Reset Knob forcibly with tape and such.
  ● Do not insert finger or other objects into the appliance to avoid physical and electric shock hazards.
• Do not replace the Power Cord or any other parts of the appliance with spare parts other than genuine parts.

- Parts for other models will not fit to this model and may cause hazardous condition to user.

• Do not spray water to the appliance, nor put wet towels on it to avoid from coming into contact with any live parts and such, in order to prevent smoke emission, ignition, fire and electric shock hazards.
  ● Do not disassemble, repair or modify the appliance. It may cause fire, electric shock or injury.

• This appliance should only be repaired/serviced by a qualified service technician.

• Please contact your Service Centre for repairing.
  ● This appliance is not to be used for a potable water supply.

● This appliance should only be operated with all the safety devices fitted and functioning.

● The appliance must be earthed. Make sure the Power Cord securely connected to the terminal of Junction Box. Improper grounding may cause electric shock.

- Stop using the appliance when any abnormality/failure occurs and switch off the Miniature Circuit Breaker (MCB). (Risk of smoke/fi re/electric shock/scalding)

Example of abnormality or failure:

• The ELB Reset Knob cannot be reset. Please refer to "TEST OPERATION" at page EN12.
• Burnt odor or smoke is detected during operation.
  • The Enclosure is deformed or abnormally hot.
  • Power Cord becomes abnormally hot.

→ Contact an authorized dealer immediately for maintenance/repair.

● This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

● Make sure the voltage indicated on the label of the appliance is the same as your local supply.

WARNING

● Switch off the Miniature Circuit Breaker (MCB) before any service to avoid electric shock hazards.
- In time of lightning/thunder, switch off the Miniature Circuit Breaker (MCB) in advance to protect the appliance against possible damage.
- When the shower is used by someone such as child, old person, sick person and physically handicapped person, the concern person is kindly requested to pay attention and check the shower temperature by using hand from time to time.
- Inspect the built-in ELB (once a month) and Safety Valve (once a month) to avoid a hazard to users such as damage to property, serious injury or death. Please refer to “TEST OPERATION” at page EN12.
- Inspect the Miniature Circuit Breaker (MCB) once a month to ensure no faulty on the household earthing system that will lead to electric shock hazard.
● The manufacturer is not liable for damage caused by incorrect installation or failure to follow the instruction indicated in the Operating and Installation Instruction.

CAUTION

● Never use benzene, thinner, bleaching agent and such for cleaning purpose to avoid smoke emission, ignition, fire and electric shock hazards.
● Avoid using dirty water as it may affect heater performance and other components.
- Do not block the Water Outlet with hand, towel or bend the shower hose (not provided).
- Do not close or block the Drain Valve End of Safety Valve to prevent serious damage to the appliance.
- In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

● Press the ON/OFF DP (Double Pole) Switch before and after each usage.
● Always turn on the Cold Water Faucet first and then adjust the Hot Water Faucet to get the desired water temperature. So as to avoid the danger of scalding when operating this appliance.
- Never pull on the Power Cord. Otherwise it may cause electric shock, or fire caused by short circuit. - This product is intended for household use only.

PARTS IDENTIFICATION

Parts not included

View from the bottom

ACCESSORIES

Description Items
Installation Packing	(∅10 × 50) mmWall Plug A(2 pcs)	(∅6 × 25) mmWall Plug B(1 pc)	M SCREW (2 pcs)	(M4 × 7.5) mmScrew A(1 pc)	(M4 × 20) mmScrew B(1 pc)	Safety Hook(1 pc)
Safety Valve Packing	Safety Valve (1 pc)

HOW TO USE STORAGE WATER HEATER

Note:

• Ensure the appliance is filled with water before switching on the power supply. Failure to do so will damage the heating element.
• Always turn on the Cold Water Faucet first and then adjust the Hot Water Faucet to get the desired water temperature. So as to avoid the danger of scalding when operating this appliance.
• The Safety Valve is for protection against excessive pressure in the appliance and must not be removed or replaced with non-genuine parts.
• When the heating element operates, it is normal for water to drip from the Drain Valve End. The Drain Valve End must not be closed or blocked to prevent serious damage to the appliance.
• Operate the Safety Valve at least once a month to prevent blockage at the Drain Valve End. Please refer to "Test Operation" at page EN12. Closed or blocked the Drain Valve End may cause serious damage to the appliance.
• Beware that the inlet pipe might become hot during heating process.

HOW TO USE

① Before switching on the electrical supply, turn on Hot Water Faucet at the Mixer Tap and ensure the water is in steady flow. This indicates that the Storage Tank already full with water. Then turn off the Hot Water Faucet.
② Switch on the Miniature Circuit Breaker (MCB) and the ON/OFF DP (Double Pole) Switch.

CAUTION

Press the ON/OFF DP (Double Pole) Switch before and after each usage.

③ Both ELB LED (red) and 75°C LED (orange) will light up. This indicates that the electrical supply and the heating process is going on.

④ The 75°C LED (orange) remains on until water reaches the setting temperature approximately 75°C. When the 75°C LED (orange) is turned off, it indicated that the appliance is ready to use.

Model No. T	Time required to reach a temperature of 75 °C (Approx.)
RG30AHM1	60 minutes
RG20AHM1	40 minutes

⑤ Turn on the Cold Water Faucet.
⑥ Gradually turn on the Hot Water Faucet to get the desired water temperature.

CAUTION

Always turn on the Cold Water Faucet fi rst and then adjust the Hot Water Faucet to get the desired water temperature. So as to avoid the danger of scalding when operating this appliance.

CAUTION

Note:

• After using the appliance for some time and find the water temperature is decreasing, wait for the water inside the Storage Tank to be heated up again until the 75^ LED (orange) is turned off. (This may take up some time)
• If the appliance does not operate for long time, the water inside the appliance must be drained. Refer to "MAINTENANCE" at page EN6.

MAINTENANCE

1. Enclosure cleaning

Be sure to switch off the Miniature Circuit Breaker (MCB) beforehand.

• Clean it with moist cloth.
• Never use benzene, thinner, detergent, bleach and such for cleaning purpose.
• Do not spray water to the appliance, nor put wet towels on it.
• Make sure to use suitable cloth to clean the Enclosure surface to avoid scratch.

Note:

- Do not place any material on the appliance.

2. Storage Tank cleaning

Under high temperature condition, most water deposits lime scale (white deposit). To prevent accumulation of lime scale at Storage Tank and Drain Valve End, operate the Safety Valve once a month to drain the water. Follow the instructions below:

Note:

• Safety Valve is incorporated to prevent excessive water pressure inside the appliance. In the event the pressure is exceeding 0.75 ± 0.1 MPa ( 7.5 ± 1 Bar), the Safety Valve will automatically operate and vent the water through the Drain Valve End which shall not be closed or blocked.
• When using booster pump or one-way valve at the water inlet, it is normal for water to drip from the Drain Valve End due to the excessive water pressure which will activated the Safety Valve.
• Operate the Safety Valve once a month to prevent accumulation of lime scale at the Storage Tank and Drain Valve End. Close or block the Drain Valve End may cause serious damage to the appliance.
• Storage Water Heater must use water that complies with local water quality standard to avoid contaminants and other impurities which may cause corrosion to the heater and its components thus can create hazardous condition. Failure to follow will void the warranty.

How to drain the water:

① Switch off the electrical supply.
② Turn on Hot Water Faucet of the Mixer Tap to release hot water and allow cold water to fill in the Storage Tank. Release large amount of hot water until the water temperature gradually turns cold.

WARNING

Beware of hot water release from the appliance.

③ Turn off the Main Water Valve of the main water supply.
④ Lift up the lever on the Safety Valve to start draining the water. Water must be flowing at the Drain Valve End.

WARNING	Beware that the water come out from the Drain Valve End may be hot.
CAUTION	Do not close or block the Drain Valve End of Safety Valve to prevent serious damage to the appliance.

⑤ After the water in the Storage Tank is fully discharged, push down the lever on the Safety Valve.

Note:

• Make sure to empty the Storage Tank if need to remove the appliance from its mounting.
• After maintenance, make sure the Storage Tank is completely refilled with water before switching on the electrical supply. Heating element will be damaged if electrical supply is switched on even for a short time while the appliance is dry or during filling up the Storage Tank with water. Please refer to item no.4 "Fill the Storage Tank" at page EN11.

3. Inspection on the built-in ELB

Inspect the built-in ELB (once a month) to avoid a hazard to users such as damage to property, serious injury or death.

• Make sure the appliance is in on condition.
• Press the ELB Test Button. If the ELB is in normal condition, ELB Reset Knob will slide down.

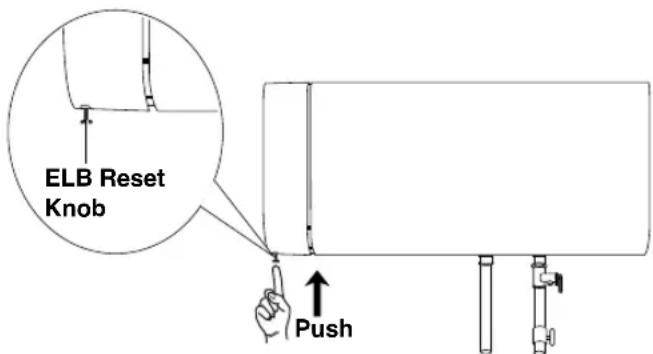

• Push up the ELB Reset Knob to reset the ELB.

4. Periodical Maintenance

Please call the service centre or similarly qualified persons once every two years to inspect the overall functions of the product.

TROUBLESHOOTING

1. Check the following points before asking for repair.

Symptom Points to be checked

Water is not drawn normally. Check whether any leakage of the water connections.
Water is not hot enough. Wait until 75	°C LED (orange) is turned off before using the appliance.
No hot water comes out from the Water Outlet.(no electrical supply to the appliance)	Check whether the water and electrical connections comply with the Specifications as indicated and check the phase continuity between the terminals. If there is no continuity, probably the ON/OFF DP (Double Pole) Switch has been activated.Make sure to switch on the ON/OFF DP (Double Pole) Switch.Make sure to switch on the Miniature Circuit Breaker (MCB).Make sure the ELB Reset Knob is not slide down.Push up the ELB Reset Knob to reset the ELB (refer to “TEST OPERATION” at page EN12).
No water flows out from the appliance at all.	Make sure the Main Water Valve is opened.Check whether the water supply is there.Check whether inlet water supply connected to the Safety Valve.

1. If abnormalities as mentioned below are found during use, do not use the appliance and contact the Service Center immediately.

2. Water leakage.
   • Water temperature cannot be controlled.
   • ELB LED does not light up.
   No water flow out from the Drain Valve End when operate Safety Valve.

3. Special skill is required for repairing. Never try to repair the appliance by yourself.

SPECIFICATIONS

Model No.	RG30AHM1 RG20AHM1
Power Supply	230 V a.c. 50 Hz
Power Consumption	2500 W
Capacity	30 L 20 L
Rated Pressure	0.75 MPa / 7.5 bar / 108.78 psi
Dimension (Approx.) H × W × D	323 mm × 704 mm × 310 mm	323 mm × 526 mm × 310 mm
Weight (Approx.) Empty / Full	10 kg / 40 kg	8 kg / 28 kg
Water Proof	IPX4

WARNING

- Do not install, remove or reinstall the appliance by yourself.

- Improper installation will cause leakage, electric shock, fire or injury. Installation and wiring must be done by competent personnel.

● Never install Safety Valve at the outlet.

• Do not use unspecified cord, modified cord, joint cord or extension cord for power supply.
• Do not use extension cord or share the single outlet with other electrical appliances. Poor contact, poor insulation or over current will cause electric shock or fire.
• Do not tie up the Power Cord into bundle. Abnormal temperature rise on Power Cord may happen.

● The appliance must be earthed. Make sure the Power Cord securely connected to the terminal of Junction Box. Improper grounding may cause electric shock.

● This appliance should be installed and serviced by competent personnel and only genuine spare parts should be used. If not, it may cause fire or result in improper operation.

● During installation process make sure electrical and water supplies are turned off.
- Use the appliance under the allowable rated voltage conditions. If not, it may cause an electric shock or fire.
● Install at strong and firm location which is able to withstand more than 4 times weight with full load of the appliance. Improper installation will cause the appliance to fall and cause injury.
● The piping installation work must be flushed before appliance is connected to remove contaminants. Contaminants may damage the appliance components.
- Use the attached accessories parts and specified parts for installation. Otherwise, it may cause the appliance to fall, water leakage, fire or electric shock.

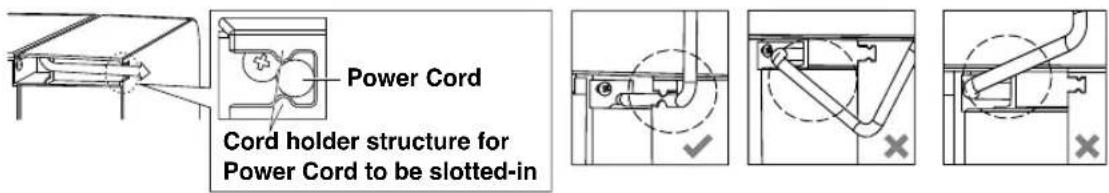

● Ensure the Power Cord is not pinched by the product body during and after installation.

CAUTION

● This appliance must be installed indoor only.

● After installation, check the water leakage condition in the connection area during test run. If leakage occurs, it will cause damage to other properties.
- Ensure the Storage Tank is completely filled with water first (which can be indicated by the steady flow of water at the Hot Water Faucet that set at open) before switching on the electrical supply to avoid damage to the appliance that caused by excessive heat.
- It may need more than one person to carry out the installation work. The weight of the appliance might cause injury if carried by one person.
● Ensure the installation location shall not lead to smoke emission, ignition, fire, electric shock and damage to property in case of water leak. Water leak could occur when the Safety Valve is activated, improper piping condition, etc.

BEFORE INSTALLATION

• Installation must be done by competent personnel.
- All plumbing works must be completed and the Storage Tank is fully filled with water before proceeding to electrical connections. This will prevent any damage to the appliance.
- Use appropriate pipes for the inlet and outlet connections which can withstand high temperature and pressure.

HOW TO INSTALL

Note:

- During installation process, make sure electrical and water supplies are turned off.

1. Where to install the appliance.

• Install the appliance in indoor with frost-free weather proof locations only.
• Ensure to keep minimum distance of spaces as illustrated in item no.2 How to fix the appliance from wall, ceiling or other obstacles.

WARNING

Be sure to install the appliance in horizontal position on the wall that can withstand more than 4 times weight with full load of the appliance and as illustrated in Figure 1 (vertical position with the inlet pipe and outlet pipe pointing downward). Improper installation will cause the appliance to fall and cause injury.

• Do not install the appliance away from the wall surface as shown in Figure 2.
• Select a suitable location with easy access of electrical and water supply.
• A place where drainage can be easily done and accessible for appliance maintenance.
• Avoid installations which expose the appliance to any of the following conditions:
• Installation in frost.
• Voltage input exceeding the specified voltage.

Figure 1

Figure 2

2. How to fix the appliance.

① Mark the position of A1, A2, B and C on the wall by referring the dimension in Table 1. The distance of the appliance should be more than 250 mm at right and left of the wall, 1.7 m minimum from above the floor and 150 mm minimum from the ceiling. There shall be no blockage for the ELB Reset Knob to slide down.

It is advisable to mark the position C fi rst, then followed by position A1, A2 and B. Marking Emboss which located at bottom of the appliance act as a guideline for position C. Ensure the Marking Emboss align with the position C.

View from the bottom

Marking Emboss at bottom of the appliance
RG30AHM1 RG20AHM1

View from the bottom

Marking Emboss at bottom of the appliance
Table 1

Note:

- For same level holes, use suitable tool to ensure the hole levelness.

② Make two holes for Wall Hook at the wall by means of a drill based on the marking A in Table 1. Drive the Wall Plug A into each hole.

③ Make one hole for Safety Hook at the wall by means of a drill based on the marking B in Table 1. Drive the Wall Plug B into the hole.

④ Insert the Wall Hook into Wall Plug A. Make sure the whole thread of the Wall Hook is in the wall. Do not overtighten the Wall Hook. After fully tighten the Wall Hook, if it is not at upward position, adjust the Wall Hook by turning it anti-clockwise until it is at upward position as shown in Figure 3. This is to ensure the Wall Hook accommodate the weight with full load and maintain the appliance stability.

Figure 3

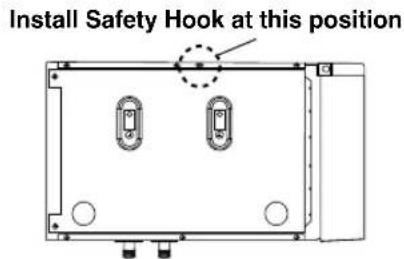

⑤ Before hanging the appliance to the wall, install the Safety Hook at the back side of the appliance. Kindly refer figure as below:

1. Screw the Safety Hook at the back of the appliance by using provided Screw A in the Installation Packing. Refer below position.

2. Make sure the Safety Hook is securely tight. Fasten the Screw A to secure the Safety Hook with 1.3 N.m (13 kgf.cm) torque.

RG30AHM1

RG20AHM1

⑥ Lead the Power Cord from the appliance thru the designated position. Make sure that Power Cord is not trapped between the appliance and wall.

⑦ Install the appliance by lifting it and align the Marking Emboss on the bottom to the position C (refer to Table 1), slightly lift up 25 mm (approx.) from the position C and push the appliance towards the Wall Hook, then slowly slide down the appliance until the Wall Hook is fully inserted as illustrated.

⑧ To ensure the appliance is firmly fix to the hook, check by:

i. Pushing the appliance towards the wall.

ii. Pushing the appliance left and right.

iii. Ensure the appliance is not slanted (as shown below).

Simple line drawing of a rectangular frame with vertical and horizontal lines, no text or symbols present.

Simple line drawing of a rectangular object with a horizontal line above it and a cross mark below (no text or symbols)

Simple line drawing of a rectangular object with a horizontal dashed line above it and a cross symbol below (no text or labels)

Note:

- Use suitable tool to ensure the appliance levelness.

⑨ Drive the Screw B into the Wall Plug B through the hole on the Safety Hook.

3. Piping installation procedure

① Wrap the Water Seal Tape (not provided) on the thread of the Inlet. Place the Safety Valve to the Inlet, tighten it firmly to avoid water leakage. Safety Valve must be installed at the inlet and placed downward as illustrated.
② Place the Rubber Packing (not provided) between the Safety Valve and the Cold Water Inlet with Main Water Valve (not provided). Tighten it firmly to avoid water leakage.
③ Place the Rubber Packing (not provided) between Outlet and Hot Water Outlet. Tighten it firmly to avoid water leakage. Then, connect to the Mixer Tap (not provided). Refer to page EN4 for the connection.
④ Hose (not provided) to be fi x at drain valve end of Safety Valve and must be installed in downward direction in open atmosphere toward drainage point. Kindly ensure no blockage or kinking of the Hose.

Note:

• After completion of pipe installation, ensure that the appliance is not in slanting position as indicated in item no.2 "How to fix the appliance", step⑧(iii).
  • Make sure the Safety Valve is not installed at obstructed area.
• Make sure the Hot Water Outlet, Cold Water Inlet and Hose can withstand minimum 80 °C.

4. Fill the Storage Tank

• Turn on the Main Water Valve and Hot Water Faucet to allow trapped air to be vented out from the Storage Tank and piping.
• Allow the Storage Tank to completely fill with water as indicated by a steady flow of water from the Hot Water Faucet without switching on the electrical supply.
• Turn off the Hot Water Faucet. Make sure the pipes connections are properly sealed and do not have any leakage.

5. Electrical wiring

• Make sure rated electrical supply is supplied to this appliance.
• Connect the Power Cord to the terminal of Junction Box.
• The Power Cord must be fixed and placed neatly. Do not bend, twist, pull, modify, bundle the Power Cord or place or hang anything on the Power Cord.

WARNING

● The appliance must be earthed. Make sure the Power Cord securely connected to the terminal of Junction Box. Improper grounding may cause electric shock.

TEST OPERATION

WARNING

• Inspect the built-in ELB (once a month) and Safety Valve (once a month) to avoid a hazard to users such as damage to property, serious injury or death.
• If the ELB Reset Knob cannot be reset even if you push it up or if it soon slides down during operation, do not use the appliance and contact an authorized dealer immediately to avoid a hazard to users such as damage to property, serious injury or death. Never fi x the ELB Reset Knob forcibly with tape and such.

1. Before operation

• Before switching on the electrical supply, make sure the Storage Tank is full with water by turning on the Hot Water Faucet at one of the Mixer Tap and the water is in steady flow.
• Switch on the Miniature Circuit Breaker (MCB).
• Switch on the ON/OFF DP (Double Pole) Switch.
• Both ELB LED (red) and 75 °C LED (orange) will light up. (Push up the ELB Reset Knob if it is down)
• Push the ELB Test Button.

- It is normal if the ELB LED goes off (the ELB Reset Knob falls) and push the ELB Reset Knob up.

- Inspect the built-in ELB (once a month) to avoid a hazard to users such as damage to property, serious injury or death.

- Lift up the lever on the Safety Valve to check whether the water is flowing at the Drain Valve End.

• It is normal for water to drip from the Drain Valve End, then push down the lever on the Safety Valve.
• Inspect the Safety Valve (once a month) to avoid a hazard to users such as damage to property, serious injury or death.

2. During operation

• After the 75^ LED (orange) goes off, turn on the Cold Water Faucet first then turn on the Hot Water Faucet and adjust to desired water temperature.
• Check if water leaks from the pipe line.

安全须知

须严格遵守

Simple line drawing of a rectangular container with two small blocks and a vertical line above it (no text or symbols)

Simple line drawing of a rectangular container with a vertical rod above it, and a cross symbol below (no text or labels)

Simple line drawing of a rectangular box with a dashed line above it and a cross mark below (no text or symbols)

摘要：

- 使用合适的工具确保产品的水平位置。
