FBM62330GWDTN - Cooker BEKO - Free user manual and instructions

Product Type	Freestanding Gas Cooker
Brand	Beko
Model	FBM62330GWDTN
Dimensions (H x W x D)	850 x 600 x 600 mm
Voltage / Frequency	220-240 V ~ 50 Hz
Total Electrical Power	2.7 kW
Total Gas Power	7.9 kW (574 g/h - G30)
Factory Gas Type / Pressure	G20 at 20 mbar
Gas Category	Cat II 2ELS3B/P
Oven Type	Multifunction Oven
Oven Functions	Fan Heating, Top/Bottom Heating, Grill, Fan Assisted Grill, 3D, Defrost

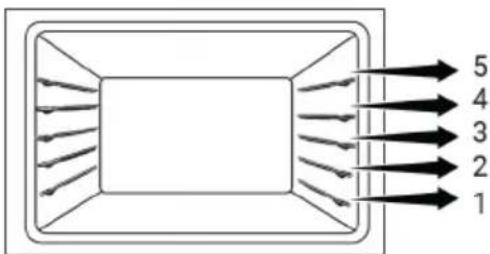

Number of Shelf Positions	5
Number of Hob Burners	4
Rapid Burner Power (Front Left)	2.9 kW
Auxiliary Burner Power (Front Right)	1.0 kW
Normal Burner Power (Rear Left & Right)	2.0 kW each
Safety Features	Flame Failure Device, Key Lock, Cooling Fan, Safety Chain
Cleaning Methods	Easy Steam Cleaning, Catalytic Liners (optional)
Accessories Included	Standard Tray, Deep Tray, Wire Grill

Frequently Asked Questions - FBM62330GWDTN BEKO

How do I install the cooker safely?

Installation must be performed by a qualified professional. Ensure the location is level and stable, with a minimum 750 mm clearance above the hob. Secure the appliance using the supplied safety chain to prevent tipping. Connect to a grounded outlet and ensure proper gas connection with a flexible hose. Check for gas leaks using soapy water.

How can I convert the gas type for my cooker?

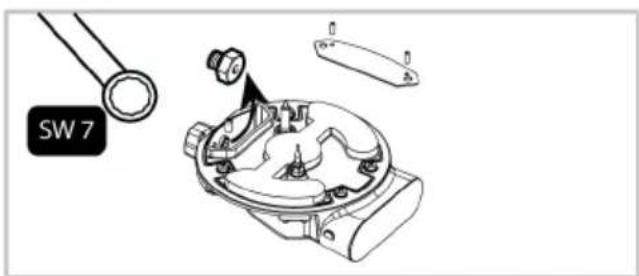

Gas conversion requires replacing the burner injectors and adjusting the bypass screws. Refer to the injector table in the manual for the correct injector sizes for your gas type (e.g., G30, G31). Always disconnect the gas supply before conversion and check for leaks after. It is recommended to have a licensed technician perform the conversion.

Why is my oven not heating?

First, ensure the oven is set to a cooking function and temperature. Check that the timer is set correctly; if the time of day is not set, the oven will not start. Verify that the appliance is plugged in and the fuse is intact. If the problem persists, contact an Authorized Service.

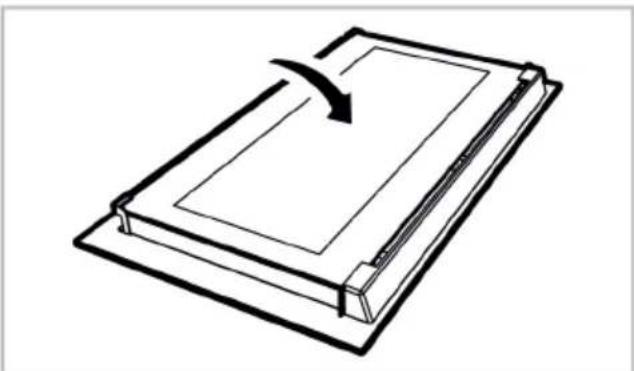

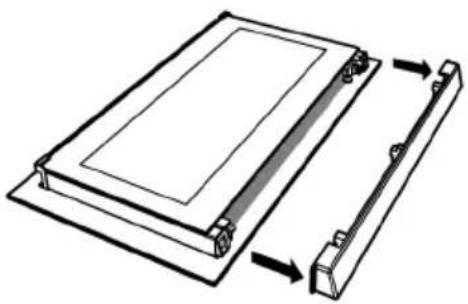

How do I clean the oven door glass?

Remove the oven door by opening the hinge clips and lifting it off. Then remove the inner glass by lifting it upwards and pulling it out. Clean the glass with a mild detergent and warm water, using a soft cloth. Do not use abrasive cleaners or metal scrapers. Dry thoroughly before reassembling.

What should I do if I smell gas?

Immediately turn off all gas valves and do not use any electrical switches or open flames. Open windows and doors to ventilate the area. Leave the premises and call the fire brigade and your gas supplier from outside. Do not use the appliance until it has been inspected by a qualified technician.

How do I set the timer on the oven?

Press the time setting key until the clock symbol flashes. Use the + and - keys to set the time of day. For cooking, select the function and temperature, then press the timer key until the baking time symbol appears. Set the desired cooking time with the +/- keys. The oven will turn off automatically when the time expires.

Can I use aluminum foil in the oven?

Do not place aluminum foil directly on the oven bottom or heating elements. If using greaseproof paper, ensure it is trimmed to fit the tray and does not touch the heating elements. Never place paper on the oven base during preheating. Always use suitable cookware and follow the manufacturer's temperature limits.

How do I perform easy steam cleaning?

Remove all accessories from the oven. Pour 500 ml of water into the deep tray and place it on the second shelf. Set the oven to the easy steam cleaning function at 100°C for 15 minutes. After the cycle, open the door carefully and wipe the interior with a damp cloth. This method softens light dirt for easy removal.

What are the recommended pot sizes for the hob burners?

Use the following pot diameters: Auxiliary burner 12-18 cm, Normal burner 18-20 cm, Rapid burner 22-24 cm. Using larger pots may cause carbon monoxide poisoning and overheating. Always center the pot on the burner and adjust the flame so it does not extend beyond the pot base.

How do I replace the oven lamp?

Disconnect the appliance from the power supply and let it cool. Remove the glass cover by turning it counterclockwise. For round lamps, rotate the lamp to remove; for square lamps, lift the protective cover with a screwdriver. Replace with a G9 halogen lamp (max 40 W) designed for high temperatures. Refit the cover and restore power.

USER MANUAL FBM62330GWDTN BEKO

FBM62330GWDTN

285380206/ EN/ PL/ R.AA/ 10.07.24 11:48

7739486719

Welcome!

Dear Customer,

Thank you for choosing the Beko product. We want your product, manufactured with high quality and technology, to offer you the best efficiency. Therefore, carefully read this manual and any other documentation provided before using the product.

Keep in mind all the information and warnings stated in the user's manual. This way, you will protect yourself and your product against the dangers that may occur.

Keep the user's manual. If you give the product to someone else, give the manual with it. The warranty conditions, usage and troubleshooting methods for your product are provided in this manual.

The symbols and their descriptions in the user's manual:

Hazard that may result in death or injury.

Important information or useful usage tips.

Read the user's manual.

Hot surface warning.

NOTICE Hazard that may result in material damage to the product or its environment.

Arçelik A.Ş.

Karaağaç Caddesi No:2-6 34445 Sütlüce/Istanbul/TURKEY

Made in TURKEY

Table of Contents

1 Safety Instructions...... 4

1.1 Intended Use.... 4 1.2 Child, Vulnerable Person and Pet Safety 4 1.3 Electrical Safety.... 5 1.4 Safety While Working with Gas..... 7 1.5 Transportation Safety 8 1.6 Installation Safety.... 9 1.7 Safety of Use 10 1.8 Temperature Warnings 11 1.9 Accessory Use.... 11 1.10 Cooking Safety 11 1.11 Maintenance and Cleaning Safety 13

2 Environmental Instructions ...... 13

2.1 Waste Directive.... 13 2.1.1 Compliance with the WEEE Directive and Disposing of the Waste Product .... 13 2.2 Package Information.... 14 2.3 Recommendations for Energy Saving......

3 Your product 14

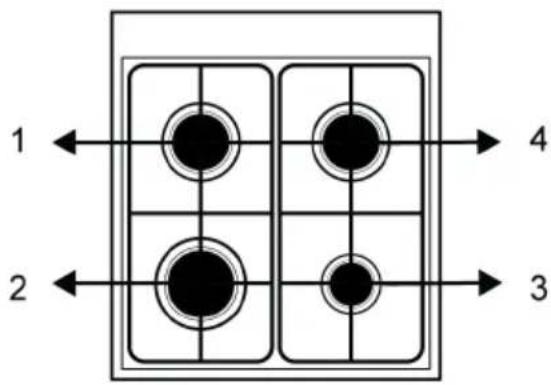

3.1 Product Introduction ...... 14 3.1.1 Cooking unit 15 3.1.2 Hob section.... 15 3.2 Introduction of the oven control panel.... 15 3.3 Oven operating functions...... 16 3.4 Product Accessories...... 17 3.5 Use of Product Accessories ..... 17 3.6 Technical Specifications.... 20

4 Installation.... 23

4.1 Right place for installation...... 23 4.2 Electrical connection 25 4.3 Gas connection.... 26 4.4 Placing the product 29 4.5 Gas Conversion 30

5 First Use 32

5.1 First Timer Setting.... 32 5.2 Initial Cleaning 33

6 How to use the hob 33

6.1 General information on hob usage.... 33 6.2 Operation of the hobs 34

7 Using the Oven.... 35

7.1 General Information on Using the Oven.... 35 7.2 Operation of the Oven Control Unit.... 35 7.3 Settings.... 37

8 General Information About Baking.... 39

8.1 General Warnings About Baking in the Oven.... 39 8.1.1 Pastries and oven food.... 39 8.1.2 Meat, Fish and Poultry.... 41 8.1.3 Grill.... 42 8.1.4 Test foods.... 43

9 Maintenance and Cleaning...... 45

9.1 General Cleaning Information..... 45 9.2 Cleaning Accessories...... 46 9.3 Cleaning the hob.... 46 9.4 Cleaning the Control Panel..... 47 9.5 Cleaning the inside of the oven (cooking area).... 47 9.6 Easy Steam Cleaning.... 48 9.7 Cleaning the Oven Door.... 49 9.8 Removing the Inner Glass of the Oven Door...... 49 9.9 Cleaning the Oven Lamp...... 50

10 Troubleshooting.... 51

1 Safety Instructions

EN

• This section includes the safety instructions necessary to prevent the risk of personal injury or material damage. - If the product is handed over to someone else for personal use or second-hand use purposes, the user's manual, product labels and other relevant documents and parts should also be given. - Our company shall not be held responsible for damages that may occur if these instructions are not observed. - Failure to follow these instructions shall void any warranty. • Always have the installation and repair works made by the manufacturer, the authorised service or a person that the importer company shall designate. - Use original spare parts and accessories only. - Do not repair or replace any component of the product unless it is clearly specified in the user's manual. - Do not make technical modifications on the product.

1.1 Intended Use

• This product is designed to be used at home. It is not suitable for commercial use. - Do not use the product in gardens, balconies or other outdoors. This product is intended to be used in households and in the staff kitchens of shops, offices and other working environments. - CAUTION: This product should be used for cooking purposes only. It should not be used for different purposes, such as heating the room. • The oven can be used to defrost, bake, fry and grill food. • This product should not be used for plate heating, drying by hanging towels or clothes on the handle.

1.2 Child, Vulnerable Person and Pet Safety

- This product can be used by children 8 years of age and older, and people who are underdeveloped in physical, sensory or mental skills, or who have lack of experience and knowledge, as long as they are supervised or trained about the safe use and hazards of the product.

- Children should not play with the product. Cleaning and user maintenance should not be performed by children unless supervised. - This product should not be used by people with limited physical, sensory, or mental capacity (including children) unless they are supervised or given proper instructions. - Children should be supervised to ensure they do not play with the product. - Electrical products and/or products with gas are dangerous for children and pets. Children and pets must not play with, climb on, or enter the product. - Do not place objects within children's reach on the product. - Turn pot and pan handles toward the back of the counter so children cannot grab them and get burned. - CAUTION: During use, accessible surfaces of the product are hot. Keep children away from the product. - Keep packaging materials out of children's reach. There is a risk of injury and suffocation.

- When the door is open, do not place heavy objects on it or allow children to sit on it. This could cause the oven to tip over or damage the door hinges.

- Before discarding worn-out and useless products:

1. Unplug the power plug and remove it from the socket.
2. Cut off the power cable and disconnect it with the plug from the product.
3. Take precautions to prevent children from entering the product.
4. Do not allow children to play with the product when it is in idle mode.

1.3 Electrical Safety

- Plug the product into a grounded outlet protected by a fuse that matches the current ratings indicated on the type label. Have the grounding installation done by a qualified electrician. Do not use the product without grounding in accordance with local/national regulations.

- The plug or the electrical connection of the appliance shall be in an easily accessible place. If this is not possible, there should be a mechanism (fuse, switch, key switch, etc.) on the electrical installation to

which the product is connected, in compliance with electrical regulations and separating all poles from the network.

• Unplug the product or switch off the fuse before repair, maintenance and cleaning.
• Plug the product into an outlet that meets the voltage and frequency values specified on the type label.
• (If your product does not have a mains cable) only use the connecting cable described in the "Technical specifications" section.

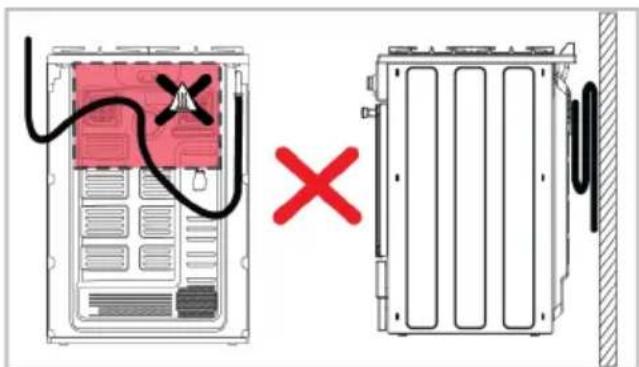

• Do not jam the power cable under and behind the product. Do not put a heavy object on the power cable. The power cable should not be bent, crushed, and come into contact with any heat source.
• Make sure that the power cable is not jammed while putting the product to its place after assembly or cleaning.
• The rear surface of the oven gets hot when it is in use. Gas connections and/or electrical cables must not touch the rear surface of the product. Otherwise it might get damaged.
• Do not jam the electric cables into the oven door and do not pass them over hot surfaces.

Otherwise, cable insulation may melt and cause fire as a result of short circuit.

- Use original cable only. Do not use cut or damaged cables.

- Do not use an extension cord or multi-plug to operate your product.

- Contact the authorized service centre or importer to use the approved adapter in cases where the use of a converter adapter (for plug type) is necessary.

- Contact the importer or the authorized service centre if the length of the power line is inadequate.

- Portable power sources or multiple plugs may overheat and catch fire. Keep multiple plugs and portable power sources away from the product.

- If the power cable is damaged, it must be replaced by the manufacturer, an authorized service or a person to be specified by the importer company in order to prevent possible dangers.

- CAUTION: Before replacing the oven lamp, be sure to disconnect the product from the mains supply to avoid the risk

of electric shock. Unplug the product or turn off the fuse from the fuse box.

If your product has a power cable and plug:

• Never put the product plug into a broken, loose, or out-of-socket plug. Make sure the plug is fully inserted into the socket. Otherwise the connections may overheat and cause a fire.
• Avoid inserting the device into plugs that are greasy, unclean, or potentially exposed to water (such as those near a worktop where water may escape). Otherwise there is a risk of short circuit and electrocution.
• Never touch the plug with wet hands!
• Pull the plug out of the socket using the plug's body rather than the cord itself.

1.4 Safety While Working with Gas

- CAUTION: The use of gas cooking products causes the formation of substances released as a result of heat, humidity and combustion in the room. Make sure that the kitchen is well ventilated, especially when using the product: Keep the natural ventilation holes open or install a mechanical ventilation device (mechanical extractor / hood). Intensive use of the product for a long time may require additional ventilation: For example, opening a window or more effective ventilation, raising the level of the mechanical ventilation device, if any, etc.

anical ventilation device (mechanical extractor / hood). Intensive use of the product for a long time may require additional ventilation: For example, opening a window or more effective ventilation, raising the level of the mechanical ventilation device, if any, etc.

- This product should be used in a room that has a properly adjusted and functioning carbon monoxide sensor. Make sure that the carbon monoxide sensor is working properly and frequently service the sensor. The carbon monoxide sensor should be placed no more than 2 meters from the product.

- The setting conditions for this device are specified on the label (or on the data plate).

- Proper combustion is required in gas cooking products. In case of incomplete combustion, carbon monoxide (CO) might develop. Carbon monoxide is a colourless, odourless and very toxic gas, which has a lethal effect even in very small doses. You can understand that the gas is burning well if the flames are continuous and blue. If the flames are wavy, cut and intensely yellow, the gas does not burn well.

• Gas cooking products and systems must be regularly checked for proper functioning. The regulator, hose, and its clamp must be checked regularly and replaced within the periods recommended by their manufacturer or when necessary.
• Clean the gas hob zones regularly. Make sure that the gas burns properly after cleaning.
• Do not use pots or pans that exceed the dimensions given in the user manual. Using larger pans or pots than specified may cause carbon monoxide poisoning and overheating of nearby surfaces and control knobs. The use of smaller pans or pots may cause burns due to flames.
• Request information about gas emergency telephone numbers and safety measures in case of gas smell from your local gas provider.

⚠️ What to do when you smell gas!

• Do not use open flame or do not smoke. Do not use any electrical knobs (e.g., lamp knob or doorbell). Do not use fixed or mobile phones.
• Open the doors and windows.
• Turn off all valves on gas cooking products and gas meter at the main control valve, unless it's in a confined space or cellar.
• Check all tubes and connections for tightness. If you still smell gas, leave the house.
• Warn the neighbors.
• Call the fire-brigade. Use a phone outside the house.
• Call the authorized service and your gas distribution company.

1.5 Transportation Safety

• Before transporting the product, disconnect the product from the mains and disconnect the gas connections. • The product is heavy, carry the product with at least two people.
• Do not use the door and/or handle to transport or move the product.
• Do not place items on the appliance. Carry the appliance vertically.
• When you need to transport the product, wrap it with bubble wrap packaging material or thick cardboard and tape it tightly. Secure the moving parts of the product firmly to prevent damage.

Before the product is installed, check the product for any damage after transport. Contact the importer or the authorized service centre if damaged.

1.6 Installation Safety

• Before beginning the installation, de-energize the power line to which the product will be connected by turning off the fuse. • Always wear protective gloves during transport and installation. Otherwise there is a risk of injury from sharp edges!
• Before the product is installed, check the product for any damage. Do not have it installed if the product is damaged.
• Never place the product on a carpet-covered floor. Otherwise, lack of airflow beneath the product will cause electrical parts to overheat. This will cause problems with your product.
• The product should be placed directly on a clean, flat and hard surface. It should not be placed on a plinth or bed plate. Products must not be placed on cardboard or plastic plates.
• Direct sunlight and heat sources, such as electric or gas heaters, must not be present in the area where the product is installed.
• Keep the surroundings of all ventilation ducts of the product open.
• Do not install the product near a window. There is a risk that the hob flame will ignite curtains and flammable materials around the hob. When you open the window, hot cookware may tip over.
• To avoid overheating, product installation should not be carried out behind decorative covers.
• In cases where a gas hose/pipe or plastic water pipe is situated behind the designated installation area for the product, it is imperative to guarantee that there is no contact between the product and these utility lines. Otherwise the hose/pipe may be crushed.
• If there is a socket behind the place where the product will be installed, it must be ensured that the product does not come into contact with the socket nor with the plug plugged into the socket.
• There should be no gas hose, plastic water pipe and socket on the back or side wall of the place where the product will be installed. Otherwise, they may be deformed by the heat effect when the hob is operated and may create a safety risk.
• Please cut off the gas supply before starting any work on gas installation. There is an explosion hazard.

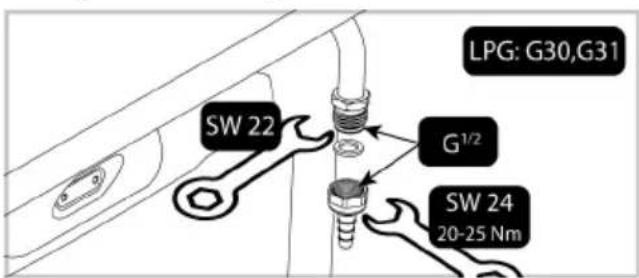

• The connection of the product to the gas distribution system can only be made by an authorized and qualified person. There is an explosion or poisoning hazard due to repairs by non-professional people.
• The gas hose must be connected in such a way that it does not touch the moving parts in the area where it is placed and does not get caught when the moving parts move (eg drawer). In addition, the gas hose should not be placed in spaces where there is a possibility of jamming.
• The gas hose must not be crushed, folded, jammed or touch hot parts of the product and cookware on the product. There is an explosion hazard due to damage to the gas hose.

- Make sure to check for gas leakage after the gas connection of your product is made. Make sure there are no gas leaks. Do not use the product if there is a gas leak.

1.7 Safety of Use

• Ensure that the appliance is switched off after every use.
• If you will not use the product for a long time, unplug it or turn off the power from the fuse box. Shut off the main gas tap.
• Don't use the product if it breaks down or gets damaged while being used. Disconnect the product from the electricity. Contact the importer or the authorized service centre.
• Do not use the product if the front door glass is removed or cracked. Otherwise there is a risk of injury and environmental damage.
• Do not step on the appliance for any reason.
• Never use the product when your judgement or coordination is impaired by the use of alcohol and/or drugs.
• Flammable objects must not be kept in and around the cooking area. Otherwise, these may lead to fire.
• The oven handle is not a towel dryer. When using the product, do not hang towels, gloves or similar textiles on the handle.
• The hinges of the product door move when opening and closing the door and might jam. When opening / closing the door, do not hold the part with the hinges.
• This product is not suitable for use with a remote control or an external clock.

1.8 Temperature Warnings

• CAUTION: When the product is in use, the product and its accessible parts will be hot. Care should be taken to avoid touching the product and heating elements. Children under 8 years of age should be kept away from the product unless constantly supervised.
• Do not place flammable / explosive materials near the product, as the surfaces will be hot while it is operating.
• Keep your distance when opening the oven door during or at the end of cooking. The steam may burn your hand, face and/or eyes.
• During operation the product is hot. Care should be taken to avoid touching hot parts, inside of the oven and heating elements. • Always wear heat-resistant oven gloves when handling the product.
• CAUTION: Danger of fire: Do not store items on the cooking surfaces.

1.9 Accessory Use

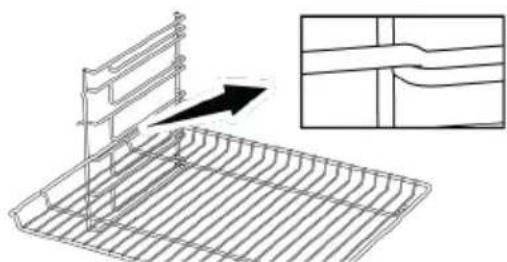

• It is important that the wire grill and tray are placed properly on the wire shelves. For detailed information, refer to the section "Usage of accessories".
• Close the oven door after pushing the accessories completely into the cooking space, otherwise they may hit the door glass and damage it.

1.10 Cooking Safety

• CAUTION: The cooking process must be observed. Short-term cooking processes must be constantly observed.
• CAUTION: In solid or liquid oil cooking, it is dangerous to leave the hob unattended, which may cause a fire. NEVER try to extinguish the fire with water; disconnect the product

from the mains, and then cover the flames with a cover or fire cloth (etc.).

• Be careful when using alcoholic drinks in your dishes. Alcohol evaporates at high temperatures and may cause fire since it can ignite when it comes into contact with hot surfaces.
• Food residues in the cooking area, such as oil, can ignite. Clean these residues before cooking.
• Food Poisoning Hazard: Do not let food sit in oven for more than 1 hour before or after cooking. Otherwise it may cause food poisoning or diseases.
• Do not heat closed tins and glass jars in the oven. The pressure that would build-up in the tin/jar may cause it to burst.
• Do not place baking trays, dishes or aluminium foil directly onto the bottom of the oven. The accumulated heat might damage the bottom of the oven.

Be mindful of the following precautions when using greasy parchment paper or similar materials:

• Place the greaseproof paper in a cookware or on the oven accessory (tray, wire grill, etc.) with food and place it in the preheated oven.
• To prevent the risk of touching the oven heating elements and obstructing the flow of hot air, remove any excess parts of greaseproof paper that hang from accessories or containers. Do not use greaseproof paper at oven temperatures higher than the maximum usage temperature specified by the manufacturer. Never place greaseproof paper on the oven base.
• Do not place it on top of accessories during preheating. • Always press down with a plate or similar object to prevent the material from flying around due to the air circulation inside the oven.
• Only cover the necessary surface inside the tray. After each use, the tray should be cleaned, and any greaseproof paper or similar materials used in the tray should be replaced. Otherwise, liquids dripping onto the tray can cause smoking or even ignite flames.
• An air flow is generated when the product lid is opened. Greaseproof paper can come into contact with heating elements and ignite.
• When using a grilling rack for frying, a tray should be placed on the lower rack. Otherwise, the food oil and other components that drip onto the oven bottom can create heavy smoke and lead to flames.
• Close the oven door during grilling. Hot surfaces may cause burns!
• Food not suitable for grilling carries a fire hazard. Grill only food that is suitable for heavy grill fire. Do not place the food too far in the back of the grill. This is the hottest area and fatty foods may catch fire.
• Place the cookware in the center of the hob zone. Note that the fire in the hob zone with

2 Environmental Instructions

2.1 Waste Directive

2.1.1 Compliance with the WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

the cookware does not overflow to the side surface of the cookware.

1.11 Maintenance and Cleaning Safety

• Wait for the product to cool before cleaning the product. Hot surfaces may cause burns!
• Never wash the product by spraying or pouring water on it! There is the risk of electric shock!
• Do not use steam cleaners to clean the product as this may cause an electric shock.
• Do not use harsh abrasive cleaners, metal scrapers, scouring pads, dish washing wire or bleach to clean the oven front door glass and oven top door glass (if equipped). These materials can cause glass surfaces to be scratched and broken.

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. You can ask your local administration about these collection

points. Disposing of the appliance properly helps prevent negative consequences for the environment and human health.

Compliance with RoHS Directive:

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

2.2 Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging waste with the household or other wastes, take it to the packaging material collection points designated by the local authorities.

2.3 Recommendations for Energy Saving

According to EU 66/2014, information on energy efficiency can be found on the product receipt supplied with the product.

3 Your product

In this section, you can find the overview and basic uses of the product's control panel. There may be differences in images and some features depending on the type of product.

The following suggestions will help you use your product in an ecological and energy-efficient way:

• Defrost frozen food before baking.
• In the oven, use dark or enamelled containers that transmit heat better.
• If specified in the recipe or user's manual, always preheat. Do not open the oven door frequently during baking.
• Turn off the product 5 to 10 minutes before the end time of baking in prolonged bakings. You can save up to 20% electricity by using residual heat.
• Try to cook more than one dish at a time in the oven. You may cook at the same time by placing two cookers on the wire rack. In addition, if you cook your meals one after the other, it will save energy because the oven will not lose its heat.
• Use pots / pans with a size and lid suitable for the hob zone. Always choose the right size pot for your meals. More than necessary energy is needed for containers of the wrong size.
• Keep hob baking areas and pot bases clean. Dirt reduces the heat transfer between the baking area and the pot base.

3.1 Product Introduction

1 Hob section 2 Control panel 3 Handle

4 Door 5 Bottom part

3.1.1 Cooking unit

1 Lamp 2 Wire shelves 3 Fan motor (behind the steel plate) 4 Lower heater (under the steel plate) 5 Shelf positions 6 Upper heater 7 Ventilation holes

* Varies depending on the model. Your product may not be equipped with a lamp, or the type and location of the lamp may differ from the illustration. ** Varies depending on the model. Your product may not be equipped with a wire rack. In the image, a product with wire rack is shown as an example.

3.1.2 Hob section

1 Rear left - Normal burner 2 Front left - Rapid burner 3 Front right - Auxiliary burner 4 Rear right - Normal burner

3.2 Introduction of the oven control panel

1 Hob control knobs 2 Function selection knob 3 Timer 4 Temperature knob 5 Hob control knobs

If there are knob(s) controlling your product, in some models this/these knob(s) may be so that they come out when pushed (buried knobs). For settings to be made with these knobs, first push the relevant knob in and pull out the knob. After making your adjustment, push it in again and replace the knob.

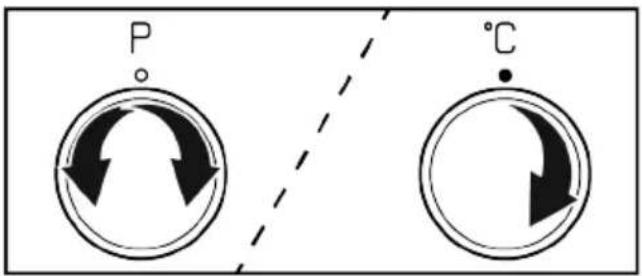

Function selection knob

You can select the oven operating functions with the function selection knob. Turn left / right from closed (top) position to select.

Temperature knob

You can select the temperature you want to cook with the temperature knob. Turn clockwise from the closed (top) position to select.

Oven inner temperature indicator

You can understand the oven interior temperature from the temperature symbol on the timer display. The temperature symbol appears on the display when the cooking starts, and the temperature symbol disappears when the appliance reaches the set temperature. When the temperature inside the oven drops below the set temperature, the temperature symbol reappears.

Hob control knobs

You can operate your hob with the hob control knobs. Each knob operates the respective burner. You may infer which burner it controls from the symbols on the control panel.

Timer

1 Alarm key

2 Time setting key 3 Decrease key 4 Increase key 5 Settings key 6 Key lock key

Display symbols

: Baking time symbol : Baking end time symbol * : Alarm symbol : Brightness symbol : Key lock symbol : Temperature symbol : Volume level symbol : Door lock symbol *

*It varies depending on the product model. It may not be available on your product.

3.3 Oven operating functions

On the function table, the operating functions you can use in your oven and the highest and lowest temperatures that can be set for these functions are shown. The order of the operating modes shown here may differ from the arrangement on your product.

Function symbol	Function description	Temperature range (°C)	Description and use
	Operating with fan -		The oven is not heated. Only the fan (on the back wall) operates. Frozen food with granules is slowly defrosted at room temperature, cooked food is cooled. The time required to defrost a whole piece of meat is longer than for foods with grains.
	Top and bottom heating	*	Food is heated from above and below at the same time. Suitable for cakes, pastries or cakes and stews in baking moulds. Cooking is done with a single tray.
	Bottom heating *		Only lower heating is on. It is suitable for foods that need browning on the bottom. This function should also be used for easy steam cleaning.
	Fan assisted bottom/top heating	*	The hot air heated by the upper and lower heaters is distributed equally and rapidly throughout the oven with the fan. Cooking is done with a single tray.
	Fan Heating *		The hot air heated by the fan heater is distributed equally and rapidly throughout the oven with the fan. It is suitable for multi-tray cooking at different shelf levels.
	"3D" function *		Upper heating, lower heating and fan heating functions operate. Each side of the product to be cooked is cooked equally and quickly. Cooking is done with a single tray.
	Full grill *		The large grill on the oven ceiling works. It is suitable for grilling in large amounts.
	Fan assisted low grill *		The hot air heated by the small grill is quickly distributed into the oven with the fan. It is suitable for grilling smaller amounts.

* Your product operates in the temperature range specified on the temperature knob.

3.4 Product Accessories

There are various accessories in your product. In this section, the description of the accessories and the descriptions of the correct usage are available. Depending on the product model, the supplied accessory varies. All accessories described in the user's manual may not be available in your product.

The trays inside your appliance may be deformed with the effect of the heat. This has no effect on the functionality. Deformation disappears when the tray is cooled.

Standard tray

It is used for pastries, frozen foods and frying large pieces.

Deep tray

It is used for pastries, frying large pieces, juicy food or for the collection of flowing oils when grilling.

Wire grill

It is used for frying or placing the food to be baked, fried and stewed on the desired shelf.

On models with wire shelves :

On models without wire shelves :

3.5 Use of Product Accessories

Cooking shelves

There are 5 levels of shelf position in the cooking area. You can also see the order of the shelves in the numbers on the front frame of the oven.

On models with wire shelves:

On models without wire shelves:

Placing the wire grill on the cooking shelves

On models with wire shelves:

It is crucial to place the wire grill on the wire side shelves properly. While placing the wire grill on the desired shelf, the open section must be on the front. For better cooking, the wire grill must be secured on the wire shelf's stopping point. It must not pass over the stopping point to contact with the rear wall of the oven.

On models without wire shelves:

It is crucial to place the wire grill on the side shelves properly. The wire grill has one direction when placing it on the shelf. While placing the wire grill on the desired shelf, the open section must be on the front.

Placing the tray on the cooking shelves On models with wire shelves:

It is also crucial to place the trays on the wire side shelves properly. While placing the tray on the desired shelf, its side designed for holding must be on the front. For better cooking, the tray must be secured on the stopping socket on the wire shelf. It must not pass over the stopping socket to contact with the rear wall of the oven.

On models without wire shelves:

It is also crucial to place the trays on the side shelves properly. The tray has one direction when placing it on the shelf. While placing the tray on the desired shelf, its side designed for holding must be on the front.

Stopping function of the wire grill

There is a stopping function to prevent the wire grill from tipping out of the wire shelf. With this function, you can easily and safely take out your food. While removing the wire grill, you can pull it forward until it reaches the stopping point. You must pass over this point to remove it completely.

On models with wire shelves:

On models without wire shelves:

Tray stopping function - On models with wire shelves

There is also a stopping function to prevent the tray from tipping out of the wire shelf. While removing the tray, release it from the rear stopping socket and pull it towards yourself until it reaches the front side. You must pass over this stopping socket to remove it completely.

Proper placement of the wire grill and tray on the telescopic rails - On models with wire shelves and telescopic models

Thanks to telescopic rails, trays or the wire grill can be easily installed and removed. When using trays and wire grills with the telescopic rail, care should be taken that the pins on the front and back of the telescopic rails rest against the edges of the grill and the tray (shown in the figure).

3.6 Technical Specifications

General specifications
Product external dimensions (height/width/depth) (mm) 8	50 /600 /600
Voltage/Frequency 220-240 V ~ 50 Hz
Cable type and section used/suitable for use in the product	min. H05VV-FG 3 x 1,5 mm2
Total power consumption (kW) 2,7 kW
Total gas consumption (kW) 7,9 kW (574 g/h - G30)
Oven type Multifunction oven
Cooking zones
Front left Rapid burner
Power 2,9 kW (211 g/h - G30)
Front right Auxiliary burner
Power 1,0 kW (73 g/h - G30)
Rear left Normal burner
Power 2,0 kW (145 g/h - G30)
Rear right Normal burner
Power 2,0 kW (145 g/h - G30)
Gas type / pressure that the product is set
G20 20 mbar
Category of gas product
Cat II 2ELS3B/P
Gas types / pressures to which the product can be converted:
G2 350 13 mbar
G30 37 mbar
Basics: Information on the energy label of electrical ovens is given in accordance with the EN 60350-1 / IEC 60350-1 standard. Those values are determined under standard load with bottom-top heater or fan assisted heating (if any) functions.Energy efficiency class is determined in accordance with the following prioritization depending on whether the relevant functions exist on the product or not: 1-Eco fan heating, 2-Fan Heating, 3-Fan assisted low grill, 4-Top and bot-tom heating.
	Technical specifications may be changed without prior notice to improve the qual-ity of the product.
	Figures in this manual are schematic and may not exactly match your product.

Values stated on the product labels or in the documentation accompanying it are obtained in laboratory conditions in accordance with relevant standards. Depending on operational and environmental conditions of the product, these values may vary.

EN

Country gas categories/types/pressure

You can find the gas type, pressure and gas category that can be used for the country where the product will be installed in the table below.

COUNTRY CODES	CATEGORY GAS TYPE		AND PRESSURE
FR Cat II 2E+3+	G20,20 mbar G25,25 mbar				G30,28 30 mbar	G31,37 mbar
BE Cat II 2E+3+	G20,20 mbar G25,25 mbar				G30,28 30 mbar	G31,37 mbar
RU Cat II 2H3B/P	G20,20 mbar G30,30 mbar G20,13 mbar G20,10 mbar
CZ Cat II 2H3+	G20,20 mbar			G30,28 30 mbar	G31,37 mbar
NL Cat II		2E(43.46 -45.3 MJ/m3 (0°C))3B/P	G25.3,25 mbar	G20,20 mbar G30,30 mbar
GB Cat II 2H3+	G20,20 mbar			G30,28 30 mbar	G31,37 mbar
IE Cat II 2H3+	G20,20 mbar			G30,28 30 mbar	G31,37 mbar
ES Cat II 2H3+	G20,20 mbar			G30,28 30 mbar	G31,37 mbar
PT Cat II 2H3+	G20,20 mbar			G30,28 30 mbar	G31,37 mbar
CH Cat II 2H3+	G20,20 mbar			G30,28 30 mbar	G31,37 mbar
IT Cat II 2H3+	G20,20 mbar			G30,28 30 mbar	G31,37 mbar
SK Cat II 2H3+	G20,20 mbar			G30,28 30 mbar	G31,37 mbar
CY Cat II 2H3+	G20,20 mbar			G30,28 30 mbar	G31,37 mbar
SI Cat II 2H3+	G20,20 mbar			G30,28 30 mbar	G31,37 mbar
GR Cat II 2H3+	G20,20 mbar			G30,28 30 mbar	G31,37 mbar
PL	Cat II 2ELS3B/P	G20,20 mbar		G2.350,13 mbar	G30,37 mbar
	Cat II 2E3P(B/P)	G20,20 mbar G30,37 mbar
DE Cat II 2E3B/P	G20,20 mbar G30,50 mbar
AT Cat II 2H3B/P	G20,20 mbar G30,50 mbar
SE Cat II 2H3B/P	G20,20 mbar G30,30 mbar
LT Cat II 2H3B/P	G20,20 mbar G30,30 mbar
NO	Cat II 2H3B/P	G20,20 mbar G30,30 mbar
MK	Cat II 2H3B/P	G20,20 mbar G30,30 mbar
XK Cat II 2H3B/P	G20,20 mbar G	30,30 mbar
RS Cat II 2H3B/P	G20,20 mbar G	30,30 mbar
RO Cat II 2H3B/P	G20,20 mbar G	30,30 mbar
DK Cat II 2H3B/P	G20,20 mbar G	30,30 mbar
EE Cat II 2H3B/P	G20,20 mbar G	30,30 mbar
MA Cat II 2H3B/P	G20,20 mbar G	30,30 mbar
FI Cat II 2H3B/P	G20,20 mbar G	30,30 mbar
HR Cat II 2H3B/P	G20,20 mbar G	30,30 mbar
TR Cat II 2H3B/P	G20,20 mbar G	30,30 mbar
MT Cat I 3B/P G	30,30 mbar
IS Cat I 2H G20,20 mbar
LV Cat I 2H G20,20 mbar
LU Cat I 2E G20,20 mbar
BG Cat I 2H G20,20 mbar
		Cat I 3B/P G30,30 mbar
HU	Cat I 2H G20,25 mbar
	Cat I 3B/P G30,30 mbar

Injector Table

The table below gives injector values for all gas types of combustibles for gas conversion. You can reach your injector values by looking at the technical table for the gas types you can convert according to your combustibles and country. Injectors may not be supplied with your product. You can obtain them from authorized services or from the place where you purchased the product.

Cooking zones
Power	G20,20 mbarG25,25 mbar	G30,28 30 mbarG31,37 mbar	G20,10 mbar	G20,13 mbar	G20,25 mbar	G25.3,25 mbar	G2.350,13 mbar	G30,37 mbar	G30,50 mbar
1 kW 72 50	90 84 68 80	95 47 43
2 kW	103	72	125	116	97	110	131	66	60
2,9 kW	115	87	155	145	108	130	165	80	75

General warnings

• Refer to the nearest Authorised Service Agent for installation of the product. Make sure that the electric and gas installations are in place before calling the Authorised Service Agent to have the product ready for operation. If not, call a qualified electrician and fitter to have the required arrangements made. The manufacturer shall not be held responsible for damages arising from procedures carried out by unauthorized persons which may also void the warranty.
• It is the customer's responsibility to prepare the location where the product shall be placed and also to have power and/or gas utility prepared.
• The rules specified in local standards about electrical and/or gas installations (legal rules on installation) shall be followed during product installation.
• Check for any damage on the appliance before installation. Do not have it installed if the appliance is damaged. Damaged products cause risks for your safety.

4.1 Right place for installation

• Place the product on a hard surface because of the air ducts under the product. It must not be placed onto a base or a pedestal. The feet of the product should not dip into soft surfaces, e.g., carpet, etc.
• The kitchen floor must be able to carry the weight of the appliance plus the additional weight of cookware, bakeware, and food.
• This product is a class 1 device according to EN 30-1-1 standard. It can be placed adjacent to kitchen walls, kitchen furniture, or any other product in any dimension from behind and one edge. The kitchen furniture or equipment on the other side may only be of the same size or smaller.

- It can be used with cabinets on either side, but in order to have a minimum distance of 400 mm above hotplate level, allow a side clearance of 65 mm between the appliance and any wall, partition, or tall cupboard.

• It can also be used in a free-standing position. Allow a minimum distance of 750 mm above the hob surface.
• If a cooker hood is to be installed above the cooker, refer to the instructions of the manufacturer of the cooker hood regarding installation height (min. 650 mm).
• Any kitchen furniture next to the appliance must be heat-resistant (100 °C min.).

Safety chain

The appliance must be secured against overbalancing by using the supplied one safety chain on your oven.

Warning - Risk of tipping!

Warning: In order to prevent tipping of the appliance, this stabilizing means must be installed. Refer to the instructions for installation.

If your product has 2 safety chains:

Fasten hook (1) by using a proper peg to the kitchen wall (6) and connect safety chain (3) to the hook via the locking mechanism (2).

1 Hook, 2 Locking mechanism, 3 Safety chain, 4 Firmly fix chain to product rear, 5 Rear of product, 6 Kitchen wall

If your product has 1 safety chain:

The appliance must be secured against overbalancing by using the supplied one safety chain on your oven.

Follow the steps below in the picture to secure the safety chain to your product.

The stability chain should be as short as practicable to avoid the oven tilting forward, and diagonal to avoid the oven tilting sideways. The stability chain is designed for cookers without a bracket engagement slot.

Room ventilation

All rooms require an openable window, or equivalent, and some rooms will require a permanent vent as well. The air for combustion is taken from the room air and the exhaust gases are emitted directly into the room. Good ventilation is essential for safe operation of your appliance.

Rooms with doors and/or windows which open directly to the outer environment

The doors and/or windows that open directly to the outer environment must have a total ventilation opening of the dimensions specified in the table below, which is based on the total gas power of the appliance (total gas power consumption of the appliance is shown in the technical specification table of this user manual). If the doors and/or windows do not have a total ventilation opening corresponding to the total gas consumption of the appliance as specified in the table below, then there must definitely be an additional fixed ventilation opening in the room to ensure that the total minimum ventilation requirements for the total gas consumption of the appliance is achieved.

The fixed ventilation opening can include openings for existing airbricks, extraction hood ducting opening dimension, etc.

Total gas consumption (kW)	Min. ventilation opening (cm2)
0-2 100
2-3 120
3-4 175
4-6 300
6-8 400
8-10 500
10-11,5 600
11,5-13 700
13-15,5 800
15,5-17 900
17-19 1000
19-24 1250

Rooms that do not have openable doors and/or windows that open directly to the outer environment

If the room where the appliance is installed does not have a door and/or a window that opens directly to the external environment, other products shall be sought that definitely provide a fixed non-adjustable and non-closable ventilation opening which meets the total minimum ventilation opening requirements for the total gas consumption of the appliance as indicated in the above table. Also, the appropriate building regulations advice should be followed. Where a room or internal space contains more than one gas appliance, additional ventilation area shall be provided on top of the requirement given in the table above. The size of the additional ventilation area shall be appropriate to regulations of other gas appliances.

There should also be a minimum clearance of 10mm on the bottom edge of the door that opens to the inner environment in the room where the appliance is installed. You must ensure that items such as carpets and other floor coverings etc., do not affect the clearance when the door is closed. The cooker may be located in a kitchen, kitchen/diner or a bed-sitting room, but not in a room containing a bath or a shower. The cooker must not be installed in a bed-sitting room of less than 20 m3.

Do not install this appliance in a room below ground level unless it is open to ground level on at least one side.

4.2 Electrical connection

General warnings

• Disconnect the product from the electric connection before starting any work on the electrical installation. There is an electric shock hazard.
• Connect the product to a grounded outlet/line protected by a miniature circuit breaker of suitable capacity as stated in the "Technical specifications" table. Have the grounding installation made by a qualified electrician while using the product with or without a transformer. Our company shall not be liable for any damages that will arise due to using the product without a grounding installation in accordance with the local regulations.
• The product can only be connected to the mains electricity connection by an authorized and qualified person, and the warranty of the product starts only after correct installation. The manufacturer cannot be held responsible for any damages that may arise due to operations by unauthorized persons.
• The electric cable must not be crushed, folded, jammed or touch hot parts of the product. If the electric cable is damaged, it must be replaced by a qualified electrician. Otherwise there is an electric shock, short circuit or fire hazard!
• The mains supply data must correspond to the data specified on the type label of the product. The rating plate is either seen when the door or the lower cover of the appliance is opened or it is located at the rear wall of the appliance depending on the appliance type.
• Power cable plug must be within easy reach after installation (do not route it above the hob). Do not use extension or multi sockets in power connection.
• and must use the appropriate socket outlet/line and plug for oven. In case of the product's power limits are out of current carrying capability of plug and socket outlet/line, the product must be connected through fixed electrical installation directly without using plug and socket outlet/line.

If your appliance has a cord and plug:

Perform the electrical connection of your appliance by plugging it into a grounded socket.

4.3 Gas connection

General warnings

• There is a risk of explosion, fire, and toxication if installation, repair, or connection are made by an unauthorized, unlicensed, or unqualified person or technician.
• Before placing the product, make sure that the local distribution conditions (gas type and pressure) and whether the product's gas setting complies with these conditions. Gas adjustment conditions and values of the product are located on the labels (or type label).
• If your country code is not on the label, follow the local technical instructions for your country for gas connection and conversion.
• The product can be connected to the gas supply system only by an authorized, licensed, or qualified person or technician.
• The manufacturer shall not be held responsible for damages arising from procedures carried out by an unauthorized, unlicensed, or unqualified person or technician.
• Before starting any work on the gas installation, disconnect the gas supply. There is a risk of explosion!
• If you need to use your product later with a different type of gas, you must consult the authorized, licensed, or qualified person or technician for the related conversion procedure.
• Make sure that the gas connection is checked well for tightness after each use. The manufacturer cannot be held responsible for any damages that may arise due to gas leakage that may occur as a result of gas connection or conversion made by unauthorized or non-licensed persons.

Risks of fire:

• If you do not make the connection according to the instructions below, there will be a risk of gas leakage and fire. Our company cannot be held responsible for damages resulting from this.
• Gas connection must be made by an authorized/licensed/qualified person or technician only.
• Make sure that the gas hose to be used in the gas connection complies with the local gas standards.
• The flexible gas hose must be connected in a way that it does not contact the moving parts and hot surfaces (shown in the figures below) around it and is not trapped when the moving parts are traveling (e.g., drawers). Besides, it should not be placed in spaces where it might get squeezed.
• Do not move the product whose gas connection is complete. If it is moved, there may be a risk of gas leakage.
• A spanner must be used for gas connection and conversion.
• A spanner must be used for gas connection.

Choosing the gas connection side

• The gas hose should be connected by making wide-angle turns against the possibility of breaking and folding during the connection.
• The gas hose should not be crushed, folded, pinched, touched by sharp corners, or come into contact with hot parts of the

product and cookware on the product. There is a risk of explosion due to damage to the gas hose!

- The gas hose should not come into contact with parts that can reach a temperature of 70°C above room temperature.

- Before gas connection, make sure that the gas main supply and the gas hose outlet of the product to be connected to the gas are on the same side.

- If the gas hose outlet and the gas main supply do not face on the same side, make sure that the hose does not pass through the hot area when connecting it.

Parts for Gas Connection

The parts and tools visuals that may be required for the gas connection are given below. Depending on the model, these parts may not be given with the product. The gas

The connection parts to be used may vary according to the gas type and country regulations.

Leakage Seal:

Connection piece EN 10226 R1/2":

Connection piece for liquid gas (G30, G31):

Gas outlet connection piece:

Blind plug:

Making the gas connection - NG

• The natural gas installation must be prepared suitably for assembly before installing the product. There must be a natural gas valve at the outlet of the gas system to be connected to the product.
• Make sure that the natural gas valve is readily accessible.
• Connect your product to the natural gas system in your home with a flexible gas hose that complies with local standards.
• A new sealing gasket must be used while making the gas connection.
• The gas supply must be connected via a gas pipe or a safety gas hose with threaded fittings at both ends.

EN ISO 228 G1/2" type connection

1. Insert the new sealing gasket into the safety gas hose/pipe. Make sure the gasket is seated correctly.
2. Secure the gas connection piece to the appliance using a 22 mm spanner and place the connection piece into the connection piece using a 24 mm spanner.

1. You must check for leakage of the connection part after connection.

EN 10226 R1/2" type connection

1. Place the new seal in the connection piece and make sure the seal is seated correctly.
2. While holding the gas connection outlet of the product fixed with a 22 spanner, connect the interconnection piece to the product gas outlet with a 24 spanner and tighten securely.

1. Insert the new sealing gasket into the safety gas hose/pipe. Make sure the gasket is seated correctly.
2. Connect the threaded part of the safety gas hose/pipe to the interconnector with the 24 mm spanner and tighten securely, holding the interconnector in place with the 24 mm spanner.

1. You must check for leakage of the connection part after connection.

Making the gas connection - LPG

• Your product should be connected in a way that it will be close to the gas connection to prevent gas leakage.
• Before making your gas connection, provide a plastic gas hose and suitable mounting clamp. The inner diameter of the plastic gas hose must be 10 mm and the length should not be longer than 150 cm. The plastic hose must be leak-proof and inspectable.
• Gas appliances and systems must be regularly checked for proper functioning. Regulator, hose and its clamp must be checked regularly and replaced within the periods recommended by its manufacturer or when necessary.
• A new sealing gasket must be used while making the gas connection.
• The gas connection must be made via a gas hose or a fixed connection.

Connection with clamped (threadless) gas hose

1. Place the new seal in the connection piece for liquid gas and make sure the seal is seated correctly.
2. Secure the gas connection outlet of the product with a 22 mm spanner, connect the connecting piece to the gas outlet of the product with a 24 mm spanner and tighten securely.

1. Fit the mounting clamp to one end of the gas hose. Soften the end of the gas hose to which you have attached the clamp by placing it in boiling water for one minute.
2. Insert the softened gas hose all the way into the connection piece. Tighten the clamp securely with a screwdriver.

1. You must check for leakage of the connection part after connection.

Leakage check at the connection point

• Make sure that all knobs on the product are turned off. Make sure that the gas supply is open. Prepare soapy foam and apply it onto the connection point of the hose for gas leakage control.
• Soapy part will froth if there is a gas leakage. In this case, inspect the gas connection once again. • Instead of soap, you can use commercially available sprays for gas leak check.
• If there is gas leak, shut off the gas supply and ventilate the room.
• Never use a match or lighter to make the gas leakage control.

4.4 Placing the product

1. Push the product towards the kitchen wall.
2. Secure the safety chain you have connected to the product to the wall.
3. Adjust the feet of oven

Adjusting the feet of oven

Vibrations during use may cause cooking vessels to move. This dangerous situation can be avoided if the product is level and balanced.

For your own safety, please ensure the product is level by adjusting the four feet at the bottom by turning them left or right, and align it level with the worktop.

Final check

1. Reconnect the product to the mains.
2. Check electrical functions.
3. Open gas supply.
4. Check whether the gas connections are securely attached and whether there are any leaks.
5. Ignite burners and check the appearance of the flame.

The flame must be blue and have a regular shape. If the flame is yellowish, check if the burner cap is seated securely or clean the burner.

4.5 Gas Conversion

General warnings

• Before starting any work on the gas installation, disconnect the gas main supply. There is a risk of explosion!
• All gas injectors must be replaced and the burning adjustment of the gas taps must be made in the reduced flow rate position in order to make the product suitable for use with another gas. After the gas type has been changed, the new gas type label from the spare bag must be applied onto the current label already on the back wall of the product.
• The convertible gas types and gas categories of your product by country are given in the "Country gas categories/types/pressure" section. Check the table in this section for the types of gas you can convert in your local area. You cannot convert to unspecified gas types in this table.
• Spare injectors suitable for the type of gas you wish to convert may not be supplied with the product. You can obtain the injectors

from the authorized service or from the place where you purchased the product.

Injector values and gas types that should be used for burners are given at the end of the section. Make the connection of the gas type to be converted as described in the gas connection section.

Parts for Gas Conversion

The parts and tools visuals, may be required for the gas conversion are given below. Depending on the model, these parts may not be given with the product.

Bypass nozzle:

Burner injector:

Exchange of injector for the burners

1. Turn all control knobs to off positions on the control panel.
2. Shut off the gas supply.
3. Remove the pan supports, the cap and head of the hob burners.
4. Remove the gas injectors by turning counter clockwise. (spanner 7)

1. If your product has a wok combustor with a side-entry injector, remove the injector with a number 7 spanner.

On some hob burners, the injector is covered with a metal piece. This metal cover must be removed for injector replacement.

1. Install the new gas injectors. (Tightening torque 4 Nm)
2. Check all connections in order to make sure that they are installed safely and securely.

New injectors have their position marked on their packing or injector table can be referred to.

1. You must check for leakage injectors after connection.

Unless there is an abnormal condition, do not attempt to remove the gas burner taps. You must call an Authorised service agent or technician with licence if it is necessary to change the taps.

Reduced gas flow rate setting for hob taps

1. Ignite the burner that is to be adjusted and turn the knob to the reduced position.
2. Remove the knob from the gas tap.
3. Use an appropriately sized screwdriver to adjust the flow rate adjustment screw.
4. For LPG (Butane - Propane) turn the screw clockwise. For the natural gas, you should turn the screw counterclockwise once.

⇒ The normal length of a straight flame in the reduced position should be 6-7 mm.

1. If the flame is higher than the desired position, turn the screw clockwise. If it is smaller turn anticlockwise.
2. For the final check, bring the burner to both the high-flame and reduced positions and verify whether the flame is on or off.
3. Depending on the type of gas tap used in your appliance, the position of the adjustment screw may vary.

1 Flow rate adjustment screw

1 Flow rate adjustment screw

Leakage check at the injectors

Before carrying out the conversion on the product, ensure all control knobs are turned to the off position. After the correct conversion of injectors, each injector should be checked for gas leaks.

1. Make sure that the gas supply to the product is on, while still maintaining all control knobs in the off position.
2. Each injector hole is blocked with a finger applying reasonable force to stop the gas leakage when the corresponding

control knob is turned to on and held in the depressed position to allow gas to reach the injector.

1. Apply prepared soapy water at the injector connection with a small brush. If there is a gas leak at the injector connection, the soapy water will begin to froth. In this case, tighten the injector with reasonable force and repeat step 3 once again.

1. If the froth still persists, you must turn off the gas supply to the product immediately and call an authorized service agent or a licensed technician. Do not use the product until the authorized service has intervened.

5 First Use

Before you start using your product, it is recommended to do the following steps in the order given in the following sections.

5.1 First Timer Setting

Always set the time of day before using your oven. If you do not set it, you cannot cook in some oven models.

1. When the oven is first started, "12:00" and the Ⓢ symbol will flash on the display.
2. Set the time of day by touching the ⏻ keys.

1. Touch the key to activate the minutes field.

1. Touch the + keys to set the minutes.

1. Confirm by touching the key.

⇒ The time of day is set and the symbol disappears from the display.

If the first timer is not set, "12:00" and the ⓣ symbol continue to flash and your oven will not start. For your oven to function, you must confirm the time of day by setting it or by touching the ⏱ key when it is at "12:00". You can change the time of day setting later as described in the "Settings" section.

In the event of a power outage, the time of day settings are cancelled. They should be set again.

5.2 Initial Cleaning

1. Remove all packaging materials.
2. Remove all accessories from the oven provided with the product.
3. Operate the product for 30 minutes and then turn it off. This way, residues and layers that may have remained in the oven during production are burned and cleaned.

6 How to use the hob

6.1 General information on hob usage

General warnings

• Place pots and pans in a manner so that the handles are not over the burners to prevent them from overheating.
• Do not use unbalanced and easily tilting pots/pans on the hob.

• Do not heat the pots/pans and pots empty. The pots and the appliance may be damaged.
• Do not ignite the burners without any pot or pots/pans on the respective burner.
• Always turn off the hob's burners after each use.
• When operating the product, select the highest temperature and the operating function that all the heaters in your product operate. See "Oven operating functions [▶ 16]". You can learn how to operate the oven in the following section.
• Wait for the oven to cool.
• Wipe the surfaces of the product with a wet cloth or sponge and dry with a cloth.

Before using the accessories:

Clean the accessories you remove from the oven with detergent water and a soft cleaning sponge.

NOTICE: Some detergents or cleaning agents may cause damage to the surface. Do not use abrasive detergents, cleaning powders, cleaning creams or sharp objects during cleaning.

NOTICE: During the first use, smoke and odour may come up for several hours. This is normal and you just need good ventilation to remove it. Avoid directly inhaling the smoke and odours that form.

• You shall damage the appliance if you operate the hobs without any pot or pots/ pans. Always turn off the hobs after each operation.
• Put a sufficient amount of food in pots and pans. Thus, you can prevent food from spilling over and will not need to clean unnecessarily.
• Do not place the covers of pots and pans on burners/zones.
• Place the pots by centering them on the burners/zones. If you wish to place a pot on a different burner/zone, do not slide it towards the desired burner; rather, lift it first and then put it on the other burner.
• The size of the cooking pots/pans shall match the size of the flame. Set the gas flames so that they shall not protrude from the base of the pots/pans and place the pots/pans on the pot holder by centering it. Do not use large pans/pots to cover more than one burner.

Hob burner type Pot diameter - cm
Auxiliary burner 12 – 18
Normal burner 18 – 20
Rapid burner - Wok burner 22 - 24

Do not use pots/pans that exceed the above stated dimensions. Using larger pans/pots than specified may cause carbon monoxide poisoning and overheating of nearby surfaces and knobs. In addition, if the cooking surface of your product is glass, overheating will occur on this surface and the product will be damaged. The use of smaller pans/pots may cause you to burn due to flames.

6.2 Operation of the hobs

Gas burner control knob

• Off position Small flame: Lowest gas power Large flame: Highest gas power

You can operate your hob with the hob control knobs. Each knob operates the respective burner. You may infer which burner it controls from the symbols on the control panel.

When turned off (top position), the burner is not fuelled with gas. After igniting the burner, you can cook by setting the gas levels on the knob. Set your desired cooking power by aligning the knob to the respective symbol.

Igniting the gas burners

√ The gas burners are ignited with the control knobs.

1. Press on the burner knob.
2. While pressing on the knob, turn it counter clockwise to the large flame symbol.
3. With the resulting spark, the gas is ignited.
4. After the initial ignition, keep pressing on the knob for 3-5 seconds.
5. If the gas is not ignited after pressing on and releasing the knob, repeat the same process by pressing on the knob for 15 seconds.

Release the button if the burner is not ignited within 15 seconds. Wait at least 1 minute before trying again. There is the risk of gas accumulation and explosion!

1. Adjust your desired power level.

Turning off the gas burners

Bring the burner knob to off position (top).

If the flames of the burner are extinguished inadvertently, turn off the burner control knob. Do not attempt to ignite the burner again for 1 minute at least.

Gas shut-off safety mechanism

As a precaution against blow out due to overflows over the top burners, a safety mechanism starts to operate and shuts off the gas immediately.

1 Gas shut off safety

To activate the gas shut-off safety mechanism, keep the control knob pressed for 3-5 seconds more after igniting the hob.

Release the knob if the burner is not ignited within 15 seconds. Wait at least 1 minute before trying again. There is the risk of gas accumulation and explosion!

7 Using the Oven

7.1 General Information on Using the Oven

Cooling fan (It varies depending on the product model. It may not be available on your product.)

Your product has a cooling fan. The cooling fan is activated automatically when necessary and cools both the front of the product and the furniture. It is automatically deactivated when the cooling process is finished. Hot air comes out over the oven door. Do not cover these ventilation openings with anything. Otherwise, the oven may overheat. The cooling fan continues to operate during oven operation or after the oven is turned off (approximately 20-30 minutes). If you cook by programming the oven timer, at the end of the baking time, the cooling fan turns off with all functions. The cooling fan running time cannot be determined by the user. It turns on and off automatically. This is not an error.

Oven lighting

The oven lighting is turned on when the oven starts baking. In some models, the lighting is on during baking, while in some models it turns off after a certain time.

7.2 Operation of the Oven Control Unit

General warnings for the oven control unit

- The maximum time that can be set for the baking process is 5 hours 59 minutes. In case of a power failure, the program is canceled. You will need to re-program.

• While making any adjustments, the relevant symbols flash on the display. A short time should be waited for the settings to be saved.
• If any cooking setting has been made, the time of day cannot be adjusted.
• If cooking time is set when cooking starts, the remaining time is displayed on the display.
• In cases where cooking time or cooking end time is set; you can cancel automatically by touching the ⓚ key for a long time.

Timer

1 Alarm key 2 Time setting key 3 Decrease key 4 Increase key 5 Settings key 6 Key lock key

Display symbols

: Baking time symbol : Baking end time symbol * : Alarm symbol ● : Brightness symbol

: Key lock symbol

: Temperature symbol

: Volume level symbol

: Door lock symbol *

*It varies depending on the product model. It may not be available on your product.

Turning on the oven

When you select a operating function you want to cook with the function selection knob and set a certain temperature with the temperature knob, the oven starts operating.

Turning off the oven

You can turn the oven off by turning the function selection knob and temperature knob to the off (up) position.

Manual cooking to select temperature and oven operating function

You can cook by making a manual control (at your own control) without setting the cooking time by selecting the temperature and operating function specific to your food.

1. Select the operating function you want to cook with the function selection knob.
2. Set the temperature you want to cook with the temperature knob.

Your oven will start operating immediately at the selected function and temperature, and the symbol will appear on the display. When the temperature inside the oven reaches the set temperature, the symbol disappears. The oven does not switch off automatically since manual cooking is done without setting the cooking time. You have to control cooking and turn it off yourself. When your cooking is completed, turn

off the oven by turning the function selection knob and the temperature knob to the off (up) position.

Cooking by setting the cooking time:

You can have the oven turn off automatically at the end of the time by selecting the temperature and operating function specific to your food and setting the cooking time on the timer.

1. Select the operating function for cooking.
2. Touch the key until the symbol appears on the display for the cooking time.

After setting the operation function and temperature, you can set the cooking time for 30 minutes by touching the + key directly for quick setting of the cooking time and change the time with the ⏻ keys.

1. Set the cooking time with the ⏻ keys.

The cooking time increases by 1 minute in the first 15 minutes, after 15 minutes it increases by 5 minutes.

1. Put your food in the oven and set the temperature with the temperature knob.

→ Your oven will start operating immediately at the selected function and temperature. The set cooking time starts to count down and the

symbol appears on the display. When the temperature inside the oven reaches the set temperature, the symbol disappears.

1. After the set cooking time is completed, on the display, "End" appears, the ⏻ symbol flashes and the timer beeps.
2. The warning sounds for two minutes. Press any key to stop the warning. The warning stops and the time of day appears on the display.

If any key is pushed at the end of the audible warning, the oven will start operating again. To prevent the oven from operating again at the end of the warning, turn off the oven by turning the temperature knob and function knob to the "0" (off) position.

7.3 Settings

Activating the key lock

By using the key lock feature, you can safeguard the timer from interference.

1. Touch the key until the symbol appears on the display.

The symbol is shown on the display and the 3-2-1 count down starts. The key lock activates when the countdown ends. When any key is touched after the key lock is set, the timer sounds an audible signal and the symbol flashes.

If you release the key before the end of the countdown, the key lock does not activate.

Timer keys cannot be used when the key lock is on. The key lock will not be cancelled in case of power failure.

Deactivating the key lock

1. Touch the key until the symbol disappears from the display.

The symbol disappears from the display and the key lock is disabled.

Setting the alarm

You can also use the timer of the product for any warning or reminder other than baking. The alarm clock has no effect on the oven operating functions. It is used for warning purposes. For example, you can use the alarm clock when you want to turn the food in the oven at a certain time. As soon as the time you set has expired, the timer gives you an audible warning.

The maximum alarm time may be 23 hours 59 minutes.

1. Touch the key until the symbol appears on the display.

1. Set the alarm time with the ④ keys.

After setting the alarm time, the symbol remains lit and the alarm time starts to countdown on the display. If the alarm time and baking time are set at the same time, the shorter time is shown on the display.

1. After the alarm time is completed, the symbol starts flashing and gives you an audible warning.

Turning off the alarm

1. At the end of the alarm period, the warning sounds for two minutes. Touch any key to stop the audible warning.

The warning stops and the time of day appears on the display.

If you want to cancel the alarm:

1. Touch the key until the symbol appears on the display to reset the alarm time. Touch the key until the "00:00" symbol appears on the display.
2. You can also cancel the alarm by touching the 🔊 key for a long time.

Adjusting the volume

1. Touch key until the symbol appears on the display.

1. Set the desired level with the ⊕ keys. (b-01-b-02-b-03)

1. Touch the key for confirmation or wait without touching any key. The volume set becomes active after a while.

Setting the display brightness

1. Touch key until the symbol appears on the display.

1. Set the desired brightness with the Ⓗ keys. (d-01-d-02-d-03)

1. Touch the key for confirmation or wait without touching any key. The brightness set becomes active after a while.

Changing the time of day

On your oven to change the time of day that you have previously set:

1. Touch the key until the symbol appears on the display.
2. Set the time of day by touching the Ⓗ keys.

1. Touch or key to activate the minutes field.

1. Touch the ⏻ keys to set the minute.

1. Confirm by touching the Ⓞ or key.

The time of day is set and the symbol disappears on the display.

8 General Information About Baking

You can find tips on preparing and cooking your food in this section.

Plus, this section describes some of the foods tested as producers and the most appropriate settings for these foods. Appropriate oven settings and accessories for these foods are also indicated.

8.1 General Warnings About Baking in the Oven

• While opening the oven door during or after baking, hot-burning steam may emerge. The steam may burn your hand, face and/or eyes. When opening the oven door, stay away.
• Intense steam generated during baking may form condensed water drops on the interior and exterior of the oven and on the upper parts of the furniture due to the temperature difference. This is a normal and physical occurrence.
• The cooking temperature and time values given for foods may vary depending on the recipe and amount. For this reason, these values are given as ranges. • Always remove unused accessories from the oven before you start cooking. Accessories that will remain in the oven may prevent your food from being cooked at the correct values.
• For foods that you will cook according to your own recipe, you can reference similar foods given in the cooking tables.
• Using the supplied accessories ensures you get the best cooking performance. Always observe the warnings and information provided by the manufacturer for the external cookware you will use.
• Cut the greaseproof paper you will use in your cooking in suitable sizes to the container you will cook. Greaseproof papers that are overflowing from the container can create a risk of burns and affect the quality of your baking. Use the greaseproof paper you will use in the temperature range specified.

- For good baking performance, place your food on the recommended correct shelf. Do not change the shelf position during baking.

8.1.1 Pastries and oven food

General Information

• We recommend using the accessories of the product for a good cooking performance. If you will use an external cookware, prefer dark, non-sticking and heat resistant ware.
• If preheating is recommended in the cooking table, be sure to put your food in the oven after preheating.
• If you will cook by using cookware on the wire grill, place it in the middle of the wire grill, not near the back wall.
• All materials used in making pastry should be fresh and at room temperature.
• The cooking status of the foods may vary depending on the amount of food and the size of the cookware.
• Metal, ceramic and glass moulds extend the cooking time and the bottom surfaces of pastry foods do not brown evenly.
• If you are using baking paper, a small browning can be observed on the bottom surface of the food. In this situation, you may have to extend your cooking period by approximately 10 minutes.
• The values specified in the cooking tables are determined as a result of the tests carried out in our laboratories. Values suitable for you may differ from these values.
• Place your food on the appropriate shelf recommended in the cooking table. Refer to the bottom shelf of the oven as shelf 1.

Tips for baking cakes

- If the cake is too dry, increase the temperature by 10°C and shorten the baking time.

• If the cake is moist, use a small amount of liquid or reduce the temperature by 10°C.
• If the top of the cake is burnt, put it on the lower shelf, lower the temperature and increase the baking time.
• If the inside of the cake is cooked well, but outside is sticky, use less liquid, decrease the temperature and increase the cooking time.

Hints for pastry

- If the pastry is too dry, increase the temperature by 10°C and shorten the cooking time. Wet the dough sheets with a sauce consisting of milk, oil, egg and yoghurt mixture.

- If the pastry is getting cooked slowly, make sure that the thickness of the pastry you have prepared does not overflow the tray.

- If the pastry is browned on the surface but the bottom is not cooked, make sure that the amount of sauce you will use for the pastry is not too much at the bottom of the pastry. For an even browning, try to spread the sauce evenly between the dough sheets and the pastry.

- Bake your pastry in the position and temperature appropriate to the cooking table. If the bottom is still not browned enough, place it on a bottom shelf for the next cooking.

Cooking table for pastries and oven foods

Suggestions for baking with a single tray

Food Accessory to	be used	Operating function	Shelf position Temperature (°C) Baking time (min) (approx.)
Cake on the tray St	standard tray *	Top and bottom heating	3 180 30 ... 45
Cake in the mould	Cake mould on wire grill** **	Fan Heating 2 180	35 ... 45
Small cakes Standard tray	*	Top and bottom heating	3 160 25 ... 35
Small cakes Standard tray	* Fan Heating	2 150 25 ... 35
Sponge cake	Round springform pan, 26 cm in diameter on wire grill **	Top and bottom heating	2 160 30 ... 45
Sponge cake	Round springform pan, 26 cm in diameter on wire grill **	Fan Heating 2 160	30 ... 40
Cookie Pastry tray	*	Top and bottom heating	3 170 25 ... 40
Cookie Pastry tray	* Fan Heating 3 170	20 ... 30
Pastry Standard tray	*	Top and bottom heating	2 200 30 ... 45
Pastry Standard tray	*	Fan assisted bottom/top heating	2 200 30 ... 40
Pastry Standard tray	* Fan Heating 2 180	35 ... 45
Bun Standard tray	*	Top and bottom heating	2 200 20 ... 35
Bun Standard tray	* Fan Heating 3 180	20 ... 30
Whole bread Standard tray	*	Top and bottom heating	3 200 30 ... 45
Whole bread Standard tray	* Fan Heating	3 200 30 ... 40

Food Accessory to	be used	Operating function	Shelf position Temperature (°C) Baking time (min) (approx.)
Lasagne	Glass / metal rectangular container on wire grill **	Top and bottom heating	2 or 3 200 30 ... 45
Apple pie	Round black metal mould, 20 cm in diameter on wire grill **	Top and bottom heating	2 180 60 ... 75
Apple pie	Round black metal mould, 20 cm in diameter on wire grill **	Fan Heating 2 170	50 ... 70
Pizza Standard tray *		Top and bottom heating	2 220 10 ... 25

Preheating is recommended for all food.

*These accessories may not be included with your product.

**These accessories are not included with your product. They are commercially available accessories.

Suggestions for cooking with two trays

Food Accessory to	be used	Operating func-tion	Shelf position Temperature (°C) Baking time (min)(approx.)
Small cakes	2-Standard tray *4-Pastry tray *	Fan Heating 2 - 4 1	50 25 ... 40
Cookie	2-Standard tray *4-Pastry tray *	Fan Heating 2 - 4 1	70 25 ... 35
Pastry	1-Standard tray *4-Pastry tray *	Fan Heating 1 - 4 1	80 35 ... 45
Bun	2-Standard tray *4-Pastry tray *	Fan Heating 2 - 4 1	80 20 ... 30

Preheating is recommended for all food.

*These accessories may not be included with your product.

**These accessories are not included with your product. They are commercially available accessories.

8.1.2 Meat, Fish and Poultry

The key points on grilling

- Seasoning it with lemon juice and pepper before cooking whole chicken, turkey and large pieces of meat will increase cooking performance.

- It takes 15 to 30 minutes more to cook boned meat than fillet by frying.

- You should calculate about 4 to 5 minutes of cooking time per centimetre of the meat thickness.

• After the cooking time is expired, keep the meat in the oven for approximately 10 minutes. The juice of the meat is better distributed to the fried meat and does not come out when the meat is cut.

- Fish should be placed on the medium or low level shelf in a heat resistant plate.

• Cook the recommended dishes in the cooking table with a single tray.

Cooking table for meat, fish and poultry

Food Accessory to	be used	Operating function	Shelf position	Temperature (°C) Baking time (min) (approx.)
Steak (whole) / Roast (1 kg)	Standard tray *	Fan assisted bottom/top heating	3	15 mins. 250/ max, after 180 ... 190	60 ... 80
Lamb's shank (1,5-2 kg)	Standard tray *	Fan assisted bottom/top heating	3	15 mins. 250/ max, after 170	110 ... 120
Fried chicken (1,8-2 kg)	Wire grill *Place one tray on a lower shelf	Fan assisted bottom/top heating	2	15 mins. 250/ max, after 190	60 ... 80
Fried chicken (1,8-2 kg)	Wire grill *Place one tray on a lower shelf	Fan Heating 2 200	... 220 60 ... 80
Fried chicken (1,8-2 kg)	Wire grill *Place one tray on a lower shelf	"3D" function 2		15 mins. 250/ max, after 190	60 ... 80
Turkey (5.5 kg) Standard tray *		Fan assisted bottom/top heating	1	25 mins. 250/ max, after 180 ... 190	150 ... 210
Turkey (5.5 kg) Standard tray * "3D" function 1				25 mins. 250/ max, after 180 ... 190	150 ... 210
Fish	Wire grill *Place one tray on a lower shelf	Fan assisted bottom/top heating	3 200 20 ... 30
Fish	Wire grill *Place one tray on a lower shelf	"3D" function 3 200	20 ... 30

Preheating is recommended for all food. *These accessories may not be included with your product. **These accessories are not included with your product. They are commercially available accessories.

8.1.3 Grill

Red meat, fish and poultry meat quickly turns brown when grilled, holds a beautiful crust and does not dry out. Fillet meats, skewer meats, sausages as well as juicy vegetables (tomatoes, onions, etc.) are particularly suitable for grilling.

General warnings

- Food not suitable for grilling carries a fire hazard. Grill only food that is suitable for heavy grill fire. Also, do not place the food too far in the back of the grill. This is the hottest area and fatty foods may catch fire.

- When the preheating time is 5 minutes in the grill mode, skip the preheating, do not wait for the entire preheating time to pass.

- Close the oven door during grilling. Never grill with the oven door open. Hot surfaces may cause burns!

The key points of the grill

• Prepare foods of similar thickness and weight as much as possible for the grill.

- Place the pieces to be grilled on the wire grill or wire grill tray by distributing them without exceeding the dimensions of the heater.

• Depending on the thickness of the pieces to be grilled, the cooking times given in the table may vary.
• Slide the wire grill or the wire grill tray to the desired level in the oven. If you are cooking on the wire grill, slide the oven

tray to the lower shelf to collect the oils. The oven tray you will slide should be sized to cover the entire grill area. This tray may not be supplied with the product. Put some water into the oven tray for easy cleaning.

Grill table

Food Accessory to be	used Shelf position Temperature (°C) Baking time (min)			(approx.)
Fish Wire grill 4 - 5 250	20 ... 25
Chicken pieces Wire grill 4 - 5 250 25 ... 35
Meatball (veal) - 12 amount	Wire grill 4 250 20 ... 30
Lamb chop Wire grill 4 - 5 250 20 ... 25
Steak - (meat cubes) Wire grill 4 - 5 250 25 ... 30
Veal chop Wire grill 4 - 5 250 25 ... 30
Vegetable gratin Wire grill 4 - 5 220 20 ... 30
Toast bread Wire grill 4 250 1 ... 4
It is recommended to preheat for 5 minutes for all grilled food.Turn pieces of food after 1/2 of the total grilling time.

Fan assisted low grill

Food Accessory to	be used	Operating function	Shelf position	Temperature (°C)	Baking time (min) (approx.)
Fish	Wire grill	Fan assisted low grill	4	200	30 ... 35
Chicken pieces	Wire grill	Fan assisted low grill	4	250	25 ... 35
Meatball (veal) - 12 amount	Wire grill	Fan assisted low grill	4	250	30 ... 40
Steak (whole) / Roast (1 kg )	Wire grill - Place one tray on a lower shelf	Fan assisted low grill	3	15 mins. 250, after 180 ... 190	90 ... 110
Do not preheat the dishes recommended in this grill chart.

8.1.4 Test foods

- Foods in this cooking table are prepared according to the EN 60350-1 standard to facilitate testing of the product for control institutes.

Cooking table for test meals

Suggestions for baking with a single tray

EN

Food Accessory to	be used	Operating function	Shelf position Temperature (°C) Baking time (min) (approx.)
Shortbread (sweet cookie)	Standard tray *	Top and bottom heating	3 140 20 ... 30
Shortbread (sweet cookie)	Standard tray * Fan	Heating	On models with wire shelves :3On models without wire shelves :2	140 15 .. 25
Small cakes Standard tray *		Top and bottom heating	3 160 25 ... 35
Small cakes Standard tray * Fan Heating		2 150 25 ... 35
Sponge cake	Round springform pan, 26 cm in diameter on wire grill **	Top and bottom heating	2 160 30 ... 45
Sponge cake	Round springform pan, 26 cm in diameter on wire grill **	Fan Heating 2 160	30 ... 40
Apple pie	Round black metal mould, 20 cm in diameter on wire grill **	Top and bottom heating	2 180 60 ... 75
Apple pie	Round black metal mould, 20 cm in diameter on wire grill **	Fan Heating 2 170	50 ... 70

Preheating is recommended for all food.

*These accessories may not be included with your product. **These accessories are not included with your product. They are commercially available accessories.

Suggestions for cooking with two trays

Food Accessory to	be used	Operating func-tion	Shelf position Temperature (°C) Baking time (min)(approx.)
Small cakes	2-Standard tray *4-Pastry tray *	Fan Heating 2 - 4 1	50 25 ... 40
Shortbread (sweet cookie)	2-Standard tray *4-Pastry tray *	Fan Heating 2 - 4 1	40 15 ... 25

Preheating is recommended for all food.

*These accessories may not be included with your product. **These accessories are not included with your product. They are commercially available accessories.

Food Accessory to be	used Shelf position Temperature (°C) Baking time (min)			(approx.)
Meatball (veal) - 12 amount	Wire grill 4 250 20 ... 30
Toast bread Wire grill 4	250 1 ... 4
It is recommended to preheat for 5 minutes for all grilled food.Turn pieces of food after 1/2 of the total grilling time.

9 Maintenance and Cleaning

9.1 General Cleaning Information

General warnings

- Wait for the product to cool before cleaning the product. Hot surfaces may cause burns!

- Do not apply the detergents directly on the hot surfaces. This may cause permanent stains.

• The product should be thoroughly cleaned and dried after each operation. Thus, food residues shall be easily cleaned and these residues shall be prevented from burning when the product is used again later. Thus, the service life of the appliance extends and frequently faced problems are decreased.

- Do not use steam cleaning products for cleaning.

- Some detergents or cleaning agents cause damage to the surface. Unsuitable cleaning agents are: bleach, cleaning products containing ammonia, acid or chloride, steam cleaning products, de-scaling agents, stain and rust removers, abrasive cleaning products (cream cleaners, scouring powder, scouring cream, abrasive and scratching scrubber, wire, sponges, cleaning cloths containing dirt and detergent residues).

- No special cleaning material is needed in the cleaning made after each use. Clean the appliance using dishwashing detergent, warm water and a soft cloth or sponge and dry it with a dry cloth.

- Be sure to completely wipe off any remaining liquid after cleaning and immediately clean any food splashing around during cooking.

- Do not wash any component of your appliance in a dishwasher unless otherwise stated in the user's manual.

For the hobs:

• Acidic dirt such as milk, tomato paste and oil may cause permanent stains on the hobs and components of the hob zones, clean any overflown fluids immediately after cooling down the hob by turning it off.
• Wok type burners used at high temperatures may change colour. This is normal.
• Moving some cookware may cause metal marks on the pot holders. Do not slide the pans and pots on the surface.
• As hob zone caps contact the fire directly and exposed to high temperatures, change and loss of colour in time is normal. This does not cause a problem while using the hob.

Inox - stainless surfaces

• Do not use acid or chlorine-containing cleaning agents to clean stainless-inox surfaces and handles.
• Stainless-inox surface may change colour in time. This is normal. After each operation, clean with a detergent suitable for the stainless or inox surface.
• Clean with a soft soapy cloth and liquid (non-scratching) detergent suitable for inox surfaces, taking care to wipe in one direction.
• Remove lime, oil, starch, milk and protein stains on the glass and inox surfaces immediately without waiting. Stains may rust under long periods of time.

- Cleaners sprayed/applied to the surface should be cleaned immediately. Abrasive cleaners left on the surface cause the surface to turn white.

Enamelled surfaces

• The oven must cool down before cleaning the cooking area. Cleaning on hot surfaces shall create both fire hazard and damage the enamel surface. • After each use, clean the enamel surfaces using dishwashing detergent, warm water and a soft cloth or sponge and dry them with a dry cloth.
• If your product has an easy steam cleaning function, you can make easy steam cleaning for light non-permanent dirt. (See "Easy Steam Cleaning [▶ 48]".)
• For difficult stains, an oven and grill cleaner recommended on the website of your product brand and a non-scratching scouring pad can be used. Do not use an external oven cleaner.

Catalytic surfaces

• The side walls in the cooking area can only be covered with enamel or catalytic walls. It varies by model.
• The catalytic walls have a light matte and porous surface. The catalytic walls of the oven should not be cleaned.
• Catalytic surfaces absorb oil thanks to its porous structure and start to shine when the surface is saturated with oil, in this case it is recommended to replace the parts.

Glass surfaces

• When cleaning glass surfaces, do not use hard metal scrapers and abrasive cleaning materials. They can damage the glass surface.
• Clean the appliance using dishwashing detergent, warm water and a microfiber cloth specific for glass surfaces and dry it with a dry microfiber cloth.
• If there is residual detergent after cleaning, wipe it with cold water and dry with a clean and dry microfiber cloth. Residual detergent may damage the glass surface next time.
• Under no circumstances should the dried-up residue on the glass surface be cleaned off with serrated knives, wire wool or similar scratching tools.
• You can remove the calcium stains (yellow stains) on the glass surface with the commercially available descaling agent, with a descaling agent such as vinegar or lemon juice.
• If the surface is heavily soiled, apply the cleaning agent on the stain with a sponge and wait a long time for it to work properly. Then clean the glass surface with a wet cloth. • Discolorations and stains on the glass surface are normal and not defects.

Plastic parts and painted surfaces

• Clean plastic parts and painted surfaces using dishwashing detergent, warm water and a soft cloth or sponge and dry them with a dry cloth.
• Do not use hard metal scrapers and abrasive cleaners. They may damage the surfaces.
• Ensure that the joints of the components of the product are not left damp and with detergent. Otherwise, corrosion may occur on these joints.

9.2 Cleaning Accessories

Do not put the product accessories in a dishwasher unless otherwise stated in the user's manual.

9.3 Cleaning the hob

Cleaning the gas burners

1. Before cleaning the hob, remove pot holders, burner caps and heads from the hob.
2. Clean the surface of the hob as per the recommendations included in the general cleaning information according to the surface type (enamelled, glass, inox, etc.).
3. Clean the burner chamber with a cloth soaked in detergent or with a non-scratching, soft brush. Ensure that no food remains are left.
4. Clean the spark plugs and thermal elements (in models with ignition and thermal element) with a well-squeezed cloth. Then dry with a clean cloth. Pay attention that the spark plug and the thermal element are completely dry.
5. Clean the burner caps and heads with detergent water after each operation and then dry them.
6. For persistent stains, keep burner caps and heads in detergent water or warm soapy water for at least 15 minutes. Clean with a non-metallic and non-scratching brush.
7. You may use the Quick&Shine cleaning agents for the oven interiors and grills, used on enamelled surfaces and recommended by the authorized service, especially for persistent stains on enamelled burner caps.
8. Do not contact burner caps with aggressive detergents such as oven interior cleaning agents or descalers while cleaning them; this may cause discolouration.
9. Clean the pot holders with detergent water and a non-scratching, soft brush after each operation and then dry them.
10. When the burner caps and pot holders are used wet, persistent lime stains may occur as a result of the heat. Ensure that they are dried before operation.
11. Place burner heads, caps, and pot holders respectively.
12. When placing the pot holders, ensure that they centre the burners. In pin models, fit the pins on the burner plate to the pin slots on the pot holders.

Assembling the burner parts

1. Place the parts as in the figure after cleaning the burners.
2. Place the burner head ensuring that it passes through the burner spark plug (4). Turn the burner head right and left to make sure that it is seated in the burner chamber.
3. Place the burner cap on the burner head.

1 Burner cap 2 Burner head 3 Burner chamber 4 Spark plug (in models with ignition)

9.4 Cleaning the Control Panel

• When cleaning the panels with knob-control, wipe the panel and knobs with a damp soft cloth and dry with a dry cloth. Do not remove the knobs and gaskets underneath to clean the panel. The control panel and knobs may be damaged.
• While cleaning the inox panels with knob control, do not use inox cleaning agents around the knob. The indicators around the knob can be erased.
• Clean the touch control panels with a damp soft cloth and dry with a dry cloth. If your product has a key lock feature, set the key lock before performing control panel cleaning. Otherwise, incorrect detection may occur on the keys.

9.5 Cleaning the inside of the oven (cooking area)

Follow the cleaning steps described in the "General Cleaning Information" section according to the surface types in your oven.

Cleaning the side walls of the oven

The side walls in the cooking area can only be covered with enamel or catalytic walls. It varies by model. If there is a catalytic wall, refer to the "Catalytic surfaces" section for information.

If your product is a wire shelf model, remove the wire shelves before cleaning the side walls. Then complete the cleaning as described in the "General Cleaning Information" section according to the side wall surface type.

To remove the side wire shelves:

1. Remove the front of the wire shelf by pulling it on the side wall in the opposite direction.
2. Pull the wire shelf towards you to remove it completely.

1. To reattach the shelves, repeat the removal procedures in reverse order.

9.6 Easy Steam Cleaning

This function allows easy cleaning of dirt (that has not been present for a long time) which is softened by the steam inside the oven and by the water droplets condensed on the internal surfaces of the oven.

1. Remove all accessories inside the oven.
2. Add 500 ml of water into the tray and place it on the 2nd shelf of the oven.

Do not use distilled or filtered water. Use only ready-made water. Do not use flammable, alcoholic, or solid particulate solutions instead of water.

1. Set the oven to the easy steam cleaning operating mode and operate it at 100°C for 15 minutes.

Immediately open the door and wipe the oven interiors with a wet sponge or cloth. Steam will be released when opening the door. This may pose a risk of burns. Be careful when opening the door.

For stubborn dirt, clean the product using dishwashing detergent, warm water, and a soft cloth or sponge, and dry it with a dry cloth.

In the easy steam cleaning function, it is expected that the added water evaporates and condenses on the inside of the oven and the oven door in order to soften the light dirt formed in your oven. Condensation formed on the oven door may drip around when the oven door is opened. As soon as you open the oven door, wipe off the condensation.

(It varies depending on the product model. It may not be available on your product.) After condensation inside the oven, puddles or moisture may occur in the pool channel under the oven. Wipe this pool channel with a damp cloth after use and dry it.

9.7 Cleaning the Oven Door

You can remove your oven door and door glasses to clean them. How to remove the doors and windows is explained in the sections "Removing the oven door" and "Removing the inner glasses of the door".

After removing the door inner glasses, clean them using a dishwashing detergent, warm water and a soft cloth or sponge and dry them with a dry cloth. For lime residue that may form on the oven glass, wipe the glass with vinegar and rinse.

Do not use harsh abrasive cleaners, metal scrapers, wire wool or bleach materials to clean the oven door and glass.

Removing the oven door

1. Open the oven door.
2. Open the clips in the front door hinge socket on the right and left by pushing them downwards as shown in the figure.
3. Hinge types vary as (A), (B), (C) types according to the product model. The following figures show how to open each type of hinge.
4. (A) type hinge is available in normal door types.

A

1. (B) type hinge is available in soft closing door types.

B

1. (C) type hinge is available in soft opening/closing door types.

C

1. Get the oven door to a half-open position.

1. Pull the removed door upwards to release it from the right and left hinges and remove it.

To reattach the door, the procedures applied when removing it must be repeated from the end to the beginning, respectively. When installing the door, be sure to close the clips on the hinge socket.

9.8 Removing the Inner Glass of The Oven Door

Inner glass of the product's front door may be removed for cleaning.

1. Open the oven door.

1. Remove the plastic component attached on the upper section of the front door by pulling it towards yourself.

1. As shown in the figure, gently lift the innermost glass (1) towards "A" and then, remove it by pulling towards "B".

1 Innermost glass 2* Inner glass (it may not be available for your product)

1. If your product has an inner glass (2), repeat the same process to detach it (2).
2. The first step of regrouping the door is to reassemble the inner glass (2). Place the bevelled edge of the glass to meet the bevelled edge of the plastic slot. (If your product has an inner glass). Inner glass (2) must be attached to the plastic slot closest to the innermost glass (1).
3. While reassembling the innermost glass (1), pay attention to place the printed side of the glass on the inner glass. It is crucial to place the lower corners of the innermost glass (1) to meet the lower plastic slots.
4. Push the plastic component towards the frame until a "click" sound is heard.

9.9 Cleaning the Oven Lamp

In the event that the glass door of the oven lamp in the cooking area becomes dirty; clean using dishwashing detergent, warm water and a soft cloth or sponge and dry with a dry cloth. In case of oven lamp failure, you can replace the oven lamp by following the sections that follow.

Replacing the oven lamp

General Warnings

• To avoid the risk of electric shock before replacing the oven lamp, disconnect the product and wait for the oven to cool. Hot surfaces may cause burns! - This oven is powered by an incandescent lamp with less than 40 W, less than 60 mm in height, less than 30 mm in diameter, or a halogen lamp with G9 sockets with less than 60 W power. Lamps are suitable for operation at temperatures above 300 °C. Oven lamps are available from Authorised Services or licensed technicians. This product contains a G energy class lamp. - The position of the lamp may differ from that is shown in the figure. - The lamp used in this product is not suitable for use in the lighting of home rooms. The purpose of this lamp is to help the user see food products. - The lamps used in this product must withstand extreme physical conditions such as temperatures above 50 °C.

If your oven has a round lamp,

1. Disconnect the product from the electricity.
2. Remove the glass cover by turning it counter clockwise.

1. If your oven lamp is type (A) shown in the figure below, rotate the oven lamp as shown in the figure and replace it with a new one. If it is type (B) model, pull it out as shown in the figure and replace it with a new one.

1. Refit the glass cover.

If your oven has a square lamp,

1. Disconnect the product from the electricity.
2. Remove the wire shelves according to the description.

1. Lift the lamp's protective glass cover with a screwdriver. Remove the screw first, if there is a screw on the square lamp in your product.
2. If your oven lamp is type (A) shown in the figure below, rotate the oven lamp as shown in the figure and replace it with a new one. If it is type (B) model, pull it out as shown in the figure and replace it with a new one.

1. Refit the glass cover and wire shelves.

10 Troubleshooting

If the problem persists after following the instructions in this section, contact your vendor or an Authorized Service. Never try to repair your product yourself.

Steam is emanated while the oven is working.

- It is normal to see vapour during operation. >>> This is not an error.

Water droplets appear while cooking

- The steam generated during cooking condenses when it comes into contact with cold surfaces outside the product and may form water droplets. >>> This is not an error.

Metal sounds are heard while the product is warming and cooling.

- Metal parts may expand and make sounds when heated. >>> This is not an error.

The product does not work.

- Fuse may be faulty or blown. >>> Check the fuses in the fuse box. Change them if necessary or reactivate them.

- The appliance may not be plugged to the (grounded) outlet. >>> Check if the appliance is plugged in to the outlet.

- (If there is timer on your appliance) Keys on the control panel do not work. >>> If your product has a key lock, the key lock may be enabled, disable the key lock.

Oven light is not on.

- Oven lamp may be faulty. >>> Replace the oven's lamp.

- No electricity. >>> Ensure the mains is operational and check the fuses in the fuse box. Change the fuses if necessary or reactivate them.

Oven is not heating.

- The oven may not be set to a specific cooking function and/or temperature. >>> Set the oven to a specific cooking function and/or temperature.

- For models with timer, the time is not set. >>> Set the time.

- No electricity. >>> Ensure the mains is operational and check the fuses in the fuse box. Change the fuses if necessary or reactivate them.

There is no ignition spark.

• There is no current. >>> Check the fuses in the fuse box.
• Time setting has not been made. >>> Set the time.

There is no gas.

• Main gas valve is closed. >>> Open the gas valve.
• The gas pipe is bent. >>> Install the gas pipe properly.

(For models with timer) The timer display flashes or the timer symbol is left open.

- There has been a power outage before. >>> Set the time / Turn off the product function knobs and again switch it to the desired position.

Welcome!

Dear customer,

Deep tray

Grill grate

5 First use
