Product Type	Deep Fryer
Brand	Heinner
Model	HAF-M7BK1800
Power Consumption	1800 W
Oil Capacity	2.5 L
Food Capacity	1.2 kg
Temperature Range	150 °C - 190 °C
Adjustable Thermostat	Yes
Removable Oil Tank	Yes
Viewing Window	Yes
Cool-Touch Handles	Yes
Non-Stick Coating	Yes
Overheat Protection	Yes
Safety Auto Shut-Off	Yes
Power Indicator Light	Yes
Heating Element	Stainless Steel
Filter Type	Permanent Oil Filter
Drain Valve	No
Dishwasher Safe Parts	Oil tank and basket
Dimensions (W x D x H)	30 x 25 x 28 cm
Weight	2.5 kg
Power Cord Length	0.9 m
Color	Black
Warranty	2 years

Frequently Asked Questions - HAF-M7BK1800 Heinner

What is the oil capacity of the Heinner HAF-M7BK1800 deep fryer?

The oil capacity is approximately 2.5 liters. Always ensure the oil level is between the minimum and maximum marks.

How do I clean the deep fryer?

Unplug and let it cool completely. Remove the oil tank and basket; they are dishwasher safe. Wipe the interior with a damp cloth. Do not immerse the base in water.

What is the maximum temperature setting?

The thermostat can be set up to 190 °C, suitable for deep frying most foods.

Can I use the fryer without oil?

No, this is a traditional deep fryer that requires oil or fat for proper operation. Do not use it dry.

Does it have an automatic shut-off feature?

Yes, the fryer is equipped with overheat protection and an auto shut-off function for safety.

What type of oil should I use?

Use high-quality frying oils like vegetable, canola, or peanut oil. Avoid low smoke point oils.

How long does it take to heat up?

Typically, it takes about 8-10 minutes to reach the desired temperature, depending on the oil volume.

Is the frying basket removable?

Yes, the basket is removable for easy filling, draining, and cleaning. It has a cool-touch handle.

Can I fry frozen food directly?

Yes, but shake off excess ice and lower the basket slowly to prevent oil splatter. Follow the recommended cooking times.

What should I do if the fryer does not heat up?

Check that the power cord is securely plugged in and the thermostat is set. If still not working, contact Heinner support.

USER MANUAL HAF-M7BK1800 Heinner

Please read the instructions carefully and keep the manual for future information.

This manual is designed to give all necessary instructions concerning installation, use and maintenance of the unit. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and use.

2. CONTENT OF YOUR PACKAGE

→ Hot air fryer
→ User manual
→ Certificate of warranty
→ Declaration of conformity

3. SAFETY INSTRUCTIONS

GENERAL

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not immerse any part of the appliance in water or other liquid.
• Warning: Avoid spillage on the connector.
• Do not use outdoors.
  • This appliance is intended to be used in household only.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.
• Children should be supervised to ensure that they do not play with the appliance, This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• Warning: Misuse may cause potential injury.
• Appliances are not intended to be operated by means of an external timer or separate remote-control system.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• Always put the ingredients to be fried in the basket, to prevent it from coming into contact with the heating elements.
• Do not cover the air inlet and the air outlet openings while the appliance is operating.
• Do not fill the pan with oil as this may cause a fire hazard.

• Never touch the inside of the appliance while it is operating.

• During hot air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from the steam and from the air outlet openings. Also be careful of hot steam and air when you remove the pan from the appliance.

• Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the pan from the appliance.
  • The surface are liable to get hot during use.

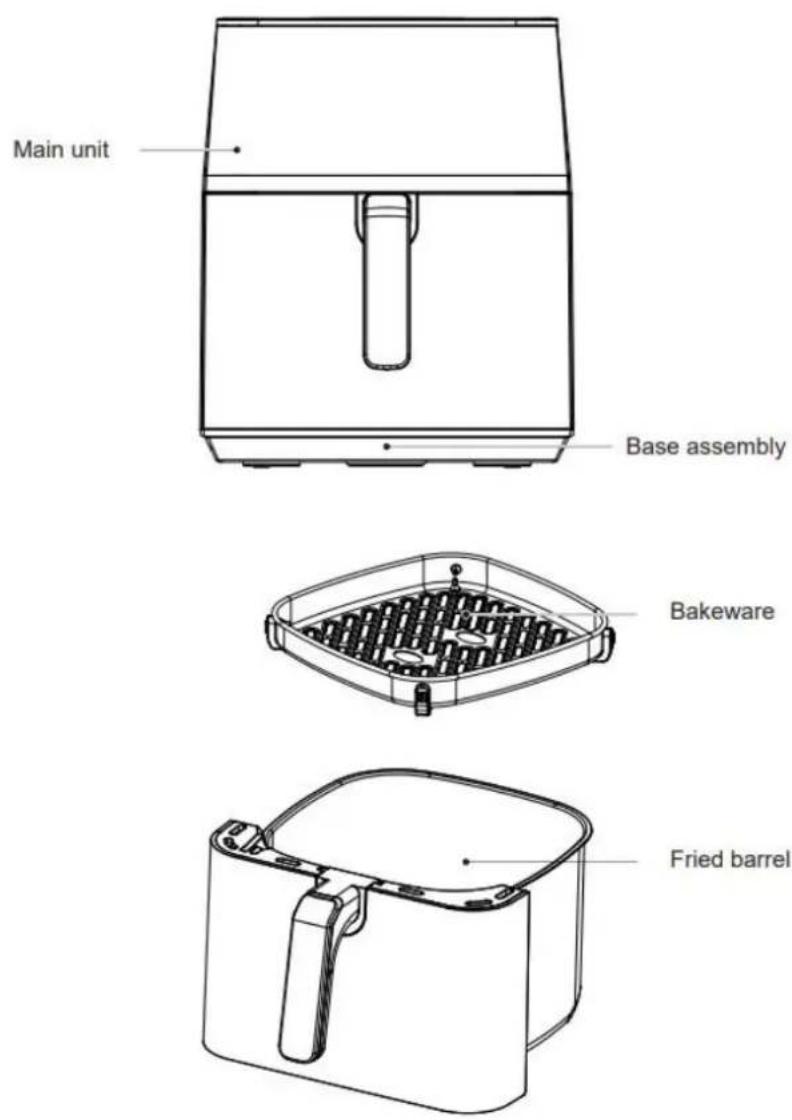

4. PRODUCT DESCRIPTION

5. USING THE PRODUCT

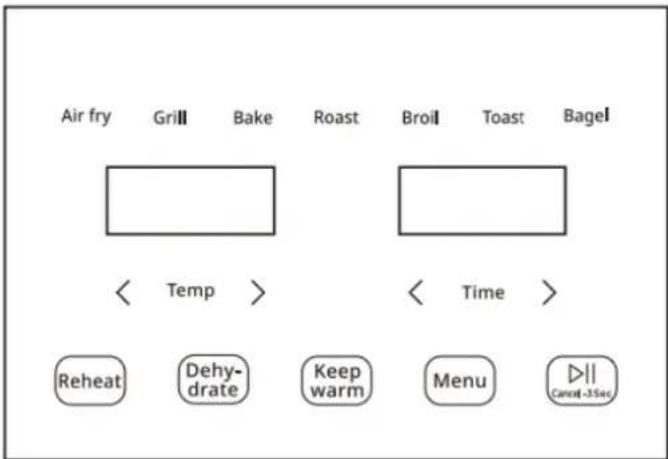

1. Operation process of the panel: power on the machine, touch “MENU” button (the machine enters the state of function selection mode) – touch “MENU” button to select functions (after select menu, touch “TEMP” button to select if enter time or temperature setting, press the “</>” key to DIY time and

temperature) - touch “Cancel-3Sec” button, the product go into the working state -touch the “Cancel-3Sec” button again, the product stop working.

Note:

Menu selection

• The tube alternately displays the default time and temperature of the current menu (the display switching frequency is two seconds each time).
  • The selected function menu indicator light flashes, the unselected function menu indicator light remains

on, the "Cancel-SSac" button indicator light flashes, the MENU button indicator light remains on, the TIME/TEMP button indicator light remains on, and other indicator lights turn off.

• Click on the MENU key to select the menu in sequence, click on the TIME/TEMP keys to enter the menu parameter selection, and click on the menu to select the corresponding menu.
• Wait for 2Min without button operation, and the interface will return to standby display. Working status: The selected function indicator light is on, while other function lights are off. The buttons indicator lights up. Digital tube displays countdown.

Menu function	Temperature (°C)		Time (min)		Turn	Reheat
	Default	Adjustment range	Default	Adjustment range
Air Fry	200	40-200	12	1-60/1-720	NO	NO
Grill	200	40-200	10	1-60/1-720	NO	NO
Bake	170	40-200	13	1-60/1-720	NO	NO
Roast	200	40-200	14	1-60/1-720	NO	NO
Broil	180	40-200	12	1-60/1-720	NO	NO
Toast	190	40-200	9	1-60/1-720	NO	NO
Bagel	180	40-200	10	1-60/1-720	NO	NO

OPERATION INSTRUCTIONS

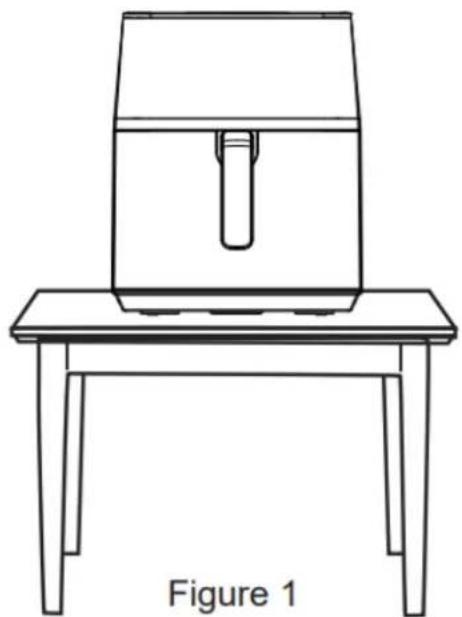

1. The product should be stably placed on a flat table (Figure 1), so that the power cord has a sufficient length to be plugged into the socket, and the air around the product should be kept in circulation, and should not be close to flammable items

Line drawing of a portable air fryer on a table, labeled as Figure 1 (no text or symbols on the device itself)

1. According to different configurations install the barrel assembly (Figure 2), then push it into the Main unit (Figure 3).

Line drawing of a frying pan with a gridded lid and handle, no text or symbols present

Figure 2

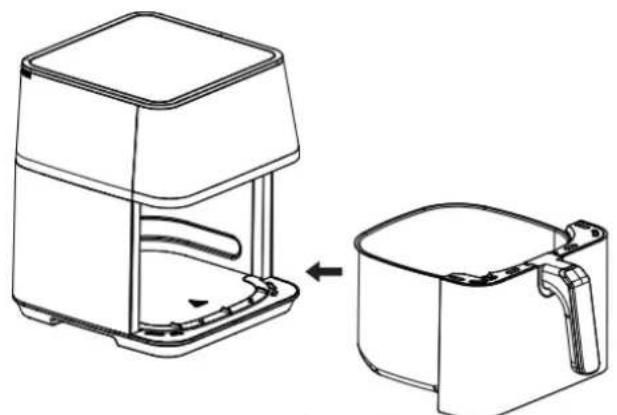

Line drawing of a square oven with internal compartments and a side view showing the exterior portion (no text or symbols)

Figure 3

1. Before placing ingredients, preheat the machine for 3-5 minutes, the cooking effect will be better. Tips: Turning food halfway is better.

INSTRUCTIONS FOR USE

1. Turn on the power, then touch "MENU" button to select the corresponding function and touch button to let the machine run for preheating.

1. After the preheating is completed, the machine will beep and display shows "End", hold the top of the machine with one hand and pull the barrel out by holding the handle of the barrel with the other hand. The barrel must be placed on a stable table.

2. Put the ingredients on the bakeware in the fried barrel.

3. Push the frying barrel into the machine, after the machine is powered on, it will continue to work and the interface shows the set time or DIY through the control panel to set the certain temperature and time, then touch “” button to start. Then the machine enters the heating work state, cooks and heats the food material.

Note: When the frying barrel is not thoroughly pushed in the micro switch is not triggered; Interface display "OPEN" and it won't work. At that time, you only need to totally push the frying barrel into the machine. The machine has the function of 10 minutes power off memory. After taking out of the frying barrel and stirring the food in the process of food cooking, fully push the frying barrel into the machine and the machine restores the working state when the frying barrel is not taken out and continues to cook and heat the food materials.

1. The machine beeps after cooked, unplug the power plug. Unplug the socket put it on the desk flatwise and take out the cooked food with the auxiliary tool (such as chopsticks and clamp).

2. You can select the menu in standby mode and hold down the "Reheat dehydrate" key to switch between the current temperature display unit in Celsius or Fahrenheit

3. After selecting the menu in standby mode, hold down the "Keep warm dehydrate" key and select the buzzer in silent mode or non-silent mode.

4. Automatic memory of the user's last use of the corresponding menu cooking time, temperature and other parameters (set time is greater than or equal to 5Min can be memorized), when the user next use, priority to recommend the menu time, temperature to the user .After selecting the menu, long press the " Menu " key to restore the menu time and temperature to the factory default recommended parameters, and the buzzer will sound twice to prompt.

Please carefully take it out. Do put it on the desk flatwise to avoid being scalded by steam or topping over the frying barrel which may lead to scalding by oil or high temperature food. In addition, the auxiliary tools (such as chopsticks) are suggested to be used in the process of taking out food.

- The first use requires 10 minutes of dry burning. A small amount of white smoke or odor may appear during the dry burning process, which is normal. No not panic.

- Before the product works, please check whether the bakeware is in place to avoid malfunction.

- If you find that the product is malfunctioning, please stop using it and contact our service department immediately.

- Please use the bakeware and fried barrel together in the whole machine and avoid using them separately.

• After using, unplug the power plug and allow the air fryer to cool completely after moving.

6. CLEANING

1. Please clean the air fryer to prevent it from being burned.
2. After using, please clean the bakeware and fried barrel in time to avoid the damage of the coating due to the erosion of food residue oil.
3. Do not use strong adhesive cleaners to prevent damage to the machine and your health.
4. Use a soft, clean cloth to wipe the air fryer. Please do not use an over-wet cloth to clean the air fryer, to prevent water from entering the air fryer, which may cause short circuit and fire.
5. Please do not use other cleaning equipment such as a dishwasher to clean the air fryer, otherwise it may cause damage and affect the use.
6. Use neutral detergent or clean water to clean the frying pans and drums.
7. Please do not use hard and sharp items (such as wire balls, blades etc) to clean the bakeware and fried barrel to prevent scratching.

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model and Serial Number.

The information can be found on the rating plate. Subject to change without notice.

TECHNICAL DATA

Voltage	220-240V~50/60Hz
Power	1500-1800 W
Capacity	7L
Temperature	40-200C

Thank you for purchasing this product. If you need support with your product, visit our website using the links below.

Get User manuals: https://www.heinner.ro

Get Service information: https://www.heinner.ro

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

This product is in conformity with norms and standards of European Community.

Importer: Network One Distribution

Marcel Iancu Street, 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro
