| Product Type | Built-in Dishwasher |
| Brand | Bellini |
| Model | BDW504X |
| Capacity | 13 Place Settings |
| Energy Efficiency Class | A++ |
| Noise Level | 44 dB(A) |
| Wash Programs | Eco, Intensive, Normal, Quick, Rinse & Hold |
| Drying System | Condensation Drying |
| Control Type | Electronic with LED Display |
| Dimension (H x W x D) | 81.5 x 59.8 x 55.7 cm |
| Weight | 39 kg |
| Power Supply | 220-240V, 50Hz, 10A |
| Power Consumption | 1.05 kWh (Eco program) |
| Water Consumption | 9.5 L (Eco program) |
| Installation Type | Built-in (under counter) |
| Safety Features | Child Lock, Overflow Protection, Anti-flood System |
| Maintenance | Clean filters regularly; rinse arms check; descaling every 3 months |
| Reparability | Modular design; common spare parts available |
| Spare Parts Availability | Parts like pumps, heaters, circuit boards available online |
| Warranty | 2 years (parts and labor) |
Frequently Asked Questions - BDW504X Bellini
How do I load the dishwasher for best results?

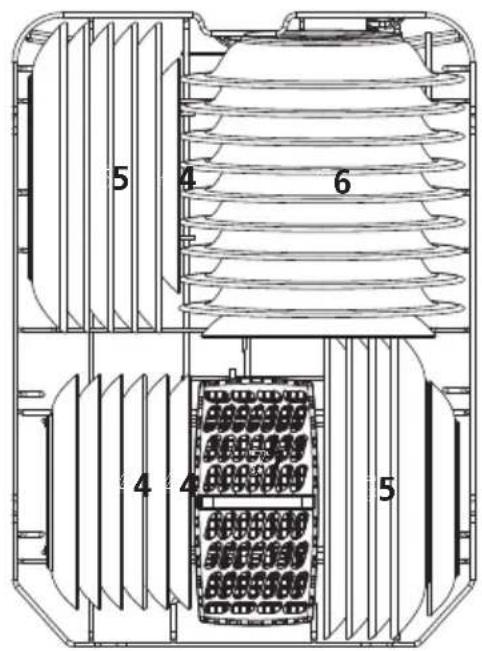

Place dishes with soiled surfaces facing the spray arms. Avoid blocking the detergent dispenser. Ensure large items do not prevent the spray arms from rotating.
Where do I put the salt and rinse aid?

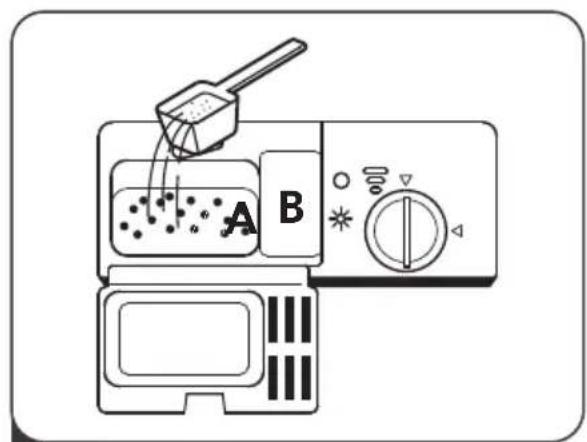

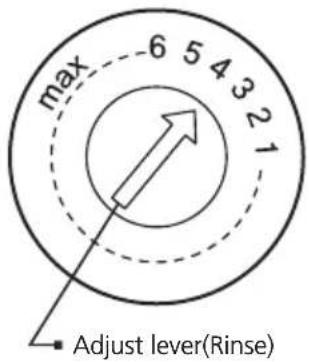

The salt reservoir is under the lower basket. Fill with dishwasher salt. Rinse aid goes into the dispenser on the inside of the door; adjust the dosage according to water hardness.
Why is my dishwasher not cleaning properly?
Check the filter is clean, spray arms are not blocked, and the correct program is selected. Also ensure the water temperature is at least 50°C and detergent is fresh.
How often should I clean the filter?
The filter should be cleaned after every 3-4 washes, or whenever you notice food residues. Rinse it under running water and make sure all parts are replaced correctly.
What does the E1 error code mean?
E1 indicates a water fill fault. Check that the water supply is open, the inlet hose is not kinked, and the water pressure is adequate.
Can I use regular dish soap in the dishwasher?
No, only use detergent specifically designed for dishwashers. Regular dish soap creates too many suds and can damage the machine.
How do I reset the dishwasher?
Press and hold the Start/Reset button for 3 seconds until the program cancels. Then select a new program and start again.
Why is there water left in the bottom after a cycle?
Check the drain hose is not clogged or kinked. Also ensure the filter is clean. If the problem persists, the drain pump may need servicing.
What is the best program for energy saving?
The Eco program is most energy-efficient. It runs at a lower temperature and longer duration to save power and water.
How do I install the dishwasher myself?
Refer to the manual for detailed steps. Generally, you need to connect water supply, drain hose, and power. Ensure the appliance is level and securely fixed under the counter.
