BDW86X-F - Dishwasher Bellini - Free user manual and instructions

Product Type	Built-in Dishwasher
Brand	Bellini
Model	BDW86X-F
Dimensions (H x W x D)	85 x 60 x 57 cm
Weight	45 kg
Power Supply	220-240 V ~ 50 Hz, 10 A
Energy Efficiency Class	A+
Annual Water Consumption	2520 L
Annual Energy Consumption	228 kWh
Noise Level	49 dB(A)
Place Settings	14
Number of Programs	6
Programs	Eco, Intensive, Normal, Quick, Glass, Rinse
Drying System	Condensation drying
Water Connection	Cold water only
Inlet Hose Length	1.5 m
Outlet Hose Length	1.5 m
Control Type	Electronic push buttons + display
Delay Start	1-24 hours
Safety Features	Child lock, overflow protection, anti-flood system
Interior Material	Stainless steel
Spare Parts Availability	Filters, racks, spray arms, hoses available
User Manual	Downloadable PDF from Bellini support

Frequently Asked Questions - BDW86X-F Bellini

How do I install the dishwasher?

Ensure the water supply and drain hose are connected properly. Level the dishwasher using the adjustable feet. Connect to a 220-240V power outlet. For detailed steps, refer to the installation manual.

What detergent should I use?

Use dishwasher detergent (powder, gel, or tablets) designed for automatic dishwashers. Do not use hand dishwashing liquid. Fill the detergent dispenser before each cycle.

Why is my dishwasher not cleaning dishes properly?

Check that the spray arms are not blocked and rotate freely. Ensure filters are clean. Use adequate detergent and select the appropriate program. Also, load dishes properly so water can reach all surfaces.

How often should I clean the filters?

Clean the filters every 1-2 months or when you notice poor cleaning results. Remove the lower spray arm, take out the filter assembly, rinse under running water, and replace.

Can I wash pots and pans in this dishwasher?

Yes, the Intensive program is suitable for heavily soiled pots and pans. Place them upside down on the lower rack. Avoid items with wooden handles or non-stick coating.

What is the energy consumption?

The annual energy consumption is approximately 228 kWh based on 280 standard cycles. The energy efficiency class is A+. Actual consumption depends on usage.

How do I start a delayed cycle?

Press the Delay Start button repeatedly to set the delay (1-24 hours). Close the door and the cycle will start automatically after the set time. Ensure detergent is added.

What does the child lock do?

The child lock prevents accidental operation by locking the control panel. Activate it by pressing and holding the child lock button for 3 seconds. To deactivate, repeat.

Why is water left in the bottom after a cycle?

This may be due to a clogged filter or drain hose. Check the filter and clean if necessary. Also ensure the drain hose is not kinked. If problem persists, contact customer service.

How to obtain spare parts?

Spare parts such as filters, racks, spray arms, and hoses are available. Contact Bellini authorized service centers or visit the official Bellini website. Provide the model number BDW86X-F.

USER MANUAL BDW86X-F Bellini

Technical line drawing of an open kitchen appliance with internal components (no text or symbols)

For warranty service call 1300 373 199 to connect you to the nearest authorised service centre

BDW86S

BDW86S -F

BDW86X

BDW86X -F

BDW86W

BDW86W -F

Quick operation guide

For detailed operating method read the corresponding content on the instruction manual.

SwitchontheappliancePresstheOn/Offbuttontoswitchontheappliance,Openthedoor.

Scrapeoffanylargeamountofleftoverfood. Softenremnantsofburntfoodinpans, thenloadthebaskets. Refertothedishwasherloadinginstructions.

Selectaprogramme

PresstheProgrammehbuttonuntiltheselectedprogrammelightsup. (SeethesectionentitledOperationginstruction) "

”

Runningthedishwasher

Closethedoor, turnonthewatertap. Themachinewillstartworking afterabout10seconds.

- Changingtheprogramme

1. Arunningcycle can only be modified if the has been running for a short time. Otherwise, the detergent may have already been released and the water already drained. If this the case, the detergent dispenser must be refilled.
   2.Presstherunningprogrambuttonmorethan3secondtocanceltocanceltherunningprogramme.
   3.Selectanewprogramme.
2. Thedishwasherwillrestartafter10second.

- Addforgottendishesinthe dishwasher.

● 1. Openthedooralittletostopthedishwasher.

1. Afterthesprayarmsstopworking, you can open the door completely.
   3.Addtheforgottendishes.
   4.Closethedoor,thedishwasherwillstartrunningagainafter10seconds.

- If the appliance is switched off during a wash cycle.

- If the appliance is switched off during a wash cycle, when switched on again, pleasere-select the washing cycle and operate the dish washer according to the original Power-on-state).

WARNING!

Openthedoorcarefully. Hotsteam may escape when the door is opened!

Switchofftheappliance

Whentheworkingcyclehasfinished,thebuzzerofthedishwasherwillsound8times,thenstop. TurnofftheapplianceusingtheON/OFFbutton.

Turnoffthewatertap, unloadthebaskets

Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to break. They will also dry better. Unload the appliance, starting from the lower basket.

Read this Manual

DearCustomer,

Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly.
- Keepittorefertoitatalaterdate.
■ Passitonto any subsequent owner of the appliance.

This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farmhouses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

Before Calling for Service

• Toreviewthesectionontroubleshooting Tips will help youto solve some common problems by yourself.
  If you can not solve the problems by yourself, please ask for the help of professional technicians.

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

1) Safety Information....1
2) Operating Instructions....2 Control Panel....2 Dishwasher Features....2
3) Prior using for the first time....3 A、Fill the Rinse Aid Dispenser....3 B、Function of Detergent....4
4) Loading the Dishwasher Basket......6 Attentionbefore or afterloading the Dishwasher Baskets......6 Loading the upper Basket......7 Loading the Lower Basket......7 Cutlery Basket......8
5) Starting a washing programme....9 WashCycleTable....9 Turning on the Appliance....10 Change the Programme....10 Atthe Ene of the Wash Cycle....10
6) Maintenance and cleaning....11 Filtering System....11 Caring for the Dishwasher....12
7) Installation instruction....13 Positioning the Appliance....13 About Power Connection....13 Water Connection....14 Start of dishwasher....15
8) Troubleshooting Tips....16 Beforecalling for service....16 Error codes....17 Technical information....18
9) Warranty....19

1. IMPORTANT SAFETY INFORMATION READ ALL OF THE INSTRUCTIONS BEFORE USING

WARNING! When using your dishwasher, follow the precautions listed below:

GROUNDING INSTRUCTIONS

Thisappliancemustbegrounded. Intheeventofa malfunctionorbreakdown, groundingwillreduce theriskofanelectricshockbyprovidingapathof leastresistanceofelectriccurrent. Thisappliance isequippedwithacordhavinganequipment-groundingconductorandagroundingplug.
Theplugmustbepluggedintoanappropriateoutlet thatisinstalledandgroundedinaccordancewith allocalcodesandordinances.

▲ WARNING!

■ Improperconnectionoftheequipment-grounding conductorcanresultintheriskofanelectricshock.
■ Checkwithaqualifiedelectricianorservice representativeifyouareindoubtwhetherthe applianceisproperlygrounded.Donotmodifythe plugprovidedwiththeappliance;Ifitdoesnotfit theoutlet.Haveaproperoutletinstalledbya qualifiedelectrician.

WARNING! PROPER USE

■ Donotabuse, siton, or standard the door or dish rack of the dish washer.
■ Donottouchtheheatingelementduringor immediatelyafteruse. (Thisinstructionisonlyapplicabletomachines withavisualheatingelement.)
■ Donotoperateyourdishwasherunlessall enclosurepanelsareproperlyinplace.Open thedoorverycarefullyifthedishwasheris operating,thereisariskofwatersquirtingout.
■ Donotplaceanyheavyobjectsthe onorstandon doorwhenitisopen. The appliance could tip forward.
■ When loading items to be washed: 1) Locatesharpitems so that they are not likely to damagethedoorseal; 2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
■ When using your dishwasher, you should prevent plastic items from coming into contact with the heating element. (This instruction is only applicable to machines with a visual heating element.)
- Check that the detergent comparison is empty after completion of the wash cycle.
■ Donotwashplasticitemsunlesstheyaremarked dishwashersafeortheequivalent.Forplasticitems notsomarked,checkthemanufacturer's recommendations.
■ Use only detergent and rinse additives designed for an automatic dishwasher.
■ Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of the reach of children.

• Keepchildrenawayfromdetergentandrinseaid,keep childrenawayfromtheopendoorofthedishwasher,therecouldstillbesomedetergentleftinside.
  This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ■ Childrenshouldbesupervisedtoensurethattheydo notplaywiththeappliance.
  ■ Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.
  ■ The door should not be left open, sincethiscouldincreasetheriskoftripping.
  If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
  ■ Removethedoortothewashingcompartmentwhen removinganolddishwasherfromserviceordiscardingit.
  ■ Please dispose of packing materials properly.
  ■ Usethedishwasheronlyforitsintendedfunction.
  ■ During installation, the powersupply must not be excessively or dangerously bent or flattened. Donottamperwithcontrols.
  The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not bereused.
  ■ The maximum number of place settings to be washed is 8.
  ■ The maximum permissible inlet water pressure is 1 Mpa.
  ■ The minimum permissible inlet water pressure is 0.04Mpa.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY KEEP THESE INSTRUCTIONS

2. Operation Instruction

IMPORTANT Togetthebestperformancefromyourdishwasher,readalloperatinginstructions beforeusingitforthefirsttime.

Control Panel

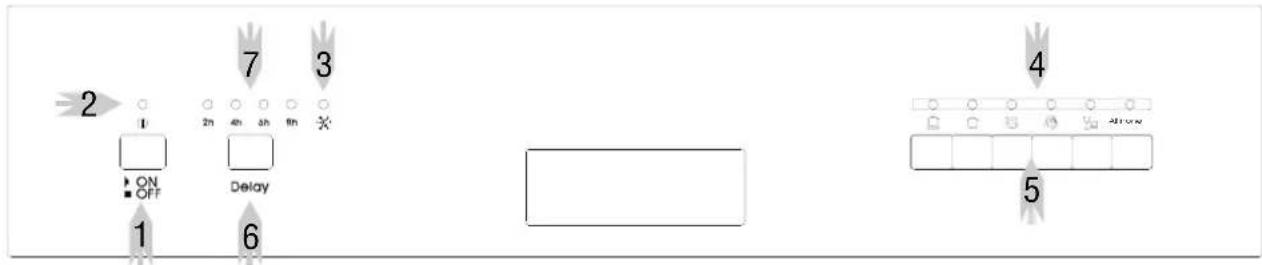

1 ON/OFF Button: To turn on/off the power supply.
2 Power Light: To be on when the ON/OFF Button is Presseddown.
3 Rinse Aid Warning Light : To be on when the rinseaiddispenserneeds to be refilled.
4 Program indicator light.

5 Program Button: To select washing program when press the button.
6 Delayed Start Button: Press this button to set the delayed hours for washing. There are 4 choices.
7 Delay indicator: different indicator means different delay time.

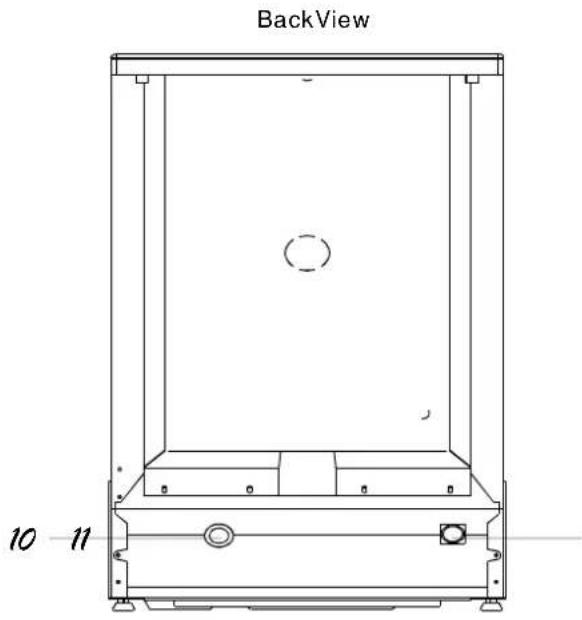

Dishwasher Features

7 Cutlery Basket

10 Drainpipeconnector

8 CoarseFilter

11 Inletpipeconnector

9 Rinse Aid Dispenser

3.Prior using for the first time

Before using your dishwasher for the first time:

A. Fill the Rinse Aid Dispenser

RinseAidDispenser

Therinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leaves pots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

FunctionofRinseAid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to Refill the Rinse Aid Dispenser

If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the opticallevel indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1 / 4 full.

Illustration of a bottle with a lid and a magnified view of its tip, no text or symbols present

Hand pressing a button on a card with a scroll wheel (no text or symbols visible)

1 To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
2 Pourtherinseaidinto the dispenser, being careful not to overfill.
3 Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills with adampcloth. Don't forgettoreplace the capbefore you closed dishwasher door.

Attention!

Clean up any rinse aid split during filling with an absorbent cloth to avoid excess foaming during then next wash.

NOTE: Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming

during thenextwash. Don't forget to replace the cap before you close dishwasher door.

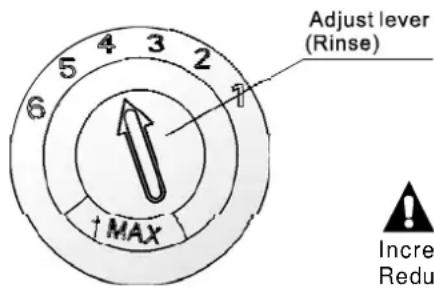

Adjusting Rinse Aid Dispenser

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factory value is "4".)

NOTE:

Increase the dose if there are drops of water or limespots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

B. Function of Detergent

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

Detergents

There are 3 sorts of detergents

1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 °dH. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split in two basic types:

■ conventional, alkaline detergents with caustic components
■ low alkaline concentrated detergents with natural enzymes

The use of “normal” washing programs in combination with concentrated detergents reduces pollution and is good for your dishes; these wash programs are specifically matched to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason

“normal”wash programs in which concentrated detergents are used can achieve the same results that can otherwise only be achieved using intensive programs.

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

AmountofDetergenttoUse

NOTE:

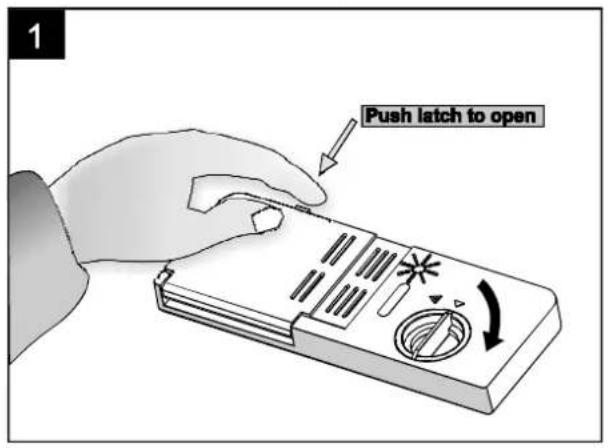

■ If the lid is closed: press release button. The lid will spring open.
■ Always add the detergent just before starting each wash cycle.
■ Only use branded detergent aid for dishwasher.

⚠ WARNING! Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

ProperUseofDetergent

Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.

Don't put powdered detergent into the dispenser until you're ready to wash dishes.

Fillin Detergent

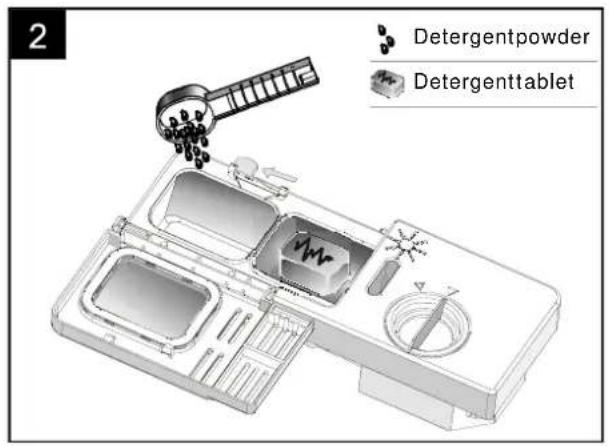

Fill the detergent dispenser with detergent.

The marking indicates the dosing levels, as illustrated on the right:

A The place of main wash cycle detergent placed.
B The place of pre-wash cycle detergent placed.

Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging.

Close the lid and press until it locks in place.

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

NOTE:

■ You find information about the amount of detergent for the single programme on the last page.
■ Please aware, that according to the level soiling and the specific hardness of water differences are possible.
■ Please observe the manufacturer's recommendations on the detergent packaging.

4. Loading the Dishwasher Baskets

Recommendation

■ Consider buying utensils which are identified as dishwasher-proof.
■ Useamild detergentthatis describedas 'kind to dishes'. If necessary, seek further information from the detergent manufacturers.
■ For particular items, select a program with as low atemperature as possible.
■ To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the program has ended.

For washing in the dishwasher the following cutlery/dishes

Arenotsuitable

■ Cutlery with wooden, horn china or mother-of-pearl handles

■ Plastic items that are not heat resistant

■ Oldercutlerywithgluedpartsthatarenot temperatureresistant

■ Bondedcutleryitemsordishes

■ Pewterorcooperitems

■ Crystalglass

■ Steelitemssubjecttorusting

■ Woodenplatters

■ Items made from synthetic fibres

Are of limited suitability

■ Some types of glasses can become dull after alargenumberofwashes
■ Silver and aluminum parts have a tendency to discolour during washing
■ Glazed patterns may fade if machine washed frequently

Attention before or after loading the Dishwasher Baskets

(For best performance of the dishwasher, follow these loading guidelines.

Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans.

It is not necessary to rinse the dishes under running water.

Place objects in the dishwasher in following way:

1. Items such as cups, glasses, pots/pans, etc. are faced downwards.
2. Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during washing.

NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.
  ■ Dishes and itemsof cutlery must not lie inside one another, or cover each other.
  ■ To avoid damage to glasses, they must not touch.
  ■ Load large items which are most difficult to clean into the lower basket.
  ■ The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and teacups
  ■ Long bladed knives stored in an upright position are a potential hazard!
  ■ Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
  ■ Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

Removing the Dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

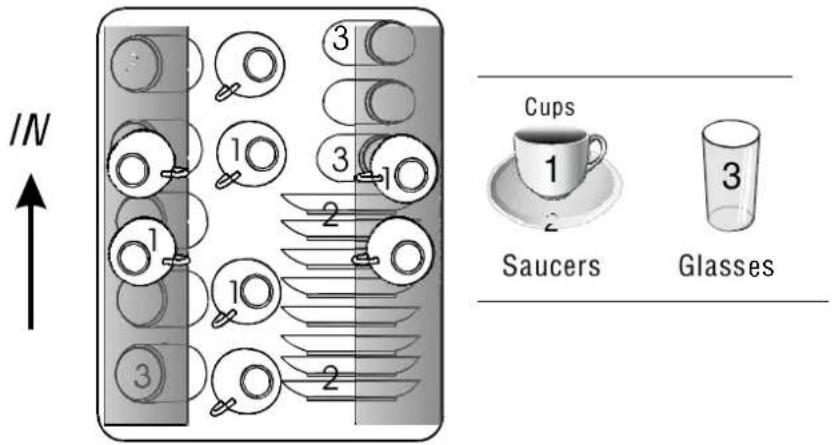

Loading the Upper Basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty).

Position the dishes and cookware so that they will not be moved by the spray of water.

Loading the Lower Basket

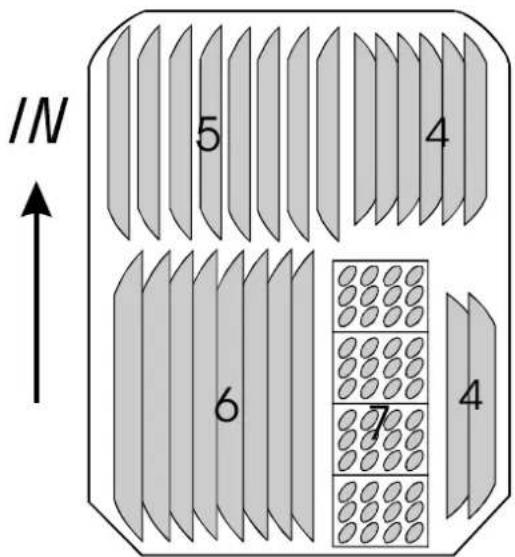

We suggest that you place large items and items that are the most difficult to clean into the lower basket such as: pots, pans, lids, serving dishes and bowls, as shown in the figure below.

It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

Please be reminded that:

Pots, serving bowls, etc, must always be placed top down.
- Deep pots should be slanted to allow water to flow out.
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.

Dessert dishes

Soup plates

Dinner plates

7 Cutlery basket

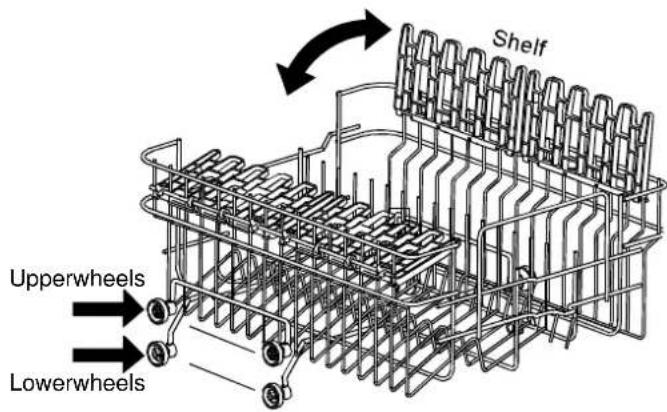

Adjusting the Upper Basket

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper/lower basket. The height of the upper basket can be adjusted by placing the wheels on different height of the rails. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms. The shelf can be folded back or be removed when not required for use.

Close-up of a mechanical component with a white arrow pointing to a cylindrical feature (no visible text or symbols)

Mechanical assembly diagram showing a lever and pulley with an arrow indicating motion direction (no text or symbols)

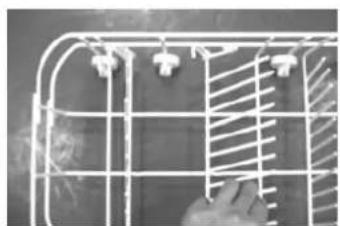

Folding Spikes of Lower Basket

For better stacking of pots and pans, the spikes can be folded down as show in the picture right.

Close-up of a wire cage with metal grating and a hand holding a small object (no text or symbols visible)

Cutlery Basket

Cutlery should be placed in the cutlery basket with the handles at the bottom. If the rack has side baskets, the spoons should be loaded separately into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper basket as shown in the picture.

1	Forks
2	Soup spoons
3	Dessert spoons
4	Teaspoons
5	Knives

▲ WARNING!

Do not let any item extend through the bottom.
Always load sharp utensils with the sharp point down!

For personal safety and a top quality cleaning, place the silverware in the basket making sure that:

■ They do not nest together.
■ Silverware is placed with the handles-down.
■ But place knives and other potentially dangerous utensils are placed handles-up.

5. Starting a washing program

Wash Cycle Table

Program	Cycle Selection Information	Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (l)	Rinse Aid
Intensive	For the heaviest soiled loads, such as pots, pans, casserole dishes and dishes that have been sitting with dried food on them for a while.	Pre-wash( ) 0 °CPre-washWash (65 °CRinseRinseRinse (55 °CDrying	5/20 g.	120	1.20	18
Heavy	For heavily soiled loads, such as pots, plates, glasses and lightly soiled pans. standard daily cycle.	Pre-wash(50 °CWash (50 °CRinseRinse (65 °CDrying	5/20 g.	150	1.0	12
Normal(*AS/NZS 2007.1)	Standard daily cycle soiled loads, such as plates, glasses, bowls and normally soiled pans.	Pre-washPre-washWash (55 °CRinse (50 °CDrying	5/20 g.	120	n0.64	o12.2
Rinse	For dishes that need to be rinsed and dried only.	Wash(65°C)Rinse (50 °CDrying	15 g.	60	0.6	9
Rapid	A shorter wash for lightly soiled loads that do not need drying.	Wash (40 °CRinseRinse (45 °C)	15 g.	30	0.4	10
All in one	For commonly soiled loads, such as pots, plates, glasses and lightly soiled pans.	Pre-wash (50°C)Wash(50°C)RinseRinse (70°C)Drying	3in1	150	1.0	12

NOTE:

■ (★) Meaning: need to fill rinse into the Rinse-Aid Dispenser.
*AS/NZS 2007.1: This programme is the test cycle. The information for comparability test in accordance with AS/NZS 2007.1, as follows:
Capacity:8setting
PositionUpperbasket:upperwheelsonrails
Rinseaidsetting:6

NOTE: We recommend you open the doorslightly 50mm to assist indrying of the dishes after every wash.

Turning On the Appliance

Starting a cycle wash

Draw out the lower and upper basket, load the dishes and push them back.
It is commended to load the lower basket first, then the upper one (see the section entitled "Loadingthe Dishwasher").
Pour in the detergent (see the section entitled "Detergent and Rinse Aid").
Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification of the socket is 10A250VAC. Makes sure that the watersupply is turned onto full pressure.
■ Close the door, and select the desired programme by pressing the corresponding button, then the dishwasher will start to work in 3 seconds.

Change the Program...

Premise:

You can modify the washing program, When the dishwasher just runs for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Loading the Detergent").

2 Press the button of desired program more than 3 seconds until it's Indicator is on, after 10 secondsthemachinewillkeepworking.E entitled "Starting a wash cycle...").

A NOTE: If you open the door during washing, the machine will pause. When you close the door, the machine will keep on working after 10 seconds.

The programlightsshowthestateofthedishwasher:

a) Allprogramlightsoff----standby

b) One of the program lights on----pause

c) One of the program lights blinking---- run

A NOTE: If all the lights begin to glimmer, that indicates the machine is out of order, please turn off the main power and water supply before calling a service.

Forgot to Add a Dish?

Aforgottendishcanbeaddedatanytimebeforethedetergentcupopens.

1 Openthodooralittletostopthewashing.

[3] Loadtheforgottendishes.

2 Afterthesprayarmsstopworking,youcanopenthedor completely.

4! Closethedoor,thedishwasherwillstartrunningagain after10seconds.

At the End of the Wash Cycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the watersupply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

■ SwitchOfftheDishwasher

The buzzer of the dish was hermoos for 8 seconds, only in this case the programme has ended.

1. SwitchoffthedishwasherbypassingtheON/OFFbutton.

2. Turnoffthewatertap!

■ Openthedoorcarefully.

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance.

Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

■ Unloadingthedishwasher

It is normal that the dishwasher is wet inside.

Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

WARNING! It is dangerous to open the door when washing, because the hot water may scald you.

6. Maintenance and Cleaning

Filtering System

The filter prevents larger remnants of food or other objects from getting inside the pum. The residues may block the filter, in this case they must be removed.

The filter system consists of a coarse filter, a flat (Main filter) And a microfilter(Fine filter).

Mainfilter 1

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

Coarsefilter 2

Larger items, such as pieces of bones or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and liftout.

Finefilter 3

Thisfilter holds soil and food residues in the sumparea and prevents it from being redeposit on the dishes during wash cycle.

Filterassembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction.

WARNING!

■ The dishwasher must never be used without the filters.
■ Improper replacement of the filter may reduce the performance level of the appliance and damaged dishes and utensils.

1

step 1 : Turn the filter in anti-clockwise direction, then lift it up

2

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

step 2 : lift the Main filter up

3

Technical line drawing of a mechanical assembly with no visible text or symbols

step 3: lift the Fine filter up

NOTE: When following this procedure from step 1 to step 3, the filters system will be removed; when following it from Step 3 to Step 1, the filters system will be installed.

Remarks:

• Inspect the filters for blocking after every time the dishwasher has been used.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters underrunning water.

NOTE: The entire filter assembly should be cleaned once a week.

Cleaning the Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the last page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.

WARNING!

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased.

Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth.

After cleaning, make sure to dry it thoroughly.

For the exterior, use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning The Door

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use aspraycleanerofanykind.

WARNING!

■ Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
■ Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

ProtectAgainstFreezing

please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows :

1. Cutoff the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a panto catch the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

NOTE: If your dish was her cannot work because of

the ice, please contact professional service persons.

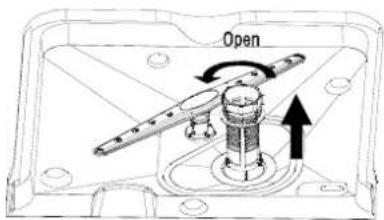

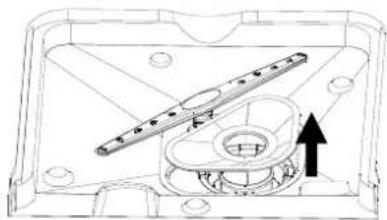

CleaningtheSprayArms

It is necessary to clean the spray arms regularly for hard waterchemicalswillclogthespray

arm jets and bearings. To remove the spray arms, screw off the nut clockwise to take out the

washer on top of the spray arm and remove the arm.

Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

How to Keep Your Dishwasher in Shape

■ After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

■ Remove the Plug

Before cleaning or performing maintenance, always remove the plug from the socket.

■ No Solvents or Abrasive Cleaning

Toclean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

■ When not in Use for a LongTime

It is recommend that your run a washcycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seal to last longer and prevent odours from forming within the appliance.

■ Moving the Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odoursto for min the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

7. Installation instruction

Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

Levelling the Appliance

Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet. In any case, the appliance should not be inclined more than 2°.

About Power Connection

WARNING!

For personal safety:

■ DONOTUSEAN EXTENSIONCORDORANADAPTERPLUGWITHTHISAPPLIANCE.
■ DONOT, UNDERANYCIRCUMSTANCES, CUTORREMOVETHEEARTHING CONNECTION FROMTHEPOWER CORD.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

⚠ Insure proper ground exists before use

Electrical Connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

GROUNDING INSTRUCTIONS

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local standards and requirements.

WARNING!

• Improperconnectionoftheequipmentearthingconductorcanresultintheriskofan electricshock.
  ■ Checkwithaqualifiedelectricianorservicerepresentativeifyouareindoubtwhetherthe applianceisproperlyearthed.
  ■ Donotmodifytheplugprovidedwiththeappliance.Iftheplugdoesnotfitproperlytothe outlet,pleasehaveaqualifiedelectriciantoinstallaproperoutlet.

How to Connect the safety supply hose

Line drawing of a hand using a tool to lift a valve (no text or symbols present)

The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused.

Water pressure must be between 0,04 MPa and 1 MPa. If the pressure is below the minimum consult our Service Department for advice.

1 Pull The safety supply hoses completely out from storage compartment located at rear of dishwasher.
2 Tighterthescrewsofthesafetysupplyhosetothefaucetwiththread3/4inch.
3 Turnwaterfullyonbeforestartingthedishwasher.

ABOUT THE SAFETY SUPPLY HOSE.

The safety supply hose consists of the double walls. The hose's system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water.

▲ WARNING!

A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.

How to Disconnect the safety supply hose

1 Turnoffthewater.
2 Release the water pressure by depressing the pressure release button. This relieves water pressure and protects you, and the room, from severesplashing.
3 Unscrewthesafetysupplyhosefromthefaucet.

COLD WATER CONNECTION

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damage the appliance.

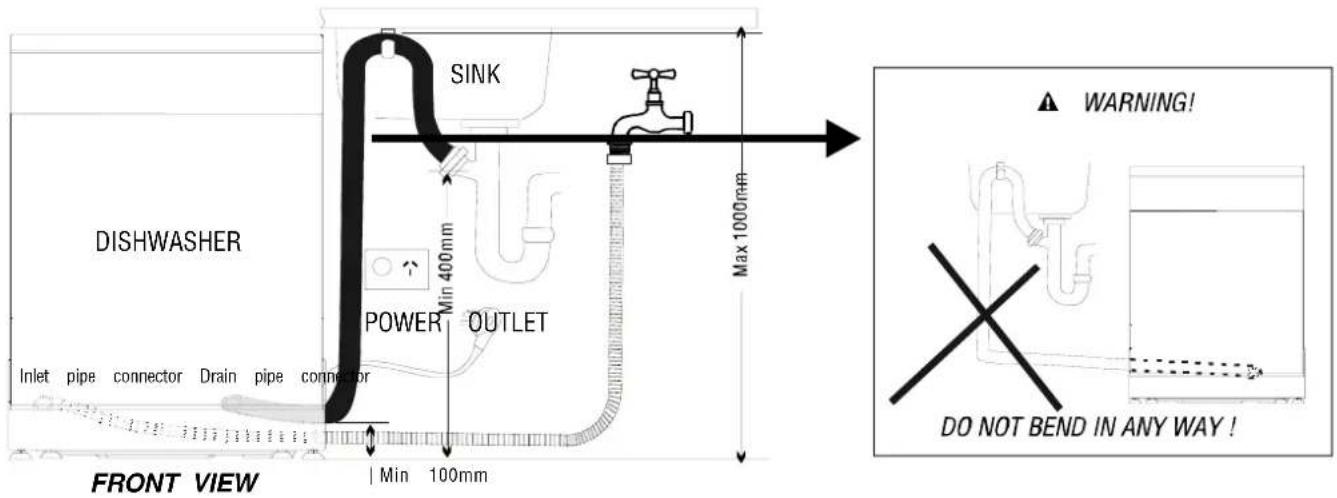

Drain hose Connection

Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping. Use the special plastic support that comes with the appliance. The top of the hose must be at a height between 40 and 100cm. The free end of the hose must not be immersed in water.

How to Drain Excess Water From Hoses

If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excesswater from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water Outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

Extension Hose

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

SyphonConnection

The waste connection must be at a height of between 40 cm (minimum) and 100 cm (maximum) from the bottom of the dish. The water drain hose should be fixed by a hose clip. The free end of the hose must not be immersed in water.

Start of Dishwasher

The following things should be checked before starting the dishwasher.

1 The dishwasher is level and fixed properly
2 The inlet valve is open
3 There is a leakage at the connections of the conducts
4 The wires are tightly connected
5 Thepowerisswitchedon
6 The inlet and drain hoses are knotted

7 All packing materials and printings should be taken out from the dishwasher

Attention: After installation, please make sure to keep this manual.

The content of this manual is very helpful to the users.

Before Calling for Service

Review the charts on the following pages may save you from calling for service.

Problem	Possible Causes What To Do
Dishwasher doesn't start	Fuseblown,orthe circuitbreakeracted	Replacefuseorresetcircuitbreaker.Removeanyother appliancessharingthesamecircuitwiththedishwasher
	Powersupplyisnot turnedon	Makesurethedishwasheristurnedonandthedooris closedsecurely.Makesurethepowercordisproperlypluggedinto the wallsocket.
	Errorcode:E1; Waterpressureislow	Checkthatthewatersupplyisconnectedproperlyand thewateristurnedon.
	Doorofdishwasher notproperlyclosed.	Makesuretoclosethedoorproperlyandlatchit.
water not pumped form dishwasher	Kinkindrainhose	Checkdrainhose.
	Filterclogged	Checkcoarsethefilter(e.g.Terf####)
	Kitchensinkclogged	Checkthekitchensinktomakesureitisdrainingwell.Iftheproblemisthekitchensinknotdraining,youmay needaplumberratherthanaservicemanfordishwashers.
Suds in the tub	Improperdetergent	Useonlythespecialdishwasherdetergenttoavoid suds.Ifthisoccurs,openthedishwasherandletsuds evaporate.Add1gallonofcoldwatertothetub.Close andlatchthedishwasher,thenStartthe"soak"wash cyletodrainoutthewater.Repeatifnecessary.
	Spilledrinse-aid	Alwayswipeuprinse-aidspillsimmediately.
Stained tub interior	Detergentwith colourantwasused	Makesurethatthedetergentistheonewithout colourant.
White film on inside surface	Hardwaterminerals	Tocleantheinterior,useadampspongewith dishwasherdetergentandwearrubbergloves.Neveruseanyothercleanerthandishwasher detergentfortheriskoffoamingorsuds.
There are rust stains on cutlery	Theaffecteditemsare notcorrosionresistant.
	Aprogrammewasnot runafterdishwasher saltwasadded.Tracesofsalthave gottenintothewashcycle.	Alwaysrunthequickwashprogramme.withoutanycrockeryinthedishwasherand withoutselectingtheTurbofunction(ifpresent),afteraddingdishwashersalt.
	Thelidofthesofter isloose	Checkthelip.Ensurethefixisfine.
Knocking noise in the wash cabinet	As p ay a r m i s knockingagainst aniteminabasket	Interrupttheprogramme,andrearrangetheitems whichareobstructingthespayarm.r
Rattling noise in the wash cabinet	Itemsofcrockery arelooseinthe washcabinet	Interrupttheprogramme,andrearrangetheitemsofcrockery.
Knocking noise in the water pipes	Thismaybecaused byon-siteinstallation orthecross-section of thepiping.	Thishasnoinfluenceonthedishwasherfunction.ifindoubt,contactasuitablyqualifiedplumber.

	Problem	Possible Causes	What To Do
Unsatis-factory washing result	The dishes are not clean	Thedisheswerenot loadedcorrectly.	Seenotesin"LoadingtheDishwasherBaskets".
		Theprogrammewas notpowerfulenough.	Selectamoreintensiveprogramme.See"WashCycleTable."
		Notenoughdetergent wasdispensed.	Usemoredetergent,orchangeyourdetergent.
		Itemsareblocking thepathofspayarms.r	Rearrangetheitemssothatthespaycanrotatefreely.r
		Thefiltercombination in the base of wash cabinetisnotcleanor isnotcorrectlyfitted. Thismaycause thespayarmjets togetblocked.	Cleanand/orfitthefiltercombinationcorrectly.Cleanthespayarmjets.See"CleaningtheSpray Arms".
	Cloudiness on glassware	Combinationofsoft waterandtoomuch detergent.	Uselessdetergentifyouhavesoftwaterandselect ashortestcycletowashtheglasswareandtoget themclean.
	Black or gray marks on dishes	Aluminumutensils haverubbedagainst dishes.	Useamildabrasivecleanertoeliminatethosemarks.
	Detergent left in dispenser cups	Dishesblock detergentcups.	Re-loadingthedishesproperly.
Unsatis-factory drying result	The dishes are not drying	Improperloading	Loadthedishwasherassuggestedinthedirections.
		Toolittlerinse-aid	Increasetheamountofrinse-aid/refilltherinse-aid dispenser.
		Dishesareremoved toosoon	Donotemptyyourdishwasherimmediatelyafter washing.Openthedslightlysothatthesteamcan escape.Beginunloadingthedishwasheronlyoncet hedishesarebarelywarmtothetouch.Emptythelow basketfirst.Thispreventswaterformdroppingoff dishesintheupperbasket.
		Wrongprogram hasbeenselected	Inshortprogramthewashingtemperatureislower. Thisalsolowerscleaningperformance.Choose aprogramwithalongwashingtime.
		Useofcutlerywith alow-qualitycoating	Waterdrainageismoredifficultwiththeseitems.Cutleryordishesofthistypearenotsuitablefor washinginthedishwasher.

ERROR CODES

When some malfunctions come on, the appliance will display error codes to warn you:

Codes	Meanings	Possible Causes
The 3in1 light flicker fleetly	Longerinlettime.	Faucetsisnotopened,orwaterintakeisrestricted,orwaterpressureistoolow.
The Rinse light flicker fleetly	Overflow.	Someelementofdishwasherleaks.

WARNING!

■ If overflow occurs, turn off the main water supply before calling a service.
If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

Height:850mm
Width:450mm
Depth:580mm
Waterpressure:0.04-1.0MPa
Powersupply:seeratinglabel
Capacity:8placesettings$

WARRANTY

1.1 In this warranty:

1.1.1 Australian Consumer Law means the law as set out in Schedule 2 of the Competition and Consumer Act 2010;
1.1.2 Company means GSM Sales Pty Ltd ABN 53 007 682 475 of 142-144 Fullarton Road, Rose Park SA 5067. Telephone [phone]. Email [e-mail]
1.1.3 Consumer means a “consumer” as that term is defined in Section 3 of the Australian Consumer Law as the original purchaser of a Bellini product;
1.1.4 Consumer Guarantees means the guarantees under the Australian Consumer Law;
1.1.5 You means the Consumer.

1.2 Nothing in this warranty affects any person's rights under the Australian Consumer Law. The benefits to any Consumer under this warranty are in addition to the rights and remedies available under any Consumer Guarantees.

1.3 Subject to the other clauses of this warranty, the Company warrants to the Consumer that the Bellini product will be free of manufacturing defects and will perform to the Company's specifications.

1.4 The benefit of this warranty extends only to the Consumer as original purchaser of a Bellini product which is installed in a residential property.

1.5 This warranty commences on the date of purchase of the Bellini product by the Consumer and continues for the benefit only of the Consumer until the expiry of two (2) years (Warranty Period).

1.6 If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company's specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge. A replacement Bellini product may differ from the original product purchased by the Consumer.

1.7 This warranty will not apply to any Bellini product:

1.7.1 Installed by any person other than a qualified tradesperson; or
1.7.2 Subjected to misuse, neglect, negligence or accidental damage; or
1.7.3 Operated in any way contrary to any operating or maintenance instructions; or
1.7.4 Improperly handled, installed or maintained; or
1.7.5 Altered or modified prior to or after installation; or

1.7.6 Damaged directly or indirectly by power surges, electrical storm damage or connection to incorrect power supply

The Australian Consumer Law requires the inclusion of the following statement

with this warranty:

Our goods come with guaranteed that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY THE CONSUMER MUST CALL 1300 373 199 (AUSTRALIA) OR 0508 123 108 (NEW ZEALAND) TO CONNECT TO THE NEAREST AUTHORISED CENTRE

1.8 You must provide proof of your purchase of the Bellini product and the date of purchase in order to obtain the benefit of this warranty.
1.9 If you live outside the service area of the Company or one of its service agents, this warranty does not cover the cost of transport of the Bellini product for service nor the service agent's traveling costs to and from your home.
1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
1.11 You will be responsible for all costs of returning a Bellini product to the Company and for redelivery of the Bellini product by the Company (whether it is the original or a repaired and/or a replacement Bellini product) and for any other expenses you incur in claiming under this warranty.
1.12 The Company or its service agent will examine any Bellini product and if the Company determines that it is defective through no fault of the Owner and is otherwise undamaged, the Company will repair or replace the Bellini product in accordance with this warranty.

DO NOT SEND IN THIS WARRANTY

Fill out the following details and file with your purchase invoice.

RETAIN & FILE WITH YOUR RECEIPT

Your Purchase Receipt/Invoice is proof of date of purchase. If you are unable to establish the date of purchase, or if the fault is not covered by this warranty, or if the product is found to be in working order, you will be required to bear all service call charges.

GSM Sales Pty Ltd reserves the right to discontinue items, modify designs and change specifications without incurring obligation.

Whilst every effort is made to ensure that descriptions, specifications and other information in this publication is correct, no warranty is given in respect thereof and the company shall not be liable for any errors therein.

Purchased from:

Co. Name:

Address:

Date of Purchase:

Serial number:

NOTE: Consistent with our continuing product development policy, improvements may have been made which render the contents of this packaging slightly different to that shown.

FOR WARRANTY SERVICE CALL 1300 373 199 (AUSTRALIA) OR 0508 123 108 (NEW ZEALAND) TO CONNECT YOU TO THE NEAREST AUTHORISED SERVICE CENTRE

G | S | M

Gerard Sourcing & Manufacturing

GSM Sales Pty Ltd.

The GSM Sales Pty Ltd. Group of Companies has a policy of continual improvement throughout the product range. As such the unit contained within may differ slightly from the unit illustrated on the pack.

MADE IN CHINA for the GSM Sales Pty Ltd. Group of Companies

N1028
