Product Type	Fully Automatic Washing Machine (Household Use)
Model Numbers	NA-FD175X3
Brand	Panasonic
Rated Voltage	220-240 V
Rated Frequency	50 Hz
Rated Power Consumption	480 W
Standard Water Amount	103 L
Maximum Dry Cloth Capacity	17.5 kg
Product Dimensions (W x D x H)	681 x 747 x 1112 mm
Product Weight	48 kg
Tap Water Pressure Range	0.01 - 1 MPa
Programs	Normal, Tangle Care, Speedy, Delicates, Baby Care, Water Save, Blanket, Soak, Stain Master, Odour/Aroma+, Mud, Soya/Sauce, Tub Hygiene
Washing Options	Preset Timer, Wash/Rinse/Spin, Delicates, Blanket, Stain Master, Air Dry (90 min)
Convenient Functions	Auto Tub Clean, Child Lock, Cancelling End Buzzer
Safety Features	Child supervision requirement, Auto power off if not started within 10 min, Lid open detection, Overload protection, Power failure resume
Maintenance	Lint filter cleaning after each use, Detergent drawer cleaning, Water supply filter cleaning, Tub cleaning (weekly air dry, monthly Tub Hygiene program with bleach)
Installation Requirements	Professional installation recommended, Bottom cover attachment, External drain hose, Water supply hose connection, Level adjustment
Accessories Included	Water supply hose (1), External drain water hose (1), Bottom cover (1) with screw, Water tap adaptor (1)
Country of Manufacture	Vietnam
Manual Language	English, Indonesian, and others

Frequently Asked Questions - NA-FD175X3 PANASONIC

What is the maximum dry cloth capacity of the Panasonic NA-FD175X3 washing machine?

The maximum dry cloth capacity is 17.5 kg.

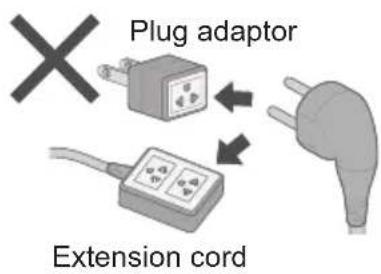

Can I use the washing machine with an extension cord?

No, do not use an extension cord or plug adaptor. Plug the power cord directly into a proper socket with a ground prong.

What should I do if the power cord is damaged?

Immediately stop use and contact the service centre. The power cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard.

How do I use the Preset function?

Press the Preset button and set the desired finish time (hours). The timer can be set from 1 to 24 hours depending on the program. Press Start/Pause to activate.

What is the Tangle Care program for?

The Tangle Care program washes more gently than Normal to reduce tangling. It is recommended for loads up to 8 kg for disentangling after spin.

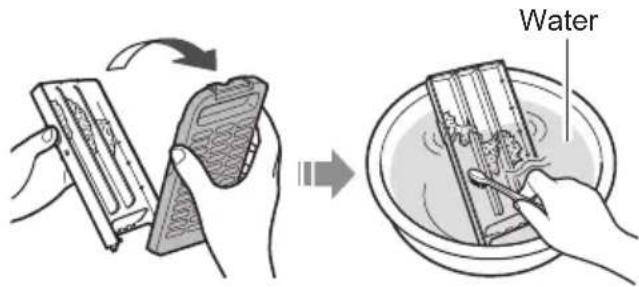

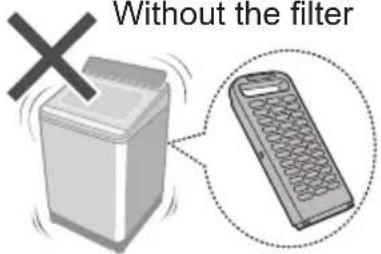

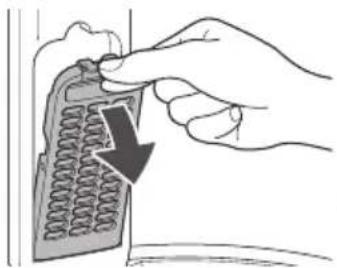

How often should I clean the lint filter?

Clean the lint filter after every wash operation. Remove it, rinse with water, and reattach securely.

Can I wash waterproof items like raincoats?

No, do not wash waterproof items (e.g., raincoats, wet suits). They may cause abnormal vibration and damage the machine.

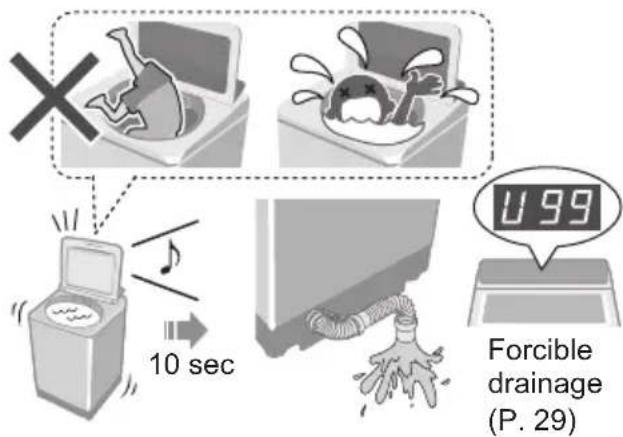

What do I do if the display shows an error code U99?

Error U99 indicates that water has been forcibly drained due to a failure. Check the drain hose for kinks or clogs, and ensure the drain hose is not too long (max 3 m) or too high (max 10 cm). If the problem persists, contact service.

How to activate Child Lock?

Press and hold the Child Lock button for 5 seconds. The Child Lock lamp will light. Repeat to cancel. This function does not lock the lid or button operations but prevents unintended changes.

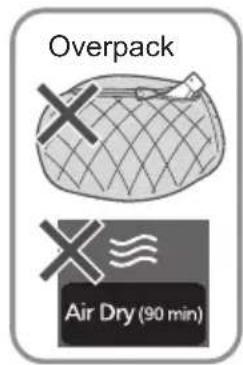

What is the Air Dry (90 min) function?

The Air Dry function uses air blown from tub rotation to remove water from synthetic fibre garments up to 3.0 kg. It does not use a heater, so clothes may be cold and half dry.

USER MANUAL NA-FD175X3 PANASONIC

Operating & Installation Instructions

Fully Automatic Washing Machine (Household Use)

Model No. NA-FD175X3

NA-FD155X3

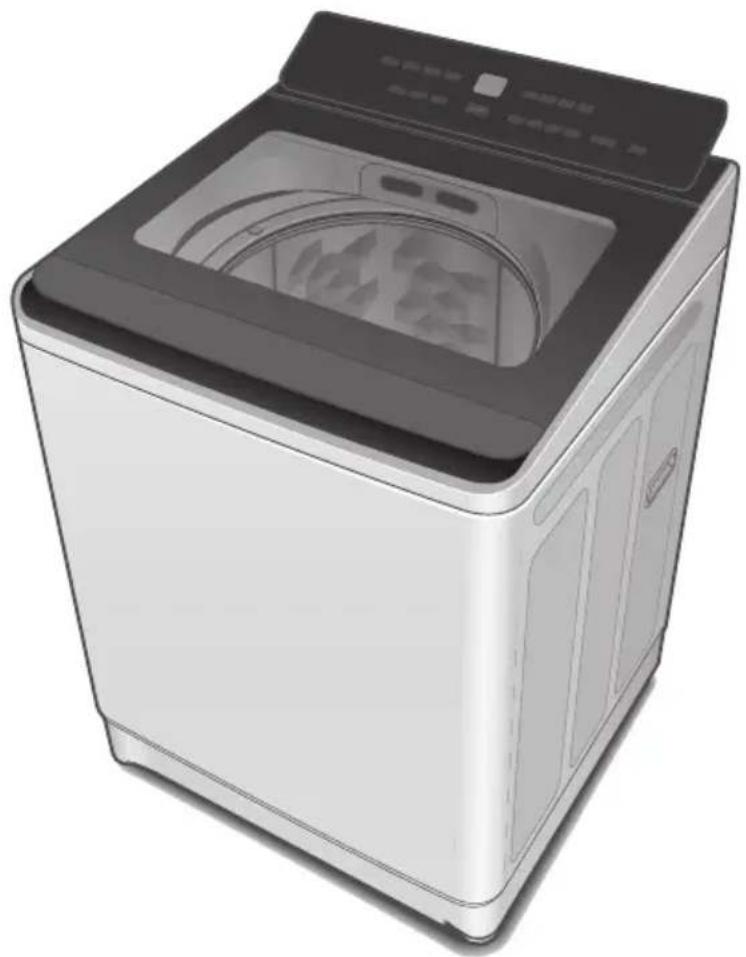

Illustration of a modern washing machine with front panel and side door (no text or symbols visible)

Thank you for purchasing this product.

• Read these instructions carefully for optimum performance and safety before use.
• Keep this manual for future reference.

Contents

Safety Precautions	2
Part Names / Accessories	6
Before Washing	7
Operation Panel	8
Washing	9
Variety of Programs	10
Detergent / Softener / Bleach	12
Washing Options	14
• Preset
• Wash / Rinse / Spin
• Delicates
• Blanket
• Stain Master
• Air Dry (90 min)
Convenient Functions	18
Contents of Programs	19
Maintenance	20
Installation	24

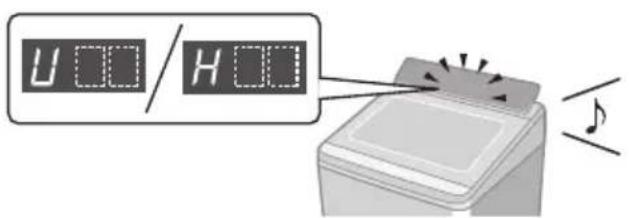

Error Display	28
Troubleshooting	30
Specifications	32

AWW9901CFLC0-0C0

A0724-0(M)

Printed in Vietnam

07-2024

Safety Precautions

WARNING

May cause serious injury or death.

Children must not use it alone.

Illustration of a child washing clothes inside a washing machine with a 'X' symbol (no text or labels)

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

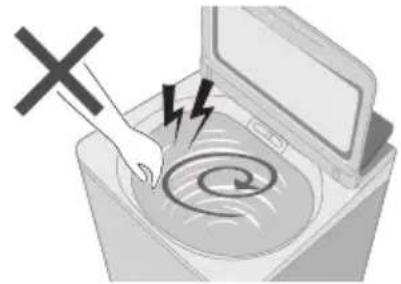

Do not touch the tub until it stops.

Illustration of a hand pressing down on a washing machine with a lightning bolt symbol (no text or labels)

- If the tub does not stop within 15 sec:

May cause fire or electric shock.

Do not touch it with wet hands.

Illustration of a hand holding a water droplet with a 'X' symbol above, indicating an environmental or health hazard (no text or symbols present)

Do not hold or pull on the cord.

Hand holding a plug inserted into an electrical outlet, with a 'X' symbol indicating no text or symbols on the plug (no readable text or labels)

Do not use.

Fully insert it. Do not use.

Illustration of a hand holding a device with a cross mark above and a checkmark below (no text or symbols)

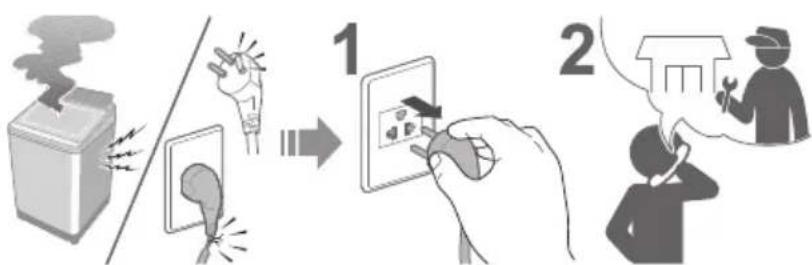

- If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

In case of failure or damaged power cord, stop use and ask the service centre.


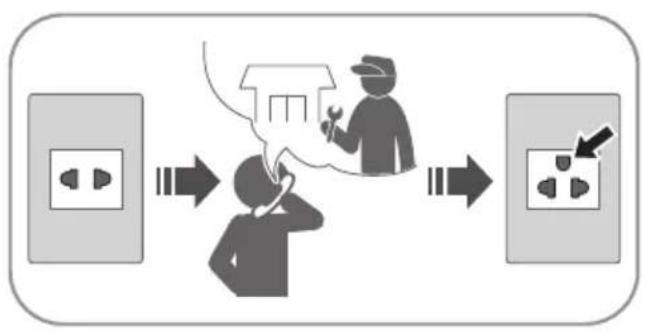

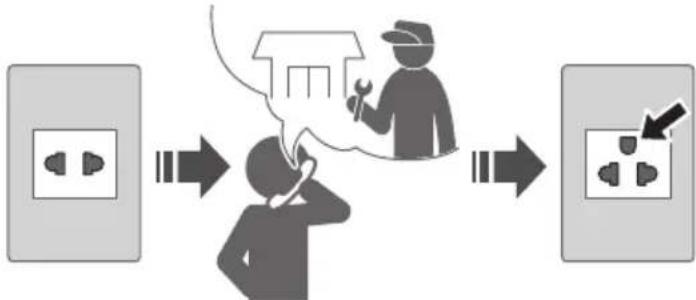

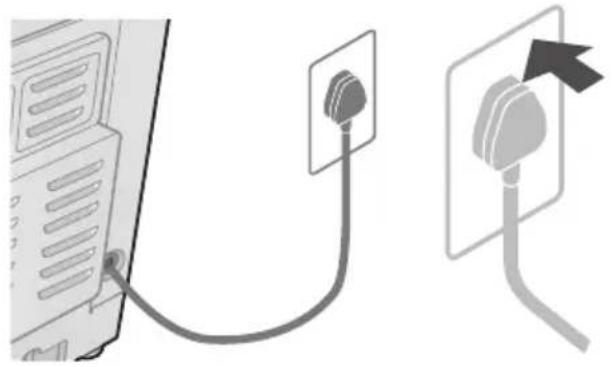

Securely insert the ground prong. Call your local dealer for a new socket.

Use a socket appropriate for this appliance.

e.g.)

● The plug shape, socket shape and rating requirement varies with the region.

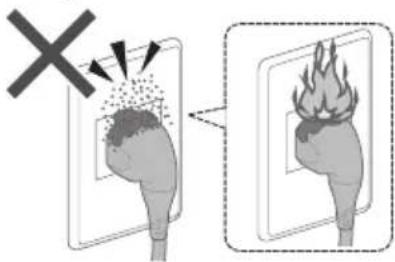

Accumulated dust may cause fire.

Wipe the power plug periodically.

Illustration of hands performing a medical procedure with sparkles (no text or symbols)

Keep away from flammable materials.

May cause failure.

Never disassemble, repair or modify it by yourself.

Illustration of a washing machine with a crossed-out X symbol, a person holding a tool, and scattered trash (no text or symbols)

Safety Precautions (continued)

CAUTION

May cause injury.

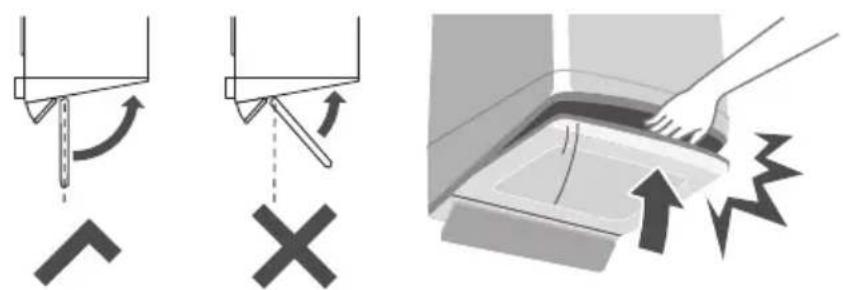

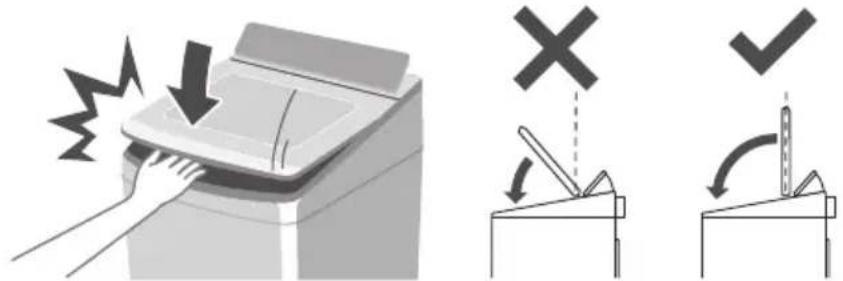

Be careful not to get your fingers caught.

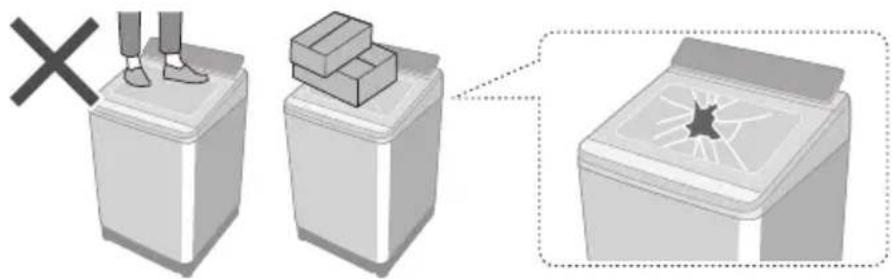

Do not climb or put objects on the appliance.

- If the lid is broken, immediately stop using.

Be careful of your hands and feet.

Illustration of two hands holding a large gray object with a black 'X' mark, no text or symbols present

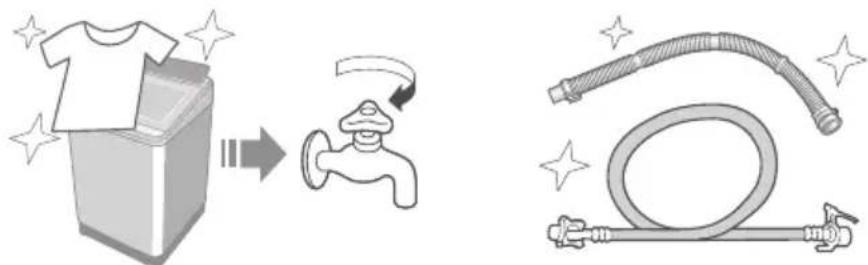

May cause water leakage.

Turn off the water faucet. Use new hose-sets.

Illustration showing a T-shirt opening into a box, a faucet with a valve, and a hose with a handle (no text or symbols)

● New hose-sets supplied with the appliance are to be used and old hose-sets should not be reused.

■ For maximum mass of dry cloth and pressure of tap water, see Page 32.

May cause failure.

Keep away from heat and direct sunlight.

Illustration of a washing machine with a sun and a cross symbol (no text or labels)

Do not wash waterproof items.

Do not obstruct. Do not use hot water.

- Do not obstruct the openings of the bottom face with carpet, etc.

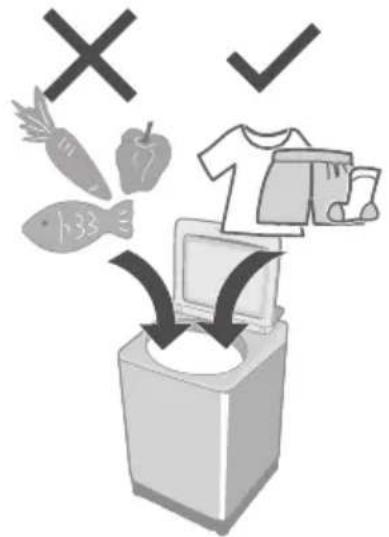

For Machine-washable items only.

- This appliance is intended to be used in household. This appliance is not intended to be used in applications such as:

• Staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• areas for communal use in blocks of flats or in launderettes.

Part Names / Accessories

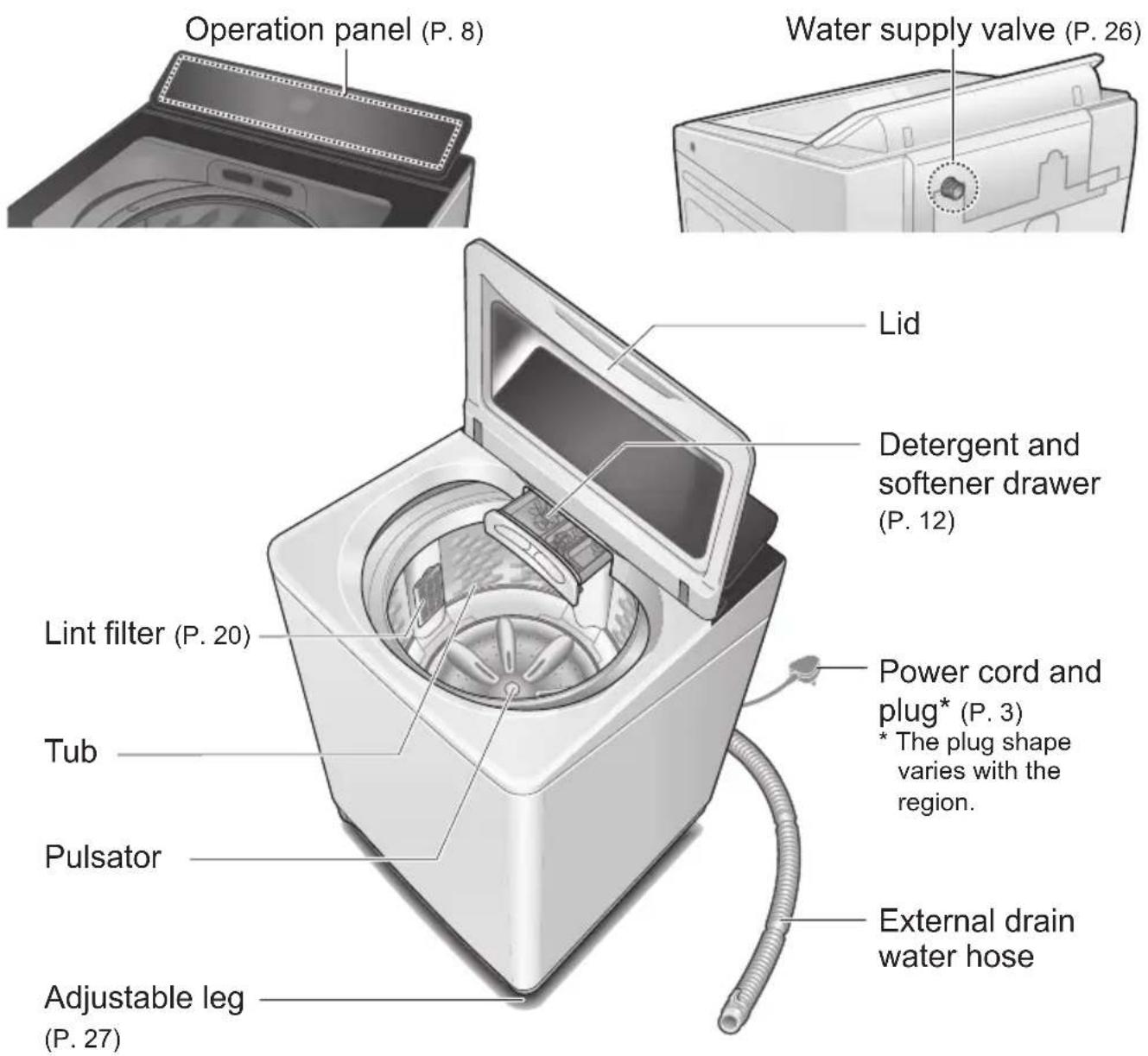

Part names

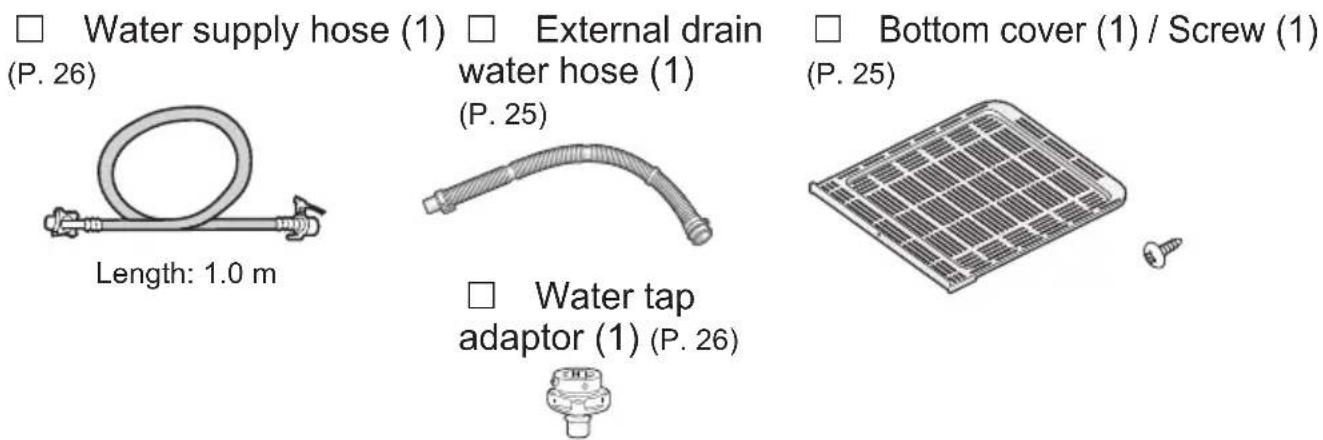

Accessories

Before Washing

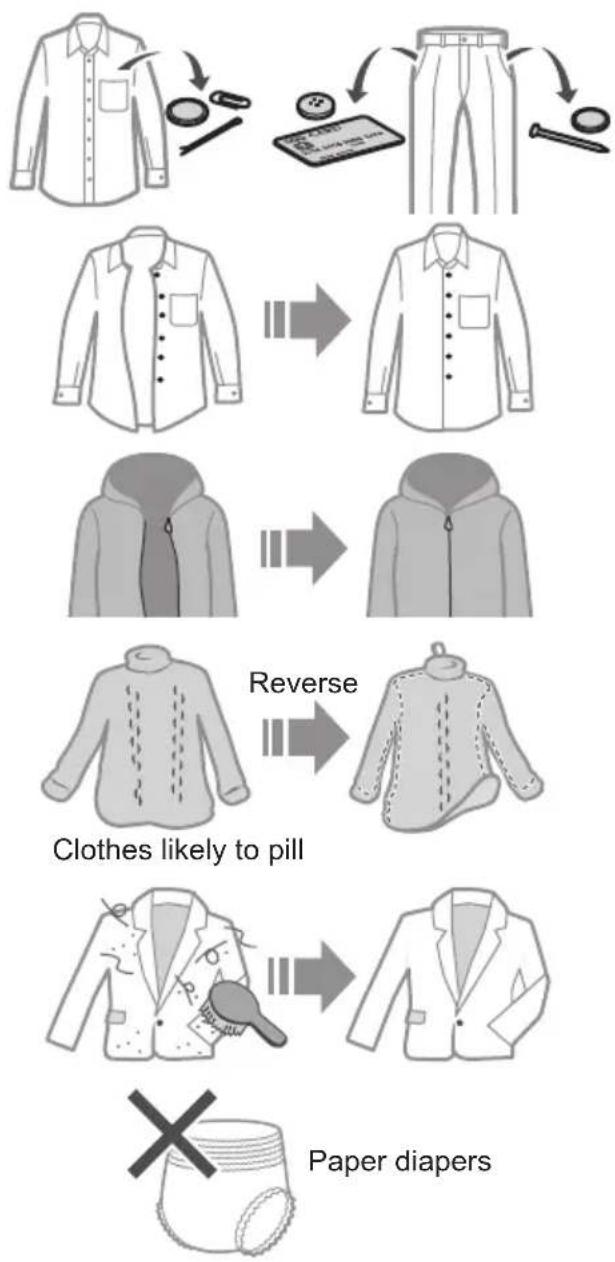

Laundry preparation and check

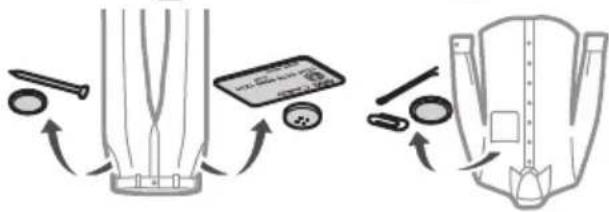

Pre-laundry check


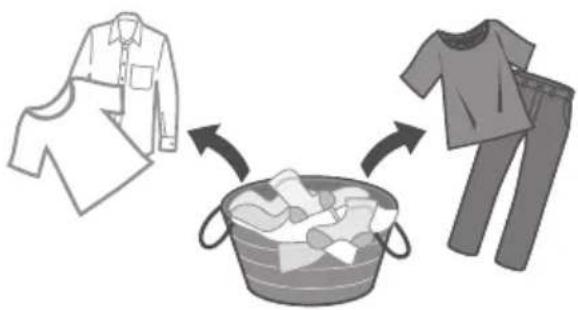

To prevent colour staining

Illustration showing clothing items including a shirt, a bag, and a T-shirt, with arrows indicating direction of clothing purchase or disposal (no text or symbols)

Use laundry nets for delicates

Illustration of a dress, a pillow, and a woven basket with arrows indicating direction (no text or symbols)

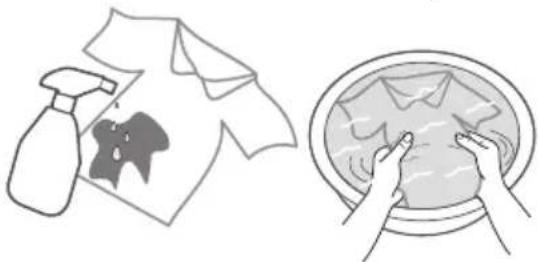

For "Stain Master" (P. 16)

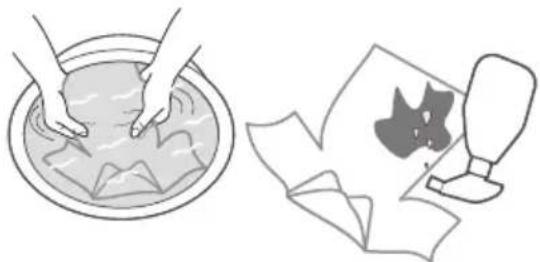

- Pretreatments for heavily stains

Illustration showing a spray bottle cleaning a garment and a hand washing clothes in a bowl (no text or symbols)

- Observe the clothes' care labels

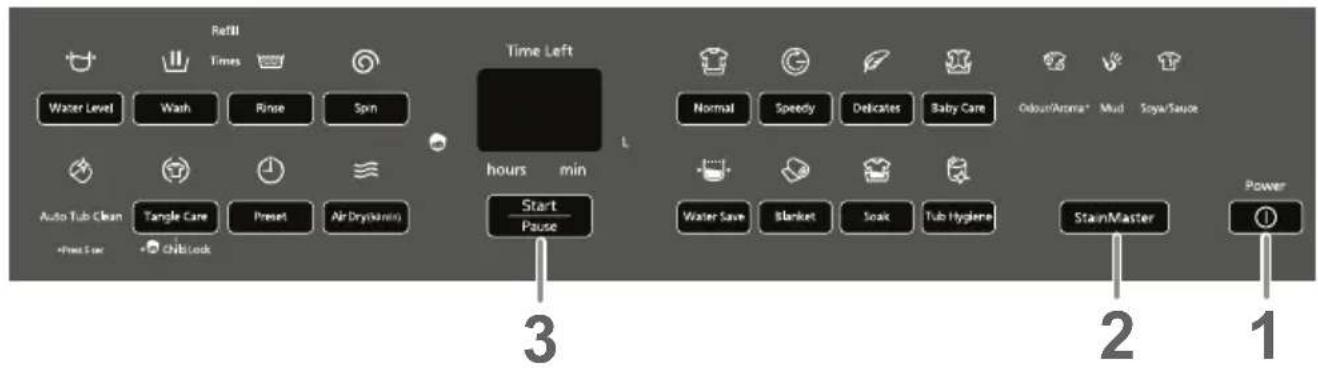

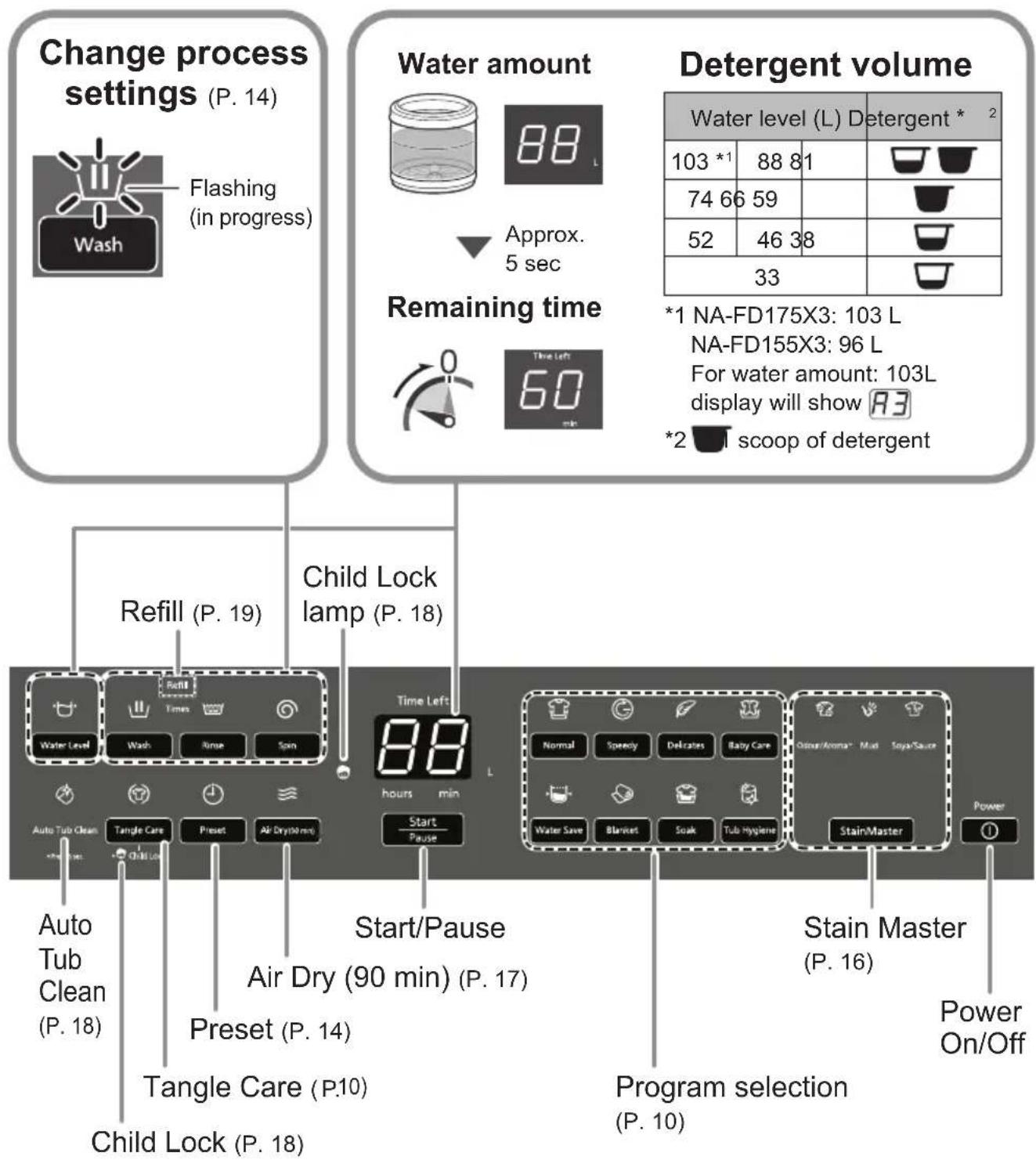

Operation Panel

NOTE

In case of a power failure.
Operation will resume from where it stopped when the power recovers.

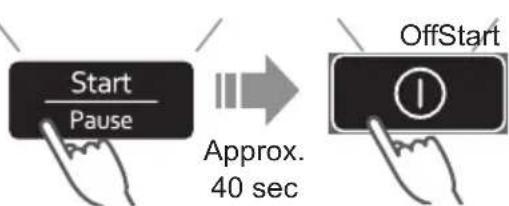

If you do not pr Start Fouse within 10 minutes after power-on.
Auto power off.

- The wash process setting of the “Stain Master” and “Soak” programs cannot be changed.

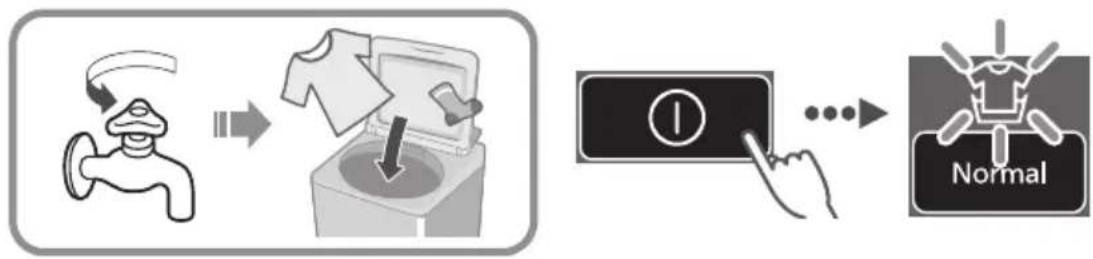

Washing

1

2

3

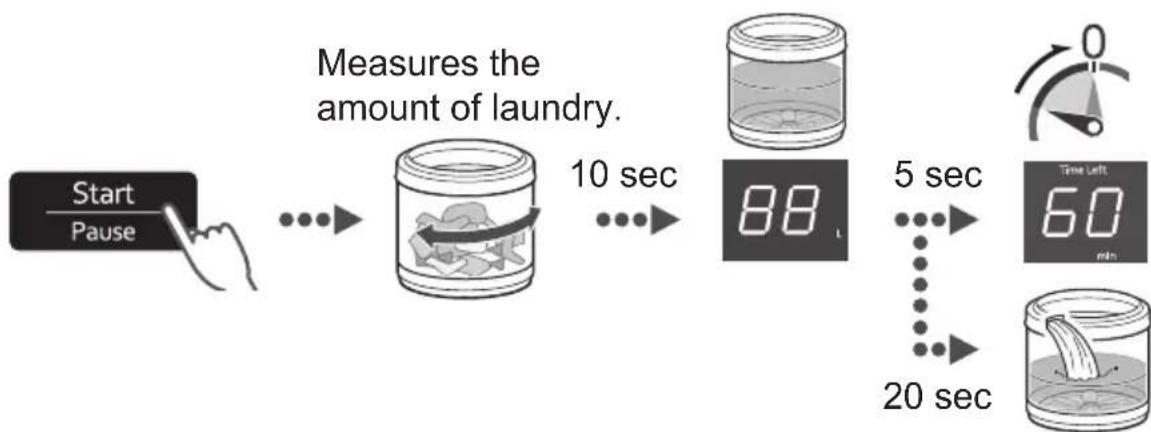

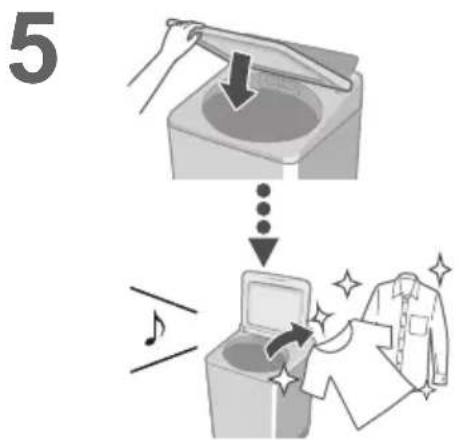

4

5

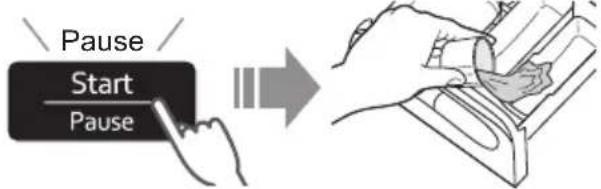

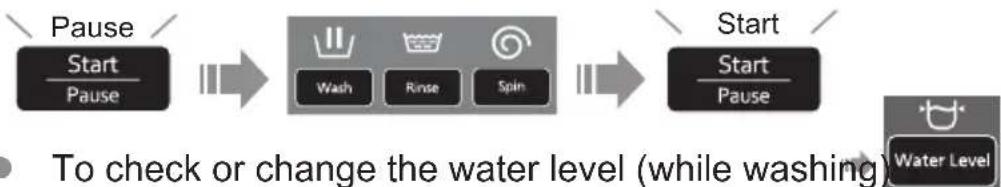

■After pressing "Start"

- To change each operation (while washing).
        F["Water Level icon"]
    end
    G["To check or change the water level (while washing)"]

To check or change the water level (while washing

- You cannot change the program.

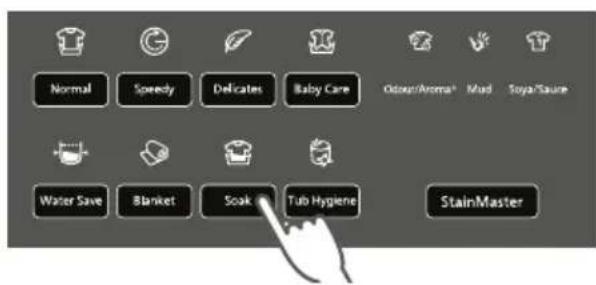

Variety of Programs

	Program Purpose		Max. capacity * (kg)
Wash	Normal (P. 9)	Everyday clothes	17.515.5
	Tangle Care (P. 9)	Anti-tanglingWashing more gently than “Normal” to reduce tangle.Disentangling clothes after spin: 8 kg or less.
	Speedy (P. 9)	For light soil	17.515.5
	Delicates (P. 15)	Washing gently	5.0
	Baby Care (P. 9)	Clothes for babies & sensitive skinRinsing thoroughly	17.515.5
	Water Save (P. 9)	Saving water	17.515.5
	Blanket (P. 15)	Comforters and blankets With a machine-washable tag	4.2

* Top: NA-FD175X3 / Bottom: NA-FD155X3

	Program Purpose			Max. capacity * (kg)
Wash	Soak (P. 9)		For heavy soil Presoaking to wash
	(P. 16)		For the following stains	6.0
	Light Odour/Aroma+		Use more softener to keep the scent longer

NOTE

- “Normal” program and “Water Save” program are recommended for a normally soiled load at the rated capacity of this washing machine.

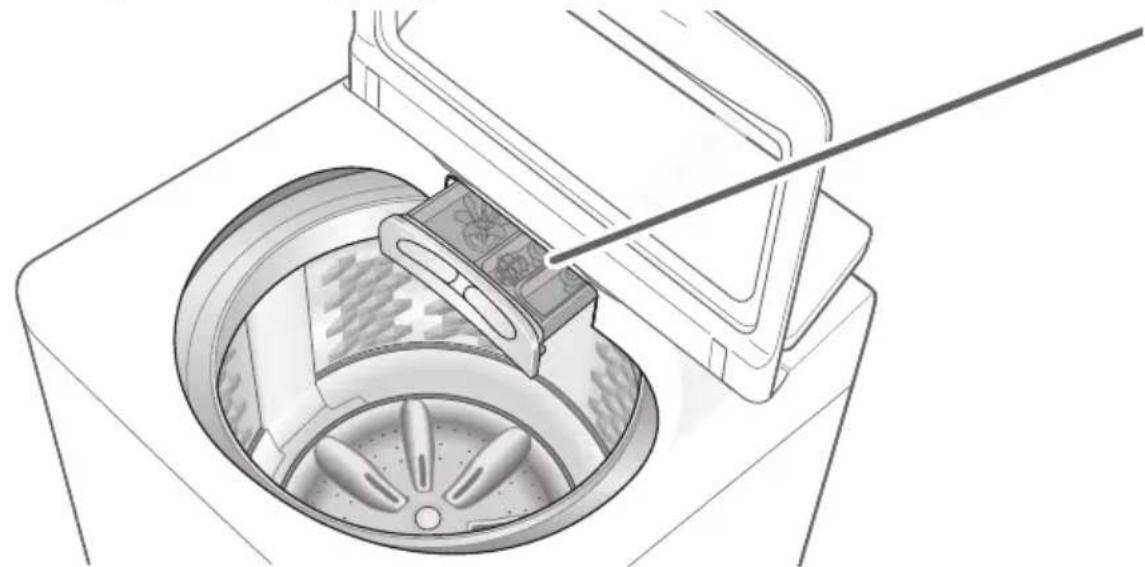

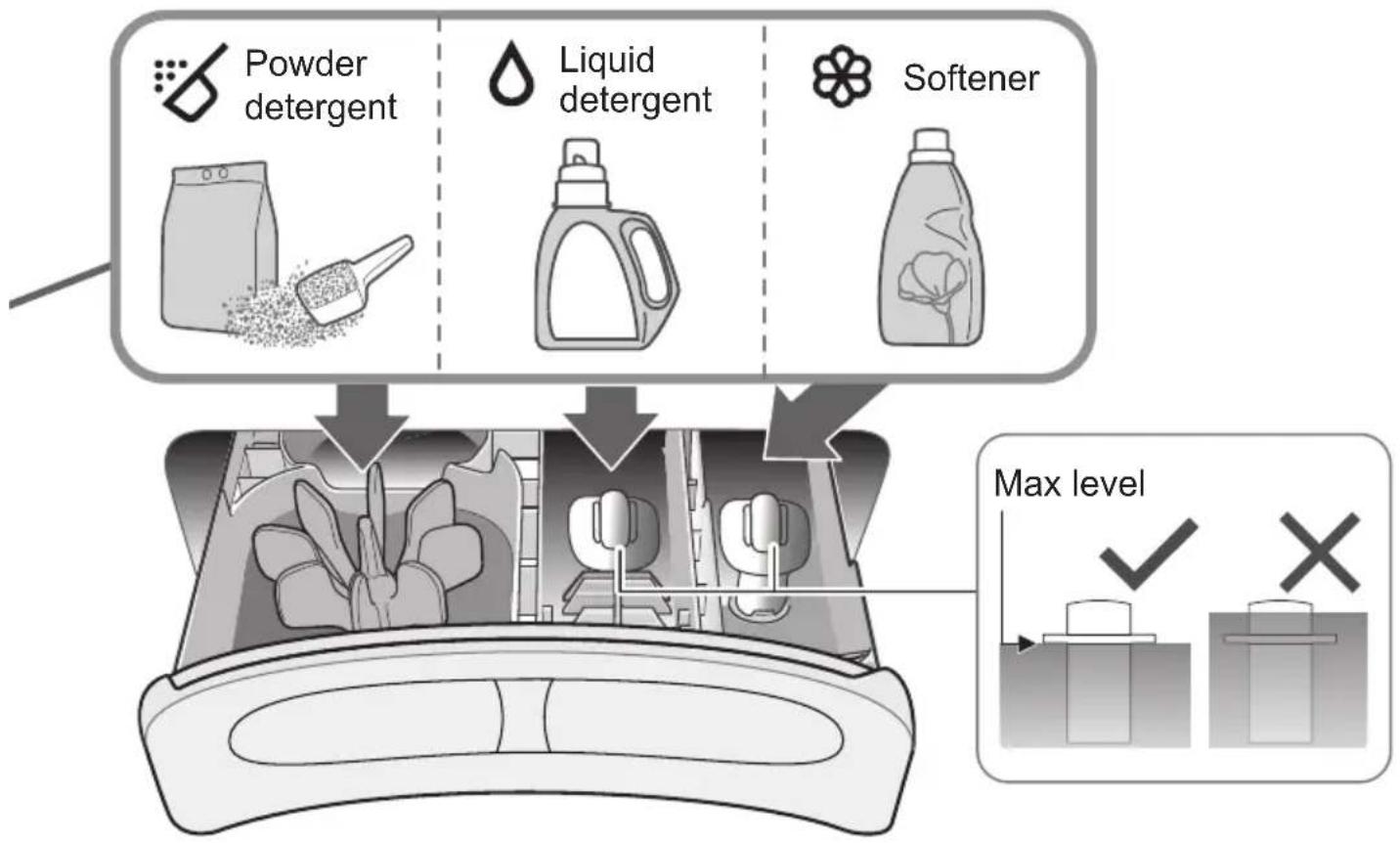

Detergent / Softener / Bleach

• Follow the instructions on each package.
  For cleaning (P. 21)
• Close auto dosing drawer completely before use.

Technical line drawing of a washing machine with a handle and fan blade (no text or symbols)

Detergent

Illustration of hands using a device to clean or store items, with a cross symbol indicating a warning (no text or symbols present)

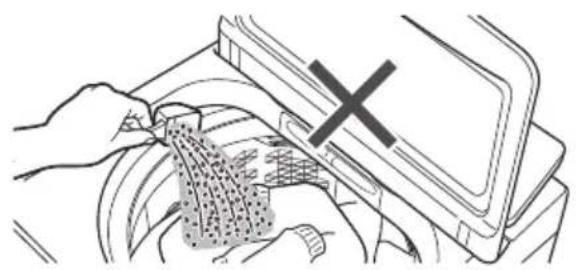

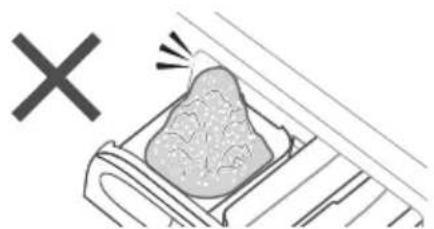

• Do not pour detergent directly into the tub.
  ● The level of foaming depends on the load size, soil, detergent, and water hardness.

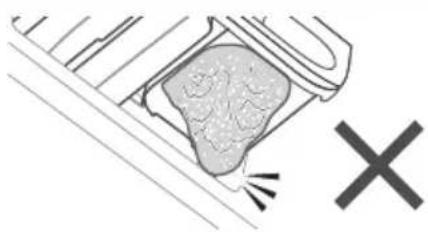

Simple line drawing of a rock inside a container with a 'X' symbol and explosion effect (no text or labels)

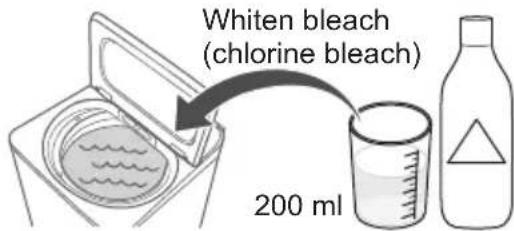

Bleach

Whiten bleach (chlorine bleach)

- To use bleach, put bleach in the powder detergent case (if bleach is in powder form) or liquid detergent case (if it is liquid bleach).


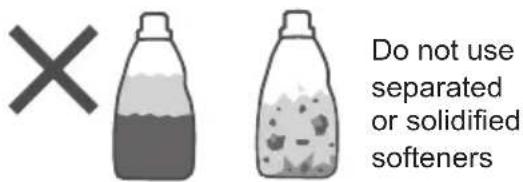

Softener

- To put softener while the machine is operating:

Water

- Softener cannot be used with the "Water Save" program.

Washing Options

Preset

Set how many hours later to finish operation.

1

2

min

All other indications turn off.

Normal	2 - 24
Speedy	1 - 24
Delicate	-
Baby Care	2 - 24
Water Save	2 - 24
Blanket	-
Soak	3 - 24
StainMaster	2 - 24
Air Dry(90 min)	-
Tub Hygiene	-

■ To confirm

Preset

■ To cancel or change

①

Wash / Rinse / Spin

1

Hand pointing at a button with an 'I' symbol (no text or numbers present)

2

3

NOTE

- Not available for "Tangle Care".

Delicates

74 L 5.0 kg
66 L 3.0 kg
59 L 1.0 kg

NOTE

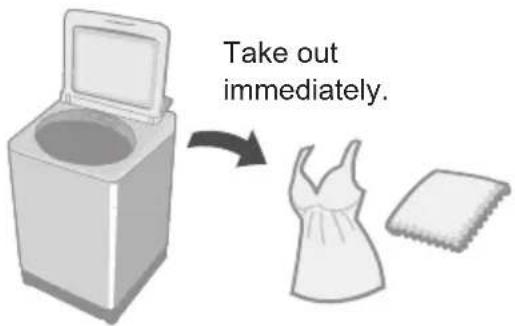

■ After operation ends

Blanket

Max.water amount *

4.2 kg100 % synthetic fibre100 % cotton

* NA-FD175X3: 103 L / NA-FD155X3: 96 L

Illustration of a washing machine with a cylindrical component and a downward arrow indicating airflow (no text or symbols)

NOTE

NOTE

- The water amount indication shows the maximum and cannot be changed.

Washing Options (continued)

Stain Master

Preparation: (P. 7)

■ Timer preset (hours) (P. 14)

NOTE

Max. capacity11(P).

• Max. water amount: 81 L
- You cannot change the wash process setting of this program.

Air Dry (90 min)

The air blown from the tub rotation removes water from clothes.

- Dryable clothes: Synthetic fibre (Max. 3.0 kg)

1

2

3

NOTE

Clothes may not be sufficiently dried (depends on amount and type of clothes, and the temperature).
- This function does not use a heater. Clothes may be cold and half dry.

Convenient Functions

Setting Auto Tub Clean

Preventing black mould, available with all programs except "Water Save" and "Air Dry (90 min)".

■ Lamp indications

Operating

Function enabled

Function disabled

■ To turn on/off

1

2

3

Hold 3 sec

4

to select

5

Cancelling end buzzer

1

Simple line drawing of a box with a musical note and x2 label (no text or symbols on the box itself)

■ To reset:

same procedure

Setting Child Lock

Forcible drainage (P. 29)

* This function does not lock the lid and button operations.

1

2

Hold 5 sec

■ To cancel: same procedure ^4

Contents of Programs

Program		Total time*1(min)	Wash(min)	Rinse(times)	Spin(min)
	Normal	65 9 2 7
	Tangle Care	75 13 2 7
	Speedy	50 3 2 5
	Delicates	50 9 2 1
	Baby Care	80 9 2 7
	Water Save	80 12 3 7
	Blanket	80 12 2 7
	Soak	130 *2	71 (Soak 59) 2	7
Stain Master	Odour/Aroma+	85 13 2 7
	Mud	90 32 2 7
	Soya/Sauce	110 *2	54 (Soak 29) 2	7
	Tub Hygiene	150 *2	65 (Soak 62) 2	30

*1 Total time is approximate (When the standard water supply rate is 15 L / min and the water temperature is 28 °C).

*2 Remaining time of 99 minutes or less will be displayed. --→99

- “Refill”: to fill the tub with water and rinse while supplying water.

Maintenance

Lint filter

After each operation

1

Hand inserting a calculator into a device (no text or symbols visible)

2

3

Illustration of hands holding a rectangular device with an arrow indicating rotation (no text or symbols)

Illustration of hands holding a handheld device with a lightning bolt (no text or symbols)

Illustration of a washing machine with internal components and a close-up view of the lid (no text or symbols)

NOTE

If it is difficult to remove the filter

Diagram of a mechanical component with circular housing and directional arrows indicating motion (no text or symbols)

If the filter is broken

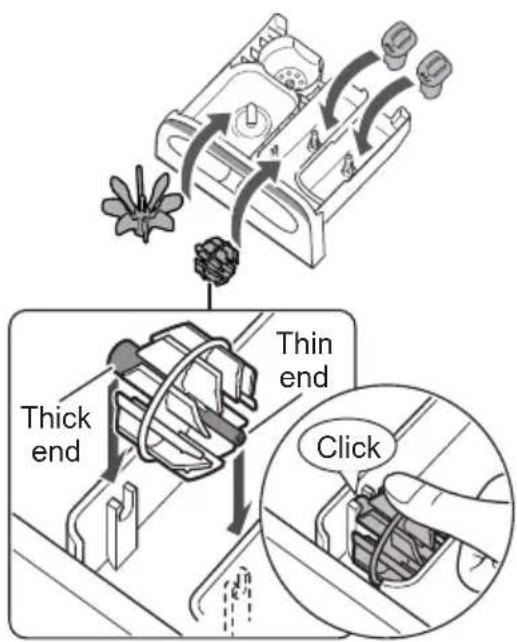

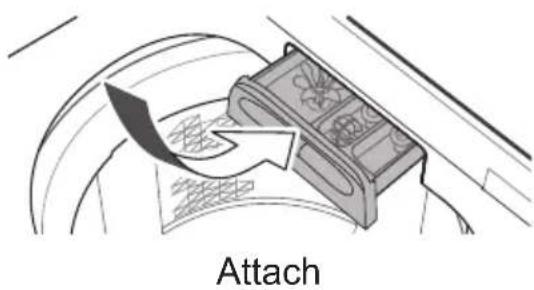

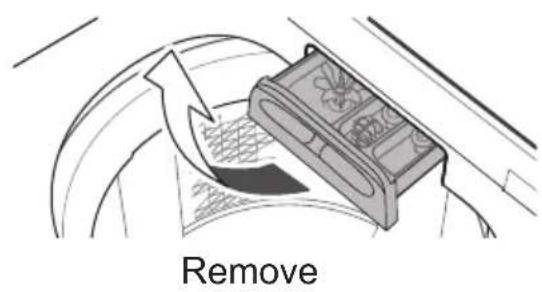

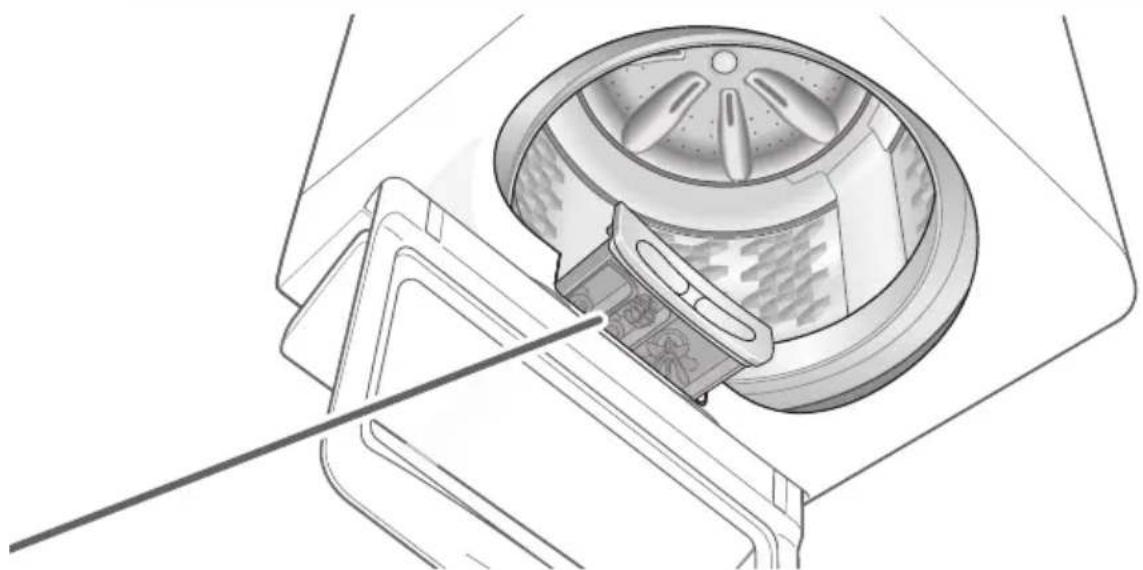

Detergent and softener drawer

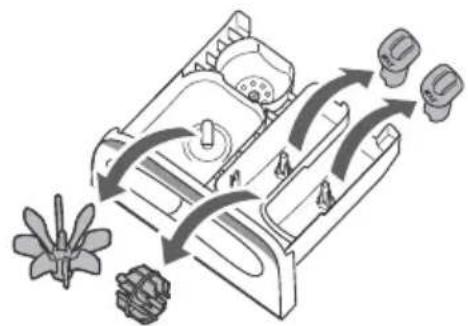

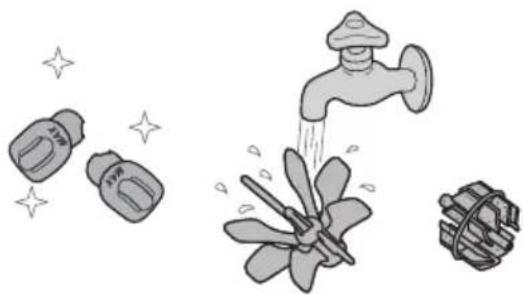

If stained with detergent or softener

1

4

2

5

3

Illustration of kitchen utensils including a faucet, water drop, and a pump impeller (no text or symbols)

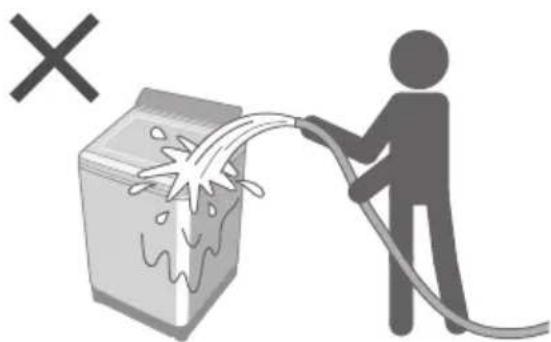

Main unit, lid

Illustration of a hand cleaning a washing machine with sparkles around (no text or symbols)

For heavy soil

Neutral kitchen detergent

Illustration of a bottle with liquid and droplets (no text or symbols)

Illustration of a person spraying water from a machine with a hose, no text or symbols present

Maintenance (continued)

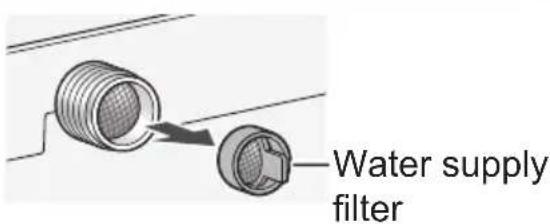

Water supply filter

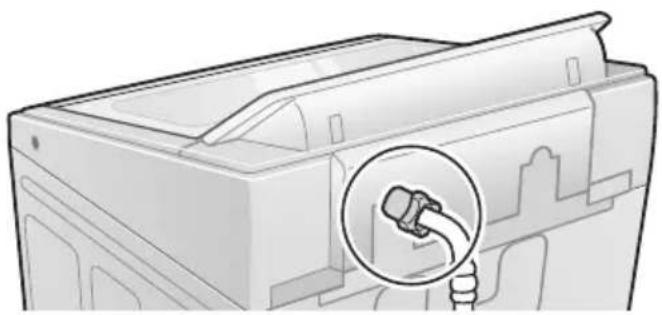

If water does not flow smoothly

Illustration of a computer monitor with a magnified inset showing a hand holding a device (no text or symbols present)

1

5

2

6

Line drawing of a hand holding a tool interacting with a circular object (no text or symbols)

3

7

Diagram of a mechanical component with threaded ends and a separate close-up view (no text or symbols)

4

8

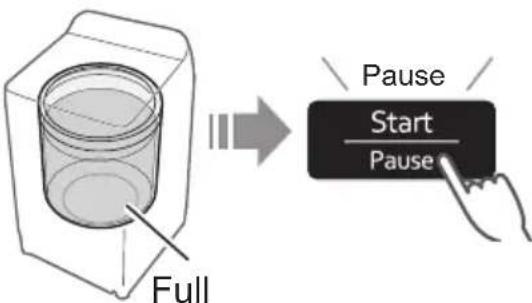

Tub

Once a week

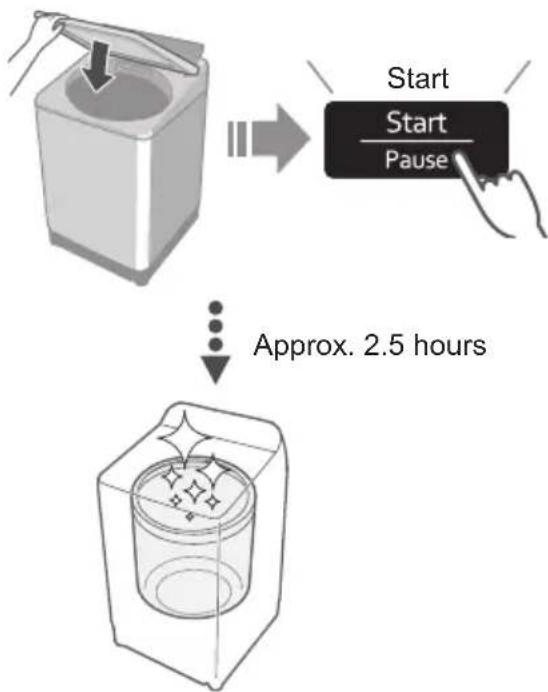

Once a month

1

5

2

6

3

4

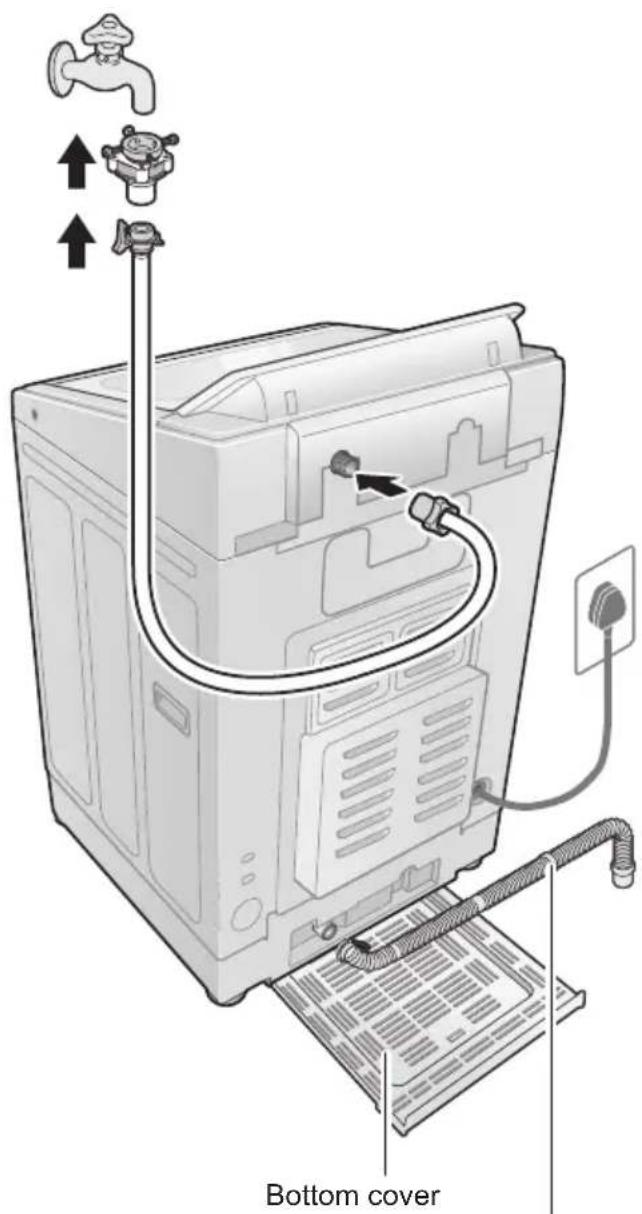

Installation

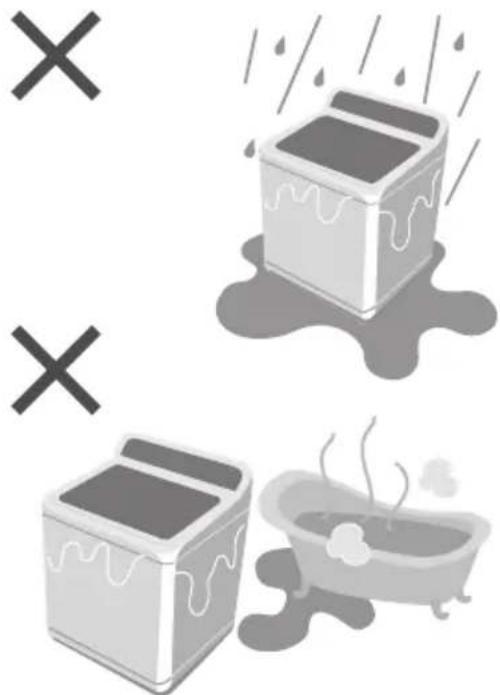

Check the location.

Illustration of washing machines and a bathtub with steam rising (no text or symbols)

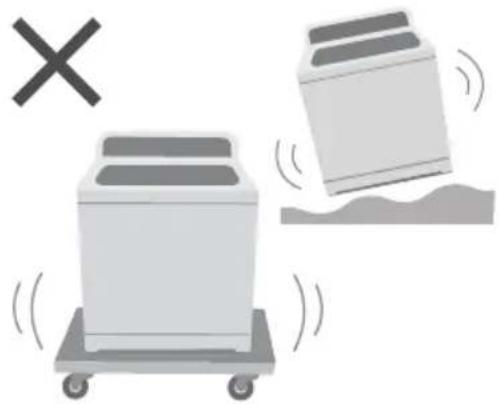

Illustration of two washing machines on a cart with a 'X' symbol and a falling object, no text or symbols present.

Make sure to ask a service person for installation.

Silhouette of a house with tools and a worker (no text or symbols)

■ Do not install by yourself.
■ Follow this installation method.
If you do not, Panasonic will not be liable for any accident or damage.

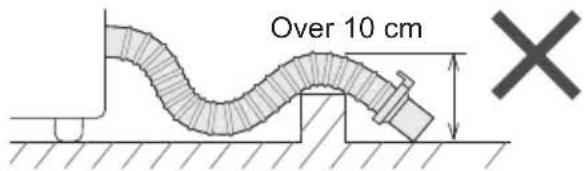

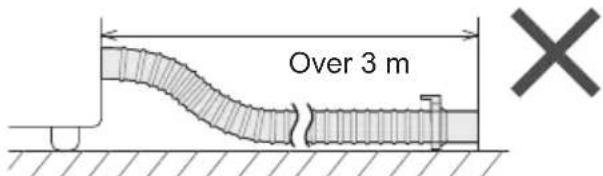

External drain water hose

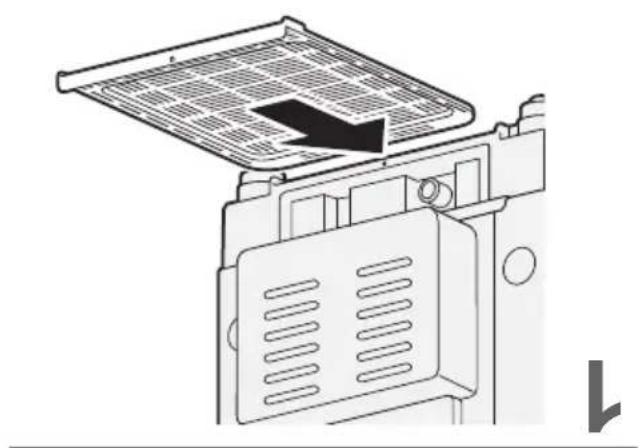

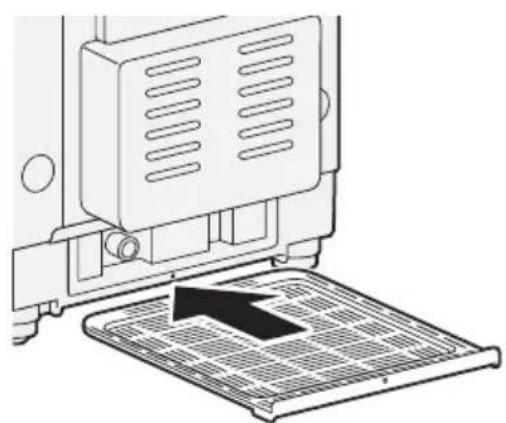

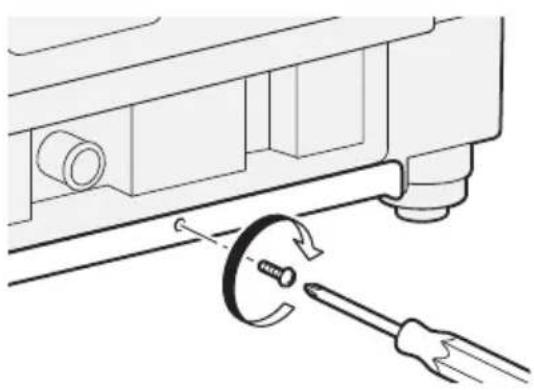

Attach the bottom cover

1

Diagram of a printer's internal structure with a black arrow pointing to a grid-patterned base (no text or symbols)

2

Technical diagram showing a mechanical assembly with a wrench and screwdriver (no text or symbols)

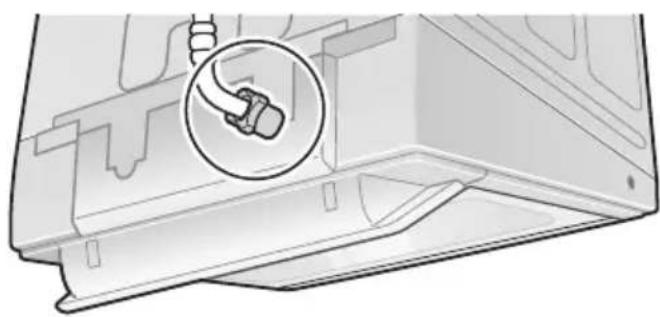

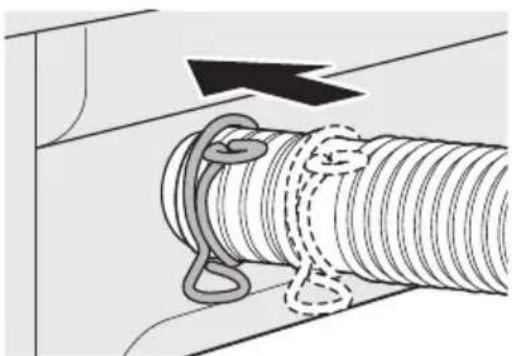

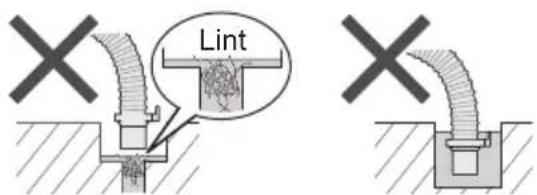

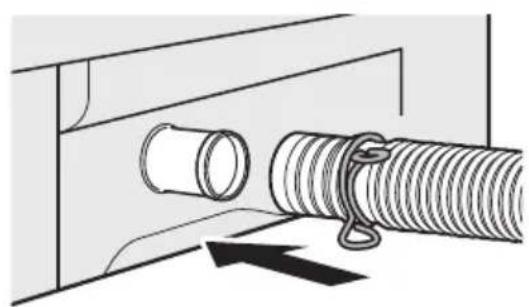

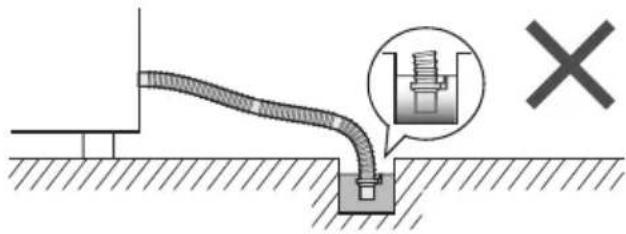

Attach the external drain water hose

1

Diagram of a mechanical assembly with a coiled spring and rope, showing no text or symbols

NOTE

2

Diagram of a mechanical assembly with a coiled spring and rope, showing motion direction (no text or symbols)

Installation (continued)

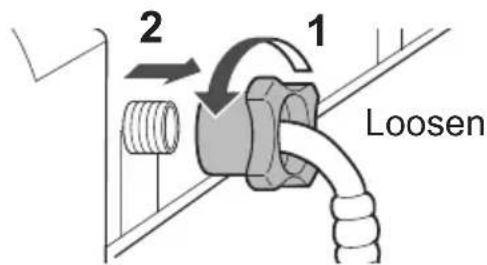

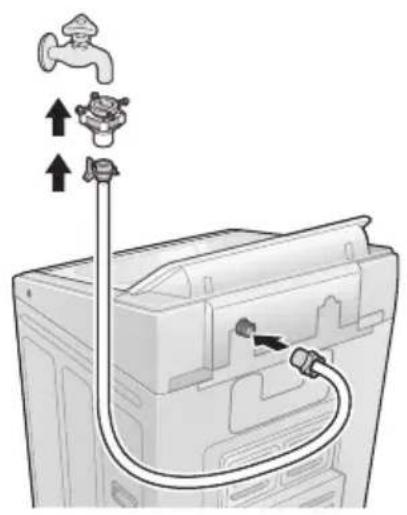

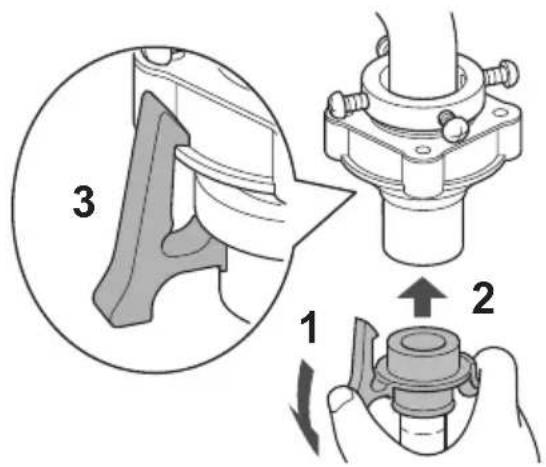

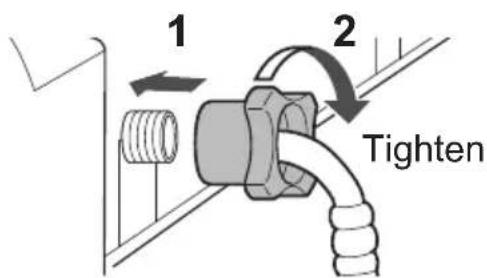

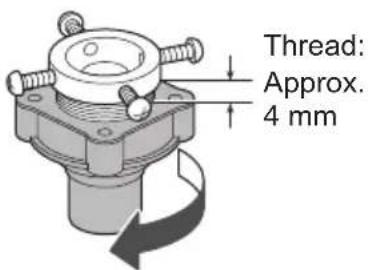

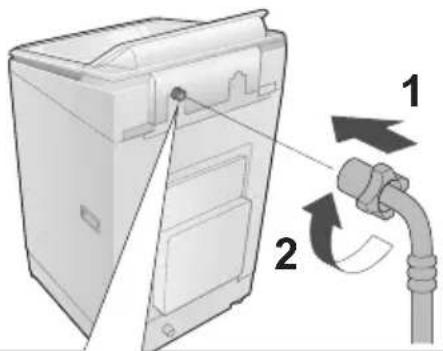

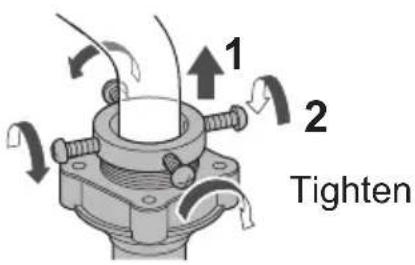

Connect the water supply hose

Diagram of a water supply pipe connection with faucet and valve (no text or labels)

1

2

3

4

5

6

3
Check that the elbow is not loose.

CAUTION

• Tighten the nut firmly.
• Do not twist, squash, modify or cut the hose.

Connect the power plug and grounding

Diagram showing a computer connected to an outlet with an arrow indicating the outlet's direction (no text or symbols present)


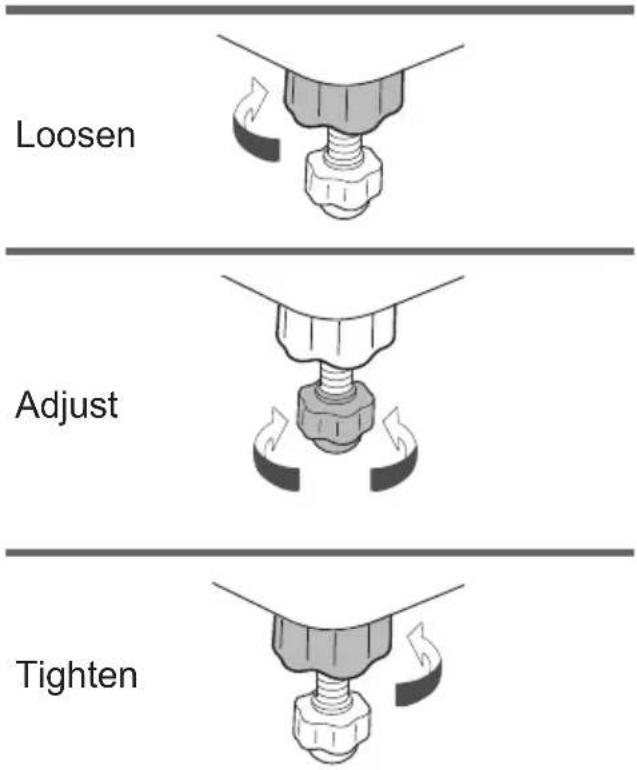

Check that the washing machine is level

■ If the washing machine wobbles

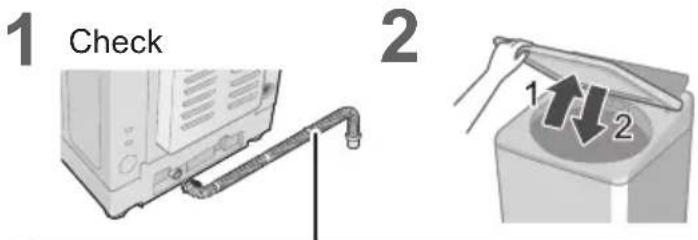

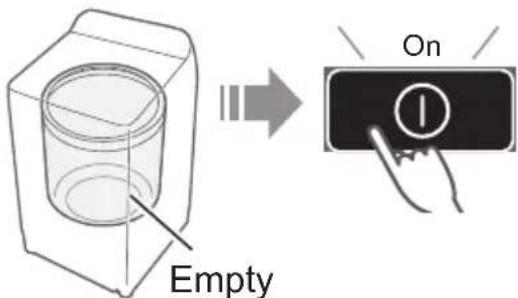

Trial operation

Error Display

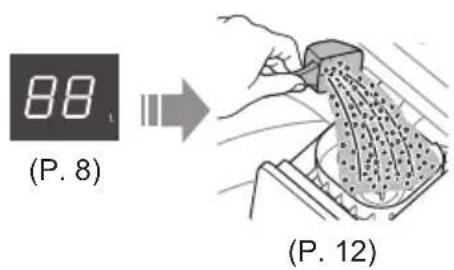

■ Preparation

Cancel Child Lock (P. 18) if it is set.

Error Display Points to be checked

Water cannot drain.

Illustration of a damaged pipe with a starburst effect and a 'X' symbol (no text or labels)

The lid is open.

Illustration of a hand using a tool to lift a circular object into a container (no text or symbols)

Spin or "Air Dry" is not possible.

Unstable or incline

Simple 3D illustration of a trash bin on a flat surface (no text or symbols)

Illustration of a hand holding a container with an arrow pointing to it, labeled with the number 2 (no text or symbols on the diagram itself)

Error Display Points to be checked
Water cannot be supplied.	1	2
		water supply
U99	With Child Lock set		Forcible drainage
Water has been forcibly drained.	1		WTWA
	1	2	3
Inspection is required.

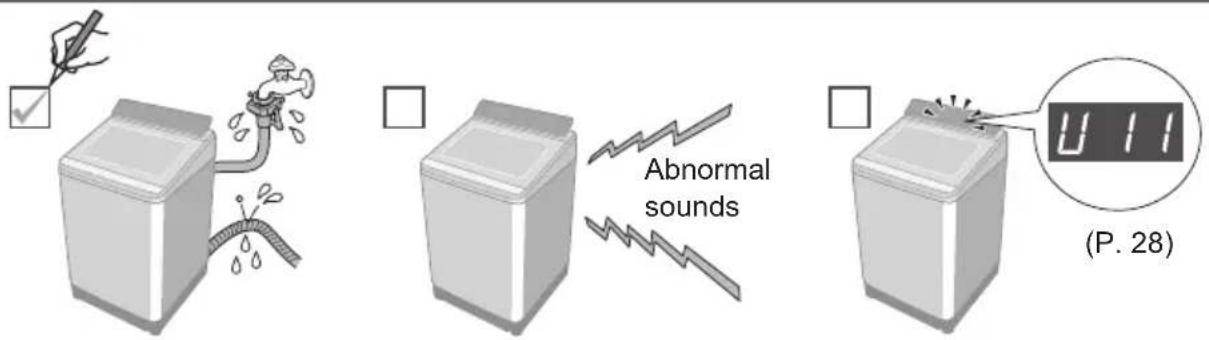

Troubleshooting

	Symptoms Points to be checked
Time	Indication increases or does not decrease.	Time indication is approximate.Remaining time is corrected during operation.
	Longer than the indication.	When clothes are uneven.	When the water drainage is not good.	When the water supply is not good.
	Operation passes the preset time.	The operation time may be longer.
Main unit	No operation	□ Check● Power failure □ Try● Close the lid. □ Press "Start". □ Try● During wash process □ After wash process
	Cannot change process settings (after start).

	Symptoms Points to be checked
Wash	Water is supplied while washing.	When water level drops.	When amount of laundry is large.
		Water is added automatically.
	The water leveltoo high	When laundry is wet.	When there is water in the tub before operation.
		The water level may be higher.
	too low	When clothes are light (synthetic fibre, etc.).
		The water level may be lower.
Rinse	Operation started with rinse, but water is not supplied.	When there is no water in the tub.	Water is supplied after spin.
		When there is water in the tub.	Water is supplied after water discharge and spin.
Spin	Spin changes to rinse.	If clothes are uneven, this appliances automatically corrects unevenness by rinse process.
	Rinse starts instead of spin.
	Irregular rotation	The tub rotation speed is adjusted to reduce vibration.

Troubleshooting (continued)

	Symptoms Points to be checked
Others	Power failure/Breaker off.	Operation will resume from where it stopped when the power is recovered.
		On
	has no effect.	□ Check □ TryMax. capacity (P. 11) □ Pretreatments (P. 7) Select according to the stain type. (P. 11)

Specifications

Model No. NA-FD175X3 NA-FD155X3
Rated voltage 220 - 240 V
Rated frequency 50 Hz
Rated power consumption 480 W
Standard water amount 103 L	96 L
Maximum mass of dry cloth	17.5 kg	15.5 kg
Product dimensions	681 mm (W) x 747 mm (D) x 1112 mm (H)
Product weight	48 kg
Pressure of tap water	0.01 - 1 MPa
No. Model NA-FD175X3 NA-FD155X3
Volitan terkadar 220 - 240 V
Ferkuensi terkadar 50 Hz
Jumlah air standard 103 L 96 L
Bertat maksimum kain kering	17.5 kg	15.5 kg
Ukuran produk	681 mm (W) x 747 mm (D) x 1112 mm (H)
Bertat produk	48 kg
Tekan air pair	0.01 - 1 MPA

Spesifikasi

Penyelsaisan Masalah (sambugan)

Diagram showing two 3D rectangular blocks with motion indicators, one leftward and one rightward (no text or symbols)

Two cylindrical objects with spiral patterns, connected by a double-headed arrow (no text or symbols)

Putaran tidak tetap

Two cylindrical containers with internal granular material, one showing a left-pointing arrow (no text or symbols)

Two identical containers with internal objects, connected by arrows indicating transformation (no text or symbols)

Bilas bermula bukan perah.

Appella pakian bash.

Terialu tingi

Pars air

Air diambah secara automatik.

Apaiba jumlah dobi besar.

Adebila paras air menurun.

Air dibekalkan semasa menuci.

Gefala Perkara perlu diperkesa

Penyelesian Masalah

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Paparan Ralat

Diagram of a computer monitor with attached tubing and faucet, showing no text or symbols

Sambungkan hos bekalan air

Technical line drawing showing a tool interacting with a mechanical component, no text or symbols present

Diagram of a device's internal structure showing a fan or ventilation grille mounted on a door panel (no text or symbols)

Simple line drawing of a bowl with a spoon and a ladder, no text or symbols present

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Technical illustration of a mechanical component with a magnified inset showing a hand holding a tool (no text or symbols present)

Illustration of a person pulling a cart with a pipe, emitting vapor or smoke from a device, and a cross symbol (no text or labels)

Illustration of a hand cleaning a rectangular object with sparkles around (no text or symbols)

Unit utama, pentup

Illustration of a person spraying water with a propeller, surrounded by sparkles and a numbered symbol (no text or labels)

Diagram of a vehicle interior with directional arrows indicating movement, no text or symbols present

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Tampa penapis

NOTA

Cross-sectional diagram of a microwave oven with internal components and a close-up view of the lid (no text or symbols)

Illustration of a hand inserting a spring into a panel, with an arrow indicating the direction (no text or symbols present)

3

2

L

Selaps setlap operasi

Penapis rumba!

Penyengqaraan

mutan semi-membekalkan air.

Diagram of hands performing a physical exercise with an upward arrow indicating movement (no text or symbols present)

Makes. kapsiti(H).

NOTA

Persediain: (H.7)

Stain Master

Pilihan Membash (sambungan)

Diagram showing a mechanical component with an upward arrow and a separate cylindrical component (no text or symbols)

* NA-FD175X3: 103 L / NA-FD155X3: 96 L

MaksimumJumlah air*

4.2 kg• Gentian sinelek 100 %• Kaps 100 %

Blanket (Selmut)

Illustration of a spray can with a handle and a separate arrow symbol (no text or labels)

NOTA

	59 L 1.0 kg
	66 L 3.0 kg
	74 L 5.0 kg

Delicates (Halus)

semasa operasi:

Pelembut

Determineclear

Illustration of a hammer crushing a surface with granular material (no text or symbols)

Detragen scrubuk

Two abstract geometric shapes: one with a curved line and the other a folded paper or book-like form, both on stands (no text or symbols)

Pelenitur

Diagram showing a food item inside a container with a warning symbol (no text or labels)

Diagram showing a hand holding a device with a cross mark, no text or symbols present

Detragen

Technical line drawing of a mechanical device with a circular component and internal components, no visible text or symbols

● Mematuhi label penjaguan pakian

Illustration showing hands washing a bowl and cleaning a paper with a leaf (no text or symbols)

Diagram showing three objects: a woven basket, a folded notebook, and a flat object with arrows pointing to it (no text or symbols present)

Diagram showing two stages of a mechanical or fluidic component with an arrow indicating transformation (no text or symbols present)

Diagram showing two views of a garment pattern with arrows indicating transformation (no text or symbols)

Illustration of a computer with an arrow indicating rotation, accompanied by icons of a book, a fish, and a crossed-out 'X' symbol (no text or labels)

Diagram showing a beam interacting with a sun and an X symbol (no text or labels)

Illustration of two hoses with decorative sparkles (no text or symbols)

Illustration of a pipe valve and a computer monitor with sparkles (no text or symbols)

Tutup pili air. Guantanamo set hos baru.

Bolch menyebabkan kebocoran air.

Illustration of hands holding a folded paper or document with a large 'X' symbol below (no text or symbols present)

Three-step diagram showing a 3D object with a star-like pattern inside, before and after disassembly, and a cross symbol (no text or labels)

Jangan pantat atau letakkan berda di atas mesin bash.

Berhati-hati aqar jari anda tidak tersepit.

Illustration of various symbols including a warning sign, lightbulb, toilet, and cross (no text or labels)

Illustration of hands performing a medical procedure with sparkles (no text or symbols)

Two diagrams showing a hand holding an object above a screen, with a cross mark below (no text or symbols)

Illustration of a hand holding a bulb above a wall with an arrow and a cross symbol (no text or labels)

Illustration of a hand holding a small object with a large 'X' symbol nearby (no text or symbols present)

Illustration of a hand pressing down on a device with a spiral arrow and lightning bolt (no text or symbols)

Jangan sentuh tab sehingga ia betul-betul berhenti.

Illustration of a person falling into a box with a 'X' symbol, no text or symbols present

Illustration of a modern open-chamber refrigerator with a circular vent and control panel (no text or symbols visible)

NA-FD155X3

No. Model NA-FD175X3

(Penqunuan Rumah)

Mesin Bash Automatik Sepenuhya

Arahan Pengendalian & Pemasangan
