SPECIFICHE TECNICHE - TECHNICAL SPECIFICATIONS

Potenza max / Max Power	4 x 50W (8 Ohm)
Potenza RMS / RMS Power	4 x 30W (8 Ohm)
Alimentazione / Power supply	AC~110 - 240V - 50/60Hz
Funzioni / Functions	USB, Bluetooth, FM
Controllo toni / Tone control	Bassi / Bass 100 Hz (± 6 dB);Alti / Treble 10k Hz (± 6 dB)
Impedenza in uscita / Output impedance	4 · 8 · 16 Ohm
Ingressi / inputs	2 x line, 1 x phono, 2 x MIC,1 x DAC, 1 x optical, 1 x coaxial
Uscite / outputs	4 x speaker OUT, 1 x Subwoofer OUT
THD	<0,1% (1W)
Rapporto segnale/rumore - S/N ratio	Aux>75dB, MIC>72dB
Compatibilità files / Files compatibility	MP3, WMA, FLAC, APE (lossless)
Bluetooth (versione) / Bluetooth (version)	5.0 (2.4 GHz)
Risposta in frequenza / Frequency response	20 Hz - 20 KHz (+/- 3dB)
Alimentazione telec. / Remote control power supply	2 x AAA (1,5V) - non incluse/ not included
Dimensioni / Dimensions	270 x 65 x 175 mm
Peso / Weight	1,36 Kg

CE

Hereby, KARMA ITALIANA SRL declares that the amplifier with bluetooth AM S450 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.karmaitaliana.it.

IT

EN

The manufacturer, in order to improve its products, reserves the right to modify their characteristics whether technical or aesthetic, at any time and without notice.

ITALIANO

GRAZIE PER IL VOSTRO ACQUISTO

The product you have purchased is the result of careful planning by specialized engineers. High quality materials were used for its construction, to ensure its functioning over time.

The product is manufactured in compliance with the strict regulations imposed by the European Union, a guarantee of reliability and safety.

Please read this manual carefully before starting using the device in order to take advantage of its full potential.

Hoping that you will be satisfied of your purchase, we thank you again for your trust in our brand and we invite you to visit our website www.glemm.eu where you will find the whole range of our products, along with useful information and updates.

CAUTIONS AND WARNINGS

• Read and follow strictly the instructions contained in this manual.
• Keep this manual for future reference and include it if you give the product to another user.
• This device works with dangerous 110 - 240V mains power. Do not open, do not disassemble and don't try to operate inside it. In case of wrong use an electric shock may occur.
• The product is conceived for professional use. Its installation must be carried out exclusively by specialized technicians, skilled in electric and audio systems. In case of wrong installation or connections, the manufacturer doesn't take any responsibility for damages to people or objects.
  • Make sure that your power outlet voltage matches with the product's voltage. A wrong voltage would seriously damage the fixture.
• Before making any connection with other devices, check that all the fixtures are disconnected from the power source and that all the volumes are set on minimum.
• The product is not suitable for outdoor use. To avoid the risk of shortcircuits don't expose it to high temperatures (above 40°), rain or humidity.
  • Do not allow flammable liquid, water or metal objects to enter the product.
  • Don't touch the product with wet hands.
• Do not place any recipients filled with liquids, such as vases, on top of or directly next to the appliance.
  • Install the product in a stable and ventilated position, far from heat sources and don't obstruct the air vents.
  • Use the fixture and its controls with due accuracy, avoiding falls, vibrations or impacts.
• In the event of a serious operating problem, stop using the product immediately. Never try to repair it by yourself, but contact the authorized technical service center. Repairs carried out by unskilled persons could lead to serious damages both to the fixture and to people.
  • Do not turn the product on and off at short intervals, it may reduce the life of the device.
• Disconnect the unit from power when it is not used.
• Never disconnect the product from the power source by pulling on the cord. Do not cut, kink, otherwise damage nor modify the power supply cord and periodically check that it is in good condition.
  • Wait for the product to cool before cleaning or maintenance.
  • To clean the product, use only a dry or slightly damp cloth, avoiding solvents or detergents of any kind.
• Keep away from children's reach.

• To prevent possible hearing damage, do not listen at high volume levels for long periods.
• Class II appliance with double insulation. No safety connection to ground is required.

WARNING

RISK OF ELECTRIC SHOCK, DO NOT OPEN

WARNING: to reduce the risk of electric shock, do not remove the cover. No serviceable parts for the user inside. For servicing refer to qualified personnel.

This symbol alerts you of the presence of important operating and maintenance instructions, in the manual or in the documentation accompanying the product

This symbol alerts you to the presence of uninsulated dangerous voltage within the product's enclosure that might be of sufficient magnitude to constitute a risk of electric shock. Do not open the product's case.

The CE mark indicates that this product complies with the applicable European directives and their related standards. Compliance documentation in complete form is available at the company Karma Italiana Srl

Directive 2012/19/UE regarding electric and electronic equipment waste (WEEE).

The symbol of the crossed-out dustbin indicates that the product at the end of its life must be collected separately from other waste. The user must, therefore, confer the fixture complete with all the essential components to an authorized disposal center for collection of electronic and electrical waste, or return it to the dealer when buying new equipment of equivalent type, at a rate of one to one, or one to zero if external dimension is less than 25cm. Appropriate separate collection to send the decommissioned equipment to recycling, treatment and environmentally compatible disposal helps to prevent negative impact on the environment and human health and promotes recycling of the materials making up the product. In Italy illegal dumping of the product by the user entails the application of administrative sanctions pursuant to Legislative Decree n. 49 (14/03/2014).

The remote control is powered by batteries subject to European Directive 2013/56/EU, which cannot be disposed of with normal domestic waste. Find out about the local regulations regarding the separate collection of batteries: a correct disposal allows to avoid negative consequences for environment and health.

WARRANTY CONDITIONS

The product is covered by warranty according to current national and European regulations. For detailed warranty conditions and RMA requests please refer to our website: www.karmaitaliana.it or www.glemm.eu.

• The warranty covers manufacturing defects and faults occurred in the first 2 years from the date of purchase. In case of purchase with invoice, the warranty is limited to 1 year.
  • Damages caused by negligence or wrong use of the device are not covered by warranty.
  • The warranty is no longer effective if the item is modified or disassembled by not authorized people.
  • This warranty doesn't necessarily envisage the product's replacement.
• External components, batteries, knobs, switches and any removable or subject to wear and tear parts are excluded from warranty.
• Shipment for the return of faulty items is at expense and risk of the owner.
• For all intents and porpuses the warranty is effective only upon exhibition of the invoice or of the purchase receipt.
• If you send the product for repair, it must be shipped with complete original packaging: we therefore recommend to save it.

We also suggest to register your product on our website www.karmaitaliana.it, after signing in to access the reserved area. In this way you will have the possibility to keep track of the warranty validity and to receive updates on our items.

INTRODUCTION

This amplifier has been designed for use in houses, shops, offices, schools etc...

It is endowed with protection systems preventing damages caused by short circuits, overheating and overloads and making it safe and reliable..

It features several inputs, both of line and mic type, with RCA, 3.5mm and Toslink sockets.

It supports 4 -8 - 16 Ohm connections and is equipped with a sophisticated multimedia module to play tracks from USB, receive audio via bluetooth and play FM radio signals.

LOW IMPEDANCE SPEAKER CONNECTION

When using low impedance speakers the main rule to be respected is that the total impedance of the speakers must be compatible with the impedances managed from the amplifier to which the speakers will be connected (generally 4, 8, 16Ω), If you use more than one speaker, the value of impedance will be added up or divided depending on the type of connection (in series or in parallel). If you connect only one speaker you have to consider the impedance of the speaker itself.

Here are two examples of connection:

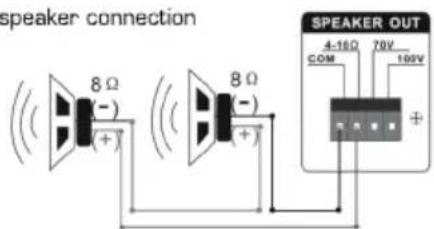

A. Parallel speaker connection

PARALLEL WIRING

The impedances are divided. In this example the 2 x 8Ω speakers can be connected to an amplifier suitable for 4Ω connections.

8 Ω/2 = 4 Ω [Total impedance]

B. Series speaker connection

SERIES WIRING

The impedances add up. In this example the 2 x 8Ω speakers can be connected to an amplifier suitable for 16Ω connections.

8 Ω × 2 = 1 6 Ω ( Total impedance )

If you use few speakers it is easy to reach the 4, 8, 16Ω impedance requested by common amplifiers, but when you use several speakers it is necessary to choose a series/ parallel mixed wiring, which will allow to obtain the desired impedance.

Here is an example:

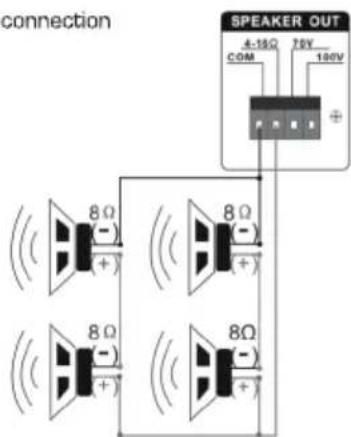

c. Mixed speaker connection

SERIES / PARALLEL MIXED WIRING

In this example the impedance of the 8Ω speakers is added (being connected in series). Then the 2 groups of speakers, connected in parallel, halve their impedance to reach a total impedance of 8Ω again.

8 Ω × 2/2 = 8 Ω ( Total impedance )

FRONT PANEL

BACK PANEL

OPERATING INSTRUCTIONS

• Connect your microphones to the MIC front sockets (5) using standard 6,3mm jack connectors.
• The RCA sockets (18-19) are intended for connection of external devices to provide a line signal (example: a CD player), while the socket (17) is specific for a turntable.
• It is possible to connect an optical signal coming from decoders, TVs, amplifiers etc to the toslink socket (21).
  • The RCA (22) socket is intended for a coaxial external signal.
• The DAC (20) socket can be used to connect a computer to exchange high quality audio signals.
• Connect the 8 Ohm speakers to the sockets (13-14) taking care to respect the polarities indicated for the left and right channels. Make sure that the speakers have the correct power. Speakers with less power than the amplifier could be damaged. Ask for advise to your trusted retailer.
  • Plug the FM antenna into the specific socket (15).
  • An amplified subwoofer can be connected to the back socket (16).
• If you want to play tracks from a USB stick, you can connect it to the specific socket (2). It is possible to select and control the tracks by means of the key (8-9-10) under the display.
• Once you have connected all the fixtures, insert the power cable into the socket (12) and connect its plug to a power outlet with appropriate voltage.
  • Turn on your amplifiers by pressing the POWER button (1) on the front side.
• Adjust the volume by means of the rotating knob (4).
  • Use the INPUT (6) button to select the audio signal's source.
• Thanks to the button A/B [7] it is possible to activate the speakers of zone "A", zone "B" or both.
• By pressing repeatedly the MENU button (11) it is possible to select the settings to be adjusted by means of the knob (4) (bass & treble, mic volume, echo effect etc...). The display (3) will show the following indications:

Treble

Bass

MIC Volume

MIC Treble

MIC Bass

MIC Eco

REMOTE CONTROL

The included remote control allows to adjust from a distance (max 6m) the amplifier's settings, such as on/off, music source selection, volume and tracks playback.

Some functions can be managed only from the remote control. Below is the description of some specific keys:

STOP (A): With a short press all the amplifier's volumes will be muted. To restore them press this button again.

ENGLISH

VOCAL CUT (B): If pressed it removes the voice from the tracks allowing to sing over music. This function tries to detect the frequencies usually attributed to human voice, but the result might be not perfect.

RESET (C): The amplifier saves the last use settings, which will be maintained when turned on again. If you want to reset the factory settings it is necessary to press this button.

REPEAT (E): If pressed it allows to repeat a track or all the tracks.

MIC PRI (D): It activates the microphone priority. The music volume will be reduced when speaking and then automatically restored.

REC (G): Pres to record your voice on a USB device

The functions of the other keys of the remote control can also be performed by means of the buttons on the amplifier. In case of malfunction or too short operating range check the batteries charge and if necessary replace them.

BLUETOOTH

Press repeatedly the INPUT key (6) until you select the bluetooth function. Search for the amplifier (AM S450) in your smartphone or tablet bluetooth menu. Once paired the speaker will play the audio coming from your device.

FM RADIO

Press repeatedly the INPUT key (6) until you select the radio function. Press and hold the PLAY key to start scanning and save the stations. Once the scan is completed choose the desired station using the track selection keys. For a better reception insert a specific antenna into the back connector (15).

USB

The amplifier supports USB devices with a memory up to 32GB. The pen must be in FAT32 format. Once it is plugged into the USB port, playback will automatically start. The device can be used also to save the recordings made by means of the remote control. The supported formats are MP3, WMA, FLAC and APE also with "lossless" quality.

GLEMM
