Escape (2011) - Motorhome Swift - Free user manual and instructions

Product Type	Motorhome
Brand	Swift
Model	Escape (2011)
Overall Length	6.30 m (20 ft 8 in)
Overall Width (mirrors folded)	2.24 m (7 ft 4 in)
Overall Height	2.94 m (9 ft 8 in)
Maximum Technical Permissible Laden Mass (MTPLM)	3300 kg
Mass in Running Order	2805 kg
Number of Berths	4
Designated Passenger Seats	1
Engine	Fiat 2.2L MultiJet, 100 bhp @ 2900 rpm
Fuel Tank Capacity	90 litres
Fresh Water Tank Capacity	65 litres
Waste Water Tank Capacity	68 litres
Gas Bottle Capacity	2 x 6 kg CalorLite
Recommended Maximum Trailer Weight	1600 kg
Chassis	Fiat Chassis (SWB)
Wheelbase	3.45 m (11 ft 4 in)
Thermal Insulation Grade	Two
Electrical System	12V and 230V, Sargent PSU C460
Water Heater Capacity	10 litres

Frequently Asked Questions - Escape (2011) Swift

How do I replace a rear stop/tail lamp bulb on my Swift Escape 2011?

Access is from the front via the lens. Remove the 2 screws from each light lens, withdraw the lens, and release the bulb by applying slight pressure and twisting. The bulb is a P21/5W bayonet fitting. Ensure orientation is correct (brake light should be brighter than tail light). Reverse to reassemble.

What is the towing capacity of the Swift Escape 622?

The recommended maximum trailer weight for the Escape 622 (100 MJ 2.2L engine, SWB chassis) is 1600 kg. The gross train weight is 4900 kg. Ensure the payload is reduced accordingly to not exceed MTPLM and axle loads.

Where are the jacking points located on the Escape?

Jacking points for both High-Line and Low-Line models are indicated in the manual with a diagram. They are located on the chassis. Refer to the Jacking Points section in the manual for precise locations.

What type of gas bottles does the Swift Escape use?

The recommended gas bottles are 2 x 6 kg CalorLite (or equivalent). The manual states these are the recommended sizes.

How do I check the fresh water tank capacity?

The fresh water tank capacity for the Escape is 65 litres. The waste water tank is 68 litres, and the water heater holds 10 litres. Refer to the Capacities table in the manual.

What is the maximum payload I can carry in my Swift Escape?

The Maximum User Payload for the Escape 622 is 495 kg (MTPLM 3300 kg minus Mass in Running Order 2805 kg). This includes passengers, essential habitation equipment, optional items, and personal effects. Do not exceed the MTPLM.

How do I interpret the wiring diagrams in the manual?

The manual includes diagrams for road lighting, consumer circuits (roof and floor), power circuits, and 230V circuits. Each refers to the Sargent PSU C460. Cable colours are coded (e.g., Y/U = Yellow with Blue stripe). Follow the flowcharts and connector labels carefully.

What engine options are available for the Escape 2011?

Depending on the model, engines include the Fiat 2.2L MultiJet 100 bhp (standard for 622, 624, 664, 686, 696) and the Fiat 2.3L MultiJet 130 bhp (optional for 686 and 696). Both are diesel.

How do I maintain the exterior of my Swift Escape?

Regularly wash with mild detergent and water. Check seals and roof lights for leaks. The manual does not provide extensive maintenance, but common motorhome care includes waxing and inspecting for damage. Refer to the Swift Group website for more tips.

Where can I download the full manual for the Swift Escape 2011?

The manual is available for free download in PDF format from notice-facile.com or the Swift Group website. It contains 20 pages covering specifications, capacities, wiring diagrams, and bulb replacement instructions.

USER MANUAL Escape (2011) Swift

Escape Motorhomes, Dunswell Road,

Cottingham, East Yorkshire HU16 4JS.

Tel: [phone] Fax: [phone]

email: [e-mail]

website: www.britishescape.co.uk

A MEMBER OF THE SWIFT GROUP

1091964 Issued March 2011

Exterior view of a white Escape 622 remote car with open roof, parked in front of a modern 'escape BY SWIFT' logo (no signage on vehicle itself)

Specification, wiring diagrams and bulb chart

Plain gray square with a white rounded border (no text or symbols)

contents

Specifications 2

Capacities 3

Towing Capabilities 4

Jacking 5

Wiring Diagrams 6

Bulb Chart 12

Bulb Replacement 14

Specifications

Model Escape 622 Escape 624 Escape 664 Escape 686 Standard Escape 686 Optional Escape 696 Standard Escape 696 Optional
Roof Profile High Line High Line Low Line		High Line	High Line
Engine	Flat '100 MultiJet' diesel	Flat '100 MultiJet' diesel	Flat '100 MultiJet' diesel	Flat '100 MultiJet' diesel	Flat '130 MultiJet' diesel	Flat '100 MultiJet' diesel	Flat '130 MultiJet' diesel
Fuel tank capacity	90 litres	90 litres	90 litres	60 litres	60 litres	60 litres	60 litres
Engine Capacity	2198cc	2198cc	2198cc	2198cc	2287cc	2198cc	2287cc
Engine Power	100bhp @ 2900rpm	100bhp @ 2900rpm	100bhp @ 2900rpm	100bhp @ 2900rpm	130bhp @ 3600rpm	100bhp @ 2900rpm	130bhp @ 3600rpm
Torque	250Nm @ 1500rpm	250Nm @ 1500rpm	250Nm @ 1500rpm	250Nm @ 1500rpm	320Nm @ 2000rpm	250Nm @ 1500rpm	320Nm @ 2000rpm
Chassis	Fiat Chassis	Fiat Chassis	Fiat Chassis	Fiat Chassis		Fiat Chassis
Wheel base	3.45m/11'4"	3.45m/11'4"	3.80m/12'6"	4.04m/13'3"		4.04m/13'3"
Designated Passenger Seats	1	3	3	5		5
Berths (sleeping positions)	4	5	4	6		6
Overall Length (no ladder)	6.30m/20'8"	6.30m/20'8"	6.72m/22'1"	6.92m/22'8"		6.92m/22'8"
Overall Width (mirrors folded)	2.24m/7'4"	2.24m/7'4"	2.24m/7'4"	2.24m/7'4"		2.24m/7'4"
Overall Height	2.94m/9'8"	2.94m/9'8"	2.85m/9'4"	2.94m/9'8"		2.94m/9'8"
Maximum Technical Permissible Laden Mass (A)	3300kg	3300kg	3500kg	3500kg		3500kg
Mass in Running Order (3)†	2805kg	2830kg	2850kg	2954kg	2969kg	2956kg	2971kg
Maximum User Payload (A-B)	495kg	470kg	650kg	546kg	531kg	544kg	529kg
Unladen Weight	2580kg	2605kg	2625kg	2752kg	2767kg	2755kg	2770kg
Essential Habitation Equipment	9kg	9kg	9kg	9kg		9kg
Thermal Insulation Grade	Two	Two	Two	Two		Two
Bod Sizes
Front Double		1.89m/6'2"/1.22m/4'0"	2.08m/6'10"/1.24/0.93m/4'1'/3'1"	1.84m/6'0"/1.22m/4'0"		2.08m/6'10"/1.36m/4'6"
Front Neerside Single		1.85m/6'1"/0.08m/2'3"
Front Offside Single		1.89m/6'2"/0.92m/3'0"		1.84m/6'0"/0.92m/3'0"		1.84m/6'0"/0.92m/3'0"
Rear Double	2.08m/6'10"/1.76m/5'9"		1.85m/6'1"/1.25m/4'1"	2.08m/6'10"/1.34m/4'5"
Rear Neerside Single	1.89m/6'2"/0.68m/2'3"
Rear Offside Single	1.76m/5'9"/0.68m/2'3"
Rear Bunk (Upper)						1.96m/6'5"/0.75m/2'6"
Rear Bunk (Lower)						1.93m/6'4"/0.73m/2'5"
Overcab Bed	2.08m/6'10"/1.37m/4'6"	2.08m/6'10"/1.37m/4'6"		2.08m/6'10"/1.37m/4'6"		2.08m/6'10"/1.37m/4'6"

NOTE: 1. The Maximum User Payload includes:
a) the conventional load (this is the allowance for passengers)
b) essential habitation equipment (items and fluids required for safe and proper functioning of habitation equipment) c) optional equipment (items available from the manufacturer over and above the standard specification)
d) personal effects (those items not covered by the above)
2. The Mass in Running Order is the mass of the unladen vehicle including a 75kg allowance for the driver plus engine coolants and 90% of the fuel tank, water tank and gas capacity.
3. PLEASE TAKE CARE TO ENSURE THAT YOU HAVE ALLOWED FOR THE MASSES OF ALL ITEMS YOU INTEND TO CARRY IN THE MOTOR CARAVAN,
e.g. passengers, optional equipment, essential habitation equipment and personal effects, such as clothing, food, pets, bicycles, sailboards, sports equipment etc.
4. WARNING - UNDER NO CIRCUMSTANCES SHOULD THE MAXIMUM TECHNICAL PERMISSIBLE LADEN MASS OF THIS MOTOR CARAVAN BE EXCEEDED.

Capacities

Water Tank Capacities

	Fresh Water Tank	Waste Water Tank	Water Heater	Toilet Tank (Flushing)
Escape 65 litre 68 litre 10 litre 0 litre

Gas Capacities

	Capacity
Escape	2 x 6kg CalorLite

The above are recommended gas bottle sizes

NOTICE

For technical data on the base vehicle please refer to manufacturer's handbook

Towing Capabilities

Escape Towing Capabilities

Model Engine / Chassis MTPLM Permissible			Front Axle Load	Permissible Rear Axle Load	Recommended Maximum Trailer Weight	Gross Train Weight
Escape 622 100 MJ (2.2L) /SWB / ABS 3300kg 1750kg 1900kg 1600kg 4900kg
Escape 624	100 MJ (2.2L) /MWB / ABS	3300kg	1750kg	1900kg	1600kg*	4900kg
Escape 664 130MJ (2.3L) / MWB / ABS 3500kg 1850kg 2000kg 1600kg 5100kg
Escape 686	100 MJ (2.2L) /MWB / ABS	3500kg	1850kg	2000kg	1600kg*	5100kg
Escape 686	130MJ (2.3L) / MWB / ABS	3500kg	1850kg	2000kg	1600kg*	5100kg
Escape 696	100 MJ (2.2L) /LWB / ABS	3500kg	1850kg	2000kg	1600kg*	5100kg
Escape 696	130MJ (2.3L) / LWB / ABS	3500kg	1850kg	2000kg	1600kg*	5100kg

* With this vehicle configuration it will be necessary to reduce the payload carried inside the van when towing to ensure that the MTPLM and maximum axle loads are not exceeded.
To ensure adequate road holding, the load on the front axle, under all conditions, must not be less than 40% or more than 70% of the total weight.
Care must be taken when distributing loads. The loadings and weights above are maximums and must not be exceeded under any circumstances.

CAUTION: When fitting a towbar, it must meet certain minimum requirements as specified by Type Approval Regulations. The bar will have marked on it the approval standard (94/20/EC) and the maximum download, or noseweight, that it can accept. It must fit the manufacturer's approved mounting points and must not obscure the towing vehicle's number plate.

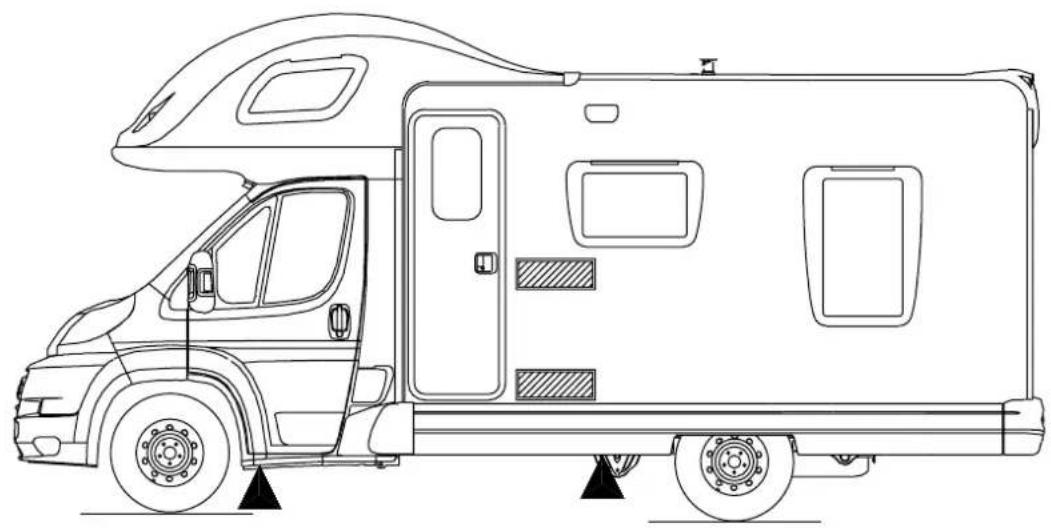

Jacking Points

escApe

Line drawing of a two-wheeled vehicle with front and side views, no text or symbols present

Jacking Points for High-Line and Low-Line: ▲

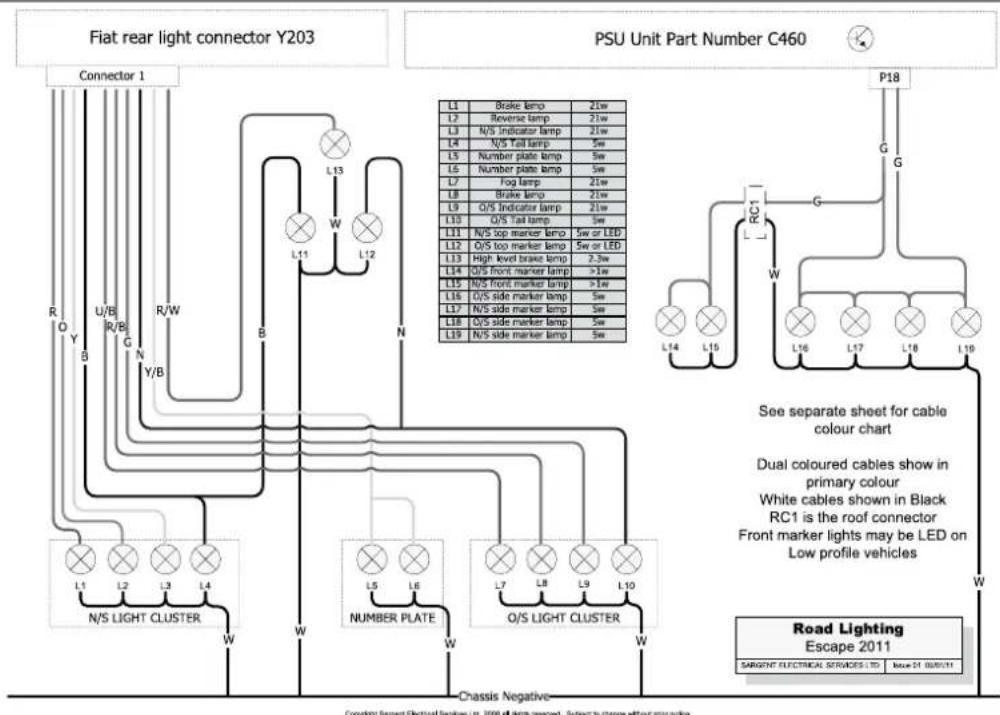

Wiring Diagrams

RoAd IIGHtInG

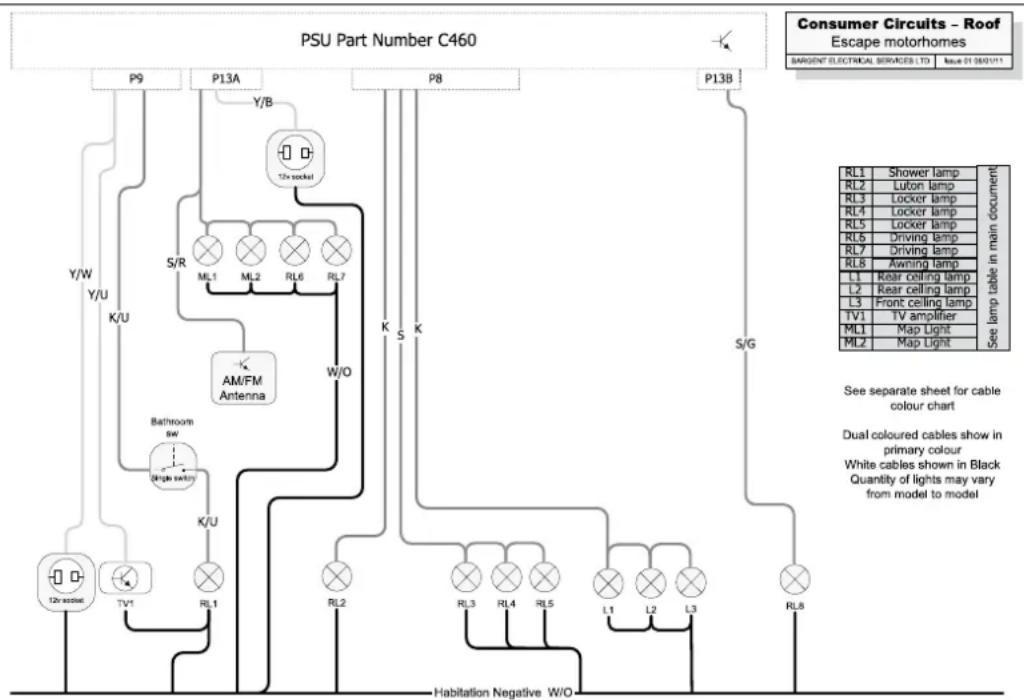

Wiring Diagrams

consUmeR cIRcUlts - RooF

Copyright: Sargent Electrical Services Ltd., 2006 all rights reserved. Subject to change without prior notice,

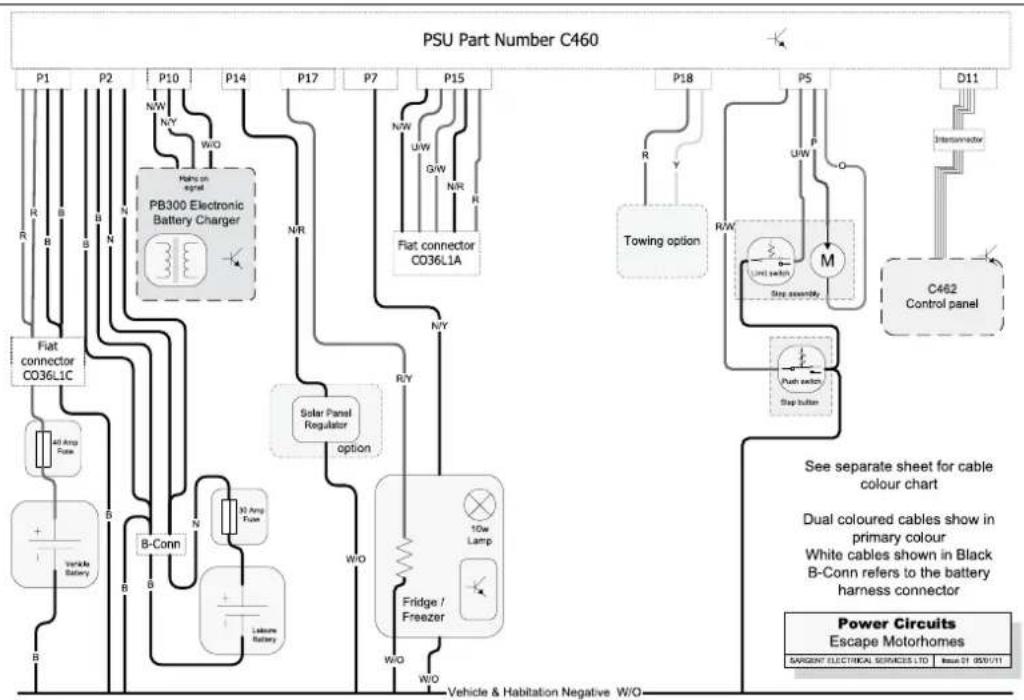

Wiring Diagrams

poWeR cIRcUIts

    B --> K["N/W"]
    B --> L["N/R"]
    C --> M["B/W"]
    C --> N["G/W"]
    D --> O["N/W"]
    D --> P["N/R"]
    E --> Q["N/W"]
    E --> R["N/R"]
    F --> S["P/B300 Electronic Battery Charger"]
    G --> T["Flat connector CO36L1A"]
    H --> U["Towing option"]
    I --> V["R/W"]
    I --> W["M"]
    J --> X["Control panel"]

    K --> Y["Flat connector CO36L1C"]
    L --> Z["40 Amp Fuse"]
    M --> AA["Vehicle Battery"]
    N --> AB["B-Conn"]
    O --> AC["30 Amp Fuse"]
    P --> AD["Lakem Battery"]

    Q --> AE["Solar Panel Regulator option"]
    R --> AF["10W Lamp"]
    S --> AG["Fridge / Freezer"]
    T --> AH["Step assembly"]
    U --> AI["Step button"]

    V --> AJ["Step switch"]
    W --> AK["Step switch"]

    AB --> AL["W/O"]
    AC --> AM["W/O"]

    AD --> AN["W/O"]

    AE --> AO["W/O"]

    AF --> AP["W/O"]

    AG --> AQ["W/O"]

    AH --> AR["W/O"]

    AI --> AS["W/O"]

    AJ --> AT["W/O"]

    AK --> AU["W/O"]

    AL --> AV["W/O"]

    AM --> AW["W/O"]

    AN --> AX["W/O"]

    AO --> AY["W/O"]

    AP --> AZ["W/O"]

    AQ --> BA["W/O"]

    AR --> BB["W/O"]

    AS --> BC["W/O"]

    AT --> BD["W/O"]

    AU --> BE["W/O"]

    AV --> BF["W/O"]

    AW --> BG["W/O"]

    AX --> BH["W/O"]

    AZ --> BI["W/O"]

    BA --> BJ["W/O"]

    BB --> BK["W/O"]

    AC --> BL["W/O"]

    AD --> BM["W/O"]

    AE --> BN["W/O"]

    AF --> BO["W/O"]

    AG --> BP["W/O"]

    AH --> BQ["W/O"]

    AI --> BR["W/O"]

    AJ --> BS["W/O"]

    AK --> BT["W/O"]

    AL --> BU["W/O"]

    AM --> BV["W/O"]

    AN --> BW["W/O"]

    AO --> BX["W/O"]

    AP --> BY["W/O"]

    AQ --> BZ["W/O"]

    AB --> CA["W/O"]

    AC --> CB["W/O"]

    AD --> CC["W/O"]

    AE --> CD["W/O"]

    AF --> DD["W/O"]

    AG --> DE["W/O"]

    AH --> DF["W/O"]

    AI --> DG["W/O"]

    AJ --> DH["W/O"]

    AK --> DI["W/O"]

    AL --> DJ["W/O"]

    AM --> DK["W/O"]

    AN --> DL["W/O"]

    AO --> DV["W/O"]

    AP --> DV

    AH --> DV

    AI --> DV

    AJ --> DV

    AK --> DV

    AL --> DV

    AN --> DV

    AO --> DV

    AP --> DV


    AH --> DV

    AI --> DV

    AJ --> DV

    AK --> DV


    AL --> DV

    AN --> DV

    AO --> DV


    AP --> DV


    AH --> DV


    AI --> DV


    AJ --> DV


    AK --> DV


    AL --> DV


    AN --> DV


    AO --> DV


    AP --> DV


    AH --> DV


    AI --> DV


    AJ --> DV


    AK --> DV


    AL --> DV


    AN --> DV


    AO --> DV


    AP --> DV


    AH --> DV


    AI --> DV


    AJ --> DV


    AK --> DV


    AL --> DV


    AN --> DV


    AO --> Div
        Div <--> Div
        Div <--> Div
        Div <--> Div
        Div <--> Div
        Div <--> Div
        Div <--> Div
        Div <--> Div
        Div <--> Div
        Div <--> Div
        Div <--> Div
        Div <--> Div
        Div <--> Div
        Div <--> Div
        Div <--> Div
        Div <--> Div
        Div <--> Div
        Div <--> Div
        DIV <--> Div
        DIV <--> Div
        DIV <--> Div
        DIV <--> Div
        DIV <--> Div
        DIV <--> Div
        DIV <--> Div
        DIV <--> Div
        DIV <--> Div
        DIV <--> Div
        DIV <--> Div
        DIV <--> Div
        DIV <--> Div
        DIV <--> Div
        DIV <--> Div
        DIV <--> Div
        DIV <--> Div

Copyright Sargent Electrical Services Ltd, 2006 all rights reserved. Subject to change without prior notice.

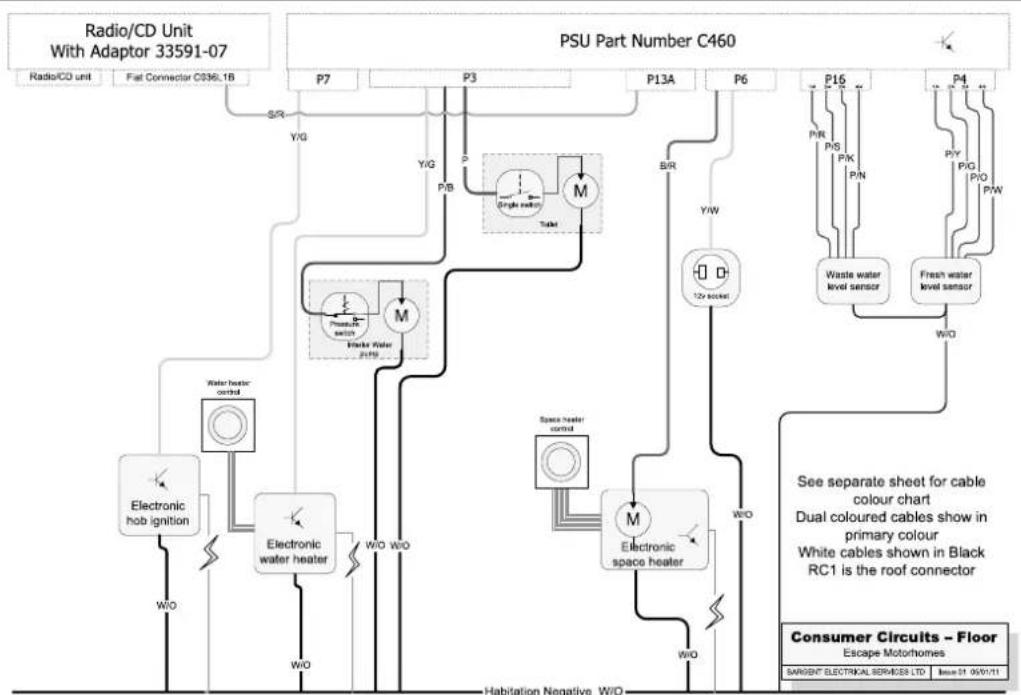

Wiring Diagrams

consUmeR cIRcUlts - FlooR

Copyright Berger Electrical Services Ltd, 2008 rights reserved. Subject to change without provisions.

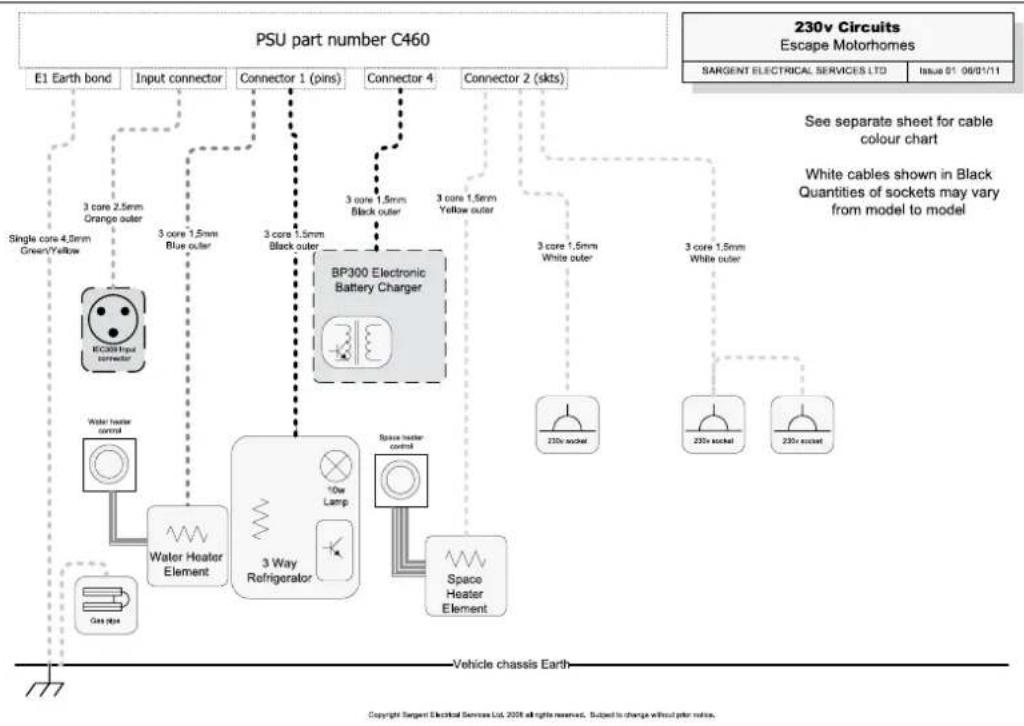

Wiring Diagrams

230v cIRcUlts

Wiring Diagrams

cAble coloUR cHART

Y/U

Example

Yellow cable with Blue stripe

Cable Colour Chart

Swift Group 2011

SARGENT ELECTRICAL SERVICES LTD

Issue 01 05/01/11

12v Cable Colours

B	BLACK
N	BROWN
R	RED
O	ORANGE
Y	YELLOW
G	GREEN
U	BLUE
P	PURPLE
S	SLATE GREY
W	WHITE
K	PINK

230v Cable Colours

B	BLACK
N	BROWN
W	WHITE
O	ORANGE
Y	YELLOW
G	GREEN
U	BLUE

Copyright Sargent Electrical Services Ltd, 2006 all rights reserved. Subject to charge without prior notice.

Bulb Chart

Road Lights
Application Bulb Reference Bulb Rating
Front marker light LED complete lamp 12v < 1w
Front marker light W5W 12v 5w
Side marker light W5W 12v 5w
Rear high level marker light C5W 12v 5w
High level stop lamp T5/13.5 12v 2.3w
Rear indicator lamp P21 12v 21w
Rear stop / Tail lamp P21/5W 12v 21w/5w
Rear reverse lamp P21 12v 21w
Rear fog lamp	P21 12v 21w
Number plate light	C5W 12v 5w
Interior / Other
Locker downlights	GU4/MR11 Dichroic bulb	GU4 12v 10w
Ceiling lights, twin bulb	Halogen capsule bulb	G4 12v 10w
Ceiling lights, single bulb Halogen capsule bulb	G4 12v 10w
Luton Lamp	Halogen capsule bulb	G4 12v 10w
China locker lamp	300mm Fluorescent bulb	12v 8w
Bunk reading lamp	Halogen capsule bulb	G4 12v 5w
Awning lamp	Astro 500mm LED complete unit	12v 2.2w LED

Note: Not all lights feature on all models within a range

Bulb Replacement

escApe RoAd IIGHtInG, coAcH-bUllt body moUnted IAmps

stop / tAll, IndlcAtoR, FoG And ReveRse Iamps

• Bulb access is from front / via lens of each lamp
• Remove 2x screws from each light lens and withdraw lens
• Bulbs are a bayonet fitting – apply slight pressure on bulb towards light fitting, and twist to release
• Reverse procedure to re-fit bulb and lens.
• Take care when replacing stop/tail lamp bulb, that orientation of bulb is correct - to check, brake light operation should be brighter than tail lamp operation.

UppeR ReAR slide position Iamps (Red / cleAR lens)

• Lens is removed from base to access bulb

• Carefully insert small flat bladed screwdriver into recess in lower edge of lamp base. Apply pressure to release locking barb.

• Lift lens upwards and away from lamp base, lower edge first

• Lever bulb out of retaining clips
• Reverse procedure to re-fit bulb and lens

HIGH level bRAke lAmp

• Remove 2x screws at either end of lamp, and withdraw lamp away from cowl
• Harness connects via a connector with retention barb into the rear of the lamp. With finger pressure or using a small screwdriver release the barb by pushing it toward the harness, and unplug the harness from the lamp
• Push fit connector back into replacement lamp, and secure lamp to motorhome body with 2x screws
• Lamp retaining screws are fixed into a rubber sleeve with a threaded insert, often known as a rawlnut. If lamp has been removed / re-fitted several times the rubber sleeve may need replacing, these are available through your dealer

sIde mARkeR / position Iamps

• Bulb access is from rear of lamp
• Check first within motorhome if rear of lamp is visible
• If rear of lamp is visible:
• Harness plugs into bulb holder - twist bulb holder relative to lamp body to release bulb holder from lamp body
• Bulbs are push fit into bulb holder - pull bulb directly away from holder to release
• Reverse procedure to replace bulb in holder, holder in lamp and lamp onto motorhome body
• If rear of lamp is not visible:
• Remove 2x screws from light fitting, and withdraw whole fitting from motorhome body
• Harness plugs into bulb holder - twist bulb holder relative to lamp body to release bulb holder from lamp body
• Bulbs are push fit into bulb holder - pull bulb directly away from holder to release
• Reverse procedure to replace bulb in holder, holder in lamp and lamp onto motorhome body

Notes

FRont HIGH level mARkeR / position Iamps (RectAnGUIAR lens)

• These lamps are LED and have no user serviceable parts inside.
• Replacements should be undertaken by your dealer, as the lamps are sealed onto the mounting panel.

FRont HIGH level mARkeR / position Iamps (ovAI lens)

• Bulb access is from rear of lamp
• Remove 2x screws from light fitting, and withdraw whole fitting from motorhome body
• Harness plugs into bulb holder - twist bulb holder relative to lamp body to release bulb holder from lamp body
• Bulbs are push fit into bulb holder - pull bulb directly away from holder to release
• Reverse procedure to replace bulb in holder, holder in lamp and lamp onto motorhome body
