Product Type	Tumble Dryer (Condenser)
Brand	Teka
Model	TKS 893 H
Rated Capacity	8.0 kg
Energy Efficiency Class	A+++
Annual Energy Consumption	176.0 kWh/year
Power Supply	220-240 V ~ 50 Hz
Rated Power	650 W
Refrigerant	R134a (40 g)
Dimensions (H x W x D)	845 x 595 x 640 mm
Net Weight	50 kg
Programmes	Cotton (Extra/Standard/Iron), Synthetics (Extra/Standard/Iron), Delicate, Wool, Jeans, Mix, Sports, Shirts, My Cycle, Time (Warm/Cool/Refresh)
Additional Functions	Delay Start (0-24 h), Time Adjust (10-150 min), Dryness Intensity (4 levels), Anti-Crease (30 or 120 min), Signal On/Off, Child Lock, Drum Lamp, My Cycle Memory
Display	LED with remaining time, error codes, dryness level, filter and water container warnings
Condensation Efficiency Class	B
Sound Power Level	65 dB(A)
Filter System	Lint filter (door) and filter base; clean after each use
Water Container	Removable, empty after each use; full indicator
Heat Exchanger Cleaning	Every 2 months using sponge or soft brush
Safety Features	Child lock, door interlock, overheating protection, earth connection required
Installation	Level adjustable feet, do not obstruct ventilation, can be stacked with washing machine using stacking kit
Warranty	Repairs by authorized technicians; see manual for details

Frequently Asked Questions - TKS 893 H TEKA

How do I clean the lint filter?

Open the door, remove the filter door, wipe off lint, and reinstall. Clean after each use to maintain drying efficiency.

What does the 'water container full' indicator mean?

The water container needs to be emptied. Pull it out, pour the condensed water into a basin, and reinstall. The dryer will resume after pressing Start/Pause.

How do I use the Delay Start function?

Select a programme, press Delay repeatedly to set the desired delay time (0-24 hours), then press Start/Pause. The dryer will start after the delay.

My dryer stops and shows 'E3' on the display. What should I do?

Error 'E3' indicates a humidity or temperature sensor failure. Unplug the dryer and contact your local service center.

Can I dry wool items in this dryer?

Yes, use the Wool programme (max 1.0 kg). It is designed to gently refresh wool. Remove items immediately after cycle and air dry.

How often should I clean the heat exchanger?

Every 2 months. Open the filter cover, unscrew the locking levers, remove fluff using a sponge or soft brush. Wear gloves.

The drying time is too long. What can I do?

Check and clean the lint filter and filter base. Ensure the programme matches the fabric type. Also verify that the load is not too wet (spin at high speed before drying).

How do I activate the child lock?

Press and hold Anti-Crease and Signal buttons simultaneously for 3 seconds. The display shows a lock icon. Repeat to deactivate.

What is the 'My Cycle' function?

It allows you to save a frequently used programme. Select the desired programme and options, then press and hold Intensity for 3 seconds until the display flashes. The settings are saved under the My Cycle position.

Can I install the dryer in a cold room?

The ambient temperature should be between +5°C and +35°C. Do not install in a room where frost may occur, as it can damage the appliance.

USER MANUAL TKS 893 H TEKA

INSTRUCTION MANUAL EN

Front view of a white washing machine with black dome and control panel (no visible text or symbols)

Catalogue

Safety information....1

Installation....6

Attention and advice....7

Part description....8

Description of controls....10

Operation instruction....11

Programme table....12

Specialty drying function....13

Cleaning and routine maintenance....15

Malfunction display and solutions....16

Precautions....17

Technical specifications....18

Product fiche....19

Safety information

Dry Care Symbols

Please pay attention to use the drying machine if the materials of your clothes can not be dried by it or contain the symbols as follows:

Dry	Normal	Not tumole dry normal	[327X]Do not dry
Line dry I hang to dry	Dry dry	[7X96]Dry flat	[HHSW]In the shade
[6AT8]Dry clean Do not dry clean		[47KA]Dry clean normal cycle with dry sealant	Dry clean normal cycle particle sealed only

Safety notes

To prevent any damages to your and others' life or property, you have to follow the safety notes.

1. This product belongs to Category I electrical appliances, and only for drying textiles which have been washed with water in the household. Please pay attention to the safety of power use during the operation!

2. The power source with reliable earthing must be used. Its earth wire must be buried under the ground and shall not be connected with the public utilities such as city water pipe or gas pipe etc. The earth wire and null wire shall be distinguished and shall not be connected together.

3. The power wire shall be met IEC and must be able to withstand the current above 10A. To ensure your and your family's safety, please make improvement immediately if any power use at your home does no the above-mentioned requirements.

4. The maximum mass of dry textile material is 8 kilograms to be used in the appliance.

Safety information

1. That the tumble dryer is not to be used if industrial chemicals have been used for cleaning.
   6.Do not dry unwashed items in the tumble dryer.
2. Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
3. Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
4. Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
5. The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
6. The lint trap has to be cleaned frequently.
7. The lint must not to be allowed to accumulate around the tumble dryer.
8. Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliance burning other fuels, including open fires.
9. WARNING: never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
10. The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliance burning gas or other fuels.

Safety information

1. The appliance must not be install behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer. In such a way that a full opening of the tumble dryer door is restricted.
2. Keep pets away from this appliance.
3. Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard.
4. If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care products be placed in a tumble dryer they should first be washed in hot water with extra detergent-this will reduce, but not eliminate, the hazard.
5. The appliance should not be overturned during normal use or maintenance.
6. Remove all objects from pockets such as lighters and matches.
7. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Safety information

1. If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

2. This appliance is for indoor use only.

3. The openings must not be obstructed by a carpet.

4. Children of less than 3 years should be kept away unless continuously supervised.

5. If the appliance appear high temperature abnormally, please draw the mail plug immediately.

Correct Disposal of this product:

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Safety information

Electric shock hazard

1. Do not draw the power cord forcefully to pull out the mains plug.
2. Please do not plug/draw the mains plug with wet hands.
3. Do not damage the power cord and the power plug.

Injury danger

1. Do not disassemble and install the dryer under no instruction or supervision.
2. Do not stack this dryer on washing machine without stacking kits. (if want stacking on washing machine, please purchase the Independent parts and it must be installed by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.)
   3.Do not lean on the opened door of the dryer.
3. Do not put any pyrotoxin on the dryer, such as the candle, electric cooker.

Damage danger

1.Do not dry over the rated capacity.
2.Do not operate the dryer without the filter door and filter base.
3. Do not dry the clothes before being spun.
4. Do not expose the dryer directly under the sun, and indoor use only.
5. Do not install the dryer in the humid and drenching environment.
6. At the cleaning and maintenance, please do remember to pull out the power plug and do not directly wash the dryer with water.

Explosion danger

Please do not dry the clothes with some flammable substances such as the coal oil, alcohol or there will be the explosion.

Installation

Transport

Move cautiously. Do not grasp any salient parts of machine. The machine door can not be used as the handle for delivery. If the dryer can't be transported erect, the dryer could be slant to right less than 30^irc .

Installation Position

1. It is recommended that, for your convenience, the machine is positioned close to your washing machine.
2. The tumble dryer must be installed in a clean place, where dirt does not build up. Air must be able to circulate freely all round the appliance. Do not obstruct the front air inlet or the air intake grilles at the back of the machine.
3. To keep vibration and noise to a minimum when the dryer is in use, it should be placed on a firm and level surface.
4. The feet must never be removed. Do not restrict the floor clearance through deep pile carpets, strips of wood or similar. This might cause heat built-up which would interfere with the operation of the appliance.

Three identical diagrams showing a machine with a cross symbol, placed on a surface with no text or symbols.

Level Adjusting

Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. If it is not, adjust the feet with a tool.

Power Supply Connection

1. Make sure that the voltage of the power supply is the same as the electric specification of the dryer.
2. Do not connect the dryer with the power connection board, the universal plug or socket.

Attention and Advice

Attention

Leave it to stand for 2 hours after transporting. Before first use, please use the soft fabric to clean the inside drum.

a) Put some clean rags into the drum.

d) After finishing this programme, please follow the "cleaning and routine maintenance" (refer to page 15) to clean the filter door.

During drying, the compressor and the water pump generate some noise which is entirely normal.

Advice

1. Before drying, thoroughly spin the laundry in washing machine. High spin speed can reduce the drying time and save energy consumption.
2. For uniform drying result, sort the laundry according to fabric type and drying programme.
3. Before drying, please close zips, hooks and eyelets, button up, tie fabric belts, etc.
   4.Do not over dry the clothes, because over dried clothes can easily get creases or shrinkage.
   5.Do not dry the articles containing rubber or similar elastic materials such as raincoats, bicycle covers and etc.
4. The door can be opened only after the programme of the drying machine is completed. Do not open the door before the programme finished, as the skin may be scalded by steam or hot surface.
5. Clean the lint filter and empty container after each use to avoid extension of drying time and energy consumption.
6. Please choose the related programme when deal with wool material clothes, to make the cloth more fresh and fluffy.
7. The weight references as follows:

	Blenzed Coats (about 600g)			Jeans Treasers (about 800g)		Towel Quits (about 900g in cotton)
	Single Sheets (about 500g in cotton)		Worn Clothes (upper and lower) (about 1120g in cotton)	(6023)	Papamas (about 200g)	(9627) Shirts (about 300g in cotton)
	Underwell fit (about 160g in cotton)		Underpants (about 70g in cotton)	(THC6)	polis (about 30g in ended material)

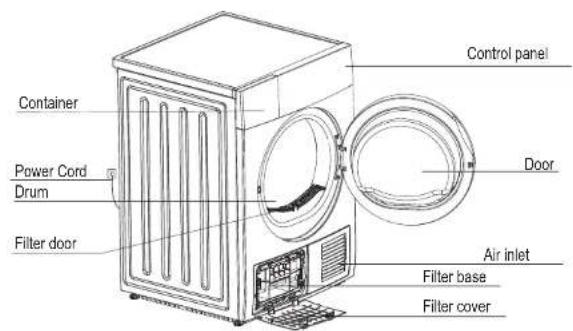

Part description

Part Description

Accessories

The following parts are optional for specific models.

If your dryer has following parts, please instelmfollowing time below.

Installation step:

Step 1: removing the drain hose from the hose connector using plier.

Step 2: insert the external drainage hose.

Part description

Step 3: put the hose holder on the washing basin or any other sink.

Line drawing of a kitchen sink with faucet and sink (no text or symbols)

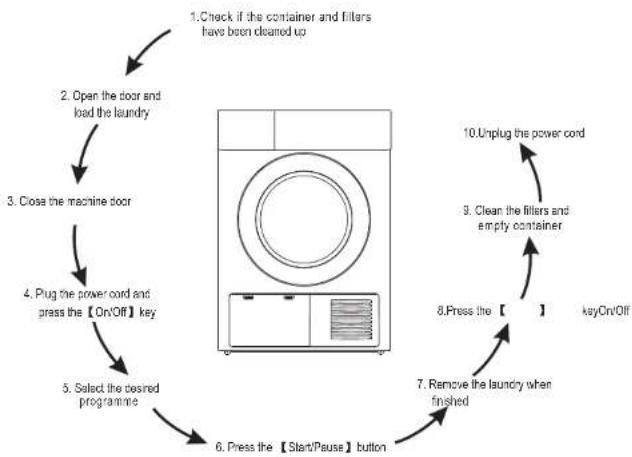

Quick start

Description of controls

1. Programme Selection knob
2. Display
3. Specialty function buttons (Delay, Time, Intensity, My Cycle, Lamp, Signal, Anti-Crease, Childlock)
   4.Start/Pause button
4. On/Off button

Display

	Delay start
	Child lock
8:88	Remaining Time indicator/Error message
	Cycle phase status
Filter	Clean filters (warning)
Full	Empty water container (warning)
	Dryness level (four grades)
	Drum lamp indicator
	Signal indicator
	Anti-crease mode

Operation instruction

Select the programme

1. Press the 【On/Off】key, when the LED display screen brighten up, rotate the programme knob to select the desired programme.
2. Select the 【Delay】, 【Time】, 【Intensity】, 【Signal】 or 【Anti-Crease】 functions for additional option.
3. Press the 【Start/Pause】 key.

Programme start

The drum will keep rotating after the programme start, the state light in the display area will flash in sequence, the remaining time displayed will change automatically.

Note:

Occasionally, the drum might suspend about 40 seconds during the drying procedure, but the screen displays normal. The dryer is automatic adjustment in this time and will continue operation.

Programme end

1. The drum will stop running after the programme ends, the display will show "poo", the last cycle phase status light will flash. The dryer will start 【Anti-crease】 function if user doesn't remove the load in time (refer to page 13). Please press 【On/Off】 key to cut off power and pull the plug out.
2. Deal with the problem according to "Malfunction display and solutions", if there is a unexpected stop during the drying procedure and the dryer show information (refer to page 16).

Programme table

Programme		Weight (max)	Application/Properties	Delay	Time
Cotton	For cottons and coloureds made of cotton or linen.
	Extra	8.0kg	To dry cotton pieces of clothing. Drying level: extra dry.	Y	N
	Standard		To dry cotton pieces of clothing. Drying level: cupboard dry.
	Iron		To dry cotton pieces of clothing. Drying level: applicable to iron.	Y	N
Delicate	Delicate	1.0kg	To dry delicate laundry that is suitable for drying or laundry which is advised to be hand-washed at a lower temperature.	Y	N
Synthetics	For non-iron washing made of synthetic and blended fabrics, cotton.
	Extra	3.5kg	To dry thick or multi-layered synthetic fabrics. Drying level: extra dry.	Y	N
	Standard		To dry thin synthetic fabrics which are not ironed, such as easy care shirts, table linen, baby clothes, socks.
	Iron		To dry thin synthetic fabrics which are also to be ironed, such as knitwear, shirts.
Wool	Wool	1.0kg	For a fluffy and fresh wool clothing(Can not be used for drying wool clothing). When the cycle is done, take out the clothes at once, let them dry in the air.	Y	N
Special	Jean	8.0kg	To dry jeans or leisure clothes that are spun at high speeds in the washing machine.	Y	N
	Mix	3.5kg	If you can not determine what the clothing's material is, please choose Mix.
	Sports	3.0kg	To dry sportswear, thin fabrics, polyester, which are not ironed.
	Shirts		For easy care clothes such shirts and blouses with anti-crease mechanism for minimum iron ing effort. Place clothes loosely in the dryer. Once dried, hang it on a clothes hange
My Cycle	My Cycle	——	Define and save you favorable programme.	——	——
Time	Warm	——	To warm clothes from minimum 10 min. to maximum 120 min.(in 10 min. steps).	Y	Y
	Cool	——	To air clothes without blowing hot air from minimum 10 min. to maximum 30 min.(in 10 min. steps).
	Refresh	1.0kg	To refresh the clothes that have been kept at closed environments for a long time from minimum 20 min. to maximum 150 min.(in 10 min. steps).

Note: 1. This symbol means the energy efficiency test programme "standard cotton programme", which is most suitable to dry normal cotton load atrated load capacity. 2. The programmes above are only recommended for using, users can choose the appropriate programme according to the personal habits. Thick and multi-layered fabrics, e.g., bedlinen, jeans, jackets etc., are not easy to dry, you'd better choose Jeans programme and maximum drying intensity level.

Specialty drying function

Specialty drying function

1. Instruction to the drying procedure【Delay】

To delay the drying programme from 0 hour to 24 hours. The delay time means the programme will start after x hours. When the delay programme starts, the time starts to decrease on the display and the ☐con blinks.

Steps in details

(1). Load your laundry and make sure the machine door is closed.
(2).Press the 【On/Off】button,then to turn the programme selector knob and select a desired programme.
(3). You can select the 【Anti-Crease】 or 【Signal】 functions according to your need.
(4). To press the 【Delay】 key.
(5). Continue to press the 【Delay】 to select the delay time.
(6). After the 【Start/Pause】key is pushed, the dryer is at the run condition. The drying procedure will be automatically performed when the delay time is over.
(7). If you push the 【Start/Pause】 button again, the delay function will be paused.
(8). If you want to cancel the "Delay" function, please press the 【On/Off】 button.

1. Instruction of the Time function 【 】

When the time programme is selected, the 【Time】 button can be used to adjust the drying time in 10 min. steps. The maximum time is 150 min.

1. Instruction of the Intensity function

Used to adjust the dryness level of the laundry. The level has four grades . The drying time increases 3 minutes in every grade.

(1).The intensity function can be activated only before the programme start.
(2).Press the 【Intensity】 button repeatedly to select the drying time.
(3). Except the 【Cotton Iron】【Delicate】【Synthetic Iron】【Wool】【Time】, all the other programmes can be setted the 【Intensity】 function.

1. Instruction of the function 【My Cycle】

Used to define and save your favorite proragmmes that are used frequently.
(1).Use the programme selector to select the required programme and other drying functions.
(2).Press and hold the 【Intensity】 button for 3 seconds until the display flashing and the required programme has been saved.
(3).Turn the programme selector to the 【My Cycle】 position, you can start your favorite proragmmes. If you want to change the 【My Cycle】 settings, repeat the steps (1) and (2).

Specialty drying function

1. Instruction of the 【Lamp】

The lamp inside the drum will lighten about 3 minutes when the button pressed or 1 minute the door opened.

6.【Signal】

Set up the buzzer on or off. In general condition, the buzzer is on. Please press it if needed.

When the buzzer on:

(1) The dryer will give the leading sound if press the extra function buttons.
(2) If the dryer is running, rotate the function choosing knob, the dryer will remind the operator it is an invalid choose.
(3) When the drying programme is done, the buzzer will also remind the user.

1. Instruction of the Anti-Crease function 【 】

At the end of the drying cycle, the anti-crease operation time is 30 minutes (default) or 120 minutes (selected).

The 【Anti-Crease】 light shall illuminate when the anti-crease function is selected. This function prevents the laundry from creases. The laundry can be removed during the anti-crease phase. Except

【Cool】,【Refresh】and【Wool】, all the other programmes have this function.

1. Instruction of the Child Lock feature 【】

(1). This machine incorporates a special child safety lock, which can prevent children from carelessly pressing keys or making the faulty operation.
(2). When the dryer is at the operation state, press the 【Anti-Crease】 and 【Signal】 buttons at the same time for over 3 seconds to start child lock function. When child lock function is set, the display will show “💡” icon and no key can effect to the dryer except 【On/Off】 button. Under the start state of the child lock, the 【Anti-Crease】 and 【Signal】 buttons shall be pressed at the same time for over 3 seconds to release the child lock function.

Cleaning and routine maintenance

Empty the water container

1. Hold and pull out the water container with two hands;
2. Tilt the water container, pour out the condensed water into basin;
3. Install thewater container.

Technical line drawing showing a hand holding a component above a water level with a device (no text or symbols present)

WARNING:

1. Empty the water container after each use, the programme will be paused and the "☐" icon will flash if the water container is full during the drying process. After the container emptyed, the dryer can be restarted by pressing【Start/Pause】button.
2. Do not drink the condensed water
3. Do not use the dryer without the water container.

Clean the filter door

1. Open the door.
2. Take out the filter door.
3. Clean the filter door; wipe off the scrap threads accumulated on the filter door.
4. Reinstall the filter door.

Clean filter base

1. Open the filter cover.
2. Unscrew both locking levers toward as each other.
3. Clean the filter base completely.
4. Re-insert the filter base!
5. Screw both locking levers.
6. Close the filter cover flap until it locks into position.

Filter door

Filter base Filter cover

NOTE!

1. The fluff accumulated on the filter will block the air circulation, which will cause the extension of drying time and energy consumption;
   2.Do disconnect the power cord before cleaning!
   3.Do not operate the dryer without the filter!
2. Clean the filter after each use to prevent lint accumulation inside the dryer.

Clean heat exchanger

As necessary, approx. once every 2 months, remove the fluff from the heat exchanger using the sponge or soft brush.

When doing this, please use gloves.

Note: The fluff can be removed more easily if it is first dampened e.g. with a laundry dampener.

Malfunction display and solutions

Malfunction display and solutions

Display	Reason	Solutions
* □ "is flashing	Container is full	Empty container
	Water pump failure or water level sensor failure	P lease contact your local service center if the problem persists
* * E 3	Humidity sensor failure
* * E 3	Temperature sensor failure
* ■ "is flashing	Filter is plug up or environment temperature is too high	C lean filter and confirm the ambient temperature
		P lease contact your local service center if the problem persists

Precautions

Precautions

Only authorised technicians can carry out repairs. Before you call customer service, please check if you have deal with the fault by yourself or if you have follow the user instructions. A technician will charge you for advice, even during the warranty period.

Problem	Solution
●Display does not light up	●Check if the main plug is inserted.●Check if the programme is selected.●Check the main power supply.
●Dryer does not start	●Check if the start button is pushed.●Check if the door is entirely closed.
●Door is open by itself	●Press door until it "clicks" into position.●Check if the clothes is over load .
●Degree of dryness is not reached or drying time too long	●Clean the filter door and filter base.●Use the appropriate programme.●keep the Air inlet clear.

If you cannot deal with the faulty by yourself and need help:

1. Press the key 【On/Off】

2. Pull out the mains plug and call the service.

Technical specifications

Specification

Power supply	220-240V~ 50Hz
Rated power	650W
Refrigerant	R134a
Ambient temperature	+5c →35c
Overall Size	640*595*845(mm)
Rated Drying Capacity	8.0kg
Net Weight	50kg
co-eq	0.58T
GWP	1430

Contains fluorinated greenhouse gases covered by the Kyoto Protocol. Hermetically sealed

Note: 1. The rated capacity is the maximum capacity, make sure that the dry clothes which are loaded to the appliance do not exceed the rated capacity each time. 2. Do not install the tumble dryer in a room when there is a risk of frost occurring. At temperatures around freezing point the tumble dryer may not be able to operate properly. 3. There is a risk of damage if the condensed water is allowed to freeze in the pump, hoses and / or condensed water container. Quantity of refrigerant: 40g

Product fiche

Product fiche

Brand: Teka

Model: TKS 893 H

Rated capacity: 8kg

Dryer Type: Condenser

Energy efficiency class: A+++
Energy consumption176.0 kWh per year, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.

Automatic or non-automatic:Automatic

EU Ecolabel: N/A

Energy consumption of the standard cotton programme at full load: 1.50 kWh

Energy consumption of the standard cotton programme at partial load: 0.78 kWh

Power consumption of the off-mode (Po): 0.2W

Power consumption of the left-on mode (PI): 0.8 W

Duration of the left-on mode: 10 min

The 'standard cotton programme' used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet cotton laundry and that it is the most efficient programme in terms of energy consumption for cotton.

Weighted programme time of the standard cotton programme at full and partial load: 144 min
Programme time of the standard cotton programme at full load: 190 min
Programme time of the standard cotton programme at partial load: 110 min

Condensation efficiency class B on a scale from G (least efficient) to A (most efficient).

Average condensation efficiency of the standard cotton programme at full load: 80.5% Average condensation efficiency of the standard cotton programme at partial load: 80.5% Weighted condensation efficiency for the standard cotton programme at full and partial load: 80.5%

Sound power level for the standard cotton programme at full load: 65dB

ÍNDICE:

Three technical diagrams showing a washing machine on a surface with cross marks, no text or symbols present.

Nivel de ajuste

Diagram of a washing machine with a tool and a red-handled button, no text or symbols present

Illustration of a hand using a U-tube manometer to lift liquid into a test tube inside a container (no text or symbols)

Line drawing of a kitchen sink with faucet and faucet (no text or symbols)

Inicio rápido

Technical line drawings showing hands installing a door panel and opening a refrigerator with a sink (no text or symbols)

! ATENCIÓN:

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Three identical diagrams showing a machine with a circular component mounted on a base, each with cross marks indicating alignment or support (no text or symbols present)

Ajuste do nível

Diagram of a washing machine with a tool and a close-up view of the component (no text or symbols)

Line drawing of a sink with faucet and faucet (no text or symbols)

Inicio rápido

Two technical diagrams showing a hand holding a mechanical component and a device with internal components, both without any text or symbols.

ATENÇÃO!
