ES10295US - Deep fryer COSTWAY - Free user manual and instructions

Product Type	Air Fryer Oven with Multi-Functions (Deep Fryer, Toaster, Oven)
Brand	Costway
Model	ES10295US
Capacity	18 Liters (fits 4 slices of bread or 9-inch pizza)
Power Consumption	1550W
Voltage / Frequency	120V~60Hz
Temperature Range	Up to 450°F (232°C)
Timers	60-minute oven timer; 8-minute toast timer
Functions	Toast, Broil, Bake, Air Fry, Warm
Product Dimensions (LxWxH)	15.7 x 15.1 x 13.4 in (400 x 384 x 340 mm)
Product Weight	8.2 kg (18.1 lbs)
Package Dimensions (LxWxH)	18.9 x 16.9 x 16.1 in (480 x 430 x 410 mm)
Package Weight	10.2 kg (22.5 lbs)
Accessories Included	Baking Pan, Grill Rack, Crumb Tray, Fry Basket
Heating Elements	4 upper tubes + 2 lower tubes (total 1550W)
Control Type	Rotary knobs (Function, Thermostat, Timer)
Safety Features	Polarized plug, short cord, automatic shutoff via timer
Cleaning & Maintenance	Wipe exterior with damp cloth; wash accessories in dishwasher or warm soapy water; never immerse in water
Warranty	1-year limited warranty for original purchaser
Intended Use	Household use only

Frequently Asked Questions - ES10295US COSTWAY

How do I use the air fry function?

Turn the function switch to 'Air Fry', set the thermostat to desired temperature (up to 450°F), and turn the oven timer (60 min) to the desired time. The appliance will start. Ensure the fry basket is placed inside.

Why is white smoke coming out of the air fryer oven?

White smoke usually indicates grease residue burning. Clean the appliance and accessories thoroughly after each use to remove oily buildup.

Food is not cooked evenly; what should I do?

Use smaller batches for even cooking. Turn food over halfway through the cooking process. Cook foods of similar size together.

How should I clean the air fryer oven?

Always unplug and let it cool completely. Wipe the exterior with a damp cloth. Clean the interior with a mild soap solution. Accessories like the fry basket and baking pan can be washed in the dishwasher or with warm soapy water. Do not use abrasive cleaners or immerse the unit in water.

Can I use metal utensils or containers?

Avoid using metal utensils as they may damage the non-stick coating or cause sparks. Use silicone, wood, or plastic utensils. Containers should be oven-safe (metal or glass).

What if the appliance doesn't turn on?

First, ensure the unit is plugged into a dedicated power outlet. Check that the timer is set (the appliance only works when a timer is active). If it still doesn't work, contact customer service.

Can I use an extension cord with this air fryer oven?

Yes, but the extension cord must have a rating at least equal to the appliance's 1550W. Arrange the cord so it does not drape over the counter or create a tripping hazard.

How should I store the air fryer oven?

Unplug and let it cool. Make sure all parts are clean and dry. Store in a clean, dry place with at least 4 inches of space around all sides for ventilation.

Is the air fryer oven safe for children to use?

This appliance is not intended for use by children under 8 years old without supervision. Children should be supervised to ensure they do not play with it. Cleaning and maintenance should not be done by children unless they are older than 8 and supervised.

What does the warranty cover?

The 1-year limited warranty covers defective parts for the original purchaser. It does not cover normal wear, damage from misuse, or repairs by unauthorized parties. The seller may repair, replace, or refund the product at their discretion.

USER MANUAL ES10295US COSTWAY

Red line drawing of a microwave oven with four circular vent holes (no text or symbols)

IMPORTANT SAFEGUARDS

When using electric appliances, basic safety precautions should always be followed:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children younger than 8) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have supervision.
3. Check if the voltage indicated on the appliance corresponds to the local main voltage before you connect the appliance.
4. Do not use the appliance if the plug, the main cord or the appliance itself is damaged. Always make sure that the plug is inserted properly into a wall outlet.
5. Do not operate any appliance with a damaged cord or plug, after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
6. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised.
7. Do not let the cord hang over the edge of the table or counter or touch hot surfaces.
8. To protect against electric shock, do not immerse cord, plugs, or appliance in water or other liquid. Do not plug in the appliance or operate the control panel with wet hands.

9. Never connect this appliance to an external timer switch or separate remote-control system in order to avoid a hazardous situation. To disconnect, turn off the appliance, then remove plug from wall outlet.

10. Do not place the appliance on or near combustible materials such as a tablecloth or curtain. The accessible surfaces may become hot during use. Do not place on or near a hot gas or electric burner, or in a heated oven.

11. Do not place the appliance against a wall or against other appliances. Leave at least 4 inches of free space on the back and sides and 4 inches of free space above the appliance. Do not place anything on top of the appliance.
12. Do not use the appliance for any other purpose than described in this manual. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
13. Do not let the appliance operate unattended. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
14. Do not use outdoors.
15. Do not touch the hot surfaces; use handle. During air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from the steam and from the air outlet openings. Also be careful of hot steam and air when you remove the pan from the appliance.
16. After using the appliance, avoid contact with the hot metal inside. Unplug from outlet when not in use and before cleaning. Allow to cool before cleaning the appliance.
17. After using the appliance, avoid contact with the hot metal inside. Unplug from outlet when not in use and before cleaning. Allow to cool before cleaning the appliance.
18. Do not use appliance for other than intended use.

19. Use extreme caution when removing tray or disposing of hot grease.

20. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock.

21. Oversize foods or metal utensils must not be inserted in a toaster-oven as they may create a fire or risk of electric shock.
22. A fire may occur if the toasteroven is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation. Do not store any item on top of the appliance when in operation.
23. Extreme caution should be exercised when using containers constructed of anything other than metal or glass.
24. Do not store any materials, other than manufacturers recommended accessories, in this oven when not in use.
25. Do not place any of the following materials in the oven: paper, cardboard, plastic, and the like.
26. Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.
27. Turn off the appliance by pressing the key "START/CANCEL".
28. For household use only.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFEGUARDS

CORD SAFETY

• A short power-supply cord is provided to reduce risk of becoming entangled in or tripping over a longer cord.
• Extension cords may be used if care is exercised in their use.
• If an extension cord is used:

a. The marked electrical rating of the extension cord should be at least equal to the electrical rating of the appliance;
b. The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

Close-up of a black electrical outlet plug with two metal terminals (no text or symbols visible)

ELECTRICAL POLARIZED PLUG

This unit has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, the plug is intended to be used by inserting it into the electrical outlet only one way. If the plug does not fit securely into the outlet, reverse the plug and re-insert. If it still does not fit, contact a qualified electrician for assistance. Do not modify the plug in any way.

SPECIFICATIONS:

Model Number: EP24685

Volge &: 120V\~60Hz

Product size: 400(L)×384(W)×340(H)

Paking size: 480(L)×430(W)×410(H)

Power: 1550W

Capacity: 18L(Bake 4 slices of bread and 9 inches of Pizza)

Net weight: 8.2kg

Gross weight: 10.2Kg

Accessories: Pan, Grill rack, Slag pans, Fry basket

Up heating tube: 60V\~350W 60Hz 4pcs,

down heating tube: 60V\~400W 60Hz 2pcs

USING YOUR AIR FRYER OVEN

BEFORE USING FOR THE FIRST TIME

1. Remove all packaging stickers, and labels from the unit

2. Wash the Fry Basket, Oven Rack, Baking Pan, and Crumb Tray with hot water, some dishwashing liquid, and a non-abrasive sponge. Dry before placing trays into Air Fryer Oven.

3. Place the Crumb Tray in the bottom of the Air Fryer Oven,

CAUTION:

Do not place the Air Fryer Oven against a wall or against other appliances. It is important to leave at least 4 inches of free space on the back and sides, and 4 inches of free space above the Air Fryer Oven to allow for proper ventilation.

Do not put anything on top of the Air Fryer Oven.

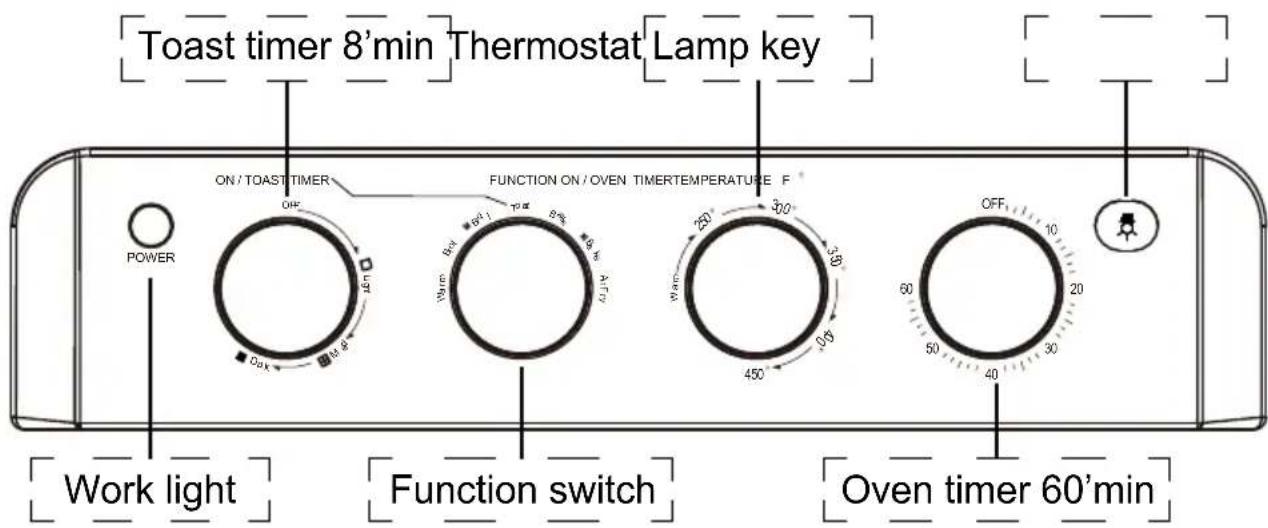

KNOW YOUR AIR FRYER OVEN

Function:

Work instructions:

1. Warm function: turn the function switch knob to warm, turn the thermostat knob to warm, open the 60'min timer, oven working. (power:800w, down heating tube and motor)
2. Broil: turn the function switch knob to broil, turn the thermostat knob to 450, open the 60'min timer, oven working. (power:730w, 2pcs up heating tube and motor)
3. Broil (strong fan): turn the function switch knob to broil, turn the thermostat knob to 450, open the 60'min timer, oven working. (power:750w, 2pcs up heating tube and motor)
4. Toast: turn the function switch knob to toast, turn the thermostat knob to 450, open the 8'min toast timer, oven working. (power:1500w, down heating tube and up heating tube)
5. Bake: turn the function switch knob to bake, turn the thermostat knob to 450, open the 60'min timer, oven working. (power:1530w, down heating tube and motor and up heating tube)
6. Bake(strong fan): turn the function switch knob to bake, turn the thermostat knob to 450, open the 60'min timer, oven working. (power:1550w, down heating tube and motor and up heating tube)
7. Air fry: turn the function switch knob to air fry, turn the thermostat knob to 450, open the 60'min timer, oven working. (power:1450w, up heating tube and motor)

CLEANING & MAINTENANCE

WARNING: Never immerse cord, plugs, or appliance in water or other liquid. Do not plug in the appliance or operate the control panel with wet hands.

• Clean the appliance after every use.
  • Always unplug the appliance and let it cool down completely before cleaning.
• Never use abrasive utensils or corrosive products to clean the appliance.
• Apply a cleansing agent to a cloth and wipe down the exterior.
• Apply a mild liquid soap solution to a damp cloth or sponge and wipe down interior. Remove any residue with a damp cloth.
• Clean accessories in dishwasher, or hand wash with a nylon scoring pad or brush in warm, soapy water.

STORAGE

• Unplug the appliance and let it cool down.
  • Make sure all parts are clean and dry
• Store the appliance in a clean and dry place.

ENVIRONMENT

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

GUARANTEE AND SERVICE

If you need service or information or if you have a problem, please visit our website or contact your distributor.

TROUBLESHOOTING

Problem Solution
The Air Fryer Oven does not work	Ensure the unit is plugged into a dedicated power outlet.
Food is not cooked	Use smaller batches for more even cooking
	Raise temperature and continue cooking
Food is not fried evenly	Turn over food halfway through cooking process
	Cook similar sized foods together
White smoke is coming out of the Air Fryer Oven	Clean the Air Fryer Oven and accessories after each use to remove greasy residue
French Fries are not cooking evenly	Fry less potatoes at a time
	Blanch potatoes before frying
	Use firm, fresh potatoes cut into sticks
Fries are not crispy	Remove excess water from potatoes
	Cut potatoes into more narrow strips
	Mist with a little more oil

WARRANTY & SERVICE

This Limited Warranty is for one full year from the date of purchase. It is applicable to the original purchaser only and is not transferable to a third party user. Repair or replacement of defective parts is solely at the seller's discretion. In the event that repair isn't possible, the seller will replace the product/part. If product repair/ replacement won't suffice, the seller has the option of refunding the cash value of the product or component returned.

Product defects not covered under the Warranty provisions include normal wear and damage incurred from use or accidental negligence, misuse of instruction specifications or repair by unauthorized parties. The manufacturing company is not liable for any incidental or consequential damages incurred by such circumstances.

Only valid within the United States.
