KAMN198CHFA - Freezer Kogan - Free user manual and instructions

Product Type	Freezer
Brand	Kogan
Model	KAMN198CHFA
Net Capacity	198 L
Energy Efficiency Class	F
Annual Energy Consumption	250 kWh
Voltage	220-240 V
Frequency	50 Hz
Defrost Type	Manual
Temperature Range	-18°C to -12°C
Adjustable Thermostat	Yes
Reversible Door	No
Lock with Key	Yes
Interior Light	No
Product Dimensions (W x D x H)	85 x 55 x 85 cm
Net Weight	30 kg
Climate Class	N/ST
Noise Level	41 dB

Frequently Asked Questions - KAMN198CHFA Kogan

What is the net capacity of the Kogan KAMN198CHFA freezer?

The net capacity is 198 litres, suitable for medium-sized households.

Does the freezer require defrosting?

Yes, this is a manual defrost model. It is recommended to defrost when ice build-up reaches about 1 cm.

What is the energy efficiency class?

The energy efficiency class is F, with an annual energy consumption of approximately 250 kWh.

Can I reverse the door opening direction?

No, the door is not reversible. The hinge side is fixed.

Does the freezer come with a lock?

Yes, it includes a lock with two keys for security.

What are the dimensions and weight?

Dimensions are approximately 85 x 55 x 85 cm (W x D x H) and net weight is 30 kg.

What is the optimal temperature setting for storing food?

Set the thermostat to -18°C for long-term storage of frozen food.

How often should I clean the freezer?

Clean the interior with a mild detergent and warm water every 2-3 months or when spills occur.

What should I do during a power outage?

Keep the freezer door closed to maintain temperature. Food will stay frozen for about 24 hours if the freezer is full.

Is the freezer suitable for garage installation?

Check the climate class N/ST, which allows operation from +16°C to +38°C, suitable for most garages.

USER MANUAL KAMN198CHFA Kogan

Front view line drawing of a rectangular appliance with a top handle and control panel (no text or symbols)

CHEST FREEZER WITH ELECTRIC CONTROL PANEL

142L, 198L

KAMN142CHFA, KAMN198CHFA

SAFETY & WARNINGS

Ensure to read all instructions and warnings in this user guide prior to first use. Retain this user guide for future reference.

WARNING:

• Risk of fire/flammable materials.
• This freezer contains flammable R600a refrigerant.
• Connect to potable water supply only.
• Risk of child entrapment. Before disposing an old refrigerator/freezer, remove the doors and leave the shelves in place to ensure children do not climb inside.
• To avoid a hazard due to instability of the appliance, it must be fixed in accordance with this user guide.

- This appliance is intended to be used in households and for similar applications such as:

• Staff kitchen areas in shops, offices and other working environments
• Farmhouses
• By clients in hotels, motels, and other residential type environments
• Bed and breakfast type environments

• Catering and similar non-retail applications

• Do not use this appliance for any other purpose (for example, storing blood, drugs, or other biological products).

• This appliance is not intended to be used as a built-in appliance.
• This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children must be supervised at all times to ensure that they do not play with or become trapped in the appliance.
• Cleaning and user maintenance shall not be done by children without supervision.
• Ensure the power cord is not trapped or damaged.
• Do not damage the power cord.
• If the power cord is damaged or worn, stop use immediately and contact help.Kogan.com for assistance.
• In the event of a power failure, unplug the power cord immediately and do not reconnect for at least five minutes to prevent damage.

• Do not attempt to repair the appliance yourself.

• Maintenance must be conducted by a professional.

• Do not store explosive substances (for example, aerosol cans with a flammable propellant) in this appliance.
• Do not put flammable, explosive, volatile, and highly corrosive items in or near the appliance to prevent damages or fire accidents.

- Do not place regulators or any electrical appliances on top of the freezer.

- Do not use electrical appliances inside the food storage compartments of the appliance.

- The appliance must be unplugged after use and before carrying out cleaning and maintenance.

- The appliance may not operate consistently if it is placed in temperatures outside of the operating range.

- Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstructions.

- Keep the appliance away from heat sources and direct sunlight.

- Do not place the appliance in humid areas/areas near water or any other liquid to prevent rust and reduced insulating abilities of the appliance.

- Do not use mechanical devices or other means to accelerate the defrosting process other than those recommended.

- Do not damage the refrigerant circuit.

- Do not locate multiple portable power outlets or portable power supplies at the rear of the appliance.

- Do not use extension cords or ungrounded two prong adapters with this appliance.

- Do not vibrate or turn the appliance upside down.

- When carrying the appliance, do not tilt it more than 45^ .

- Do not hold the lid and hinge when moving this appliance.

- If the LED lamps need to be replaced, contact help.Kogan.com for assistance. The replacing process must be performed by a professional. Do not attempt this process yourself.

- Continuous operation is recommended when the appliance has started operating. Under regular circumstances, to preserve its service life, do not turn the appliance off.

Electricity related warnings

• Do not pull on the power cord when pulling the power plug of the freezer. Instead, firmly grasp the plug and pull out it from the socket directly.
• The power plug must be firmly contacted with the socket otherwise there may be fires.
• Ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.
• If any gas is leaking, contact a qualified professional immediately. Turn off the valve of the leaking gas and then open the lid and windows.
• Do not unplug the freezer and other electrical appliances when the power outlet is switched on.

Use related warnings

- Store raw meat and fish in suitable containers in the refrigerator so that it is not in contact with or drip onto other food.

- Do not pick up foods or containers with wet hands in the freezer when running, especially metal containers to avoid frostbite.

- Do not allow children to enter or climb into the freezer to prevent entrapment.

- Do not insert fingers into the gaps between the lid.

- Be careful when opening appliance to avoid food from falling out.

- Do not spray or wash the freezer.

- To avoid injury from falling objects, do not place heavy objects on the top of the freezer.

- Do not store effervescent drinks in the appliance.

- Do not store bottled or closed containers of fluids for extended periods.

- It is not recommended to store fresh food in the freezer.

- There is a small deviation between the temperature inside the freezer and the set temperature. This is normal and does not affect regular use.

- Opening the lid for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Do not exceed the storage times recommended by food manufacturers for any kind of food, particularly commercially quick-frozen food.

- Food should be consumed within the recommended shelf time.

- If defrosting the appliance, due to the rise in temperature, take relevant precautions on the food (for example, wrapping food in layers of newspaper).

Disposal related warnings

- The freezer's refrigerant and cyclopentane foam materials are combustible. Discarded freezers should be isolated from fire sources and cannot be burned. They must be disposed by professionals.

- Due to the flammable blowing gas and refrigerant, if disposing the appliance, follow local regulations.

This marking indicates that this appliance should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

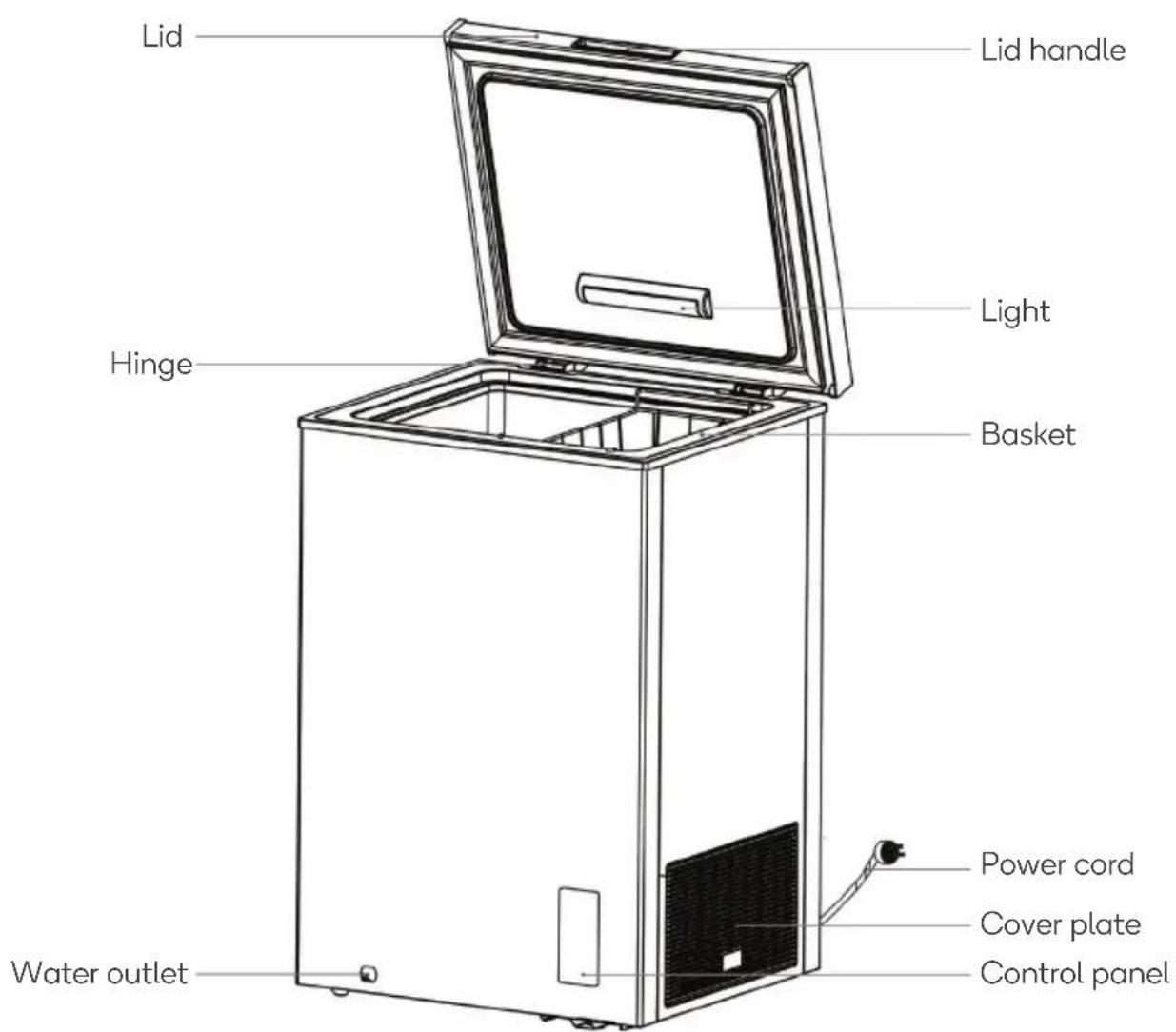

OVERVIEW

Note:

Images in this user guide are for reference only.

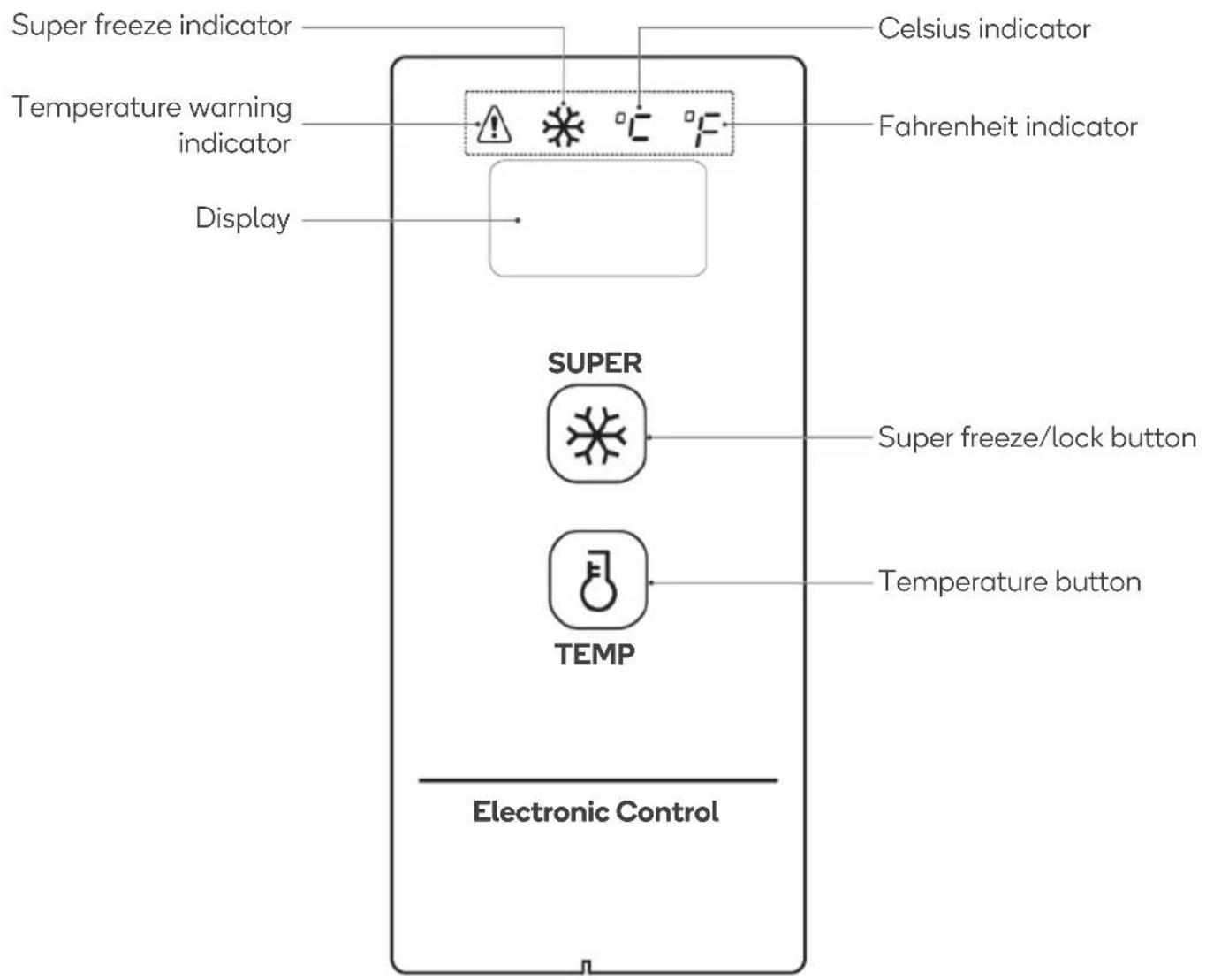

Control panel

BEFORE FIRST USE

1. Remove all packaging from the freezer, tearing off the protective film on the lid and freezer body.

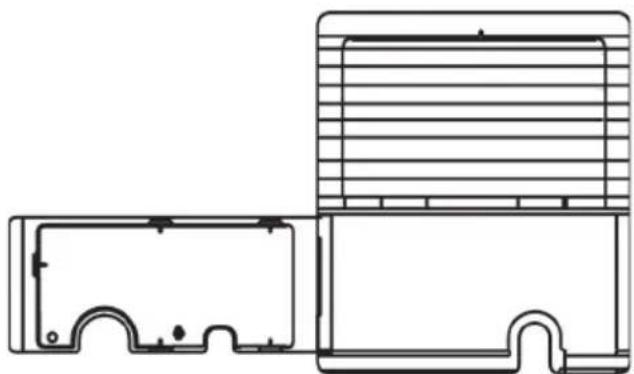

2. Using a screwdriver (not supplied), unscrew and remove the cover plate. Uncoil the power cord.
3. Allow two hours for the freezer's refrigerant to settle. Not doing so may lead to decreased cooling capabilities and cause damage to the freezer.

Technical line drawing of a mechanical component with internal structure (no text or symbols)

Placement

Place the freezer indoors on a flat, dry surface that is well-ventilated. Ensure it is away from other heat sources and direct sunlight.

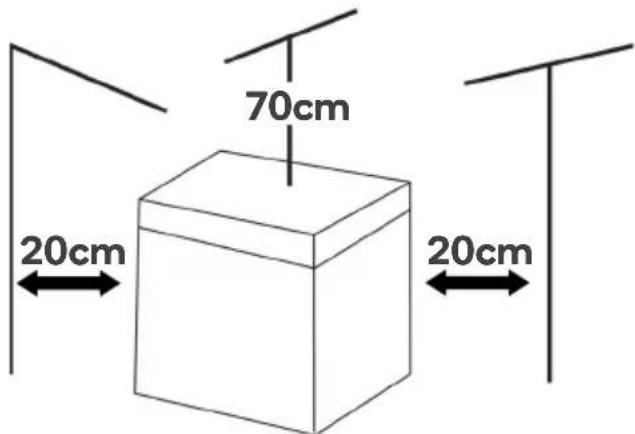

There should be at least a 70cm clearance above the freezer, and at least 20cm away from all other sides.

Running prior to use

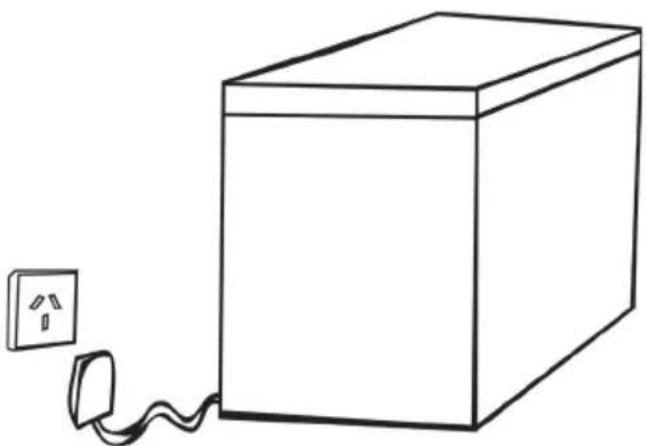

Plug the power cord into a power outlet and turn on the outlet.

Operate the freezer for 2–3 hours before loading fresh or frozen foods. If the ambient temperature is high (for example, in the summer), operate the freezer for 4 hours prior to loading food.

Simple line drawing of a box connected to an electrical outlet (no text or symbols)

OPERATION

Powering

Plug the power cord into a power outlet and turn on the outlet. The display will turn on for three seconds then show ‘-18°C’ to reflect the default temperature of the freezer.

Locking and unlocking the control panel

After the freezer is turned on, the control panel will automatically lock itself to prevent accidental touches changing the settings of the appliance. When wanting to use the control panel:

• Press and hold the super freeze/lock button for three seconds. The display will flash once and become unlocked.
• After 30 seconds of inactivity, the control panel will flash once and automatically lock itself. Alternatively, press and hold the super freeze/lock button for three seconds to lock the control panel.

Adjusting the temperature

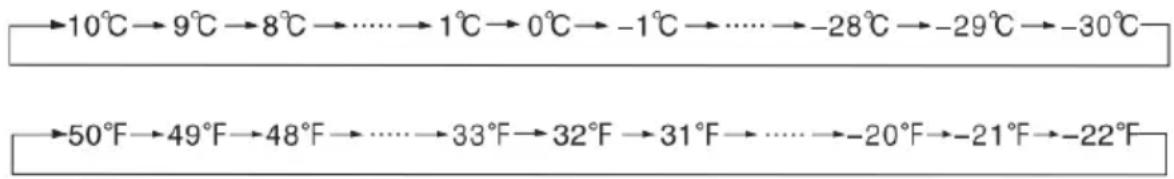

This freezer has a temperature range between -30^-10^/-22^-50^ .

• Press the temperature button to see the currently set temperature.
• To adjust the temperature, continue pressing the temperature button until the desired temperature is displayed. The display will cycle through the temperatures as seen below.

Notes:

• If setting to -30^ , it is highly recommended the ambient temperature is at or below 25^ .
• In the event of a power failure, the freezer will run on the previously set temperature when power is recovered.

Switching between Celsius and Fahrenheit

If wishing to switch temperature units, press and hold the temperature button for three seconds.

The Celsius indicator will illuminate when the freezer is using Celsius, and the Fahrenheit indicator will illuminate if the freezer is using Fahrenheit.

Super freeze mode

The super freeze mode sets the freezer to -30^ for up to 24 hours. To activate super freeze mode, press the super freeze/lock button and the super freeze indicator will illuminate.

To exit super freeze mode, press the super freeze button again.

Notes:

• After 24 hours of using the super freeze mode, the freezer will also automatically exit super freeze mode.
• In the event of a power failure or sensor failure, the freezer will also exit super freeze mode when recovered.

Sleep function

When activated, the sleep function turns off the display after 30 seconds of inactivity to conserve energy. This function is enabled by default.

• To turn off the sleep function, press and hold the temperature and super freeze buttons for five seconds. The display will stay on and show the currently set temperature.
• To turn on the sleep function, press and hold the temperature and super freeze buttons for five seconds. This display will show 'ON' to confirm the sleep function is activated.

Temperature warning indicator

If the freezer becomes too hot, the freezer will sound an alarm and the temperature warning indicator will illuminate.

Energy saving tips

• Allow hot foods to cool to room temperature before placing in the appliance.
  Overloading the appliance forces the compressor to run longer, and foods that freeze too slowly may lose quality or spoil.
• Ensure to wrap foods properly and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
• Compartments should not be lined with aluminium foil, wax paper, or paper towel. Liners interfere with cold air circulation, making the appliance less efficient.
• Organise and label food to reduce lid openings and extended searches. Remove as many items as needed at one time and close the lid as soon as possible.

CLEANING & CARE

Dust build-up in and around the freezer will lead to reduced cooling capabilities and increased energy use.

Ensure the freezer is turned off and unplugged before cleaning.

Interior

The interior of the freezer should be cleaned regularly to avoid odour.

1. Combining two tablespoons of baking soda with a litre of warm water, use a soft cloth or sponge to clean the inside of the freezer.
   For header to reach areas (for example, gaps, corners), use a soft brush. If necessary, other tools may be used to ensure no contaminants or bacteria accumulate in these areas.
2. Using soapy water or diluted detergent, wipe the lid seal with a soft cloth to ensure there is no debris.
3. Rinse with water and wipe clean.
4. After cleaning, open the lid and let it dry naturally before turning on the power.

Notes:

• Do not use soaps, detergents, and spray cleaners to clean the inside of your freezer as these may create odours or contamination.
• Do not rinse the freezer directly with water or any other liquids.

Exterior

Wipe the exterior with a soft cloth dampened with soapy water or detergent, then wipe dry.

Notes:

• Do not use hard brushes, clean steel balls, wire brushes, abrasives (for example, toothpastes), organic solvents (for example, alcohol, acetone), boiling water, acid, or alkaline items as they may damage the freezer surface and interior.
• Boiling water and organic solvents (for example, benzene) may deform or damage plastic parts.

Water outlet

Unscrew the drain plug over the water outlet and drain regularly.

Basket

Clean the basket with a soft cloth dampened with soapy water or diluted detergent. Allow to air dry or use another soft cloth to wipe dry.

Defrosting

Frost will accumulate in the freezer over extended use and the freezer will need to be defrosted. It is recommended to defrost when the frost is about half a centimetre thick. To defrost:

1. Unplug the freezer and open the lid. Remove any foods and the basket, then place the foods in a cool area.
2. Place a container under the water outlet. Unscrew the drain plug over the water outlet and allow any water to flow out.
3. As the freezer defrosts, wipe the interior with a dry, soft cloth. An ice scraper may be used to accelerate the cleaning process.
4. Once defrosted and cleaned, place the basket and any foods back into the freezer.

Note:

Do not use mechanical devices or other means to accelerate the defrosting process as this may cause damage to the refrigerant circuit.

Light

If the light needs maintenance or needs to be replaced, contact a qualified professional to perform this procedure.

Do not attempt to perform maintenance or replace the light yourself.

Storage

If the freezer will not be used for an extended period, unplug the power cord, and leave the lid open to prevent odours.

TROUBLESHOOTING

Issue	Reasoning/solutions
The freezer is not working.	·Ensure the power cord is fully plugged in and the power socket is switched on.·Ensure the voltage used is between 220-240V.·Check for a power failure and ensure the circuit has not overloaded.
The display is not responding.	Ensure the display is unlocked.
There is an odour emitting from the freezer.	·Ensure foods with a strong smell have been closely wrapped.·Check if any food has become rotten.·Check if the interior needs cleaning, then clean if necessary.
The compressor is running for longer than usual.	·When the ambient temperature is high, it is normal for the compressor to run longer than usual.·If foods have not been allowed to cool, the compressor will run longer to cool the freezer to the set temperature. It is recommended to cool food first before placing it into the freezer.·If the freezer is frequently opened, the compressor will run longer to keep the freezer cool.·There may be a thick layer of frost. In this case, defrost the freezer.·Ensure the freezer is not overfilled.
The light is not working.	·Ensure the power cord is fully plugged in and the power socket is switched on.·Check if the light is damaged. If damaged, stop use and contact help.Kogan.com for assistance.
The lid cannot be closed properly.	·Frozen food has stuck to the lid.·The freezer is overfilled. Remove food if necessary.·The freezer is unbalanced. Ensure the freezer is placed on a flat surface.
The freezer is making loud noises.	Ensure the freezer is placed on a flat, stable surface.
There is an air flowing sound emitting from the freezer.	Refrigerants circulating in the refrigerant lines will produce loud noises. This is normal and does not affect the cooling capabilities of the freezer.
There is a buzzing sound emitting from the freezer.	When the freezer is being turned on or off, the compressor will run and make a buzzing sound.
There is a clattering sound emitting from the freezer.	The solenoid valve or electric switch valve will make a clattering sound when operating. This is normal and does not affect freezer operation.
There is a slight difficulty when opening the lid.	When the freezer is operating, there will be a pressure difference between the inside and outside of the freezer. This results in difficulty when opening the lid and is a normal phenomenon.
The walls on the side of the freezer are heating up.	The freezer may emit heat during operation, particularly when the ambient temperature is high. This is caused by the radiation of the condenser and is a normal phenomenon.
There is condensation on the surface of the freezer.	When the ambient temperature is high, it is normal to detect condensation on the exterior surface and lid seal on the freezer.Wipe the condensation off with a dry towel.
The display is showing ‘E2’.	There is a temperature sensor failure. Stop use immediately and contact help.Kogan.com for assistance.

SPECIFICATIONS

Specification	KAMN142CHFA	KAMN198CHFA
Dimensions	632 x 550 x 850mm	816 x 550 x 850mm
Refrigerant R600A, 46g R600A, 56g
Comparative energy consumption	220kWh/year (Freezer)94kWh/year (Refrigerator)	255kWh/year (Freezer)108kWh/year (Refrigerator)
Net weight	29kg	33kg
Volume 142L 198L
Rated voltage 220-240V~
Frequency 50Hz
Rated current 0.8A
Temperature range	-30°C-10°C
Climate class	N, SN, ST, T
IEC protection class	I
Noise level	41dB

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com

kogan.com
