DV16T9720SV - Tumble dryer SAMSUNG - Free user manual and instructions

Product Type	Tumble Dryer
Brand	Samsung
Model	DV16T9720SV
Capacity	16 kg
Drying Technology	Heat Pump
Energy Efficiency Class	A++
Dimensions (W x D x H)	686 x 843 x 984 mm
Weight	68 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	2500 W
Annual Energy Consumption	200 kWh
Drum Material	Stainless Steel
Drum Volume	160 L
Smart Control	Yes (SmartThings)
Drying Programs	Cotton, Synthetics, Wool, Delicates, Mixed Load, Time Dry, Anti-Allergy, etc.
Sensors	Moisture Sensor, Dryness Level Control
Condenser Cleaning	Self-Cleaning (Auto Clean)
Filter	Lint Filter with Clean Indicator
Reversible Door	Yes
Noise Level	67 dB
Warranty	2 Years
Spare Parts Availability	Available through Samsung Service
Repairability Score	7/10

Frequently Asked Questions - DV16T9720SV SAMSUNG

How to clean the lint filter?

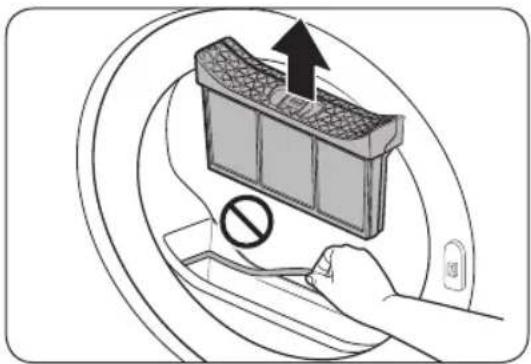

Open the door, pull the lint filter upward, remove lint by hand or with a soft brush, and rinse if necessary. Reinsert securely. Cleaning after every cycle is recommended for optimal performance.

How to reset the dryer?

Unplug the dryer for about 10 minutes, then plug it back in. Alternatively, press and hold the Start/Pause button for 3 seconds during operation to cancel the current cycle.

Why is the dryer not heating?

Check if the lint filter is clogged, the condenser needs cleaning, or the power supply is adequate. Also ensure the cycle selected is not a cool-down or air-fluff program. If issue persists, contact Samsung support.

How to use Smart Control?

Download the SmartThings app, add the dryer via Wi-Fi, and you can monitor, start, or stop cycles remotely. Ensure the dryer is connected to your home network.

How to clean the condenser?

The dryer has a self-cleaning condenser that automatically rinses during cycles. For manual cleaning, access the condenser behind the lower cover, rinse with water, and dry before reinstalling.

Why is the dryer noisy?

Noise may be due to loose objects in pockets, unbalanced load, or the dryer not being level. Check for foreign objects in the drum, redistribute the load, or adjust the feet.

How to change the door swing?

Use a screwdriver to remove the door hinges, reverse the door by rotating it 180°, and reattach the hinges on the opposite side. Refer to the manual for detailed steps.

What does the error code 'tE' mean?

Error code tE indicates a thermistor sensor issue. Turn off the dryer and let it cool down. Restart the cycle; if the error persists, contact a technician.

How to set a delay start?

Select the desired drying cycle, then press the Delay Start button repeatedly to choose the delay time (e.g., 1 to 24 hours). Press Start/Pause to confirm.

How to update the firmware?

Ensure the dryer is connected to Wi-Fi. Open the SmartThings app, go to device settings, and check for firmware updates. Follow the on-screen instructions to install any available updates.

USER MANUAL DV16T9720SV SAMSUNG

What you need to know about the safety instructions 4

Important safety symbols 4

Important safety precautions 5

Critical installation warnings 8

Critical usage warnings 9

Usage cautions 10

Critical cleaning warnings 12

Care for preventing freezing 12

Installation 13

What's included 13

Installation requirements 15

Step-by-step installation 16

Environment 22

Before you start 23

Initial setup 23

Drying guidelines 24

Operations 26

Control panel 26

Operating a cycle 28

Cycle overview 29

Additional Functions 32

System Functions 35

Special features 37

Maintenance 42

Emptying the water tank 42

Installing the micro soft filter(Optional Filter) 43

Cleaning 44

Troubleshooting 50

Checkpoints 50

Information codes 52

English2

Appendix 53

Fabric care chart 53

Protecting the environment 54

Specification

55

Safety information

Congratulations on your new Samsung dryer. This manual contains important information on the installation, use, and care of your appliance. Please take the time to read this manual to take full advantage of your dryer's many benefits and features.

What you need to know about the safety instructions

Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to caution and care when installing, maintaining, or operating your dryer.

Always contact your manufacturer about problems or conditions you do not understand.

Important safety symbols

What the icons and signs in this user manual mean:

WARNING

Hazards or unsafe practices that may result in severe personal injury, death and/or property damage.

CAUTION

Hazards or unsafe practices that may result in personal injury and/or property damage.

NOTE

Indicates that a risk of personal injury or material damage exists.

Read the instructions

These warning signs are here to prevent injury to yourself and others.

Please follow them explicitly.

After reading this manual, store it in a safe place for future reference.

Read all instructions before using the appliance.

As with any equipment that uses electricity and moving parts, potential hazards exist. To safely operate this appliance, familiarize yourself with its operation and exercise care when using it.

WARNING

Risk of Fire

• Clothes dryer installation must be performed by a qualified technician.
• Install the clothes dryer according to the manufacturer's instructions and local codes.
• To reduce the risk of severe injury or death, follow all installation instructions.

English4

Important safety precautions

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

1. This appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. For use in Europe: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
3. Children should be supervised to ensure that they do not play with the appliance.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.

Safety information

1. For appliances with ventilation openings in the base, that a carpet must not obstruct the openings.
2. For use in Europe: Children of less than 3 years should be kept away unless continuously supervised.
3. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
4. The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
5. The lint trap has to be cleaned frequently, if applicable.
6. Lint must not to be allowed to accumulate around the tumble dryer. (not applicable for appliances intended to be vented to the exterior of the building)
7. Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.
8. Do not dry unwashed items in the tumble dryer.
9. Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

English6

1. Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
2. Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
3. The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
4. Remove all objects from pockets such as lighters and matches.
5. WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
6. Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.
7. The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.
8. WARNING: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

Heat pump model only: The instructions shall also include the substance of the following:

Safety information

WARNING: In the appliance enclosure or in the built-in structure, keep ventilation openings clear of obstruction.

WARNING: Do not damage the refrigerant circuit.

Critical installation warnings

WARNING

The installation of this appliance must be performed by a qualified technician or service company.

- Failure to do so may result in electric shock, fire, an explosion, problems with the product, or injury.

Plug the power cord into a wall socket and use the socket for this appliance only. In addition, do not use an extension cord.

• Sharing a wall socket with other appliances using a power strip or extending the power cord may result in electric shock or fire.
• Ensure that the power voltage, frequency and current are the same as those of the product specifications. Failure to do so may result in electric shock or fire. Failure Plug the power plug into the wall socket firmly.

Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis.

• Unplug the power plug and clean it with a dry cloth.
• Failure to do so may result in electric shock or fire.

Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.

- If a child places a bag over its head, it may result in suffocation.

This appliance must be properly grounded.

Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.

• This may result in electric shock, fire, an explosion, or problems with the product
• Never plug the power cord into a socket that is not grounded correctly and make sure that it is in accordance with local and national codes.

Do not install or keep the product exposed to the outdoor elements.

Do not use a damaged power plug, damaged power cord or loose wall socket.

• This may result in electric shock or fire.

If the plug (power supply cord) is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified technician in order to avoid a hazard.

This appliance should be positioned to be accessible to the power plug after installation.

Do not pull or excessively bend the power cord.

Do not twist or tie the power cord.

English8

Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.

• This may result in electric shock or fire.
Do not pull the power cord, when unplugging the power plug.
- Unplug the power plug by holding the plug.
- Failure to do so may result in electric shock or fire.

This appliance must be properly grounded. Never plug the power cord into a receptacle that is not grounded adequately and in accordance with local and national codes. See installation instructions for grounding this appliance.

Install this appliance in a location with solid, level floor.

- Failing to do so may result in abnormal vibrations, noise or problems with the product.

Since an ingredient in hair spray may degrade the hydrophile property of the heat exchanger so that dew may appear on the outer surface of the appliance when the cooling operation is running, do not install the appliance in a beauty salon.

This appliance should be positioned so that the power plug, the water supply taps, and the drain pipes are accessible.

Critical usage warnings

WARNING

Do not let children or pets on or into the product. In addition, when disposing of this product, disassemble the door lock (lever).

• This may result in children falling and injuring themselves.
• If children become locked in the product, there is a danger of suffocation.

Do not try to access the inside of the product when the drum is rotating.

Do not sit on the product or lean against the door.

- This may result in the product turning over and resulting in injury.

Dry the laundry only after it was spun by an appropriate washing machine.

Do not dry unwashed items in the tumble dryer.

Do not drink the condensed water.

Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Do not dry laundry contaminated by inflammable materials such as gasoline, kerosene, benzene, thinner, alcohol, etc.

• This may result in electric shock, fire or explosion.
  Do not let pets chew or play with the dryer.
  • This may result in electric shock or injury.

Safety information

When disposing of the product, separate the door and the power cord before disposing of the product.

• Failing to do so may result in damage to the power code or an injury.
  Do not touch the power plug with wet hands.
  • This may result in electric shock.

When gas (city gas, propane gas, LP gas) leaks, do not touch this appliance or the power cord, ventilate immediately.

• At this time, do not use the ventilating fan.
• A spark may cause an explosion or fire.

Do not repair, replace, or attempt to service any part of the appliance unless specifically recommended in the user-repair instructions. You must also have the skills necessary to service this appliance.

Do not attempt to repair, disassemble, or modify the appliance yourself.

• Do not use any fuse(such as cooper, steel wire, etc.) other than the standard fuse.
• When repairing or reinstalling the appliance is required, contact your nearest service center.
• Failure to do so may result in electric shock, fire, problems with the product, or injury.

The product you have purchased is designed for domestic use only.

The use for business purposes qualifies as product misuse. In this case, the product will not be covered by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages resulting from such misuse.

If the product generates strange noise, smells of something burning, or generates smoke, immediately cut-off the power and contact the service center.

- Otherwise, it may cause an electric shock or fire as a result.

Do not let children (or pets) play in or on your product. The product door does not open easily from the inside and children may be seriously injured if trapped inside.

Usage cautions

CAUTION

Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.

• This may result in electric shock, fire, problems with the product, or injury.
  Do not touch the glass door and inside of the drum during or just after drying as it is hot.
  • This may result in burns.

The door glass becomes hot during drying. Therefore, do not touch the door glass.

Also, do not allow children to play around the dryer or touch the door glass.

• This may result in burns.

Do not press the buttons using sharp objects such as pins, knives, fingernails, etc.

• This may result in electric shock or injury.

English10

Do not dry laundry containing forming rubber (latex) or similar rubber textures.

- If forming rubber is heated, it may start a fire.

Do not dry laundry contaminated by vegetable oil or cooking oil as a large amount of the oil will not be removed when washing the laundry. In addition, use the unheated dry cycle so that the laundry is not heated.

- The oxidization heat of the oil may start a fire.

Do not dry laundry contaminated by foreign substances such as oil, cream, lotion, or other chemicals that are used in places such as skincare room, massage parlor, beauty salon, or hospital.

- This may result in electric shock, fire, malfunction, and injury.

Make sure that the pockets of all clothing to be dried are empty.

- Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause extensive damage to the appliance.

Do not dry clothing with large buckles, buttons, or other heavy metal (zippers, hooks and eyelets, button-up covers).

If necessary, use the laundry net for small and lightweight laundry such as fabric tie belt, apron strings, and underwire bras which can dissolve or break during a cycle.

Dryer sheets are compatible with this model, and are recommended for better drying performance.

Dryer sheets are also beneficial in reducing the static electricity generated during a drying cycle. Static electricity could lead to damage of laundry items and potentially the appliance.

Do not use the dryer near dangerous powders such as coal dust, wheat flour, etc.

- This may result in electric shock, fire or an explosion.

Do not place inflammable materials near the product.

- This may result in toxic gases from the product, damage to parts, electric shock, fire or an explosion.

- The appliance should not be placed behind lockable doors etc.

Do not touch the rear side of the appliance during or immediately after drying is complete.

- The appliance remains hot and may cause burns.

Safety information

Critical cleaning warnings

WARNING

Do not clean the appliance by spraying water directly onto it.

Do not use benzene, thinner or alcohol to clean the appliance.

- This may result in discoloration, deformation, damage, electric shock or fire.

Before cleaning or performing maintenance, unplug the appliance from the wall socket.

- Failure to do so may result in electric shock or fire.

Clean the filter case before and after using the dryer.

Clean the inside of the product on a regular basis by asking an authorized service engineer.

Clean the Heat Exchanger with a soft brush or vacuum cleaner once a month, Do not touch the heat exchanger with your hand. Otherwise, it may cause an injury.

The interior of the dryer should be cleaned periodically by qualified service personnel.

Care for preventing freezing

• Install the dryer in an area where the temperature does not drop below zero degree Celsius.
- If draining directly using a long drain hose, water remaining inside the hose can freeze in winter. Make sure there is no water left inside the hose after use.
- If the drain hose has frozen, wrap the hose with a towel soaked in warm water for approximately ten minutes to thaw it.

English12

Installation

What's included

Carefully unpack the dryer. Keep all packaging materials away from children. The parts and location of parts shown below may differ from your dryer. Before installation, make sure the dryer has all the parts listed here. If the dryer and/or parts are damaged or missing, contact the nearest Samsung customer service center.

Dryer at a glance

01 Top cover 02 Water tank
03 Door 04 Heat exchanger
05 Control panel 06 Lint filter
07 Levelling feet

Installation

Accessories (supplied)

Simple line drawing of a closed book with a blank cover (no text or symbols)

Line drawing of a coiled cable or hose with two connectors, enclosed in a rounded rectangular frame (no text or symbols)

Simple line drawing of a USB cable with a rectangular head and curved tip (no text or symbols)

User manual Long drain hose (3 m) Cable tie

Simple line drawing of a pen or tool with a loop handle (no text or symbols)

Isometric line drawing of a layered structure with grid pattern (no text or symbols)

Isometric line drawing of a rectangular grid device (no text or symbols)

Cleaning brush Drying rack Micro soft filter(Optional Filter)

Simple line drawing of a mechanical component with a flanged top and threaded base (no text or symbols)

Simple line drawing of a curved mechanical bracket or clamp (no text or symbols)

Simple line drawing of a door with a switch and circular buttons (no text or symbols)

Hose connector Hose guide Holder lever (applicable models

only)

NOTE

• The stacking kit allows the dryer to be stacked on top of a washing machine. Please note that the stacking kit can only be used with Samsung washing machine and dryers. To purchase a stacking kit above, contact a Samsung service centre or local appliance retailer. The stacking kit differs with the washing machine model.
• For stacking instructions with the dryer, see the installation manual included in the stacking kit.
• For information on which stacking kit model you can use to stack your dryer on the washing machine, see the user manual included in your Samsung washing machine.

English14

Installation requirements

NOTE

This dryer must be installed by a qualified installer. If service is required due to poor or faulty installation, it is considered the owner's responsibility and may void the warranty. Keep these instructions for future reference.

WARNING

• Do not plug the power cord into a wall outlet before the dryer is completely installed.
• Have two or more persons help move the dryer.
• Do not let children or pets play in, on, or around the dryer. Propersupervision is necessary at all times.
• Keep all packaging materials away from children.
• Do not replace a damaged power cord or power plug yourself. Have Samsung or a qualified service technician replace a damaged power cord or power plug.
• Do not attempt to repair, disassemble, or modify the dryer. For any repairs, contact the nearest Samsung service center.
• Remove the door/lids from all discarded appliances to avoid children from suffocating.
• If the dryer generates a strange noise, burning smells, or smoke, unplug the power plug immediately and contact the nearest Samsung service center.
• Do not unplug the dryer while it is operating.
• Do not place flammable objects near the dryer.

Electrical and grounding requirements

• The dryer requires an AC 220-240 V / 50 Hz electrical supply.
• The dryer must be properly grounded. If the dryer malfunctions or breaks down, grounding reduces the risk of electric shock by providing a path of least resistance for the electric current. The dryer comes with a power cord that has a 3-prong grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• If you have any questions regarding the electrical or grounding requirements, please contact Samsung or a qualified electrician.

WARNING

• Plug the power cord into a grounded, 3-prong outlet.
• Do not use a damaged power plug, cord, or loose or damaged wall outlet.
• Do not use an adapter or an extension cord.
• Improper connection of the equipment-grounding conductor may result in electric shock. If you are unsure if the dryer is properly grounded, check with a qualified electrician.
• Do not modify the power plug, power cord, or power outlet in any way.
• Do not connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.

Installation

Alcove or closet installation

For alcove or closet installation, the dryer requires the following minimum clearances:

Sides Top Front	Rear
20 mm 25 mm 490 mm 50 mm

If installing the dryer with a washing machine, the front of the alcove or closet must have an unobstructed air opening of at least 550 mm.

Step-by-step installation

Before you install your dryer, make sure you have read Installation requirements on page 15.

STEP 1 Select a location

Location requirements

Select a level, well-constructed surface that will withstand vibrations. Select a location where a grounded, 3-prong outlet is easily accessible.

For convenience, consider installing the dryer next to your washing machine.

WARNING

• Install the dryer indoors only.
- Do not install the dryer in areas exposed to the weather.
- Do not install the dryer where the temperature may fall below 5^ or rise above 35^ .
- Do not install the dryer where gas may leak.

English16

STEP 2 Adjust the levelling feet

1. Gently slide the dryer into the desired location.

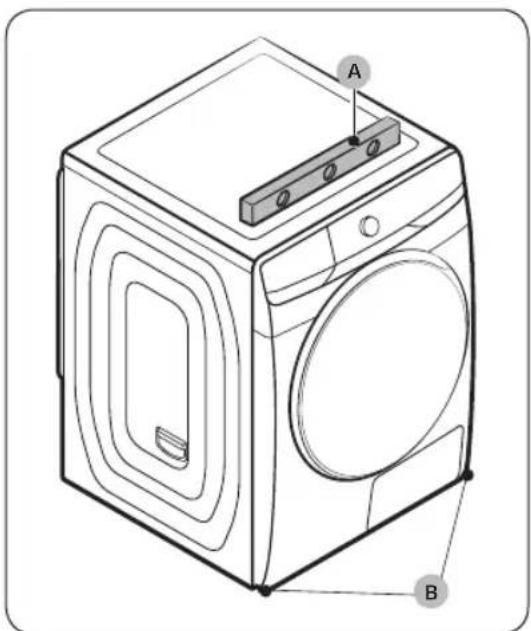

2. Use a level (A) and check the levelness of the dryer from side to side and front to back.

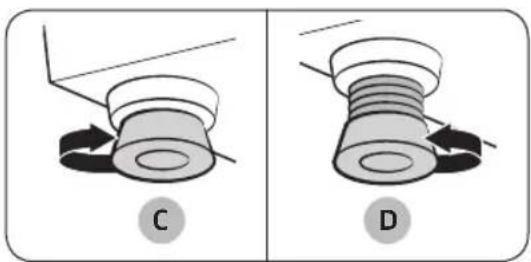

3. If the dryer is not level, turn the levelling feet (B) left or right to adjust the height.
4. Once the dryer is level, make sure the dryer stands firmly on the floor.
5. Plug in the dryer.

Two diagrams showing a mechanical component with arrows indicating rotation, labeled C and D (no text or symbols beyond labels)

NOTE

• To set the dryer to the same height as the washing machine, turn the levelling feet to the right until it fully retracts (C). Then, turn the levelling feet to the left to extend (D) it until the dryer and the washing machine are the same height.
• Extend the levelling leg only as much as necessary. Extending the levelling leg more than necessary can cause the dryer to vibrate.

Installation

STEP 3 Connect the drain hose

Draining directly to a drainage system

• We strongly recommend draining condensed water directly to your drainage system instead of draining to the built-in water tank.
• Use the provided accessory hose (long drain hose) to drain condensed water directly to your drain system instead of draining to the built-in water tank (which is a default method).
• Use the built-in water tank only if you cannot drain the condensed water directly to a drainage system.

NOTE

As a factory default, this dryer is set to use the built-in water tank to drain condensed water.

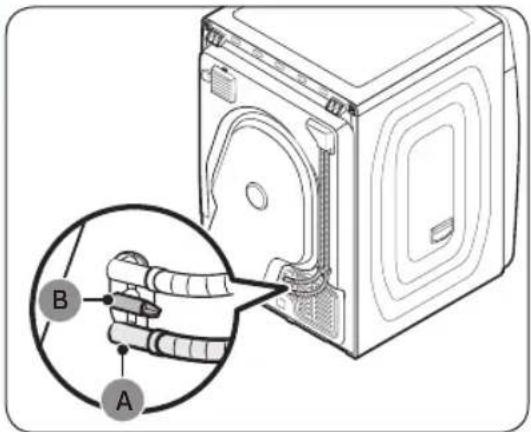

1. Remove the water tank drain hose from the drain water outlet (A), and then insert it to the holder (B).

English18

01 70 mm

1. Insert one end of the accessory hose (long drain hose) into drain water outlet (A).

2. Place the other end (outlet) of the accessory hose at least 70 mm away from a drain hole.

Placing the accessory hose over a wash basin

1. Make sure to place the end of the accessory hose lower than 90 cm (*) from the bottom of dryer.

2. To bend some point of the accessory hose, use the supplied plastic hose guide (B) and secure the guide to the wall with a hook or to the tap with a piece of string. Assemble the drain hose (A) and the hose guide (B) and fix them with the cable-tie (C).

3. You can drain the condensed water by connecting the accessory hose (long drain hose) to the drain-outlet directly.

CAUTION

Do not extend the drain hose. Water may leak from the connected area. Use a long drain hose.

Installation

By using the drain pipe of the wash basin

1. Assemble the hose connector (A), and attach it to the end of the accessory hose as shown.

CAUTION

To prevent water leak, make sure to connect the hose and the connector firmly.

Line drawing of a standard square sink with a pipe fitting and a handle (no text or symbols)

1. Connect the hose adapter directly to the drain pipe of the wash basin.

CAUTION

• Place the other end (outlet) of the accessory hose about 70 mm away from a drain hole. Do not insert the end (outlet) of the accessory hose into a sewer.
  -A sewer smell may flow into the dryer.
• Wring out excess water from items before putting them in the dryer.
  -Wet items may cause an unpleasant smell inside the dryer.
• Open the dryer door and the heat exchanger cover after completing a drying cycle to maintain the dryer interior more hygienically.
• Run the Self Tub Dry cycle if there is an unpleasant smell inside the dryer, or the "Self Tub Dry needed" message appears in the display.

English20-

Draining to the water tank

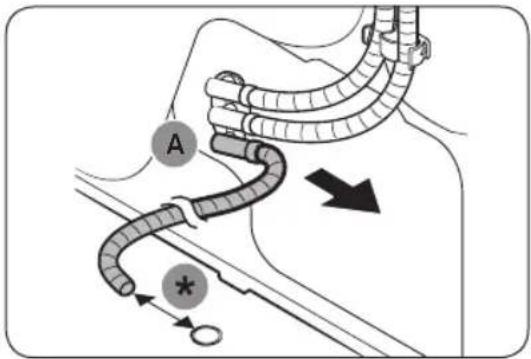

1. Remove the long drain hose from the drain water outlet (A). * 70 mm

NOTE

Completely dry the removed long drain hose and keep it in a safe place for later use.

Diagram of a medical procedure showing a hand holding a flexible tube with a circular label B and an arrow indicating direction (no text or symbols present)

1. Remove the water tank drain hose from the holder (B), and then connect it to the drain water outlet (A). -Firmly connect the water tank drain hose so that it does not move around.

Diagram of a medical device with tubing and a labeled arrow (no text or symbols present)

Installation

STEP 4 Check the installation

• All packaging material is completely removed and properly disposed.
• The dryer is level and standing firmly on the floor.
• Make sure no accessory remains inside the drum.
• Do not block the air inlet hole of the cooling grill at the front of the dryer.
• Do not place inflammable objects near the dryer and keep the surroundings clean.
• Do not remove the adjustable levelling legs of the dryer. They are necessary to keep the dryer level with the ground.
  • After installation, we recommend that you wait at least 1 hour before using the dryer.

STEP 5 Power on

Plug the power cord into a wall socket protected by a fuse or circuit breaker. Then, tap ⏻ to turn on the dryer.

NOTE

Run the Time Dry cycle for 20 minutes to make sure that it runs, heats, and shuts off. If the HC information code is displayed, contact a local service center.

Environment

Please dispose of the packaging materials for this product in an “environmentally friendly” manner. For further detail, please contact your local area authority.

English22

Before you start

Initial setup

• When you turn on your dryer for the first time, the screen shows the initial setup process. Follow the on-screen instructions to complete it.
• If you complete the initial setup and operate a cycle for more than a minute, the initial setup will not appear again.
• The initial setup includes language selection and a brief tutorial.
• When tapping a button, tap exactly over the icon.
• Operating the washing machine and dryer at the same time may result in a loss of power depending on where they are installed and your electrical power status.

01 Language selection 02 Welcome screen
Turn dial & Tap O
03 Tutorial
[Tap o to skip]	[Tap o to skip]
Now hold to start a cycle [Tap o to skip]	[Tap o to skip]

Before you start

Drying guidelines

STEP 1 Sort

• Do not mix heavy and lightweight items together.
• Wash and dry dark-colored items separately from light-colored items.
• Unless recommended on the care label, do not dry woolens or fiberglass items.
• Do not dry items soiled with oil, alcohol, gasoline, etc.
• Avoid drying unwashed items.

• Using a laundry net is recommended for baby socks and other small, light items.

• Do not dry wet items that have not been fully spin-dried after washing. This could cause an odor inside the dryer or cause the dryer to malfunction.

STEP 2 Empty pockets and turn them inside out

• Turn dark-colored clothes inside out before drying them. This will prevent fabric damage due to friction during the drying process and protect internal parts of the dryer from discoloration and damage.
• Turn the items with buttons or embroideries inside out before drying them.

CAUTION

• Empty the pockets. Metallic objects such as coins, pins, and buckles on clothing may damage other laundry items as well as the drum.
• Remove any metallic objects attached to items, pull up zippers, and latch hooks before drying. Metallic objects attached to items may damage other items as well as the drum.

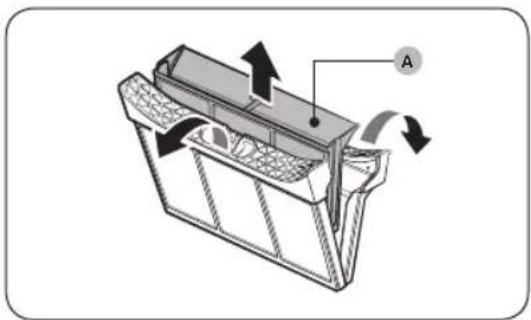

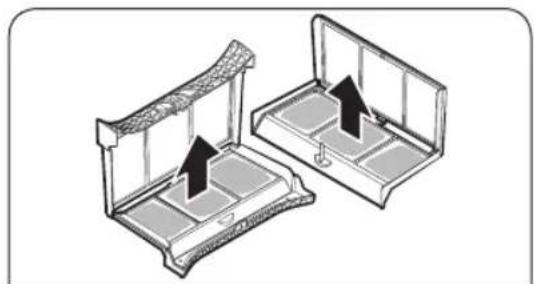

STEP 3 Check the lint filter

Ensure that the lint filter is installed correctly before putting items in the dryer. The dryer does not work without the lint filter.

- Always clean the lint filter before drying. For more information on filter cleaning, see the "Lint filter" section on page 45.

English24

STEP 4 Determine the load capacity

Do not overload the dryer. Overloading reduces the tumbling action, resulting in uneven drying and wrinkling.

• Put one wash load in the dryer at a time.
• To improve drying efficiency for one or two items, add a dry towel to the load.
• For best results, untangle items before inserting them into the dryer. Tangled items may degrade the drying efficiency or cause the door to open.

CAUTION

Add or remove items into or from the dryer with the lint filter installed. If the filter is not in place, small items can fall into the filter slot and cause the dryer to malfunction.

STEP 5 After finishing the drying

• Empty the water tank to prevent leaks. For more information on emptying the water tank, see the "Emptying the watertank" section on page 42
• If the "Clean heat exchanger" message appears on the display, refer to the "Heat exchanger" section on page 47 and clean the heat exchanger.
• Keep the dryer door and the heat exchanger cover open after finishing the drying to keep the inside of the dryer more hygienic.

Operations

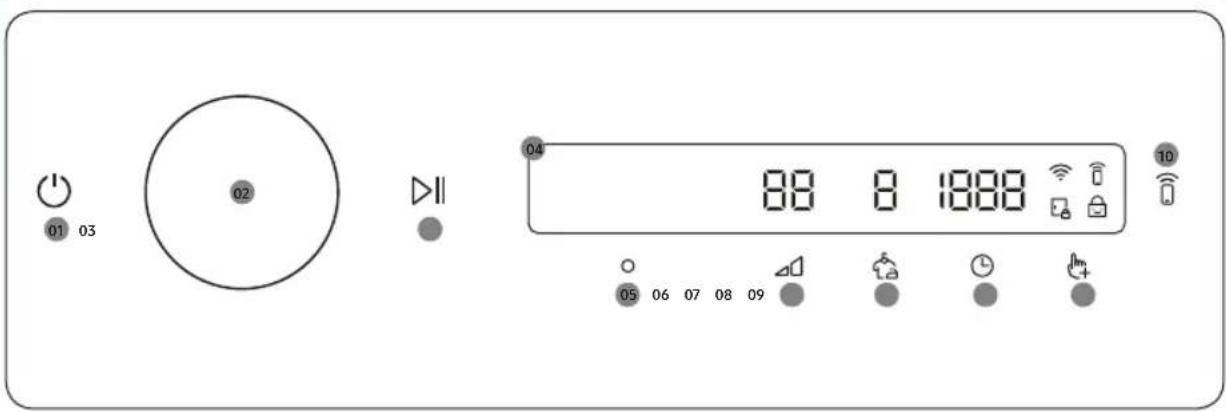

Control panel

01 Power ⏻	Tap to turn the dryer on or off.If you do not manipulate the control panel for 10 minutes after the dryer is turned on, the dryer automatically turns off.The dryer automatically turns off when the drying completes.CAUTIONDo not tap ⏻ to turn the dryer off while the drying is in progress. Tap and hold ▷ to pause the cycle first, and then tap ⏻ to turn the dryer off.
02 Navigation dial	Turn theNavigation dialleft or right to navigate through cycles and functions. When you turn theNavigation dial, the display shows your selection (such as cycle, additional functions, and system functions).
03 Start/Pause ▷	Tap and hold to start or pause an operation.
04 Display	The display shows the current cycle, estimated time remaining, cycle options, and other useful or alert messages.
05 OK ⭕	Tap to confirm your selection of function or setting.
06 Dry Level ⭺	Tap to change the dry level for the selected cycle. You can select from level 1 to 4, but available level depends on the selected cycle.Suitable for large and thick items.Standard drying level.The Damp dry level is designed to partially dry items. Use for items that lay flat or hang to dry.Gently dries items to protect fabric. Suitable for delicate items or items you want to naturally dry (by hanging or laying flat on drying rack) while they are damp.
07 Wrinkle Prevent ⭺	Tap to turn the Wrinkle Prevent function on or off. When the function is on, the dryer rotates the drum intermittently after completing the dry cycle to prevent wrinkles.

English26

08 Time 📊	Tap to select the cycle time for Time Dry, Rack Dry, or Cool Air. You can set the drying time between 20 minutes and 240 minutes. Available drying time depend on the selected cycle.
09 Additional Functions 🌐	Tap to enter the additional functions menu.Tap and hold for 3 seconds to enter the system functions menu.
10 Smart Control 📊	Tap to activate or deactivate the Smart Control function.When the Smart Control function is activated, you can control your dryer remotely using the SmartThings app in your smartphone.

Icon description

	Wi-Fi This icon indicates that the dryer is connected to Wi-Fi.
	Smart Control	This icon indicates that Smart Control is on. For more information on “Smart Control”, see page 37.
	Child Lock	This icon indicates that Child Lock is on.For more information on “Child Lock”, see page 34.
	Door Lock	This icon indicates the door is locked and cannot be opened.The door locks automatically during a cycle and this indicator turns on.You can open the door when this icon disappears.

Operations

Operating a cycle

1. Tap to turn on the dryer.
2. Turn the Navigation dial to select the cycle you want. For more information on "Cycle overview", see page 29.
3. Tap △, or to change the default cycle settings.
4. Tap 🔒, and then turn the Navigation dial to select additional function. For more information on "Additional Functions", see page 32.
5. Tap ○ to change the settings for selected additional function. Not all cycles have additional functions available.
6. Tap and hold ▷ to start operation. Once you set the cycle you want, the screen displays a brief cycle description, maximum laundry load, and cycle time. You can also check the cycle progress, remaining cycle time, and information codes.

English28

Cycle overview

Sensor dry cycles

Cycle Description	Max load (kg)
Cotton	For cottons, bed linens, table linens, underwear, towels, or shirts.	16.0
Al Dry	Auto optimized drying by Al according to the load and ambient temperature.	16.0
Quick Dry	For mixed loads consisting of cotton and synthetic fabrics that need quick drying.	8.0
Shirts Use to quickly	dry one item such as a shirt. 2.0
Bedding	For bulky items such as blankets, sheets, comforters, and light duvets.	4.0
Towels Use to dry loads	such as bath towels. 6.0
Delicates	For the delicate items to be handled with care such as lingerie.	3.0
Synthetics	For blouses, and shirts that are made of polyester (Diolen, Trevira), polyamide (Perlon, nylon), or other similar blends.	7.0
Wool	For machine washable and tumble dryable wool only. For best results, turn laundry inside out before drying.	1.0

Operations

Manual dry cycles

Cycle Description	Max load(kg)
Time Dry	Use to set a desired dry time.Turn theNavigation dialto select Time Dryand tap 📋 to setthe drying time between 20 minutes and 240 minutes. Tap 📋 repeatedly to select the available time options in this order:20/30/40/50/60/90/120/150/180/240.NOTEIf you use this cycle for additional drying after finishing one of the Sensor Dry cycles (listed on page29), set the minimum drying time(20 minutes). Excessive drying may cause damage or deform to an item.
Rack Dry	Timed cycle for items that needs to be dried on a drying rack.TurnNavigation dialto select Rack Dryand tap 📋 to set the dryingtime between 20 minutes and 240 minutes. Tap 📋 repeatedly toselect the available time options in this order:20/30/40/50/60/90/120/150/180/240.
Cool Air	All types of fabric. For freshening up or airing items of laundry thathave not been worn for long.TurnNavigation dialto select Cool Airand tap 📋 to set the dryingtime between 20 minutes and 240 minutes. Tap 📋 repeatedly toselect the available time options in this order:20/30/40/50/60/90/120/150/180/240.

English30

Other cycles

Cycle Description	Max load (kg)
Hygiene Care+	For sanitizing wet and dry clothes and linen fabric to eliminate bacteria.	6.0 (for wet)4.0 (for dry)
Air Bedding Care	For dusting off clothes, bed spreads, bed sheets and bedding covers, etc.	3.0
Down Jacket Care For fluffing up a down jacket. 2.0
Outdoor Care	For restoring the water repellent properties of outdoor wear treated with water repellent agents such as skiwear and mountain clothing.	1.0
Self Tub Dry	Use this cycle to keep both the drum and the heat exchanger fresh.Do not use this cycle while there is any laundry stored in the drum.	-

Operations

Additional Functions

Using Additional Functions

1. Tap

1. Turn the Navigation dial to select the desired additional function.
2. Tap O to change the selected function's settings or start the function.

NOTE

• To return to the main screen, tap 📋 again or turn the Navigation dial to select Back and tap O.
• If the selected function is not supported, the "Currently not supported" message is displayed, and the ○ button is not activated.
• When you select an additional function, a brief help message appears for the first ten times of use.
• If you do not manipulate the control panel for 7 seconds after entering the Additional Functions menu, the display returns to the main screen.

Damp Alert

This function alerts you when shirts and other items that require ironing are dry enough to be suitable for ironing.

1. Select a cycle and change the cycle settings as necessary.

- This function is available for Cotton, Al Dry, Quick Dry, Synthetics, and Shirts with the Dry Level set to 2 \~ 4.

1. Tap

1. Turn the Navigation dial to select Damp Alert, and then tap O.
2. Tap and hold ▷II.

Alarm during drying:

1. Tap and hold ▷ to pause the cycle.
2. Open the door and take out the items you want to iron.
3. Close the door, and then tap and hold ▷ll to dry the remaining items.

English32-

Drum Light

You can turn the drum light on or off.

1. Tap ♿+.

2. Turn the Navigation dial to select Drum Light, and then tap O.

3. Tap ○ to select On or Off.

- The drum light turns on even when the dryer is off. (If the dryer is plugged in d to a power outlet.) - When the dryer door opens, the drum light automatically turns on and automatically turns off after 2 minutes.

My Cycles

Add or remove cycles to create a personal cycle list.

1. Tap 🔊+.

2. Turn the Navigation dial to select My Cycles, and then tap O. You can only edit a cycle to create a personal cycle when the dryer is not operating.

3. Turn the Navigation dial to select a desired cycle.

4. Tap ○ to add or remove the selected cycle.

5. Addition and removal of a cycle is saved automatically.

6. Once you finish creating My Cycles, tap 📋 to return to the cycles screen.

NOTE

The Cotton and Self Tub dry cycles can not be removed from the cycles list.

Optional filter

If you installed the Optional Filter to prevent dust accumulation on the heat exchanger, use this setting to set the filter cleaning alert on or off.

1. Tap

2. urn the Navigation dial to select Optional filter, and then tap O.

3. Tap O to select On or Off.

4. Select On to receive a filter cleaning alert message.

NOTE

If the "Clean Optional Filter" or "Clean heat exchanger" message appears on the display, clean both the heat exchanger and the Optional Filter. (Refer to the "Heat exchanger" section on page 47 and "Optional Filter" section on page 49.)

Operations

Child Lock

To prevent children or infants from accidentally starting or setting the dryer, Child Lock locks all buttons except for and.

1. Close the door.
2. Tap ♠+.
3. Turn the Navigation dial to select Child Lock, and then tap O.

4. Tap ○ to select On or Off.

5. The Child Lock 🔒 icon turns on when the function is on.

6. You cannot turn on Child Lock with the door open. If you get the "Door is open" message on the display while you try to turn on Child Lock, close the door and try again.

NOTE

• When Child Lock is on, all buttons are disabled except for ⏻ and 🔊
• If you tap a button with Child Lock on, an alarm triggers with the "Child Lock on" message.
• To dismiss a notification message, turn off Child Lock or the power.

English34-

System Functions

Using System Functions

* Tap and hold 3 seconds.

1. Tap and hold 🎨 for 3 seconds.
2. Turn the Navigation dial and select the desired system function, and then tap O.
3. Tap ○ to change the selected function's settings or start the function.

NOTE

• To return to the main screen, tap 📋 again or turn the Navigation dial to select Back and tap O.
• If you do not manipulate the control panel for 7 seconds after entering the System Functions menu, the display returns to the main screen.

AI Pattern

This function saves your frequently used cycles and settings.

1. Tap and hold 🎨 for 3 seconds.
2. Turn the Navigation dial to select AI Pattern, and then tap O.
3. Tap ○ to select On or Off.

The default setting is On. Set it to Off if you do not want to use this function.
- When you turn the function on, the dryer remembers frequently used cycles and their settings (Dry Level 4 Time) and save them in frequently used order.

-When you turn off the function, all the saved data resets.

Alarm

You can enable/disable alarm sounds.

1. Tap and hold 🎨 for 3 seconds.
2. Turn the Navigation dial to select Alarm, and then tap O.
3. Tap ○ to select On or Off.

- The default setting is On.

NOTE

The setting remains unchanged even if you restart the dryer.

English

Operations

Calibration

You can run calibration again for accurate weight detection.

1. Tap and hold 🎨+ for 3 seconds.
2. Turn the Navigation dial to select Calibration, and then tap O.
3. Calibration does not start if the door is not closed properly.
4. The drum rotates clockwise and anticlockwise for about 3 minutes.
5. When calibration is complete, the "Calibration complete" message appears on the display and the dryer turns off automatically.

Wi-Fi

You can turn the dryer's Wi-Fi on or off.

1. Tap and hold 🎨 for 3 seconds.
2. Turn the Navigation dial to select Wi-Fi, and then tap O.

3. Tap ○ to select On or Off.

4. The dryer's Wi-Fi is off as a factory default setting. However, the dryer's Wi-Fi turns on automatically when you turn on the dryer for the first time. Then, the final Wi-Fi setting maintains regardless of the dryer power status.
   Once you turn on the dryer's Wi-Fi and connect to a network, the dryer remains connected to the network even when you turn off the power.

5. The Wi-Fi 🔺 indicates that the dryer is connected to the router through the Wi-Fi connection.

Language

You can change the system language.

1. Tap and hold 📋 for 3 seconds.
2. Turn the Navigation dial to select Language, and then tap O.
3. Turn the Navigation dial to select the desired language, and then tap O.

Factory Reset

You can reset your dryer.

1. Tap and hold 📋 for 3 seconds.
2. Turn the Navigation dial to select Factory Reset, and then tap O. -Your dryer resets to the factory setting.

English36

Special features

Smart Control

You can connect to the SmartThings app and control your dryer remotely.

Connecting your dryer

• Download and open the SmartThings app on your mobile device.
• Tap and hold ⏻ to turn on the dryer.
• Tap and hold for 3 seconds on the dryer.

a. The dryer enters AP mode and connects to your mobile device.
b. Tap 🔒 to authenticate your dryer on your mobile device.
c. Once the authentication process is complete, your dryer is successfully connected to the app. Use various features available in the SmartThings app.

NOTE

• If your dryer fails to connect with the SmartThings app, try again.
• Check your router if you experience any Internet connection problem after connecting your dryer with the SmartThings app.
• If the Wi-Fi is off, tap and hold ⚠ for 3 seconds to navigate to System Functions, select Wi-Fi and tap O to turn it on.
• Turning the dryer's Wi-Fi on allows you connect to the dryer via SmartThings app on your smartphone regardless of the power status of the dryer. However, the dryer appears offline on the SmartThings app if the dryer's Wi-Fi is off.
• Close the door before starting the Smart Control function.
• If you use the dryer 20 times without being connected to SmartThings, the next time you turn the dryer on, a pop-up about Smart Control connection will appear for 3 seconds.
• If the dryer's Wi-Fi is not connected to an AP (access point), the Wi-Fi will turn off when you turn of the power.

Stay Connect

Set up the Stay Connect function in your SmartThings app. Your dryer stays connected to the app so you can use the dryer when you are away from home.

1. If you turn on the Stay Connect function on the SmartThings app, the dryer will stay in standby power saving mode after completing a cycle.

The Stay Connect function will remain active for up to 24 hour if the door remains closed.

1. When the Stay Connect function is active, the Smart Control 📄 and Wi-Fi 📋 turn on your dryer display.
2. Conveniently control your dryer using the SmartThings app.

NOTE

The dryer switches to standby power saving mode when operation is paused even if the machine is not connected to the SmartThings app.

Operations

SmartThings

Wi-Fi connection

On your smartphone, go to Settings and turn on the wireless connection and select an AP (Access Point).

- This appliance supports the Wi-Fi 2.4 GHz protocols.

Download

On an app market (Google Play Store, Apple App Store, Samsung Galaxy Apps), find the SmartThings app with a search term of "SmartThings". Download and install the app on your device.

NOTE

The app is subject to change without notice for improved performance.

In addition, the further updates on app or the function in the app may stop due to usability and security reasons, even if updates are currently supported on your OS.

Log in

You must first log into SmartThings with your Samsung account. To create a new Samsung account, follow the instructions on the app. You don't need a separate app to create your account.

NOTE

If you have a Samsung account, use the account to log in. A registered Samsung smartphone user automatically logs in.

To register your appliance to SmartThings

1. Make sure your smartphone is connected to a wireless network. If not, go to Settings and turn on the wireless connection and select an AP (Access Point).
2. Open SmartThings on your smartphone.
3. If a message of "A new device is found.", select Add.
4. If no message appears, select + and select your appliance in a list of devices available. If your appliance is not listed, select Device Type > Specific Device Model, and then add your appliance manually.
5. Register your appliance to the SmartThings app as follows.
   a. Add your appliance to SmartThings. Make sure your appliance is connected to SmartThings.
   b. When registration is complete, your appliance appears on your smartphone.

English38

Open Source Announcement

The software included in this product contains open source software. You may obtain the complete corresponding source code for a period of three years after the last shipment of this product by contacting our support team via http://opensource.samsung.com (Please use the "Inquiry" menu.)

It is also possible to obtain the complete corresponding source code in a physical medium such as a CD-ROM; a minimal charge will be required.

The following URL http://opensource.samsung.com/opensource/SMART_AT_051/seq/0 leads to the open source license information as related to this product. This offer is valid to anyone in receipt of this information.

NOTE

Hereby, Samsung declares that this radio equipment is in compliance with Directive 2014/53/EU and with the relevant statutory requirements in the UK. The full text of the EU declaration of conformity and the UK declaration of conformity is available at the following internet address: The official Declaration of conformity may be found at http://www.samsung.com, go to Support > Support home and enter the model name.

Wi-Fi max transmitter power : 20 dBm at 2.412 GHz - 2.472 GHz

This telecommunication equipment conforms to NBTC technical requirement.

Operations

Using the drying rack

Set the drying time up to 240 minutes according to the moisture and weight of the items to dry. When drying laundry using the drying rack, the Rack Dry cycle is recommended.

Diagram of a car interior showing structural components and airflow direction arrows (no text or symbols)

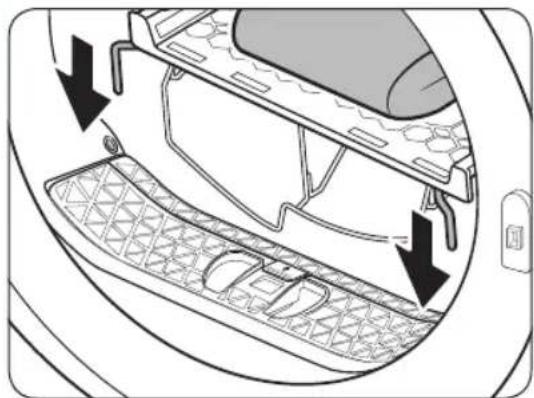

1. Position the drying rack in the drum, inserting the front lips of the rack into the holes of the door diaphram.

Technical line drawing of a mechanical device with labeled component A (no text or symbols beyond label)

1. Place items on the rack, leaving enough space where air can circulate. For clothing items, fold and place flat on the rack. For shoes, place shoes with their soles facing down.

2. Close the door and tap ⏻. Turn the Navigation dial to select Rack Dry, and then tap ⏻ to select the drying time.

3. Tap and hold ▷II.

A. Drying rack

English40

Drying suggestions

Items (max 1.5 kg) Description
Washable sweaters (block to shape and lay flat on rack)	When drying the laundry using the rack, fold and place the clothes on the rack to prevent the clothing from becoming wrinkled.
Stuffed toys (cotton or polyester fiber filled)
Stuffed toys (foam or rubber-filled)
Foam rubber pillows
Sneakers To dry sports shoes, place the shoes on the	rack so that the soles of the shoes are facing downwards.

CAUTION

• Drying foam rubber, plastic, or rubber on a heat setting may cause damage to the items and lead to a fire hazard.
• To prevent damage to shoes, use the drying rack.

Maintenance

Emptying the water tank

Empty the water tank after each use to prevent leaks.

1. Remove the water tank (A) from the dryer.

-Pull the water tank handle with one hand until the tank is halfway out.

-Once the water tank is halfway out, support the bottom of the tank with the other hand and pull it slowly with both hands.

CAUTION

- The water tank is heavy. Slowly remove the water tank using both hands while keeping the tank at a level.

- Be careful when removing the full water tank. It is very heavy and can cause injury if you drop it.

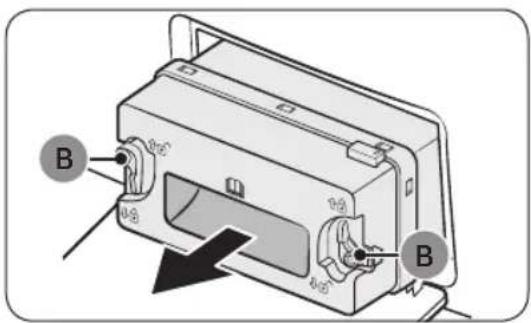

1. Empty the water through the drain hole (B), and then clean inside the water tank.

Mix some neutral detergent in lukewarm water. Fill the water tank with the mixture through the drain hole (B) and leave it for 30 minutes. Then, rinse the tank with clean water and completely dry it.

1. Place the water tank back into place.

Technical line drawing of a mechanical component with labeled point B (no text or symbols beyond label)

NOTE

If the dryer displays the "Empty the tank" message and stops while drying is in progress, empty the water tank and tap and hold ▷. The "Empty the tank" message will disappear, and the dryer will resume drying.

English42

Installing the micro soft filter(Optional Filter)

You can install the provided micro soft filter(Optional Filter) to prevent dust accumulation on the heat exchanger.

Diagram showing a device with a labeled component 'A' and an arrow pointing to a panel (no text or symbols beyond label)

1. Gently press the top part of the outer cover (A) to open.

1. Unlock the inner cover fixers (B), and then pull the inner cover to remove.

1. Insert the provided micro soft filter(Optional Filter) (C) on the back of the inner cover as shown in the figure.

-Make sure to install the filter in the correct position. (The tap on the top of the filter should face outward.)

Maintenance

1. Reinsert the inner cover to its original position, and then lock the fixers.
2. Close the heat exchanger's outer cover.

Cleaning

WARNING

• Do not clean the dryer by directly spraying water onto the dryer.
• Do not clean the dryer with benzene, thinner, alcohol, or acetone. This may cause discoloration, deformation, damage, electric shock, or fire.
• Before cleaning the dryer, be sure to unplug the power cord.

Exterior

Clean with a soft, damp cloth. Do not use abrasive cleaners. Avoid using or placing sharp or heavy objects near/on the dryer. Keep detergent and laundry supplies on the pedestal (sold separately) or in a separate storage container.

Control panel

Clean with a soft, damp cloth. Do not use abrasive cleaners. Do not spray cleaners directly on the panel. Immediately wipe up any spills or liquids from the control panel.

Drum

Clean with a damp cloth with a mild, non-abrasive cleaner suitable for stainless steel. Wipe remaining residue with a clean, dry cloth.

Door

Foreign substances can contaminate or build up on the inside of the door. Clean the inside of the door using a soft piece of cloth or brush.

CAUTION

Do not detach the door's rubber sealing.

English44-

Lint filter

Clean the lint filter after each use.

Diagram of a hand pressing down on a car interior with a switch symbol indicating no change (no text or labels present)

1. Open the dryer door, grab the top of the lint filter, and pull to remove the filter.
2. Do not detach the rubber sealing after removing the filter.

Technical diagram of a mechanical component with directional arrows indicating motion or flow (no text or symbols)

1. Open the outer filter and remove the inner filter (A).

Two technical diagrams showing a device interior with labeled parts, one being folded and the other assembled (no text or symbols present)

1. Spread open the outer filter and the inner filter.
2. Remove the lint from both filters, and then clean the filters with the cleaning brush.

Maintenance

Illustration of a bathroom sink with a gavel resting on the sink (no text or symbols)

NOTE

To clean the filters thoroughly, clean the filters in running water, and then dry them completely.

Diagram of a mechanical component with internal structure and directional arrows indicating motion (no text or symbols)

1. Put the inner filter into the outer filter, and then reinsert the lint filter into the original position.

CAUTION

• Clean the lint filter after each load. Otherwise, the drying performance may decrease.
• If the filter surface is wet, allow it to completely dry before use.
• Inserting the filter while it is wet can cause mold and/or odor to form and/or result in less drying.
• When cleaning or removing the lint filter, do not shake or tap on the filter. Doing so can damage the filter.
• Opening the outer and inner filters carelessly and with excessive force can damage the filters.

English46

Heat exchanger

When it is time to clean the heat exchanger, the dryer will alert you by displaying the "Clean heat exchanger" message.

A dirty heat exchanger will hinder the product's performance and should be cleaned regularly.

NOTE

• Water droplets can form around the heat exchanger due to condensation caused by a temperature difference. This is normal and is not a sign of a leak.
• If you are not planning on using the dryer for a long period of time, open the heat exchanger cover and ventilate.

Diagram showing a folder with an arrow pointing to a labeled point A (no text or symbols present)

1. Gently press the top part of the outer cover (A) to open.

1. Unlock the inner cover fixers (B), and then pull the inner cover to remove.

Maintenance

Line drawing of a microwave oven with a brush inside, showing internal grid pattern and base (no text or symbols)

1. Clean the dust on the heat exchanger using the provided brush.

-After cleaning with the brush, wipe off the remaining dust using a smooth, damp cloth.

CAUTION

- To avoid physical injury and burns, do not touch or clean the heat exchanger with bare hands.

- When cleaning the heat exchanger, be careful not to damage the fins.

NOTE

If the heat exchanger is completely dry and therefore hard to clean, spray some water on the heat exchanger and clean using a brush.

Line drawing of a mechanical device with a paper clip inserted, showing no text or symbols

1. Clean the inner cover with a smooth, damp cloth.

-There may be moisture and/or foreign substances around the inner cover.

Illustration of a device with two switches and directional arrows, no text or symbols present

1. Reinsert the inner cover to its original position, and then lock the fixers.

2. Close the heat exchanger's outer cover.

NOTE

- After cleaning the heat exchanger, tap ○ to dismiss the notification message. The message remains on until you dismiss it.

- If the alarm continues after you have dismissed it, unplug and then plug in the power cord or remove and reinsert the heat exchanger's inner cover.

English48-

Micro soft filter(Optional Filter)

When it is time to clean the micro soft filter(Optional Filter), the dryer will alert you by displaying the "Clean micro soft filter(Optional Filter)" message. A dirty micro soft filter(Optional Filter) will hinder the product's performance and should be cleaned regularly.

Illustration of a device with a grid panel and an arrow pointing to it, no text or symbols present.

1. Open the heat exchanger's outer cover, and then remove the inner cover. (Refer to the "Heat exchanger" section on page 47.)

2. Remove the micro soft filter(Optional Filter) from the inner cover.

Illustration of a mirror with a grid-patterned screen and a brush resting on it, placed on a stand (no text or symbols)

1. Clean the dust on the micro soft filter(Optional Filter) with the provided brush, and then wash the filter in running water.

-Completely dry the filter after a wash.

-Clean the filter regularly. A dirty filter can degrade a drying performance.

Diagram of a device with a grid panel and directional arrow indicating action (no text or symbols)

1. Insert the filter to the inner cover, and then insert the inner cover back to its place.

-Make sure to install the filter in the correct position. (The tap on the top of the filter should face outward.)

Troubleshooting

Checkpoints

If you encounter a problem with the dryer, first check the table below and try the suggestions.

Problem Action
Dryer does not start.	Make sure the dryer is plugged in.Make sure the door is properly closed.Check the fuse or reset the circuit breaker.If you opened the door during a cycle, tap and hold ▷ll again.Clean the filter.Make sure Child Lock is not activated.
The dryer does not warm up.	Check the fuse or reset the circuit breaker.Check the lint filter and the heat exchanger. Clean them if necessary.The dryer may be in the cooling down process of the cycle.
Items are not dried.	Check all of the above. Additionally:Do not overload the dryer. If the dryer is overloaded, it could take longer for items to dry.Dry heavy fabrics separately from light fabrics.The item(s) are too small and may not getting enough spinning inside the drum.Clean the filter.Clean the heat exchanger.If the “Clean heat exchanger” message appears on the display, refer to the “Heat exchanger” section on page 47 and clean the heat exchanger.If a drain hose is connected, make sure water is draining properly.
The dryer is too loud.	Look for coins, loose buttons, nails, and other objects and remove them immediately.Check the lint filter. Remove any items stuck inside the lint filter.Make sure the dryer is level and standing firmly on the floor.The dryer may hum due to air moving through the drum and fan. This is normal.
Items are not dried evenly.	Seams, pockets, and other parts of clothing are harder to dry than others. This is normal.Sort heavy and light items separately.

English50

Problem Action
There is a smell coming from the dryer.	The smell of paint, varnish, cleaning agents, and other household items could have circulated in the air and entered the dryer. If you notice such a smell, ventilate completely before using the dryer.If drying in an enclosed area, the dryer could cause the ambient temperature to rise. Accordingly, make sure to open a window and ventilate the area.Do not attempt to dry wet items after leaving them in the washing machine or dryer for a long time.
The dryer turns off before the items are dry.	The load is too small. Throw in few additional items like towels and try drying again.
The clothes have lint on them.	Always make sure the lint filter is clean before putting items into the dryer. When drying items that generate a large amount of lint, you may need to clean the lint filter in the middle of a cycle.Some fabrics (such as white towels) causes more lint and should be dried separately from fabrics that lint attaches easily (such as black linen pants).Check the inside of the pockets to make sure they are empty before drying.
The ambient temperature around the dryer rises or there is a damp, soggy smell.	Heat pump dryers circulate ambient air inside and outside the dryer during the drying process to cool the system. Using the dryer in a poorly ventilated area may, depending on the operating environment, raise the ambient humidity level and/or cause a damp, soggy smell to develop. Ensure proper ventilation when using the dryer.
Water is not draining.	Check the draining hose for twists and kinks.Straighten out the hose if it is twisted or kinked and securely connect it to the drain on the floor.Check to see if the draining hose is frozen.If the hose is frozen, submerge it in warm water to allow the water inside the hose to melt and drain out. Reconnect the hose and check for proper draining.

If a problem persists, contact a local Samsung service center.

Troubleshooting

Information codes

If the dryer fails to operate, you may see an information code on the screen. Check the table below and try the suggestions.

Information code	Meaning Action
Door is open	Dryer operation with the door open	Close the door and start again.If this continues, call for service.Check if Child Lock is on. If Child Lock is on, you may get this message when you open the door even though the dryer is not operating.
Check filter Lint filter problem		Check the lint filter assembly.If this continues, call for service.
Check inner cover of heat exchanger	Internal heat exchanger cover problem	Check the internal heat exchanger cover assembly.If this continues, call for service.
Check drainage / Empty the tank	Draining malfunctionDraining pump malfunctionFrozen draining hoseWater tank full	Make sure the draining hose is not bent or damaged.If the hose is frozen, wrap the hose with a towel soaked in warm water for approximately ten minutes to thaw the hose.Empty the water tank, turn on the dryer, and start again.If this continues, call for service.
tC Air temperature sensor problem		Clean the lint filter or the heat exchanger.If this continues, call for service.
tC5	Compressor temperature sensor problem	Wait two to three minutes.Turn the power back on and start again.
3C Check the motor for operation.		Try restarting the cycle.If this continues, call for service.
AC6	Check communications between the main and the inverter PBAs.	Try restarting the cycle.If this continues, call for service.
HC	Compressor overheating	Call for service.

If any information code keeps appearing on the screen, contact a local Samsung service center.

English52-

Appendix

Fabric care chart

The following symbols provide garment care direction. The Clothing care labels include symbols for drying, bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow care label directions to maximize garment life and reduce laundering problems.

Washing

	95 °C boil wash.
	60 °C coloured wash.
	60 °C coloured wash. ("Easy care" coloured wash)
	40 °C coloured wash.
	40 °C mild wash.
	40 °C very mild wash.
	30 °C fine wash.
	30 °C mild fine wash.
	30 °C very mild fine wash.
	Hand wash.
	Do not wash.

NOTE

The numbers in the wash tub specify the maximum washing temperatures in degrees celsius Celsius which must not be exceeded.

Bleaching

	Any bleach allowed.
	Only oxygen bleach allowed.
	Do not bleach.

Drying

	Tumble drying / Drying at a temperature of 80 °C with a normal drying process.
[H7YS]	Tumble drying / Drying at a temperature of 60 °C with a mild drying process.
	Do not tumble dry
	Line drying.
	Drip line drying.
	Flat drying.
	Drip flat drying.
	Line drying in the shade.
	Drip line drying in the shade.
[SG6W]	Flat drying in the shade.
[SHBW]	Drip flat drying in the shade.

NOTE

• The dots indicate the drying level of the dryer.
• The lines indicate the type and place of the drying.

Appendix

Ironing

	Iron at maximum sole plate temperature of 200 °C.
	Iron at maximum sole plate temperature of 150 °C.
	Iron at maximum sole plate temperature of 110 °C.Caution when using steam irons (work without steam).
	Do not iron.

NOTE

The dots indicate the temperature ranges for ironing (regulator, steam, travel irons and ironing machines).

Professional care

P	Professional dry-cleaning in perchloroethylene and/or hydrocarbons (heavy benzines) with normal process.
P	Professional dry-cleaning in perchloroethylene and/or hydrocarbons (heavy benzines) with gentle process.

	Professional dry-cleaning in hydrocarbons (heavy benzines) with normal process.
	Professional dry-cleaning in hydrocarbons (heavy benzines) with gentle process.
	Do not dry-clean.
	Professional wet-cleaning.
	Mild professional wet-cleaning.
	Very mild professional wet-cleaning.
	Do not wet-clean.

NOTE

• The letters in a circle indicate the solvents (P, F) used in dry cleaning or wet cleaning (W).
• Generally, the line under the symbol indicates a milder treatment (e.g. gentle cycle for easy-care items). The double line indicates care levels with particularly gentle treatment.

Protecting the environment

• This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance, please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected to a power source. Remove the door so that animals and small children cannot get trapped inside the appliance.
• Contains fluorinated greenhouse gases. Hermetically sealed equipment. Do not vent gases into the atmosphere. Refrigerant (Type): R-134a (GWP = 1430) Refrigerant (Charging): 0.58 kg, 0.829 tCO2e

English54-

Specification

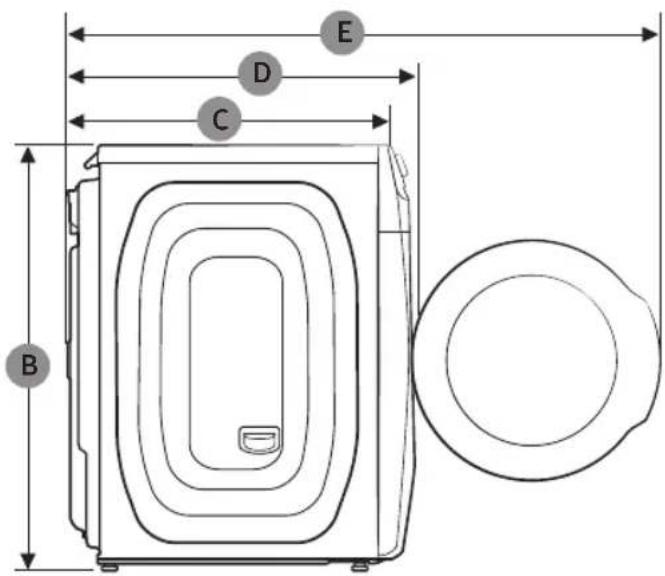

Line drawing of a front-loading washing machine with labeled dimensions (no text or symbols beyond 'A' and measurement lines)

TYPE FRONT LOADING DRYER
MODEL NAME DV16T9720**
Maximum load capacity Drying 16.0 kg
DIMENSIONS	A 686 mm
	B 984 mm
	C 803 mm
	D 844 mm
	E 1378 mm
WEIGHT 74.0 kg
ELECTRICAL REQUIREMENTS AC 220-240 V / 50 Hz 1800-2100 W
ALLOWABLE TEMPERATURE 5-35 °C

NOTE

The design and specifications are subject to change without notice for quality improvement purposes.

SAMSUNG

QUESTIONS OR COMMENTS?

COUNTRY CALL	OR VISIT US ONLINE AT
THAILAND	"Hotline no : 1282 (For all Product)0-2689-3232 (For OTH products)1800-29-3232 (Toll free for all product)"	www.samsung.com/th/support
MYANMAR +95	1-2399-888 www.samsung.com/mm/support
CAMBODIA	"[phone]-20-3232 (Toll free)"	www.samsung.com/th/support
LAOS +856-2	14-17333 www.samsung.com/th/support

เครื่องอบรมน้ํา

คู่มีอผู้ ใช้

DV16T9720**

สารบัญ

Simple line drawing of a closed book with a blank cover (no text or symbols)

Line drawing of a coiled cable or hose with two connectors (no text or symbols)

Simple line drawing of a USB cable (no text or symbols)

Simple line drawing of a pen-like object with a curved tip and base, no text or symbols present.

Isometric line drawing of a layered structure with grid pattern (no text or symbols)

Isometric line drawing of a rectangular device with internal grid pattern (no text or symbols)

Simple line drawing of a bulb-like object with a flared top and base (no text or symbols)

Simple line drawing of a curved mechanical bracket or clamp (no text or symbols)

Simple line drawing of a door switch or lock (no text or symbols)

Simple diagram of a mechanical component with a circular label 'C' and directional arrow (no text or symbols beyond the label)

Diagram of a mechanical component with a threaded shaft and a curved arrow, labeled 'D' (no text or symbols on the diagram itself)

หมายเหตุ

Line drawing of a standard square sink with a pipe fitting and a handle (no text or symbols)

Diagram of a medical procedure showing a hand holding a flexible tube with a circular label B and an arrow indicating direction (no text or symbols present)

Diagram of a medical device with labeled component A and directional arrow (no text or symbols beyond labels)

การติดตั้ง

หมายเหตุ

Diagram of a car interior showing structural components and airflow direction arrows (no text or symbols)

Technical line drawing of a mechanical device with labeled component A (no text or symbols beyond label)

Technical line drawing of a mechanical component with labeled point B (no text or symbols beyond label)

Diagram showing a device with a labeled component 'A' and an arrow pointing to a panel (no text or symbols beyond label)

Diagram of a hand pressing down on a car interior with a switch symbol indicating no movement (no text or labels present)

Technical diagram of a mechanical component with directional arrows indicating motion or flow (no text or symbols)

Diagram of two 3D furniture compartments with arrows indicating movement or assembly (no text or symbols)

Technical line drawing of two mechanical components with a tool, no text or symbols present

การปํารุงรักษา

199

Illustration of a bathroom sink with a toothbrush and mirror (no text or symbols)

หมายเหตุ

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Diagram showing a folder with an arrow pointing to it, labeled 'A' (no text or symbols on the diagram itself)

Line drawing of a microwave oven with a brush inside, showing internal grid pattern and base (no text or symbols)

Line drawing of a mechanical device with a paper clip inserted, no text or symbols present

Illustration of a device with a grid panel and an arrow pointing to it, no text or symbols present.

Illustration of a mirror with a grid-patterned screen and a tool, placed on a stand (no text or symbols)

Illustration of a device with a grid panel and a downward arrow indicating a process or operation (no text or symbols present)

Line drawing of a washing machine with labeled dimensions (no text or symbols beyond 'A' and measurement arrow)

ΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΦΩ

Simple line drawing of a closed book with a blank cover (no text or symbols)

Simple line drawing of a coiled cable or hose with two connectors (no text or symbols)

Simple line drawing of a USB cable with a rectangular head and curved cable end (no text or symbols)

Simple line drawing of a pen-like object with a loop, no text or symbols present

Isometric line drawing of a layered structure with grid pattern (no text or symbols)

Simple line drawing of a rectangular panel or vent (no text or symbols)

Simple line drawing of a bulb-like object with a flared top and base (no text or symbols)

Simple line drawing of a curved mechanical bracket or clamp (no text or symbols)

Simple line drawing of a door switch with two buttons and a square panel (no text or symbols)

Two diagrams showing a mechanical component with arrows indicating rotation, labeled C and D (no text or symbols beyond labels)

© φοδόμος

Technical line drawing of a bathtub with a coiled hose and a cap, no text or symbols present

Line drawing of a standard square sink with a pipe fitting and a handle (no text or symbols)

Diagram of a medical procedure showing a hand holding a flexible tube with an arrow indicating direction (no text or symbols present)

Diagram of a medical or surgical device with labeled component A, showing tubing and a circular arrow indicator (no text or symbols beyond label)

உவை

4

Additional Functions (asegcccc: cygccccgquns)

Additional Functions (###: ###)

AI Pattern (AI υσδος)

© ผู้วิทยาลัย

Diagram of a car interior showing the backrest and side panel with arrows indicating movement or force (no text or symbols present)

Technical line drawing of a mechanical device with labeled component A (no text or symbols beyond label)

Mechanical component diagram showing a device being inserted into a housing, with no visible text or symbols

Technical line drawing of a mechanical component with labeled point B (no text or symbols beyond label)

Diagram showing a folder with an arrow pointing to it, labeled 'A' (no text or symbols on the diagram itself)

Illustration of a device with hands holding a panel, showing internal components and rotation arrows (no text or symbols)

Diagram of a hand pressing a button on a circular device, with an arrow indicating upward motion and a prohibition symbol below (no text or labels)

Technical diagram of a mechanical component with directional arrows indicating motion or flow (no text or symbols)

1. amplitude of the modulation (A) of the modulation

Diagram of two 3D furniture compartments with black arrows indicating movement or force (no text or symbols)

Technical line drawing of two mechanical components with a tool, no text or symbols present

ཉཞོང་མོད་གྱི་སྟན་པ།

Illustration of a bathroom sink with a grater and mirror (no text or symbols)

© φοδίσμού

Diagram of a mechanical component with directional arrows indicating motion or flow (no text or symbols)

Diagram showing a folder with an arrow pointing to a labeled point A (no text or symbols present)

Line drawing of a microwave oven with a brush inside, showing internal grid pattern and base (no text or symbols)

Illustration of a device with a magnifying glass interacting with a paper sheet (no text or symbols)

Illustration of a device with hands holding a panel, showing internal components and rotation arrows (no text or symbols)

1. amplitude: amplitude modulation, phase, and modulation: phase: [quadr]. amplitude: amplitude modulation, phase, and modulation
2. energy modulation: energy modulation, phase, and modulation

© മྱིན་པ།

Diagram of a device with a grid panel and an arrow pointing to it, no text or symbols present

Illustration of a cleaning or cleaning tool applying a solar panel to a sink (no text or symbols)

Diagram of a device with a grid panel and directional arrow indicating compression or disassembly (no text or symbols present)

1. odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds odds Odds

ජාඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩී

P

###

P	###
F	###
F	###
X	###
W	###
W	###
W	###
X	###

© φοδίσμού

Line drawing of a front-loading washing machine with labeled dimensions (no text or symbols beyond 'A' and measurement arrow)

###
### DV16T9720**
###: ###: ###: ###: 16.0 kg
###: ###: ###: ###: 74.0 kg
###: ###: ###: AC	220-240 V / 50 Hz 1800-2100 W
###: ###: ###: 5-35 °C

ජාජ්‍යි දාජ්‍යි
