CEILING FAN

CF56DC5R

Line drawing of a five-blade propeller with a top-mounted head (no text or symbols)

KHIND CARE Mobile App

Mobile App

Download to register for E-Warranty & enjoy hassle-free after-sales services.

1-800-88-0032

khind.com.my

IMPORTANT

Please read this manual carefully before operating this product. Keep this manual handy for further reference,

P/N: 40-51796-00

1

Safety Precaution Information

Safety & Warning Information

1. This appliance must be earthed.
2. Do not use any other down rod except provided by KHIND. This is to ensure good performance and extra protection.
3. To reduce the risk of injury to person, install fan at least 2.5m (8.3ft) above the ground and 1 meter from the nearest wall.

1. Ensure Pipe has been fully tightened to the MOTOR Shaft. (Bolt tightening torque is 800\~1000 N·cm) Can cause injury if ceiling fan drops.
2. Insert the Cotter Pin into the hole of the bolt and bent to secure the nut from loosening. It can cause injury if ceiling fan drops.

1. The mounting and replacement of parts of the safety suspension system shall be performed by the manufacturer, its service agent or suitably qualified persons.
2. The double pole single throw switch must have a contact separation of at least 3mm. It must be incorporated in the fixed wiring.
3. Safety wire and mounting hook must be able to withstand 10 times the weight of fan body. (Product net weight: 4.6kg)

4. Disconnect power supply before dismantling any part for cleaning.

5. Do not attempt to repair fan. Always return fan to our authorised service agent for repair.

6. Do not use in hot or wet environment or near to flammable materials.

7. The wires in this main leads are coloured in accordance with the following code:

Green/Yellow - Earth

Black - Live

White - Neutral

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with appliance.

1. Primary suspension system length more than 300mm of non-standard down rod shall be supplied by the same manufacturer, with similar material, complete with safety wire rope, marking and installation instruction.
2. If unusual oscillating movement is observed, immediately stop using the ceiling fan and contact the manufacturer, its service agent or suitably qualified persons.

Cleaning & Maintenance

1. Keep the fan clean.
2. Use it in dry place.
3. Do not bend the blades when installing & maintaining
4. Wipe away dirt with clean soft cloth, soap & water to clean the fan. Wipe until dry Do not use solvents such as gasoline or petroleum.
5. It is recommended to examine the fan suspension system for wear & tear of the bolt & rod at least once every year.

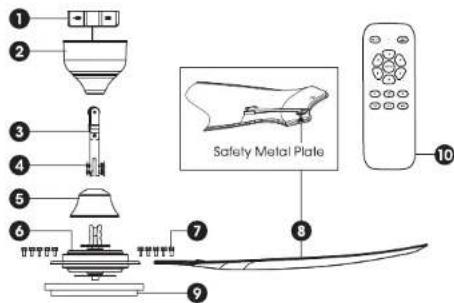

Parts Identification

1. Receiver
   2 Top Canopy
2. Down Rod Kit
3. Hexagon Bolts
4. Bottom Canopy
5. Motor Unit
6. Round Cap Screws
7. Fan Blade
8. Decoration Cover
9. Remote Control

* Pictures are for illustration purpose only.

2

Specifications

Model	CF56DC5R
Blade Size	56"
Blade Material	ABS
Number of Blades	5
Motor	153mm x 12mm DC Motor
Voltage	220-240V - 50-60Hz
Power	40W
Noise Level	54.6dB
Power Consumption	Low: 7W High: 40W
Fan Speed	Low: 114rpm High: 228rpm
Air Delivery	250m3/min; 8828CFM
Coverage Area	25-30m2
Net Weight	4.6kg
Speed Setting	6-Speed
Mounting System	Ceiling Hook (U Hook)
Remote Control	RF Remote Control

Product Dimension (LxWxH)

* Specifications are subject to change without prior notice.

Installation Instructions

WARNING: TURN OFF THE MAIN SWITCH AT THE DB (ELECTRICAL DISTRIBUTION BOX)

STEP 1

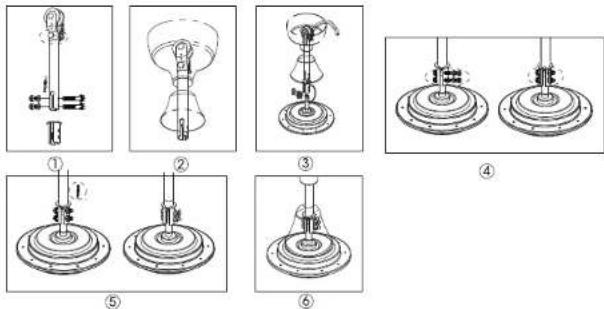

Install Down Rod Set

1. Release the 3 Hexagon Bolts and plastic sleeve (as shown) of the Downrod.
2. Insert 2 canopies to the Downrod. (as shown)
3. Assemble the downrod to the motor shaft and align all holes. Make sure to insert the plastic sleeve back and all wires from motor through the Downrod.
4. Assemble back all the opened Hexagon bolts and fix back the Cotter Pin.

5. Place the canopy on the top plastic sleeve.

6. Fix back the 2 screws onto the Motor Shaft then the Downrod assembly is complete.

STEP 2

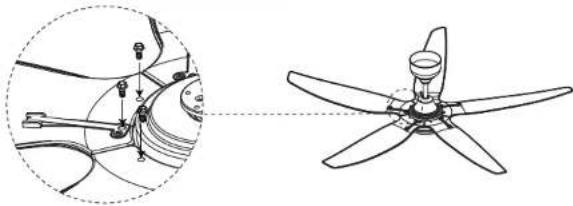

Assemble Fan Blades.

Align the holes to the motor. Fasten it with screws provided.

Technical line drawing of a propeller with five blades and a close-up inset showing internal components (no text or symbols)

STEP 3

a) Assemble the Ceiling fan to the ceiling hook (U Hook).

Remove the Cotter pin, nut, flat washer, spring washer, bolt and the rubber wheel from the downrod. Place the rubber wheel to the ceiling hook and place back the bolt, flat washer, spring washer, nut and insert the cotter pin after securely fastening them.

WARNING: COTTER PIN MUST BE INSERTED TO PREVENT THE NUT FROM LOOSENING!

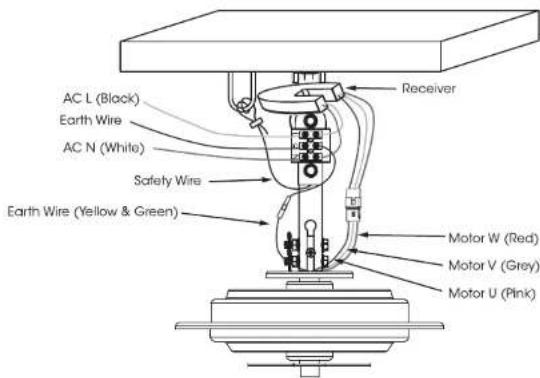

b) Connect the Power wires to ceiling fan connector.

Connect the Power cord's White wire to N (Neutral), Black wire to L (Live) and Yellow/Green wire to E (Earth) on the connector. Make sure all the wires colour is the same as the other side of the connector.

STEP 4

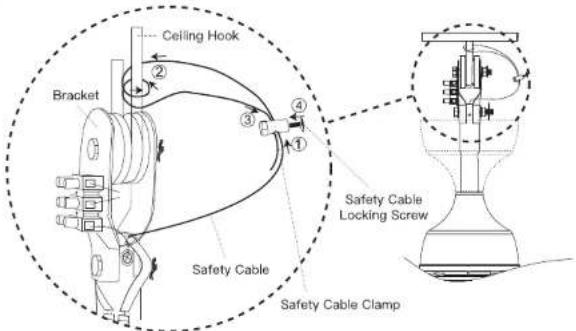

Connect Safety Cable to the Ceiling Hook.

1. Slide Safety Cable Clamp onto Safety Cable from fan.
2. Place the end of Safety Cable through the loop of the ceiling hook.
3. Slide end of Safety Cable through the hole of Safety Cable Clamp.
4. Tighten it with Safety Cable Locking Screw.

WARNING: MAKE SURE THE CEILING HOOK IS FIRMLY FIXED TO THE CONCRETE CEILING!

WARNING
	Hook and safety wire must withstand 10 times the ceiling fan weight. Plug the cotter pin into the bolt and bend the cotter pin.

STEP 5

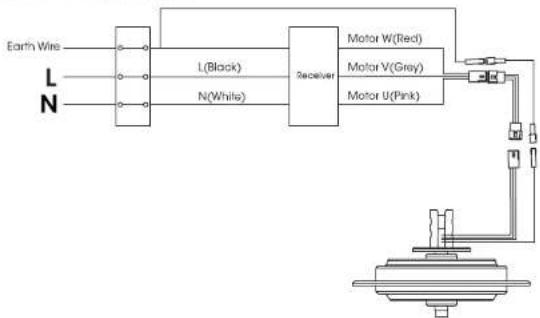

Remote Control Connection.

STEP 6

Wire Connection.

Make sure power is OFF before attempting installation.

WARNING: FAILURE TO DISCONNECT POWER SUPPLY PRIOR TO INSTALLATION MAY RESULT IN SERIOUS INJURY.

STEP 7

Assemble the Top Canopy.

Secure the Top Canopy to The Ceiling hook using the screws provided.

7

Remote Control & Operation

Battery Compartment

Battery Type: 2 pieces of leak-proof UM4(AAA) battery (1.5V)

Remote Control (back view)

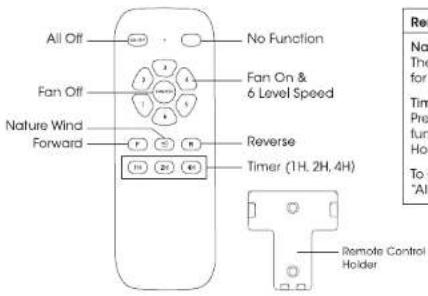

Remote Control Buttons

Remote Control Functions

Nature Wind: The Fan will run at a changing speed cycle for 8 seconds from lowest to highest.

Timer Control Button: Press the button to activate the fan timer function, the fan will turn off after running 1 Hour / 2 Hours / 4 Hours.

To cancel the timer function, just press the "All OFF" button.

Remote Control Pairing Steps & Troubleshooting

1. Make sure the power is turned off, turn off the main power button and then turn it on again.
2. Use the remote control to aim on the ceiling fan, and push the (*) button and hold for a few seconds.
3. And you will hear "Dee Dee" sound, this means remote control is connecting with receiver, then you can start to use it as usual.
4. If not, you can try again until you hear the alarm sound.

Decoration Cover Assembly

4!
