INN-874 - Presse-sandwich Innoliving - Free user manual and instructions

Product Type	Sandwich Maker / Tostiéra
Model	INN-874
Brand	Innoliving
Power Supply	220-240V~ 50/60Hz
Power Consumption	600-700W
Cooking Plates	Non-stick coated
Indicator Lights	Red (heating) and Green (ready)
Closure Type	Hook closure
Handle	Yes, heat-resistant
Feet	Non-slip feet
Cleaning	Wipe with damp cloth; do not immerse
Storage	Can be stored vertically
Safety Features	Auto temperature regulation; non-slip feet; cool-touch handle
Intended Use	Household only
First Use Smoke	Normal due to heating of components
Preheating Time	Until green light turns off
Cooking Time	Approximately 3-5 minutes

Frequently Asked Questions - INN-874 Innoliving

How do I know when the sandwich maker is ready to use?

The green "Ready for Use" light will turn off once the appliance has reached the correct temperature.

Can I use metal utensils on the cooking plates?

No, always use non-metallic tools like wood or plastic spatulas to avoid damaging the non-stick coating.

What should I do if I see smoke during first use?

A thin line of smoke is normal and due to heating of internal components. Ensure good ventilation.

How do I clean the sandwich maker?

Unplug and let it cool. Wipe the plates with a soft cloth or damp sponge. Do not immerse in water or use abrasive cleaners.

Can children use this appliance?

Children over 8 years old may use it only under supervision. Keep the appliance and cord out of reach of children under 8.

Why does the green light turn on and off during cooking?

The thermostat cycles to maintain the correct temperature. The green light indicates when the appliance is heating to maintain readiness.

Can I use the sandwich maker outdoors?

No, the appliance is designed for indoor household use only. Do not use outdoors.

What type of bread can I use?

Any standard sandwich bread or toast slices. Avoid overly thick bread that may not close properly.

How should I store the sandwich maker?

After cleaning and cooling, you can store it horizontally or vertically to save space.

Is it safe to leave the appliance unattended?

No, never leave it unattended while plugged in. Always unplug after use.

USER MANUAL INN-874 Innoliving

innoliving easy tech, easy life

TOSTIERA

SANDWICH MAKER

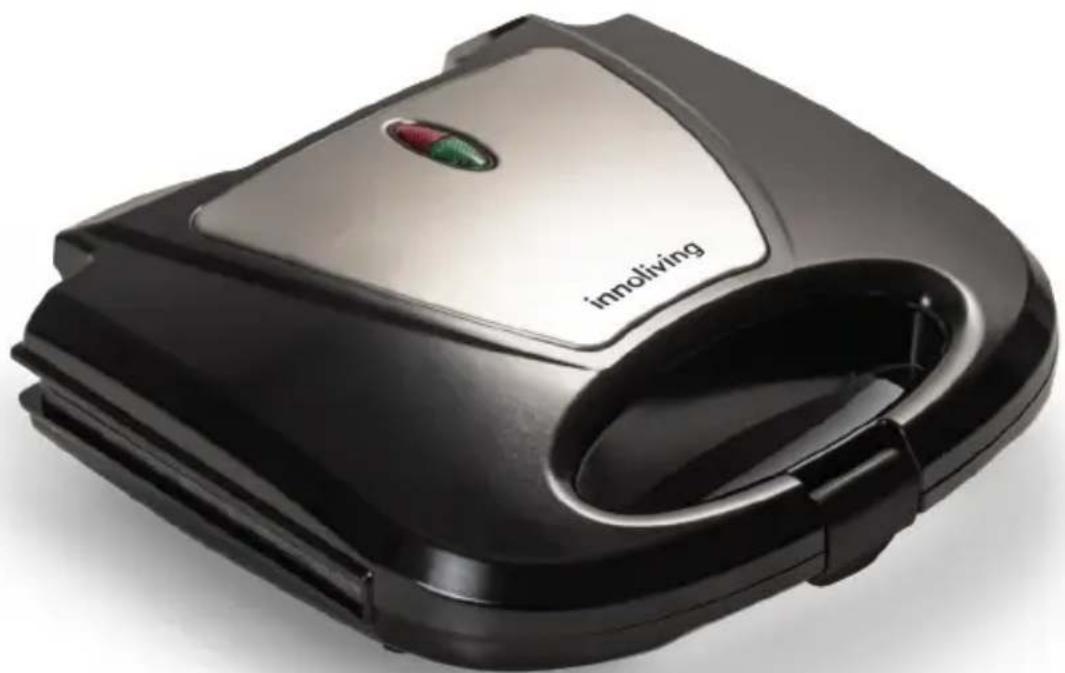

Black and silver photo of a stainless steel griddle with 'innoliving' label on the side (no other text or symbols visible)

INN-874

MANUALE D'USO

USER MANUAL

TOSTIERA

Thank you for having purchased the Innoliving Sandwich Maker INN-874. Before use, read the instruction carefully and keep this manual safe for future references.

IMPORTANT SAFETY INSTRUCTIONS

- Before connecting the unit, make sure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance. The rating label is on the product.

- Keep all packing material (plastic bags, cardboard, polystyrene, etc.) out of reach of the children, since they are potential sources of danger and must be disposed of as provided by law.

- During use, place the products on a flat, stable and heat-resistant surface.

- Do not place the appliance on or near heat sources, electric elements, or in a heated oven. Do not place the product on other appliances.

- Do not use the appliance near walls and curtains.

- Do not use the product outdoors.

- Close supervision is necessary if the unit is used near children. Keep the product and its power cord out of reach of children under 8 years of age. Keep the product out of reach of animals during use.

- Never leave the product unattended during use. This product can be used by children older than 8 years old and people with reduced physical, mental or sensory capacity, or lack of experience and knowledge only if under supervision or if they received instructions regarding the safe use of the equipment

and understand the risks associated with its use. Make sure that children do not play with the appliance. Cleaning and maintenance operation should not be done by children unless they are at least 8 years old and are under supervision.

• If the power cord is damaged, it must be replaced by the manufacturer or its authorized service or by a qualified person to avoid any risk.
• The unit is not intended to be operated by an external timer or remote control.
• The product surfaces becomes extremely hot during use.

WARNING: Plates reach high temperatures once the product is operating.

- Do not let the cable hang on the end of the table or sink.

- Do not allow the power cord to come into contact with hot surfaces.

- Make sure to preheat the plate before using the sandwich maker.

• Always unplug the appliance from the power supply after use and before cleaning.

- Do not immerse the appliance in water. Avoid water to come in the appliance.

- Never immerse the appliance in water. Avoid water entering the appliance.

- Do not use sharp or abrasive objects in contact with the plates as this will damage the surface.

• Always clean the appliance after use.

- This appliance has been conceived for household use only, do

not use for industrial or professional use.

• Do not leave the unit exposed to atmospheric agents (rain, sun, etc.).
• We recommend the use of a suction blower or an adequate ventilation of the room during use.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and others working environments, farm house, by clients in hotels, motels and other residential type environments, bed and breakfast type environments

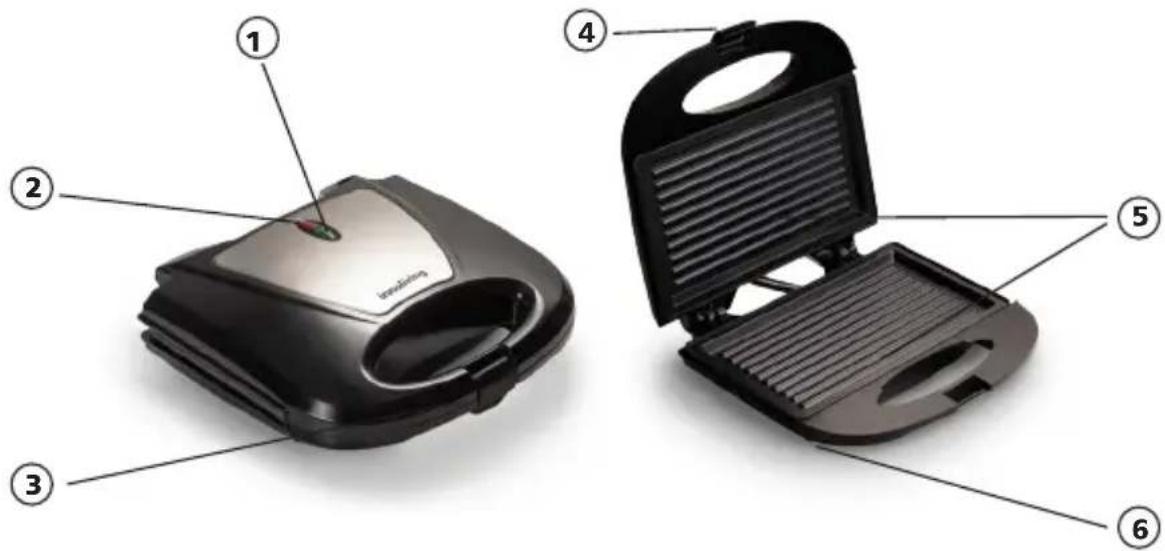

PRODUCT DESCRIPTION

1. Green Light Indicator "Ready for Use"
2. Red Light Indicator ignition/heating plates
3. Handle
4. Hook Closure
5. Non-stick cooking plates
6. Non-slip feet

HOW TO USE

Before use, remove any labels on the plates.

Make sure that the cooking plates are clean and free of dust. If necessary, clean with a damp cloth.

At first use, you might notice the spill of a thin line of smoke. This is only due to the heating of some components.

Preheating

Place the appliance on a flat surface. Slide the hook closure (4) to open the plate.

Gently grease the plates with butter or cooking oil.

Insert the plug into a socket. The red light (2) and the green light (1) will light up.

Keep the plate closed during the preheating phase until the green "Ready to use" light (1) is switched off.

Operation

• When the green light goes off, the sandwich maker is ready for use.
• Place the toast in the bottom plate and close the plates, squeezing slightly until the hook is closed (4). Be careful not to touch the hot parts of the appliance.
  • The cooking of the toast is usually effected within 3-5 minutes.
• Use a non-metallic tool (such as a wooden spatula) to remove the toast from the plates. Do not use sharp or abrasive kitchen utensils.
• Disconnect the product from the power supply after use.
• Note: During cooking, the green light indicating when the appliance is ready to cook will turn on and off to keep the appliance at the correct temperature.

CLEANING AND MAINTENANCE

Before proceed with any cleaning or maintenance operation, disconnect the appliance from the power supply and let the appliance to cool completely down.

Avoid using sharp metal tools or abrasive products as they may damage the coating of the plates.

Remove any residual oil from the plates using a sheet of kitchen paper.

Use a wooden or plastic spatula to remove any remaining food residues on the cooking plates.

Do not use sharp or abrasive tools.

Clean the cooking plates with a soft cloth or damp sponge.

Clean the outside of the appliance with a damp cloth.

Do not immerse the appliance in water or other liquids.

The unit can also be stored vertically.

RATING LABEL:

Innoliving Spa Via Merloni, 2/B - 60131 Ancona - Italy INN-874 TOSTIERA - SANDWICH MAKER 220-240V\~50/60Hz 600-700W

MADE IN CHINA

LOT n.

The product is made conforming with all the applicable European regulations

Read carefully the User Manual

For food contact

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE. Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE) "The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste.

The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014.

innoliving - easy tech, easy life

Innoliving Spa Via Merloni, 2/B 60131 Ancona Italy Tel [phone] www.innoliving.it

MADE IN CHINA

CE

Rev.00_01.2024
