Product Type	High-Definition Digital Videocassette Recorder
Recording Format	HDCAM (also plays Digital Betacam, MPEG IMX, Betacam SX, Betacam/SP in HDW-M2000)
Media	HDCAM cassettes: small BCT-6HD/12HD/22HD/32HD/40HD, large BCT-34HDL/64HDL/94HDL/124HDL
Video Standard	HD-SDI (SMPTE 292M), 1080-line HD formats
Audio Channels	4 channels, 20-bit/48 kHz, AES/EBU digital and analog XLR
Video Interfaces	HDSDI (in/out), SDI (out), SDTI (optional), analog composite/component
Time Code	LTC and VITC input/output, user bits
Control Interfaces	RS-422A (9-pin), Parallel (50-pin), RS-232C, control panel
Editing Functions	Assemble, insert, preread, DMC, split, cross-fade, preview, review
Conversion	HD to SD downward converter standard; SD to HD upward converter (HDW-M2000 only)
Tele-File	Data read/write with memory label cassettes for clip management
Rack Mount	4U, 19-inch rack with optional RMM-131 adaptor
Power	AC 100-240 V, 50/60 Hz, approx. 200 W
Weight	Approx. 22 kg
Dimensions (approx.)	177 mm (4U) x 483 mm (19") x 450 mm depth
Safety	Class A digital device, FCC Part 15, must be earthed
Cleaning	Head cleaning with BCT-HD12CL cleaning cassette
Optional Accessories	HKDW-101 control panel, HKDW-102 SDTI board, BKMW-102 remote control unit, BVR-50 video remote control unit, HKDV-900 video remote control unit

Frequently Asked Questions - HDW-2000 SONY

What types of cassettes are compatible with the Sony HDW-2000?

The HDW-2000 uses HDCAM cassettes: small (BCT-6HD/12HD/22HD/32HD/40HD) and large (BCT-34HDL/64HDL/94HDL/124HDL). The HDW-M2000 model also plays back Digital Betacam, MPEG IMX, Betacam SX, and Betacam/SP tapes.

Can the HDW-2000 play back standard definition tapes?

The HDW-2000 itself plays only HDCAM. The HDW-M2000 variant adds playback of Digital Betacam, MPEG IMX, Betacam SX, and analog Betacam/SP tapes. It also features an upward converter to output HD from SD sources.

How do I set the internal time code generator?

Press the F6 (TCGSET) button in the function menu. Use the F1/F2 buttons to select digits, and the MULTI CONTROL knob or F3/F4 to adjust values. Press F5 (SET) to confirm. The generator can also sync to external LTC or VITC signals.

What is the CONFI playback function?

CONFI (confidence) playback allows real-time monitoring of recorded video/audio immediately after recording, using confidence heads. Enable it via the CONFI setting in the function menu HOME page. The CONFI indicator lights when active.

How do I clean the video heads?

Use the optional BCT-HD12CL cleaning cassette. Insert it like a normal tape and play for about 10 seconds. Do not overclean; the digital hours meter tracks head usage and indicates when cleaning is needed.

How can I prevent accidental erasure of recordings?

Press in the red record inhibit plug on the cassette to the 'ON' position. The REC INHI indicator on the control panel lights when recording is prevented. Slide the plug back to 'OFF' to enable recording again.

What editing modes are available on the HDW-2000?

Modes include Assemble (all signals), Insert (select video, audio, or time code), Preread (re-record over existing material with effects), Split (offset audio and video edit points), DMC (dynamic motion control), and Cross-fade for audio transitions.

How do I connect an external editor or remote controller?

Use the REMOTE 1-IN (9-pin) and REMOTE 1-OUT (9-pin) connectors for RS-422A control from editors like BVE-series. The REMOTE 2 PARALLEL I/O (50-pin) provides parallel control. Select control source via the REMOTE 1 (9P) or 2 (50P) buttons on the upper control panel.

What is the Tele-File function?

Tele-File enables data exchange between cassettes with memory labels and the VTR. It stores clip metadata (e.g., timecode, shot marks) and improves workflow efficiency. Access it via the dedicated Tele-File menu (Chapter 7 in the manual).

What safety warnings should I observe?

To reduce risk of fire or electric shock: do not expose the unit to rain or moisture; do not open the cabinet (refer servicing to qualified personnel); use a properly earthed power outlet; use only the specified power cord for your region. The unit is a Class A digital device and may cause interference in residential areas.

USER MANUAL HDW-2000 SONY

1st Edition (Revised 9)

English

Before operating the unit, please read this manual thoroughly and retain it for future reference.

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

THIS APPARATUS MUST BE EARTHED.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

For the customers in the U.S.A.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

All interface cables used to connect peripherals must be shielded in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

WARNING: THIS WARNING IS APPLICABLE FOR USA ONLY.

If used in USA, use the UL LISTED power cord specified below.

DO NOT USE ANY OTHER POWER CORD. Plug Cap Parallel blade with ground pin (NEMA 5-15P Configuration)

Cord Type SJT, three 16 or 18 AWG wires Length Minimum 1.5m (4 ft .11in.), Less than 2.5 m (8 ft .3 in.)

Rating Minimum 10 A, 125 V

Using this unit at a voltage other than 120V may require the use of a different line cord or attachment plug, or both.

To reduce the risk of fire or electrical shock, refer servicing to qualified service personnel.

WARNING: THIS WARNING IS APPLICABLE FOR OTHER COUNTRIES.

1. Use the approved Power Cord (3-core mains lead) / Appliance Connector / Plug with earthing-contacts that conforms to the safety regulations of each country if applicable.
2. Use the Power Cord (3-core mains lead) / Appliance Connector / Plug conforming to the proper ratings (Voltage, Ampere).

If you have questions on the use of the above Power Cord / Appliance Connector / Plug, please consult a qualified service personnel.

For the customers in Canada

This Class A digital apparatus complies with Canadian ICES-003.

For the customers in Europe, Australia and New Zealand

WARNING

This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

For customers in Europe

This product with the CE marking complies with the EMC Directive issued by the Commission of the European Community.

Compliance with this directive implies conformity to the following European standards:

• EN55103-1: Electromagnetic Interference (Emission)

- EN55103-2: Electromagnetic Susceptibility (Immunity) This product is intended for use in the following Electromagnetic Environment: E4 (controlled EMC environment, e.g., TV studio).

The manufacturer of this product is Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japan.

The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters, please refer to the addresses given in separate service or guarantee documents.

This apparatus shall not be used in residential areas.

CAUTION

The apparatus shall not be exposed to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus.

The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.

WARNING

Excessive sound pressure from earphones and headphones can cause hearing loss.

To use this product safely, avoid prolonged listening at excessive sound pressure levels.

For the customers in Norway

This equipment can be connected to IT power distribution system.

For the customers in Taiwan only

Table of Contents

Chapter 1

Overview

Chapter 2

Location and Function of Parts

Chapter 3

Preparations

Chapter 4

Recording and Playback

Chapter 5

Editing

1-1 Features 1-1

1-2 Example System Configuration 1-4

2-1 Control Panels 2-1

2-1-1 Upper Control Panel 2-2

2-1-2 Lower Control Panel 2-3

2-1-3 Switch Panel 2-14

2-2 Connector Panel 2-15

3-1 Connections to External Devices 3-1

3-1-1 Connections to Digital Devices 3-1

3-2 Reference Sync Signals 3-2

3-2-1 Selecting Reference Signal Depending on Operational Status 3-2

3-2-2 Connecting Reference Signals 3-3

3-3 Setup 3-5

3-4 Superimposed Character Information 3-6

3-5 Cassettes 3-8

3-5-1 Cassette Types.... 3-8

3-5-2 Inserting and Ejecting Cassettes 3-8

3-5-3 Preventing Accidental Erasure of Recordings 3-9

3-6 Using a Memory Stick 3-10

3-6-1 Notes on Memory Stick 3-10

4-1 Recording 4-1

4-1-1 Preparations for Recording 4-1

4-1-2 Recording Time Code and User Bit Values 4-2

4-1-3 Recording Procedure 4-4

4-2 Playback 4-5

4-2-1 Preparations for Playback 4-5

4-2-2 Playback Procedures 4-6

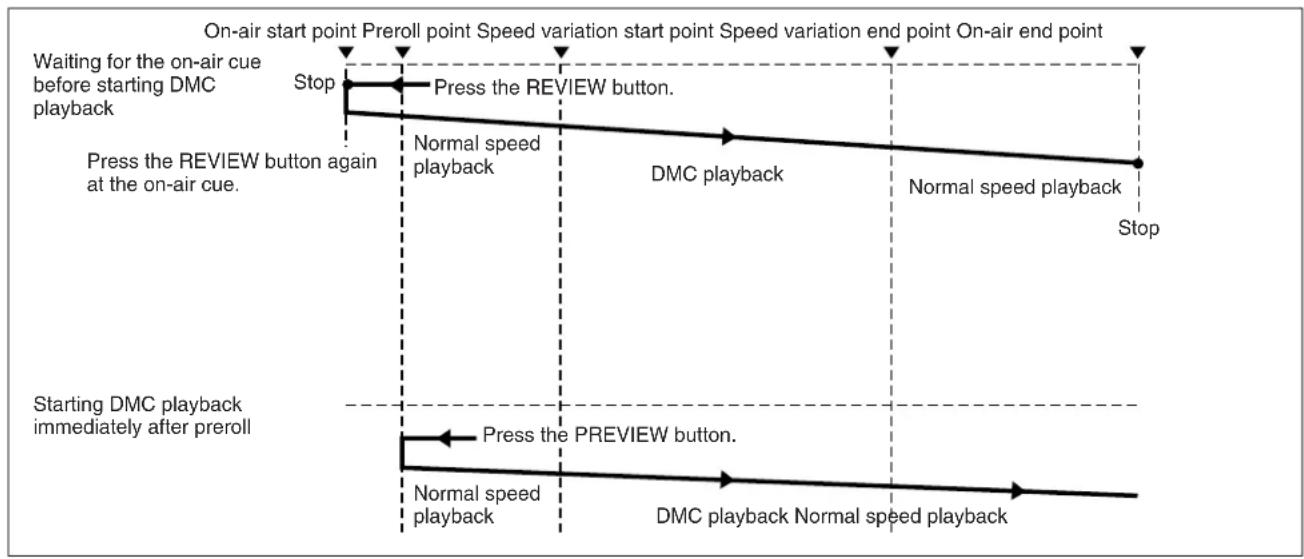

4-2-3 Dynamic Motion Control (DMC) Playback 4-10

5-1 Automatic Editing 5-1

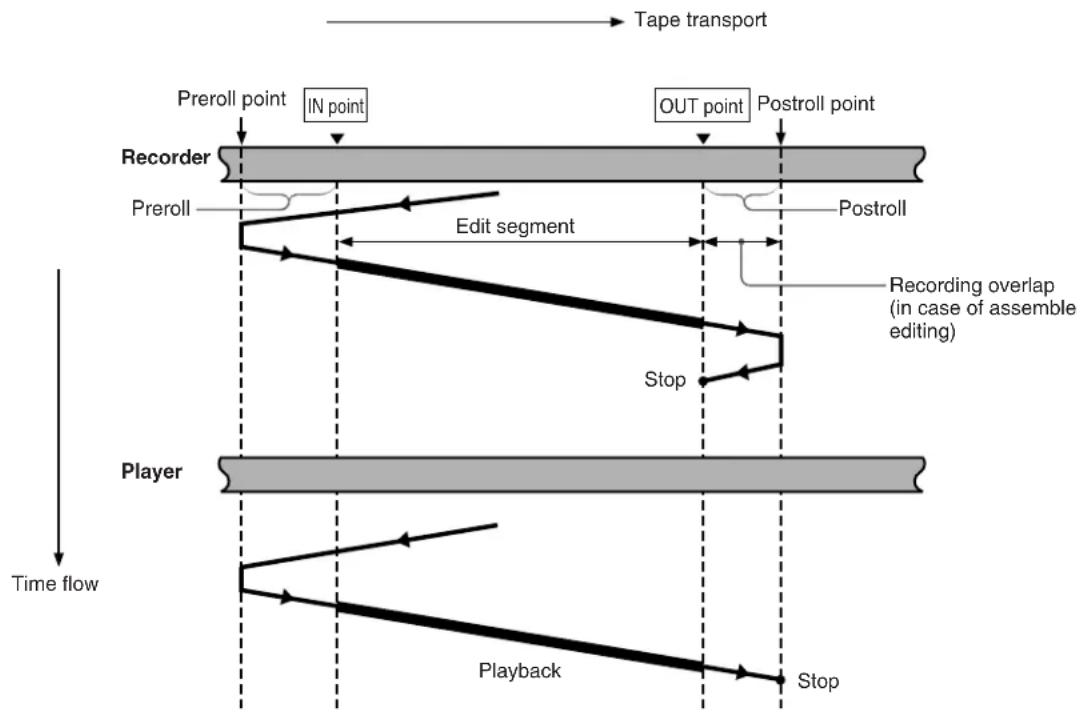

5-1-1 Overview 5-1

5-1-2 Switch and Menu Settings 5-2

5-1-3 Selecting the Editing Mode 5-3

5-1-4 Setting Edit Points 5-3

5-1-5 Modifying and Deleting Edit Points 5-6

5-1-6 Cue-up to Edit Points and Preroll 5-7

5-1-7 Preview 5-7

5-1-8 Carrying Out Automatic Editing 5-8

5-2 DMC Editing 5-11

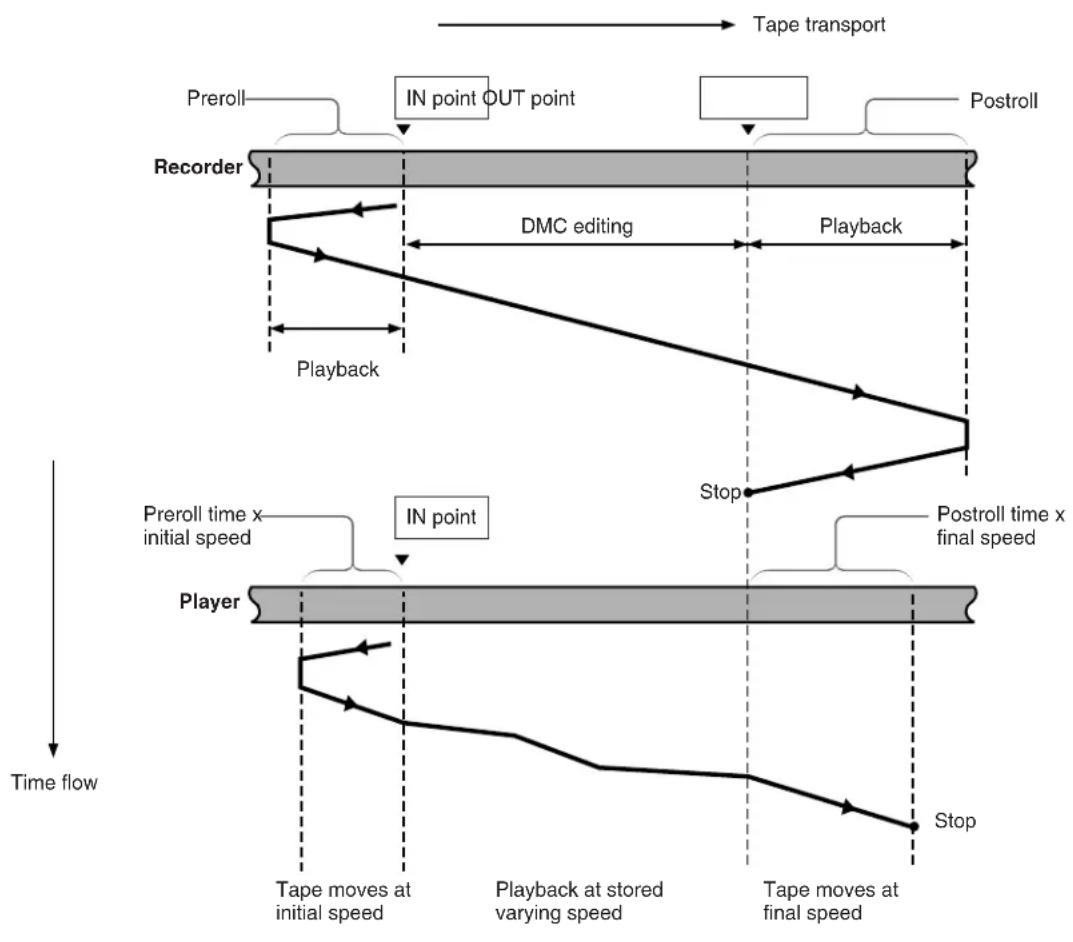

5-2-1 Overview of DMC Editing 5-11

5-2-2 Carrying Out DMC Editing 5-12

5-3 Special Automatic Editing Methods 5-13

5-3-1 Quick Editing 5-13

5-3-2 Continuous Editing 5-13

5-3-3 Standalone Editing 5-14

5-3-4 Manual Editing 5-14

5-3-5 Preread Editing 5-14

Chapter 6 Shot Mark Function

6-1 Overview 6-1

6-2 Shot Mark Operation Menu 6-2

6-3 Shot Mark Operations 6-3

6-3-1 Reading Shot Marks 6-3

6-3-2 Writing Shot Marks.... 6-3

6-3-3 Shot Mark List Operations 6-4

6-3-4 Cuing Up to Shot Marks 6-6

6-3-5 Reading In Shot Data 6-7

6-3-6 Sorting Shot Marks 6-8

Chapter 7 Tele-File

7-1 Overview of Tele-File Functions 7-1

7-2 Opening the Tele-File Menu 7-2

7-3 Tele-File Menu 7-3

7-3-1 Clip Data Display 7-3

7-3-2 Preroll and Cue Up Using Clip Data 7-6

7-3-3 Modifying Clip Data 7-7

7-3-4 Undo/Resume Functions 7-10

7-3-5 Displaying and Modifying Attribute Data 7-11

Chapter 8 UMID Functions

8-1 Overview of UMID Functions 8-1

8-2 Recording UMIDs 8-2

8-3 UMID Output and Display 8-4

8-3-1 UMID Output Settings 8-4

8-3-2 UMID Display 8-4

Chapter 9 Function Menu

9-1 Overview 9-1

9-1-1 Function Menu Configuration 9-1

9-1-2 Using the Function Menu 9-2

9-2 Function Menu Item List 9-3

Chapter 10 Setup Menus

10-1 Setup Menu Configuration 10-1

10-2 Setup Menu Operations 10-2

10-3 Items in the Basic Setup Menu 10-7

10-4 Items in the Extended Setup Menu 10-10

Chapter 11 Maintenance and Inspection

11-1 Removing a Cassette When Tape Slack Occurs 11-1

11-2 Head Cleaning 11-1

11-3 Error Messages 11-2

11-4 Moisture Condensation 11-4

11-5 Regular Checks 11-5

11-5-1 Digital Hours Meter 11-5

11-5-2 Maintenance Timings 11-6

Appendix

Specifications.... A-1

Index I-1

1-1 Features

The HDW-2000/M2000/M2000P is a high-definition (HD) digital videocassette recorder based on the HDCAM format.

This unit uses large scale integrated circuits for signal processing, and has a simple internal construction, allowing it to provide functionality at least equivalent to a conventional VTR in a compact (4U size), lightweight, and low power consumption design. In addition to HDCAM format recording and playback, the HDW-M2000/M2000P can also play back tapes recorded in the Digital Betacam, MPEG IMX, Betacam SX, and analog Betacam formats.

HDCAM format

The HDCAM format uses the same 12.65-mm width tape as the conventional Betacam series. It provides high definition images, offering up to two hours of recording. For video signal compression, prefiltration and coefficient recording technologies are used.

High-performance heads and compatibility functions

The newly developed high-performance heads and dynamic tracking (DT) technology provide high-density recording and playback in narrow tracks with high reliability. In addition to HDCAM recording and playback heads, the unit is equipped with Betacam SX playback heads and analog Betacam DT heads, for compatibility with existing recording formats. The VTR automatically detects the recording format of tapes when they are loaded, so that no menu settings need to be made when changing formats.

High-precision digital signal processing and range of interfaces

The digital signal processing uses HD 4:2:2 component video signals complying with SMPTE 292M, which are converted into parallel data and then compressed into HDCAM format.

The audio signals are based on AES/EBU format, and are subjected to digital signal processing without being compressed.

The unit is equipped with a high definition to standard definition (HD to SD) downward converter, and has the following interfaces as standard equipment, for ease of connection to different external devices.

• SD analog composite signal output • SD analog component signal output • Analog audio signal input/output (4 channels) • HDSDI SMPTE 292M input/output (HD digital video/audio, 4 channels) • SDI SMPTE 259M output (component digital video/audio, 4 channels) • AES/EBU serial digital audio input/output (4 channels) • SDTI SMPTE 305M input/output (HDCAM video/audio data) (Option) • Time code input/output • CUE audio input/output

High quality four-channel audio

High quality 20 bit/48 kHz AES/EBU digital audio is supported. There are four digital audio input/output channels, and four analog audio input/output channels.

Recording and playback of SDTI compressed data (optional)

This unit can be fitted with SDTI input/output complying with SMPTE 305M, and can therefore be used for transferring HDCAM data, audio data, metadata, and so on to a VTR or nonlinear device via an SDTI interface.

Multifunction control panel

While built in a compact 4U size, this unit has a front panel which provides a wide range of functions while maintaining existing operability.

Basic operation buttons and jog/shuttle dial

The basic buttons and jog/shuttle dial for VTR and editing operations are provided in the conventional VTR layout, ensuring continuity with conventional operating panels.

Time data display

This can be selected to display a CTL counter value, time code value, or time code user bits. It can also display edit points and edit durations.

Menu-based control interface

The time data/menu display shows not only various values and settings, but also the pages of a menu system for commonly used functions. You can use the function keys and MULTI CONTROL knob to easily change settings.

Other operation settings, including interfacing with external devices, can be set from the control panel by the same type of setup menu system as on a conventional VTR.

High quality variable speed playback and digital jog sound function

In HDCAM format playback, the dedicated playback DT heads allow smooth, noiseless playback. During Betacam SX playback, noiseless playback is achieved through unique multihead playback technology. In slow motion operation, the digital jog sound function provides the same ease of operation as for a conventional analog VTR.

Wide range of editing functions

By combining two units, you can carry out both assemble editing and insert editing automatically. All of the necessary editing functions are provided to set and amend edit points, to preview and review results of editing, and so on.

DMC editing

This allows automatic editing with a varying playback speed memorized beforehand for an edit segment.

Split editing

In insert editing, this allows editing with the audio IN and OUT points to be displaced from the video edit points.

Preread editing

This allows you to play back prerecorded video and audio material, edit it by applying effects with an external device, and then rerecord in real time on the same tape.

Cross-fade editing

In audio editing, to avoid unnatural effects at edit points, you can fade the audio track. You can select cut-in, fade-in, fade-out, or cross-fade.

Downward converter function

The unit has an HD-to-SD downward converter function, and can output standard definition SDI, analog component and analog composite signals even while playing back an HDCAM format tape.

Upward converter function (HDW-M2000/M2000P only)

The HDW-M2000/M2000P features a standard definition to high definition (SD-to-HD) upward converter as standard equipment. This allows high-quality HD signals to be output even when playing back tapes recorded in formats other than HDCAM.

Tele-File functions

Tele-File enables data writing/reading between cassettes with memory labels and VTRs. It increases the efficiency of operations such as recording, playback and editing, and source data management.

Remote control function

This unit can be controlled from an external remote controller or editor through an interface complying with RS-422A (serial 9-pin). Since two remote control connectors are provided, you can also control a number of VTRs simultaneously.

Additionally, a parallel (50-pin) interface is also fitted as standard, supporting easy external control through the parallel interface.

Rack mounting

Using the optional RMM-131 Rack Mount Adaptor, you can mount the unit in a standard EIA 19-inch rack.

For details of rack mounting, refer to the Installation Manual.

1-2 Example System Configuration

The following conceptual diagram shows an example of use.

2-1 Control Panels

There are three control panels, as follows:

• Upper control panel - Lower control panel - Switch panel

To open the lower control panel

Push in the lower control panel unlock buttons to open the lower control panel. You can fix the lower control panel in any of five positions between vertical and horizontal.

To close the lower control panel

Push up the folding levers on both sides at the same time allowing the lower control panel to close.

Note

When closing the lower control panel, be careful not to catch your fingers in the panel.

2-1-1 Upper Control Panel

① POWER switch

Pressing the 'I' side of the switch powers the unit on. When the unit is powered on, the audio setting display section (see page 2-4) and the time data/menu display section (see page 2-7) light.

② REMOTE buttons and RS-232C indicator

Press the 1 (9P) button or 2 (50P) button to select the device controlling this unit.

1(9P): This unit is controlled by the device connected to the REMOTE 1-IN(9P) or REMOTE 1-OUT(9P) connector. The button lights when pressed.

2(50P): This unit is controlled by the device connected to the REMOTE 2 PARALLEL I/O(50P) connector. The button lights when pressed.

RS-232C indicator: This indicator lights when this unit is controlled through the RS-232C connector.

③ EJECT button

To eject the cassette, press this button. While the cassette is being ejected, this button lights.

When using the lower control panel as remote control panel, press the DELETE button and STOP button at the same time to eject the cassette.

Note

Ejecting with the EJECT button is a local operation. It is not possible to eject a cassette in another unit by remote control.

④ Format indicators

The indicator (BETACAM/SP, BETACAM SX, MPEG IMX, Digital BETACAM, or HDCAM) corresponding to the current recording or playback format lights. The BETACAM/SP lights when the format is Betacam or Betacam SP.

⑤ PHONES jack and control

Connect stereo headphones with an impedance of 8 ohms, to monitor the sound during recording, playback and editing.

The control knob adjusts the volume. It is possible to set an internal board switch so that the output volume from the MONITOR OUTPUT L and R connectors is controlled simultaneously.

For details, refer to the Installation Manual.

2-1-2 Lower Control Panel

1 Audio control section

① Audio selection function selector buttons INPUT (input signal selection mode) button:

Pressing this button puts the unit into input signal selection mode. In the audio setting display section, indicators flash to indicate the currently selected signal for each channel (HDSDI, SDTI, AES/EBU, or ANA). In this state, you can use the audio monitor signal selection buttons to select the signal to input to each channel.

Pressing this button again takes the unit out of input signal selection mode and puts it into monitor signal selection mode.

MIXING (mixing setting mode) button: Pressing this button puts the unit into mixing setting mode. In the audio setting display section, the MIX indicator flashes. In this state, you can use the audio monitor signal selection buttons to specify which input channel signal will be recorded on which audio track on the tape.

Pressing this button again takes the unit out of mixing setting mode and puts it into monitor signal selection mode.

For information about how to operate in input signal selection mode, mixing setting mode, and monitor signal selection mode, see the descriptions of the audio monitor signal selection buttons ④ on page 2-5.

② DISPLAY FULL/FINE button

Pressing this button toggles the display mode of the level meters in the audio setting display section between FULL and FINE.

FULL: The display covers the range -60 dB to 0 dB or -40 dB to +20 dB as selected using setup menu item 806. In this mode the segment of the display corresponding to the current audio level and all lower segments light.

FINE: The display is enlarged, with a step of 0.25 dB. A segment indicating the reference level lights. In this mode only the segment of the display corresponding to the current audio level lights. If the audio level exceeds the maximum display level, the top segment flashes, and if the audio level goes below the minimum display level, the bottom segment flashes.

③ Audio setting display section

Input signal indicator: Indicates the currently selected input signal (HDSDI, SDTI, AES/EBU, or ANA for analog) for the corresponding audio input channel.

MIX (mixing) indicator: Flashes when a mixing setting operation is enabled for the corresponding audio track. The indicator showing the number of the selected input channel lights.

DATA indicator: Lights when the audio output signals are recognized as data with the unit in recording, E-E ¹⁾ , or playback mode.

OVER indicator: While the unit is in recording or playback mode, this lights when the level of the audio signal on the corresponding channel exceeds the maximum level that can be indicated on the level meter.

Level meter: Displays the audio signal level when the unit is in recording or playback mode. You can use the setup menu to switch the display mode between PEAK.0 (0 dB is maximum level) and REF.0 (0 dB is the reference level). You can also use the DISPLAY FULL/FINE button ② to enlarge the display only near the reference level.

Note

If the playback tape format and system frequency are different, the level meter block flashes.

Input channel indicator: Indicates the input channel from which audio signals are recorded on the audio track. Two numbers light to indicate that signals from the corresponding input channels are mixed for recording.

Monitor channel L and R indicators: Indicate whether or not the signals of the track are output to the MONITOR OUTPUT L/R connectors and PHONES jack. 'L' lights to indicate output to the left monitor channel, and 'R' lights to indicate output to the right monitor channel.

EMPH (emphasis) indicator: While the unit is in recording or playback mode, this lights when the emphasis setting is on for the audio signal on the corresponding track.

4 Audio monitor signal selection buttons (CH1 to CH4, and CUE)

The function of these buttons depends on the signal selection mode set with the audio selection function selector buttons (INPUT, MIXING) 1 as follows.

Input signal selection mode (the input signal indicator flashes): The buttons in the upper row select signals for each audio input channel.

When the CH1 to CH4 buttons are pressed, the selected signal cycles between HDSDI → AES/EBU → ANA(LOG) → HDSDI.

Mixing setting mode (the MIX indicator flashes): The buttons in the lower row (REC row) select the

tracks (audio channels on the tape) to contain the mixed signals. In the audio setting display section, the MIX indicator for the corresponding track flashes. The buttons in the upper row (EXT row) select the input channel signals to record on the corresponding track. By pressing two buttons at the same time, you can specify that the signals of two input channels be mixed for recording.

For example, if you want to record the mixed signals of input channels 1 and 4 on track 3, press the CH3 button in the lower row (REC row), and then simultaneously press the CH1 and CH4 buttons in the upper row (EXT row). The settings for signal mixing become valid when the MIXING button is pressed.

Note

Before selecting signals from two input channels for recording in one recorder channel, check to be sure that the emphasis settings (ON or OFF) of the two input channels are the same. Recording and playback of mixed signals cannot be carried out correctly if the emphasis settings are different.

The EMPH indicator in the audio setting display section lights for channels with the emphasis setting on.

Monitor signal selection mode (the input signal indicator and the MIX indicator do not flash):

The buttons in the upper and lower rows select tracks to be output to the MONITOR OUTPUT L and R connectors on the connector panel or the PHONES jack on the upper control panel. The buttons in the upper row (L row) select tracks for output to the MONITOR OUTPUT L connector, and the buttons on the lower row (R row) select tracks for output to the MONITOR OUTPUT R connector. You can obtain the mixed output of multiple tracks by simultaneously pressing multiple buttons in the upper or lower rows. For example, simultaneously press the CH1, CH2, and CH3 buttons in the upper row to mix the signals of audio tracks 1, 2, and 3 for output to the MONITOR OUTPUT L connector.

To monitor CH5 to CH8 in MPEG IMX playback, press the CUE button to switch between CH1 to CH4 and CH5 to CH8, and then select the desired channels.

⑤ REC (recording) controls

These individually adjust the recording levels on channels 1 to 4, and cue audio.

To set the recording level, put the unit into E-E mode, press to protrude the control knobs and adjust the level while watching the level meters.

When the control knobs are pushed in, the recording levels return to the preset levels and cannot be adjusted.

For details about selecting the E-E mode, see the description of the REC button in the tape transport control section (see page 2-10) and function menu HOME page (see page 9-3).

⑥ PB (playback) controls

These adjust individually the playback levels on channels 1 to 4, and cue audio.

During playback, press to protrude the control knobs and adjust the level while monitoring the audio level indication on the level meters in the audio setting display section.

When the control knobs are pushed in, the playback levels return to the preset levels, and cannot be adjusted.

2 CHANNEL CONDITION indicator

A three-color indicator shows the state of the playback signal.

Green: The state of the playback signal is good.

Yellow: The playback signal is somewhat deteriorated, but playback is possible.

Red: The playback signal is deteriorated.

When this indicator remains on, head cleaning or an internal inspection is necessary.

3 Menu control buttons

These buttons are used for function menu (see the following section “Overview of the function menu”) and setup menu (see Chapter 10) operations. The page buttons (▼, ▲, and HOME) select menu pages, and the function buttons (F1 to F6) make function settings.

▼: Selects the next page in the order HOME → 1 → 2 → 3 → 4 → HOME. ▲: Selects the next page in the order HOME → 4 → 3 → 2 → 1 → HOME.

HOME: Selects the function menu HOME page.

When at least one user-defined function key is set in the HOME2 page, pressing the HOME button toggles the menu page display between HOME and HOME2.

F1 to F6: Make settings for the items displayed in the upper line of the menu display (the menu item display line). Pressing one of these buttons changes the setting for the corresponding item and displays the setting in the lower line of the menu display.

If there is no setting displayed in the lower line of the menu display, even though a menu item is displayed in the upper line, pressing the corresponding function button moves to a lower menu level.

Overview of the function menu

The function menu provides convenient access to frequently used function settings, such as input video signal selection and time code settings.

For details on the function menu, see Chapter 9.

4 Time data/menu display section

① Time data display

This displays indicators relating to time data and other indicators.

Time data display area 1

Normally this displays a CTL count, time code value, or user bit value according to the setting in function menu HOME page for F4 (CTL/TC).

Time data type indicator

This indicates the type of data displayed in the time data display area 1.

LTC (longitudinal time code): Time code recorded on a longitudinal track on the tape

LUB: LTC user bit values

VITC (vertical interval time code): Time code recorded in the vertical blanking interval

VIUB: VITC user bit values

DF (drop-frame) indicator (for 59.94i, 29.97PsF mode only)

This lights when values of drop-frame mode time code are displayed.

LTC indicator

Regardless of the display in the time data display area 1, this indicator lights when LTC values are being read or recorded.

VITC indicator

Regardless of the display in time data display area 1, this indicator lights when VITC values are being read or recorded.

Capstan lock mode indicator

This indicates the capstan lock mode (2F or 4F) set in function menu page 4 or in setup menu item 106.

System frequency indicator

This indicator shows the current system frequency.

Tape format/line standard indicator

This shows information about the tape format and the line standard conversion status.

Following are some examples and their meanings.

IMX 1080: Signals recorded in MPEG IMX format are output after conversion to 1080 line standard format signals.

DB 1035: Signals recorded in Digital Betacam format are output after conversion to 1035 line standard format signals.

1035→1080: HDCAM signals recorded in 1035 line standard format are output after conversion to 1080 line standard signals.

HD 1080: HDCAM signals recorded in 1080 line standard format are output with no change.

CONFI (ON)/PREREAD indicators

These indicate the state of the VTR CONFI playback function. When the CONFI playback function is enabled, the CONFI indicator appears, and when CONFI playback is actually being carried out the ON indicator also appears.

When F6 (PREREAD) is set to ON in function menu page 4, the CONFI playback function is disabled and one of the following is displayed.

PREREAD: Preread of both audio and video

A-PREAD: Preread of audio only

V-PREAD: Preread of video only

Time data display area 2

Displays data types and time data such as the time code of edit points and the total time of that tape.

The following data types are shown.

TOTL: Total time of the tape.

REM: Remaining time on the tape.

Depending on the setting of F5 (T INFO) on function menu page 3, either TOTL (TOTAL) or REM (REMAIN) is displayed.

The values displayed are approximate values calculated on the basis of the detected tape diameter. They are not precise to units of seconds.

The following appear when the top or end of the tape is reached.

BOT: Returned to top of tape.

EOT: Reached end of tape.

IN: video IN point

OUT: video OUT point

AIN: audio IN point

AOUT: audio OUT point

DUR: duration value

TCG (time code generator): time code generated by the internal time code generator

Speed indication area

This indicates the speed of a DMC playback.

During a DMC playback, “DMC SPD” is displayed in time data display area 2. However, CONFI playback is not possible during editing.

② Menu display

This displays the function menu and setup menu.

For details on the function menu, see Chapter 9 and for details on the setup menu, see Chapter 10.

5 MULTI CONTROL knob and PUSH/SHIFT indicator

In function menu operations, rotate the MULTI CONTROL knob to change settings that flash in the menu display section. In setup menu operations, rotate this knob to select menu items.

The PUSH/SHIFT indicator lights when you press this knob in. In this state, the value of the setting changes by a greater amount when you rotate the knob.

6 RESET button

To reset a CTL, time code (TC) or user bit (UB) value displayed in time data display area 1, hold this button down.

Resetting the CTL value erases all edit points.

7 Search control section

1) CONFI playback: This refers to playback of the audio and video signals immediately after recording, using the confidence heads, the signal being output to all intents

and purposes simultaneously with recording. This is used to check recording.

① SHUTTLE button

To use the search dial for playback in shuttle mode, press this button, turning it on.

For details of playback in shuttle mode, see the description of the search dial 5.

② JOG button

To use the search dial for playback in jog mode, press this button to turn it on.

For details of playback in jog mode, see the description of the search dial 5.

③ VAR (variable) button

To use the search dial for playback in variable speed mode, press this button to turn it on.

For details of playback in variable speed mode, see the description of the search dial 5.

④ SHUTTLE/VAR and JOG indicators

Either of the indicators is lit to show the current search mode or the mode used last.

When the SHUTTLE/VAR indicator is lit: Shuttle or variable speed mode

When the JOG indicator is lit: Jog mode

When the unit is turned on, the SHUTTLE/VAR indicator lights.

⑤ Search dial

Turn this to carry out playback in the modes shown in the following table. Turning the dial clockwise lights the ▷ indicator and plays back in the forward direction. Turning the dial counterclockwise lights the ◀ indicator and plays back in the reverse direction. When the tape is stopped or the unit is turned on, the □ indicator lights. Pressing the dial toggles between shuttle and jog modes or between variable speed and jog modes.

Depending on the tape format, noiseless playback is possible in the following ranges.

HDCAM: -1 to +2 times normal speed

Digital Betacam: -1 to +3 times normal speed

MPEG IMX: -1 to +3 times normal speed

Betacam SX: -1 to +2 times normal speed

Betacam/Betacam SP: -1 to +3 times normal speed

Playback modes using the search dial

Playback mode	Operations and functions
Shuttle	Press the SHUTTLE button or the search dial so that the SHUTTLE button lights, then turn the search dial.Playback is carried out at a speed determined by the position of the search dial. Playback speed ranges are as follows.HDCAM tape: ±50 times normal speed (59.94i, 29.97PsF mode), ±58 times normal speed (50i, 25PsF mode), ±60 times normal speed (24PsF, 23.98PsF mode)Digital Betacam tape: ±50 times normal speedMPEG IMX tape: ±60 times normal speedBetacam SX tape: ±60 times normal speedAnalog Betacam tape: ±35 times normal speed (525/59.94 mode), ±42 times normal speed (625/50 mode)The search dial has detents at the still position and at ±5 times normal speed.The maximum shuttle mode playback speed can be changed by changing the setting of setup menu item 102 (see page 10-10).
Jog Press the JOG button or the search dial so that the JOG button lights, then turn the search dial. Playback is carried out at a speed determined by the speed of rotation of the search dial. The playback speed range is ±1 time normal speed.The search dial has no detents.
Variable speed Press the VAR button, turning it on, then turn the search dial. You can control the playback speed finely (a maximum of 51 steps) in the range in which noiseless playback is possible.HDCAM, Betacam SX: Maximum 51 stepsDigital Betacam , MPEG IMX, analog Betacam: Maximum 54 stepsThe search dial has detents at the still position and at the normal speed position.
Capstan override	For details on operation, see page 4-8.

Setting setup menu item 101 (see page 10-10) to KEY enables you to use only the SHUTTLE, JOG, and VAR buttons to select shuttle/jog/variable speed modes.

8 REC INHI (recording inhibit) indicator

This indicator is on or off according to the combination of the F5 (RECINH) setting on function menu page 4 and the record inhibit plug on the cassette, as shown in the following table. When this indicator is on, recording on tape is prohibited.

REC INHI indicator indications

RECINH setting	State of the record inhibit plug on the cassette	REC INHI indicator state
ON	Record inhibit/permit Lit
OFF Record inhibit	Lit	a)
	Record permit	Off

a) It is possible to make a setting (setup menu item 107) so that in this case the indicator flashes.

9 Tape transport control section

① PREROLL button

Press this button to cue up to the preroll point (before the IN point by the time set as the preroll time) on the tape. You can change or select the preroll time and the state of the unit at the end of preroll (“stop mode” ¹ ) or still playback mode) using setup menu item 001 or 401.

Cuing up edit points

Hold down the IN, OUT, AUDIO IN, or AUDIO OUT button while pressing this button to cue up to the corresponding edit point.

② REC (record) button

To start recording, press this button together with the PLAY button, turning it on.

Monitoring in E-E mode

When the unit is in stop mode, pressing the REC button lights the button and allows you to monitor the video and audio in E-E mode. To return to the original state, press the STOP button.

During playback, search, fast forward, or rewind, holding down the REC button allows you to monitor the video and audio in E-E mode. In this case the button does not light.

③ EDIT button

To carry out manual editing, press this button simultaneously with the PLAY button.

Monitoring in E-E mode

When the unit is in stop mode, pressing the EDIT button lights the button and allows you to monitor the input signal selected with the ASSEMBLE button or INSERT buttons in E-E mode. To return to the original state, press the STOP button.

During playback, search, fast forward, or rewind, holding down the EDIT button allows you to monitor the video and audio input signals in E-E mode.

④ STANDBY button

When this button is off with a cassette inserted in the unit, to put the unit in standby mode, press the button, turning it on.

In standby mode, the drum is rotating and the tape is in contact with the drum. As a result, recording or playback can start immediately.

To end standby mode, press the STANDBY button, turning it off.

If 8 minutes (value can be varied using setup menu item 501) elapse in standby mode, the unit automatically switches out of standby mode to protect the tape.

⑤ STOP button

To stop recording or playback, press this button, turning it on.

When you stop playback, the unit switches either to still playback or to E-E mode according to the setting on function menu HOME page for F2 (PB/EE) and the setting of setup menu item 108.

Fault display function

The STOP button flashes in the following cases related to reference signals:

• When F2 (OUTREF) is set to INPUT on function menu page 4, and there is no input video signal.
• When F2 (OUTREF) is set to REF in function menu page 4, and there is no external reference signal input or the input external reference signal is not synchronized to the input video signal.

⑥ F FWD (fast forward) button

To fast forward the tape, press this button, turning it on.

⑦ PLAY button

To start playback, press this button, turning it on.

To operate in capstan override mode

Hold down this button, and turn the search dial.

For details of capstan override mode, see page 4-8.

⑧ SERVO indicator

Lights when the drum servo and capstan servo are locked.

⑨ REW (rewind) button

To rewind the tape, press this button, turning it on.

10 Editing mode setting section

① ASSEMBLE button

Press this button, turning it on, to carry out assemble editing ¹⁾ .

All signals (video signals, audio signals, time code signals, and so on) are recorded together.

Press the button again, turning it off, to exit from assemble editing mode.

Note

When even one of the INSERT buttons is lit, the ASSEMBLE button does not work. To use the ASSEMBLE button, turn off all the lit INSERT buttons.

② INSERT buttons

Press the corresponding button, turning it on, to select a signal for insert editing ²⁾ . Press the button again, turning it off, to cancel the selection.

VIDEO button: Selects the video signal.

TC (time code) button: Selects time code.

CH1 to CH4 (audio channels 1 to 4) buttons:

Select the signals on audio channels 1 to 4.

CUE button: Selects the cue audio signal.

Note

When the ASSEMBLE button is lit, none of the INSERT buttons work. To use INSERT buttons, press the ASSEMBLE button, turning it off.

11 ALARM indicator and KEY INHI indicator

ALARM indicator

This lights when a hardware error is detected on the unit, and goes off when the error is resolved. When this indicator is lit, an error message appears in the time data/menu display section. If you are using the HDSDI OUTPUT 3 (SUPER), SDI OUTPUT 3 (SUPER) or COMPOSITE VIDEO OUTPUT 3 (SUPER) connector, then when the setting of F4 (CHARA) in function menu page 4 is ON, the error message also appears on the monitor screen.

For details on error messages, refer to Section 1-24 in the Maintenance Manual Volume 1.

KEY INHI (inhibit) indicator

This indicator lights when the KEY INHI switch on the switch panel (see page 2-14) is set to ON.

12 PLAYER button and RECORDER button

When you carry out editing using a VTR connected to the REMOTE 1-IN(9P) or REMOTE 1-OUT(9P) connector (see page 2-18) as the player and this unit as the recorder, these buttons select which VTR the editing control buttons and tape transport buttons on this unit control.

PLAYER: The editing control buttons and tape transport buttons on this unit control the external player VTR.

RECORDER: The editing control buttons and tape transport buttons on this unit control the recorder (this unit).

When this unit is being used in standalone mode, neither button functions.

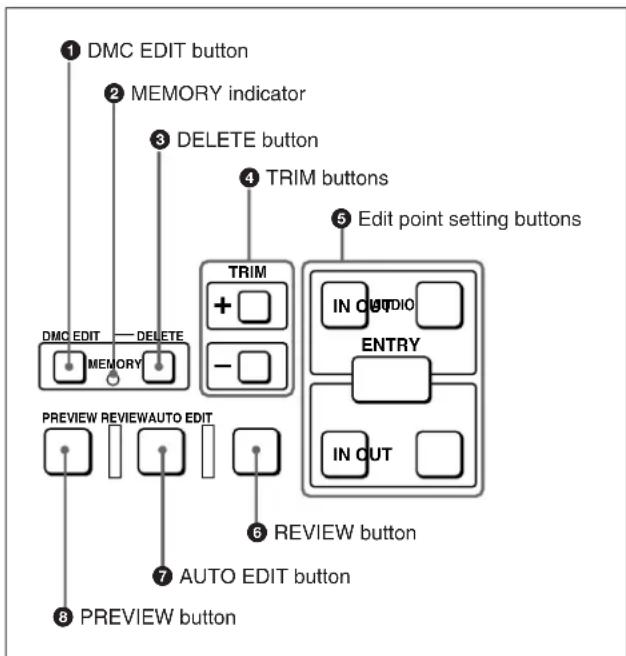

13 Editing control section

① DMC EDIT button

Use this button to memorize the playback speed varied between -1 and +2 times normal speed, and carry out automatic playback or automatic editing using the memorized playback speed.

② MEMORY indicator

When memorizing the playback speed using the DMC EDIT button, this indicator flashes as the playback speed is captured to memory, and lights continuously once the speed is captured.

③ DELETE button

This deletes an existing edit point. Hold down this button and press the IN, OUT, AUDIO IN, or AUDIO OUT button which is lit, indicating an existing edit point, to delete the corresponding edit point. The button either goes off or flashes. When the button flashes, it is necessary to set the deleted edit point again.

To cancel the DMC mode, hold down the DMC EDIT button and press the DELETE button.

④ TRIM buttons

Use these buttons to trim an edit point to single-frame precision.

Hold down the IN, OUT, AUDIO IN, or AUDIO OUT button, and press one of these buttons. The '+' button advances the corresponding edit point by one frame, and the '-' button sets it back by one frame.

Pressing one of these buttons while holding down the PLAY button adjusts the tape speed by +8% or -8% correspondingly. (Capstan override function)

⑤ Edit point setting buttons

IN button and OUT button

To set a video IN point or OUT point, hold down the IN button or OUT button and press the ENTRY button.

After you have made the setting, pressing the IN button or OUT button displays the video IN point or video OUT point set in time data display area 2.

AUDIO IN button and AUDIO OUT button

In insert editing, to set an audio IN point or audio OUT point separate from the corresponding video edit point, hold down the AUDIO IN button or AUDIO OUT button, and press the ENTRY button.

After you have made the setting, pressing the AUDIO IN button or AUDIO OUT button displays the audio IN point or audio OUT point set in time data display area 2.

ENTRY button

Use this for setting edit points and so on.

- To set a video IN point or OUT point: Hold down the IN button or OUT button, and press this button.

- To set an audio IN point or OUT point: Hold down the AUDIO IN button or AUDIO OUT button, and press this button.

⑥ REVIEW button

Use this button to review the editing results after carrying out automatic editing.

⑦ AUTO (automatic) EDIT button

After edit point setting, to carry out automatic editing (recording), press this button, turning it on.

If the IN point is not set, the automatic editing is carried out with the point where you pressed this button as the IN point.

If you pressed the PREVIEW button to carry out a preview, when the preview ends this button flashes.

8 PREVIEW button

After edit point setting, to preview the editing results on the monitor before recording, press this button to turn it on.

If the IN point is not set, the preview is carried out with the point where you pressed this button as the IN point.

During the preview it is lit, and when the preview ends it flashes.

14 Shot mark section

① LIST button

Use this button to read in and list shot marks.

② REC/ERASE indicator

This lights in the state in which writing, amending, and deleting of shot marks is enabled and flashes while a shot mark is actually being written, amended or deleted.

③ MARK button

Hold this button down for 2 seconds or more to enable writing, amending, and deleting of shot marks.

2-1-3 Switch Panel

To access the switch panel, open the lower control panel.

On how to open the lower control panel, see the figure on page 2-1.

① Memory card slot

Insert a memory card to update this unit's firmware. You can save or load setup menu settings onto the memory card.

For details on firmware update and setup menu reading/storing, refer to the Maintenance Manual Volume 1.

② Memory card ejection button

Press to eject a memory card from the memory card slot.

③ CONTROL PANEL connector (10-pin, round type)

Plug in the lower control panel connection cable.

④ PANEL SELECT switch

In addition to the lower control panel, you can connect a similar control panel to this unit. When two control panels are connected to the unit, the PANEL SELECT switch is used to specify which panel be enabled to control the unit.

FRONT: Enables the control panel connected to the CONTROL PANEL connector on the switch panel.

REAR: Enables the control panel connected to the CONTROL PANEL connector on the connector panel. When setup menu item 117 is set to PARA, this switch position also enables the control panel connected to the CONTROL PANEL connector on the switch panel.

⑤ KEY INHI switch

Moving this switch to the ON position disables the controls on the upper and lower control panels. You can specify which buttons and knobs are disabled in setup menu item 118.

⑥ Memory stick slot

Use this to update the firmware. You can also save or load setup menu settings onto the memory stick.

Note

After inserting a memory stick or memory card, allow at least five seconds to elapse before removing it.

For details on firmware update and save or load setup menu settings, refer to the Maintenance Manual Volume 1.

2-2 Connector Panel

1 Analog audio input/output section

① AUDIO INPUT CH1 to CH4 (channels 1 to 4) connectors (XLR 3-pin, female)

Input analog audio signals to channels 1 to 4. You can record analog audio signals input to these connectors to any audio track on the tape.

② AUDIO INPUT CH1 to CH4 (channels 1 to 4) LEVEL switches

Set these for each channel as shown in the following table, according to the audio input levels to the AUDIO INPUT CH1 to CH4 connectors and the impedance.

AUDIO INPUT CH1 to CH4 LEVEL switch settings

Audio input level and impedance		Switch setting
Level	Impedance
-60 dBu (microphone input)	High impedance (approx. 20 kΩ)	LOW-OFF (left position)
+4 dBu (line audio input)	High impedance (approx. 20 kΩ)	HIGH-OFF (center position)
+4 dBm (line audio input)	600Ω	HIGH-ON 600Ω (right position)

③ AUDIO OUTPUT CH1 to CH4 (channels 1 to 4) connectors (XLR 3-pin, male)

These connectors output analog audio signals for channels 1 to 4.

④ CUE IN/OUT (cue audio input/output) connectors (XLR 3-pin, female/male)

The IN connector inputs and the OUT connector outputs the cue audio signals.

2 Analog video input/output section

① REF. (reference) VIDEO INPUT connectors (BNC type) and 75Ω termination switch

Input a reference video signal. Input a three-valued (positive and negative) sync signal, a video signal with chroma burst (VBS) or a monochrome video signal (VS). When using the loop-through connection set the switch to the OFF position, and otherwise to the ON position.

② COMPONENT VIDEO OUTPUT connectors (BNC type)

These connectors output analog component video signals (Y/R-Y/B-Y).

③ COMPOSITE VIDEO OUTPUT connectors (BNC type)

These connectors output analog composite video signals.

When the setting of F4 (CHARA) in function menu page 4 is ON, connector 3 (SUPER) outputs a signal with superimposed time code, menu settings, alarm messages, and other text information.

3 Digital audio input/output section

① AUDIO INPUT (AES/EBU) connectors (BNC type)

Input two sets (4 channels: CH1/2 and CH3/4) of AES/EBU format digital audio signals.

② AUDIO OUTPUT (AES/EBU) connectors (BNC type)

Output a maximum of 4 sets (8 channels: CH1/2, CH3/4, CH5/6, CH7/8) of AES/EBU format digital audio signals.

However, the HDW-2000 supports 2 sets only (4 channels: CH1/2, CH3/4).

4 Digital signal input/output section

① HDSDI (HD Serial Digital Interface) INPUT connectors (BNC type)

The upper of these two connectors inputs HD format video/audio signals. The lower one outputs the input signals for monitoring.

② HDSDI (HD Serial Digital Interface) OUTPUT connectors (BNC type)

These connectors output HD format video/audio signals. When the setting of F4 (CHARA) in function menu page 4 is ON, connector 3 (SUPER) outputs a signal with superimposed time code, menu settings, alarm messages, and other text information.

③ SDTI (Serial Data Transport Interface) INPUT connector (BNC type)

Inputs SDTI format video and audio signals.

④ SDTI (Serial Data Transport Interface) OUTPUT connectors (BNC type)

Output SDTI format video and audio signals.

⑤ SDI (Serial Digital Interface) OUTPUT connectors (BNC type)

These connectors output D1 format video/audio signals.

When the setting of F4 (CHARA) in function menu page 4 is ON, connector 3 (SUPER) outputs a signal with superimposed time code, menu settings, alarm messages, and other text information.

5 Power supply section

① AC IN connector

Use the optional power cord to connect this to an AC outlet.

② Ground terminal

Connect this to ground.

6 External device connectors

① REMOTE 2 PARALLEL I/O(50P) connector (D-sub 50-pin)

Connect remote control signals from an external device.

For details, refer to the Installation Manual.

② CONTROL PANEL connector (round type, 10-pin)

In addition to the lower control panel, a similar control panel can be connected to this unit. To connect such a second control panel, use this connector. When two control panels are connected, use the PANEL SELECT switch on the switch panel (see page 2-14) to specify which control panel will control this unit.

③ VIDEO CONTROL(15P) connector (D-sub 15-pin)

For remote control of the internal digital video processor, connect an optional BVR-50/50P Video Remote Control Unit.

Always power off this unit before connecting the remote control unit.

④ VIDEO CONTROL(9P) connector (D-sub 9-pin)

For remote control of the internal digital video processor, connect an optional HKDV-900 Video Remote Control Unit.

Always power off this unit before connecting the remote control unit.

⑤ REMOTE 1-IN(9P) connector (D-sub 9-pin)

When using this unit together with another HDCAM VTR, and a BVE-series BVE-700/900/910/2000/9000/9000P/9100/9100P or other editor, connect the optional 9-pin remote control cable from the other unit to this connector.

Depending on the setting of setup menu item 211, you can use this connector alone, or in a loop-through configuration with the REMOTE 1-OUT(9P) connector.

⑥ REMOTE 1-OUT(9P) connector (D-sub 9-pin)

This provides the loop-through output for remote control signals from the REMOTE 1-IN(9P) connector.

Depending on the setting of setup menu item 211, you can use this connector alone, or in a loop-through configuration with the REMOTE 1-IN(9P) connector.

⑦ RS-232C connector (D-sub 9-pin)

Use this for monitoring and diagnosis of the state of this unit from an external computer, using the ISR (Interactive Status Reporting) function.

7 Time code input/output section

① TIME CODE IN connector (XLR 3-pin, female)

To record time code from an external device, input a time code signal from the time code output connector of the other device.

② TIME CODE OUT connector (XLR 3-pin, male)

This outputs a time code according to the operating state of the unit, as follows:

- During playback: the playback time code By setting setup menu item 606, you can also output the time code from the internal time code generator locked to the playback time code.

- During recording: the time code generated by the internal time code generator or the time code input to the TIME CODE IN connector.

8 Audio monitor signal output section

① MONITOR OUTPUT R connector (XLR 3-pin, male)

This outputs the audio signals whose output destination was set to 'R' with the audio monitor signal selection buttons in the audio control section. If multiple tracks have been set to 'R', the signals of those tracks are mixed for output.

② MONITOR OUTPUT L connector (XLR 3-pin, male)

This outputs the audio signals whose output destination was set to 'L' with the audio monitor signal selection buttons in the audio control section. If multiple tracks have been set to 'L', the signals of those tracks are mixed for output.

3-1 Connections to External Devices

3-1-1 Connections to Digital Devices

This unit can input serial digital signals (video and audio) from another digital VTR such as the HDW-500/F500/2100/M2100/M2100P. The following

example shows the connections with another HDW-2000/M2000/M2000P unit as a player, with this unit used as recorder.

3-2 Reference Sync Signals

This section describes how reference signals for the video output signals and servo system are selected. The output from the internal reference video signal

generator is supplied to the output video signal and servo circuits as a reference signal.

3-2-1 Selecting Reference Signal Depending on Operational Status

The reference signal selection switches automatically between REF and INPUT depending on the menu

settings and the operating status of the unit, as shown in the following table.

F2 (OUTREF) setting	Menu item 309 setting	Menu item 334 setting	Unit's operational status a)	Reference signal setting
— EXT — EE REF
			PB
			EDIT
			REC
		INPUT EE INPUT
			PB REF
			EDIT
			REC
REF AUTO1 NORMAL EE
			PB
			EDIT
			REC INPUT
		INPUT EE
			PB REF
			EDIT
			REC INPUT
INPUT — EE
			PB
			EDIT
			REC
		INPUT EE
			PB REF
			EDIT INPUT
			REC
REF AUTO2 NORMAL EE REF
			PB
			EDIT INPUT
			REC
		INPUT EE
			PB REF
			EDIT INPUT
			REC
INPUT — EE
			PB
			EDIT
			REC

a) EE: In E-E mode PB: Playing back (normal playback, jog mode, shuttle mode, variable-speed mode, and also stop mode) EDIT: Edit preset enabled REC: Recording

Notes

- When there are no HD-SDI signal or SDTI signal (option) input whereas INPUT is selected for OUTREF, the unit synchronizes to the input reference video signal.

- When there is no reference video signal input whereas REF is selected for OUTREF, no external reference signal is used. In this case, the unit synchronizes to the internally generated reference signal.

3-2-2 Connecting Reference Signals

Connect reference signals as shown below, according to the way in which the unit is to be used.

- Connections for recording from a switcher or signal generator

- Connections for recording from an external VTR (player)

3-2 Reference Sync Signals

• Connections for playback

3-3 Setup

The principal setup operations before operating this unit can be carried out using setup menus.

The setup menus of this unit comprise a basic setup menu and an extended setup menu. The contents of these menus are as follows.

Basic setup menu:

• Items relating to the hours meter
• Items relating to operation

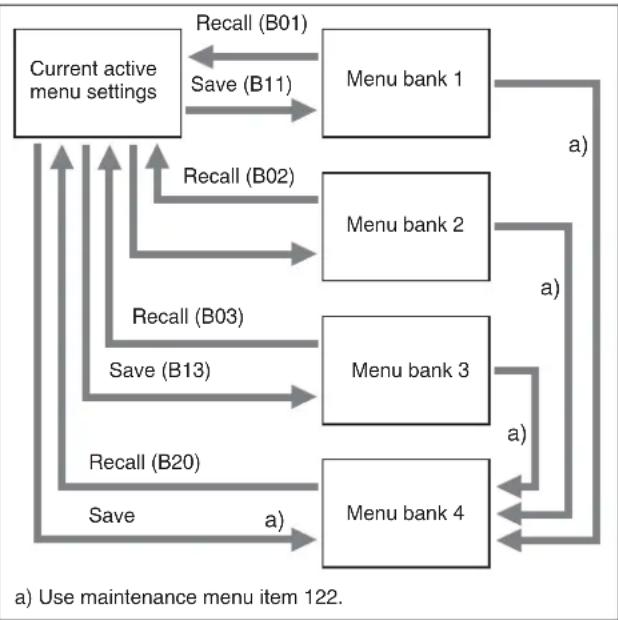

• Items relating to menu banks

Extended setup menu:

• Items relating to control panels
• Items relating to the remote control interface
• Items relating to editing operations
• Items relating to preroll
• Items relating to tape protection
• Items relating to the time code generator
• Items relating to video control
• Items relating to audio control
• Items relating to digital processing

For detailed information about the items, except for the basic setup menu items relating to the hours meter, of these menus and how to use them, see Chapter 10 “Setup Menus”. For detailed information about menu operations relating to the hours meter, see Section 11-5-1 “Digital Hours Meter” (page 11-5).

This unit allows menu settings to be saved in what are termed “menu banks”. Saved sets of menu settings can be recalled for use as required.

For more information about the menu banks, see the section "Menu bank operations (menu items B01 to B13)" (page 10-5).

3-4 Superimposed Character Information

When the function menu item CHARA is set to ON, the video signal output from the HDSDI OUTPUT 3 (SUPER) connector, SDI OUTPUT 3 (SUPER) connector, or COMPOSITE VIDEO OUTPUT 3 (SUPER) connector contains superimposed character information, including time code, menu settings, and alarm messages.

Adjusting the character display

You can adjust the position, size and type of the superimposed characters using setup menu items 002, 003, 005, 009, and 011.

For details, see Section 10-3 "Items in the Basic Setup Menu" (page 10-7).

Information displayed

Note

The display shown above corresponds to the factory default settings of the unit.

Changing the setting of setup menu item 005 allows different time data to be displayed in the lower line of the display.

For details, see Section 10-3 "Items in the Basic Setup Menu" (page 10-7).

① Type of time data

Display	Meaning
CTL CTL counter data
TCR LTC reader time code
UBR LTC reader user's bits
TCR. VITC reader time code
UBR. VITC reader user's bits
TCG Time code generator time code
UBG Time code generator user's bits
IN IN point
OUT OUT point
AI Audio IN point
AO Audio OUT point
DUR Duration	between any two of the four edit points (IN, OUT, audio IN, audio OUT)

Note

If the time data or user's bits cannot be read correctly, they will be displayed with an asterisk. For example, "T*R", "U*R", "T*R." or "U*R.".

② Time code reader drop frame mark (for 59.94i, 29.97PsF mode only)

“.”: Indicates drop frame mode

“:”: Indicates non-drop-frame mode

③ Time code generator drop frame mark (for 59.94i, 29.97PsF mode only)

“.”: Indicates drop frame mode (factory preset)

“:”: Indicates non-drop-frame mode

④ VITC field mark

“” (blank): Fields 1 and 3 (for 59.94i, 29.97PsF mode) or fields 1, 3, 5 and 7 (for 50i, 25PsF mode)

“*”: Fields 2 and 4 (for 59.94i, 29.97PsF mode) or fields 2, 4, 6 and 8 (for 50i, 25PsF mode)

5. Recorder/player selection

The indication changes as follows, according to the state of the RECORDER/PLAYER buttons on the control panel.

No display: Neither the RECORDER nor PLAYER button is lit.

P: The PLAYER button is lit.

R: The RECORDER button is lit.

6. Stop freeze mode

: This appears when tapes stop with the STOP FREEZE function enabled by the setting of setup menu item 906.

No indication: The STOP FREEZE function is not enabled by the setting of setup menu item 906.

7. Operation mode

The field is divided into three blocks, A, B and C.

• Block A displays the operation mode.
• Block B displays the servo lock status or tape speed.
• Block C displays a mark to indicate an edit section during automatic editing.

Display		Operation mode
Block A Block B
TAPE UNTHREAD Cassette is not loaded.
STANDBY OFF Standby off mode
T.RELEASE Tape tension released
STOP Stop mode
F.FWD Fast forward mode
REW Rewind mode
PREROLL Preroll mode
PLAY Playback mode (servo unlocked)
PLAY Playback mode (servo locked)LOCK
PLAY Variation from normal speed (%)		Capstan override mode (see page 4-8)
REC Record mode (servo unlocked)
REC LOCK	Record mode (servo locked)
EDIT		Edit mode (servo unlocked)
EDIT	LOCK	Edit mode (servo locked)
JOG	STILL	A still picture in jog mode
JOG	FWD	Jog mode in forward direction
JOG	REV	Jog mode in reverse direction
SHUTTLE	(Speed)	Shuttle mode
VAR	(Speed)	Variable speed mode
AUTO EDIT		Automatic editing mode
PREVIEW		Preview mode
REVIEW		Review mode
DMC	(Speed)a	DMC playback speed
D-PREV	(Speed)a	DMC editing preview mode
D-EDIT	(Speed)a	DMC editing mode
DMC-SPD	(Speed)	DMC initial speed setting
PLY-SPD	Variation from normal speed	Tape speed override mode (when “TSO” is selected in setup menu item 111)

a) Initial speed settings or stored speed settings

3-5 Cassettes

3-5-1 Cassette Types

This unit uses the following HDCAM cassettes for both recording and playback.

HDCAM cassettes

Small cassettes	BCT-6HD/12HD/22HD/32HD/40HD
Large cassettes	BCT-34HDL/64HDL/94HDL/124HDL

The HDW-M2000/M2000P can also play back the following cassettes.

• Digital Betacam cassettes • MPEG IMX cassettes • Betacam SX cassettes • Betacam SP cassettes (metal tape) • Betacam cassettes (oxide tape)

3-5-2 Inserting and Ejecting Cassettes

It is not possible to insert or eject a cassette unless the unit is powered on.

Inserting a cassette

1 Turn the POWER switch on.

2 Check the following points, then insert the cassette in the orientation shown in the figure.

• Check that message "ERR-10" is not shown in the time data/menu display section.
• Check that there is no slack in the tape.

The cassette is drawn into the unit, and the STANDBY and STOP buttons light.

Removing slack from the tape

Press in one of the reels with a finger, and turn gently in the direction shown by the arrows until there is no slack in the tape.

Ejecting a cassette

Press the EJECT button.

Note

Ejecting is a local operation. It is not possible to eject a cassette in another unit by remote control.

If the tape slacks inside the unit, pressing the EJECT button may not eject the cassette. For information about how to remove the cassette in such a case, refer to Section 1-17 in the Installation Manual.

3-5-3 Preventing Accidental Erasure of Recordings

To prevent a tape from being inadvertently erased, press in the red record inhibit plug on the cassette.

Press in the red record inhibit plug. ("ON") Return this plug to its original position to enable recording on the tape again. ("OFF")

3-6 Using a Memory Stick

When a Memory Stick is inserted in the VTR, the file data can be stored on the Memory Stick, which enables you to share data among cameras.

Note

Use a Memory Stick formatted with this VTR. It cannot be shared with other devices.

For more details, refer to the Maintenance Manual.

Inserting a Memory Stick

Insert a Memory Stick with the label side up into the Memory Stick slot until it clicks.

Note

Never insert or remove a Memory Stick during data access.

To remove a Memory Stick

If you push the inserted Memory Stick, it will pop out a little. Then pull the Memory Stick out.

3-6-1 Notes on Memory Stick

On Memory Stick

Memory Stick is a new compact, portable, and versatile IC recording medium with a data capacity that exceeds that of a floppy disk. Memory Stick is specially designed for exchanging and sharing digital data among Memory Stick compatible products. Because it is removable, Memory Stick can also be used for external data storage.

Available types of Memory Stick

With this product, you can use Memory Stick, Memory Stick Duo, Memory Stick PRO whose capacity does not exceed 4 GB, and Memory Stick PRO Duo.

Note on data read/write speed

Data read/write speed may vary depending on the combination of the Memory Stick and Memory Stick compliant product you use.

On MagicGate

MagicGate is copyright-protection technology that uses encryption technology.

Before using a Memory Stick

• You cannot record or erase data when the write-protect tab on the Memory Stick is set to LOCK. • We recommend backing up important data. • Image data may be damaged in the following cases:
• If you remove the Memory Stick, or turn the power off during access to data
• If you use a Memory Stick near static electricity or a magnetic field

Notes

• Prevent metallic objects or your finger from coming into contact with the terminal of the connecting section.
• Do not attach any material other than the supplied label to the label space.
• Attach the label at the prescribed labeling position. Make sure the label is attached at the labeling position properly.
• Do not bend, drop, or apply strong shock to a Memory Stick.
• Do not disassemble or modify a Memory Stick.
• Do not let the Memory Stick get wet.
• Do not use or keep a Memory Stick in locations that are: – Extremely hot such as in a car parked in the sun
• Under direct sunlight
• Very humid or subject to corrosive gases
• When you carry or store a Memory Stick, keep it in its case.

During access to data

While data are being read from or written to the Memory Stick, do not shake the camera or subject it to shock. Do not turn off the power of the camera or remove the Memory Stick. This may damage the data.

For details, refer to the Maintenance Manual.

• Memory Stick and MEMORY STICK are the trademarks of Sony Corporation.
• MagicGate Memory Stick and MG are the trademarks of Sony Corporation.
• Memory Stick Duo and MEMORY STICK DUO are trademarks of Sony Corporation.
• Memory Stick PRO and MEMORY STICK PRO are trademarks of Sony Corporation.
• Memory Stick PRO Duo and MEMORY STICK PRO DUO are trademarks of Sony Corporation.

4-1 Recording

This section describes video and audio recording on the unit.

4-1-1 Preparations for Recording

Switch and menu settings

Before beginning recording, make necessary switch and menu settings.

For details on each setting, see the pages indicated in parenthesis.

Adjusting the audio recording levels

When carrying out audio recording at a reference level

Leave the REC controls pressed in. The audio signals will be recorded at a preset reference level (a reference -20 dB indication for an input of +4 dBm).

Manually adjusting the recording levels

For each channel, press to protrude the REC control in the upper control panel, and adjust so that the audio level indication is 0 dB for an average volume. Carry out the adjustment in E-E mode.

For details of selecting the E-E mode, see the description of the REC button in the tape transport control section (page 2-10) and the PB/EE setting in function menu HOME page (page 9-3).

To change the display range of the audio level indications

Press the DISPLAY FULL/FINE button (see page 2-4).

To monitor the simultaneous playback of the recorded video and audio signals

Set the CONFI to ENABLE (see page 9-3) to light the CONFI indicator. It is now possible to simultaneously monitor the video and audio signals being recorded.

To use the emphasis function

To add emphasis to the analog input audio signal or analog playback audio signal, set the EMPHSS to ON (see page 9-6).

When the signal to which emphasis has been applied is played back, it is automatically subjected to deemphasis processing.

Using the emphasis-deemphasis processing enables the dynamic range to be improved by reducing high-frequency noise.

4-1-2 Recording Time Code and User Bit Values

There are three ways of recording time code, as follows:

• Setting an initial value, then recording the output of the internal time code generator
• Recording the output of the internal time code generator synchronized to an external time code generator

To set an initial value then record the time code

If necessary, change the settings in function menu page 1 (see page 9-4).

Set the TCG (F1) to INT, and the PR/RGN (F2) to PRESET.

Setting an initial time code value

Use the following procedure.

1 Set the CTL/TC to TC. 2 Press the F6 (TCGSET) button.

The function menu display changes as follows.

TCGSET	00:00:00:00
	←	→	+	-	SET EXIT

The first digit of the time code value (8 digits: hours, minutes, seconds, and frames) flashes.

To set all digits to zero, press the RESET button.

3 Press the F1 (←) or F2 (→) button to select the digit to be changed. Pressing the F2 (→) button moves the flashing digit position to the right, and pressing the F1 (←) button moves the flashing digit position to the left. 4 Turn the MULTI CONTROL knob or press the F3 (+)/F4 (−) button to change the value in the flashing digit position. 5 Until all the digits are set as required, repeat steps 3 and 4. 6 Press the F5 (SET) button.

When the RUN is set to FREE in function menu page 1, the time code value immediately starts advancing.

Setting the time code value to the real time

With the settings in function menu page 1 set as follows, carry out the foregoing procedure under the heading “Setting an initial time code value”. In steps 3 and 4, set the value slightly after the current time, then carry out step 6 at the instant the real time catches up with the setting.

TCG (F1): INT

PR/RGN (F2): PRESET

RUN: FREE

DF: DF (59.94i, 29.97PsF mode only)

Setting a user bit value

The user bit values recorded on the time code track provide for eight hexadecimal digits, which can be used to hold the date, time, or other information.

Use the following procedure.

1. Set the CTL/TC to UB. 2. Carry out the procedure in steps 2 to 6 under the heading above, "Setting an initial time code value".

You can set each digit to any hexadecimal value, represented by 0 to 9, and A to F.

Note

If any of the settings in item G03 of the shot mark operation menu is set to ON (to write a recording start mark), then the user bits are overwritten with the shot mark data for 20 frames from the start of recording in crash record mode, assemble edit mode, or insert edit mode.

To synchronize the internal time code generator to an external signal

Use this method to synchronize the time code generators of a number of VTRs, or to record the playback time code signal from an external VTR without deterioration of the signal waveform. In this case the RUN and DF settings are ignored. You can synchronize the internal time code generator to either of the following external time codes.

• The time code output (LTC) of an external time code generator or external VTR connected to the TIME CODE IN connector of the unit • The time code (LTC and VITC) present in the HDSDI signal input to the unit

To synchronize the internal time code generator to an external signal, use the following procedure.

1 • When synchronizing to an external time code output (LTC): Connect the time code output of the external time code generator or external VTR to the TIME CODE IN connector. - When synchronizing to the time code (VITC) in an input video signal: With the VID.IN in function menu HOME page, select the HDSDI signal.

2 Make the following settings in function menu page 1. - To synchronize to the external time code signal input to this unit's TIME CODE IN connector: TCG (F1): EXT PR/RGN (F2): LTC

• To synchronize to LTC data contained in the HDSDI signal input to this unit: TCG (F1): SDI PR/RGN (F2): LTC • To synchronize to VITC data contained in the HDSDI signal input to this unit: TCG (F1): SDI PR/RGN (F2): VITC

This starts the internal time code generator running in synchronization with the external time code generator.

Once the internal time code generator is synchronized with the external time code generator, even if the external time code generator connection is removed, the internal time code generator continues to run.

Setting PR/RGN (F2) to PRESET when TCG (F1) is set to EXT or SDI has the effect as setting PR/RGN (F2) to LTC.

4-1-3 Recording Procedure

To record, use the following procedure.

1 Insert a cassette.

For details, see the section "Inserting a cassette" (page 3-8).

2 Hold down the REC button, and press the PLAY button.

Recording starts, the servo locks, and the SERVO indicator lights.

3 To stop recording, press the STOP button.

If you record to the end of the tape

The tape is automatically rewound, and stops.

4-2 Playback

This section describes playback of video and audio.

4-2-1 Preparations for Playback

Switch and menu settings

Before beginning playback, make necessary switch and menu settings.

For details on each setting, see the pages indicated in parenthesis.

Time data selection

Displayed time data

Use the CTL/TC setting in function menu HOME page to select one of CTL (control), time code, and user bit values. When you select time code, the data displayed is determined by the F6 (TCR) setting (LTC/AUTO/VITC) in function menu page 1 as follows.

TCR setting Displayed data
LTC LTC recorded on tape
AUTO	LTC or VITC (automatically switched)
VITC	VITC recorded on tape

Output time code

The PR/RGN (F2) setting and setup menu item 606 determine whether the time code output from the TIME CODE OUT connector is the time code generated by the internal time code generator (REGEN), or the playback time code (TAPE).

For details of the PR/RGN (F2) settings, see page 9-4.

4-2-2 Playback Procedures

This section describes the following types of playback which the unit can carry out:

• Normal playback Playback at normal (×1) speed - Playback in jog mode Variable speed playback, with the speed determined by the speed of turning the search dial - Playback in shuttle mode Variable speed playback, with the speed determined by the angular position of the search dial - Playback in variable speed mode Variable speed playback, with the speed finely determined by the angular position of the search dial - Playback using the capstan override function The playback speed is adjusted temporarily according to the angular position of the search dial, to align the playback phase with that of another VTR. - DMC Playback Playback carried out at memorized varying speed.

Normal playback

First insert a cassette.

For details of how to insert a cassette, see Section 3-5-2 "Inserting and Ejecting Cassettes" (page 3-8).

To start playback

Press the PLAY button.

Playback starts, the servo locks, and the SERVO indicator lights.

To stop playback

Press the STOP button.

If you play back to the end of the tape

The tape is automatically rewound, and stops.

It is possible to disable the automatic rewind function by changing the setting of setup menu item 125.

Playback in jog mode

In jog mode, you can control the speed of playback by the speed of turning the search dial. The playback speed range is ±1 times normal speed.

The playback speed range can be ±3 times normal speed by changing the setting of setup menu item 116.

To carry out playback in jog mode, use the following procedure.

1 Press the JOG button or search dial so that the JOG button is lit.

Pressing the search dial toggles between jog mode and shuttle mode.

2 Turn the search dial in the desired direction, at the speed corresponding to the desired playback speed.

Playback in jog mode starts.

3 To stop playback in jog mode, stop turning the search dial.

The function to toggle between jog mode and shuttle mode each time the search dial is pressed can be disabled by changing the setting of setup menu item 101.

Playback in shuttle mode

In shuttle mode, you can control the speed of playback by the angular position of the search dial. The range of playback speed is as follows.

• HDCAM tape: ±50 times normal speed (59.94i, 29.97PsF mode), ±58 times normal speed (50i, 25PsF mode), ±60 times normal speed (24PsF, 23.98PsF mode) • Digital Betacam tape: ±50 times normal speed • MPEG IMX tape: ±78 times normal speed • Betacam SX tape: ±78 times normal speed
• Analog Betacam tape: ±35 times normal speed (525/59.94 mode), ±42 times normal speed (625/50 mode) There are detents on the search dial at the still position and at ±5 times normal speed.

To carry out playback in shuttle mode, use the following procedure.

1 Press the SHUTTLE button or search dial so that the SHUTTLE button is lit.

Pressing the search dial toggles between jog mode and shuttle mode.

2 Turn the search dial to the desired angle corresponding to the desired playback speed.

Playback in shuttle mode starts.

3 To stop playback in shuttle mode, return the search dial to the center position, or press the STOP button.

The function to toggle between jog mode and shuttle mode each time the search dial is pressed can be disabled by changing the setting of setup menu item 101.

To return to normal-speed playback

Press the PLAY button.

To alternate between normal-speed playback and shuttle mode playback

Set the search dial to the position corresponding to the desired shuttle playback speed, then switch between normal-speed playback and shuttle playback by pressing the PLAY and SHUTTLE buttons alternately. For intermittent shuttle mode playback, press the STOP and SHUTTLE buttons alternately.

Playback in variable speed mode

In variable speed mode, you can finely control playback speed within the following ranges:

• HDCAM: -1 to +2 times normal speed • Digital Betacam: -1 to +3 times normal speed • MPEG IMX: -1 to +3 times normal speed • Betacam SX: -1 to +2 times normal speed • Betacam/Betacam SP: -1 to +3 times normal speed There are detents on the search dial at the still position and at ±1 times normal speed. To carry out playback in variable speed mode, use the following procedure.

1 Press the VAR button, turning it on.

2 Turn the search dial to the desired angle corresponding to the desired playback speed.

Playback in variable speed mode starts.

3 To stop playback in variable speed mode, return the search dial to the center position, or press the STOP button.

To return to normal-speed playback

Press the PLAY button.

To alternate between normal-speed playback and variable speed mode playback

Set the search dial to the position corresponding to the desired variable playback speed, then switch between normal-speed playback and variable speed playback by pressing the PLAY and VAR buttons alternately. For intermittent variable speed mode playback, press the STOP and VAR buttons alternately.

Playback using the capstan override function

You can use the capstan override function to adjust the playback speed temporarily. This function is convenient for playback phase synchronization with another VTR playing back the same program.

1 (A) Hold down the PLAY button, and turn the search dial in the desired direction to adjust the playback speed. The range of speed adjustment is ±15% in steps of 1%. (B) Hold down the PLAY button, and press the TRIM buttons to adjust the playback speed. The playback speed can be adjusted to ±8% only.

The SERVO indicator goes off.

2 When the adjustment is completed, release the PLAY button.

The tape transport returns to normal speed, and the SERVO indicator comes on again.

To perform continuous capstan override playback

1 Set setup menu item 111 (TSO PLAY) to TSO. 2 Hold down the DMC EDIT button and turn the MULTI CONTROL knob to select the playback speed. The selected playback speed is displayed in time data display area 2 on the lower control panel of this unit as well as in the character information display on the monitor screen. 3 Press the PLAY button while holding down the DMC EDIT button. 4 Press the PLAY button or perform any other operation to exit the tape speed override mode.

See Section 10-2 "Setup Menu Operations" (page 10-2) for details of setup menu operations.

For details of character information displayed on the video monitor screen, see the descriptions of F4 (CHARA) in function menu page 4 (page 9-7) and setup menu item 005 (page 10-7).

4-2-3 Dynamic Motion Control (DMC) Playback

Overview

DMC playback allows you to vary the playback speed for a certain section of a tape, in variable speed mode (from -1 to +2 times normal speed) and store the varying speed in memory for later playback at the same varying speed.

For example, during a live broadcast of a sporting event you can set the start and end points of highlights while recording, and then provide immediate DMC playback of those highlights.

During DMC playback the tape moves as shown in the following figure.

Storing a varying playback speed in memory

To store the playback speed for DMC playback, use the following procedure.

1 Press the DMC EDIT button, turning it on. 2 Either while playing back the recorded tape, or during recording, press the ENTRY button and one of the following buttons simultaneously, to set the start and end points.

• On-air start point: AUDIO IN button
• Speed variation start point: IN button • Speed variation end point: OUT button
• On-air end point: AUDIO OUT button

Each press turns the corresponding button on.

3 Press the search dial or the SHUTTLE button or VAR button to enter shuttle/variable speed mode.

The SHUTTLE/VAR indicator lights.

Note

Make sure that setup menu item 111 (TSO PLAY) is set to DIS.

4 Holding down the DMC EDIT button, turn the search dial, to set the initial speed at the playback start point.

The speed you set appears in the speed indication area. During this period the tape does not move. When the initial speed setting is complete, release the DMC EDIT button.

5 Press the PREVIEW button.

The tape is prerolled and played back at normal speed from the on-air start point to the speed variation start point. On passing the speed variation start point, the MEMORY indicator begins to flash, and playback begins at the speed set in step 4.

6 Turn the search dial to vary the playback speed.

While the MEMORY indicator is flashing, the speed variations are stored in memory. On passing the speed variation end point, the MEMORY indicator changes from flashing to continuously lit, and the variable speed storing ends.

7 Press the STOP button to stop the tape.

If the MEMORY indicator lights continuously before the speed variation end point

This indicates that the memory became full at that point. It is therefore not possible to memorize more speed variation. The maximum capacity is a duration of 120 seconds.

To amend the stored speed variation

Press the PREVIEW button.

The interval between the speed variation start and end points is automatically played back at the stored speed. Operate the search dial as required, to adjust the playback speed.

Setting the initial speed to normal speed In step 4, press the PLAY button.

Executing DMC Playback

There are two methods of starting DMC playback.

• Starting playback at the on-air cue from the on-air start point
• Starting playback immediately after preroll

Notes

• To avoid operating mistakes we recommend that you use the VTR in standalone mode when carrying out DMC playback.
• When using two VTRs connected for editing, you can only use the recorder VTR for DMC playback, and only when neither the RECORDER nor PLAYER button is lit.

To start playback at the on-air cue from the on-air start point

Use the following procedure.

1 Press the REVIEW button.

The REVIEW button lights, and the tape is cued up to the on-air start point. After the tape is cued up, the REVIEW button flashes.

2 At the moment the on-air cue is given, press the REVIEW button once more.

The REVIEW button lights, and playback starts at standard speed.

Between the speed variation start and end points, DMC playback is carried out at the stored speed, and then playback continues at normal speed and the tape stops at the on-air end point.

To start playback immediately after preroll

Press the PREVIEW button.

The PREVIEW button lights, and after preroll, DMC playback is carried out for the section from the speed variation start point, then playback continues at normal speed from the speed variation end point.

To stop the tape during DMC playback

Press the STOP button.

To exit DMC playback mode

Press the DMC EDIT button and the DELETE button simultaneously.

5-1 Automatic Editing

This section describes how to carry out automatic editing with this unit and another VTR connected to the REMOTE1-IN(9P) connector or the REMOTE1-OUT(9P) connector.

5-1-1 Overview

Editing mode

With this unit, you can use the following two edit modes for automatic editing.

- Assemble editing

This is the editing mode in which successive portions of the edited result are recorded on the end of the already completed section.

The CTL signal, video signal, audio signal, and time code are all newly recorded on the tape.

- Insert editing

In this mode, new material is recorded at an intermediate point of an existing recording. The CTL signal is not recorded. The video signal, audio signal, and time code signal can all be independently recorded.

You can carry out DMC editing in both editing modes. In insert editing, split editing is also possible.

Using CTL to interpolate time code values

When you are using time code values as edit point addresses, the time code must be recorded on the tape in correct time sequence (i.e. the sections must be in strictly ascending time order).

If the time code values are all in correct time sequence, then if there are any discontinuities in the time code, the unit allows them to be interpolated using the CTL counter.

Recording time code

For automatic editing, regardless of the TCG (F1) and PR/RGN (F2) settings, time code is recorded continuously from the previous time code recorded on the tape.

Using setup menu item 610, it is also possible to record time code according to the settings in the function menu.

Sequence of editing operations

The following flowchart outlines the sequence of operations in automatic editing with two VTRs.

Using an editing control unit

When controlling this unit with an editing control unit, set an edit delay on the editing control unit so that cut in and cut out instructions are output 5 frames before the actual edit point.

5-1-2 Switch and Menu Settings

Before beginning editing, make necessary switch and menu settings.

Recorder settings

Player settings

5-1-3 Selecting the Editing Mode

To select the editing mode

Select assemble editing or insert editing.

Depending on the editing mode, press the following button or buttons.

• For assemble editing: ASSEMBLE button
• For insert editing: the desired INSERT buttons (VIDEO, CH1 to CH4, CUE, and TC)

When you select the editing mode, the IN/OUT buttons begin to flash, indicating that the edit points require setting.

5-1-4 Setting Edit Points

Set the edit points (IN and OUT points). To use split editing in insert mode, you can set the audio and video edit points separately.

To set an edit point

1 Press the RECORDER button or PLAYER button to select the VTR on which you will set the edit point.

The button which you have pressed lights.

2 Turn the search dial in jog or shuttle mode, and position the tape at the required edit point.

For details of playback in jog or shuttle mode, see the sections “Playback in jog mode” and “Playback in shuttle mode” (page 4-7).

3 At the point at which you wish to set the IN point or OUT point, hold down the ENTRY button and press the IN button or OUT button.

When the IN point or OUT point is set, the IN button or OUT button respectively lights.

4 Repeat steps 1 to 3 until all the necessary edit points are set.

When the IN points on both the recorder and player are set, the PREVIEW button and AUTO EDIT button flash, and it becomes possible to carry out a preview or editing operation.

Automatic setting of edit points

Editing requires four edit points: the IN and OUT points on both the recorder and player. However, once any three of these points are defined, the last point is set automatically. For example, if you set the recorder IN and OUT points, and the player IN point, the player OUT point is set automatically.

Note

In the following cases, the DELETE button begins to flash and you cannot carry out automatic editing.

• The OUT point is before the IN point.
• All four of the recorder IN and OUT points and the player IN and OUT points have been set. Use the DELETE button to delete a redundant edit point, or set the edit points correctly.

For details of deleting edit points, see the section “Deleting an edit point” (page 5-6).

Setting split edit points

In split editing, you can set the edit points for audio and video independently. Set the audio edit points with the AUDIO IN/OUT buttons, and the video edit points with the IN/OUT buttons.

Note that split editing is only possible when the recording mode is insert editing.

1 Press the desired INSERT button (VIDEO, CH1 to CH4, CUE, or TC).

The IN/OUT buttons flash.

2 Press the RECORDER or PLAYER button to select the VTR for which edit points are to be set.

The button you have pressed lights.

3 To find the edit point, rotate the search dial in jog or shuttle mode.

For details of jog/shuttle mode playback, see the sections “Playback in jog mode” and “Playback in shuttle mode” (page 4-7).

4 Press the ENTRY button together with one of the IN, OUT, AUDIO IN, and AUDIO OUT buttons, to set the edit point.

Once an edit point is set, the corresponding button changes from flashing to continuously lit.

5 Repeat steps 2 through 4 to set the required edit points.

As each edit point is set, the corresponding button changes from flashing to continuously lit.

Note

During split editing, if you set six or more edit points for the recorder and player, the DELETE button starts to flash to indicate that such a setup is impossible. Delete all unnecessary edit points, using the DELETE button.

For details of how to delete edit points, see the section "Deleting an edit point" (page 5-6).

Automatic setting of edit points in split editing

Split editing requires a total of eight edit points: four video edit points (player IN and OUT and recorder IN and OUT) and four audio edit points (player audio IN and OUT and recorder audio IN and OUT). However, as soon as you set five points, the system automatically calculates and sets the remaining three points.

Specifically, once you have set three of the four video edit points and two audio edit points, the remaining 3 three edit points are set automatically, regardless of whether these points are for the recorder or player.

In the figure below, the edit points shown within boxes are already set. The other edit points (recorder audio OUT point, and player audio IN and video OUT points) are set automatically.

Note that any edit point can be deleted or corrected later regardless of whether it was set manually or automatically.

You can set audio cut in, crossfade, fade in, and fade out effects, including their durations, by menu selection.

For details, refer to the Installation Manual.

When the audio IN point is not set for insert editing of audio only

As long as the audio OUT point is set, the VTR is ready for preview or editing. If the audio IN point has not been set, the current tape position is automatically used as the audio IN point.

Using a VTR without a split editing function as the player

When it is not possible to set separate audio and video edit points on the VTR you are using as the player, you can carry out split editing by setting the audio IN and OUT points and three video edit points on the recorder (this unit).

To display the time value for an edit point

You can display the time value for an edit point in the time data/menu display section (see page 2-7).

The edit point appears in time data display area 2.

1 Press the RECORDER button or PLAYER button to select the VTR on which you wish to check the edit point.

The button which you have pressed lights.

2 Hold down the IN, OUT, AUDIO IN or AUDIO OUT button according to the edit point you wish to check.

While you hold down the button, the corresponding indicator lights in the upper line of time data display area 2, and the time value of the edit point is displayed.

To display the duration of an edit segment

You can display the duration between two edit points in the following three cases, in the time data/menu display section (see page 2-7).

• When two edit points are set: the duration of the segment between the two points
• When only one edit point is set: the duration of the segment between the point which is set and the current tape position
• When no edit point is set: the duration of the previous edit segment

The duration is displayed in time data display area 2, thus: “DURATION 0:01:10:00”.

To display a duration, use the following procedure.

1 Press the RECORDER button or PLAYER button to select the VTR on which you wish to check the duration.

The button which you have pressed lights.

2 Hold down both of the IN and OUT buttons, or AUDIO IN and AUDIO OUT buttons.

While you hold down the buttons, the duration is displayed in time data display area 2.

5-1-5 Modifying and Deleting Edit Points

If the edit points are not set correctly, for example if an OUT point is before a corresponding IN point, the DELETE button flashes, and it is not possible to carry out a preview or editing operation. In this case, either modify the erroneous edit point, or first delete it and then enter it correctly.

Modifying an edit point

To modify an edit point, use the following procedure.

1 Press the RECORDER button or PLAYER button to select the VTR on which you wish to modify the edit point.

The button which you have pressed lights.

2 Hold down the IN, OUT, AUDIO IN, or AUDIO OUT button corresponding to the edit point you wish to modify, and press the TRIM buttons (+ or -). While you hold down the button, the time value for the edit point appears in time data display area 2; pressing the + button increases the value by one frame, and pressing the - button decreases it by one frame.

Deleting an edit point

To delete an edit point, use the following procedure. You can use the same procedure whether or not the DELETE button is flashing.

1 Press the RECORDER button or PLAYER button to select the VTR on which you wish to delete the edit point.

The button which you have pressed lights.

2 Hold down the DELETE button and press the IN, OUT, AUDIO IN or AUDIO OUT button according to the edit point you wish to delete.

The edit point is deleted according to which button you pressed, and the DELETE button goes off.

5-1-6 Cue-up to Edit Points and Preroll

To preroll for the edit IN point or to cue up to any edit point, use the following procedure.

1 Press the RECORDER button or PLAYER button to select the VTR on which you wish to operate.

The button which you have pressed lights.

2 · To cue up to an edit point

Hold down the IN/OUT button or AUDIO IN/OUT button according to the edit point to which you wish to cue up, and press the PREROLL button.

This cues up to the edit point you have selected.

• To preroll

Press the PREROLL button.

The tape is wound back to a position 5 seconds before the edit IN point, and stops.

To change the preroll time

The factory default setting for the preroll time is 5 seconds, but you can use menu item 001 to change this to any value from 0 to 30 seconds. If you change the preroll time, make sure that the setting is not longer than the recording length before the edit IN point.

Note that for automatic editing, the preroll time setting on the recorder takes precedence.

For details of menu item 001, see Section 10-3 "Items in the Basic Setup Menu" (page 10-7).

5-1-7 Preview

When you have set the edit points, the PREVIEW button flashes, indicating that you can carry out a preview.

To carry out a preview, use the following procedure.

1 Press the RECORDER button, turning it on.

2 Press the PREVIEW button.

The PREVIEW button changes from flashing to continuously lit, and the preview is carried out. At the end of the preview, the PREVIEW button flashes again.

To stop the preview

Press the STOP button.

The tape stops at the position where you pressed the button.

To return the tape to the preroll point

Press the PREROLL button.

To return the tape to the IN point or OUT point

Press the PREROLL button and the IN button or OUT button simultaneously.

After the preview, make any necessary adjustments to the edit points, then repeat the preview.

For details on how to modify or delete edit points, see Section 5-1-5 “Modifying and Deleting Edit Points” (page 5-6).

Monitor output

During a preview, on a monitor connected to the recorder you can monitor the following video and audio.

• From the preroll point to the IN point, you can monitor the playback from the recorder.
• From the IN point to the OUT point, you can monitor the playback from the player through the recorder in E-E mode.

From the OUT point to the postroll point, you can monitor the playback from the recorder.

The following figure illustrates this.

IN point		OUT point
Playback (recorder)	E-E mode (player)	Playback (recorder)

5-1-8 Carrying Out Automatic Editing

Overview

When you carry out automatic editing, the recorder and player operate as shown in the figure above, to copy the video and audio signals between the IN and OUT points on the player to the segment between the IN and OUT points on the recorder.

Monitor output

During execution of an automatic edit, as during a preview, on a monitor connected to the recorder you can monitor the following video and audio.

• From the preroll point to the IN point, you can monitor the playback from the recorder.
• From the IN point to the OUT point, you can monitor the playback from the player through the recorder in E-E mode.
• From the OUT point to the postroll point, you can monitor the playback from the recorder.

The following figure illustrates this.

IN point		OUT point
Playback (recorder)	E-E mode (player)	Playback (recorder)

Using a single monitor for video and audio on both player and recorder

For efficient editing if only one monitor is available, use the following method.

1 Connect the monitor to the recorder. 2 In the basic setup menu, set item 008 to AUTO. 3 Press the PLAYER button on the recorder.

This forces the recorder to E-E mode, in which the player video and audio signals are output to the monitor.

Note

In insert editing to tape, it is necessary for audio, video, and CTL signals to be recorded in advance throughout the insert editing section on the tape. If you execute an insert edit over a section where these signals are not present, noise or breakup can occur in the audio and video when that section is played back.

Starting automatic editing

When you have set the edit points, press the flashing AUTO EDIT button.

The AUTO EDIT button changes from flashing to continuously lit, and the automatic editing operation begins.

At the end of the editing operation, the AUTO EDIT button goes off.

To change the OUT point after starting automatic editing operation

After starting the automatic editing operation, to end the operation before the preset OUT point, hold down the ENTRY button and press the OUT button.

The position where you pressed the button becomes the OUT point, and editing ends.

To abandon automatic editing

Press the STOP button.

The automatic editing operation is abandoned. At the same time, the PREVIEW button and AUTO EDIT button start flashing, and the state before the editing was started is restored.

In this case, the IN and OUT points already set are preserved so that you can carry out a preview or automatic editing operation again by pressing the PREVIEW button or AUTO EDIT button.

Reviewing the editing results

After carrying out an editing operation, you can carry out a review, to check the editing results on the monitor.

To carry out a review, after carrying out the edit, and before you set any new edit points or make other settings, press the REVIEW button.

The REVIEW button lights, and the review is carried out.

At the end of the review the REVIEW button goes off, and the tape returns to the OUT point.

After automatic editing, to adjust the edit points and reexecute the edit

Hold down the DELETE button and press the ENTRY button to recall the edit points. After adjusting the edit points, press the AUTO EDIT button to carry out the edit again.

For details of how to adjust edit points, see Section 5-1-5 "Modifying and Deleting Edit Points" (page 5-6).

5-2 DMC Editing

By controlling the player playback speed from the recorder, you can achieve variable speed editing.

5-2-1 Overview of DMC Editing

Conditions for DMC editing

DMC editing can be used for insert or assemble editing, but not for audio split editing.

Tape movement during DMC editing

The following figure illustrates how the tapes move on the player and recorder during DMC editing.

5-2-2 Carrying Out DMC Editing

Setting the edit points and player speed

Use the following procedure.

1 Press the ASSEMBLE button or the desired INSERT button to select the editing mode. 2 Press the DMC EDIT button.

This unit switches to the DMC editing mode, and the DMC EDIT button lights.

3 Press the RECORDER button. 4 Holding down the ENTRY button, press the IN or OUT button to set an edit point. 5 Press the PLAYER button, to set the player IN point.

Note

It is not possible to set the player OUT point.

6 Holding down the DMC EDIT button, turn the search dial, to set the initial speed. To select normal speed as the initial speed, press the PLAY button.

The speed you set appears in the speed indication area.

7 When the initial speed setting is complete, release the DMC EDIT button. 8 Press the PREVIEW button.

The tape is prerolled and then the recorder starts operating at normal speed and the player at the set initial speed.

9 On passing the IN point, the MEMORY indicator begins to flash: turn the search dial to vary the playback speed.

While the MEMORY indicator is flashing, the speed variations are stored in memory. On passing the OUT point, the MEMORY indicator changes from flashing to continuously lit, and the variable speed storing ends.

If the MEMORY indicator lights continuously before the OUT point

This indicates that the memory became full at that point. Thus even before the OUT point is reached, it is not possible to record more speed variation. The maximum capacity is a duration of 120 seconds.

Quitting the DMC edit mode

Press the DELETE button and DMC EDIT button simultaneously.

Executing the DMC edit

Press the AUTO EDIT button. DMC editing is carried out at the stored varying speed. Once the editing is carried out, the stored speed variation is lost from memory.

To check the editing results

Press the REVIEW button.

5-3 Special Automatic Editing Methods

This section describes the following automatic editing methods:

• Quick editing • Continuous editing
• Standalone editing
• Manual editing
• Preread editing

5-3-1 Quick Editing

After selecting the edit mode, you can save on editing time by setting the edit points and executing the edit at the same time.

For quick editing, use the following procedure.

1 When operating the player, press the PLAYER button, turning it on, and when operating the recorder, press the RECORDER button, turning it on, then stop the tapes on both the player and the recorder at the positions you wish to make the respective IN points.

2 Press the AUTO EDIT button.

Editing starts.

3 Watching the editing on the monitor, at the position you wish to make the OUT point, hold down the ENTRY button and press the OUT button.

Editing ends.

The point at which you started the editing becomes the IN point, and the point at which you ended the editing becomes the OUT point.

If you want to preview

In step 1, after setting the recorder or player IN point, press the PREVIEW button.

5-3-2 Continuous Editing

After an automatic editing operation, the recorder automatically returns to the OUT point. For the second and subsequent editing operations, you can continue editing by simply specifying the IN and OUT points on the player. In this case the current OUT point on the recorder becomes the new IN point.

After automatic editing of one edit segment, to carry out continuous editing use the following procedure.

1 Set the player IN and OUT points.

On the recorder the OUT point for the previous edit becomes the new IN point.

2 Press the PREVIEW button to carry out a preview.

3 Press the AUTO EDIT button.

This executes the edit.

When the editing operation is completed, the recorder stops at the OUT point, and the player stops 2 seconds after the OUT point.

By repeating this process, you can carry out continuous editing.

By setting setup menu item 326, you can make the preceding OUT point automatically become the new IN point.

5-3-3 Standalone Editing

This refers to editing using as the player an external device which cannot be controlled remotely through the REMOTE1-IN(9P) connector. For example, you can record a color bar signal from a signal generator in the joints between the scenes of an already completed tape.

Carrying out standalone editing

Set the IN point with neither the PLAYER button or RECORDER button lit.

The AUTO EDIT button flashes, and it is now possible to carry out automatic editing.

If necessary, you can also first set the OUT point.

5-3-4 Manual Editing

Use the following procedure to carry out manual editing.

1 Press the RECORDER button, turning it on. 2 Use the search dial in jog or shuttle mode to find the editing start point (the recorder IN point), and stop the tape just before this point.

Note

If the recorder is in stop mode, then when editing starts this section of the video will break up.

3 Select the editing mode. 4 Press the PLAY button.

The recorder begins playback.

Note

It takes about two seconds until the playback video stabilizes. For this reason, start the playback from before the segment of video you wish to use.

5 At the editing start point (the recorder IN point), press the EDIT button and PLAY button simultaneously.

Editing starts.

6 At the editing end point (the recorder OUT point), press the PLAY button.

Editing ends, and the recorder continues with playback.

7 Press the STOP button to stop the recorder playback.

5-3-5 Preread Editing

Video and digital audio signals already recorded on the tape can be used as an edit source for insert editing.

This type of editing is called “preread editing”, as this unit uses the preread heads to read the signals in advance from the tape.

The signals read out can be sent to a mixer for mixing, and can be recorded either on the original channels or on other digital audio channels.

For preread editing, set the PREREAD to ON (see page 9-7).

Notes

• In preread editing, if an input video signal is used as the reference signal for the output video signal, this forms a feedback loop. To prevent the occurrence of feedback, set the F2 (OUTREF) (see page 9-7) in function menu page 4 to REF, and set item 309 in the extended setup menu to AUTO1 (see page 10-15) so as to use an external reference signal.
• When the preread mode is selected, to prevent feedback due to the loop connection, whatever the editing mode of this unit, no E-E video output is available.

When the PREREAD is set to OFF after preread editing, however, if the loop connection remains and an E-E signal is output, feedback will occur.

To prevent this, select PB mode for the video and digital audio channels in all the modes before the preread editing, as follows.

1 Set F2 (PB/EE) in function menu HOME page to PB. 2 Set the F6 (PREREAD) (see page 9-7) in function menu page 4 to ON. 3 Make the necessary connections for the preread editing. 4 After selecting the desired insert editing mode, carry out the preread editing. 5 When the preread editing is completed, remove the connections. 6 Set the PREREAD to OFF. 7 Check that no loop connection remains.

6-1 Overview

This unit can record shot marks or use shot marks recorded on HDCAM tape. Shot marks are indications

at desired points on a tape which enable faster cuing.

Types of shot mark

This unit supports the following three types of shot mark. This chapter describes recording start marks and

post marks, treating them as varieties of shot marks.

Shot mark type	Writing on a camcorder, etc.	Writing on this unit	Modifying and deleting on this unit
Recording start mark	Automatically written at the start of recording.	Written or not according to a separate menu setting for each recording mode (crash recording, assemble editing, insert editing). For each mode for which the setting is “ON”, the mark is written automatically at the start of recording.	Possible
Shot mark 1 and shot mark 2	Written by a manual shot mark operation during recording or editing.	Written by a button operation during crash recording or assemble editing. A menu setting determines which of three types of mark is written: shot mark 1, shot mark 2, or post mark.
Post mark Not written	(Written only by this unit)	Written by a button operation during playback, while stopped, during a search, or during recording (crash recording or assemble editing).

First, the shot mark functions of this unit are described in simple terms.

Reading shot marks

This unit reads in shot marks written on a tape and stores them in memory (to a maximum of 200). Once this data is stored in this unit, it is preserved even when the power is turned off.

Writing and erasing shot marks

For recording start marks, a menu setting determines whether or not they are written each time recording starts. Shot mark 1, shot mark 2, and post mark types can be written at any point on a tape, and also erased or rewritten.

Shot mark list operations

On the monitor, you can display a list of the shot marks read in by this unit, select required shot marks, delete shot marks, and so on. You can also add a memo mark (#) to a shot mark in the list. During tape playback, you can add virtual shot marks to the list. This is not written on the tape itself.

Cuing up to shot marks

By selecting a desired shot mark from the shot mark list, you can cue up immediately to that position. By means of a button operation, you can also cue up to the shot marks adjacent to the current tape position (index function).

Shot data display

When the tape includes shot data (camera, time, and other information captured at the time of shooting), you can read this in, and display the details on a monitor. It is also possible to display the shot mark list and shot data simultaneously.

Sorting shot marks by cassette

When the tape includes shot data, this unit recognizes which cassette each shot mark comes from. You can therefore sort the read-in shot marks by cassette in time code order.

6-2 Shot Mark Operation Menu

This section describes the settings in the shot mark operation menu.

Displaying the shot mark operation menu

With the function menu HOME page showing in the menu display, hold down the MARK button, and press the F5 (MENU) button.

The following menu appears on the monitor.

SHOT MARKER

G01:SEARCH TYPE - all

G02:LISTING TYPE

G03:RS.MARK MODE

G04:MARK IN REC shot1

Details of the shot mark operation menu

The shot mark operation menu comprises four items, G01 to G04. The detailed contents appear in the following table.

Item number	Item name Settings
G01	SEARCH TYPE	Select which shot mark type the index function searches for, from the following possibilities: allrec start markshot mark 1shot mark 2post mark
G02 LISTING TYPE		For each type of shot mark, select whether to read into the list (ON) or not read (OFF):rec start markshot mark 1shot mark 2post mark
G03 RS.MARK MODE		For each type of recording, select whether to write recording start marks (ON) or not write them (OFF):crash rec: crash recording assemble: assemble editing insert: insert editing
G04	MARK IN REC	Select the type of shot mark to write during recording and assemble editing.shot mark 1shot mark 2post mark

Changing the menu settings

The basic procedure for accessing menu items and changing settings is the same as for the setup menus. Note, however, the operations in “To change the settings of menu items with sub-items” (page 10-3) for items G02 and G03.

For details of the setup menu operations, see Section 10-2 "Setup Menu Operations" (page 10-2).

6-3 Shot Mark Operations

This section describes the operations concerning reading and writing shot marks. Note that the following operations cannot be carried out by remote control.

6-3-1 Reading Shot Marks

To read in shot marks

With a cassette loaded, hold down the LIST button and press the F FWD or REW button.

While the shot marks are being read in, the F FWD or REW button flashes.

The unit searches to the end of the tape, then rewinds automatically.

For the procedure for listing the shot marks read in, see page 6-4.

Note

It is only possible to read in a maximum of 200 shot marks.

When 200 shot marks have been read in, the control panel display shows the message “SHOT LIST FULL”, and the reading stops.

To cancel the message, press one of the tape transport buttons.

To stop reading

Press the STOP button.

Reading shot marks from more than one cassette

After changing the cassettes, carry out the reading operation again.

Data written in the new cassette will be added as long as the total does not exceed 200 shot marks. For example, if 190 shot marks have already read in, only 10 shot marks will be read from the new tape.

In the shot mark list (see page 6-5) the data from different cassettes is separated by a row of dashes.

6-3-2 Writing Shot Marks

Writing recording start marks during recording

In item G03 of the shot mark operation menu (page 6-2), for each of the three recording modes (crash recording, assemble editing, and insert editing), select whether or not to write a recording start mark.

When you set a particular mode to “ON”, a recording start mark is written on the tape each time you start recording in that mode.

Note

When using insert mode, press the TC button to turn the indicator on.

Writing shot mark 1, shot mark 2, or post marks

Selecting the type of shot mark written

In item G04 of the shot mark operation menu (page 6-2), select one of shot mark 1, shot mark 2, and post mark.

Note

If any of the settings in item G03 of the shot mark operation menu is set to ON (to write a recording start mark), then the user bits are overwritten with the shot mark data for 20 frames from the start of recording in crash record mode, assemble edit mode, or insert edit mode.

To write in crash recording or assemble editing

1 Hold the MARK button down for at least 2 seconds.

2 At the position you wish to write the mark, hold down the ENTRY button, and press the MARK button.

A mark of the type selected in item G04 of the shot mark operation menu is written.

Writing during playback, while stopped, or during a search

When this unit is in any of the playback, stop, or search modes, you can write a post mark only.

1 Hold down the MARK button for at least 2 seconds.

The REC/ERASE indicator lights.

2 At the position you wish to write the mark, hold down the ENTRY button and press the MARK button.

A post mark is written the instant you pressed the MARK button.

While the mark is being written, the message "RECORD SHOT MARK" appears on the monitor, and the REC/ERASE indicator flashes.

Erasing a shot mark

Select the shot mark from the shot mark list, and then carry out the deletion operation.

For details of the procedure, see page 6-6.

6-3-3 Shot Mark List Operations

Displaying the shot mark list

Hold down the ENTRY button and press the LIST button.

All of the shot mark types for which item G02 in the shot mark operation menu is set to "ON" appear in the list. If you do the same operation again, the list display disappears.

While the shot mark list is displayed, the function menu display changes as follows.

Example of list display

The following figure shows how the list is organized.

Selecting a shot mark

Turn the MULTI CONTROL knob to align the asterisk cursor with the desired shot mark.

Entering virtual shot marks

When the unit is stopped, performing playback, or searching with the REC/ERASE indicator off, hold down the ENTRY button and press the MARK button.

A virtual shot mark appears on the monitor as “V-MARK xxx” (xxx is the number). This is not written to the tape.

Adding a memo mark (#)

Select the shot mark to which you wish to add the memo mark, then press the F1 (MEMO) button. Repeat this operation to remove a memo mark.

Selecting the types of shot mark to be read in the list

For each of the types of shot mark (recording start mark, shot mark 1, shot mark 2, and post mark) you can specify whether it is read in. In item G02 of the shot mark operation menu, set the required types to “ON”.

For details of the menu, see page 6-2.

You can also use the following procedure to specify whether shot marks that have been read are displayed or not.

1 With the shot mark list displayed, press the F5 (SETTING) button.

You can now select the shot mark types. The function menu display changes as follows.

2 Press the F1 (PREV) or F2 (NEXT) button to select a shot mark type. 3 Press the F4 (ON) or F3 (OFF) button to switch between ON (displayed) and OFF (not displayed). 4 To return to the shot mark list, press the F6 (EXIT) button.

Deleting a shot mark from the list

To delete a shot mark or the shot mark list, you can use the F2 (SELECT) button instead of the MARK button, and the F3 (DELETE) button instead of the DELETE button.

To delete an individual shot mark

Use the following procedure.

1 With the shot mark list displayed, select the shot mark to be deleted using the MULTI CONTROL knob. 2 Hold the MARK button down.

While you hold down the button, an "X" appears after the selected shot mark number, indicating that it will be deleted.

To delete more than one shot mark, while holding down the MARK button turn the MULTI CONTROL knob to select all of the shot marks.

3 With the MARK button held down, press the DELETE button.

This deletes the shot marks which were marked by an "X".

To delete the entire list

Hold down the DELETE button and press the LIST button.

This deletes all shot marks from the list. This does not erase marks from the tape.

Erasing shot marks from the tape

To erase a shot mark, use the following procedure.

Note

Once you erase a shot mark from the tape, it cannot be read back in.

1 With no shot mark list displayed, hold the MARK button down for at least 2 seconds.

The REC/ERASE indicator lights, indicating that you can rewrite or erase shot marks.

2 Display the shot mark list. 3 Turn the MULTI CONTROL knob to select on the list the shot mark you wish to erase. 4 Press the DELETE button and MARK button simultaneously. During the erasure process the message “ERASE SHOT MARK” appears, and the REC/ERASE indicator flashes. 5 When the shot mark has been erased, close the shot mark list. 6 Hold down the MARK button for at least 2 seconds, to turn off the REC/ERASE indicator.

6-3-4 Cuing Up to Shot Marks

Cuing up to a selected shot mark

Use the following procedure.

1 Turn the MULTI CONTROL knob to select the desired shot mark from the shot mark list. 2 Press the PREROLL button.

Cuing up to shot marks adjacent to the current tape position (index function)

1 In item G01 of the shot mark operation menu (page 6-2), select one of recording start mark, shot mark 1, shot mark 2, and post mark, or select all.

2 Holding down the MARK button, press the F FWD button or REW button.

While the tape is moving, the F FWD button or REW button flashes.

When the shot mark is detected, its type is displayed in time data display area 2 (page 2-8) on the lower control panel and in the character information display on the monitor screen.

For details of character information display on the monitor screen, see F4 (CHARA) in function menu page 4 (page 9-7) and setup menu item 005 (page 10-7).

Note

You cannot use the above procedure to cue up to a virtual shot mark.

6-3-5 Reading In Shot Data

When there is shot data (time, device, and other information about the shooting) written on the tape, you can read it in and display it on the monitor.

Displaying the shot data

Holding down the ENTRY button, press the PLAY button.

The tape is played back, and the shot data displayed.

To delete the shot data

Once again hold down the ENTRY button, and press the PLAY button.

Example of shot data display

The shot data display appears as shown below.

The details in the shot data depend on the shooting conditions. If because of the devices used there is no shot data on a part of the tape, it appears as blank.

Displaying the shot data on the shot mark list

Turn the MULTI CONTROL knob to position the cursor on a separator in the shot mark list.

If there is shot data recorded when the immediately following shot mark was written, it appears in the display as shown below.

You can sort the shot marks in the list, based on the shot data. For details, see the next section.

6-3-6 Sorting Shot Marks

Based on shot data recorded on the tape, you can separate the shot marks by cassette, and sort them in time code sequence.

To sort the shot marks

Use the following procedure.

1 With the shot mark list displayed, press the F5 (SETTING) button. 2 Press the F2 (NEXT) button, and select SORTING LIST. 3 Press the F4 (ON) button to change the setting to ON.

Sorting starts. When it ends, the setting indication returns to OFF.

For example, if shot marks have been read in twice from the same cassette, these can be collated as shown in the following figure.

7-1 Overview of Tele-File Functions

Tele-File is a non-contact data carrier system. Tele-File enables data writing/reading between cassettes with memory labels and VTRs. It increases the efficiency of operations such as recording, playback and editing, and source data management.

Newly developed IC

The Tele-File system employs a newly developed memory IC with the following features.

• Thin design: With a thickness of 0.5 mm, the IC can be attached to cassettes as a memory label. • Memory capacity: 1 KB (user area, rewritable) • Data transfer speed: 100 kbps
• Security functions: Reading and writing authorization can be controlled through multiple passwords and permission settings.

Data management in clip units

In Tele-File, data is managed in units called “clips.” A clip consists of the following data items, whose settings can be displayed and changed.

• Cue point
• Write protect • Mark
• Recording start point • IN point
• OUT point
• Take number
• Cut number
• Scene number
• Comment

Data library management with handy reader/writer

An optional handy reader/writer (supporting Memory Stick) is available to facilitate data library management.

7-2 Opening the Tele-File Menu

Opening from the function menu

Display page 5 of the function menu in the menu display section, and then press the F1 (TELE-F) button.

The Tele-File menu opens.

For details about the function menu, see Chapter 9 "Function Menu" (page 9-1).

Opening automatically

When setup menu item 134 is set to ON, and when the current function menu page is HOME, HOME2, or page 1 to page 6, the Tele-File menu opens automatically whenever a Tele-File label is detected on a cassette loaded into the VTR.

For details about setup menu item 134, see Section 10-4 "Items in the Extended Setup Menu" (page 10-10).

Configuration of the Tele-File menu

The Tele-File menu has a tree structure, as illustrated below.

When the menu first opens, the menu operation mode is clip data display mode.

[Tele-File menu]

7-3 Tele-File Menu

7-3-1 Clip Data Display

How to read the display

Shown below are examples of the default menu displays in the menu display section and the monitor display.

For more information about how to display menus on the monitor, see the section “To display menus on the monitor” (page 10-2).

Menu display section

Monitor display

a) The Tele-File memory always contains the attribute data so that this indication never shows "100%."

Menu display section

Tele-File menu indicator

Indicates that the menu display section is currently displaying the Tele-File menu.

Data type indicator

Indicates the type of data selected with the clip data display mode. There are the following types.

Cue: Cue point

Protct: Write protected

Mark: Mark

R-Strt: Recording start point

IN: IN point

OUT: OUT point

Take: Take number

Cut: Cut number

Scene: Scene number

Comnt: Comment

Setting display area

Displays the setting of the currently selected data type, and a cursor (“*” or “>”).

The meaning of the cursor symbols is as follows:

*: Indicates that the mode is clip data display mode or attribute data display/modify mode, and that data is selected.

: Indicates that the mode is clip data modify mode or attribute data display/modify mode, and prompts for data entry or modification.

Menu items (functions)

Display menu items (functions).

These are common for all of the data items in clip data display mode. The function assignments for each item are as follows.

Clip data display mode menu items

Item name	Setting
F1 (ATTRIB)	Selects attribute data display/modify mode.For details about attribute data display/modify mode, see Section 7-3-5 “Displaying and Modifying Attribute Data” (page 7-11).
F2 (SELECT)	Selects a data modification mode for the data selected in the clip. The cursor changes from “*” to “>”.NoteIn the following cases, the SELECT item does not appear, and it is not possible to select a data modification mode.When setup menu item 133 is set to REMOTEWhen the memory label itself is write protectedFor more information about clip data modifications, see Section 7-3-3 “Modifying Clip Data” (page 7-7).
F3 (←-) Selects data in a clip.With each press, the “*” cursor moves to select the previous data item. The display scrolls to the left when the cursor moves to data that is not currently displayed.
F4 (→) Selects data in a clip.With each press, the “*” cursor moves to select the next data item. The display scrolls to the right when the cursor moves to data that is not currently displayed.
F5 (UNDO) Selects undo check mode. This button appears and is enabled when data has been modified after being read from the Tele-File label.For more information about undo check mode, see Section 7-3-4 “Undo/Resume Functions” (page 7-10).
F6 (WR/EXT) Writes data and exits from the Tele-File menu (return to function menu page 5).

Note

If you attempt to change clip data that is write-

protected, the message "PROTECTED CLIP!"

appears, and it is not possible to change the data. Refer

to "To make write protect, mark, and recording start

point settings" (page 7-9), and remove the write-

Protect setting.

Monitor display

Title

The title (maximum 14 characters) set in attribute data display/modify mode.

Selected clip number

A 4-digit number representing the number of the selected clip (with the “*” cursor).

Remaining memory percentage

The percentage of remaining memory (user area) available for use.

If there is not sufficient free memory, the message < > appears (stays lit for three seconds) in time data display area 2 when you attempt to add data.

Final data recording date

The data (year/month/day) on which data was most recently recorded.

Data type

The data type. The displayed data is the same as the data displayed in the menu display section, but some of the captions are different. There are the following types.

Cue Point: Cue point

WP: Write protected

Mark: Mark

R: Recording start point

IN Point: IN point

OUT Point: OUT point

Tk: Take number

Cut: Cut number

Scn: Scene number

Comment: Comment

Clip data No. 0001...

Data is displayed for 1 clip per line.

Clips are assigned consecutive numbers, beginning with No. 0001 for the clip on the top line.

To select clips

Rotate the MULTI CONTROL knob in clip data display mode.

The data for the selected clip appears in the menu display section, where it is selected.

In the monitor display, the “*” cursor moves up and down as clips are selected.

Data which is not visible is selected and displayed after scrolling.

To select data in a clip

In clip data display mode, press the F3 (←) or F4 (→) button.

The “*” cursor moves and data is selected. Data which is not visible is selected and displayed after scrolling.

Moving the cursor directly

Regardless of the cursor's current position, pressing one of the following buttons moves the cursor directly to the specified position in the same clip and displays the data.

IN (video IN point) button: IN point data OUT (video OUT point) button: OUT point data MARK button: Cue point data

To display the duration

Press the IN (video IN point) and OUT (video OUT point) buttons simultaneously. The cursor moves to the IN point data of the same clip, and the duration appears while the buttons are held down. If there is no IN point or OUT point data, the duration is displayed as 0:00:00:00.

7-3-2 Preroll and Cue Up Using Clip Data

In clip data display mode, you can use clip data to preroll and cue up.

To preroll to the cue point, IN point, or OUT point

1 Select a clip. 2 Select the cue point, the IN point, or the OUT point. 3 Press the PREROLL button.

The unit exits from the Tele-File menu and prerolls to the position of the selected data.

The preroll time is according to the setting of setup menu item 001.

Note

The unit does not preroll if there is no data for the selected point.

To cue up the cue point, IN point, or OUT point

1 Select a clip. 2 Press the PREROLL button while holding down the IN (video IN point), OUT (video OUT point), or MARK button. The unit exits from the Tele-File menu and cues up the position of the data selected in step 2 (the cue point position if the MARK button was pressed).

Note

The unit does not preroll if there is no data for the selected point.

7-3-3 Modifying Clip Data

To modify clip data, put the unit into clip data display mode and then press the F2 (SELECT) button to put it into clip data modification mode (the cursor changes to “>”).

The function assignments for menu items in clip data modification mode are as follows.

Clip data modification mode menu items

Item name	Setting
F1 (RETURN) Returns to clip data display mode.
F2 (MODIFY) Changes the setting of the selected data, or makes a new setting.The function button changes according to the data type.See the following for more information about how to set the various data types.• Cue point, IN point, OUT point: “To set time code data” (page 7-8)• Write protect, mark, recording start point: “To make write protect, mark, and recording start point settings” (page 7-9)• Take number, cut number, scene number: “To make take number, cut number, and scene number settings” (page 7-9)• Comment: “To make comment settings” (page 7-10)
F3 (DELETE) Deletes the data setting value. Enabled when cue point, IN point, OUT point, take number, cut number, scene number, or comment data is selected.A confirmation message appears. Press one of the following buttons to confirm or cancel the operation.• F1 (CANCEL): Cancels the deletion and returns to clip data display mode.• F2 (OK): Executes the deletion and returns to clip data display mode.
F4 (DEL LN)	Deletes the selected clip.A confirmation message appears. Press one of the following buttons to confirm or cancel the operation.• F1 (CANCEL): Cancels the deletion and returns to clip data display mode.• F2 (OK): Executes the deletion and returns to clip data display mode.
F5 (INS LN)	Inserts a clip at the cursor position.A confirmation message appears. Press one of the following buttons to confirm or cancel the operation.• F1 (CANCEL): Cancels the insertion and returns to clip data display mode.• F2 (OK): Executes the insertion and returns to clip data display mode.
HOME + F4 (DELETE ALL)	Deletes all clips.A confirmation message appears. Press one of the following buttons to confirm or cancel the operation.• F1 (CANCEL): Cancels the deletion and returns to clip data display mode.• F2 (OK): Executes the deletion and returns to clip data display mode.

Note

If you attempt to change clip data that is write-protected, the message “PROTECTED CLIP!” appears, and it is not possible to change the data. Refer to “To make write protect, mark, and recording start point settings” (page 7-9), and remove the write-protect setting.

To add and delete clips

To add clips

1 Rotate the MULTI CONTROL knob to move the “*” cursor to the position where you want to insert the clip.

2 Press the F2 (SELECT) button.

The unit enters clip data modification mode.

3 Press the F5 (INS LN) button.

A confirmation message “INSERT CLIP OK?” appears.

4 Press the F2 (OK) button.

The clip is added at the position to which you moved the cursor in step 1.

To delete clips

1 Select the clip to delete.

2 Press the F2 (SELECT) button.

The unit enters clip data modification mode.

3 Press the F4 (DEL LN) button.

A confirmation message “DELETE THIS CLIP OK?” appears.

4 Press the F2 (OK) button.

The clip selected in step 1 is deleted.

To set time code data

Proceed as follows to make or change settings for cue point, IN point, and OUT point data.

1 Select a clip. 2 Select cue point, IN point, or OUT point. 3 Press the F2 (SELECT) button. The unit enters clip data modification mode.

4 Press the F2 (MODIFY) button.

The two most significant digits begin to flash, and the data can be set or modified.

5 Press the F3 ( ← ) or F4 ( → ) button until the digit that you want to set starts flashing.

6 Rotate the MULTI CONTROL knob to make the setting.

To display the offset from the previous setting value

The offset is displayed as long as you hold down the F2 (OFFSET) button.

7 Repeat steps 5 and 6 until you have set all the required digits.

8 Press the F5 (SET) button.

The setting is confirmed and the unit returns to clip data display mode.

To cancel the setting or modification and return to clip data display mode

Press the F1 (CANCEL) button.

To set the set or modified data as other time data

Press the F6 (SET TO) button and select the time data (cue point, IN point, or OUT point), and then press the F5 (SET) or F6 (SET NL) button. The position where the data is set differs as follows, depending on the button pressed.

• F5 (SET): The data is set in the selected time data position.
• F6 (SET NL): A new clip is added at the lowest line and the time data is set at the selected data position in the new clip.

To make write protect, mark, and recording start point settings

Proceed as follows to make write protect, mark, and recording start point settings.

1 Select a clip. 2 Select write protect, mark, or recording start point. 3 Press the F2 (SELECT) button.

The unit enters clip data modification mode.

4 Press the F2 (MODIFY) button.

The data entry area begins to flash, and the data can be set.

5 Select the data by pressing the F3 (+) or F4 (−) button or rotating the MULTI CONTROL knob.

6 Press the F2 (SET) button.

The data setting is confirmed and the unit returns to clip data display mode.

To make take number, cut number, and scene number settings

Proceed as follows to make take number, cut number, and scene number settings.

1 Select a clip. 2 Select take number, cut number, or scene number. 3 Press the F2 (SELECT) button.

The unit enters clip data modification mode.

4 Press the F2 (MODIFY) button.

The most significant digit begins to flash, and the data can be set.

5 Press the F3 (left arrow) or F4 (right arrow) button until the digit that you want to set starts flashing.

6 Rotate the MULTI CONTROL knob to make the setting.

7 Repeat steps 5 and 6 until you have set all the required digits.

8 Press the F2 (SET) button.

The setting is confirmed and the unit returns to clip data display mode.

To make comment settings

Proceed as follows to make comment settings.

1 Select a clip. 2 Select comment. 3 Press the F2 (SELECT) button.

The unit enters clip data modification mode.

4 Press the F2 (MODIFY) button.

The data entry area begins to flash, and the data can be set.

5 Enter a character by rotating the MULTI CONTROL knob. 6 Press F4 (right arrow) button to move to the next character place. 7 Repeat steps 5 and 6 until you have entered the entire comment.

To delete characters

Press the F3 (←) or F4 (→) button until the character that you want to delete starts flashing, and then press the F5 (DELETE) button.

To insert characters

Press the F3 (←) or F4 (→) button until the character place after the place where you want to insert starts flashing, and then press the F6 (INSERT) button.

8 Press the F2 (OK) button.

The comment is confirmed and the unit returns to clip data display mode.

7-3-4 Undo/Resume Functions

Undo function

The undo function cancels all modifications and returns the data to the state it was in when first read. Press the F5 (UNDO) button in clip data display mode. A confirmation message appears. Press the F2 (OK) button to execute the undo and cancel all modifications to the data.

Resume function

If you have not modified any data since the last execution of the undo function, you can press the F5 (UNDO) button again. The button functions as a resume button, which cancels the immediately preceding undo.

Press the F5 (UNDO) button in clip data display mode. A confirmation message appears. Press the F2 (OK) button to execute the resume and cancel the immediately preceding undo.

7-3-5 Displaying and Modifying Attribute Data

You can display and modify attribute data. The example below shows attribute data displayed on the monitor.

Video final recording date

The most recent date (year/month/day) on which video was recorded on the tape.

Title

The title (name assigned to Tele-File, etc., maximum 24 characters).

The title can be modified.

ID

The ID (unique number assigned to Tele-File, maximum 24 characters).

The ID can be modified.

Administrator data

Data about the administrator of the cassette or tape material (maximum 16 characters).

The administrator data can be modified.

Model name

The model name of the VTR that recorded most recently to the tape.

Serial number

The serial number of the VTR that recorded most recently to the tape.

Write inhibit setting

Whether the entire Tele-File is write inhibited. The write inhibit setting can be modified.

Thread count

The thread count value recorded on the tape.

Number of cue points

The number of cue points recorded in the Tele-File. You can check the cue point values in clip data display mode.

Control mode

The setting of menu item 133.

For more information about menu item 133, see page 10-13.

Memory size

The size of the memory in the Tele-File (unit: bytes).

Amount of memory used

The amount of memory currently being used (unit: bytes).

To modify attribute data

You can modify the title, ID, administrator data, and write inhibit setting attributes. However, the attributes cannot be modified when the control mode is “remote.” The modification is not possible when the write inhibit setting is ON, either. Proceed as follows after setting the write inhibit setting to OFF.

1 Rotate the MULTI CONTROL knob to select the item.

The F2 (SELECT) button is enabled when you select an item that can be modified (title, ID, administrator data, and write inhibit setting).

2 Press the F2 (SELECT) button.

The data can be set or modified.

3 Rotate the MULTI CONTROL knob to set or modify the data.

4 Press the F2 (SET) button.

The change to the setting is confirmed.

Note

In the following cases, the SELECT item does not appear, and it is not possible to select a data modification mode.

• When setup menu item 133 is set to REMOTE
• When the memory label itself is write protected

To format the Tele-File memory

You can format the Tele-File memory (erase all modifiable data). However, the memory cannot be formatted in the following cases.

• When the write inhibit setting is ON
• When the control mode is "remote"

To format Tele-File memory, proceed as follows.

1 Press the F4 (FORMAT) button.

A confirmation message appears.

2 Press the F2 (OK) button.

All modifiable data is erased.

Note

In the following cases, the FORMAT item does not appear, and it is not possible to select a data modification mode.

• When setup menu item 133 is set to REMOTE
• When the memory label itself is write protected

8-1 Overview of UMID Functions

The UMID (Unique Material Identifier) is a type of meta-data in video and audio materials. It has been internationally standardized in SMPTE Standard 330M. This unit supports recording and generation of UMIDs.

The UMID is made up of a section called the “Basic” section and a section called the “Source Pack” section. The Basic section contains information such as the device that recorded the material and whether the

material is the original or a copy. The Source Pack section contains information about when/where/who recorded the material.

A UMID with a Basic section only is called a Basic UMID. A UMID with both Basic and Source Pack sections is called an Extended UMID. The following figure shows a general overview of the information contained in a UMID.

8-2 Recording UMIDs

UMIDs can be recorded when recording video signals with this unit. You can select whether to inherit (copy) the UMID contained in input signals, or automatically or forcibly generate a new UMID.

Selecting the type of UMID to record

Select whether to record a Basic UMID or an Extended UMID by using setup menu item 655 UMID RECORDING.

See page 10-22 for more information about setup menu item 655.

Selecting whether to inherit or generate the UMID

When recording a UMID, you can select whether to inherit (copy) the UMID contained in input signals, or generate a new UMID. Make this selection by using setup menu item 656 MATERIAL NO.

See page 10-22 for more information about setup menu item 656.

Selecting the Instance Number generation method when inheriting UMIDs

If you choose to inherit the UMID contained in input signals, almost all of the information in the UMID is copied without change, but the Instance Number changes to a value which indicates that “this UMID is a copy”. The new value can be generated from a 16-bit pseudo-random number with the addition of the number of copies (1 byte), or it can be generated from a 24-bit pseudo-random number. Select the method used to generate the Instance Number by using setup menu item 654 UMID GENERATE METHOD.

See page 10-22 for more information about setup menu item 654.

Selecting the SDI VANC line to insert the UMID

You can select the VANC ¹⁾ line into which the generated UMID should be inserted. Make this selection by using setup menu item 653 UMID HD VANC LINE.

See page 10-22 for more information about setup menu item 653.

To set Stored Ownership

If you wish to set Stored Ownership (data in the Source Pack which indicates “who”) when generating a UMID, call up item 029 STORED OWNERSHIP in the setup menu and proceed as follows.

See Section 10-2 “Setup Menu Operations” (page 10-2) for more information about basic setup menu operations.

1 Set setup menu item 029 to "on" and press the F5 (SET) button.

The Stored Ownership setting screen appears. (The following figure shows the monitor screen.)

2 Press the F3 (PREV) and F4 (NEXT) buttons to select the item you want to set (COUNTRY, ORGANIZATION, or USER).

The selected item (example: USER) is shown in F2.

3 Press the F2 (USER) button.

4 The content of the setting is a character string (in this example "ABCD"). Select any character to change in the string by pressing the F3 (PREV) and F4 (NEXT) buttons.

The selected character flashes.

5 Rotate the MULTI CONTROL knob to display the desired character in the position of the flashing character.

6 Repeat steps 4 and 5 for all of the characters that you want to change.

7 • If you do not want to change the other items (COUNTRY and ORGANIZATION), proceed to step 8. • If you want to change the other items, press the F1 (ITEM) button and proceed as in steps 2 to 6.

8 Press the F5 (SET) button.

The changed settings are confirmed.

To cancel changes and exit the setup menu Press the F6 (EXIT) button.

Time zone settings

The UMID uses the UTC (Coordinated Universal Time) time standard. Setting this unit's built-in calendar clock to the local time, and then setting a time zone to indicate the difference from global UTC standard time allows correct UMIDs to be generated. To set the time zone, display the HOME page of the function menu and proceed as follows.

See Section 9-1-2 "Using the Function Menu" (page 9-2) for more information about function menu operations.

1 With the ENTRY button in the editing control section held down, press the F5 (MENU) button.

The error logger screen appears.

Refer to the Maintenance Manual Volume 1 for more information about the error logger.

2 Press the F5 (SET) button.

The OFFSET TO UTC item appears.

3 Press the F1 (PREV) and F2 (NEXT) buttons to select the OFFSET TO UTC item, and use the MULTI CONTROL knob or the F3 (-) and F4 (+) buttons to set the offset to UTC time. For example, if the local time is 9 hours in advance of UTC, set to “+9:00”.

4 Press the F5 (SET) button.

This makes the setting effective.

8-3 UMID Output and Display

This section explains how to output and display UMIDs.

Note

When the number of active scan lines for HD SDI output is set to 720P, output and displaying of UMID are not carried out.

8-3-1 UMID Output Settings

You can choose to output UMIDs or not, and select either Basic UMID or Extended UMID when you choose to output UMIDs. Make these settings using setup menu item 651 UMID OUTPUT. (UMID information is added to HD SDI output.)

See page 10-22 for more information about setup menu item 651.

8-3-2 UMID Display

During recording and playback, UMID data appears in the menu display section of the control panel and on the video monitor.

To display the UMID

In function menu page 5, press the F2 (UMID) button.

See Section 9-1-2 "Using the Function Menu" (page 9-2) for more information about function menu operations.

The UMID appears in the menu display section of the control panel and on the video monitor.

See the next section “UMID display on the video monitor” for examples of the UMID displayed on the video monitor.

To switch the displayed UMID item in the menu display section

Rotate the MULTI CONTROL knob.

To exit from UMID display

Press the F6 (EXIT) button.

UMID display on the video monitor

The video monitor connected to the COMPOSITE VIDEO OUTPUT 3 (SUPER) connector or the SDI OUTPUT 3 (SUPER) connector on the connector panel displays all UMID items at once. The display of each line is explained below.

① Instance Number generation method and Instance Number

The generation method is displayed as follows.

CP+16: "16-bit PRS (pseudo-random sequence)

+Copy No." method

24PRS: 24-bit PRS method

others: Other than the above

② Material Number generation method

SMPTE: SMPTE method

IEEE 1394 ZONE: IEEE 1394 ZONE method

IEEE 1394 RND: IEEE 1394 RND method

others: Other than the above

When menu item 656 MATERIAL NO. is set to NEW, the SMPTE method is used.

③ Material Number

The material number is displayed in hexadecimal across two lines.

The following items, 4 through 9, are contained in the Source Pack.

④ Date/Time

Date/Time data is displayed across two lines.

The upper line shows the MJD (Modified Julian Date) contained in the Source Pack, converted to UTC.

The lower line shows the data in unit count format

(hours : minutes : seconds : frame) converted to UTC.

Note

The function for converting unit count to UTC works only when the unit rate is 2 (24 frames), 3 (24/1.001 frames), 4 (25 frames), 6 (30 frames), or 7 (30/1.001 frames). For other unit rates, the unit rate number and unit rate are displayed in hexadecimal.

⑤ Altitude

XXXXXXXXm: Altitude data indicating the distance from the center of the earth is displayed in this format.

S+XXXXXXXXm Y+D: Altitude data indicating the distance from sea level is displayed in this format. The meaning of the characters and strings shown is as follows.

• “S” (1st character): Indicates data from a Sensor. “R” is shown for position data from the recording device (Recorder), and “T” is shown for Target position data.
• “+” (2nd character): Indicates higher than sea level. “−” indicates lower than sea level.
• “XXXXXXXXm”: Altitude data (unit meters).
• “Y”: The number of satellites used to calculate position data (hexadecimal).
• “D”: DOP (dilution of precision) value.
• “+” (between Y and D): Displayed when a supportive apparatus was used. A space (blank) is displayed when no supportive apparatus was used.

6 Longitude

Following “W” to indicate west longitude or “E” to indicate east longitude, the longitude is displayed in degrees, minutes, and seconds (seconds are shown up to 2 decimal places).

Example: “E134 59'23.00” for “East longitude 134 degrees 59 minutes 23.00 seconds”

⑦ Latitude

Following “N” to indicate north latitude or “S” to indicate south latitude, the latitude is displayed in degrees, minutes, and seconds (seconds are shown up to 2 decimal places).

Example: “N34 59’23.32” for “North latitude 34 degrees 59 minutes 23.32 seconds”

9-1 Overview

The function menu allows you to make frequently made settings, such as selection of input video signals and time code settings.

9-1-1 Function Menu Configuration

The function menu consists of seven pages by factory default: the HOME page and six pages numbered 1 to 6. You can also display the HOME2 page by setting user-defined function keys. The following icons appear at the left edge of the menu display section to denote the current page.

1: HOME page 1: Page 1 2: Page 2 3: Page 3 4: Page 4 5: Page 5 6: Page 6 2: HOME 2 page

Each page has a menu display section made up of an upper and lower part. The upper part displays the menu items (functions) in the page, and the lower part displays the menu item settings. The figure below shows the menu display section in the HOME page.

In the figure above, SDI (HD Serial Digital Interface signal) is selected as the setting for VID.IN (input video signal selection), the menu item for button F1. This manual refers to this as “F1 (VID.IN) in function menu HOME page is set to SDI.”

HOME2 page (user-defined function keys)

Up to six function keys can be defined (i.e. six functions can be assigned to the F1 to F6 buttons in the HOME2 page).

You can select and define the following function keys:

• Functions selected from the function menu items in the HOME page and menu pages 1 to 4
• Function key to display the setting for setup menu item 211 (REMOTE1 PORT) and to carry out the operation when the menu item setting is “panel”.

Note

By factory default, no function keys are defined in the HOME2 page.

It is not possible to display the HOME2 page unless you have defined at least one function key in that page.

For details of defining user-defined function keys in the HOME2 page, refer to the Maintenance Manual Volume 1.

Page 6

You can define up to six setup menu items (assign six setup menu items to the F1 to F6 buttons) and register them on page 6.

Note

There is nothing defined on page 6 when the unit is shipped from the factory.

For more information about defining setup menu items for page 6, refer to the Maintenance Manual Volume 1.

9-1-2 Using the Function Menu

To change a menu item setting

To change a menu item setting, press the corresponding function button (F1 to F6) to display the desired setting in the lower part of the menu display. Each press of the button displays the next setting.

When a menu item setting flashes

Menu item settings flash to inform you that you can change the setting value by rotating the MULTI CONTROL knob.

To change the function menu page

Press either of the page buttons (▼, ▲).

• The ▼ button selects the next page in the order HOME→1→2→3→4→5→6→HOME...
• The ▲ button selects the next page in the order HOME→6→5→4→3→2→1→HOME...

Settings which do not appear in the menu display section

In the HOME page (see the figure in Section 9-1-1 "Function Menu Configuration"), the settings for F5 (MENU) and F6 (TCGSET) do not appear in the menu display. When you press the F5 or F6 button, the whole menu page changes to allow you to set these items.

9-2 Function Menu Item List

The function menu has the following items.

HOME page

Item	Setting
F1 (VID.IN) Selects the input video signal.SDI: HDSDI signalSDTI: SDTI signal (only when option is installed)SG (normally not displayed): Test signal from the internal test signal generator (For details, see setup menu item 710 on page 10-24.)
F2 (PB/EE) Selects the video and audio signals output during fast forward, rewind, stop, and standby.PB: Playback signalsEE: E-E mode signals
F3 (CONFI) Selects whether or not to use the CONFI playback function when recording. a) ENABLE: Use the CONFI playback function.DISABL: Do not use the CONFI playback function.
F4 (CTL/TC) Selects the time data to display in time data display area 1 (see page 2-7).TC: Playback time code read by the internal time code reader, or recording time code. The LTC or VITC time data type indicator (see page 2-7) lights. b) UB: User bits data of playback time code or recording time code. The LUB or VIUB time data type indicator lights, depending on whether the time code is LTC or VITC. b) CTL: The running time of the tape being played back or recorded, as calculated from a count of CTL signals recorded on the tape. The time is displayed in Hours:Minutes:Seconds:Frames format.
F5 (MENU) Puts the system into setup menu mode (see Chapter 10).When the current setup menu settings are the same as the contents of any of menu banks 1 to 3, or the factory defaults, the corresponding indication (1), (2), (3), (4) or (dflt) appears.(1): Same as menu bank 1.(2): Same as menu bank 2.(3): Same as menu bank 3.(4): Same as menu bank 4.(dflt): Same as factory defaults.
F6 (TCGSET)	· When F4 (CTL/TC) is set to TC, a screen appears that allows you to set the initial value of the time code generated by the internal time code generator (see page 4-3). c) · When F4 (CTL/TC) is set to UB, a screen appears that allows you to set the time code user bits (see page 4-3). c)

a) CONFI playback during editing is possible only when the following menu items are set to the indicated settings. - Setup menu item 304 is set to "1F" - Setup menu item 727 is set to "EXT" - Setup menu item 810 is set to "EXT" b) The selection of LTC or VITC depends on the setting of F6 (TCR) in function menu page 1. c) Not displayed when F1 (TCG) is set to INT and F2 (PR/RGN) is set to PRESET on function menu page 1.

Page 1

Item Setting
F1 (TCG) Selects	the signal source to which the internal time code generator synchronizes.INT: Synchronize according to the initial preset value set by control panel operation or by remote control from the device connected to the REMOTE1-IN (9P) connector, or synchronize to the time code of the playback tape.EXT: Synchronize to the time code signal input to the TIME CODE IN connector.SDI: Synchronize to the time code data superimposed on the HDSDI signal input to the HDSDI INPUT connector.SDTI: Synchronize to the time code data superimposed on the SDTI signal input to the SDTI connector.(only when option is installed)
F2 (PR/RGN) Selects	ects one of the following for time code generated by the internal time code generator.PRESET: Presets the initial value of time code generated by the internal time code generator, as specified by control panel operation or by remote control from the device connected to the REMOTE1-IN (9P) connector. This operation is enabled when F1 (TCG) is set to INT. At other times, the operation is the same as when LTC is selected.LTC: Regenerate by synchronizing to the LTC time code value read by the internal time code reader.VITC: Regenerate by synchronizing to the VITC time code value read by the internal time code reader.
F3 (RUN) Selects	one of the following running modes for the internal time code generator.FREE: The time code continues to increase as long as the unit is powered on, regardless of the unit's operating mode.REC: Time code increases during recording only. If you select this mode, you should also set F1 (TCG) to INT, and set F2 (PR/RGN) to PRESET.
F4 (DF)	In 59.94i, 29.97PsF mode, selects either drop-frame mode or non-drop frame mode for the time code generator and the CTL counter.DF: Drop-frame modeNDF: Non-drop frame mode
F6 (TCR) Selects	the type of time code to display in the time data display.LTC: Display LTC.AUTO: Display VITC when tape speed is 1/2 or less of normal speed, and LTC otherwise.VITC: Display VITC.

Page 2

Item Setting
F1 (V.PROC) Selects the control method for the internal digital video processor.LOCAL: Change the settings of the internal digital video processor by using this function menu.REMOTE: Use the optional BVR-50/50P Remote Control Unit to control the internal digital video processor.MENU: Change the settings of the internal digital video processor by using F5 (MENU) of the HOME page.NoteWhen controlling the unit from the HKDV-503/900, set this item to MENU.
F2 (VIDEO) Sets the HD/SD video signal output level ( -∞ to +3 dB).PRESET: Regardless of manually set values, the video signal is set to the standard level.Manual setting: With the displayed setting flashing, you can rotate the MULTI CONTROL knob to adjust the value for the video signal output level.
F3 (CHROMA)	Sets the HD/SD chroma signal output level ( -∞ to +3 dB).PRESET: Regardless of manually set values, the chroma signal is set to the standard level.Manual setting: With the displayed setting flashing, you can rotate the MULTI CONTROL knob to adjust the value for the chroma signal output level.
F4 (HUE)(59.94i, 29.97PsF mode)/(C PHAS)(50i, 25PsF, 23.98PsF, 24PsF mode)	Sets the color phase (phase relative to burst)PRESET: Regardless of manually set values, sets the color phase to the standard value.Manual setting: With the displayed setting flashing, you can rotate the MULTI CONTROL knob to adjust the value across the range ± 30° .
F5 (SETUP)(59.94i, 29.97PsF mode)/(BLACK)(50i, 25PsF, 23.98PsF, 24PsF mode)	Sets the setup level (59.94i, 29.97PsF mode) or black level (50i, 25PsF, 23.98PsF, 24PsF mode)PRESET: Regardless of manually set values, the level is set to the standard value.Manual setting: With the displayed setting flashing, you can rotate the MULTI CONTROL knob to adjust the setup level across the range ± 30 IRE (59.94i, 29.97PsF mode) or to adjust the black level across the range ± 210 mV (50i, 25PsF, 23.98PsF, 24PsF mode).
F6 (YC DLY) Sets	amount of Y/C delay for playback of analog Betacam tapes.PRESET: Regardless of manually set values, the Y/C delay is set to the standard value.Manual setting: With the displayed setting flashing, you can rotate the MULTI CONTROL knob to adjust the Y/C delay across the range ± 100 ns.

Page 3

Item	Setting
F1 (SYNC) Sets the HD output signal sync phase.Setting methodWith the displayed setting flashing, you can rotate the MULTI CONTROL knob to adjust the output signal sync phase across the range ± 15 μs relative to this unit’s input reference signal.Adjust this item when you want to adjust the output signal sync phase precisely to match a reference signal, or when connecting this unit and other VTRs to a device such as a switcher to perform operations such as special effects editing.
F2 (SC) Sets the HD output signal subcarrier phase.Setting methodWith the displayed setting flashing, you can rotate the MULTI CONTROL knob to adjust the output signal subcarrier phase across the range ± 200 ns relative to this unit’s input reference signal.Adjust this item when you are using composite signals in editing and want to adjust the output signal subcarrier phase precisely to match a reference signal. Even when this value is adjusted, the output SCH (subcarrier to sync) phase is maintained.
F4 (EMPHSS) Specifies whether to add audio emphasis to analog audio input signals and Betacam/Betacam SP format playback audio signals.ON: Add audio emphasis.OFF: Do not add audio emphasis.
F5 (T INFO) Selects the type of time data to display in time data display area 2.TOTAL: Display total time.REMAIN: Display remaining time.

Page 4

Item Setting
F1 (CAPSTN) Selects the number of fields for capstan lock in playback and editing.In 59.94i, 29.97PsF mode2F: The capstan servo locks in units of 2 fields.For tape output, color framing may not match the reference signal selected with the F2 (OUTREF).In assemble editing, color framing may be non-continuous at edit points.4F: The capstan servo locks in units of 4 fields.For tape output, color framing matches the reference signal selected with the F2 (OUTREF).In assemble editing, color framing is continuous at edit points.In 50i, 25PsF mode2F: The capstan servo locks in units of 2 fields.For tape output, color framing may not match the reference signal selected with the F2 (OUTREF).In assemble editing, color framing may be non-continuous at edit points.4F: The capstan servo locks in units of 4 fields.For tape output, color framing may not match the reference signal selected with the F2 (OUTREF).In assemble editing, color framing may be non-continuous at edit points.8F: The capstan servo locks in units of 8 fields.For tape output, color framing matches the reference signal selected with the F2 (OUTREF).In assemble editing, color framing is continuous at edit points.NoteThe setting is automatically fixed at 2F when operating in 24PsF or 23.98PsF mode, and this cannot be changed.
F2 (OUTREF) Selects the reference signal of this unit, according to the settings of setup menu items 309 and 334, and this unit's operating state.REF: Use the signal input to the REF.VIDEO INPUT connector as the reference signal. During recording, input digital audio signals and video signals must be synchronized with this signal.INPUT: Use the input video signal as the reference signal.
F3 (DOLBY) When using oxide tapes, specifies whether or not to use the Dolby type C low-frequency noise reduction (NR) system.NR ON: Use the Dolby NR system when playing back analog Betacam oxide tapes.NR OFF: Do not use the Dolby NR system when playing back analog Betacam oxide tapes.NoteThis menu is HDW-M2000/M2000P only.
F4 (CHARA) Specifies whether or not to superimpose time code, menu settings, error messages, and so on over the video signals output to the HDSDI OUTPUT3 (SUPER) connector, SDI OUTPUT3 (SUPER) connector and COMPOSITE VIDEO OUTPUT3 (SUPER) connector.ON: Superimpose.OFF: Do not superimpose.
F5 (RECINH) Specifies whether or not to inhibit recording to tape.ON: Inhibit recording to tape depending on the setting of setup menu item 310.OFF: Do not inhibit recording to tape.
F6 (PREREAD) Specifies whether or not to preread (read before write) in insert editing.ON: Preread depending on the setting of setup menu item 319.OFF: Do not preread.

Item Setting
F1 (TELE-F) Displays the Tele-File menu.For details of the Tele-File menu, see Section 7-3 “Tele-File Menu” (page 7-3).
F2 (UMID) Displays UMID information during recording/playback.For details of UMID, see Chapter 8.

10-1 Setup Menu Configuration

This unit has the following setup menus.

• Basic setup menu
• Extended setup menu

In this manual, both the basic setup menu items and extended setup menu items are also referred to simply as setup menu items or menu items.

Configuration of the basic setup menu

The basic setup menu comprises the following groups of items.

Item group	Function	Refer to
Items H01 to H14	Display of the total number of hours the unit has been powered on, and other information collected by the digital hours meter	Page 11-5
Items 001 to 019	Settings relating to the preroll time, superimposed text information, system frequency, etc.	Page 10-7
Items B01 to B20	Settings relating to the menu banks for saving menu settings	Page 10-9

Configuration of the extended setup menu

The extended setup menu comprises the following groups of items.

Item group	Function	Refer to
Items100 to 199	Settings relating to control panels	Page 10-10
Items200 to 299	Settings relating to the remote control interface	Page 10-13
Items300 to 399	Settings relating to editing operations	Page 10-14
Items400 to 499	Settings relating to preroll	Page 10-17
Items500 to 599	Settings relating to tape protection	Page 10-18
Items600 to 650	Settings relating to the time code generator	Page 10-18
Items651 to 699	Settings relating to the UMID	Page 10-22
Items700 to 799	Settings relating to video control	Page 10-23
Items800 to 899	Settings relating to audio control	Page 10-27
Items900 to 999	Settings relating to digital processing	Page 10-30

10-2 Setup Menu Operations

To display setup menus

With the function menu HOME page showing in the menu display, press the F5 (MENU) button. The currently selected setup menu item is displayed in the menu display, with the menu item number flashing.

For basic operations in the menu display, see page 2-7.

To display menus on the monitor

Setting F4 (CHARA) to ON in function menu page 4 allows you to display setup menus on the monitor connected to the COMPOSITE VIDEO OUTPUT 3 (SUPER) connector, HDSDI OUTPUT 3 (SUPER) connector, or SDI OUTPUT 3 (SUPER) connector of this unit. When a setup menu appears on the monitor, a cursor indicates the currently selected menu item.

Displaying a desired menu item

When the menu item number displayed in the menu display is flashing, you can change the menu item by turning the MULTI CONTROL knob.

To skip from one item group to the next, press the ▲ button or ▼ button.

To display a desired sub-item

For a menu item having sub-items, you can select a desired sub-item as follows.

1 With a desired menu item selected, press the F2 (SELECT) button.

The currently selected sub-item name flashes.

2 Turn the MULTI CONTROL knob to select a desired sub-item.

Changing menu item setting values

The procedures for changing menu item setting values or sub-item setting values are described below.

To change the settings of menu items without sub-items

After selecting a desired menu item using the procedure described in the section “Displaying a desired menu item” on page 10-2 and with the menu item number flashing, proceed as follows.

1 Press the F2 (SELECT) button.

The current setting of the menu item flashes.

2 Press the F3 (−) button or F4 (+) button, or turn the MULTI CONTROL knob to select a desired setting value.

To select another menu item and change its setting value

Press the F1 (RETURN) button making the current menu item number flash, then perform the procedures for selecting a desired menu item and changing its setting value.

3 When all required changes have been made, press the F5 (SET) button.

This makes the new settings effective.

To abandon making changes and exit from the setup menu display

Press the F6 (EXIT) button.

To change the settings of menu items with sub-items

When a selected menu item has sub-items, select a desired sub-item using the procedure described in the section “To display a desired sub-item” on this page making the sub-item name flash, then proceed as follows.

1 Press the F2 (SELECT) button.

The current setting of the sub-item flashes.

2 Press the F3 (−) button or F4 (+) button, or turn the MULTI CONTROL knob to select a desired setting value.

To select another sub-item and change its setting value

Press the F1 (RETURN) button making the current sub-item name flash, then perform the procedures for selecting a desired sub-item and changing its setting value.

To select another menu item and change its setting value

Press the F1 (RETURN) button twice in succession to make the current menu item number flash, then perform the procedures for selecting a desired menu item and changing its setting value.

3 When all required changes have been made, press the F5 (SET) button.

This makes the new settings effective.

To abandon making changes and exit from the setup menu display

Press the F6 (EXIT) button.

Resetting the menu settings to their factory default values (menu item B20)

To reset the current active menu settings to their factory default values, proceed as follows.

1 Perform steps 1 to 3 of the procedure described in the section “To change the settings of menu items without sub-items” on page 10-3 to set menu item B20 RESET SETUP to ON.

The current active menu settings are reset to their factory default settings.

2 Press the F5 (SET) button again.

This saves the menu settings.

Switching the system frequency (menu item 013)

To switch the system frequency between 59.94i, 50i, 29.97PsF, 25PsF, 24PsF and 23.98PsF, proceed as follows.

Notes

• Before carrying out this operation, consult the person responsible for system installation.
• When the unit is used in 50i, 25PsF mode, analog tape can only be played back in the simple playback mode.
• When this unit is put into 24PsF or 23.98PsF mode, SDI (D1), component, and composite signals are not output.

1 Perform steps 1 to 3 of the procedure described in the section “To change the settings of menu items without sub-items” on page 10-3 to set menu item 013 SYSTEM FREQUENCY SELECT to ON.

The menu display changes to allow switching of the system frequency between 59.94i, 50i, 29.97PsF, 25PsF, 24PsF and 23.98PsF.

2 Switch the setting, then press the F5 (SET) button.

3 Turn the unit off.

The next time the unit is turned on, it will operate in the new mode.

Switching the line conversion function (menu item 018)

This operation is valid in 59.94i and 29.97PsF mode only. It is not available in other modes. To change the line conversion (OFF TAPE/1035/1080/720P), use the following procedure.

Notes

• Consult with the administrator responsible for system installation before carrying out the following procedure.
• For the setting of the line conversion (see next item, "Line conversion mode"), setup menu item 916 ACTIVE LINE 1035 CONVERT MODE is valid in 1035-line mode, and setup menu item 917 ACTIVE LINE 1080 CONVERT MODE is valid in 1080-line mode.

1 Perform steps 1 to 3 of the procedure described in the section “To change the settings of menu items without sub-items” on page 10-3, to set setup menu item 018 ACTIVE LINE SELECT to ON.

The menu display changes to allow switching of the setting for line conversion between OFF TAPE, 1035, 1080, and 720P.

2 Select OFF TAPE, 1035, 1080, or 720P, then press the F5 (SET) button.

3 Turn the unit off.

The next time the unit is turned on, it will operate in the new mode.

Line conversion mode

Use the following procedure.

When setup menu item 018 ACTIVE LINE SELECT is set to 1035

Select the conversion mode in setup menu item 916 ACTIVE LINE 1035 CONVERT MODE.

1080 to 1035 (CONV): Convert the active scan lines from 1080 to 1035, without changing the aspect ratio.

1080 to 1035 (CROP): Convert the active scan lines from 1080 to 1035. Crop the top, bottom, left, and right, then stretch the image horizontally.

When setup menu item 018 ACTIVE LINE SELECT is set to 1080

Select the conversion mode in setup menu item 917 ACTIVE LINE 1080 CONVERT MODE.

1035 to 1080 (CONV): Convert the active scan lines from 1035 to 1080, without changing the aspect ratio.

1035 to 1080 (PANEL): Convert the active scan lines from 1035 to 1080. Insert the 1035 lines into 1080 lines, then compress horizontally.

Menu bank operations (menu items B01 to B13)

This unit allows menu settings to be saved in what are termed “menu banks”. Saved sets of menu settings can be recalled for use as required.

To save the current active menu settings

Set one of menu items B11 SAVE BANK 1 to B13 SAVE BANK 3 to ON, depending on which of the menu banks you wish to save in, then press the F5 (SET) button.

To recall settings from a menu bank

When recalling the settings saved in one of menu banks 1 to 3, set the corresponding one of menu items B01 RECALL BANK 1 to B03 RECALL BANK 3 to ON, then press F5 (SET) button.

When you wish to recall the settings saved in menu bank 4, select bank-4 with menu item B20 PRESET SETUP.

For details about menu bank 4, refer to the Maintenance Manual.

The current active setup menu settings as well as settings saved in menu banks are stored in separate storage areas for 59.94i, 29.97PsF, 23.98PsF and 50i, 25PsF, 24PsF modes.

10-3 Items in the Basic Setup Menu

The basic setup menu contains the following items. In the “Settings” column of the table, the factory

default settings are indicated by an enclosing box.

Item number	Item name Settings
001	PREROLL TIME	0S ...5S... 30S: Set the preroll time to between 0 and 30 seconds. A preroll time of at least 5 seconds is recommended when using this unit for editing.
002a)	CHARACTER H-POSITION	Adjust the horizontal screen position of the character information output from the COMPOSITE VIDEO OUTPUT 3 (SUPER) connector, HDSDI OUTPUT 3 (SUPER) connector, and SDI OUTPUT 3 (SUPER) connector for superimposed display on the monitor. 00...1E...3C(59.94i,29.97PsF,23.98PsF mode)/00...1B...36(50i,25PsF,24PsF mode): The hexadecimal value 00 is for the far left of the screen and increasing the value moves the position of the characters to the right.
\( 003a), b)	CHARACTER V-POSITION	Adjust the vertical screen position of the first line of the character information output from the COMPOSITE VIDEO OUTPUT 3 (SUPER) connector, HDSDI OUTPUT 3 (SUPER) connector, and SDI OUTPUT 3 (SUPER) connector for superimposed display on the monitor.\( 00\ldots57\ldots6C(59.94i,29.97PsF,23.98PsF mode)/00\ldots70\ldots88(50i,25PsF,24PsF mode): The hexadecimal value 00 is for the top of the screen and increasing the value lowers the position of the characters.
004 SYNCHRONIZE When editing using this unit as a controller and an external VTR connected to this unit via a 9-pin remote control cable, this item determines whether or not to operate the two units in phase synchronization.OFF: Do not operate in phase synchronization.ON: Operate in phase synchronization.
005 DISPLAY INFORMATION SELECT		Determines the kind of character information to be output from the COMPOSITE VIDEO OUTPUT 3 (SUPER) connector, HDSDI OUTPUT 3 (SUPER) connector, and SDI OUTPUT 3 (SUPER) connector when the function menu item CHARA is set to ON.T&STA: Time data display information and the unit's statusT&UB: Time data display information and the user's bitsT&CTL: Time data display information and CTLT&T: Time data display information and time code (LTC or VITC)TIME: Time code (LTC or VITC) onlyIf there is an overlap between the setting of this item and the setting of the control panel, it is automatically avoided. For example, if CTL is selected on the control panel and this menu item setting is T&CTL, then CTL and LTC are output.
006 LOCAL FUNCTION ENABLE		Determines which buttons on the control panel are enabled when this unit is controlled from external equipment.DIS: All buttons and switches are disabled.S&E&F: Only the STOP button, EJECT button, and F1 to F6 buttons are enabled.ENA: All buttons and switches except the RECORDER button and PLAYER button are enabled.MAP: Follow the LOCAL KEY MAP setting.For information about setting the LOCAL KEY MAP, see menu item 023 (LOCAL KEY MAP) (page 10-9).
007 TAPE TIMER DISPLAY Determines wh		ether to display the CTL count in 12-hour mode or 24-hour mode.+ -12H: 12-hour mode24H: 24-hour mode
008 MONITORING SELECTION FOR VTR-TO-VTR EDIT		For recorder-player editing with only one monitor connected to the recorder, determines whether the recorder is forced into E-E mode when the recorder's PLAYER button is pressed to view the player's playback signals on the monitor.MANU: Do not force the recorder into E-E mode.AUTO: Force the recorder into E-E mode.

a) When setting items 002 and 003, watch the monitor screen, and adjust to the required state.

b) Note

When displaying time code values, there is a slight time delay. Therefore, when creating a tape for off-line editing, the information inserted in the upper half of the screen may be delayed by one frame.

(Continued)

Item number	Item name Settings
009a)	CHARACTER TYPE	Determines the type of characters such as time code output from the COMPOSITE VIDEO OUTPUT 3 (SUPER) connector, HDSDI OUTPUT 3 (SUPER) connector, and SDI OUTPUT 3 (SUPER) connector for superimposed display on the monitor.WHITE: White letters on a black backgroundBLACK: Black letters on a white backgroundW/OUT: White letters with black outlineB/OUT: Black letters with white outline
011a)	CHARACTER V-SIZE	Determines the vertical size of characters such as time code output from the COMPOSITE VIDEO OUTPUT 3 (SUPER) connector, HDSDI OUTPUT 3 (SUPER) connector, and SDI OUTPUT 3 (SUPER) connector for superimposed display on the monitor.×1: Standard size×2: 2 times standard size
012b)	CONDITION DISPLAYVIDEO MONITOR	Determine whether the channel condition should be displayed as part of the display of superimposed information.DIS: Do not display.ENA: Display.
013 SYSTEM	FREQUENCYSELECT	Specify whether to enable switching of the system frequency between 59.94i, 50i, 29.97PsF, 25PsF, 24PsF and 23.98PsF.OFF: Disable switching.ON: Enable switching.When ON is selected, the menu display changes to allow switching of the setting between 59.94i, 50i, 29.97PsF, 25PsF, 24PsF and 23.98PsF.For the procedure for switching the system frequency, see page 10-4.NotesFor the basic and extended setup menus, separate settings are saved for 59.94i, 29.97PsF, 23.98PsF and 50i, 25PsF, 24PsF modes. When you switch systems, all menu items change to the settings established in the new system. (These are different from the settings for the mode before switching.)When the unit is used in 50i, 25PsF mode, analog tape can only be played back in the simple playback mode.
018	ACTIVE LINE SELECT(Valid only in 59.94i or 29.97PsF mode)	Enable or disable switching of the number of active scan lines for HDSDI output (OFF TAPE/1035/1080/720P).OFF: Disable switching.ON: Enable switching.When ON is selected, the menu display changes to allow switching of the setting between OFF TAPE, 1035, 1080, and 720P.For the procedure for switching the number of active scan lines, see page 10-4.

a) When setting items 009 and 011, watch the monitor (Continued) screen, and adjust to the required state. b) The channel condition is displayed as a string like "V-A-" beneath the superimposed time data information. V: Video rotary head channels A: Audio rotary head channels There are three symbols for channel condition: “-” (good), “*” (slightly poor), and “■” (poor).

Item number	Item name Settings
023 LOCAL KEY MAP			When MAP is selected in menu item 006, the buttons that can be operated on the control panel of this unit when it is being controlled by remote control from another device can be selected from the following sub-items.The settings of each sub-item are as follows. DIS: Do not function.ENA: Function.

10-4 Items in the Extended Setup Menu

The extended setup menu contains the following items.

In the “Settings” column of the table, the factory default settings are indicated by an enclosing box.

Menu items in the range 100 to 199, relating to the control panels

Item number	Item name Settings
101 SELECTION FOR SEARCH DIAL ENABLE		Select how the unit enters the search mode.DIAL: Turning the search dial switches to search mode at all times except during recording/editing.KEY: One of the JOG, SHUTTLE, and VAR buttons must be pressed to switch to search mode.
102 MAXIMUM	SPEED	Select the fast forward and rewind tape speed and also search mode speed during tape playback.MAX: Perform fast forward, rewind, and search mode playback at the maximum speeds.MX/24: Perform fast forward and rewind at the maximum speeds, and search mode playback at up to 24 times normal speed.MX/35: Perform fast forward and rewind at the maximum speeds, and search mode playback at up to 35 times normal speed.×24: Perform fast forward and rewind at 24 times normal speed, and search mode playback at up to 24 times normal speed.×35: Perform fast forward and rewind at 35 times normal speed, and search mode playback at up to 35 times normal speed.Maximum fast forward and rewind speed (example in 59.94i or 29.97PsF mode)HDCAM cassette/Digital Betacam cassette: 50 times normal speedMPEG IMX cassette/Digital Betacam cassette: 78 times normal speedMaximum search mode speeds (example in 59.94i or 29.97PsF mode)HDCAM cassette: 50 times normal speedMPEG IMX cassette: 78 times normal speed
103 AUDIO SELECTED LINE OUT(HDW-M2000/M2000P only)		Select the output signal to the MONITOR OUTPUT connectors during playback of analog Betacam-format tape.MANU: Output the signals selected by the audio monitor signal selection buttons on the lower control panel.AUTO1: Output stereo, using the AFM channels (3 and 4) for playback from metal tape, and the LNG channels (1 and 2) for playback from oxide tape.AUTO2: Output the signals selected by the audio monitor signal selection buttons on the lower control panel, but during variable speed playback, if AFM is selected, automatically switch to LNG.
104 AUDIO MUTING TIME Select the length of time for which audio muting occurs when the unit switches to playback either from stopped or from still playback in the search mode.OFF:Set the audio muting time to zero (i.e. no muting).0.1S to 1.0S:Set the audio muting time from 0.1 second to 1.0 second, in 0.1-second increments.
105 REFERENCE SYSTEM ALARM		Select whether or not to display a warning when the video/audio reference signal selected by the function menu item OUTREF, is not supplied or is out of phase with the input video signal.OFF: No warning.ON: Flash the STOP button as a warning.
106 Select the CAPATANLOCK mode.		PANEL:The capstan servo lock mode is determined by the function menu item CAPSTN.2F: The capstan servo locks every two fields regardless of the setting of the function menu item CAPSTN.4F: The capstan servo locks every four fields regardless of the setting of the function menu item CAPSTN.8F (For 50i, 25PsF mode only): The capstan servo locks every eight fields regardless of the setting of the function menu item CAPSTN.NoteWhen operating in 24PsF or 23.98PsF mode, the setting is 2F and this item is not displayed.

(Continued)

Menu items in the range 100 to 199, relating to the control panels (Continued)

Item number	Item name	Settings
107 REC INHIBIT LAMP FLASHING		Select whether or not to flash the REC INHI indicator when the function menu item RECINH is set to OFF and the record inhibit plug on the cassette is pressed in.OFF: Do not flash the REC INHI indicator.ON: Flash the REC INHI indicator.
108 AUTO EE	SELECT	When a cassette is inserted and the function menu item PB/EE is set to EE, select the VTR modes in which input video and audio signals are automatically handled in E-E mode.S/F/R: In STOP/EJECT/F.FWD/REW modesSTOP: In STOP/EJECT modes
109	FORCED EE WHEN TAPE UNTHREAD	During tape threading and unthreading, and when no cassette is inserted, select whether the setting of the function menu item PB/EE controls the PB/EE setting for output signals.OFF: Control by the function menu item PB/EEON: No control (always E-E signal)
111 TSO PLAY	Select whether or not to enable tape speed override mode.DIS: Disable tape speed override mode.TSO: Enable tape speed override mode.
116 JOG DIAL	RESPONSE Select the tape	speed characteristics for the search dial rotation rate (VTR commands).TYPE1: Tape speed varies linearly over the range -1 to +1.TYPE2: Tape speed varies stepwise as shown in figurea) below over the range -3 to +3. (Characterized by a zone around -1 and +1 where the tape speed is independent of the search dial rotation rate. When playing back an HDCAM tape, however, tape speed characteristic TYPE 4 applies.)TYPE3: Tape speed varies linearly over the range -3 to +3, as shown in figureb) below.TYPE4: Tape speed varies stepwise as shown in figurec) below over the range -2 to +2. (Characterized by a zone around -1 and +1 where the tape speed is independent of the search dial rotation rate)
117 CONTROL	PANEL SELECTION	Select the control panel function when the PANEL SELECT switch on the switch panel is set to REAR.SW: Only the control panel connected to the CONTROL PANEL connector on the connector panel functions.PARA: The control panels connected to the CONTROL PANEL connectors on the switch panel and connector panel both function.

a) b) c)

(Continued)

Menu items in the range 100 to 199, relating to the control panels (Continued)

Item number	Item name		Settings
118 Select which	KEY WITH THE SWITCH can EFFECTIVE AREA		be operated when the KEY INHIBITSwitch on the switch panel is set to ON. The following sub-items control different sets of switches and buttons independently.
	Sub-item
	1	REMOTE SELECT	Select whether the REMOTE 1(9P) and 2(50P) buttons in the upper control panel are enabled.DIS: DisabledENA: Enabled
	2 AUDIO/F-KEY		Select whether the audio monitor signal selection buttons and F1 to F6 buttons in the lower control panel are enabled.DIS: DisabledENA: EnabledAUDIO: Audio signal selection, audio mixing setting, and monitor signal selection are disabled.F-KEY: The function keys (including HOME) are disabled.IN/MX: Audio signal selection and audio mixing setting are disabled.
	3 MODE CONTROL Select		which switch and button operations can be carried out from the lower control panel of this unit or an external control panel connected to this unit.DIS: All switches and buttons are disabled.EDIT: All switches and buttons for editing operations other than the audio monitor signal selection buttons and F1 to F6 buttons are disabled.ENA: All switches and buttons other than the audio monitor signal selection buttons and F1 to F6 buttons are enabled.
119 VARIABLE	SPEED LIMITIN KEY PANEL CONTROL		Select the playback speed range when carrying out playback in variable speed mode from the control panel of this unit.OFF: -1 to +2 times normal speedON: 0 to 1 times normal speed
120	CTL LOCK IN VAR/SHTL S		Select whether the tape transport should be phase-locked to the CTL signal during playback in variable speed or shuttle mode.OFF: Not phase-locked.ON: Phase-locked at the following speeds: -1, -0.5, 0.5, 1.0 and 2.0 times normal.
121	DT MODE Select field or frame mode for variable speed playback.		FIELD: Always field playbackFRAME: Frame playback in the noiseless playback speed range; otherwise field playback.Frame playback provides higher-density still pictures than field playback.NotesFor analog Betacam playback, field playback is always used. For Digital Betacam playback, the frame playback is valid only in the forward direction.In the case of HDCAM tapes recorded in PsF mode, playback is automatically performed in frame mode.
125 AUTO RE	WIND Select whether to rewind the tape automatically when recording or playback reaches the end of a tape.DIS: Do not rewind the tape automatically.ENA: Rewind the tape automatically.
130 TIMER DIS	PLAYDIMMER CONTROL		Set the screen brightness of the time data/menu display section and the time to elapse until the indications disappear from the screen.0 to 7: Set in this range. 0 is the brightest, and 7 the dimmest.3min: The indications disappear from the screen when the unit is left without operation for three minutes in Standby OFF mode.10min: The indications disappear from the screen when the unit is left without operation for ten minutes in Standby OFF mode.60min: The indications disappear from the screen when the unit is left without operation for sixty minutes in Standby OFF mode.

(Continued)

Menu items in the range 100 to 199, relating to the control panels (Continued)

Item number	Item name	Settings
133	TELE-FILE CONTROL MODE	Select the device used for data modification operations in the Tele-File menu.CONTROL PANEL: Operate with the control panel of this unit.REMOTE: Operate with remote devices connected to connectors such as REMOTE1, REMOTE2, and RS-232C.
134 TELE-FILE	MENU AUTO POPUP	Select whether to open the Tele-File menu automatically when a cassette with a Tele-File label is loaded. However, this is valid only when the function menu is HOME, HOME2, or page 1 to 6.OFF: Do not open the Tele-File menu automatically.ON: Open the Tele-File menu automatically.
135 TELE-FILE	THREAD COUNTER CLEAR MODE	Select whether to clear the thread counter when formatting a Tele-File.NOT CLEAR: Do not clear the thread counter.WHEN FORMAT: Clear the thread counter.
136 TELE-FILE	IN OUT INPUT CONTINUE	Select whether to continuously input log (IN and OUT point) data in the Tele-File menu screen.OFF: Do not continuously input log (IN and OUT point) data.ON: Continuously input log (IN and OUT point) data.
139 LOST LOCK	DISPLAY ON CONTROL PANEL	Select whether or not to display a “LOST LOCK” indication on the control panel when the lock is lost.OFF: No display on control panel for LOST LOCK.ON: Display on control panel for LOST LOCK.

Menu items in the range 200 to 299, relating to the remote control interface

Item number	Item name Settings
201	PARA RUN	Select whether or not to use synchronized operation for two or more VTRs.DIS: No synchronized operationENA: Use synchronized operationNoteTo use synchronized operation for two or more VTRs, set item 201 to “ENA” on all of the VTRs.
202	CF FLAG (Valid only in 50i or 25PsF mode)	Select the mode for locking to the color framing sent from the remote controller.8F: Eight-field locking mode4F/8F: Four- or eight-field locking mode
211 REMOTE1	PORT	Select how to use the REMOTE 1-IN(9P) and REMOTE 1-OUT(9P) connectors on the connector panel.I&O: Both the IN and OUT connectors are effective whether in local or remote mode.IN: Only the IN connector is effective whether in local or remote mode.OUT: Only the OUT connector is effective whether in local or remote mode.PANEL: Allows you to select i&o, in, or out using the function menu.NoteWhen selecting “PANEL”, first define user-defined function key RMT1 in the HOME2 page.On how to define user-defined function keys in the HOME2 page, refer to the Maintenance Manual Volume 1.

(Continued)

Menu items in the range 200 to 299, relating to the remote control interface (Continued)

Item number	Item name		Settings
212 VIDEO RE	MOTECONTROL SELECT(Invalid in 24PsF or 23.98PsF mode)		Make settings for control from HKDV-900/503 via the VIDEO CONTROL (15P) connector.
	Sub-item
	1 IMAGE	ENHANCER(HDW-M2000/M2000P only)	Select whether to control the up-converter or down-converter whether controlling the image enhancer.down: Control the down-converter.up: Control the up-converter.u&d: Control both the up-converter and down-converter.
	2 D2 SETUP Select the menu item to be controlled by the SETUP dial on the HKDV-900/503 with the D2 button pressed.setup: Sub-item (OUTPUT LEVEL) of menu item 713 (VIDEO SETUP REFERENCE LEVEL)black: Menu item 718 (SETUP LEVEL)For details, see the description of menu item 718.NotesAfter changing the setting for this item, power off this unit or HKDV-900/503 and power it on again.This setting is valid only in 59.94i or 29.97PsF mode.

Menu items in the range 300 to 399, relating to editing operations

Item number	Item name	Settings
301 VAR SPEED RANGE FOR SYNCHRONIZATION		Select the playback speed range when carrying out playback in variable speed mode from a remote control unit connected to the REMOTE-1 IN(9P) connector or REMOTE-1 OUT (9P) connector. -1 +2 : -1 to +2 times normal speed for HDCAM and Betacam SX tapes. -1 to +3 times normal speed for Digital Betacam, MPEG IMX, and analog tapes. -2.45 : -1.15 to +2.45 times normal speed for HDCAM and Betacam SX tapes. -1.15 to +3.45 times normal speed for Digital Betacam, MPEG IMX, and analog tapes.
302 CAPSTAN RE-LOCKING DIRECTION (Invalid in 24PsF or 23.98PsF mode)		In 59.94i, 29.97PsF modeWhen the function menu item CAPSTN is set to 4F, select whether the capstan servo should lock by accelerating or decelerating.[DECEL]: Lock by decelerating.ACCEL: Lock by accelerating.
		In 50i, 25PsF modeWhen the function menu item CAPSTN is set to 4F or 8F, select whether the capstan servo should lock by accelerating or decelerating.DECEL: Lock by decelerating.ACCEL: Lock by accelerating.
304 EDIT FIELD SELECT Select with which fields to start and end editing using tape.[1F]: Start editing with field 1 and end with field 2.2F: Start editing with field 2 and end with field 1.1F/2F: Start and end editing depending on the timing of command reception.NoteThe setting is always 1F in the following cases.• In PsF mode• When SDTI (option) is selected
305	SYNC GRADE	When editing in phase-synchronized mode with menu item 004 set to ON, select the target phase synchronization accuracy.[ACCUR]: ± 0 frame accuracyROUGH: ± 1 frame accuracy

(Continued)

Menu items in the range 300 to 399, relating to editing operations (Continued)

Item number	Item name Settings
306 DMC INITI	AL SPEED Select the initial	speed automatically set when carrying out DMC editing.MANU: The speed determined by the rotation of the search dialPLAY: Normal playback speedSTILL: Stationary ± 0.03 to ± 1, +2 : Speed set in the range ± 0.03 to +2 (select from +2, ± 1, ± 0.5, ± 0.2, ± 0.1, ± 0.03 )
307 AUTO-DELETION FORINCONSISTENT DATA		Select what happens when an erroneous edit point is set.MANU: A warning is given by flashing the DELETE button on the lower control panel.The operator must manually delete the unnecessary edit points or correct the erroneous edit point.NEG&E: When inconsistent edit points are set, such as when an OUT point is before an IN point, or an audio OUT point is before an audio IN point, or when too many edit points are specified, the previously set edit point is deleted.NEG: When inconsistent edit points are set, such as when an OUT point is before an IN point, or an audio OUT point is before an audio IN point, the previously set edit point is deleted. When more edit points than necessary are specified, the DELETE button on the control panel flashes to give a warning.NotePressing the button corresponding to an edit point to be deleted and the DELETE button simultaneously deletes the edit point. If an erroneous edit point is set (the DELETE button is flashing), editing is not executed.
309 SERVO/AV REFERENCESEL		Select the servo reference signal.AUTO1: During recording, the input video signal is used as the servo reference signal. During playback, the signal selected by the function menu item OUTREF is used as the servo reference signal. If the signal selected by the OUTREF setting is not connected, an internal reference signal is used.AUTO2: When the function menu item OUTREF is set to REF, and any of the ASSEMBLE, VIDEO, AUDIO CH1 to CH4, CUE and TC buttons is lit, the reference signal for video/audio signal processing is locked to the input video signal.EXT: The servo reference signal is forced to be “EXT” (an external reference video input signal is used).
310 REC INHIBIT Select the conditions under which recording is inhibited when F5 (RECINH) is set to ON in function menu page 4.ALL: All tape recording is inhibited.CRASH: Normal tape recording is inhibited. Select this setting when you wish to carry out assemble editing.VIDEO: Inhibit recording of video and CTL signalsAUDIO: Inhibit recording of audio and CTL signals.NoteWhen F5 (RECINH) is set to ON in function menu page 4, the REC INHI indicator on the lower control panel lights. If an operation inhibited by this item is attempted, the REC INHI indicator flashes.

(Continued)

Menu items in the range 300 to 399, relating to editing operations (Continued)

Item number	Item name Settings
311 ANALOG	AUDIO EDITPRESET REPLACE FORCH1	When using an editor (PVE-500, BVE-600, etc.) or a remote controller which cannot control digital audio edit preset, select how to activate edit preset of each digital audio channel (channels 1 to 4, and cue) on this unit using the analog audio edit preset function of the editor or remote controller.Set edit preset of each digital audio channel of this unit on or off according to the analog audio preset specified by the remote controller or editor.NODEF: No definiton.CH1: Follow edit preset of analog channel 1.CH2: Follow edit preset of analog channel 2.CH1+2: Follow edit preset of analog channel 1 or 2.The default settings for each item are as follows:311 : CH1312 : CH2313 : NODEF314 : NODEF315 : NODEF
312 ANALOG	AUDIO EDITPRESET REPLACE FORCH2
313 ANALOG	AUDIO EDITPRESET REPLACE FORCH3
314 ANALOG	AUDIO EDITPRESET REPLACE FORCH4
315 ANALOG	AUDIO EDITPRESET REPLACE FORCUE
317 AUDIO EDIT MODE Select the type of		audio transition used for digital audio editing.CUT: Cut editing (audio discontinuity at transition point, and possible noise during playback).CROSS: Cross-fadeFI/FO: Fade in and outt: Time set by item 803 DIGITAL AUDIO FADE TIME
318 EDIT RETRY For two-VTR editing, set		when this unit is used as the recorder. Selects the operation if the recorder was not synchronized in time.OFF: Editing is not carried out, and the unit stops.ON: The editing is automatically retried (up to twice).
319	PREREAD SELECT Specify	the preread operation.A/V: Preread for both audio and video.AUDIO: Preread for audio only.VIDEO: Preread for video only.The preread operation is enabled when the function menu item PREREAD is set to ON or with a command from the 9-pin remote control interface.
320	DIGITAL AUDIO PB PROCESS ON EDIT POINT(HDW-M2000/M2000P only. Invalid in 24PsF or 23.98PsF mode.)	Select the treatment of audio playback at edit points.CUT: Carry out a cut (possibly resulting in audio discontinuities at the edit point).FADE: Fade out and fade in.
326 AUTOMATIC IN ENTRY AFTER AUTO EDIT		Select whether or not to automatically set the OUT point of the previous edit as the next IN point at the end of an automatic edit.OFF: No automatic settingR: Set recorder IN point automatically.R & P: Set recorder IN point automatically, and also player IN point in two-VTR editing.

(Continued)

Menu items in the range 300 to 399, relating to editing operations (Continued)

Item number	Item name	Settings
334	EE REFERENCECONTROL	Specify how to select the reference video signal in E-E mode.NORMAL: Select according to the table in Section 3-2-1 “Selecting Reference Signal Depending on Operational Status” (page 3-2).INPUT: In E-E mode select the input video signal. When not in E-E mode, select according to the table in Section 3-2-1 “Selecting Reference Signal Depending on Operational Status” (page 3-2).
336	EDIT PRESET INHIBIT IN KEY PANEL CONTROL	Specify which buttons are disabled in the editing mode setting section on the lower control panel.OFF: Disable no buttons.TC: Disable the TC button.
337 EXTERNAL REFERENCE SELECT		Select the signal used when this unit is set up by setup menu item 309 and F2(OUTREF) in function menu page 4 to use an external reference video signal.HD: Use a high definition reference video signal. Input a three-valued (positive and negative) sync signal to the REF.VIDEO INPUT connector.SD: Use a reference video signal. Input a video signal with chroma burst (VBS) or a monochrome video signal (VS) to the REF.VIDEO INPUT connector.NoteWhen operating in 24PsF or 23.98PsF mode, the setting is HD and this item is not displayed.
338	OUTPUT AUDIO/TC PHASE	Set the audio (AES/EBU and analog) and time code output phase.HD: Sync with HDSDI output phase.SD: Sync with SD output phase.NoteWhen operating in 24PsF or 23.98PsF mode, the setting is HD and this item is not displayed.

Menu items in the range 400 to 499, relating to preroll

Item number	Item name	Settings
401	FUNCTION MODE AFTER CUEUP	Select the state that the unit goes into after a cuing-up operation.STOP: Stop (the “stop mode”)STILL: Still playback (in search mode)NoteWhen controlling this unit from an editor with the standard constants set, select “STOP”.
402 TIME REFERENCE FOR PREROLL		When prerolling a tape with time code discontinuities, select whether or not to use CTL pulses to count time code from before a discontinuity.CTL: Use CTL pulses to count time code.TC: Do not use CTL pulses to count time code.
403 AUTOMATIC PREROLL REFERENCE ENTRY		Select whether or not the edit IN point is automatically set by pressing the PREROLL button, when the IN point is not set before starting preroll.DIS: IN point is not set automatically.ENA: IN point is set automatically.
405 CUEUP BY CTL Select the tape transport mode when cuing. This setting is valid only when the function menu item CTL/TC is set to CTL.CAP.: During cuing up, the tape transport is in the “pinch ON” state (maximum tape speed 10 times normal).REEL: During cuing up, the tape transport is in the “pinch OFF” state. As the tape approaches the cue up point and the tape speed drops, the tape transport switches to the “pinch ON” state.a)To give priority to editing accuracy, select “CAP”.

a) When controlled from an editor (BVE-2000/9100 etc.), selecting “REEL” allows high-speed cuing up.

Menu items in the range 500 to 599, relating to tape protection

Item number	Item name Settings
501	STILL TIMER	Select the time delay from the tape transport stopping (either the “stop mode” or the still playback mode in search mode) until the unit automatically switches to the tape protection mode, in order to protect the video heads and the tape.0.5S to 8M to 30M: Set the value in the range 0.5 seconds to 30 minutes.
502 TAPE PROTECTIONMODE FROM SEARCH		Select the operation of the protection mode to protect the video heads and tape when in the still playback mode in search mode (jog/shuttle).STEP: Step forward at 1/30 normal speed every 2 seconds.STDBY: Switch to “Standby OFF mode” (the unit not on standby).T.REL: Switch to tension release mode (the tape tension slackened).
503 TAPE PROTECTIONMODE FROM STOP		Select the operation of the protection mode to protect the video heads and tape when stopped (the “stop mode”).STDBY: Switch to “Standby OFF mode” (the unit not on standby).T.REL: Switch to tension release mode (the tape tension slackened).STEP: Step forward at 1/30 normal speed every 2 seconds.
504 DRUM ROTATION INSTANDBY OFF		Select whether the drum rotates in “Standby OFF mode”.OFF: Drum does not rotate.ON: Drum rotates.
505	STILL TENSION Select the	tape tension state in the still playback mode.NORML: Normal tape tension is maintained during still playback mode, ready for playback.LOOSE: Reduce the tape tension further from the NORML setting. (Select “LOOSE” when the unit is on standby for a long period of still playback, for example, in a library management system (LMS).)NoteWhen LOOSE is selected and the tape tension is reduced, playback cannot be guaranteed.
506 DRUM ROTATION TIMER The drum m		motor continues to rotate when the unit is in any of the following states.• Menu item 502 or 503: T.REL (the tape protection mode is tension release mode)• Menu item 504: ON (the drum rotates in Standby OFF mode)• Menu item 505: LOOSE (reduce the tape tension in still playback mode)This item specifies the time from the time when the unit enters tension release or LOOSE mode until the time when it enters Standby OFF mode and drum rotation stops.1M to 30M, 1H to 4H to 8H: Set the value in the range 1 minute to 8 hours.

Menu items in the range 600 to 650, relating to the time code generator

Item number	Item name	Settings
601 VITC POSITION SEL-1 (Invalid in 24PsF or 23.98PsF mode)		In 59.94i, 29.97PsF modeSelect a line to insert the VITC in. (For SD output)12H to 16H to 20H: Select any line from 12 to 20.NoteYou can insert the VITC signal in two places. To insert it in two places, set both items 601 and 602.
		In 50i, 25PsF modeSelect a line to insert the VITC in. (For SD output)9H to 19H to 22H: Select any line from 9 to 22.NoteYou can insert the VITC signal in two places. To insert it in two places, set both items 601 and 602.

(Continued)

Menu items in the range 600 to 650, relating to the time code generator (Continued)

Item number	Item name	Settings
602	VITC POSITION SEL-2 (Invalid in 24PsF or 23.98PsF mode)	In 59.94i, 29.97PsF modeSelect a line to insert the VITC in. (For SD output)12H to 18H to 20H: Select any line from 12 to 20.NoteYou can insert the VITC signal in two places. To insert it in two places, set both items 601 and 602.
		In 50i, 25PsF modeSelect a line to insert the VITC in. (For SD output)9H to 21H to 22H: Select any line from 9 to 22.NoteYou can insert the VITC signal in two places. To insert it in two places, set both items 601 and 602.
603 ID CODE	PRESET Select whether or not to set the ID code.OFF: Do not set the ID code.ON: Set the ID code.To set the ID code:Press the F5 (SET) button with this menu item displayed in the menu display, to enter the ID code setting mode. You can then set the user ID digit by digit using the← and → buttons for digit selection. When all required digits have been set correctly, press the F5 (SET) button again to save the ID code and exit from the ID code setting mode.
604 ID CODE	SW Select whether or not to record the ID code set using menu item 603 in the user bits.OFF: Record the normal data in the user bits.ON: Record the ID code in the user bits.
605 TCG REGEN MODE Select the signals		to be regenerated when the time code generator is in the regeneration mode (i.e., when the function menu item PR/RGN (F2) is set to LTC or VITC, or the unit is in automatic edit mode).TC&UB: Both the time code and user bit signals are regenerated.TC: Only the time code signal is regenerated.UB: Only the user bit signal is regenerated.
606 TC OUTPUT SIGNAL IN REGEN MODE		Select the signal output from the TIME CODE OUT connector during normal (×1) speed playback:TAPE: During tape playback, the playback time code signal is output without regeneration.REGEN: The playback time code is output after regeneration.
607	U-BIT BINARY GROUP FLAG	Select whether to generate time code automatically.000: Character set not specified001: 8-bit characters compliant with ISO 646 and ISO 2022010: Undefined011: Undefined100: Undefined101: SMPTE 262M page/line multiplex system110: Undefined111: Undefined

(Continued)

Menu items in the range 600 to 650, relating to the time code generator (Continued)

Item number	Item name	Settings
608 PHASE CORRECTION		Select whether or not to carry out phase correction control on the LTC generated by the time code generator.OFF: No controlON: Carry out control.
609 TCG CF F	FLAG Select whether the color	framing flag is set in the blank bit of the timecode data.OFF: Not set.ON: Set.AUTO: Control the color framing flag setting as follows according to the operation mode of the timecode generator (TCG).- When the TCG is in INT-LTC or INT-VITC mode and the number of fields for capstan lock is 4F or 8F: Set the color framing flag in the blank bit of generated timecode data.- When the TCG is in INT-LTC or INT-VITC mode and the number of fields for capstan lock is 4F or 8F: Set the color framing flag in the blank bit of generated timecode data.- When the TCG is in other than the above modes: Do not set the color framing flag in the blank bit of generated timecode data.For more information about the TCG operation mode, see the description of F1(TCG) and F2(PR/RGN) on function menu page 1 (page 9-1). For details on settings of the number of fields for capstan lock, see the description of F1(CAPSTN) on function menu page 4 (page 9-7).
610 REGEN CONTROL MODE		Select whether or not the time code is automatically regenerated.AS&IN: In automatic editing carried out in either assemble mode or insert mode with this unit as the recorder, regardless of the settings of F1 (TCG) and F2 (PR/RGN) in function menu page 1, the time code generator regenerates according to the time code on the tape.ASSEM: In automatic editing carried out in assemble mode with this unit as the recorder, regardless of the settings of F1 (TCG) and F2 (PR/RGN) in function menu page 1, the time code generator regenerates according to the time code on the tape.MANU: Regardless of whether this unit is the recorder or player, the time code generator operates in accordance with the settings of F1 (TCG) and F2 (PR/RGN) in function menu page 1.FULL: Whether local or remote and regardless of the settings of F1 (TCG) and F2 (PR/RGN) in function menu page 1, when any of the ASSEMBLE, VIDEO, CH1 to CH4, CUE and TC buttons is lit, the time code generator regenerates according to the time code played back from the tape.
617	LTC OUTPUT PHASE Set	the output phase of time code signals (LTC).TCG/R: Output the playback time code signal during playback.When the edit preset function is on, and when recording, output the time code signal generated by the internal time code generator.INPUT: Use the same phase as the input video.OUTPT: Use the same phase as the output video.AUTO: Use the same phase as the input video when editing, and use the same phase as the output video at other times (playback, recording, etc.)
618 UPCNV	EMBEDDED VITC (HDW-M2000/M2000P only. Invalid in 24PsF or 23.98PsF mode.)	Select the source time code for HD-SDI embedded VITC which is output after subjected to up-conversion during playback of SD-format tape.whenVITC: Select VITC recorded on SD-format tape.LTC: Select LTC recorded on SD-format tape.

(Continued)

Menu items in the range 600 to 650, relating to the time code generator (Continued)

Item number	Item name	Settings
620 TC CONVERT 24F -> 25F(In 50i or 25PsF mode only. Not displayed when operating in 720P-line mode.)		Select whether to convert playback time code to 25F time code during playback of tape recorded in 24PsF or 23.98PsF mode.OFF: Do not convert time code.ON: Convert time code.
		TC CONVERT 25F -> 24F(In 24PsF or 23.98PsF mode only. Not displayed when operating in 720P-line mode.)
621 24F STARTING TC SEL(In 50i or 25PsF mode only. Not displayed when operating in 720P-line mode.)		Select one of the following settings for time code conversion from 24F to 25F.OFF: Do not set the starting TCON: Set the starting TCTo set the 24F starting TCPress the F5 (SET) button with this menu item displayed in the menu display, to enter the starting TC setting mode. You can then set the user starting TC digit by digit using the F1 (PREV) button and F2 (NEXT) buttons for digit selection. When all required digits have been set correctly, press the F5 (SET) button again to save the starting TC and exit from the ID code setting mode.
		25F STARTING TC SEL(In 24PsF or 23.98PsF mode only. Not displayed when operating in 720P-line mode.)
		Select one of the following settings for time code conversion from 25F to 24F.OFF: Do not set the starting TCON: Set the starting TCTo set the 25F starting TCPress the F5 (SET) button with this menu item displayed in the menu display, to enter the starting TC setting mode. You can then set the user starting TC digit by digit using the F1 (PREV) button and F2 (NEXT) buttons for digit selection. When all required digits have been set correctly, press the F5 (SET) button again to save the starting TC and exit from the ID code setting mode.
622 24F JUMPING TC SEL (In 50i or 25PsF mode only. Not displayed when operating in 720P-line mode.)		Select one of the following settings for time code conversion from 24F to 25F.-3H: Set JUMPING TC to “STARTING TC -3H”.-2H: Set JUMPING TC to “STARTING TC -2H”.-1H: Set JUMPING TC to “STARTING TC -1H”.+1H: Set JUMPING TC to “STARTING TC +1H”.+2H: Set JUMPING TC to “STARTING TC +2H”.+3H: Set JUMPING TC to “STARTING TC +3H”.0H: Set JUMPING TC to “STARTING TC”.
		Select one of the following settings for time code conversion from 25F to 24F.-3H: Set JUMPING TC to “STARTING TC -3H”.-2H: Set JUMPING TC to “STARTING TC -2H”.-1H: Set JUMPING TC to “STARTING TC -1H”.+1H: Set JUMPING TC to “STARTING TC +1H”.+2H: Set JUMPING TC to “STARTING TC +2H”.+3H: Set JUMPING NC to “STARTING TC +3H”.0H: Set JUMPING TC to “STARTING TC”.

Menu items in the range 651 to 699, relating to the UMID

Item number	Item name Settings
651 UMID OUTPUT Select UMID output and the UMID type.
653 UMID HD VANC LINE Specify the HDS		DI signal VANC line into which the UMID should be inserted.9, 572 14,577 19,58210,573 15,578 20,58311,574 16,57912,575 17,58013,576 18,581NoteThe output VANC line during playback follows the setting for recording.
654 UMID GENERATE METHOD		Select the Instance No. generation method when the UMID is inherited.16bit: Copy No. + 16-bit random number24bit: 24-bit random numberNoteWhen menu item 656 is set to NEW (an Instance Number indicating that this is the original is generated), the same value (all zeros) is generated regardless of which of the above methods is selected.
655 UMID RECORDING Select the UMID type to be recorded to tape.
656 MATERIAL NO. Select whether to inherit the UMID in the input signal when recording a UMID.

Menu items in the range 700 to 799, relating to video control

Item number	Item name		Settings
703 BLANK LINE SELECT(Invalid in 24PsF or 23.98PsF mode)			Switch blanking on or off for individual lines in the vertical blanking interval of the SD video signal. The Y/C signal and odd/even fields are blanked simultaneously.
			Sub-Item
			0	ALL LINE	---: Specify the blanking for each line separately.BLANK: Regardless of the setting of other sub-items, blank all lines which can be specified in this menu item.THROU: Regardless of the setting of other sub-items, switch off blanking for all lines which can be specified in this menu item.
In 59.94i, 29.97PsF mode	12 ...19	LINE 12 ... LINE19	Specify blanking for lines 12 to 19.BLANK: Carry out blanking.THROU: Switch off blanking.
	20 LINE	20 Specify blanking for line 20.BLANK: Carry out blanking.HALF: Carry out half-blanking.THROU: Switch off blanking.
In 50i, 25PsF mode	9 ...22	LINE 9 ... LINE 22	Specify blanking for lines 9 to 22.BLANK: Carry out blanking.THROU: Switch off blanking.
	23 LINE	23 Specify blanking for line 23.HALF: Carry out half-blanking.THROU: Switch off blanking.
705 EDGE SUBCARRIERREDUCER MODE(HDW-M2000/M2000P only. Invalid in 24PsF or 23.98PsF mode.)			During playback of a composite signal, in the playback circuit the edge subcarrier reducer (ESR) is automatically switched on or off according to the VTR operation. When recording a “Non-Standard” signal, for example, if the color edges are not as good as with a proper signal, the ESR can be forced on.This item makes this selection.AUTO: ESR is switched on and off automatically.ON: ESR operation is forced on.
707	FORCED VERTICAL INTERPOLATION OFF		The “Y-add” a) function is normally switched on automatically during jog or variable speed playback. This item selects whether or not to force the “Y-add” function off.AUTO: Automatically switch the “Y-add” function on.OFF: Force the “Y-add” function off.
709 CAV LEVEL FORMAT(Valid only in 59.94i or 29.97PsF mode)			Select whether the analog component output should be D-1 or Betacam.
			Format Color bars Y video Y sync R-Y/B-Y
			D-1 CAV 100/0/100/0 700 mV 300 mV 700 mV
			Betacam 100/7.5/77/7.5 714 mV 286 mV 700 mV
			0 Select Old Partial Component level Level		out format.B-CAM: BetacamD1: D-1

a) The “Y-add” function is a circuit operation to interpolate the video signal vertically during jog or variable speed playback for the purpose of reducing the vertical movement of the playback picture.

(Continued)

Menu items in the range 700 to 799, relating to video control (Continued)

Item number	Item name		Settings
710 INTERNAL	VIDEOSIGNAL GENERATOR		Select the test signal to be output from the VTR's internal test signal generator.OFF: No test signal is generated. (The VTR operates normally.)CB: Color bar signalMLTBS: Multi-burst signal10STP: 10-step signalPLSBR: Pulse and bar signalRAMP: Ramp signalBLACK: Black signalARIB: ARIB color bar signalTo turn on the internal test signal generator, hold the F1 (VID.IN) button in function menu HOME page for three seconds or more with this menu item set to other than OFF. When the test signal generator is turned on, the display of the VID.IN setting changes to SG. To turn off the test signal generator, press the F1 (VID.IN) button in function menu HOME page again.
712 VIDEO PROCESS ONCAP LOCK 2FIELD(HDW-M2000/M2000P only. Invalid in 24PsF or 23.98PsF mode.)			When the function menu item CAPSTN or setup menu item 106 is set to 2F for 2-field playback, select whether or not to carry out a “picture shift”.OFF: No picture shiftON: Carry out picture shift.NoteTo eliminate the adverse effect of the residual chrominance subcarrier component in the Y signal that is the result of the Y/C separation, this unit automatically applies a shift to the playback image in the H direction, so that even in 2-field playback a satisfactory image can be obtained.
713 VIDEO SETUPREFERENCE LEVEL(Valid only in 59.94i or 29.97PsF mode)			Set the video setup amount to be added to the composite output signal.NoteThe setup amount specified in this menu item has no connection with the setting of F5 (SETUP/BLACK) in function menu page 2.

(Continued)

Menu items in the range 700 to 799, relating to video control (Continued)

(Items 715 to 720: Settings for controlling the SD video processing system according to the menu settings.)

Item number	Item name	Settings
715 VIDEO GAIN CONTROL		Adjust the video output level.0 to800Hto B50HNoteThis item is valid for both HD and SD outputs.
716 CHROMA	GAINCONTROL	Adjust the chroma output level.0 to800Hto B50HNoteThis item is valid for both HD and SD outputs.
717 CHROMA	PHASECONTROL	Adjust the SD chroma phase.0 to80Hto FFHNoteThis item is valid for both HD and SD outputs.
718 SETUP LEVEL (59.94i,29.97PsF mode)/BLACKLEVEL (50i, 25PsF mode)(Invalid in 24PsF or23.98PsF mode)		Adjust the SD setup level (black level).0 to110Hto 220HNoteThis item is valid for both HD and SD outputs when sub-item (D2 SETUP) ofmenu item 212 (VIDEO REMOTE CONTROL SELECT) is set to “black”.
719 SYSTEM PHASE SYNC(Invalid in 24PsF or23.98PsF mode)		Adjust the SD output signal sync phase.0 to80Hto FFH
720 Adjust the SYSTEM FLA35E53Carrier (Invalid in 24PsF or23.98PsF mode)		phase.0 to 3FFH
721 Y/C DELAY(HDW-M2000/M2000Ponly. Invalid in 24PsF or23.98PsF mode.)		For playback from an analog Betacam cassette, adjust the Y/C delay.0 to800Hto FFFFH

(Continued)

Notes

• When you make settings for menu items 715 to 718 or 740 to 747, set the function menu item V.PROC to MENU. When it is set to MENU, all controls for video output processing on the control panel are disabled.
• When menu item 337 is set to SD, changing the settings of menu items 719 and 720 changes the phase of HD output signals as well as that of SD. After changing the settings, use the F1 (SYNC) and F2 (SC) items or menu items 745 and 746 on function menu page 3 to readjust the phase of HD output signals.

Menu items in the range 700 to 799, relating to video control (Continued)

	Item name SettingsItem number
726 H BLANKING WIDTH(Invalid in 24PsF or 23.98PsF mode)		Select the horizontal blanking width of the video output signal.NAROW: Digital blanking (narrow)WIDE: Analog blanking (wide)When WIDE is selected, the horizontal blanking width complies with RS170A, and normally the blanking is widened and the image becomes narrower. It is recommended to select NAROW at the editing stage, then later, for broadcast transmission to select WIDE, to output a signal conforming to the standard.
727 VIDEO EDIT PREVIEW SWITCHER		Set the output phase for the video playback signal when any of the ASSEMBLE,VIDEO, AUDIO CH1 to CH4, CUE and TC buttons is lit.INT: The video playback signal output phase is the same as the output phase in E-E mode. Use this setting when editing with a single VTR, or when previewing while watching the VTR output signal.EXT: The video playback signal output phase is the same as the phase of an input video signal or external reference signal.
728 OUTPUT $CH PHASE(Invalid in 24PsF or 23.98PsF mode)		Set the subcarrier H phase.0 to [800H] to FFFH
732 COMPOSITE MODE(Invalid in 24PsF or 23.98PsF mode)		Select the chroma filter through which the composite video output signals pass.WIDE: Output via SMPTE wideSTD: Output via SMPTE standard (narrow)
740	MASTER LEVEL (HD)	Adjust the high-definition video signal output from the HDSDI OUTPUT connector.This adjusts the Y, PB, and PR levels simultaneously.0.0%(0H) to [100% (800H)] to 141.3% (B4EH)
741	Y LEVEL (HD)	Adjust the Y level of the high-definition video signal output from the HDSDI OUITPUT connector.0.0% (0H) to [100% (800H)] to 141.3% (B4EH)
742	PB LEVEL (HD)	Adjust the PB level of the high-definition video signal output from the HDSDI OUTPUT connector.0.0% (0H) to [100% (800H)] to 141.3% (B4EH)
743	PR LEVEL (HD)	Adjust the PR level of the high-definition video signal output from the HDSDI OUTPUT connector.0.0% (0H) to [100% (800H)] to 141.3% (B4EH)
745 SETUP LEVEL (HD) Adjust the setup level (59.94i, 29.97PsF mode)/black level (50i, 25PsF mode) of the high-definition video signal output from the HDSDI OUTPUT connector.0 to [110H] to 220H
746	SYNC PHASE (HD)	Control the H sync phase of the high-definition video signal output from the HDSDI OUTPUT connector according to the menu.0 to [80H] to FFH
747	FINE (HD)	Fine control the H sync phase of the high-definition video signal output from the HDSDI OUTPUT connector according to the menu.0 to 3FFH

Menu items in the range 800 to 899, relating to audio control

Item number	Item name	Settings
801	DIGITAL JOG SOUND	Turns the digital jog sound on and off.OFF: Digital jog sound is turned off.Audio of digital channels not subjected to speed correction is output. When the tape stops, after one second the audio is muted.ON: Digital jog sound is turned on.When the tape speed is in the range × -1 to × 1 (for Betacam SX playback, in the range × -1 to × 2 ), speed correction is carried out, and the same jog sound as a conventional analog VTR is output.
802 DIGITAL AUDIO MUTINGIN SHUTTLE MODE		Set the digital audio muting conditions during shuttle playback.OFF: Not muted.CUEUP: Muted during cue-up or preroll operations.FULL: Muted in shuttle mode.
803 DIGITAL AUDIO FADETIME		Specify the time for cross-fade or fade in/out editing of audio signals.5 ms, 10\ ms , 15 ms, 20 ms, 25\ msa) , 50\ msb) , 85\ ms , 115\ msc) NoteThe cross-fade or fade in/out operation means that the recording is rewritten from the OUT point for the length specified by this setting. Even at the minimum 5 ms setting, a length of recording corresponding to a field is rewritten.To avoid rewriting, set menu item 317 AUDIO EDIT MODE to CUT. In this case there is an audio discontinuity at the edit point. There is no effect on the recorded video signal.
805 AUDIO MONITOROUTPUT MIXING		Select the audio mixing method used for digital audio signals and Betacam playback analog audio signals supplied to the MONITOR OUTPUT connector.ADD: Simple addition[RMS]: Root-mean-squareAVE: Simple average
806	LEVEL METER SCALE	Select the mode in which digital audio levels are displayed.PEAKO: Displays the audio level as negative values with the maximum level set to 0 dB.REF.0: Displays the audio level as positive and negative values with the reference level set to 0 dB.

a) Cross-fade time is 24 ms. b) Actual value is 49 ms. c) Actual value is 114 ms.

(Continued)

Menu items in the range 800 to 899, relating to audio control (Continued)

Item number	Item name		Settings
807 AUDIO OUT	OUTPUT PHASE Select the output timing of digital audio playback signals (HDSDI, SDI, and AES/EBU only). The reference position corresponds to a setting of 80H; when the setting is less than 80H, the output timing is advanced, and when it is higher than 80H, the output timing is delayed. (at 80H, 128 samples = approx. 2.7 ms, and 1 sample=approx. 20 μs)0 to 80 to FF: Setting in this range
808 INTERNAL	AUDIO SIGNAL GENERATOR		Select the operation of the internal audio test signal generator.OFF: No operationSILNC: Silent signal1KHZ: At 1 kHz, -20 dB FS sine wave is supplied to all audio input channels. To turn on the internal audio test signal generator, set this menu item to other than OFF, then hold the audio monitor signal selection button for CH1 (channel 1) for three seconds or more. When the test signal generator is turned on, the input signal indicator in the audio setting display section turns off. To turn off the test signal generator, press the audio monitor signal selection button for any of CH1 to CH4 (channels 1 to 4).NoteWhen the system frequency is 24PsF or 23.98PsF, the frequency of the internal audio test signal is reduced 4% of the normal frequency.
809 AUDIO LE	VEL METER DIMMER CONTROL		Set the brightness of the audio level meters.0 to 7: Set in this range. 0 is the brightest, and 7 the dimmest.
810	AUDIO EDIT PREVIEW SWITCHER		Set the output phase for the audio playback signal when any of the ASSEMBLE, VIDEO, CH1 to CH4, CUE and TC buttons is lit.INT: The audio playback signal output phase is the same as the output phase in the EE mode. Use this setting when editing with a single VTR, or when previewing while watching the VTR output signal.EXT: The audio playback signal output phase is the same as the phase of an input video signal or external reference video signal.
823 NON-AUDIO	O FLAG PB (HDW-M2000/M2000P only. Invalid in 24PsF or 23.98PsF mode.)		Controls the non-audio flag when the playback format is Digital Betacam or Betacam SX.
	Sub-item
	1 CH1	CH2 During playback	(except E-E mode), sets the digital audio non-audio flag as follows.OFF: OFF (the data is audio)ON: ON (the data is non-audio)AUTO: As follows, depending on whether tape data has been confirmed.Tape data has been read and confirmed: ON or OFF, according to the data.Tape data has not been confirmed: Current state is maintained.
	2	CH3/CH4	NotesIn the Betacam SX format, audio signals only are recorded. Therefore, the non-audio flag is OFF.During playback of analog tapes, the non-audio flag is OFF regardless of the setting of this item.In the HDCAM format, the non-audio flag follows the setting of maintenance menu item M372 during recording and E-E mode.For more information about the maintenance menu item M372, refer to the Maintenance Manual.

(Continued)

Menu items in the range 800 to 899, relating to audio control (Continued)

Item number	Item name		Settings
824	ANALOG LINE OUTPUT SELECT(HDW-M2000/M2000P only)		Select the analog audio signals (tracks 1 to 8) to be assigned to audio output channels 1 to 4.
	Sub-item
	1	CH1/CH2	[tr1/2]:Tracks 1 and 2 assigned to audio output channels 1 and 2.tr3/4:Tracks 3 and 4 assigned to audio output channels 1 and 2.tr5/6:Tracks 5 and 6 assigned to audio output channels 1 and 2.tr7/8:Tracks 7 and 8 assigned to audio output channels 1 and 2.
	2	CH3/CH4	tr1/2:Tracks 1 and 2 assigned to audio output channels 3 and 4.tr3/4:Tracks 3 and 4 assigned to audio output channels 3 and 4.tr5/6:Tracks 5 and 6 assigned to audio output channels 3 and 4.tr7/8:Tracks 7 and 8 assigned to audio output channels 3 and 4.
825 AUDIO ADVANCE MODE			Set the audio output phase.OFF:Same as the video output phaseON:One frame ahead of the video output phase
826 AUDIO PB	VOLUME SELECT(HDW-M2000/M2000P only)		Selects which PB control knobs are assigned to control playback of digital audio channels.
	Sub-item
	0	ALL CH	DEFAULT:Use the following settings.CH1:Control knob 1CH2:Control knob 2CH3:Control knob 3CH4:Control knob 4CH5:UnityCH6:UnityCH7:UnityCH8:Unity
	1 CH1		UNITY:Set all channels to unity, and disable the control knobs.
	2 CH2		MENU:Use the following menu settings.
	3 CH3		UNITY:Set playback level to unity.vol 1:Assign playback level control to control knob 1.vol 2:Assign playback level control to control knob 2
	4 CH4		vol 3:Assign playback level control to control knob 3.vol 4:Assign playback level control to control knob 4.
	5 CH5
	6 CH6
	7 CH7
	8 CH8

Menu items in the range 900 to 999, relating to digital processing

Item number	Item name Settings
901 VIDEO OUT	OUTPUT DATA(Invalid in 24PsF or 23.98PsF mode)	Set the bit length for SD video output data.8bit: Set the bit length to 8 bits.10bit: Set the bit length to 10 bits.It is recommended that you select the optimal setting for the device to which you are going to connect this unit.
903 FREEZE	MODE Select the freeze mode and timing.	FIELD: Freeze a video field. Field may be odd or even, according to the timing.FLD1: Freeze an odd field.FLD2: Freeze an even field.FRM12: Freeze a frame consisting of an odd field and following even field.FRM21: Freeze a frame consisting of an even field and following odd field.Odd and even fields are distinguished by the reference video signal.Changing the menu setting during a freeze does not affect the freeze image.The setting is reflected the next time a freeze is carried out.You can freeze an image using the DELETE button and TRIM+ button.For details, see menu item 904.
904 FREEZE	CONTROLFROM KEY PANEL	Determine how the buttons used to freeze an image function.MOMNT: Holding the DELETE button and pressing the TRIM+ button carries out a freeze. The freeze ends when the buttons are released.LATCH: Holding the DELETE button and pressing the TRIM+ button carries out a freeze. The freeze continues even after the buttons are released.To update the freeze imageHold the DELETE button and press the TRIM+ button again.To end the freezeHold the DELETE button and press the TRIM- button.
905 AUTO FREEZE	CONTROL	Set the auto freeze function operation (conditions for ending a freeze, etc.).In dynamic tracking playback (so-called variable speed, jog, shuttle, or normal play), if there is a sudden worsening of the channel condition (entry into unrecorded area), this function freezes the image.DIS: Disable the auto freeze function.MODE1: End the freeze when signals which can be recorded normally are restored.MODE2: End freeze automatically on playback after stopping.The automatic freeze mode is determined by menu item 903.The freeze is ended immediately, regardless of the above conditions, when this unit is switched to any of the following modes:EDIT preset onCue upRecording
906 STOP FREEZE	CONTROL	Select whether or not the STOP FREEZE function should operate.DIS: Does not operate.ENA: Operates.stby: Operates only in the standby mode.
916 ACTIVE LINE	LINE 1035CONVERT MODE(Valid only in 59.94i or 29.97PsF mode)	Select the conversion mode for the number of active scan lines.conv: Convert the active scan lines from 1080 to 1035, without changing the aspect ratio.crop: Convert the active scan lines from 1080 to 1035. Crop the top, bottom, left, and right, then stretch the image horizontally.NoteThis item is valid only when menu item 018 is set to 1035.

(Continued)

Menu items in the range 900 to 999, relating to digital processing (continued)

Item number	Item name Settings
917 ACTIVE LINE 1080CONVERT MODE(Valid only in 59.94i or29.97PsF mode)			Select the conversion mode for the number of active scan lines.conv: Convert the active scan lines from 1035 to 1080, without changing the aspect ratio.panel: Convert the active scan lines from 1035 to 1080. Insert the 1035 lines into 1080 lines, then compress horizontally.NoteThis item is valid only when menu item 018 is set to 1080.
918 SLOW PROCESS MODE Switch the filter for increasing the vertical resolution during slow-motion playback on or off.ON: Increase the vertical resolution in slow-motion playback.OFF: Do not increase the vertical resolution in slow-motion playback.NoteIn the case of HDCAM tapes recorded in PsF mode, this item is invalid.
920	SD-SDI H-ANCCONTORL(Invalid in 24PsF or23.98PsF mode)		Select whether or not to add information to the SD output.
	Sub-item
	1	AUDIO 5CH-8CH	ON: Add digital audio data channels 5 to 8.OFF: Do not add digital audio data channels 5 to 8.
	2	RP188 ATC	ON: Add RP188 time code data.OFF: Do not add RP188 time code data.
930 DOWN CONVERTERMODE(Invalid in 24PsF or23.98PsF mode)			Select the down-converter mode.crop: Select the edge-crop mode.I-box: Select the letter box mode.squez: Select the squeeze mode.
931 DOWN CONVERTERLETTER BOX MODE(Invalid in 24PsF or23.98PsF mode)			Select the aspect ratio of the down-converter output when menu item 930 is set to I-box.16:9: Set the aspect ratio of the HD-SD converter output to 16:9.14:9: Set the aspect ratio of the HD-SD converter output to 14:9.13:9: Set the aspect ratio of the HD-SD converter output to 13:9.
932	H CROP POSITION (DC)(Invalid in 24PsF or23.98PsF mode)		Adjust the “H-crop” (the horizontal position when cropping in the edge crop mode) of the up/down converter output when menu item 930 is set to crop.-120 to 0 to 120
934	CROSS COLOR (DC)(Invalid in 24PsF or23.98PsF mode)		Carry out the down-converter cross color adjustment.0 to 8 to 15
935 DETAIL GAIN (DC)(Invalid in 24PsF or23.98PsF mode)			Carry out the down-converter image enhancer adjustment. Adjust the sharpness of edge emphasis.0 to 20H to 7FH
936 LIMITER (DC)(Invalid in 24PsF or23.98PsF mode)			Carry out the down-converter image enhancer adjustment.Adjust the maximum detail level added to emphasize the original signal.0 to 20H to 3FH
937	CRISP THRESHOLD (DC)(Invalid in 24PsF or23.98PsF mode)		Carry out the down-converter image enhancer adjustment. Set the threshold amplitude at which low amplitude signals are not emphasized.0 to FH
938	LEVEL DEPENDTHRESHOLD (DC)(Invalid in 24PsF or23.98PsF mode)		Carry out the down-converter image enhancer adjustment. Set the luminance range for edge enhancement.0 to 8 to FH

(Continued)

Menu items in the range 900 to 999, relating to digital processing (continued)

Item number	Item name Settings
939 H DETAIL	FREQUENCY (DC)(Invalid in 24PsF or 23.98PsF mode)	Carry out the down-converter image enhancer adjustment. Set the central frequency for edge enhancement.2.6MHz to 3.4MHz to 3.9MHz to 4.6MHz
940 H/V RATIO	(DC)(Invalid in 24PsF or 23.98PsF mode)	Carry out the down-converter image enhancer adjustment. Set the horizontal/ vertical ratio for edge enhancement.0 to 3 to 7
941	GAMMA LEVEL (DC)(Invalid in 24PsF or 23.98PsF mode)	Carry out the down-converter image enhancer adjustment. Adjust the slope of the correction curve.0 to 80H to 100H
942 V FILTER	SELECT(Invalid in 24PsF or 23.98PsF mode)	Set the vertical interpolation filter coefficient for HD-SD converter output.The vertical resolution increases as the setting grows larger. 1 to 3
943	CROSS COLOR CRISP(Invalid in 24PsF or 23.98PsF mode)	Set the cross color crisp level for HD-SD converter output.0 to 4 to FH
944 D/C LEGALIZE	(Invalid in 24PsF or 23.98PsF mode)	Select whether the limiter operates on downconverter output to limit illegal video data, such as data that would result in a Gamut error. (The negative parts of Y signals are also limited.)OFF OEfiter does not operate.ON: Limiter operates.
945	D/C COLOR MODE(Invalid in 24PsF or 23.98PsF mode)	Select the color balance characteristics of the downconverter, which differ slightly depending on the VTR model.MODE1 MSELECT the color balance characteristics of models in the HDW-1800/ SRW-5000 Series.MODE2 : Select the color balance characteristics of models in the HDW-F500/ HDW-2000 Series. a)
950 UP CONVERTER	ORDER MODE(HDW-M2000/M2000P only. Invalid in 24PsF or 23.98PsF mode.)	Select the up-converter mode.crop: Select the edge-crop mode.I-box: Select the letter box mode.squez: Select the squeeze mode.
951 H CROP POSITION (UC)(HDW-M2000/M2000P only. Invalid in 24PsF or 23.98PsF mode.)		Adjust the “H-crop” (the horizontal position when inserting in the edge crop mode) of the up/down converter output when menu item 950 is set to crop.-120 to 0 to 120
952 LETTER BOX POSITION(HDW-M2000/M2000P only. Invalid in 24PsF or 23.98PsF mode.)		Adjust the vertical position of the letter box mode cutout in up-converter output when I-box is selected in menu item 950.-120 to 0 to 120
953 UP CONVERTER PROCESS SELECT(HDW-M2000/M2000P only. Invalid in 24PsF or 23.98PsF mode.)		Select the original picture to use when converting SD to HD.FIELD: Use field picture.FRAME: Use frame picture.adapt (standard mode): Set the ratio of converting from frames or fields to the standard ratio when up-converting.adap2 (still picture priority mode): Set the ratio of converting from frames higher when up-converting.adap3 (motion priority mode): Set the ratio of converting from fields higher when up-converting.
954 DETAIL GAIN (UC)(HDW-M2000/M2000P only. Invalid in 24PsF or 23.98PsF mode.)		Carry out the up-converter image enhancer adjustment. Adjust the sharpness of edge emphasis.0 to 40H to 7FH

(Continued)

Menu items in the range 900 to 999, relating to digital processing (continued)

Item number	Item name Settings
955 LIMITER (UC)	(HDW-M2000/M2000P only. Invalid in 24PsF or 23.98PsF mode.)	Carry out the up-converter image enhancer adjustment.Adjust the maximum detail level added to emphasize the original signal.0 to 20H to 3FH
956	CRISP THRESHOLD (UC)(HDW-M2000/M2000P only. Invalid in 24PsF or 23.98PsF mode.)	Carry out the up-converter image enhancer adjustment. Set the threshold amplitude at which low amplitude signals are not emphasized.0 to 8 to FH
957	LEVEL DEPENDTHRESHOLD (UC)(HDW-M2000/M2000P only. Invalid in 24PsF or 23.98PsF mode.)	Carry out the up-converter image enhancer adjustment. Set the luminance range for edge enhancement.0 to 8 to FH
958 H DETAIL	FREQUENCY(UC)(HDW-M2000/M2000P only. Invalid in 24PsF or 23.98PsF mode.)	Carry out the up-converter image enhancer adjustment. Set the central frequency and frequency characteristic for edge enhancement.3.2MHz: 3.2 MHz ±1.1 MHz4.5MHz: 4.5 MHz ±1.4 MHz 5.0MHz : 5.0 MHz ±0.7 MHz4.0MHz: 4.0 MHz ±2.0 MHz
959 H/V RATIO (UC)(HDW-M2000/M2000P only. Invalid in 24PsF or 23.98PsF mode.)		Carry out the up-converter image enhancer adjustment. Set the horizontal/vertical ratio for edge enhancement.0 to 3 to 7
960	GAMMA LEVEL (UC)(HDW-M2000/M2000P only. Invalid in 24PsF or 23.98PsF mode.)	Carry out the up-converter image enhancer adjustment. Adjust the slope of the correction curve.0 to 80H to 100H
961 BACKGROUND COLOR(UC)(HDW-M2000/M2000P only. Invalid in 24PsF or 23.98PsF mode.)		Set the color of the part where no material exists (background) for up-converting.BACK GROUND COLOR:Set the color. : BlackGRAY: GrayBLUE: BlueTABLE: Set with the following Y/PB/PR tables.Y TABLE: Adjust the background Y level.0 to FFHB-Y TABLE: Adjust the background B-Y level.0 to 80 to FFHR-Y TABLE: Adjust the background R-Y level.0 to 80 to FFH

a) The HDW-2000 Series include VTR models containing one of the following HIF-1 boards. • HIF-1 COMPL (A-8327-055-A to D) • HIF-1A COMPL (A-8327-115-A to D) • HIF-1S COMPL (A-1358-245-A and higher) • HIF-1AS COMPL (A-1358-248-A and higher)

11-1 Removing a Cassette When Tape Slack Occurs

If tape slack occurs in the unit, it is necessary to remove the upper lid and sound baffle. This job should always be entrusted to a technician who has undergone service training.

For details, refer to Section 1-17 in the Installation Manual.

11-2 Head Cleaning

To clean the video heads and audio heads, always use the special-purpose Sony BCT-HD12CL cleaning cassette.

If you insert the cleaning cassette, it is automatically ejected after a head cleaning operation which lasts for 10 seconds.

Follow the instructions with the cleaning cassette carefully, as inappropriate use of the cleaning cassette can damage the heads.

Note

You cannot use the BCT-5CLN cleaning cassette.

11-3 Error Messages

This unit is equipped with a self-diagnosis function, and if a problem is detected, displays an error message in the time data display and on the monitor.

If an error message appears, contact your Sony service representative.

Indications in the time data display

If a problem is detected, the ALARM indicator in the lower control panel lights, and an error message and error code appear in time data display area 1.

Indications on the monitor

The error message and code also appear superimposed on a monitor connected to the COMPOSITE VIDEO OUTPUT 3 (SUPER) connector, HDSDI OUTPUT 3 (SUPER) connector, or SDI OUTPUT 3 (SUPER) connector. Depending on the error code, an indication of the source of the problem may appear as a secondary error message.

ERROR-01

REEL TROUBLE-1

Error message displays

• To display error messages and codes superimposed on the monitor, set the CHARA in function menu page 4 to ON.
• Some error messages have no associated error codes. In this case, they appear in the time data display.
• Error messages with error codes are saved in non-volatile memory as an error log.
• In some cases the error message is slightly different on the monitor and in the time data display.

Error Message List

Code	Message Description
- NO	COMMUNICATION Abnormality in	the interface between the lower control panel (KY-464/465 board) and SYS CPU (SS-89 board) has been detected on the lower control panel side.
01	REEL TROUBLE Tape slacking has been detected in the threading or unthreading operation.
02	REEL TROUBLE Tape slacking or tape breaking has been detected in the SEARCH, FF,or REW mode.
03	REEL TROUBLE Tape slacking,tape breaking,or supply or take-up reel locking has been detected in the REC or PLAY mode.
04	REEL TROUBLE A malfunctional tape transport speed has been detected in the FF or REW mode.
05	REEL TROUBLE A malfunctional operation of the supply or take-up reel has been detected during cassette insertion.
06	TAPE TENSION Excessive tape tension has been detected in the REC or PLAY mode.
07	CAPSTAN TROUBLE Malfunction of capstan motor has been detected.
08	DRUM TROUBLE Malfunction of drum motor has been detected.
09	TH/UNTH MOTOR Malfunction of threading or unthreading operation has been detected.
0A	THREADING The tape top processing has not been completed in the threading mode.
10	HUMID Dew condensation has been detected.
11	TAPE T/E SENSOR The tape top and tape end have been detected simultaneously.
12	TAPE TOP SENSOR Malfunction of tape top sensor has been detected.
13	TAPE END SENSOR Malfunction of tape end sensor has been detected.
14	FAN MOTOR Malfunction of cooling fan motor has been detected.
20	CASS COMP MOTOR	Malfunction of cassette compartment-up or down operation has been detected.
21	REEL SFT MOTOR	Malfunction of movement of the reel table corresponding to the cassette size has been detected.
22	REEL POS SENSOR The L-cassette and S-cassette positions of the reel table have been detected simultaneously.
23	THRED RING SENS The thread end and unthread end states of the threading ring have been detected simultaneously.
24	DT HEAD ERROR DT head or DT-47/48 board malfunction has been detected.
58	DPR BOARD ERROR Malfunction of the audio DSP (digital signal processor) on the DPR-155/229 board has been detected.
92	INTERNAL I/F1 Abnormality in the interface between SYS CPU (on SS-89 board) and other CPU/MPU has been detected.
93	CPU INITIALIZE ERROR	Abnormality in the interface between SV CPU (on SS-89 board) and DRUM CPU (on DR-414 board) has been detected.
95	OTHERS NV-RAM ERROR	Abnormality has been detected in the operation of an NV-RAM on FP-119 board.
96	SY NV-RAM ERROR Abnormality has been detected in the operation of an NV-RAM (on SS-89 board) for the system control system.
97	SV NV-RAM Abnormality has been detected in the operation of an NV-RAM (on DR-414 board) for the servo system.
98	RF NV-RAM ERROR Abnormality has been detected in the operation of an NV-RAM (on EQ-84 board) for the RF system.
99	INTERNAL I/F 2 Abnormality in the interface between SYS CPU (on SS-89 board) and SERVO CPU (on SS-89 board) or each board (EQ-84, DM-123, HIF-1, VPR-64, APR-52, DPR-195 and DPR-155 board) has been detected.

11-4 Moisture Condensation

When the unit is suddenly moved from a cold to a warm location, or used in a very humid place, moisture from the air can condense on the head-drum. This is called moisture condensation. If the tape is run in this state, it can adhere to the drum. To prevent such a condition from occurring, the unit is provided with a moisture detecting function.

If moisture condenses on the head-drum while the unit is in use, the ALARM indicator lights and “ERR-10” is displayed in time data display area 1.

If moisture condensation occurs, "ERR-10" appears in time data display area 1.

If this happens, the drum and capstan motors stop and the cassette is automatically ejected. Then, the drum starts to rotate again to dry its surface. In this state, the unit is not operable. When the moisture has evaporated, the error message disappears and the ALARM indicator goes off.

If "ERR-10" appears and the ALARM indicator lights immediately after powering the unit on

Leave the unit powered on and wait until the error message disappears and the indicator goes off. While the indicator is lit, you cannot insert a cassette. When the indicator goes off and the error message disappears, you can use the unit.

If you move the unit from a cold to a warm location

Leave the unit powered off for about 10 minutes, in order to give the unit time to detect moisture condensation.

11-5 Regular Checks

11-5-1 Digital Hours Meter

The digital hours meter can display seven items of information, in corresponding display modes, about the operational history of the unit. Use it as a guide in scheduling periodic maintenance.

Display modes of the hours meter

H01: OPERATION mode

Displays the total number of hours the unit has been powered on in units of 1 hour.

H02: DRUM RUNNING mode

Displays the total number of hours the drum has run with tape threaded in units of 1 hour.

H03: TAPE RUNNING mode

Displays the total number of hours the unit has been in fast forward, rewind, playback, search, recording or editing (except for stop and still) mode in units of 1 hour.

H04: THREADING mode

Displays the total number of times tape has been threaded in the unit.

H12: DRUM RUNNING mode (resettable)

Same as H02 except that the count is resettable. This can be used as a guide in determining when to replace the drum.

H13: TAPE RUNNING mode (resettable)

Same as H03 except that the count is resettable. This can be used as a guide in determining when to replace such components as fixed heads and pinch rollers.

H14: THREADING mode (resettable)

Same as H04 except that the count is resettable. This can be used as a guide in determining when to replace, for example, the threading motor.

Displaying the digital hours meter

To display the digital hours meter

Press the F5 (MENU) button, then turn the MULTI CONTROL knob to display the required item in the time data display.

To exit from the hours meter

Press the F6 (EXIT) button.

11-5-2 Maintenance Timings

Use the following table as a timing guide for checking and replacing components of the unit. These intervals are not guaranteed lifetimes; the timing for replacing components depends on the particular conditions of use. In particular, depending on the degree of dirt contamination and abrasion, pinch rollers and cleaners may require replacement earlier than suggested by this table.

Note that an arrow in the table means that the component to be replaced is part of the assembly the arrow points to, which must be replaced as a whole.

For information on severe conditions (frequent threading/unthreading) or how to replace components, refer to the Maintenance Manual Volume 1.

Component	Digital hours meter indication (menu number in parenthesis)	Guideline replacement intervals
		R: Replace C: Check, and replace if necessary
		1000 hrs	2000 hrs	3000 hrs	4000 hrs	5000 hrs	6000 hrs
Upper drum	Drum running time (H02)			C	C	C	C
Drum assembly							C
Brush slip ring assembly				R			R
Video head cleaner (roller)				R			R
Pinch roller assembly	Tape running time (H03)			R			R
Reel table assembly					R (Replace at interval of 4000 hours.)
Pinch application assembly	Tape running time (H03)						R
Fan motor (card)	Operation time (H01) Replace after 40,000 hours
Fan motor (MD)	Replace after 40,000 hours
Fan motor (power supply)

Note

Contact a Sony service or marketing representative regarding the replacement and checking of components.

General

Recording format HDCAM

Power requirements

100 to 240 VAC, 50/60 Hz

Power consumption

2.2 A (220 W), when used without optional devices

Peak inrush current

(1) Power ON, current probe method: HDW-2000 40 A (240 V), 20 A (100 V) HDW-M2000/M2000P 50 A (240 V), 14 A (100 V)

(2) Hot switching inrush current, measured in accordance with European standard EN55103-1: HDW-2000 15 A (230 V) HDW-M2000/M2000P 18 A (230 V)

Operating temperature

5°C to 40°C (41°F to 104°F)

Storage temperature

-20°C to +60°C (-4°F to +140°F)

Humidity 20 to 90%

Mass 23 kg (50 lb 11 oz)

Dimensions (w/h/d, excluding protruding parts) 427 × 174 × 544 mm (16 7/8 × 6 7/8 × 21 1/2 inches)

Tape transport system

Tape speed HDCAM:

96.7 mm/s (59.94i, 29.97PsF)

80.6 mm/s (50i, 25PsF),

77.4 mm/s (24PsF, 23.98PsF)

Digital Betacam: 96.7 mm/s

MPEG IMX: 64.5 mm/s (525/59.94) 53.8 mm/s (625/50)

Betacam SX: 59.6 mm/s

Analog Betacam: 118.6 mm/s (525/59.94) 101.5 mm/s (625/50)

HDCAM record time

124 minutes with BCT-124HDL (59.94i, 29.97PsF)

149 minutes with BCT-124HDL (50i, 25PsF)

155 minutes with BCT-124HDL (24PsF, 23.98PsF)

Digital Betacam playback time

124 minutes with BCT-124L

MPEG IMX playback time

184 minutes with BCT-184MXL (525/59.94)

220 minutes with BCT-184MXL (625/50)

Betacam SX playback time

194 minutes with BCT-194SXL A

Analog Betacam playback time

90 minutes with BCT-90MLA (525/59.94)

108 minutes with BCT-90MLA (625/50)

Fast forward/rewind time

Approx. 3 minutes with BCT-124HDL

Search speed

Shuttle mode HDCAM playback:

Still to approx. ±50 times normal playback speed (59.94i, 29.97PsF)

Still to approx. ±58 times normal playback speed (50i, 25PsF)

Still to approx. ±60 times normal playback speed (24PsF, 23.98PsF)

Digital Betacam playback: Still to approx. ±50 times normal playback speed

MPEG IMX/Betacam SX playback: Still to approx. ±78 times normal playback speed

Analog Betacam playback:Still to ±35 times normal playback speed (525/59.94)Still to ±42 times normal playback speed (625/50)

Variable speed modeHDCAM playback: -1 to +2 times normal playback speedDigital Betacam playback: -1 to +3 times normal playback speedMPEG IMX playback: -1 to +3 times normal playback speedBetacam SX playback: -1 to +2 times normal playback speedAnalog Betacam playback: -1 to +3 times normal playback speedJog mode Still to ±1 times normal playback speedServo lock time 0.6 (59.94i, 29.97PsF)/0.7 (50i, 25PsF, 24PsF, 23.98PsF) second or less (from standby on)Load/unload time 6 seconds or lessRecommended tapesHDCAM cassettes (S, L):BCT-6HD/12HD/22HD/32HD/40HDBCT-34HDL/64HDL/94HDL/124HDMPEG IMX cassettes (S, L):(for playback only)Digital Betacam cassettes (S, L)(for playback only)Betacam SX cassettes (S, L) (for playback only)Betacam SP cassettes (S, L) (for playback only)Betacam cassettes (S, L) (for playback only)

Digital video system

Digital video signal system

Sampling frequency

Y: 74.25 MHz

R-Y/B-Y: 37.125 MHz

Quantization 8 bits/sample

Compression Coefficient recording system

Channel coding S-I-NRZI PR-IV

Error correction Reed-Solomon code

Analog component output

Bandwidth

Y 0 to 5.75MHz + 0.5dB / - 2.0dB

R-Y/ B-Y 0 to 2.75 MHz +0.5 dB/-2.0 dB

S/N ratio 56 dB or more

K factor (2T pulse)

1% or less

Analog composite output

Bandwidth 0 to 5.75 MHz +0.5 dB/-3.0 dB

S/N ratio 53 dB or more

Differential gain 2% or less

Differential phase 2° or less

Y/C delay 20ns or less

K factor (2T pulse) 1% or less

Output SCH phase Complies with RS-170A/CCIR

R.624-3 (adjustable from menus)

Digital audio system

Digital audio (CH1 to CH4) signal format

Sampling frequency

48 kHz (synchronized with video)

Quantization 20 bits/sample

Wow and flutter Below measurable level

Headroom 20 dB (or 18 dB, selectable)

Emphasis T1=50 μs, T2=15 μs (on/off selectable in recording mode)

Analog input/output (CH1 to CH4)

A/D, D/A quantization

20 bits/sample

Frequency response

20 Hz to 20 kHz +0.5 dB/ -1.0 dB (0 dB at 1 kHz)

Dynamic range 95 dB or more (at 1 kHz, emphasis on)

Distortion 0.05% or less (at 1 kHz, emphasis on, reference level (+4 dBm))

Crosstalk -80 dB or less (at 1 kHz, between any two channels)

Analog audio (CUE)

Frequency response

100 Hz to 12 kHz ±3 dB

S/N ratio 45 dB or more (THD, 1 kHz, reference level)

Distortion 2% or less (THD, 1 kHz, reference level)

Wow and flutter 0.2% rms or less

Digital Betacam playback

Video

Bandwidth	Y	0 to 5.75 MHz +0.5 dB/-0.5 dB
	R-Y/B-Y	0 to 2.75 MHz +0.5 dB/-0.5 dB
S/N ratio 62 dB or more
K factor		1% or less

Digital Audio (CH1 to CH4)

Frequency response	20 Hz to 20 kHz +0.5 dB/-1.0 dB
Dynamic range 95 dB (at 1 kHz, emphasis on)
Distortion 0.05% rms (emphasis on)
Wow and flutter Below measurable level

Analog Audio (cue track)

Frequency response	100 Hz to 12 kHz + 3 dB/–3 dB
S/N ratio 45 dB or more (at 3% distortion level)
Distortion	2% or less (THD 1 kHz, reference level)
Wow and flutter 0.2% rms or less

MPEG IMX playback

Video

Frequency response	Y	0 to 5.75 MHz +0.5 dB/-3.0 dB
	R-Y/B-Y	to 2.75 MHz +0.5 dB/-2.0 dB
S/N ratio		56 dB or more
K factor (2T pulse)		1% or less

Digital Audio (CH1 to CH4)

Frequency response	20 Hz to 20 kHz +0.5 dB/-1.0 dB(0 dB at 1 kHz)
Dynamic range	90 dB or more (1 kHz, emphasis on, 16 bits/48 kHz)
Distortion	0.05% or less (1 kHz, emphasis on, reference level (+4 dBm))

Betacam SX playback

Video

Bandwidth	Y	0 to 4.5 MHz +0.5 dB/-3.0 dB
	R-Y/B-Y	0 to 2.0 MHz +0.5 dB/-3.0 dB
S/N ratio		56 dB or more
K factor (2T pulse)		1% or less

Digital Audio (CH1 to CH4)

Frequency response	20 Hz to 20 kHz +0.5 dB/-1.0 dB (0 dB at 1 kHz)
Dynamic range	90 dB or more (at 1kHz, emphasis on)
Distortion	0.05% or less (at 1 kHz, emphasis on, reference level (+4 dBm))

Analog Betacam playback

Video

		Metal tape Oxide tape
Bandwidth Y 30 Hz to 4.5 MHz +0.5 dB/ -4.0 dB 30 Hz to 4.1 MHz +0.5 dB/ -6.0 dB
	R-Y/ B-Y 30 Hz to 1.5 MHz +0.5 dB/-3.0 dB 30 Hz to 1.5 MHz +0.5 dB/-3.0 dB
S/N ratio Y		51 dB or more	48 dB or more
	R-Y/ B-Y 48 dB or more 45 dB or more
		2% or less	3% or lessK factor (2T pulse)
LF non-linearity	Y	3% or less
	R-Y/ B-Y 4% or less
Y/C delay		20 ns or less

Audio

		Metal tape	Oxide tape
LNG	Frequency response (at 10 dB below reference levela)	50 Hz to 15 kHz +1.5 dB/ -3.0 dB 50 Hz to	15 kHz +3.0 dB
	S/N ratio (at 3% distortion level)	72 dB or more	50 dB or more (Dolby NR off)
	Distortion (THD at 1 kHz reference levela)	1% or less	2% or less
	Wow and flutter 0.1% rms or less		0.1% rms or less
AFM	Frequency response (at reference levela)	20 Hz to 20 kHz +0.5 dB/-2.0 dB	-
	S/N ratio (at 3% distortion level)	85 dB or more	-
	Distortion (THD at 1 kHz reference levela)	0.5% or less	-

a) Reference level: +4 dBm

Processor adjustment range

Video level ±3 dB/ -∞ to +3 dB selectable

Chroma level ±3 dB/ -∞ to +3 dB selectable

Setup level (59.94i, 29.97PsF mode)

±30 IRE

Black level (50i, 25PsF mode)

±210 mV

Chroma phase ±30°

System phase Sync: ±15 μs

SC: ±200 ns

Input connectors

HDSDI INPUT BNC (1 each for input and for through output to a monitor)

Serial digital (1.485 Gbits/s)

SMPTE 292M

SDTI INPUT BNC (1) (optional)

SMPTE 305M (SDTI)

REF. VIDEO INPUT

BNC (2 in loop through connection)

HD

Tri-level SYNC

0.6 Vp-p, 75 Ω, sync negative

SD

Black burst or composite sync

NTSC: 0.286Vp-p, PAL:0.3Vp-p,

75 Ω, sync negative Selecting HD

or SD in a menu

AUDIO INPUT CH1/2/3/4

XLR 3-pin, female (4)

LOW OFF: -60 dBu, high impedance, balanced

HIGH OFF: +4 dBu, high impedance, balanced

HIGH ON: +4 dBm, 600 Ω termination, balanced

CUE IN XLR 3-pin, female (1)

LOW OFF: -60 dBu, high impedance, balanced

HIGH OFF: +4 dBu, high impedance, balanced

HIGH ON: +4 dBm, 600 Ω termination, balanced

AUDIO INPUT (AES/EBU) CH1/2, 3/4

BNC (2)

Complies with AES-3id-1995

TIME CODE IN XLR 3-pin, female (1)

0.5 to 18 Vp-p, 10 kΩ, balanced

Output connectors

HDSDI OUTPUT

BNC (3 including 1 for character superimposition)

Serial digital (1.485 Gbits/s)

SMPTE 292M

SDTI OUTPUT BNC (2) (optional)

SMPTE 305M (SDTI)

COMPONENT VIDEO OUTPUT

BNC (3 for 1 set)

Y: 1.0 Vp-p, Sync negative

R-Y/B-Y: 0.7 Vp-p, 75 Ω, with

100% or 75% color bar selectable

COMPOSITE VIDEO OUTPUT

BNC (3 including 1 for character superimposition)

1.0 Vp-p, 75 Ω, Sync negative

SDI OUTPUT BNC (3 including 1 for character superimposition)

Serial digital (270 Mbits/s)

SMPTE 259 M

AUDIO OUTPUT CH1/2/3/4

XLR 3-pin, male (4)

+4 dBm at 600 Ω load, low

impedance, balanced

CUE OUT XLR 3-pin, male (1)

+4 dBm at 600 Ω load, low

impedance, balanced

AUDIO OUTPUT (AES/EBU) CH1/2, 3/4, 5/6, 7/8

BNC (4)

Complies with AES-3id-1995

(CH1/2 and CH3/4 only for HDW-2000)

MONITOR OUTPUT (L/R)

XLR 3-pin, male (2)

+4 dBm at 600 Ω load, low

impedance, balanced

TIME CODE OUT

XLR 3-pin, male (1)

2.2 Vp-p, low impedance, balanced

PHONES JM-60 stereo phone jack

-∞ to -12 dBu at 8 Ω load, unbalanced

Remote connectors

CONTROL PANEL

10-pin (2), female

Front/rear selectable

REMOTE 1-IN(9P)

D-sub 9-pin, female

REMOTE 1-OUT(9P)

D-sub 9-pin, female

RS-232C D-sub 9-pin, male

VIDEO CONTROL (15P)

D-sub 15-pin, male (for optional

BVR-50/50P)

VIDEO CONTROL (9P)

D-sub 9-pin, female (for optional

HKDV-900)

REMOTE 2 PARALLEL I/O (50P)

50-pin, female

Memory card insertion slot

PCMCIA

Memory stick slot

Memory stick

Accessories supplied

PSW 4× 16 screws for rack mounting (4)

CD-ROM Manual (1)

Installation Manual (1)

Operation Guide (1)

Optional accessories

HKDW-101 Control Panel HKDW-102 SDTI Interface Board BKMW-102 Remote Control Unit BKMW-103 Control Panel Extension Kit RCC-5G 9-pin remote control cable BVR-50/50P Video Remote Control Unit HKDV-900 Video Remote Control Unit RMM-131 Rack Mount Adaptor BCT-HD12CL Cleaning Cassette Tape AC power cord

• For customers in the U.S.A. and Canada Part No. 1-557-377-11 Plug holder 3-613-640-01
• For customers in the United Kingdom Part No. 1-782-165-11 Plug holder 3-613-640-01
• For customers in European countries other than the United Kingdom Part No. 1-782-164-11 Plug holder 3-613-640-01

Design and specifications are subject to change without notice.

To prevent electromagnetic interference from portable communications devices

The use of portable telephones and other communications devices near this unit can result in misoperations and interference with audio and video signals. It is recommended that portable communications devices near this unit be powered off.

Notes

• Always make a test recording, and verify that it was recorded successfully. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF FAILURE OF THIS UNIT OR ITS RECORDING MEDIA, EXTERNAL STORAGE SYSTEMS OR ANY OTHER MEDIA OR STORAGE SYSTEMS TO RECORD CONTENT OF ANY TYPE. • Always verify that the unit is operating properly before use. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT, EITHER DURING THE WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY, OR FOR ANY OTHER REASON WHATSOEVER.

Relation between HKDV-900/503 setting items and setup menu of this unit

HKDV-900/503 setting items Setup menu items of this unit
HD Master 740: MASTER LEVEL (HD) a)
HD Y 741: Y LEVEL (HD) a)
HD Pb 742: Pb LEVEL (HD) a)
HD Pr 743: Pr LEVEL (HD) a)
HD Setup 745: SETUP LEVEL (HD) a)
HD Sync Phase 746: SYNC PHASE (HD/UC) a)
HD Fine 747: FINE (HD/UC) a)
D1 Master No corresponding menu item
D1 Y No corresponding menu item
D1 B-Y No corresponding menu item
D1 R-Y No corresponding menu item
D2 VIDEO 715: VIDEO GAIN CONTROL (HD/DC/SD/UC) a)
D2 CHROMA 716: CHROMA GAIN CONTROL (HD/DC/SD/UC) a)
D2 HUE 717: CHROMA PHASE CONTROL (HD/DC/SD/UC) a)
SETUP 713: VIDEO SETUP REFERENCE LEVEL: OUTPUT LEVEL (DC/SD) a), c)
SD Sync Phase	719: SYSTEM PHASE SYNC (DC/SD)
SD Fine	720: SYSTEM PHASE SC (DC/SD)
CROSS COLOR	934: CROSS COLOR (DC)
H CROP POSITION	932: H CROP POSITION (DC)/951: H CROP POSITION (UC) b)
DETAIL GAIN	935: DETAIL GAIN (DC)/954: DETAIL GAIN (UC) b)
LIMITTER	936: LIMITER (DC)/955: LIMITER (UC) b)
CRISP	937: CRISP THRESHOLD (DC)/956: CRISP THRESHOLD (UC) b)
DEPEND	938: LEVEL DEPEND THRESHOLD (DC)/957: LEVEL DEPEND THRESHOLD (UC) b)
FREQUENCY	939: H DETAIL FREQUENCY (DC)/958: H DETAIL FREQUENCY (UC) b)
H/V RATIO	940: H/V RATIO (DC)/959: H/V RATIO (UC) b)
GAMMA	941: GAMMA LEVEL (DC)/960: GAMMA LEVEL (UC) b)
CROP	930: DOWN CONVERTER MODE/950: UP CONVERTER MODE b)
LETTER BOX	930: DOWN CONVERTER MODE/950: UP CONVERTER MODE b)
SQUEEZE 930: DOWN CONVERTER MODE/950: UP CONVERTER MODE b)

a) Valid for output only when F1 (V.PROC) in function menu page 2 is set to MENU. b) Select whether to set DC or UC with menu item 212 (VIDEO REMOTE CONTROL SELECT). When both are selected (menu item 212 is U&D), both of the corresponding menu settings are made, but this unit's answer values and unity values are the DC values. c) Use the submenu of menu item 212 (VIDEO REMOTE CONTROL SELECT) to select whether to set menu item 713 or 718.

HD: HDSDI output during HDCAM playback

DC: Down-converted SD (D1 SDI/composite) output during HDCAM playback

SD: SD (D1 SDI/COMPOSITE) output during SD format playback

UC: Upconverted HDSDI output during SD format playback

HD/SD video output phase settings

For the HD/SD video output phase setting, you can use the maintenance menu.

For details, refer to the Installation Manual.

Item number	Item name		Settings
M3 M3A:	OUTPUT PHASE SELECT	M3A0: HD PHASE SEL	Select the HD video output signal phase with respect to the reference signal: 0H or -90H (HD) advanced.0H: Output in sync with the reference signal.-90H: Output with the phase delayed by -90H (HD) with respect to the reference signal.
		M3A1: SD PHASE SEL	Select the SD video output signal phase with respect to the reference signal: 0H or -2H (SD) advanced.0H: Output in sync with the reference signal.-2H: Output with the phase delayed by -2H (SD) with respect to the reference signal.
		M3A2: SD UPCNV SEL (HDW-M2000/M2000P only)	Select whether the SD video output signal phase in SD tape playback should be in sync or one frame delayed.noml: Output the SD video with the phase unchanged. (The HD video output is delayed by one frame with respect to the reference signal.)HD: Output the SD video with the phase delayed by one frame. (The HD video output and SD video output are in phase with the reference signal.)

Notes

• The SDSDI (D1) output and component/composite outputs have the same phase.
• For item M3A2 is HDW-M2000/M2000P only.

For details of the audio/timecode output phase, see Setup menu item 338.

Compatibility of playback tape formats

Playback tape format		System frequency
		23.98PsF 24	PsF 25PsF 50i	29.97PsF 59	94i
HDCAM	23.98PsF	Yes △	△	▲
	24PsF	△Yes
	25PsF	△Yes ▲
	50i
	29.97PsF	▲		▲		Yes
	59.94i
	30PsF	▲		▲		△
	60i
Digital Betacam a)	50i (PAL)	No Yes No
	59.94i (NTSC)			No Yes
MPEG IMX a)	50i (PAL)			Yes No
	59.94i (NTSC)			No Yes
Betacam SX a)	50i (PAL)	No Yes No
	59.94i (NTSC)			No Yes
Betacam/SP a)	50i (PAL)			Yes b)		No
	59.94i (NTSC)			No Yes		c)

Yes: Both video and audio playback is possible.

Δ: Both video and audio “off-speed” playback is possible.

▲: Video only “off-speed” playback is possible. Audio is muted.

No: Neither video nor audio playback is possible.

a) HDW-M2000 only.

b) Playback on J and SYL models is simple playback quality.

c) Playback on PAL models is simple playback quality.

Note

If the playback tape format and system frequency are different, the level meter in the audio setting display section (see page 2-4) flashes.

Playback tape format conversion outputs

Playback tape format		System frequency
		23.98PsF 24	PsF 25PsF 50	29.97PsF 59	.94i
HDCAM	23.98Ps	No No No
	24PsF
	25PsF	No Yes		a)		No
	50i
	29.97PsF	No No Yes				b)
	59.94i
	30PsF	No No No
	59.94i (NTSC)
Digital Betacam e)	50i (PAL)	No Yes		c)		No
	59.94i (NTSC)			No Yes		d)
MPEG IMX e)	50i (PAL)			Yes c)		No
	5i			No Yes		d)
Betacam SX e)	50i (PAL)	No Yes		c)		No
	59.94i (NTSC)			No Yes		d)
Betacam/SP e)	50i (PAL)			Yes c)		No
	59.94i (NTSC)			No Yes		d)

a) For 1080/25PsF or 50i, output is downconverted to 576/50i. b) For 1080/29.97PsF or 59.94i, output is downconverted to 480/59.94i. c) For 576/50i, output is upconverted to 1080/50i. d) For 480/59.94i, output is upconverted to 1080/59.94i. e) HDW-M2000 only.

A

AC IN connector 2-17

ALARM indicator 2-12

Analog

audio input/output section 2-15

video input/output section 2-16

ASSEMBLE button 2-11

Audio

control section 2-4

monitor signal output section 2-18

monitor signal selection buttons 2-5

selection function selector buttons 2-4

setting display section 2-4

AUDIO IN/OUT buttons 2-13

AUDIO INPUT (AES/EBU) connectors

2-16

AUDIO INPUT CH1 to CH4 connectors

2-15

AUDIO INPUT CH1 to CH4 LEVEL

switches 2-15

AUDIO OUTPUT (AES/EBU) connectors

2-16

AUDIO OUTPUT CH1 to CH4 connectors

2-15

AUTO EDIT button 2-13

B

Basic setup menu items 10-7

BLACK (function menu) 9-5

C

C PHAS (function menu) 9-5

Capstan

lock mode indicator 2-7

override function 4-8

CAPSTN (function menu) 9-7

Cassettes 3-8

CHANNEL CONDITION indicator 2-6

CHARA (function menu) 9-7

CH1 to CH4 buttons 2-11

CHROMA (function menu) 9-5

COMPONENT VIDEO OUTPUT

connectors 2-16

COMPOSITE VIDEO OUTPUT

connectors 2-16

CONFI (ON)/PREREAD indicators 2-7

CONFI (function menu) 9-3

CONFI playback 2-8

Connections to digital devices 3-1

Connector panel 2-15

Continuous editing 5-13

CONTROL PANEL connector

connector panel 2-18

switch panel 2-14

Control panels 2-1

CTL/TC (function menu) 9-3

CUE button 2-11

CUE IN/OUT connectors 2-15

D

DELETE button 2-12

DF (function menu) 9-4

DF indicator 2-7

Digital

audio input/output section 2-16

device connection 3-1

hours meter 11-5

signal input/output section 2-17

DISPLAY FULL/FINE button 2-4

DMC

EDIT button 2-12

editing 5-11

playback 4-10

Drop frame

mark 3-7

mode 9-4

E

EDIT button 2-10

Edit point 5-3

cue-up and preroll 5-7

modifying and deleting 5-6

setting buttons 2-13

Editing

automatic editing 5-1

carrying out 5-8

continuous editing 5-13

control section 2-12

cross-fade editing 10-16

manual editing 5-14

mode setting section 2-11

preread editing 5-14

quick editing 5-13

selecting the editing mode 5-3

special methods 5-13

split editing 5-4

standalone editing 5-14

switch/menu settings 5-2

E-E mode 2-5, 2-10

EJECT button 2-2

EMPHSS (function menu) 9-6

ENTRY button 2-13

Error messages 11-2

Extended setup menu items 10-10

External device connectors 2-17

F

F FWD button 2-11

Features 1-1

PHONES jack/control 2-2

F1 to F6 buttons 2-6

Format indicators 2-2

Function menu

configuration 9-1

item 9-2

operation 2-6, 9-1

G

Ground terminal 2-17

H

HDCAM 1-1

cassettes 3-8

HDSDI INPUT connectors 2-17

HDSDI OUTPUT connectors 2-17

Head cleaning 11-1

Headphones 2-2

HOME button 2-6

HUE (function menu) 9-5

|

IN/OUT buttons 2-13

INPUT button 2-4

INSERT buttons 2-11

J

JOG

button 2-9

indicator 2-9

Jog mode 4-7

K

KEY INHI indicator 2-12

KEY INHI switch 2-14

L

Level meter 2-5

Line standard indicator 2-7

LIST button 2-13

Location and function of parts

connector panel 2-15

lower control panel 2-3

switch panel 2-14

upper control panel 2-2

LTC

external sync 4-4

indicator 2-7

M

Manual editing 5-14

MARK button 2-13

Memory card

ejection button 2-14

slot 2-14

Memory stick 3-10

MEMORY indicator 2-12

MENU (function menu) 9-3

Menu

control buttons 2-6

function menu 9-1

setup menus 10-1

display section 2-7

shot mark operation menu 6-2

MIXING button 2-4

Moisture condensation 11-4

MONITOR OUTPUT R/L connector 2-19

MULTI CONTROL knob 2-8

N

Non-drop frame mark 3-7

mode 9-4

0

Operation mode 3-7

OUTREF (function menu) 9-7

Operation mode 3-7

OUTREF (function menu) 9-7

P

PANEL SELECT switch 2-14

Parts replacement 11-6

PB controls 2-6

PB/EE (function menu) 9-3

PHONES jack/control 2-2

PLAY button 2-11

Playback

capstan override 4-8

dynamic motion control (DMC) 4-10

jog mode 4-7

normal 4-6

shuttle mode 4-7

speed indication 2-8

variable speed mode 4-8

PLAYER button 2-12

Power supply section 2-17

POWER switch 2-2

Preparations

for playback 4-5

for recording 4-1

PREREAD (function menu) 9-7

Preread editing 5-14

PREROLL button 2-10

PRESET/REGEN 9-4

Preview 5-7

PREVIEW button 2-13

PUSH/SHIFT indicator 2-8

Q

Quick Editing 5-13

R

REC

button 2-10

controls 2-6

REC INHI indicator 2-10

RECINH (function menu) 9-7

REC/ERASE indicator 2-13

Reference signal connection 3-3

Reference sync signal 3-2

Regular checks 11-5

REMOTE buttons 2-2

REMOTE 1-IN(9P) connector 2-18

REMOTE 1-OUT(9P) connector 2-18

REMOTE 2 PARALLEL I/O(50P)

connector 2-18

RESET button 2-8

REVIEW button 2-13

REW button 2-11

RS-232C

connector 2-18

indicator 2-2

RUN (function menu) 9-4

S

SC (function menu) 9-6

SDI OUTPUT connectors 2-17

SDTI INPUT connector 2-17

SDTI OUTPUT connectors 2-17

Search control section 2-8

Search dial 2-9

SERVO indicator 2-11

Setup 3-5

SETUP (function menu) 9-5

Setup menu

basic menu items 10-7

configuration 10-1

extended menu items 10-10

menu bank operations 10-5

operations 10-2

Shot data 6-7

Shot mark function

cuing up 6-6

list operations 6-4

operation menu 6-2

operations 6-3

overview 6-1

reading 6-3

sorting 6-8

writing 6-3

Shot mark section 2-13

SHUTTLE button 2-9

Shuttle mode 4-7

SHUTTLE/VAR indicator 2-9

Specifications A-1

Speed indication area 2-8

Standalone editing 5-14

STANDBY button 2-10

STOP button 2-11

Superimposed character information 3-6

Switch panel 2-14

SYNC (function menu) 9-6

Sync signal 3-2

System configurations 1-4

System frequency indicator 2-7

T

T INFO (function menu) 9-6

Tape format indicator 2-7

Tape transport control section 2-10

TC button 2-11

TCG (function menu) 9-4

TCGSET (function menu) 9-3

TCR (function menu) 9-4

Tele-File

attribute data 7-11

clip data 7-3

format 7-12

memory label 7-1

overview 7-1

resume 7-10

undo 7-10

Time code 4-2

TIME CODE IN/OUT connector 2-18

Time code input/output section 2-18

Time data 3-6

display 2-7

TRIM buttons 2-13

U

UMID

display 8-4

output 8-4

overview 8-1

recording 8-2

Upper control panel 2-2

User bit values 4-2

V

VAR button 2-9

Variable speed mode 4-8

VIDEO (function menu) 9-5

VIDEO button 2-11

VIDEO CONTROL(15P) connector 2-18

VIDEO CONTROL(9P) connector 2-18

Video test signal (setup menu item 710)

10-24

VID.IN (function menu) 9-3

VITC

external sync 4-4

field 3-7

indicator 2-7

V.PROC (function menu) 9-5

The material contained in this manual consists of information that is the property of Sony Corporation and is intended solely for use by the purchasers of the equipment described in this manual.

Sony Corporation expressly prohibits the duplication of any portion of this manual or the use thereof for any purpose other than the operation or maintenance of the equipment described in this manual without the express written permission of Sony Corporation.

For Customer in China

Printed on recycled paper.

Printed in Japan

2012.03 32

© 2001
