Product Type	Tumble dryer
Brand	Baumatic
Model	BBTDH7A1TE-80
Capacity	7 kg
Dimensions (H x W x D)	85 x 60 x 60 cm
Weight	35 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption	2500 W
Energy Class	C
Drying Type	Condensation
Number of Programs	12
Moisture Sensor	Yes
Delay Start	Yes
Water Tank Capacity	4 L
Noise Level	65 dB
Lint Filter	Yes, clean after each cycle
Child Lock	Yes
Overheat Protection	Yes
Repairability Index	7.5 / 10
Included Accessories	User manual, warranty card

Frequently Asked Questions - BBTDH7A1TE-80 BAUMATIC

What should I do if the dryer does not start?

Check if the appliance is plugged in and the door is fully closed. Ensure the program is selected and the start button is pressed. Also verify that the lint filter and water tank are properly inserted.

How often should I clean the lint filter?

The lint filter should be cleaned after every drying cycle to maintain efficiency and prevent fire hazards. Remove the filter and rinse under running water if necessary.

Why is my laundry still wet after a cycle?

This may be due to overloading, a clogged filter, or incorrect program selection. Ensure the load is appropriate for the selected program and that the filter is clean.

Can I dry delicate fabrics in this dryer?

Yes, use the 'Delicates' program which operates at lower temperatures to protect sensitive items. Always check garment care labels first.

How do I empty the water tank?

Pull out the water tank located at the bottom of the dryer, empty it into a sink, and replace it securely. The tank should be emptied after each use or when the indicator light turns on.

What does the 'Filter' indicator mean?

The 'Filter' light alerts you to clean the lint filter. It is normal for this light to come on periodically. Clean the filter and the light will turn off after restarting.

Is it normal for the dryer to produce steam?

Yes, during condensation drying, steam is produced and condensed inside the machine. Some steam may escape when the door is opened. This is normal.

How can I reduce static in my laundry?

Use dryer sheets or wool dryer balls. Avoid overdrying and remove clothes promptly. Overdrying can increase static.

What should I do if the dryer stops mid-cycle?

First check if the water tank is full or the filter is clogged. Also ensure the power supply is stable. If the issue persists, consult the manual for error codes.

How do I clean the condenser?

The condenser should be cleaned periodically (every few months) to maintain performance. Remove the cover and rinse with water, then dry before reinserting. Refer to the manual for detailed instructions.

USER MANUAL BBTDH7A1TE-80 BAUMATIC

BBTDH7A1TE Tumble Dryer

INSTRUCTION MANUAL

Thank you for choosing this product. We are proud to offer the ideal product for you and the best complete range of home appliances for your daily routine.

Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best results when using your machine. Keep all documentation in a safe place for future reference or for any future owners.

Please check that the following items are delivered with the appliance:

• Instruction manual
• Guarantee card
• Energy label

Check that no damage has occurred to the machine during transit. If it as, call for service by Customer Service Centre. Failure to comply with the above can compromise the safety of the appliance. You may be charged for a service call if a problem with your machine is caused by misuse or by incorrect installation. To contact the Service, ensure that you have the unique 16-character code available, also called the "serial number". This code is a unique code for your product, printed on the sticker that can be found inside the door opening.

Environmental conditions

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, are recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

● WEEE should not be treated as household waste;
● WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on one-to-one basis, as long as the equipment is of equivalent type and has the same functions at the supplied equipment.

Contents

1. GENERAL SAFETY RULES
2. MOUNTING THE FURNITURE DOOR
3. WATER CONTAINER
4. DOOR AND FILTERS
5. PRACTICAL HINTS
6. QUICK USER GUIDE
7. CONTROLS AND PROGRAMMES
8. TROUBLESHOOTING AND WARRANTY

1. GENERAL SAFETY RULES

● This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments;

- Farm houses;

- By clients in hotels, motels and other residential type environments;

- Bed and breakfast type environments. A different use of this appliance from household environment or from typical housekeeping functions, as commercial use by expert or trained users, is excluded even in the above applications. If the appliance is used in a manner inconsistent with this it may reduce the life of the appliance and may void the manufacturer's warranty. Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use (even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance

in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.
  ● Children of less than 3 years should be kept away unless continuously supervised.

WARNING

Misuse of a tumble dryer may create a fire hazard.

● This machine is solely for domestic use, i.e. to dry household textiles and garments.
- Ensure that the instructions for installation and use are fully understood before operating the appliance.
- Do not touch the appliance when hands or feet are damp or wet.
- Do not lean on the door when loading the machine or use the door to lift or move the machine.
- Do not continue to use this machine if it appears to be faulty.

- The tumble dryer is not to be used if industrial chemicals have been used for cleaning.

items are left at a temperature that ensures that the items will not be damaged.

WARNING

Do not use the product if the fluff filter is not in position or is damaged; fluff could be ignited.

● Lint and fluff must not be allowed to collect on the floor around the outside of the machine.

WARNING

Never stop a tumble dryer before the end of the dryin cycle unless all items are quickly removed and spread out so that the heat is dissipated.

WARNING:

Where the hot surface symbol is located the temperature rise during operation of the tumble dryer may be in excess of 60 degrees C.

● Always remove the plug before cleaning the appliance.

- The drum inside may be very hot. Always allow the dryer to complete the cool down period before removing the laundry.

- The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the

WARNING

During transport ensure that the dryer is in an upright position, if it's necessary you can only flip in the side shown.

Simple line drawing of a device with a cross symbol on its screen (no text or labels)

Simple line drawing of a washing machine with a checkmark and circular dial (no text or symbols)

If the product is in different side, wait at least 4 hours before switching on so that the oil can flow back into the compressor. Failure to do this could result in damage to the compressor.

Installation

• Do not install the product in a low temperature room or in a room where there is a risk of frost occurring. At temperature around freezing point the product may not be able to operate properly: there is a risk of damage if the water is allowed to freeze in the hydraulic circuit (valves, hoses, pumps). For a better product performance the ambient room temperature must be between 5-35°C. Please note that operating in cold condition (between +2 and +5°C) might simply some water condensation and water drops on floor.

- NEVER install the dryer up near curtains.

- The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such way that a full opening of the tumble dryer door is restricted.

- For your safety, the appliance must be correctly installed. If there is any doubt about installation, call Service for advice.

- Once the machine is in place the feet should be adjusted to ensure that the machine is level.

Electrical connections and safety instructions

● The technical details (supply voltage and power input) are indicated on the product rating plate.
● Make sure that the electrical system is earthed, complies with all applicable law and that the (electricity) socket is compatible with the plug of the appliance. Otherwise, seek qualified professional assistance.

WARNING

The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

• Do not use adapters, multiple connectors and/or extensions.
  ● The plug should be accessible for disconnection after the appliance has been installed.
• Do not plug the machine in and switch it on at the mains until the installation is completed.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Ventilation

- Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer.

● Install the rear of the appliance close to a wall or vertical surface.

- There should be a gap of at least 12 mm between the machine and any obstructions. The inlet and outlet air should be kept clear of obstruction.

- Make sure carpets or rugs do not obstruct the base or any of the ventilation openings.

- Prevent items from falling or collecting behind the dryer as these may obstruct the air inlet and outlet.

- Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

- Check regularly that the air flowing around the dryer is not restricted, avoiding accumulation of dust and lint.

- Check frequently the fluff filter after use, and clean, if necessary.

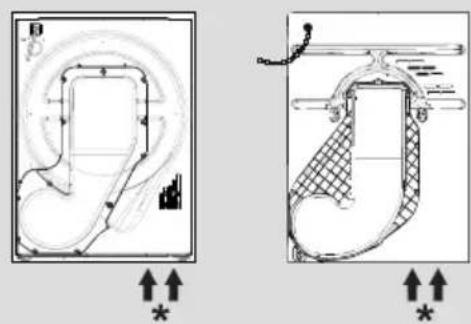

* Air outlet (depending on the model).

The Laundry

●Always refer to the laundry care labels for directions on suitability for drying.

- Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

- Do not dry unwashed items in the tumble dryer.

- Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer.

● Clothes that are dripping wet should not be put into the dryer.

WARNING

Foam rubber materials can, under certain circumstances, when heated become ignited by spontaneous combustion. Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads MUST NOT be dried in the tumble dryer.

WARNING

Do not tumble dry fabrics treated with dry cleaning fluids.

- Glass fibre curtains should NEVER be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres.

- Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

• Remove all objects from pockets such as lighters and matches.
  ● Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine.
  ● Maximum load drying weight: see energy label.
• To consult the product technical specification please refer to the manufacturer website.

WARNING

Fire hazard / Flammable materials.

• The appliance contains R290, an eco-sustainable refrigerating gas that is flammable. Keep open flames and sources of ignition away from the appliance.
• Check there is no visible damage on the appliance. Do not use the appliance if it is damaged.
• Should there be any kind of problem, please contact your specialised retailer or one of our customer support centres.

WARNING

Ensure that the openings on the appliance and the openings of the compartment the appliance is fitted in (for built-in models) are clear of obstructions.

Z

WARNING

Do not damage the refrigerating circuit.

• Any repairs or interventions on the appliance must be carried out only by an authorised assistance service.
• Disposing of the device incorrectly could cause fires or poisoning.
• Dispose of the device correctly and do not damage the pipes used for the circulation of the refrigerating fluid.

2. MOUNTING THE FURNITURE DOOR

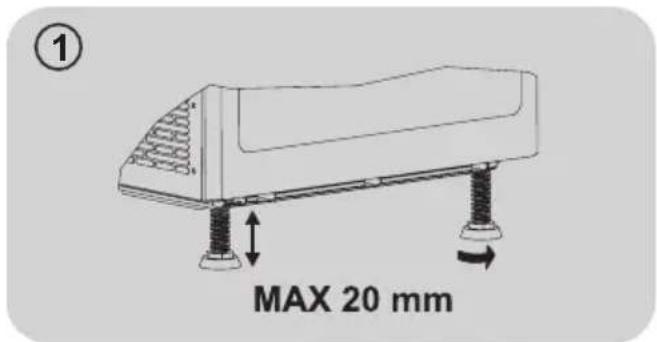

- Regulate the height of the dryer The 4 adjustable feet allow the height of the dryer to be adjusted from 827 mm to a maximum of 847 mm. To adjust the height, you should rotate the adjustable feet, ensuring that the machine is level (figure 1).

Note: we suggest to put the dryer at the maximum height possible in order to avoid tilting, leaving at least 5 mm from the top of the furniture.

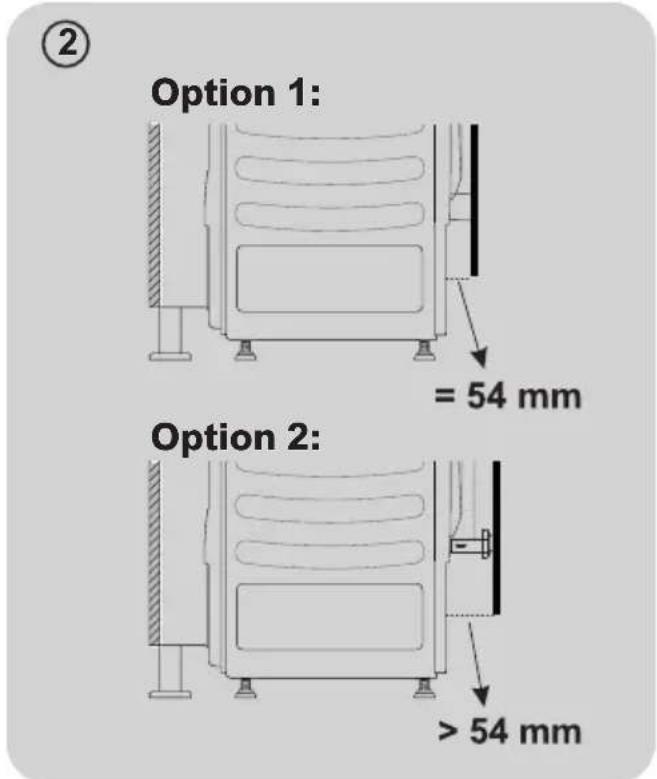

- Before fixing the hinges it's necessary to determine the depth of the dryer from the front part of the kitchen according to the depth of the kick plate (check picture) and chose the right installation option (figure 2).

Option 1

The position of the plinth of the dryer is set back less than 54 mm from the front of the furniture.

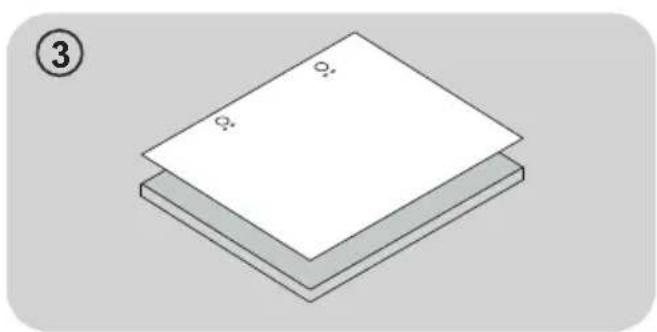

- Position the template onto the reverse of the furniture door. It is possible to mount the hinges and closure magnet on the right or left-hand side depending on your requirements. Mark the screw hole positions, then drill out these positions (figure 3).

Note: that distance does not consider the thickness of the kickplate of the kitchen.

We suggest mounting the furniture door so that it opens towards the left, same direction as the porthole door.

Stacked rectangular sheets with a white square top and two small circular marks on the bottom, labeled with number 3 (no text or symbols on the sheets themselves)

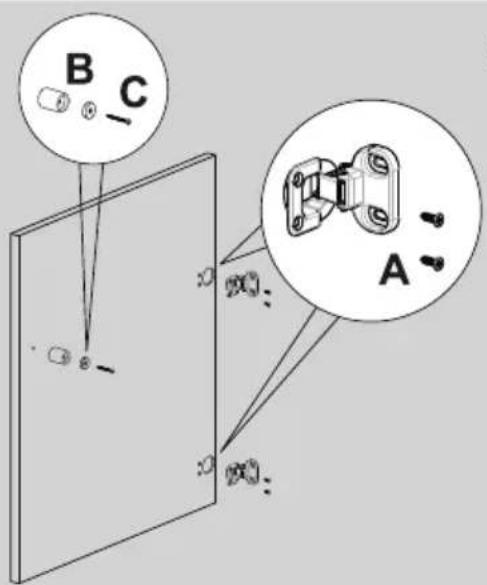

• Fix the hinges in place (on the door) with the 4 screws provided (A) (figure 4).
• Fix the magnet (B) in place using screw (C) (figure 4).
• Mount the plate (D) on the right or left-hand side, depending on your installation requirements (figure 5).
• Place the plastic support (E) under the plate and fix it in position with screw (F) (figure 5).
• Snap mount cap (G) in the lower position (figure 5).

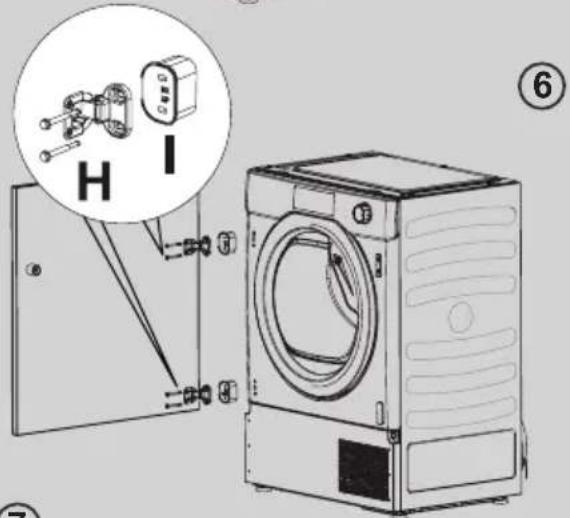

• Mount the furniture door to the front of the dryer using the hinges. Place the spacers under the hinges (I) (figure 6) and then fix in position with screw (H).
• Slide the dryer into an opening of the size indicated in the diagram (figure 7).

4

Option 2

The position of the plinth is set back more than 55 mm from the front of the furniture.

Note: components not supplied -hinges

-supports

-door stop

- Firstly, slide the dryer into an opening of the size indicated in the diagram (figure 7).

Note: As soon as the hinges are fixed on the furniture it is not possible to slide the dryer in and out.

● Fix the door to the furniture with standard hinges and supports (not supplied) and stop the door with a std hook (not supplied) (figure 8).

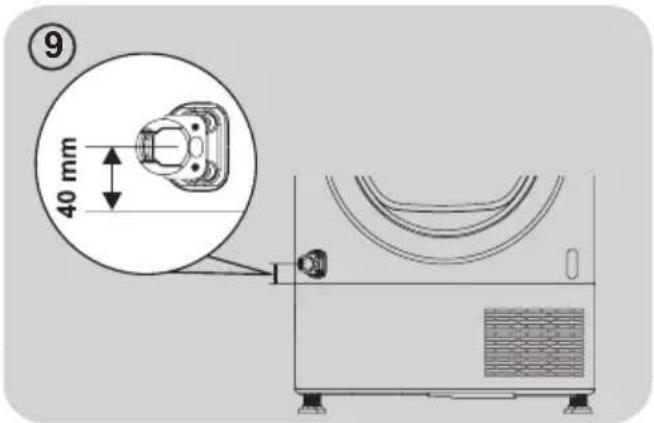

Pay attention to position the bottom hinge 40 mm above the kick plate in order to facilitate its removal (figure 9).

- Now it's possible to fix the hinges to the door of the furniture.

- Use the N° 4 mount caps (G) to cover all the holes on the front panel of the dryer.

GENERAL

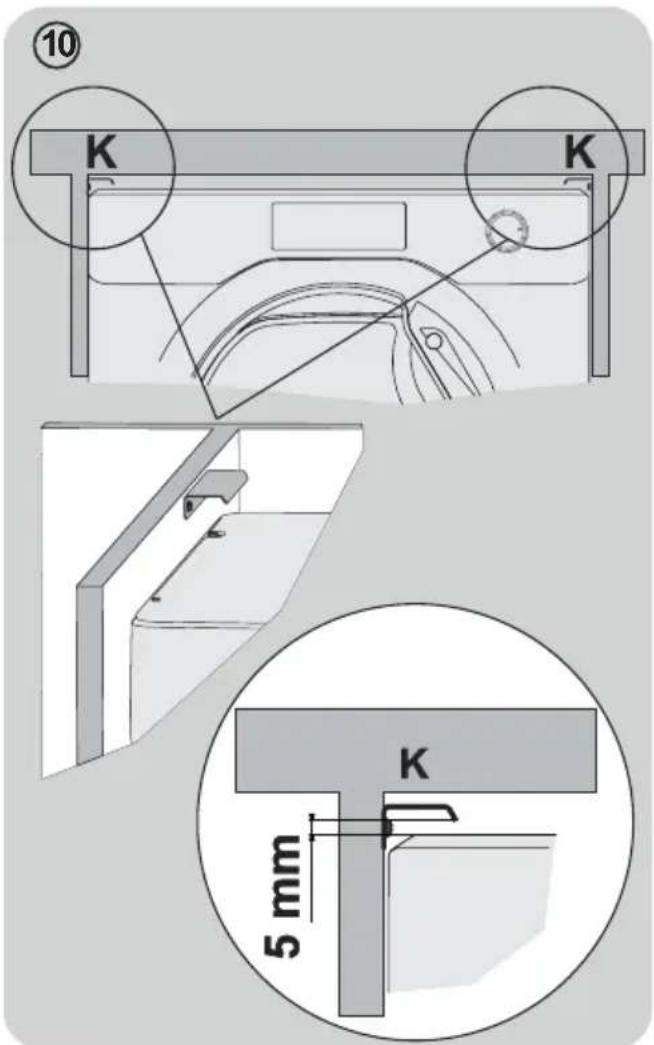

- If the distance between the top of the dryer and the top of the furniture is more than 10 mm, fix the N° 2 L metal brackets (K) to the furniture sides, to avoid possible tilting (figure 10).

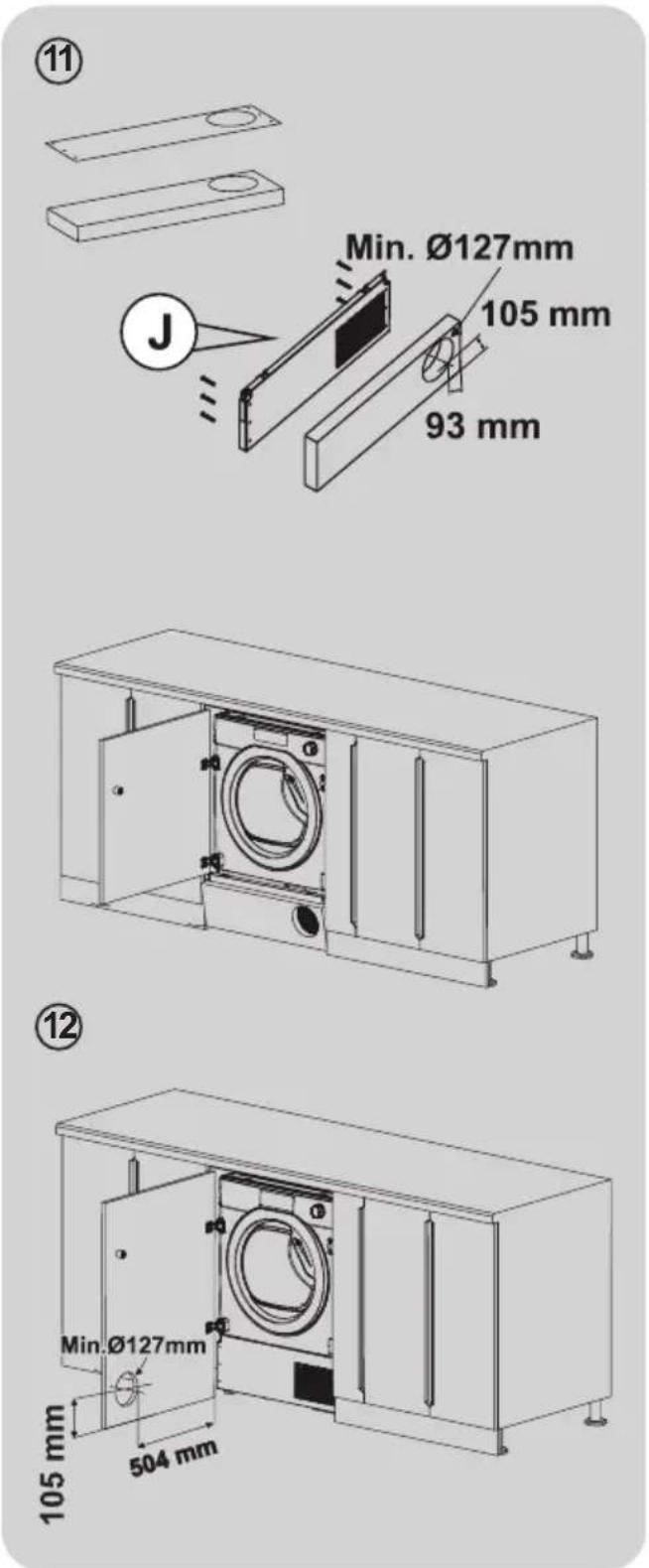

●A furniture plinth may be run across the front of the dryer, but its height will be dictated by the front kickplate.

Plinth must have ventilation slots (min. Side/diameter 127 mm hole) according to the dimensions on fixing template. If the plinth is not high enough to accommodate the whole hole, cut only part of it.

• Place the template onto the reverse of plinth. Mark the screw hole positions, then drill out these positions (figure 11).
• Fix the plinth to the kickplate using 6 screws provided (J). Note: it's possible only some types of kickplate (eg. wood or plastic). We suggest to check with the kitchen supplier.
  ● Fix the kickplate to the dryer.
• In case of using full door, door must have min. ∅ 127 mm hole across the slots of kickplate (figure 12).

WITHOUT the airflow ventilation hole in the furniture door/plinth we cannot guarantee the correct functionality of the appliance.

3. WATER CONTAINER

The water removed from the laundry during the drying cycle is collected in a container. When the container is full the relevant indicator light on the control panel will light, and the container MUST be emptied. However, we recommend that the container is emptied after each drying cycle.

Very little water will collect during the first few cycles of a new machine as an internal reservoir is filled first.

To remove the container tank in door drawer

1. Gently pull out the water container holding the handle (A). When it is full the water container will weigh about 6 kg.

2. Tilt the water container to empty the water out through the spout (B). When empty, replace the water container back as shown; (C) first insert the base of the container into position as shown (1) then gentle push the top into position (2).

3. Press the programme start button to restart the cycle.

Cross-sectional diagram of a mechanical component with an arrow indicating upward motion (no text or symbols)

Simple line drawing of a container pouring liquid into a container with a person nearby (no text or symbols)

4. DOOR AND FILTERS

Door

• Pull on handle to open the door.
  ● To restart the appliance, close the door and press the programme start button.

WARNING

When the tumble dryer is in use the drum and door may be VERY HOT.

WARNING

If you open the door mid cycle, before the cool-down cycle has completed, the handle may be hot. Please use extreme caution when attempting to empty the water reservoir during the cycle.

Filters

Clogged filters could increase the drying time and cause damages and expensive cleaning operation.

To maintain the efficiency of the dryer check that all filters are clean before each drying cycle.

WARNING

Do not use the tumble dryer without the filters.

Filter cleaning indicator light

It lights up when the cleaning of the filters is requested (the door and the lower filter).

Check and eventually clean the main filter and the lower one on the bottom of the appliance.

If the laundry is not drying check that the filters are not clogged.

Z

If you clean filters under water, remember to dry them.

WARNING

Clean the filters before every cycle.

To clean the lint filter

1. Pull the filter upwards.
2. Open filter as shown.
3. Gently remove lint using a soft brush or your fingertips.
4. Snap the filter together and push back into place.

Illustration of a hand holding a rectangular object inside a curved container (no text or symbols)

Illustration of hands folding a folded paper or book (no text or symbols visible)

To clean the condenser filter

1. Remove the kickplate.
2. Turn the locking levers anti-clockwise and pull out the front cover.
3. Gently remove the filter frame and clean any dust or fluff with a cloth from the filter. Do not use water to clean the filter.
4. Remove the sponge gently from its place and then wash the sponge by holding it under a running tap turning it so to remove any dust or fluff.
5. Refit the front cover ensuring it is in the correct way (as indicated by the arrow) and pushed firmly into place. Lock the levers by turning them clockwise.
6. Refit the kickplate.

Illustration of hands installing a fan blade with a circular vent, showing motion direction (no text or symbols)

Simple diagram showing a rectangular container with four small fish-like shapes inside, labeled with number ② (no text or symbols on the shapes themselves)

Illustration of hands holding a metallic object with a numbered label (3) in the corner, no text or symbols present.

Illustration of hands holding a blade and cutting a rectangular object, no text or symbols present

Illustration of hands operating a refrigerated air conditioner unit with a circular vent (no text or symbols)

5. PRACTICAL HINTS

Before using the tumble dryer for the first time:

• Please read this instruction book thoroughly.
• Remove all items packed inside drum.
• Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit.

Clothes preparation

Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item. Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled.

Do not tumble dry

Silk, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings.

WARNING

Do not dry articles which have been treated with a dry cleaning fluid or rubber clothes (danger of fire or explosion).

During the last 15 minutes the load is always tumbled in cool air.

Energy saving

Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity.

ALWAYS

- Check that the filter is clean before every drying cycle.

NEVER

● Put dripping wet items into the tumble dryer, this may damage the appliance.

Sort the load as follows

- By care symbols

These can be found on the collar or inside seam:

Suitable for tumble drying.
Tumble drying at high temperature.
Tumble drying at low temperature only.
Do not tumble dry.

If the item does not have a care label it must be assumed that it is not suitable for tumble drying.

● By amount and thickness

Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).

● By type of fabric

Cottons/linen: Towels, cotton jersey, bed and table linen.

Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.

WARNING

Do not overload the drum, large items when wet exceed the maximum admissible clothes load (for example sleeping bags, duvets).

Cleaning the dryer

• Clean the filter and empty the water container after every drying cycle.
  ● Regularly clean the condenser.
  ● After each period of use, wipe the inside of the drum and leave the door open for a while to allow circulation of air to dry it.
  ● Wipe the outside of the machine and the door with a soft cloth.
• DO NOT use abrasive pads or cleaning agents.
• To prevent the door sticking or the buildup of fluff clean the inner door and gasket with a damp cloth after every drying cycle.

WARNING

The drum, door and load may be ve hot.

WARNING

Always switch off and remove the plug from the electricity supply before cleaning this appliance.

WARNING

For electrical data refer to the rating label on the front of the dryer cabinet (with the door open).

6. QUICK USER GUIDE

1. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.
2. Gently close the door pushing it slowly until you hear the door 'click' shut.
3. Turn the Programme Selector dial to select the required drying programme (see the table of programmes).
4. Press the programme start button. The dryer will start automatically.
5. If the door is opened during the programme to check the laundry, it is necessary to press programme start to recommence drying after the door has been closed.
6. When the cycle is nearing completion the machine will enter the cool down phase, the clothes will be tumbled in cool air allowing the load to cool down.
7. Following the completion of the cycle the drum will rotate intermittently to minimize creasing. This will continue until the machine is switched Off or the door is opened.

Do not open the door during the automatic programmes in order to obtain a proper drying.

Technical data

Power input / Power current fuse amp/

Supply voltage: see rating plate.

Maximum load: see energy label.

Energy class: see energy label.

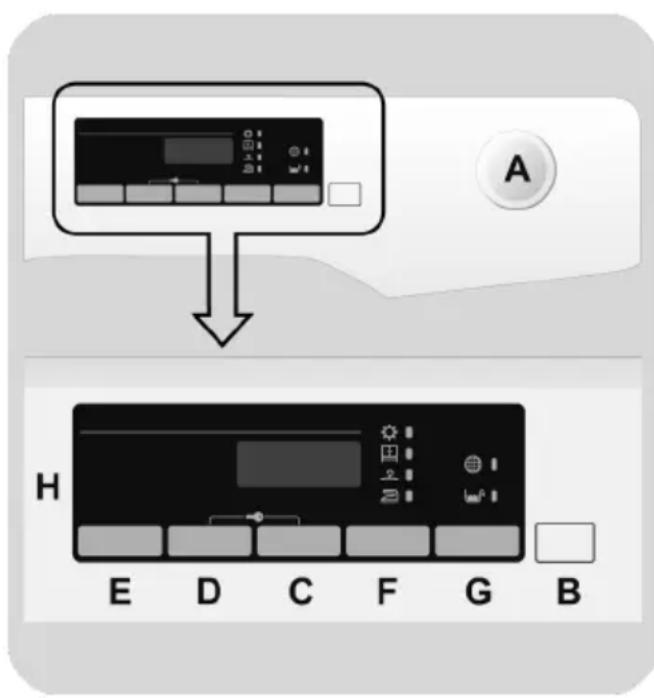

7. CONTROLS AND PROGRAMMES

A PROGRAMME SELECTOR with Off position

Don't touch the buttons while inserting the plug because the machines calibrates the systems during the first seconds: touching the buttons, the machine couldn't work property. In this case, remove the plug and repeat the operation.

PROGRAMME SELECTOR with Off position

• Rotating the programme selector in both directions it's possible to select the desired drying programme.
• To cancel the selections or switch off the appliance rotate the programme selector on Off (remember to unplug the appliance).

First starting

- Language setting

• After connecting the machine to the network and turning it on, press the button "F" or "G" to see on the display the available languages. ENGLISH is always the first language shown.
• Select the desired language pressing the START/PAUSE button.

- Change the language

If you want to change the setting language you will have to press simultaneously "F" and "G" buttons for about 5 seconds. ENGLISH will appear on the display, and you will be able to choose a new language.

START/PAUSE button

Close the porthole BEFORE pressing the START/PAUSE button.

• To start the selected cycle with the preset parameters, press START/PAUSE. When the programme is running, the display will show the time to elapse.
• Moreover, if you want to modify the chosen programme, press the desired options buttons, modify the default parameters and then press START/PAUSE button to start the cycle.

Only the options compatible with the set programme can be selected.

● After switching on the appliance, wait a few seconds for the programme to start running.

PROGRAMME DURATION

• When a programme is selected the display automatically shows the cycle duration, which can vary, depending on the options selected.
• Once the programme has started you will be kept informed constantly of the time remaining to the end of the drying cycle.
  ● The appliance calculates the time to the end of the selected programme based upon a standard loading, during the cycle, the appliance corrects the time to the humidity level of the load.

PROGRAMME END

● "END" ("End" on some models) will appear in the display at the end of the programme, it is now possible to open the door.
- At the end of the cycle, turn off the appliance by turning the programme selector to the Off position.

The programme selector must ALWAYS be put in the Off position at the end of the drying cycle before a new one can be selected.

PAUSING THE MACHINE

• Keep the START/PAUSE button pressed for about 2 seconds (the name of the programme and the residual time display will flash, showing that the machine is paused).
• Press the START/PAUSE button again to re-start the programme from the point it had been paused at.

CANCELLING THE SET PROGRAMME

- To cancel the programme, turn the programme selector to the Off position.

If there is a break in the power supply whilst the machine is operating, when the power is restored, by pressing the START/PAUSE button, the machine will restart from the beginning of the phase it was in when the power was lost.

DELAY button

• This button allows to delay the start of the programme from 30 minutes (1 hour on some models) to 24 hours in 30 minutes intervals (1 hour on some models). The delay selected is shown on the display.
  ● After pressing the START/PAUSE button the time showed decrease minute after minute.

Opening of the porthole with delayed start set, after re-closing the porthole, press start again to resume the counting.

TIME SELECTION button

- It's possible transform a cycle from automatic to programmed, up to 3 minutes after the start of the cycle.

● The progressive pressure increases the time in 10 minute intervals. After this selection to reset the automatic drying functioning is necessary to switch off the dryer.
- In case of incompatibility, all indicator lights flash quickly for 3 times.
- If the programme selector is positioned on the rapid programmes, the progressive pressure of the key allows you to choose the cycle time between: 30-45-59 minutes.

MEMORY button

This button allows you to store the options set on a cycle.

MEMORY:

select the programme and the desired options, then press the button MEMORY for 3 seconds (before starting the cycle). The writing MEMO (all the digit on some models) will blink for 2 seconds and the options connected to the cycle selected will be set.

RECALL:

after the selection of the cycle press the button MEMORY for recall the stored options (not the cycle).

The delay start function can't be memorized.

DRYING SELECTION button

- This button allows to set the desired dryness level editable option up to 3 minutes after the starting of the cycle:

Ready to Iron: it leaves the garments slightly wet to facilitate ironing.

Dry Hanger: to get garment ready to be hang.

Dry wardrobe: for laundry that can be directly stored.

Extra-dry: to get completely dry garments, ideal for full load.

● This appliances is equipped with Drying Manager function. On automatic cycles, each level of intermediate drying, prior to the reaching the selected one, is indicated by flashing the light indicator corresponding to the degree of drying reached.

In case of incompatibility, all indicator lights flash quickly for 3 times.

ANTI CREASE button

• During the cycle the option sets alternate movements of the drum to reduce the folds and automatically sets the drying level to "Ready to Iron". Moreover this option activate an anti-creases movement of the drum pre cycle in case of activation of the delay and at the end of drying cycle. It is activated every 10 minutes, up to 6 hours after the end of the drying cycle.
• To stop the movements set the programme selector to Off. Useful when it's not possible to remove immediately the laundry.

CHILD LOCK

• Pressing simultaneously the buttons "C" and "D" for about 2 seconds, the machine allows you to lock the keys. In this way, you can avoid making accidental or unwanted changes if a button on the display is pressed accidentally during a cycle.
• The key lock can be simply cancelled by pressing the two buttons simultaneously again.
• In case of opening of porthole with activated CHILD LOCK, the cycle stops but the lock is kept: to restart the cycle, you must remove the lock and press START/PAUSE again.

- CHILD LOCK can be modified at any time of the cycle.

Display

The display shows the remaining time for drying, the postponed time in case of delayed start selection and other notifications setting.

1) DRYING SELECTION INDICATOR LIGHTS

The indicator lights display the degrees of dryness that can be selected by the relevant button.

2) WATER CONTAINER INDICATOR LIGHT

It lights up when it's necessary to empty the condensate water tank.

3) FILTER CLEANING INDICATOR LIGHT

It lights up when the cleaning of the filters is requested (the door and the lower filter).

Drying Guide

The standard cycle COTTON DRY ( ) is the most energy efficient and best suited for drying normal wet cotton laundry.

The table in last page shows the approximate time and energy consumption of the main drying programmes.

Maximum Drying Weight
Cottons	Max. capacity declared
Synthetics or Delicates	Max. 3 kg

Power consumption of off-mode: 0,40 W Power consumption of left-on mode: 0,75 W

Information for Test Laboratory

EN 61121 - Programme To Use

- STANDARD DRY COTTON

- IRON DRY COTTON

(WHITES - Ready to Iron)

- EASY-CARE TEXTILE

(SYNTHETICS - Dry Hanger)

WARNING

Clean the filters before every cycle.

WARNING

The real duration of drying cycle depends by the starting humidity level of the laundry due to spin speed, type and amount of load, cleanliness of filters and ambient temperature.

Table of programmes

PROGRAMMES	Selectable Options					CAPACITY(kg)	DRYINGTIME (min)
	delay	time selection	memory	drying selection	anti crease
Cotton	√	-	√	-	-	Full *
Whites	√	√	√	√	√	Full *
Synthetics	√	√	√	√	√	3 *
Small Load	√	-	√	--		2 *
Mix & Dry	√	√	√	√	√	3 *
Jeans	√	-	√	-	-	3 *
Sport	√	-	√	√	-	3 *
Waterproof Revitalize	√	-	√	-	-	2 *
Coloured	√	-	√	√	√	3 *
Shirts	√	-	√	√	√	2 *
Rapid 30'/45'/59	√	√	√	--		2 *
Wool	√	-	√	-	-	1	70'
Antiallergy	√	√	√	--		3	Max 220'
Pre Iron	√	-	√	--		2	12'
Refresh	√	-	√	-	-	2	20'

* The real duration of drying cycle depends by the starting humidity level of the laundry due to spin speed, type and amount of load, cleanliness of filters and ambient temperature.

Please pay attention that overloading or bulky load can lead to door opening, in this case please reduce the load capacity to continue the drying cycle.

Description of programmes

To dry different types of fabrics and colors, the tumble dryer has specific programs to meet every need of drying (see table of programmes).

Cotton

The cotton program (hang dry) is the most efficient program in energy consumption. Suitable for cottons and linens.

Whites

The right cycle to dry cottons, sponges and towels.

Synthetics

To dry synthetic fabrics that need an accurate and specific treatment.

Small Load

Dedicated to get an even drying for extremely small loads without the overdry risking.

Mix & Dry

To dry all together different kind of fabrics as cotton, linen, mix, synthetics.

Jeans

Dedicated to dry uniformly fabrics like jeans or denim. It's recommended flip over the garments before drying.

Sport

Dedicated to technical garments for sport and fitness, drying gently with special care to avoid shrinking and deterioration of elastic fibers.

Waterproof Revitalize

A special service to revitalize the waterproofing treatment of the linens.

Coloured

A delicate and specific cycle to dry dark and coloured cotton or synthetics garments.

Shirts

This specifics cycle has been conceived to dry shirts minimizing tangles and folds thanks specific movements of the drum. It's recommended to take out the linens immediately after drying cycle.

Rapid 30'/45'/59'

Quick cycles allow you to have items ready in a short time, you can choose to dry them in 30,45,59 minutes.

Wool

Woolen clothes: the program can be used to dry up to 1 kg of laundry (around 3 jumpers). It is recommended to reverse all clothes before drying. Timing can change due to dimensions and thickness of load and to spinning chosen during washing. At the end of the cycle, clothes are ready to be worn, but if they are heavier, edges can be a big wet: it is suggested to dry them naturally. It is recommended to unload clothes at the very end of the cycle.

Attention: felting process of wool is irreversible; please dry exclusively with symbol "ok tumble" on the garment label. This programme is not indicated for acrylic clothes.

APPAREL CARE

The wool drying cycle of this machine has been approved by the Woolmark Company for the drying of machine washable wool products provided that the products are washed and dried according to the instructions on the garment label and those issues by the manufacturer of this machine M1530.

In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certification trade mark.

Antiallergy

One specifics cycle that dry and in the same time helps to reduce the main allergens as dust mites, pet hair, pollens and residual of powder detergents.

Pre Iron

This is a warm cycle that in only 12 minutes helps to relax folds and creases.

Refresh

The perfect cycle to remove the smells from the linens smoothing creases.

8. TROUBLESHOOTING AND WARRANTY

What might be the cause of...

Defects you can remedy yourself

Before calling Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly. If the problem persists after completing the recommended checks, please call Service, they may be able to assist you over the telephone.

Time display to end could change during drying cycle. The time to end is continuously checked during the drying cycle and the time is adjusted to give the best estimation time. The displayed time may increase or decrease during the cycle and this is normal.

Drying time is too long/clothes are not dry enough...

● Have you selected the correct drying time/programme?
- Were the clothes too wet? Were the clothes thoroughly wrung or spindried?
- Does the filter need cleaning?
● Is the dryer overloaded?

The dryer does not operate...

- Is there a working electricity supply to the dryer? Check using another appliance such as a table lamp.

- Is the plug properly connected to the mains supply?

- Is there a power failure?

● Has the fuse blown?

● Is the door fully closed?

- Is the dryer switched on, both at the mains supply and at the machine?

● Has the drying time or the programme been selected?
● Has the machine been switched on again after opening the door?

The dryer is noisy...

- Switch off the dryer and contact Service for advice.

The filter cleaning indicator light is on...

- Does the filter need cleaning?

The water container indicator light is on...

- Does the water container need emptying?

Customer Service

Should there still be a problem with your dryer after completing all the recommended checks, please call Service for advice. They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:

• Is found to be in working order.
• Has not been installed in accordance with the installation instructions.
  ● Has been used incorrectly.

Spares

Always use genuine spares, available direct from Service.

Service

To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an Authorised Service engineer.

Warranty

The product is guaranteed under the terms and conditions stated on the certificate included with the product. The certificate has to be stored so as to be shown to the Authorized Customer Service Centre in case of need. You can also check the warranty conditions on our web site. To obtain assistance, please fill in the form on-line or contains at the number indicated on the support page of our web site.

By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug.

To prevent children shutting themselves in the machine break the door hinges or the door lock.

The manufacturer declines all responsibility for any printing errors in the booklet included with this product. Moreover, it also reserves the right to make any changes deemed useful to its products without changing their essential characteristics.

	Capacity (kg)		7
	Class		A+
	Energy kWh		2,83
	Time Min.		302
	Energy kWh		2,62
	Time	Min.	278
	Energy kWh		2,25
	Time	Min.	244
	Energy kWh		1,20
	Time	Min.	140
	Energy kWh		1,76
	Time	Min.	194
