Product Type	Fusion Splicer
Brand	JILONG
Model	KL-360T
Dimensions (H x W x D)	138 x 160 x 150 mm (including rubber bumper)
Weight (with battery)	1.9 kg
Weight (without battery)	1.6 kg
Display	5.0" color high resolution (800 x 480)
Power Supply	AC 100-240V, DC 9-14V
Battery Capacity	5200 mAh (300 splice & heat cycles)
Splicing Time (Quick mode)	6 seconds
Heating Time (Quick mode)	16 seconds
Applicable Fibers	SM (G.652 & G.657), MM (G.651), DS (G.653), NZDS (G.655)
Typical Splice Loss (SM)	0.02 dB
Fiber Magnification	320X (X, Y, XY, X/Y)
Electrode Life	5000 arcs (replaceable without tools)
Splice Modes	Max 128 modes
Heat Programs	Max 32 modes
Fiber Holder	Replaceable (Universal FH-60, optional SOC holder)
Fiber Cleave Length	8–16 mm
Tension Test	1.96–2.25 N
Results Storage	Last 10,000 records and 2,000 images
Operating Temperature	-20°C to 50°C
Storage Temperature	-20°C to 60°C
Interface	USB 2.0
Included Accessories	Fusion splicer, fiber cleaver, carry bag, cleaning wipes, splicing sleeves, alcohol bottle, fiber strippers, drop cable stripper, power charger, cooling tray

Frequently Asked Questions - KL-360T JILONG

What is the splicing time of the KL-360T?

The quick mode splicing time is 6 seconds, and average mode is 16 seconds.

What type of fibers can this splicer handle?

It handles SM (G.652 & G.657), MM (G.651), DS (G.653), NZDS (G.655), and BIF single core fibers.

How many splice and heat cycles can I get on a full battery?

Approximately 300 cycles (splice and heat) per full charge with the 5200mAh battery.

Is the electrode replaceable?

Yes, the electrodes can be replaced by screwing gently without any tools. Electrode life is about 5000 arcs.

What is the typical splice loss?

Typical splice loss for SM fibers is 0.02dB, for MM 0.01dB, and for DS/NZDS 0.04dB.

How do I clean the fusion splicer?

Use the provided cleaning wipes and alcohol bottle to clean the V-groove, fiber holders, and lenses. Avoid using harsh chemicals.

Does the device automatically calibrate?

Yes, it features automatic arc calibration based on air pressure and temperature.

What are the dimensions and weight of the KL-360T?

Dimensions are 138mm (H) x 160mm (W) x 150mm (D) including rubber bumper. Weight is 1.6kg without battery, 1.9kg with battery.

How many splice records can be stored?

The device stores the last 10,000 splice records and 2,000 result images.

What accessories are included in the package?

The package includes: fusion splicer, fiber cleaver (KL-23F), carry bag with suspenders, cleaning wipes, splicing protector sleeves, alcohol bottle, 3-hole fiber stripper, drop cable stripper, power charger, and cooling tray.

USER MANUAL KL-360T JILONG

6s splicing

16s heating

0.01dB average loss

Real-time discharge processing

Fiber identification

Fiber core visible

Features Description

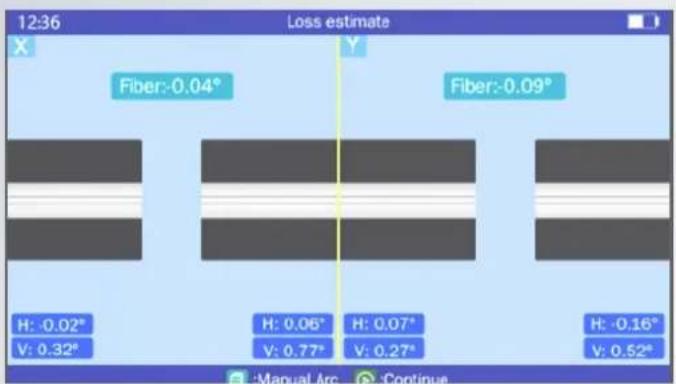

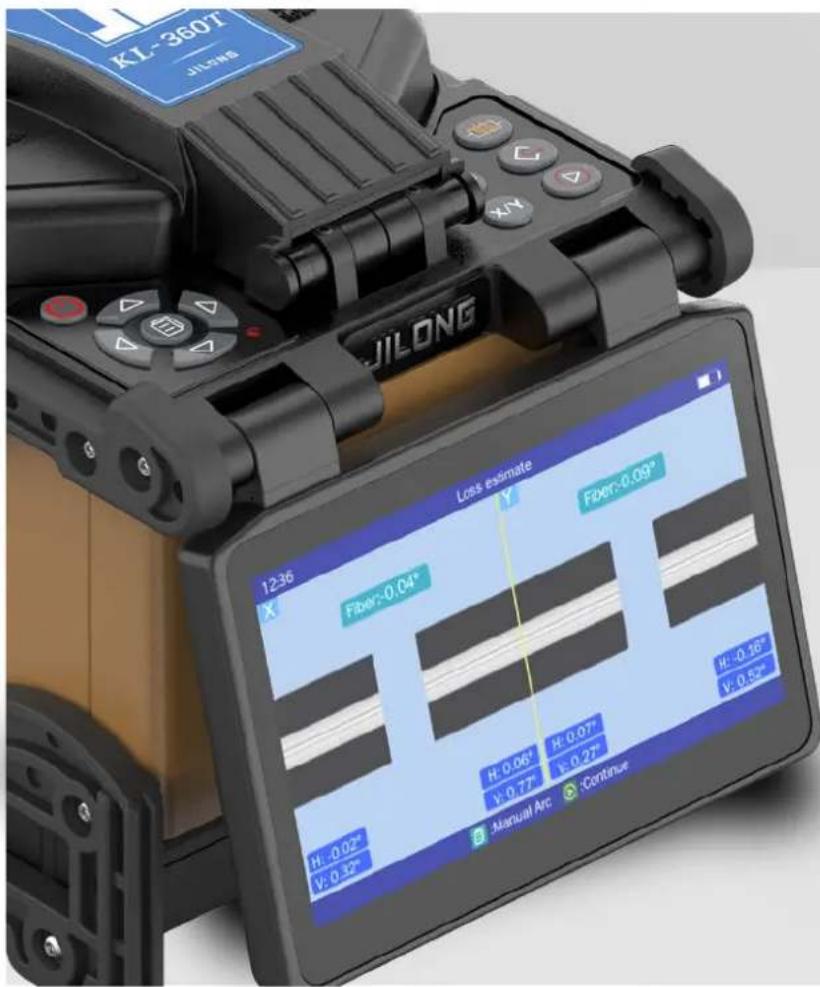

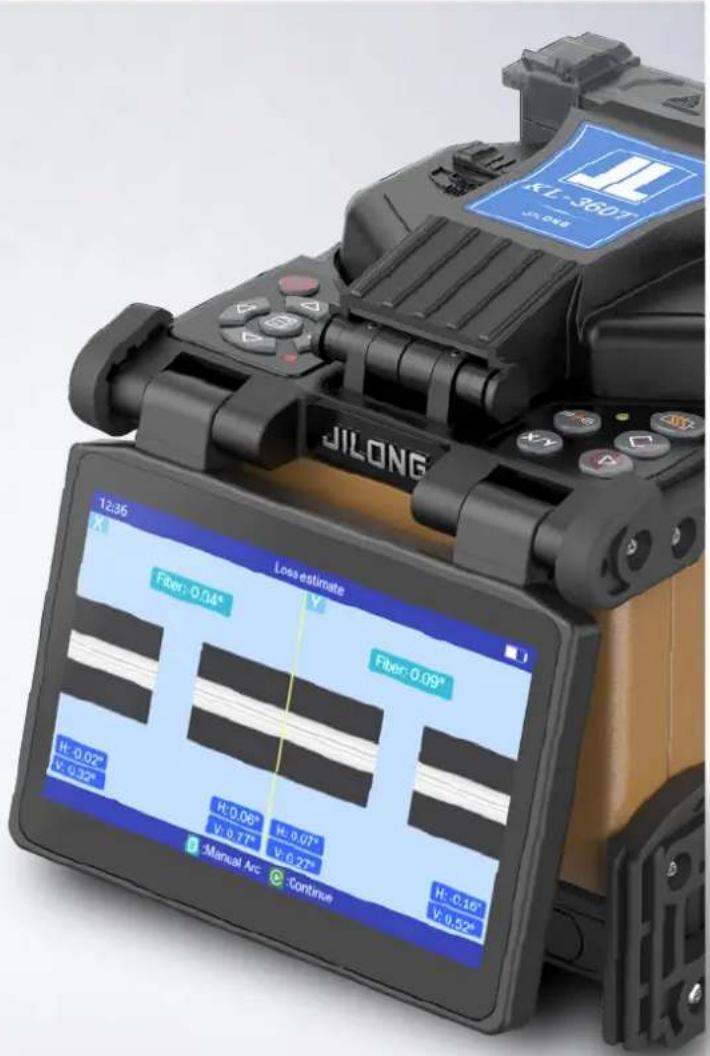

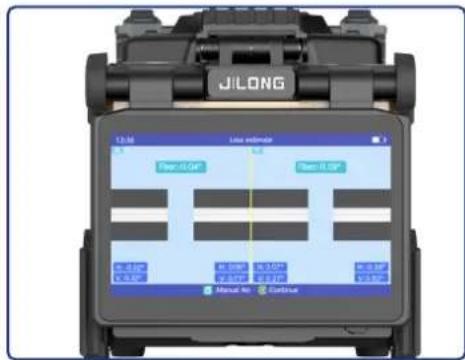

5" 800x480 HD screen

Fast-splicing 6s, fast-heating 16s

X, Y, XY, X/Y : 320X Magnification

Electrodes life: 5000 times

Suitable for SM/MM/DS/NZDS/BIF single core fiber 3-in-1 fiber holder

Average splicing loss: 0.01dB

The last 10,000 splice records and 2,000 result images

Compact, light weight & faster

5200mAh battery capacity, 300 times splice & heat cycles

Main Features

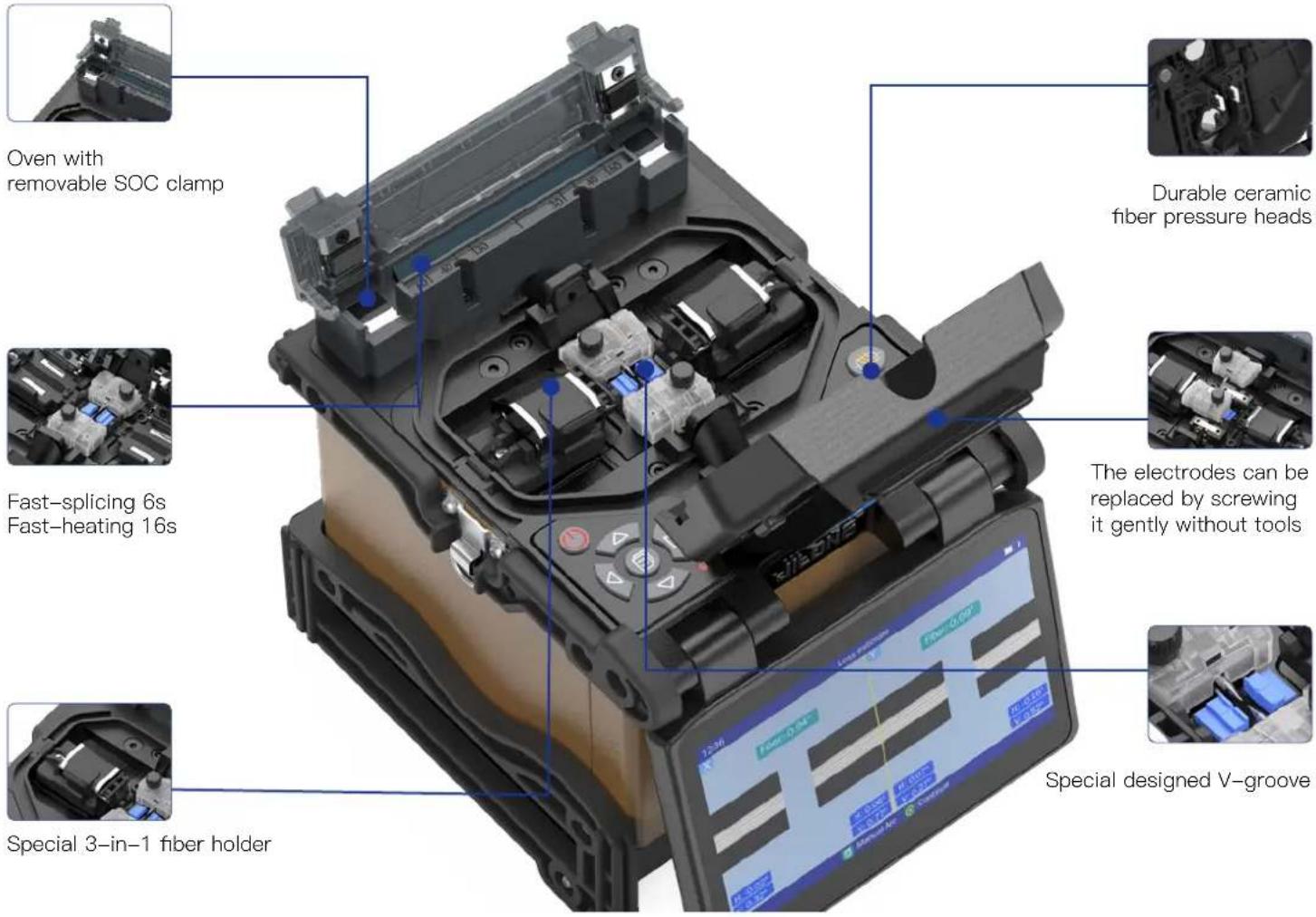

3-IN-1 Fiber Holder

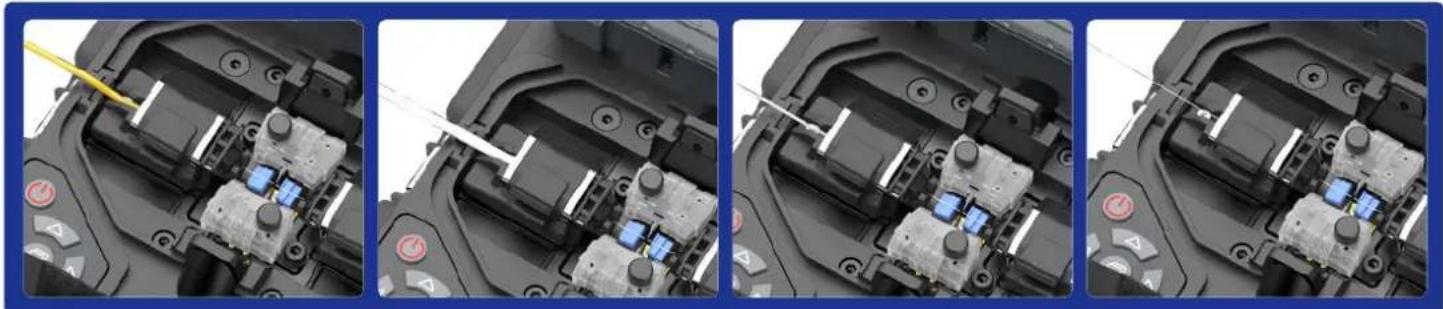

Fiber holder suitable for bare fiber/3.0mm jump fiber/pigtail fiber/FTTH fiber

Four-panel sequence showing mechanical assembly steps with no visible text or symbols

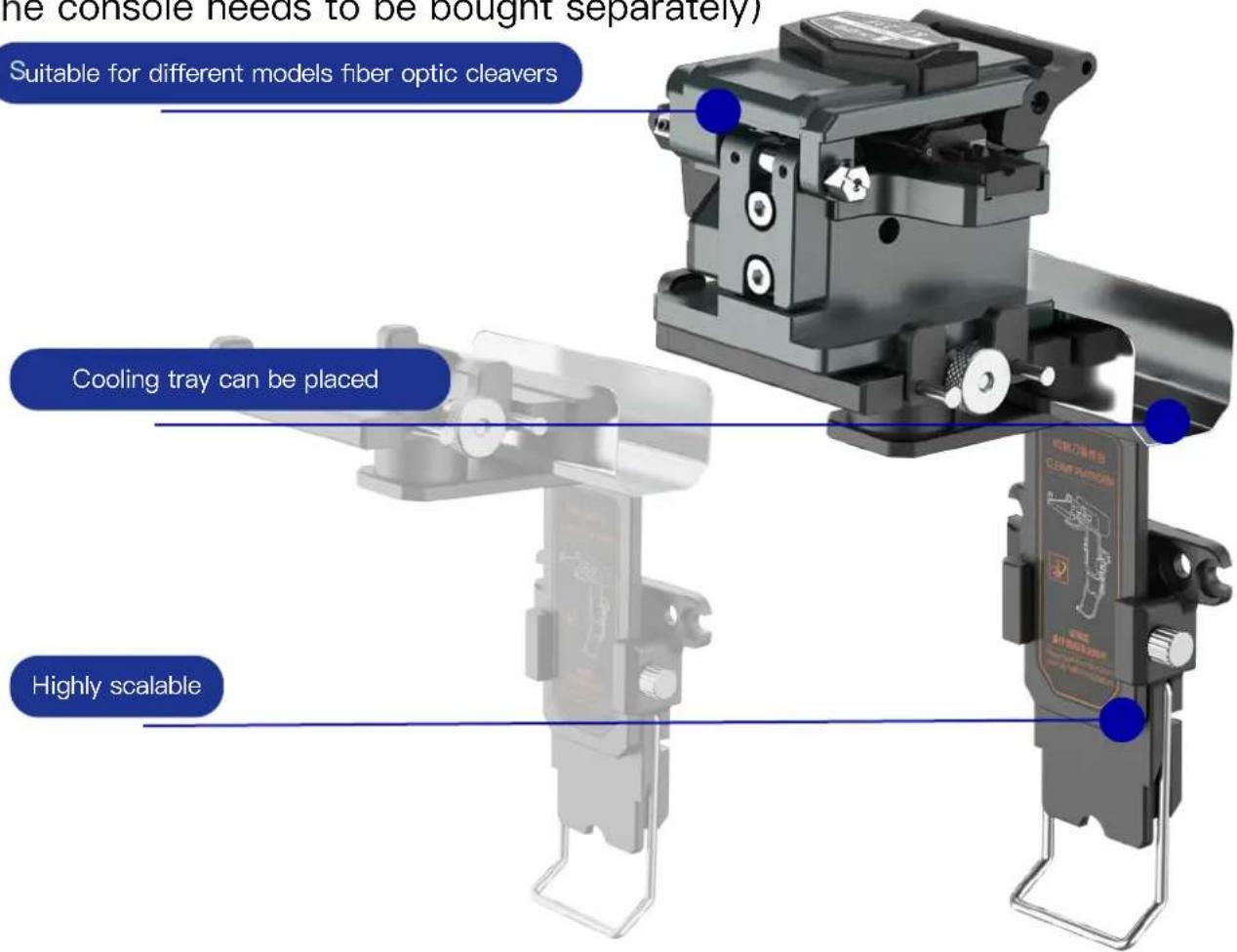

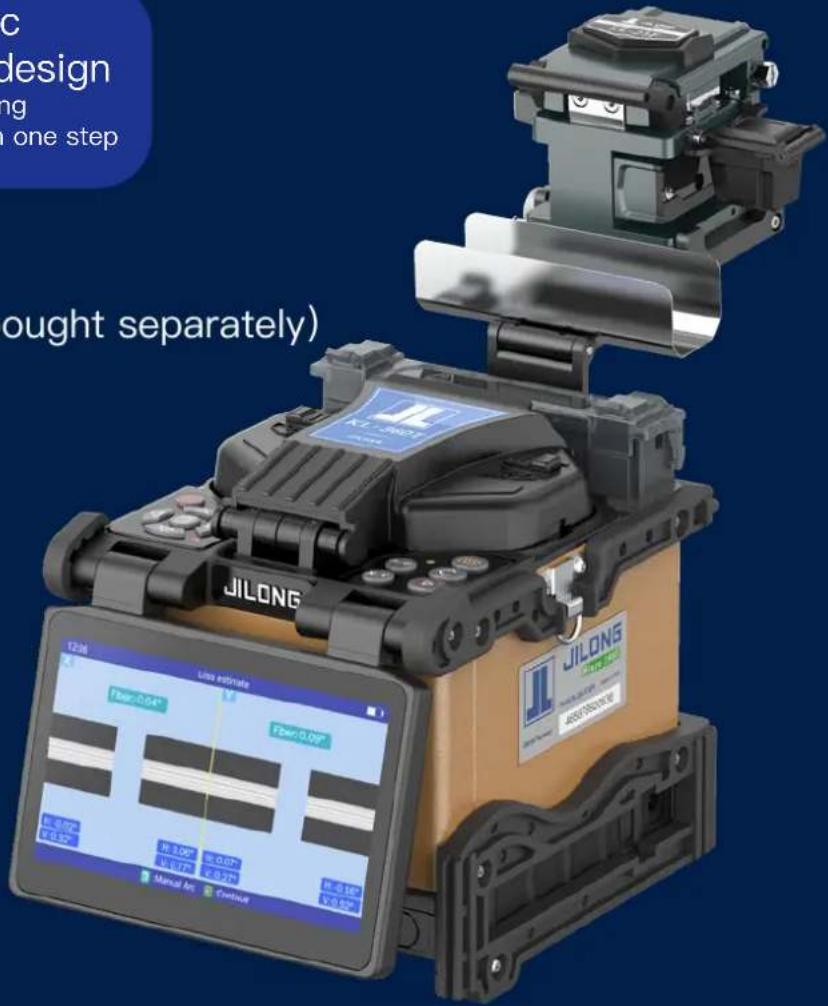

High Expansibility fiber optic cleaver operating platform design Support the placement of cleaver operating platform, do cleaving and splicing work in one step

(The console needs to be bought separately)

Installation instructions of fiber optic operating platform

Use the screw to fix the base

Insert into the base and tighten

Technical line drawing of a mechanical assembly with no visible text or symbols

Place the cooling tray

Technical line drawing of a mechanical assembly with no visible text or symbols

Fix the cleaver with the screw

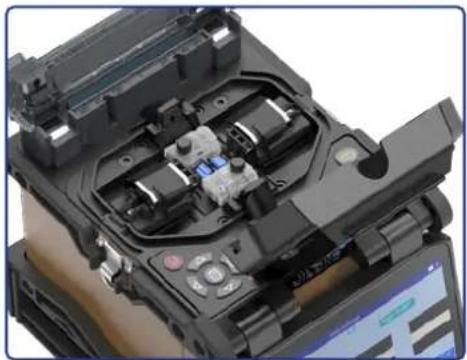

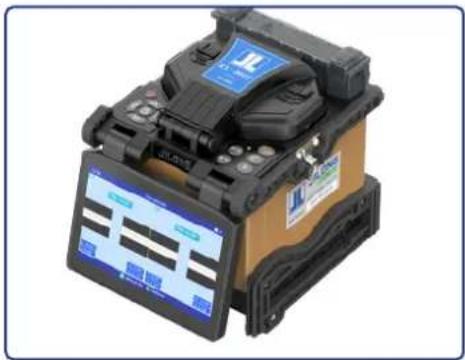

Introduction of fiber optic cleaver operating platform

(The console needs to be bought separately)

Suitable for different models fiber optic cleavers

Cooling tray can be placed

Highly scalable

Fast-splicing 6s

Fast-heating 16s

300
splice & heat cycles

6 motors

5200mAh
battery capacity

Splice Method	Core Alignment
Applicable Fibers	SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber/Cable	0.25~3.0 mm / indoor cable
Fiber Holder	Replaceable (Universal: FH-60, SOC Holder: FH-SOC(optional))
Fiber Diameter	Cladding: 80~150μm, Coating: 100~1000μm
Fiber Cleave Length	8~16 mm
Splice mode	Max 128 modes
Typical Splice Loss	SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB ★1
Return Loss	>>60dB
Splicing Time	SM Quick mode : 6 sec / SM Average: 16 Sec.
Estimated Splice Loss	Available
Heating Time	Quick mode 16 sec.(SM G652 250μm 40mm Sleeve) adjustable
Protection Sleeve Length	20mm, 30mm, 40mm, 50mm, 60mm
Heat Programs	Max 32 modes
Battery	5200mAh Battery Capacity, Typical 300 Cycles (Splice&Heat) per Charge ★2
Electrode Life	5000 arcs, can be extended by using an electrode grinder ★3
Auto-start	Splice / Heating
Automatic Fiber Identification	SMF / MMF / other
Automatic ARC Identification	Automatic arc calibration by air pressure and temperature
Results Storage	The last 10,000 splice records and 2,000 result images
Tension Test	1.96~2.25N
Operating Condition	Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max Wind 15m/s
Storage Condition	0~95% relative humidity, -20~60°C
Display	5.0" color high resolution (800 x 480) display
Fiber Magnification	X, Y, XY, X/Y : 320X Magnification
Power Supply	AC Input 100-240V, DC Input 9-14V
Terminal	USB2.0
Weight	1.6kg without battery / 1.9kg with battery
Size	138H x 160W x 150D mm (including rubber bumper)

★① With identical fibres(in room temperature). Measured by cut-back method relevant to ITU-T and IEC standards.
★② Splice & Heat cycles may vary depending on the battery status and the operating environment.
★③ Electrode life may vary depending on the operating environment.

Close-up of an optical fiber optic transducer with internal components and a digital display (no visible text or symbols)

Close-up of a black fiber optic transceiver device with digital display and control panel (no visible text or symbols)

Packing List

① KL-23FFiber optic cleaver
② Carry bag (Including Suspenders & belts)
③ FOCW Cleaning wipes(box)
④ Splicing protector sleeves (piece)
⑤ Alcohol bottle
⑥ 3-hole fiber stripper
⑦ Drop cable stripper
⑧ Fusion splicer
⑨ Power charger
⑩ Cooling Tray

⑨

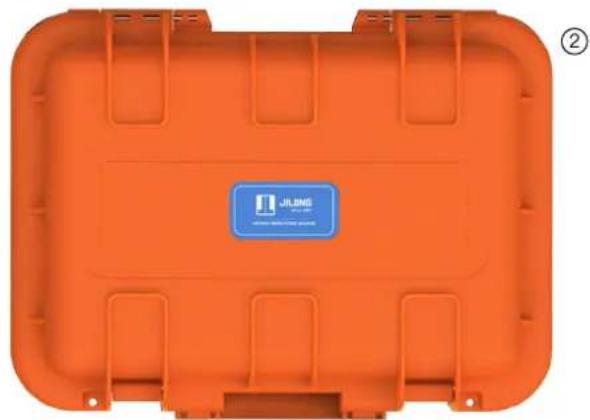

Orange plastic container with blue logo and label (no readable text or symbols beyond branding)

Front view of a black electronic device with control panel and display (no visible text or symbols)

①

Two types of metal pliers shown side by side: one with black handles and one with yellow handles (no text or symbols visible)

⑥
