Product Type	Fusion Splicer
Brand	JILONG
Model	KL-530
Dimensions (H x W x D)	139 x 163 x 140 mm (including rubber bumper)
Weight (with battery)	1.9 kg
Weight (without battery)	1.6 kg
Display	4.3" TFT color LCD, 800 x 480 resolution
Battery Capacity	5200 mAh
Splice & Heat Cycles per Charge	300 cycles (typical)
Splicing Time (Quick mode)	8 sec
Heating Time (Quick mode)	18 sec (SM G652 250μm 40mm sleeve)
Electrode Life	5000 arcs (extendable with electrode grinder)
Typical Splice Loss (SM)	0.02 dB
Return Loss	>60 dB
Applicable Fibers	SM, MM, DS, NZDS
Fiber Cladding Diameter	80–150 μm
Fiber Coating Diameter	100–1000 μm
Fiber Cleave Length	8–16 mm
Splice Modes	Max 128 modes
Heat Programs	Max 32 modes
Protection Sleeve Length	20, 30, 40, 50, 60 mm
Results Storage	10,000 splice records + 2,000 result images
Fiber Magnification	320X (X, Y, XY, X/Y views)
Power Supply	AC 100-240V, DC 9-14V
Operating Temperature	-20 to 50°C
Storage Temperature	-20 to 60°C
Accessories Included	Fiber cleaver, carry bag, cleaning wipes, sleeves, alcohol bottle, strippers, cooling tray, charger

Frequently Asked Questions - KL-530 JILONG

What is the splicing time of the JILONG KL-530?

The KL-530 achieves a fast splicing time of 8 seconds in Quick mode. Average splicing time is 15 seconds.

How long does it take to heat a protection sleeve?

Heating time in Quick mode is 18 seconds for a 40mm sleeve on SM G652 250μm fiber. Other sleeve lengths may take longer.

What is the battery capacity and how many splices can it perform?

The built-in 5200mAh battery provides approximately 300 splice & heat cycles per charge under typical conditions.

What types of fibers are compatible with the KL-530?

It supports SM (G.652 & G.657), MM (G.651), DS (G.653), and NZDS (G.655) fibers with cladding diameter 80–150 μm and coating diameter 100–1000 μm.

How many splice modes and heat programs are available?

The KL-530 offers up to 128 splice modes and 32 heat programs, allowing customization for different fiber types and sleeves.

Can the electrodes be replaced easily?

Yes, the electrodes can be replaced by screwing them gently without tools. The electrode life is rated at 5000 arcs and can be extended with an electrode grinder.

What is the display specification?

It features a 4.3-inch TFT color LCD with 800 x 480 resolution, showing fiber images at 320X magnification.

Does the KL-530 store splice records?

Yes, it stores the last 10,000 splice records and 2,000 result images, which can be accessed via the USB2.0 terminal.

What is the typical splice loss?

Typical splice loss for SM fibers is 0.02 dB, for MM fibers is 0.01 dB, for DS and NZDS fibers is 0.04 dB (with identical fibers in room temperature).

What accessories are included in the package?

The package includes: fusion splicer, fiber cleaver, carry bag, cleaning wipes, splicing protector sleeves, alcohol bottle, 3-hole fiber stripper, drop cable stripper, power charger, and cooling tray.

USER MANUAL KL-530 JILONG

Fast-splicing 8S Fast-heating 18s
5000 Times electrode service life
Average loss under 0.01dB
5200mAh Battery capacity. 300 Times splice & heat cycles
The last 10,000 splice records and 2,000 result images

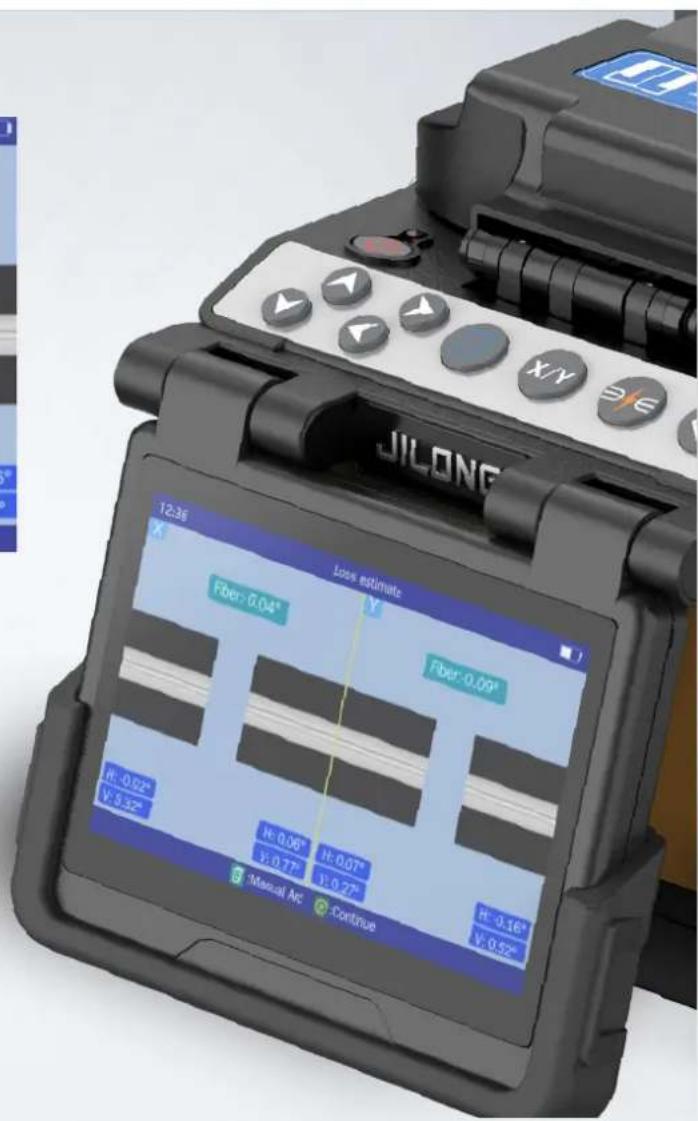

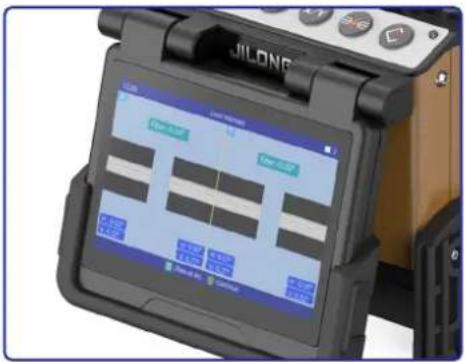

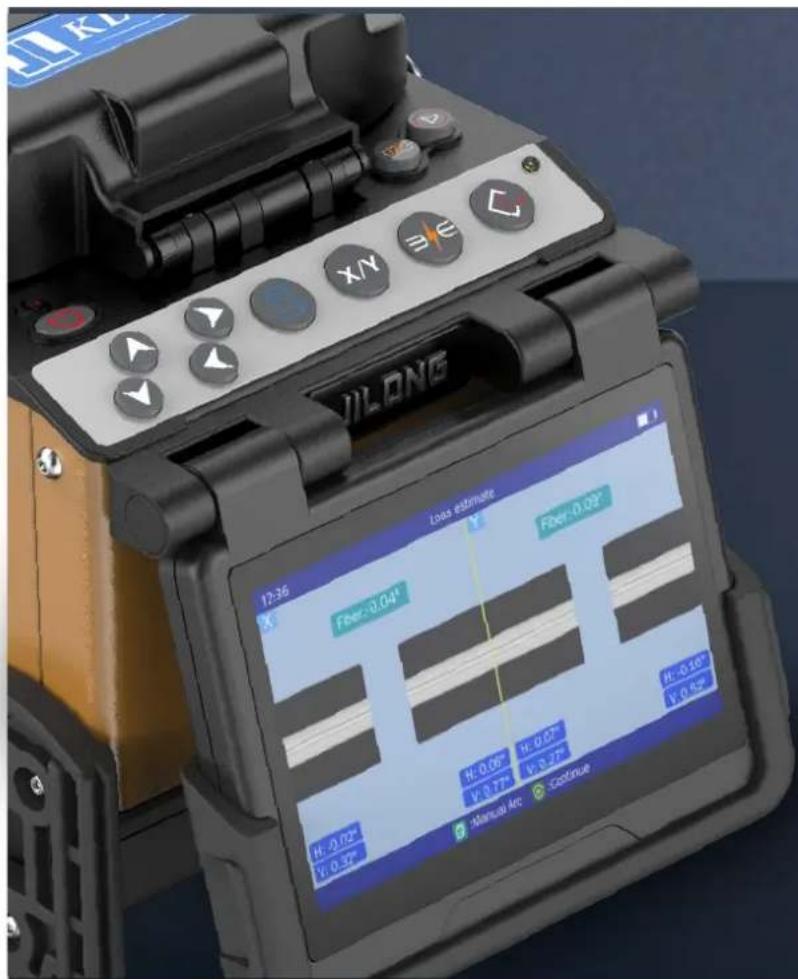

4.3 Inch TFT color LCD
3-in-1 Fiber hold
Real time discharge correction, stable fiber splicing
Automatic compensation of air pressure and temperature

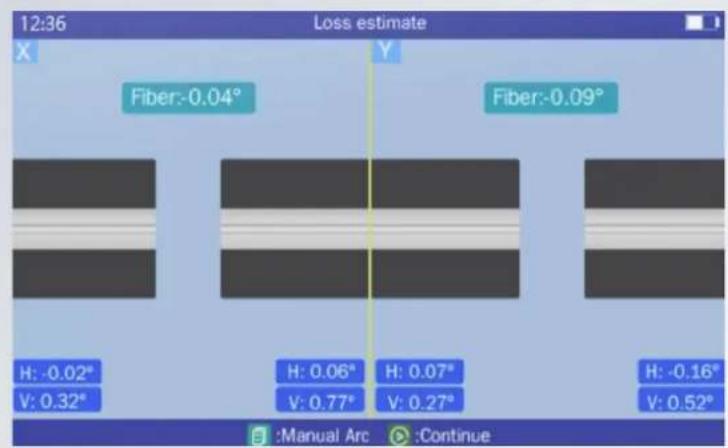

320X Fiber image magnification. The fiber core is clearly visible

Selling Point of Products

Fast-splicing 8S Fast-heating 18s

Special designed V-groove

Oven with removable SOC clamps

The electrodes can be replaced by screwing it gently without tools

3-in-1 Fiber holder

Durable ceramic fiber pressure heads

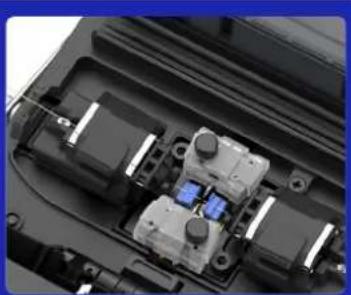

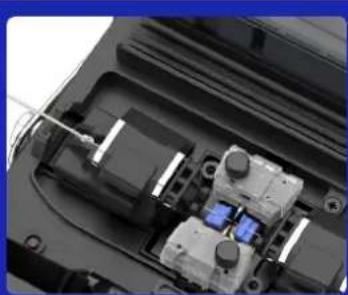

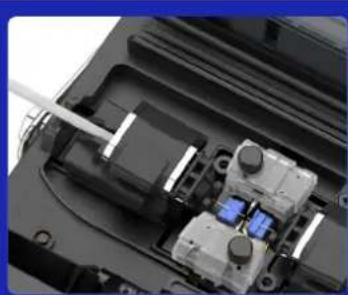

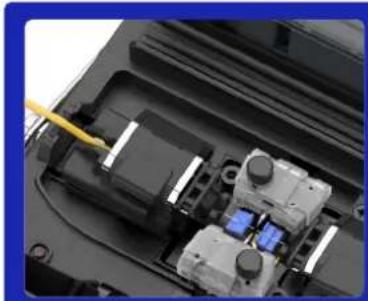

3-in-1 Universal Fiber Holder

Fiber holder is suitable for bare fiber/ 3.0mm jump fiber/ pigtail fiber/ FTTH fiber

Close-up of a mechanical device with internal components and a yellow cable inserted (no visible text or symbols)

Close-up of an electronic device with internal components and wiring (no visible text or symbols)

Close-up of a mechanical device with internal components and no visible text or symbols

Close-up of a mechanical or electronic component with internal components and no visible text or symbols

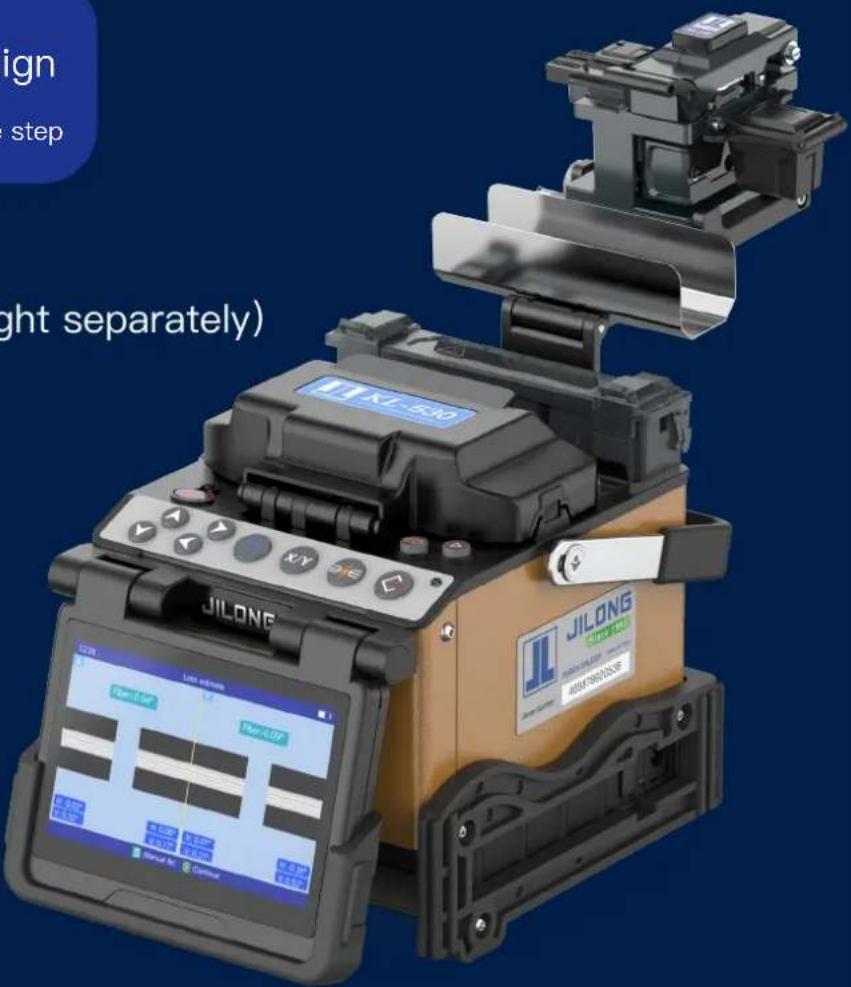

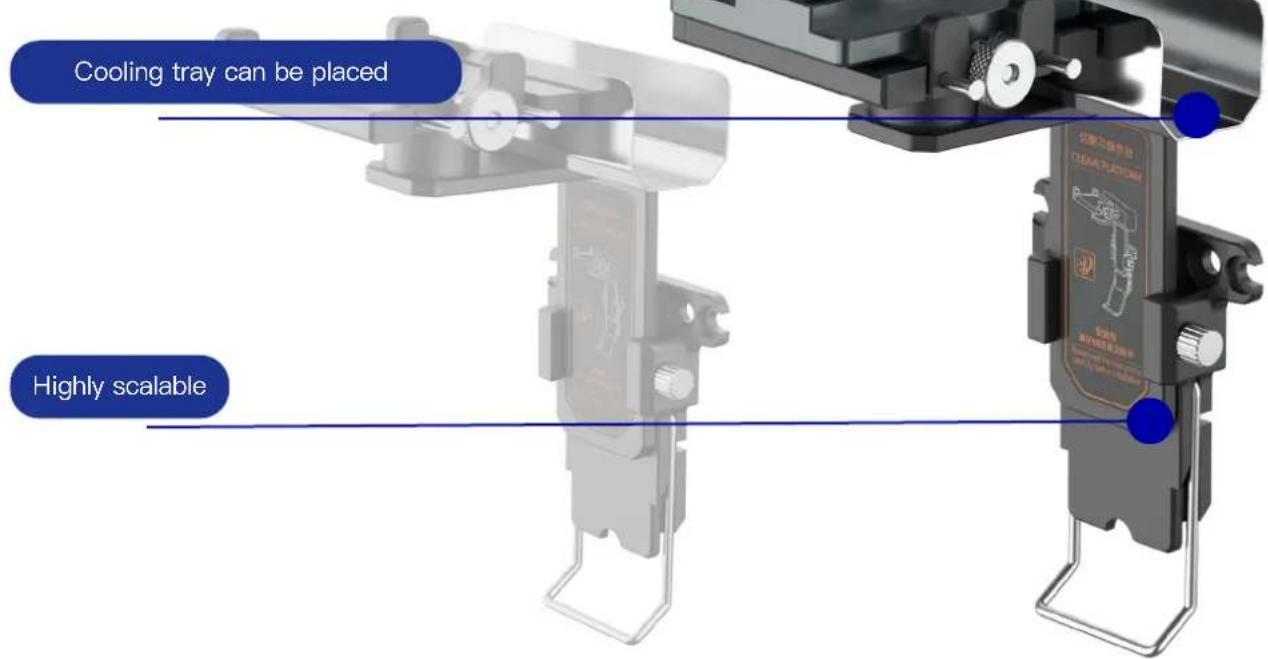

High Expansibility fiber optic cleaver operating platform design Support the placement of cleaver operating platform, do cleaving and splicing work in one step

(The console needs to be bought separately)

Installation instructions of fiber optic operating platform

Use the screw to fix the base

Insert into the base and tighten

Technical line drawing of mechanical components with no visible text or symbols

Place the cooling tray

Technical line drawing of a mechanical assembly with no visible text or symbols

Fix the cleaver with the screw

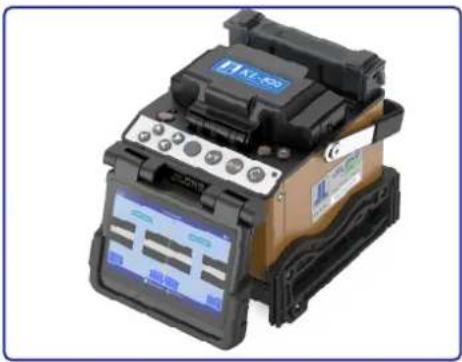

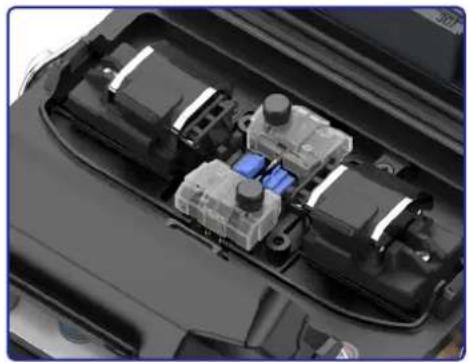

Introduction of fiber optic cleaver operating platform

(The console needs to be bought separately)

Suitable for different models fiber optic cleavers

8S Fast-splicing

18S Fast-heating

Splice Method	Core to core alignment
Applicable Fibers	SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber/Cable	0.25~3.0 mm / indoor cable
Fiber Holder	Replaceable (Universal: FH-60, SOC Holder: FH-SOC(optional))
Fiber Diameter	Cladding: 80~150μm, Coating: 100~1000μm
Fiber Cleave Length	8~16 mm
Splice mode	Max 128 modes
Typical Splice Loss	SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB ★1
Return Loss	>>60dB
Splicing Time	SM Quick mode : 8 sec / SM Average: 15 Sec.
Estimated Splice Loss	Available
Heating Time	Quick mode 18 sec.(SM G652 250μm 40mm Sleeve) adjustable
Protection Sleeve Length	20mm, 30mm, 40mm, 50mm, 60mm
Heat Programs	Max 32 modes
Battery	5200mAh Battery Capacity, Typical 300 Cycles (Splice&Heat) per Charge ★2
Electrode Life	5000 arcs, can be extended by using an electrode grinder ★3
Auto-start	Splice / Heating
Automatic Fiber Identification	/
Automatic ARC Identification	Automatic arc calibration by air pressure and temperature
Results Storage	The last 10,000 splice records and 2,000 result images
Tension Test	1.96~2.25N
Operating Condition	Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max Wind 15m/s
Storage Condition	0~95% relative humidity, -20~60°C
Display	4.3" color high resolution (800 x 480) display
Fiber Magnification	X, Y, XY, X/Y : 320X Magnification
Power Supply	AC Input 100-240V, DC Input 9-14V
Terminal	USB2.0
Weight	1.6kg without battery / 1.9kg with battery
Size	139H x 163W x 140D mm (including rubber bumper)

★① With identical fibres(in room temperature). Measured by cut-back method relevant to ITU-T and IEC standards.
★② Splice & Heat cycles may vary depending on the battery status and the operating environment.
★③ Electrode life may vary depending on the operating environment.

Close-up of a car's engine bay with internal components (no visible text or symbols)

Close-up of a black fiber optic switch device with control panel and display screen (no visible text or symbols)

Packing List

① KL-23FFiber optic cleaver

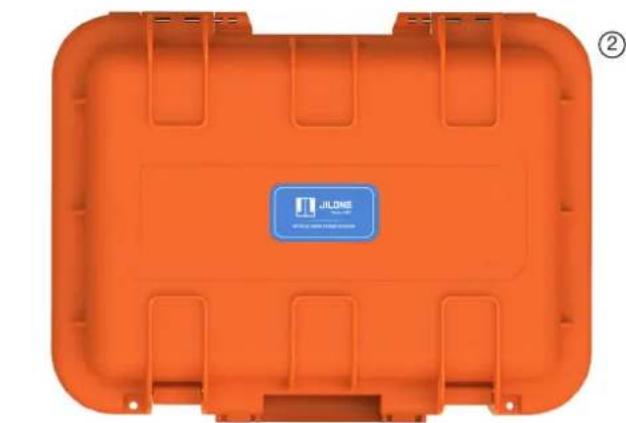

② Carry bag (Including Suspenders & belts)
③ FOCW Cleaning wipes(box)
④ Splicing protector sleeves (piece)
⑤ Alcohol bottle
⑥ 3-hole fiber stripper
⑦ Drop cable stripper
⑧ Fusion splicer
⑨ Power charger
⑩ Cooling Tray

⑨

Orange plastic tray with blue logo and label (no readable text or symbols beyond branding)

Front view of a black electronic device labeled 'KL-530' with control panel and buttons (no readable text beyond label)

Two different types of pliers shown side by side, one black and one yellow, with no visible text or symbols.

①
⑥
