USER MANUAL IWM-600F Imarflex

AUTOMATIC WASHING MACHINE

Symbolic illustration of a rat head with a plus sign and the word 'Rinse+' below, representing Rinse (no additional text or symbols)

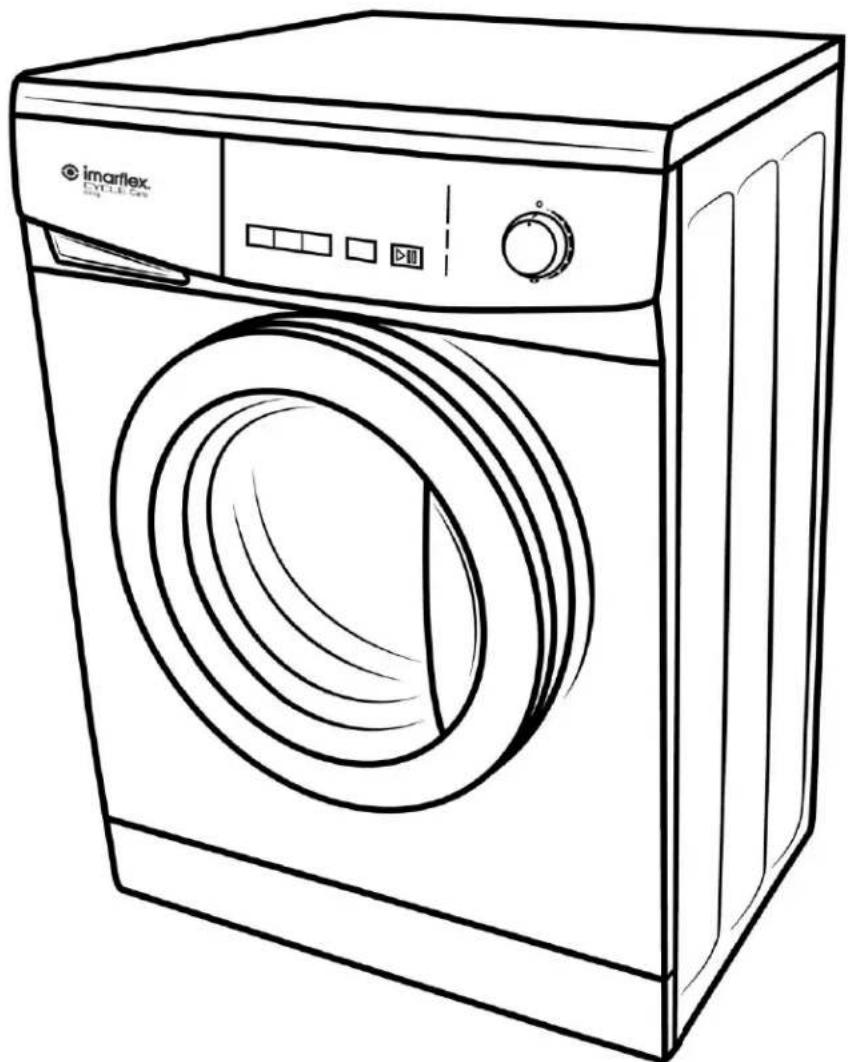

Line drawing of a modern washing machine with control panel and buttons (no text or symbols on the device itself)

SPECIFICATION

MODEL NO. : IWM-600F

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 2000W

WATER PRESSURE : 0.02-0.8MPa

NET/GROSS WEIGHT : 64kg/68kg

DIMENSION : 595x530x845mm

RPM : ±900

IMPORTANT SAFEGUARDS

Read and understand thoroughly these safety instructions before use. The items indicated here are very important safety precautions, which must be followed. We cannot be held liable for damage caused by non-compliance with the warning and safety instructions or resulting from incorrect use or operation. When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Before using the washing machine, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
3. Do not use two-way socket with another appliance.
4. Before setting up the washing machine, check it for any external visible damage. Do not install or use a damaged washing machine.
5. Do not use any appliance with a damaged cord or plug. If the cord is damaged it must be replaced with the same type and size or bring the unit to the nearest authorized service center.
6. Do not plug the washing machine on an extension cord, it does not guarantee the required safety of the appliance.
7. Faulty components must only be replaced by genuine manufacturer original spare parts. Only when these parts are fitted can the safety standards of the machine be guaranteed.
8. Unauthorized repairs could result in unforeseen dangers for the user, for which manufacturer cannot accept liability. Repairs should only be undertaken by an approved service technician. Ensure current is not supplied to the machine until after maintenance or repair work has been carried out.

9. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

10. Children should be supervised to ensure that they do not play with the appliance.

11. Do not use this unit other than its intended use.

12. Save this instruction for future reference.

SAFETY NOTICE

1. To avoid the risk of personal injury or damage to the washing machine, do not install it in place where it is damp and where it suffers from rainfall
2. Do not install the washing machine in place where it suffers from direct sunlight, in which plastic or components will be damaged. It will be shortened the life of your washing machine.
3. Do not install the washing machine in place where temperatures below freezing may occur. Frozen hoses may burst or split. The reliability of the electronic control unit may be impaired at temperatures below freezing point.
4. Do not shoot the washing machine with water when you clean it. Keep the washing machine away from fire or heat sources.
5. Before using the washing machine for the first time, check that the transit bolts at the rear of the machine have been removed. During spinning, transit bolts which are still in place may result in damage to both the machine and adjacent furniture or appliances.
6. Turn off the tap if the machine is to be left for a long time (e.g., holiday); especially if there is no floor drain (gully) in the immediate vicinity.
7. Keep children away from the washing machine at all times. To avoid the risk of injury do not allow children to play on or near it or to play with its controls. Supervise children whilst you are using it.

8. Older children may only use the washing machine if its operation has been clearly explained to them and they are able to use it safely, recognizing the dangers of misuse.

9. For machines with a 'porthole' door, remember that the porthole glass will be hot when washing at very high temperatures. Do not let children touch it.

10. Do not wash water-repellent things (e.g., raincoats) with washing machine.
11. Only remove laundry from the washing machine once the drum has stopped turning. Reaching into a moving drum is extremely dangerous and could result in injury.

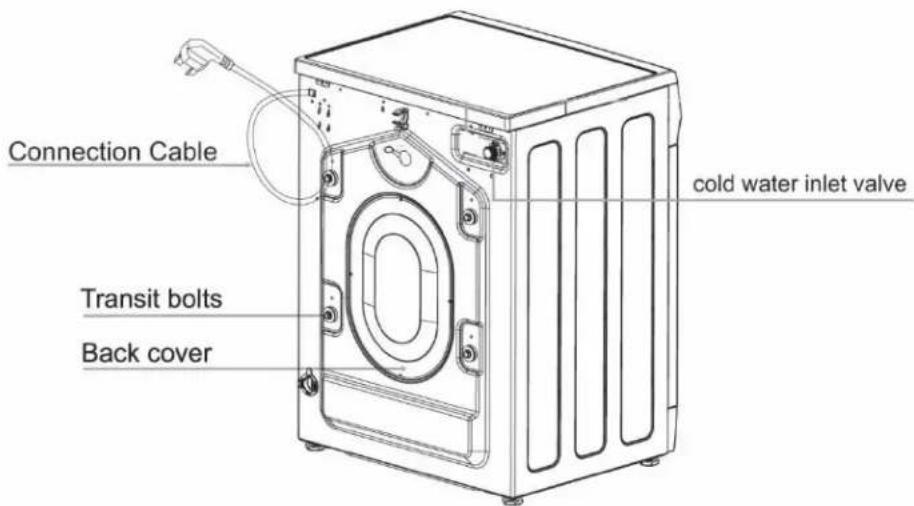

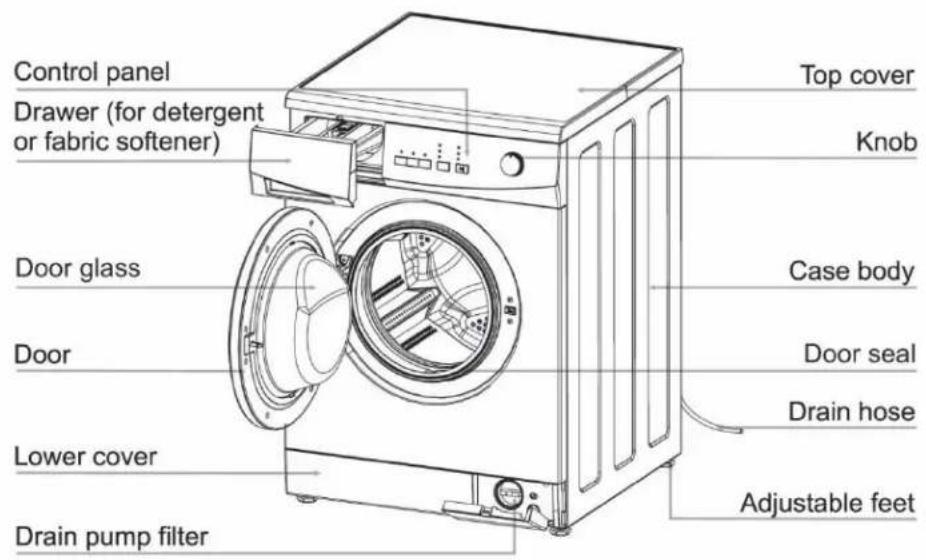

Decription of Parts

Before Use

Note

Unscrew the drain pump filter to let water run out when the machine is not used for a long time.

Unpacking the unit

• Remove all the packing (including the foam base) or the vibration and noise may occur.
• Dispose all the wrappage safely and keep them out of the reach of children. Danger of suffocation!
• It is normal that water drops appear on the packing plastic bag and the door glass, which are resulted from the water left in the tub for checking out.

Simple line drawing of a box with lid (no text or symbols)

Line drawing of a front-loading washing machine (no text or symbols)

Accessories

Make sure that you have received all of the items shown below.

Accessories	Name	Qty.	Accessories	Name	Qty.
	Inlet hose	1		“U” piece	1
	Transit bolts caps	4		Manual	1
	Hot water Inlet hose (For TE/TK series)	1

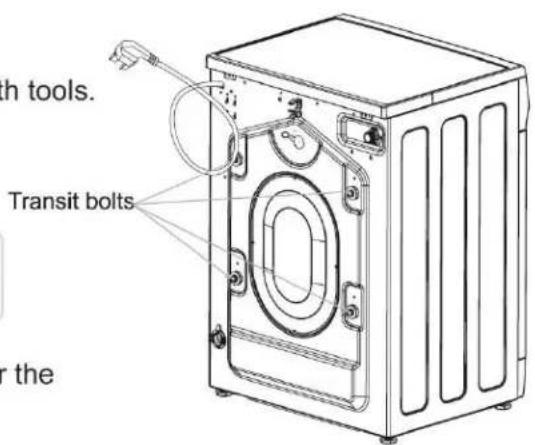

Removing transit bolts

• Remove all the transit bolts at the back of the machine with tools.
• Plug the holes with the transit bolts caps supplied.

Note

Strong vibration, noise or failures may occur if the transit bolts are not removed.

- Keep the transit bolts for future transportation. Whenever the machine is transported, the transit bolts must be refitted.

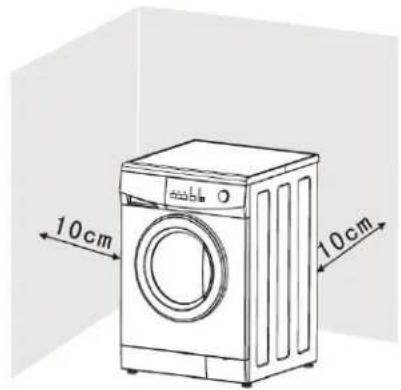

Place requirement

• A concrete floor is the most suitable installation surface for a washing machine, being far less prone to vibration during the spin cycle than wooden floorboards or a carpeted surface.
• The machine must be level and securely positioned. The distance between the machine and wall must be more than 10 cm.
• To avoid vibrations during spinning, the machine should not be installed on soft floor coverings.

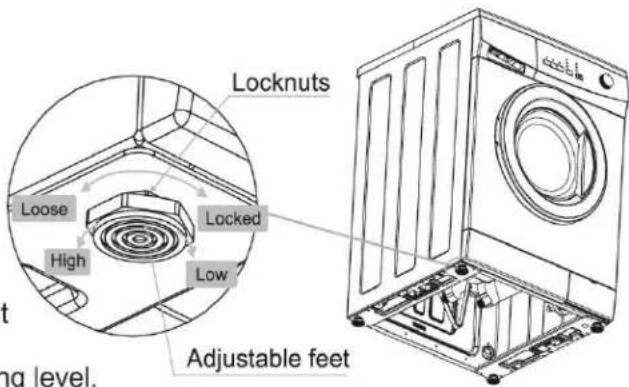

Level adjustment

The machine must stand perfectly level on all four feet to ensure safe and proper operation. Incorrect installation may increase electricity and water consumption and may cause the machine to move about.

To do these when the machine is not level:

- Using the spanner turn locknut in a clockwise direction. Then turn locknuts together with adjust feet to unscrew.

- Use a spirit level to check the machine is standing level.

- Hold adjust feet securely with a pipe wrench. Turn locknut again using the spanner until it sits firmly up against the housing.

Note

Vibration and noise may occur if the locknuts do not sit firmly up against the houses.

Drain hose connection

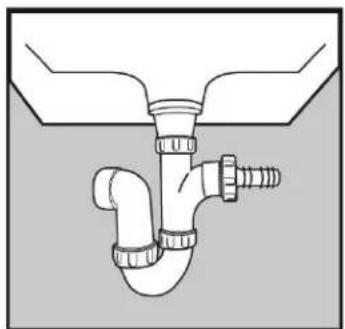

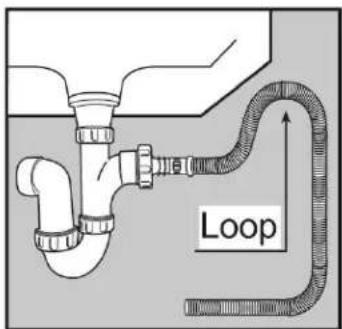

1. Direct into a sink

If the outlet spigot has not been used before, remove any blanking plug that may be in place.

Push the drain hose onto the spigot and secure with a clip if required, ensure a loop is formed in the drain hose to prevent waste from the sink entering the washing machine.

If required, the drain hose can be extended to a length of 4 m.

Diagram of a pipe fitting with a valve and fittings (no text or labels)

Connected securely to a standpipe.

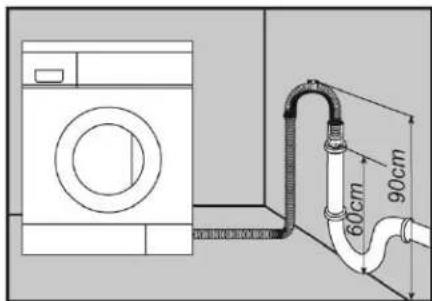

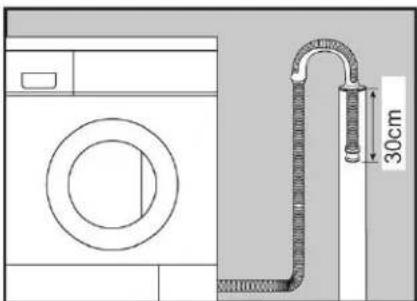

2. To connect to a standpipe

Firstly form a hook in the end of the drain hose using the "U" piece supplied.

Place the drain hose into your standpipe, which should have an internal diameter of approximately 38mm thus ensuring there is an air break between the drain hose and standpipe.

When discharging into a standpipe ensure that the top of the standpipe is no more than 90cm and no less than 60cm above floor level.

Water inlet connection

Connect the inlet hose supplied with the machine to a tap with a 3/4" thread.

Do not use previously employed hoses.

Installation should comply with local water authority and building regulations requirements.

Diagram of a pipe fitting with a curved arrow indicating direction (no text or symbols)

Illustration of a hand holding a small tool near a faucet, with no visible text or symbols

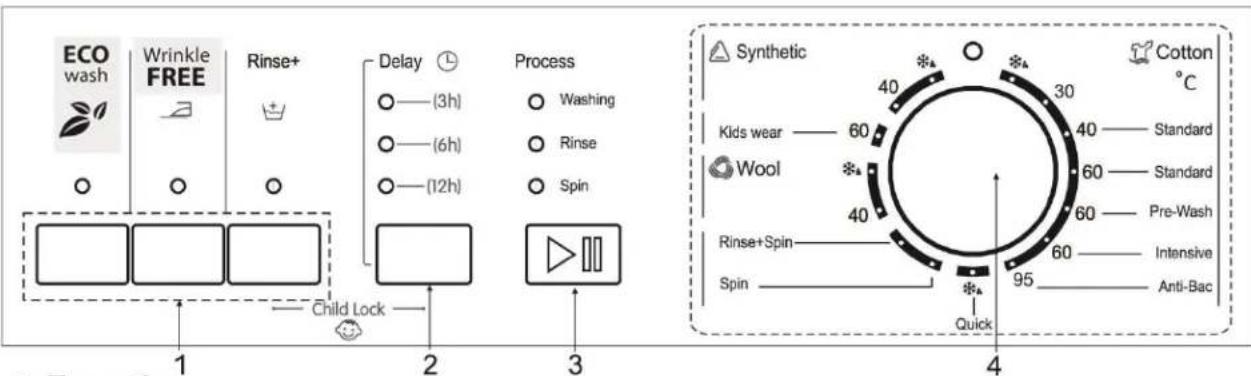

The control panel (A2 series)

1. Function

ECO wash (2)

Select this button to reduce energy and water consumption when washing a smaller load. Once the function is selected and the machine is running, it can not be cancelled even though it pauses. The function is not available on all programs.

Wrinkle FREE (☐)

Select this button to reduce the wrinkle of clothes during a wash cycle. Once this function is selected, the machine will not execute the last drain unless the "Start/Pause" button is pressed. This function is available on all programs except spin.

(Note: The max running time of this function is 12 hours. If it exceeds 12 hours, the machine will drain and spin automatically)

Rinse+ (÷)

Select this button to add an extra rinse on the program you selected. This function is available on all program but spin.

2. Delay

Select this button to delay the starting of a wash cycle. The available options are "3h", "6h" and "12h".

3. Start / pause ( ▶ )

Press this button to start or pause a wash cycle. The door can not be open when the machine pauses.

4. Knob

Turn this knob clockwise or anticlockwise to select the required wash program. Once the "Start/Pause" button is pressed and the machine is running, the program can not be changed. The details of programs are in Form 1 on page 8.

(Note: At the end of a wash cycle, the knob must be turned to the position "O")

standard 60 °C and standard 40 °C are suitable to clean normally soiled cotton laundry and they are the most efficient programs in terms of combined energy and water consumptions for washing that type of cotton laundry; in addition, the actual water temperature may differ from the declared cycle temperature;

Note

For your safety, please not turn the knob to the position "O" and get clothes while the machine is running. Because the temperature of water may be high and it may scald you. The door lock will open automatically at the end of a wash cycle while the temperature of the drum is cool down.

Child lock("Rinse+" + "Delay")

The function of "Child lock" is to lock the control panel to prevent the misuse by children.

How to start this function:

1. Press the "Rinse+" and "Delay" buttons at the same time for 3 seconds. When there are three ticks, the function works.
2. When this function works, all keys and knob are not available. But when the knob is turned to the position "O", the power will be off.
3. This function can be selected before or during a wash cycle.

How to cancel this function: Press the "Rinse+" and "Delay" buttons at the same time for 3 seconds. The function is canceled when there are three ticks again.

The contents and functions of different programs

Program	Time (min)	Temp (°C)	Rinse times	Tallest Spin speed (rpm)			Function Options
				A208 series	A210 series	A212 series	Economy	Anti-Ironing	Rinse+	Delay
Cotton	69	※_A	2	800	1000	1000	●	●	●	●
	80	30	2	800	1000	1000	●	●	●	●
Standard-40	179	40	2	800	1000	1200	●	●	●	●
Standard-60	189	60	2	800	1000	1200	●	●	●	●
Pre-Wash	214	60	2	800	1000	1000		●	●	●
Intensive	219	60	2	800	1000	1000		●	●	●
Anti-Bac	129	95	2	800	1000	1000		●	●	●
Quick	15	※_A	2	800	800	800		●	●	●
Spin	11	※_A	0	800	1000	1000				●
Rinse+Spin	16	※_A	1	800	1000	1000		●	●	●
Wool	38	※_A	2	600	600	600		●	●	●
	56	40	2	600	600	600		●	●	●
Kids wear	119	60	4	800	1000	1000	●	●	●	●
Synthetic	39	※_A	2	800	800	800	●	●	●	●
	49	40	2	800	800	800	●	●	●	●

Form 1
Note: The running time above is only for reference. The running time is different because of different laundries and its weights. The “*” means the temperature of water is normal. “Economy” and “Rinse+” they can not be selected together.

Washing preparation

1. Connect the hose inlet well and turn on the tap.
2. After making sure the power socket is grounded reliably, insert the plug into the convenient outlet.
3. Place the drain hose well.

Preparation of clothes

1. Sort the laundry by colour and by care label. Most garments have a textile care label in the collar or side seam.

2. Make sure all the pockets are empty, Foreign objects (e.g. nails, coins, paper clips, etc.) can cause damage to garments and components in the machine.

3. Close any zips, fasten hooks and eyes etc before washing.

4. Dark textiles often contain excess dye and should be washed separately several times before being included in a mixed load. Always wash whites and coloureds separately.

5. Badly soiled areas, stains etc. should be pre-treated with liquid detergent, stain removers etc.

6. Turn over the clothes which pill easily and is with woolen surface before putting them into the machine.

Diagram 2

Line drawing of a sleeveless sweater with pleated collar (no text or symbols)

Diagram 3

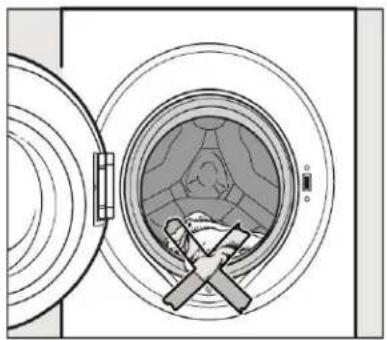

Put clothes into the washer

Unfold the laundry and load loosely in the drum. Mixing both large and small items gives better wash results and also helps distribute the load evenly during spinning. The most efficient use of energy and water is achieved when a full load is washed. However, do not overload as this causes creases and reduces cleaning efficiency.

Make sure that no garments are in between the door and the seal.

Diagram of a washing machine with a door open and a cross symbol inside (no text or labels)

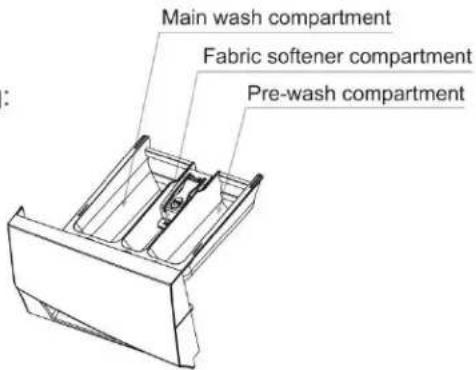

Using the detergent drawer

1. Open the drawer and add adequate detergent into main wash compartment marked "III" or "II".
2. Add the fabric softener into compartment marked "☑" or "☒". Do not exceed the maximum level mark.
3. Add the detergent into the pre-wash compartment marked "☐" or "I" according to the programme you select.
4. Close the drawer.

The right amount to dispenser will depend on the following:

• The quantity of laundry
• The soiling level of the laundry

- Lightly soiled

No visible dirt or stains. Possibly slight body odour.

- Normally soiled

Visibly dirty and/or just a few slight stains.

- Heavily soiled

Visible dirt and stains and/or dried on soiling.

• The water hardness level.

It is recommended to use low foaming powder.

Washing steps

1. Turn on the water tap, and connect the power.
2. Open the door, and put the garments into the drum one by one.
3. Close the door, and put suitable amount of detergent and fabric softener into the dispenser, then close the drawer.
4. Choose a programme you need by turning the knob.
5. Choose a washing function by pressing the function button.
6. Press "Start/Pause" button to start the washing machine.
7. When the cycle is finished, there is a warning tone sounds.

When washing cycle is finished, the machine will change to a standby mode. And the power will be off after 10 minutes without any control on the control panel.

Washing programme chart

Programme	Washing symbol	Fabric
Cotton		Cottons, linens or cotton mix fabrics, e.g. table linen, towelling, underwear, T-shirts etc.
Quick		Small loads of items which require freshening up and which can be washed in a Cotton programme.
Rinse+Spin		This programme can be used for rinsing items which can be washed in a Cotton programme. Do not add any detergent.
Spin		Separate spin for cotton and linen items
Intensive		Cottons, linens or cotton mix fabrics, e.g. table linen, towelling, underwear, T-shirts etc.
Synthetic		Synthetic or mixed fabrics, underwear, coloured garments, non-shrink shirts.
Wool		Machine-washable or hand-washable wool or wool blend fabrics. If the care label does not specify a temperature, wash using the cold setting. Also suitable for hand-washable silks. Reduce the spin speed.

The machine is fitted with a balance control device, which ensures the machine is stable during the spin. To protect the machine, it will cut in if the laundry is not evenly distributed in the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume. If, after 15 minutes, the laundry is still not evenly distributed in the drum, the machine will not spin. In this case, redistributed the load manually and reselect the spin programme.

Door lock

• When the machine is started, the door lock is locked though you press the "Start/Pause" button. Turn the knob to the position "O", and the door lock is unlocked in two minutes.
• When the temperature inside the drum is above 53°C, the door lock is locked.
• When the water is above a certain level, the door lock is locked.
• When the washing cycle is finished, the door lock is unlocked in two minutes.

Important:

Do not try to open the door when the washing cycle is not finished or power supply is cut off during the washing cycle, because the temperature may be high and you may be scalded.

Environmental Protection

Correct Disposal of this product

This marking indicates that this product should not be disposed with other house hold wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
