IST-3000S - Steamer Imarflex - Free user manual and instructions

Product Type	Food Steamer
Brand	Imarflex
Model	IST-3000S
Capacity	9 L
Number of Tiers	3 (stackable)
Power Consumption	750 W
Rated Voltage	230 V a.c., 60 Hz
Timer	60-minute mechanical timer with bell
Indicator Light	Yes, power on indicator
Water Level Window	Yes, for easy monitoring
Add Water Hole	Yes, allows refilling during operation
Heating Element	Heater plate
Included Accessories	Rice bowl, drip tray, 3 steaming trays (bottom, middle, top), 3 clear rings, cover
Material	Plastic (body), stainless steel (heating plate? not specified)
Dimensions (approximate)	35 x 25 x 35 cm
Weight (approximate)	3.5 kg
Safety Features	Automatic shut-off, cool-down before cleaning, do not immerse base
Cleaning	Removable parts washable with soap and water; descale periodically
Descaling Method	Fill tank with cold water to max, leave without heating, then rinse
Repairability	Authorized service center for cord/plug replacement
Spare Parts Availability	Rings, trays, cover, drip tray, rice bowl via manufacturer
Country of Origin	Made in China
Distributor	Xelframe Enterprises Inc., Philippines
Warranty	By sending warranty card and receipt to [e-mail]

Frequently Asked Questions - IST-3000S Imarflex

How do I use the Imarflex IST-3000S steamer for the first time?

Before first use, wash all removable parts and the inside of the water tank with warm water and liquid detergent. Rinse and dry them thoroughly. Then fill the water reservoir to the maximum level using cold water. Assemble the rings and trays in order (bottom, middle, top) and place the cover on top. Plug in, set the timer, and the steamer will start.

Can I use hot water in the water reservoir?

It is advisable to use cold water instead of hot water. Do not add anything else to the water reservoir.

How do I add water while the steamer is operating?

If you need to add water during cooking, use a suitable jug to pour water through the 'Add Water Hole' on the side of the water reservoir. Be careful to avoid splashing.

How do I cook rice in this steamer?

Add rice and water in equal proportions into the rice bowl. Place the rice bowl into one of the steaming trays (preferably bottom). Follow the cooking guide: bottom tray 25-30 minutes, middle 30-35, top 35-40 minutes. Adjust time as needed.

What are the cooking times for different foods?

Refer to the cooking guide: fish (8-18 min), poultry (25-35 min), vegetables (15-30 min), eggs (18-25 min). Times vary depending on the tray position (bottom cooks fastest, top slowest). Use the timer and the steamer will shut off automatically.

How do I clean the water tank after use?

Unplug and let the steamer cool down completely. Empty the water tank and wipe it with a damp cloth. Removable parts can be washed with soap and water. To avoid staining from foods like carrots, wash the drip tray and water tank immediately after each use.

How do I descale the steamer?

Fill the water tank with cold water up to the 'max' level. Do not heat it; leave it to descale naturally. Then rinse the inside of the water tank with warm water several times. Repeat if necessary.

Can I use all three trays at the same time?

Yes, you can use one, two, or three steaming trays simultaneously. Stack them in the correct order: bottom ring with bottom tray, middle ring with middle tray, top ring with top tray, and place the cover on top.

What should I do if the power cord is damaged?

The power cord must be replaced with one of the same type and size. Take the unit to an authorized Imarflex service center for safe replacement. Do not use the appliance with a damaged cord.

Why does the steamer turn off automatically?

The steamer has an automatic shut-off feature. When the timer reaches zero, a bell sounds and the indicator light turns off. This ensures safe operation and prevents overcooking.

USER MANUAL IST-3000S Imarflex

Modern kitchen steamer with three stacked dishes containing fresh vegetables and fish, no visible text or labels

Healthy Living

9L

CAPACITY

3-stack

750W

POWER

imarflex®

In Every Home.

www.imarflex.com

IST-3000S

SPECIFICATION:

MODEL NO. : IST-3000S

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 750 watts

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
3. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size, bring the unit to the nearest lmarflex authorized service center.
4. Do not use a two-way socket with another appliance.
5. Do not place the food steamer near gas stove or electric burner.
6. Put the unit on stable surface; keep it away from the edge of counter to avoid accident.
7. Children should be supervised to ensure that they do not play with the appliance.
8. This appliance is not intended to use by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliances by a person responsible for their safety.
9. To protect against electric shock, do not immerse the base in water.
10. Unplug the unit from the convenience outlet before cleaning.
11. Do not use the food steamer other than its intended use.
12. For household use only; not intended for any business purposes.
13. Save this instruction manual for future reference.

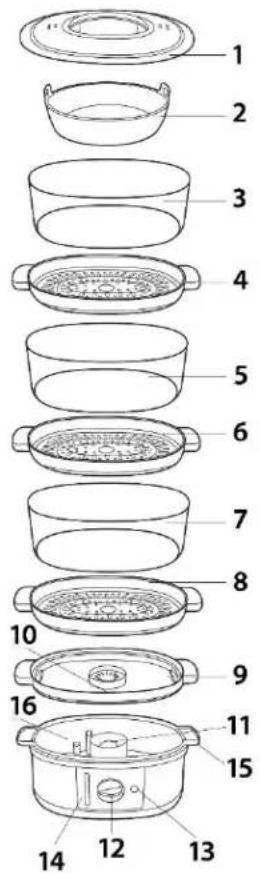

DESCRIPTION OF PARTS:

NO.	DESCRIPTION
1	Cover
2	Rice Bowl
3	Top Ring
4	Top Tray
5	Middle Ring
6	Middle Tray
7	Bottom Ring
8	Bottom Tray
9	Drip Tray
10	Base Tray
11	Heater
12	60-minute Timer
13	Light Indicator
14	Water Level Window
15	Add Water Hole
16	Water Reservoir

HOW TO USE:

Before using the item:

1. Using warm water and liquid detergent, wash all the removable parts and the inside of the water tank.
2. Rinse and dry.

HOW TO USE:

Simple line drawing of a container with a side outlet and a handle, no text or symbols present.

1. Fill the water reservoir with water to the maximum level.

Note:

• Do not add anything to the water in the reservoir.
• It is advisable to use cold water instead of hot water.

Simple line drawing of a cooking pan and lid with a downward arrow indicating compression (no text or symbols)

1. Fit the clear ring to the steaming tray.

Note:

- The clear ring will only fit into its designated steaming tray. (Bottom, Middle, Top) should match in each container.

1. Place the stackable container accordingly and place the cover on the top of TOP container.

Technical line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

1. Place the drip tray above the base tray.

Simple line drawing of a cooking pot with steamed buns and a lid (no text or symbols)

1. Place the food into the steaming tray. You may use one, two or three steaming trays based on your requirement.

1. Plug the socket into a convenience outlet.
2. Rotate the timer knob based on the desired time and the light indicator will turn ON. Steamer will begin cooking.

1. When cooking is done, the light indicator will turn OFF and will hear a bell sound. The unit will automatically turn OFF.

1. Remove the stackable container after use.

Note:

- Do not remove the drip tray until the unit has totally cool down.

How to Refill Water Reservoir

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

If you desire to add water in the tank, fill water through the "add water hole" by using a suitable filling jug.

How to Cook Rice:

1. Add rice and water into the bowl in equal proportion.

2. Place the rice bowl into the steaming tray.

3. Plug the socket into a convenience outlet.

4. Rotate the timer knob based on the desired time and the light indicator will turn ON. Steamer will begin cooking.

5. When cooking is done, the light indicator will turn OFF and will hear a bell sound. The unit will automatically turn OFF.

COOKING GUIDE:

FOOD TYPE	BOTTOM (Minutes)	MIDDLE (Minutes)	TOP (Minutes)
Rice	25-30	30-35	35-40
Fish	8-10	10-15	15-18
Poultry	25-28	28-30	30-35
Vegetable	15-30	20-30	25-35
Egg	18	18-20	20-25

CLEANING AND MAINTENANCE:

How to clean the Water Tank:

1. Unplug the appliance.
2. Let the steamer it cools down before cleaning.

Cleaning the unit:

• Empty the water tank and clean with a damp cloth.
- Removable parts can wash with soap and water.

Note: Some natural-colored juices from food such as carrots, beetroot etc., may stain the drip tray and water tank. This is normal and will not affect its performance. To avoid staining, wash these two parts immediately after every use. You may also use mild bleach if necessary and rinse thoroughly.

Removing scale build-up from the unit:

• Fill the water tank with cold water up to "max" level.
• Do not heat up (to avoid any descaling odor). Leave it on to descale.
• Rinse the inside of the water tank with warm water several times.

REMINDER: Please do not forget to fill up and send the warranty card with a copy of the receipt to our email address [e-mail]

Distributed By: Xelframe Enterprises Inc. Unit 711 IPI Buendia Tower Condo., 501 Gil Puyat Ave, Pasay Made in China
