IST-2000 - Steamer Imarflex - Free user manual and instructions

Product Type	Electric Steamer
Brand	Imarflex
Model	IST-2000
Capacity	2.0 liters (approx.)
Power Consumption	800 W
Voltage	220-240 V ~ 50/60 Hz
Dimensions (W x D x H)	25 x 20 x 30 cm (approx.)
Weight	1.5 kg (approx.)
Material	Plastic body, stainless steel base
Functions	Steam cooking, automatic shut-off, keep warm
Control Type	Mechanical dial
Water Level Indicator	Transparent window with min/max marks
Accessories	Steaming basket, rice bowl, egg tray (approx.)
Cleaning	Wipe with damp cloth; descale with vinegar solution monthly
Safety Features	Boil-dry protection, automatic shut-off, cool-touch handles
Spare Parts Availability	Replacement steaming baskets and lids available from Imarflex service centers
Repairability	Heating element and thermostat replaceable by qualified technician
Warranty	1 year (subject to terms)
Energy Efficiency	European energy label Class A (estimated)
Country of Origin	China

Frequently Asked Questions - IST-2000 Imarflex

How do I clean the steamer?

Unplug and let cool. Wipe the exterior with a damp cloth. Descale the interior by filling the water tank with a mixture of white vinegar and water (1:3), steam for 10 minutes, then rinse thoroughly.

Can I steam frozen vegetables directly?

Yes, you can place frozen vegetables in the steaming basket. The cooking time may be slightly longer. Ensure they are evenly spread for thorough cooking.

Why does the steamer shut off before food is done?

The steamer has a boil-dry protection. If the water level drops below minimum, it will shut off automatically. Refill the tank and restart. Also check that the lid is properly closed.

What is the maximum water level?

Do not fill beyond the MAX mark indicated on the transparent water level window. Overfilling may cause water to sputter from the steam vents.

Can I use the steamer without the lid?

No, the lid is essential to trap steam and cook the food. Operating without the lid will cause rapid water evaporation and may trigger the safety shut-off.

How long does it take to steam rice?

Approximately 25-30 minutes for 1 cup of white rice. Use the provided rice bowl and ensure water level is adequate. Brown rice may take 35-40 minutes.

Is the steamer dishwasher safe?

Only the steaming basket and rice bowl are top-rack dishwasher safe. The base unit (with heating element) must be wiped clean and never immersed in water.

What type of water should I use?

Use tap water is acceptable. In areas with hard water, using distilled or filtered water reduces mineral buildup. Avoid using softened water as it may affect the taste of food.

Can I leave the steamer unattended while operating?

It is not recommended. Although the steamer has auto shut-off, leaving it unattended may cause overcooking or fire if malfunction occurs. Stay nearby and check water level periodically.

Where can I find replacement parts?

Contact Imarflex customer service or authorized service centers. Common parts like steaming baskets, rice bowls, and lids can be ordered online or through local retailers.

USER MANUAL IST-2000 Imarflex

MULTI-PURPOSE Steamer & Sterilizer 蒸し器と滅菌器

SPECIFICATION

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Check that the power supply voltage corresponds to that shown on the appliance (alternating current).
2. If the appliance is used in a country other than that which is purchased, please have it checked by an approved service center for power supply compliance.
3. Do not place the appliance near a heat source or in a hot oven to avoid serious injuries.
4. Always place the appliance on a flat and stable work surface, away from sinks or any other water source.
5. Never leave the appliance unattended while in operation.
6. Keep away from children.
7. Do not allow the cord to hang over the edge of table or counter, or touch hot surfaces.
8. Always plug the appliance into an earthed socket.
9. Do not unplug the appliance by pulling on the cord.
10. Do not operate the appliance with a damaged cord or plug after the appliance malfunctions, or is dropped or damaged in any manner.
11. Burns can occur by touching the hot surface of the appliance, hot water, steam or food.
12. Do not touch the appliance when it is steaming. Always use oven gloves to remove the lid, rice bowl and steam baskets.
13. Do not operate the appliance without water in water tank.

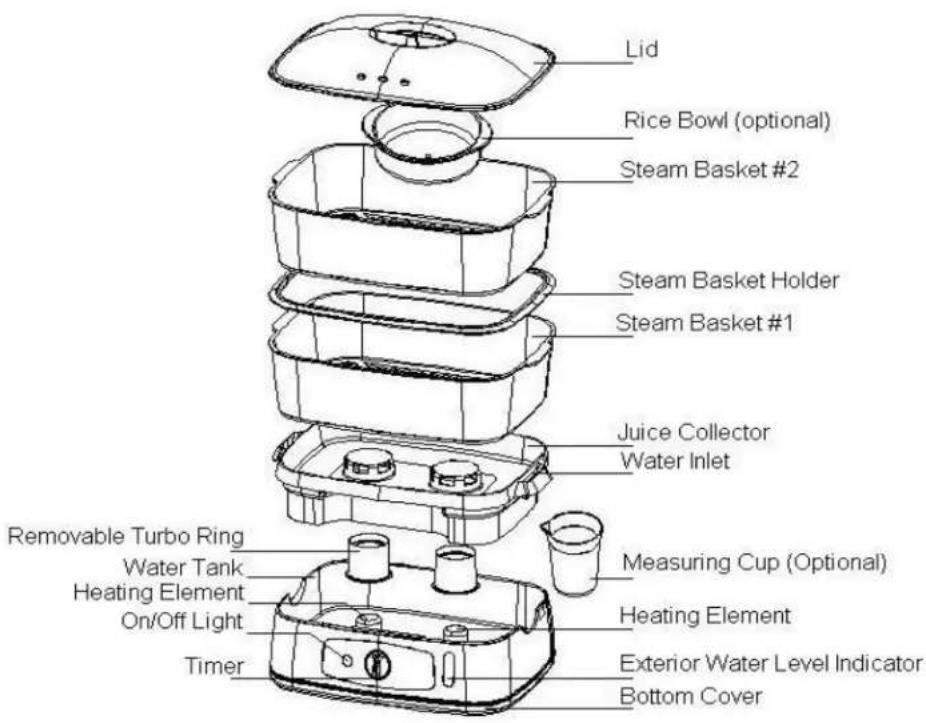

DESCRIPTION OF PARTS

HOW TO USE

Prior to use

1. Using warm water and liquid detergent, wash all the removable parts and the inside of the water tank.

2. Rinse and dry.

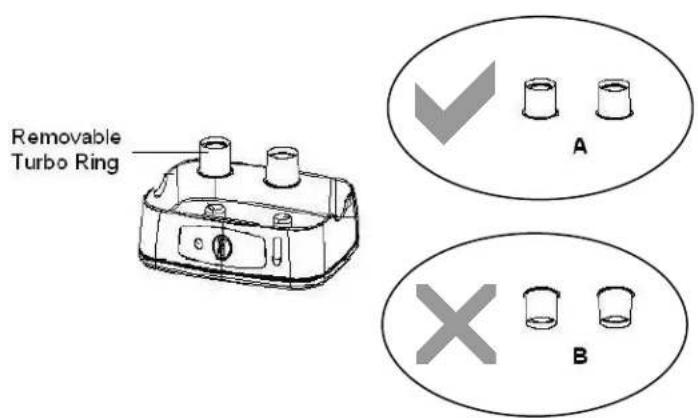

How to fit the turbo ring

1. Place the turbo ring as indicated A as shown in below diagram. The correct way to put the turbo ring into the water tank is as ☐

Filling the water tank

1. There are two ways to fill the water tank before place the juice collector on the tank.
2. Pour the water directly into the water tank, up to the maximum level.
3. Pour the water directly into the water inlets up to the minimum level.

Positioning the baskets

1. Place the food in the steam basket.
2. Place the steam basket on top of the juice collector.
3. Always place the basket # 1 on the juice collector.
4. Place the steam basket holder.
5. Place basket # 2 then put the lid on.

To boil rice

1. Put the rice and the water in the rice bowl.
2. Place the rice bowl in the steam basket, cover with the lid to cook.

To cook eggs

1. Place the built-in egg holders into the steam basket, followed by the eggs into the built-in egg holders. Cover with the lid to cook.

Steam cooking

1. Plug the appliance in.
2. Set the timer for the recommended cooking times.
3. The indicator light will be illuminated to indicate steam cooking has begun.
4. During cooking check the water level by inspecting the exterior water level indicator.
5. If necessary, add water through the Juice collector.
6. At the end of cooking, the appliance will switch off automatically.
7. The timer will ring and the indicator light will go off.
8. To stop the appliance ahead of time, turn the timer to the 0 position.

Removing the food from the steam baskets

1. Remove the lid by the handle.
2. Remove the steam basket(s).
3. Place the steam basket(s) on a plate.

CLEANING AND MAINTENANCE

How to clean the Water Tank:

Afterwards

1. Unplug the appliance.
2. Let it cool completely before cleaning.

Protection

Built-in thermostat to protect dry boil. In case water dry up, please do not operate the appliance when water is at minimum level to avoid discoloring. The pilot lamp will repeatedly on and off when water is below minimum level and this may damage the appliance. It is advisable to add in the water in order to continue operate.

Cleaning the appliance

• Empty the water tank and clean with a damp cloth.
- All other removable parts can be placed in the dishwasher.
- Clean the turbo ring after each use.

Note: Some natural-colored juices from food such as carrots, beetroot etc., may stain the juice collector and water tank. This is normal and will not affect its performance. To avoid staining, wash these two parts immediately after every use. You may also use mild bleach if necessary and rinse thoroughly.

Removing scale build-up from the appliance

• Fill the water tank with cold water up to "max" level.
• Do not heat up (to avoid any descaling odour). Leave it on to descale.

- Rinse the inside of the water tank with warm water several times.

Storing the baskets

• Place the rice bowl and egg holders (depending on model) upside down in the juice collector.
• Stack the baskets one inside the other following the order shown.
• Turn all parts over on the base unit. Cover the lid over the parts.
