USER MANUAL IDX-1600 Imarflex

CLEANING AND MAINTENANCE:

1.) Always unplug the unit from the convenience outlet before cleaning. Let it cool.
2.) Wipe the Body and the Induction Plate with damp cloth, regularly.
3.) Do not use chemical solution.

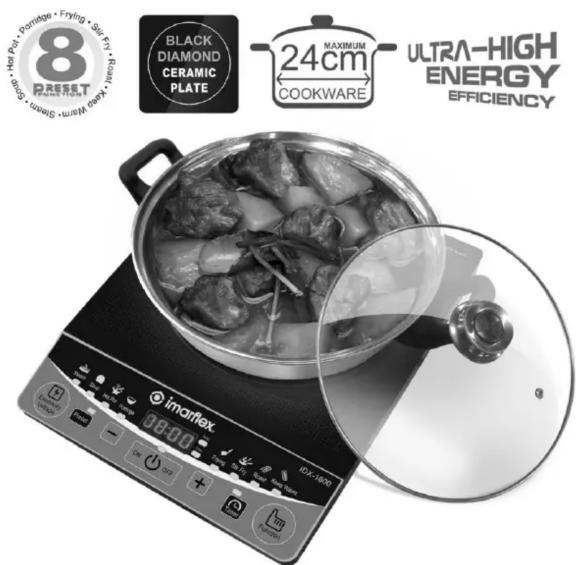

Induction Cooker

Instruction Manual

imarflex®

In Every Home.

www.imarflex.com

IDX-1600

SPECIFICATION:

MODEL NO. : IDX-1600

RATED VOLTAGE : 230Va.c. \~ 60Hz

POWER CONSUMPTION : 2000 Watts

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.

2. Do not use the Induction Cooker on any metal table.

3. Do not use the Induction Cooker next to devices, which react sensitively to magnet (e.g. radios, TV, cassette recorders, etc.).

4. Keep curtains, furniture, flammable materials, etc. away from the unit and from the convenience outlet where the Induction Cooker is plugged.

5. Before using the Induction Cooker, check if the voltage indicated corresponds with the convenience outlet (230Va.c.)

6. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest Authorized Service Center.

7. Do not use two-way socket with other appliance.

8. Do not touch the Induction Cooker and the power plug with wet hands.

9. Do not block the ventilation slots of the Induction Cooker. Keep a minimum distance of 10cm to 20cm from the wall or from other items.

10. The Induction Cooker's surface is made of ceramic, in case of damaged, unplug immediately.

11. Do not insert objects like wires or tools into the ventilation slots, this may cause electric shocks.

12. The Induction Cooker does not heat up during cooking, but the heat from the cookware, transmit in the Induction Cooker. Do not touch the hot surface of the glass.

13. Scientific tests have proven that Induction Cookers are safe to use. However, persons with a pacemaker should keep a minimum distance of 60cm from the Induction Cooker while using.

14. Do not place any metal kitchen utensils, pan lids, knives or other metal objects on the cooker. These may heat up when the Induction Cooker is turned on.

15. Do not place any magnetic objects on the glass surface while the Induction Cooker is in use.

16. To protect against electric shock, do not immerse the Induction Cooker in water.

NOTE: The unit is equipped with an overload protection. If the pot or pan gets too hot, a beep sound will be heard and the unit will automatically turns OFF. Unplug the unit from the convenience outlet and let it cool.

TROUBLE SHOOTING

PROBLEM	POSSIBLE CAUSES
1. There is noise while using.	1. There is a noise when the exhaust fan is working, please check if it is coming from the exhaust.
2. There is a “beep” sound and the “ON/OFF” light flash, no heating.	1. Please check if the pot is suitable for Induction Cooker.2. If the pot is not placed at the center of the ceramic plate.
3. Stop heating while using.	1. Please check if the temperature around is too high.2. If the air-in or exhaust hole is blocked.3. If the set time is finished.
4. No response from the key.	1. Please check if it is properly plugged.

STIR FRY HEAT

NOTE:

Default

TEMPERATURE is "270°C"

Default TIME is "1:00 Hour"

ROAST HEAT (°C)

NOTE:

Default

TEMPERATURE

Is "160°C"

Default TIME is "2:00 Hours"

KEEP WARM HEAT (℃)

NOTE:

TEMPERATURE can not be adjusted

Default TIME is "2:00 Hours"

STEAM HEAT (Watts)

NOTE:

Default WATTAGEIs "1600 watts"

Default TIME is"1:00 Hour"

SOUP HEAT (Watts)

NOTE:Default WATTAGEis "1300 Watts"Default TIME is"2:00 Hours"

1. Press the Function Button to select the "STIR FRY" function, light indicator will turn ON and LCD will display 270°C.

2. Press the -/+ keys to change the temperature from 60°C to 270°C.

3. Press the Function Button to select "ROAST" function, light indicator will turn ON and LCD will display 160°C.

4. Press the -/+ keys to change temperature from 60°C to 270%

5. Press the Function Button to select the "KEEP WARM" function light indicator will turn ON and LCD will display 80°C.

6. Press the Function Button to select the "KEEP WARM" function light indicator will turn ON and LCD will display 80°C.

7. Press the Function Button to select "STEAM" function, light

8. To change the wattage: Press the -/+ keys to change power setting from 100W-2000W.

9. Press the Function Button to select the "SOUP" function, light indicator will turn ON.

10. To change the wattage: Press the √+ keys to change power setting from 100W-2000W.

NOTE:

1. Default time will function only if the TIMER BUTTON is press.

2. Wattage is adjusted with 400, 300 and 200 watts interval.

3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

4. Children should be supervised to ensure that they do not play with the appliance.
5. Do not use this unit for other than intended use.

6. Save this instruction for future reference.

7. For household use only, not for industrial use.

DESCRIPTION OF PARTS:

SUITABLE COOKWARES:

➢ Magnetized stainless steel and cast iron.
Acceptable pot diameter is 17-22cm.

NOTE: FOR OPTIMAL PERFORMANCE AND EFFICIENCY, USE POTS THAT ARE WITHIN THE SIZE OF THE CIRCULAR PRINT ON THE INDUCTION COOKER.

UNSUITABLE COOKWARES:

➢ Non-magnetized stainless steel, aluminum, plastic, glass, and porcelain.

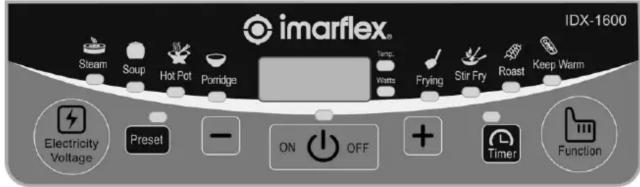

CONTROL PANEL

ELECTRICITY VOLTAGE- to check the voltage of the unit

1. Press this button to check the voltage while in use.

PRESET BUTTON- to set a delay time cooking

1. On stand by mode, press this button, default time is 2 hours.
2. Press “-/+” keys to adjust the time from “1 minute -24 hours”.
3. Press ON/OFF button. Preset function is HOTPOT. Press the Function Button to select the desired cooking preset function.
4. After the preset time, the unit will automatically turn ON and work on the set cooking preset function

“-”BUTTON- to decrease setting

1. While cooking, press this button to decrease the Time,

Temperature and Wattage.

ON/OFF BUTTON- to turn the unit ON and OFF.

“+” BUTTON- to increase setting

1. While cooking, press this button to increase the Time, Temperature and Wattage.

"TIMER" BUTTON- to set cooking time.

1. Press ON/OFF button, HOTPOT is the preset function, press the Function button to select desired function.
2. Press the “-/+” keys to select desired setting.
3. Set the desired cooking time by pressing the "TIMER" button, adjust time by pressing "-/+" keys, press 1 it will increase/decrease by 1 minute, long press it will increase/decrease by 10 minutes.
4. After the set time, the unit will automatically shut off.

FUNCTION BUTTON- to select desired cooking function.

1. Turn on the unit, HOTPOT is the preset function,
2. Press this button to select desired cooking function.

-3-

HOW TO USE

1. Put the induction-ready cookware on the center of the Induction Plate.
2. Plug in. A "beep" sound will be heard, (ON/OFF light indicator will blink, indicating that unit is in STAND-BY mode).
3. Place the cookware with load on the unit.
4. Press ON/OFF control key, to turn the unit ON.
5. The function is set on HOTPOT Function.

CAUTION: Do not leave an empty cookware with the Induction Cooker ON.

PRESET FUNCTION TABLE:

PRE-SETFUNCTION

LIGHTINDICATOR

PROCEDURE

HOTPOT

HEAT(Watts)

NOTE:

Preset WATTAGE

is "2000 Watts"

Preset TIME is

"2:00 Hours"

1. Press the ON/OFF key, HOTPOT light indicator will turn ON.
2. To change the wattage: Press the -/+ keys to change power setting from 100W-2000W.

PORRIDGE

HEAT(Watts)

NOTE:

Default

WATTAGE is

"1000 Watts"

Default TIME is

"2:00 Hours"

1. Press the Function Button to select "PORRIDGE" Function, indicator will turn ON.
2. To change the wattage: Press the -/+ keys to change power setting from 100W-2000W.

FRYING

HEAT(°C)

NOTE:

Default

TEMPERATURE

is "240°C"

Default TIME is

"2:00 Hours"

1. Press the Function Button to select the "ROAST" function light indicator will turn ON and LCD will display 240°C.
2. Press the -/+ keys to change the temperature from 60^ to 270^ .

-4-
