Product Type	Coffee Grinder
Brand	Imarflex
Model	IBG-159C
Power Supply	AC 220-240V, 50/60Hz
Rated Power	150W
Capacity	60g coffee beans
Dimensions (L x W x H)	15 cm x 15 cm x 25 cm
Weight	1.5 kg
Grinding Mechanism	Stainless steel blade
Functions	Grind coffee beans, pulse operation
Safety Features	Overheat protection, non-slip rubber feet
Material	Stainless steel blade, plastic body
Cleaning	Detachable bowl and lid, wipe with damp cloth
Spare Parts	Bowl, lid, blade assembly available from Imarflex
Repairability	Repairable; contact Imarflex service center

Frequently Asked Questions - IBG-159C Imarflex

How do I clean the coffee grinder?

Unplug and detach the bowl and lid. Wipe with a damp cloth. Use a brush to remove coffee residue from the blade area. Do not immerse the motor base in water.

What is the maximum capacity of the grinder?

The grinder can hold up to 60g of coffee beans.

Can I grind other spices or nuts?

This grinder is designed for coffee beans only. Using it for other hard items may damage the blade.

Does it have a safety lock?

Yes, the grinder will not operate unless the bowl and lid are securely locked in place.

How do I adjust the coarseness of the grind?

The IBG-159C uses a blade grinder; coarseness is controlled by grinding time. Shorter pulses for coarse, longer for fine.

What power supply does it need?

It operates on AC 220-240V, 50/60Hz.

Is there an overheat protection?

Yes, the motor has overheat protection that shuts off automatically if it gets too hot.

Can I replace the blade?

Yes, replacement blade assemblies are available. Contact Imarflex support.

What is the warranty period?

Imarflex typically offers a 1-year warranty for manufacturing defects. Check your local retailer.

How do I use the pulse function?

Press the pulse button for short bursts to control grind consistency. Release to stop immediately.

USER MANUAL IBG-159C Imarflex

AUTO-STOP Grinding Volume

200g BEAN HOPPER CAPACITY

STAINLESS STEEL

CONICAL BLADE

200W

POWER

Exterior view of a modern imarflex conical grinder with coffee grates and control knobs (no text or symbols on the device itself)

IBG-159C

SPECIFICATION:

MODEL NO.: IBG-159C

RATED VOLTAGE: 230Va.c. 60Hz

POWER CONSUMPTION: 200W

BOX DIMENSION: 236*191*308mm

UNIT DIMENSION: 130*180*260mm

GROSS WEIGHT: 1.85 kg.

UNIT WEIGHT: 1.7 kg.

IMPORTANT SAFEGUARD:

1. Read all instructions.

2. To protect against risk of electric shock, do not put the Conical Grinder in water or any other liquid.

3. Children shall not play with the appliance.

4. This appliance shall not be used by children.

5. Keep the appliance and its cord out of reach of children.

6. Unplug the Conical Grinder from the outlet when not in use, before putting on or taking off parts, and before cleaning.

7. Avoid contacting moving parts.

8. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped or damaged in any manner. Bring the appliance to the nearest lmarflex authorized service center for examination, repair, or electrical or mechanical adjustment.

9. Do not use outdoors.

10. Do not let cord hang over the edge of the table or counter, or touch hot surfaces.

11. Check the bean hopper for the presence of foreign objects before using.

12. After grinding one full hopper of coffee beans (200g), please wait for one minute before attempting to grind a second full hopper of coffee beans (200g). After grinding two full hoppers of coffee beans, please wait until the unit cools down to room temperature if you need to grind more.

13. When using electrical appliances, basic safety precautions should always be followed.

14. This Conical Grinder is intended for grinding coffee beans for domestic use only. Do not use it to grind anything else, as this would damage the appliance.

15. Before operating the appliance for the first time, read all instructions. Failure to observe the instructions and safety notes may result in hazardous conditions.

16. This appliance is designed for household use only. Do not use outdoors. Do not place on or near a hot gas or electric burner, or in a heated oven.

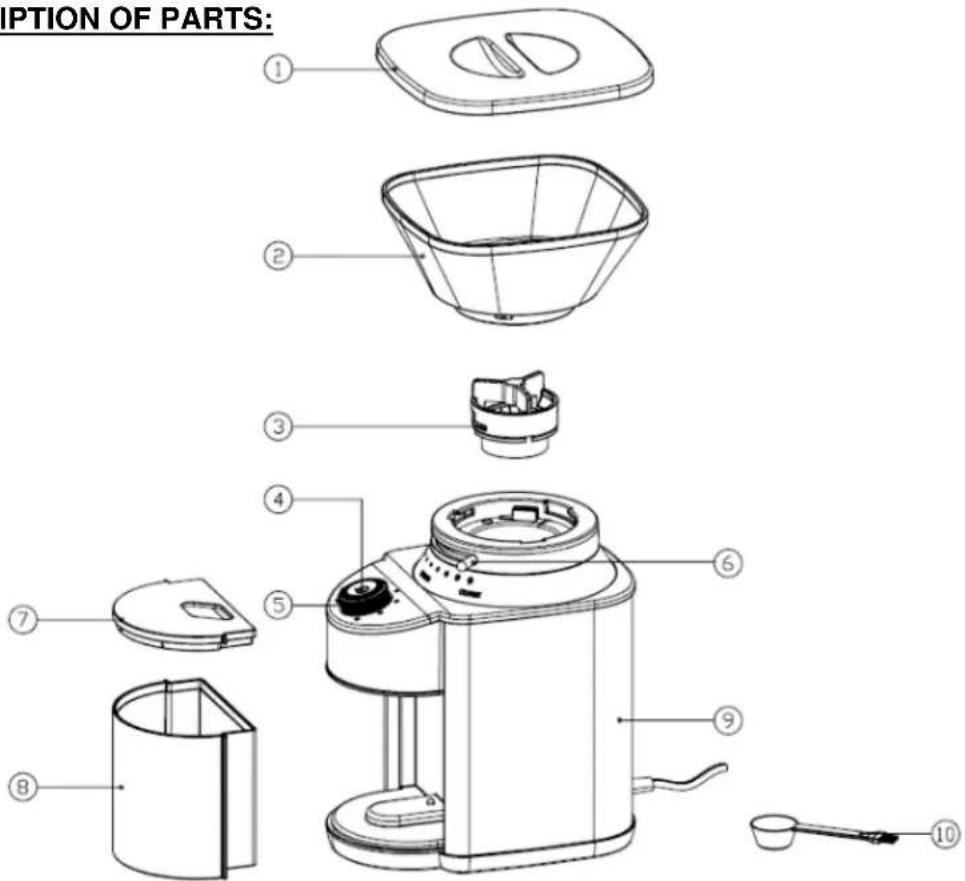

DESCRIPTION OF PARTS:

NO.	DESCRIPTION	NO.	DESCRIPTION
1	Bean Hopper Lid	6	Grind Settings Selector
2	Bean Hopper	7	Ground Coffee Container Lid
3	Outer Blade	8	Ground Coffee Container
4	Start / Stop Button	9	Unit Body
5	Volume Settings Knob	10	Scooper with Brush

Grind Settings Chart

GRIND SETTINGS			VOLUME SETTINGS
Select Grind Setting. Rotate to the desired Grind Volume. Press 📍 button to start.			APPROXIMATE ONLY
		[V32W]	GRAMS (g)
			3g	7-8g
ESPRESSO Extra Fine	AEROPRESS Fine	MOKA POTS Medium Fine	5-6g	9-10g
			CUPS
			1-2 cups	7-8 cups
			3-4 cups	9-10 cups
DRIP COFFEE Medium		SIPHON Medium Coarse	5-6 cups	11-12 cups

Grind Settings

Volume Settings

- Please refer to the grinding setting chart

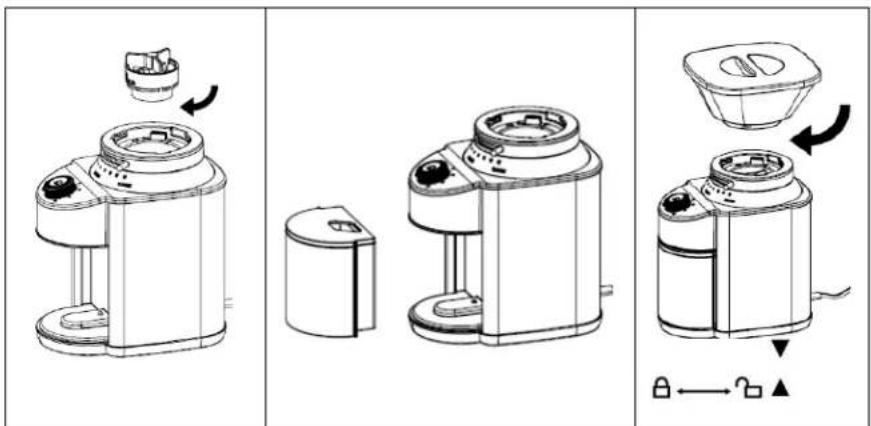

HOW TO ASSEMBLE:

1. Place the outer blade into the top inner blade. Rotate clockwise to lock. (Please refer to Pic 1).
2. Put the ground coffee container into the unit. (Please refer to Pic 2)
3. Put the Bean Hopper on the top of the blades.
4. Kindly align the bean hopper arrow icon into the base unit arrow then rotate it clockwise to lock. (Please refer to Pic 3)
5. Put the bean hopper lid on the top of the bean hopper.

Pic 1
Pic 2
Pic 3

HOW TO USE:

Before first use, remove and safely discard all promotional labels and packing materials attached to your Conical Grinder.

1. Wash bean hopper, bean hopper lid, ground coffee container, container lid with warm soapy water and dry thoroughly. Wipe exterior of grinder with a soft damp cloth and dry thoroughly.
2. Place grinder on flat level surface.
3. Assemble the accessories accordingly (Refer to HOW TO ASSEMBLE).
4. Plug the unit into the convenience outlet.
5. Note: The unit will not work if the bean hopper is not properly installed.
6. Put the coffee beans inside the bean hopper.

7. Note: Make sure that the bean hopper is properly installed in the base housing before putting the coffee beans.

8. Bean hopper max capacity is 200g
   • Ground coffee container max capacity is 120g

9. DRY ROASTED COFFEE BEANS are highly recommended to avoid clogging. Oily beans may cause clogging

10. It is highly recommended to clean the unit after each (one) grind to avoid clogging

11. Place the bean hopper lid on the top of the bean hopper.

12. Select the desired grind settings from 1 to 17 grind settings.

13. Select the desired grind volume settings (Cups / Grams). Please refer to Grind Setting Chart.

14. Press Ⓧ button to start grinding.

15. Wait until the unit stops grinding.
16. Note: To stop the unit from grinding, press ⏻ button.
17. Turn OFF and unplug the unit after use.

Note: If the coffee bean does not drop into the conical blade, turn OFF the unit and mix the bean properly then turn ON the unit.

CLEANING AND MAINTENANCE:

1. Unplug the Conical Grinder from the convenience outlet before cleaning.
2. Remove the bean hopper by turning the bean hopper counter clockwise and remove the ground coffee container from the base unit.
3. Wipe it with a lint-free cloth to remove any coffee dust and oil build-up.
4. Note: Do not use paper towel, as it will leave lint.
5. For any oil residue, clean with mild soap and warm water. Rinse it immediately to avoid contamination and fully dry the unit.
6. Wipe the outer and inner blade using lint-free cloth or brush to remove coffee dust and oil.
   Note: Do not immerse the outer blade in water or any other liquid.
7. Re-assemble the unit.
8. Do not use abrasive materials to avoid scratches.
   Note: All parts are not suitable in dishwasher

TROUBLESHOOTING:

CONCERN	CAUSE	SOLUTION
Unit not working	Please check voltage, it should be the same as the unit	Select the correct voltage same as the unit
Burnt smell for first few times of usage	It is normal for it to smell burnt for first few times of usage	As long as the working voltage is correct, it is normal to smell burnt for first few times of usage
Unit body is overheating	Unit overload	Let the unit rest for 10 minutes then turn ON the unit.

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our email address [e-mail]

Distributed By:

Topgadget Distributions, Inc.

2120 A.linao St., Malate, Manila

Made in China
