Product Type	Coffee Grinder
Model	IBG-225C
Brand	Imarflex
Rated Power	150 W
Capacity	Approx. 60 g (beans)
Grinding Mechanism	Stainless Steel Blades
Dimensions (H x W x D)	17 cm x 10 cm x 10 cm
Weight	0.8 kg
Material	Stainless Steel Bowl, Plastic Body
Color	Black/Silver
Cord Length	0.8 m
Control Type	Push Button (Pulse)
Functions	Grind, Pulse
Safety Features	Overheat Protection, Non-Slip Feet
Cleaning	Detachable Bowl, Wipe Clean Body
Maintenance	Regular cleaning, no lubrication required
Warranty	1 Year (standard)
Included Accessories	Cleaning Brush
Repairability	Spare Parts Available (blades, bowl)
Certifications	CE, RoHS

Frequently Asked Questions - IBG-225C Imarflex

How do I use the IBG-225C coffee grinder?

Add coffee beans to the bowl (max 60g), place the lid securely, and press the pulse button in short bursts until desired consistency is reached. Avoid continuous operation for more than 30 seconds to prevent overheating.

Can I grind other ingredients besides coffee?

Yes, the grinder can also be used for spices, nuts, and herbs. However, do not grind extremely hard or wet items to avoid damaging the blades.

How do I clean the grinder?

Unplug the grinder. Remove the bowl and wash it with warm soapy water. Wipe the motor base with a damp cloth. Use the included brush to clean the blade area. Do not immerse the base in water.

What safety features does the grinder have?

The grinder has overheat protection that automatically shuts off when the motor gets too hot. It also has non-slip feet for stability during operation.

Can I adjust the grind size?

The IBG-225C has a fixed blade system. Grind size is controlled by the duration of pulsing: short bursts for coarse, longer for fine. There is no adjustable burr.

Is the grinder loud?

Like most blade grinders, it produces a moderate noise level during operation. It is recommended to use on a stable surface and not in quiet environments if noise is a concern.

What is the maximum capacity?

The bowl holds up to 60 grams of coffee beans. Grinding larger quantities may result in uneven grind or motor strain.

Can I grind without the lid?

No, the lid must always be in place during operation to prevent spillage and ensure safety. The grinder will not start if the lid is not properly secured (safety interlock).

How do I obtain replacement parts?

Replacement parts such as blades, bowl, and lid are available through Imarflex customer service or authorized dealers. Visit the Imarflex website or contact support for details.

What should I do if the grinder stops working?

First, allow it to cool down if overheated (overheat protection may have tripped). Check the power cord and outlet. If it still does not work, contact Imarflex support for troubleshooting or warranty service.

USER MANUAL IBG-225C Imarflex

X-ray image of a human skull showing internal anatomical structures (no text or labels)

220g

BEAN HOPPER CAPACITY

160W

POWER

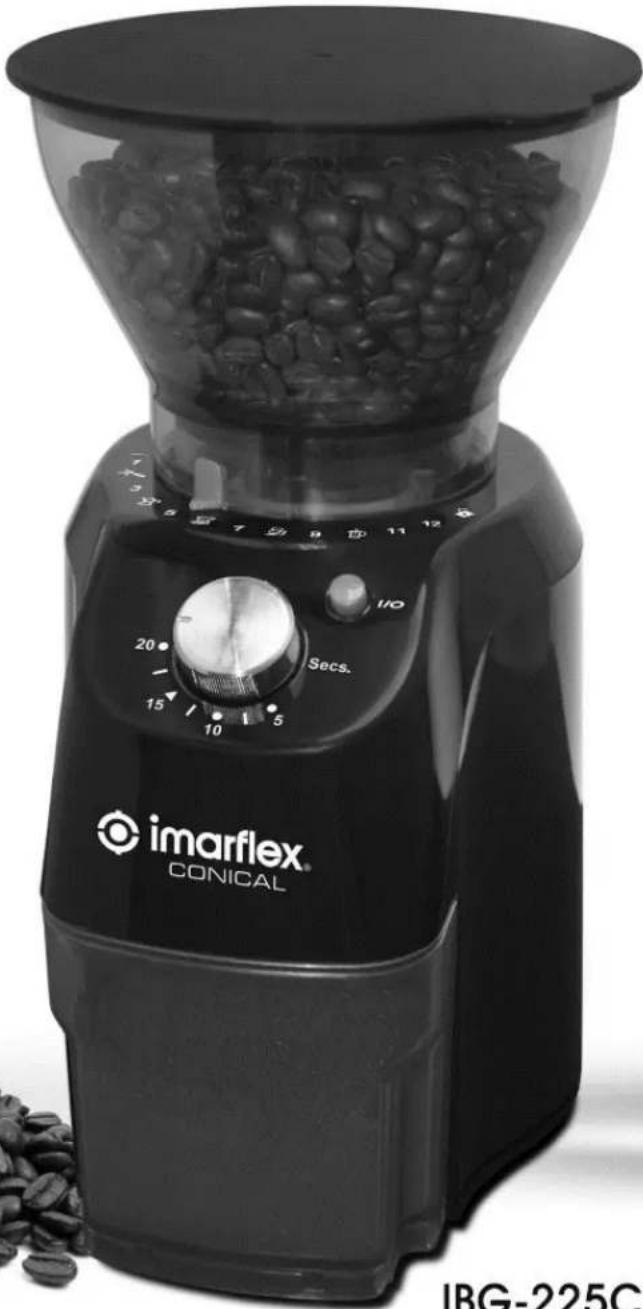

Black industrial coffee maker with visible branding and control dial (no text or symbols on main body)

IBG-225C

SPECIFICATION:

MODEL NO.: IBG-225C

RATED VOLTAGE: 230Va.c. 60Hz

POWER CONSUMPTION: 160W

BOX DIMENSION: 206*163*328mm

UNIT DIMENSION: 170*136*250mm

GROSS WEIGHT: 1.9 kg

UNIT WEIGHT: 1.4 kg

IMPORTANT SAFEGUARD:

1. Read all instructions.
2. To protect against risk of electric shock, do not put the Conical Grinder in water or other liquid.
3. Close supervision is necessary when any appliance is used by or near children.
4. Children shall not play with the appliance.
5. This appliance shall not be used by children.
6. Keep the appliance and its cord out of reach of children.
7. Unplug the Conical Grinder from the outlet when not in use, before putting on or taking off parts, and before cleaning.
8. Avoid contacting moving parts.
9. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped or damaged in any manner. Return the appliance to the nearest Imarflex authorized service center for examination, repair, or electrical or mechanical adjustment.
10. Do not use outdoors.
11. Do not let cord hang over edge of table or counter, or touch hot surfaces.
12. Check the bean hopper for the presence of foreign objects before using.
13. After grinding one full hopper of coffee beans (220g), please wait for one minute before attempting to grind a second full hopper of coffee beans (220g). After grinding two full hoppers of coffee beans, please wait until the unit cools down to room temperature if you need to grind more.
14. When using electrical appliances, basic safety precautions should always be followed.
15. This Conical Grinder is intended for grinding coffee beans for domestic use only. Do not use to grind anything else as this would be damage the appliance.
16. Before operating the appliance for the first time, read all instructions. Failure to observe the instructions and safety notes may result in hazardous conditions.
17. This appliance is designed for household use only. Do not use outdoors. Do not place on or near hot gas or electric burner, or in a heated oven.

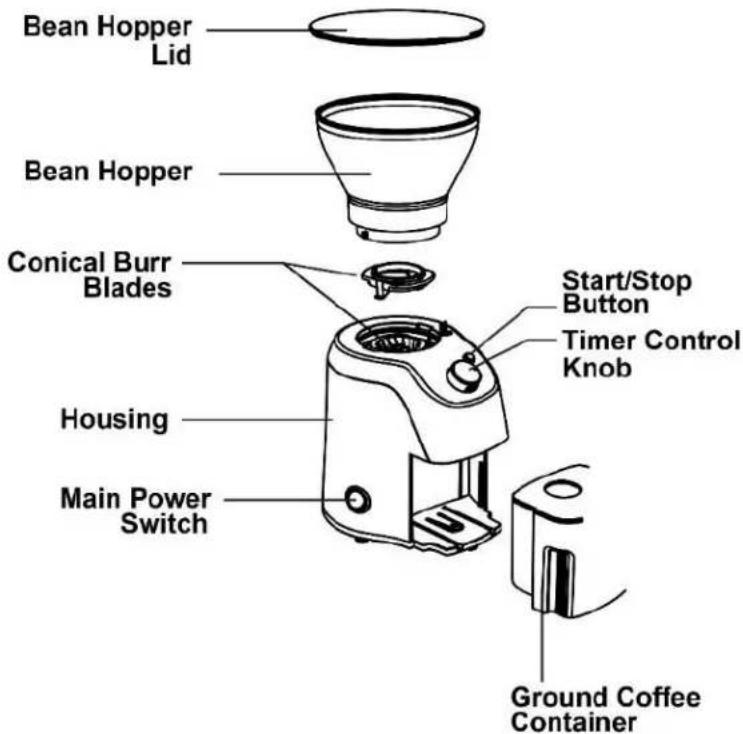

DESCRIPTION OF PARTS:

HOW TO ASSEMBLE:

1. Place the outer blade into the top inner blade.

Note: Make sure the outer blade is in-between the lines (Please refer to Pic 1).

1. Put the Bean Hopper on the top of the blades (Please refer to Pic 2).

Note: Red Arrow must be aligned in the 📁 icon to properly place the bean hopper into the base unit.

1. Turn the bean hopper clockwise to lock.

2. Put the bean hopper lid on the top of the bean hopper (Please refer to Pic 3)

3. Place the container lid on the top of ground coffee container and put it inside the base housing (Please refer to Pic 2).

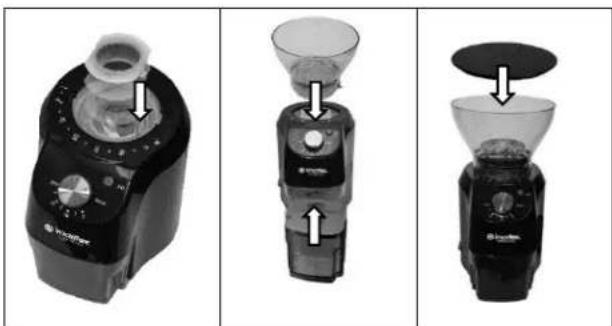

Three-panel image showing a coffee maker with a funnel and a side-view view of its funnel (no text or symbols visible)

Pic 1
Pic 2
Pic 3

GRIND SETTINGS:

• Please refer to the chart for grinding settings reference.

TIME SETTINGS:

• Arrow in the time setting means that the extracted ground coffee from espresso setting can fill one full portafilter

GRIND SETTINGS & TIME SETTINGS CHART:

GRIND SETTINGS			TIME SETTINGS
NO.	TYPE OF COFFEE	GRIND SETTING	SECS.	APPROXIMATE ONLY
1	Turkish Coffee	Extra Fine		GRAMS (ESPRESSO)	CUPS (DRIP COFFEE)
	Espresso	Fine	5 secs.	5-7 grams	1-2 cups
3	-
	Moka Pots	Medium Fine
5	-		10 secs.	11-13 grams	3-4 cups
	Drip Coffee/ Pour-over	Medium
7	-
	Siphon	Medium Coarse	15 secs.	18-20 grams	5-7 cups
9	-
	French Press	Coarse
11	-		20 secs.	28-30 grams	8-10 cups
12	Cold Brew	Extra Coarse
	Unlock Hopper	-

HOW TO USE:

Before first use, remove and safely discard all promotional labels and packing materials attached to your Conical Grinder.

1. Wash bean hopper, bean hopper lid, ground coffee container, container lid with warm soapy water and dry thoroughly. Wipe exterior of grinder with a soft damp cloth and dry thoroughly.
2. Place grinder on flat level surface.
3. Please and plug power cord into convenience outlet.
4. Assemble the accessories accordingly (Refer to HOW TO ASSEMBLE).
5. Put the coffee beans inside the bean hopper.

Note: Make sure that the bean hopper is properly installed in the base housing before putting the coffee beans.

• Bean hopper max capacity is 220g

• DRY COFFEE BEANS are highly recommended to avoid clogging. Oily beans may cause clogging

• Place the bean hopper lid on the top of the bean hopper.

• Turn ON the main power switch.

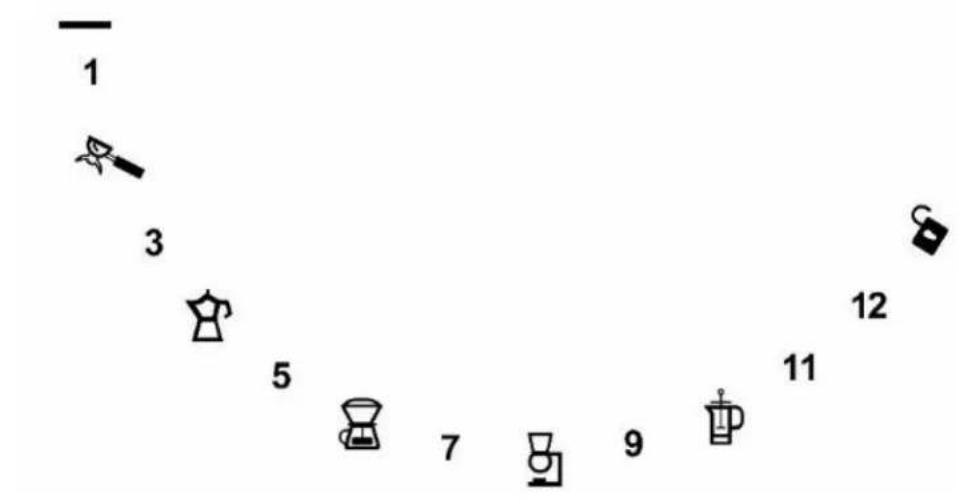

• Select the desired grind settings by aligning the bean hopper arrow to the 1 to 12 grind settings.

• Select the desired time.

• Press the O/I button to start grinding.
• Wait until the time consume.
  Note: To stop the time while grinding, press O/I button.
• Turn OFF the main switch and unplug the unit after use.

CLEANING AND MAINTENANCE:

1. Unplug the Conical Grinder from the convenience outlet before cleaning.
2. Remove the bean hopper by turning the bean hopper counter clockwise and remove the ground coffee container from the base unit.
3. Wipe it with a lint-free cloth to remove any coffee dust and oil build-up.
   Note: Do not use paper towel, as it will leave lint.
4. For any oil residue, clean with a mild soap and warm water. Rinse it immediately to avoid contamination and fully dry the unit.
5. Wipe the outer and inner blade using lint-free cloth or brush to remove coffee dust and oil.
6. Re-assemble the unit.
7. Do not use abrasive materials to avoid scratches.
8. To protect from electrical hazards, do not immerse the unit and electric cord in water.

REMINDER: Please do not forget to fill up and send the warranty card.
