Product Type	DLP Video Projector
Model	CPB701HD
Brightness	3,500 ANSI Lumens
Native Resolution	1920 x 1080 (Full HD)
Lamp Type	OSRAM P-VIP 203/0.8 E30.5
Lamp Life	Up to 20,000 hours (SuperEco+ mode)
Throw Ratio	1.50~1.65
Zoom Ratio	1.1x ±2% Optical Zoom
Lens Shift	Vertical: ±5% (via remote)
Keystone Correction	Vertical ±40°
Displayable Colors	1.07 billion colors
Inputs	HDMI 1, HDMI 2, COMPUTER IN (VGA), Audio In
Outputs	MONITOR OUT (VGA), Audio Out, USB 5V/1.5A (Service)
Control Ports	RS-232, USB (service)
Built-in Speaker	Yes (mono)
Projection Size	60" to 200"
Power Consumption	300W (Typical), <0.5W Standby
Power Input	AC 100-240V, 50/60Hz
Dimensions (W x H x D)	312 x 108.37 x 221.8 mm (12.3" x 4.3" x 8.7")
Weight	3.7 kg (8.16 lbs)
3D Support	Yes (Frame Sequential, Frame Packing, Top-Bottom, Side-by-Side)
Safety Features	Password protection, security slot, panel key lock
Operating Temperature	0°C to 40°C (32°F to 104°F)

Frequently Asked Questions - CPB701HD VIEWSONIC

What is the native resolution of the ViewSonic CPB701HD?

The native resolution is 1920 x 1080 (Full HD).

How long does the lamp last?

In SuperEco+ mode, the lamp can last up to 20,000 hours. Other modes reduce lamp life proportionally.

Can I project 3D content?

Yes, the projector supports 3D via Frame Sequential, Frame Packing, Top-Bottom, and Side-by-Side formats. You need compatible 3D glasses.

Does the projector have lens shift?

Yes, a vertical lens shift of +/-5% is available via remote control, making installation flexible.

How do I correct keystone distortion?

Use the keystone keys on the projector or remote to adjust vertical keystone up to ±40°. The OSD menu also provides a slider.

What inputs are available?

Two HDMI ports, one VGA input (COMPUTER IN), one VGA output (MONITOR OUT), audio input, audio output, USB (5V/1.5A for service/power), and RS-232.

Can I control the projector remotely via RS-232?

Yes, the RS-232 port allows external control. The default baud rate is 115200 bps but can be changed in the SYSTEM menu.

How do I set a password to prevent unauthorized use?

Go to SYSTEM > Security Settings > Power On Lock, select On, and enter a 6-digit password using the arrow keys (1,2,3,4). Confirm the password.

What power saving modes are available?

Lamp modes: Normal, Eco (16% reduction), Dynamic Eco (up to 30% reduction), and SuperEco+ (60% reduction). Additional auto power off and sleep timer can be set.

What is the weight and size of the projector?

It weighs 3.7 kg (8.16 lbs) and measures 312 x 108.37 x 221.8 mm (12.3 x 4.3 x 8.7 inches).

USER MANUAL CPB701HD VIEWSONIC

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in a safe manner, as well as registering your product for future service. Warranty information contained in this User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website. "Antes de operar su equipo lea cu idadosamente las instrucciones en este manual"

Thank you for choosing ViewSonic®

As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding the world's expectations for technological evolution, innovation, and simplicity. At ViewSonic®, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic® product you have chosen will serve you well.

Once again, thank you for choosing ViewSonic®!

> Safety Precautions - General

Please read the following Safety Precautions before you start using the projector.

• Keep this user guide in a safe place for later reference.
• Read all warnings and follow all instructions.
• Allow at least 20" (50 cm) clearance around the projector to ensure proper ventilation.

- Place the projector in a well-ventilated area. Do not place anything on the projector that prevents heat dissipation.

- Do not place the projector on an uneven or unstable surface. The projector may fall over, causing personal injury or projector malfunction.

- Do not use if the projector is tilted at an angle of more than 10^ degrees left or right, nor at an angle of more than 15^ degrees forwards or backwards.

- Do not look straight at the projector lens during operation. The intense light beam may damage your eyes.

- Always open the lens shutter or remove the lens cap when the projector lamp is on.

- Do not block the projection lens with any objects when the projector is under operation as this could cause objects to become heated and deformed or even cause a fire.

- The lamp becomes extremely hot during operation. Allow the projector to cool for approximately 45 minutes prior to removing the lamp assembly for replacement.

- Do not use lamps beyond the rated lamp life. Excessive use of lamps beyond the rated life could cause them to break on rare occasions.

- Never replace the lamp assembly or any electronic component unless the projector is unplugged.

- Do not attempt to disassemble the projector. There are dangerous high voltages inside which may cause death if you should come into contact with live parts.

- When moving the projector, be careful not to drop or bump the projector on anything.

- Do not place any heavy objects on the projector or connection cables.

- Do not stand the projector on end vertically. Doing so may cause the projector to fall over, causing personal injury or projector malfunction.

- Avoid exposing the projector to direct sunlight or other sources of sustained heat. Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that may increase the temperature of the projector to dangerous levels.

• Do not place liquids near or on the projector. Liquids spilled into the projector may cause it to fail. If the projector does become wet, disconnect it from the power supply and call your local service center to have the projector serviced.
• When the projector is under operation, you may sense some heated air and odor from its ventilation grill. It is a normal operation and not a defect.
• Do not attempt to circumvent the safety provisions of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide and third blade are provided for your safety. If the plug does not fit into your outlet, obtain an adapter and do not attempt to force the plug into the outlet.
• When connecting to a power outlet, DO NOT remove the grounding prong. Please ensure grounding prongs are NEVER REMOVED.
• Protect the power cord from being treaded upon or pinched, particularly at the plug, and at the point where it emerges from the projector.
• In some countries, the voltage is NOT stable. This projector is designed to operate safely within a voltage between 100 to 240 volts AC, but could fail if power cuts or surges of ±10 volts occur. In areas where voltage may fluctuate or cut out, it is recommended that you connect your projector through a power stabilizer, surge protector, or uninterruptable power supply (UPS).
• If smoke, an abnormal noise, or a strange odor is present, immediately switch the projector off and call your dealer or ViewSonic®. It is dangerous to continue using the projector.
• Use only attachments/accessories specified by the manufacturer.
• Disconnect the power cord from the AC outlet if the projector is not being used for a long period of time.
  • Refer all servicing to qualified service personnel.

CAUTION: Possibly hazardous optical radiation is emitted from this product. As with any bright light source, do not stare into the beam, RG2 IEC 62471-5:2015.

> Safety Precautions - Ceiling Mounting

Please read the following Safety Precautions before you start using the projector.

If you intend to mount the projector on the ceiling, we strongly recommend that you use a proper fitting projector ceiling mount kit and that you ensure it is securely and safely installed.

If you use an inappropriate projector ceiling mount kit, there is a safety risk that the projector may fall from the ceiling due to an improper attachment through the use of the wrong gauge or length screws.

You can purchase a projector ceiling mount kit from the place you purchased your projector. We recommend that you also purchase a separate security cable and attach it securely to both the anti-theft lock slot on the projector and the base of the ceiling mount bracket. This will perform the secondary role of restraining the projector should its attachment to the mounting bracket become loose.

> Contents

Safety Precautions - General 3

Features....10

Package Contents ....10

Product Overview....11

Projector.... 11

Controls and Functions 11

Connection Ports.... 12

Remote Control....13

Controls and Functions 13

Remote Control Effective Range 14

Replacing the Remote Control Batteries.... 14

Initial Setup....15

Choosing a Location....15

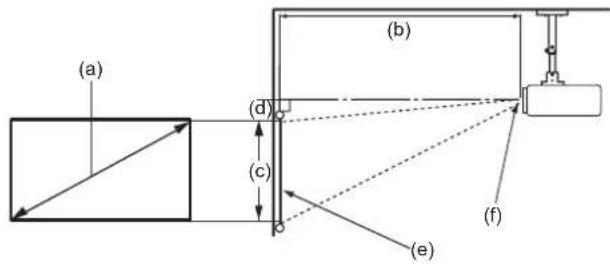

Projection Dimensions....16

16:9 Image on a 16:9 Screen.... 16

16:9 Image on a 4:3 Screen.... 17

Mounting the Projector....18

Preventing Unauthorized Use....19

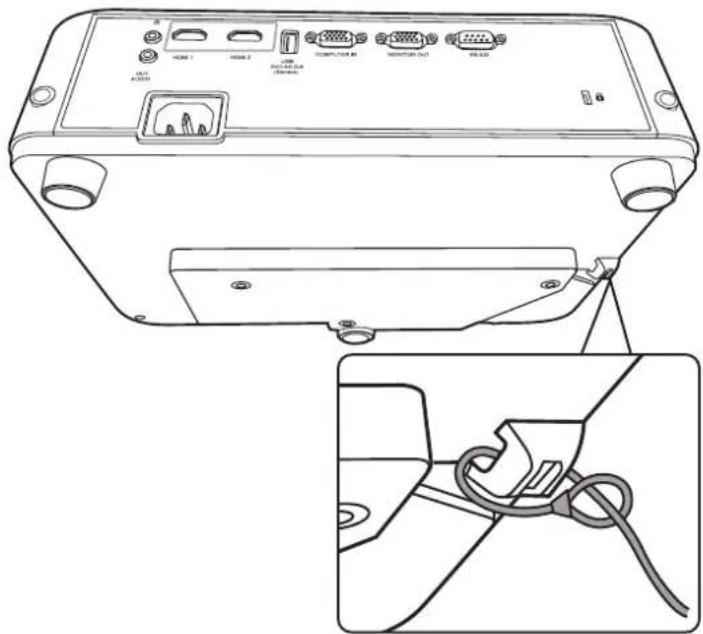

Using the Security Slot 19

Using the Password Function 20

Setting a Password....20

Changing the Password....21

Disabling the Password Function 21

Forgetting the Password 22

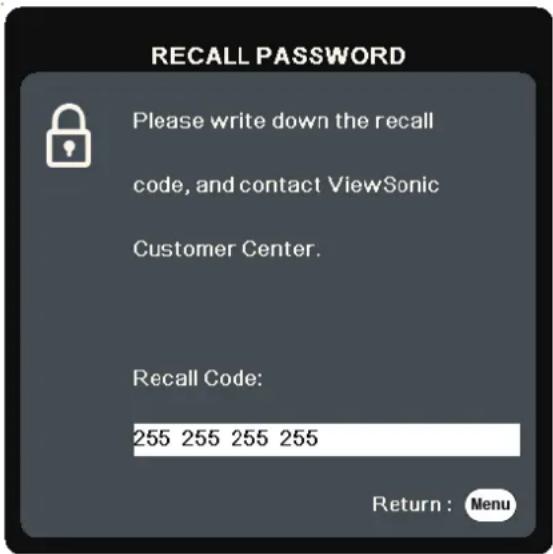

Password Recall Procedure.... 22

Locking the Control Keys 23

Making Connections....24

Connecting to Power 24

Connecting to Video Sources....25

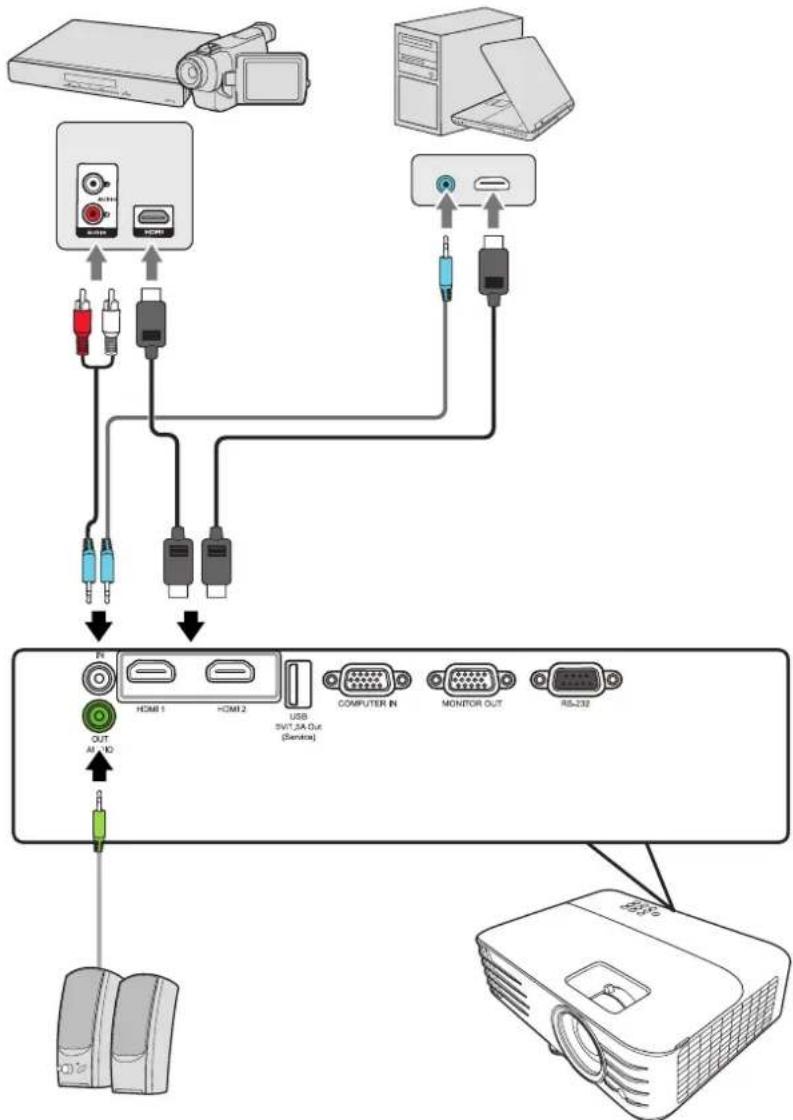

HDMI Connection.... 25

Connecting to Computer Sources....26

VGA Connection 26

VGA Out Connection 26

Connecting to Audio 27

Operation....28

Turning the Projector On/Off 28

Starting Up the Projector 28

First Time Activation 28

Shutting Down the Projector.... 29

Selecting an Input Source 30

Adjusting the Projected Image 31

Adjusting the Projector's Height and Projection Angle.... 31

Auto-Adjusting the Image 31

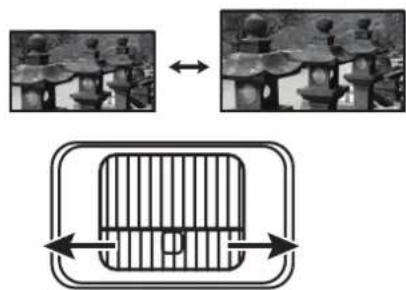

Fine-Tuning the Image Size and Clarity 31

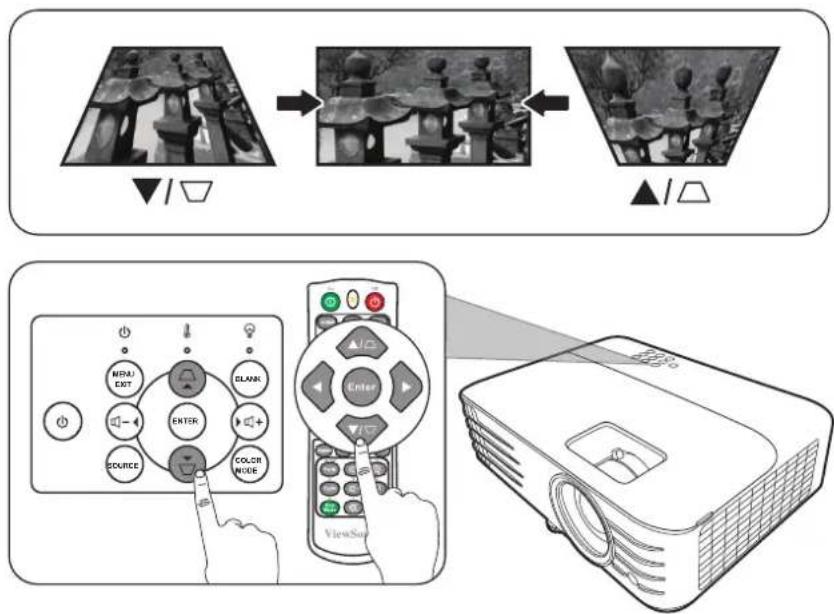

Correcting keystone 31

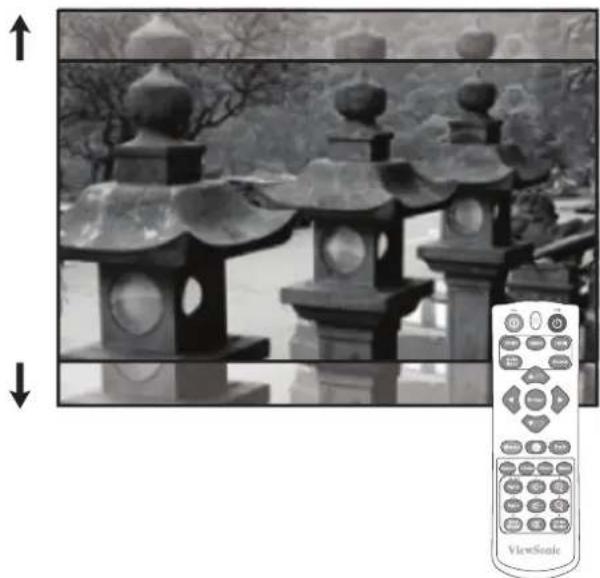

Controllability on the projected image.... 32

Hiding the Image ....33

Menu Functions 34

General On-Screen Display (OSD) Menu Operation 34

On-Screen Display (OSD) Menu Tree 35

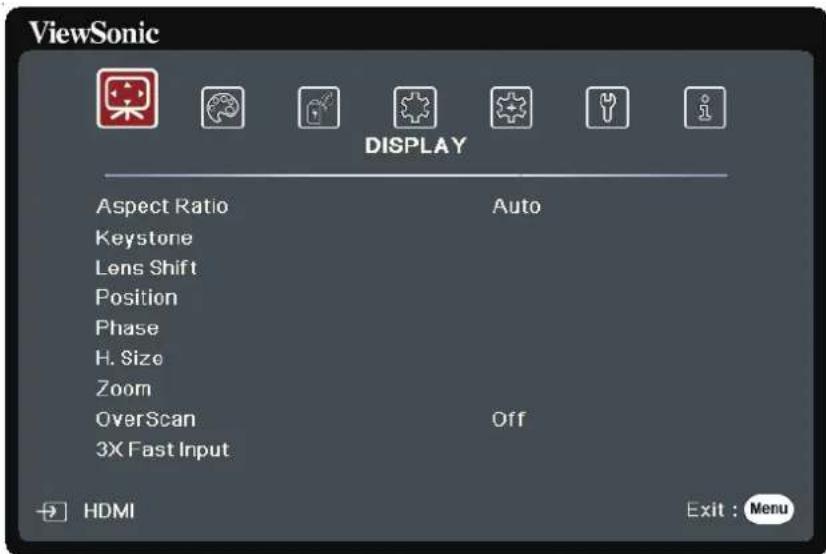

DISPLAY Menu 40

IMAGE Menu 43

POWER MANAGEMENT Menu ....47

BASIC Menu 50

ADVANCED Menu 52

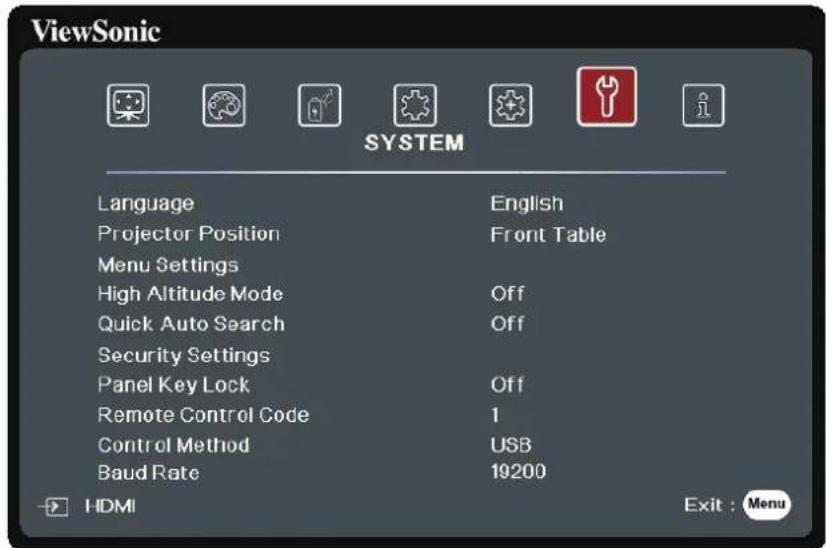

SYSTEM Menu....55

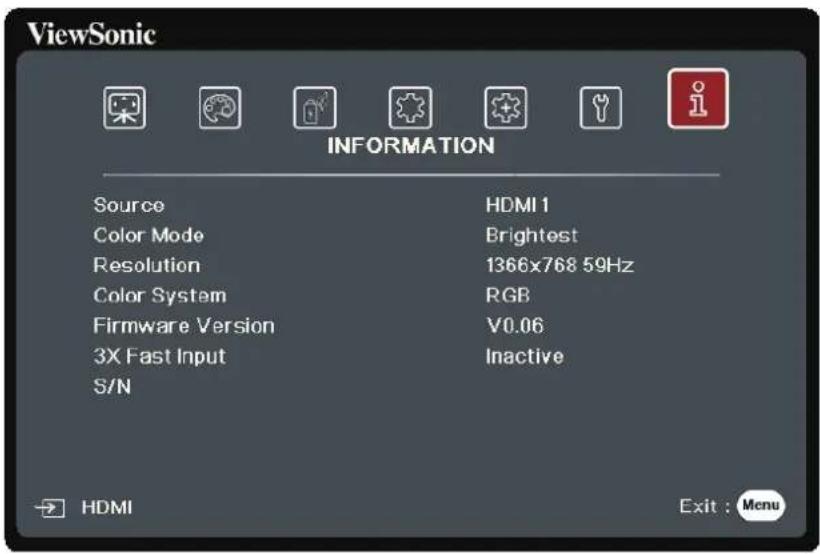

INFORMATION Menu ....57

Appendix....58

Specifications....58

Projector Dimensions.... 59

Timing Chart 59

Analog RGB....59

HDMI (PC) 60

HDMI (Video)....62

IR Control Table 62

Address Code....63

RS-232 Command Table 64

Pin Assignment....64

Interface 64

Command Table 64

Glossary 70

Troubleshooting 73

Common Problems....73

LED Indicators....74

Maintenance....75

General Precautions....75

Cleaning the Lens 75

Cleaning the Case 75

Storing the Projector 75

Disclaimer....75

Lamp Information....76

Lamp Hour....76

Extending Lamp Life 76

Lamp Replacement Timing....77

Replacing the Lamp 77

Regulatory and Service Information 78

Compliance Information....78

FCC Compliance Statement....78

Industry Canada Statement.... 78

CE Conformity for European Countries 78

Declaration of RoHS2 Compliance....79

Indian Restriction of Hazardous Substances 80

Product Disposal at End of Product Life 80

Copyright Information 81

Customer Service 82

Limited Warranty 83

Mexico Limited Warranty....86

> Introduction

The ViewSonic CPB701HD is a high brightness 3,500 ANSI Lumens projector featuring a Full HD 1080p resolution that offers impressive visual performance in a brightly lit living room or meeting room. The projector adopts the latest lamp design to extend lamp life of up to 20,000 hours under SuperEco+ mode, effectively reducing lamp replacement and maintenance costs. A digital lens shift allows users to make adjustments by remote control. It’s also compatible with the vColorTuner function for color profile exchange and adjustments. The dual HDMI inputs and USB power supply allow users to connect to a multitude of multimedia devices for gaming, movies, or a wireless dongle for wireless presentation.

Features

• Amazing 20,000 hours lamp life.
• Power saving function that decreases the lamp power consumption by up to 60% when no input signal is detected for a set time period.
• Firmware updates via USB Type A.
• USB Type A port can provide streaming with an HDMI wireless dongle and supply power.
• 7 color modes for different projection purposes.
• Presentation timer for better time management during presentations.
  • Vertical Lens Shift by remote control.
  • 3D display supported.
• Less than 0.5W power consumption when power saving mode is turned on.
• Quick Auto Search, thus speeding up the signal detecting process.
• One-key auto-adjustment for displaying the best picture quality (only for analog signal).
  • Digital keystone correction.
• Ability to display 1.07 billion colors.
• Multi-language On-Screen Display (OSD) menus.
• HDMI CEC (Consumer Electronics Control) function allowing synchronized power ON/OFF operation between the projector and a CEC-compatible DVD player device connected to the HDMI input of the projector.

Package Contents

- Projector

- Power cord

- Video cable

- Remote Control & Batteries

- Quick Start Guide

NOTE: The power cord and video cables included in your package may vary depending on your country. Please contact your local reseller for more information.

Product Overview

Projector

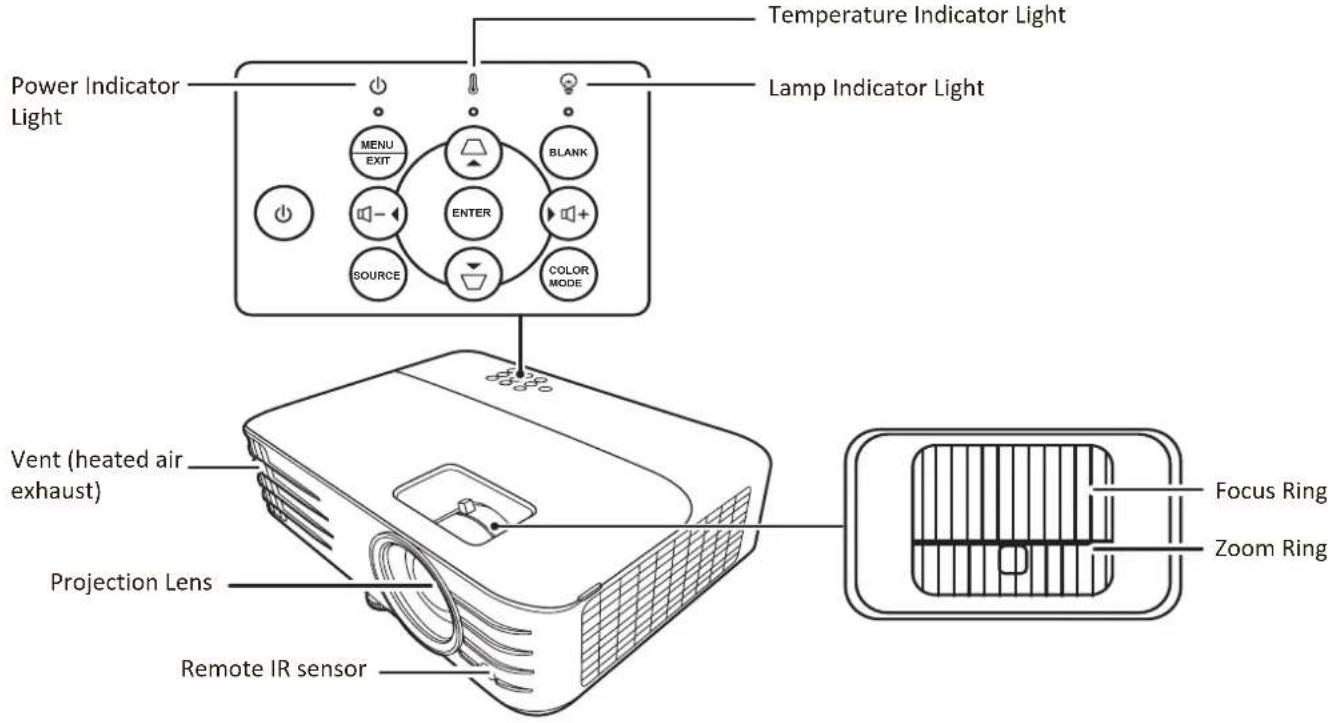

Controls and Functions

Key Description
Power	Toggles the projector between standby mode and Power On.
Keystone Keys	Manually corrects distorted images resulting from an angled projection.
Left/Right/Up/Down	Selects the desired menu items and makes adjustments when the On-Screen Display (OSD) Menu is activated.
Menu/Exit Turns on or off	the On-Screen Display (OSD) Menu.
Source Displays the input source selection bar.
Blank Hides the screen picture.
Enter Enacts the selected On-Screen Display (OSD) Menu item when the OSD Menu is activated.
Volume Up	Increases the volume level.
Volume Down	Decreases the volume level.
Color Mode Displays the color mode selection bar.

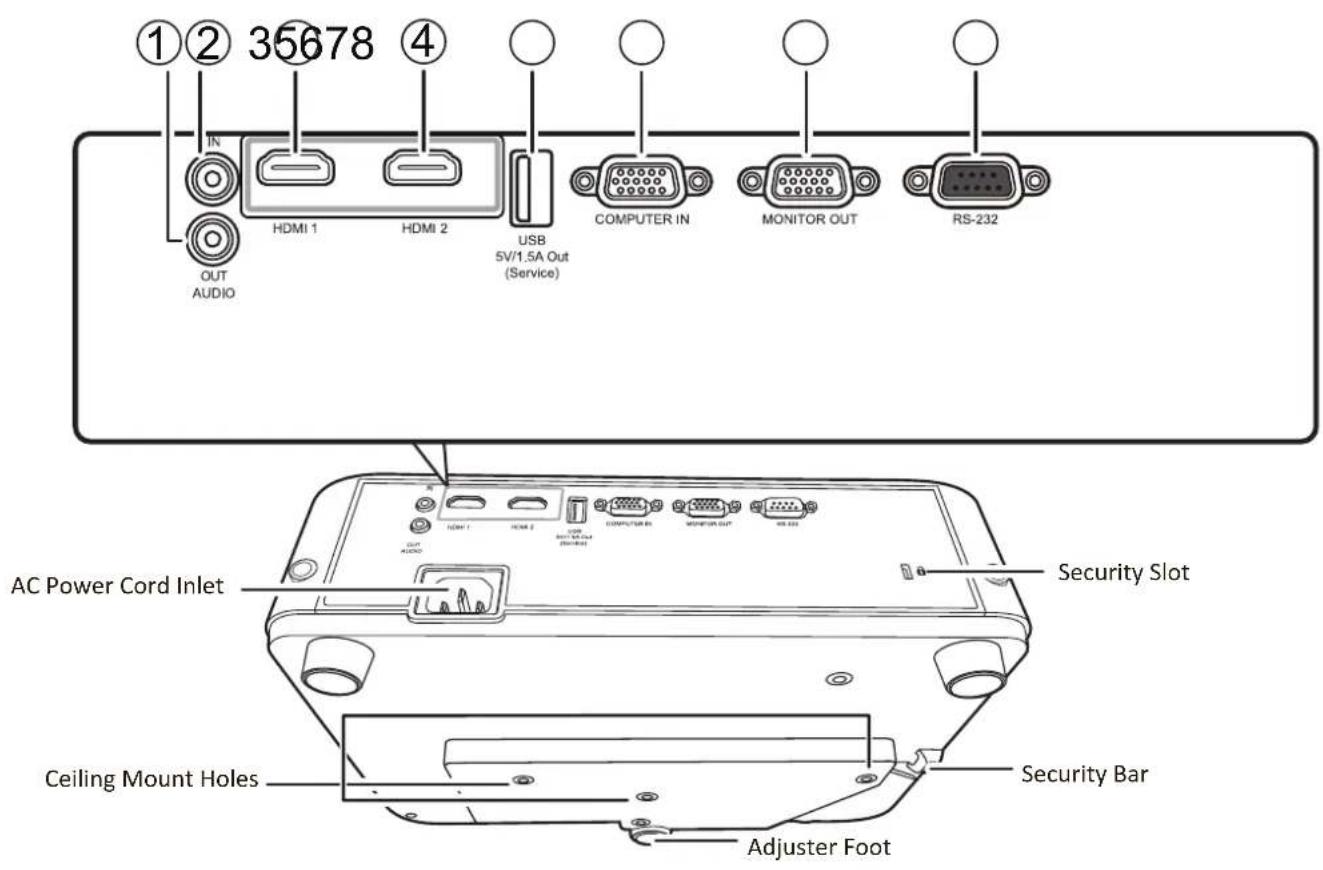

Connection Ports

Port Description
[1] AUDIO OUT Audio signal	output socket.
[2] AUDIO IN Audio signal input	socket.
[3] HDMI 1 HDMI port.
[4] HDMI 2 HDMI port.
[5] USB 5V/1.5A Out (Service)	USB Type A port for power supply.
[6] COMPUTER IN RGB (PC)	signal input socket.
[7] MONITOR OUT RGB (PC)	signal output socket.
[8] RS-232 RS-232 control port.

Remote Control

Controls and Functions

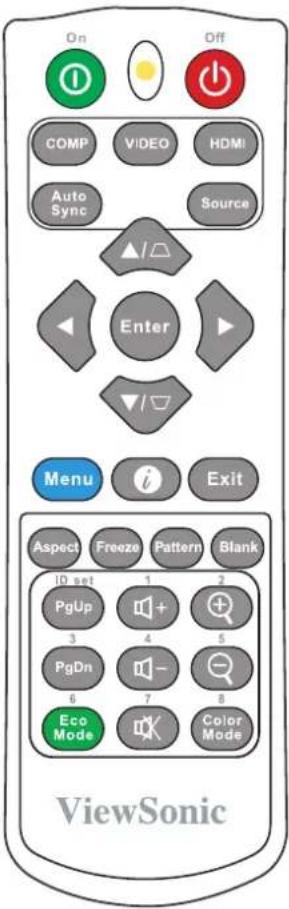

Button Description
On/Off	Toggles between standby mode and Power On.

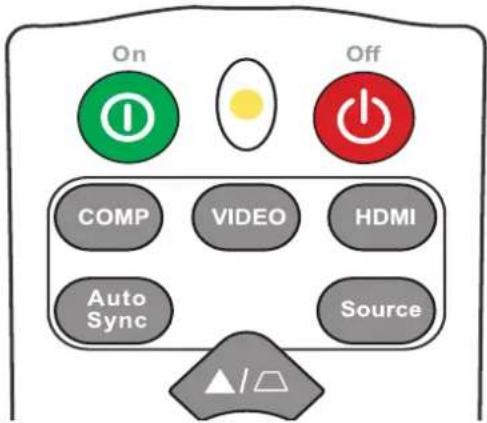

COMP Selects source from COMPUTER IN port for display.
VIDEO Not available.
HDMI Selects source from HDMI 1 or HDMI 2 port for display. Press this button repeatedly to switch between the 2 ports.
Auto Sync Automatically determines the best picture timings for the displayed image.
Source	Displays the source selection bar.

Button Description
Keystone Keys	Manually corrects distorted images resulting from an angled projection.
Enter	Enacts the selected OSD Menu item.
Left/RightUp/Down	Selects the desired menu items and makes adjustments.
Menu	Turns on/off the On-Screen Display (OSD) Menu or goes back to previous OSD Menu.
(INFORMATION)	Displays the INFORMATION menu.
Exit	Exits and saves menu settings.
Aspect Displays the aspect ratio selection bar.
Freeze Freezes the projected image.
Pattern Displays embedded test pattern.
Blank	Hides the screen picture.
PgUp (Page Up)/PgDn (Page Down)	Operates your display software program (on a connected PC) which responds to page up/down commands (like Microsoft PowerPoint).NOTE: Only available when a PC input signal is selected.
Eco Mode Selects	the Eco mode.
+ (Volume Up)	Increases the volume level.
- (Volume Down)	Decreases the volume level.
(Mute)	Toggles audio between on and off.
	Magnifies the projected picture size.
	Reduces the projected picture size.
Color Mode Displays the color mode selection bar.

Remote Control Effective Range

To ensure proper function of the remote control follow the steps below:

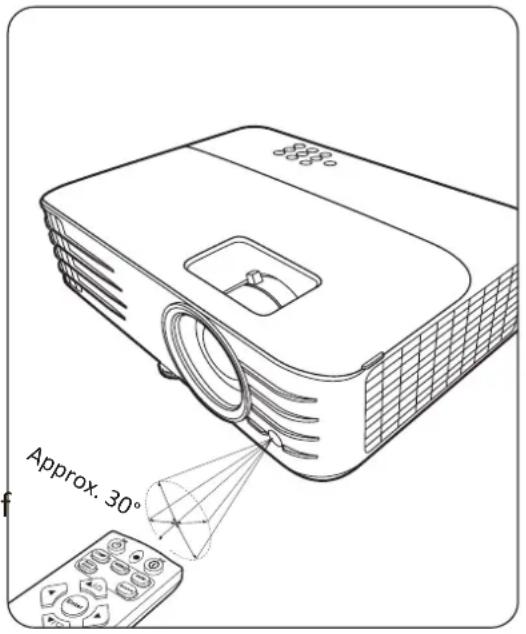

1. The remote control must be held at an angle within 30° perpendicular to the projector's IR remote control sensor(s).

2. The distance between the remote control and the sensor(s) should not exceed 8 m (26 ft.)

NOTE: Refer to the illustration for the location of the infrared (IR) remote control sensor(s).

Replacing the Remote Control Batteries

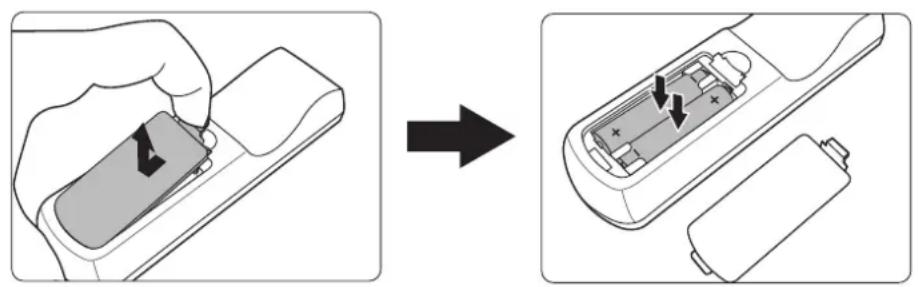

1. Remove the battery cover from the rear of the remote control by pressing the finger grip and sliding it down.
2. Remove any existing batteries (if necessary) and install two AAA batteries.

NOTE: Observe the battery's polarities as indicated.

1. Replace the battery cover by aligning it with the base and pushing it back into position.

Diagram showing battery charging process: left panel shows hand inserting a component, right panel shows battery inside with internal components (no text or symbols)

NOTE:

• Avoid leaving the remote control and batteries in excessive heat or a humid environment.
• Replace only with the same or equivalent type recommended by the battery manufacturer.
• Dispose of the used batteries according to the manufacturer's instructions and local environment regulations for your region.
• Never throw the batteries into a fire. There may be danger of an explosion.
• If the batteries are drained or if you will not be using the remote control for an extended period of time, remove the batteries to avoid damage to the remote control.

> Initial Setup

This section provides detailed instructions for setting up your projector.

Choosing a Location

Personal preference and room layout will decide the installation location. Consider the following:

• Size and Position of your screen.
• Location of a suitable power outlet.
• Location and Distance between the projector and other equipment.

The projector is designed to be installed in one of the following locations:

1. Front

The projector is placed near the floor in front of the screen.

2. Front Ceiling

The projector is suspended upside-down from the ceiling in front of the screen.

3. Rear Ceiling

The projector is suspended upside-down from the ceiling behind the screen.

NOTE: A special rear projection screen is required.

4. Rear

The projector is placed near the floor behind the screen.

NOTE: A special rear projection screen is required.

Simple line drawing of a person standing beside a desk with a lamp, showing geometric lines and no text or symbols.

Simple line drawing of a person silhouette facing a vertical pole with a hanging object, no text or symbols present.

Simple line drawing of a mechanical setup with a hanging block and connected rods, alongside a human silhouette (no text or symbols)

Simple line drawing of a person observing a screen with a pointer and screen, no text or symbols present

Projection Dimensions

NOTE: See “Specifications” on page 58 for the native display resolution of this projector.

• 16:9 Image on a 16:9 Screen

NOTE: (e) = Screen / (f) = Center of Lens

16:9 Image on a 16:9 Screen

(a) Screen Size		(b) Projection Distance (c) Image					(d) Vertical Offset
		minimum maximum minimum maximum
in.	mm in.	mm in.	mm in.	mm in.	mm in.	mm
60	1524 79	1996 86	2195	29 747	1.5 37.	4 1.5 37
70	1778 92	2328 101	2561	34 872	1.7 43.	6 1.7 44
80	2032 105	2661	115 292	37 39 996	2.0 49.8	2.0 50
90	2286 118	2994	130 329	3 44 1121	2.2 56.0	2.2 56
100	2540 13	1 3326	144 365	59 49 1245	2.5 62.3	2.5 62
110	2794 14	4 3659	158 402	54 1370	2.7 68.5	2.7 68
120	3048 15	7 3992	173 439	159 1494	2.9 74.7	2.9 75
130	3302 17	0 4324	187 475	64 1619	3.2 80.9	3.2 81
140	3556 18	3 4657	202 512	69 1743	3.4 87.2	3.4 87
150	3810 19	6 4989	216 548	74 1868	3.7 93.4	3.7 93
160	4064 21	0 5322	230 585	78 1992	3.9 99.6	3.9 100
170	4318 22	3 5655	245 622	83 2117	4.2 105.8	4.2 106
180	4572 23	6 5987	259 658	88 2241	4.4 112.1	4.4 112
190	4826 24	9 6320	274 695	93 2366	4.7 118.3	4.7 118
200	5080 26	2 6653	73 288	98 2491	4.9 124.5	4.9 125

16:9 Image on a 4:3 Screen

(a) Screen Size		(b) Projection Distance (c) Image					(d) Vertical Offset
		minimum maximum minimum maximum
in.	mm in.	mm in.	mm in.	mm in.	mm in.	mm
60	1524 72	1832 79	2015	27 686	1.4 34	1.4 34
70	1778 84	2137 93	2351	32 800	1.6 40	1.6 40
80	2032 96	2443 10	06 2687	36 914	1.8 46	1.8 46
90	2286 108	2748	119 302	23 41 1	029 2.0	51 2.0	51
100	2540 12	0 3053	132 33	58 45	1143 2.3	57 2.3	57
110	2794 13	2 3358	145 36	94 50	1257 2.5	63 2.5	63
120	3048 14	4 3664	159 40	30 54	1372 2.7	69 2.7	69
130	3302 15	6 3969	172 43	66 59	1486 2.9	74 2.9	74
140	3556 16	8 4274	185 47	02 63	1600 3.2	80 3.2	80
150	3810 18	0 4580	198 50	38 68	1715 3.4	86 3.4	86
160	4064 19	2 4885	212 53	74 72	1829 3.6	91 3.6	91
170	4318 20	4 5190	225 57	09 77	1943 3.8	97 3.8	97
180	4572 21	6 5496	238 60	45 81	2057 4.1	103 4.1	103
190	4826 22	8 5801	251 63	81 86	2172 4.3	109 4.3	109
200	5080 24	0 6106	264 67	17 90	2286 4.5	114 4.5	114

NOTE: There is a 3% tolerance among these numbers due to optical component variations. It is recommended to physically test the projection size and distance before permanently installing the projector.

Mounting the Projector

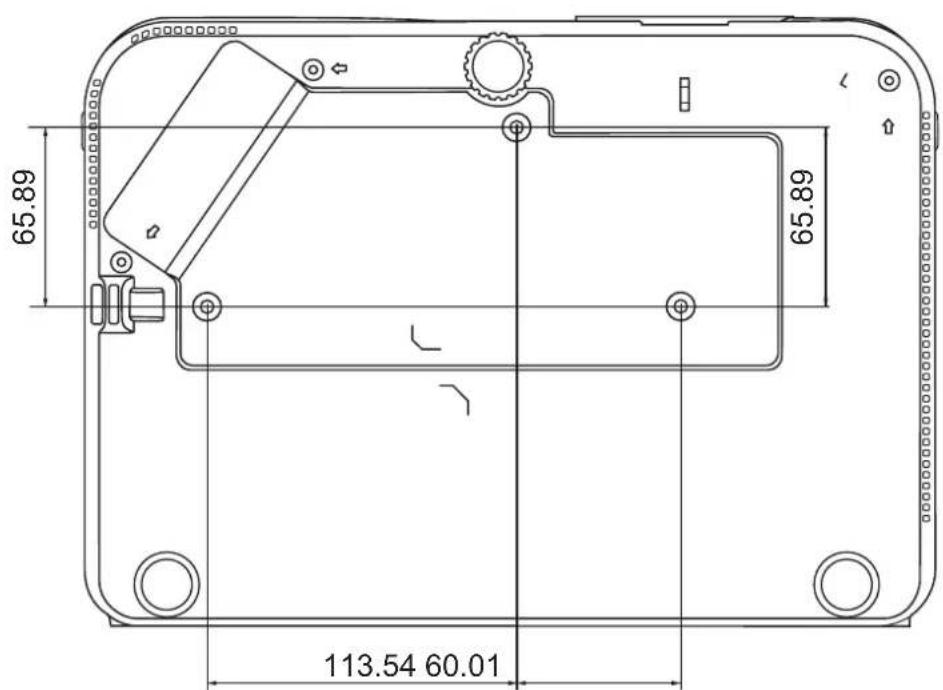

NOTE: If you buy a third-party mount, please use the correct screw size. Screw size can vary depending on the thickness of the mounting plate.

1. To ensure the most secure installation, please use a ViewSonic® wall or ceiling mount.

2. Ensure the screws used to attach a mount to the projector meet the following specifications:

3. Screw type: M4 x 8
   • Maximum Screw length: 8 mm

NOTE:

• Avoid installing the projector near a heat source.
• Keep at least a 10 cm gap between the ceiling and the bottom of the projector.

Preventing Unauthorized Use

The projector has several built-in security features to prevent theft, access, or accidental setting changes.

Using the Security Slot

To help prevent the projector from being stolen, use a security slot locking device to secure the projector to a fixed object.

Below is an example of setting up a security slot locking device:

Line drawing of a device rear panel with connectors and ports, shown in top and side views (no text or symbols)

NOTE: The security slot can also be used as a safety anchor if the projector is mounted to the ceiling.

Using the Password Function

To help prevent unauthorized access or use, the projector offers a password security option. The password can be set through the On-Screen Display (OSD) Menu.

NOTE: Make note of your password, and keep it in a safe place.

Setting a Password

1. Press Menu to open the OSD Menu and go to: SYSTEM > Security Settings and press Enter.
2. Highlight Power On Lock and select On by pressing ◀ ▶

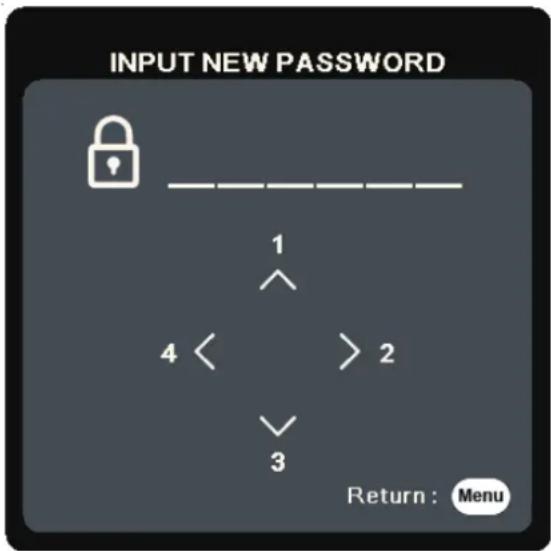

3. As pictured to the right, the four arrow keys (▲, ▶, ▶) represent 4 digits (1, 2, 3, 4). Press the arrow keys to enter a six digit password.

1. Confirm the new password by re-entering the new password. Once the password is set, the OSD Menu will return to the Security Settings page.
2. Press Exit to leave the OSD Menu.

NOTE: Once set, the correct password must be entered every time the projector is started.

Changing the Password

1. Press Menu to open the OSD Menu and go to: SYSTEM > Security Settings > Change Password.
2. Press Enter, the message, 'INPUT CURRENT PASSWORD' will appear.
3. Enter the old password.

» If the password is correct, the message, 'INPUT NEW PASSWORD' will appear.

» If the password is incorrect, a password error message will appear for 5 seconds followed by the message, 'INPUT CURRENT PASSWORD'. You can try again or press Exit to cancel.

1. Enter a new password.
2. Confirm the new password by re-entering the new password.
3. To leave the OSD Menu, press Exit.

NOTE: The digits being input will display as asterisks (*).

Disabling the Password Function

1. Press Menu to open the OSD Menu and go to: SYSTEM > Security Settings > Power On Lock.
2. Press ◀/ ▶ to select Off.
3. The message, "Input Password" will appear. Enter the current password.

» If the password is correct, the OSD Menu returns to the Password page with "Off" shown in the row of Power On Lock.
» If the password is incorrect, a password error message will appear for 5 seconds followed by the message, 'INPUT CURRENT PASSWORD'. You can try again or press Exit to cancel.

NOTE: Please keep the old password, as you will need it to reactivate the password function.

Forgetting the Password

If the password function is activated, you will be asked to enter the six-digit password every time you turn on the projector. If you enter the wrong password, the password error message, as pictured to the right, will appear for 5 seconds, and the message 'INPUT PASSWORD' follows.

Password Error

Please Try again.

You can retry or if you do not remember, you can use the "Password Recall Procedure".

NOTE: If you enter an incorrect password 5 times in succession, the projector will automatically shut down for a short time.

Password Recall Procedure

1. When the message 'INPUT CURRENT PASSWORD' appears, press and hold Auto Sync for 3 seconds. The projector will display a coded number on the screen.
2. Write down the number and turn off your projector.
3. Seek help from the local service center to decode the number. You may be required to provide proof of purchase documentation to verify that you are an authorized user of the projector.

Locking the Control Keys

With the control keys on the projector locked, you can prevent your settings from being changed accidentally (by children, for example).

NOTE: When the Panel Key Lock is On, no control keys on the projector will operate except Power.

1. Press Menu to open the OSD Menu and go to: SYSTEM > Panel Key Lock.

2. Press ▲/▼ to select On.

3. Select Yes and press Enter to confirm.

4. To release panel key lock, press and hold ▶ on the projector for 3 seconds.

NOTE: You can also use the remote control to enter the SYSTEM > Panel Key Lock menu and select Off.

> Making Connections

This section guides you on how to connect the projector with other equipment.

Connecting to Power

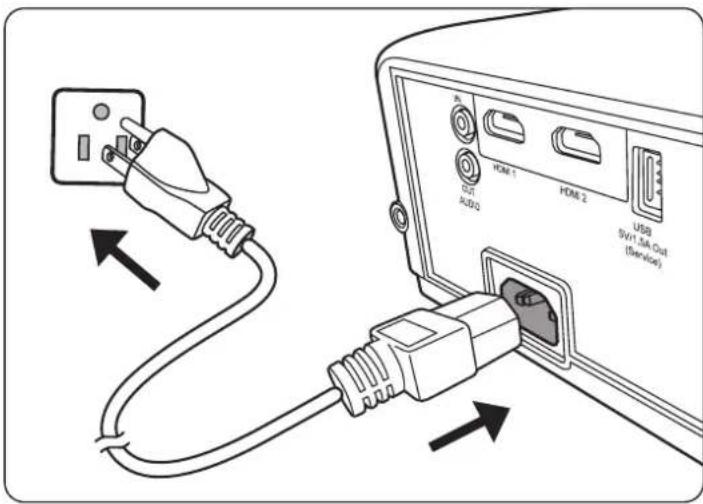

1. Connect the power cord to the AC IN jack at the rear of the projector.
2. Plug the power cord into a power outlet.

NOTE: When installing the projector, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power plug to an easily accessible outlet near the unit. If a fault should occur during operation of the projector, use the disconnect device to switch off the power supply, or disconnect the power plug.

Connecting to Video Sources

HDMI Connection

Connect one end of an HDMI cable to the HDMI port of your video device. Then connect the other end of the cable to the HDMI 1 or HDMI 2 port of your projector.

Connecting to Computer Sources

VGA Connection

Connect one end of a VGA cable to the VGA port of your computer. Then connect the other end of the cable to the COMPUTER IN port of your projector.

NOTE: Some notebooks do not turn on their external displays automatically when connected to a projector. You may have to adjust your notebook's projection settings.

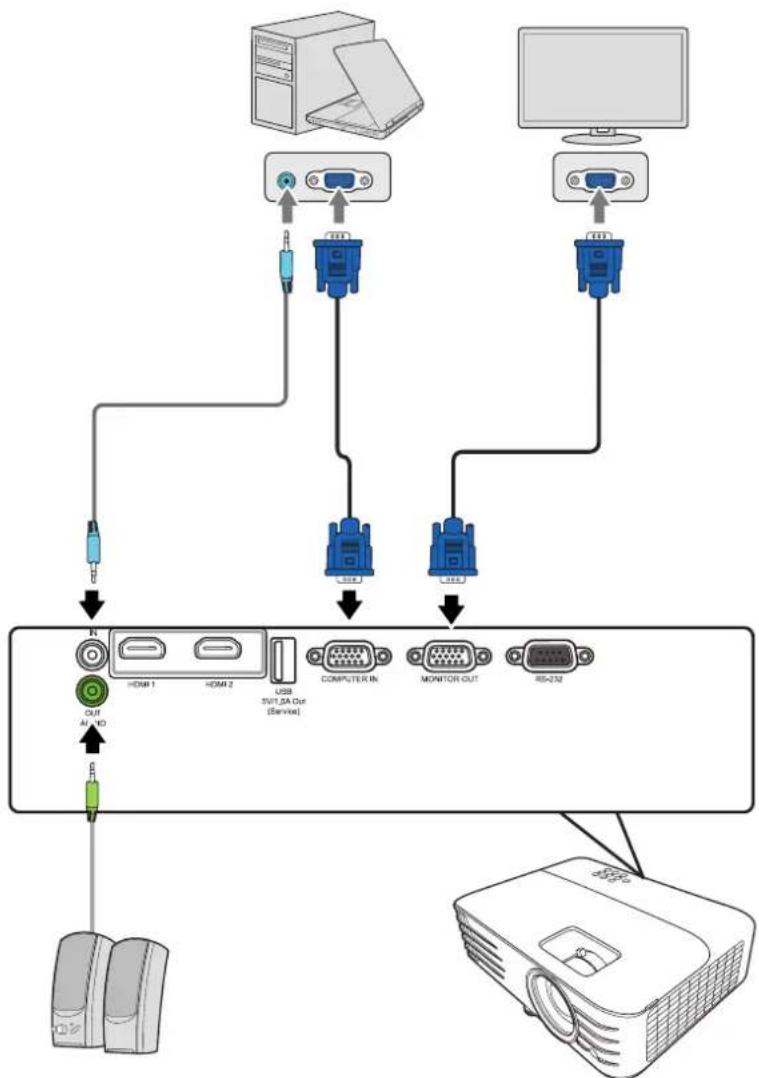

VGA Out Connection

After establishing the VGA Connection, connect one end of a VGA cable to the VGA port of your monitor. Then connect the other end of the cable to the MONITOR OUT port of your projector.

Connecting to Audio

The projector is equipped with speakers, however, you can also connect external speakers to the AUDIO OUT port of the projector.

NOTE: The audio output is controlled by the projector's Volume and Mute settings.

> Operation

Turning the Projector On/Off

Starting Up the Projector

1. Press the Power button to turn on the projector.
2. The lamp will light up, and a "Power On/Off Ring Tone" will play.
3. The Power Indicator Light stays green when the projector is On.

NOTE:

• If the projector is still hot from previous use, it will run the cooling fan for 90 seconds before activating the lamp.

• To maintain lamp life, once you turn the projector On, wait at least five (5) minutes before turning it off.

• Turn on all of the connected equipment, i.e. notebook, and the projector will start to search for an input source.

NOTE: If the projector detects an input source, the Source Selection Bar will appear. If an input source is not detected, the message, 'No Signal' will appear.

First Time Activation

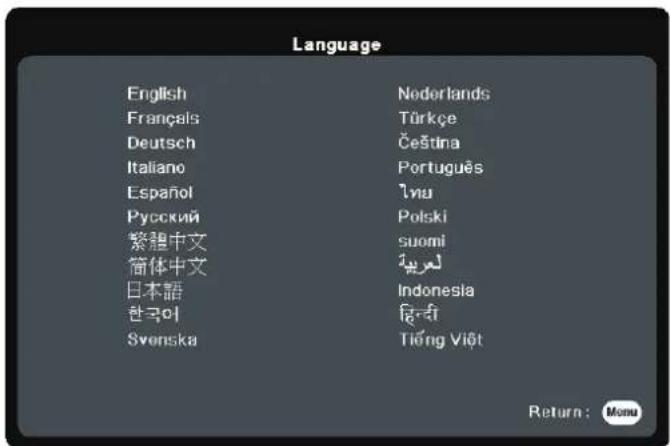

If the projector is activated for the first time, select your OSD language following the on-screen instructions.

Shutting Down the Projector

1. Press the Power or Off button and a confirmation message will appear to prompt you to press the Power or Off button a second time. Additionally you can press any other button to cancel.

NOTE: If you do not respond in a few seconds after the first press, the message will disappear.

1. Once the cooling process finishes, a "Power On/Off Ring Tone" will play.
2. Disconnect the power cord from the power outlet if the projector will not be used for an extended period of time.

NOTE:

• To protect the lamp, the projector will not respond to commands during the cooling process.
• Do not unplug the power cord before the projector completely shuts down.

Selecting an Input Source

The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time.

If you want the projector to automatically search for the input source, ensure the Quick Auto Search function in the SYSTEM menu is On.

The Input Source can also be manually selected by pressing one of the source selection buttons on the remote control, or by cycling through the available input sources.

To manually select the input source do the following:

1. Press Source, and a source selection menu will appear.

2. Press ▲/▼ until your desired signal is selected and press Enter.

3. Once detected, the selected source information will be displayed on the screen for a few seconds.

NOTE: If there are multiple devices connected to the projector, repeat steps 1-2 to search for another source.

Adjusting the Projected Image

Adjusting the Projector's Height and Projection Angle

The projector is equipped with one (1) adjuster foot. Adjusting the foot will change the projector's height and the vertical projection angle. Carefully adjust the feet to fine tune the projected image's position.

Auto-Adjusting the Image

Sometimes, you may need to improve the picture quality. To do this, press Auto Sync on the remote control. Within five (5) seconds, the built-in Intelligent Auto Adjustment function will re-adjust the Frequency and Clock values to provide the best picture quality.

Upon completion, the current source information will appear in the upper left corner for three (3) seconds.

NOTE: This function is only available when the PC D-Sub input source (analog RGB/COMPUTER IN) is selected.

Fine-Tuning the Image Size and Clarity

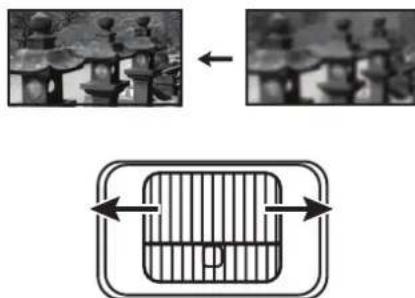

To adjust the projected image to the size that you need, rotate the Zoom Ring.

Diagram showing two grayscale images of a mushroom-like structure connected by bidirectional arrows, with a schematic of a grid-like structure inside (no text or symbols)

To improve the clarity of the image, rotate the Focus Ring.

Diagram showing two grayscale images of a mechanical component with internal structure, connected by arrows indicating motion or force (no text or symbols present)

Correcting Keystone

Keystoning refers to the situation where the projected image becomes a trapezoid due to angled projection.

To correct this, besides adjusting the height of the projector, you may also:

1. Use the keystone keys on the projector or remote control to display the keystone page.

2. After the keystone page is displayed, press to correct keystoning at the top of the image. Press to correct keystoning at the bottom of the image.

Controllability of the Projected Image

By using the remote control, you can adjust the vertical lens shift by +/- 5% , which offers the convenience of not needing to physically move or interact with the projector. This is especially important when the projector is mounted to the ceiling.

Black-and-white photo of stone lanterns with curved eaves, reflected in water, next to a remote control (no text or symbols visible)

Hiding the Image

In order to draw the audience's full attention to the presenter, you can press Blank on the projector or remote control to hide the screen image. Press any key on the projector or remote control to restore the image.

CAUTION: Do not block the projection lens as this could cause the blocking object to become heated and deformed or even cause a fire.

> Menu Functions

This section will introduce the On-Screen Display (OSD) Menu and its options.

General On-Screen Display (OSD) Menu Operation

The projector is equipped with an On-Screen Display (OSD) Menu for making various adjustments. It can be accessed by pressing Menu on the projector or remote control.

1. Press ◀/▶ to select a main menu. Then press Enter or use ▲/▼ to access the sub-menu list.

2. Press ▲/▼ to select the menu option. Then press Enter to display its sub-menu, or press ◀ to adjust/select the setting.

NOTE: Some sub-menu options may have another sub-menu. To enter the respective sub-menu, press Enter. Use ▲/▼ or ◀/▶ to adjust/select the setting.

On-Screen Display (OSD) Menu Tree

Main Menu Sub-menu Menu Option
DISPLAY	Aspect Ratio Auto
		4:3
		16:9
		16:10
		Native
	Keystone -40~40
	Lens Shift -20~20
	Position X: -5 ~ 5, Y: -	5 ~ 5
	Phase 0~31
	H. Size -15~15
	Zoom 0.8X ~2.0X
	OverScan Off/1/2/3/4/5
	3X Fast Input Inactive
		Active
IMAGE	Color Mode Brightest
		Sports
		Standard
		Gaming
		Movie
		User 1
		User 2
	Brightness 0~100
	Contrast -50~50
	Color Temp. 8000K/6	500K/5500K
		Red Gain	0~100
		Green Gain 0~100
		Blue Gain	0~100
		Red Offset	-50~+50
		Green Offset	-50~+50
		Blue Offset	-50~+50
IMAGE	Advanced Color -50~50	50
		Sharpness 0~31
		Gamma 1.8/2.0/2.2/2.3	5/2.5/Cubic/sRGB
		Brilliantcolor Off/1/2/3	4/5/6/7/8/9/10
		Noise Reduction 0~31
		Color Management Primary	Mary Color
			Hue
			Saturation
			Gain
	Reset Color Settings	Reset
		Cancel
POWER MANAGEMENT	Auto Power On Signal	Disable/VGA/HDMI/	All
		CEC Disable/Enable
		Direct Power On Disable	/Enable
	Smart Energy Auto Power	Power Off Disable/10 min	20min/30 min
		Sleep Timer Disable/30	min/1hr/2hr/3 hr/4 hr/8hr/12 hr
		Power Saving	Disable/Enable
	Standby Settings	VGA Loop Through	Off/On
		Audio Pass Through	Off/On
	Quick Power Off	Disable
		Enable
	USB A Power	On
		Off
BASIC	Audio Settings Mute	Off/On
		Audio Volume 0~20
		Power On/Off Ring Tone	Off/On
	Presentation Timer Ti	Timer Period 1~240 m
		Timer Display Always/1	min/2 min/3 min/Never
		Timer Position	Top-Left/Bottom-Left/ Top-Right/Bottom-Right
		Timer Counting Direction	Count Down/Count Up
		Sound Reminder Off/On
		Start Counting/Off
	Pattern Off
		Test Card
	Blank Timer Disable/$	min/10 min/15 min/20 min/25 min/30 min
	Message Off
		On
	Splash Screen Black
		Blue
		ViewSonic
ADVANCED	3D Settings 3D Sync Auto
			Off
			Frame Sequential
			Frame Packing
			Top-Bottom
			Side-by-Side
			Disable/Invert
			Save 3D Settings Yes/No
	HDMI Settings	HDMI Format Auto/RGB/YUV
		HDMI Range	Auto/Enhanced/Normal
ADVANCED	Lamp Settings Lamp	Mode Normal/Eco/	Dynamic Eco/SuperEco+
		Reset Lamp Hours Reset	/Cancel
		Lamp Hours Information	Lamp Usage Time
			Normal
			Eco
			Dynamic Eco
			SuperEco+
			Equivalent Lamp Hour
	Reset Settings Reset
		Cancel
SYSTEM	Language Multi-Language OSD Selection
	Projector Position Front Table
	Menu Settings Menu	Display Time 5 sec/10 sec	/15 sec/20 sec/25 sec/30 sec
		Menu Position Center/Top-Left/Top-Right/Bottom-Left/Bottom-Right
	High Altitude Mode Off
	Quick Auto Search Off
	Security Settings Change Password
SYSTEM	Panel Key Lock Off
		On
	Remote Control Code	1/2/3/4/5/6/7/8
	Control Method RS-2	32
		USB
	Baud Rate 2400/4800	/9600/14400/19200/38400/57600/115200
INFORMATION	Source
	Color Mode
	Resolution
	Color System
	Firmware Version
	3X Fast Input
	S/N

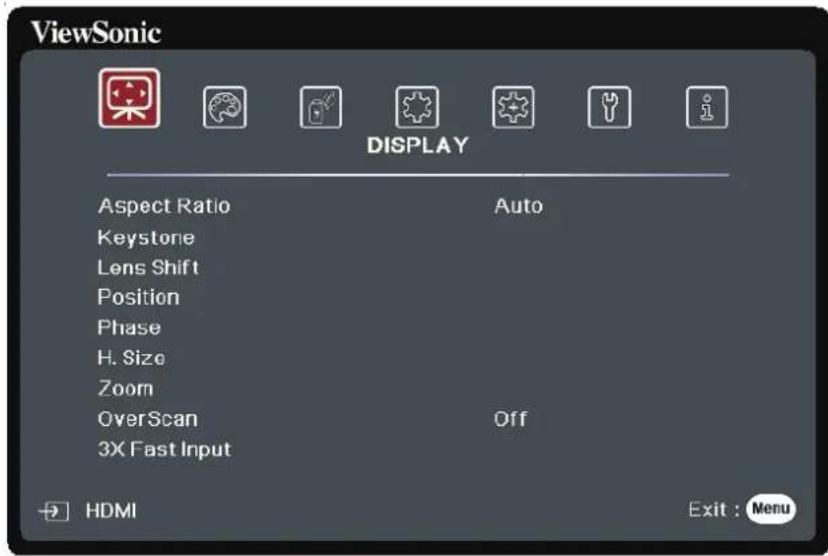

DISPLAY Menu

1. Press the Menu button to display the On-Screen Display (OSD) Menu.

2. Press ◀/▶ to select the DISPLAY menu. Then press Enter or use ▲/▼ to access the DISPLAY menu.

1. Press ▲/▼ to select the menu option. Then press Enter to display its sub-menu, or press ◀ to adjust/select the setting.

NOTE: Some sub-menu options may have another sub-menu. To enter the respective sub-menu, press Enter. Use ▲/▼ or ◀/► to adjust/select the setting.

Menu Option Description
Aspect Ratio	Auto Scales an image proportionally to fit the projector's native resolution in its horizontal width. This is suitable for the incoming image which is neither in 4:3 nor 16:9 and you want to make most use of the screen without altering the image's aspect ratio. 4:3 Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for 4:3 images like computer monitors, standard definition TV, and 4:3 aspect DVD movies, as it displays them without aspect alteration. 16:9 Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. This is most suitable for images which are already in a 16:9 aspect, like high definition TV, as it displays them without aspect alteration. 16:10 Scales an image so that it is displayed in the center of the screen with a 16:10 aspect ratio. This is most suitable for images which are already in a 16:10 aspect, as it displays them without aspect alteration. Native Projects an image as its original resolution and resizes it to fit within the display area. For input signals with lower resolutions, the projected image will be displayed in its original size.
Keystone	Adjusts the keystoning situation where the projected image becomes a trapezoid due to angled projection.
Lens Shift	Provides flexibility when installing your projector. It allows you to shift the image up and down without image distortion by using the remote control.
Position	Adjust the position of the projected image. NOTE: ·This function is only available when a PC input signal is selected. ·The adjustment range may vary under different timings.
Phase	Adjusts the clock phase to reduce image distortion. NOTE: This function is only available when a PC input signal is selected.
H. Size	Adjusts the horizontal width of the image. NOTE: This function is only available when a PC input signal is selected.
Zoom	Magnifies the projected image and allows you to navigate the image.
OverScan	Adjusts the overscan rate from 0% to 5%. NOTE: This function is only available when a Composite Video or HDMI input signal is selected.
3X Fast Input	This function is favorable to frame rate reducing. Quick response time in native timing can be achieved. When enabled, the following settings will return to factory preset values: Aspect Ratio, Position, Zoom, OverScan. NOTE: This function is only available when a native timing input signal is selected.

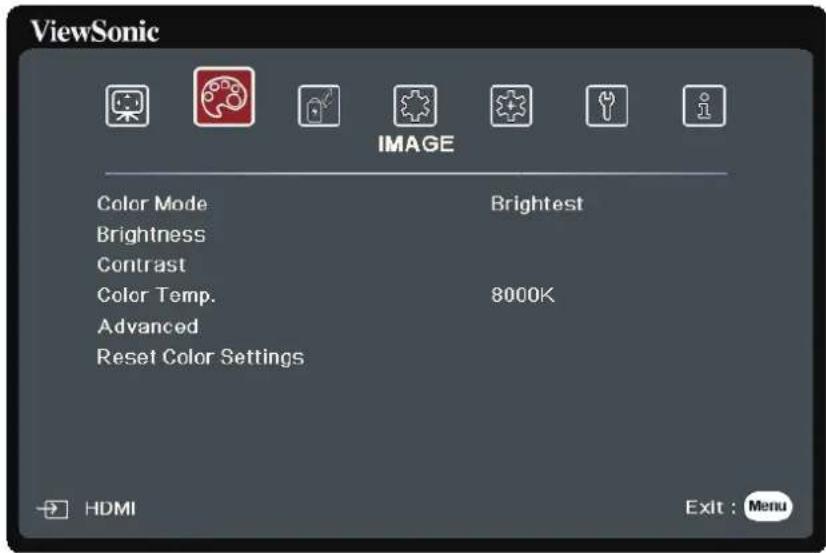

IMAGE Menu

1. Press the Menu button to display the On-Screen Display (OSD) Menu.

2. Press ◀/▶ to select the IMAGE menu. Then press Enter or use ▲/▼ to access the IMAGE menu.

1. Press ▲/▼ to select the menu option. Then press Enter to display its sub-menu, or press ◀ to adjust/select the setting.

NOTE: Some sub-menu options may have another sub-menu. To enter the respective sub-menu, press Enter. Use ▲/▼ or ◀/▶ to adjust/select the setting.

Menu Option Description
Color Mode	BrightestMaximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, such as using the projector in well lit rooms.SportsDesigned for viewing sports in well-lit environments.StandardDesigned for normal circumstances in a daylight environment.GamingSuitable for playing video games in a bright living room.MovieFor playing colorful movies, video clips from digital cameras or DVs through the PC input for best viewing in a blackened (little light) environment.User 1/User 2Recalls the customized settings. After User 1/User 2 is selected, some of the sub-menus under the IMAGE menu can be adjusted, according to your selected input source.
Brightness	The higher the value, the brighter the image.Adjust this option so the black areas of the image appear just as black and details in the dark area are more visible.
Contrast	Use this to set the peak white level after you have previously adjusted the Brightness setting.

Menu Option Description
Color Temp.	8000KImages appear bluish white.6500KImages maintain a normal white appearance.5500KImages appear reddish white.To set a custom color temperature, you can further adjust the following items:Red Gain/Green Gain/Blue GainAdjusts the Contrast levels of Red, Green, and Blue.Red Offset/Green Offset/Blue OffsetAdjusts the Brightness levels of Red, Green, and Blue.
Advanced	ColorA lower setting produces less saturated colors. If the setting is too high, colors will be overpowering and may appear unrealistic.SharpnessA higher value will sharpen the image, while a lower value will soften the image.GammaGamma refers to the brightness level of the projector's grayscale levels.BrilliantcolorThis feature utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing truer, more vibrant colors in the projected picture. It enables a greater than 50% brightness increase in mid-tone images, which are common in video and natural scenes, so the projector reproduces images in realistic and true colors. If you prefer images with that quality, select a level that suits your need.
Advanced	Noise ReductionThis function reduces electrical image noise caused by different media players. The higher the setting, the less the noise. (Not available when input signal is HDMI.)Color ManagementOnly in permanent installations with controlled lighting levels such as boardrooms, lecture theaters, or home theaters, should color management be considered. Color management provides fine color control adjustment to allow for more accurate color reproduction. Select Primary Color first and adjust its range/values in Hue, Saturation and Gain.
Reset Color Settings	Returns current image settings to the factory preset values.

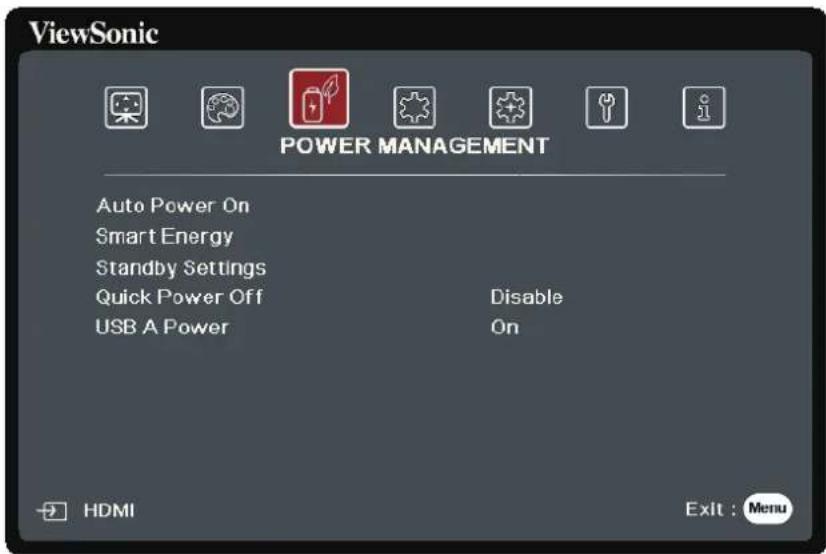

POWER MANAGEMENT Menu

1. Press the Menu button to display the On-Screen Display (OSD) Menu.

2. Press ◀/▶ to select the POWER MANAGEMENT menu. Then press Enter or use ▲/▼ to access the POWER MANAGEMENT menu.

1. Press ▲/▼ to select the menu option. Then press Enter to display its sub-menu, or press ◀ to adjust/select the setting.

NOTE: Some sub-menu options may have another sub-menu. To enter the respective sub-menu, press Enter. Use ▲/▼ or ◀/► to adjust/select the setting.

Menu Option Description
Auto Power On	SignalSelecting VGA/HDMI allows the projector to turn on automatically once the VGA/HDMI signal is fed through the VGA/HDMI cable. You can also select All and the projector will turn on automatically upon receiving either a VGA or HDMI signal.CECThis projector supports CEC (Consumer Electronics Control) function for synchronized power on/off operation via HDMI connection. That is, if a device that also supports CEC function is connected to the HDMI input of the projector, when the projector's power is turned off, the power of the connected device will also be turned off automatically. When the power of the connected device is turned on, the projector's power will be turned on automatically.NOTE:In order for the CEC function to work properly, make sure that the device is correctly connected to the HDMI input of the projector via an HDMI cable, and its CEC function is turned on.Depending on the connected device, the CEC function may not work.Direct Power OnAllows the projector to turn on automatically once power is fed through the power cord.
Smart Energy	Auto Power OffAllows the projector to turn off automatically after a set period of time once no input source is detected to prevent unnecessary waste of lamp life.Sleep TimerAllows the projector to turn off automatically after a set period of time to prevent unnecessary waste of lamp life.Power SavingLowers power consumption if no input source is detected. When Enable is selected, the projector lamp mode will change to SuperEco+ mode after no signal is detected for five (5) minutes. This will also help prevent any unnecessary waste of lamp life.
Standby Settings	The functions below are available in standby mode (plugged in, but not turned on).VGA Loop ThroughWhen selecting On, the projector outputs the signal received only from COMPUTER IN.Audio Pass ThroughWhen selecting On, the projector outputs an audio signal when the Audio In and Audio Out sockets are correctly connected to a proper device.
Quick Power Off	EnableThe projector will not enter the cooling process after being shut down.DisableThe projector will enter the normal cooling process after being shut down.NOTE:If you attempt to restart the projector right after it's been turned off, it may not be turned on successfully and will rerun its cooling procedure.
USB A Power	When On, the USB Type A port can supply power, and the Control Method will automatically switch to RS-232.

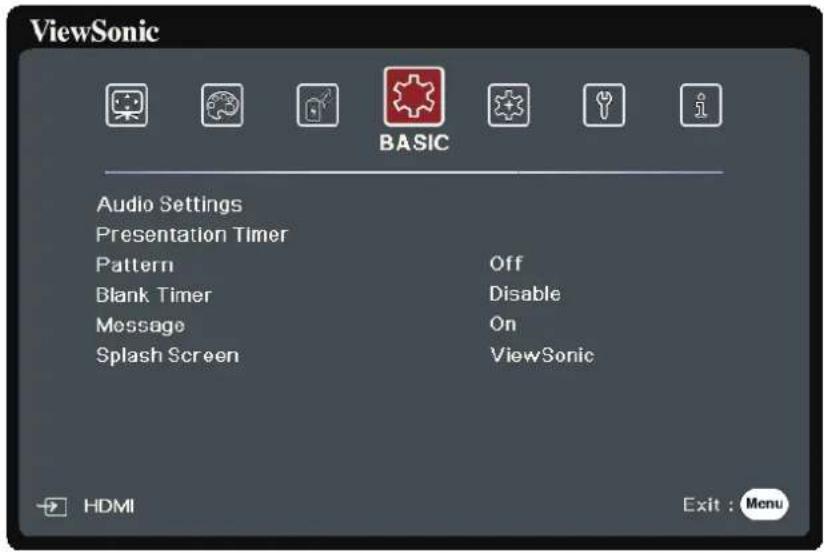

BASIC Menu

1. Press the Menu button to display the On-Screen Display (OSD) Menu.
2. Press ◀/▶ to select the BASIC menu. Then press Enter or use ▲/▼ to access the BASIC menu.

1. Press ▲/▼ to select the menu option. Then press Enter to display its sub-menu, or press ◀ to adjust/select the setting.

NOTE: Some sub-menu options may have another sub-menu. To enter the respective sub-menu, press Enter. Use ▲/▼ or ◀/► to adjust/select the setting.

Menu Option Description
Audio Settings	MuteSelect On to temporarily turn off the projector's internal speaker or the volume being output from the audio output jack.Audio VolumeAdjusts the volume level of the projector's internal speaker or the volume being output from the audio output jack.Power On/Off Ring ToneTurns on/off the ring tone during the starting up and shutting down process.
Presentation Timer	Presentation timer can indicate the presentation time on the screen to help you achieve better time management when giving presentations.Timer PeriodSets the time period. If the timer is already on, the timer will restart whenever the Timer Period is reset.Timer DisplayAllows you to decide if you want the timer to show up on the screen for one of the following time periods:» Always: Displays the timer on screen throughout the presentation time.» 1 min/2 min/3 min: Displays the timer on screen in the last 1/2/3 minute(s).» Never: Hides the timer throughout the presentation time.Timer PositionSets the timer position.Timer Counting DirectionSets your desired counting direction between:» Count Down: Decreases from the preset time to 0.» Count Up: Increases from 0 to the preset time.Sound ReminderAllows you to decide if you want to activate a sound reminder.Once enabled, a double beep sound will be heard at the last 30 seconds of counting down/up, and a triple beep sound will be produced when the timer is up.Start Counting/OffSelect Start Counting to activate the timer. Select Off to cancel it.
Pattern	Helps adjust the image size and focus, and checks for distortion in the projected image.
Blank Timer	Allows the projector to return the image automatically after a period of time when there is no action taken on the blank screen. To display the blank screen, pressBlankon the projector or remote control.NOTE: Do not block the projection lens as this could cause the blocking object to become heated and deformed or even cause a fire.
Message	Sets reminder messages, i.e. “Blank” message, On or Off.
Splash Screen	Selects which logo screen will appear during projector start-up.

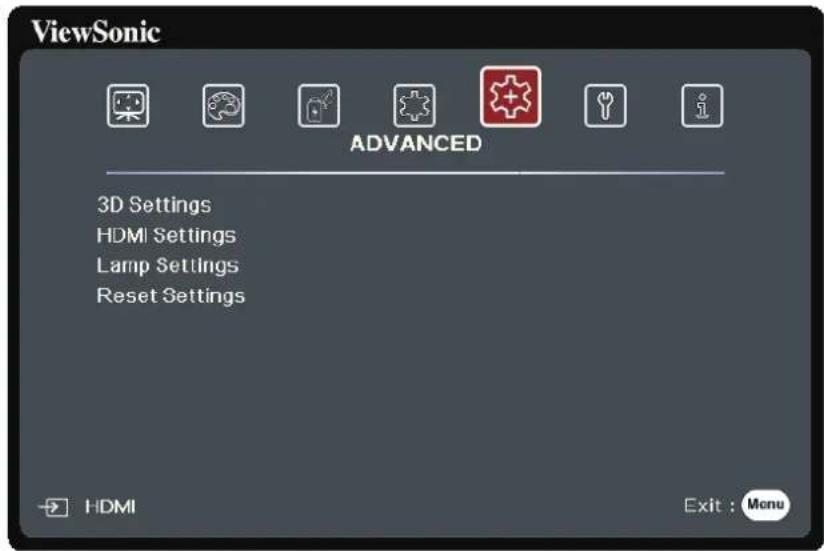

ADVANCED Menu

1. Press the Menu button to display the On-Screen Display (OSD) Menu.

2. Press ◀/▶ to select the ADVANCED menu. Then press Enter or use ▲/▼ to access the ADVANCED menu.

1. Press ▲/▼ to select the menu option. Then press Enter to display its sub-menu, or press ◀ to adjust/select the setting.

NOTE: Some sub-menu options may have another sub-menu. To enter the respective sub-menu, press Enter. Use ▲/▼ or ◀/▶ to adjust/select the setting.

Menu Option Description
3D Settings	This projector features a 3D function which enables you to enjoy 3D movies, videos, and sporting events in a more realistic way by presenting the depth of the images. You need to wear a pair of 3D glasses to view 3D images.3D SyncThe default setting is Auto and the projector automatically chooses an appropriate 3D format when detecting 3D contents. If the projector cannot recognize the 3D format, choose a 3D mode.3D Sync InvertWhen you discover the inversion of the image depth, enable this function to correct the problem.Save 3D SettingsSaves current 3D settings. 3D settings will automatically be applied if the same resolution and input source are selected.NOTE: When the 3D Sync function is on:The brightness level of the projected image will decrease.The Color Mode, Lamp Mode, Zoom, and OverScan cannot be adjusted.
HDMI Settings	HDMI FormatSelect a suitable color space according to the color space setting of the output device connected.» Auto: Sets the projector to detect the color space setting of the input signal automatically.» RGB: Sets the color space as RGB.» YUV: Sets the color space as YUV.HDMI RangeSelect a suitable HDMI color range according to the color range setting of the output device connected.» Auto: Sets the projector to detect the HDMI range of the input signal automatically.» Enhanced: Sets the HDMI color range as 0 - 255.» Normal: Sets the HDMI color range as 16 - 235.
Lamp Settings	Lamp Mode» Normal: Provides full lamp brightness.» Eco: Reduces lamp power consumption by 16% and lowers brightness to extend the lamp life and decreases the fan noise.» Dynamic Eco: Reduces lamp power consumption by up to 30% depending on the content brightness level.» SuperEco+: Reduces lamp power consumption by 60% and lowers brightness to extend the lamp life and decreases the fan noise.NOTE: To control the lamp temperature, Eco Mode will be switched on for 10 minutes in every 4 hours when the Lamp Mode is set as SuperEco+.Reset Lamp HoursResets the lamp timer after new lamp is installed. For changing the lamp, please contact qualified service personnel.Lamp Hours Information» Lamp Usage Time: Displays the number of hours the lamp has been used.» Equivalent Lamp Hour: Displays the overall lamp life. The method of calculating the equivalent light source hour is as follows: Total (equivalent) Lamp Hour = 4 x (hours used in Normal mode) + 2 x (hours used in Eco mode) + 1.67 x (hours used in Dynamic Eco mode) + 1 x (hours used in SuperEco+ mode)
Reset Settings	Returns all settings to the factory preset values. When using Reset Settings, the following settings will still remain: Zoom, Keystone, Lens Shift, Language, Projector Position, High Altitude Mode, Security Settings, Remote Control Code, and Baud Rate.

SYSTEM Menu

1. Press the Menu button to display the On-Screen Display (OSD) Menu.

2. Press ◀/▶ to select the SYSTEM menu. Then press Enter or use ▲/▼ to access the SYSTEM menu.

1. Press ▲/▼ to select the menu option. Then press Enter to display its sub-menu, or press ◀ to adjust/select the setting.

NOTE: Some sub-menu options may have another sub-menu. To enter the respective sub-menu, press Enter. Use ▲/▼ or ◀/► to adjust/select the setting.

Menu Option Description
Language	Sets the language for the On-Screen Display (OSD) Menu.
Projector Position	Selects a proper position for the projector.
Menu Settings	Menu Display TimeSets the length of time the OSD Menu will remain active after your last interaction.Menu PositionSets the OSD Menu’s position.
High Altitude Mode	We recommend you use the High Altitude Mode when your environment is between 1,500 m to 3,000 m above sea level, and ambient temperature is between 5°C–25°C.NOTE:Do not use High Altitude Mode if your environment is between 0 to 1,499 m, and the temperature is between 5°C to 35°C. If used, the projector will become over cooled.Using “High Altitude Mode” may cause more operating noise, as the fan speed will be increased to improve cooling and performance.
Quick Auto Search	Allows the projector to automatically search for the signals.
Security Settings	See “Using the Password Function” on page 20.
Panel Key Lock	Locks the control keys on the projector.
Remote Control Code	Sets the remote control code for this projector (between 1~8).When multiple adjacent projectors are in operation at the same time, switching the codes can prevent interference from other remote controls. After the remote control code is set, switch to the same ID for the remote control to control this projector.
Control Method	Allows you to select a preferred control port: through the RS-232 port or the USB port. When selecting USB, USB A Power will be switched to Off automatically.
Baud Rate	Selects a baud rate that is identical with your computer’s so that you can connect the projector using a suitable RS-232 cable and control the projector with RS-232 commands

INFORMATION Menu

1. Press the Menu button to display the On-Screen Display (OSD) Menu.
2. Press ◀/▶ to select the INFORMATION menu and display its contents.

Menu Option Description
Source	Shows the current input source.
Color Mode	Shows the selected mode in the IMAGE menu.
Resolution	Shows the native resolution of the input source.
Color System	Shows input system format.
Firmware Version	Shows the current firmware version.
3X Fast Input	Shows whether the function is activated or not.
S/N	Shows the serial number for this projector.

Specifications

Item Category Specifications
Projector Type DL	LP Lamp
	Display Size 60" ~ 200"	(W:1.94~6.64 T:2.13~7.11 with E pattern)
	Brightness (Lumens) 3,500 ANSI
	Throw Ratio 1.50~1.65	(95"±3%@3.16m)
	Lens 1.1x±2% Optical Zoom
	Lamp Type OSRAM P-VIP 203/0.8 E30.5
	Display System 1-CHIP	DMD
Input Signal VGA f		h: 15K~102KHz, fv:48~120Hz, Pixel rate: 170MHz
	HDMI f	h: 15K~102KHz, fv:23~120Hz, Pixel rate: 170MHz
Resolution Native	1920 x 1080
Power Adapter1	Input Voltage AC 100-240V, 50/60 Hz (auto switch)
Operating conditions	Temperature	0°C to 40°C (32°F to 104°F)
	Humidity 0% to 90% (non-condensing)
	Altitude	0 to 1,499 m at 5°C to 35°C 1,500 to 3,000 m at 5°C to 25°C
Storage conditions	Temperature	-20°C to 60°C (non-condensing)
	Humidity 0% to 90% (non-condensing)
	Altitude	0 to 1,219 m at -20°C to 30°C
Dimensions	Physical (W x H x D)	312 x 108.37 x 221.8 mm (12.3" x 4.3" x 8.7")
Weight	Physical	3.7 kg (8.16 lbs)
Power Saving Modes	On2	300W (Typical)
	Off	< 0.5W (Standby)

^1 Please use the power adapter from ViewSonic ^® or an authorized source only.
^2 The test condition follows EEI standards.

Projector Dimensions

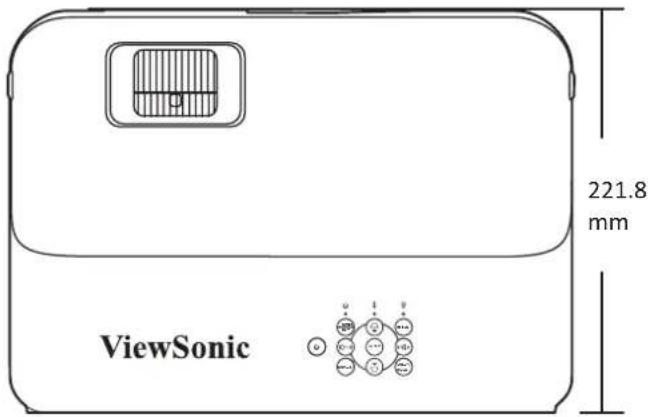

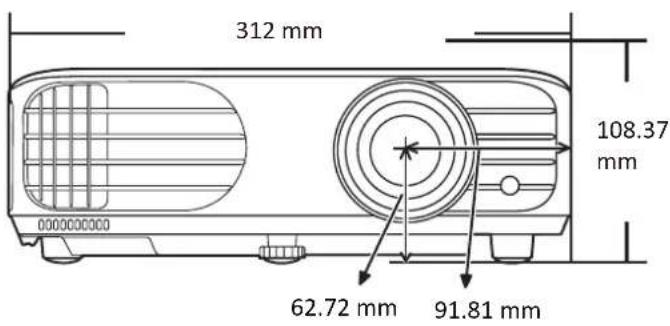

312 mm (W) x 108.37 mm (H) x 221.8 mm (D)

Timing Chart

Analog RGB

Resolution Mode Refresh		rate (Hz)	H-frequency (kHz)	Clock (MHz)	3D Sync
					Frame Sequential	Top-Bottom	Side-by-Side
720 x 400 720 x	400_70 70.087 31.469	28.3221
640 x 480 VGA	60 59.94 31.469 25.175 Supported	Supported	Supported Supported
	VGA_72	72.809 37.861 31.5
	VGA_75	75	37.5	31.5
	VGA_85	85.008 43.269 36
800 x 600	SVGA_60	60.317	37.879	40	Supported	Supported	Supported
	SVGA_72 72.188 48.077	50
	SVGA_75	75	46.875 49.5
	SVGA_85 85.061 53.674 56.25
	SVGA_120 (Reduce Blanking)	119.854 77.425 83	Supported
1024 x 768	XGA_60	60.004	48.363	65	Supported	Supported	Supported
	XGA_70	70.069 56.476 75
	XGA_75	75.029 60.023 78.75
	XGA_85	84.997 68.667 94.5
	XGA_120 (Reduce Blanking)	119.989 97.551 115.5	Supported
1152 x 864 1152 x 864_75 75		67.5 108
1024 x 576	NB Timing	60	35.82 46.966
1024 x 600	NB Timing	64.995 41.467 51.419
1280 x 720	1280 x 720_60	60	45	74.25	Supported	Supported	Supported
1280 x 768	1280 x 768_60	59.87	47.776	79.5	Supported	Supported	Supported
1280 x 800 WXGA_60 59.81 49.702 83.5 Supported Supported Supported
WXGA_120 (Reduce Blanking)		119.909 10	1.563 146.25 Supported
1280 x 1024	SXGA_60	60.02	63.981	108		Supported	Supported
	SXGA_75	75.025 79.976	135
	SXGA_85	85.024 91.146	157.5
1280 x 960 1280 x 960_60 60 60		108		Supported Supported
		1280 x 960_85	85.002 85.938	148.5
1360 x 768 1360 x 768_60 60.015 47.712 85.5				Supported Supported
1440 x 900	WXGA+_60	59.887	55.935	106.5		Supported	Supported
1400 x 1050	SXGA+_60	59.978	65.317	121.75		Supported	Supported
1600 x 1200	UXGA	60	75	162		Supported	Supported
1680 x 1050	1680x1050_60	59.954	65.29	146.25		Supported	Supported
640 x 480@67Hz MAC13 66.667		35 30.24
832 x 624@75Hz MAC16 74.546 49.722 57.28
1024 x 768@75Hz MAC19 74.93 60.241		80
1152 x 870@75Hz MAC21		75.06	68.68	100
1920 x 1080 (VESA)	1920 x 1080_60	60	67.5	148.5

HDMI (PC)

Resolution Mode Refresh		rate (Hz)	H-frequency (kHz)	Clock (MHz)	3D Sync
					Frame Sequential	Top-Bottom	Side-by-Side
640 x 480	VGA_60 59.94	31.469	25.175 Supported	Supported	Supported
	VGA_72	72.809 37.861	31.5
	VGA_75	75	37.5	31.5
	VGA_85	85.008 43.269	36
720 x 400	720 x 400_70	70.087 31.469	28.3221
800 x 600	SVGA_60	60.317	37.879	40	Supported	Supported	Supported
	SVGA_72	72.188 48.077	50
	SVGA_75	75	46.875 49.5
	SVGA_85	85.061 53.674	56.25
	SVGA_120 (Reduce Blanking)	119.854	77.425	83	Supported
1024 x 768 XGA	60 60.004 48.363 65	Supported Sup	ported Supported
	XGA_70 70.069	56.476 75
	XGA_75 75.029	60.023 78.75
	XGA_85 84.997	68.667 94.5
	XGA_120 (Reduce Blanking)	119.989 97	.551 115.5 Sup	ported
1152 x 864 1152	x 864_75	75	67.5	108
1024 x 576	NB Timing	60	35.82 46.966
1024 x 600	NB Timing	64.995 41	467 51.419
1280 x 720	1280 x 720_60	60	45	74.25	Supported	Supported	Supported
1280 x 768	1280 x 768_60	59.87	47.776	79.5	Supported	Supported	Supported
1280 x 800	WXGA_60	59.81	49.702	83.5	Supported	Supported	Supported
	WXGA_75	74.934 62	795 106.5
	WXGA_85	84.88 71.5	54 122.5
	WXGA_120 (Reduce Blanking)	119.909	101.563	146.25	Supported
1280 x 1024	SXGA_60	60.02	63.981	108		Supported	Supported
	SXGA_75	75.025 79	976	135
	SXGA_85	85.024 91	146	157.5
1280 x 960	1280 x 960_60	60	60	108		Supported	Supported
	1280 x 960_85	85.002 85	938	148.5
1360 x 768 1360	x 768_60	60.015	47.712 85.5		Supported Supported
1440 x 900	WXGA+_60	59.887	55.935	106.5		Supported	Supported
1400 x 1050	SXGA+_60	59.978	65.317	121.75		Supported	Supported
1600 x 1200	UXGA	60	75	162		Supported	Supported
1680 x 1050	1680x1050_60	59.954	65.29	146.25		Supported	Supported
640 x 480@67Hz	MAC13	66.667	35	30.24
832 x 624@75Hz	MAC16	74.546 49	722 57.28
1024 x 768@75Hz	MAC19	74.93	60.241 80
1152 x 870@75Hz	MAC21	75.06	68.68 100
1920 x 1080 (VESA)	1920 x 1080_60	60	67.5	148.5

HDMI (Video)

Video mode	Resolution Horizontal frequency (KHz)		Vertical frequency (Hz)	Dot Clock frequency (MHz)	3D Sync
					Frame Sequential	Frame Packing	Top-Bottom	Side-by-Side
480i 720	(1440) x 480	15.73	59.94	27 Supported
480p 720	x 480	31.47	59.94	27 Supported	Supported
576i 720	(1440) x 576	15.63	50	27 Supported
576p 720	x 576	31.25	50	27 Supported	Supported
720/50p	1280 x 720		37.5	50	74.25		Supported	Supported
720/60p	1280 x 720		45	60	74.25		Supported	Supported
1080/50i	1920 x 1080		28.13	50	74.25
1080/60i	1920 x 1080		33.75	60	74.25
1080/24P	1920 x 1080		27	24	74.25		Supported	Supported
1080/50P	1920 x 1080		56.25	50	148.5 Supported Supported
1080/60P	1920 x 1080		67.5	60	148.5			Supported

IR Control Table

Key	Format	Byte 1	Byte 2	Byte 3	Byte 4
On	NEC-F2	83	F4	4F	B0
Off	NEC-F2	83	F4	4E	B1
COMP	NEC-F2	83	F4	41	BE
HDMI/HDMI 1	NEC-F2	83	F4	58	A7
HDMI 2	NEC-F2	83	F4	59	A6
Auto Sync	NEC-F2	83	F4	8	F7
Source	NEC-F2	83	F4	40	BF
Up/□	NEC-F2	83	F4	OB	F4
Left	NEC-F2	83	F4	OE	F1
Enter	NEC-F2	83	F4	15	EA
Right	NEC-F2	83	F4	OF	F0
Down/□	NEC-F2	83	F4	OC	F3
Menu	NEC-F2	83	F4	30	CF
(INFORMATION)	NEC-F2	83	F4	97	68
Exit	NEC-F2	83	F4	28	D7
Aspect	NEC-F2	83	F4	13	EC
Freeze	NEC-F2	83	F4	03	FC
Key Format Byte 1 Byte 2 Byte 3 Byte 4
Pattern NEC-F2 83 F4 55 AA
Blank NEC-F2 83 F4 7 F8
PgUp NEC-F2 83 F4 06 F9
PgDn NEC-F2 83 F4 05		FA
	NEC-F2 83	F4 14 EB
-(Volume Down)	NEC-F2 83	F4 83 7C
+(Volume Up)	NEC-F2 83	F4 82 7D
	NEC-F2 83	F4 67	98
	NEC-F2 83	F4 68	97
Eco Mode	NEC-F2 83	F4	2B D4
Color Mode	NEC-F2 83	F4 10 EF

Address Code

Code 1	83F4
Code 2	93F4
Code 3	A3F4
Code 4	B3F4
Code 5	C3F4
Code 6	D3F4
Code 7	E3F4
Code 8	F3F4

RS-232 Command Table

Pin Assignment

Pin Description Pin Description
1	NC	2	RX
3	TX	4	NC
5	GND	6	NC
7	RTSZ	8	CTSZ
9	NC

Interface

RS-232 Protocol
Baud Rate	115200 bps (default)
Data Length	8 bit
Parity Check	None
Stop Bit	1 bit
Flow Control	None

Command Table

Function Type Action Command
Power Write ON 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x00 0x00 0x5D
Power Write OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x01 0x00 0x5E
Power Write ON / OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x34 0x00 0x91
Power Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x00 0x5E
Projector Status Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x26 0x84
Reset All Settings Write Reset All Settings
Reset Color Settings Write Reset Color Settings
Splash Screen Write Black 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x00 0x67
Splash Screen Write Blue 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x01 0x68
Splash Screen Write ViewSonic 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x02 0x69
Splash Screen Write OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x04 0x6B
Splash Screen Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x0A 0x68
Quick Power Off Write OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0B 0x00 0x68
Quick Power Off Write ON 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0C 0x00 0x69
High Altitude Mode Write OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0C 0x00 0x69
High Altitude Mode Write ON 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0C 0x01 0x6A
High Altitude Mode	Read Status	0x07 0x14 0x	00 0x05 0x00 0x34 0x00 0x00 0x11 0x0C 0x6A
Light source Mode	Write Normal	0x06 0x14	0x00 0x04 0x00 0x34 0x11 0x10 0x00 0x6D
Lamp Mode Write	Eco 0x06	0x14 0x00 0x04	0x00 0x34 0x11 0x10 0x01 0x6E
Light source Mode	Write Dynamic	Eco 0x06	0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x02 0x6F
Light source Mode	Write Super	Eco+ 0x06	0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x03 0x70
Light source Mode	Read Status	0x07 0x14	0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x10 0x6E
Message Write OFF	0x06 0x14	0x00 0x04 0x00	0x034 0x11 0x27 0x00 0x84
Message Write ON	0x06 0x14	0x00 0x04 0x00	0x34 0x11 0x27 0x01 0x85
Message Read Status	0x07 0x14	0x00 0x05	0x00 0x34 0x00 0x00 0x11 0x27 0x85
Projector Position	Write Front	Table	0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x00 0x5E
Projector Position	Write Rear	Table	0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x01 0x5F
Projector Position	Write Rear	Ceiling	0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x02 0x60
Projector Position	Write Front	Ceiling	0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x03 0x61
Projector Position	Read Status	0x07 0x14	0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x00 0x5F
3D Sync Write OFF	0x06 0x14	0x00 0x04 0x00	0x34 0x12 0x20 0x00 0x7E
3D Sync Write Auto		0x06 0x14 0x00	0x04 0x00 0x34 0x12 0x20 0x01 0x7F
3D Sync Write Frame		Sequential	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x02 0x80
3D Sync	Write	Frame Packing	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x03 0x81
3D Sync Write Top	Bottom	0x06 0x14 0x00	0x04 0x00 0x34 0x12 0x20 0x04 0x82
3D Sync Write Side	by Side	0x06 0x14 0x00	0x04 0x00 0x34 0x12 0x20 0x05 0x83
3D Sync Read Status	0x07 0x14	0x00 0x05	0x034 0x00 0x00 0x12 0x20 0x7F
3D Sync Invert Write	OFF 0x06	0x14 0x00 0x04	0x00 0x34 0x12 0x21 0x00 0x7F
3D Sync Invert Write	ON 0x06	0x14 0x00 0x04	0x00 0x34 0x12 0x21 0x01 0x80
3D Sync Invert Read	Status 0x07	0x14 0x00	0x05 0x00 0x34 0x00 0x00 0x12 0x21 0x80
Contrast	Write	Decrease	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x02 0x00 0x60
Contrast	Write	Increase	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x02 0x01 0x61
Contrast	Read	Get Value	0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x02 0x61
Brightness	Write	Decrease	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x03 0x00 0x61
Brightness	Write	Increase	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x03 0x01 0x62
Brightness	Read	Get Value	0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x03 0x62
Aspect ratio	Write	Auto	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x00 0x62
Aspect ratio	Write	04:03	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x02 0x64
Aspect ratio	Write	16:09	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x03 0x65
Aspect ratio	Write	16:10	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x04 0x66
Aspect ratio	Write	Native	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x09 0x6B
Aspect ratio	Read	Get Value	0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x04 0x63
Auto Adjust Write Execute		0x06 0x14	0x00 0x04 0x00 0x34 0x12 0x05 0x00 0x63
Horizontal position	Write	Shift Right	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x06 0x01 0x65
Horizontal position	Write Shift	Left 0x06 0x14	0x00 0x04 0x00 0x34 0x12 0x06 0x00 0x64
Horizontal position	Read Get	Value 0x07 0x14	0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x06 0x65
Vertical position W	Write Shift Up	0x06 0x14 0x00	0x04 0x00 0x34 0x12 0x07 0x00 0x65
Vertical position W	Write Shift Down	0x06 0x14	0x00 0x04 0x00 0x34 0x12 0x07 0x01 0x66
Vertical position Read	Get Value	0x07 0x14 0x00	0x05 0x00 0x34 0x00 0x00 0x12 0x07 0x66
Color temperature	Write 550	0x06 0x14 0x00	0x04 0x00 0x34 0x12 0x08 0x00 0x66
Color temperature	Write 650	0x06 0x14 0x00	0x04 0x00 0x34 0x12 0x08 0x01 0x67
Color temperature	Write 800	0x06 0x14 0x00	0x04 0x00 0x34 0x12 0x08 0x03 0x69
Color temperature	Read Get Value	0x07 0x14	0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x08 0x67
Blank Write ON	0x06 0x14	0x00 0x04 0x00	0x34 0x12 0x09 0x01 0x68
Blank Write OFF		0x06 0x14 0x00	0x04 0x00 0x34 0x12 0x09 0x00 0x67
Blank	Read	Status	0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x09 0x68
Keystone-Vertical	Write	Decrease	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0A 0x00 0x68
Keystone-Vertical	Write	Increase	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0A 0x01 0x69
Keystone-Vertical	Read	Get value	0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x0A 0x69
Color mode	Write Brightest	0x06 0x14	0x00 0x04 0x00 0x34 0x12 0x0B 0x00 0x69
Color mode	Write Movie	0x06 0x14	0x00 0x04 0x00 0x34 0x12 0x0B 0x01 0x6A
Color mode	Write Standard	0x06 0x14	0x00 0x04 0x00 0x34 0x12 0x0B 0x04 0x6D
Color mode	Write	Sports	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x11 0x7A
Color mode	Write	Photo	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x13 0x7C
Color mode	Write	Presentation	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x14 0x7D
Color mode	Write	Gaming	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x12 0x7B
Color mode	Write	Cycle	0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x33 0x00 0x92
Color mode	Read	Status	0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x0B 0x6A
Reset current color settings	Write Reset	0x06	0x14 0x00 0x04 0x00 0x34 0x11 0x2A 0x00 0x87
Primary Color	Write	R	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x00 0x6E
Primary Color	Write	G	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x01 0x6F
Primary Color	Write	B	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x02 0x70
Primary Color	Write	C	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x03 0x71
Primary Color	Write	M	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x04 0x72
Primary Color	Write Y	0x06 0x14 0x00	0x04 0x00 0x34 0x12 0x10 0x05 0x73
Primary Color	Read	Status	0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x10 0x6F
Hue / Tint	Write	Decrease	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x11 0x00 0x6F
Hue / Tint	Write	Increase	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x11 0x01 0x70
Hue / Tint	Read	Get value	0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x11 0x70
Saturation	Write	Decrease	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x12 0x00 0x70
Saturation	Write	Increase	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x12 0x01 0x71
Saturation	Read	Get value	0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x12 0x71
Gain Write Decrease	0x06 0x1	4 0x00 0x04 0x	00 0x34 0x12 0x13 0x00 0x71
Gain Write Increase	0x06 0x1	4 0x00 0x04 0x0	00 0x34 0x12 0x13 0x01 0x72
Gain Read Get value	0x07 0x1	4 0x00 0x05 0x	00 0x34 0x00 0x00 0x12 0x13 0x72
Sharpness Write Decrease	0x06 0x14 0x00 0x	04 0x00 0x34 0x12 0x0E 0x00 0x6C
Sharpness Write Increase	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0E 0x01 0x6D
Sharpness Read Get value	0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x34 0x00 0x00 0x12 0x0E 0x6D
Freeze Write ON	0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x00 0x01 0x60
Freeze Write OFF	0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x00 0x00 0x5F
Freeze Read Status	0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x13 0x00 0x60
Source input Write	D-Sub / Comp.1	0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x00 0x60
Source input Write	HDMI 1	0x06 0x14	0x00 0x04 0x00 0x34 0x13 0x01 0x03 0x63
Source input Write	HDMI 2	0x06 0x14	0x00 0x04 0x00 0x34 0x13 0x01 0x07 0x67
Source input Write	USB Reader	0x06 0x14	0x00 0x04 0x00 0x34 0x13 0x01 0x1A 0x7A
Source input Read	Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x13 0x01 0x61
Quick Auto Search	Write	ON	0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x02 0x01 0x62
Quick Auto Search	Write	OFF	0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x02 0x00 0x61
Quick Auto Search	Read	Status	0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x13 0x02 0x62
Mute	Write ON	0x06 0x14 0x00	0x04 0x00 0x34 0x14 0x00 0x01 0x61
Mute	Write OFF	0x06 0x14 0x00	0x04 0x00 0x34 0x14 0x00 0x00 0x60
Mute	Read Status	0x07 0x14 0x00	0x05 0x00 0x34 0x00 0x00 0x14 0x00 0x61
Volume	Write	Increase	0x06 0x14 0x00 0x04 0x00 0x34 0x14 0x01 0x00 0x61
Volume	Write	Decrese	0x06 0x14 0x00 0x04 0x00 0x34 0x14 0x02 0x00 0x62
Volume	Write	Write Value	0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x2A 0x11 0x9A
Volume	Read	Get Value	0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x14 0x03 0x64
Language	Write	English	0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x00 0x61
Language	Write	Français	0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x01 0x62
Language	Write	Deutsch	0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x02 0x63
Language	Write	Italiano	0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x03 0x64
Language	Write	Español	0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x04 0x65
Language	Write	РУССКИЙ	0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x05 0x66
Language	Write	繁體中文	0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x06 0x67
Language	Write	简体中文	0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x07 0x68
Language	Write	日本語	0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x08 0x69
Language	Write	한국어	0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x09 0x6A
Language	Write	Swidish	0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0a 0x6B
Language	Write	Dutch	0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0b 0x6C
Language	Write	Turkish	0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0c 0x6D
Language Write Czech 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0d 0x6E
Language Write Portuguese 0x06 0x14 0x00 0x04 0x04 0x00 0x34 0x15 0x00 0x0e 0x6F
Language Write Thai 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0f 0x70
Language Write Polish 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x10 0x71
Language Write Finnish 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x11 0x72
Language Write Arabic 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x12 0x73
Language Write Indonesia 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x13 0x74
Language Write Hindi 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x14 0x75
Language Write Vie 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x15 0x76
Language Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x15 0x00 0x62
Lamp Usage Time Write Reset to ZERO 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x01 0x00 0x62
Lamp Usage Time Read Get Usage Time
HDMI Format Write RGB 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x28 0x00 0x85
HDMI Format Write YUV 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x28 0x01 0x86
HDMI Format Write Auto 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x28 0x02 0x87
HDMI Format Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x28 0x86
HDMI Range Write Enhanced 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x29 0x00 0x86
HDMI Range Write Normal 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x29 0x01 0x87
HDMI Range Write Auto 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x29 0x02 0x88
HDMI Range Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x29 0x87
CEC Write OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x2B 0x00 0x88
CEC Write ON 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x2B 0x01 0x89
CEC Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x2B 0x89
Error status Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0xC 0x0D 0x66
Brilliant Color Write OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0xF 0x00 0x6D
Brilliant Color Write Color 1 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0xF 0x01 0x6E
Brilliant Color Write Color 2 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0xF 0x02 0x6F
Brilliant Color Write Color 3 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0xF 0x03 0x70
Brilliant Color Write Color 4 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0xF 0x04 0x71
Brilliant Color Write Color 5 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0xF 0x05 0x72
Brilliant Color Write Color 6 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0xF 0x06 0x73
Brilliant Color Write Color 7 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0xF 0x07 0x74
Brilliant Color Write Color 8 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0xF 0x08 0x75
Brilliant Color Write Color 9 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0xF 0x09 0x76
Brilliant Color Write Color 10 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0xF 0xA 0x77
Brilliant Color Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0xF 0x6E
Remote Control Code Write code 1 0x06 0x14 0x00 0x04 0x00 0x34 0xC 0x48 0x00 0xAO

Function Type Action Command
Remote Control Code	Write code 2 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x01 0xA1
Remote Control Code	Write code 3 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x02 0xA2
Remote Control Code	Write code 4 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x03 0xA3
Remote Control Code	Write code 5 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x04 0xA4
Remote Control Code	Write code 6 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x05 0xA5
Remote Control Code	Write code 7 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x06 0xA6
Remote Control Code	Write code 8 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x07 0xA7
Remote Control Code	Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x0C 0x48 0xA1
Screen Color Write	OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x32 0x00 0x8F
Over Scan Write OFF	0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x00 0x90
Over Scan Write Value 1	0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x01 0x91
Over Scan Write Value 2	0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x02 0x92
Over Scan Write Value 3	0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x03 0x93
Over Scan Write Value 4	0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x04 0x94
Over Scan Write Value 5	0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x05 0x95
Over Scan Read Get	Value 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x33 0x91
Remote Key Write	Menu 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0F 0x61
Remote Key Write	Exit 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x13 0x65
Remote Key Write	Top 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0B 0x5D
Remote Key Write	Bottom 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0C 0x5E
Remote Key Write	Left 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0D 0x5F
Remote Key Write	Right 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0E 0x60
Remote Key Write	Source 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x04 0x56
Remote Key Write	Enter 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x15 0x67
Remote Key Write	Auto 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x08 0x5A
Remote Key Write	My Button 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x11 0x63
Operating temperature	Read Get Value 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x15 0x03 0x65
Lamp mode cycle	Write Lamp mode cycle	0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x36 0x00 0x95
Audio mode cycle	Write Audio mode cycle	0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x35 0x00 0x94

Glossary

This section describes the standard glossary of terms used in projector models. All terms are listed in alphabetical order.

NOTE: Some terms may not be applicable to your projector.

Aspect Ratio

Refers to the ratio of the image width to the image height.

Auto Sync

Built-in intelligent auto adjustment function that will re-adjust the frequency and clock values to provide the best picture quality.

D Blank

Temporarily hide the screen image to maintain audience focus when necessary.

Brightest Mode

Maximizes the brightness of the projected image. This mode is ideal for environments where extra-high brightness is required, such as using the projector in well lit rooms.

Brightness

Adjusts brightness levels of the screen image.

CEC (Consumer Electronics Control)

Synchronizes power on/off operation via HDMI connection. That is, if a device that also supports CEC function is connected to the HDMI input of the projector, when the projector's power is turned off, the power of the connected device will also be turned off automatically. When the power of the connected device is turned on, the projector's power will be turned on automatically.

Color

Adjusts the color saturation.

Color Temp.

Allows users to select specific color temperature settings to further customize their viewing experience.

Projector Default Projector Original Status
8000K	Images appear bluish white.
6500K	Default color temperature. Images maintain a normal white appearance. Recommended for general use.
5500K	Images appear reddish white.

Contrast

Adjusts the difference between the image background (black level) and the foreground (white level).

Color Mode

The projector is preset with several predefined color modes to suit operating, environmental, and input source needs.

Focus Ring

Manually improve the clarity of the projected image.

Gamma

Allows the user to manually select the greyscale curve of the projector.

HDMI Range

Allows the user to select HDMI greyscale range between 0\~255 (Enhanced Range), 16\~235 (Normal Range) or Auto by the signal type detected.

High Altitude Mode

Optional mode for users who live in an environment between 1,500 m and 3,000 m above sea level, and the temperature is between 5°C and 25°C. Activating it will improve projector cooling and performance.

INFORMATION

Displays the timing mode (video signal input), the projector model number, the serial number, and the ViewSonic® website URL.

Input Select

Toggles between the various input options that are available for the projector.

Keystone

The distortion of an image caused by projecting it onto an angled surface. It can be adjusted vertically via the [7] Keystone Keys.

Lamp Settings

The projector's lamp information and settings can be viewed and adjusted by viewing the “Lamp Hours Information” or adjusting the “Lamp Mode”.

Lens shift

The projector's lens can be shifted vertically by adjusting the "Lens Shift" menu.

M Movie Mode

A Color Mode appropriate for playing colorful movies, video clips from digital cameras, or DVs through the PC input. Best for a low light environment.

OverScan

Refers to a cropped image on your monitor's screen. A setting on your monitor zooms in on movie content, so that you cannot see the outermost edges of the film.

Pattern

Projects a grid to be used for image adjustment and fine-tuning.

Projector Position

The projected image can be adjusted based on the installation location of the projector, i.e. ceiling or rear projection installation.

D RS-232

A standard code for serial communication transmission of data, used for connection to other devices or controller vis serial port or LAN port.

Sharpness

Adjusts the picture quality.

Standard Mode

A Color Mode that is designed for normal viewing circumstances in a daylight environment.

7 Zoom Ring

Manually adjust the size of the projected image.

Troubleshooting

Common Problems

This section describes some common problems that you may experience when using the projector.

Problem Possible Solutions
The projector does not turn on	·Ensure the power cord is properly attached to the projector and to the power outlet.·If the cooling process has not completed, please wait until it has finished then try to turn on the projector again.·If the above does not work, try another power outlet or another electrical device with the same power outlet.
There is no picture · Ensure the video source cable is connected properly, and that the video source is turned on.·If the input source is not selected automatically, select the correct source with the Source key on either the projector or the remote control.
The image is blurred	·Adjusting the Focus Ring will help correctly focus the projection lens.·Ensure the projector and screen are aligned properly. If necessary, adjust the height of the projector as well as the projection angle and direction.
The remote control does not work	·Ensure there are no obstacles between the remote control and projector; and that they are within 8 m (26 ft) of each other.·The batteries may be out of power, please check and replace if necessary.

LED Indicators

Light Status and Description
	###	###
Power
Green Flashing	Off Off Stand-by mode
Green Off Powering up
Green Off Off Normal operation
Green Flashing	Off Off Normal power-down cooling
Red Off Off Downloading
Green Green Burn in off
Lamp
Green Flashing	Off Red First light source-lit error cooling
Off Off Red Light source error in normal operation
Green Off Red Color wheel start has failed
Heating/Cooling
Off Red Off Fan 1 error (actual fan speed is outside the desired speed).
Off Red Red Fan 2 error (actual fan speed is outside the desired speed).
Off Red Green Fan 3 error (actual fan speed is outside the desired speed).
Off Red Orange Fan 4 error (actual fan speed is outside the desired speed).
Red Flashing	Red Off Fan 5 error (actual fan speed is outside the desired speed).
Red Flashing	Red Flashing	Off Fan 6 error (actual fan speed is outside the desired speed).
Red Red Red Thermal sensor 1 open error (the remote diode has an open-circuit condition).
Red Red Green Thermal sensor 2 open error (the remote diode has an open-circuit condition).
Green Red Red Thermal sensor 1 short error (the remote diode has an open-circuit condition).
Off Red Green Thermal sensor 2 short error (the remote diode has an open-circuit condition).
Orange	Red Red Temperature 1 error (over limited temperature).
Orange	Red Green Temperature 2 error (over limited temperature).
Off	Green Red Fan IC #1 I2C connection error.

Power

Green Flashing	Off Off Stand-by mode
Green Off Off Powering up
Green Off Off Normal operation
Green Flashing	Off Off Normal power-down cooling
Red Off Off Downloading
Green Green Green Burn in off

Maintenance

General Precautions

• Make sure the Projector is turned off and the power cable is unplugged from the power outlet.
• Never remove any parts from the Projector. Contact ViewSonic® or a reseller when any part of the Projector needs replacing.
• Never spray or pour any liquid directly onto the case.
• Handle the Projector with care, as a darker-colored projector, if scuffed, may show marks more clearly than a lighter-colored projector.

Cleaning the Lens

• Use a canister of compressed air to remove dust.
• If the lens is still not clean, use lens-cleaning paper or moisten a soft cloth with lens cleaner and gently wipe the surface.

CAUTION: Never rub the lens with abrasive materials.

Cleaning the Case

• Use a soft, lint-free, dry cloth to remove dirt or dust.
• If the case is still not clean, apply a small amount of non-ammonia, non-alcohol based, mild non-abrasive detergent onto a clean, soft, lint-free cloth, then wipe the surface.

CAUTION: Never use wax, alcohol, benzene, thinner, or other chemical detergents.

Storing the Projector

If you intend to store the Projector for an extended period of time:

• Ensure the temperature and humidity of the storage area are within the recommend range.
• Retract the adjuster foot completely.
• Remove the batteries from the Remote Control.
• Pack the Projector in its original packaging or equivalent.

Disclaimer

• ViewSonic® does not recommend the use of any ammonia or alcohol-based cleaners on the lens or case. Some chemical cleaners have been reported to damage the lens and/or case of the projector.
• ViewSonic® will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.

Lamp Information

This section will provide a better understanding of your projector's lamp.

Lamp Hour

When the projector is being used, the duration (in hours) of lamp usage is automatically calculated by the built-in timer.

To obtain the lamp hour information:

1. Press Menu to open the OSD Menu and go to: Advanced > Lamp Settings > Lamp Hours Information.
2. Press Enter and the Lamp Hours Information page will appear:
3. Press Exit to leave the menu.

Extending Lamp Life

To prolong lamp life, you can adjust the following settings in the OSD Menu.

Setting Lamp Mode

Setting the projector in Eco, Dynamic Eco, or SuperEco+ mode reduces system noise, power consumption, and extends the lamps operational life.

Lamp Mode Description
Normal Provides	full lamp brightness.
Eco	Reduces lamp power consumption by 16% and lowers brightness, and decreases fan noise.
Dynamic Eco	Reduces lamp power consumption by up to 30% depending on the content's brightness level.
SuperEco+	Reduces lamp power consumption by 60% and lowers brightness to extend the lamp life and decreases the fan noise.

To set the Lamp Mode, open the OSD Menu and go to: Advanced > Lamp Settings > Lamp Mode and press ◀/▶ to select and press Enter.

Setting Auto Power Off

This allows the projector to turn off automatically after a set period of time once no input source is detected.

Open the OSD Menu and go to: POWER MANAGEMENT > Smart Energy >

Auto Power Off and press ◀/▶ to disable or adjust the time.

Lamp Replacement Timing

When the Lamp Indicator Light lights up, please install a new lamp or consult your dealer.

CAUTION: An old lamp may cause a malfunction in the projector and in some instances the lamp may explode.

Replacing the Lamp

NOTE: It is recommended to turn the power off and disconnect the projector from the power outlet, and contact a qualified service personnel for lamp replacement.

> Regulatory and Service Information

Compliance Information

This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit.

FCC Compliance Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

WARNING: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

Industry Canada Statement

CAN ICES-3 (B)/NMB-3(B)

CE Conformity for European Countries

CE The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

The following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

Substance Proposed Maximum	Concentration	Actual Concentration
Cadmium (Cd) 0.01% < 0.01%
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Hexavalent Chromium (Cr6+) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl esthers (PBDE) 0.1% < 0.1%
Bis(2-Ethylhexyl) phthalate (DEHP) 0.1% < 0.1%
Benzyl butyl phthalate (BBP) 0.1% < 0.1%
Dibutyl phthalate (DBP) 0.1% < 0.1%
Diisobutyl phthalate (DIBP) 0.1% < 0.1%

Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below:

• Mercury in cold cathode fluorescent lamps and external electrode fluorescent lamps (CCFL and EEFL) for special purposes not exceeding (per lamp):
  »Short length (500 mm): maximum 3.5 mg per lamp.
  »Medium length (> 500 mm and 1,500 mm): maximum 5 mg per lamp.
  »Long length (> 1,500 mm): maximum 13 mg per lamp.
• Lead in glass of cathode ray tubes.
• Lead in glass of fluorescent tubes not exceeding 0.2% by weight.
• Lead as an alloying element in aluminum containing up to 0.4% lead by weight.
  • Copper alloy containing up to 4% lead by weight.
• Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
• Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Product Disposal at End of Product Life

ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic® website to learn more.

USA & Canada:

http://www.viewsonic.com/company/green/recycle-program/

Europe:

http://www.viewsoniceurope.com/uk/support/recycling-information/

Copyright Information

Copyright© ViewSonic® Corporation, 2019. All rights reserved.

Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

ViewSonic® and the three birds logo are registered trademarks of ViewSonic® Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC are trademarks of VESA.

Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic® Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic® Corporation.

Customer Service

For technical support or product service, see the table below or contact your reseller.

NOTE: You will need the product's serial number.

Country/ Region Website Country/ Region Website
Asia Pacific & Africa
Australia	www.viewsonic.com/au/	Bangladesh	www.viewsonic.com/bd/
中国 (China)	www.viewsonic.com.cn	香港(繁體中文)	www.viewsonic.com/hk/
Hong Kong (English)	www.viewsonic.com/hk-en/	India	www.viewsonic.com/in/
Indonesia	www.viewsonic.com/id/	Israel	www.viewsonic.com/il/
日本 (Japan)	www.viewsonic.com/jp/	Korea	www.viewsonic.com/kr/
Malaysia	www.viewsonic.com/my/	Middle East	www.viewsonic.com/me/
Myanmar	www.viewsonic.com/mm/	Nepal	www.viewsonic.com/np/
New Zealand	www.viewsonic.com/nz/	Pakistan	www.viewsonic.com/pk/
Philippines	www.viewsonic.com/ph/	Singapore	www.viewsonic.com/sg/
臺灣 (Taiwan)	www.viewsonic.com/tw/	ประเทศไทย	www.viewsonic.com/th/
Việt Nam	www.viewsonic.com/vn/	South Africa & Mauritius	www.viewsonic.com/za/
Americas
United States	www.viewsonic.com/us	Canada	www.viewsonic.com/us
Latin America	www.viewsonic.com/la
Europe
Europe	www.viewsonic.com/eu/	France	www.viewsonic.com/fr/
Deutschland	www.viewsonic.com/de/	Қазақстан	www.viewsonic.com/kz/
Россия	www.viewsonic.com/ru/	España	www.viewsonic.com/es/
Türkiye	www.viewsonic.com/tr/	Україна	www.viewsonic.com/ua/
United Kingdom	www.viewsonic.com/uk/

Limited Warranty

ViewSonic® Projector

What the warranty covers:

ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.

Limited Three (3) year General Warranty

Subject to the more limited one (1) year warranty set out below, North and South America: Three (3) years warranty for all parts excluding the lamp, three (3) years for labor, and one (1) year for the original lamp from the date of the first consumer purchase.

Other regions or countries: Please check with your local dealer or local ViewSonic office for the warranty information.

Limited One (1) year Heavy Usage Warranty:

Under heavy usage settings, where a projector's use includes more than fourteen (14) hours average daily usage, North and South America: One (1) year warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase; Europe: One (1) year warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase.

Other regions or countries: Please check with your local dealer or local ViewSonic office for the warranty information.

Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer's installed lamp only. All accessory lamps purchased separately are warranted for 90 days.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed.
2. Damage, deterioration, failure, or malfunction resulting from:

a. Accident, abuse, misuse, neglect, fire, water, lightning, or other acts of nature, improper maintenance, unauthorized product modification, or failure to follow instructions supplied with the product.
b. Operation outside of product specifications.
c. Operation of the product for other than the normal intended use or not under normal conditions.
d. Repair or attempted repair by anyone not authorized by ViewSonic.
e. Any damage of the product due to shipment.
f. Removal or installation of the product.
g. Causes external to the product, such as electric power fluctuations or failure.
h. Use of supplies or parts not meeting ViewSonic's specifications.
i. Normal wear and tear.
j. Any other cause which does not relate to a product defect.

1. Removal, installation, and set-up service charges.

How to get service:

1. For information about receiving service under warranty, contact ViewSonic Customer Support (please refer to "Customer Support" page). You will need to provide your product's serial number.
2. To obtain warranted service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center or ViewSonic.
4. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic's liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
2. Any other damages, whether incidental, consequential or otherwise.
3. Any claim against the customer by any other party.

Effect of local law:

This warranty gives you specific legal rights, and you may also have other rights which vary from local authority. Some local governances do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

Sales outside the U.S.A. and Canada:

For warranty information and service on ViewSonic products sold outside of the U.S.A. and Canada, contact ViewSonic or your local ViewSonic dealer.

The warranty period for this product in mainland China (Hong Kong, Macao and Taiwan Excluded) is subject to the terms and conditions of the Maintenance Guarantee Card.

For users in Europe and Russia, full details of warranty provided can be found in www.viewsoniceurope.com under Support/Warranty Information.

Mexico Limited Warranty

ViewSonic ^® Projector

What the warranty covers:

ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components & accessories.

How long the warranty is effective:

3 years for all parts excluding the lamp, 3 years for labor, 1 year for the original lamp from the date of the first consumer purchase.

Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer's installed lamp only.

All accessory lamps purchased separately are warranted for 90 days.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed.
2. Damage, deterioration or malfunction resulting from:

a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, unauthorized attempted repair, or failure to follow instructions supplied with the product.
b. Any damage of the product due to shipment.
c. Causes external to the product, such as electrical power fluctuations or failure.
d. Use of supplies or parts not meeting ViewSonic's specifications.
e. Normal wear and tear.
f. Any other cause which does not relate to a product defect.

1. Any product exhibiting a condition commonly known as “image burn-in” which results when a static image is displayed on the product for an extended period of time.

2. Removal, installation, insurance, and set-up service charges.

How to get service:

For information about receiving service under warranty, contact ViewSonic Customer Support (Please refer to the attached Customer Support page). You will need to provide your product's serial number, so please record the product information in the space provided below on your purchase for your future use. Please retain your receipt of proof of purchase to support your warranty claim.

For Your Records

Product Name: ____

Model Number: ____

Document Number: ____

Serial Number:

Purchase Date: ____

Extended Warranty Purchase? ____ (Y/N)

If so, what date does warranty expire? ____

1. To obtain warranty service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
2. Take or ship the product in the original container packaging to an authorized ViewSonic service center.
3. Round trip transportation costs for in-warranty products will be paid by ViewSonic.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic's liability is limited to the cost of repair or replacement of the product.

ViewSonic shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
2. Any other damages, whether incidental, consequential or otherwise.
3. Any claim against the customer by any other party.
4. Repair or attempted repair by anyone not authorized by ViewSonic.

Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico:
Name, address, of manufacturer and importers:México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas,Col. San Fernando Huixquilucan, Estado de MéxicoTel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm
NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004
Hermosillo:Distribuciones y Servicios Computacionales SA de CV.Calle Juarez 284 local 2Col. Bugambilas C.P: 83140Tel: [phone]E-Mail: [e-mail]	Villahermosa:Compumantenimietnos Garantizados, S.A. de C.V.AV. GREGORIO MENDEZ #1504COL, FLORIDA C.P. 86040Tel: [phone]E-Mail: [e-mail]
Puebla, Pue. (Matriz):RENTA Y DATOS, S.A. DE C.V. Domicilio:29 SUR 721 COL. LA PAZ72160 PUEBLA, PUE.Tel: [phone] CON 10 LINEASE-Mail: [e-mail]	Veracruz, Ver.:CONEXION Y DESARROLLO, S.A DE C.V. Av. Americas # 419ENTRE PINZÓN Y ALVARADOFracc. Reforma C.P. 91919Tel: [phone]E-Mail: [e-mail]
ChihuahuaSoluciones Globales en ComputaciónC. Magisterio # 3321 Col. MagisterialChihuahua, Chih.Tel: [phone]E-Mail: [e-mail]	CuernavacaCompusupport de Cuernavaca SA de CVFrancisco Leyva # 178 Col. Miguel HidalgoC.P. 62040, Cuernavaca MorelosTel: 01 777 3180579 / 01 777 3124014E-Mail: [e-mail]
Distrito Federal:QPLUS, S.A. de C.V.Av. Coyoacán 931Col. Del Valle 03100, México, D.F.Tel: [phone]E-Mail : [e-mail]	Guadalajara, Jal.:SERVICRECE, S.A. de C.V.Av. Niños Héroes # 2281Col. Arcos Sur, Sector Juárez44170, Guadalajara, JaliscoTel: 01(52)33-36-15-15-43E-Mail: [e-mail]
Guerrero AcapulcoGS Computación (Grupo Sesicomp)Progreso #6-A, Colo Centro39300 Acapulco, GuerreroTel: 744-48-32627	Monterrey:Global Product ServicesMar Caribe # 1987, Esquina con Golfo PérsicoFracc. Bernardo Reyes, CP 64280Monterrey N.L. MéxicoTel: 8129-5103E-Mail: [e-mail]
MERIDA:ELECTROSERAv Reforma No. 403Gx39 y 41Mérida, Yucatán, México CP97000Tel: [phone]E-Mail: [e-mail]	Oaxaca, Oax.:CENTRO DE DISTRIBUCION YSERVICIO, S.A. de C.V.Murguía # 708 P.A., Col. Centro, 68000, OaxacaTel: 01(52)95-15-15-22-22Fax: [phone]E-Mail. [e-mail]
Tijuana:STDAv Ferrocarril Sonora #3780 L-CCol 20 de NoviembreTijuana, Mexico	FOR USA SUPPORT:ViewSonic Corporation14035 Pipeline Ave. Chino, CA 91710, USATel: 800-688-6688E-Mail: http://www.viewsonic.com

Projector Mexico Warranty Term Template In UG

VSC_TEMP_2006

Illustration of three colorful bird perched on a green branch (no text or symbols)

ViewSonic®
