SL300II

SL系列摄影灯

SL Series LED Video Light

说明手册

Instruction Manual

重要的安全说明及注意事项

Line drawings of various lighting equipment including a refrigerator, toaster, umbrella, and tripod (no text or symbols)

接通电源

Safety Instructions and Attentions

First of all, as the most basic principle: This product is a professional lighting set equipment and should be used by professional lighting engineers or under the guidance of professionals. Basic safety attentions must always be followed during use, as follows:

1. Before use, please read and understand these instructions and attentions.
2. Professional lighting is prohibited for children. When children are near, parents or accompanying persons must supervise closely to prevent children from personal injury due to collision with lamps or private use of lamps.
3. This lighting product is not ordinary lighting product and cannot be used for general lighting. Anyone who has suffered eye damage or has sensitive eyes should avoid using this product.
4. When the lamp is on, it must be used with care. Do not touch high-temperature parts, such as LED lamp beads, to avoid burns.
5. When the lamp is on, it is forbidden to look directly at the lamp beads under any circumstances. Strong light should be used under the guidance of professional lighting engineers. Avoid prolonged exposure to strong light under any circumstances. If eye discomfort, please turn off the lamp in time, suspend use, and see a doctor immediately.
6. If the lamp bead is damaged or deformed by heat, stop using this equipment, and contact the manufacturer, service agent or qualified maintenance personnel to replace the lamp bead in time to avoid accidents.
7. This product is only suitable for use in -10°C to 40°C operating environment and normal humidity environment.
8. Do not use damaged equipment or accessories, and wait for professional maintenance personnel to check and repair to confirm being normal before use.
9. During using, if the casing of this product is broken due to being dropped, squeezed or subjected to strong impact, please do not use it, so as to avoid electric shock injury due to contact with internal electronic components.
10. If an extension cord is required, please use an extension cord with a current rating greater than or equal to that of the equipment. If an extension cord is rated less than the equipment, overheating may result.
11. Some products have long power cords, please place the power cords properly and keep them in a safe place. Avoid contacting the power cord with overheating surfaces, avoid improper placement that could cause pulling damage, or trip on-site personnel. Please use the certified power cord from the original manufacturer. If the product is damaged by using a non-certified power cord, it will not be repaired by our factory.

12. Be sure to unplug equipment from the power outlet before cleaning and repairing. When not in use, do not pull the power cord to unplug the equipment. For normal power-off, please hold both ends of the plug of the equipment with your hands and pull the plug out of power outlet. This equipment needs to be connected to a grounded outlet.

13. This equipment is not waterproof, please keep it dry and do not immerse it in water or other liquids. The equipment should be installed in a dry and ventilated place, and avoid using it in rainy, humid, dusty or overheated environments. Do not place any objects on the lamp or let liquid flow into the lamp to avoid accidents.

14. Do not disassemble the product without permission. If the product fails, it must be checked and repaired by authorized maintenance personnel.
15. Before storing, make sure that the equipment has cooled down completely. For storage, unplug the power cord from the equipment. The equipment should be placed in the carrying case or in a ventilated dry place.
16. Do not place equipment near flammable and volatile solvents such as alcohol and gasoline.
17. Do not use accessories that are not recommended by our factory to avoid fire, electric shock or personal injury.
18. When cleaning, do not wipe it with a damp cloth, please use a dry cloth or a soft cloth to wipe the dirt of the equipment.
19. Please take off the protective cover before using.
20. This product complies with ROHS, CE, KC, PSE and FCC certification, please refer to the relevant national standards for use and operation.
21. The safety instructions are formulated according to the strict testing of the factory, and the design and specifications of the equipment are subject to change without prior notice. For latest product information, please check the GODOX website and view latest electronic instruction.
22. Some products have built-in lithium batteries. Please use specified chargers, and use them within a proper range of the specified voltage and temperature according to the correct operating instructions.
23. Some products are battery powered. Do not use any batteries, power sources or accessories not specified in the instructions for such products. Keep batteries and other accessories out of the reach of children and infants. In the instance that a child or infant swallows a battery or accessory, immediate emergency medical attention is required. If the battery leaks, becomes discolored, deformed, emits smoke, or emits an abnormal odor, remove it immediately. Be careful during removal to avoid burns. Continued use could result in fire, electric shock, or burns. Do not use any deformed or modified batteries. Do not disassemble or modify this product or battery. Do not heat or solder the battery. Keep the battery away from fire or water. Do not incorrectly insert the positive and negative ends of batteries, or mix old and new batteries or batteries of different types together.
24. One-year warranty period, accessories such as consumable batteries, adapters, power cords, etc. are not covered by this warranty.
25. If it is found that the equipment is repaired without authorization, the one-year warranty period will be cancelled and relevant fees will be charged for maintenance.
26. Machine failures caused by non-standard operation are not covered by the warranty.

keep these instructions!

Foreword

Thank you for purchasing this Godox Product!

SL300II has stable light source, high CRI and 8 FX modes. Powerful functions make it suitable for studio shooting, interview lighting, still life shooting and video shooting. Optional RC-A6 remote control can realize wireless group dimming, wireless brightness adjustment and flexible operation.

Main Features:

• With 8 FX modes to simulate various of shooting scene.
• Silent mode: fanless, without noises and interference.
  • Strong power mode: the power can be up to the maximum value.
  • Built-in Godox 2.4G wireless X system & wirelessly adjust parameters.
• With stable light source and 0% to 100% precise light adjustment.
  • With 16 groups and 32 channels wireless control.
• With U-type bracket to adjust different angles easily.
• Bowens-mount enables to install various of accessories.
• Clear LCD display.
  • Excellent heat dissipation.

Warning

△ Always keep this product dry. Do not use in rain or in damp conditions.
Do not disassemble. Should repairs become necessary, this product must be sent to an authorized maintenance center.
⚠️ Keep out of reach of children.
As this product do not have waterproof function, please take measures of waterproof in rainy or damp environment.
Do not use the product in the presence of flammable gases, chemicals and other similar materials.
As this product has built-in lithium battery, do not disassemble, impact, squeeze or put it into fire. If serious bulge occurs, please do not use.
Do not use or store the product if the ambient temperature reads over 40°C.
⚠️ Please charge the product with specialized charger and correctly operate it within the defined voltage and working temperate according to the instruction manual.

Do not look directly at the light source.

Name of Parts

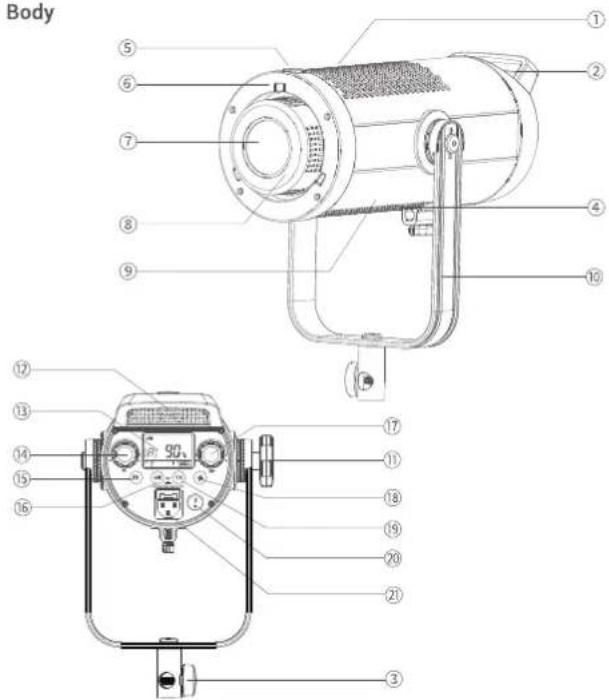

Body

Body ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉟ ㉞ ㉟o

1. Thermovent 1

6.Bowens Mount

11 Bracket Screw 2

16.GR Button

1. Power Input

2. Handle

7.LED Bead

12 Air Inlet

17.DIM Select Dial

Socket & Fuse

1. Bracket Screw 1

2. Protect Cover

13LCD Display

18.Fan Button

Holder

4.Umbrella Input

9.Thermovent 2

14 FX Select Dial

19.CH Button

[Non-Text]

1. Mount Fixing

10.U-type Bracket

15.FX Button

20.Power Switch

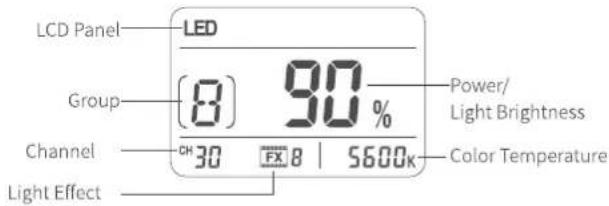

LCD Panel

LCD Panel

LCD Panel LED Group [8] 90 % Channel CH 30 FX 8 | 5600K Light Effect Power/ Light Brightness Color Temperature

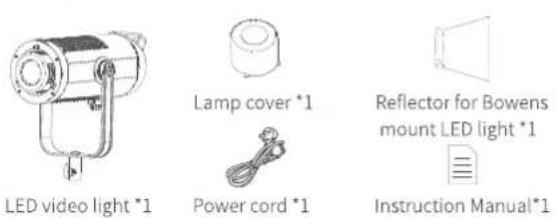

Included Items

Separately Sold Accessories

The product can be used in combination with the following accessories sold separately, so as to achieve best photography effects: RC-A6 remote control, Power Inverter, Softbox, Photographic Umbrella, Light Stand etc.

Line drawings of various lighting equipment including a radio, box, umbrella, and tripod (no text or symbols)

13

Power Connection

Use the power cord to connect the LED light to an AC power source and turn on the power switch.

Operation

1. Mode Selection

1.1 LED silent mode: Short press the fan button to turn on or off the silent mode. The fan button will lighten on when the silent mode is off, while turn off when the silent mode is on. Long press the fan button to enter the brightness range setting interface on mute mode. Short press the fan button to select 100% (brightness adjustment range 0%-100% on mute mode) or 20% (brightness adjustment range 0%-20% on mute mode), and finally long press to exit the setting interface.

LED [8] 90 % CH 30 FX 8 | 5600K

1.2 LED special effects modes: Short press the FX button to enter or exit the light effects. When entering the FX modes, FX icon will be displayed on the LCD panel. Then, turn the FX select dial to choose one mode from the 8 light effects modes to achieve creative shooting.

Display	Fx1	Fx2	Fx3	FX4	FX5	FX6	FX7	Fx8
Scene	Flash1	Flash2	Flash3	Storm1	Storm2	Storm3	TV	Broken bulb

1.3 LED strong power mode: turn on the fan to enter LED strong power mode and the power will up to the maximum value in this mode.

2. Settings

Light Brightness Adjustment

In LED mode, the light brightness of LED light can be adjusted by turning the DMX select dial from 0% to 100%. And the light brightness will be clearly displayed on the LCD Panel.

14

Group GR, Channel CH and ID Setting

GR Setting: Short press GR button to choose group from A, B, C, D, E, F and 0 to 9.

CH Setting: Short press CH button to choose channel from 1 to 32.

ID Setting: Long press GR and CH button to enter ID setting interface. Then, turn the DIM select dial to choose ID from OFF and 01 to 99.

3. Wireless Control

With 2.4G wireless system, SL Series SL300II have receive and control function. Up to multiple groups of LED lights can be controlled. 32 channels and 99 wireless IDs are available with strong anti-interference capability. Please set the channels, groups and IDs of LED light to the same as those of RC-A6 remote control before usage.

Adjusting Channel/Group with the Remote Control

- Press the CH/GR button and the group icon blinks.

Press the"-"+"button to choose a group (A to F, 0 to 9).

- Press the CH/GR button twice and the channel icon blinks.

Press the"-""+"button to choose a channel (1 to 32).

Adjusting ID with the Remote Control

- Double click the CH/GR button and press the "-" + "button to choose ID from OFF or 0 to 99.

Adjusting Light Brightness with the Remote Control

- Press the"-""+ "button to adjust the light brightness.

Adjusting Color Temperature with the Remote Control (The color temperature value of this LED light cannot be adjusted)

- Press the SET button of the remote control and the color temperature icon blinks. Press the "-" + "button to adjust the color temperature.

Remote control reset: press down *-* and *+* button simultaneously to reset.

Setting color temperature range

The factory setting of remote control's color temperature range is 2500-10000K. In order to use remote control conveniently, color temperature range settings are added: when the remote control is off, hold down the SET button and turn it on to enter color temperature adjusting interface. Press CH/GR button to switch the lowest and highest color temperature value and press "-" or "+" button to change the value. Press the SET button to confirm it.

Note: The wireless signal can be received only when the controller of LED light is powered on.

Remote control is available separately.

Technical Data

LED Video Light	SL300II
Power Supply	AC100V-240V (50/60Hz) 3.2A(Max.)
Max Power	320W
Color Temperature	5600±200K
CRI ≈	96
TLCI ≈	97
Light Brightness Range	0%-100%
Operation Temperature	-10°C ~ 40°C
Channel	32
Group	16(A, B, C, D, E, F, 0-9)
ID	01-99
Dimension (not included a standard reflector)	362•194•311mm
Net Weight	3.62Kg

• Product design and specifications are subject to change without notice.

SL30011

Color Temperature - Brightness	Testing Conditions	Illuminance Unit	1m	2m	3m
5600K, brightness 100%	bare lamp	lux	12900	3320	1650
		fc	1200	309	153
	with reflector	lux	99300	20300	8820
		fc	9130	1890	820

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warning

Operating frequency 2413MHz - 2454.5MHz (only receive)

Declaration of Conformity

CODOX Photo Equipment Co., Ltd. hereby declares that this equipment are in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. In accordance with Article 10(2) and Article 10(10), this product is allowed to be used in all EU member states. For more information of DoC, Please click this web link:

https://www.godox.com/eu-declaration-of-conformity/

The device complies with RF specifications when the device used at 8mm from your body

产品保修

Dear customers, as this warranty card is an important certificate to apply for our maintenance service, please fill in the following form in coordination with the seller and safe-keep it. Thank you!

Product Information	Model	Product Code Number
Customer Information	Name	Contact Number
	Address
Seller Information	Name
	Contact Number
	Address
	Date of Sale
Note:

Note: This form shall be sealed by the seller.

Applicable Products

The document applies to the products listed on the Product Maintenance Information (see below for further information). Other products or accessories (e.g. promotional items, giveaways and additional accessories attached, etc.) are not included in this warranty scope.

Warranty Period

The warranty period of products and accessories is implemented according to the relevant Product Maintenance Information. The warranty period is calculated from the day(purchase date) when the product is bought for the first time, And the purchase date is considered as the date registered on the warranty card when buying the product.

How to Get the Maintenance Service

If maintenance service is needed, you can directly contact the product distributor or authorized service institutions. You can also contact the Godox after-sale service call and we will offer you service. When applying for maintenance service, you should provide valid warranty card. If you cannot provide valid warranty card, we may offer you maintenance service once confirmed that the product or accessory is involved in the maintenance scope, but that shall not be considered as our obligation.

Inapplicable Cases

The guarantee and service offered by this document are not applicable in the following cases: ①. The product or accessory has expired its warranty period; ②. Breakage or damage caused by inappropriate usage, maintenance or preservation, such as improper packing, improper usage, improper plugging in/out external equipment, falling off or squeezing by external force, contacting or exposing to the improper temperature, solvent, acid, base, flooding and damp environments, etc; ③. Breakage or damage caused by non-authorized institution or staff in the process of installation, maintenance, alternation, addition and detachment; ④. The original identifying information of product or accessory is modified, alternated, or removed; ⑤. No valid warranty card; ⑥. Breakage or damage caused by using illegally authorized, nonstandard or non-public released software; ⑦. Breakage or damage caused by force majeure or accident; ⑧. Breakage or damage that could not be attributed to the product itself. Once met these situations above, you should seek solutions from the related responsible parties and Godox assumes no responsibility. The damage caused by parts, accessories and software that beyond the warranty period or scope is not included in our maintenance scope. The normal discoloration, abrasion and consumption are not the breakage within the maintenance scope.

Maintenance and Service Support Information

The warranty period and service types of products are implemented according to the following Product Maintenance Information:

Product Type	Name	Maintenance Period(month)	Warranty Service Type
Parts	Circuit Board	12	Customer sends the product to designated site.
	Battery	3	Customer sends the product to designated site.
	Electrical parts e.g.battery charger, power cord, sync cable, etc.	12	Customer sends the product to designated site.
Other Items	Flash tube, modeling lamp, lamp body, lamp cover, locking device, package, etc.	NO	Without warranty.

Godox After-sale Service Call 0755-29609320-8062
