Apocalypse Atom 500.2 PRO - Uncategorized Deaf Bonce - Free user manual and instructions

Product Type	Car Audio Amplifier
Model	Apocalypse Atom 500.2 PRO
Brand	Deaf Bonce
Channels	2
RMS Power (4 Ohms)	250 W x 2
RMS Power (2 Ohms)	500 W x 2
Bridged Power (4 Ohms)	1000 W x 1
Frequency Response	10 Hz - 30 kHz
Input Sensitivity	0.2 V - 6 V
Signal-to-Noise Ratio	> 100 dB
Dimensions (W x H x D)	230 x 50 x 160 mm
Weight	1.5 kg
Power Supply	10-16 V DC
Fuse Rating	40 A
Protection Circuits	Thermal, Short Circuit, Overload
Cooling	Heatsink with Fan
Input Connectors	RCA
Speaker Connectors	Screw terminals
Mounting	Surface mount
Maintenance	Clean with dry cloth; ensure ventilation
Safety	Disconnect battery before installation; use correct fuse
Spare Parts / Repairability	Contact authorized service center for repairs

Frequently Asked Questions - Apocalypse Atom 500.2 PRO Deaf Bonce

What is the RMS power output of the Deaf Bonce Apocalypse Atom 500.2 PRO at 4 ohms?

The amplifier delivers 250 watts RMS per channel at 4 ohms.

Can this amplifier be bridged?

Yes, the amplifier can be bridged to a single channel, providing 1000 watts RMS at 4 ohms.

What type of power supply does the Apocalypse Atom 500.2 PRO require?

It requires a 10-16 V DC power supply with a 40A fuse.

What are the dimensions of the amplifier?

The dimensions are 230 x 50 x 160 mm (width x height x depth).

Does the amplifier have built-in protection circuits?

Yes, it includes protection against thermal overload, short circuits, and overload.

What is the recommended speaker impedance for best performance?

For optimal performance, use speakers with 2 or 4 ohm impedance per channel.

How do I clean and maintain the amplifier?

Clean the exterior with a dry cloth and ensure the ventilation openings are not obstructed.

Can I install the amplifier myself?

Yes, but you should have basic knowledge of car audio installation. Always disconnect the battery before starting.

What type of input connectors does the amplifier have?

It uses RCA input connectors for receiving audio signals from the head unit.

Where can I get spare parts or repair service?

For spare parts or repairs, contact an authorized Deaf Bonce service center.

USER MANUAL Apocalypse Atom 500.2 PRO Deaf Bonce

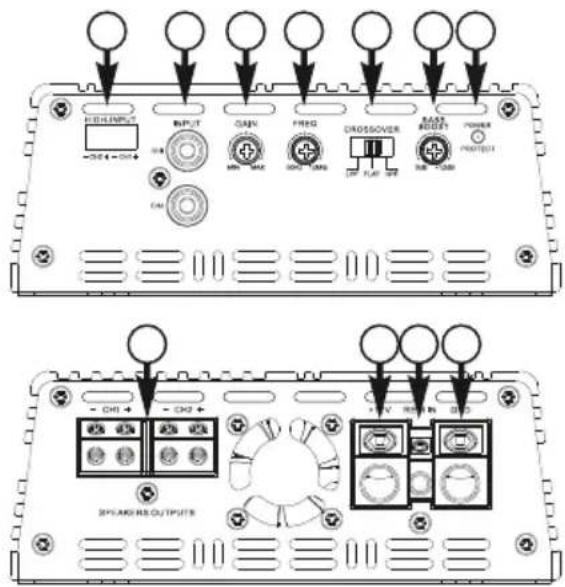

1. Introduction
2. Safety instructions
3. Typical installation sequence
4. Selection of the diameter of power cables and speaker cables
5. Wiring diagrams
6. Connection methods
7. Specifications
8. Possible faults and their solutions
9. Box contents
11. Information on disposal of the electrical and electronic equipment (for the European countries with separate waste collection)

GLOBAL SPONSOR

dbDRA

2. SAFETY INSTRUCTIONS

1. Make sure that your vehicle has a 12V DC electrical system with negative grounding. Before installing the amplifier in cars, trucks or buses, check the battery voltage.
2. Check the state of on-board power supply of your vehicle, the battery and the alternator. When the engine is running, depending on the ambient temperature, the voltage to be outputted by the alternator must be within the range of 14 to 14.7 V. Open circuit voltage (OCV) of the battery must be within the range of 12.5 to 13 V. Make sure that the rated current of the alternator and the battery capacity is enough to provide increased consumption.
   For example, for the power of the amplifier 1000 W, the rated current of the alternator is required at the rate of 1000 W / 13 V = 77 amperes. A more powerful amplifier requires a more powerful alternator as well as an additional battery.
3. Do not place the amplifier in the engine compartment and also in the places exposed to water, moisture, dust or dirt.
4. Never stretch the cables outside of the car and near the moving parts of the car. This can lead to destruction of the insulating layer, short circuit and fire.
5. The amplifier should be installed in areas of the car where the temperature varies from 0 °C (32 °F) to 55 °C (131 °F). The amplifier should be in a place with a good air circulation. The horizontal position of the amplifier is the best way to install.
6. During the operation the amplifier may be heated up to 80 °C (176 °F). Before you touch it, make sure it is not overheated that may be dangerous.
7. To improve the cooling of the amplifier, it is recommended to clean periodically the heatsink from dust. When cleaning the heatsink strong solvents should not be used as they may damage the amplifier. Do not use compressed air, because solids can penetrate inside the amplifier. Cleanings best done with wet towels or cloth.
8. Make sure that the location of the amplifier does not violate the proper operation of mechanical and electrical devices of the vehicle.
9. Make sure that during the installation and connection of the battery, the power cables are not shorted.
10. When performing plumbing, drilling or cutting works with the car, make sure that there is no wiring, brake lines, fuel pipe or other structural elements under the place of work. Follow the safety rules! Use protective glasses and gloves.
11. To protect the wires use rubber gaskets if the wire passes through a hole in the plate, or other similar materials if it lies close to the parts exposed to heat.
12. Make sure that all the cables are fixed over the entire length. Also make sure that their outer protective shell is non-combustible. Use a clamping screw to secure the positive and negative cables next to the appropriate terminals of the amplifier.
13. Select a diameter of the power cable in accordance with the power of the amplifier and the recommendations provided here. Power cables are extremely important since they directly affect the system damping factor and sound quality. The cables to the battery must be in the copper crimp terminals pressed with the help of a hydraulic press, and well fixed to the battery terminals.
14. To avoid accidental damage, keep the amplifier in its original packaging prior to installation.
15. Use high-quality copper speaker and power cables.

CAUTION!!! High sound pressure can damage your health!

Please use the common sense when controlling volume!

3. TYPICAL INSTALLATION SEQUENCE

4. SELECTION OF THE DIAMETER OF POWER CABLES AND SPEAKER CABLES

EN

Selection of the diameter of the power cables

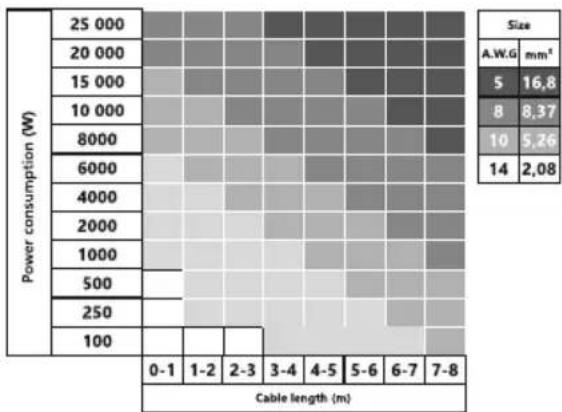

Selection of the diameter of the speaker cables

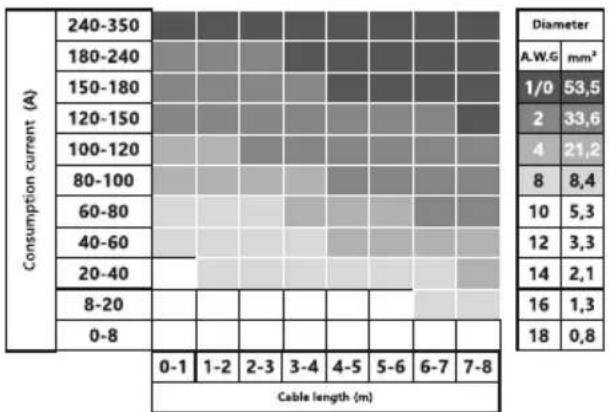

Use the table below to select the desired diameter based on the length and the current consumption.

Use the table below to select the desired diameter based on the length and the power consumption.

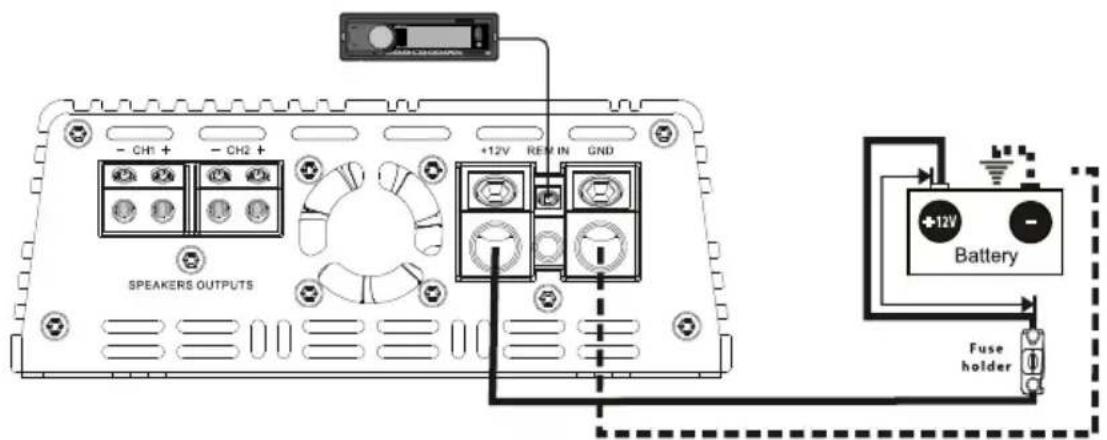

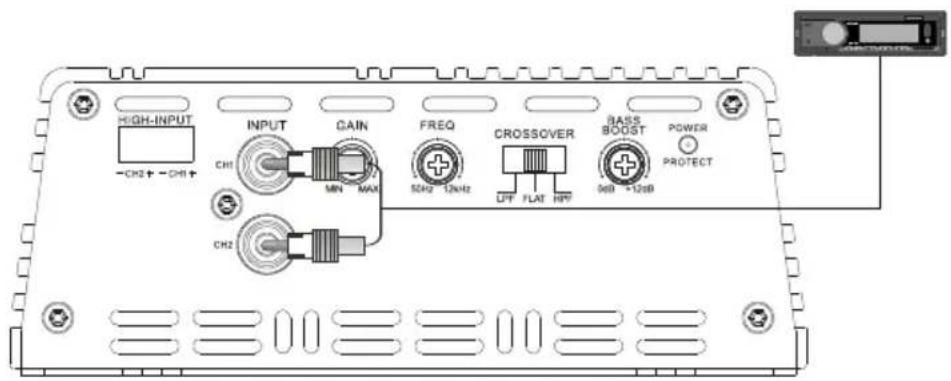

6. CONNECTION METHODS

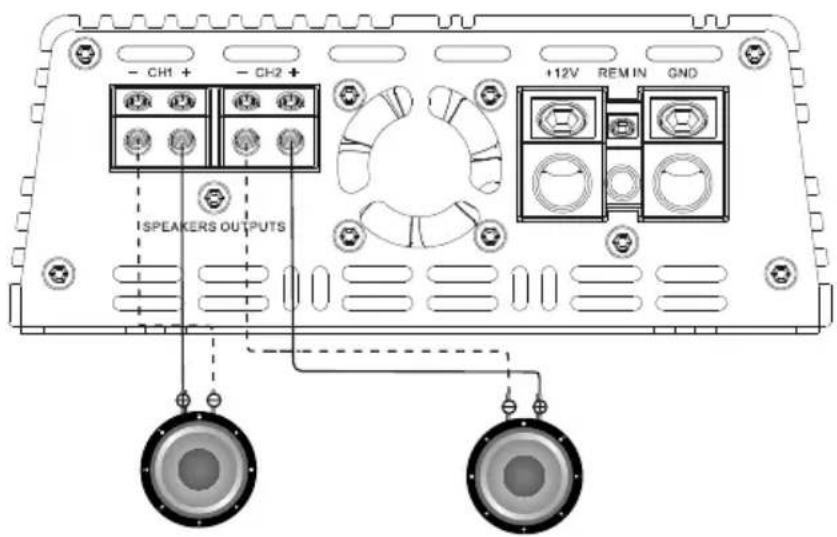

SPEAKERS WIRING DIAGRAMS

In any case do not expose the amplifier to the loads lower than specified by the manufacturer. Use these schematics to calculate load impedance of different connection types.

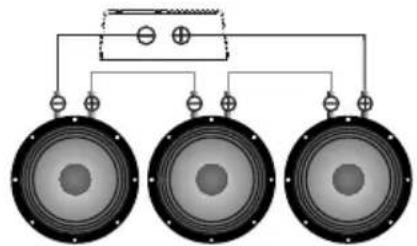

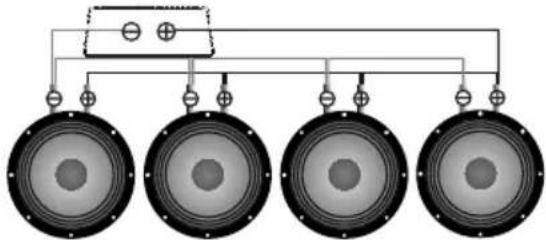

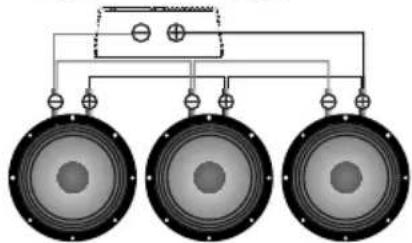

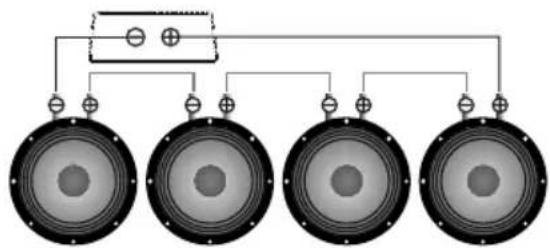

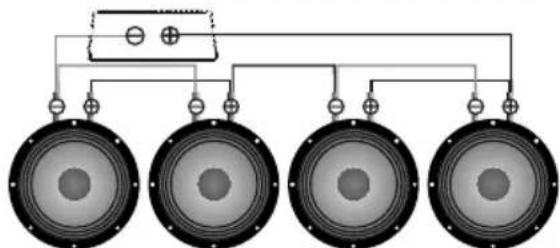

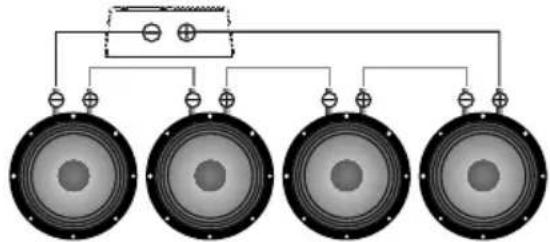

Serial connection of the speakers

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Parallel connection of the speakers

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Mixed connection of the speakers

Pure electrical circuit lines without any symbols

CAUTION!!! High sound pressure can damage your health! Please use the common sense when controlling volume!

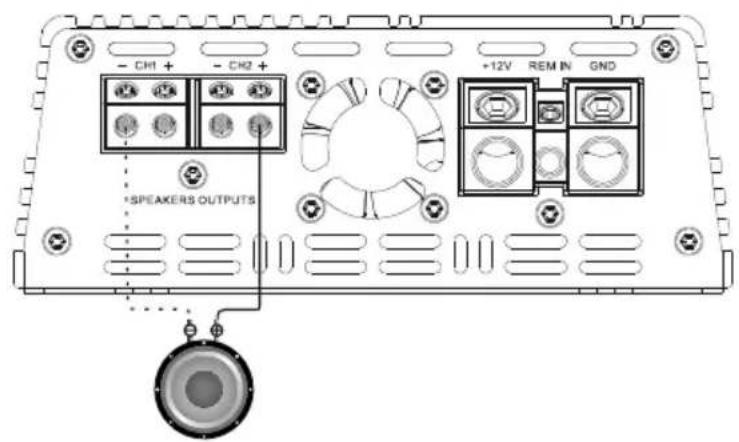

SUBWOOFERS WIRING DIAGRAMS

Serial connection

EN

Total impedance = ΩSub 1 + ΩSub 2 + ΩSub 3 ...

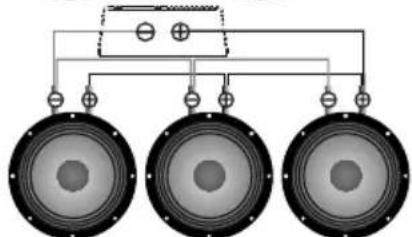

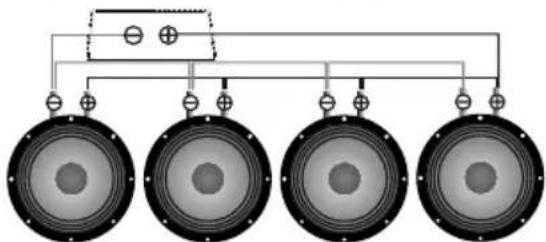

Parallel connection

$$ \text { Total impedance } = \frac {1}{\frac {1}{\Omega \text { Sub } 1} + \frac {1}{\Omega \text { Sub } 2} + \frac {1}{\Omega \text { Sub } 3}} \dots $$

SCHEMES OF ENABLING THE LOAD OF THE SUBWOOFER

In any case do not expose the amplifier to the loads lower than specified by the manufacturer. Use these schematics to calculate load impedance of different connection types.

Voice coils 1+1,2+2,4+4 Ohm

The subwoofer has voice coil D1, D2 or D4.

One subwoofer, coils in series

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
1+1 Ohm	2 Ohm
2+2 Ohm	4 Ohm
4+4 Ohm	8 Ohm

One subwoofer, coils in parallel

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
1+1 Ohm	0.5 Ohm
2+2 Ohm	1 Ohm
4+4 Ohm	2 Ohm

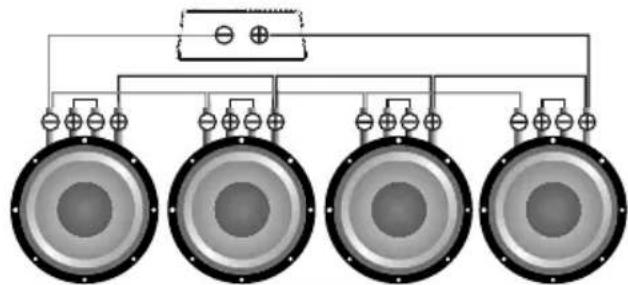

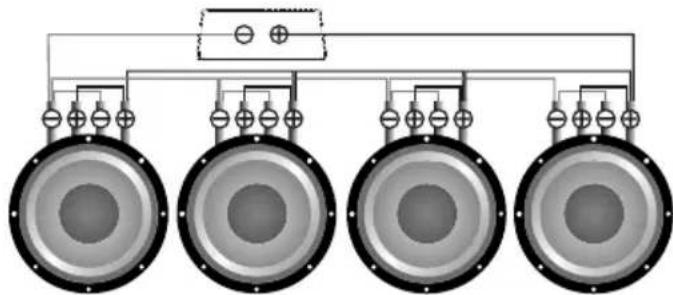

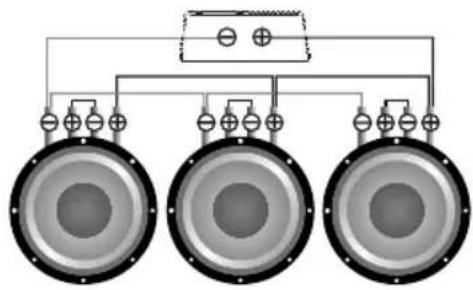

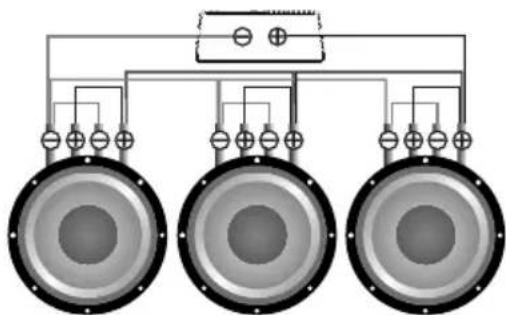

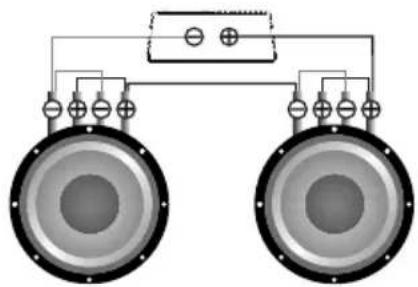

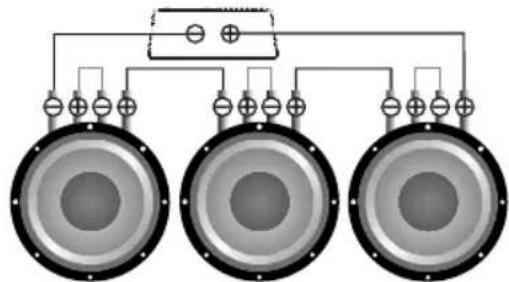

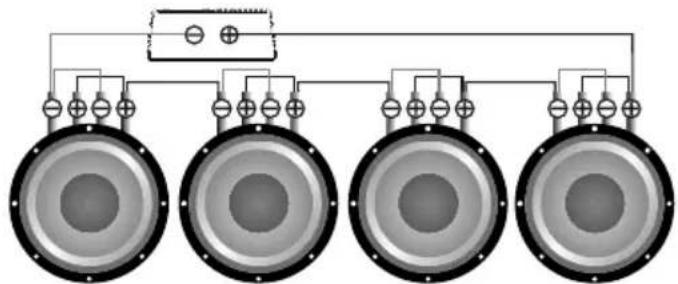

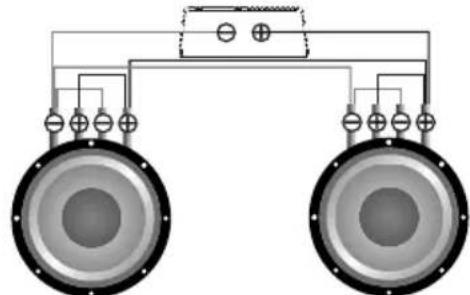

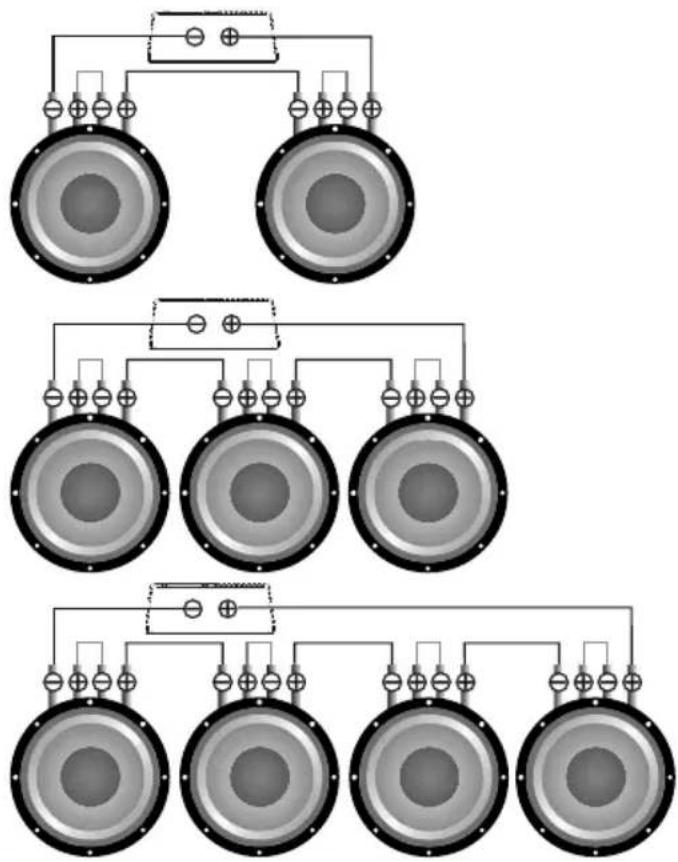

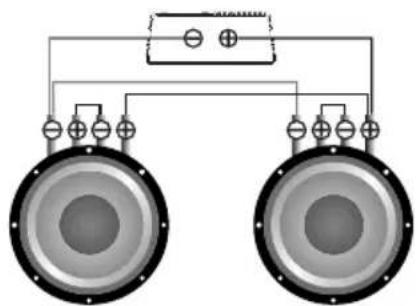

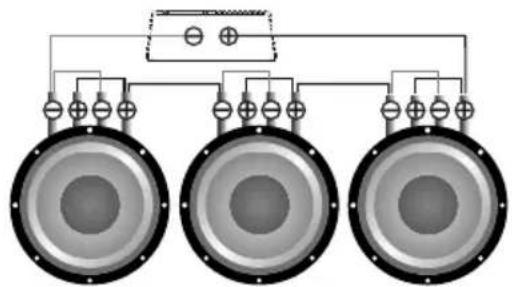

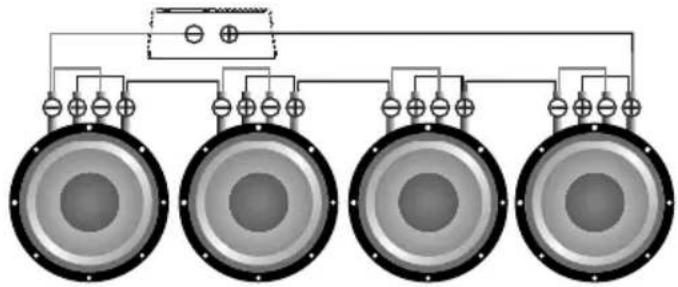

Subwoofers in series, coils in parallel

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
1+1 Ohm	1 Ohm
2+2 Ohm	2 Ohm
4+4 Ohm	4 Ohm

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
1+1 Ohm	1.5 Ohm
2+2 Ohm	3 Ohm
4+4 Ohm	6 Ohm

Voice coils	Total impedance
1+1 Ohm	2 Ohm
2+2 Ohm	4 Ohm
4+4 Ohm	8 Ohm

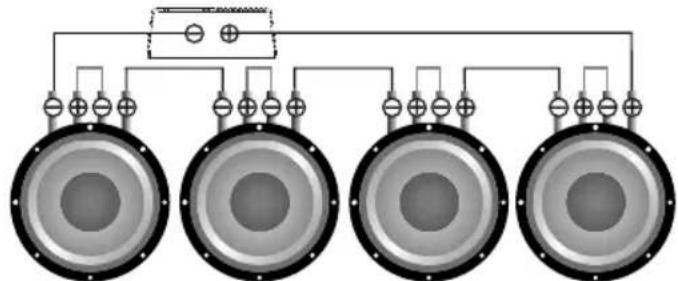

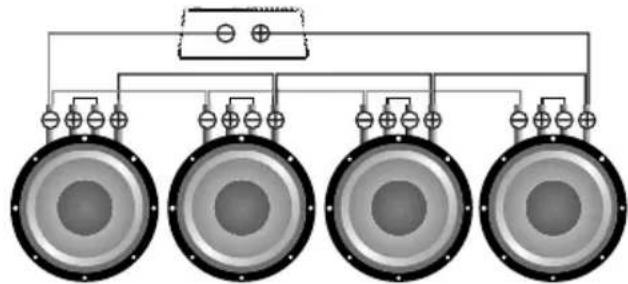

Subwoofers in series, coils in series

Voice coils	Total impedance
1+1 Ohm	4 Ohm
2+2 Ohm	8 Ohm
4+4 Ohm	16 Ohm

Voice coils	Total impedance
1+1 Ohm	6 Ohm
2+2 Ohm	12 Ohm
4+4 Ohm	24 Ohm

Voice coils	Total impedance
1+1 Ohm	8 Ohm
2+2 Ohm	16 Ohm
4+4 Ohm	32 Ohm

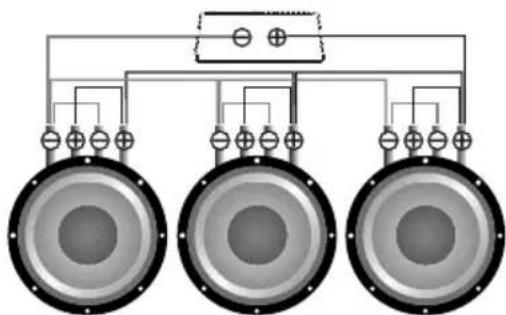

Subwoofers in parallel, coils in series

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
1+1 Ohm	1 Ohm
2+2 Ohm	2 Ohm
4+4 Ohm	4 Ohm

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
1+1 Ohm	0.66 Ohm
2+2 Ohm	1.33 Ohm
4+4 Ohm	2.66 Ohm

Voice coils	Total impedance
1+1 Ohm	0.5 Ohm
2+2 Ohm	1 Ohm
4+4 Ohm	2 Ohm

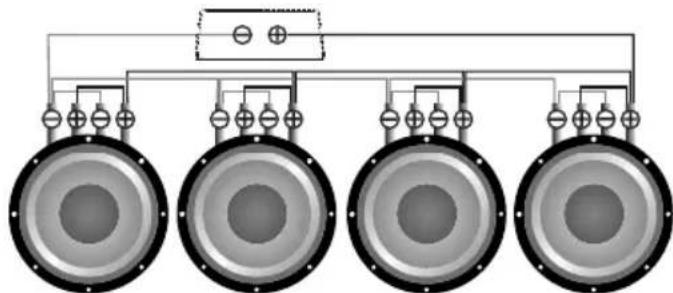

Subwoofers in parallel, coils in parallel

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
1+1 Ohm	0.25 Ohm
2+2 Ohm	0.5 Ohm
4+4 Ohm	1 Ohm

Voice coils	Total impedance
1+1 Ohm	0.16 Ohm
2+2 Ohm	0.33 Ohm
4+4 Ohm	0.66 Ohm

Voice coils	Total impedance
1+1 Ohm	0.125 Ohm
2+2 Ohm	0.25 Ohm
4+4 Ohm	0.5 Ohm

CAUTION!!! High sound pressure can damage your health! Please use the common sense when controlling volume!

7. SPECIFICATIONS

EN

8. POSSIBLE FAULTS AND THEIR SOLUTIONS

Items marked "crisscrossed wheeled bin" are not allowed to be disposed of together with usual household waste. These electrical and electronic products should be disposed of in special reception centers, equipped for recycling such products and components. For information about the location of the nearest disposal / recycling spot and the rules of delivery of waste please contact your local municipal office. Recycling and proper disposal helps to protect the environment and prevent harmful effects on health.

Manufacturer: Ningbo Sound Solution I&E Trading Co., Ltd Made in China
